Manufacturer
Samsung
Model Number
PN58C500G2FXZA
Description
58-inch Class 500 Series 1080p Plasma Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-13325C | ASSY CABLE P;PN58C550,FFC CABLE,550MM,51 |
| BN96-12990E | ASSY COVER P-FRONT;PC500 58,PMMA(CLEAR)+ |
| BN96-13006B | ASSY COVER P-REAR;PC540/PC550 58,PCM,T0. |
| BN96-14078A | ASSY HOLDER P-WALL;58PC550,ABS HB,BLK(BK |
|
|
ASSY PDP MODULE P;S58FH-YB05,PL58FF022A, |

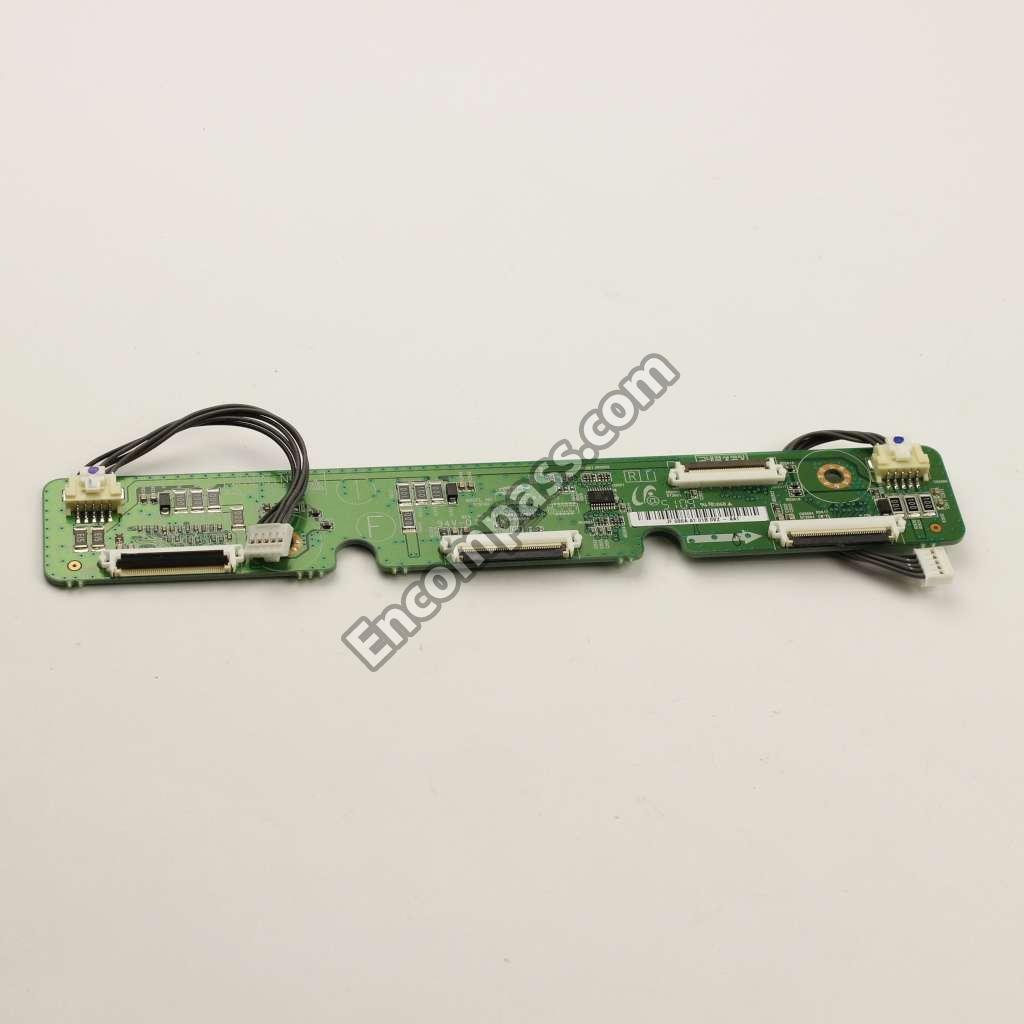

| BN96-12686A | ASSY PDP P-E-BUFFER BOARD;S58FH-YB04,PL5 |
|
|
ASSY PDP P-F-BUFFER BOARD;S58FH-YB04,PL5 |
| BN96-12688A | ASSY PDP P-G-BUFFER BOARD;S58FH-YB04,PL5 |
|
|

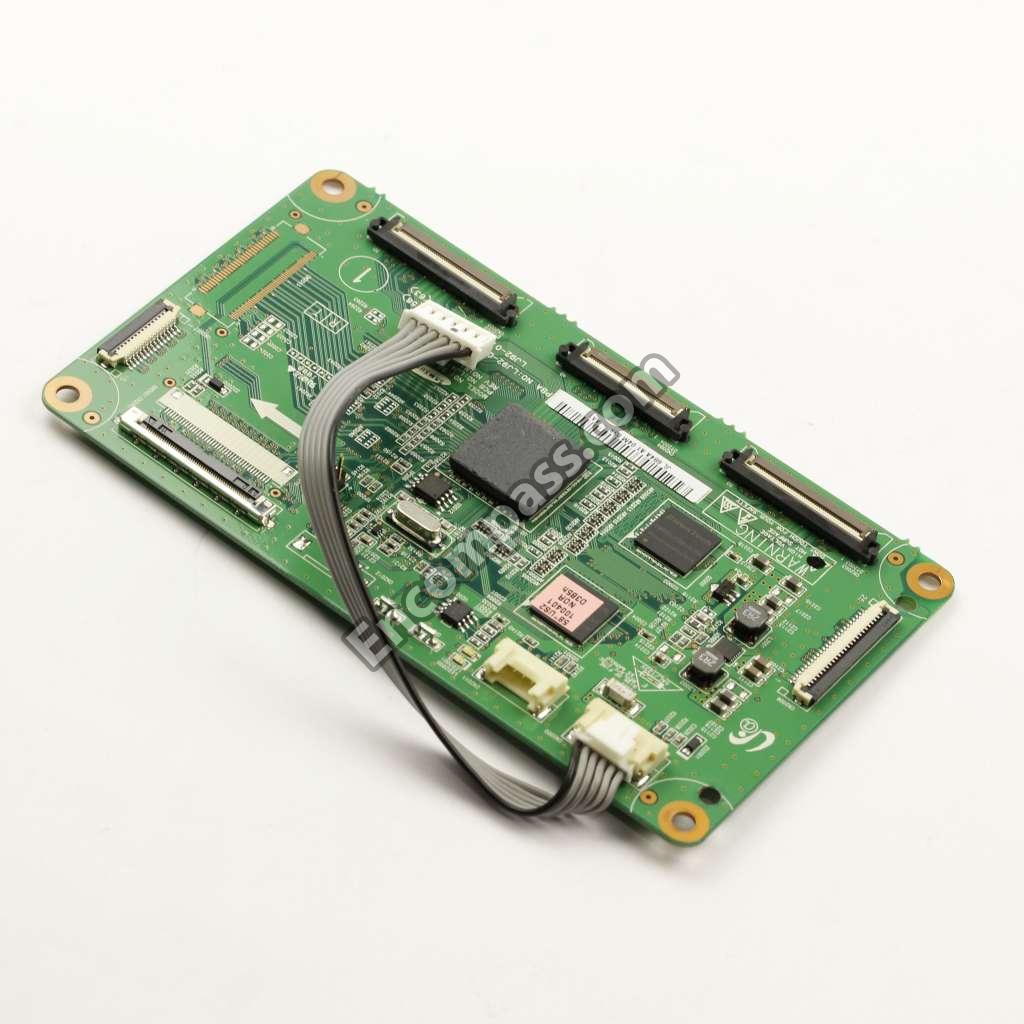

ASSY PDP P-LOGIC MAIN BOARD;S58FH-YB04,P |
| BN96-12681A | ASSY PDP P-X BUFFER BOARD;S58FH-YB04,PL |
|
|

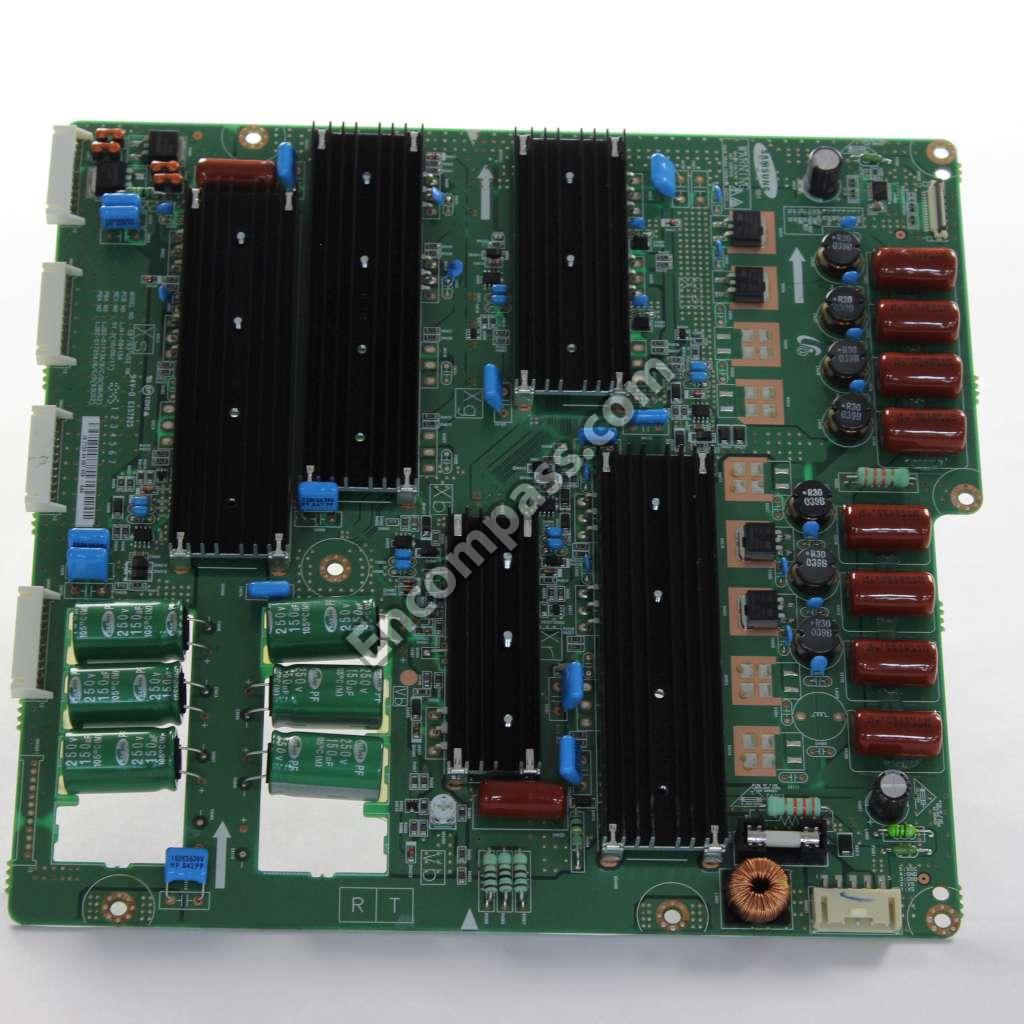

ASSY PDP P-X MAIN BOARD;S58FH-YB04,PL58F |
|
|
ASSY PDP P-Y BUFFER LOWER BOARD;S58FH-YB |

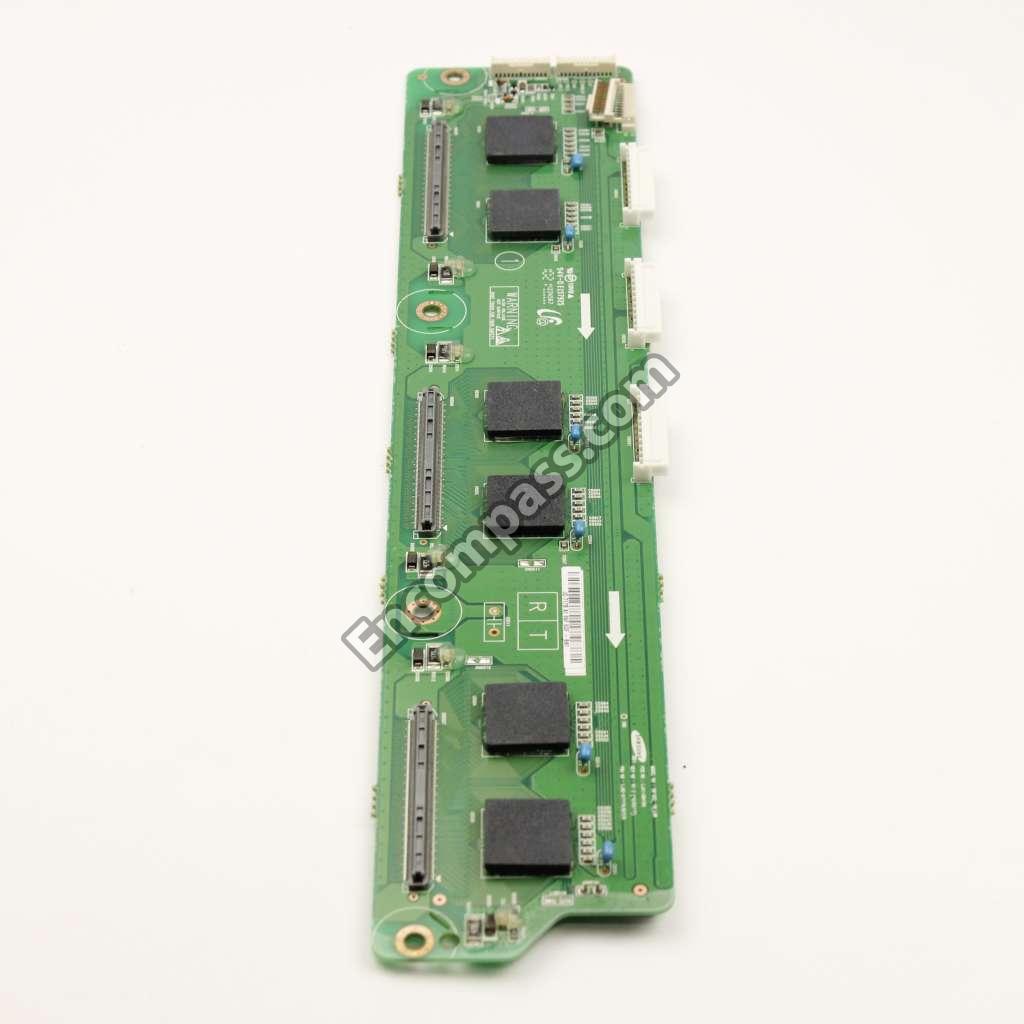

| BN96-12683A | ASSY PDP P-Y BUFFER UPPER BOARD;S58FH-YB |
|
|

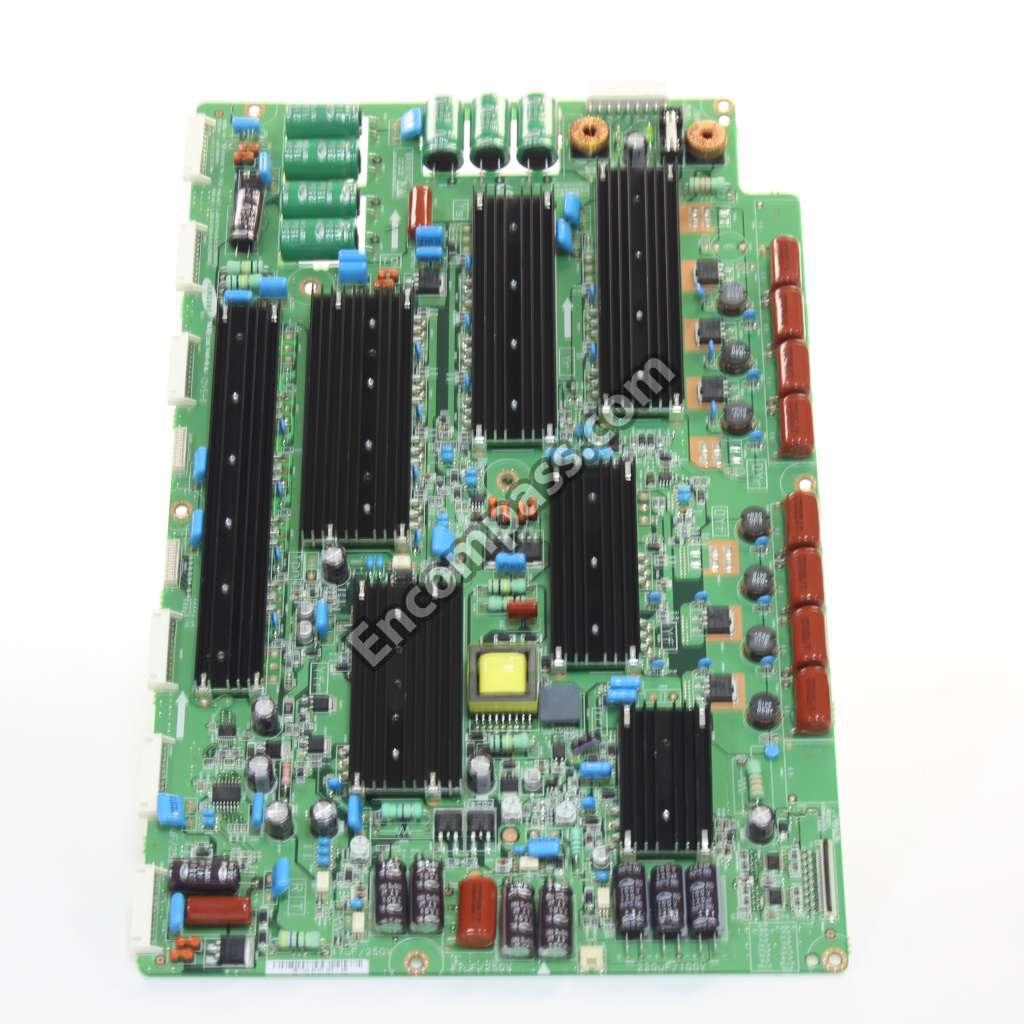

ASSY PDP P-Y MAIN BOARD;S58FH-YB04,PL58 |
| BN96-12833A | ASSY SPEAKER P;8OHM,4PIN,15W,L:520 R:100 |
| BN96-13496F | ASSY STAND P-BASE;PC550 58,GLASS,T8.0,2C |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
|
|
BEAD-SMD;26OHM,1608,TP |
| 3301-001186 | BEAD-SMD;600OHM,3216,2500MA,TP,553OHM/93 |
| 3301-001236 | BEAD-SMD;60OHM,1608 |
| 2203-000426 | C-CER,CHIP;0.018NF,5%,50V,C0G,TP,1608 |
| 2203-000041 | C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608 |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
|
|
C-CER,CHIP;10000NF,10%,25V,X5R,TP,3216 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
|
|

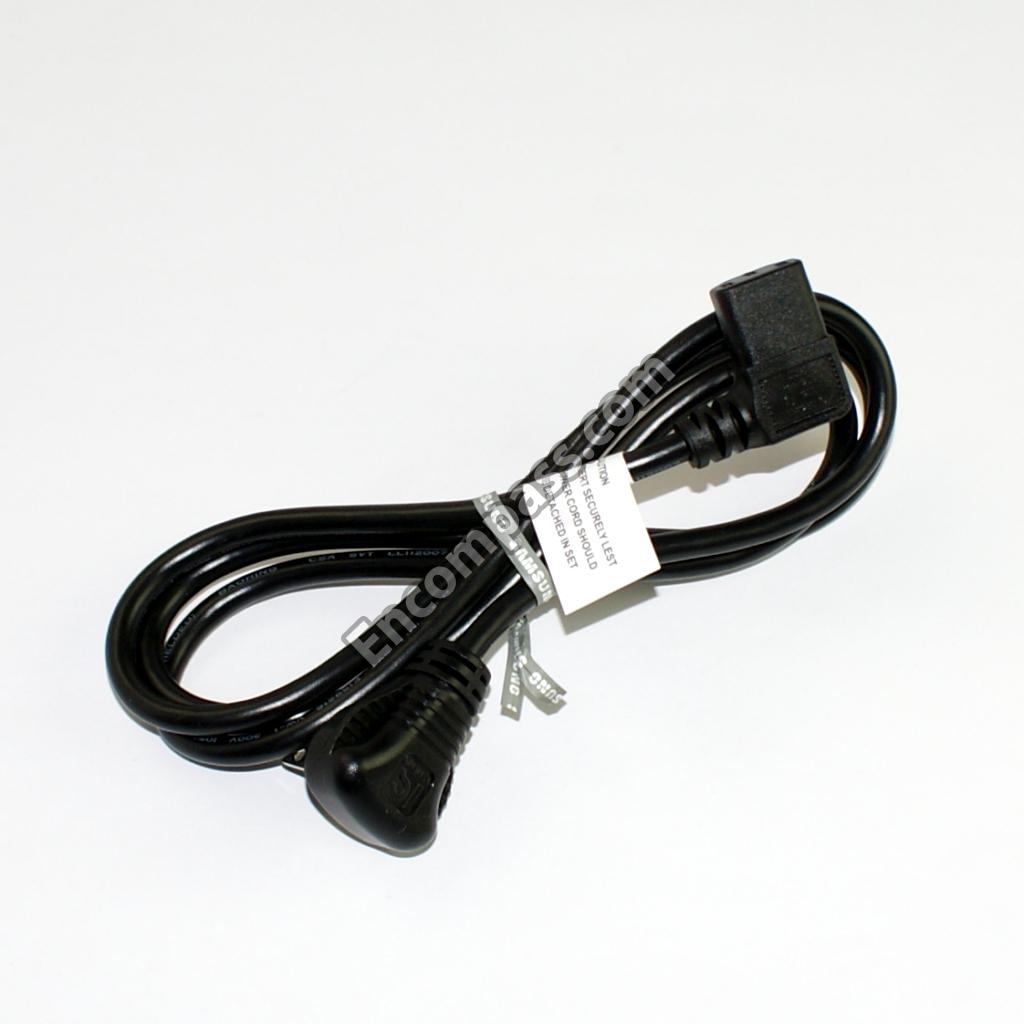

CBF-POWER CORD;DT,US,NAME 5-15P,IEC60320 |
|
|
CLOTH-CLEAN;CLOTH,SEA BLUE,TOC |
| 3701-001480 | CONNECTOR-DSUB;15P,3R,FEMAIL,STAMPED PIN |
| 3708-002797 | CONNECTOR-FPC/FFC/PIC;51P,0.50MM,SMD,AU, |
| 3701-001693 | CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE-D |
| 3707-001096 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| BN63-06476A | COVER-BOTTOM;58PC550,HIPS,V0,V1,BLK(BK-5 |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-004004 | CRYSTAL-SMD;20.25MHZ,20PPM,28-AAN,13PF,2 |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 |
| 0505-002560 | FET-SILICON;AO6415,P,-20V,-3.3A,0.15OHM, |
| 2901-001616 | FILTER-EMI AC LINE;250V,10A,0.1UF/2000PF |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
|
|

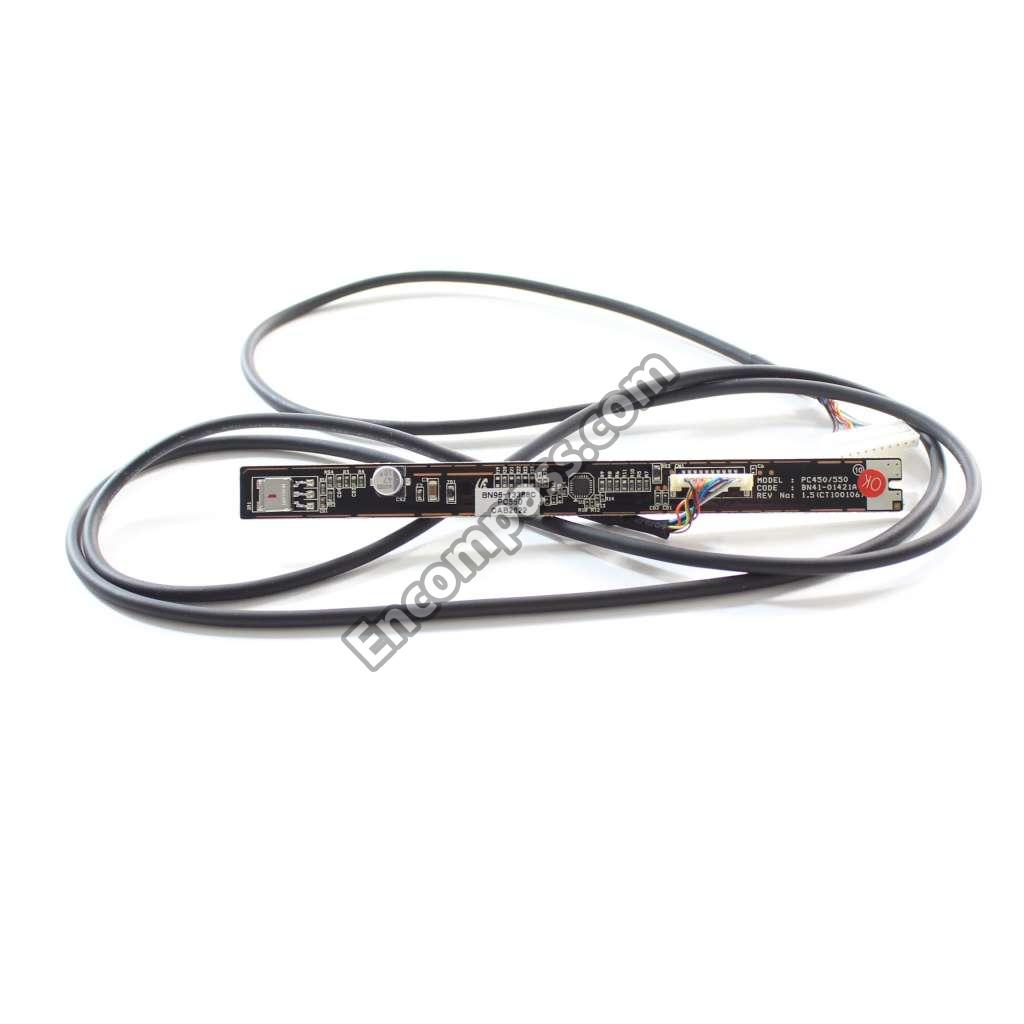

FUNCTION&IR BOARD P-TOUCH ;PN58C550, |
| BN96-13635A | GUIDE-STAND NECK;58PC550,PC,CLEAR,TR-302 |
| BN61-06109A | GUIDE-STAND;58PC550,PC,G/F 20%,V2,BK0007 |
| 3711-005616 | HEADER-BOARD TO CABLE;BOX,10P,1R,2MM,SMD |
| 3711-007247 | HEADER-BOARD TO CABLE;BOX,12P,1R,2MM,SMD |
| 3711-006715 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
| BN61-05596A | HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, |
| 1201-002849 | IC-AUDIO AMP;DRV603,TSSOP,14P,5X4.4MM,DU |
| 1203-005559 | IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1203-006127 | IC-DC/DC CONVERTER;MP28253EL,QFN,14P,3X4 |
| 1203-006104 | IC-DC/DC CONVERTER;MP8707EN,SOIC8E,8P,4. |
| 1204-003089 | IC-DEMODULATOR;DRX39XYJ,PQFN,64P,9X9X0.8 |
| 1103-000129 | IC-EEPROM;24C02,2KBIT,256X8,SOP,8P,5X4MM |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 1006-001266 | IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI |
| 1107-001940 | IC-NAND FLASH;KFG1G16U2D-HIB6,1GBIT,64MX |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-002835 | IC-POSI.FIXED REG.;7805,3P,6.6X6.1MM,PLA |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006337 | IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- |
| 1203-002898 | IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. |
| 1201-002993 | IC-POWER AMP;TAS5715,HTQFP,48P,7X7MM,DUA |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 0904-002554 | IC-USC;AU6256-JBF,QFN,28P,5X5MM,12MHZ,TP |
| 1204-003096 | IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P |
| 1001-001573 | IC-VIDEO SWITCH;SII9287BCNUTR,QFN,72P,10 |
| 1203-006288 | IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-000403 | INDUCTOR-SMD;22UH,10%,3225,1.15OHM,210MA |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 3722-003058 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003038 | JACK-PHONE;7P/1C W/L,SN,BLK |
| 3722-003015 | JACK-PIN;10P,NI,RED/WHT/RED/BLU/GRN,STRA |
| 3722-003054 | JACK-PIN;3P/SHIELD(DOWN) W/L,NI,RED/WHT/ |
| 3722-003037 | JACK-USB;4P/1C W/L,AU/NI,BLK,ANGLE,A |
| 3722-003088 | JACK-USB;4P/1C,NI/PD/AU/SN,GRY,STRAIGHT, |
| BN39-01285C | LEAD CONNECTOR;PS42B450B1,FALT CONNECTOR |
| BN96-14889A | MAIN BOARD ;BN94-03262Y, PN58C500G2F |
| BN44-00332A | POWER SUPPLY CBA TV;PZ-8,AC/DC,AC100~240V,50/6 |
| 2007-008426 | R-CHIP;12.4KOHM,1%,1/10W,TP,1608 |
| 2007-000455 | R-CHIP;18KOHM,1%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000669 | R-CHIP;2KOHM,1%,1/10W,TP,1608 |
| 2007-007587 | R-CHIP;3.6KOHM,1%,1/16W,TP,1005 |
| 2007-000755 | R-CHIP;330KOHM,1%,1/10W,TP,1608 |
| 2007-000903 | R-CHIP;430OHM,1%,1/10W,TP,1608 |
| 2007-000107 | R-CHIP;470KOHM,5%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001237 | R-CHIP;910OHM,1%,1/10W,TP,1608 |
| 2011-001427 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0 |
| 2011-001589 | R-NETWORK;0OHM,5%,1/16W,L,CHIP-V,4P,TP,1 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001519 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|
REMOCON;TM1050,SAMSUNG,20PIN SINGLE,48,3 |
|
|

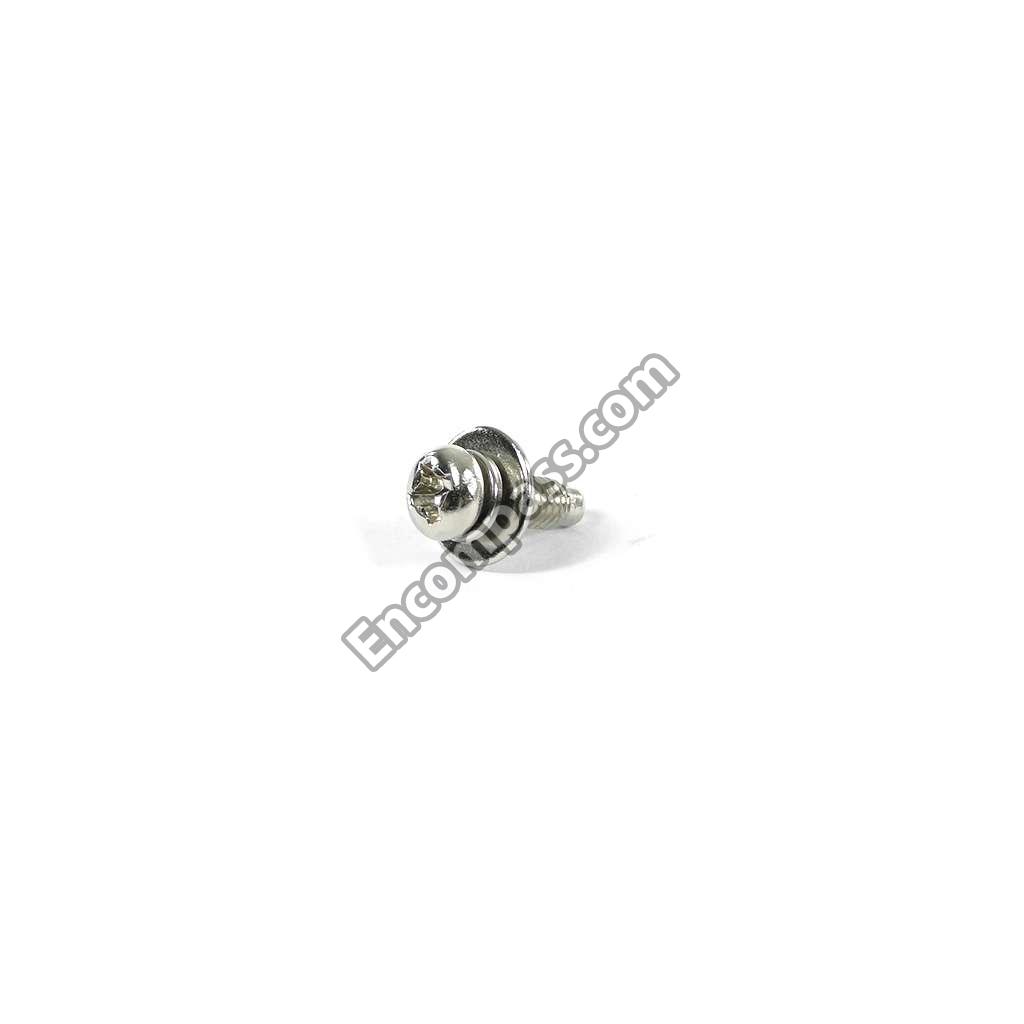

SCREW-MACHINE;PH,+,WSP,M3,L10,NI PLT,SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER;DTVS20CVL081A,NTSC,191CH,45.75MHZ, |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
