Manufacturer
Samsung
Model Number
PN59D7000FFXZA
Description
59-inch Plasma 7000 Series Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY BOARD P-RF MODULE;BLUETOOTH MODULE, |
| BN96-18260E | ASSY BOARD P-TOUCH FUNCTION&IR;PN59D7000 |
| BN96-16832A | ASSY BRACKET P-STAND LINK;PD6500 59,SECC |
| BN96-16830A | ASSY BRACKET P-WALL;PD6500 51,SECC,T0.2 |
|
|

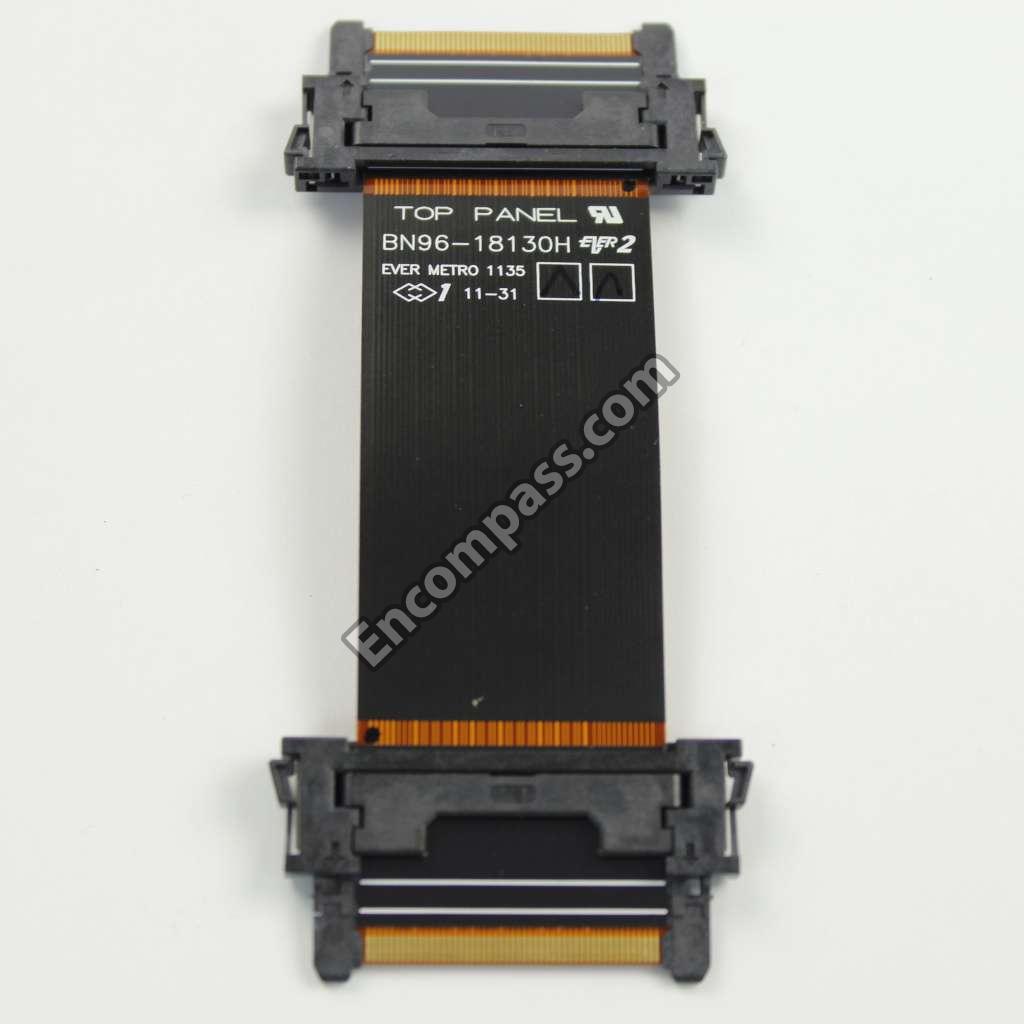

ASSY CABLE P-FPCB LVDS CABLE;PDP U/SLIM, |
| BN96-16810A | ASSY COVER P-FRONT;PD7000 59,MABS(CLEAR) |
| BN96-16826A | ASSY COVER P-REAR;PD6500 59,PCM,T0.45,BK |
| BN96-18641A | ASSY GUIDE P-NECK;PD550,560 59",PETG,80 |
|
|
ASSY PDP MODULE P;S58FH-YD05,PP58FF047A, |
| BN96-16532A | ASSY PDP P-E-BUFFER BOARD;S58FH-YB06,PL5 |
| BN96-16533A | ASSY PDP P-F-BUFFER BOARD;S58FH-YB06,PL5 |
| BN96-16534A | ASSY PDP P-G-BUFFER BOARD;S58FH-YB06,PL5 |
|
|

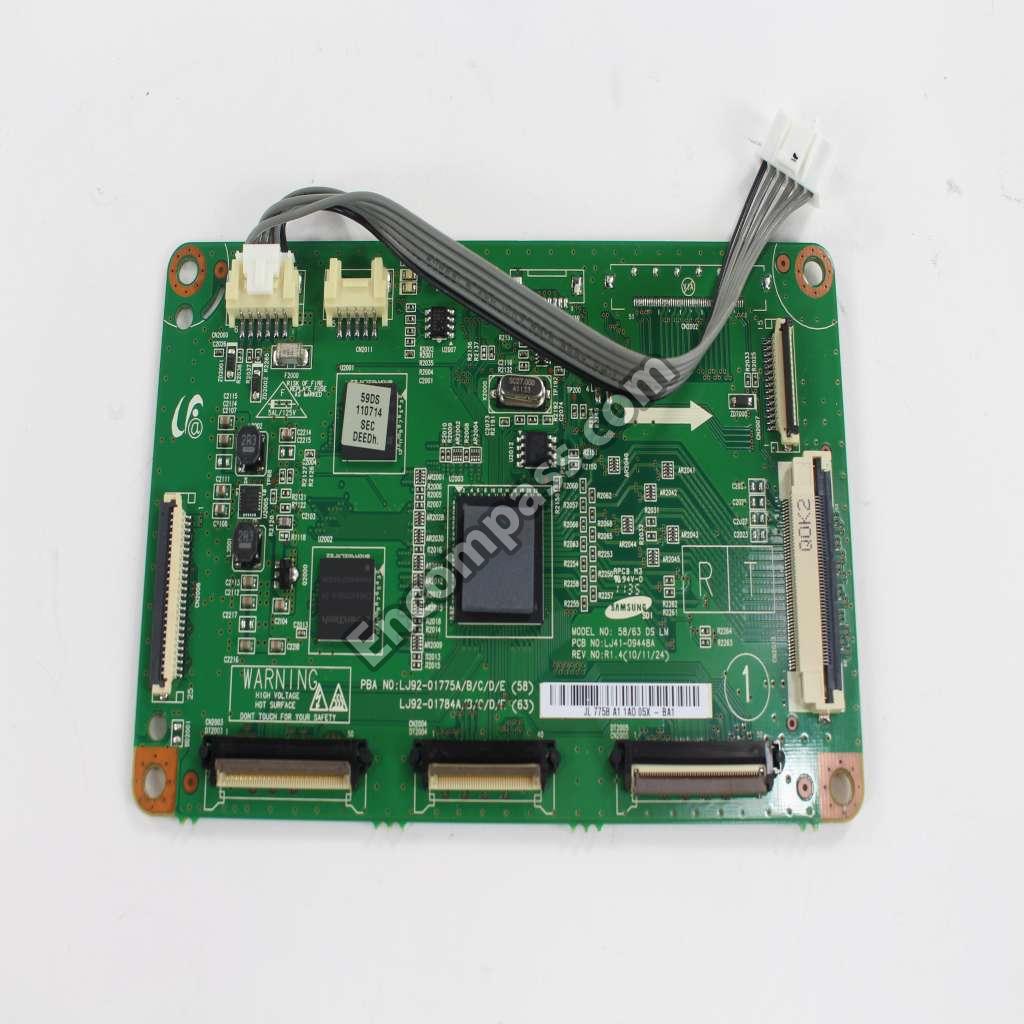

ASSY PDP P-LOGIC BOARD;S58FH-YB06,PL58FF |
| BN96-16537A | ASSY PDP P-X-BUFFER BOARD;S58FH-YB06,PL5 |
|
|

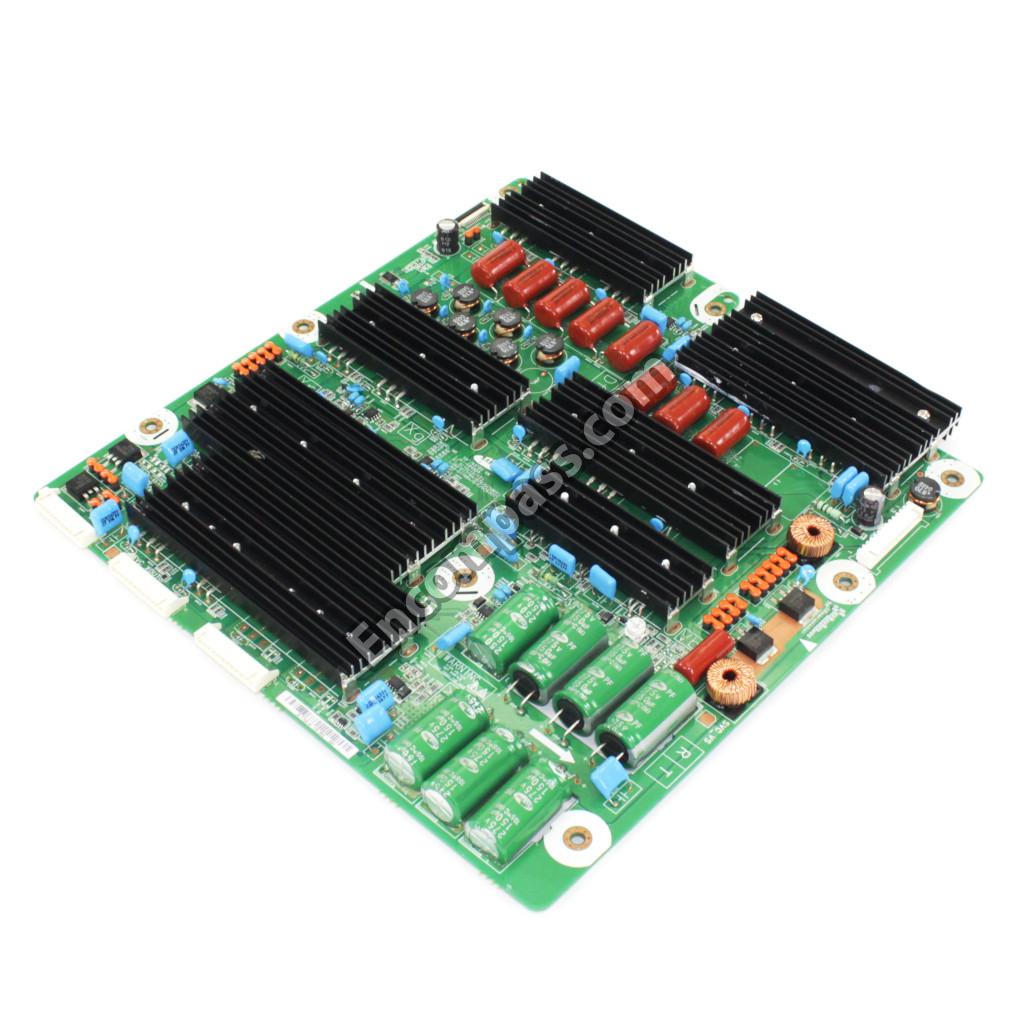

ASSY PDP P-X-MAIN BOARD;S58FH-YB06,PL58F |
|
|

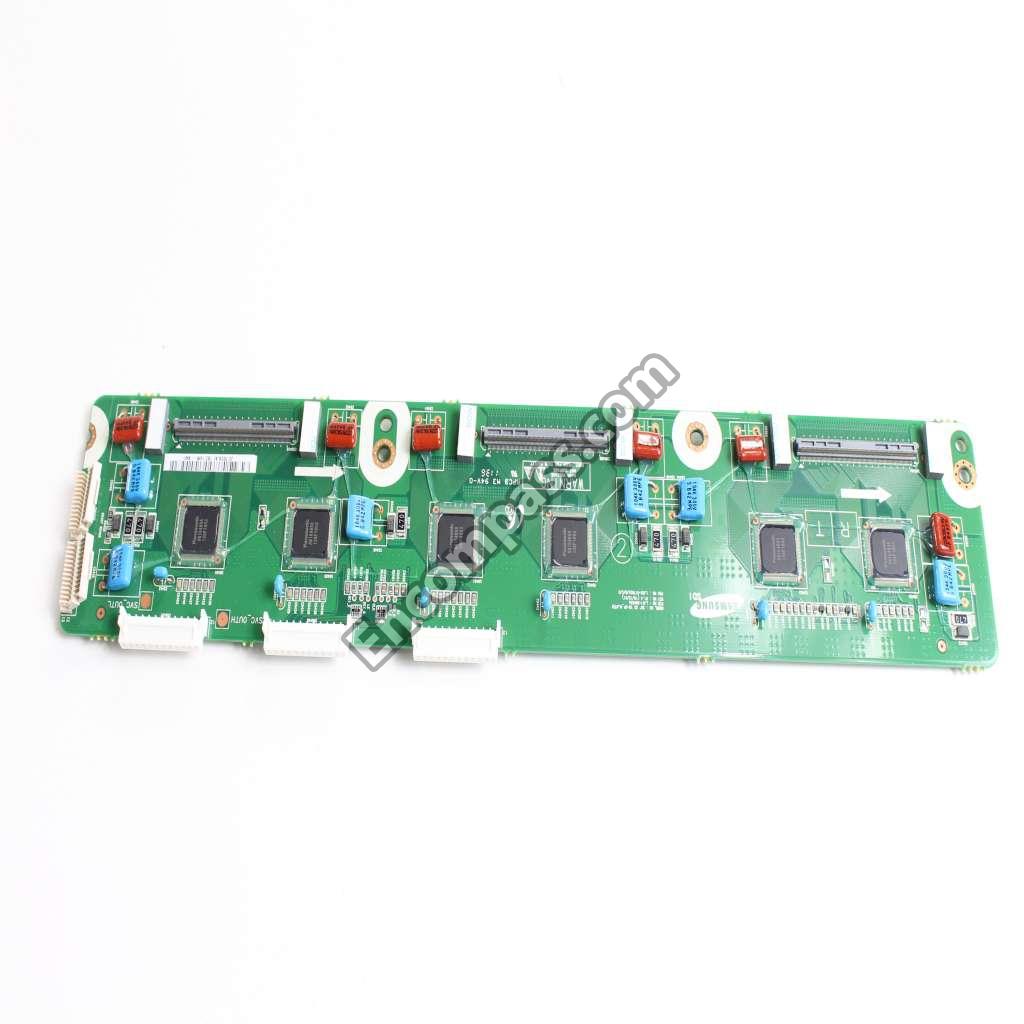

ASSY PDP P-Y SCAN LOWER BOARD;S58FH-YB06 |
|
|
ASSY PDP P-Y SCAN UPPER BOARD;S58FH-YB06 |

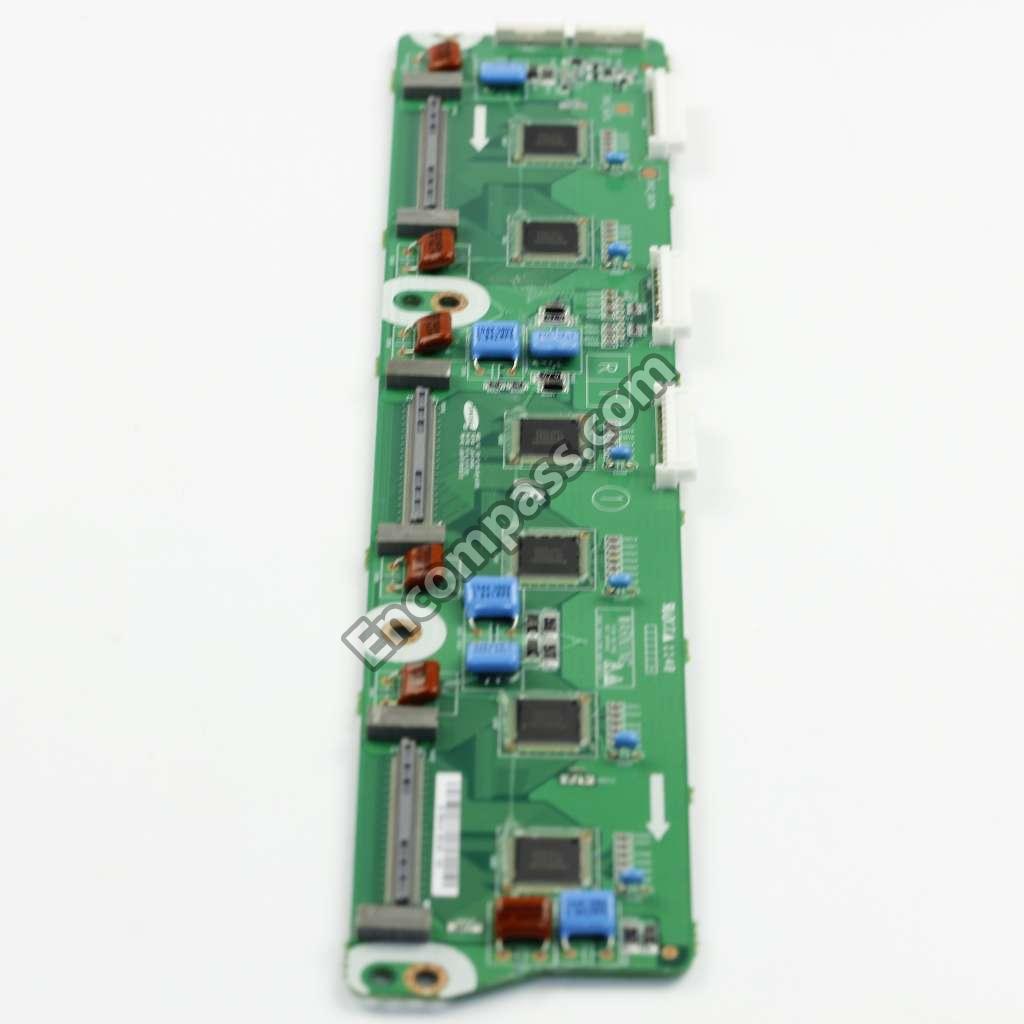

| BN96-16536A | ASSY PDP P-Y-MAIN BOARD;S58FH-YB06,PL58F |
|
|

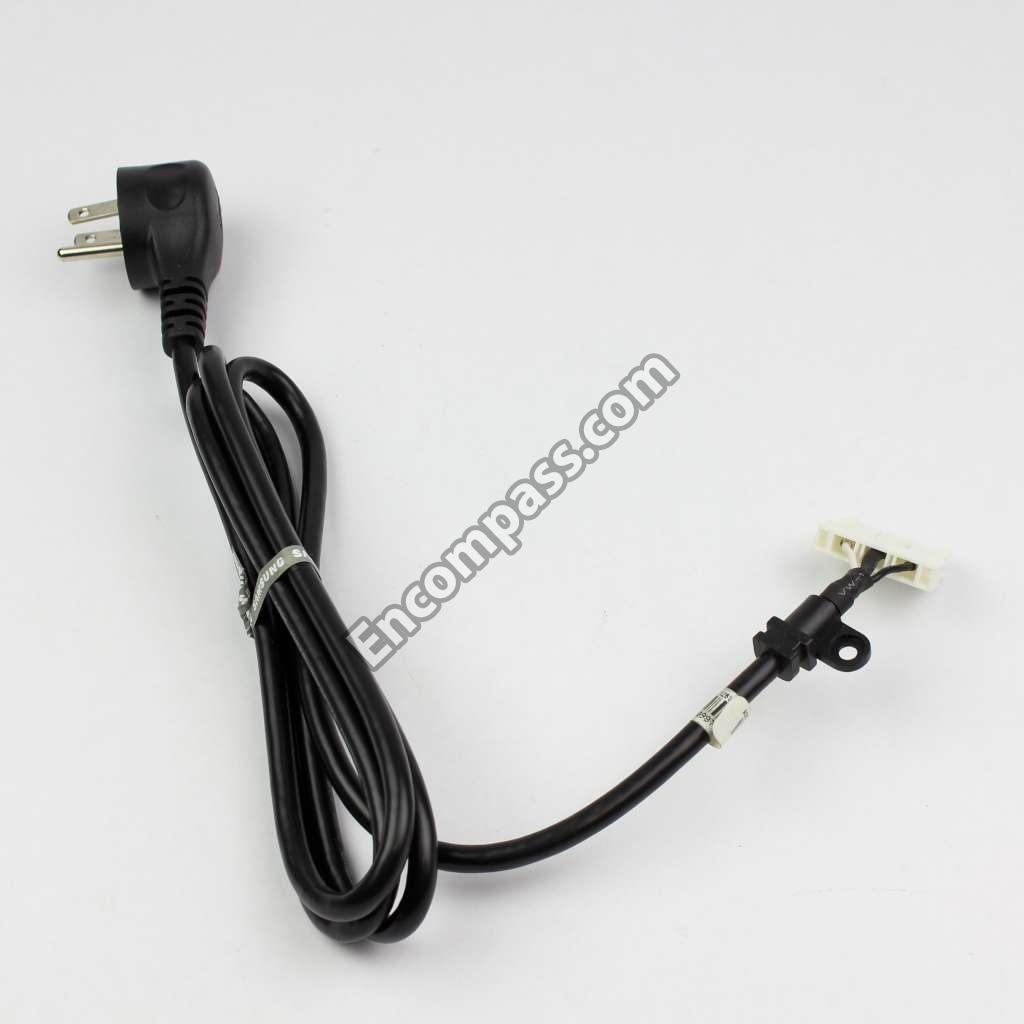

ASSY POWER CORD;10A/125V, UL/CSA,LP031LR |
|
|
ASSY SPEAKER P;6OHM,4PIN,15W,PDP SLIM 59 |
|
|

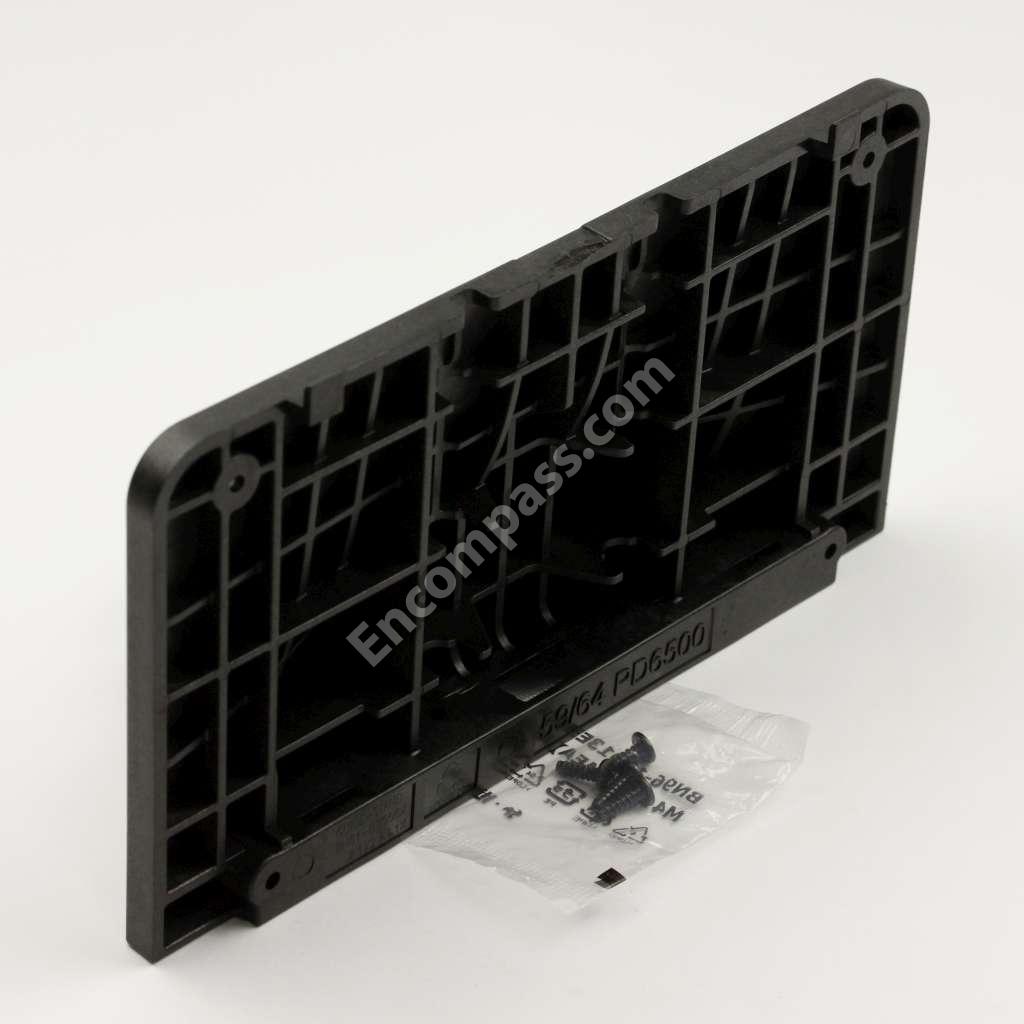

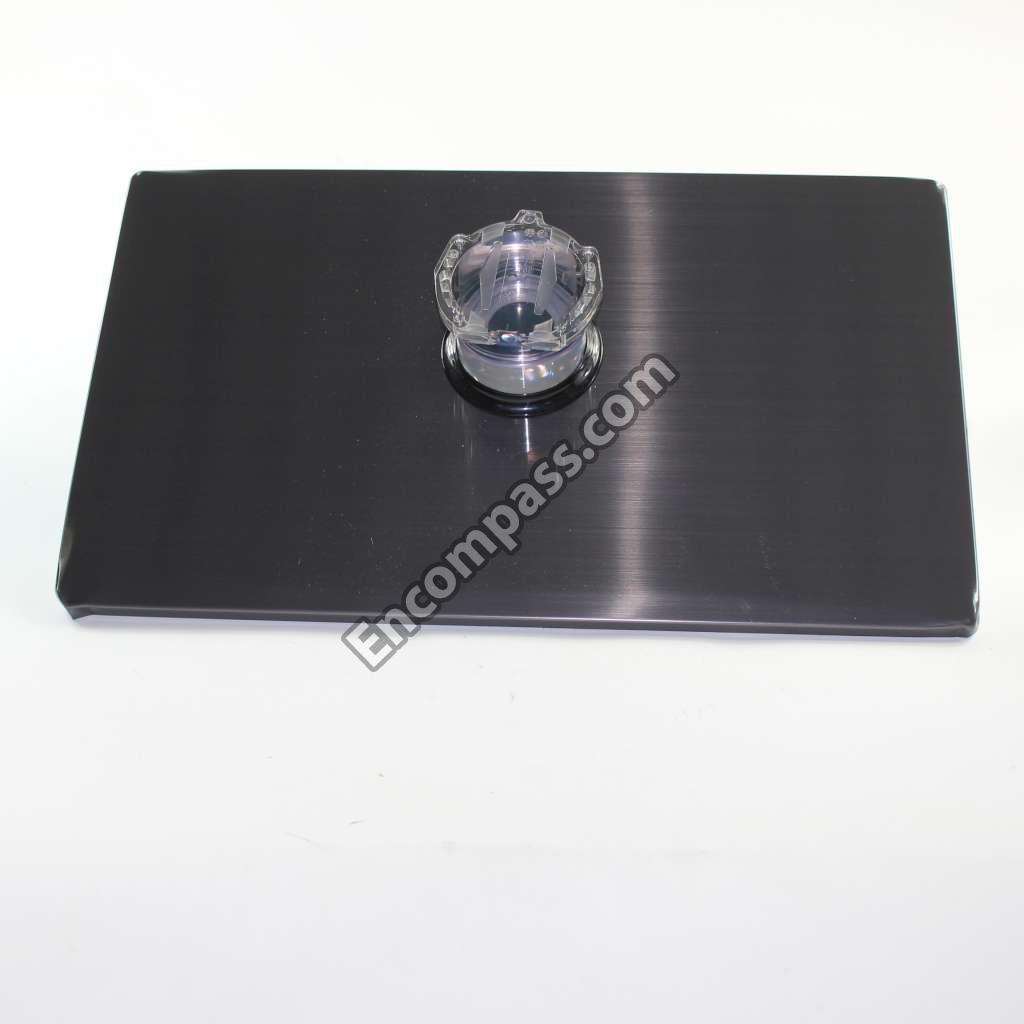

ASSY STAND P-BASE;PD6500 59,SUS STAND |
|
|
ASSY STAND P-GUIDE;UD6500 32,4LEG STAND |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-003039 | C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100 |
| 2203-001851 | C-CER,CHIP;0.016NF,5%,50V,NP0,TP,1608 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
|
|

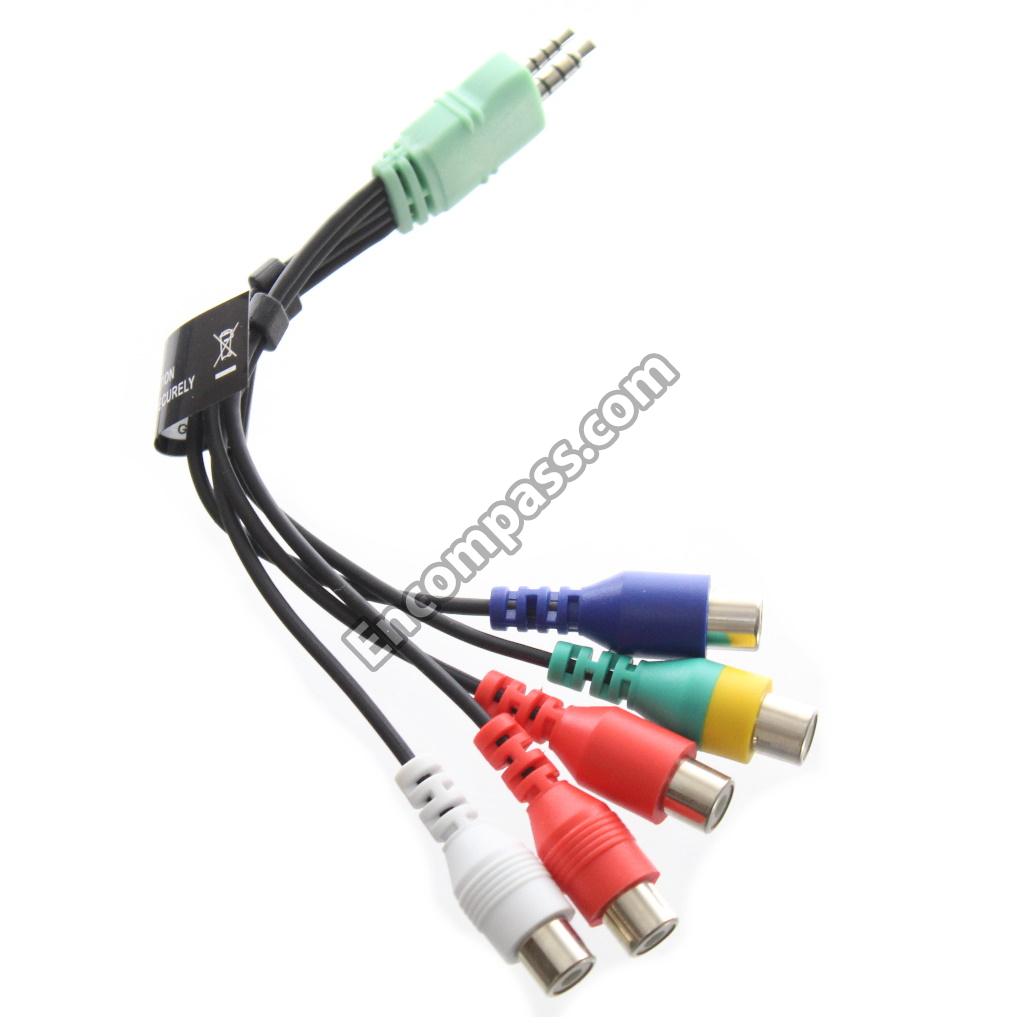

CBF SIGNAL;COMPONENT GENDER / UD8000,2P, |
| 3701-001724 | CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI |
| 3708-002909 | CONNECTOR-FPC/FFC/PIC;82P,0.5MM,SMD-S,AU |
| 3701-001293 | CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
| 3707-001104 | CONNECTOR-OPTICAL;SMD-A(ULTRA SLIM),SPDI |
|
|

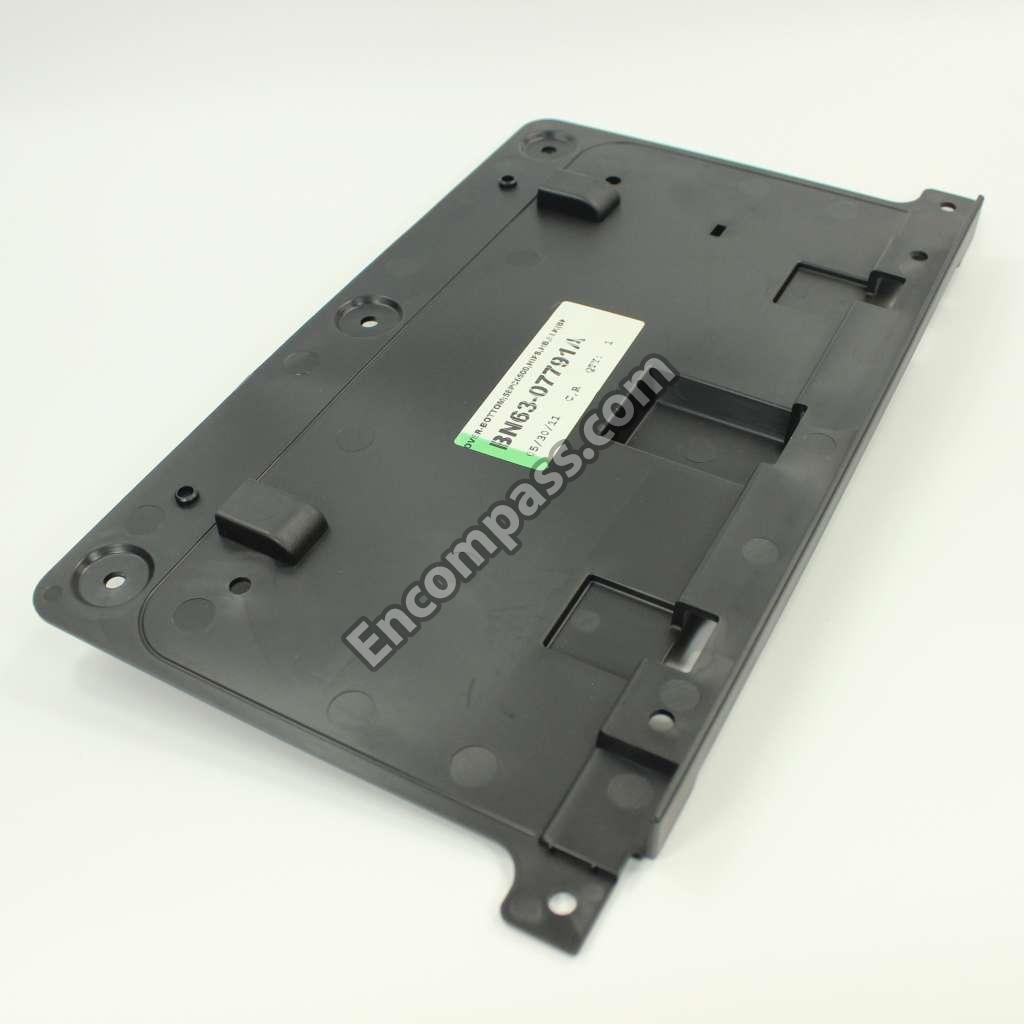

COVER-BOTTOM;58PC6500,HIPS,HB,BLK(BK-500 |
| BN63-02183F | COVER-SHEET;RHCM,PE VINYL,T0.05,900MM,20 |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
|
|

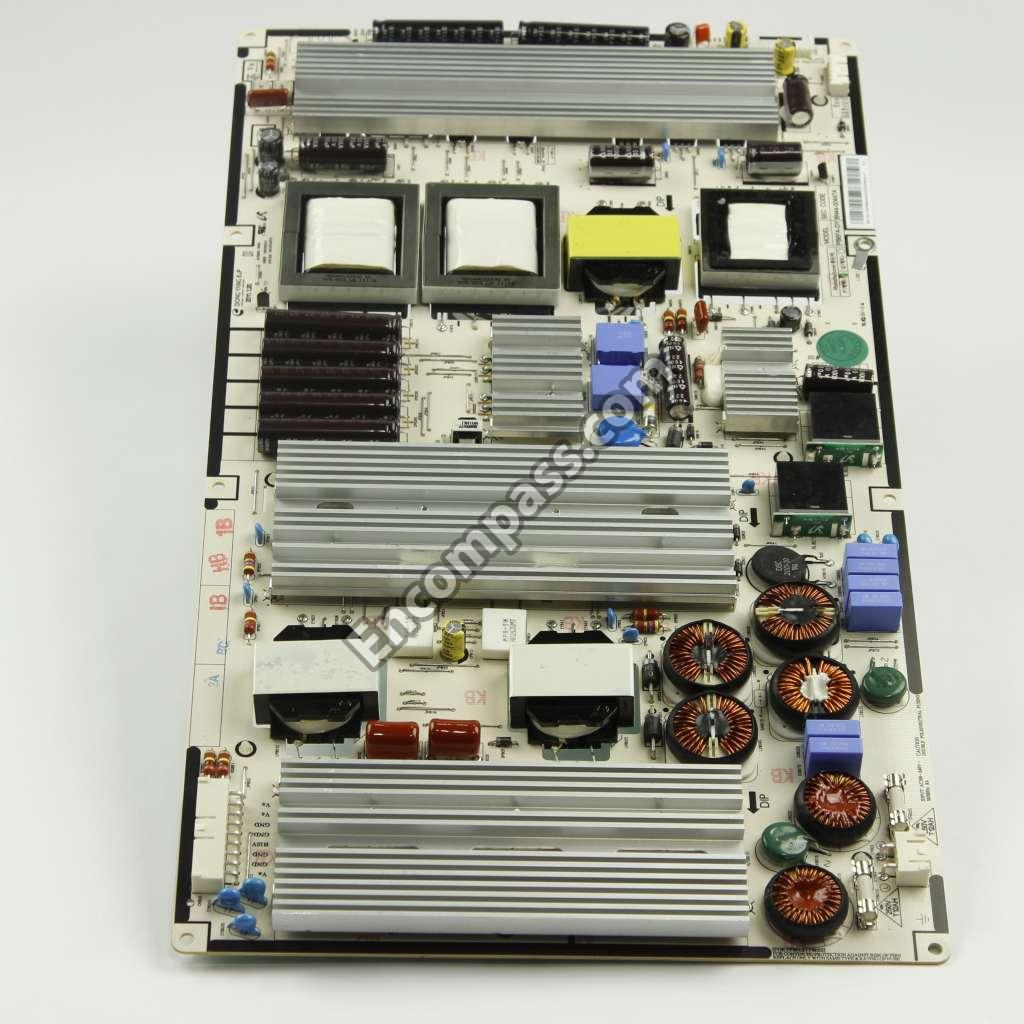

DC VSS-PDP;PB6FA,AC/DC,AC100~240V,50/60H |

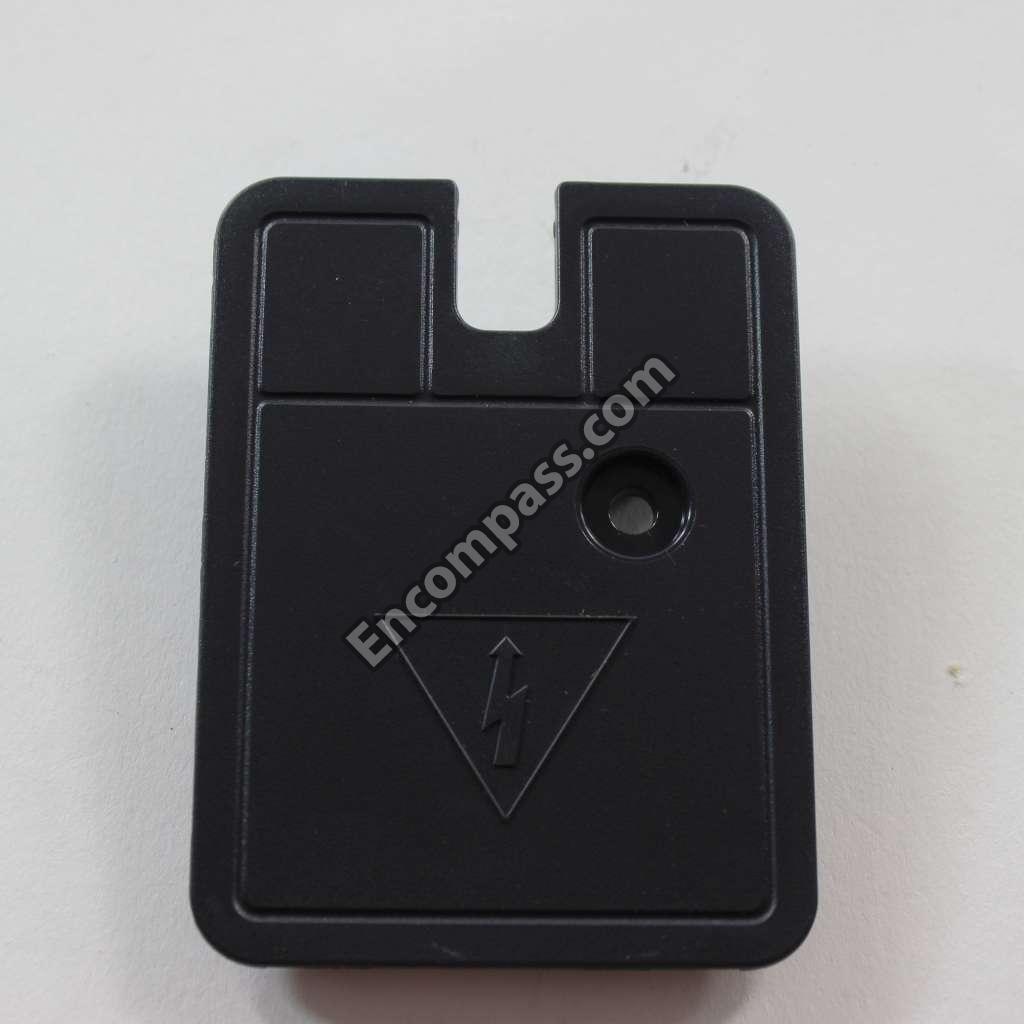

| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0407-000114 | DIODE-SWITCHING;KDS184,80V,100MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 |
| 2901-001652 | FILTER-EMI AC LINE;250V,6A,0.1UF/1000PF, |
| 3711-005471 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM, |
| 3711-007769 | HEADER-BOARD TO CABLE;BOX,12P,1R,2.00MM, |
| 3711-007319 | HEADER-BOARD TO CABLE;SMD,4P,1R,2.50MM,S |
| BN62-00042A | HEAT SINK-ES;30*30*5,A6063,T1.5,TAPE,NTR |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
|
|
HOLDER-CORD;LB7000 46,ABS,V0,BLK |
| BN61-06644A | HOLDER-PCB;LC750,NYNOL66,V0 |
| BN13-00042A | IC ASIC;SDP1005,PARMA,404P,3.3V,-25TO+85 |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1203-006619 | IC-DC/DC CONVERTER;AOZ1033AI,SO-8,8P,4.9 |
| 1203-006606 | IC-DC/DC CONVERTER;AOZ1036PI,SO-8,8P,4.8 |
| 1105-002191 | IC-DDR2 SDRAM;W9725G6JB-18,DDR2 SDRAM,25 |
| 1105-002168 | IC-DDR3 SDRAM;MT41J128M16HA-15E,2GBIT,16 |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
|
|
IC-ETHERNET CONTROLLER;RTL8201E-VC-GRT,Q |
| 1006-001266 | IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI |
| 0903-001718 | IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4 |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-006337 | IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- |
| 1203-002898 | IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. |
| 1201-003153 | IC-POWER AMP;NTP-7411S,MLF,48P,7X7MM,DUA |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 0904-002631 | IC-USC;QFN,28P,5.0MM X 5.0MM,12MHZ,TP,PL |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 3722-003199 | JACK-MODULAR;8P/8C,ANGLE,AU,1P |
|
|
JACK-PHONE;1/6P,NI,BLK,ANGLE |
| 3722-003207 | JACK-PHONE;2P/9C,AU,LIMEGRN,SMD-A(DIP) |
| 3722-003044 | JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE |
|
|

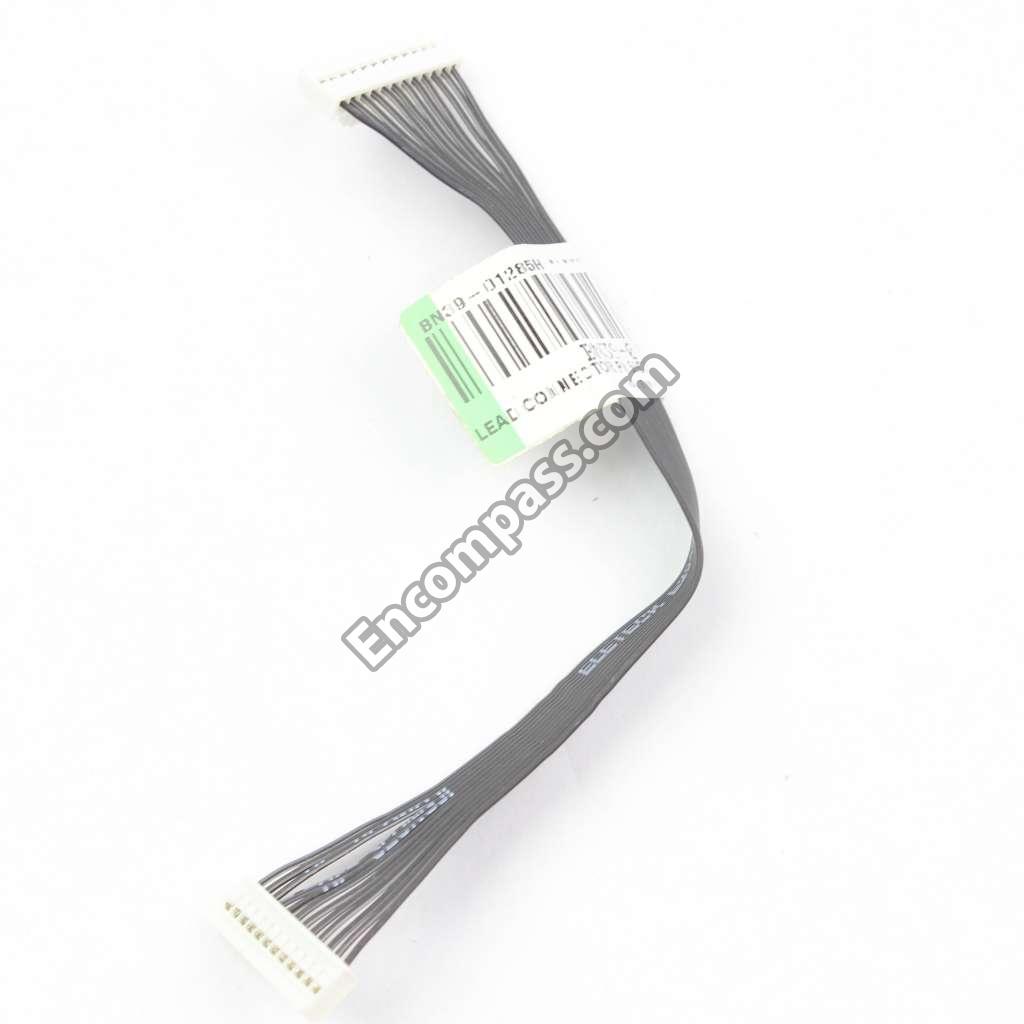

LEAD CONNECTOR;PN59D7000,FALT CONNECTOR, |
| BN39-01447B | LEAD CONNECTOR;PS59D550,FALT CONNECTOR,U |
|
|

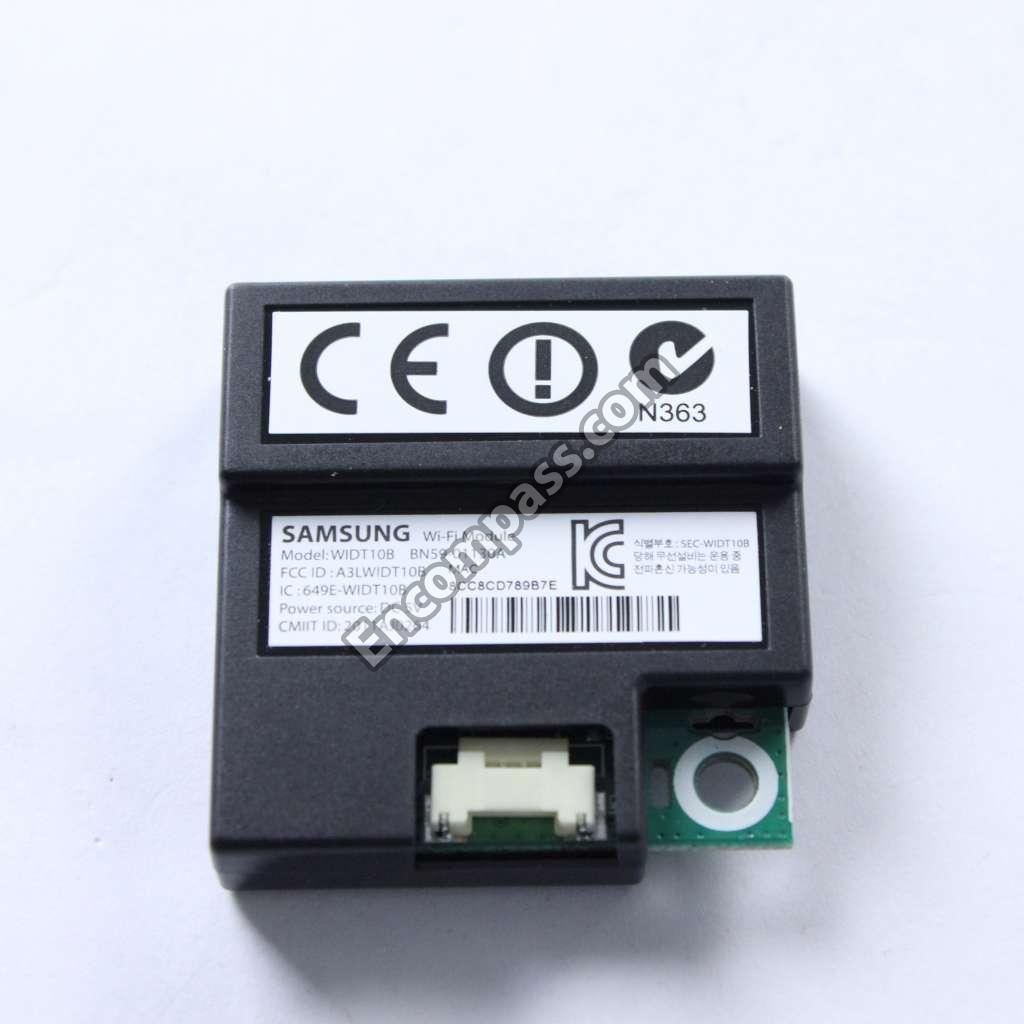

NETWORK;WIDT-10,BCM43236,INTERNAL WIFI,U |
| 2007-007463 | R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-000962 | R-CHIP;5.1KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|
REMOCON;TM1060,49,3V,NORTN AMERICA,6500, |
| 6001-002283 | SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;PH,+,WSP,M3,L10,NI PLT,SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L12,NI PLT,SWRCH |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|

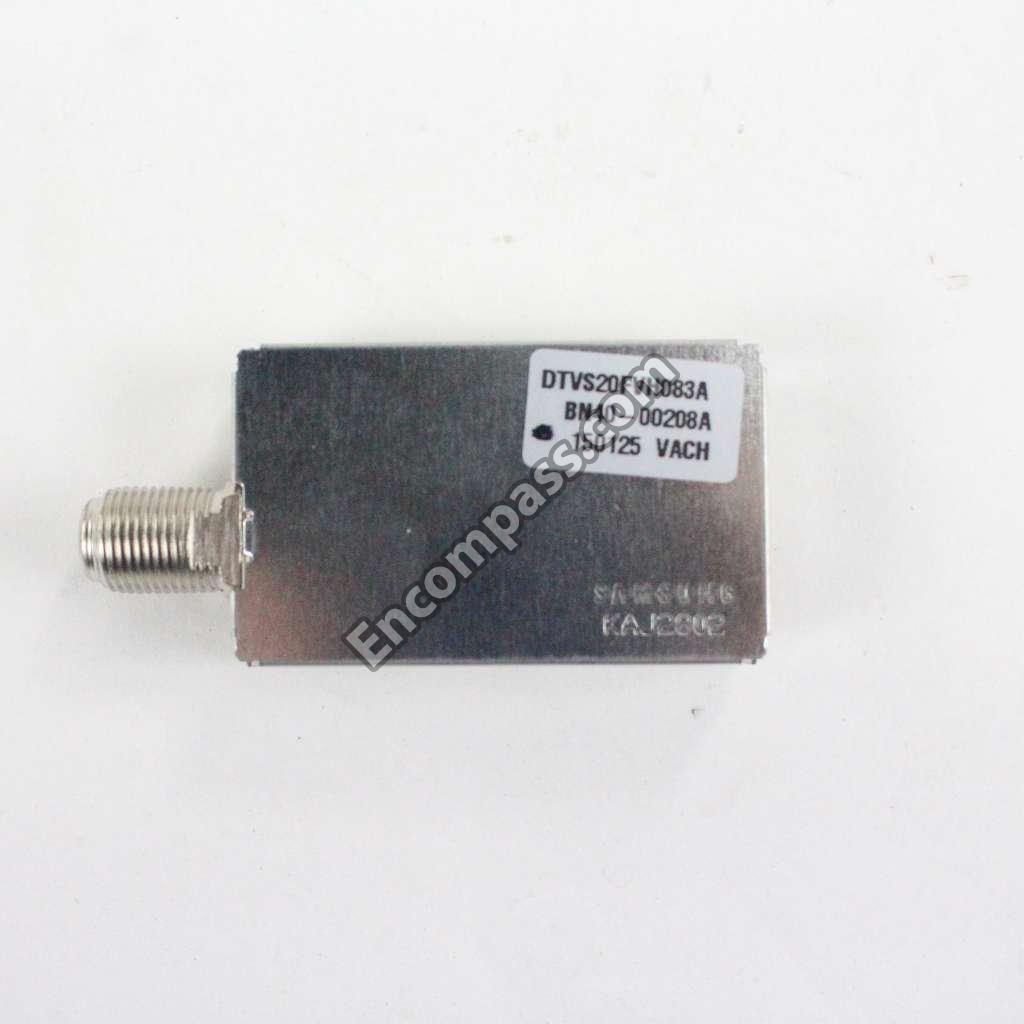

TUNER;DTVS20FVH083A,DTVS20FVH083A,VSB HA |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
