Manufacturer
Encompass
Model Number
PN60E530A3FXZA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
40"-70" LED CD PL STAND |
|
|
ASSY BOARD P-5WAY SWITCH FUNCTION;PN43E4 |

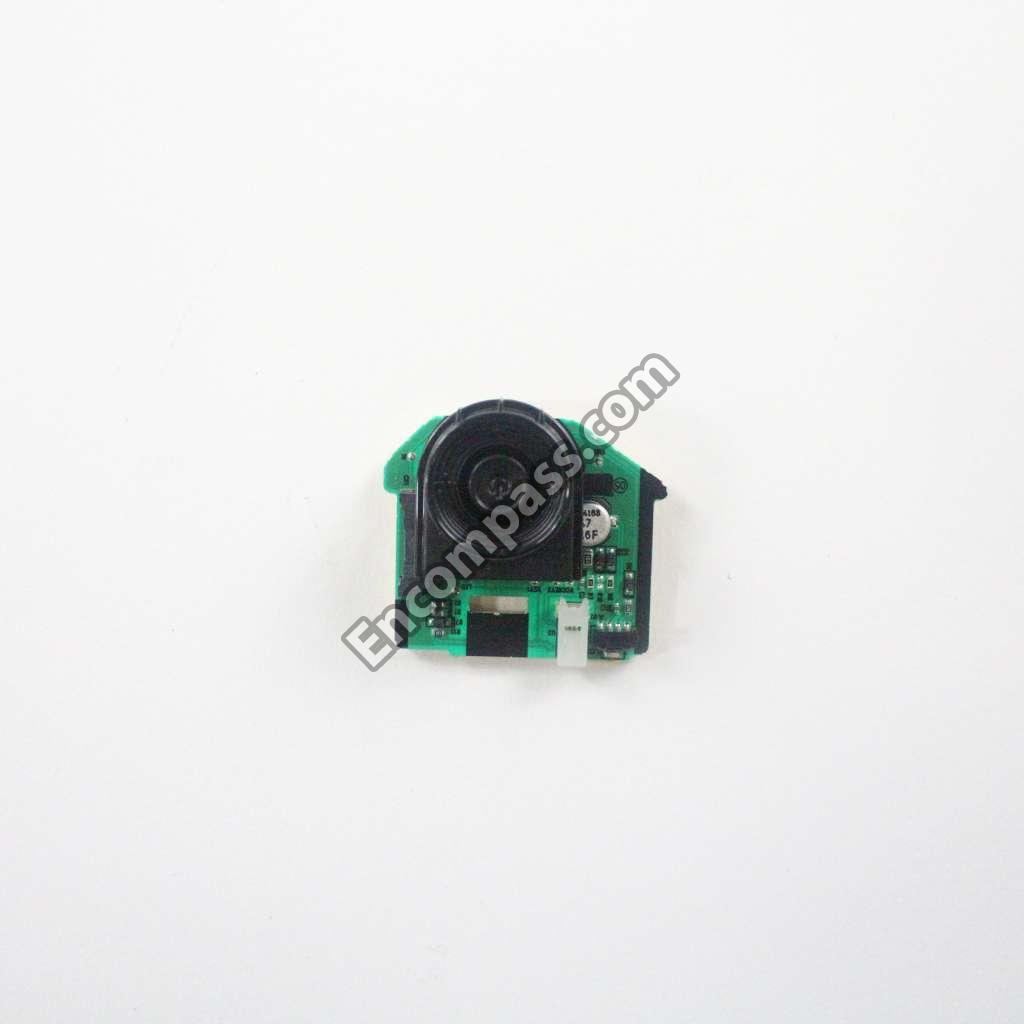

| BN96-23841D | ASSY BOARD P-FUNCTION & IR;PN60E530,SJ12 |
|
|
ASSY BRACKET P-WALL;PD450/490,SECC,T0.2 |
| BN96-13325N | ASSY CABLE P;PS50D450,FFC CABLE,218.5MM, |
| BN96-21993A | ASSY COVER P-FRONT;PE530 60,W/W,PMMA+ABS |
| BN96-22001A | ASSY COVER P-REAR;PE550 60,PCM,T0.4,BKN- |
|
|
ASSY PCB P-MAIN;PN60E530A3FXZA |
|
|
ASSY PDP MODULE P;S60FH-YD02,PP60FF020A, |
| BN96-22112A | ASSY PDP P-LOGIC E-BUFFER;S60FH-YB02,PL6 |
|
|
ASSY PDP P-LOGIC G-BUFFER;S60FH-YB02,PL6 |
|
|
ASSY PDP P-LOGIC-MAIN;S60FH-YB02,PL60FF0 |
|
|
ASSY PDP P-X-MAIN;S60FH-YB02,PL60FF010A, |
|
|
ASSY PDP P-X-UPPER;S60FH-YB02,PL60FF010A |
|
|
ASSY PDP P-Y-LOWER;S60FH-YB02,PL60FF010A |
|
|
ASSY PDP P-Y-MAIN;S60FH-YB02,PL60FF010A, |
|
|
ASSY PDP P-Y-UPPER;S60FH-YB02,PL60FF010A |
|
|
ASSY SPEAKER P;6OHM,4PIN,10W,ENCLOSURE T |
|
|
ASSY STAND P-BASE;PD530 59,PMMA+ABS HB(B |
|
|
BASE STAND |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,HOLDER,7. |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,0.8 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
|
|
CBF-POWER CORD;DT,US,NAME 5-15P,IEC60320 |
| 3708-002930 | CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE-D |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
|
|
DC VSS-PDP;P60PW_CSM,PSPF391501A,AC/DC,A |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001116 | DIODE-SWITCHING;BAV99DW,75V,215MA,SOT-36 |
| 0407-000114 | DIODE-SWITCHING;KDS184,80V,100MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
| AA63-01388A | GASKET-EMI,SPONGE;SP-P300M,CONDUCTIVE FA |
|
|
GUIDE-STAND;PD550 58",PC+GF,V2,BLK |
| 3711-007769 | HEADER-BOARD TO CABLE;BOX,12P,1R,2.00MM, |
| 3711-007582 | HEADER-BOARD TO CABLE;BOX,8P,1R,2.0MM,AN |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1203-007080 | IC-DC/DC CONVERTER;AOZ1051PI,SO-8,8P,4.9 |
| 1203-006710 | IC-DC/DC CONVERTER;RT8016L-GQW,WQFN,8P,1 |
| 1105-002227 | IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM |
| 1204-003313 | IC-DECODER;SEMS23,LFBGA,568P,20.2X20.2MM |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001441 | IC-EEPROM;24C1024,1MBIT,128KX8,SOP,8P,4. |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1107-002101 | IC-NOR FLASH;W25Q128BVFIG,128MBIT,128MX1 |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
| 1201-003470 | IC-POWER AMP;NTP-7411S2,MLF,48Z30,7X7MM, |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-002238 | INDUCTOR-SMD;1UH,5%,2012,2.38OHM,23,WIRE |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
| 3722-003439 | JACK-PHONE;4P/1C,SN,BLK,STRAIGHT,3.5PI,1 |
| 3722-003453 | JACK-PIN;J/B 5P + SCREW HOLE,NI+SN,GRN/B |
| 3722-003248 | JACK-USB;4P/1C(W/L),NI/PD/AU/SN,BLK,STRA |
| BN39-01670A | LEAD CONNECTOR;PN60E530A3FXZA,FLAT CONNE |
| 2007-007463 | R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
| 2007-000256 | R-CHIP;1.6KOHM,1%,1/10W,TP,1608 |
| 2007-007352 | R-CHIP;130KOHM,1%,1/10W,TP,1608 |
| 2007-000475 | R-CHIP;1MOHM,1%,1/10W,TP,1608 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-008593 | R-CHIP;750OHM,1%,1/16W,TP,1005 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
|
REMOTE CONTROL |
| BN73-00052C | RUBBER-FOOT;LCD TV,SILICONE RUBBER,T2.0 |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
|
|
STAND SCREWS |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| BN40-00226A | TUNER;DTVD20FVL084AA,DTVD20FVL084AA,VSBH |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
