Manufacturer
Encompass
Model Number
PN60E550D1FXZA
Description
60-inchplasma 550 Series Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
40"-70" LED CD PL STAND |
|
|
ASSY ACCESSORY 3D GLASSES;SSG-4100GB,IN- |
|
|

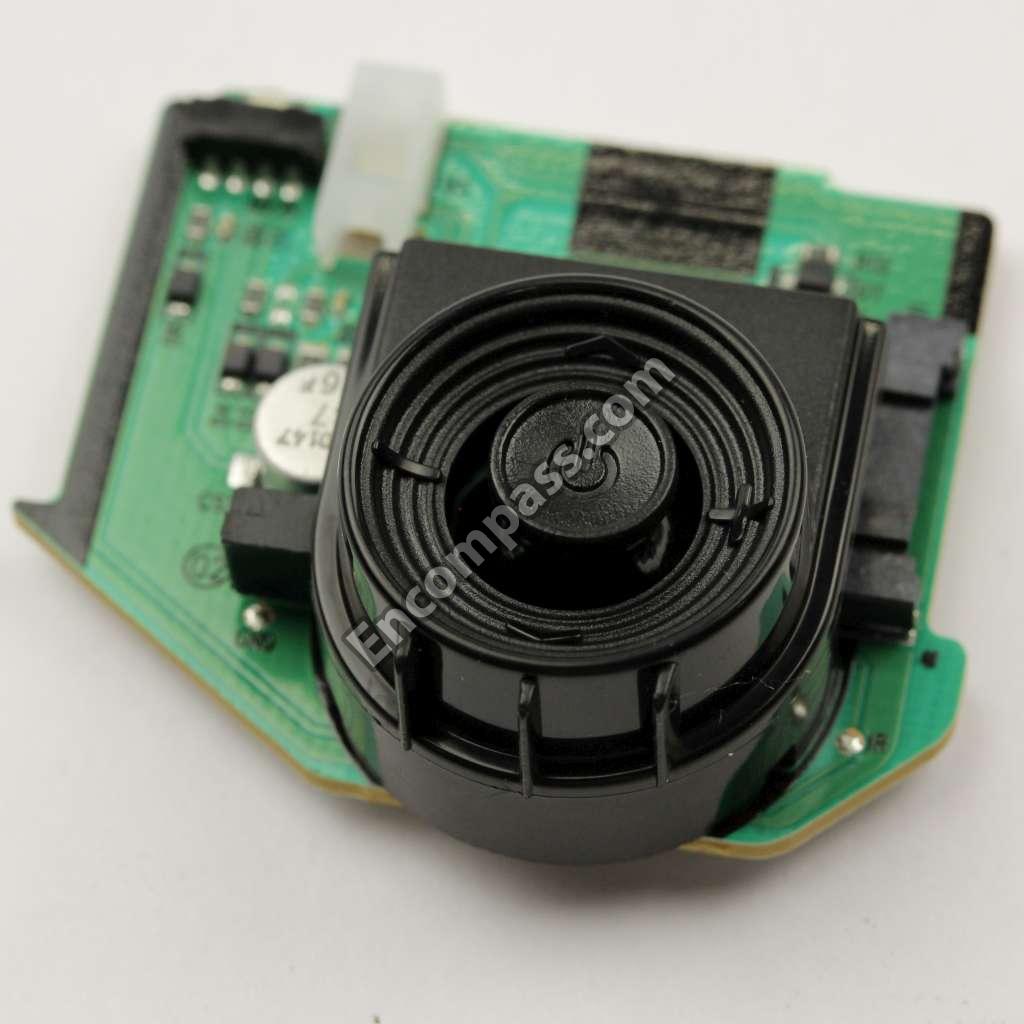

ASSY BOARD P-5WAY SWITCH FUNCTION;PN51E5 |
|
|

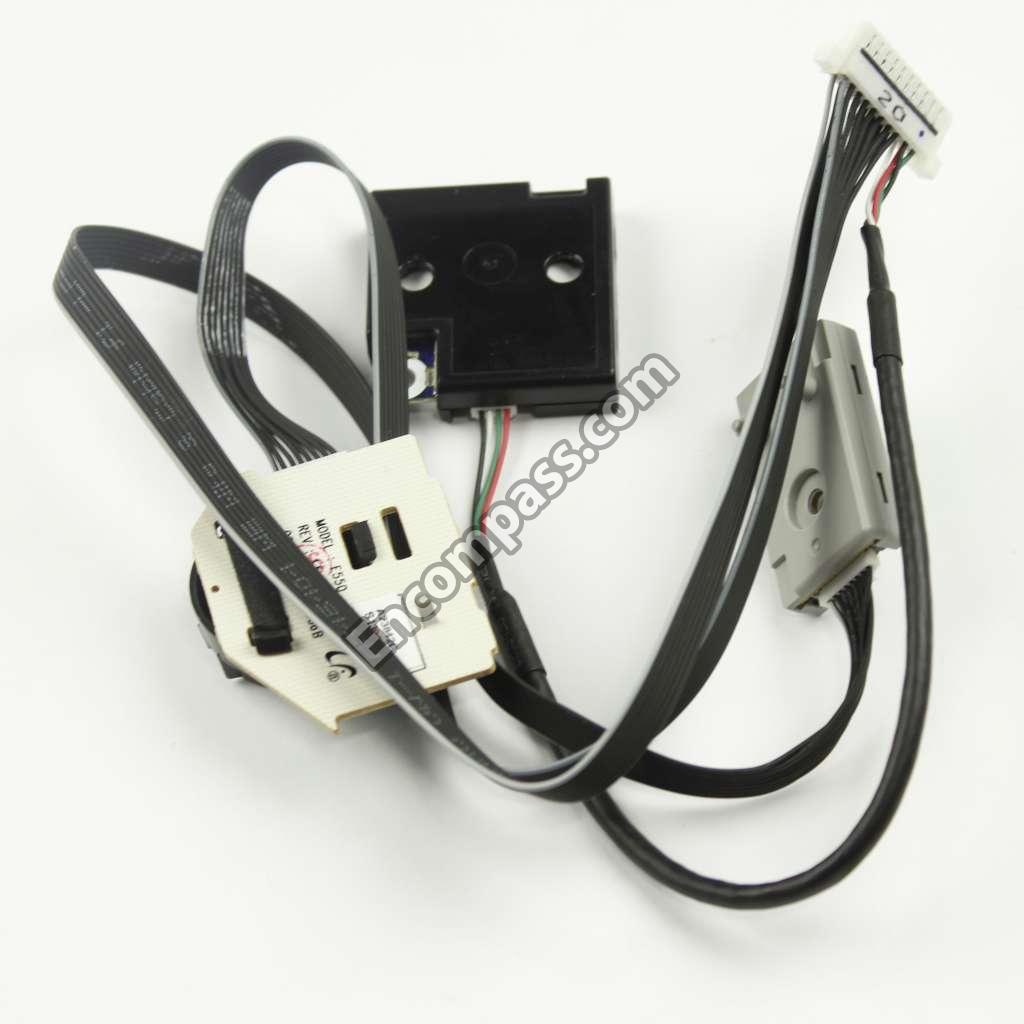

ASSY BOARD P-FUNCTION & IR;PN60E550,SJ12 |
|
|
ASSY BOARD P-RF-MODULE;BLUETOOTH MODULE, |
|
|
ASSY BRACKET P-WALL;PD450/490,SECC,T0.2 |
| BN96-22728D | ASSY CABLE P;PS60E6900,FFC CABLE,JSFFCAS |
| BN96-21995A | ASSY COVER P-FRONT;PE550 60,W/W,MABS(CLE |
| BN96-22001J | ASSY COVER P-REAR;PE550 60,PCM,T0.4,BKN- |
|
|
ASSY GUIDE P-STAND;PE450 60/64,PC G/F 20 |
|
|

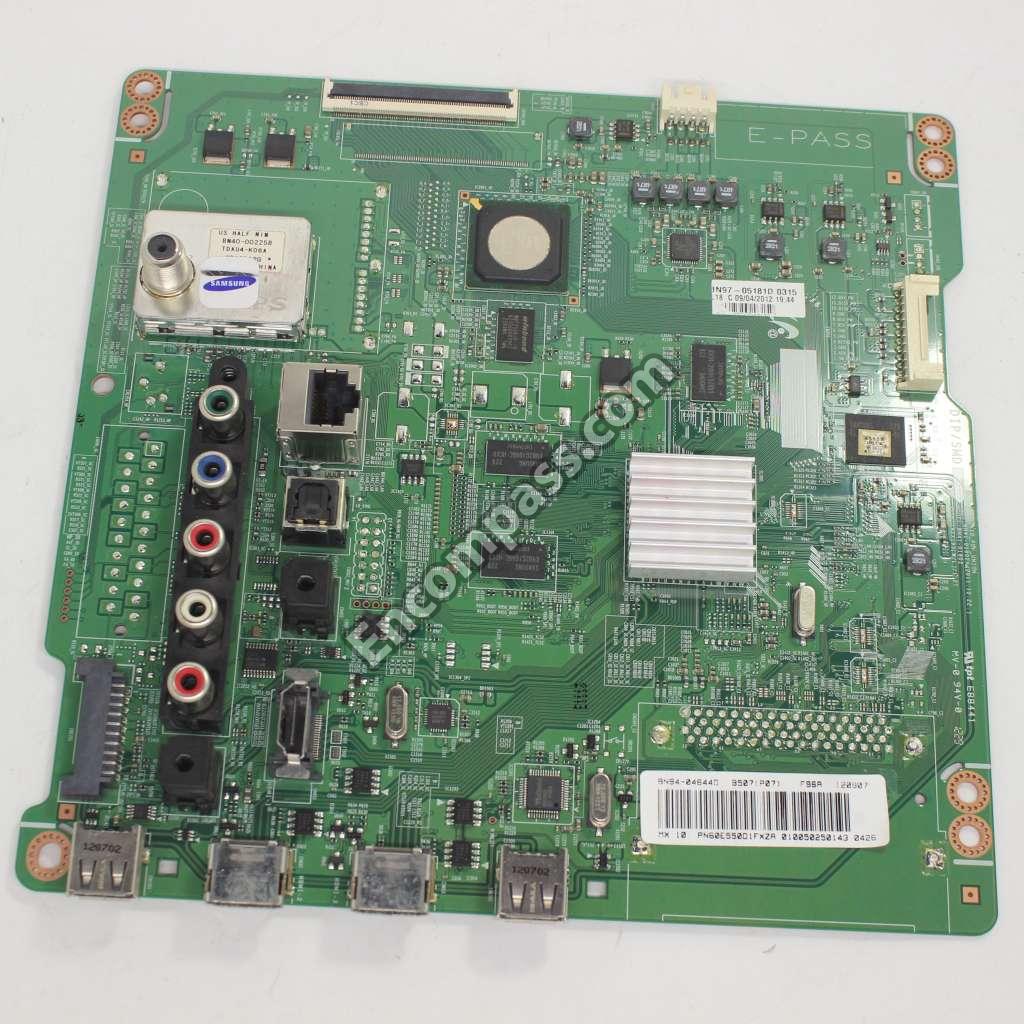

ASSY PCB MISC-MAIN;UNITED STATES,550 60" |
|
|
ASSY PDP MODULE P;S60FH-YD02,PP60FF010A, |
| BN96-22112A | ASSY PDP P-LOGIC E-BUFFER;S60FH-YB02,PL6 |
|
|
ASSY PDP P-LOGIC G-BUFFER;S60FH-YB02,PL6 |
|
|

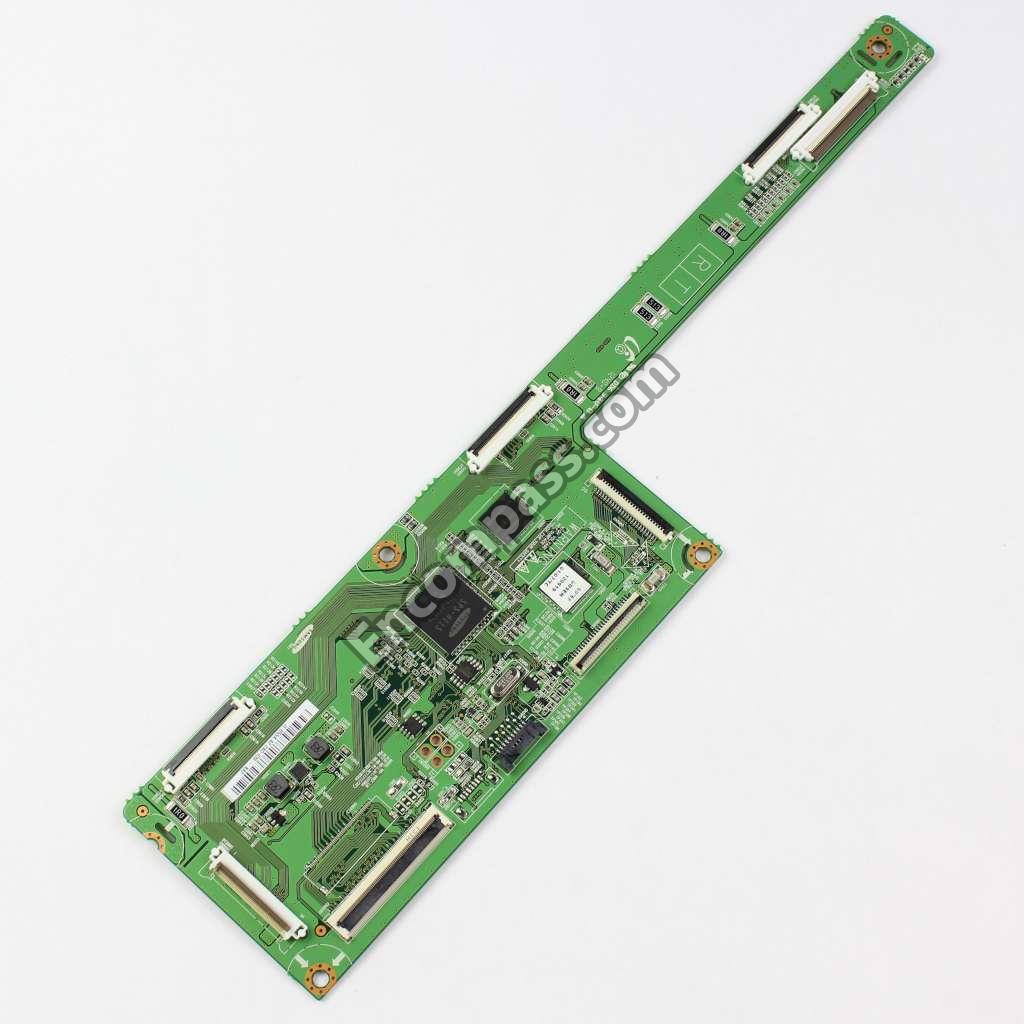

ASSY PDP P-LOGIC MAIN;S60FH-YB02,PL60FF0 |
|
|
ASSY PDP P-X-MAIN;S60FH-YB02,PL60FF010A, |
|
|
ASSY PDP P-X-UPPER;S60FH-YB02,PL60FF010A |
|
|
ASSY PDP P-Y-LOWER;S60FH-YB02,PL60FF010A |
|
|
ASSY PDP P-Y-MAIN;S60FH-YB02,PL60FF010A, |
|
|
ASSY PDP P-Y-UPPER;S60FH-YB02,PL60FF010A |
| BN96-21672D | ASSY SPEAKER P;6OHM,4PIN,10W,ENCLOSURE T |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,HOLDER,7. |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-003039 | C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,0.8 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
|
|
CBF-POWER CORD;DT,US,NAME 5-15P,IEC60320 |
| 3708-003043 | CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A+DI |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU |
| 3701-001784 | CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE-D |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
|
|
DC VSS-PDP;P60PW_CSM,PSPF391501A,AC/DC,A |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
| AA63-01388A | GASKET-EMI,SPONGE;SP-P300M,CONDUCTIVE FA |
| 3711-007769 | HEADER-BOARD TO CABLE;BOX,12P,1R,2.00MM, |
|
|
HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG |
| BP62-00017A | HEAT SINK-ES;SP-50L2HX,A6063S,T2.0,26.2, |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
| BN13-00042A | IC ASIC;SDP1005,PARMA,404P,3.3V,-25TO+85 |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 1105-002191 | IC-DDR2 SDRAM;W9725G6JB-18,DDR2 SDRAM,25 |
| 1105-002253 | IC-DDR3 SDRAM;K4B2G1646C-HCK0,DDR3 SDRAM |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 0903-001718 | IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4 |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-007242 | IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8P, |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
| 1201-003333 | IC-POWER AMP;NTP-7412S,MLF,48P,7X7MM,DUA |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 0904-002714 | IC-USC;QFN,28P,5.0MM X 5.0MM,12MHZ,TP,PL |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003439 | JACK-PHONE;4P/1C,SN,BLK,STRAIGHT,3.5PI,1 |
| 3722-003453 | JACK-PIN;J/B 5P + SCREW HOLE,NI+SN,GRN/B |
| 3722-003225 | JACK-USB;4P/1C,AU,BLK,SMD-A(DIP),A |
|
|
LEAD CONNECTOR;PN60E6500,FALT CONNECTOR, |
|
|
NETWORK;WIDT-20R,INTERNAL WIFI,USB,IEEE8 |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-007463 | R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
| 2007-008134 | R-CHIP;12.4KOHM,1%,1/16W,TP,1005 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|

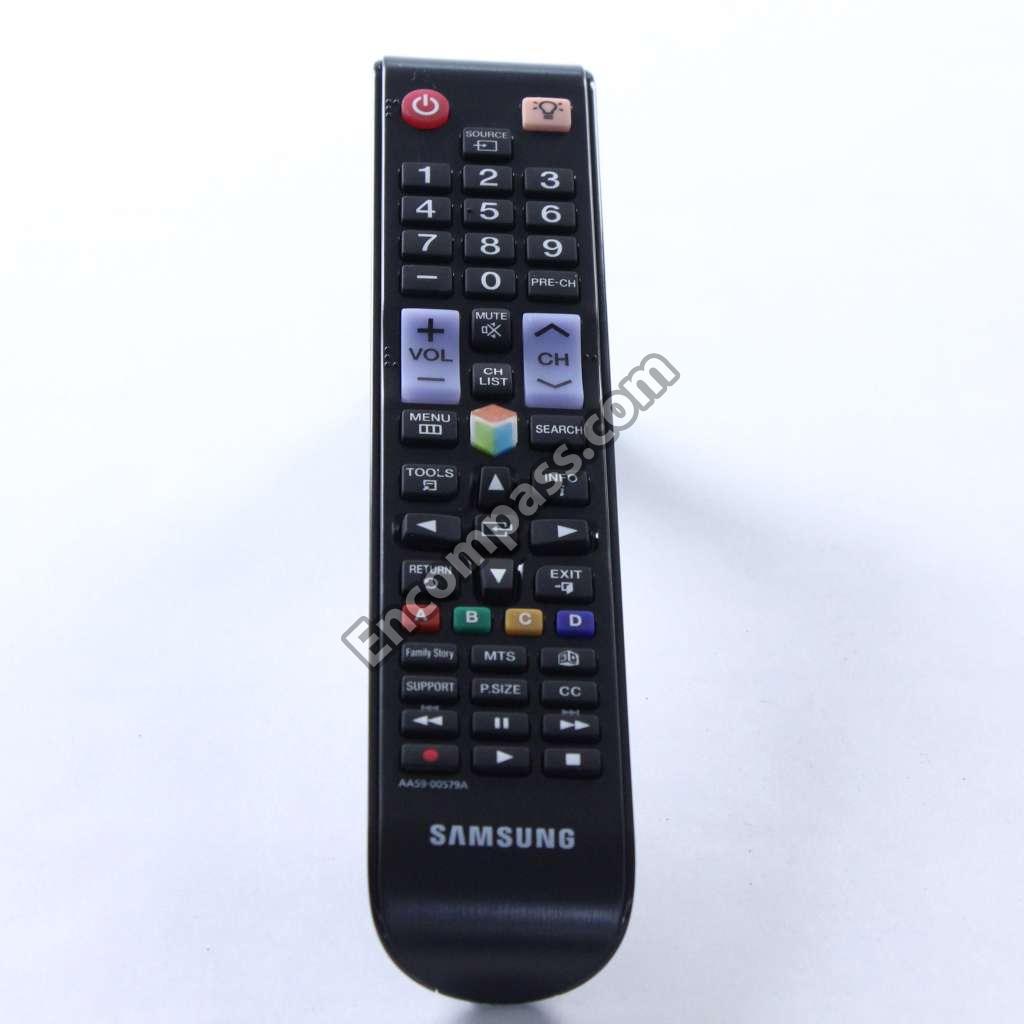

REMOTE (VERSION TS02) |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L12,NI PLT,SWRCH |
| BN96-16795B | STAND BASE ONLY |
| BN96-18641A | STAND NECK ONLY |
|
|
STAND SCREW (EACH) |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER;TDAU4-K06A,TDAU4-K06A,VSB HALF NIM |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
