Manufacturer
Samsung
Model Number
PN64E7000FFXZA
Description

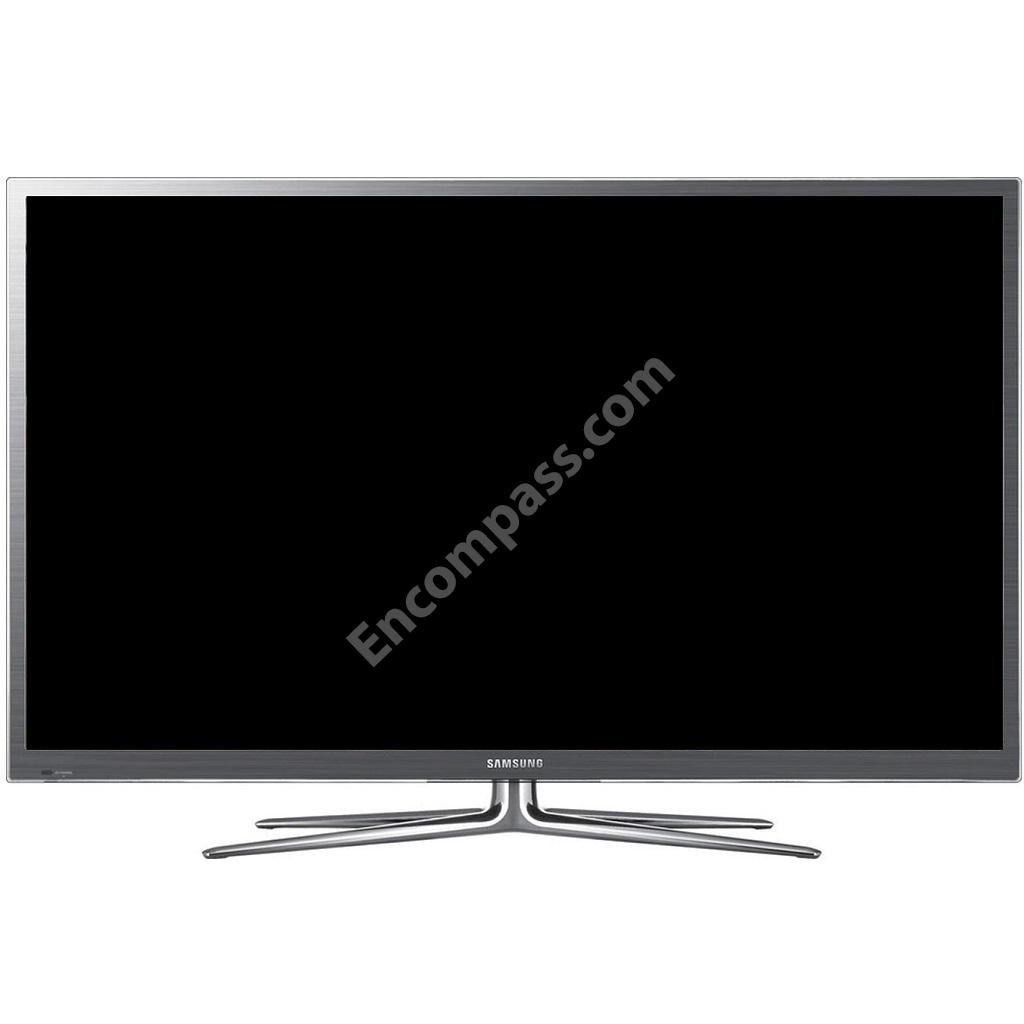

64-inch Plasma 7000 Series Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY ACCESSORY 3D GLASSES;SSG-4100GB,IN- |
|
|

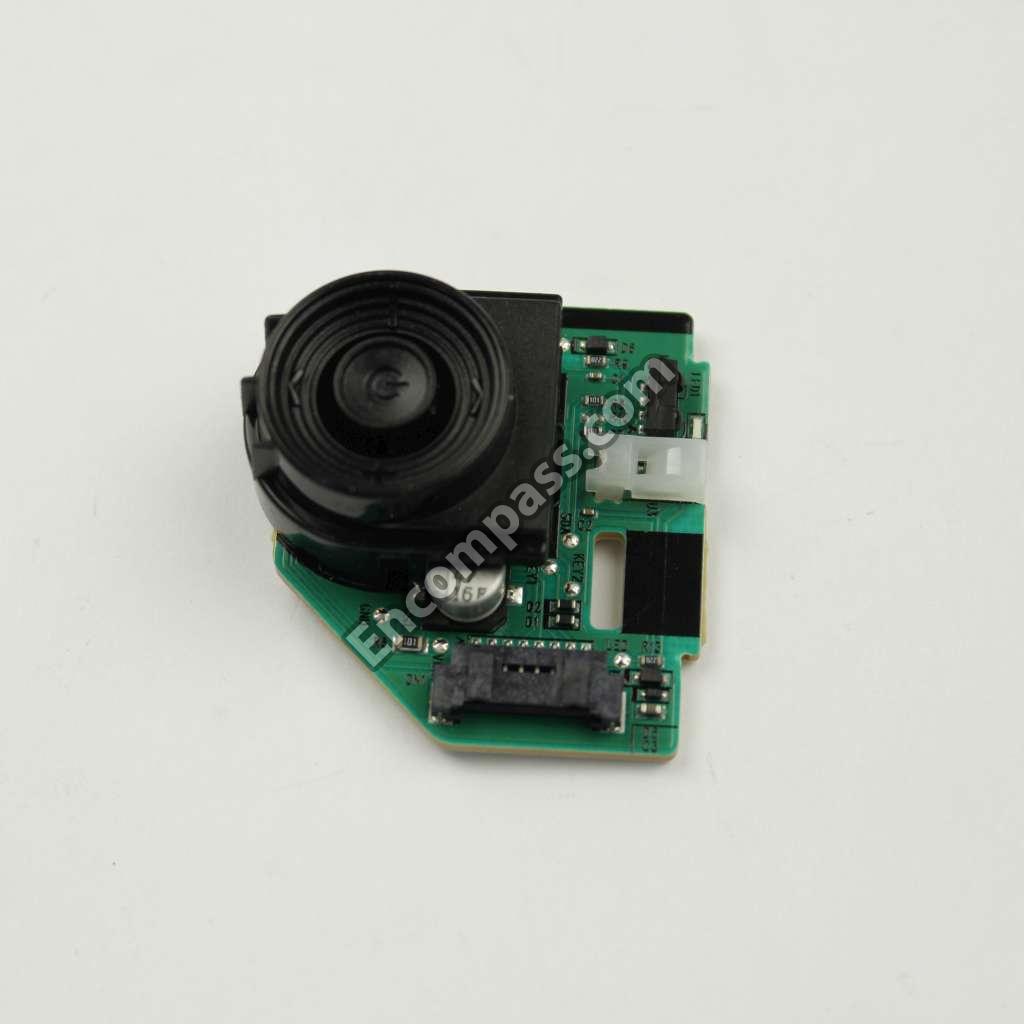

ASSY BOARD P-5WAY SWITCH FUNCTION;PN51E8 |
|
|

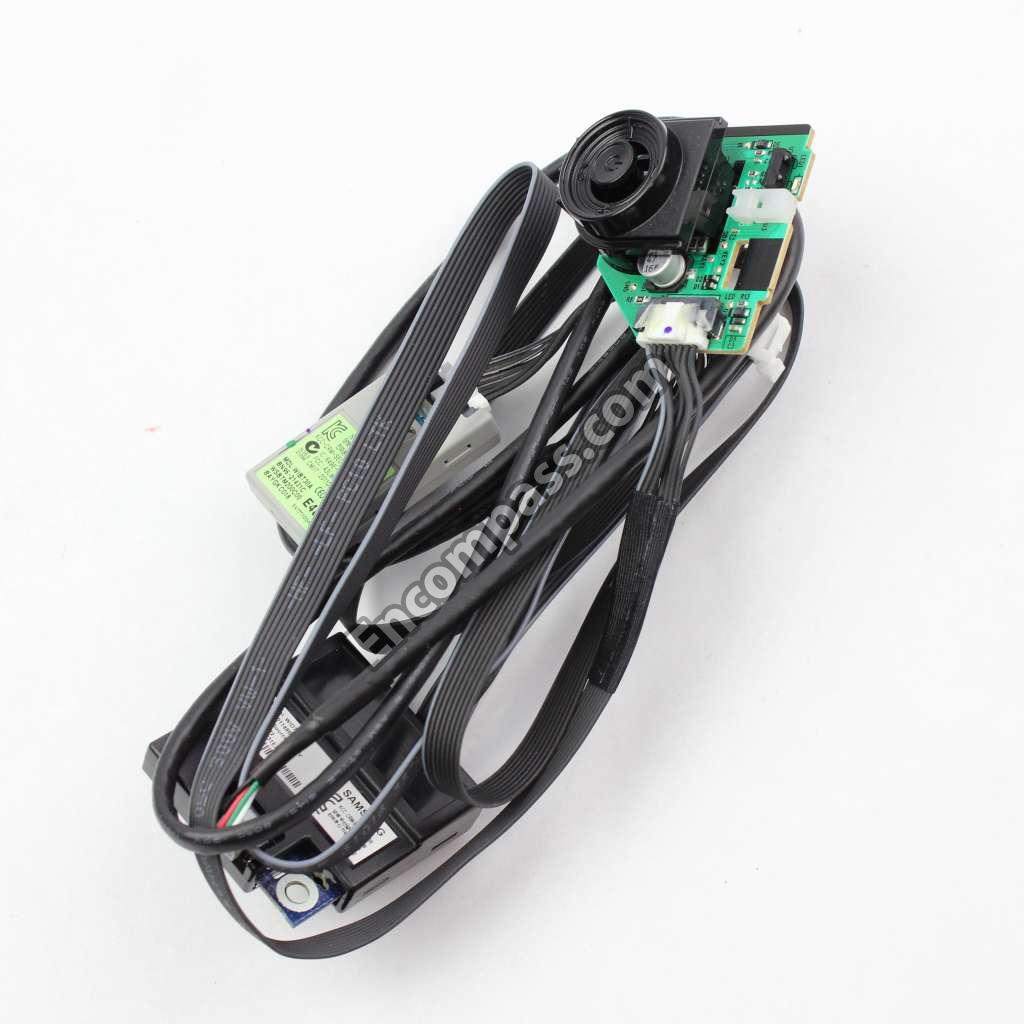

ASSY BOARD P-FUNCTION & IR;PN64E8000,SJ1 |
|
|
ASSY BOARD P-RF-MODULE;BLUETOOTH MODULE, |
|
|

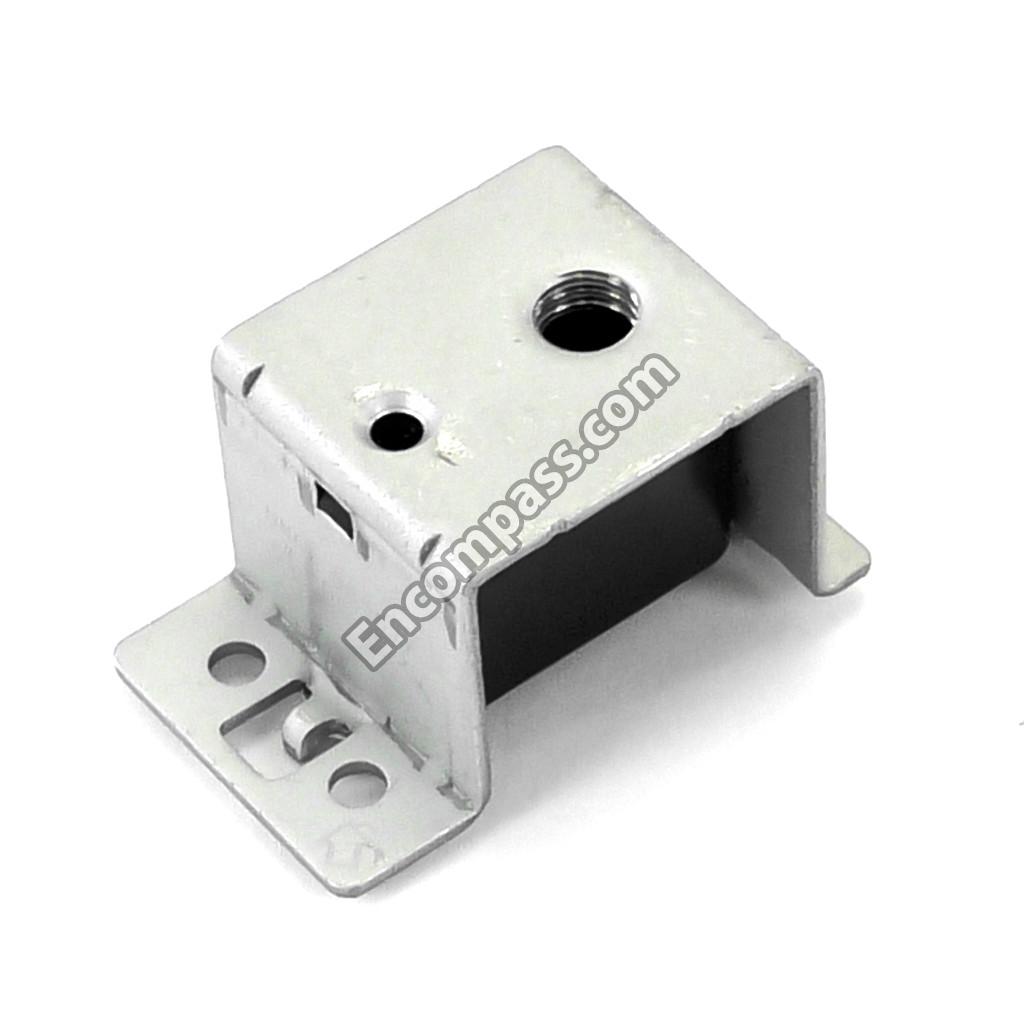

ASSY BRACKET P-WALL;PE6500 51,SECC,T1.6 |
| BN96-22728B | ASSY CABLE P;PS51E8000,FFC CABLE,UJU-FEA |
| BN96-22153D | ASSY COVER P-FRONT;PE8000 64,MABS(CLEAR) |
| BN96-22156H | ASSY COVER P-REAR;PE8000 64,PCM,T0.4,BKN |
|
|

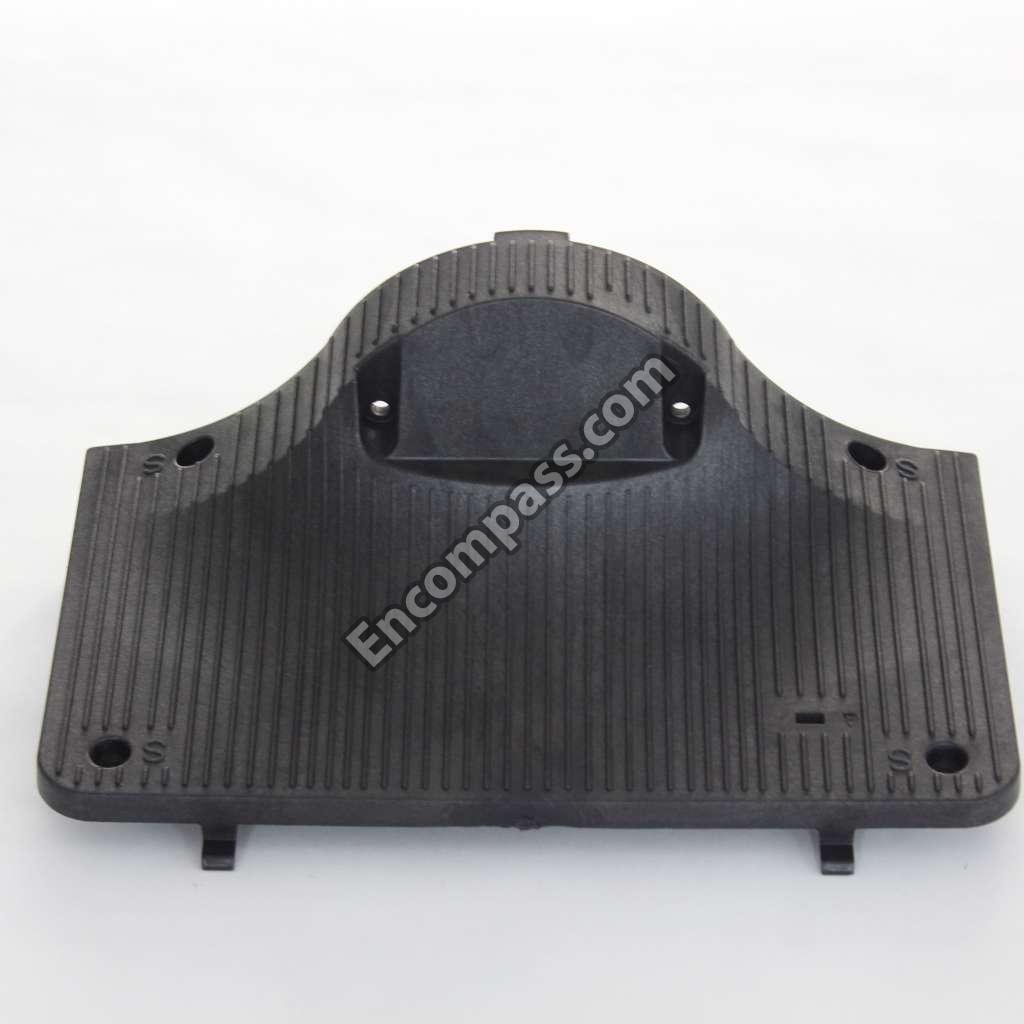

ASSY GUIDE P-STAND;PE8000 60,PC G/F 20% |
|
|
ASSY PCB MISC-MAIN;PN64E7000FFXZA |
|
|
ASSY PDP MODULE P;S64FH-YD01,PP64FF002B, |
|
|
ASSY PDP P-LOGIC E-BUFFER;S64FH-YB01,PL6 |
|
|
ASSY PDP P-LOGIC F-BUFFER;S64FH-YB01,PL6 |
|
|
ASSY PDP P-LOGIC G-BUFFER;S64FH-YB01,PL6 |
|
|
ASSY PDP P-LOGIC MAIN;S64FH-YB01,PL64FF0 |
|
|
ASSY PDP P-X-BUFFER;S64FH-YB01,PL64FF001 |
|
|
ASSY PDP P-X-MAIN;S64FH-YB01,PL64FF001A, |
|
|
ASSY PDP P-Y-BUFFER LOWER;S64FH-YB01,PL6 |
|
|
ASSY PDP P-Y-BUFFER UPPER;S64FH-YB01,PL6 |
|
|
ASSY PDP P-Y-MAIN;S64FH-YB01,PL64FF001A, |
|
|
ASSY SPEAKER P;6OHM,4PIN,10W,ENCLOSURE T |
|
|

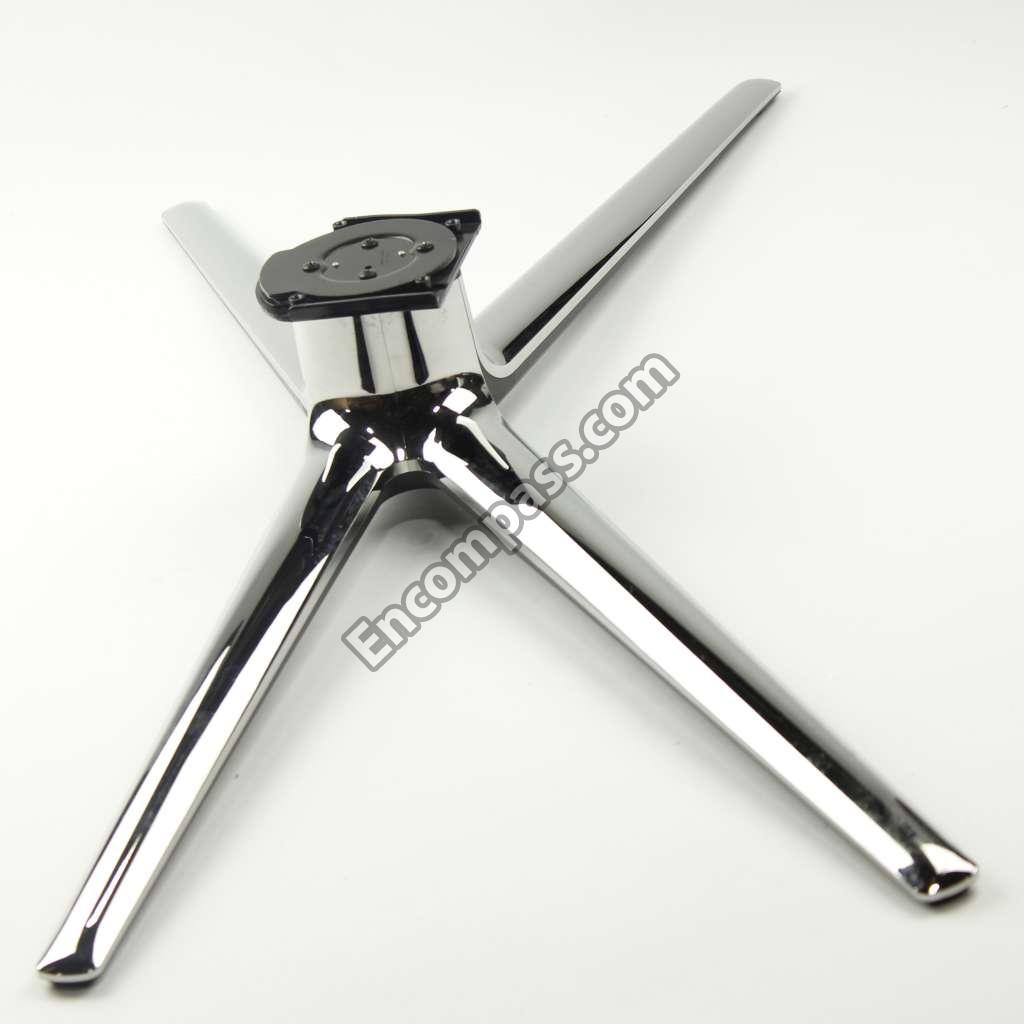

ASSY STAND P-BASE;PD8000 59,QUAD,HIPS,HB |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-005642 | C-CER,CHIP;0.22NF,5%,50V,NP0,TP,1005 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-005221 | C-CER,CHIP;15NF,10%,50V,X7R,TP,1608 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-006088 | C-CER,CHIP;330NF,10%,10V,X7R,TP,1608 |
| 2203-001634 | C-CER,CHIP;33NF,10%,50V,X7R,TP,1608 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-006741 | C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,0.8 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2203-002050 | C-CER,CHIP;47NF,10%,50V,X7R,TP,1608 |
| 2203-002982 | C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
| 2409-001118 | C-POLYMER ,CHIP;47UF,20%,10V,WT,TP,3.5X2 |
|
|
CBF-POWER CORD;DT,US,NAME 5-15P,IEC60320 |
| 3708-003043 | CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A+DI |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE-D |
| 3707-001104 | CONNECTOR-OPTICAL;SMD-A(ULTRA SLIM),SPDI |
| 3710-003555 | CONNECTOR-SOCKET;80P,2R,0.5MM,ANGLE,NI+S |
|
|

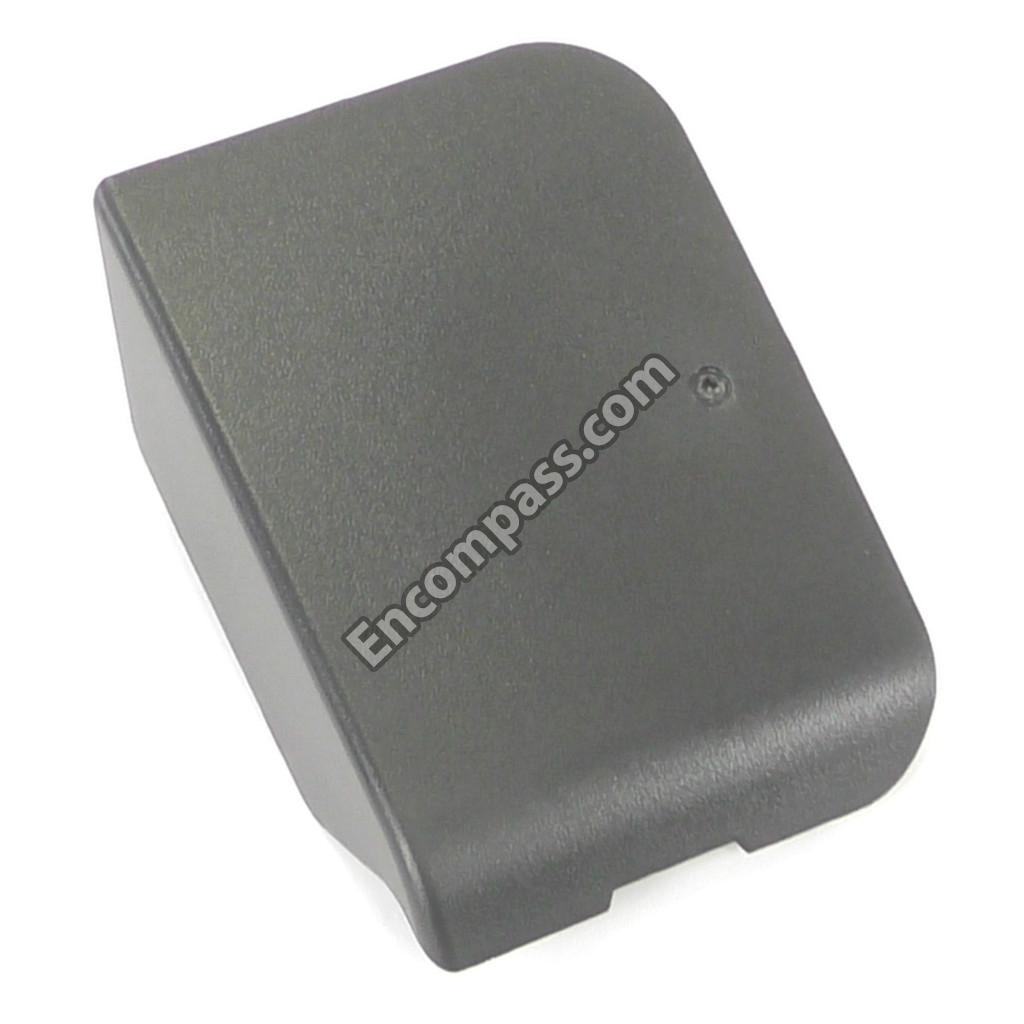

COVER-WIFI;PD550 51",ABS,V0,BLK(BK0020) |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| 2801-003331 | CRYSTAL-SMD;28.6363MHZ,30PPM,HC-49,16PF, |
|
|

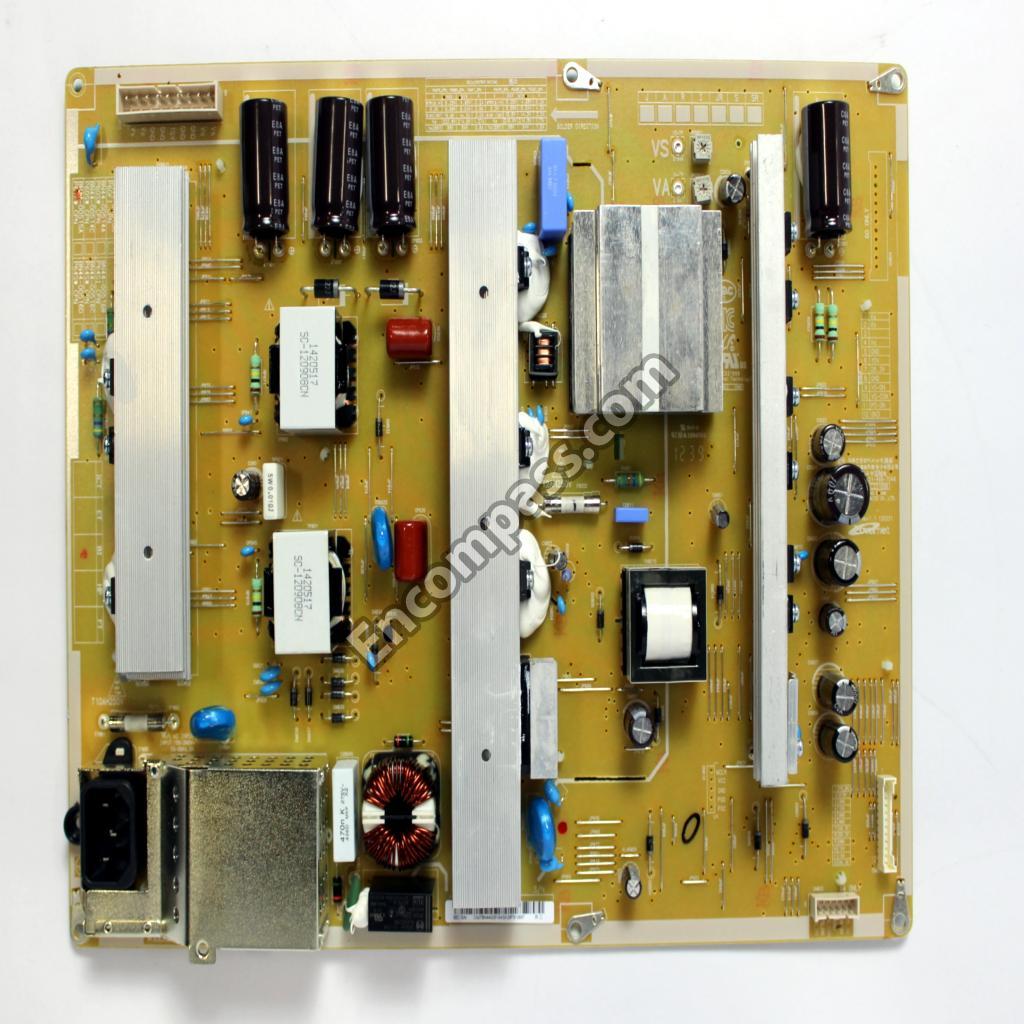

DC VSS-PDP;P64SW_CPN,PN520SPD64,AC/DC,AC |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0505-002598 | FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
|
|
GUIDE-STAND;60PE8000,PC,V2,BK0007,G/F 20 |
| 3711-007769 | HEADER-BOARD TO CABLE;BOX,12P,1R,2.00MM, |
|
|
HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
| BN61-06644A | HOLDER-PCB;LC750,NYNOL66,V0 |
| BN13-00042A | IC ASIC;SDP1005,PARMA,404P,3.3V,-25TO+85 |
| 1001-001686 | IC-ANALOG MULTIPLEX;74LV4052,CMOS,TTSOP, |
| 1201-003341 | IC-AUDIO AMP;TAS5735PHPR,HTQFP,48P,7X7MM |
| 1205-003231 | IC-BUFFER;DS90LV804,LLP,32P,5X5MM,PLASTI |
| 1203-007080 | IC-DC/DC CONVERTER;AOZ1051PI,SO-8,8P,4.9 |
| 1203-007018 | IC-DC/DC CONVERTER;TPS54821RHL,QFN,14P,3 |
| 1105-002191 | IC-DDR2 SDRAM;W9725G6JB-18,DDR2 SDRAM,25 |
| 1105-002269 | IC-DDR3 SDRAM;K4B2G1646C-HCMA,DDR3 1866, |
| 1204-003318 | IC-DECODER;SDP1106,FCBGA,1188P,35X35MM,P |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001506 | IC-EEPROM;M24512-RMN6TP,512KBIT,64KX8,SO |
| 1205-004385 | IC-ETHERNET CONTROLLER;RTL8201F-VB-CGT,Q |
| 0903-001747 | IC-MICROCONTROLLER;WT61P806-RG480,LQFP,4 |
| 1107-002088 | IC-NAND FLASH;KLM2G1HE3F-B001,2GBYTE,16G |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-006167 | IC-POSI.FIXED REG.;S-1172B12-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
| 1203-006067 | IC-POWER SUPERVISOR;TPS2553DBVR,SOT-23,6 |
| 1205-004155 | IC-SWITCH;AOZ1360AIL,SO-8,8P,4.9X3.9MM,P |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 0904-002714 | IC-USC;QFN,28P,5.0MM X 5.0MM,12MHZ,TP,PL |
| 1204-003317 | IC-VIDEO PROCESS;SDP1101,FBGA,196P,11.5X |
| 1001-001745 | IC-VIDEO SWITCH;SII9587CNUC,QFN,88P,10X1 |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 3722-003199 | JACK-MODULAR;8P/8C,ANGLE,AU,1P |
| 3722-003394 | JACK-PHONE;1P/6C,AU,BLK,ANGLE |
| 3722-003216 | JACK-PHONE;1P/7C,P-BRONZE,BLACK,SMD-A(DI |
| 3722-003151 | JACK-PIN;5P(ULTRA SLIM),NI,BLK,ANGLE(SSR |
| 3722-003044 | JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE |
| BN39-01285T | LEAD CONNECTOR;PN64E8000,FALT CONNECTOR, |
|
|
NETWORK;WIDT-20R,INTERNAL WIFI,USB,IEEE8 |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-000231 | R-CHIP;1.3KOHM,1%,1/10W,TP,1608 |
| 2007-009853 | R-CHIP;1.6KOHM,1%,1/16W,TP,1005 |
| 2007-002425 | R-CHIP;1OHM,5%,1/10W,TP,1608 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-000536 | R-CHIP;200OHM,1%,1/10W,TP,1608 |
| 2007-000563 | R-CHIP;220KOHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-008391 | R-CHIP;6.34KOHM,1%,1/16W,TP,1005 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001427 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001586 | R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,4P,TP, |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
| 2011-001396 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
| 2011-001497 | R-NETWORK;470OHM,5%,1/16W,L,CHIP,4P,TP,1 |
|
|
REMOCON;TM1260,52,3V,52KEY, AMERICA, E65 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| AA60-00091F | SPACER-FELT;FELT,150X10,BLK,T0.5 |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| BN40-00228A | TUNER;DNVS203EH144A,DNVS203EH144A,VSBFUL |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
