Model Image
Manufacturer

Samsung

Model Number

PVM9179SK3SS

Description

Mwo : Microwaveoven

Interactive Exploded View

Parts List

Part Number Description
DE42-10018E ANTENNA-CERAMIC;16 X 12 X 10
DE42-00003A ANTENNA;C1020W-H,MGT-RHN,2465MHZ,2.7 X 6
DE99-00234A ASSEMBLY ANODE;MGT-RHN,-,-
DE94-04264E ASSEMBLY BASE BOTTOM-MODULE;PVM9215SK1SS, PV
DE94-02365V ASSEMBLY BASE BOTTOM;PVM9215SK1SS, PVM9179SK

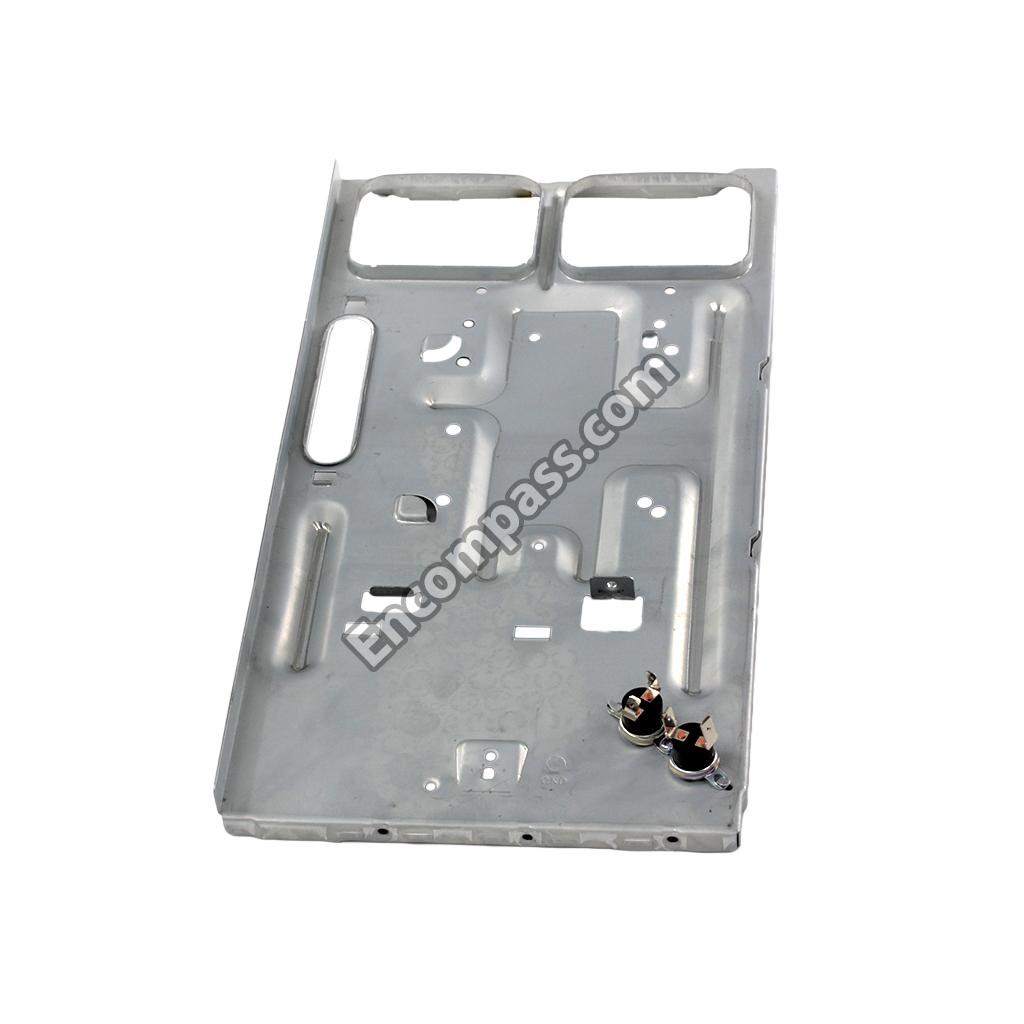

DE97-00420A DE97-00420A ASSEMBLY BASE PLATE;SMV9165,-,-,TCO,40/70,12

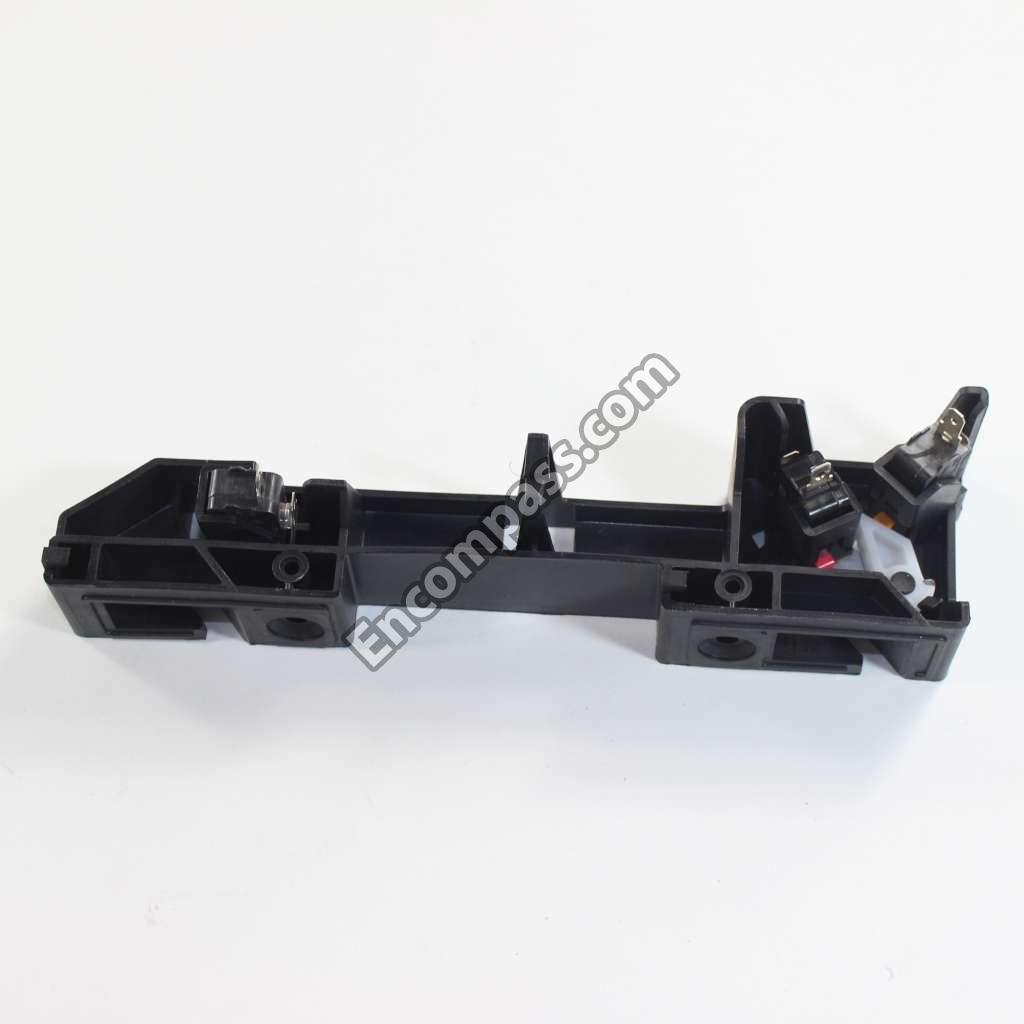

DE96-00082E DE96-00082E ASSEMBLY BODY LATCH;ME179KFETSR,TIMPANI,BLAC
DE99-00237A ASSEMBLY CATHODE;MGT-RHN,-,-
DE97-00425A ASSEMBLY COVER ADIABATIC-LOWER;SMV9165,-,T5.
DE97-00432A ASSEMBLY COVER ADIABATIC-RIGHT;SMV9165,-,T5.
DE99-00359B DE99-00359B ASSEMBLY COVER-COOK TOP LAMP;OTR 6/7,-,-,EMO
DE94-03681A ASSEMBLY DOOR;PVM9179SK1SS,PC DORIAN GRAY,ST
DE94-03680A ASSEMBLY GRILLE;PVM9179SK1SS,DORIAN GRAY
DE97-00368E ASSEMBLY GUIDE ROLLER;PVM9179,SPS,TEFRON
DE92-90505R ASSEMBLY HARD WARE;PVM9179
DE92-90508A DE92-90508A ASSEMBLY HOLDER-NUT;OTR6,SK5(T0.5) + S10C
DE91-70063D DE91-70063D ASSEMBLY HVD;5KV,500,#250+#250
DE94-03084F ASSEMBLY KNOB;PVM9215 & PVM9179,PC,DARK DORI
DE96-01131B ASSEMBLY LAMP LED;4EA,METAL,30*20,WHITE,2003
DE92-03974A ASSEMBLY MODULE;FILTER REMIND LED,ME6000KM,R
DE92-03980A ASSEMBLY MODULE;ME6000KM,BLUE-TOOTH MODULE,Y
DE97-00258A ASSEMBLY MOUNTING PLATE;JVM-2050/70,-,-,OTR-
DE96-00400C DE96-00400C ASSEMBLY NOISE FILTER;SN-UF12C,250V/20A,250V
DE99-00235A ASSEMBLY OUTPUT;MGT-RHN,-,-
DE97-00433A ASSEMBLY PANEL-BACK;SMV9165,-,-,-,ASSEMBLY-ADIAB
DE94-03643A ASSEMBLY PCB AUTO;GE CONVECTION MAIN,ME6000K
DE92-03977E ASSEMBLY PCB MAIN;GE CONVECTION MAIN,ME6000K
DE94-03644A ASSEMBLY PCB SMD;GE CONVECTION MAIN,ME6000KM
DE92-02447A ASSEMBLY PCB SUB;JVM2170,DAM-2170 ENC-00,ENC
DE94-03820A ASSEMBLY RACK-MIDDLE;PVM9179SK1SS,D306,H120,
DE91-70101F DE91-70101F ASSEMBLY THERMOSTAT;JVM-1750DP,164D5312G013,
DE96-01079A ASSEMBLY THERMOSTAT;PVM9179,125/250V,150/0,N
DE96-01047A ASSEMBLY WIRE HARNESS-DISPLAY;ME18H704,120V/
DE39-40673A DE39-40673A ASSEMBLY WIRE HARNESS-EARTH;OTR6ALLMODEL,120
DE96-01075A ASSEMBLY WIRE HARNESS-MAIN;PVM9179, GE RFQ,
DE96-01077A ASSEMBLY WIRE HARNESS-PBA;GE RFQ, BLUETOOTH
DE96-01073A ASSEMBLY WIRE HARNESS-PBA;GE RFQ, FILTER REM
DE96-01078A ASSEMBLY WIRE HARNESS-PBA;GE RFQ, KNOB DIAL,
DE96-00983B ASSEMBLY WIRE HARNESS-SUB;GE RFQ, PVM9179SK1
DE96-00956D ASSEMBLY WIRE HARNESS-SUB;ME21K7010DS/AA, LE
DE96-01076B ASSEMBLY WIRE HARNESS-SUB;PVM9179,1.7 CONV.
DE92-90242D ASSEMBLY-HOOD DAMPER;JVM-1870,-,JVM250BL OTR
OM75P_10_ESGN OM75P_10_ESGN ASSEMBLY-MGT
DE99-00224A ASSEMBLY-ROD END;MGT-RHN,7.5*43.8
DE61-01302B BASE BOTTOM;MC17J8000CS/AA,EGI-SECC,T0.4
DE61-00490A BASE PLATE;SMV9165,EGI-SECC,T0.8
DE61-01302A BASE-BOTTOM;MODULAR4,EGI-SECC,T0.4
6601-001438 BEARING;625ZZ1#MC3EU76,ID5,OD16,L5,NSK
6602-004008 BELT-TIMING GEAR;RUBBER,T4.5,W6,RED
DE31-00064B DE31-00064B BLADE-FAN;MODULAR4,PP+TD40%,-,NATURAL,-,
DE72-10012D BODY-ANODE;MGT-ALL,C1020T-H,T2,OD39XID35
DE60-20066A DE60-20066A BOLT-FLAT;MSWR,L100,UNF1/4
DE60-10111A DE60-10111A BOLT-HEX;M6,L50,ZPC(WHT),SWRCH18A,HH HEA
DE60-20022A DE60-20022A BOLT-TOGGLE;MSWR,W3/16X75,MSWR
DE61-00690A BRACKET GUIDE;SMV9165,ALSTAR,T0.6,-,-
DE61-00550A BRACKET-AIR GUIDE;SMV9165,ALSTAR,T0.6,OT
DE61-01410A DE61-01410A BRACKET-BOTTOM LAMP;SMH2117S,EGI-SECC,T0
DE61-00489B BRACKET-REAR;OTR CONVECTION,EGI-SECC,T0.
DE61-50263A DE61-50263A BRACKET-TCO;GI-SGCC,T0.8
DE61-01371A BRACKET-TCO;SMH9151B/XAA,EGI-SECC,T0.6,-
2401-003139 C-AL;1000UF,20%,25V,TP,10X20MM,5MM,-55TO
2401-000481 C-AL;10UF,20%,50V,WT,TP,5X11MM,5MM
2401-000040 C-AL;47UF,20%,250V,TP,12.5X25MM,5MM,-40T
2401-001548 C-AL;47UF,20%,25V,TP,5X11MM,5MM,-55TO+10
2203-000206 C-CER,CHIP;100NF,10%,50V,X7R,TP,2012,T0.
2203-000260 C-CER,CHIP;10NF,10%,50V,X7R,TP,2012,-55T
2203-007306 C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2
2203-000444 C-CER,CHIP;1NF,10%,50V,X7R,TP,2012,T1.2,
2203-006960 C-CER,CHIP;1UF,10%,50V,X7R,TP,2012,-55TO
2203-000634 C-CER,CHIP;22PF,5%,50V,C0G,TP,2012,-55TO
2203-006377 C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55
2201-000987 C-CERAMIC,DISC;2.2NF,20%,400VAC,Y5U,BK,1
DE59-50002A DE59-50002A C-FILM,LEAD;10,-25TO+70,220V,+10~-5,38X2

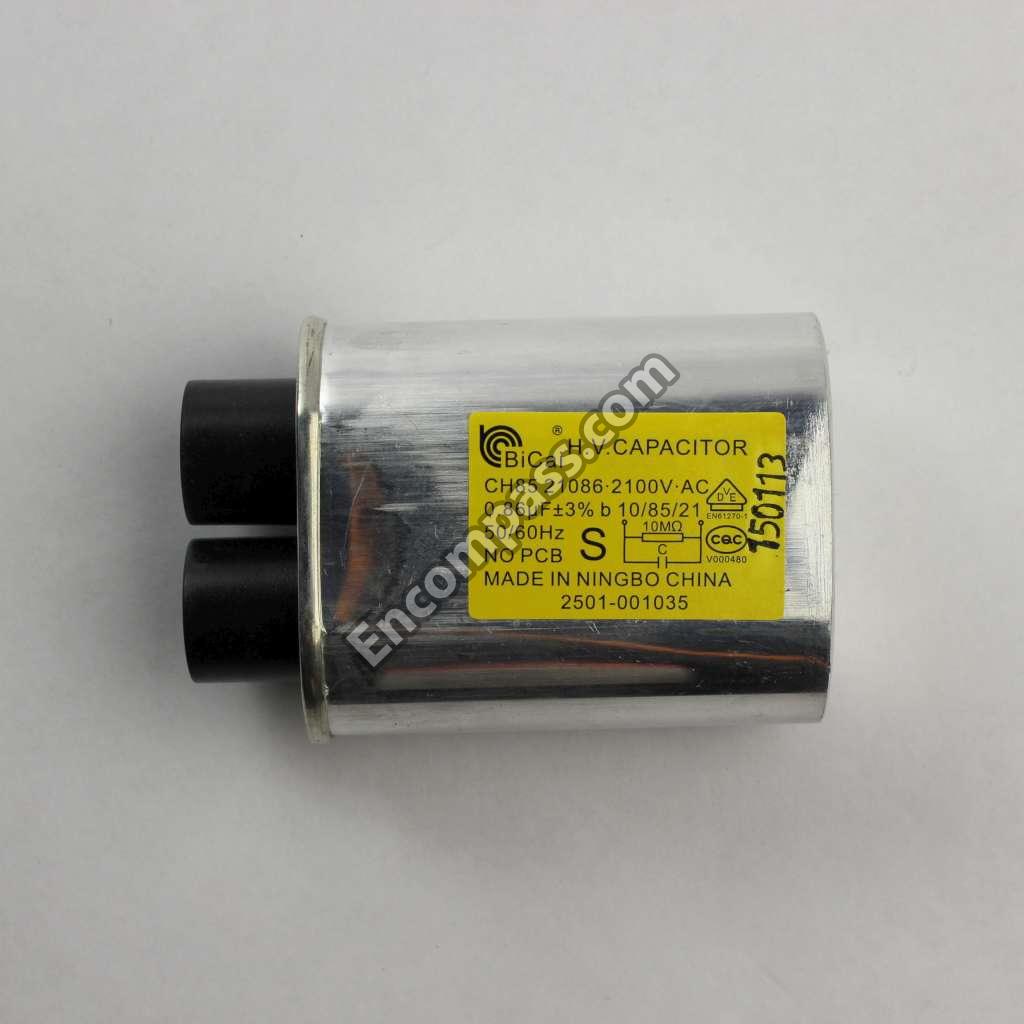

2501-001035 2501-001035 C-OIL HIGH VOLTAGE;860NF,2100V,BK,34X54X
6502-001117 CABLE CLAMP;DALF-94-2,SI,150C TEMP
6502-000127 CABLE CLAMP;DAWH-18NB,PA66,NTR
DE66-00136A CAM-MOTOR;SMV9165,PBT+GF15%,OTR-CONV,BLA
DE67-00280A CAP DOOR;JVM7195,PP+TD30%,T1.5,H36.3,HB,
DE71-60270C CAP-ANTENNA;MGT-ALL,CR-SPCE,T0.25,-,-,-,
DE02-00060A CHEMICALS-ALCOHOL;DT-3000,COLORLESS,CLEA
DE02-00135A CHEMICALS-TOLUENE;C6H5CH3,92.14
DE73-00019A CHOKE-RING;H-6,SPCCT-1/4H,T0.25X26X26,NI
DE62-00041A CHOKE;MGT-RHN,SPCCT-1/4H,ID9.0,OD14.0,T0
DE67-00272A DE67-00272A COUPLER;PPS+GF40%,E1040SEW,NATURAL,-,GIA
DE63-00873A COVER CONNECTOR;OTR CONVECTION,EGI-SECC,
DE71-60051B DE71-60051B COVER DAMPER;JVM-1870,MICA SHEET,0.22,68
DE63-00659A DE63-00659A COVER LAMP;MODULAR4,EGI-SECC,T0.4
DE63-00186B DE63-00186B COVER MOTOR;MAYTAG 1.6 CONV,PP,-,-,NATUR
DE63-00175B COVER STIRRER;ME179KFETSR,MICA SHEET,T0.
DE63-00100A COVER-COOKTOP LAMP;OTR-9,EGI-SECC,T0.4,-
DE63-00100B COVER-COOKTOP LAMP;OTR-9,EGI-SECC,T0.4,-
DE71-00112A COVER-FILTER;MGT-ALL,EGI-SECE,T0.4,V-0
DE67-00184A CUP-K;MGT-RHN,CR-SCP2,T0.5,W60,L60,-,-
DE63-00748A CUSHION-CARBON FELT;FELT,T3,W10,L1000,0.
DE66-00154A DE66-00154A DAMPER-GASKET;SMV9165,SI,T2.5,L100,NATUR
DE72-40022A DE72-40022A DAMPER-MAIN;OTR,GI-SGCC,T0.5,L34,-,-,-,L
DE66-00156A DE66-00156A DAMPER-SWING;SMV9165,EGI-SECC,T0.5,W77.5
0402-001298 0402-001298 DIODE-BRIDGE;DF06S,600V,1A,SMD-4,TP
DE59-00002A DE59-00002A DIODE-H.V;MWO,2CL4512H/CL04-12A,500MA,12
0402-001795 0402-001795 DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP
0404-001595 DIODE-SCHOTTKY;B2100,100V,2000MA,DO-214A
0401-001010 DIODE-SWITCHING;1N4148W,75V,150MA,400MW,
0403-000258 DIODE-ZENER;BZX84C5V6,5.2~6V,225MW,SOT-2
0403-001499 DIODE-ZENER;MMSZ5252B,22.8~25.2V,500MW,S
DE64-02670A DE64-02670A DOOR-KEY;ME179KFETSR,PBT+GF30%,GP-5300G,
DE67-00291A DUCT-REAR;OTR CONVECTION,EGI-SECC,T0.4
DE67-00295A DUCT-UP FRONT;OTR CONVECTION,EGI-SECC,T0
DE67-00296A DUCT-UP RIGHT;OTR CONVECTION,EGI-SECC,T0
DE67-00205A FAN CONVECTION;1.5 CONV,ALCOAT-SA1C,T0.6
DE47-80008A FILAMENT;PI0.5,ID3.0,OD4.0,L13.4,T0.5,VT
DE63-00666A DE63-00666A FILTER AIR;MODULAR4,AL,W172.9,L161.2,4 L
DE63-00367H DE63-00367H FILTER-CHARCOAL;SMH7175, SMH7195,CHARCOA
DE61-00620B FOOT-RACK;PVM9179,SI,BLACK,T2.25, H29.3
DE63-20015A GASKET-R.F;MGT-ALL,BRASS,T2,OD39,ID16.8,
DE67-40063A DE67-40063A GLASS-COOK TOP LAMP;GLASS,T2.8,W59,L159.
DE64-01088A DE64-01088A GLASS-OVEN LAMP;SMV9165,GLASS,T2,W66.5,L
DE63-10011A GROMMET;PA66+GF15%,DACB-16,BLACK
DE61-01671A GUIDE AIR-A;OTR CONVECTION,EGI-SECC,T0.4
DE61-01672A GUIDE AIR-B;OTR CONVECTION,EGI-SECC,T0.4
3711-001038 HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,6P,
3711-003843 HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,8P,
3711-004143 HEADER-BOARD TO CABLE;BOX,2P/3P,1R,5MM,S
3711-004142 HEADER-BOARD TO CABLE;BOX,3P,1R,5MM,STRA
3711-000939 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,ST
3711-004067 HEADER-BOARD TO CABLE;BOX,4P,1R,2MM,ANGL
3711-004379 HEADER-BOARD TO CABLE;BOX,4P,1R,2MM,STRA
3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA
3711-001084 HEADER-BOARD TO CABLE;BOX,8P,1R,2.5MM,ST
3711-001154 HEADER-BOARD TO CABLE;BOX,9P,1R,2.5MM,ST
3711-004349 HEADER-BOARD TO CABLE;ST,STRAIGHT,1R,3P,
DE47-00030A DE47-00030A HEATER SHEATH-CONVECTION;AC120V,BKT,900W
DE61-00619A HOLDER BEARING;SMV9165,EGI-SECC,T0.8,PI
DE61-00602A HOLDER-HEATER;SMV9165,STS430,T0.8,W17,L2
DE61-00375A DE61-00375A HOLDER-RACK;SMV9160SC,PPS+GF40%,OTR-CONV
DE61-90111A DE61-90111A HOLDER-SENSOR;POM,NATURAL,HB,K300,K300
DE61-00164A HOLDER-WIRE;OTR8,PP+TD30%,NATURAL,HB,TB5
DE61-00913A HOUSING-BEARING;LEVM30FE,TEFLON,1.5MM
1103-001183 IC-EEPROM;24C04,SOP,8P,TP,5X4MM,4KBIT,X8
1201-001125 IC-OP AMP;75S01,SOP,5P,63MIL,SINGLE,100D
1203-006759 IC-POSI.ADJUST REG.;TL432ASA,SOT-23,3P,3
1203-006245 IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1.
2702-001123 INDUCTOR-RADIAL;4.7UH,10%,6.5X7.5MM,5MM,
4713-001165 4713-001165 LAMP-HALOGEN;120V,20W,NTR,130LM,12X40,9.
DE66-00084B DE66-00084B LATCH BODY;ME179KFETSR,PBT+GF30%,-,BLACK
DE07-00136B LED DISPLAY;14S,7D,ME6000MM 2-LINE,WHT,C
DE66-90106B DE66-90106B LEVER SWITCH-LOWER;OTR6,POM,-,F20-03,NAT
DE73-90014A MAGNET-CATHODE;FERRITE,T13.1,PMF-2BB

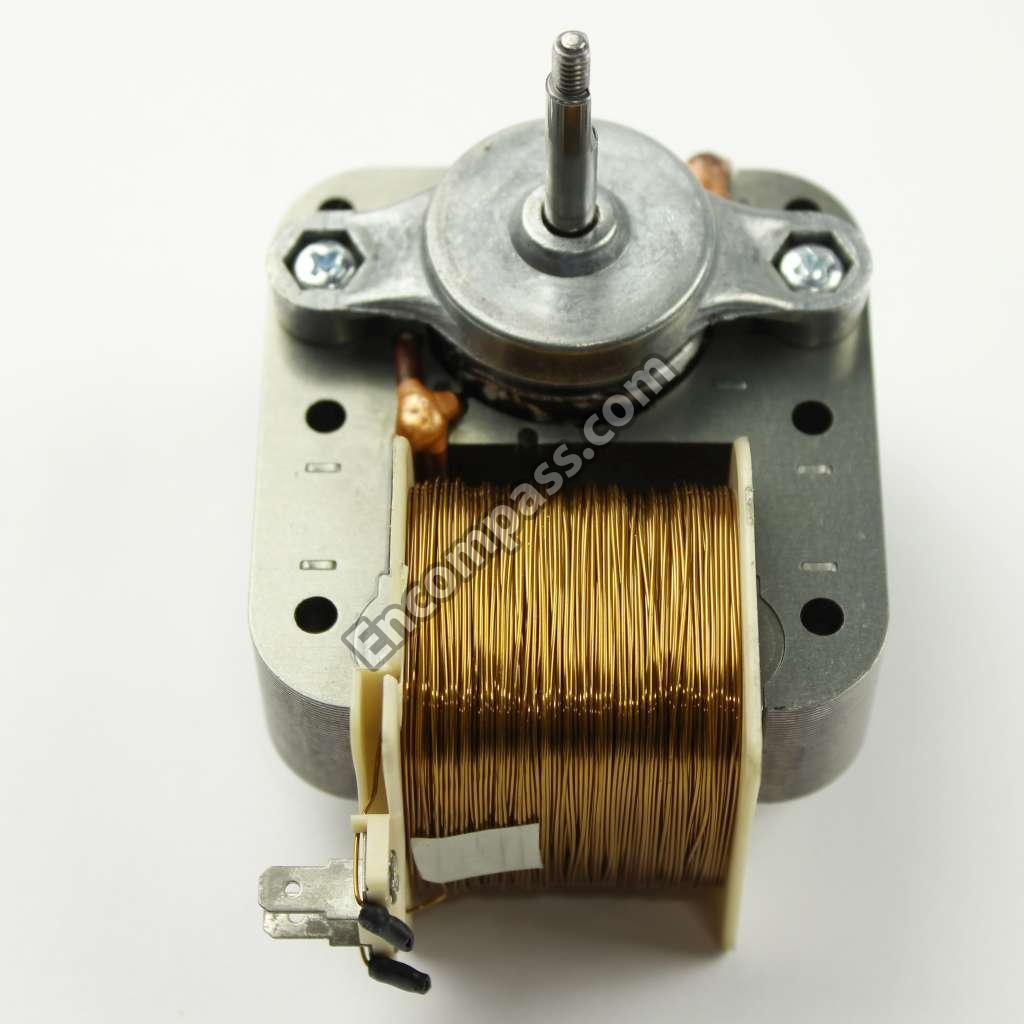

DE31-00032B DE31-00032B MOTOR AC CONVECTION;TIMPANI,SMC-U9165A,2
DE31-10172D DE31-10172D MOTOR AC DRIVE;MC17J8000CG/AA,SSM-16HR,8
DE31-10095B DE31-10095B MOTOR AC DRIVE;OTR,SM16FY25M1A3, 50TYZ-0
DE31-00045B DE31-00045B MOTOR AC FAN;SMF-U2070B,2,120V,60HZ,25W,

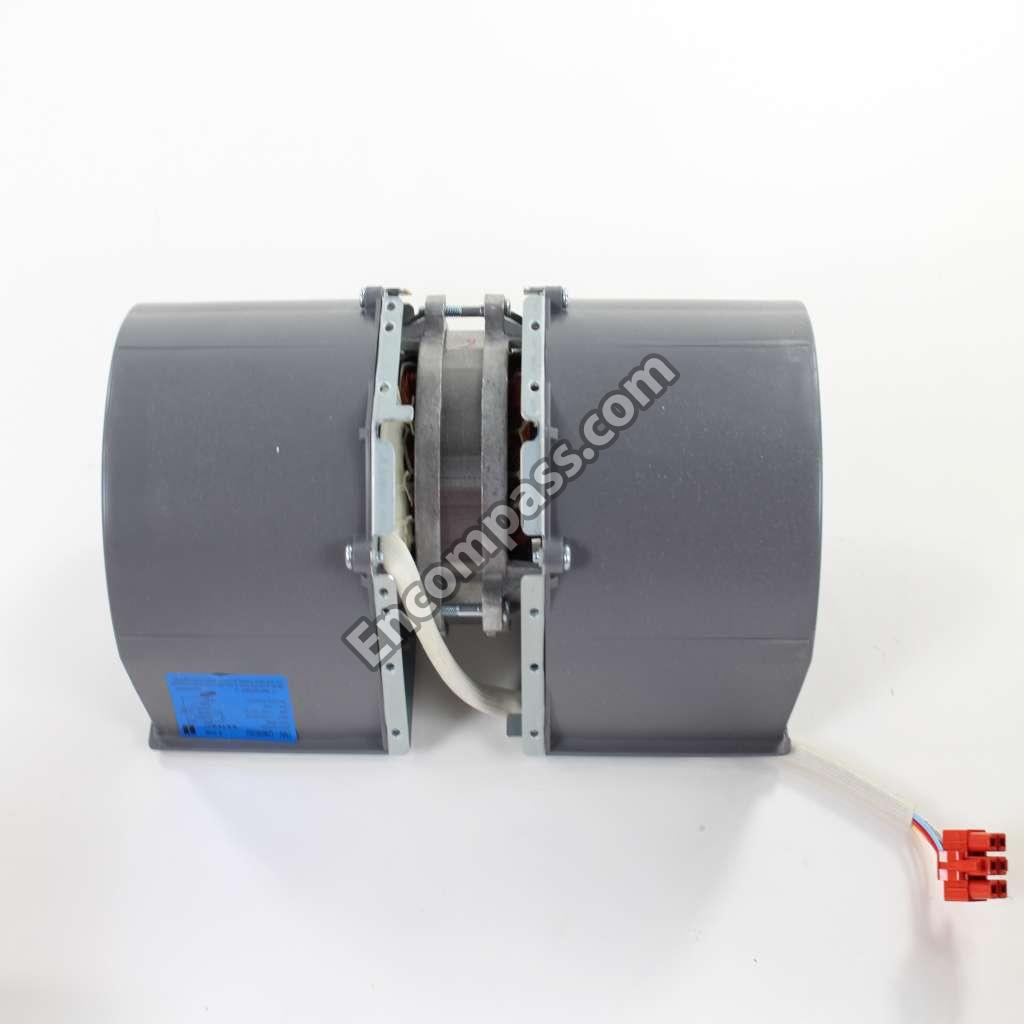

DE31-00028X DE31-00028X MOTOR AC VENTILATION;SMV-U360B,2POLE,120
DE60-30016A DE60-30016A NUT FLANGE;MSWR-SWRM,MSWR10
DE60-30015A NUT FLANGE;MSWR-SWRM,P0.8
DE60-30022A NUT TOGGLE;ZPC,ZPC2
6021-001149 NUT-HEXAGON FLANGE;SWRCH10A,NI,M4,LEFT T
DE64-00774A PANEL-BACK;OTR-CONV 1.6CUFT,GI-SGCC,T0.6
DE62-20011B PIPE-EXHAUST;MGT-RHN,C1020BD-H,L7,OD12,L
DE62-20020A PIPE-TITANIUM;MGT-ALL,TI,ID1.8,OD2,L2.0,
DE61-00569A POLE-PIECE(A);MGT-RHN,SCP2-S D,NI-PLATIN
DE61-00570A POLE-PIECE(K);MGT-RHN,SCP2-S D,NI-PLATIN
DE02-00040A POWDER-EPOXY;TMP-350,EPOXY,TITANUM,MESH
DE96-00218C DE96-00218C POWER CORD-AT;SJT 3X14AWG 105C,GRY,US3S,
DE66-00135A PULLEY-FAN MOTOR;SMV9165,PBT+GF15%,BLACK
DE66-00259A PULLEY;MW8000J,AL,D36,T9,DIE-CASTING,ALD
2007-000033 R-CHIP;0OHM,5%,1/4W,TP,3216
2007-000029 R-CHIP;0OHM,5%,1/8W,TP,2012
2007-000221 R-CHIP;1.2KOHM,5%,1/8W,TP,2012
2007-000277 R-CHIP;100KOHM,1%,1/8W,TP,2012
2007-000286 R-CHIP;100OHM,1%,1/8W,TP,2012,T0.5
2007-000297 R-CHIP;10KOHM,1%,1/8W,TP,2012,T0.5
2007-000352 R-CHIP;12KOHM,1%,1/8W,TP,2012
2007-000401 R-CHIP;150OHM,5%,1/8W,TP,2012
2007-000454 R-CHIP;18KOHM,1%,1/8W,TP,2012
2007-000465 R-CHIP;1KOHM,1%,1/8W,TP,2012
2007-000474 R-CHIP;1MOHM,1%,1/8W,TP,2012,T0.5
2007-000530 R-CHIP;200KOHM,1%,1/8W,TP,2012,T0.5
2007-000543 R-CHIP;20KOHM,1%,1/8W,TP,2012,T0.55
2007-000668 R-CHIP;2KOHM,1%,1/8W,TP,2012
2007-000868 R-CHIP;4.7KOHM,1%,1/8W,TP,2012
2007-000928 R-CHIP;470OHM,1%,1/8W,TP,2012
2007-000938 R-CHIP;47KOHM,1%,1/8W,TP,2012
DE67-00286A RACK WIRE;PVM9179SK1SS,W320,L488,-,0D5
DE75-00038B RACK WIRE;SMV9165,MSWR-SWRM,-,H116,-,-,P
3501-000264 3501-000264 RELAY-POWER;12.0V,16000MA,1FORMA,6.5MS,1
DE70-00394A ROD-DAMPER;SMV9165,MSWR-SWRM
DE64-00925A SCREEN DOOR-A;SMV9165,GLASS,T2
6001-000033 SCREW-MACHINE;STS304,PASS,L10,M4,TH,+
DE60-10059A DE60-10059A SCREW-TAPPING;STS304,NI PLT,L8,M4,TH,+,2
DE60-10053A SCREW-TAPPING;SWRCH18A,NI PLT,L10,M4,PH,
6002-001173 6002-001173 SCREW-TAPPING;SWRCH18A,ZPC(BLK),L12,M4,F
DE60-10062A SCREW-TAPPING;SWRCH18A,ZPC(BLK),L12,M4,T
6002-001159 SCREW-TAPPING;SWRCH18A,ZPC(BLK),L20,M4,T
DE60-10067A SCREW-TAPPING;SWRCH18A,ZPC(BLK),L8,M4,TH
6002-000432 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T
6006-001170 6006-001170 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T
6002-001237 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M3,P
6002-001325 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T
DE60-10080A DE60-10080A SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M5,P
6002-001004 6002-001004 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L30,M4,T
DE60-10045A DE60-10045A SCREW-TAPPING;SWRCH18A,ZPC(WHT),L6,M3,PH
DE60-10051A SCREW-TAPPING;SWRCH18A,ZPC(WHT),L6,M4,PH
6002-001614 SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M3,PW
6003-001172 SCREW-TAPTYPE;SWRCH18A,NI PLT,L6,M3,PH,+
DE81-01903A SCREW-TAPTYPE;SWRCH18A,ZPC(BLK),L16,M4,F
6006-001176 SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L8,M4,PH
DE74-10011A SEAL-WASHER;MGT-ALL,TK721(AG+CU),T0.05,I
DE32-60011A DE32-60011A SENSOR GAS;TGS-880,-,-,-,-,-,-,-,-
DE32-10013A DE32-10013A SENSOR TEMP;1.0KOHM
DE70-90027A SHEET-ALLOY;ST-NIFE,COIL,T0.5,W34,ALLOY
DE70-90033A SHEET-BRAZE;MGT-ALL,VAGCU28,T0.35,PI0.3X
DE71-00042A SHIELD-CUP(A);MGT-ALL,CR-SCP2,T0.5,W60,L
DE71-80021A SHIELD-END;MO,T2.5,OD7.5,ID3.4,-,-,-
DE71-80022A SHIELD-TOP;MGT-ALL,MO,T2,W7.5,L1.74,-,-,
2203-006361 SMG PART
2203-006307 SMG PART
0103-003514 SMG PART
0103-003519 SMG PART
0103-003529 SMG PART
0103-003556 SMG PART
0106-001101 SMG PART
0106-001316 SMG PART
0106-001395 SMG PART
0201-001328 SMG PART
0201-001509 SMG PART
0201-001822 SMG PART
0201-003147 SMG PART
0202-001463 SMG PART
0202-001608 SMG PART
0203-001373 SMG PART
0203-001481 SMG PART
0204-004665 SMG PART
0402-001741 SMG PART
0404-001666 SMG PART
0504-000001 SMG PART
0504-001064 SMG PART
0505-001943 SMG PART
0604-001405 SMG PART
0903-001966 SMG PART
1203-004400 SMG PART
1205-004722 SMG PART
2007-000568 SMG PART
2007-000569 SMG PART
2007-001011 SMG PART
2007-001262 SMG PART
2007-007219 SMG PART
2202-002252 SMG PART
2203-006457 SMG PART
2401-003803 SMG PART
2801-005307 SMG PART
3002-001129 SMG PART
3406-001182 SMG PART
3501-001306 SMG PART
3708-001550 SMG PART
3711-004200 SMG PART
3711-007499 SMG PART
6042-001018 SMG PART
6801-001738 SMG PART
6902-001498 SMG PART
DB68-05458A SMG PART
DE01-00228A SMG PART
DE01-00288A SMG PART
DE02-00014A SMG PART
DE02-00029A SMG PART
DE02-00030A SMG PART
DE02-00049A SMG PART
DE26-00171A SMG PART
DE41-00419A SMG PART
DE41-00464A SMG PART
DE42-00006A SMG PART
DE42-00007A SMG PART
DE47-00032C SMG PART
DE47-00068A SMG PART
DE47-20007C SMG PART
DE59-00008A SMG PART
DE60-00032A SMG PART
DE60-60071A SMG PART
DE61-00432B SMG PART
DE61-00433B SMG PART
DE61-00498B SMG PART
DE61-00502B SMG PART
DE61-00601B SMG PART
DE61-00604B SMG PART
DE61-00618B SMG PART
DE61-00718B SMG PART
DE61-00807A SMG PART
DE61-01042A SMG PART
DE61-01043A SMG PART
DE61-01189A SMG PART
DE61-01436B SMG PART
DE61-01437A SMG PART
DE61-01440A SMG PART
DE61-01473A SMG PART
DE61-01474A SMG PART
DE61-01476B SMG PART
DE61-01486A SMG PART
DE61-01587A SMG PART
DE61-01593A SMG PART
DE61-01673A SMG PART
DE61-01677A SMG PART
DE61-01693A SMG PART
DE62-00019A SMG PART
DE62-00020A SMG PART
DE62-00030B SMG PART
DE62-00031A SMG PART
DE62-00032B SMG PART
DE62-00033A SMG PART
DE62-00034A SMG PART
DE62-00039A SMG PART
DE63-00008H SMG PART
DE63-00008Y SMG PART
DE63-00176B SMG PART
DE63-00177A SMG PART
DE63-00178A SMG PART
DE63-00179B SMG PART
DE63-00207B SMG PART
DE63-00283A SMG PART
DE63-00732A SMG PART
DE63-00773C SMG PART
DE63-00774A SMG PART
DE63-00792A SMG PART
DE63-00836A SMG PART
DE63-00843A SMG PART
DE63-00849A SMG PART
DE63-00850A SMG PART
DE64-00766F SMG PART
DE64-00851B SMG PART
DE64-01144D SMG PART
DE64-01144G SMG PART
DE64-02918D SMG PART
DE64-02924A SMG PART
DE64-02925A SMG PART
DE64-02935A SMG PART
DE64-02937D SMG PART
DE64-02941B SMG PART
DE64-02948A SMG PART
DE64-02952A SMG PART
DE64-02956A SMG PART
DE64-03019A SMG PART
DE65-00008A SMG PART
DE65-00009A SMG PART
DE66-00191B SMG PART
DE66-30012H SMG PART
DE67-00285A SMG PART
DE67-00293A SMG PART
DE67-40021A SMG PART
DE68-01613E SMG PART
DE68-02230G SMG PART
DE68-02942A SMG PART
DE68-03144K SMG PART
DE68-04037A SMG PART
DE68-04041B SMG PART
DE68-04352B SMG PART
DE68-04426A SMG PART
DE68-04427A SMG PART
DE68-04428A SMG PART
DE68-04434A SMG PART
DE68-30138L SMG PART
DE68-40039B SMG PART
DE68-40170A SMG PART
DE68-40400E SMG PART
DE68-40729E SMG PART
DE69-00612D SMG PART
DE69-00986A SMG PART
DE69-00987A SMG PART
DE69-00989A SMG PART
DE69-30014D SMG PART
DE69-30066B SMG PART
DE70-00347B SMG PART
DE70-00347C SMG PART
DE70-00347D SMG PART
DE70-00347E SMG PART
DE70-00347K SMG PART
DE70-00347L SMG PART
DE70-00347M SMG PART
DE70-00347N SMG PART
DE70-00380A SMG PART
DE70-00381A SMG PART
DE70-00382A SMG PART
DE70-00414A SMG PART
DE70-00551J SMG PART
DE70-00559A SMG PART
DE70-90142D SMG PART
DE71-30022A SMG PART
DE73-00012A SMG PART
DE73-00028A SMG PART
DE73-90013D SMG PART
DE81-01614A SMG PART
DE90-00003F SMG PART
DE90-01446C SMG PART
DE90-01448E SMG PART
DE90-01449J SMG PART
DE90-01451G SMG PART
DE90-01922D SMG PART
DE90-01923A SMG PART
DE92-03982A SMG PART
DE94-00952D SMG PART
DE94-02306A SMG PART
DE94-02311A SMG PART
DE94-02657F SMG PART
DE94-02947B SMG PART
DE94-02950B SMG PART
DE94-02953A SMG PART
DE94-02962B SMG PART
DE94-03623A SMG PART
DE94-03672A SMG PART
DE94-03675N SMG PART
DE94-03678K SMG PART
DE94-03685A SMG PART
DE94-03686A SMG PART
DE94-03692A SMG PART
DE94-03695A SMG PART
DE94-03703A SMG PART
DE94-04045A SMG PART
DE94-04046B SMG PART
DE94-04047B SMG PART
DE96-00311D SMG PART
DE97-00426C SMG PART
DE97-00429F SMG PART
DE97-00431E SMG PART
DE97-00566E SMG PART
DE98-01498B SMG PART
DE98-01500A SMG PART
DE99-00009A SMG PART
DE99-00236B SMG PART
DE99-00240A SMG PART
DE99-00271B SMG PART
DE99-00352A SMG PART
DE99-00376A SMG PART
DE99-00377B SMG PART
DE99-00383A SMG PART
DE99-00384A SMG PART
DE60-00034A SPACER-RACK WIRE;JMV9169BA,TEFLON,12,WHI
DE61-01412A SPRING ETC-KEY;HSWR-SWRH,D8.35,L47,TURNI
DE66-00054A STRAP-INNER;MGT-ALL,C1020T-H,T2.5,AG-PLA
DE66-00055A STRAP-OUTER;MGT-ALL,C1020T-H,T2.5,AG-PLA
DE70-50027A STRIP-CU;C1020S,H,T1.85,W13.45
DE61-30129A DE61-30129A SUPPORT PCB;PA66+GF15%,KN3321G15V0,BLACK
DE34-00456B SWITCH MEMBRANE;PVM9179BL1TS,PC,120V,100
3405-001033 3405-001033 SWITCH-MICRO;125/250VAC,16A,200GF,SPST-N
3405-001034 3405-001034 SWITCH-MICRO;125/250VAC,16A,200GF,SPST-N
DE02-00139A TAPE DOUBLE FACE;ACRYL FOAM,T0.16,W15,WH
DE02-00168A TAPE ETC;OPP,-,W72,L1000,TRANSPARENT
CALL_1-800-SAMSUNG THERMISTOR-PTC;27OHM(TYP),265VAC,1.5A,RA
DE47-20059B DE47-20059B THERMOSTAT;AC125/250V,15/10A,120C,0C,S.O
DE47-20037A DE47-20037A THERMOSTAT;AC125/250V,15/10A,150C,0C,S.O
DE47-20007B DE47-20007B THERMOSTAT;AC125/250V,15/10A,150C,60C,NO
DE47-20034A DE47-20034A THERMOSTAT;AC125/250V,15/10A,40C,70C,NOR
0506-000175 TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100
0504-001080 TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM
0504-001008 TR-DIGITAL;RN2427,PNP,200MW,2.2K/10KOHM,
DE26-00126A DE26-00126A TRANS H.V;SHV-U1870D,120V,2545,2385V/3.4
DE74-20016A DE74-20016A TRAY COOKING;MC32K7055CT/EN,GLASS,T5,L69
DE62-20026A TUBE-CU;C1020T-H,T0.7,OD18.6,L1800,ILLUS
DE62-20025A TUBE-CU;C1020T-H,T0.725,OD15.35,L1800,IL
DE62-20027A TUBE-CU;C1020T-H,T2.2,OD39,L1800,ILLUSIO
DE66-00149A VANE;MGT-ALL,C1020R-H,T1.85,13.45X9.5
1405-000154 VARISTOR;560V,460VDC,4500A,17.5X7.5MM,BK
DE60-40006A WASHER-BRAZE;MGT-ALL,VAGCU28,OD15.9 X ID
DE60-40019A WASHER-DOOR;EGI-SECC
DE70-60025A WIRE-COPPER,OFHC;C1020W-H,PI12XROLL
DE70-60022A WIRE-CU;H-6,C1020W,COIL,PI2.7
Main Menu x
