Manufacturer
Samsung
Model Number
QN49Q6FAMFXZA
Description

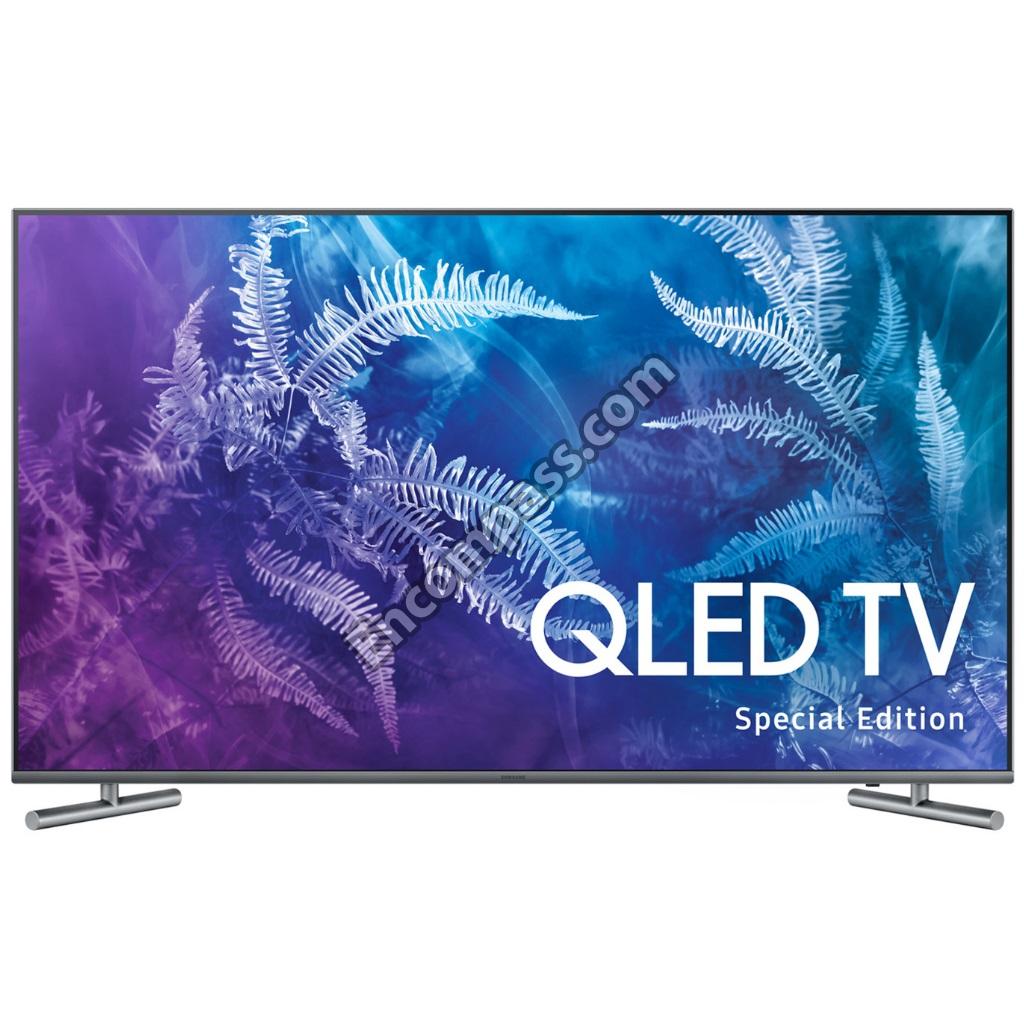

49-inch 4k Ultra Hd Smart Qled Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY BOARD P-FUNCTION TACT;KS7000/7500/K |
| BN96-42446B | ASSY CHASSIS FRONT P;49MU7000,AL,MOON DA |
| BN96-43019A | ASSY COVER P-CLEAN BACK AC INLET;49MU700 |
| BN96-43013A | ASSY COVER P-CLEAN BACK TERMINAL;49MU700 |
| BN96-42421B | ASSY COVER P-DECORATION;49MU7000,PC+ABS+ |
| BN96-42167A | ASSY COVER P-REAR;49MU7000,PC+ABS+ED20%, |
|
|
ASSY HOLDER P-RING;65Q8C,ABS,BLACK,HB |
| BN94-12708A | ASSY PCB MAIN;QMQ7FU |
| BN96-44628B | ASSY PCB P-ONECONNECT;QN49Q6FAMFXZA,FR-1 |
|
|

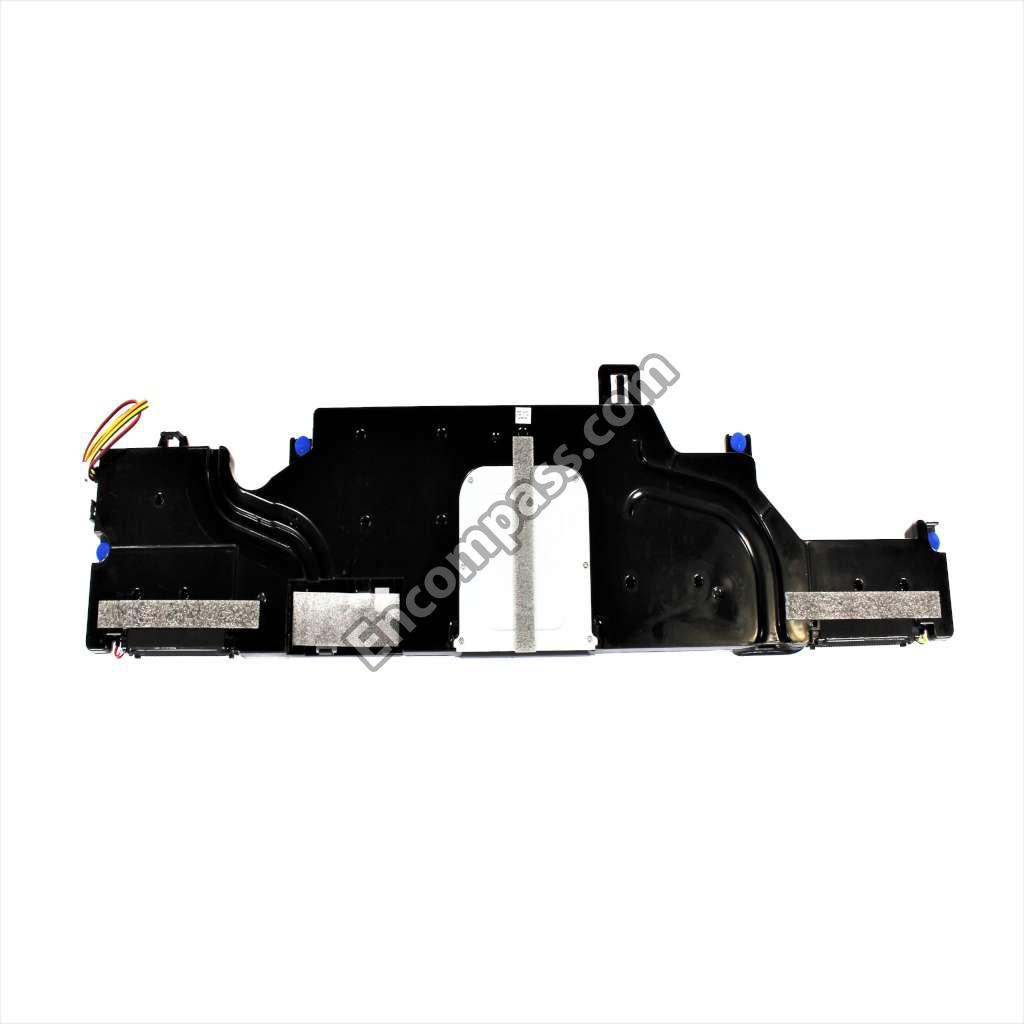

ASSY SPEAKER P-FRONT;TV-SPK,MU7000,6OHM, |
|
|

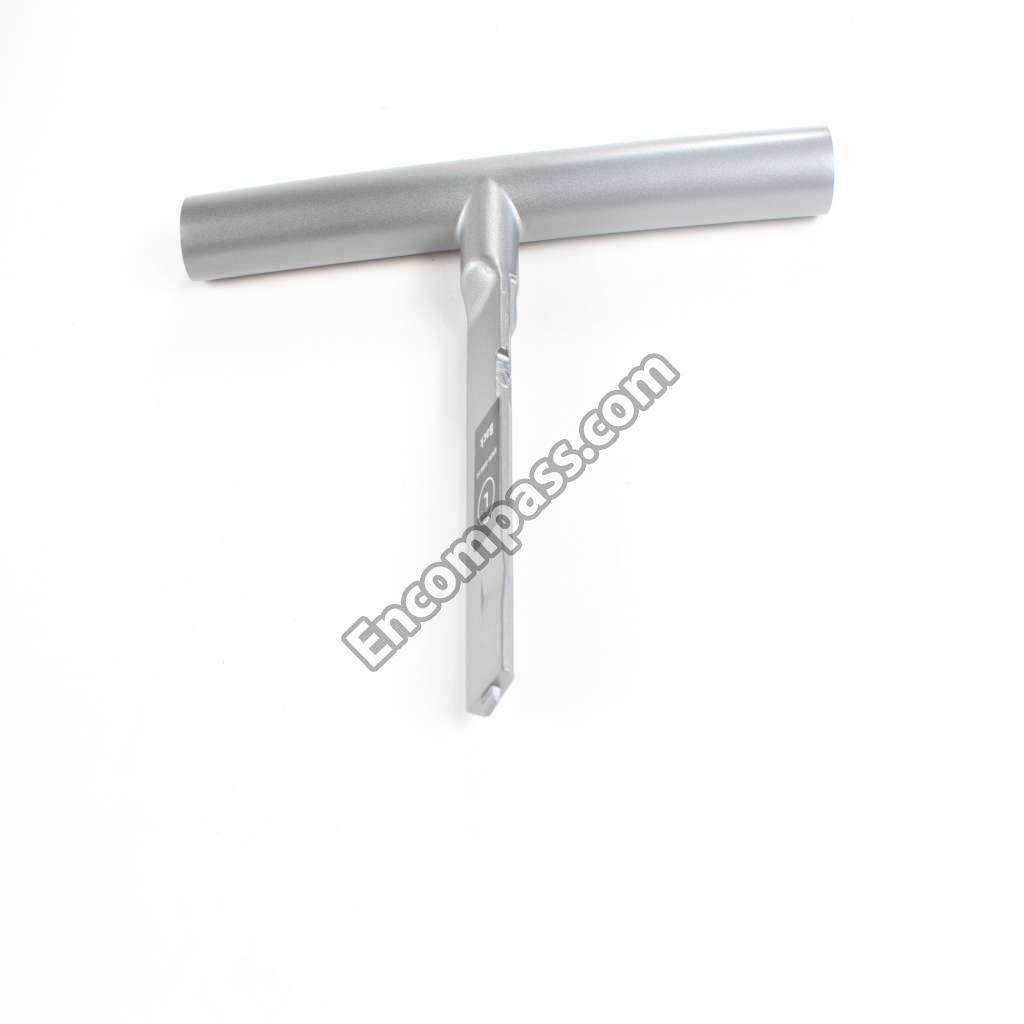

ASSY STAND P-COVER TOP LEFT;49Q6,ALDC12, |
|
|

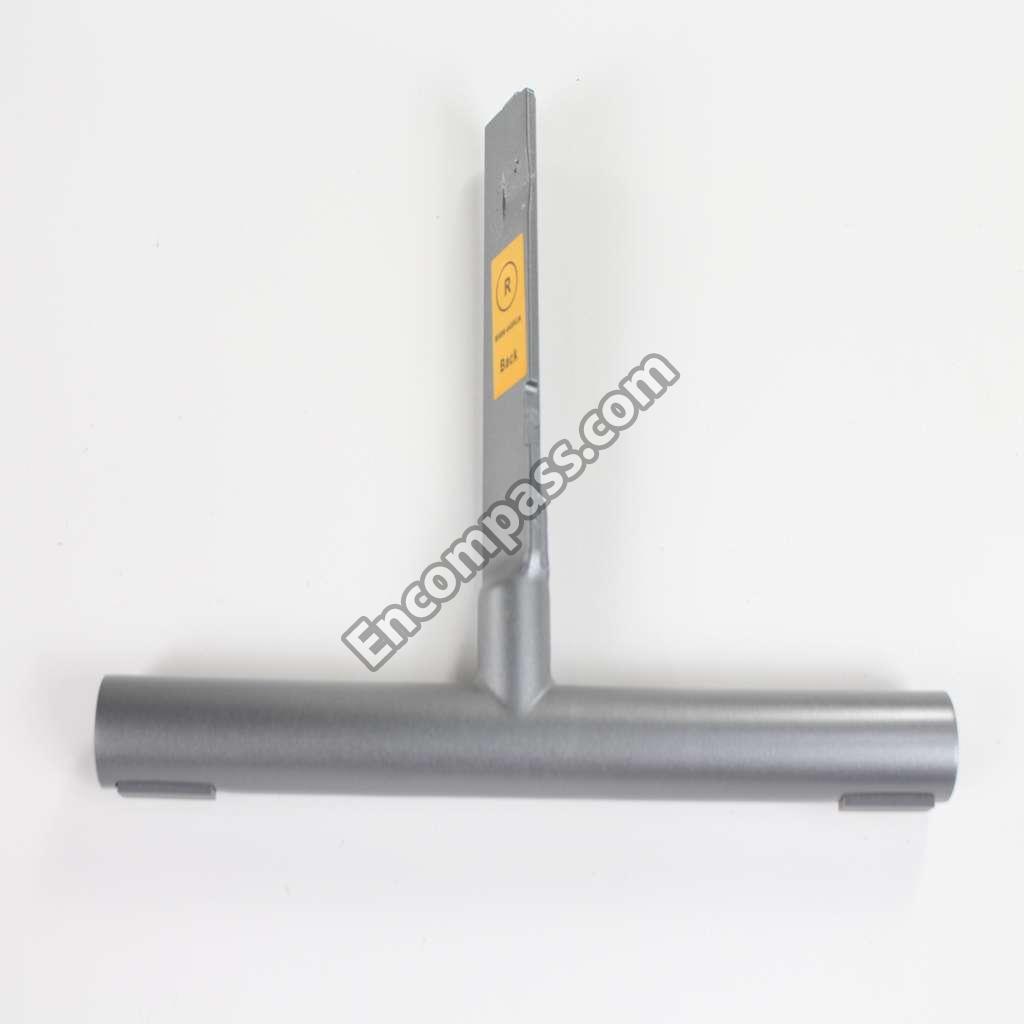

ASSY STAND P-COVER TOP RIGHT;49Q6,ALDC12 |
|
|
BEAD-SMD;26OHM,1608,TP |
| BN61-14656A | BRACKET-STAND LINK LEFT;49MU7000,EGI-SEC |
| BN61-14658A | BRACKET-STAND LINK RIGHT;49MU7000,EGI-SE |
| BN61-13557E | BRACKET-WIRE;49KS7000,SW-C,T1,NATURAL,ZI |
| BN61-13557A | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,L62 |
| 2203-001851 | C-CER,CHIP;0.016NF,5%,50V,C0G,TP,1608 |
| 2203-005642 | C-CER,CHIP;0.22NF,5%,50V,C0G,TP,1005,T0. |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,T |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T |
| 2203-007423 | C-CER,CHIP;10000NF,10%,35V,X7R,TP,3216 |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-008315 | C-CER,CHIP;22000NF,20%,25V,X5R,TP,2012,T |
| 2203-008096 | C-CER,CHIP;2200NF,10%,50V,X5R,TP,2012,1. |
| 2203-006377 | C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1. |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009090 | CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3707-001104 | CONNECTOR-OPTICAL;ANGLE,SPDIF |
| 3710-004144 | CONNECTOR-SOCKET;44P,1R,0.5MM,SMD-A,AU,B |
| BN63-15074H | COVER-OC BOTTOM;55MU7000,PC+ABS,V-0,BK00 |
| BN63-16640A | COVER-TERMINAL SIDE;55MU7000,HIPS,HB,BK0 |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
|
|
DC VSS-PD BOARD;L55E8NR_MSM,AC/DC,187W,A |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0404-001307 | DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001786 | DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001831 | DIODE-ZENER;KDZ12B,12~13.5V,1000MW,SOD-1 |
| 0403-000489 | DIODE-ZENER;MMSZ5228B,3.705~4.095V,500MW |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| 0505-001844 | FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 |
|
|

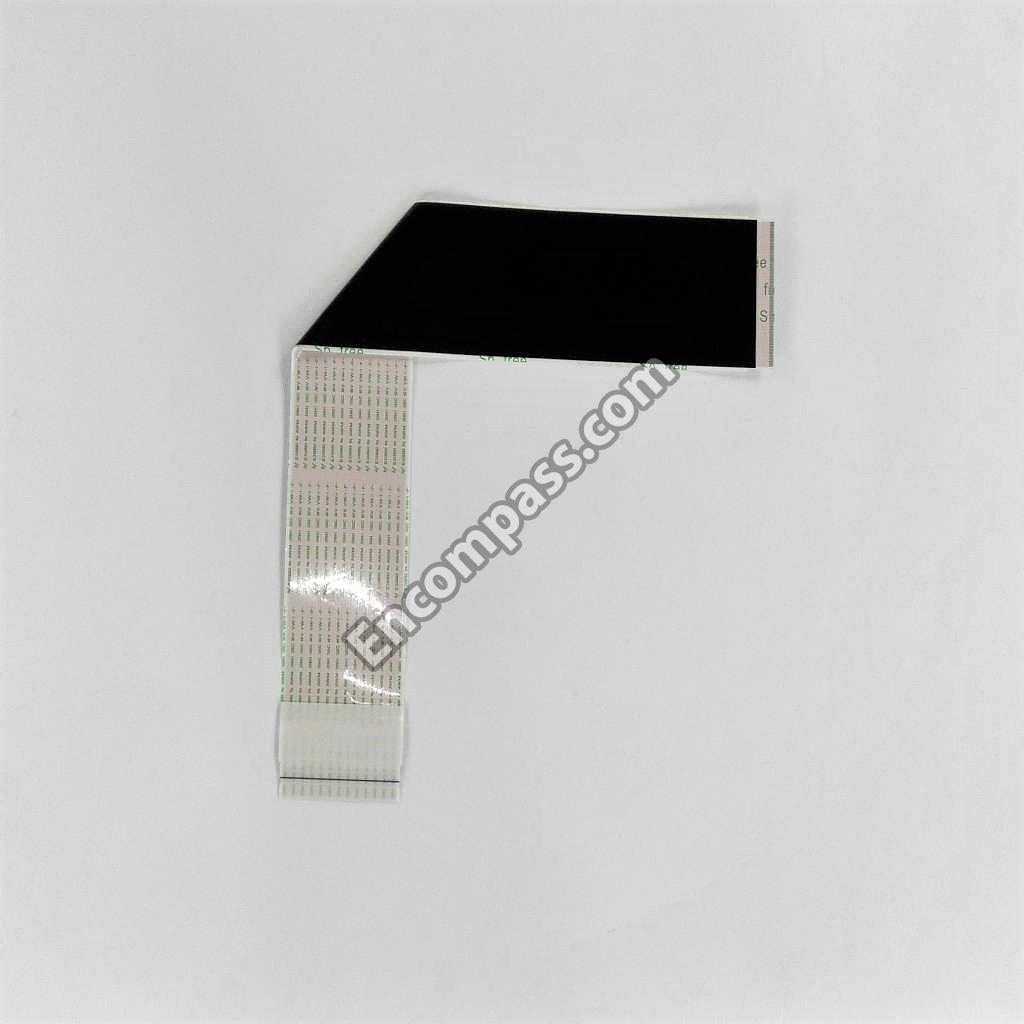

FFC CABLE;49KS7500,FOLD,L350,96P |
| BN96-39820E | FFC CABLE;49KU6500,FOLD,L500,96P |
| 3711-007803 | HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM, |
| 3711-008488 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
| BN13-00070A | IC ASIC;UEI1702,UEI1702,20P,3.3V,-20TO+7 |
| 1001-002047 | IC-ANALOG MULTIPLEX;TS3USB3031,QFN,12P,1 |
| 1201-004003 | IC-AUDIO AMP;TAS880021,TSSOP,48P,12.5X6. |
| 0801-003604 | IC-CMOS LOGIC;NL17SZ17DFT2G,SC-70,5P,TP, |
| 1203-008917 | IC-DC/DC CONVERTER;G5334CQT1U,QFN4,23P,4 |
| 1203-008920 | IC-DC/DC CONVERTER;SYD105ADC,TSOT23,6P,2 |
| 1203-008082 | IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8 |
| 1203-008777 | IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1203-008879 | IC-DC/DC CONVERTER;VPM1GM,QFN,68P,8X8X0. |
| 1105-002751 | IC-DDR4 SDRAM;K4F2E3S4HM-MGCJ,LPDDR4-SDR |
| 1105-002704 | IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-SDR |
| 1204-003743 | IC-DECODER;SDP1602,FCBGA,319P,15.5X15.5X |
| 1204-003742 | IC-DECODER;SDP1603,FCBGA,1147P,31X31X2.2 |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002515 | IC-EMMC;KLM8G1GEME-B041,8GBYTE,64GBX2,BG |
| 1003-002884 | IC-LEVEL DRIVER;VLS1RT,QFN,46P,4.5X6.5X1 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-000166 | IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 |
| 1203-008933 | IC-POSI.ADJUST REG.;G942F11U,SOP,8P,4.9X |
| 1205-005706 | IC-RECEIVER;SN65LVDS4,UQFN,10P,1.50X2.00 |
| 1205-005537 | IC-REPEATER;TCA9517,VSSOP,8P,3.00X3.00MM |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1205-004692 | IC-SWITCH;TPS2069CDBVR,SOT-23,5P,2.9X2.8 |
| 0904-002882 | IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ, |
| 1203-008392 | IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-003803 | INDUCTOR-SMD;4.7UH,20%,6060,0.031OHM,270 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02321B | LEAD CONNECTOR-POWER;55MU7,UL21016,30P,4 |
| BN39-02231A | LEAD CONNECTOR-SUB ASSY;40KU6400,UL21016 |
| BN39-02222A | LEAD CONNECTOR-SUB ASSY;55MU7000,UL21451 |
|
|

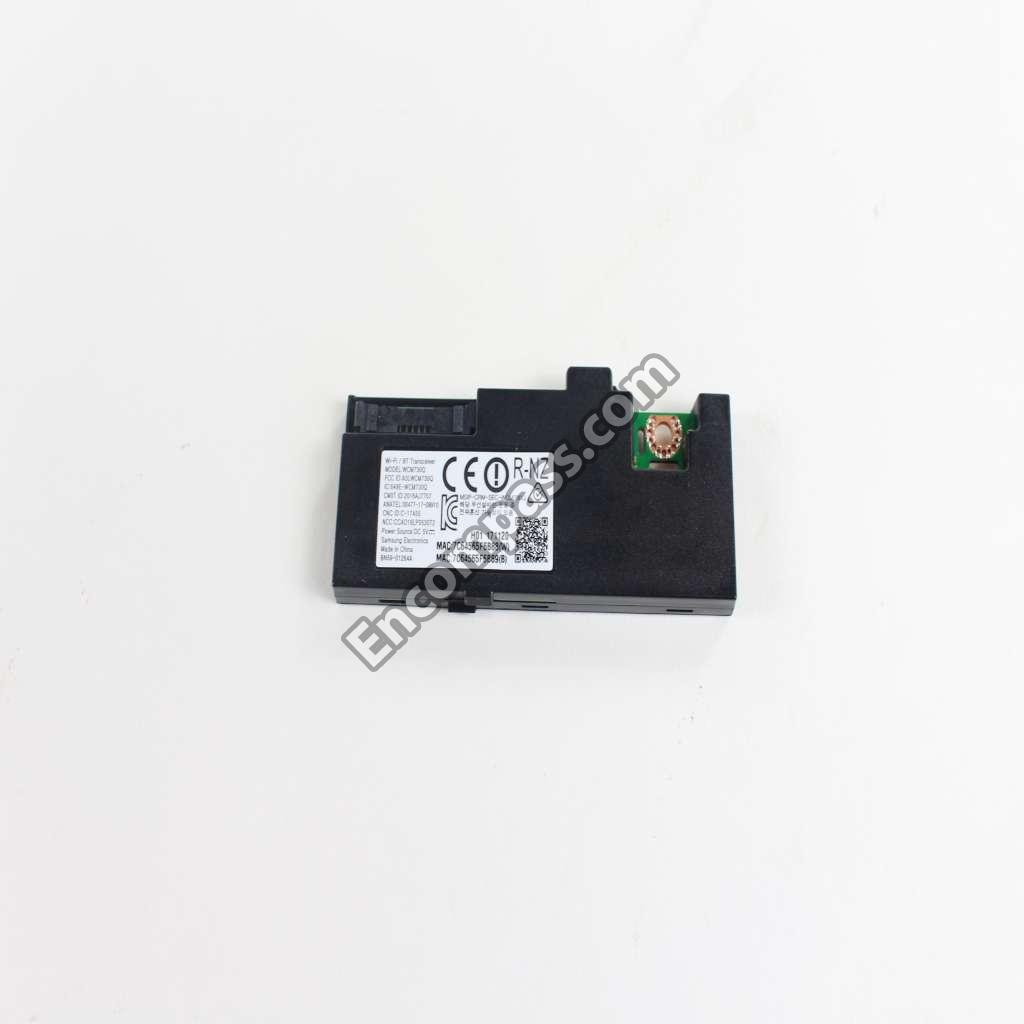

NETWORK-WLAN CLIENT;WCM730Q,78.3X29.3X7. |
|
|

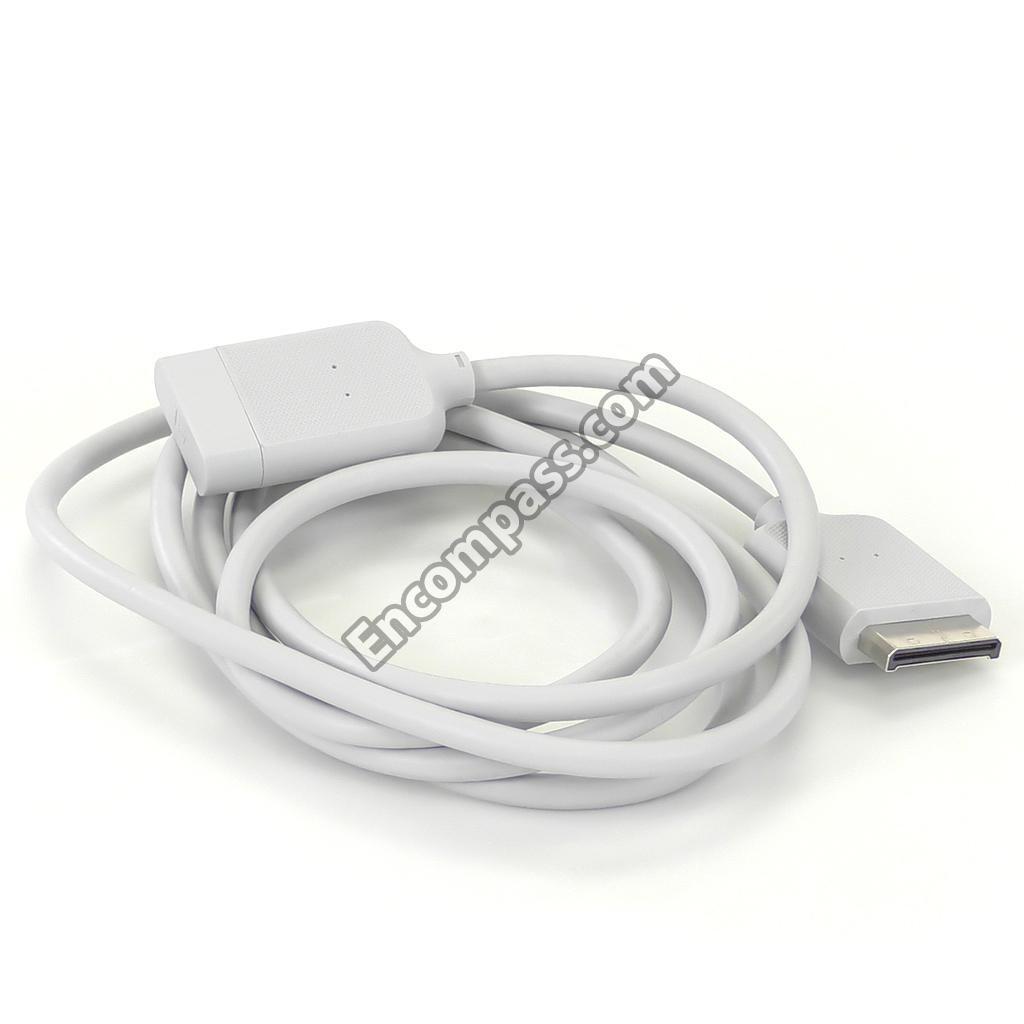

ONECONNECTMINI CABLE;MU9000~MU7000,44P,L |
|
|

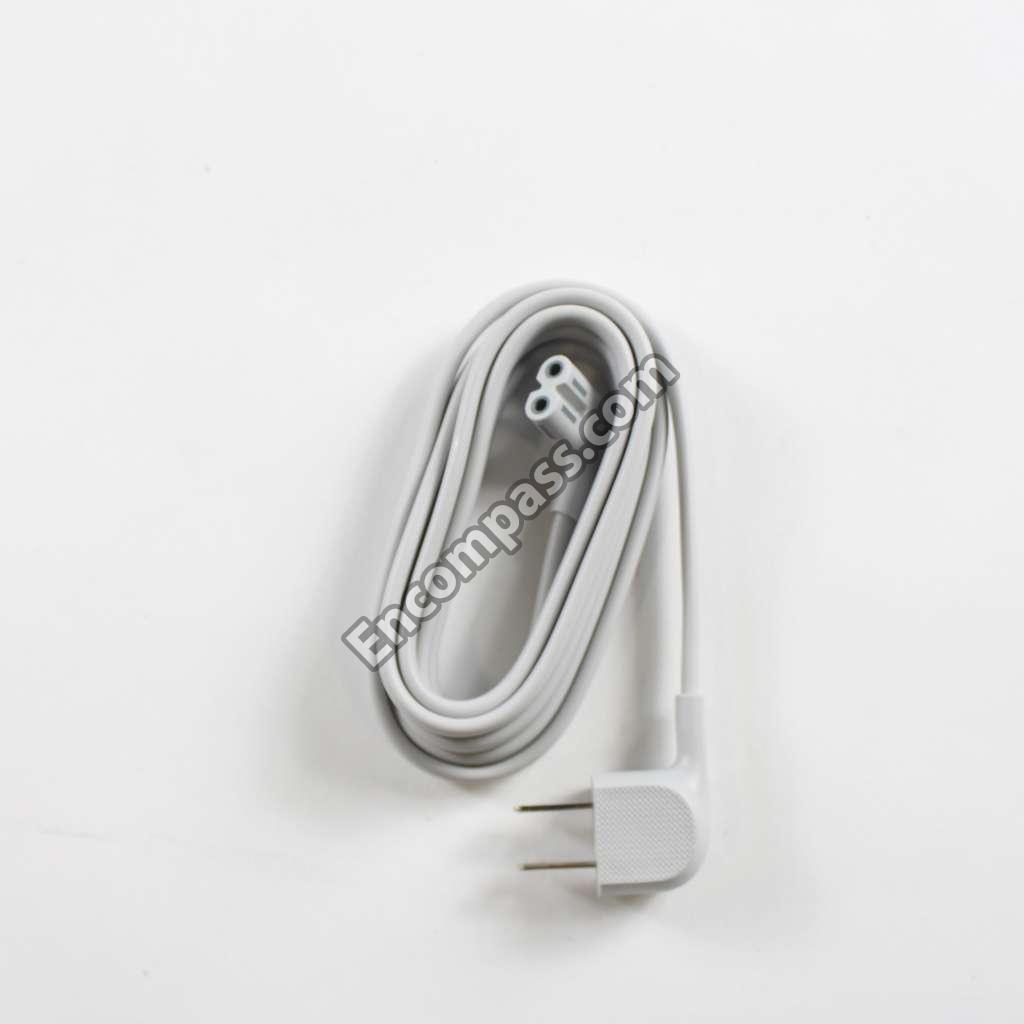

POWER CORD-DT;USA,2P-F,125V,7A,GRY,L2000 |
|
|
PRODUCT LCD-SDC;CY-QM049HLLV1V/H,Q6F,BAS |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-008134 | R-CHIP;12.4KOHM,1%,1/16W,TP,1005 |
| 2007-000343 | R-CHIP;120OHM,1%,1/10W,TP,1608 |
| 2007-007305 | R-CHIP;120OHM,1%,1/16W,TP,1005 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-002425 | R-CHIP;1OHM,5%,1/10W,TP,1608 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-008067 | R-CHIP;21KOHM,1%,1/10W,TP,1608 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001448 | R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001586 | R-NETWORK;1KOHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
| 2011-001402 | R-NETWORK;56OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
|
REMOCON-SMART CONTROL;2017 TV,SAMSUNG,14 |
|
|
SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1 |
| 6001-002912 | SCREW-MACHINE;CH,M3,L3,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;CH,M3,L4,ZPC(BLK),SWRCH1 |
| 6003-001449 | SCREW-TAPTYPE;BH,B,M2.6,L6,NI PLT,SWRC |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0502-001345 | TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900 |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0501-000002 | TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23, |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4 |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
