Manufacturer
Samsung
Model Number
QN50LS03TAFXZA
Description
50-inch The Frame Qled 4k Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-19031A | A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,46 |
| BN96-44261A | ASSEMBLY ACCESSORY-ANCHOR BOLT;UA55LS003ARXU |
| BN96-50670A | ASSEMBLY ACCESSORY-WALL MOUNT;65QTLS03S,NA,N |
| BN96-50998A | ASSEMBLY BOARD P-FUNCTION;QN43LS03TAFXZA,AAC |
| BN96-50996M | ASSEMBLY COVER P-OC BOTTOM;43QTLS03M,PC+ABS+ |
| BN96-50999A | ASSEMBLY COVER P-OC TOP;65QTQ95P,PC,V-0,TP01 |
| BN96-51003A | ASSEMBLY COVER P-REAR;50QTLS03M,PC+ABS+ED20% |
| BN96-49931B | ASSEMBLY HOLDER P-OC CABLE;65QRQ900Z,PC,TP00 |
| BN96-46480C | ASSEMBLY HOLDER P-RING;75QRQ900Z,ABS,BLACK,H |
| BN96-50382A | ASSEMBLY LED BAR P;20Y_Q60T_50INCH_EDGE_LED |
| BN96-50244A | ASSEMBLY OPEN CELL;AUO,50INCH,Y20 NEW,T500QV |
|
|

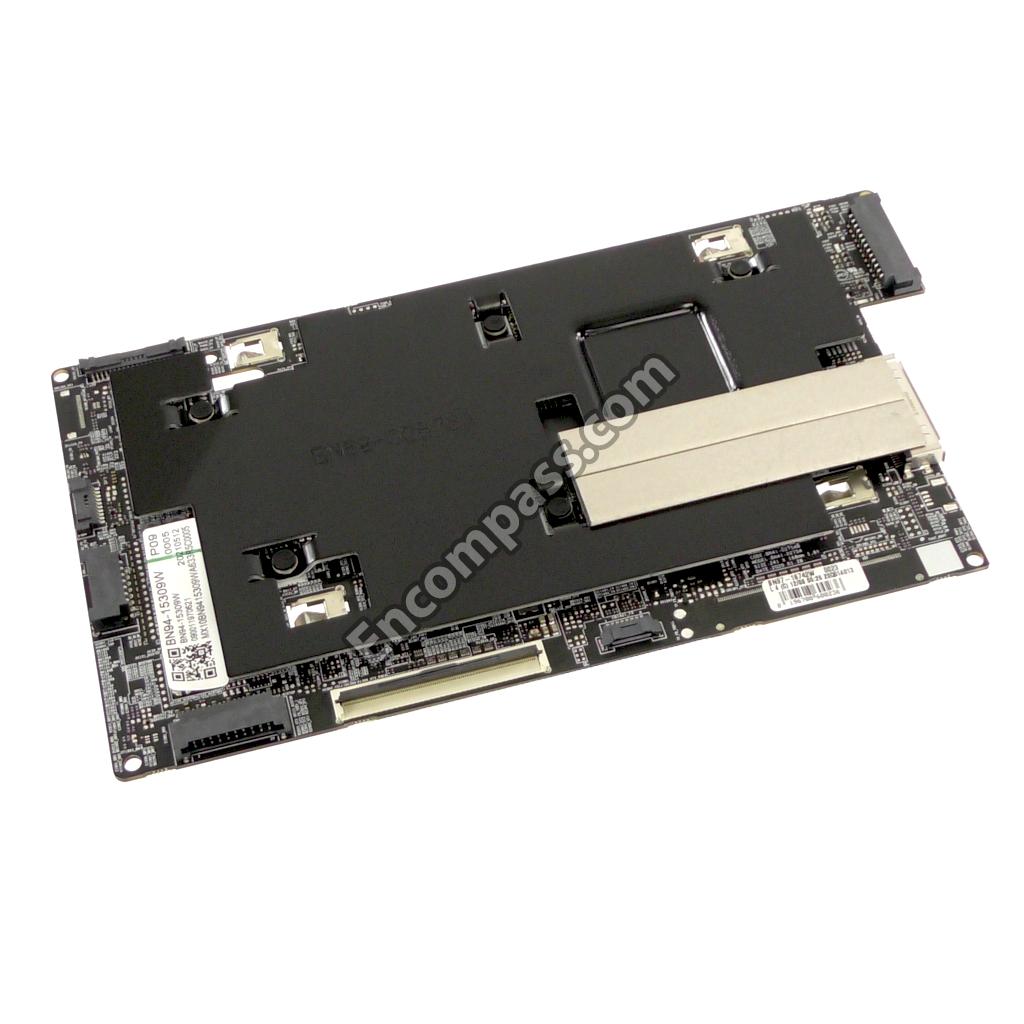

ASSEMBLY PCB MAIN;QTLS03M |
| BN94-15310A | ASSEMBLY PCB OC;QTLS03M |
|
|
ASSEMBLY PCB P;FR-1,OC + COVER |
| BN96-44870C | ASSEMBLY SPEAKER P-FRONT;TV-SPK,43QTLS03M,2C |
| BN96-51043A | ASSEMBLY STAND P-COVER TOP LEFT;55QTLS03S,PP |
| BN96-51044A | ASSEMBLY STAND P-COVER TOP RIGHT;55QTLS03S,P |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557E | BRACKET-WIRE;49KS7000,SW-C,T1,NATURAL,ZI |
| BN61-13557F | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608,-55 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-002024 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
|
|
CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
|
|
CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| 3710-004374 | CONNECTOR-SOCKET;34P,1R,0.8MM,SMD-A,AU,B |
| 3710-004375 | CONNECTOR-SOCKET;34P,2R,0.8MM,SMD-A,AU,B |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| 2801-005372 | CRYSTAL-SMD;24.576MHZ,20PPM,HCX-3SB,12PF |
| BN44-01078A | DC VSS-DRIVER BOARD;L50F7_THS,DC/DC,135. |
| BN44-01066C | DC VSS-POWER BOARD;P230NQ_TPN,AC/DC,230W |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001820 | DIODE-TVS;AZ1023-04F,4.5V,6V,7.5V,0.5MAV |
| 0406-001786 | DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-000489 | DIODE-ZENER;MMSZ5228B,3.705~4.095V,500MW |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
| 0403-001785 | DIODE-ZENER;NZH5V1B,5.1V,4.94/5.2V,500MW |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| BN96-42166D | FFC;49LS03,STRAIGHT,L120,96P |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| AA63-01071A | GASKET-EMI;EMI SHIELDING,FABRIC,T2,W15,L |
| BN63-02627A | GASKET-EMI;OXFORD,FABRIC,T8,W13,L30,GRAY |
| BN63-02627B | GASKET-EMI;OXFORD,FABRIC,T8,W13,L90,GRAY |
| 3711-008488 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG |
| 3711-008098 | HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| 3711-008492 | HEADER-BOARD TO CABLE;BOX,26P,2R,2MM,ANG |
| BN62-00877A | HEAT SINK-PS;QN65Q90RAFXZA,A1050,W160,L8 |
| BN61-14021A | HOLDER-CABLE;55KS8000,PA66,BK0007,V-2 |
| BN61-15791A | HOLDER-OC CABLE;65QNQ8CB,PC,TP0003,V-2 |
| 1201-004170 | IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6 |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-009369 | IC-DC/DC CONVERTER;TPS549B22,LQFN-CLIP,4 |
| 1203-009367 | IC-DC/DC CONVERTER;TPS566235,VQFN,13P,3X |
| 1203-009372 | IC-DC/DC CONVERTER;VPMS2RT,QFN,72P,8X8X0 |
| 1105-002992 | IC-DDR4 SDRAM;MT53E256M32D2DS-053 WT:B,L |
| 1105-002989 | IC-DDR4 SDRAM;MT53E384M32D2DS-053 WT:E,L |
| 1204-003799 | IC-DECODER;QUANTUM PROCESSOR II,FCPBGA,9 |
| 1204-003778 | IC-DECODER;SDP1805S,FCBGA,490P,21X21X1.5 |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1107-002688 | IC-EMMC;THGBMJG6C1LBAIL,8GBIT,64GBX1,BGA |
|
|
IC-ENVIRONMENT SENSOR;SN170027,SOT563,6P |
| 0903-002242 | IC-MICROCONTROLLER;UEI1704,QFN,20P,4X4X0 |
| 1107-002587 | IC-NOR FLASH;EN25QH16B,16MBIT,SOP,8P,2.7 |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-004258 | IC-OP AMP;TLV9062,SOT23-8,TP,8P,DUAL,PLA |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 0904-002882 | IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ, |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| BN63-18852A | INSULATOR-SMPS;65QTQ95P,PC,BLACK,L329,W1 |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02390A | LEAD CONNECTOR-BLU;55NU7.1K,UL21016,12P, |
| BN39-02403B | LEAD CONNECTOR-POWER;49/55Q7F/Q8C,UL2151 |
|
|
LEAD CONNECTOR-POWER;75LS03T,UL10368,26P |
|
|
LEAD CONNECTOR-SUB ASSEMBLY;65 75 82 Q70,UL2 |
|
|
LED-IR;SMD ANGLE TYPE,1.4MM,200MW,5V,940 |
| BN61-17047A | LGP;20Y_50INCH_Q60_LGP,PMMA,T2.5 |
|
|
NETWORK-WLAN CLIENT;WCP730M,,,"WCP730M,7 |
|
|
ONECONNECT CABLE;QN65Q90RAFXZA,31P/31P,L |
| BN61-17060A | OPTICAL SHEET-REFLECTOR;20Y_50INCH_Q60_R |
| BN69-20848A | PAD-EPE;65Q95T,EPE,T20,W45,L340,WHITE |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 4301-000101 | PRIMARY BATTERY ALKALINE;1.5V,1650MAH,LR |
| BN95-06365D | PRODUCT LCD-AUO;CY-RT050HGAV4H,QTLS03M,A |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-008661 | R-CHIP;2.1KOHM,1%,1/10W,TP,1608 |
| 2007-000501 | R-CHIP;2.2OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2011-001589 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,4P,TP,1.0 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001519 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
| 2011-001590 | R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
|
|
REMOCON-SMART CONTROL;2020 TV,SAMSUNG,21 |
|
|
SCREW-MACHINE;CH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;SWRCH18A,ZPC(BLK),L10,M3,B |
| 6003-000283 | SCREW-TAPTYPE;SWRCH18A,ZPC(WHT),L8,M3,BH |
| BN63-18807A | SHIELD-OC TOP;65QTQ95P,EGI-SECC,T0.8 |
| 3601-001374 | SMG PART |
| 3301-001901 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-009733 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007230 | SMG PART |
| 2203-006890 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006307 | SMG PART |
| 2203-005057 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000585 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000254 | SMG PART |
| 2203-000233 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007134 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-000932 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000172 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000170 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000141 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001200 | SMG PART |
| 0202-001976 | SMG PART |
| 0203-007064 | SMG PART |
| 0203-007085 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 1103-001584 | SMG PART |
| 1107-002339 | SMG PART |
| 1404-001731 | SMG PART |
| 2703-005781 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-001611 | SMG PART |
| 6902-003048 | SMG PART |
| 6902-003049 | SMG PART |
| 6902-003068 | SMG PART |
| 6902-003297 | SMG PART |
| 6902-003336 | SMG PART |
| AA63-01387A | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00074E | SMG PART |
| BN02-00074F | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00173N | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00352D | SMG PART |
| BN02-00352K | SMG PART |
| BN41-02754A | SMG PART |
| BN41-02757A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-01116A | SMG PART |
| BN46-01227A | SMG PART |
| BN46-01236A | SMG PART |
| BN46-01240A | SMG PART |
| BN46-01259A | SMG PART |
| BN60-01656A | SMG PART |
| BN60-01664A | SMG PART |
| BN60-01666A | SMG PART |
| BN61-07463B | SMG PART |
| BN61-09308A | SMG PART |
| BN61-10258A | SMG PART |
| BN61-11982B | SMG PART |
| BN61-13520G | SMG PART |
| BN61-13521A | SMG PART |
| BN61-13921A | SMG PART |
| BN61-14506A | SMG PART |
| BN61-14574A | SMG PART |
| BN61-15033A | SMG PART |
| BN61-15056A | SMG PART |
| BN61-15057A | SMG PART |
| BN61-15358A | SMG PART |
| BN61-15782A | SMG PART |
| BN61-15857B | SMG PART |
| BN61-15858B | SMG PART |
| BN61-16230A | SMG PART |
| BN61-16231A | SMG PART |
| BN61-16511A | SMG PART |
| BN61-16774A | SMG PART |
| BN61-16805A | SMG PART |
| BN61-16972A | SMG PART |
| BN61-16973A | SMG PART |
| BN61-16974A | SMG PART |
| BN61-16984A | SMG PART |
| BN61-17073A | SMG PART |
| BN61-17202A | SMG PART |
| BN61-17215A | SMG PART |
| BN62-00876A | SMG PART |
| BN62-00894A | SMG PART |
| BN62-00900A | SMG PART |
| BN63-16151A | SMG PART |
| BN63-17244A | SMG PART |
| BN63-17244B | SMG PART |
| BN63-18805M | SMG PART |
| BN63-18806A | SMG PART |
| BN63-18808A | SMG PART |
| BN63-18835A | SMG PART |
| BN63-18842A | SMG PART |
| BN63-18851A | SMG PART |
| BN63-18853A | SMG PART |
| BN63-18958A | SMG PART |
| BN63-19004A | SMG PART |
| BN64-04360A | SMG PART |
| BN64-04361A | SMG PART |
| BN64-04362A | SMG PART |
| BN67-00327J | SMG PART |
| BN68-00513A | SMG PART |
| BN68-00970A | SMG PART |
| BN68-00970C | SMG PART |
| BN68-02422B | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-07104D | SMG PART |
| BN68-08112A | SMG PART |
| BN68-08730A | SMG PART |
| BN68-08792C | SMG PART |
| BN68-08810A | SMG PART |
| BN68-08822B | SMG PART |
| BN68-09266A | SMG PART |
| BN68-09273E | SMG PART |
| BN68-09371A | SMG PART |
| BN68-10124A | SMG PART |
| BN68-10181D | SMG PART |
| BN68-10184C | SMG PART |
| BN68-10348F | SMG PART |
| BN68-10366A | SMG PART |
| BN68-10461A | SMG PART |
| BN68-10526B | SMG PART |
| BN68-10529A | SMG PART |
| BN68-10628A | SMG PART |
| BN69-13935A | SMG PART |
| BN69-15817A | SMG PART |
| BN69-16123M | SMG PART |
| BN69-17053P | SMG PART |
| BN69-20743A | SMG PART |
| BN69-20745A | SMG PART |
| BN69-20811A | SMG PART |
| BN74-00053G | SMG PART |
| BN81-08159Z | SMG PART |
| BN81-12752A | SMG PART |
| BN81-16288A | SMG PART |
| BN81-18747F | SMG PART |
| BN81-19021A | SMG PART |
| BN81-19022A | SMG PART |
| BN81-19023A | SMG PART |
| BN81-19024A | SMG PART |
| BN90-11393A | SMG PART |
| BN90-11466E | SMG PART |
| BN90-11467E | SMG PART |
| BN90-11468F | SMG PART |
| BN91-21821W | SMG PART |
| BN91-21822H | SMG PART |
| BN91-21855W | SMG PART |
| BN92-27170K | SMG PART |
| BN92-27282F | SMG PART |
| BN92-27300D | SMG PART |
| BN92-27427K | SMG PART |
| BN96-42126A | SMG PART |
| BN96-44265A | SMG PART |
| BN96-44269C | SMG PART |
| BN96-44287A | SMG PART |
| BN96-44291C | SMG PART |
| BN96-44503A | SMG PART |
| BN96-50526A | SMG PART |
| BN96-50530A | SMG PART |
| BN96-50536A | SMG PART |
| BN96-50678A | SMG PART |
| BN96-50986A | SMG PART |
| BN96-51574V | SMG PART |
| BN97-16606A | SMG PART |
| BN97-16742C | SMG PART |
| BN97-16742W | SMG PART |
| BN97-16783A | SMG PART |
| BN97-16786A | SMG PART |
| BN97-16805A | SMG PART |
| BN97-16807A | SMG PART |
| BN97-16808A | SMG PART |
| 0203-001598 | TAPE-SINGLE FACE;PP,T0.15,W12,N/A,CLEAR |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
|
|
TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4 |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
