Manufacturer
Samsung
Model Number
QN55Q90TDFXZA
Description
Ctv : Color Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-20757A | A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,47 |
| BN96-51362A | ASSEMBLY COVER P-REAR;55QTQ90C,PC+ABS+ED20%, |
| BN91-23237D | ASSEMBLY OPEN CELL-DECORATION;BN63-18523A,Y2 |
| BN96-52647A | ASSEMBLY OPEN CELL;BOE,55INCH,Y21 NEW,HV550Q |
| BN94-15253V | ASSEMBLY PCB MAIN;QTQ90C |
| BN96-50870B | ASSEMBLY SPEAKER P-FRONT;TV-SPK,55QTQ90C,4.2 |
| BN96-50941A | ASSEMBLY STAND P-COVER NECK;55QTQ90C,PP+GF40 |
| BN96-49068B | ASSEMBLY STAND P-COVER TOP;55QTQ800B,HGI,TIT |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| 3708-003062 | CONNECTOR-FPC/FFC/PIC;24P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-002024 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
|
|
CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| BN63-18523A | COVER-DECORATION;55QTQ80D,STS304,T0.15,B |
| BN63-18492A | COVER-TERMINAL SIDE;65QTQ800B,PC+ABS,V-0 |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-01037A | DC VSS-DRIVER BOARD;L65S9NC_TSM,DC/DC,15 |
|
|

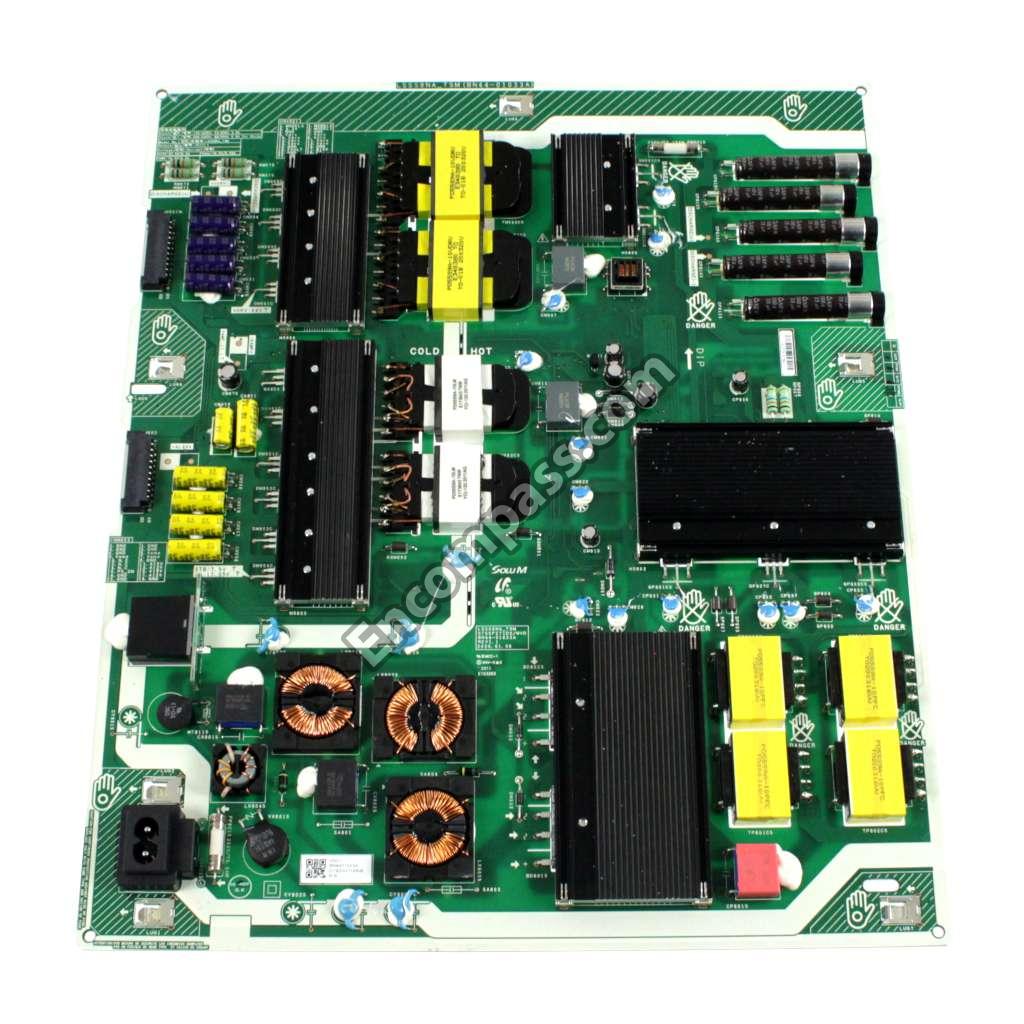

DC VSS-POWER BOARD;L55S9NA_TSM,AC/DC,258 |
| BN61-15705A | DIFFUSER PLATE;18Y_Q9F_55INCH_DIFFUSERPL |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001786 | DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
|
|
FFC;49Q80T,STRAIGHT,L100,24P |
|
|
FFC;55NU7100,FOLD,L500,96P,- |
| BN96-50901A | FFC;Q90 55INCH FFC 1,FOLD,L1190,68P,Q90 |
| BN96-50920A | FFC;Q90 55INCH FFC 10,FOLD,L1160,68P,Q90 |
| BN96-50902A | FFC;Q90 55INCH FFC 2,FOLD,L910,68P,Q90 5 |
| BN96-50903A | FFC;Q90 55INCH FFC 3,FOLD,L630,68P,Q90 5 |
| BN96-50905A | FFC;Q90 55INCH FFC 4,FOLD,L390,68P,Q90 5 |
| BN96-50907A | FFC;Q90 55INCH FFC 5,FOLD,L280,68P,Q90 5 |
| BN96-50910A | FFC;Q90 55INCH FFC 6,FOLD,L1280,68P,Q90 |
| BN96-50917A | FFC;Q90 55INCH FFC 7,FOLD,L1090,68P,Q90 |
| BN96-50918A | FFC;Q90 55INCH FFC 8,FOLD,L890,68P,Q90 5 |
| BN96-50919A | FFC;Q90 55INCH FFC 9,FOLD,L870,68P,Q90 5 |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008488 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG |
| 3711-008098 | HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| BN62-00874A | HEAT SINK-PS;QN65Q70RAFXZA,A1050,T1.5,W1 |
| 1201-004170 | IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-009369 | IC-DC/DC CONVERTER;TPS549B22,LQFN-CLIP,4 |
| 1203-009367 | IC-DC/DC CONVERTER;TPS566235,VQFN,13P,3X |
| 1203-009372 | IC-DC/DC CONVERTER;VPMS2RT,QFN,72P,8X8X0 |
| 1105-002751 | IC-DDR4 SDRAM;K4F2E3S4HM-MGCJ,LPDDR4-SDR |
| 1105-002882 | IC-DDR4 SDRAM;K4F8E304HB-MGCJ,LPDDR4-SDR |
| 1204-003799 | IC-DECODER;QUANTUM PROCESSOR II,FCPBGA,9 |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
|
|
IC-ENVIRONMENT SENSOR;SN170027,SOT563,6P |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003813 | JACK-PHONE;1P/7C,NI+SN,BLK,ANGLE,3.6PI,1 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02474C | LEAD CONNECTOR-DIMMING;Q905,Q95T,UL21516 |
| BN39-02207H | LEAD CONNECTOR-POWER;65MU7,UL21016,20P,L |
| BN39-02613A | LEAD CONNECTOR-SUB ASSEMBLY;55Q90T,UL21451,2 |
|
|

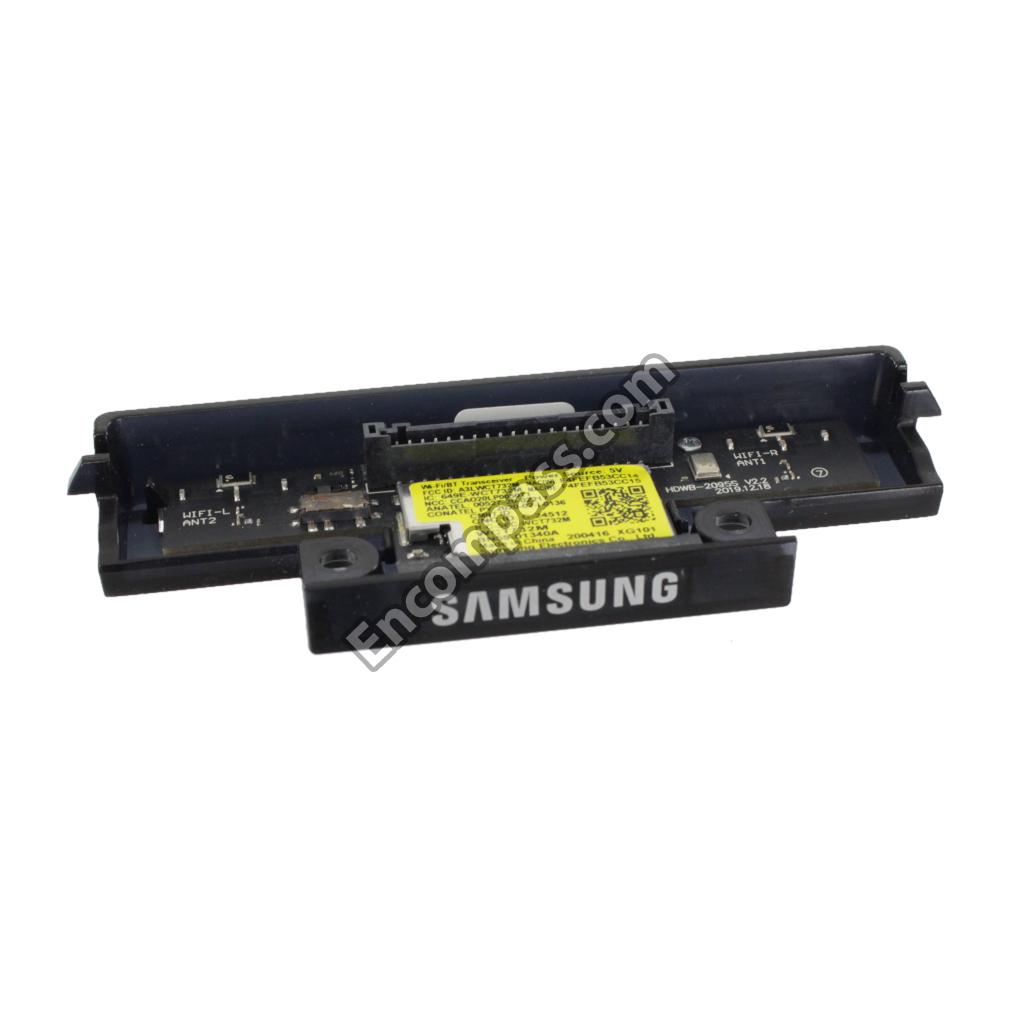

NETWORK-WLAN CLIENT;WCT732M,69X24X5MM,Q9 |
| BN61-17024A | OPTICAL SHEET-HIGH COLOR;20Y_55INCH_Q90_ |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| 4301-000101 | PRIMARY BATTERY ALKALINE;1.5V,1650MAH,LR |
| BN95-08340B | PRODUCT LCD-BOE;CY-TT055FLEV2H/V,QTQ90C, |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608,T0.45 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|
REMOCON-SMART CONTROL;2020 TV,SAMSUNG,21 |
| 6001-002912 | SCREW-MACHINE;CH,+,M3,L3,ZPC(BLK),SWRCH1 |
| 6001-003399 | SCREW-MACHINE;CH,+,M3,L3,ZPC(WHT),SWRCH1 |
| 6001-002903 | SCREW-MACHINE;CH,+,M3,L8,ZPC(BLK),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;CH,+,B,M3,L6,ZPC(BLK),SWRC |
| 3601-001374 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007230 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-005057 | SMG PART |
| 2203-002687 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000233 | SMG PART |
| 2011-001344 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007134 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-000539 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000148 | SMG PART |
| 2007-000146 | SMG PART |
| 2007-000143 | SMG PART |
| 2007-000141 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001200 | SMG PART |
| 0201-003164 | SMG PART |
| 0201-003279 | SMG PART |
| 0202-001976 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 1103-001584 | SMG PART |
| 1107-002339 | SMG PART |
| 1404-001731 | SMG PART |
| 2703-005781 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-003366 | SMG PART |
| 6902-003608 | SMG PART |
| 6902-003718 | SMG PART |
| 6922-000421 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00074E | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00611A | SMG PART |
| BN41-02749A | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-01116A | SMG PART |
| BN46-01120A | SMG PART |
| BN46-01240A | SMG PART |
| BN46-01808A | SMG PART |
| BN46-01833A | SMG PART |
| BN46-01847A | SMG PART |
| BN60-00162V | SMG PART |
| BN60-01459A | SMG PART |
| BN60-01659A | SMG PART |
| BN60-01661B | SMG PART |
| BN60-01662A | SMG PART |
| BN60-01666A | SMG PART |
| BN60-01667A | SMG PART |
| BN61-11982B | SMG PART |
| BN61-13521A | SMG PART |
| BN61-13557V | SMG PART |
| BN61-16208A | SMG PART |
| BN61-16993A | SMG PART |
| BN61-17029A | SMG PART |
| BN61-17032A | SMG PART |
| BN61-17033A | SMG PART |
| BN61-17079A | SMG PART |
| BN61-17168A | SMG PART |
| BN61-18416A | SMG PART |
| BN63-17418F | SMG PART |
| BN63-18012B | SMG PART |
| BN63-18653A | SMG PART |
| BN63-18759A | SMG PART |
| BN63-18882A | SMG PART |
| BN63-18961A | SMG PART |
| BN63-18984A | SMG PART |
| BN63-19056A | SMG PART |
| BN63-19139A | SMG PART |
| BN64-04363A | SMG PART |
| BN64-04379A | SMG PART |
| BN64-04381A | SMG PART |
| BN64-04387A | SMG PART |
| BN67-00459A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-08112A | SMG PART |
| BN68-09258B | SMG PART |
| BN68-09371B | SMG PART |
| BN68-10310A | SMG PART |
| BN68-10628A | SMG PART |
| BN68-11273G | SMG PART |
| BN68-11321A | SMG PART |
| BN68-13403A | SMG PART |
| BN68-13476A | SMG PART |
| BN69-13935A | SMG PART |
| BN69-17053S | SMG PART |
| BN69-19385A | SMG PART |
| BN69-20476A | SMG PART |
| BN69-20860K | SMG PART |
| BN69-20861A | SMG PART |
| BN69-22276B | SMG PART |
| BN74-00053E | SMG PART |
| BN74-00053G | SMG PART |
| BN81-08159Z | SMG PART |
| BN81-17117W | SMG PART |
| BN81-20758A | SMG PART |
| BN81-20759A | SMG PART |
| BN81-20760A | SMG PART |
| BN81-20761A | SMG PART |
| BN90-11309E | SMG PART |
| BN90-11423C | SMG PART |
| BN90-11424B | SMG PART |
| BN90-11526H | SMG PART |
| BN91-21781P | SMG PART |
| BN91-22056A | SMG PART |
| BN92-27080X | SMG PART |
| BN92-27081R | SMG PART |
| BN92-27548W | SMG PART |
| BN92-28107H | SMG PART |
| BN96-48976A | SMG PART |
| BN96-49315B | SMG PART |
| BN96-49881A | SMG PART |
| BN96-50078A | SMG PART |
| BN96-50271A | SMG PART |
| BN96-50725A | SMG PART |
| BN96-50816A | SMG PART |
| BN96-50820A | SMG PART |
| BN96-50844A | SMG PART |
| BN97-00037Z | SMG PART |
| BN97-16606A | SMG PART |
| BN97-16613A | SMG PART |
| BN97-16641A | SMG PART |
| BN97-16646L | SMG PART |
| BN97-19165A | SMG PART |
| BN97-19298A | SMG PART |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
|
|
TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4 |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
