Manufacturer
Samsung
Model Number
QN55QN90CDFXZA
Description
Ctv : Color Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-54812H | ASSEMBLY COVER P-REAR;55QN90CE,PC+ABS+ED20%, |
| BN96-52924A | ASSEMBLY FRAME P-MIDDLE BOTTOM;55QAQN85K,PC+ |
| BN95-09243A | ASSEMBLY LED BAR-Q90B 55 S.LSI FAB;QT |
| BN94-17799A | ASSEMBLY PCB MAIN SUBCON;Q90B,Q85B,4K 55-INCH AM |
| BN94-18154D | ASSEMBLY PCB MAIN;QN90CE |
| BN96-53042B | ASSEMBLY SPEAKER P-FRONT;TV-SPK,55QAQN90D,4. |
| BN96-56406A | ASSEMBLY STAND P-COVER NECK;55QN90CE,PP+GF40 |
| BN96-56415A | ASSEMBLY STAND P-COVER TOP;55QN90CE,HGI,NATU |
| 6922-000001 | BAND;PP,T0.8,W18,YEL,RECYCLED PIR_50% |
| 3301-001364 | BEAD-SMD;1000OHM/100MHZ,1.6X0.8MM,TP,139 |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| BN61-13557U | BRACKET-WIRE;65UNU7100X,SW-C,T1,SILVER,L |
| BN61-13557W | BRACKET-WIRE;65UNU7100X,SW-C,T1,SILVER,L |
| BN61-13557P | BRACKET-WIRE;75QNQ8CB,SW-C,T1,SILVER,L66 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-006399 | C-CER,CHIP;1UF,10%,6.3V,X5R,TP,1005,T0.5 |
| 2203-006460 | C-CER,CHIP;2.2UF,10%,16V,X5R,TP,1608,-55 |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-000627 | C-CER,CHIP;22PF,5%,50V,C0G,TP,1005,T0.5, |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
|
|
CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3708-003389 | CONNECTOR-FPC/FFC/PIC;TP,SMD-A,10P,0.5MM |
|
|
CONNECTOR-FPC/FFC/PIC;TP,SMD-A,24P,0.5MM |
| 3701-002024 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3707-001143 | CONNECTOR-OPTICAL;ANGLE,SPDIF,WAVELESS,2 |
| BN63-18523A | COVER-DECORATION;55QTQ80D,STS304,T0.15,B |
| BN63-19384A | COVER-TERMINAL SIDE;65QAQ70F,PC+ABS,V-0, |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
| BN44-01216A | DC VSS-POWER BOARD;L55SA9NA_CDY,AC/DC,23 |
| BN61-17851A | DIFFUSER PLATE;21Y_Q90A_55INCH_DP,PS,PS+ |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001823 | DIODE-TVS;PJUSB208,85V,0.1MAV,0.715VPA,2 |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |

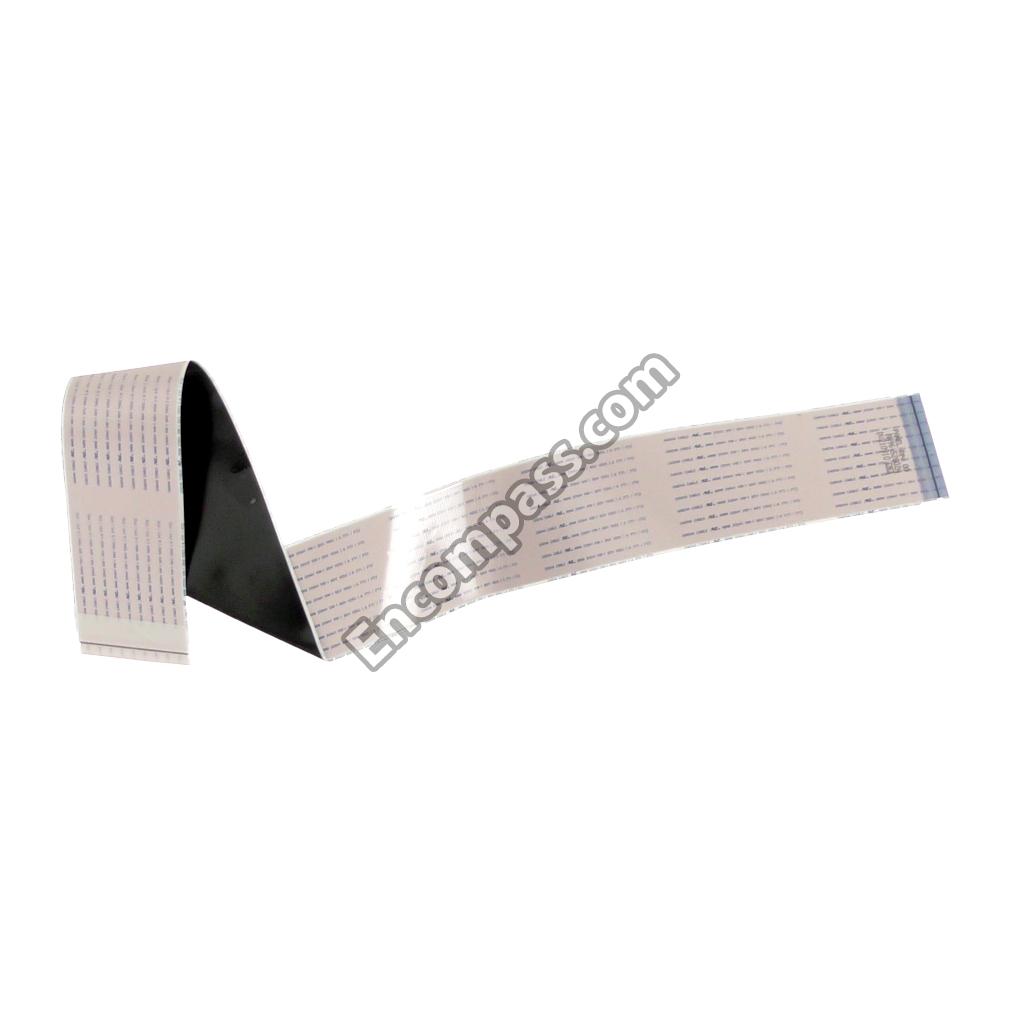

| BN96-56488A | FFC;55Q90C,FOLD,L450,10P,MAIN <-> IOT MO |
| BN96-54951A | FFC;55QN90B,FOLD,L450,24P,POSITION: 2.5M |
| BN96-53243A | FFC;QN55QN85AAFXZA,FOLD,L300,24P |
|
|
FFC;QN55QN85AAFXZA,FOLD,L550,96P |
| BN96-56149A | FFC;QN90B 55,FOLD,L290,51P,LED- DRIVER # |
| BN96-56147A | FFC;QN90B 55,FOLD,L330,51P,LED- DRIVER # |
| BN96-56148A | FFC;QN90B 55,FOLD,L330,51P,LED- DRIVER # |
| BN96-56150A | FFC;QN90B 55,FOLD,L330,51P,LED- DRIVER # |
| BN96-56152A | FFC;QN90B 55,FOLD,L540,51P,LED- DRIVER # |
| BN96-56153A | FFC;QN90B 55,FOLD,L540,51P,LED- DRIVER # |
| BN96-56151A | FFC;QN90B 55,FOLD,L570,51P,LED- DRIVER # |
| BN96-56154A | FFC;QN90B 55,FOLD,L720,51P,LED- DRIVER # |
| BN67-00398L | FOOT-RUBBER;UH6K,SI,GRAY,T2 |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008488 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG |
| 3711-008454 | HEADER-BOARD TO CABLE;BOX,22P,2R,2MM,ANG |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 1203-009652 | IC-DC/DC CONVERTER;MP8795HGLE-Z,21P,QFN- |
| 1203-009194 | IC-DC/DC CONVERTER;SYD104IADC,TSOT23-6,6 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,6P,TSOT23-6,T |
| 1203-009728 | IC-DC/DC CONVERTER;TMI3253S,6P,SOT23-6,T |
| 1203-009727 | IC-DC/DC CONVERTER;TMI3256,6P,DFN,TP,2X2 |
| 1203-009063 | IC-DC/DC CONVERTER;VPM2SM,QFN,56P,7X7X0. |
| 1203-009649 | IC-DC/DC CONVERTER;VPMS3BRT,72P,QFN,TP,8 |
| 1105-003132 | IC-DDR4 SDRAM;K4F2E3S4HA-MGCL,WFBGA,200P |
| 1105-003131 | IC-DDR4 SDRAM;K4F8E3S4HD-MGCL,FBGA,200P, |
| 1204-003839 | IC-DECODER;QUANTUM PROCESSOR III NEO,TR, |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,X8,SOP |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
| 1003-003282 | IC-LED DRIVER;SDP21824,18P,WLP,TP,1.85X1 |
| 1107-002547 | IC-NOR FLASH;W25Q16JVSSIQ,SOP,8P,TR,7.90 |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-005843 | INDUCTOR-SMD;1UH,20%,6060,T2.6,0.0156OHM |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-004226 | INDUCTOR-SMD;8.2UH,20%,10.7X10MM,T3.8,0. |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003813 | JACK-PHONE;1P/7C,NI+SN,BLK,ANGLE,3.6PI,1 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |

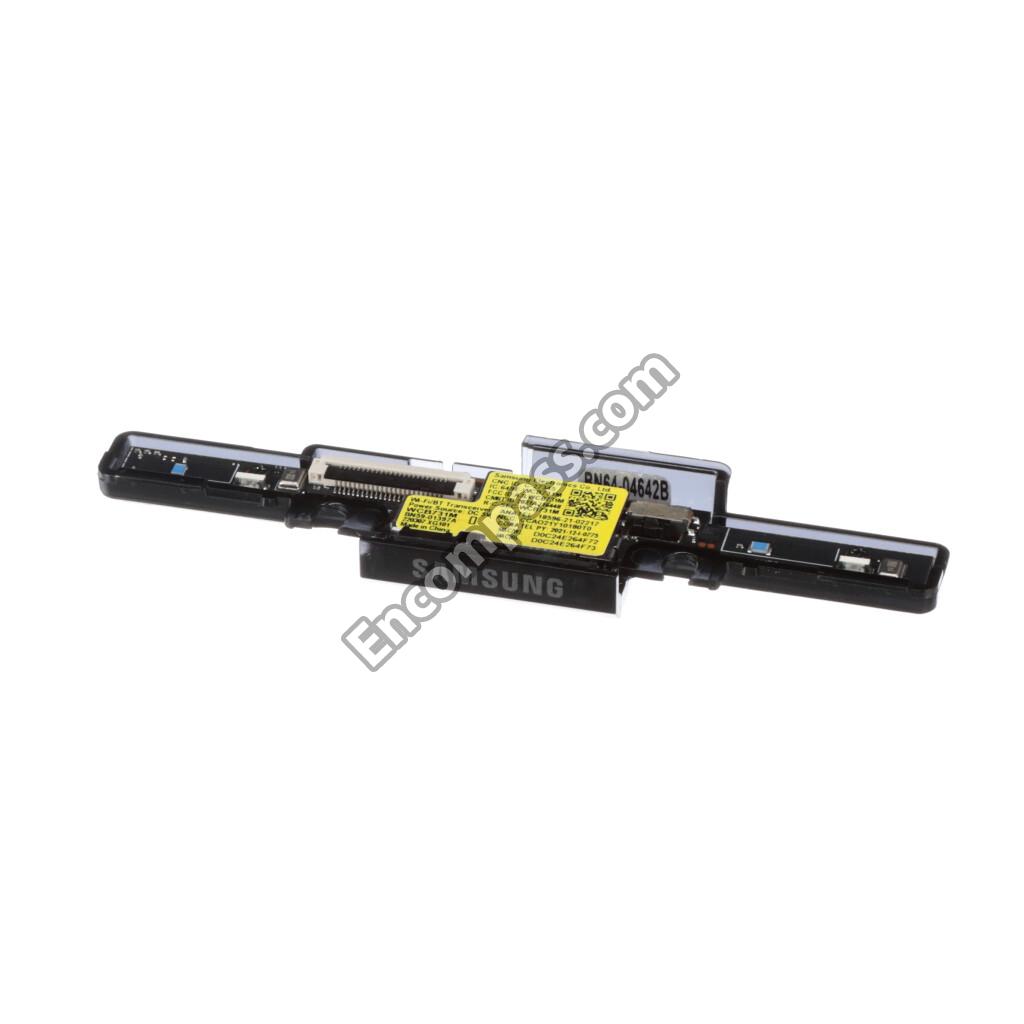

| BN39-02791A | LEAD CONNECTOR-DIMMING;QN55QN90AAFXZA,UL |
| BN39-02207H | LEAD CONNECTOR-POWER;65MU7,UL21016,20P,L |
| BN59-01435A | NETWORK-IOT HUB;WIC212S,57X25X6MM,IOT HU |
|
|
NETWORK-WLAN CLIENT;WCB731M,90.83X20.91X |
| BN61-18558A | OPTICAL SHEET-REFLECTOR;22Y_Q95B_55INCH_ |
| BN61-18559A | OPTICAL SHEET-REFLECTOR;22Y_Q95B_55INCH_ |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
| BN95-09901B | PRODUCT LCD-BOE;CY-TC055FLEV2H/V,QN90CE, |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-001007 | R-CHIP;51KOHM,1%,1/10W,TP,1608 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
| BN59-01432A | REMOCON-ECO SMART CONTROL;2023 TV,SAMSUN |
| 6001-002912 | SCREW-MACHINE;CH,+,M3,L3,ZPC(BLK),SWRCH1 |
| 6001-002903 | SCREW-MACHINE;CH,+,M3,L8,ZPC(BLK),SWRCH1 |
| 6001-003424 | SCREW-MACHINE;SWRCH18A,ZPC(BLK),L2,M3,CH |
|
|
SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR |
| 3601-001374 | SMG PART |
| 2703-002269 | SMG PART |
| 2703-000213 | SMG PART |
| 2203-007795 | SMG PART |
| 2203-007393 | SMG PART |
| 2203-007271 | SMG PART |
| 2203-007269 | SMG PART |
| 2203-007240 | SMG PART |
| 2203-007230 | SMG PART |
| 2203-006841 | SMG PART |
| 2203-006562 | SMG PART |
| 2203-006427 | SMG PART |
| 2203-002525 | SMG PART |
| 2203-000940 | SMG PART |
| 2203-000812 | SMG PART |
| 2203-000489 | SMG PART |
| 2203-000438 | SMG PART |
| 2203-000425 | SMG PART |
| 2203-000359 | SMG PART |
| 2203-000330 | SMG PART |
| 2203-000278 | SMG PART |
| 2011-001344 | SMG PART |
| 2007-008275 | SMG PART |
| 2007-008263 | SMG PART |
| 2007-008137 | SMG PART |
| 2007-008136 | SMG PART |
| 2007-007798 | SMG PART |
| 2007-007791 | SMG PART |
| 2007-007766 | SMG PART |
| 2007-007698 | SMG PART |
| 2007-007671 | SMG PART |
| 2007-007588 | SMG PART |
| 2007-007538 | SMG PART |
| 2007-007528 | SMG PART |
| 2007-007517 | SMG PART |
| 2007-007334 | SMG PART |
| 2007-007318 | SMG PART |
| 2007-007316 | SMG PART |
| 2007-007313 | SMG PART |
| 2007-007312 | SMG PART |
| 2007-007311 | SMG PART |
| 2007-007310 | SMG PART |
| 2007-007309 | SMG PART |
| 2007-007308 | SMG PART |
| 2007-007307 | SMG PART |
| 2007-007306 | SMG PART |
| 2007-007142 | SMG PART |
| 2007-007139 | SMG PART |
| 2007-007138 | SMG PART |
| 2007-007137 | SMG PART |
| 2007-007136 | SMG PART |
| 2007-007135 | SMG PART |
| 2007-007132 | SMG PART |
| 2007-007131 | SMG PART |
| 2007-007107 | SMG PART |
| 2007-003010 | SMG PART |
| 2007-001298 | SMG PART |
| 2007-001292 | SMG PART |
| 2007-001284 | SMG PART |
| 2007-001068 | SMG PART |
| 2007-000173 | SMG PART |
| 2007-000172 | SMG PART |
| 2007-000171 | SMG PART |
| 2007-000170 | SMG PART |
| 2007-000157 | SMG PART |
| 2007-000140 | SMG PART |
| 2007-000138 | SMG PART |
| 2007-000070 | SMG PART |
| 0406-001729 | SMG PART |
| 0406-001568 | SMG PART |
| 0406-001200 | SMG PART |
| 0201-003164 | SMG PART |
| 0201-003279 | SMG PART |
| 0201-003554 | SMG PART |
| 0201-003555 | SMG PART |
| 0202-001608 | SMG PART |
| 0202-001976 | SMG PART |
| 0202-002133 | SMG PART |
| 0203-007085 | SMG PART |
| 0203-007235 | SMG PART |
| 0403-001783 | SMG PART |
| 0403-002014 | SMG PART |
| 0406-001317 | SMG PART |
| 0505-003732 | SMG PART |
| 0601-003966 | SMG PART |
| 1003-003247 | SMG PART |
| 1003-003291 | SMG PART |
| 1107-002851 | SMG PART |
| 1201-004368 | SMG PART |
| 1201-004421 | SMG PART |
| 1203-009590 | SMG PART |
| 1205-006382 | SMG PART |
| 1404-001731 | SMG PART |
| 2703-005781 | SMG PART |
| 2801-005504 | SMG PART |
| 6003-001912 | SMG PART |
| 6302-001376 | SMG PART |
| 6902-003503 | SMG PART |
| 6902-003608 | SMG PART |
| 6902-003624 | SMG PART |
| 6902-003718 | SMG PART |
| 6902-003809 | SMG PART |
| BH68-00697A | SMG PART |
| BH69-00418A | SMG PART |
| BN02-00074G | SMG PART |
| BN02-00102B | SMG PART |
| BN02-00102K | SMG PART |
| BN02-00319B | SMG PART |
| BN02-00586C | SMG PART |
| BN41-02979A | SMG PART |
| BN41-03068A | SMG PART |
| BN41-03133B | SMG PART |
| BN46-00109H | SMG PART |
| BN46-00110P | SMG PART |
| BN46-01861A | SMG PART |
| BN46-02116A | SMG PART |
| BN46-02131A | SMG PART |
| BN46-02145A | SMG PART |
| BN60-00162X | SMG PART |
| BN60-01459A | SMG PART |
| BN60-01661A | SMG PART |
| BN60-01662A | SMG PART |
| BN60-01684A | SMG PART |
| BN61-11982B | SMG PART |
| BN61-15526A | SMG PART |
| BN61-15737C | SMG PART |
| BN61-17168A | SMG PART |
| BN61-17591A | SMG PART |
| BN61-17592A | SMG PART |
| BN61-17593A | SMG PART |
| BN61-17603A | SMG PART |
| BN61-17826A | SMG PART |
| BN61-17865A | SMG PART |
| BN61-17922A | SMG PART |
| BN61-19393A | SMG PART |
| BN62-00610A | SMG PART |
| BN62-00966C | SMG PART |
| BN63-17244E | SMG PART |
| BN63-19297L | SMG PART |
| BN63-19614A | SMG PART |
| BN63-19620A | SMG PART |
| BN63-19676A | SMG PART |
| BN63-20209A | SMG PART |
| BN63-20265A | SMG PART |
| BN63-20540A | SMG PART |
| BN63-20543A | SMG PART |
| BN63-20545A | SMG PART |
| BN64-04531B | SMG PART |
| BN64-04551B | SMG PART |
| BN64-04647B | SMG PART |
| BN64-04824A | SMG PART |
| BN67-00459A | SMG PART |
| BN68-00513A | SMG PART |
| BN68-02422B | SMG PART |
| BN68-04746A | SMG PART |
| BN68-05381A | SMG PART |
| BN68-05595A | SMG PART |
| BN68-06708G | SMG PART |
| BN68-08112A | SMG PART |
| BN68-09258E | SMG PART |
| BN68-09371B | SMG PART |
| BN68-10628A | SMG PART |
| BN68-15697A | SMG PART |
| BN68-15880A | SMG PART |
| BN68-15935D | SMG PART |
| BN68-16186A | SMG PART |
| BN69-17053S | SMG PART |
| BN69-22276B | SMG PART |
| BN69-24635A | SMG PART |
| BN69-24754B | SMG PART |
| BN74-00053G | SMG PART |
| BN81-24207A | SMG PART |
| BN81-24208A | SMG PART |
| BN81-24209A | SMG PART |
| BN81-24210A | SMG PART |
| BN90-12583K | SMG PART |
| BN90-12623L | SMG PART |
| BN90-12628J | SMG PART |
| BN91-24385F | SMG PART |
| BN91-24459G | SMG PART |
| BN91-24596R | SMG PART |
| BN92-31797B | SMG PART |
| BN92-31799V | SMG PART |
| BN92-31800A | SMG PART |
| BN92-31801H | SMG PART |
| BN96-00077X | SMG PART |
| BN96-49315B | SMG PART |
| BN96-54800B | SMG PART |
| BN96-56259A | SMG PART |
| BN96-56607A | SMG PART |
| BN97-19992A | SMG PART |
| BN97-19993A | SMG PART |
| BN97-20248A | SMG PART |
| BN97-20256A | SMG PART |
| BN97-20424N | SMG PART |
| BN97-20554A | SMG PART |
| BN97-20566A | SMG PART |
| BN97-20575A | SMG PART |
| BN97-20581A | SMG PART |
| BN97-20627A | SMG PART |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| BN40-00310A | TUNER-DTV AIR CABLE;GVX-21C81,ATSC 3.0,4 |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
