Manufacturer
Samsung
Model Number
QN75LST7TAFXZA
Description

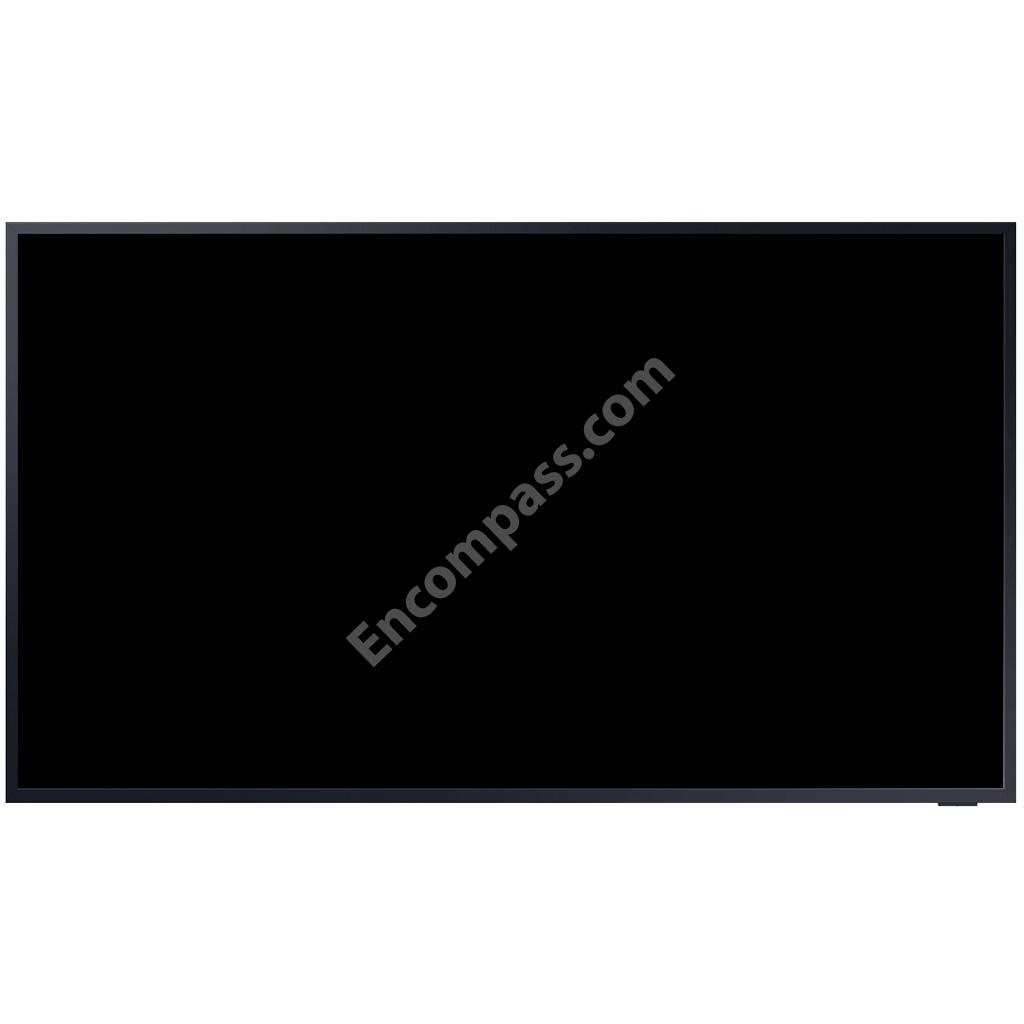

75-inch Class Qled The Terrace Outdoor Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-18934A | A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,46 |
| BN96-51828A | ASSY ACCESSORY-HOLDER;LST7T, |
| BN96-51776A | ASSY BRACKET P-PANEL;75LST7T,EGI-SECC,NA |
| BN96-51771A | ASSY BRACKET P-WALL;65LST7T,EGI-SECC,NAT |
| BN96-51582A | ASSY CHASSIS FRONT P;75QTLST7K,AL,BLACK |
| BN96-51772A | ASSY COVER P-REAR;75QTLST7K,EGI-SECC,BLA |
| BN96-37034A | ASSY HOLDER P-SCREW;LFD_OHD,NBR,BLACK,HB |
| BN96-51786A | ASSY INLET P-HARNESS;UL10938 #22,1100MM, |
| BN96-51358A | ASSY LED BAR P;ST92750U102C,CEM3,OUTDOOR |
|
|

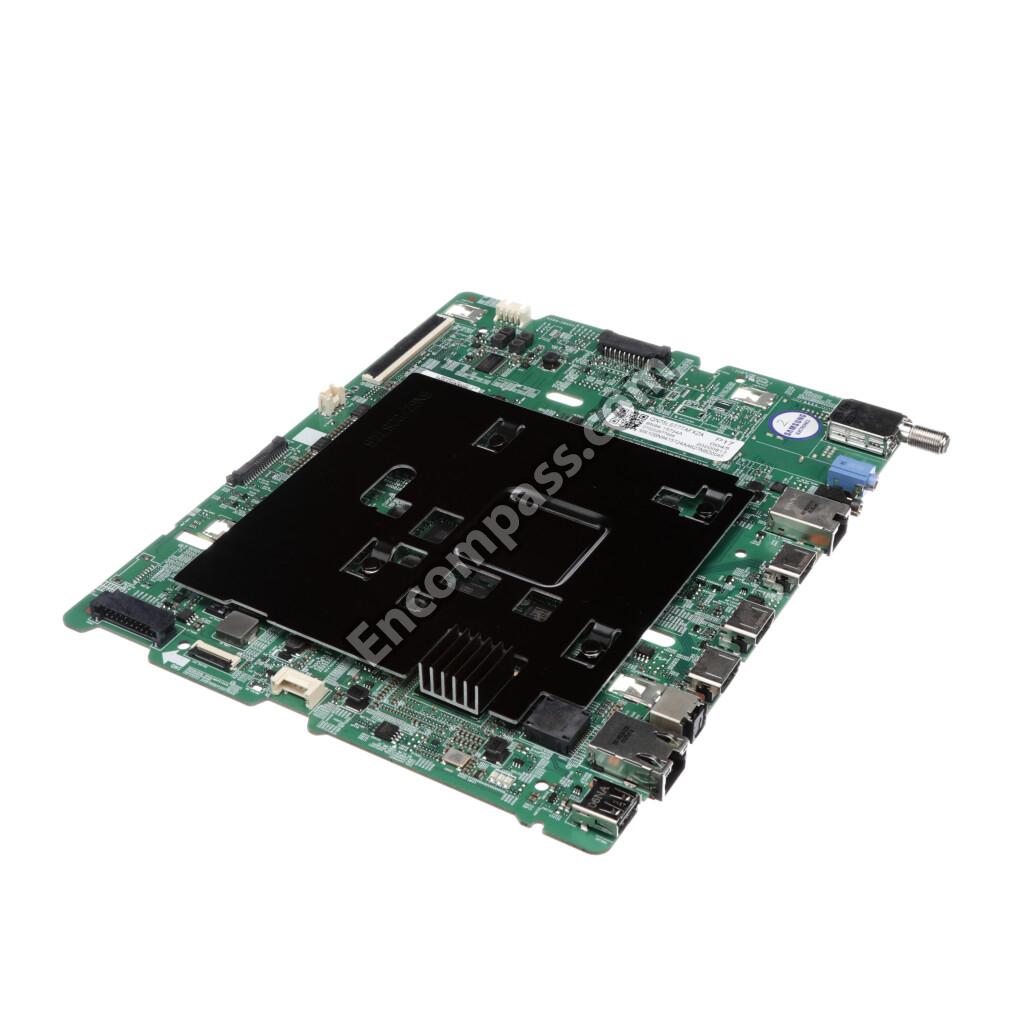

ASSY PCB MAIN;QTLST7K |
| BN96-51584A | ASSY SPEAKER P-FRONT;TV-SPK,65_QTLSR9K,6 |
| 6922-000001 | BAND;PP,T0.8,W18,YEL |
|
|
BEAD-SMD;26OHM/100MHZ,1.6X0.8MM,TP,7MOHM |
| 6011-008290 | BOLT-ETC;M6,L10,ZN-NI(BLK),TH,+,SWRCH18A |
| 6011-008291 | BOLT-ETC;M8,L11,ZN-NI(BLK),PH,+,SWRCH18A |
| 6011-001610 | BOLT-ETC;M8,L18,ZN-NI(BLK),PH,+,SWRCH18A |
| BN61-13312B | BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608,-55 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,-55T |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608,T0.8 |
| 2203-000260 | C-CER,CHIP;10NF,10%,50V,X7R,TP,2012,-55T |
| 2203-007513 | C-CER,CHIP;10UF,10%,10V,X5R,TP,1608,T0.8 |
| 2203-007176 | C-CER,CHIP;10UF,10%,16V,X5R,TP,2012,T1.2 |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-007423 | C-CER,CHIP;10UF,10%,35V,X7R,TP,3216,-55T |
| 2203-006039 | C-CER,CHIP;1NF,10%,2000V,X7R,3216,-55TO+ |
| 2203-006391 | C-CER,CHIP;1UF,10%,10V,X7R,TP,1608,-55TO |
| 2203-006348 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1608,T0.8, |
| 2203-006698 | C-CER,CHIP;1UF,10%,25V,X7R,TP,1608,T0.8, |
| 2203-008096 | C-CER,CHIP;2.2UF,10%,50V,X5R,TP,2012,T1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-005642 | C-CER,CHIP;220PF,5%,50V,C0G,TP,1005,T0.5 |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,-55 |
| 2203-008412 | C-CER,CHIP;4.7UF,10%,50V,X5R,TP,2012,T1. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005,-55 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343 |
| 2409-001191 | C-ORGANIC,SMD;47UF,20%,20V,TP,7343(1.9T) |
| 3708-003062 | CONNECTOR-FPC/FFC/PIC;24P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-FPC/FFC/PIC;96P,0.5MM,SMD-A,AU |
| 3701-002024 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
|
|
CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
|
|
CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| BN63-16438A | COVER-DECORATION;75Q7F,STS304,T0.15,BLAC |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-01086A | DC VSS-DRIVER BOARD;L75LU_THS,DC/DC,526W |
| BN44-01084A | DC VSS-POWER BOARD;L75PU_TSM,AC/DC,550W, |
| 0404-001020 | DIODE-SCHOTTKY;BAT54C,30V,200MA,SOT-23,T |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001786 | DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001797 | DIODE-ZENER;NZH3V0B,2.85~3.15V,500MW,SOD |
| 0403-002067 | DIODE-ZENER;PESD5V0U1UT,7.5V,7.0/8.2V,30 |
|
|

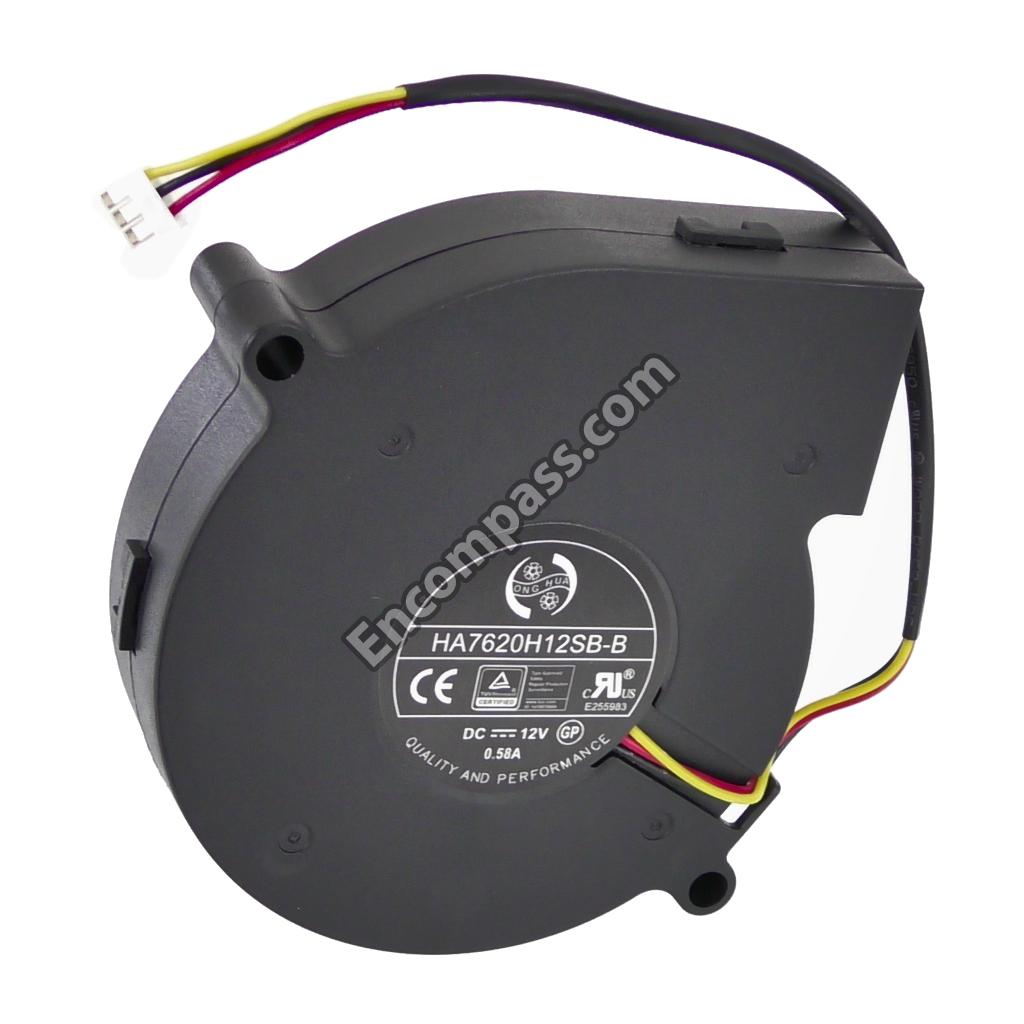

FAN-DC BRUSHLESS MOTOR;9BD12FD6-20,9BD12 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002560 | FET-SILICON;AO6415,P,20V,-3.3A,0.15OHM,1 |
| 0505-003620 | FET-SILICON;AOD4286,N,100V,14A,55.5MOHM, |
| 0505-003752 | FET-SILICON;AONR21321,P,30V,50A,0.035OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
|
|

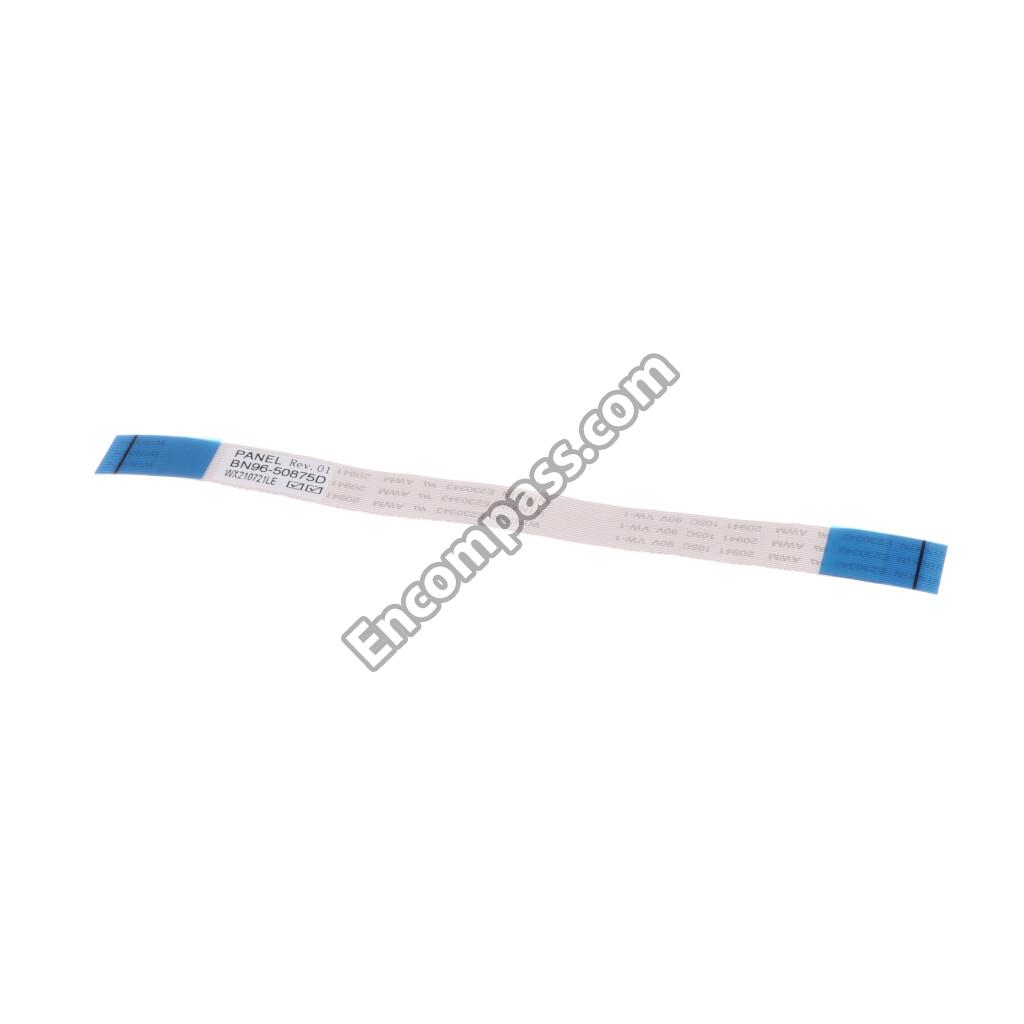

FFC;55Q80T,STRAIGHT,L150,24P |
|
|

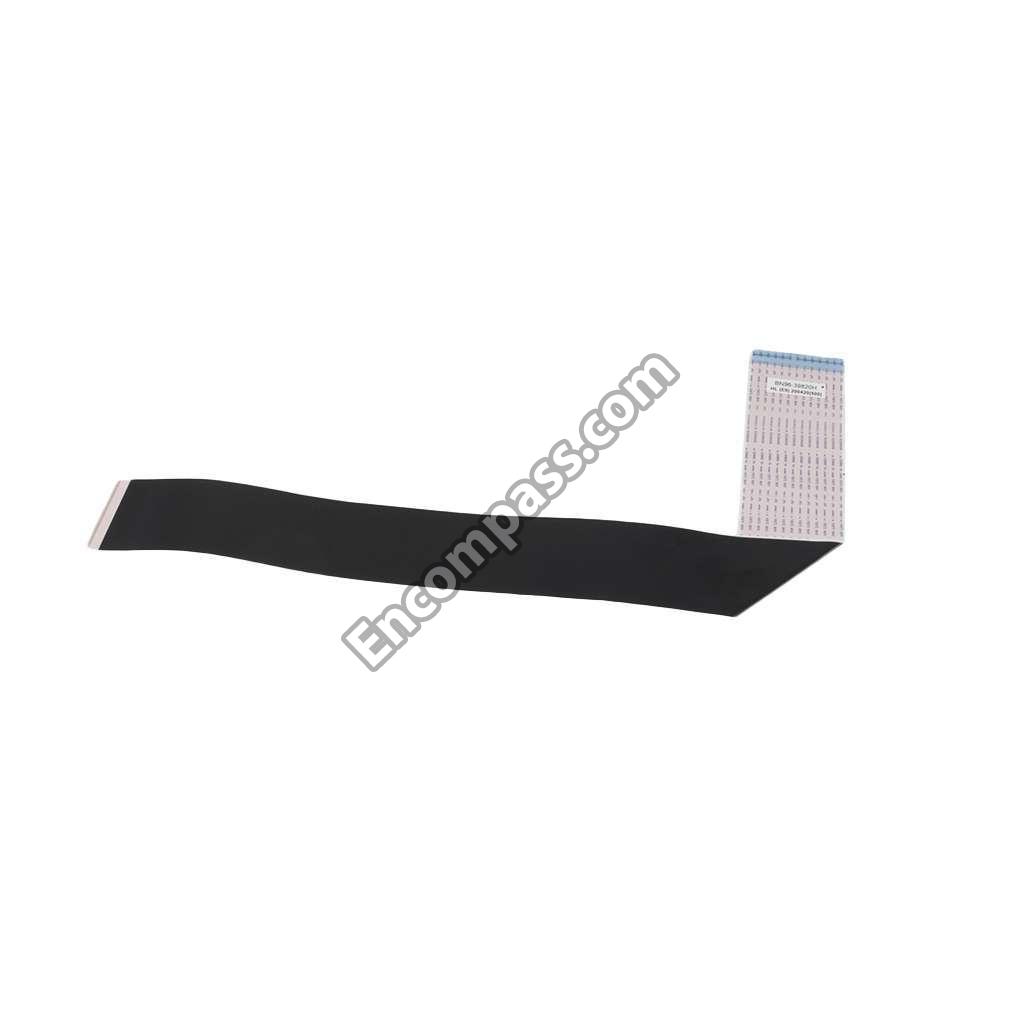

FFC;65/75NU8000,FOLD,L500,96P,- |
| BN96-51767A | FFC;CY-TR075FLAVTH,FOLD,L1000,68P,LST7T_ |
| BN96-51756A | FFC;CY-TR075FLAVTH,FOLD,L1040,68P,LST7T_ |
| BN96-51765A | FFC;CY-TR075FLAVTH,FOLD,L1280,68P,LST7T_ |
| BN96-51754A | FFC;CY-TR075FLAVTH,FOLD,L1310,68P,LST7T_ |
| BN96-51763A | FFC;CY-TR075FLAVTH,FOLD,L1660,68P,LST7T_ |
| BN96-51761A | FFC;CY-TR075FLAVTH,FOLD,L350,68P,LST7T_7 |
| BN96-51760A | FFC;CY-TR075FLAVTH,FOLD,L500,68P,LST7T_7 |
| BN96-51769A | FFC;CY-TR075FLAVTH,FOLD,L600,68P,LST7T_7 |
| BN96-51768A | FFC;CY-TR075FLAVTH,FOLD,L740,68P,LST7T_7 |
| BN96-51758A | FFC;CY-TR075FLAVTH,FOLD,L770,68P,LST7T_7 |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BN63-00520A | GASKET-EMI;APPOLO_PAL,FABRIC,T0.13,W10,L |
| 3711-008098 | HEADER-BOARD TO CABLE;BOX,20P,1R,1.25MM, |
| 3711-005939 | HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,SMD- |
| 3711-007814 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-007838 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
| 3711-008168 | HEADER-BOARD TO CABLE;BOX,6P,1R,2MM,ANGL |
| BN62-00099A | HEAT SINK-ES;GENOA,A6063,W20,L20,BLACK,H |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-003183 | IC-AUDIO AMP;DRV612,HTSSOP,14P,5X4.4MM,D |
| 1201-004170 | IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6 |
| 0801-002628 | IC-CMOS LOGIC;7SZ08,2-INPUT AND GATE,SC- |
| 1203-008735 | IC-DC/DC CONVERTER;AOZ1267QI-02,QFN,23,4 |
| 1203-009312 | IC-DC/DC CONVERTER;SYD105I,TSOT23-6,6P,2 |
| 1203-009193 | IC-DC/DC CONVERTER;SYD113IADC,TSOT23-6,6 |
| 1203-009369 | IC-DC/DC CONVERTER;TPS549B22,LQFN-CLIP,4 |
| 1203-009367 | IC-DC/DC CONVERTER;TPS566235,VQFN,13P,3X |
| 1203-009372 | IC-DC/DC CONVERTER;VPMS2RT,QFN,72P,8X8X0 |
| 1105-002751 | IC-DDR4 SDRAM;K4F2E3S4HM-MGCJ,LPDDR4-SDR |
| 1105-002882 | IC-DDR4 SDRAM;K4F8E304HB-MGCJ,LPDDR4-SDR |
| 1204-003799 | IC-DECODER;QUANTUM PROCESSOR II,FCPBGA,9 |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1107-002590 | IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1 |
|
|
IC-ENVIRONMENT SENSOR;SN170027,SOT563,6P |
| 1006-001266 | IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI |
| 1107-002547 | IC-NOR FLASH;W25Q16JVSSIQ,16MBIT,X8,SOP, |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-004028 | IC-OP AMP;HSOP,TP,20P,12.95X10.65MM,SING |
| 1203-009186 | IC-POSI.ADJUST REG.;TLV759P01PDRVR,TP,6P |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 1205-006196 | IC-TRANSCEIVER;SLG4AX43245V,STQFN,14P,1. |
| 1203-009188 | IC-VOL. DETECTOR;G623F11U,TP,8P,4.9X6X1. |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-005780 | INDUCTOR-SMD;10UH,20%,2012,T1.25,0.91OHM |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,6060,T4.5,0.03OHM |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003998 | JACK-MODULAR;8P/8C,Y,GRN/YEL,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
| 3722-003873 | JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02400A | LEAD CONNECTOR-DIMMING;65Q8F,UL21016,18P |

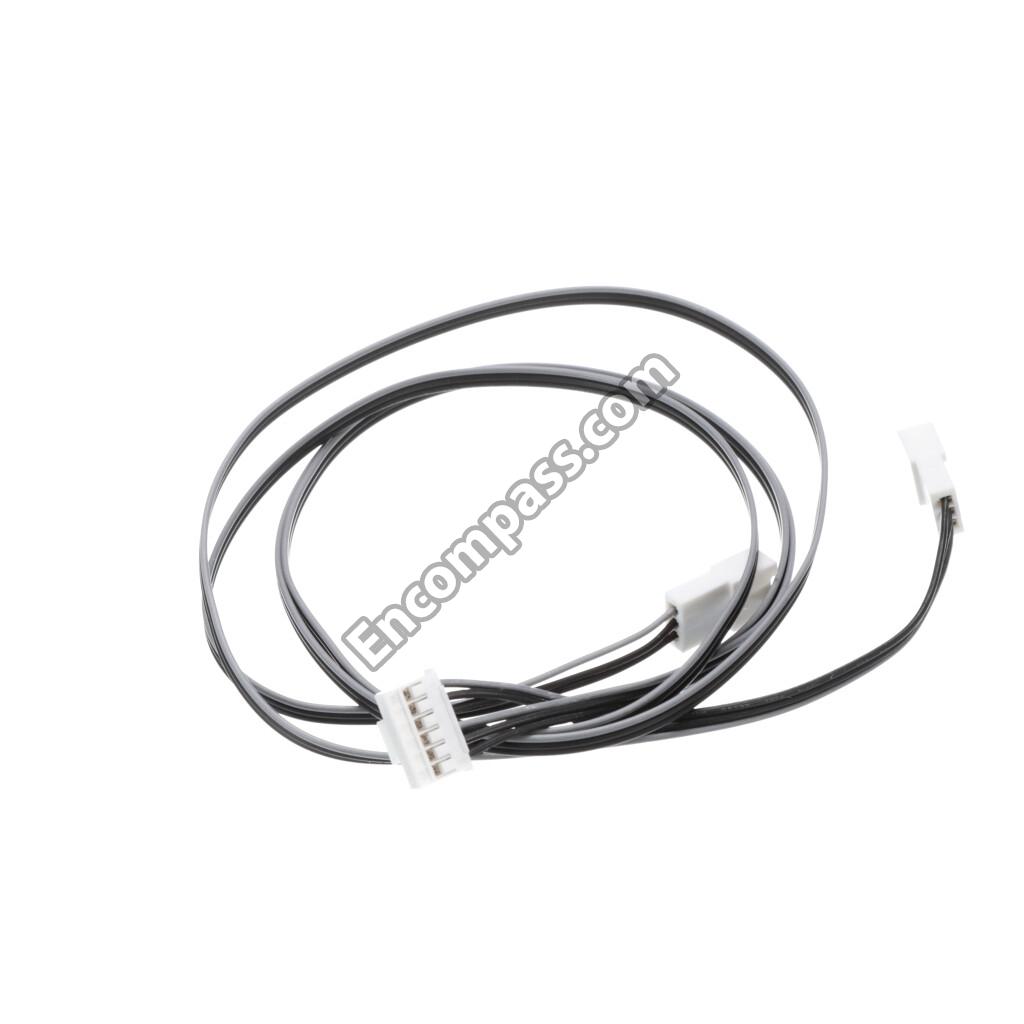

| BN39-02618A | LEAD CONNECTOR-ETC;UL21016,6P,L250,BLACK |
|
|
LEAD CONNECTOR-ETC;UL21016,6P,L600,BLACK |
| BN39-02207K | LEAD CONNECTOR-POWER;75Q80T,UL21016,20P, |
| BN39-02563B | LEAD CONNECTOR-SUB ASSY;Q70 65/75,UL2145 |
| 0601-001313 | LED;SMD(TOP VIEW),GRN,WATER CLEAR,2.06X1 |
| BN59-01331A | NETWORK-WLAN CLIENT;WCT733M,44.26X34.99X |
| 2804-001510 | OSCILLATOR-CLOCK;125MHZ,50PPM,10TTL,15PF |
| 3903-001287 | POWER CORD-DT;US,3P-F,125V,10A,BLK,L3000 |
| BN95-06595A | PRODUCT LCD-AUO;CY-TR075FLAVTH,QTLSR9K,8 |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-000039 | R-CHIP;0OHM,1%,1/10W,TP,1608 |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35,GENER |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-007225 | R-CHIP;1.62KOHM,1%,1/10W,TP,1608 |
| 2007-000265 | R-CHIP;1.8KOHM,1%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608,T0.45 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-000309 | R-CHIP;10OHM,5%,1/10W,TP,1608 |
| 2007-008332 | R-CHIP;11.5KOHM,1%,1/16W,TP,1005 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-007277 | R-CHIP;392OHM,1%,1/10W,TP,1608 |
| 2007-002915 | R-CHIP;4.02KOHM,1%,1/10W,TP,1608 |
| 2007-007797 | R-CHIP;44.2OHM,1%,1/10W,TP,1608 |
| 2007-000929 | R-CHIP;470OHM,1%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-000999 | R-CHIP;510OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-001163 | R-CHIP;75OHM,1%,1/8W,TP,2012 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|

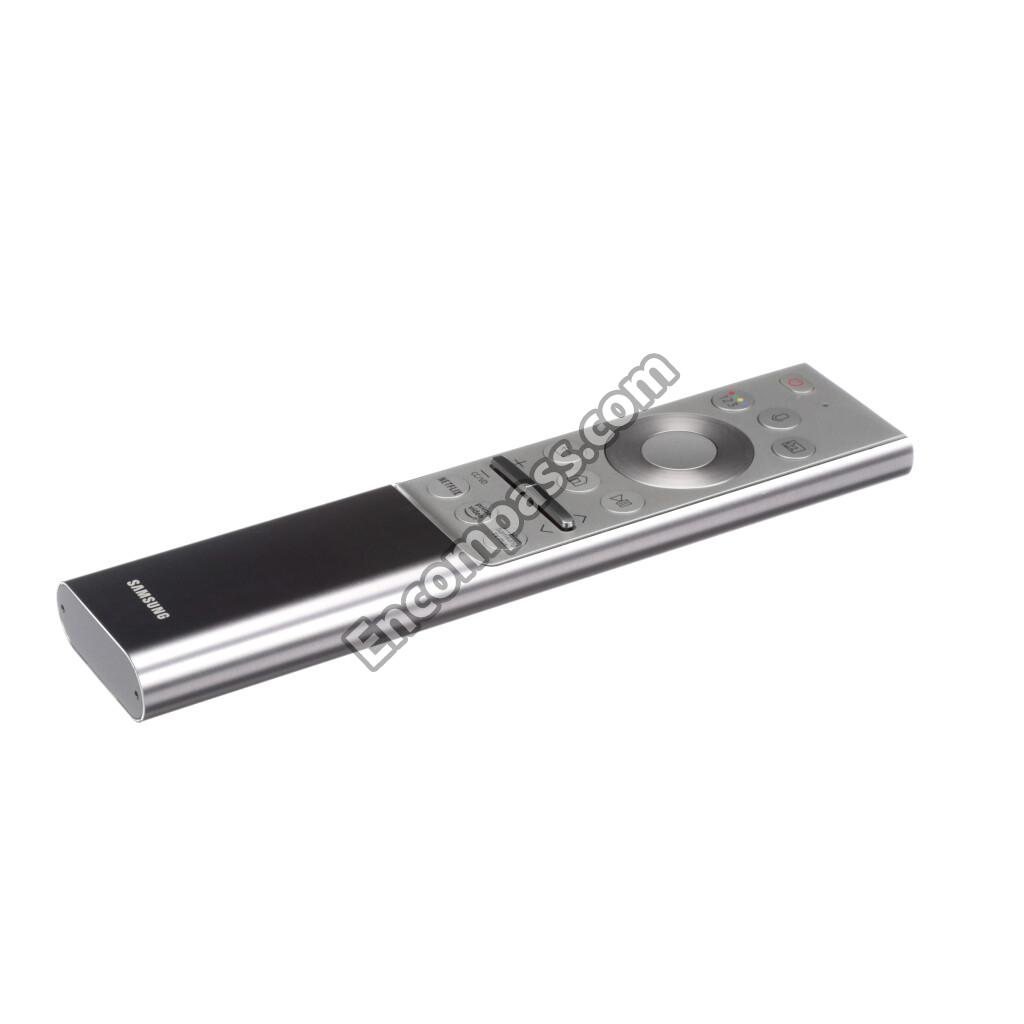

REMOCON-SMART CONTROL;2020 TV,SAMSUNG,21 |
| 6001-002789 | SCREW-MACHINE;BH,+,M4,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 |
| 6001-003336 | SCREW-MACHINE;CH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC |
| 6003-001919 | SCREW-TAPTYPE;BH,+,B,M4,L8,ZN-NI(BLK),SW |
| 6003-001124 | SCREW-TAPTYPE;BH,+,S,M4,L4,ZPC(BLK),SWRC |
| 6003-000131 | SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;CH,+,B,M3,L6,ZN-NI(BLK),SW |
| 6003-001915 | SCREW-TAPTYPE;FH,+,B,M4,L10,ZN-NI(BLK),S |
| 6003-001917 | SCREW-TAPTYPE;SWRCH22A,ZN-NI(BLK),L15,M4 |
| BN60-01255A | SPACER-SILICONE;SI,L20,BLACK,T1,W20 |
| 3407-000183 | SWITCH-DIP;50V,100MA,SLIDE,STANDARD |
| 3404-001560 | SWITCH-TACT;12V,50MA,220GF,4.5X2.2X2.6MM |
| 3404-001209 | SWITCH-TACT;12VDC,50MA,250GF,4.5X4.5X1.5 |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
| 2601-001342 | TRANS-PULSE;200UH,1:1,6.35X13.843X15.367 |
|
|
TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4 |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001452 | VARISTOR;15V,12VDC,8A,1608,TP,46V,18PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001233 | VARISTOR;50V,30VDC,5A,1608,TP,120V,10PF |
