Manufacturer
Samsung
Model Number
RF31CG7200SRAA
Description
36-inch 4-door French Door Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-003423 | ADHESIVE-HM;DJ-391,WHITE,3700CPS |
| 0201-002337 | ADHESIVE-HM;DJ-8000A,WHITE,1K,HEAT,9,375 |
| 0201-002723 | ADHESIVE-LOKPREP;LOCKSEAL7700,BLUE,LOKRI |
| 0102-002588 | ALUMINUM PLATE;A1050P-H14,T0.6,W360,L100 |
| 0102-002689 | ALUMINUM PLATE;AL,T0.3,W340,L90 |
| DA61-14455B | ANGLE SHELF-REF MIDDLE;GI-SGCC,T2.5,COOL |
| DA97-22588F | ASSEMBLY CASE PBA-MAIN;RF8000B,T2.5,NTR,5VA |
| DA94-07664A | ASSEMBLY PCB AUTO;4D,FS,DISP.,2 ICE,F9_CU,RF |
| DA92-01692C | ASSEMBLY PCB MAIN;4D,FS,DISP.,2 ICE,F9_CU,RF |
| DA94-07665A | ASSEMBLY PCB SMD;4D,FS,DISP.,2 ICE,F9_CU,RF6 |
| DA97-24494C | ASSY CABI FORM-CABI MODULE;RF6500C,FS,11 |
| DA97-24474G | ASSY CABI FRAME-REAR;RF6500C VIP(Y),G1,T |
| DA97-24532A | ASSY CABI FRAME;RF6500C,URBAN SILVER,FS, |
| DA97-12556S | ASSY CABI-BOTTOM FRONT;AW FACE LIFT,URBA |
| DA97-23016D | ASSY CABI-BOTTOM REAR;RF6500C,FS |
| DA90-13530D | ASSY CABINET FORM;RF6500C,4DOOR,FS,110V, |
| DA97-24412A | ASSY CAP DOOR-FRE LOW;RF6500C,ABS,DARK G |
| DA97-24413A | ASSY CAP DOOR-FRE LOW;RF6500C,ABS,DARK G |
| DA97-24410A | ASSY CAP DOOR-FRE UP;RF6500C,ABS,DARK GR |
| DA97-24405A | ASSY CAP DOOR-REF LOW LEFT;RF6500C,ABS,D |
| DA97-24409A | ASSY CAP DOOR-REF LOW RIGHT;RF6500C,ABS, |
| DA97-24404J | ASSY CAP DOOR-REF UP LEFT;RF6500C,ABS,DA |
| DA97-24407A | ASSY CAP DOOR-REF UP RIGHT;RF6500C,ABS,D |
|
|
ASSY CAP-DRAIN;AW3 |
| DA97-24439A | ASSY CASE DISPENSER;RF6500C,COOL WHITE,A |
| DA97-08006L | ASSY CASE FILTER;H920G |
| DA97-24461A | ASSY CASE FILTER;RF6500C,FS,3-WAY,110V,I |
| DA97-24427A | ASSY CASE FRENCH HEATER;RF6500C,INNER GR |
| DA97-24426A | ASSY CASE FRENCH HEATER;RF6500C,NATURAL |
| DA97-22160B | ASSY CASE ICE;RF6500C,SERVICE(6500 BITES |
| DA97-22162B | ASSY CASE ICE;RF6500C,SERVICE(6500 CUBE) |
|
|

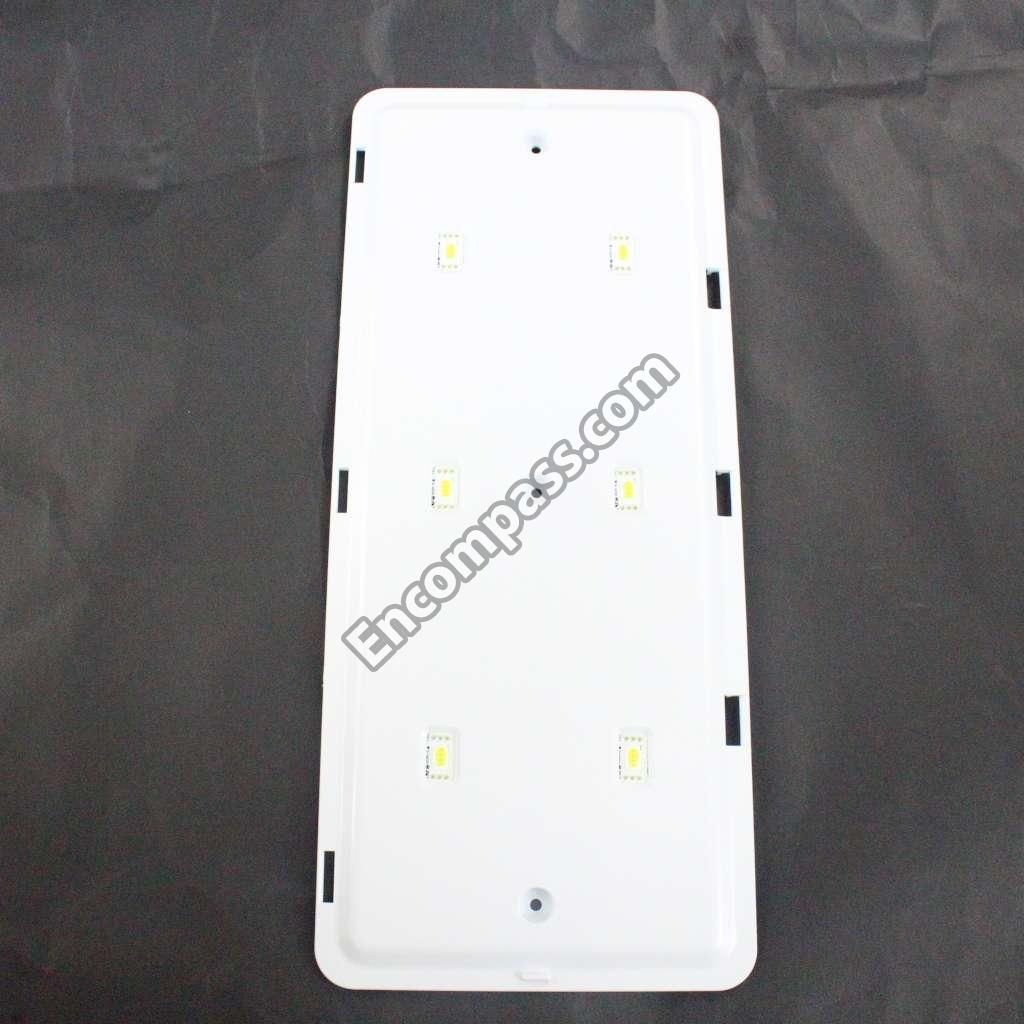

ASSY CASE LAMP-REF;AW4,LONG LED |
| DA97-20998A | ASSY CASE PANTRY-DRAWER MODULE;RF6000T,T |
| DA97-22588G | ASSY CASE PBA-MAIN;RF6500C,T2.5,5VA,AL T |
| DA97-08438K | ASSY CASE VEG-LEFT;RF6500C,TP GRAY,NO TR |
| DA97-08437K | ASSY CASE VEG-RIGHT;RF6500C,TP GRAY,NO T |
| DA97-21034A | ASSY CHASSIS COMP;RF6000T,GI-SGCC,T1.2,N |
| DA97-22300C | ASSY COMP N CONDENSING-COND MODULE;RF650 |
| DA97-12749Q | ASSY COVER COMP;RF6000T, RS5300,GI-SGCC, |
| DA97-24282D | ASSY COVER CONTROL;RF6500C,USA,SMARTTHIN |
| DA97-24415A | ASSY COVER EVAP-FRE;RF6500C |
| DA97-24414B | ASSY COVER MULTI-REF;RF6500C, NON-METAL |
| DA97-23420A | ASSY COVER PCB-PANEL;AW1-12/RS5300T,ASSY |
| DA97-23225A | ASSY COVER PIPE WATER;RF8000B,HOOK |
|
|

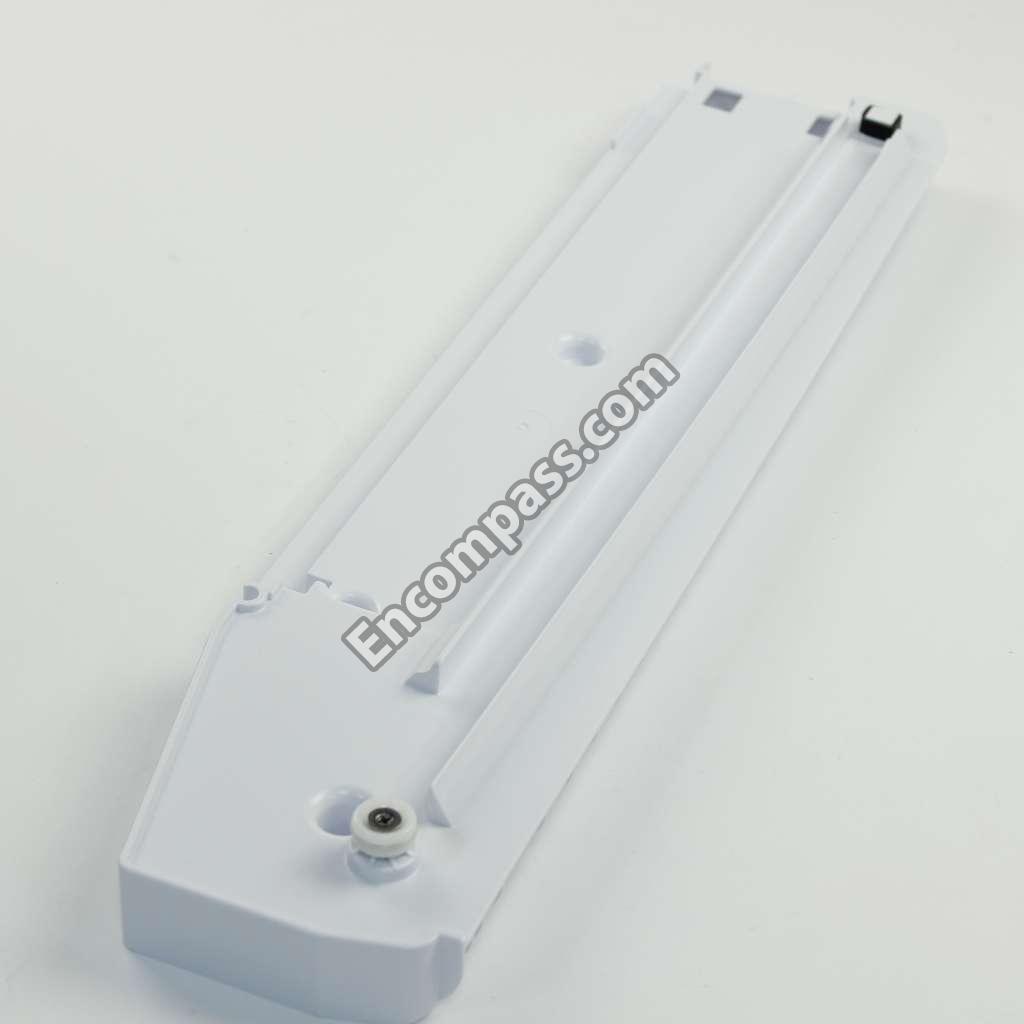

ASSY COVER RAIL PANTRY-LEFT;AW2-11 |
| DA97-11542L | ASSY COVER RAIL PANTRY-RIGHT;AW2 FACE LI |
| DA97-21058B | ASSY COVER SLIDE;RF6500C,TP GRAY |
|
|
ASSY COVER SWITCH;AW4-4D (F/S, C/D),FDR |
|
|
ASSY COVER-TUBE FILTER;AW4,ASSY |
| DA98-03275C | ASSY CUSHION BOTTOM;RF6500C,FS, TAPE FIL |
| DA98-03273A | ASSY CUSHION TOP;RF8000B |

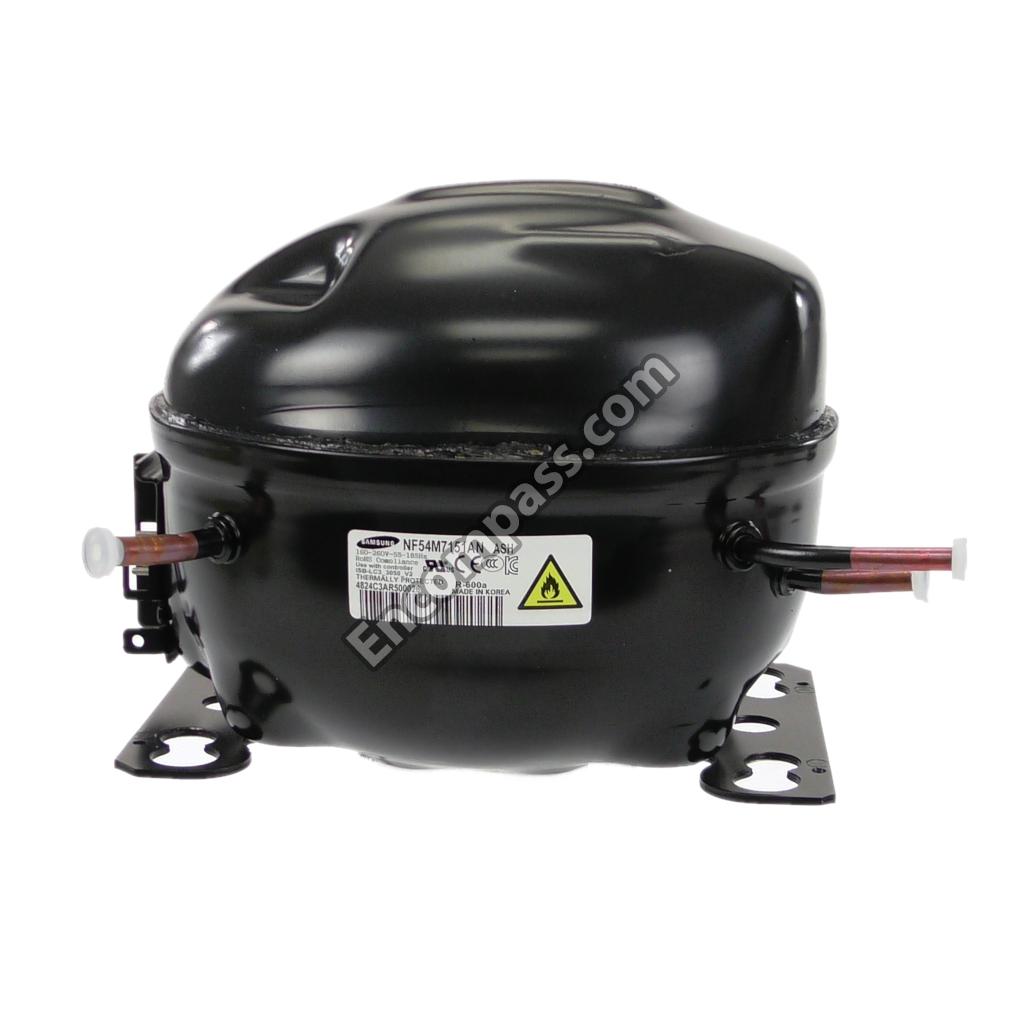

| DA90-14258B | ASSY CYCLE;RF6500C,NF54M7151,AA |
| DA90-14249B | ASSY DAMPER;RF6500C,METAL COOLING(N) |
| DA91-06422A | ASSY DOOR FOAM-FRE LOW;RF6500C,SR,VIP(X) |
| DA91-06421A | ASSY DOOR FOAM-FRE UP;RF6500C,SR,VIP(X), |
| DA91-06418G | ASSY DOOR FOAM-REF LEFT;RF6500C,SR,CAMER |
| DA82-03566A | ASSY DOOR FOAM-REF RIGHT;RF6500C,SR,BAR |
| DA90-14262A | ASSY DOOR FRE-LOW;RF6500C,NO VIP,SR |
| DA90-14261A | ASSY DOOR MID;RF6500C,SR,NO VIP |
| DA90-14263B | ASSY DOOR REF-LEFT;RF6500C,SR,110V,IND |
| DA90-14269A | ASSY DOOR REF-RIGHT;RF6500C,BASIC, NO VI |
| DA93-01511A | ASSY DOOR SUB-FRE LOW DOOR MODULE;RF6500 |
| DA93-01510A | ASSY DOOR SUB-FRE UP DOOR MODULE;RF6500C |
| DA93-01507G | ASSY DOOR SUB-REF LEFT DOOR MODULE;RF650 |
| DA93-01508A | ASSY DOOR SUB-REF RIGHT DOOR MODULE;RF65 |
| DA97-24480A | ASSY DRAIN HOSE;RF6500C,HDPE,T1.5 |
| DA97-24416A | ASSY DUCT-A;RF6500C |
| DA97-24417A | ASSY DUCT-B;RF6500C |
| DA97-24418A | ASSY DUCT-DISCHARGE REF;RF6500C |
| DA96-01610A | ASSY EVAP-FRE EVAP MODULE;RF6500C,FIN TU |
| DA97-24476A | ASSY FIXER-LOW;RF6500C,4D, FIX HOT-PIPE |
| DA97-22257B | ASSY FIXER-UP;RF9000A,BLACK,RECYCLE |
| DA97-22978A | ASSY FIXER;RF8000B,LOKRING PIPE |
| DA97-23074E | ASSY FRENCH;RF6500C,NO CAMERA, WHITE, 11 |
| DA97-24428B | ASSY GASKET-FRE;RF6500C,DARK GRAY,4D, LO |
| DA97-24428A | ASSY GASKET-FRE;RF6500C,DARK GRAY,4D, UP |
|
|
ASSY GASKET-REF;RF8000B 3D,DARK GRAY,REF |
| DA97-23462A | ASSY GROMMET;RF6500C,4D,FRE PARTITION |
| DA97-21913C | ASSY GUARD-REF LOW;RF8000B,TP GRAY |
| DA97-23268C | ASSY GUARD-REF LOW;RF8000B,TP GRAY |
| DA97-21916C | ASSY GUARD-REF UP;RF8000B,TP GRAY |
| DA97-21912F | ASSY GUARD-REF;RF8000B,TP GRAY,IN DRAWER |
| DA90-14253B | ASSY GUARD;RF6500C,INDOOR DISP |
| DA97-14866C | ASSY GUIDE HOSE-BOTTOM;AW3-14,FOAM PE |
| DA97-24492A | ASSY GUIDE HOSE;RF6500C,DUAL ICE MAKER O |
| DA97-24493A | ASSY GUIDE HOSE;RF6500C,DUAL ICE MAKER O |
| DA97-24473A | ASSY GUIDE HOSE;RF6500C,HDPE,FS |
| DA97-20312H | ASSY HANDLE-KIT HANDLE MODULE;RF6500C,RE |
| DA97-20021E | ASSY HANDLE-REF LEFT;AW F/L,REAL STS304 |
| DA97-20019E | ASSY HANDLE-REF R;AW F/L,AL,REAL STS304 |
| DA94-05077A | ASSY HEAT SINK 1;RB4000N,160X194MM,F FAN |
|
|

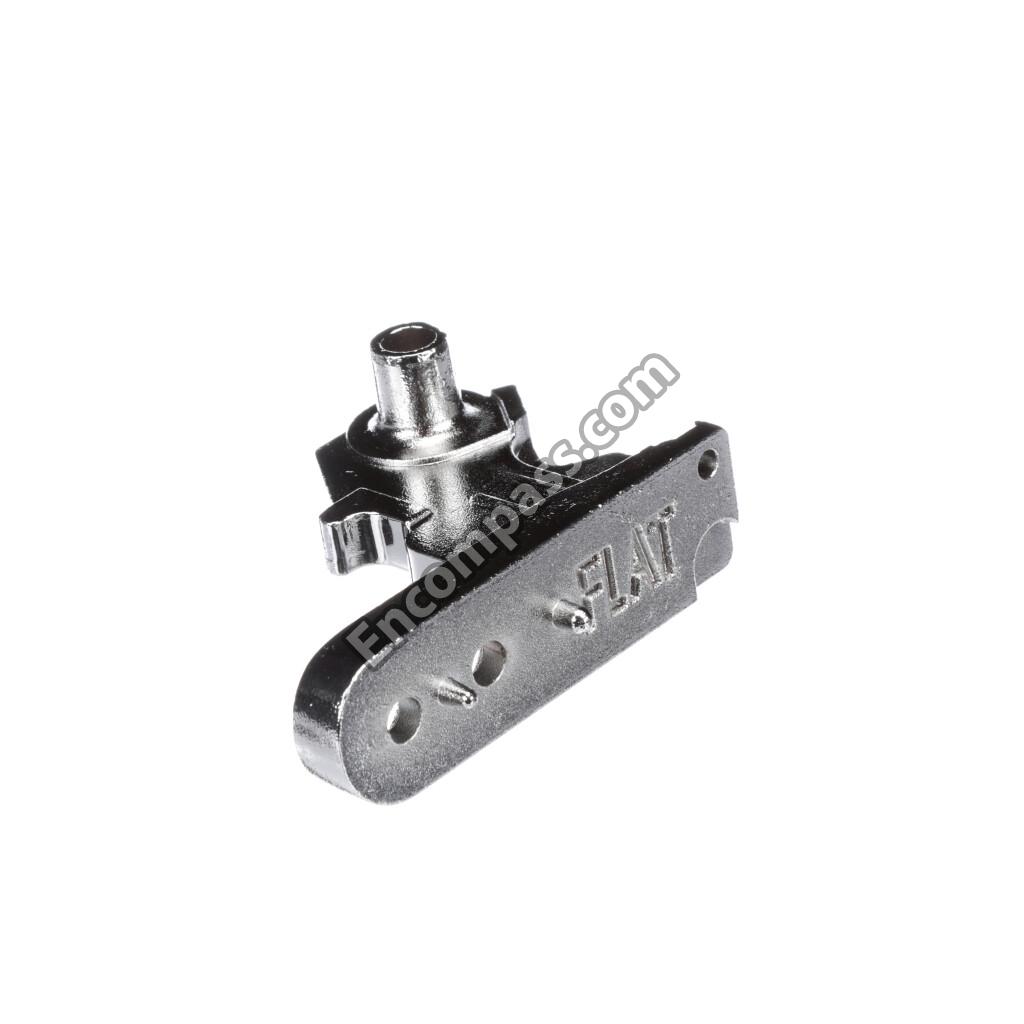

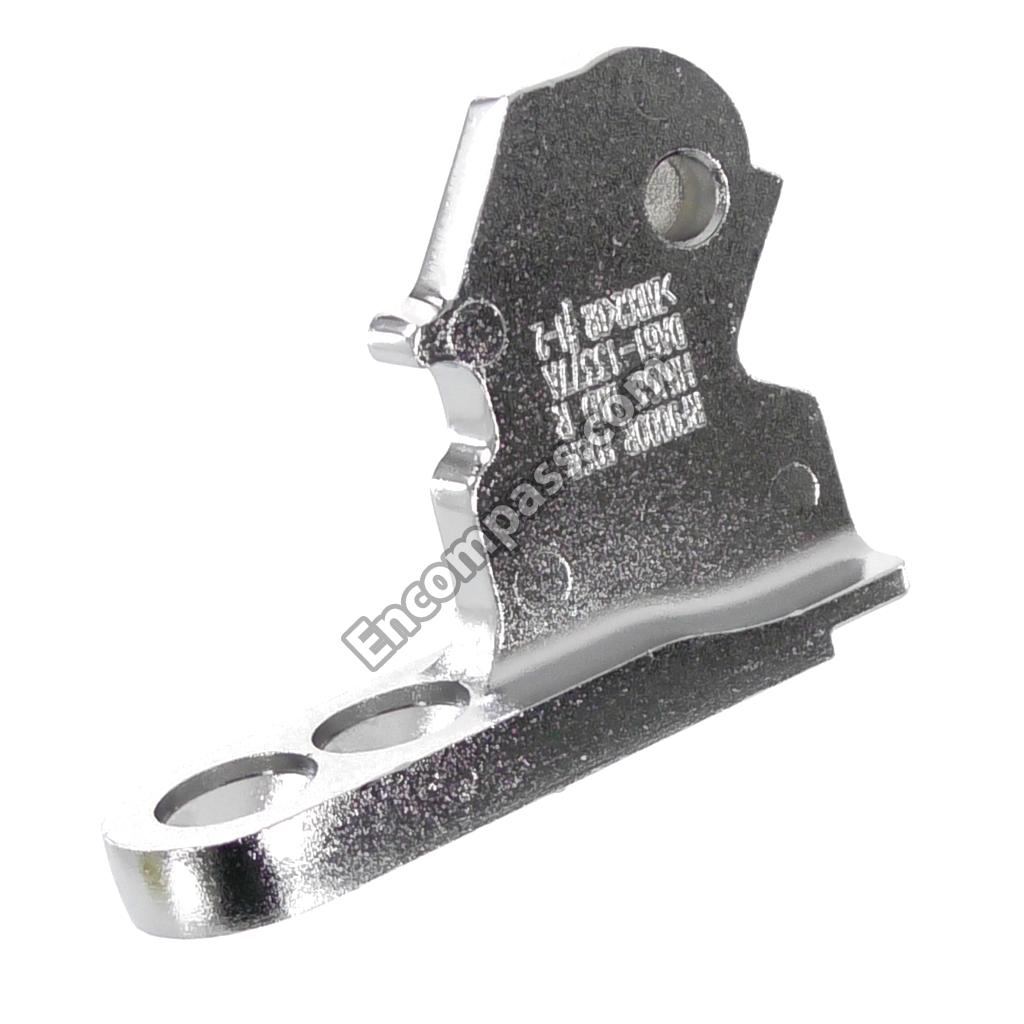

ASSY HINGE-UP LEFT;RF9000R,T3,BLACK |
|
|
ASSY HINGE-UP RIGHT;RF9000R,T3,BLACK |
| DA97-21409A | ASSY HOSE;RF6000T NO DISPENSER,INTERNAL |
| DA59-00392A | ASSY ICE MAKER-ICE MODULE;SWAA,DC 12V, |
| DA90-14255D | ASSY ICE MAKER;RF6500C,INDOOR DISP,FRE D |
| DA97-21804F | ASSY ICE MAKER;RF6500C,SHORT GUIDE ICE |
| DA97-24137A | ASSY ICE PACK KIT;RF5000C,RF5000C, PCTG, |
| DA97-24478A | ASSY INS PARTITION-MIDDLE;RF6500C,FS, DU |
| DA90-14274A | ASSY INSERT;RF6500C,4DOOR,FS,AA,110V,D |
| DA99-03490W | ASSY INSTALL;AW3-14,VALVE |
| DA99-01561B | ASSY LABEL-INSTALLER CHECK LIST;ALL MODE |
| DA99-01870A | ASSY LABEL-PASS;NW2 PJT,ART,OPP |
|
|
ASSY LAMP LED;2,FR-4,20*30,WHITE,SMAW250 |
|
|

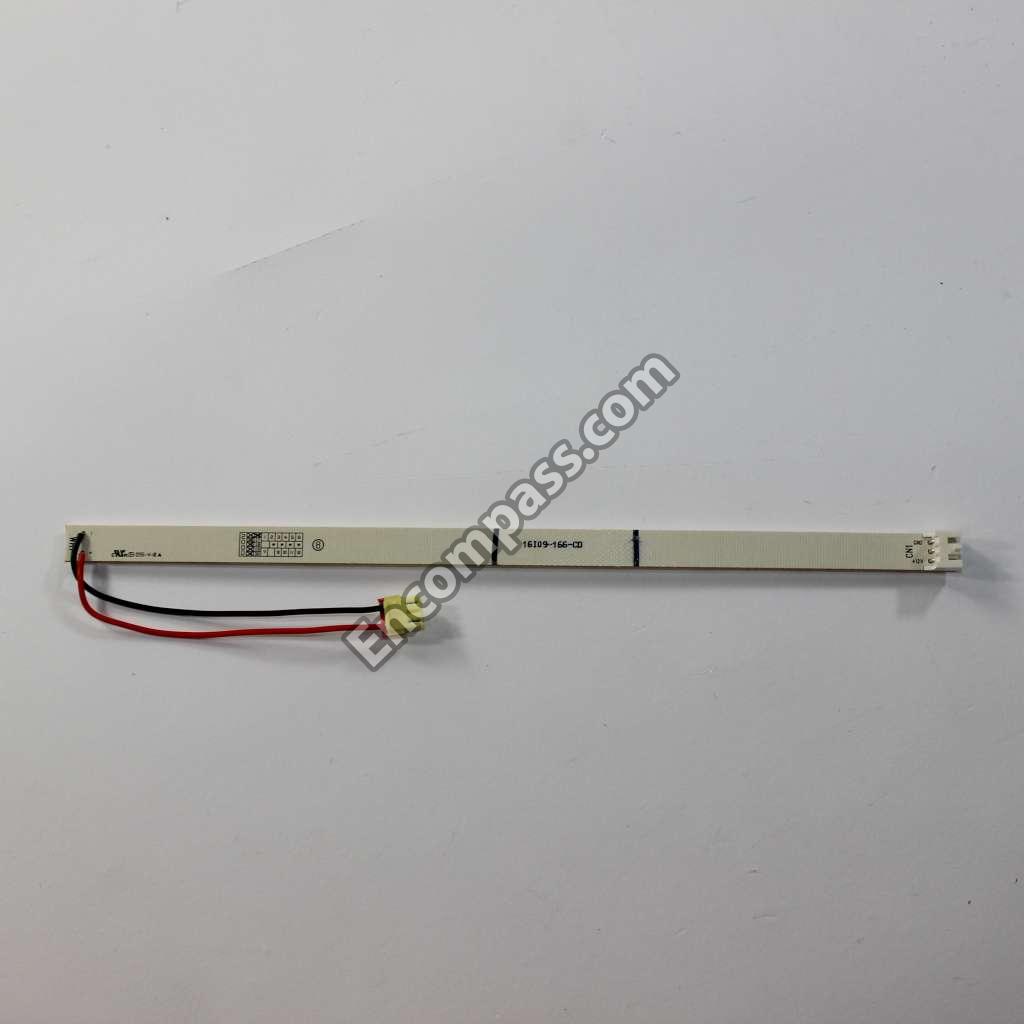

ASSY LAMP LED;5,CEM-1,240*10,WHITE,SMAW2 |
|
|
ASSY LEVER AUTO CLOSE;AW1-12,POM,BLACK |
| DA97-21146D | ASSY LEVER DISPENSER;RF6000T NO DISPENSE |
| DA94-07843C | ASSY LINER;RF6500C,FS,110V,URBAN SILVERR |
|
|
ASSY MAGNET;CORE-PJT,FERRITE, |
| DA92-01714A | ASSY MICOM;ABOV_I910Z_PF1, V001, HYBRID, |
| DA92-01659A | ASSY MICOM;RF6500C,MAIN HEX CODE,HART-M3 |
|
|

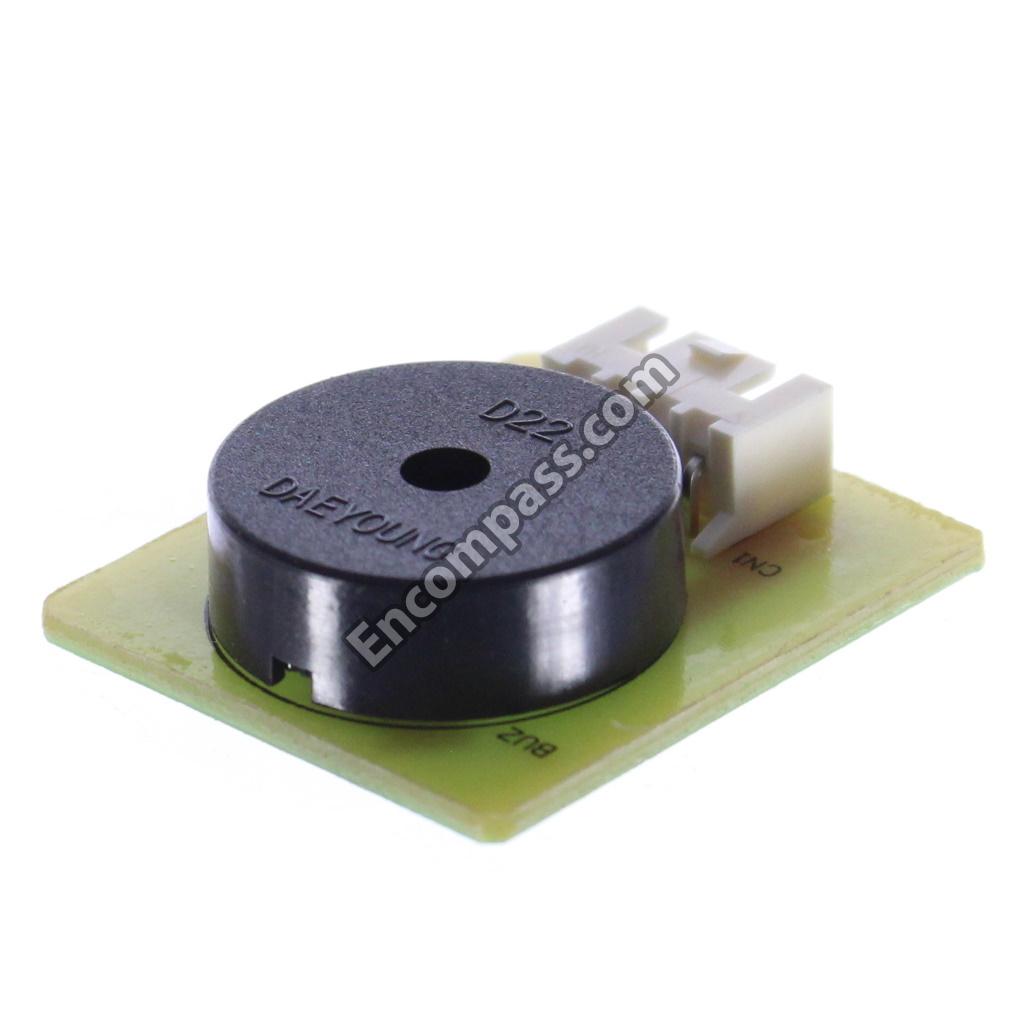

ASSY MODULE;BUZZER PBA,RB6000K,STANDARD |
| DA90-14256A | ASSY OUTER;RF6500C,INOX GRAY,WIFI |
| DA90-14271A | ASSY PACKING;RF6500C FS,4 DOOR,VINYL,AA |
| DA97-23464B | ASSY PARTITION-FRE V;RF6500C,4DOOR,RIGHT |
| DA97-23464A | ASSY PARTITION-FRE;RF6500C,4DOOR,LEFT |
| DA97-23463A | ASSY PARTITION;RF6500C,4DOOR |
| DA94-08449A | ASSY PCB AUTO;INNER DISP. , DUAL ICE,RF |
| DA92-01261A | ASSY PCB DISPLAY;ADA DISPLAY,RF6000T,36* |
| DA94-06792R | ASSY PCB EEPROM;0X32,DA92-01745C,D601, D |
| DA92-01745C | ASSY PCB MAIN;INNER DISP. , DUAL ICE,RF |
| DA94-05348A | ASSY PCB SMD;ADA DISPLAY,RF6000T,36*209, |
| DA94-08450A | ASSY PCB SMD;INNER DISP. , DUAL ICE,RF6 |

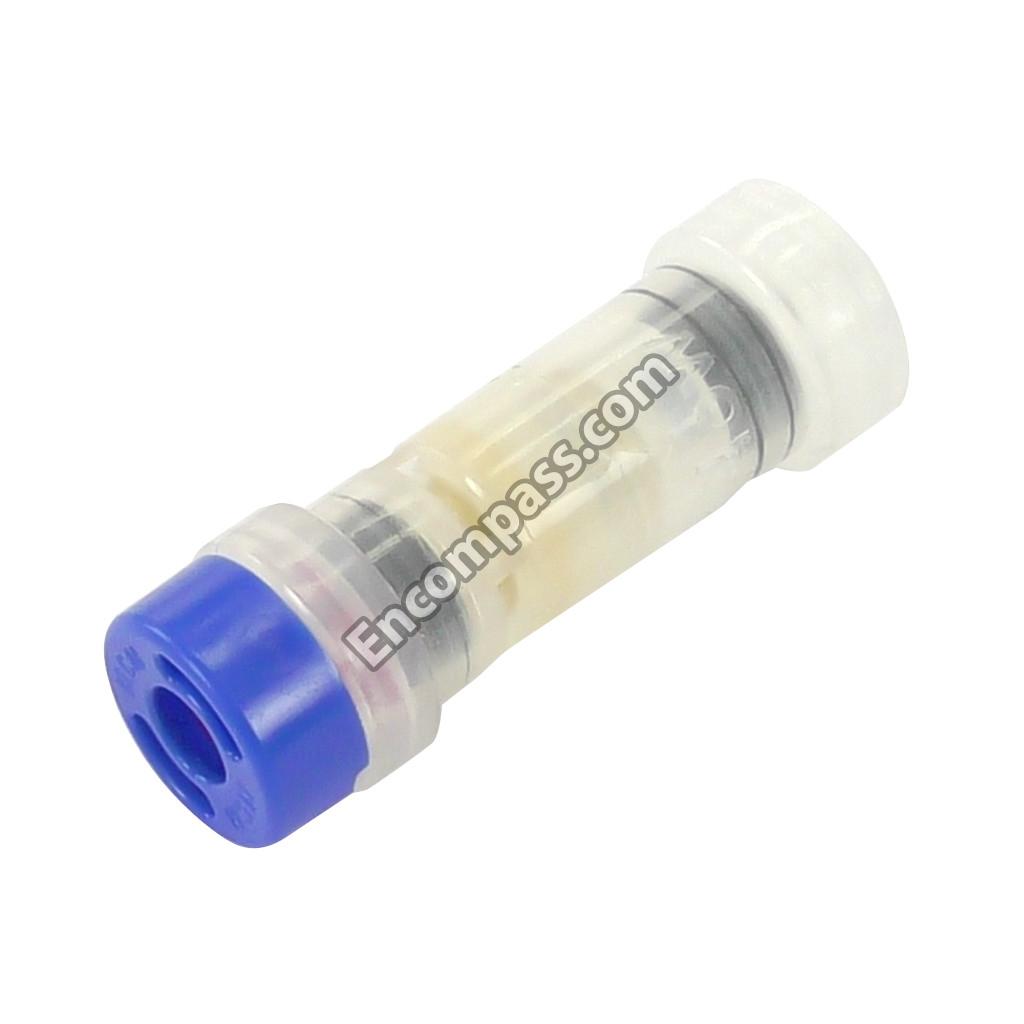

| DA97-15974A | ASSY PIPE CONNECT-B;PFC, |
| DA97-15975A | ASSY PIPE CONNECT;PFC, |
| DA97-20814B | ASSY PIPE CONNECT;RS5300T,NON UL SHRINKA |
| DA97-24450A | ASSY PIPE HOT;RF6500C,FREE STANDING,4DOO |
| DA97-24438A | ASSY PIPE SUCTION;RF6500C,NON DISPENSER, |
| DA97-21256H | ASSY PIPE WATER ICE;RF6500C,CUBE,AL, |
| DA97-21256J | ASSY PIPE WATER ICE;RF6500C,NUGGET,AL, |
| DA97-24423A | ASSY PLATE DOOR-FRE LOW;RF6500C,SR,VIP(X |
| DA97-24422A | ASSY PLATE DOOR-FRE UP;RF6500C,SR,VIP(X) |
| DA97-24419G | ASSY PLATE DOOR-REF LEFT;RF6500C,CAMERA( |
| DA97-24420A | ASSY PLATE DOOR-REF RIGHT;RF6500C,BAR HA |
| DA90-14278A | ASSY PRINTING;RF6500C FS 4D,SR, IN DOOR |
| DA97-23446A | ASSY RAIL SLIDE-LOW LEFT;RF6000 (F/S) |
| DA97-23447A | ASSY RAIL SLIDE-LOW RIGHT;RF6000 (F/S) |
| DA97-23442A | ASSY RAIL SLIDE-MID LEFT;RF6000 (F/S) |
| DA97-23443A | ASSY RAIL SLIDE-MID RIGHT;RF6000 (F/S) |
| DA97-24475A | ASSY REINF-A;RF6500C,T1.2,GI |
| DA97-23027B | ASSY REINF-CABI FLANGE UP;RF8000B |
| DA97-06973A | ASSY REINF-GUIDE FRENCH;AW-PJT,D |
| DA97-16179C | ASSY REINF-MIDDLE FRONT;RF8000B,PO-SPHC, |
| DA97-19988B | ASSY ROLLER;MOUTON,18PI |
| DA97-19988A | ASSY ROLLER;RF9000K,29 |
| DA97-24549A | ASSY SEAL CABI;RF6500C FS,4 DOOR |
| DA97-20997A | ASSY SHELF-PANTRY SHELF MODULE;RF6000T |
| DA97-24442A | ASSY SHELF-QUICK SPACE SHELF MODULE;RF65 |
| DA97-24440A | ASSY SHELF-REF FIX SHELF MODULE;RF6500C, |
| DA97-24443A | ASSY SHELF-REF UP SHELF MODULE;RF6500C,F |
| DA97-24444A | ASSY SHELF-VEG LOW SHELF MODULE;RF6500C, |
| DA90-14254B | ASSY SHELF;RF6500C,FS,BASIC,PANTRY |
|
|
ASSY SUPPORT-CIRCUIT MOTOR;NW2-FDR,C160N |
|
|
ASSY SUPPORT-FRONT;AW FACE LIFT |
| DA97-24458A | ASSY SUPPORT-MIDDLE;RF6500C,PP |
| DA97-13854C | ASSY TANK WATER-REF;H920G,PP |
| DA97-24548B | ASSY TAPE CABI;RF6500C,4DOOR |
| DA97-23483D | ASSY TOP TABLE;RF6500C,INOX GRAY |
| DA97-15978C | ASSY TRAY DRAIN WATER;RF90000M,PFC(LA+CE |
| DA97-24435A | ASSY TRAY-FRE UP;RF6500C,4D FS |
| DA97-24550C | ASSY URETHANE CABI;RF6500C,4DOOR,FS,CABI |
| DA97-24546A | ASSY URETHANE DOOR-FRE;RF6500C,4D,FRE LO |
| DA97-24545A | ASSY URETHANE DOOR-FRE;RF6500C,4D,FRE-MI |
| DA97-24544C | ASSY URETHANE DOOR-REF;RF6500C, BASIC,LE |
| DA97-24547A | ASSY URETHANE DOOR-REF;RF6500C,RIGHT,BAS |
| DA96-01508C | ASSY WIRE HARNESS-CABI;RF8000B(BC),3DOOR |
| DA96-01616C | ASSY WIRE HARNESS-DOOR;RF65000C,INNER WA |
| DA39-00429D | ASSY WIRE HARNESS-EARTH;EARTH,ALL,FREE V |
| DA96-01614E | ASSY WIRE HARNESS-MAIN;RF6500C,4DOOR, FS |
| DA96-01424A | ASSY WIRE HARNESS-SWITCH;ALL,INTERNAL, S |
| DA96-01466A | ASSY WIRE HARNESS-TOP;RF9000A,BUZZER,WIF |
| DA97-12475A | ASSY-GROMMET FRENCH;MOUTON |
| 6902-002371 | BAG PE;HDPE,T0.015,W200,L300,TRP,RECYCLE |
| 3301-002113 | BEAD-SMD;470 OHM/100MHZ 470 OHM/100MHZ,2 |
| DA02-40003A | BLOWING AGE-CP;C5H10,CYCLO-PENTANE 95% |
|
|
BOLT-ETC;M6,L20,ZPC(WHT),SWRCH18A,FH HEA |
| 6011-001694 | BOLT-ETC;M8,L14.1,ZPC(SILVER),FH,+,SCM43 |
|
|
BOLT-HEX;M6,L16,ZPC(WHT),HH,SWRCH22A,MAC |
|
|
BOLT-HEX;M6,L19,ZPC(WHT),SWRCH18A,HH HEA |
| DA61-15475A | BRACKET CONDENSER-LOW;RF9000B,PP,BLACK |
| DA61-04736A | BRACKET-BOTT REAR;AW-PJT,GI-SGCC,T1.6,DA |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2402-001398 | C-AL,SMD;220UF,20%,35V,TP,8.0X8.0X10.0MM |
| 2402-001303 | C-AL,SMD;220UF,20%,35V,TP,8.3X8.3X10MM |
| 2402-001368 | C-AL,SMD;47UF,20%,25V,TP,6.3X4.9MM |
| 2401-004721 | C-AL;680UF,20%,250V,BK,30X30MM,10MM,25T |
| 2401-004553 | C-AL;820UF,20%,25V,TP,10X20MM,5MM,40TO+ |
| 2203-007809 | C-CER,CHIP |
| 2203-007393 | C-CER,CHIP |
| 2203-007392 | C-CER,CHIP |
| 2203-006842 | C-CER,CHIP |
| 2203-000812 | C-CER,CHIP |
| 2203-000585 | C-CER,CHIP |
| 2203-000489 | C-CER,CHIP |
| 2203-000438 | C-CER,CHIP |
| 2203-000278 | C-CER,CHIP |
| 2203-000233 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-000206 | C-CER,CHIP;100NF,10%,50V,X7R,TP,2012,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005,55T |
| 2203-007306 | C-CER,CHIP;10UF,10%,25V,X5R,TP,2012,T1.2 |
| 2203-005135 | C-CER,CHIP;1NF,10%,630V,X7R,TP,3216,T1.1 |
| 2203-007456 | C-CER,CHIP;1UF,10%,25V,X5R,TP,1005,T0.5, |
| 2203-006967 | C-CER,CHIP;2.2UF,10%,25V,X5R,TP,2012,T1. |
| 2203-008315 | C-CER,CHIP;22UF,20%,25V,X5R,TP,2012,T1.2 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0. |
| 2203-006377 | C-CER,CHIP;4.7UF,10%,25V,X5R,TP,2012,55 |
| 2201-002429 | C-CERAMIC,DISC;10NF,+80-20%,2000V,Y5U,TP |
| 2201-002709 | C-CERAMIC,DISC;33PF,5%,1000V,SL,TP,6.3X5 |
| 2201-002711 | C-CERAMIC,DISC;470PF,10%,400VAC,Y5P,TP,1 |
| 2301-001511 | C-FILM,LEAD-PEF;330NF,10%,275VAC,BK,18X1 |
| 2301-002011 | C-FILM,LEAD-PPF;2.2NF,5%,630V,TP,13X11X6 |
| 2301-001730 | C-FILM,MPEF;470NF,10%,275VAC,BK,11X18X18 |
| DA01-02167A | C/STEEL-CABI;RF8000B,EGI-SECC,URBAN SILV |
| DA01-02041N | C/STEEL-DOOR;RF6500C,STS430,REAL STS430, |
| DA01-02041P | C/STEEL-DOOR;RF6500C,STS430,REAL STS430, |
| DA01-02443A | C/STEEL;RF6500C,EGI-SECC,COOL WHITE,2MM, |
| DA01-02386A | C/STEEL;RF6500C,GL-SGLCC,SS SILVER,0.3MM |
| DA64-04156A | CABI FRAME-BOTTOM FRONT;AW4,PP,BLACK, |
| DA64-03238Z | CABI FRAME-BOTTOM REAR;RF6500C,GL-SGLCC, |
| DA64-02233V | CABI FRAME-MIDDLE FRONT;AW2 FACE LIFT,EG |
| DA64-07185A | CABI FRAME-MIDDLE FRONT;RF6500C,EGI-SECC |
| DA64-07458B | CABI FRAME-REAR;RF6500C,GI-SGCC,T0.3, |
| DA64-07043B | CABI FRAME;RF8000B,GI-SGCC,T0.4,21 CAB |
| DA66-00950B | CAM AUTO CLOSE-LEFT;RF9000A,POM,BLACK, |
| DA66-00951B | CAM AUTO CLOSE-RIGHT;RF9000A,POM,BLACK |
| DA67-03717A | CAP DISPENSER;3050 PJT,LDPE,HB,MB9500,NA |
| DA67-05630A | CAP DOOR-FRE LOW;RF6500C,ABS,T2.3,HB,HG- |
| DA67-05631A | CAP DOOR-FRE LOW;RF6500C,ABS,T2.3,HB,HG- |
| DA67-05628A | CAP DOOR-FRE UP;RF6500C,ABS,T2.3,HB,HG-0 |
| DA67-05624A | CAP DOOR-REF LOW LEFT;RF6500C,ABS,T2.3,H |
| DA67-05627A | CAP DOOR-REF LOW RIGHT;RF6500C,ABS,T2.3, |
| DA67-05623C | CAP DOOR-REF UP LEFT;RF6500C,ABS,T2.3,HB |
| DA67-05625A | CAP DOOR-REF UP RIGHT;RF6500C,ABS,T2.3,H |
| DA67-03358A | CAP GUIDE FRENCH-UP;AW4,POM,500P,NAT |
| DA67-30266K | CAP SCREW;A-TOP,PP,T1.5,HB,BJ750,COOL WH |
|
|
CAP-CASE FRENCH MID;AW-PJT,ABS,HI121 |
|
|
CAP-CASE FRENCH;AW-PJT,ABS,HF-0660I, |
| DA67-03218C | CAP-INTERLOCK SWITCH HOLE;MOUTON-PJT,ABS |
| DA67-02795B | CAP-SHAFT HOLE;AW-PJT,PP,T4,HB,BJ750,NAT |
| DA67-03399A | CAP-TUBE;HM12,PP,HB,BJ750,NATURAL |
| DA61-16034A | CASE BASKET-LOW;RF6500C,ABS,T2.5,COOL WH |
| DA61-16033A | CASE BASKET-UP;RF6500C,ABS,T2.5,COOL WHI |
| DA61-11735A | CASE DISPENSER-IN;RF8000MC,ABS,EBONY B |
| DA61-16002A | CASE FILTER-LEFT;RF6500C,HIPS,T2.5,NATUR |
| DA61-16003A | CASE FILTER-RIGHT;RF6500C,HIPS,T2.5,NATU |
| DA61-15195A | CASE FRENCH-FRONT;RF8000B 3D,ABS,COOL |
| DA61-15196A | CASE FRENCH;RF8000B 3D,ABS,COOL WHITE, |
| DA61-15997A | CASE HEATER-FRENCH;RF6500C,ABS,INNER G |
| DA61-15995A | CASE HEATER-FRENCH;RF6500C,ABS,NATURAL |
| DA61-15996A | CASE HEATER-FRENCH;RF6500C,ABS,NATURAL |
| DA61-15988A | CASE ICE-CUBE;RF6500C,PP,T2.5,COOL WHITE |
| DA61-14309A | CASE ICE-SCOOP;RF9900T,PCTG,T2,TP GRAY,J |
| DA61-08236A | CASE LAMP-REF;OPUS1-14,HIPS,NATURAL,576H |
| DA61-13950A | CASE PANTRY;RF6000T,PP,T3,COOL WHITE,BJ7 |
| DA61-15334A | CASE PBA-MAIN;RF9000B,PP,T2.5,NATURAL, |
| DA61-13473A | CASE VEG-LEFT;AW3,GPPS,TP GRAY,G-116 |
| DA61-13474A | CASE VEG-RIGHT;AW3,GPPS,TP GRAY,G-116HV |
| DA61-05524A | CASE-FILTER IN;SSEDA,POM,NATURAL, |
| DA61-05523A | CASE-FILTER OUT;SSEDA,POM,NATURAL, |
|
|
CASTER-FRONT;AW-PJT,PP,BLACK |
|
|
CASTER-REAR;AW-PJT,PP,BLACK,M/B(0103-002 |
| DA64-06266A | CHASSIS COMP;RF6000T,GI-SGCC,T1.2, |
|
|
CLIP-FITTING LOCK;AW,POM,NATURAL,POM |
|
|
CMP,COMP,REFRIGERATOR,R-600A |
| 0204-009273 | COATING AGENT;DS8802FL,50~60%,300CPS,TRA |
| 0204-008356 | COATING AGENT;PAS-7900,99%,80~250CPS,TRA |
| DA02-00235A | COATING-ECO PRO;ECO PRO,12.7,TRANSPARENC |
| DA27-00063A | COIL CHOKE;150UH,6A,11MMX10MM,MN-ZN,4P,D |
| DA27-00062A | COIL CHOKE;18MH,6A,16MMX18MM,MN-ZN,4P,DI |
| DA27-00061A | COIL CHOKE;4.5MH,6A,15MMX10MM,MN-ZN,4P,D |
| DA63-06916G | COVER CAP DOOR-REF UP LEFT;AW4,ABS,T2.3, |
| DA63-06954B | COVER COMP;POLARIS,GI-SGCC,T0.25 |
| DA63-12034A | COVER DISPENSER;RF6500C,ABS,T2.5,COOL |
| DA63-12028A | COVER EVAP-FRE REAR;RF6500C,PP,T2,BLAC |
| DA63-12027A | COVER EVAP-FRE;RF6500C,PP,T2,INNER GRA |
| DA63-05403B | COVER FILTER;AW3,PP,T2.5,INNER GRAY,NF-6 |
| DA63-09787A | COVER FILTER;RF6000T,HIPS,T2.5,COOL WH |
| DA63-11585A | COVER FIXER MAGNET;RF8000BC,HIPS,COO |
|
|

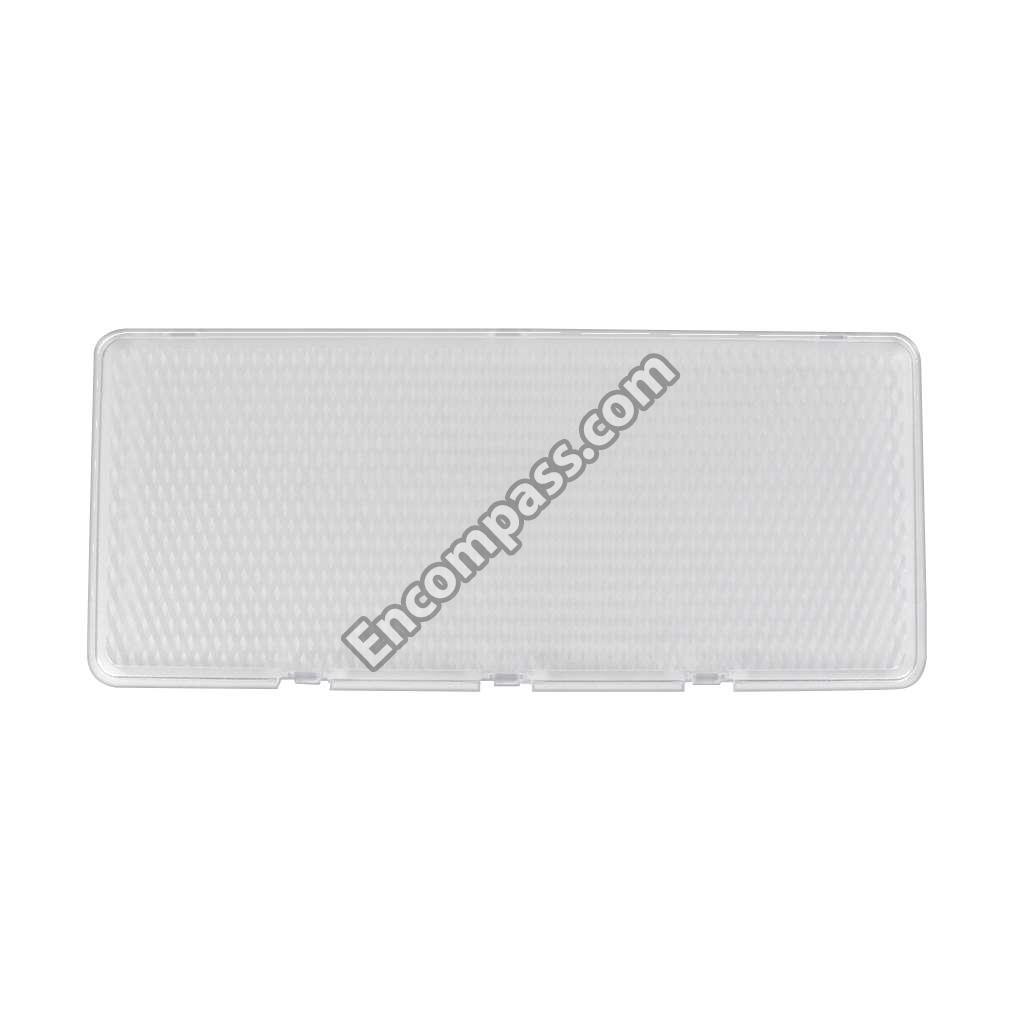

COVER LAMP-REF;AW4,GPPS,TP BLUE,165N |
| DA63-12026A | COVER MULTI-REF A;RF6500C,PP,T2,COOL W |
| DA63-12025A | COVER MULTI-REF B;RF6500C,PP,T2,BLACK, |
| DA63-11565A | COVER PCB;AW3,GL-SGLCC,T0.4,REDU |
| DA63-11634A | COVER PIPE;RF8000B,PP,T2,BLACK,RM60, |
| DA63-12014A | COVER RAIL-FRE LEFT;RF6500C,ABS,T2.5,HB, |
| DA63-12015A | COVER RAIL-FRE RIGHT;RF6500C,ABS,T2.5,HB |
| DA63-11715A | COVER RAIL-LOW LEFT;RF6500C,ABS,T2.5,HB, |
| DA63-11716A | COVER RAIL-LOW RIGHT;RF6500C,ABS,T2.5,HB |
| DA63-06520C | COVER RAIL-MIDDLE RIGHT;AW2 FACE LIFT FS |
|
|
COVER REED SWITCH;OPUS1-14,ABS,HB,COOL W |
| DA63-11197A | COVER SENSOR;RF9000A,PP,T2.5,COOL WHITE, |
| DA63-09321A | COVER SENSOR;RS8000NC,PP,T2,COOL WHITE,B |
| DA63-11750E | COVER SHEET;RF6500C,AL,T0.135 |
| DA63-11739F | COVER SHEET;RF8000B,AL,NATURAL,T |
| DA63-09794B | COVER SLIDE-A;RF6500C,GPPS,T2.5,TP GRA |
| DA63-09795A | COVER SLIDE-B;RF6000T,HIPS,T2.5,COOL WHI |
| DA63-07552D | COVER VEG-LEFT;AW3-14,GPPS,TP GRAY,G-116 |
| DA63-07553D | COVER VEG-RIGHT;AW3-14,GPPS,TP GRAY,G-11 |
|
|
COVER-CAP DOOR LED;AW-PJT,GPPS,T2, |
|
|
COVER-HEATER FRENCH;AW-PJT,PC,COOL W |
|
|
COVER-URETHANE;SSEDA/AW-PJT,ABS, |
| DA69-02706A | CUSHION BOTTOM;RF8000B,EPS,W958,L914,H14 |
| DA69-02490A | CUSHION CORNER-FRONT;RS5300T,EPS,W210,L1 |
| DA69-02491A | CUSHION CORNER-REAR;RS5300T,EPS,W180,L11 |
| DA69-02708A | CUSHION DOOR-FRONT;RF8000B,EPS,W550,L45, |
| DA69-01461A | CUSHION HANDLE;FDR_3D,EPS,W174,L836.3,H4 |
| DA69-02800A | CUSHION SHELF;RF6500C,EPS,W500,L792,H220 |
| DA69-02704A | CUSHION TOP;RF8000B,EPS,W958,L914,H90,40 |
| 0402-001224 | DIODE-BRIDGE;TS15P05G,D15XB60,D15SB60,60 |
|
|
DIODE-RECTIFIER;US1M,1000V,1A,SMA,TP |
| 0401-001099 | DIODE-SWITCHING;1N4148WS,75V,150MA,SOD-3 |
| 0406-001239 | DIODE-TVS;RCLAMP0502BA,6V,SOT-523,125W,T |
| 0403-001779 | DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M |
| 0403-000461 | DIODE-ZENER;PTZ18A,18V,16.8/19.1V,1000MW |
| 0403-001003 | DIODE-ZENER;SMA4747,20V,19.0/21.0V,1000M |
| DA67-05654A | DRAIN-HOSE FRE;RF6500C,HDPE,NATURAL,YR |
|
|

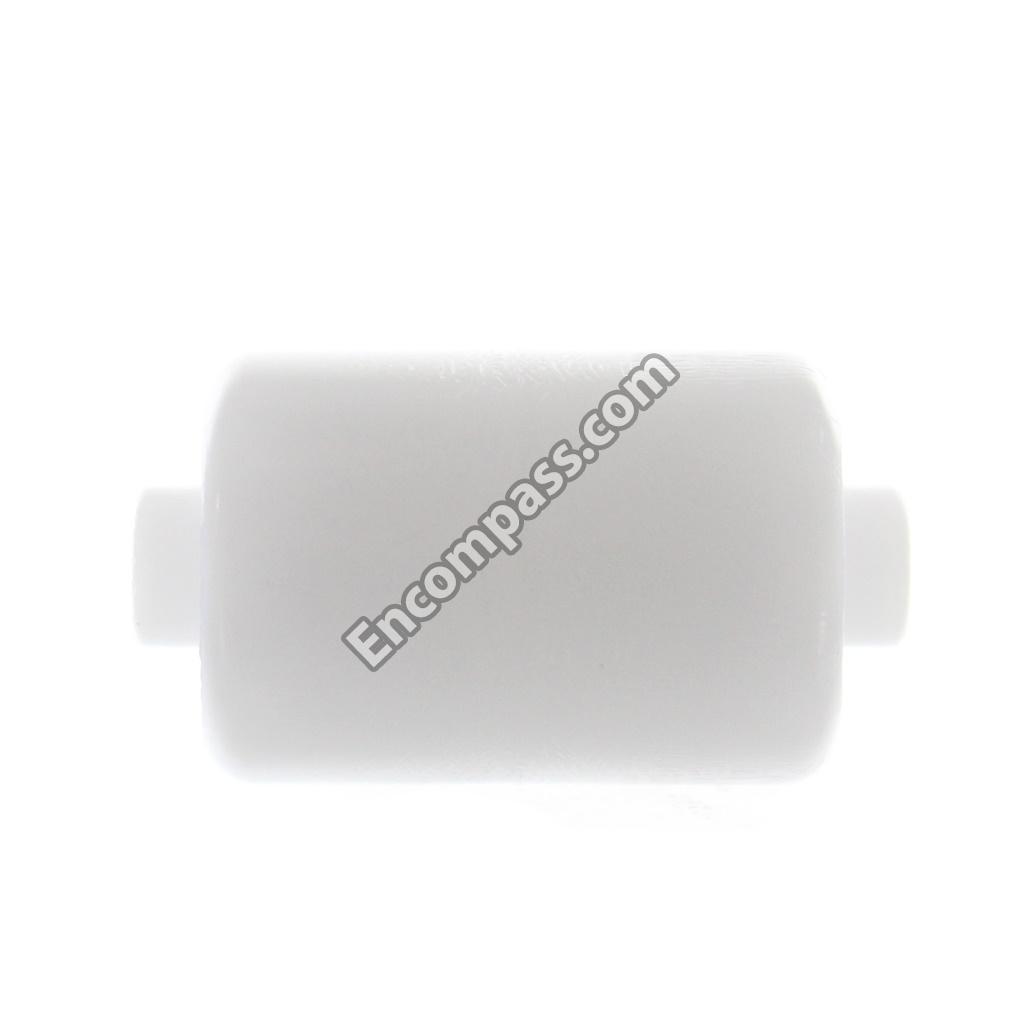

DRYER;C1220T-H,L137,SINGLE MOUTH,OD15.8, |
| DA67-05646A | DUCT SUCTION-A;RF6500C,PP,CNTK-P101,IN |
| DA67-05647A | DUCT SUCTION-A;RF6500C,PP,CNTK-P101,IN |
| DA67-05645A | DUCT SUCTION-B;RF6500C,PP,CNTK-P101,IN |
| DA67-05648A | DUCT SUCTION-B;RF6500C,PP,CNTK-P101,IN |
| DA67-05650A | DUCT SUCTION-REF LOW;RF6500C,PP,CNTK-P |
| DA67-05651A | DUCT SUCTION-REF UP;RF6500C,PP,CNTK-P1 |
| DA59-00648A | EVAPORATOR-FRE;FIN TUBE,RF6500C,2,A1070, |
| DA61-03285A | FASTENER RIVET PIN;NW-PJT,BRASS, |
|
|
FASTENER-RIVET;RT34,RT37,RB7300 RR19,RR2 |
| DA60-00163A | FASTENER;AW-PJT,SK5,OD4.2 |
| 0505-003755 | FET-SILICON;AOD2910E,N,100V,37A,23MOHM,7 |
| DA63-08839B | FILTER-WATER;RF8000MC,PP,COOL WHITE,CART |
| DA60-00368A | FITTING LOCK SLEEVE;SMF4030,BLACK, |
| DA60-00366A | FITTING LOCK SLEEVE;SMF4030,PIPE HOT(4.2 |
| DA60-00281A | FITTING LOCK SLEEVE;SUM23,ID5.02,11SMNPB |
| DA60-00393A | FITTING TUBE;POM,ID1/4,DOUBLE ORING |
|
|
FITTING TUBE;PP,ID1/4 |
| DA60-00383A | FITTING TUBE;PP,ID1/4,1/4'-1/4' |
| DA60-00321A | FITTING-LOKRING AL 12;AL,SILVER,LOKR |
| DA60-00258A | FITTING-TUBE;PP,1/4'- 1/4' |
| DA61-12488B | FIXER COVER;AW3,HIPS,INNER GRAY,CNTK H30 |
|
|
FIXER HINGE-UPP;AW1-12,PO-SPHC,T3, |
| DA61-12180B | FIXER HOSE;BRF8000M,POM,BLACK,F20-03 |
| DA61-14663B | FIXER HOSE;RF9000A,PP,BLACK,CNTK-P101,RE |
| DA61-15739A | FIXER HOSE;RR9000,POM,T2,NATURAL,F20-0 |
| DA61-15547A | FIXER HOSE;RWP5000BM,POM,T1.2,NATURAL, |
| DA61-12188A | FIXER PIPE;FIXER PIPE,PP,T2,NATURAL,BJ |
|
|
FIXER SENSOR;ALL MODEL,PP,T2,NATURAL,M |
| DA61-14479A | FIXER SENSOR;RF9000A,PE FOAM,NATURAL,B40 |
| DA61-12990A | FIXER SENSOR;RS8000NC,PE FOAM, |
| DA61-13218B | FIXER SHELF;RF6500C,POM,NATURAL,K300 |
| DA61-13219C | FIXER SHELF;RF6500C,POM,T2,NATURAL,K30 |
| DA61-13585A | FIXER-BIMETAL;RF9000R,PP,T1.5,NATURAL, |
|
|
FIXER-CASTER;ZPC2,SWRCH10A,OD8.0 |
| DA61-05780A | FIXER-COLLAR;SSEDA,POM,NATURAL, |
| DA61-05781A | FIXER-COLLET;SSEDA,POM,INNER GRAY,F2 |
| DA61-04773A | FIXER-DRAIN;AW-PJT,PP,NATURAL,P740J |
|
|
FIXER-DRAIN;AW-PJT,PP,NATURAL,P740J |
| DA61-05525A | FIXER-FILTER;SSEDA,PP,COOL WHITE |
| DA61-04801A | FIXER-GEAR;AW-PJT,POM,NATURAL, |
|
|
FIXER-HEATER FRE;NW2,PP,NATURAL,BJ75 |
| DA61-05570A | FIXER-SHAFT GUIDE;SSEDA,POM,NATU |
| DA61-05526A | FIXER-SHAFT;SSEDA,POM,NATURAL,F20-03 |
| DA61-07701A | FIXER-SUCTION;AW-SEM,PP,T2,BLACK, |
| DA61-15146A | FIXER-SUCTION;RF8000B,PP,T2,NATURAL,BJ |
| DA71-20265A | FIXER-THERMO FUSE;RF9000M,PP,T2,NATURAL, |
| DA61-11296B | FIXER;AW3,HIPS,INNER GRAY,CNTK H304,RECY |
| DA61-15365A | FIXER;RF6500C,HIPS,T2,NATURAL,S834S1,4 |
| DA61-11034A | FIXER;RT5000K,PA66,WHITE,KN3322V0,5P |
| 0204-004665 | FLUX;KSP-70M-S,MIXTURE,NO,FLUX,13% |
|
|
FOOT-FRONT;POLARIS,PP,BLACK,SSPP-640 |
|
|
FOOT;POLARIS,PP,BLACK,SSPP-640,PP_S |
| 3601-001515 | FUSE-AXIAL LEAD;250V,10A,TIME-LAG,BK,5.0 |
| 3601-001927 | FUSE-AXIAL LEAD;250V,2A,TIME-LAG,CERAMIC |
| DA63-12054A | GASKET-CABI;RF6500C,PVC,SHGS-L130-67-01G |
| DA63-12054B | GASKET-CABI;RF6500C,PVC,SHGS-L130-67-01G |
| DA63-06842C | GASKET-FRENCH LOW;AW-PJT,SI,WHITE |
| DA66-00751B | GEAR;AW3-14,POM,NATURAL,500P,RAIL LEFT |
| DA64-07444A | GLASS-SHELF FRONT;RF6500C,GLASS,T3.2,W35 |
| DA64-07445A | GLASS-SHELF REAR;RF6500C,GLASS,T3.2,W377 |
| DA64-07443A | GLASS-SHELF REF FIX;RF6500C,GLASS,T3.2,W |
| DA64-07441A | GLASS-SHELF REF LOW;RF6500C,GLASS,T3.2,W |
| DA64-07446A | GLASS-SHELF REF UP;RF6500C,GLASS,T5,W825 |
| 0205-000131 | GREASE-SILICON;G501,1L |
|
|
GROMMET HINGE-MID;AW3,POM,BLACK,100P |
| DA63-07925A | GROMMET HINGE-UP;AW4,PA66,NATURAL,101F |
| DA63-11491A | GROMMET RING;RR9000A,NBR,BLACK,D 3/1 |
| DA63-03634C | GROMMET SCREW;3050-PJT,PP+GLF15%,NATURAL |
| DA63-07969A | GROMMET-A;FSR,PP+GLF15%,NATURAL,PP2315 |
| DA63-04825B | GROMMET-CAP DOOR;RF9500M,SI,BLACK,T5 |
| DA63-04424A | GROMMET-COND SUB;AW,NBR,BLACK, |
| DA63-02761A | GROMMET-DRAIN;RS18RK,NBR,BLACK, |
| DA63-12029A | GROMMET-FIXER;RF6500C,HIPS,NATURAL,S83 |
| DA63-03447A | GROMMET-FRENCH;AW-PJT,POM,NATURAL,F20- |
| DA63-12055A | GROMMET-GUIDE;RF6500C,SI,DARK GRAY,H |
| DA63-03049A | GROMMET-HOT PIPE;USP-PJT,NBR,OD 30,BLK |
| DA63-07323A | GROMMET-IMMERSION PIPE B;ROMANEE CONTI,N |
| DA63-06103A | GROMMET-PIPE;W07,NBR,BLACK,OD29 |
| DA63-05349A | GROMMET-RING SHAFT GUIDE;SSEDA,NBR,NATUR |
| DA63-05350A | GROMMET-RING SHAFT;SSEDA,NBR,NATURAL, |
| DA63-05351A | GROMMET-RING;SSEDA,NBR,NATURAL, |
| DA63-04571C | GROMMET-SCREW;AW-PJT,ABS,INNER GRAY,CN |
|
|
GROMMET-SUCT PIPE A;NBR,ID4,OD20 |
| DA63-11230B | GUARD-REF LOW;RF8000B,GPPS,T3,TP GRAY, |
| DA63-11624A | GUARD-REF LOW;RF8000B,GPPS,T3,TP GRAY, |
| DA63-11222A | GUARD-REF UP;RF7000AC,GPPS,T3,TP GRAY |
| DA63-11219A | GUARD-REF;RF9000A,GPPS,T3,TP GRAY,BASIC |
| DA61-15345A | GUIDE HOSE-FRONT;RF8000B,HIPS,T1.8,S83 |
| DA61-15984A | GUIDE HOSE-IN;RF6500C,PP,T2.5,SSPP-640 |
| DA61-15985A | GUIDE HOSE-IN;RF6500C,PP,T2.5,SSPP-640 |
| DA61-15983A | GUIDE HOSE-OUT;RF6500C,PP,T2.5,SSPP-64 |
| DA61-15987A | GUIDE ICE;RF6500C,PP,T2.5,BJ750,NATURA |
| DA61-16018A | GUIDE WATER-UP;RF6500C,HDPE,T1.5,YR510 |
| DA61-14987A | GUIDE-FRE;AW3-14,PP,T1.2,SSPP-640,BLACK |
|
|
GUIDE-FRENCH;OPUS1-14,PC+ABS,HB,HR-100 |
| DA61-09100A | GUIDE-TUBE C;3050,PP,J550S,NATURAL |
| DA61-16054A | HANGER-LEFT;RF6500C,EGI-SECC,T2,COOL W |
| DA61-15384A | HANGER-RAIL FRONT LEFT;RF6000B,EGI-SECC, |
| DA61-15385A | HANGER-RAIL FRONT RIGHT;RF6000B,EGI-SECC |
| DA61-15375A | HANGER-RAIL MID LEFT;RF6000 (F/S),EGI-SE |
| DA61-15374A | HANGER-RAIL MID RIGHT;RF6000 (F/S),EGI-S |
| DA61-16055A | HANGER-RIGHT;RF6500C,EGI-SECC,T2,COOL |
| DA61-13389B | HANGER-RIGHT;RF9000A,EGI-SECC,T2,Q |
| 3711-008032 | HEADER-BOARD TO CABLE;1WALL,2P,1R,7.92MM |
| 3711-008034 | HEADER-BOARD TO CABLE;1WALL,3P,1R,7.92MM |
| 3711-000315 | HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM |
| 3711-009460 | HEADER-BOARD TO CABLE;1WALL,4P,1R,7.92MM |
| 3711-000262 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,3P, |
| 3711-001038 | HEADER-BOARD TO CABLE;BK,STRAIGHT,1R,6P, |
| 3711-002001 | HEADER-BOARD TO CABLE;BOX,20P,2R,2.0MM,S |
| 3711-009393 | HEADER-BOARD TO CABLE;BOX,24P,2R,2.0MM,S |
| 3711-009394 | HEADER-BOARD TO CABLE;BOX,26P,2R,2.0MM,S |
| 3711-009395 | HEADER-BOARD TO CABLE;BOX,28P,2R,2.0MM,S |
| 3711-001084 | HEADER-BOARD TO CABLE;BOX,8P,1R,2.5MM,ST |
| 3711-005293 | HEADER-BOARD TO CABLE;TP,SMD-A,1R,6P,2.0 |
| DA62-05394A | HEAT SINK;MAIN-INVERTER COMBO,AL,T1.5,W2 |
| DA47-00549A | HEATER CORD-FRENCH;AC120V,12W,PVC,1900MM |
| DA47-00550A | HEATER CORD-WATER PIPE;DC12V,2.3W,PVC, |
| DA47-00248J | HEATER CORD-WATER TANK;DC12V,2.3W,PVC,L2 |
| DA47-00564A | HEATER METAL SHEATH;AC120V,250W,INCOLOY8 |
|
|
HINGE FRENCH;AW4,PC,T2,COOL WHITE,HF-102 |
|
|
HINGE-MIDDLE LEFT;RF9000R,ZN,T8, |
|
|
HINGE-MIDDLE RIGHT;RF9000R,ZN,T8, |
| DA61-13411A | HINGE-UP LEFT;RF9000R,PO-SPHC,T3, |
| DA61-13412A | HINGE-UP RIGHT;RF9000R,PO-SPHC,T3, |
| DB61-00206A | HOLDER WIRE;FDR / SBS,ZNDC,BLACK, |
| 1001-001942 | IC-ANALOG SWITCH;SC1143DG,SO-8,8P,4.9X3. |
| 1205-004722 | IC-CONTROLLER;TCA9535PWR,TSSOP,24P,7.8*4 |
| 1003-000113 | IC-CURRENT DRIVER;ULN2803LW,SOP,18P,300M |
| 1203-009219 | IC-DC/DC CONVERTER;BD9E104FJ,SOP J8,8P,4 |
| 1103-001228 | IC-EEPROM;93C66,4KBIT,256X16,SOP,8P,5X4M |
| 1003-002963 | IC-LED DRIVER;ADT8700AF4,32P,LQFP,TR,7.0 |
| 0903-002197 | IC-MICROCONTROLLER;HART-I910Z,LQFP,64P,1 |
| 0903-002203 | IC-MICROCONTROLLER;HART-M320,MQFP,100P,2 |
| 1003-002899 | IC-MOTOR DRIVER;DRV8848L,16P,HTSSOP,TP,5 |
| 1003-002900 | IC-MOTOR DRIVER;DRV8848PWPR,16P,HTSSOP,T |
| 1203-007526 | IC-POSI.FIXED REG.;7815,D-PAK/TO252,3P,6 |
| 1203-001037 | IC-POSI.FIXED REG.;78L05,SOT-89,3P,4.7X2 |
| 1203-002520 | IC-POSI.FIXED REG.;KIA7810AF,DPAK,3P,240 |
| 1203-005773 | IC-POSI.FIXED REG.;KIA78D05PI,3P,TO-220, |
| 1203-009218 | IC-PWM CONTROLLER;SC1551C-H26-TL,SOP 24D |
| 1205-006478 | IC-TRANSCEIVER;T8700A,SOP,8P,TP,4.9X3.9X |
| 1203-006245 | IC-VOL. DETECTOR;KIA7033AT,TSM,3P,2.9X1. |
| 1203-004967 | IC-VOL. DETECTOR;KIA7042AT,TSM,3P,2.9X1. |
| DA27-00051A | INDUCTOR-SMD;1MH,20%,12.2X12.2MM,T8,1.59 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| DA64-07125J | INLAY CONTROL;RF6500C,PC,T0.38, |
| DA62-06160A | INSULATION COVER EVAP-FRE;RF6500C,EPS,T8 |
| DA62-06157A | INSULATION PARTITION-MID;RF6500C,EPS,S |
| DA62-05916A | INSULATION PARTITION;RF6000T,EPS,S-450 |
| DA62-02504A | INSULATION-COVER TUBE FILTER;AW3,EPS,S |
| DA62-05880A | INSULATION-LOW;RF8000B,EPS,SE300,NATUR |
| DA62-06155A | INSULATION-MIDDLE;RF6500C,EPS,S-450,NA |
| DA62-06161A | INSULATION-MOTOR DAMPER A;RF6500C,EPS,T8 |
| DA62-06159A | INSULATION-MULTI REF;RF6500C,EPS,T8,S-45 |
| DA62-05878A | INSULATION-UP;RF8000B,EPS,SE300,NATURA |
| DA62-04566F | INSULATION;-,GLASS FIBER/LAMINATE FILM,T |
| DA62-04311W | INSULATION;FSR-FS,GLASS WOOL,T12,HYBRID |
| DA02-00038A | ISOBUTANE;C4H10,4N,R-600A,68L_30KG |
| DA02-40012D | ISOCYANATE;ISOCYANATE B1001 B1001,PAPI-1 |
| DA68-01814A | LABEL BAR CODE-LINER;ALL,ART,LINER |
| DC68-02415A | LABEL BAR CODE;-,SEM,YUPO,W30,L100, |
| DA68-10376D | LABEL BAR CODE;ALL,ART,COATING,W50,L120, |
| DA68-01797W | LABEL CAUTION;ALL USA,AA,ART,OPP, R-600A |
| DA68-04744B | LABEL ENERGY;RF31CG7200**AA,AA,MOJO,W280 |
| DB68-08862A | LABEL INSTRUCTION;20Y FAC,SAMSUNG,YUPO,W |
| DA68-00122A | LABEL INSTRUCTION;EXP,EXP,ART,UV P COATI |
| DA68-02785B | LABEL INSTRUCTION;ROMANEE CONTI,DOM,ART, |
| 6812-000145 | LABEL INTEGRATION QR;PET,LAMINATE COATED |
| DA68-04439G | LABEL PACKING ETC;RF6500C (RF31/32),AA,P |
| DA68-03947A | LABEL RATING;AW2 F/L,AA,PET,335T- J1A |
| DA68-02869A | LABEL TAG;ALL,AA,XAC,MOJO,200G,W140,L216 |
| DA68-01173B | LABEL-BAR CODE;ALL MODEL,EXP,YUPO,PACKIN |
| DA68-01679B | LABEL-CAUTION CONDENSATION;AW-PJT,PET,TR |
| 0601-001986 | LED |
| 0601-002345 | LED;SMD(TOP VIEW),RED,WATER CLEAR,1.6X0. |
| DA66-00952A | LEVER-AUTO CLOSE;AW4,POM,500P,BLACK,BLAC |
| DA61-15362A | LINER;RF6500C,ABS,QU-0191S,COOL WHITE, |
|
|
MAGNET-A;HERMES,FERRITE,T5,1600GAU |
| DA61-15470G | MAGNET-FRE;RF6500C,FERRITE,4D,L/ |
| DA61-15470D | MAGNET-FRE;RF8000B,FERRITE,3D/4D |
| DA61-15470A | MAGNET-REF;RF8000B,FERRITE,3D, R |
| DA61-15470C | MAGNET-REF;RF8000B,FERRITE,4D, R |
| DA68-04139B | MANUAL INSTRUCTION;ALL USA,AA,ENG/FRE,MO |
| DA68-02659B | MANUAL INSTRUCTION;AW3,4-FACE LIFT,AA,EN |
| DA68-04745A | MANUAL USERS;RF6500C,AA,EN+CFR+MES,PAPER |
|
|
MASCOT;ALL,NI, |
| 0103-007638 | MASTERBATCH-HIPS;SW-187,WT0057,COOL WHIT |
| 0103-002987 | MASTERBATCH-POM;06-900A,BLACK,1.41 |
| 0103-002992 | MASTERBATCH-PP;01-0032,WT0057,COOL WHITE |
|
|

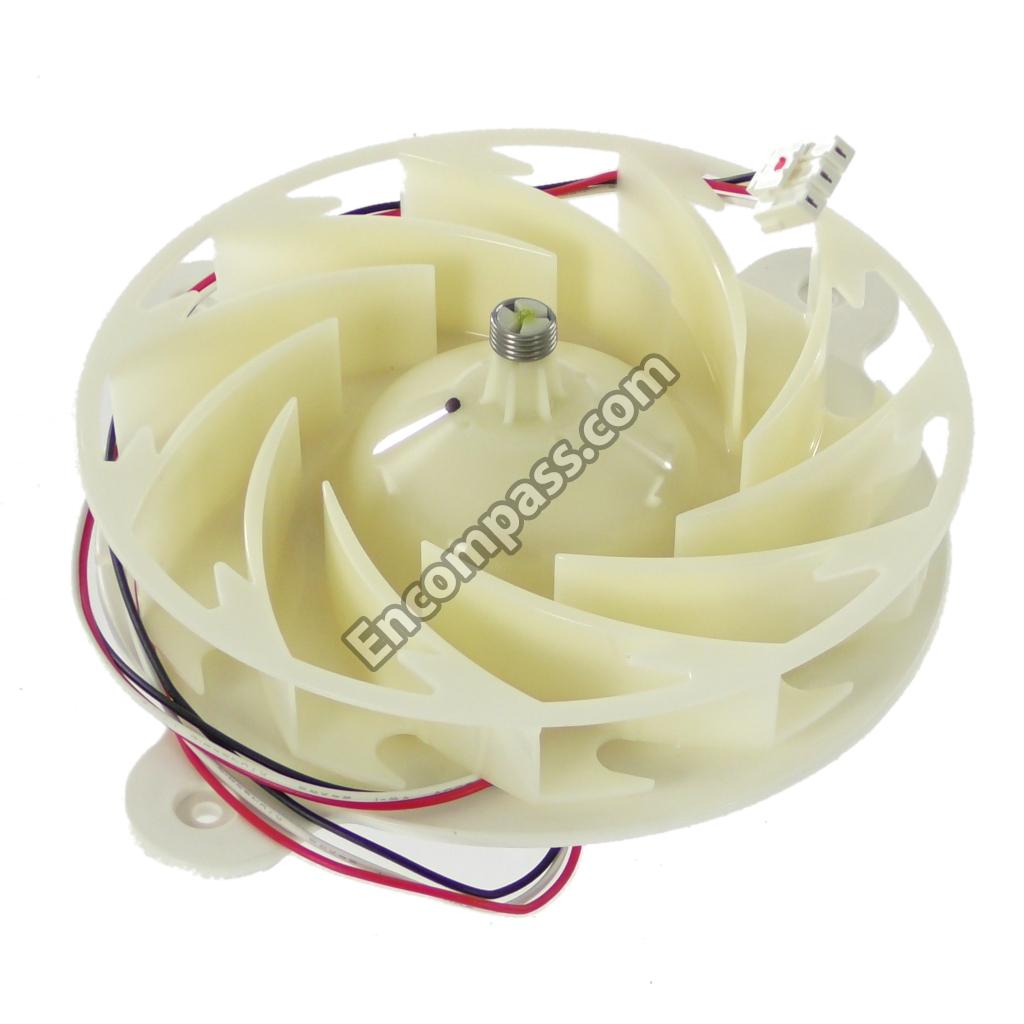

MOTOR BLDC FAN;ARES2130RA/LT-W39005,1850 |
| DA31-00348A | MOTOR BLDC FAN;Z19W12MS1A5-52K09,1080RPM |
|
|
MOTOR GEARED DC DAMPER;NSBA001TQ1,2.5RPM |
|
|
NUT-HEXAGON;SWRCH10A,ZPC(WHT),3,M8 |
| 6021-001252 | NUT-SQUARE;SWRCH10A,NC,1.25P,M8,L5.9 |
| DA69-01639C | PACKING CASE SHRINKAGE;SBS/FDR,LDPE,T0.0 |
| DA69-02811A | PAD CUSHION;REF_ALL,EPS,T10,W265,L660, |
| DA69-01748G | PAD CUSHION;REF_ALL,EPS,T15,W25,L300,S |
| DA69-02743A | PAD CUSHION;REF_ALL,EPS,T15,W500,L690, |
| DA69-02794B | PAD CUSHION;RF5000C,EPS,T15,W15,L75,SE |
| DA62-04618R | PAD-FOAM;REF_ALL,EPE,T10,W20,L100,SET, |
| DA69-02406F | PAD-FOAM;REF_ALL,EPE,T3,W1030,H200,SET |
| DA69-02406D | PAD-FOAM;REF_ALL,EPE,T3,W440,H200,SET, |
| DA62-04618J | PAD-FOAM;REF_ALL,EPE,T5,W60,L80,SET,40 |
| DA64-07452A | PANEL-FRE;RF6500C,ABS,T1.8,W881.4,L268.3 |
| DA64-07453A | PANEL-FRE;RF6500C,ABS,T1.8,W881.4,L268.3 |
| DA64-07449B | PANEL-REF LEFT;RF6500C,ABS,T1.8,W429.7,L |
| DA64-07450A | PANEL-REF RIGHT;RF6500C,ABS,T1.8,W429.7, |
| DA67-05652A | PARTITION-LEFT;RF6500C,ABS,COOL WHITE, |
| DA67-05644A | PARTITION-LOW;RF6500C,ABS,COOL WHITE, |
| DA67-05653A | PARTITION-RIGHT;RF6500C,ABS,COOL WHITE |
| DA67-05643A | PARTITION-UP;RF6500C,ABS,COOL WHITE, |
| DA41-00878A | PCB DISPLAY;FR-4,2L,T1.6,209X36MM,8,ADA |
| DA41-00867C | PCB MAIN;FR-4,2L,T1.6,165X242MM,2,EMC NO |
| 0604-001405 | PHOTO-COUPLER;TR,200-400%,200MW,SOP,TP |
| DA62-04396F | PIPE CAPILLARY;ARAM13,CU,OD2.05,ID0.75, |
| DA62-04396C | PIPE CAPILLARY;RS8000NC,CU,OD1.9,T0.54,I |
| DA62-06173A | PIPE CLUSTER-REAR;RF6500C,TSW,OD4.2,T0.5 |
| DA62-03897C | PIPE CONNECT-SUCTION;RS5300,CU,OD6.35,T0 |
| DA62-05446A | PIPE CONNECT-Y;RS5000T,CU |
| DA62-05464B | PIPE CONNECT;RF6500C_ND,CU,OD7,T0.6, |
| DA62-06163A | PIPE HOT;RF6500C_FS_4DOOR,TSW,OD4.2,T0.5 |
| DA62-04609A | PIPE IMMERGING-IN;FSR,TSW,OD4.76,T0.7, |
| DA62-04610A | PIPE IMMERGING-OUT;FSR,TSW,OD4.76,T0.7, |
| DA62-04847A | PIPE WATER-FRA A;BRR9000M,PP,OD13.5,NA |
| DA62-04965A | PIPE WATER-FRE;BRF8000M,AL,A3003 |
| DA62-05754A | PIPE WATER-FRE;RR9000A,POM,OD6.25,T2.5,C |
| DA62-01368B | PIPE WATER-LINE;LLDPE,OD6.35,NATURAL,MB9 |
| DA62-05319A | PIPE WATER-LINE;RF9000R,LDPE,OD4.76,T0.8 |
|
|
PIPE-CONNECT;MAX-PJT,C1220T-0,OD6.35,L |
| DA62-04605A | PIPE-IN;AL,A3003 |
| DA62-04601A | PIPE-MIDDLE;AL,T1.2,A3003 |
| DA62-04318A | PIPE-STEEL;ALL,TSW,OD4.2,THK0.5,OD4.2,T0 |
| DA62-04600A | PIPE-SUB;AL,A3003 |
| DA62-04623A | PIPE;ALL,CU,OD7.94,T0.5,C1220T-OL |
| DA61-13772A | PLATE COVER-FRE;RF9000JC,GL-SGLCC,T0.25, |
| DA61-15993A | PLATE DOOR-FRE LOW;RF6500C,STS430,T0.5, |
| DA61-15992A | PLATE DOOR-FRE UP;RF6500C,STS430,T0.5, |
| DA61-15990C | PLATE DOOR-REF LEFT;RF6500C,STS430,T0.5, |
| DA61-15991A | PLATE DOOR-REF RIGHT;RF6500C,STS430,T0.5 |
| DA61-15974A | PLATE DRAIN-FRE;RF6500C,GL-SGLCC,T0.3, |
| DA61-15980A | PLATE DUCT-FRE;RF6500C,AL,T0.3,A |
| DA61-15979A | PLATE DUCT-FRE;RF6500C,AL,T0.3,B |
| DA61-15972A | PLATE EVAP-FRE LEFT;RF6500C,AL,T0.6, |
| DA61-15973A | PLATE EVAP-FRE RIGHT;RF6500C,AL,T0.6, |
| DA61-16015A | PLATE HEATER-FRE;RF6500C,GL-SGLCC,T0.3, |
| DA61-13961A | PLATE HEATER;RF9000K,A1100,T1,A1100P-H14 |
| DA61-10700B | PLATE STEEL;AL,B10%,T0.08,W16,LA+CE A300 |
| DA01-00491C | PLATE STEEL;AW(SEM),EGI-SECC,1MM,813MM,C |
| DA01-00491D | PLATE STEEL;AW(SEM),EGI-SECC,L100000,1MM |
| DA01-00492G | PLATE STEEL;AW(SEM),GI-SGCC,1MM,94MM,COI |
| DA01-00492C | PLATE STEEL;AW(SEM),GI-SGCC,L100000,1.2M |
| DA01-00492M | PLATE STEEL;AW(SEM),SGCC,1.6MM,141MM,COI |
| DA01-00492S | PLATE STEEL;AW-SEM(GE),GI-SGCC,1.2MM,177 |
| DA01-00852K | PLATE STEEL;AW1-12,CR-SPCC,1.4MM,51MM,CO |
| DA01-00852R | PLATE STEEL;AW1-12,CR-SPCC,1.4MM,92MM, |
| DA01-02118A | PLATE STEEL;AW1-12,GL-SGLCC,L300,0.4MM,3 |
| DA01-00852F | PLATE STEEL;AW1-12,HGI-SGHC,3MM,120MM,CO |
| DA01-00852D | PLATE STEEL;AW1-12,HGI-SGHC,3MM,144MM,CO |
| DA01-00852G | PLATE STEEL;AW1-12,HGI-SGHC,3MM,94MM,COI |
| DA01-01677A | PLATE STEEL;AW2-FL,PO-SPHC,4MM,389MM,C |
| DA01-01147A | PLATE STEEL;EGI-SECC,0.4MM,873MM,COIL |
| DA01-01148A | PLATE STEEL;GI-SGCC,0.25MM,865MM,COIL |
| DA01-01142A | PLATE STEEL;GI-SGCC,0.3MM,1550MM,SHEET |
| DA01-00849S | PLATE STEEL;IBACI,CR-SPCC,1.2MM |
| DA01-01054P | PLATE STEEL;OPUS-14,GI-SGCC,0.3MM,678.5 |
| DA01-01146A | PLATE STEEL;PO-SPHC,2MM,854MM,COIL |
| DA01-02158A | PLATE STEEL;RF6000 (F/S),EGI-SECC,1.6MM |
| DA01-02145A | PLATE STEEL;RF6000T,EGI-SECC,L1000,2MM,3 |
| DA01-02389A | PLATE STEEL;RF6500C,GI-SGCC,L80,1.2MM,18 |
| DA01-02384A | PLATE STEEL;RF6500C,GL-SGLCC,L-,0.3MM,81 |
| DA01-02202A | PLATE STEEL;RF8000B,EGI-SECC,0.8MM,1042 |
| DA01-02204A | PLATE STEEL;RF8000B,EGI-SECC,2MM,448MM, |
| DA01-02207A | PLATE STEEL;RF8000B,GI-SGCC,1.6MM,946MM |
| DA01-02208A | PLATE STEEL;RF8000B,GI-SGCC,2.5MM,343MM |
| DA01-02169A | PLATE STEEL;RF8000B,GL-SGLCC,L818.9,0.3M |
| DA01-02214A | PLATE STEEL;RF8000B,HGI-SGHC,3MM,180MM, |
| DA01-02200A | PLATE STEEL;RF8000B,PO-SPHC,1.6MM,1180M |
| DA01-02201A | PLATE STEEL;RF8000B,PO-SPHC,2MM,991MM, |
| DA01-02215A | PLATE STEEL;RF8000B,PO-SPHC,3MM,184MM, |
| DA61-08177V | PLATE-BOTTOM FRONT;AW FACE LIFT,EGI-SECC |
| DA61-05921F | PLATE-BOTTOM REAR LEFT;RF7500J,GI-SGCC,T |
| DA61-05924G | PLATE-BOTTOM REAR RIGHT;RF7500J,GI-SGCC, |
| DA61-10696A | PLATE-CORNER;AL,T1.5 |
| DA61-04027A | PLATE-EVAP FIN;ES-PJT,SSEC,AL, |
| DA61-15207C | PLATE-FRENCH;RF6500C,EGI-SECC,T0.8,COO |
| DA61-10371A | PLATE-UP FRONT;ROMANEE CONTI,AL,T0.3, |
| DA67-90108D | PLUG COMP TUBE;SILICON RUBBER,OD |
| 0204-007545 | POLYOL;ELASTOCOOL MX 2030/118,ROH,100:11 |
|
|
POWER CORD-AT;SPT-3 3X18AWG 105C,BLK,US3 |
| 4719-003624 | POWER MODULE;600V,5A,DIP,AIM5D05K060M2S |
| 2007-008117 | R-CHIP |
| 2007-007766 | R-CHIP |
| 2007-007590 | R-CHIP |
| 2007-007528 | R-CHIP |
| 2007-007318 | R-CHIP |
| 2007-007317 | R-CHIP |
| 2007-007316 | R-CHIP |
| 2007-007313 | R-CHIP |
| 2007-007312 | R-CHIP |
| 2007-007306 | R-CHIP |
| 2007-007142 | R-CHIP |
| 2007-007139 | R-CHIP |
| 2007-007136 | R-CHIP |
| 2007-007107 | R-CHIP |
| 2007-012276 | R-CHIP;0.09OHM,1%,2W,TP,6432,T0.55,ANTI- |
| 2007-008779 | R-CHIP;0OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-007336 | R-CHIP;1.5KOHM,1%,1/4W,TP,3216 |
| 2007-000279 | R-CHIP;100KOHM,1%,1/4W,TP,3216,T0.6 |
| 2007-000293 | R-CHIP;100OHM,5%,1/4W,TP,3216 |
| 2007-000312 | R-CHIP;10OHM,5%,1/4W,TP,3216 |
| 2007-000352 | R-CHIP;12KOHM,1%,1/8W,TP,2012 |
| 2007-000465 | R-CHIP;1KOHM,1%,1/8W,TP,2012 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000476 | R-CHIP;1MOHM,1%,1/4W,TP,3216 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000571 | R-CHIP;220OHM,1%,1/4W,TP,3216,T0.6 |
| 2007-000668 | R-CHIP;2KOHM,1%,1/8W,TP,2012 |
| 2007-009922 | R-CHIP;300KOHM,1%,1/4W,TP,3216,T0.55 |
| 2007-008175 | R-CHIP;330OHM,1%,1/16W,TP,1005 |
| 2007-000764 | R-CHIP;330OHM,1%,1/4W,TP,3216 |
| 2007-000762 | R-CHIP;330OHM,1%,1/8W,TP,2012 |
| 2007-007585 | R-CHIP;430KOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000928 | R-CHIP;470OHM,1%,1/8W,TP,2012 |
| 2007-001297 | R-CHIP;47OHM,1%,1/4W,TP,3216 |
| 2007-008269 | R-CHIP;51KOHM,1%,1/16W,TP,1005,T0.35 |
| DA61-15389A | RAIL SLIDE-LOW LEFT;RF6000 (F/S),CR-SPCC |
| DA61-15390A | RAIL SLIDE-LOW RIGHT;RF6000 (F/S),CR-SPC |
| DA61-16037A | RAIL SLIDE-MIDDLE LEFT;RF6500C,CR-SPCC,T |
| DA61-16036A | RAIL SLIDE-MIDDLE RIGHT;RF6500C,CR-SPCC, |
| DA61-07193A | RAIL-BALL A;AW-PJT,STS304,T1.5, |
| DA61-02264A | RAIL-BRACKET,RIVET;HNR3117/XAA,C3771BE, |
| DA61-15378A | RAIL-CENTER MEMBER LOW;RF6000 (F/S),CR-S |
| DA61-08766A | RAIL-CENTER RETAINER;AW2,PP,NATURAL,BJ75 |
| DA61-08761A | RAIL-CENTER RETAINER;AW2-CD,PP,NATURAL |
| DA61-15381A | RAIL-IN MEMBER LOW;RF6000 (F/S),CR-SPCC, |
| DA61-16038A | RAIL-IN MEMBER MID;RF6500C,CR-SPCC,T2, |
| DA61-15376A | RAIL-OUT MEMBER LOW;RF6000 (F/S),CR-SPCC |
| DA61-08762A | RAIL-OUTER RETAINER;AW2,PP,NATURAL,BJ750 |
| DA61-07937A | RAIL-SELF CLOSING BODY L;MOUTON,POM,BLAC |
| DA61-07961A | RAIL-SELF CLOSING BODY R;MOUTON,POM,BLAC |
| DA61-08013A | RAIL-SELF CLOSING GUIDE PIN;MOUTON,PA66, |
| DA61-07938A | RAIL-SELF CLOSING GUIDE;MOUTON,PA66,BLAC |
| DA61-07939A | RAIL-SELF CLOSING LOCK GUIDE L;MOUTON,PA |
| DA61-07955A | RAIL-SELF CLOSING LOCK GUIDE R;MOUTON,PA |
| DA61-08012A | RAIL-SELF CLOSING SPRING;MOUTON,STS304,0 |
| DA67-05003A | REFLECTOR;RS5300T,ABS,T,L,780,INNER WHIT |
| DA61-15182A | REINF CABI-BOTTOM FRONT;FDR,HGI-SGHC,T1. |
| DA61-15454A | REINF CABI-FLANGE UP;RF8000B,PO-SPHC,T2, |
| DA61-10849A | REINF CABI-MIDDLE FRONT;RF9000K,PO-SPHC, |
| DA61-16008A | REINF HANGER;RF6500C,ABS,CNTK A-204,IN |
| DA61-15982A | REINF HANGER;RF6500C,GI-SGCC,T1.2, |
| DA61-04910A | REINF HINGE-UP RIGHT;HAEMIL-PJT,GI-SGCC, |
| DA61-05222B | REINF-COVER VEG;AW2 CD,PO-SPHC,T2,PAINTI |
| DA61-05923A | REINF-EARTH;-,HGI-SGHC,T3, |
| DA61-04726A | REINF-GUIDE FRENCH;AW-PJT,GI-SGCC,T1, |
| DA61-04980B | REINF-HANDLE REF;AW1-PJT(GE),GI-SGCC,T1. |
| DA71-10490C | REINF-HINGE UPP;RS8000,GI-SGCC,T3, |
| DA61-15183A | REINF-LOW FRONT;FDR,HGI-SGHC,T1.6, |
| DA61-13408A | REINF-LOW RIGHT;RF9000R,PO-SPHC,T2 |
| DA61-08711A | REINF-PANEL FRE;FDR,CR-SPCC,T1.2, |
| DA61-04822A | REINF-SHELF PANTRY;AW-PJT,EGI-SECC,T1, |
|
|
RELAY-MINIATURE;12V,200MW,3000MA,1FORMA, |
| 0103-011082 | RESIN ABS;780/1AD29,INNER WHITE,WT0001,H |
| 0103-007625 | RESIN ABS;CNTK A-204/INNER GRAY,INNER GR |
| 0103-001477 | RESIN ABS;HF-0660I/COOL WHITE,COOL WHITE |
| 0103-003109 | RESIN ABS;HG-0760GP/EBONY BLACK,EBONY BL |
| 0103-011604 | RESIN ABS;HG-0760GP/G34160,DARK GRAY,GY0 |
| 0103-009089 | RESIN ABS;HG-0760GP/G41355,INOX GRAY,GY0 |
| 0103-003042 | RESIN ABS;HG-0760GP/NC0001,NATURAL,NC000 |
| 0103-002999 | RESIN ABS;HG-0760GP/WT0057,COOL WHITE,WT |
| 0103-002817 | RESIN ABS;QU-0191S/W91527,COOL WHITE,WT0 |
| 0103-009991 | RESIN ABS;SH-0160,INOX GRAY,GY0034,HB,EX |
| 0103-009232 | RESIN ABS;VE-0856/EBONY BLACK,EBONY BLAC |
| 0103-003217 | RESIN ABS;VE-0856/NTR,NATURAL,NC0001,5VA |
| 0103-011108 | RESIN ABS;XM-0900/PG1944,VF SILVER,SV002 |
| 0103-009823 | RESIN EPP;AK KOSPA/WHITE,INNER WHITE,WT0 |
| 0103-008912 | RESIN EPS;S-450/NTR,NATURAL,NC0001,N |
| 0103-000306 | RESIN GPPS;147F/TP BLUE,TP BLUE,TP0081,H |
| 0103-011107 | RESIN GPPS;G-116HV/U5680,TP GRAY,GY0326, |
| 0103-011672 | RESIN HIPS;5470/NATURAL,NATURAL,NC0001,H |
| 0103-004130 | RESIN HIPS;S834S1/NTR,NATURAL,NC0001,HB, |
| 0103-002994 | RESIN PA66;101F/NC0001,NATURAL,NC0001,N |
| 0103-002975 | RESIN PC ABS;HR-1008B,COOL WHITE,WT0057 |
| 0103-002977 | RESIN PC;HF-1023IM,COOL WHITE,WT0057, |
| 0103-011465 | RESIN PCTG;JN200K/GRY,TP GRAY,GY0326,HB |
| 0103-002996 | RESIN POM;500P,NATURAL,NC0001 |
| 0103-000244 | RESIN POM;F20-03,NATURAL,NC0001 |
| 0103-004710 | RESIN POM;K300/NATURAL,NATURAL,NC0001,HB |
| 0103-004981 | RESIN PP;BJ73SL/NTR,NATURAL,NC0001 |
| 0103-001846 | RESIN PP;BJ750/NTR,NATURAL,NC0001,HB,N, |
| 0103-011427 | RESIN PP;CNTK-P101/GY,INNER GRAY,GY0001, |
| 0103-012238 | RESIN PP;HFFR-1510NT/NATURAL,NATURAL,NC0 |
| 0103-002442 | RESIN PP;HLG41S/NTR,NATURAL,NC0001,HB,GL |
| 0103-011415 | RESIN PP;NF-6068R/GRAY,INNER GRAY,GY0001 |
| 0103-007539 | RESIN PP;SSPP-640/BLACK,BLACK,BK0001,Y,R |
| 0103-012009 | RESIN PVC;S32A45/DARK GRAY,DARK GRAY,GY0 |
| DA66-00629B | ROLLER-AUTO CLOSE;PA66,BLACK,101F |
|
|
ROLLER-FRE;AW-SEM,POM,500P,NATURAL,DA66- |
|
|
ROLLER-PANTRY;AW-PJT,POM,NATURAL, |
| DA66-01339A | ROLLER;POM,OD29,NATURAL |
| 6001-000516 | SCREW-MACHINE;SWRCH18A,ZPC(WHT),L10,M3,P |
|
|
SCREW-MACHINE;SWRCH18A,ZPC(WHT),L16,M5,F |
|
|
SCREW-TAPPING;PH,+,2S,M3,L8,ZPC(WHT),SWR |
| 6002-001521 | SCREW-TAPPING;STS304,PASS,L10,M3,TH,+,2S |
| 6002-001547 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,F |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L10,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L14,M4,F |
| 6002-000581 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,F |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,P |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L16,M5,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L18,M4,F |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L35,M4,T |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
|
|
SCREW-TAPPING;SWRCH18A,ZPC(WHT),L8,M4,TH |
| DA62-05935A | SEAL CABI-MIDDLE FRONT;RF6000T,PU FOAM,T |
| DA62-00232A | SEAL COND;-,PU FOAM,T20,PFC, H |
| DA62-00091A | SEAL CORNER;RR2500MN,PU FOAM,T25,W60,NOR |
| DA62-06149A | SEAL COVER EVAP-FRE UP;RF6500C,PE FOAM,T |
| DA62-06147A | SEAL COVER MULTI;RF6500C,PE OPEN CELL,T1 |
| DA62-05898A | SEAL COVER-WATER;RF8000B,PE FOAM,T5,L6 |
| DA62-05511A | SEAL COVER;RF9900T,PU FOAM,T5,W71,L53,SU |
| DA62-03033Z | SEAL CUTT SPONGE;-,PU FOAM,T30,W20,B |
| DA62-06172A | SEAL CUTT SPONGE;FDR RF6000T / RF8000B,P |
| DA62-00110E | SEAL CUTT SPONGE;ROMANEE CONTI,PU FOAM,T |
| DA62-03033R | SEAL CUTT-FOAM PE;HAEMIL,PE FOAM,T3,W20 |
| DA62-01138T | SEAL CUTT-FOAM PE;RF9000T,PE FOAM,T2,W30 |
| DA62-02589W | SEAL CUTT-FORM PE;ARAM10,PE FOAM,T10,W30 |
|
|
SEAL CUTT-RUBBER;RR2500K,RUBBER,T5,W50,L |
| DA62-03033F | SEAL CUTT-SPONGE;3050,PU FOAM,T3,W30 |
| DA62-00470Z | SEAL CUTT-SPONGE;350,380,PU FOAM,T5,W70, |
| DA62-02132V | SEAL CUTT-SPONGE;AW-SEM,PU FOAM,T10,W4 |
| DA62-02129W | SEAL CUTT-SPONGE;AW-SEM,PU FOAM,T5,W15,L |
| DA62-02139F | SEAL CUTT-SPONGE;AW-SEM,PU FOAM,T5,W80 |
| DA62-03586A | SEAL CUTT-SPONGE;AW-SEM,PUR SPONGE,T5, |
| DA62-00470V | SEAL CUTT-SPONGE;MAX3,PU FOAM,T5,W20,L |
| DA62-01139C | SEAL CUTT;-,PE OPEN CELL,T5,W10,L1000, |
| DA62-01142B | SEAL CUTT;3050,PU FOAM,T10,W20,L1000 |
| DA62-01921A | SEAL CUTT;GUGGENHEIM,PE OPEN CELL,T5,W70 |
| DA62-01140F | SEAL CUTT;NW2,PP FOAM,T3,W15,L1000 |
| DA62-01141X | SEAL CUTT;NW2,PU FOAM,T10,W10,L1000,PU S |
| DA62-01136Q | SEAL CUTT;PE FOAM,T10,W10,L1000 |
| DA62-01137E | SEAL CUTT;PE FOAM,T15,W15,L1000 |
| DA62-01138D | SEAL CUTT;PE FOAM,T3,W10,L1000 |
| DA62-01134C | SEAL CUTT;PE FOAM,T3,W20,L1000,T3,W20,L1 |
| DA62-01134H | SEAL CUTT;PE FOAM,T3,W40 |
| DA62-01142D | SEAL CUTT;PU FOAM,T10,W30,L1000MM |
| DA62-01142F | SEAL CUTT;PU FOAM,T10,W40,L1000 |
| DA62-01142Q | SEAL CUTT;PU FOAM,T15,W15,L1000,SPONGE |
| DA62-01140B | SEAL CUTT;PU FOAM,T3,W10,L1000,V-0,INCOM |
| DA62-01141E | SEAL CUTT;PU FOAM,T5,W25,L1000 |
| DA62-01141H | SEAL CUTT;PU FOAM,T5,W40,L1000 |
| DA62-01141F | SEAL CUTT;RB6000D,PU FOAM,T5,W30, |
| DA62-01140D | SEAL CUTT;RB7000J,PU FOAM,T3,W10,L1000 |
| DA62-01135M | SEAL CUTT;RB7300T,PE FOAM,T5,W10,L1000 |
| DA62-01139D | SEAL CUTT;RF5000A,PE OPEN CELL,T5,W15,L1 |
| DA62-01140P | SEAL CUTT;RF6000T, OPUS, RF4500A,PU FOAM |
| DA62-01140Y | SEAL CUTT;RF8000A,PU FOAM,T5,W10,L1000, |
| DA62-01139G | SEAL CUTT;RS5300T,PE OPEN CELL,T5,W30,L1 |
| DA62-01134L | SEAL CUTT;RS8000NC,PE FOAM,T3,W50,L1000, |
| DA62-01141B | SEAL CUTT;RS8000NC,PU FOAM,T5,W15,L1000, |
| DA62-01141Z | SEAL CUTT;RT4000TH,PU FOAM,T10,W15,L1000 |
| DA62-01140Z | SEAL CUTT;RT5000K,PU FOAM,T5,W10,L1000 |
| DA62-01141D | SEAL CUTT;RT5000K,PU FOAM,T5,W20,L1000,D |
| DA62-01139W | SEAL CUTT;SAPPHIRE,PE OPEN CELL,T3,W30,L |
| DA62-06170A | SEAL DRAIN-LOW;RF6500C,PU FOAM,T7, |
| DA61-06358A | SEAL DRAIN;RB7300,PE FOAM,T15,W40,L40, |
| DA62-06148A | SEAL DUCT-LOW;RF6500C,PU FOAM,T5, |
| DA62-06150A | SEAL DUCT-LOW;RF6500C,PU FOAM,T5, |
| DA62-06151A | SEAL DUCT-LOW;RF6500C,PU FOAM,T5, |
| DA62-06152A | SEAL DUCT-UP;RF6500C,PU FOAM,T5, |
| DA62-06153A | SEAL DUCT-UP;RF6500C,PU FOAM,T5, |
| DA62-06154A | SEAL DUCT-UP;RF6500C,PU FOAM,T5, |
| DA62-00302C | SEAL FOAM PE;RS8000NC,PE FOAM,T20,W40,L4 |
| DA62-01113A | SEAL GUIDE PIPE-UP;-,PU FOAM,T5,BL |
| DA62-05936A | SEAL INSULATION PARTITION-FRE;RF6500C,PU |
| DA62-05934A | SEAL INSULATION PARTITION;RF6500C,PU FOA |
| DA62-05933A | SEAL PARTITION-FRE;RF6500C,PE OPEN CELL, |
| DA62-06194A | SEAL PARTITION-FRONT SIDE;RF6500C,PE OPE |
| DA62-05891A | SEAL PARTITION-SIDE;RF8000B,AL/NONWOVEN, |
| DA62-05865A | SEAL PIPE;RF8000B,PU FOAM,W5,T |
| DA62-06158D | SEAL PLATE DOOR-FRE;RF6500C,NONWOVEN,T3, |
| DA62-06158E | SEAL PLATE DOOR-FRE;RF6500C,NONWOVEN,T3, |
| DA62-06158B | SEAL PLATE DOOR-REF;RF6500C,NONWOVEN,T3, |
| DA62-06171A | SEAL REINF;RF6500C,PE FOAM,T2, |
| DA62-04261B | SEAL SUPPORT TUBE FILTER-REAR;RF8000B,PU |
| DA62-00959A | SEAL SUPPORT TUBE FILTER;AW4,LEX FOAM,T1 |
| DA62-05889A | SEAL TUBE;RF8000B,PE FOAM,T6,W4,L200, |
| DA62-00232B | SEAL WATER HOSE;RF9000A,PU FOAM,T10,DINK |
| DA62-05899A | SEAL WATER;RF8000B,PE FOAM,T5,W50,L85, |
| DA62-01097A | SEAL-CABI BOTTOM REAR;PU FOAM,T10,W40,L4 |
| DA62-03641A | SEAL-CABI;OPUS1-14,PU FOAM,T5,W80,L80,HB |
| DA62-02534A | SEAL-CASE HEATER FRENCH;FDR,PU FOAM,T7, |
| DA62-04105A | SEAL-DRYER;RT5000K,PE FOAM,T20,W50,L50, |
| DA62-05938A | SEAL-FIXER TUBE;RF6500C,LEX FOAM,T2, |
| DA62-05678A | SEAL-FIXER TUBE;RF9000A/AC, RF7000AC,PU |
| DA62-05937A | SEAL-GROMMET SCREW;RF6500C,PU FOAM,T5, |
| DA62-01500A | SEAL-GUIDE FRENCH;AW-PJT,PE FOAM,T2,DING |
| DA62-03018A | SEAL-HANDLE BOTT;FDR / SBS,PE FOAM,T2,L5 |
| DA62-02684A | SEAL-MID FRONT;AW3-PJT,PU FOAM,T5,W41.4, |
| DA72-00387A | SEAL-PIPE,WATER;ET-PJT,PE FOAM,T3,DISP |
| DA62-02453A | SEAL-REINF CABI MID FRONT;PU FOAM,T5,W45 |
| DA62-02323A | SEAL-REINF FLANGE UP;CULLINAN,PU FOAM,T5 |
| DA62-03420A | SEAL-SUPT TUBE FILTER;AW2-11,PE FOAM,T5 |
|
|
SENSOR HUMIDITY;5V,0~100%RH,REF |
|
|
SENSOR TEMP;-,13.2KOHM,2%,0C,7PHI,RF,DKS |
|
|
SENSOR TEMP;L500,13.2KOHM,2%,0C,7PHI |
| DA32-00070C | SENSOR TEMP;SC41200-021A,L250,13.2KOHM,2 |
| DA66-00960A | SHAFT HINGE-UPP;AW4-PJT,CR-SPCC, |
|
|
SHAFT-CASTER;POLARIS,MSWR10,L44,OD11, |
| DA66-00793A | SHAFT-LEG FRONT;POLARIS,SWRCH10A,L27,B |
| DA66-00437H | SHAFT;AW3-14,CFRP,715.1,8X8,BLACK,DOOR F |
| DA63-09951A | SHEET ABS;RF6000T,ABS,T1.8,QU-0191S,COOL |
| DA63-12039A | SHEET;RF6500C,ABS,T4,QU-0191S,COOL WHITE |
| DA67-05637A | SHELF FOLDER-FRONT;RF6500C,PP,COOL WHITE |
| DA67-05638A | SHELF FOLDER-REAR;RF6500C,PP,COOL WHITE, |
| DA67-04999A | SHELF PANTRY;RF6000T,HIPS,NATURAL,5470 |
| DA67-05641A | SHELF VEGETABLE-LOW;RF6500C,HIPS,COOL WH |
| DA67-05632A | SHELF-REF FIX;RF6500C,PP,COOL WHITE,BJ |
|
|
SHIM HINGE-UP;-,PVC,T1,NATURAL,LS130 |
| DA02-00202A | SOLDER RING;D6.4,91.75CU/6.25P/2.0AG,NUM |
| DA02-00202B | SOLDER RING;D7.05,91.75CU/6.25P/2.0AG,NU |
| DA02-00202D | SOLDER RING;D:2.1,91.75CU/6.25P/2.0AG,NU |
| DA02-00202H | SOLDER RING;D:3.55,91.75CU/6.25P/2.0AG,N |
| DA02-00202C | SOLDER RING;D:7.99,91.75CU/6.25P/2.0AG,N |
| DA02-00202F | SOLDER RING;YSS26,D0.6,26AG/41CU/33ZN,NU |
| 0202-001976 | SOLDER-CREAM;LST-309M-K21 (PWM-118),D20~ |
| 0202-001463 | SOLDER-WIRE;LFC2-W3.0,D3,99.79SN/0.2CU/0 |
| DA61-05782A | SPRING ETC-INNER;SSEDA,STS304,0.8,3.9,5. |
| DA61-05783A | SPRING ETC-SHAFT;SSEDA,STS304,0.5,5.2,6. |
| DA61-08314B | SPRING FRENCH;RFH920G,STS304 |
| DA61-11871A | SPRING;RF8000MC,STS304,ID7,OD9 |
| 3502-001087 | SSR;DC12V,2A,9.6-25MV,30TO+80C,0.028A,A |
| 0101-002926 | STEEL PLATE;GI,SGCC,0.35MM,290MM,Z12,NC |
| DA61-13422A | STOPPER DOOR-REF LOW;RF8000B,PO-SPHC,T3, |
|
|
STOPPER DOOR-REF;RF9000K,PO-SPHC,T3,ELET |
| DA61-10712B | STOPPER ROLLER;RF9000K,SWRCH10A,VE |
| DA61-06756A | STOPPER-RAIL MID;ARAM10-PJT,RUBBER,OD12, |
|
|
SUPPORT ICE MAKER;RF9000A,HIPS,T3,S834S1 |
| DA61-16019A | SUPPORT TUBE;RF6500C,PP,RM60,BLACK, |
| DA61-13594A | SUPPORT-REF;AW,PO-SPHC,T4,BLACK EL |
| 4715-001217 | SURGE ABSORBER;3600V,20%,3000A,RADIAL |
|
|
SWITCH REED;UL1007 AWG 22,50MM |
|
|
SWITCH REED;UL1007 AWG 22,L100 |
|
|
SWITCH-MICRO;125/250VAC,1A,80GF,SPST-NO |
| 3404-001222 | SWITCH-TACT;12VDC,50MA,160GF,6X6X5.0MM,S |
| DA02-00250A | TAPE AL;REF_ALL,AL,T0.135,NATURAL,W100 |
| DA02-10007A | TAPE DOUBLE FACE;-,POLYESTER,T1,TRANSPAR |
| DA02-10013B | TAPE ETC-AL;GGH,AL,T0.03,NATURAL,T0.03,W |
| DA02-10015A | TAPE ETC-BINDER;ALL,POLYESTER,T0.03,NATU |
| DA02-10166A | TAPE ETC-MASKING;ALL MODEL,PAPER,NTR,W72 |
| DA02-10005C | TAPE ETC-MASKING;ALL MODELS,PAPER,T0.15, |
| DA02-10011A | TAPE ETC;ALL MODELS,PE,T0.5,TRANSPARENCY |
| DA02-10011C | TAPE ETC;TAPE ETC,PE,T0.05,NATURAL |
| DA02-10004C | TAPE PAPER;-,PAPER,T0.2,BROWN,W50,COATIN |
| 0203-005701 | TAPE-AL FOIL;AL,T0.03,W25,N/A,SILVER |
| 0203-001810 | TAPE-COTTON;140SN,T0.24,W60,ROLL,NATURAL |
| 0203-001811 | TAPE-COTTON;COTTON,T0.24,W45,N/A,WHITE |
| 0203-006327 | TAPE-COTTON;COTTON,T0.24,W50,N/A,WHITE,C |
| 0203-001523 | TAPE-DOUBLE FACE;PET,T0.15,W15,L50M,WHIT |
| 0203-006456 | TAPE-DOUBLE FACE;WJ105,T0.15,W440,WHITE |
| DA02-10005A | TAPE-MASKING;FF MODELS,PAPER,T0.3,W25,L0 |
| 0203-006654 | TAPE-OPP MASKING;OPP,T0.063,W25,N/A,CLEA |
| 0203-006630 | TAPE-OPP MASKING;OPP,T0.065,W50,WHITE,CA |
| 0203-001308 | TAPE-PAPER;PAPER,T0.15,W80,L100M,BROWN |
| 0203-006425 | TAPE-POLY;TESA 4298,T0.116,W12,L50M,WHIT |
| DA02-10010A | TAPE-SINGLE FACE;OPP,T0.06,W50,N/A,CLEAR |
| 0203-000143 | TAPE-SINGLE FACE;OPP,T0.065,W96,N/A,CLEA |
| 0203-007230 | TAPE-SINGLE FACE;OPP,T0.065,W96,N/A,CLEA |
| 0203-006428 | TAPE-SINGLE FACE;OPP,T0.12,W30,N/A,WHITE |
| DA02-10150A | TAPE-SINGLE FACE;PAPER,T0.15,W60,N/A,BRO |
| 0203-006521 | TAPE-SINGLE FACE;PET,T0.037,W80,N/A,CLEA |
|
|
THERMO FUSE-ASSY;AC250V,10A,109~110,S.O |
| DA64-05949E | TOP TABLE;RF9000A,ABS,INOX GRAY,HG-0 |
| 0506-000175 | TR-ARRAY;2003,NPN,7,1000MW,SOP-16,TP,100 |
| 0504-000001 | TR-DIGITAL;DTA114EKA,PNP,200MW,10K/10K,S |
| 0504-001064 | TR-DIGITAL;DTC114EKA,NPN,200MW,10K/10K,S |
| 0504-001080 | TR-DIGITAL;KRC246S,NPN,200MW,2.2K/10KOHM |
| 0502-001250 | TR-POWER;PBSS5540Z,1,SOT-223,TP,6.5X3.5X |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
| 0501-000467 | TR-SMALL SIGNAL;MMBT3906,TP,PNP,30~300,2 |
| DA26-00058A | TRANS SWITCHING;AC85-265V,3400MA,100MA,1 |
| DA63-08236A | TRAY DRAIN-WATER;AW2-14,PP,HB,BLACK, |
| DA63-11711A | TRAY DRAWER-FRE;RF6500C,PP,T2.5,COOL W |
| DA63-11232A | TRAY ICE;RF9000A,PP,T1,NATURAL |
| DA63-09323A | TRAY ICE;RS8000NC,PP,T1,NATURAL |
| DA63-09788A | TRAY WATER;RF6000T,HIPS,T2.5,COOL WHITE |
| DA63-12032A | TRAY-FRE UP;RF6500C,PP,T3.5,COOL WHITE |
| DA64-05903E | TRIM SHELF-REAR;RF8000B,HIPS,S834S1,T5,C |
| DA64-07456B | TRIM SHELF-REF FOLD;RF6500C,ABS,HG-0760G |
| DA64-07456D | TRIM SHELF-REF UP;RF6500C,ABS,HG-0760GP, |
| DA64-07456A | TRIM SHELF-REF;RF6500C,ABS,HG-0760GP,T5, |
| DA64-06490A | TRIM SHELF-REF;RF9000A/AC,ABS,HG-0760GP, |
| DA62-01266B | TUBE PVC;AW3,PVC,OD19.4,L155,P-1000, |
| DA62-04606B | TUBE-AL;AL,L520,T0.34, LA+CE |
| DA62-02414A | TUBE-FITTING L;POM,1/4INCH,1/4-1 |
| DA62-05650B | TUBE;-,PO,OD16.2,L60,ID15,HOTMEL |
| DA62-05881B | TUBE;RF8000B,HDPE,OD5.3,L80,ID4.2, |
| DA62-06054A | TUBE;RF9000,PO,OD11.6,L80,ID10.2, |
| DA62-05372A | TUBE;UL STANDARD,PO,L1000,ID8, |
|
|
VALVE STEP;DC12V,MODULE,2WAY,RIGHT/RIGHT |
| DA33-00029C | VALVE WATER;AC110-127V,L-WIRE,1,3,3W |
|
|
VALVE-FITTING NUT;A-TOP,C3604, |
|
|
VALVE-FITTING PU;BEST-BUY,C3604, |
| 1405-001239 | VARISTOR;680V,560VDC,6000A,17X10MM,TP,11 |
| 4709-003139 | W-LAN MODULE;CCAR210R,SDA8700CSM,IEEE802 |
| DA69-01981L | WRAP VINYL;LDPE,T0.04,W130,ROLL,SET,ADHE |
| DA69-01981Q | WRAP VINYL;LDPE,T0.04,W200,ROLL,SET,ADHE |
| DA69-01981C | WRAP VINYL;LDPE,T0.04,W40,ROLL,SET,ADHES |
