Manufacturer
Samsung
Model Number
RVMC070FAM0G
Description
System Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DB67-00078A | ACCUMULATOR |
| DB67-00079A | ACCUMULATOR-RECIEVER TANK |
| DB96-00561G | ASSEMBLY ACCUMULATOR |
| DB90-00215A | ASSEMBLY BASE OUT |
| DB90-00278A | ASSEMBLY BRACKET BACK |
| DB96-00457B | ASSEMBLY BYPASS |
| DB90-00212A | ASSEMBLY CABI BACK-LF |
| DB90-00213A | ASSEMBLY CABI BACK-RH |
| DB90-00214A | ASSEMBLY CABI FRONT-OUT |
| DB90-00216A | ASSEMBLY CASE-CONTROL |
| DB95-00147D | ASSEMBLY COMP |
| DB96-00455A | ASSEMBLY COND OUT |
| DB96-04153A | ASSEMBLY COND-OUT LF |
| DB96-04152A | ASSEMBLY COND-OUT RH |
| DB94-00067B | ASSEMBLY FAN-GUARD |
| DB98-07309A | ASSEMBLY LABEL STICKER DVM |
| DB98-05757A | ASSEMBLY LABEL WARNING OUT |
| DB98-08770B | ASSEMBLY LOGO SAMSUNG |
| DB97-01019L | ASSEMBLY MANUAL- INSTALL OUTDOOR |
| DB96-00453A | ASSEMBLY SERVICE VALVE |
| DB96-00452C | ASSEMBLY SERVICE VALVE 1 |
| DB96-01159B | ASSEMBLY SUCTION |
| DB96-00565A | ASSEMBLY TUBE CAPILLARY |
| DB96-10732B | ASSEMBLY TUBE COND IN |
| DB96-10732A | ASSEMBLY TUBE COND IN A |
| DB96-10103A | ASSEMBLY TUBE JUMP |
| DB96-10258C | ASSEMBLY U BEND |
| DB96-00196A | ASSEMBLY U BEND |
| DB98-15842D | ASSEMBLY WARNING INSTALL |
| DB98-09134A | ASSY CHANGE PART OUT;RVMC070FA0M0 |
| DB96-04178A | ASSY COND-LF MAIN;RVMC075H1MAG,DVM_7.5HP |
| DB96-04177A | ASSY COND-RH MAIN;RVMC075H1MAG,DVM_7.5HP |
| DB96-00560A | ASSY COND;MUF-1811, |
| DB93-01226C | ASSY CONTROL OUT;CO,7HP, |
| DB95-00309D | ASSY HEATER-COMP FIX;RVMC070FAM0, |
| DB91-00158A | ASSY UNIT;RVMC070FAM0, |
| DB99-00841A | ASSY VALVE-PWM;DVMPLUS,M5*0.8 |
| DB98-09312A | ASSY-CAUTION;CO,RVMC070FAM0 |
| DB98-09288A | ASSY-COND OUT;CO,RVMC070FAM0 |
| DB98-09311A | ASSY-CONTROL PART;C0,RVMC070FAM0 |
| DB96-00456D | ASSY-DISCHARGE;RVMC070FAM0, |
| DB98-33976B | ASSY-LABEL CAUTION ELEC B;RD200HHXH2,EN |
| DB98-29601A | ASSY-LABEL CAUTION;HP,20,DUCT,380V,N,PRE |
| DB98-06222A | ASSY-LABEL DIAGRAM;CO,ENGLISH,RVMC070FAM |
| DB98-05777A | ASSY-LABEL NAME SIDE;RVMC070FAM0MID |
| DB98-08372B | ASSY-LABEL RATING;CO,RVMC070FAM0 |
| DB98-05597A | ASSY-MANUAL INSTALL;HP,RVMH060GBM0/EN,SP |
| DB98-09135A | ASSY-OUTDOOR UNIT;RVMC070FA0M0 |
| DB98-19173A | ASSY-PACKING OUT;HP,RVMC070FAM0 |
| DB96-01884C | ASSY-PWM VALVE;RVMC070FAM0G,ASSY |
| DB97-01149A | ASSY-RING TERMINAL;HP,VINYL,N,RVMH |
| 6902-000103 | BAG PE |
| 6902-000092 | BAG PE |
| 6902-000156 | BAG PE;LDPE,T0.03,W1840,L1500,TRP,RECYCL |
| DB61-00329A | BASE-OUTDOOR;MUF-1811,EGI-SECC,T1.6, |
| 6003-000339 | BOLT-HEX |
| DB60-20021J | BOLT-WELD |
| DB61-01224A | BRACKET MOTOR-FAN |
| DB61-00457A | BRACKET-ACCUMULATOR |
| DB61-00333A | BRACKET-BACK |
| DB61-00481A | BRACKET-BACK COVER |
| DB61-00336B | BRACKET-BACK UPPER;MUF-1811,SGCC-M,T1.6, |
| DB61-00335A | BRACKET-CABI UPPER |
| DB61-00343A | BRACKET-COND LOWER |
| DB61-00341A | BRACKET-COND UPPER LF |
| DB61-00339A | BRACKET-COND UPPER RH |
| DB61-00332A | BRACKET-FRONT |
| DB61-00526A | BRACKET-LIFTER |
| DB61-00455A | BRACKET-RECEIVER TANK |
| DB61-00224A | BRACKET-SOL |
| DB61-00331A | BRACKET-SVC VALVE |
| DB61-00334A | BRACKET-UPPER |
| 2301-001960 | C-FILM, LEAD |
| DB64-00227A | CABINET BACK-LF |
| DB64-00228A | CABINET BACK-RH |
| DB64-00230A | CABINET FRONT |
| DB65-10088B | CABLE-TIE |
| DB61-00504A | CASE CONTROL-BOX LOW;MUF-1811,SGCC-M,T0. |
| DB61-00503A | CASE CONTROL-BOX;MUF-1811,SGCC-M,T0.8, |
| DB61-00346A | CASE PCB |
| DB75-00148A | CONDENSER-LF;MUF-1811,1772,GROOVED,DVM O |
| DB75-00149A | CONDENSER-RH;MUF-1811,1772,GROOVED,DVM O |
| DB39-00253A | CONNECT WIRE-COM |
| DB39-00193G | CONNECT WIRE-COMP;RVMC075FAM0, |
| DB39-00281D | CONNECT WIRE-FUSE ASSY;RVM070FAM0, |
| DB39-20469A | CONNECT WIRE-GROUND |
| DB39-00282A | CONNECT WIRE-HEATER |
| DB39-00192C | CONNECT WIRE-MAIN;RVMC075FAM0, |
| DB39-00252A | CONNECT WIRE-PHASE;MUF-1811,RED, |
| DB39-00250A | CONNECT WIRE-POWER A;MUF-1811,3,SK |
| DB39-00251A | CONNECT WIRE-POWER B |
| DB39-00280B | CONNECT WIRE-POWER C;RVMC070FAM0,1 |
| 3712-000297 | CONNECTOR-LUG |
| 0102-001602 | COPPER TUBE;C1220T,O,8.0,0.55,ROLL |
| 0102-001541 | COPPER-TUBE |
| 0102-000252 | COPPER-TUBE |
| DB31-40005A | CORE ROTOR |
| DB90-00236C | COVER ASSEMBLY CONTROL OUT |
| DB90-00276A | COVER ASSEMBLY-BACK |
| DB90-00277B | COVER ASSEMBLY-CONTROL IN |
| DB63-00156A | COVER TOP |
| DB63-00217A | COVER-CONTROL IN |
| DB63-00159A | COVER-CONTROL OUT |
| DB63-00158A | COVER-VALVE |
| DB69-00295A | CUSHION TOP-MID |
| DB69-00296A | CUSHION TOP-SIDE |
| 0406-001109 | DIODE-TVS |
| DB96-10816A | FAN PROPELLER |
| DB67-00070A | FAN-BELL MOUTH |
| DB60-30010C | FASTENER-NUT FLARE |
| DB70-00090A | FLANGE |
| DB70-00089A | FLANGE-SVC VALVE 1 -A |
| DB01-00083A | FOIL-AL |
| DB71-00041G | FOIL-COND FIN;-,A1100S-H26,T0.105,W21. |
| 0204-000418 | FREON |
| 3601-001614 | FUSE-CARTRIDGE |
| DB63-00157A | GUARD FAN |
| DB47-00038A | HEATER-CRANKCASE |
| DB61-02474A | HOLDER |
| DB61-40239A | HOLDER-FUSE |
|
|
HOLDER-SENSOR |
| DB71-50031A | HOLDER-WIRE |
| DB61-40291A | HOLDER-WIRE |
| DB09-00111B | IC MICOM |
| DB09-00024A | IC MICOM |
| 1006-001210 | IC-BUS TRANSCEIVER |
| 1203-000243 | IC-POSI.FIXED REG. |
| 1203-000001 | IC-POSI.FIXED REG. |
| 1202-000001 | IC-VOLTAGE COMP. |
| DB64-00229B | INLAY-GUARD FAN;MUF-1811,ABS,T3.0,D128, |
| DB72-00463A | INS-CABI FRONT UPPER |
| DB72-00383B | INS-TUBE |
| DB72-00333A | INSULATION CABI-BACK LF |
| DB72-00333B | INSULATION CABI-BACK RH |
| DB72-00408F | INSULATION-ACCUMULATOR;MUF-1811,FOAM-PE, |
| DB72-00375A | INSULATION-BRACKET BACK |
| DB72-00336A | INSULATION-BRACKET UPPER |
| DB72-00404A | INSULATION-CABI BACK |
| DB72-00334B | INSULATION-CABI FRONT LOWER |
| DB72-00455A | INSULATION-CABI UPPER |
| DB72-00406A | INSULATION-COVER CONTROL IN |
| DB72-00335A | INSULATION-COVER CONTROL OUT |
| DB72-00121F | INSULATION-COVER UPPER |
| DB72-00383D | INSULATION-TUBE |
| DB68-00175A | L/RATING-SHEET |
| DB68-00970A | LABEL BAR CODE |
| DB68-10120J | LABEL BAR CODE;ALL,YUPO,W60,L78,LABEL |
| DB68-01511B | LABEL CAUTION |
| DB68-01790E | LABEL FUSE |
| DB98-05725B | LABEL INSTRUCTION |
| DB68-02988B | LABEL PACKING;ALL,THERMAL PAPER,W65,L150 |
| DB68-00175K | LABEL RATING-SHEET |
| DB68-01350A | LABEL-BAR CODE |
| DB68-10120G | LABEL-BARCODE |
| DB68-00798A | LABEL-BARCODE-BOX |
| DB68-02551A | LABEL-CAUTION |
| DB68-02386A | LABEL-CAUTION B |
| DB68-02387A | LABEL-INSPECTION |
| DB68-10869D | LABEL-WARNING |
| DB61-00330A | LEG-BASE;MUF-1811,SECC-P, |
| DB93-02075A | MAIN PCB ASSEMBLY-OUT |
| DB31-00072T | MOTOR FAN |
| DB31-00072S | MOTOR FAN |
| DB60-30028A | NUT-FLANGE |
| DB69-00293B | PACKING CASE-OUT |
| DB69-00294B | PACKING-BOTTOM OUT;VRF,WOOD,H110,W1220,L |
| DB69-01107A | PAD PACKING PAPER-ANGLE;4.5HP,PAPER,100, |
| DB70-00127A | PANEL-HOLDER;-,SECC-P,T2.0,18,40, |
| 0604-001038 | PHOTO-COUPLER |
| DB61-00338A | PLATE-COND BACK LF |
| DB61-00345A | PLATE-COND BACK RH |
| DB61-00340A | PLATE-COND FRN LF |
| DB61-00347A | PLATE-COND FRN RH |
| DB61-00342A | PLATE-COND MAIN LF |
| DB61-00344A | PLATE-COND MAIN RH |
| DB61-00383A | PLATE-FAN GUARD;MUF-1811,SECC-P,3, |
| DB63-50001D | PLUG-RUBBER |
| DB63-00014A | PLUG-RUBBER |
| DB47-00016A | POSISTOR |
|
|

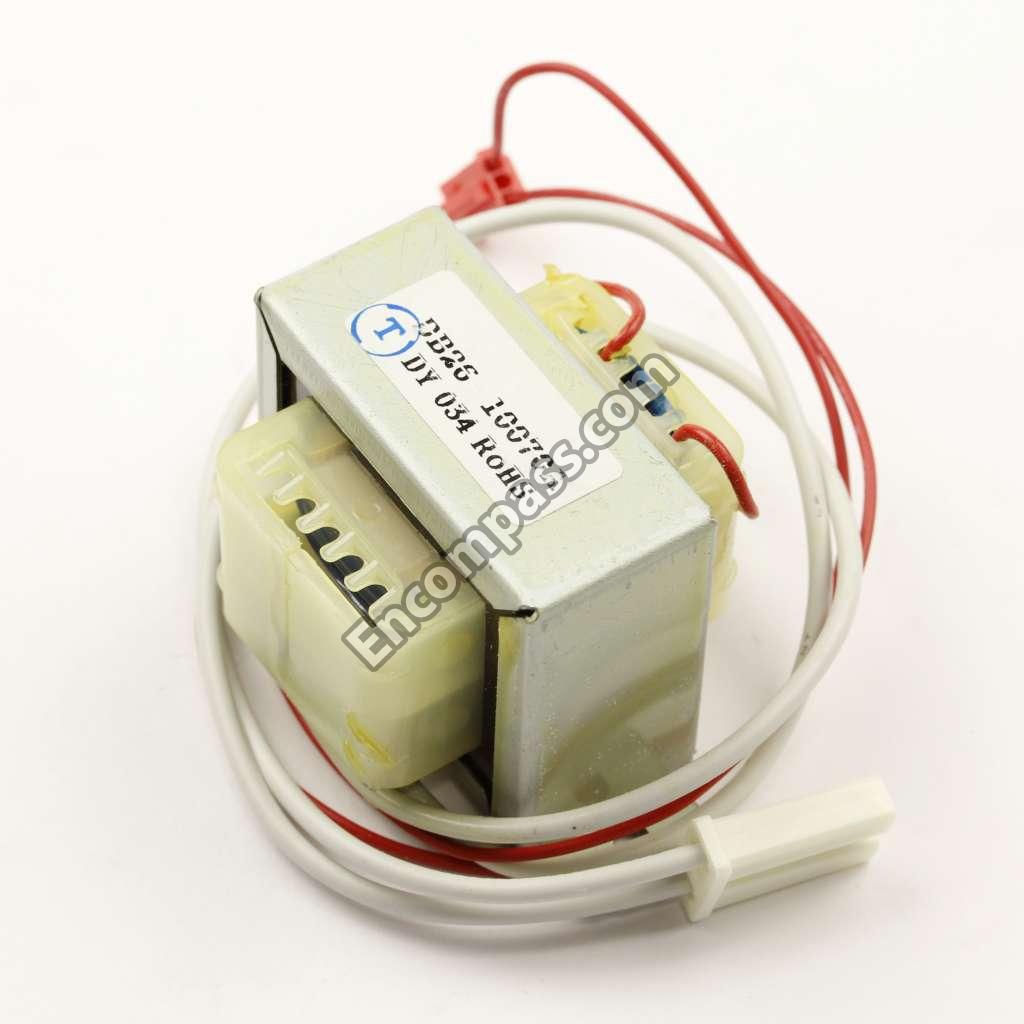

POWER TRANS |
| DB35-00058A | RELAY |
| 3501-000399 | RELAY-MINIATURE |
| 0103-003461 | RESIN PP;FC2305/NTR,NATURAL,NC0001,HB,TD |
| 2802-001198 | RESONATOR-CERAMIC |
| DB60-80006D | RING-TERMINAL |
| DB73-00018G | RUBBER BUTYL |
| DB73-20128B | RUBBER-FUSE HOLDER |
| DB73-00114B | RUBBER-MAGNET S/W;DVM OUTDOOR,CR,BLK |
| DB73-00089B | RUBBER-PLUG |
| 6009-001369 | SCREW-HEX |
| 6001-000044 | SCREW-MACHINE |
|
|
SCREW-SPECIAL |
| 6002-000602 | SCREW-TAPPING |
| 6002-000231 | SCREW-TAPPING |
| 6002-000395 | SCREW-TAPPING;SWRCH18A,ZPC(WHT),L12,M4,P |
| DB60-10013A | SCREW-WOOD |
| DB62-05862A | SEAL-CASE CONTROL;HP-G587L,FOAM-PE,T3. |
| 0202-001022 | SOLDER-SILVER |
| DB33-00036D | SOLENOID VALVE |
| DB33-00036C | SOLENOID VALVE |
| DB33-00038A | SOLENOID VALVE-BODY |
| DB33-00037A | SOLENOID VALVE-COIL |
| DB27-10001B | SOLENOID-COIL |
| DB27-10003Q | SOLENOID-COIL ASSEMBLY |
| DB67-60030A | SPRING-SENSOR |
| 0101-002900 | STEEL PLATE;EGI,SECC,0.8,E40,PL |
| 0101-002902 | STEEL PLATE;EGI,SECC,1,E40,PL |
| 0101-002908 | STEEL PLATE;EGI,SECC,1.6,E40,PL |
| 0101-002932 | STEEL PLATE;GI,SGCC,0.8MM,647MM,Z12,NC |
| 0101-002940 | STEEL PLATE;GI,SGCC,2,Z14,NC |
| 0101-003172 | STEEL PLATE;GI,SGCC,2.3,Z18,NC |
| DB34-00004D | SWITCH PRESSURE-HIGH |
| DB34-00008D | SWITCH PRESSURE-HIGH ASSY;MUF-0911,K |
| DB34-10005P | SWITCH PRESSURE-LOW |
| DB34-00007A | SWITCH PRESSURE-LOW |
| DB65-40062L | TERMINAL BLOCK |
| DB65-40062K | TERMINAL BLOCK |
| DB65-00052G | TERMINAL BLOCK |
| DB32-00030A | THERMISTOR-OUT ASSEMBLY |
| 0504-000144 | TR-DIGITAL |
| DB62-00412A | TUBE COND-OUT |
| DB62-00414A | TUBE JOINT-L 1/2 |
| DB62-00471A | TUBE JOINT-L-A 1 |
| DB62-30991B | TUBE JOINT-Y |
| DB62-31817A | TUBE JOINT-Y;C1220T-O,OD25.4,T1.0,L50, |
| DB62-00085A | TUBE-BEND-3WAY |
| DB71-30003K | TUBE-CU |
| DB71-30003D | TUBE-CU |
| DB62-02814A | TUBE-CU;C1220T-0,T0.34,OD9.52,TW0.28 HF0 |
| DB62-03213U | TUBE-HAIR PIN;-,C1220T-0,0.34,9.52,1772. |
| DB62-00788A | TUBE-RECEIVER OUT;RVMC060GAM0,C1220T-0,0 |
| DB62-00420B | TUBE-SOLENOID HOT;-,C1220T-0,0.7,4.76,48 |
| DB62-00421A | TUBE-Y JOINT;MUF-1811, |
| DB62-03998A | VALVE SOLENOID |
| DB27-10002A | VALVE SOLENOID |
| DB62-03999A | VALVE-PWM COIL |
| DB74-00024A | VALVE-SERVICE |
| DB62-40074C | VALVE-SERVICE |
| DB66-00227B | WIRE-GLASS TUBE |
| DB71-50031B | WIRE-HOLDER |
| DB71-00022A | WIRE-RING SOLDER |
