Manufacturer
Samsung

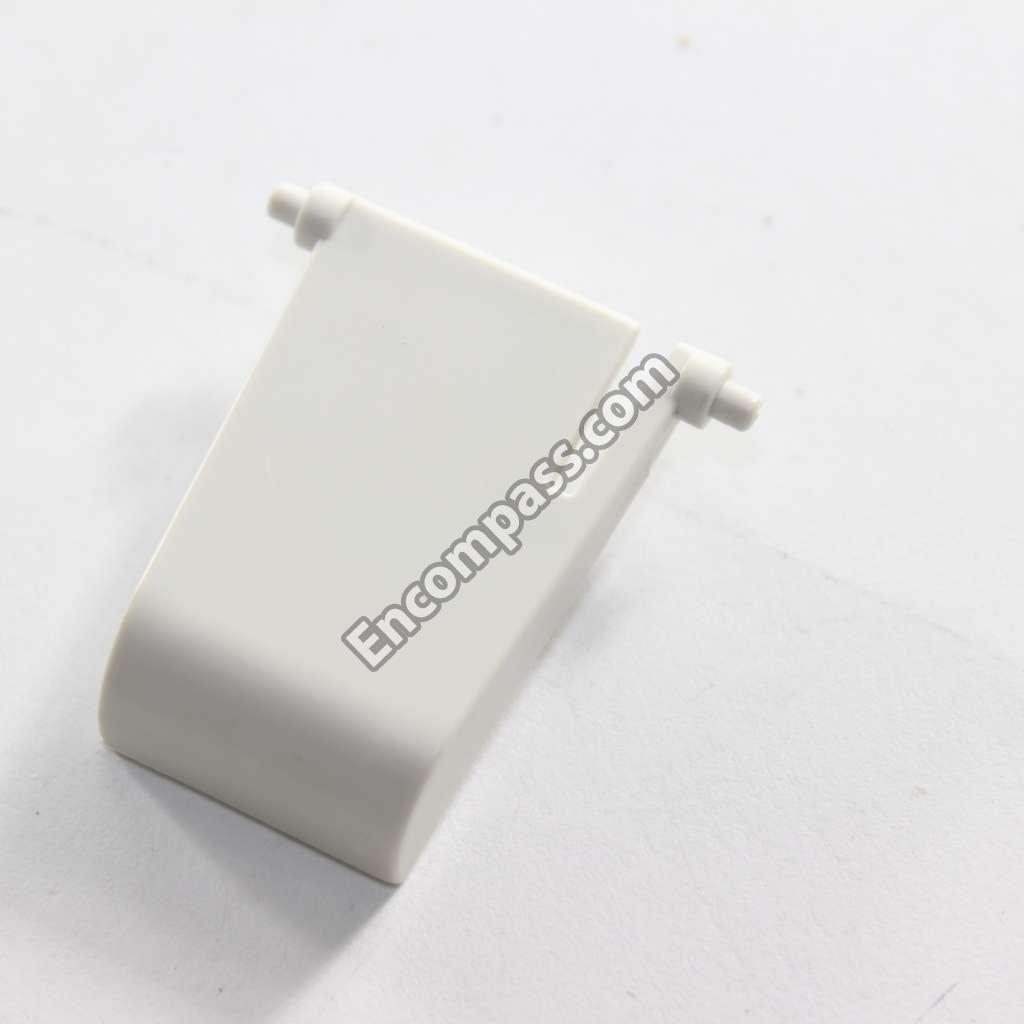

Model Number
SCX-1150F
Description
Multifunction Printer Fax, Scan, Copy
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JB82-00011A | A/S MATERIAL ASSY-SCX-1150F;SCX-1150F,WO |
| JB81-00314A | AS-ADF PBA;SCX-1150F,AS-PBA SUB ADF,-,SE |
| JB81-00226A | AS-COVER PLATEN ASSY;SCX-1150F,-,-,COVER |
| JB81-00235A | AS-DIODE_BRIDGE;SCX-1100,2KBP06M,600V, 2 |
| JB81-00232A | AS-DIODE_FR;SCX-1100,ER502,200V, 5A,-,-, |
| JB81-00231A | AS-DIODE_SCHOTTKY;SCX-1100,SR204,40V, 2A |
| JB81-00234A | AS-DIODE_ZENER;SCX-1100,1N4753A,1W 36V,- |
| JB81-00233A | AS-DIODE_ZENER;SCX-1100,MTZ9.1B,500MW ( |
| JC81-00020A | AS-FET CHIP SILICON;ML-7000,IRF9540(N),T |
| JB81-00229A | AS-FET;SCX-1100,FQU2N60,600V, 2A ,-,-,-, |
| JB81-00239A | AS-FUSE;SCX-1100,50T,250V 2.0A,-,-,-,-,- |
| JF81-10908A | AS-Q1;ALPS-V2,SSP5N80A,800V,5A,-,-,- |
| JC81-11404A | AS-R WIRE WOUND;SF6000,RWN1W 0.42J,-,-,- |
| JB81-00317A | AS-RACK HINGE (4IN1);SCX-1150F,-,-,RACK |
| JB81-00224A | AS-SCAN UPPER ASSY;SCX-1150F,-,-,SCAN UP |
| JB81-00237A | AS-TRANSFORMER;SCX-1100,MAGIC-V3,EE2525W |
| 6902-000437 | BAG PE;HDPE,T0.015,W900,L800,TRP,8,4PE M |
| 6902-000183 | BAG PE;LDPE,T0.05,W350,L400,TRP,28LANGUA |
| JB72-00764A | BAND;SCX-1110/XRX,POM,WHT |
| 3301-000317 | BEAD-SMD;120OHM,2012,TP,-,- |
| 3301-001209 | BEAD-SMD;600OHM,3216,100MA,TP,,680OHM/16 |
| JB66-10001A | BEARING-FEED L;MJ63V,POM,ID5,OD7,H4.6 |
| JB66-10002A | BEARING-FEED R;MJ63V,POM,ID5,OD8,H6.9 |
| JB66-20908A | BELT-CARRIER;MJC-1300,RUB(CR),T0.97,BLK |
| JB66-20906A | BELT-EXIT;ROME,RUB(CR),T1.36,-,L148,BLK |
| 6602-001067 | BELT-TIMING GEAR;FIBER GLASS,T3.2,T80-40 |
| JB69-00191A | BOX(P)-MAIN (1150F);SCX-1150F,DW,A1,388, |
| 2401-000151 | C-AL;1000UF,20%,25V,GP,TP,10X20,5 |
| 2401-000042 | C-AL;100UF,20%,16V,GP,TP,6.3X7,5 |
| 2401-000310 | C-AL;100UF,20%,25V,GP,TP,6.3X11,5 |
| 2401-000414 | C-AL;10UF,20%,16V,GP,TP,4X7,5 |
| 2401-000480 | C-AL;10UF,20%,50V,GP,TP,5X11,5 |
| 2401-000603 | C-AL;1UF,20%,50V,GP,TP,5X11,2 |
| 2401-000880 | C-AL;220UF,20%,50V,WT,TP,10X16MM,5M |
| 2401-000899 | C-AL;22UF,20%,100V,GP,TP,8X11MM,5MM |
| 2401-000913 | C-AL;22UF,20%,16V,GP,TP,5X11,5 |
| 2401-000030 | C-AL;22UF,20%,25V,GP,TP,5X11,5 |
| 2401-000962 | C-AL;22UF,20%,50V,GP,TP,5X11,5 |
| 2401-000026 | C-AL;3.3UF,20%,50V,GP,TP,5X11,5 |
| 2401-001946 | C-AL;330UF,20%,50V,GP,TP,10X16,5MM |
| 2401-001775 | C-AL;470NF,20%,50V,GP,TP,4X7,5 |
| 2401-002463 | C-AL;470UF,20%,16V,GP,TP,10X12.5,5 |
| 2401-002300 | C-AL;47UF,20%,50V,GP,TP,6.3X11,5MM |
| 2203-005105 | C-CER,CHIP;.68NF,5%,50V,C0G,TP,1608 |
| 2203-000626 | C-CER,CHIP;0.022NF,5%,50V,C0G,1608 |
| 2203-000681 | C-CER,CHIP;0.027NF,5%,50V,C0G,1608 |
| 2203-000998 | C-CER,CHIP;0.047NF,5%,50V,C0G,1608 |
| 2203-001607 | C-CER,CHIP;0.22NF,5%,50V,NP0,1608 |
| 2203-000476 | C-CER,CHIP;1000NF,+80-20%,16V,Y5V,2012 |
| 2203-000192 | C-CER,CHIP;100NF,+80-20%,50V,Y5V,TP,2012 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000440 | C-CER,CHIP;1NF,10,50V,X7R,TP,1608 |
| 2203-000989 | C-CER,CHIP;47NF,10%,50V,X7R,2012 |
| 2201-000234 | C-CERAMIC,DISC;0.15NF,5%,50V,C0G,9X3MM,5 |
| 2201-000119 | C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,8X3 |
| 2301-001027 | C-FILM,LEAD-PEF;15NF,10%,250V,TP,9.5X12X |
| 2404-000284 | C-TA,CHIP;10UF,20%,16V,-,TP,3528 |
| 6501-000115 | CABLE TIE;DA100,T1,W2.5,L102,NTR,NYLON66 |
| JB39-00146A | CBF D SUB CABLE-ADF_MAIN;SCX-1150F,15,16 |
| JB39-00132A | CBF FLAT CABLE-CCD;SCX-1100,24,0.05,565M |
| JC39-00187A | CBF HARNESS-ADF ROLLER GND;SCX-5100,WIRE |
| JC39-00184A | CBF HARNESS-ADF_DET SEN.;SCX-5100,WIRE H |
| JC39-00185A | CBF HARNESS-ADF_POS SEN.;SCX-5100,WIRE H |
| JB39-00094A | CBF HARNESS-DC MOTOR;SCX-1110,WIRE,UL100 |
| JG39-41019A | CBF HARNESS-LCD;SF4400,WIRE,UL2878,14,30 |
| JB39-00103A | CBF HARNESS-LIU GND;SCX-1110F,WIRE,UL100 |
| JB39-00130A | CBF HARNESS-MAIN OPE;SCX-1100,UL1061,#26 |
| JB39-00129A | CBF HARNESS-MAIN POWER;SCX-1100,UL1007,# |
| JB39-00116A | CBF HARNESS-MAIN_COVER OPEN;MJC-3305/CPQ |
| JB39-00138A | CBF HARNESS-MAIN_LIU;SCX-1150F,UL1061,#2 |
| JB39-00066A | CBF HARNESS-MODULAR JACK;SF-4760,CBF,UL1 |
| JB39-00131A | CBF HARNESS-POWER GND;SCX-1100,TBC,-,GND |
| JB39-00137A | CBF HARNESS-SCAN COVER SENSOR;SCX-1150F, |
| JB39-00147A | CBF HARNESS-SCAN MOTOR;SCX-1100,UL1007,# |
| JC39-40511A | CBF HARNESS;ML-80,JUMPER,AWG22,52MM,SILV |
|
|

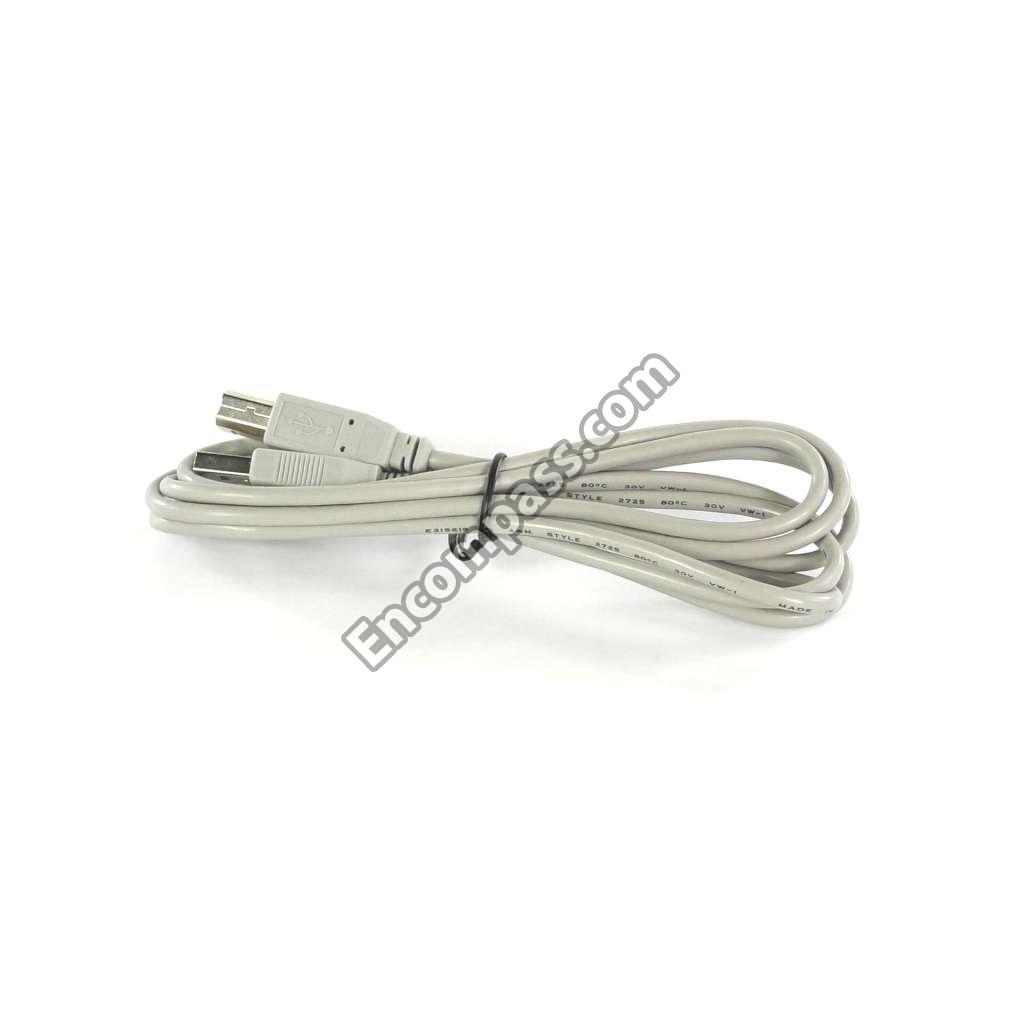

CBF IF-USB;ML-6100,4,UL2725,1800 +/- 50, |
| JF39-50094B | CBF LINE CORD;MINI FAX,IVR |
|
|
CBF-POWER CORD;US,BP3/YES,3P_LUG,125/125 |
| JB27-00001A | COIL CHOKE-DIP;MJC-1300/LEX,150UH,0.34OH |
| JF27-60051A | COIL FILTER;CF5400,60UH,50MOHM,18T |
| 3708-001637 | CONNECTOR-FPC/FFC/PIC;24P,1MM,STRAIGHT,S |
| 3702-001133 | CONNECTOR-RIBBON;36P,FEMALE,STRAIGHT,AUF |
| 3301-001413 | CORE-FERRITE;AD,33X12X7MM,1500,2800GAUSS |
| 2801-003960 | CRYSTAL-UNIT;28.224MHZ,50PPM,28-AAA,18PF |
| JB69-00176A | CUSHION-R/L;SCX-1150F,EPS,-,330,550,100, |
| 0407-000101 | DIODE-ARRAY;DA204K,20V,100MA,C2-3,SOT-23 |
| 0402-000338 | DIODE-BRIDGE;W06F,600V,1.5A,WOG,BK |
| 0402-001212 | DIODE-RECTIFIER;SS26,60V,2A,SMB,TP |
| 0404-000112 | DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T |
| 0401-000005 | DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T |
| 0401-000148 | DIODE-SWITCHING;1N914,75V,300MA,DO-35,TP |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| 0403-000141 | DIODE-ZENER;1N4735A,5%,1000MW,DO-41,TP |
| 0403-000150 | DIODE-ZENER;1N4743A,12.4-13.7(5%),1000MW |
| 0403-000153 | DIODE-ZENER;1N4746A,5%,1000MW,DO-41,TP |
| 0403-000294 | DIODE-ZENER;MTZJ4.7B,4.59-4.77V,500MW,DO |
| JB96-01331A | ELA HOU-COVER (4 IN 1);SCX-1150F,SEUK,-, |
| JB96-01317A | ELA MODULE-SCANNER (UMAX);SCX-1105/CPQ,C |
| JB96-01332A | ELA UNIT-ADF ASS'Y;SCX-1150F,SEUK,-,ADF |
| JB96-01333A | ELA UNIT-ADF LOWER ASS'Y;SCX-1150F,SEUK, |
| JB96-01344A | ELA UNIT-BRKT SCAN MOTOR;SCX-1105/CPQ,CO |
| JB96-01312A | ELA UNIT-C/R MOTOR (3 IN 1);SCX-1105/CPQ |
| JB96-01303A | ELA UNIT-C/R/SEC;SF-430,SAMSUNG,U.K,-,-, |
| JB96-01294A | ELA UNIT-CARRIAGE,SF-430/SEC;SF-430,SAMS |
| JB96-01381A | ELA UNIT-CORE;SCX-1100,SAMSUNG,CORE ASS' |
| JB96-01330A | ELA UNIT-ENGING ASSY (4 IN 1);SCX-1150F, |
| JB96-01336B | ELA UNIT-LIU PBA UNIT(USA);SCX-1150F,USA |
| JB96-01339A | ELA UNIT-OPE/ADF/SCANNER ASSY;SCX-1150F, |
| JB96-01334A | ELA UNIT-UNIT SCANNER(4IN1);SCX-1150F,SE |
| JB96-01335A | ELA UNIT-UNIT-OPE ASS'Y(4IN1);SCX-1150F, |
| 0505-000335 | FET-SILICON;VN2410M,N,240V,0.19A,10OHM,7 |
| JB61-40901A | FOOT-RUBBER;SF-4705,CR RUBBER,-,IVORY,3, |
| JB66-00103A | GEAR-ADF 38;SCX-1110F,POM,0.6,38,22.8,NT |
| JB66-00104A | GEAR-ADF IDLE 34;SCX-1110F,POM,0.6,34,20 |
| JB66-00101A | GEAR-CLUTCH 29;SCX-1110F,POM,0.6,29,17.4 |
| JC66-00322A | GEAR-CLUTCH 39;SCX-5150,POM,0.6,Z39,WHT |
| JB66-40911A | GEAR-CLUTCH;MUNICH,POM,WHT,M0.4,Z24 |
| JB66-40907A | GEAR-DRIVE PICKUP;MUNICH,DUPONT DELRIN,0 |
| JB66-40928A | GEAR-DRIVER ASF;ROME,POM,WHT,M0.4/M0.8,4 |
| JC66-00323A | GEAR-EXIT 23;SCX-5150,POM,0.6,Z23,WHT |
| JG66-40039A | GEAR-IDLE17/35;SF4400,POM,A:0.6,B:0.6,17 |
| JG66-40038A | GEAR-IDLE20/33;SF4400,POM,A:0.6,B:0.6,20 |
| JG66-40036A | GEAR-IDLE25;SF4400,POM,25,WHT,DE8502 |
| JB66-00083A | GEAR-IDLE;SCX-1110/XRX,POM M90-44,0.5,31 |
| JB66-40927A | GEAR-IDLER ASF;ROME,POM,WHT,M0.8,Z25 |
| JC66-00329A | GEAR-JAM REMOVE;SCX-5312F,POM,0.6,17,GRE |
| JB66-40909A | GEAR-LF IDLE51;MUNICH,DUPONT 500P-NC10,0 |
| JB66-40910A | GEAR-LF IDLE75;MUNICH,DUPONT 500P-NC10,A |
| JB66-00105A | GEAR-PICK UP 26;SCX-1110F,POM,0.6,26,15. |
| JB66-00102A | GEAR-PICK UP IDEL 38;SCX-1110F,POM,0.6,3 |
| JB66-40906A | GEAR-PICKUP IDLER;JOULE,POM,M0.4,Z40,-,W |
| JG66-40003A | GEAR-PINION;SF4000,POM,1,Z16,WHT |
| JC66-00324A | GEAR-REDUCTION 45/19;SCX-5150,POM,0.6,Z4 |
| JB66-00084A | GEAR-REDUCTION;SCX-1110/XRX,POM M90-44,A |
| JB66-40912A | GEAR-ROLLER FEED;MUNICH,POM,WHT,M0.4,Z52 |
| JB66-00082A | GEAR-TIMING;SCX-1110/XRX,POM M90-44,0.5, |
| JC74-00019A | GLASS;238.4*19*2.8,SCX-5100,GLASS,CLEAR |
| 3711-000198 | HEADER-BOARD TO CABLE;1WALL,3P,1R,2.5MM, |
| 3711-000255 | HEADER-BOARD TO CABLE;1WALL,5P,1R,2.5MM, |
| 3711-002815 | HEADER-BOARD TO CABLE;BOX,14P,1R,2MM,STR |
| 3711-003340 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,STR |
| 3711-003408 | HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,STRA |
| 3711-003409 | HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA |
| 3711-003411 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA |
| 3711-002809 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,STRA |
| JC13-00011A | IC ASIC-JUPITER3;S3C46M0X ,ML-6200,160P, |
| JB13-00004A | IC ASIC-OPE;HT48C50-1-SPPF,SF-3100,48P,+ |
| JB13-00013A | IC ASIC-THUNDERBOLT;17E0201,C3-2000,44P, |
| 1002-001274 | IC-A/D CONVERTER;XWM8192CDW/V,16BIT,SOIC |
| 1001-000170 | IC-ANALOG SWITCH;MC14051BD,SPDT CMOS,SOP |
| 1001-000171 | IC-ANALOG SWITCH;MC14053BD,SPDT CMOS,SOP |
| 1201-000105 | IC-AUDIO AMP;34119,SOP,8P,150MIL,SINGLE, |
| 1205-001771 | IC-CLOCK GENERATOR;FS781BZB,SOP,8P,150MI |
| 0801-000921 | IC-CMOS LOGIC;74HCT244,BUFFER/DRIVER,SOP |
| 0801-000477 | IC-CMOS LOGIC;74HCT273,D FLIP-FLOP,SOP,2 |
| 0801-002095 | IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP |
| 0801-002449 | IC-CMOS LOGIC;74LVX4245,BUS TRANSCEIVER, |
| 0801-001055 | IC-CMOS LOGIC;74VHC08,AND GATE,SOP,14,15 |
| 0801-001056 | IC-CMOS LOGIC;74VHC32,OR GATE,SOP,14P,8. |
| 1105-001464 | IC-DRAM;K4S641632,4MX16BIT,TSOP(II),54P, |
| 1205-001896 | IC-MODEM;FM336R6719-12,QFP,100P,PLASTIC, |
| 1003-001102 | IC-MOTOR DRIVER;TEA3718DP,DIP,16P,300MIL |
| 1003-001122 | IC-MOTOR DRIVER;TEA3718SFP,SOP,20P,300MI |
| 1201-000167 | IC-OP AMP;358,SOP,TP,8P,150MIL,DUAL,100V |
| 1203-002351 | IC-POSI.FIXED REG.;LF25C,DPAK,3P,240MIL, |
| JB70-00236A | ICT-HINGE SHAFT(4IN1);SCX-1150F,SWCH,32. |
| JB70-00168A | ICT-PIN ADF;SCX-1110F,STS303,L10.0,D2.0 |
| JB70-40906A | ICT-SHAFT CR;MUNICH,SUM24,NI,PI8.0 |
| JB70-40921A | ICT-SHAFT PULLEY IDL;SKYDOME,SUM 24L,NI, |
| JB70-10914A | IPR-BEARING CLAMP;MUNICH,SUS304,T0.25 |
| JC70-00224A | IPR-BRKT ADF MOTOR;SCX-5150,SECC,T1.2 |
| JB70-00235A | IPR-BRKT LF MOTOR;SCX-1105,SECC,-,T1.2,- |
| JB70-00234A | IPR-BRKT SCAN MOTOR;SCX-1105,SECC,-,T1.2 |
| JC70-00225A | IPR-BRKT WHITE BAR;SCX-5150,SECC,T1.0 |
| JB70-00194A | IPR-FRAME MAIN;MJC-3100,SECC,T1.2 |
| JB70-00148A | IPR-HOLDER GLASS;SCX-1110/XRX,SUS304,12* |
| JC70-00242A | IPR-SHAFT EXIT;SCX-5100,SUM24,124,T0.2,P |
| JC70-00260A | IPR-SPRING PINCH;SCX-5150,SUS,T0.5 |
| 3722-001431 | JACK-USB;4P/1C,AUF,WHT,STRAIGHT,B TYPE |
| JB64-00002A | KEY-HEAD COLOR BB;SF-430,ABS,-,HB,YEL,-, |
| JB68-00681A | LABEL SHEET-SMPS;SCX-1105,PC,T=0.5,118MM |
| JC68-10932A | LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO |
| JB68-00706A | LABEL(P)-POP(SCX-1150F/XEU);SCX-1150F/XE |
| JB68-00644A | LABEL(P)-SHADING;COMMON,YOOPO PAPER,T0.2 |
| JB68-00073A | LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34 |
| JG07-20001A | LCD;SF4000,UC-162937-TNAR5-A,BLK/G |
| JB68-00697A | MANUAL-QIG;SCX-1150F,SEUK,ENGLISH,U.K.,A |
| JB68-00696A | MANUAL-USER GUIDE;SCX-1150F,SEUK,ENGLISH |
| JB74-00050A | MCT-SCAN GLASS;SCX-1105,GLASS,CLEAR |
| JC97-01581A | MEA UNIT-ADF UPPER ASS'Y;SCX-5312F,XEROX |
| JB97-01526A | MEA UNIT-ASF W/O PICKUP;SCX-1105/CPQ,COM |
| JB97-01536A | MEA UNIT-BRKT LF (3 IN 1);SCX-1105/CPQ,C |
| JB97-01522A | MEA UNIT-CARRIAGE,SF-430/SEC;SF-430,SAMS |
| JB97-01535A | MEA UNIT-FEEDER;SCX-1105/CPQ,COMPAQ,-,FE |
| JB97-01495A | MEA UNIT-FRAME MAIN;MJC-3100,LEXMARK,USA |
| JB97-01527A | MEA UNIT-LINE FEED (3 IN 1);SCX-1105/CPQ |
| JB97-00965A | MEA UNIT-PICKUP ROLL;JOULE,LEXMARK,USA,- |
| JB97-01539A | MEA-COVER MAIN;SCX-1105/CPQ,COMPAQ,-,COV |
| JB97-01541A | MEA-COVER OPEN;SCX-1150F,SEUK,-,COVER OP |
| JB97-01542A | MEA-COVER PLATEN(4IN1);SCX-1150F,SEUK,-, |
| JB97-01537B | MEA-COVER REAR(4IN1);SCX-1150F,SEUK,-,CO |
| JB97-01528A | MEA-PLATE LF (3 IN 1);SCX-1105/CPQ,COMPA |
| JB97-01543A | MEA-RACK HINGE (4IN1);SCX-1150F,SEUK,-,R |
| JB97-01546A | MEA-SCAN DUMMY (4IN1);SCX-1150F,SEUK,-,S |
| JB97-01547A | MEA-SCAN LOWER (4IN1);SCX-1150F,SEUK,-,S |
| JB97-01545A | MEA-SCAN UPPER (4IN1);SCX-1150F,SEUK,-,S |
| JB97-01538A | MEA-STACKER;SCX-1105/CPQ,COMPAQ,-,STACKE |
| JB97-01544A | MEA-TX STACKER ASS'Y;SCX-1150F,SEUK,-,TX |
|
|
MEC-ADF ROLLER ASSY;SCX-1110F/XRX,XEROX, |
|
|
MEC-BRUSH ANTISTATIC;ML-6060A,SEC,NTR |
| JB75-00171A | MEC-EXIT ROLLER;MJC-1350,LEXMARK,BLK |
| JB75-00170A | MEC-FRAME BASE;MJC-1350,LEXMARK,BLK |
| JB75-00174A | MEC-FRAME HOME;MJC-1350,LEXMARK,BLK |
| JB75-00349A | MEC-FRAME MAIN;MJC-3100,LEXMARK,-,-,-,-, |
| JB75-00172A | MEC-HOLDER EXIT;MJC-1350,LEXMARK,BLK |
| JB75-11111A | MEC-HOLDER ROLLER;ROME,LEXMARK,BLK |
|
|
MEC-PICK UP ROLLER ASSY;SCX-1110F/XRX,XE |
| JB75-11110A | MEC-PULLEY IDLE;ROME,LEXMARK,BLK |
| JC75-00149A | MEC-ROLLER DRIVER;SCX-5312F,CR+SUM24L,BL |
| JC75-00150A | MEC-ROLLER EXIT;SCX-5312F,CR+SUM24L,BLK |
| JB75-11112A | MEC-ROLLER FEED;ROME,LEXMARK,BLK |
| JB75-11126A | MEC-SUB FRAME BASE;MJC-1300G,LEXMARK,BLK |
| JB31-00005A | MOTOR DC-CARRIAGE;98J4015/50,4400RPM,760 |
| JC31-00017A | MOTOR STEP-ADF;SCX-5312F,0.7A,1600PPS,22 |
| JB31-00007A | MOTOR STEP-LF/V;MJC-1350,30 V,0.6A,3000 |
| JB31-00011A | MOTOR STEP-SCAN;M42SP-4TKC,SCX-1110/XRX, |
| JB74-00015A | MPR-FELT LOWER;MJC-1350,WOOL,31.7X31.7X5 |
| JB74-00014A | MPR-FELT UPPER;MJC-1350,WOOL,84X66.2X5T, |
| JB74-00048A | MPR-PAD FFC;MJC-3100,PET+CARBON,BLACK |
| JB74-00024A | MPR-SHEET ENCODER;MJC-1300,PC,NATURAL |
| JB74-00049A | MPR-WHITE SPONGE SHEET;SCX-1105,PC(T0.18 |
| JC71-00031A | NPR-SPRING GND;SCX-5150,C5210P,T0.4 |
| JB71-00038A | NPR-SPRING PINCH DRIVE;SCX-1110F,STS301- |
| JB99-01341A | PAA MAIN-PACKING MATL;SCX-1150F,SEUK,-,P |
| 0105-001032 | PAPER-ART;W210,WHITE,HANSOL,L297 |
| JB92-01200A | PBA MAIN-ADF;SCX-1150F,SAMSUNG,UK,ADF,-, |
| JB92-01196A | PBA MAIN-MAIN;SCX-1150F,SAMSUNG,UK,MAIN, |
| JB92-01195A | PBA MAIN-OPE;SCX-1150F,SAMSUNG,UK,OPE,-, |
| JC92-01366A | PBA SUB-ADF DET SEN;SCX-5100,XEROX,USA,A |
| JC92-01365A | PBA SUB-ADF POS SEN;SCX-5100,XEROX,USA,A |
| JB92-01211A | PBA SUB-CR(SHARP);MJC-3305/CPQ,COMPAQ,US |
| JB92-01142J | PBA SUB-LIU PBA;SCX-1150F,USA,USA,LIU PB |
| JB41-00087A | PCB-OPE;SCX-1150F,PHENOL,1,-,1.6T,400X79 |
| 0604-000118 | PHOTO-COUPLER;TR,20-300%,200MW,DIP-4,ST |
| 0604-000119 | PHOTO-COUPLER;TR,200-400%,200MW,DIL-4,ST |
| 0604-001050 | PHOTO-INTERRUPTER;TR,-,75MW,-,BK |
| JB72-40993A | PMO-ACTUATOR FEED;MUNICH,ABS+GF10%,VO,V |
| JB72-00837A | PMO-ACTUATOR SENSOR DOC;SCX-1110F,ABS+GF |
| JC72-00746A | PMO-ACTUATOR SENSOR SCAN;SCX-5150,ABS+GF |
| JB72-00817A | PMO-ADF CLUTCH;SCX-1110F,POM,WHT |
| JB72-00821A | PMO-ADF COLAR;SCX-1110F,POM,NTR |
| JB72-01138A | PMO-ASF FRAME;SCX-1105,HIPS,HB,IVY |
| JB72-01143A | PMO-BASE STACKER;SCX-1105,HIPS,HB,IVY |
| JB72-00819A | PMO-BUSH;SCX-1110F,POM,NTR |
| JF72-41306A | PMO-BUSHING WHITE;SF1600,POM,NTR+WHT(DEL |
| JB72-40995A | PMO-CLUTCH ARM PIN;MUNICH,ABS,HF-0660I,H |
| JB72-40994A | PMO-CLUTCH ARM;MUNICH,ABS,HF-0660I,HB,BL |
| JC72-00735A | PMO-COVER ADF LOWER;SCX-5100,ABS+PC,IV21 |
| JC72-00736A | PMO-COVER ADF UPPER;SCX-5100,HIPS,HB,IV2 |
| JB72-01137A | PMO-COVER ASF;SCX-1105,HIPS,HB,IVY |
| JB72-01147A | PMO-COVER LIU;SCX-1105,-,ABS,IVY,V0,-,- |
| JB72-01141A | PMO-COVER MAIN;SCX-1105,HIPS,HB,IVY |
| JB72-01167A | PMO-COVER OPEN;SCX-1150F,HIPS,HB,IVORY,H |
| JB72-01165A | PMO-COVER PLATEN(4IN1);SCX-1150F,HIPS,HB |
| JB72-01142B | PMO-COVER REAR (B);SCX-1105,CHANGE CORE, |
| JB72-01169A | PMO-COVER SIDE(L);SCX-1150F,-,HIPS,IVORY |
| JB72-01168A | PMO-COVER SIDE(R);SCX-1150F,-,HIPS,IVORY |
| JB72-01146A | PMO-COVER SMPS;SCX-1105,-,ABS,IVY,V0,-,- |
| JC72-00430A | PMO-COVER WINDOW;SF-5100,OPP FILM,HB,CLE |
| JB72-40282A | PMO-CRADDLE HEAD;MJC-640V,ABS,HB,BLK |
| JB72-01171A | PMO-DOC GUIDE(L);SCX-1150F,HIPS,HB,HR-13 |
| JB72-01170A | PMO-DOC GUIDE(R);SCX-1150F,HIPS,HB,HR-13 |
| JB72-01144A | PMO-DOOR FRONT;SCX-1105,HIPS,HB,IVY |
| JB72-01145A | PMO-DOOR SIDE;SCX-1105,-,HIPS,IVY,HB,-,- |
| JB72-00982C | PMO-EXIT TRAY EXTENSION;SCX-1105,HIPS,HB |
| JB72-00978C | PMO-EXIT TRAY MIDDLE;SCX-1105,HIPS,HB,HR |
| JB72-41342A | PMO-FRAME BASE;ROME,ABS,HB,BLK |
| JB72-00396A | PMO-FRAME HOME;MJC-1350,ABS,HB,BLK |
| JB72-01140A | PMO-GUIDE EXTENTION;SCX-1105,-,HIPS,IVY, |
|
|
PMO-GUIDE PAPER;SCX-1110F,HIPS,HB,IV21 |
| JB72-01174A | PMO-HINGE BODY;SCX-1150F,POM,NATURAL |
| JB72-01177A | PMO-HINGE BRAKE;SCX-1150F,POM,NATURAL |
| JB72-01175A | PMO-HINGE FRAME;SCX-1150F,POM,NATURAL |
| JB72-01178A | PMO-HINGE PRESSURE;SCX-1150F,POM,NATURAL |
| JB72-01176A | PMO-HINGE SCREW;SCX-1150F,POM,NATURAL |
| JB72-00825A | PMO-HOLDER ADF;SCX-1110F,POM,BLK |
| JB72-01136A | PMO-HOLDER BELT;SCX-1105,POM,T=2.0,WHITE |
| JB72-41337A | PMO-HOLDER CAP;ROME,POM,WHT |
| JB72-41420A | PMO-HOLDER F/R;SF-4705,PBT,BLK,VO |
| JB72-00989A | PMO-HOLDER FPC;MJC-3100,POM,QTZ WHT,HB |
| JB72-41339A | PMO-HOLDER ROLLER;ROME,ABS,BLK,HB |
| JB72-01173A | PMO-HOLDER SENSOR;SCX-1150F,-,HIPS,IVORY |
| JB72-00394A | PMO-HOLDER WHEEL;MJC-1350,ABS+GF20%,BLK, |
| JB72-00401A | PMO-HOUSING BUCKLER;MJC-1350,POM+GB15%,B |
| JB72-41275A | PMO-KEY ANSWER;SF3000T,PMMA,HI-855M,HB,P |
| JB72-01184B | PMO-KEY BLACK;SCX-1150F,PMMA,HB,GRAY |
| JB72-01186A | PMO-KEY CANCEL;SCX-1150F,ABS,HF-0660I,HB |
| JB72-01184A | PMO-KEY COLOR;SCX-1150F,ABS,HF-0660I,HB, |
| JB72-01189A | PMO-KEY DIAL;SCX-1150F,ABS,HF-0660I,HB,I |
| JB72-40225D | PMO-KEY HEAD MONO;MJC-810L/CPL,ABS,HF-06 |
| JB72-01187A | PMO-KEY ONETOUCH;SCX-1150F,ABS,HF-0660I, |
| JB72-01188A | PMO-KEY SAVE;SCX-1150F,ABS,HF-0660I,HB,I |
| JB72-01182A | PMO-KEY SCAN;SCX-1150F,HIPS,HF-0660I,HB, |
| JB72-01185A | PMO-KEY SCROLL;SCX-1150F,ABS,HF-0660I,HB |
| JB72-01183A | PMO-KEY ZOOM;SCX-1150F,ABS,HF-0660I,HB,I |
| JB72-41403A | PMO-LATCH HEAD;MJC-1300,ABS,HB,YEL |
| JB72-40999A | PMO-LEVER LATCH;MUNICH,ABS,HB,HF-0660I,B |
| JC72-00755A | PMO-LEVER SENSOR;SCX-5100,POM,HB,BLK |
| JB72-01180A | PMO-OPE LOWER;SCX-1150F,-,HIPS,IVORY,HB, |
| JB72-01179A | PMO-OPE PANEL;SCX-1150F,-,HIPS,IVORY,HB, |
| JB72-01181A | PMO-OPE UPPER;SCX-1150F,-,HIPS,IVORY,HB, |
| JB72-41016A | PMO-PAPER CAPACITY;MUNICH,ABS,HF-0660I,H |
| JB72-01139A | PMO-PAPER GUIDE;SCX-1105,HIPS,HB,IVY |
| JB72-00845A | PMO-PICK UP CLUTCH SUB;SCX-1110F,POM(DE8 |
| JB72-41344A | PMO-PULLEY EXIT;ROME,POM,WHT |
| JB72-00763A | PMO-PULLEY;SCX-1110/XRX,POM,WHT |
| JB72-41023A | PMO-RETAINER GEAR;MARCONI,PC,LEXAN141,V0 |
|
|
PMO-ROLL PINCH;SF5500,POM(DERLIN 500P),H |
| JB72-00395A | PMO-ROLLER EXIT;MJC-1350,ABS,HB,BLK |
| JB72-41332A | PMO-ROLLER IDLER;ROME,POM,WHT |
| JB72-41341A | PMO-ROLLER PINCH;ROME,POM,BLK |
| JB72-01172A | PMO-SCAN DUMMY(4IN1);SCX-1150F,HIPS,HR-1 |
| JB72-01134A | PMO-SCAN LOWER;SCX-1105,HIPS,HB,IVY |
| JB72-01133A | PMO-SCAN UPPER;SCX-1105,-,HIPS,IVY,HB,-, |
| JC72-00744A | PMO-SHAFT PICK UP;SCX-5150,ABS,BLK,HB |
| JB72-41331A | PMO-SHAFT PICKUP;ROME,PC+GF20%,WHT |
| JB72-41331C | PMO-SHAFT PICKUP;SCX-1105,HIPS,IVORY,PI8 |
| JB72-00397A | PMO-SLED HOME;MJC-1350,POM,BLK |
| JB72-00822A | PMO-SLEEVE ADF;SCX-1110F,POM,BLK |
| JB72-00823A | PMO-SLEEVE PICK UP;SCX-1110F,POM,BLK |
| JB72-41212A | PMO-STOPPER PULLEY;MJC-810,ABS,HB,BLK |
| JB72-01166A | PMO-TX STACKER;SCX-1150F,HIPS,HB,QUARTZ |
| JB72-00844A | PMO-WHITE CLUTCH SUB 29;SCX-1110F,POM(F2 |
| JB72-00662A | PPR-ENCODER STRIP(V);MJC-1350,EKTALINE 2 |
|
|
PPR-WHITE BAR SHEET;SCX-5100,PET,T0.075, |
| JB47-00009A | PRINT HEAD INK-BIRCH(C) TEST;MJC-1300G,1 |
| JB47-30521A | PRINT HEAD INK-CPH M;MJC-810,-,COMPAQ |
| 2001-000085 | R-CARBON(S);100KOHM,5%,1/2W,AA,TP,2.4X6. |
| 2001-000202 | R-CARBON;0.5OHM,5%,1/2W,AA,TP,3.3X9MM |
| 2001-000362 | R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000070 | R-CARBON;15KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000034 | R-CARBON;220OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000631 | R-CARBON;30KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000076 | R-CARBON;47KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000119 | R-CARBON;680OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-001004 | R-CARBON;82OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2007-007845 | R-CHIP;0.68OHM,1%,1W,TP,6432 |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000029 | R-CHIP;0OHM,5%,1/8W,TP,2012 |
| 2007-000123 | R-CHIP;1.5KOHM,5%,1/10W,TP,1608 |
| 2007-000102 | R-CHIP;100KOHM,5%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000293 | R-CHIP;100OHM,5%,1/4W,TP,3216 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-000305 | R-CHIP;10MOHM,5%,1/10W,TP,1608 |
| 2007-000103 | R-CHIP;120KOHM,5%,1/10W,TP,1608 |
| 2007-000104 | R-CHIP;150KOHM,5%,1/10W,TP,1608 |
| 2007-000402 | R-CHIP;150OHM,5%,1/10W,TP,1608 |
| 2007-000403 | R-CHIP;150OHM,5%,1/4W,TP,3216 |
| 2007-000132 | R-CHIP;180KOHM,5%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-000124 | R-CHIP;2.2KOHM,5%,1/10W,TP,1608 |
| 2007-000081 | R-CHIP;2.7KOHM,5%,1/10W,TP,1608 |
| 2007-000094 | R-CHIP;22KOHM,5%,1/10W,TP,1608 |
| 2007-000071 | R-CHIP;22OHM,5%,1/10W,TP,1608 |
| 2007-000616 | R-CHIP;24KOHM,5%,1/10W,TP,1608 |
| 2007-000669 | R-CHIP;2KOHM,1%,1/10W,TP,1608 |
|
|
R-CHIP;2KOHM,5%,1/10W,TP,1608 |
| 2007-000082 | R-CHIP;3.3KOHM,5%,1/10W,TP,1608 |
| 2007-000730 | R-CHIP;300OHM,5%,1/4W,TP,3216 |
| 2007-000133 | R-CHIP;330KOHM,5%,1/10W,TP,1608 |
| 2007-000113 | R-CHIP;33OHM,5%,1/10W,TP,1608 |
| 2007-000842 | R-CHIP;3KOHM,1%,1/10W,TP,1608 |
| 2007-000083 | R-CHIP;3KOHM,5%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-000965 | R-CHIP;5.1KOHM,5%,1/10W,TP,1608 |
| 2007-000098 | R-CHIP;56KOHM,5%,1/10W,TP,1608 |
| 2007-001041 | R-CHIP;56KOHM,5%,1/4W,TP,3216 |
| 2007-000120 | R-CHIP;680OHM,5%,1/10W,TP,1608 |
| 2007-000100 | R-CHIP;68KOHM,5%,1/10W,TP,1608 |
| 2007-001179 | R-CHIP;8.2KOHM,5%,1/10W,TP,1608 |
| 2003-000659 | R-METAL OXIDE(S);33OHM,5%,1W,AA,TP,3.3X9 |
| 2003-000178 | R-METAL OXIDE;15KOHM,5%,1W,AA,TP,4.3X12M |
| 2004-000284 | R-METAL;12KOHM,1%,1/4W,AA,TP,2.4X6.4MM |
| 2004-000432 | R-METAL;1KOHM,1%,1/4W,AA,TP,2.4X6.4MM |
| 2004-000496 | R-METAL;2.74KOHM,1%,1/4W,AA,TP,2.4X6.4MM |
| 2004-002234 | R-METAL;560OHM,1%,1/4W,AA,TP,2.4X6.4MM |
| 2011-001093 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,8P,TP,3 |
| 2011-001094 | R-NETWORK;39OHM,5%,1/16W,L,CHIP,8P,TP,3. |
| JC81-00407A | REACTOR-INR 10D-561K;SF-5100,INR 10D-561 |
| 3501-001160 | RELAY-MINIATURE;12VDC,200MW,2000MA |
| JB73-20002A | REX-EXIT ROLLER;MJ-63V,CR,50HB,BLK,T2*ID |
| 6044-000159 | RING-C;ID3,OD7,T0.6,PASS,STSC |
| 6044-000125 | RING-E;ID4,OD9,T0.6,STSC |
| 6044-000231 | RING-E;ID5.0,OD11.0,T0.6,PASS,STS304 |
|
|
RMO-ADF RUBBER;SCX-1110F,SILICON RUBBER, |
| JB73-00019A | RMO-BUCKLER FRICTION;MJC-1350,PELETHANE, |
| JB73-40903A | RMO-PICKUP RUBBER;JOULE,EPDM,15XPI19,50, |
| JB73-00085A | RMO-RUBBER COPY;SCX-1150F,SILICON,135*58 |
| JB73-00089A | RMO-RUBBER DIAL;SCX-1150F,SILICON,76X57X |
| JB73-00086A | RMO-RUBBER ONETOUCH;SCX-1150F,SILICON,10 |
| JB73-00088A | RMO-RUBBER SCROLL;SCX-1150F,SILICON,71X4 |
| JC73-00091A | RPR-ROLLER EXIT IDLE;SCX-5100,POM+EPDM,N |
| JB73-10903A | RPR-RUBBER CAP HEAD;AMUNDSEN,SANTROPRENE |
| JB73-10901A | RPR-RUBBER CONTACT;AMUNDSEN,SILICON,22.5 |
| JB73-10902A | RPR-RUBBER WIPE HEAD;AMUNDSEN,TEXIN 480A |
| JB73-10913A | RPR-SPONGE ADF;SF-4500,SILICONE,BLK |
| JB46-00096A | S/W UTILITY-CD;-,SCX-1150F,UTILITY,1.00, |
| 6001-000485 | SCREW-MACHINE;PH,+,-,M2.6,L4,ZPC(WHT),SW |
| 6002-000101 | SCREW-TAPPING;BH,+,2,M3,L10,ZPC(BLK),SWR |
| 6002-000175 | SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(WHT),SM2 |
| 6003-001016 | SCREW-TAPTYPE;BH,+,-,S,M3,L5.5,ZPC(WHT), |
|
|
SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW |
| 6002-000308 | SCREW-TAPTYPE;PH,+,-,B,M2.6,L6,ZPC(WHT), |
| 6003-000196 | SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC |
| JB32-90001B | SENSOR-ENCODER;GP1A038RBKL,SF-430,-10TO+ |
| JC63-00079A | SHEET-ADF;SCX-5312F,PC,0.125,47,26.9,CLE |
| JB63-00023A | SHEET-LCD;SCX-1150F,PC SHEET,0.5T,30,82. |
| JB44-00017A | SMPS-MAGIC;C3-2000,MAGIC-V3,AC/DC,41W,11 |
| 3001-001244 | SPEAKER;0.4W,8OHM,87DB,480HZ |
| JB61-70904A | SPRING ETC-CLUTCH;AMUNDSEN,SWRS82A,D11.4 |
| JB61-70922A | SPRING ETC-CLUTCH;MJC-810L,SUS304,ID4.1, |
| JC61-00062A | SPRING ETC-CLUTCH;ML-4500,SWP,7.8,21 |
| JC61-00040A | SPRING ETC-COIL ADF;SF-6800/XAR,SUS304,W |
| JB61-70919A | SPRING ETC-ES ACTUATOR;MUNICH,SUS304,D0. |
| JB61-70915A | SPRING ETC-ES LATCH;MUNICH,MUSIC WIRE,F0 |
| JB61-70941A | SPRING ETC-LATCH HEAD;MJC-1300,SWPB,D4.4 |
| JB61-70917A | SPRING ETC-PS ENCONDER;MUNICH,SUS304,W10 |
| JB61-70913A | SPRING ETC-SHAFT CR;MUNICH,SUS304,-,-,L4 |
| JB61-70921A | SPRING ETC-TORSION AC;MJC-810L,SUS 304,D |
|
|
SPRING ETC-TORSION DOC (CC2-F);SCX-1110F |
| JC61-00548A | SPRING ETC-WHITE BAR;SCX-5312F,SUS304WPB |
| 6107-001134 | SPRING-CS;SUS304 WPB,-,PI1.8,D8.5,L37.5, |
| 6107-001133 | SPRING-CS;SUS304 WPB,-,PI1.8,D9.1,L18,-, |
| 6107-001135 | SPRING-CS;SUS304 WPB,PI0.3,L14,ID5.4,OD6 |
| 6107-000014 | SPRING-CS;SUS304-WPB,PI0.55,D6.9,L14 |
| JB61-00110A | SUPT BRACKET-P-HINGE;SCX-1150F,SECC,T2.0 |
| 0203-000007 | TAPE-FILAMENT;T0.15,L55M,TRP,FILAMENT |
| 0203-001100 | TAPE-OPP MASKING;OPP/W75/CLR,T0.075,W75, |
| 1404-001190 | THERMISTOR-PTC;1.5OHM,-,-,60VAC,10A,0.34 |
| 0502-000133 | TR-POWER;2SA1156,PNP,1000MW,TO-126,40-80 |
| 0504-000144 | TR-SMALL SIGNAL;2SC1008,NPN,800MW,TO-92, |
| 0501-000338 | TR-SMALL SIGNAL;2SC2812,NPN,200MW,SOT-23 |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000009 | TR-SMALL SIGNAL;KSC945-Y,NPN,250MW,TO-92 |
| JB26-00001A | TRANS MATCHING-REMOTE;SJ6060,SF-3100,5P, |
| JG26-50001A | TRANS MATCHING;100-1016,SF6000,4P,EX19,6 |
| 1405-000226 | VARISTOR;-,25A,5MM,TP |
| 1405-000144 | VARISTOR;430V,1250A,14X7.2MM,TP |
| 1405-000170 | VARISTOR;82V,1200A,9X4.1MM,TP |
| 2103-001041 | VR-SEMI;500OHM,30%,1/10W,TOP |
| 6031-000023 | WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK |
