Model Image
Manufacturer

Samsung

Model Number

SCX-4623FW

Description

Black And White Multifunction Printer Scx-4623fw

Interactive Exploded View

Parts List

Part Number Description
JC66-02364A JC66-02364A ACTUATOR-EXIT;ML-2580N,PC+GF20%,BLACK
JC97-03694A ADF;SCX-4623FN,SSDP,WEI HEI,ABS,2.3,BLAC
JC70-00304A ADJUST RACK-M-MANUAL;ML-1710,POM(F20-03)
JC70-00300A ADJUST-M-CASSETTE_L;ML-1400,ABS,VIOLET B
JC70-00301A ADJUST-M-CASSETTE_R;ML-1400,ABS,VIOLET B
JC70-00476F ADJUST-MANUAL L;SCX-4300,HIPS,2.5,37,35.
JC70-00477F ADJUST-MANUAL R;SCX-4300,HIPS,2.5,37,35.
4301-001042 4301-001042 BATTERY-LI;3V,220MAH,CR2032,20X3.2MM,CON
3301-000319 BEAD-SMD;11OHM,2X1.25X0.9MM,TP
3301-000317 BEAD-SMD;120OHM,2012,TP,-,-
3301-001594 BEAD-SMD;90OHM,2.0*1.2*1.3MM,TP,-,-
6602-001637 6602-001637 BELT-TIMING GEAR;POLY URETHANE,T0.98,L73
JC61-03440A BRACKET-BUSH_TR L;ML-2580N,SECC,T1.0,24.
JC61-03396A BRACKET-MOTOR_BLDC;ML-2580N,SECC + SUM24
JC61-00602A BRACKET-P-FEED;ML-1710,SECC,1.00
JC61-00598B BRACKET-P-GEAR 1400;SCX-4200,SECC,1.60,2
JC61-00601A BRACKET-P-INLET;ML-1400,SECC,1.00,124.8,
JC61-00585A BUSH-M-FEED IDLE;ML-1710,POM AT-15CF,?3.
JC61-00888A JC61-00888A BUSH-M-HR L_R2;SCX-4920N,PPS,?25.3,?29.6
JC61-00887A JC61-00887A BUSH-M-HR R_R2;SCX-4920N,PPS,?25.3,?29.6
JC61-00586A BUSH-M-PICK_UP L;ML-1710,POM (DELIN 8903
JC61-00587A BUSH-M-PICK_UP R;ML-1710,POM,?11,WHT
JC61-00588A JC61-00588A BUSH-M-TR L;ML-1710,POM,?6.1,?8,BLK
JC61-02468A BUSH-TR_L;ML-2851ND,STEEL SINTERED
JC72-00382B BUSH;ML-1710,POM(DERLIN 8903),WHITE
2402-001086 C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3
2402-000117 C-AL,SMD;10UF,20%,35V,GP,TP,5.3X5.3X5.4
2402-000209 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3MM
2402-001106 C-AL,SMD;33UF,20%,50V,WT,TP,8.3X8.3X6.3M
2401-002300 C-AL;47UF,20%,50V,GP,TP,6.3X11,5MM
2203-000426 C-CER,CHIP;0.018NF,5%,50V,C0G,1608
2203-000041 C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608
2203-000627 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005
2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,1608
2203-001071 C-CER,CHIP;0.056NF,5%,50V,C0G,TP,1608
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-002709 C-CER,CHIP;100NF,+80-20%,16V,Y5V,1005
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-006468 C-CER,CHIP;10NF,10%,250V,X7R,-,2012
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-005221 C-CER,CHIP;15NF,10%,50V,X7R,1608
2203-000440 C-CER,CHIP;1NF,10,50V,X7R,TP,1608
2203-006460 C-CER,CHIP;2200NF,10%,16V,X5R,TP,1608,-
2203-002398 C-CER,CHIP;22NF,10%,50V,X7R,1608
2203-005757 C-CER,CHIP;33NF,10%,200V,X7R,TP,3216
2203-005758 C-CER,CHIP;47NF,10%,200V,X7R,TP,3216
2203-000975 C-CER,CHIP;47NF,10%,25V,X7R,TP,1608,-
2201-002371 C-CERAMIC,DISC;0.47NF,10%,400V,Y5P,TP,8.
2305-000385 C-FILM,LEAD-PEF;470NF,10%,250V,BK,18X6X1
JC66-00377A CAM-M-PICK_UP;ML-1710,POM(DELIN 8903),WH
JC67-00415A CAP-FUSER LAMP L;ML-2580N,PET+GF30%,T 2,
JC67-00414A CAP-FUSER LAMP R;ML-2580N,PET+GF30%,T 2,
JC90-00941A JC90-00941A CASSETTE-HOLDER PAD;ML-2580N,SEC,WORLDWI
JC90-00943A CASSETTE;SCX-4623FN,SEC
JC39-00001A JC39-00001A CBF IF-USB;SCX-4500,4,UL2725,180050,BLA
JF39-50094B CBF LINE CORD;MINI FAX,IVR
3903-001051 3903-001051 CBF-POWER CORD;DT,US,EP3,IEC320 C13,125/
3903-000085 3903-000085 CBF-POWER CORD;US,BP3/YES,3P_LUG,125/125
JB61-00232A CLIP-P-BELT;SF-457,SUS,0.2,NTR,HALF HARD
JF27-60051A COIL FILTER;CF5400,60UH,50MOHM,18T
3708-001408 CONNECTOR-FPC/FFC/PIC;12P,1MM,STRAIGHT,S
3711-006437 CONNECTOR-HEADER;BOX,15P,1R,1.5MM,STRAIG
3711-006573 CONNECTOR-HEADER;BOX,3P,1R,1.5MM,STRAIGH
0609-001359 CONTACT IMAGE SENSOR;216MM,10368DOT,1.5M
JC63-02452A COVER-CASSETTE;SCX-4623FN,ABS HF-0660I,2
JC95-01079A JC95-01079A COVER-FRONT ASSY;SCX-4623FN,SEC,ASSY
JC63-01802A COVER-LCD;CLX-3170FN,PC,1.0,90.6,HB,CLR
JC63-02461A COVER-LEFT;SCX-4623FN,HIP HR-1360T,2.5,3
JC95-01075A COVER-MIDDLE ASSY;SCX-4623FN,SEC,ASSY
JC63-02453W COVER-OPE;SCX-4623FW,ABS,2.3,116.3,416,S
JC95-01078A COVER-REAR ASSY;SCX-4623FN,SEC,ASSY
JC63-02460A COVER-RIGHT;SCX-4623FN,HIP HR-1360T,2.5,
0402-001189 DIODE-RECTIFIER;M4,400V,1A,TS-1,TP
0404-000112 DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T
0407-000122 DIODE-SWITCHING;KDS226,80V,100MA,SOT-23,
0401-000116 DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD
0403-000287 DIODE-ZENER;MMBZ5251B,20.9-23.1V,225MW,S
JC93-00003A DRIVE MAIN-BRACKET;ML-2580N,SEC,WORLD,-,
JC93-00111A DRIVE PLATEN;SCX-4623FN,SEC,SCAN MOTOR A
JC31-00087A FAN;CLX-8380ND/XAA,PBT+GF,UL10272 AWG#26
JC39-01195A JC39-01195A FLAT CABLE;SCX-4623FN,12PIN,700MM,1.0MM,
JC61-40001A FOOT-ML80;ML-80,NBR,GRAY
JC93-00087A JC93-00087A FRAME BASE-PICK UP RUBBER;ML-2580N,SEC,W
JC93-00085A FRAME BASE-PICK UP;ML-2580N,SEC,WORLDWID
JC61-03498A FRAME-COVER HOLDER L;SCX-4623FN,ABS,HB,B
JC61-03499A FRAME-COVER HOLDER R;SCX-4623FN,ABS,HB,B
JC93-00108A FRAME-FRONT GUIDE PAPER;ML-2580N,SEC,WOR
JC61-03447A FRAME-HOLDER_LSU_L;ML-2580N,PC G/F,3025P
JC61-03448A FRAME-HOLDER_LSU_R;ML-2580N,PC G/F,3025P
JC93-00106A FRAME-LEFT STOPPER PICK UP;ML-2580N,SEC,
JC93-00110A FRAME-LOWER ACTUATOR FEED;ML-2580N,SEC,W
JC93-00109A FRAME-LOWER ACTUATOR MANUAL;ML-2580N,SEC
JC93-00107D FRAME-ROLLER DECURL;SCX-4623FN,SEC
JC93-00107C FRAME-ROLLER DECURL;SCX-4623FN,SEC
JC93-00097C FRAME-ROLLER EXIT FACE DOWN;SCX-4623FN,S
JC91-00946C JC91-00946C FUSER;ML-2580N,110V
JC66-01202A JC66-01202A GEAR-DRV FUSER IN;SCX-4200,PA6T(FR52G30L
JC66-01203A JC66-01203A GEAR-DRV FUSER OUT;SCX-4200,POM M90-44,0
JC66-00393A GEAR-FEED 1;ML-1710,POM,0.8,NTR,HB
JC66-00394A GEAR-FEED 2;ML-1710,POM,0.8,NTR,HB
JC66-01254A JC66-01254A GEAR-FUSER;ML-2571N,PPS,0.8,45,37.6*14.5
JC66-00340A JC66-00340A GEAR-HUB CLUTCH;SCX-5100,POM,M0.8,Z13,NT
JC66-02497A GEAR-IDLE 17/20_A;ML-2850,POM,A:0.8,B:0.
JC66-00396A JC66-00396A GEAR-IDLE 23;ML-1710,POM,0.8,23,BLK,HB
JC66-01201A GEAR-M_PULLEY;SCX-4200,POM,0.4,73,31.874
JG66-40003A GEAR-PINION;SF4000,POM,1,Z16,WHT
JC66-00387A GEAR-RACK_PINION;ML-1710,POM,0.7,WHT
JC66-00389A JC66-00389A GEAR-RDCN 57/18;ML-1710,POM M90-44,A:0.5
JC66-00392A GEAR-RDCN 90/31;ML-1710,POM,A:0.4,B:0.8,
JC66-02317A JC66-02317A GEAR-RDCN_EXIT;ML-2580N,POM,0.8 / 0.8,25
JC66-02316A GEAR-RDCN_OPC;ML-2580N,POM,0.5 / 0.8,113
JC01-00002A GLASS-SCAN MONTBLANC;356*247,2.85
JC61-03450A GUIDE-INPUT;ML-2580N,PET+GF30%,220,BLACK
JC61-00594A GUIDE-M-TR RIB;ML-1710,PC+ABS,BLK,30.6*7
JC61-00718A GUIDE-P-PAPER;ML-1710,SECC,0.8,19.5,261.
JC61-00607A GUIDE-P-TR;ML-1710,SECC,0.5,239.1,76.4
JC39-01080A HARNESS-BLDC_MOTOR_CLUTCH;ML-2580N,WIRE
JC39-01082A HARNESS-FUSER AC;ML-2580N,WIRE HARNESS,U
JC39-01160A HARNESS-FUSER JOINT;ML-2580N,WIRE HARNES
JB39-00277A HARNESS-LCD;SF-375TP,WIRE,UL2877,14-14,4
3711-006501 HEADER-BOARD TO CABLE;BOX,12P,1R,1.5MM,S
3711-002003 HEADER-BOARD TO CABLE;BOX,26P,2R,2MM,STR
3711-003411 HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA
JC61-00581A HOLDER-ACTUATOR;ML-1710,PBT GP2150+GF 15
JC61-01172A HOLDER-M-EXIT F/DOWN;ML-1610,PC,T2.0,W18
JC61-03344A HOLDER-PAD;ML-2580N,POM,BLACK
JC61-03485A HOLDER-PICKUP;ML-2580N,PC,BLACK
JC61-01978A JC61-01978A HOUSING-HOLDER PAD;ML-3471ND,ABS,2.0,45.
JC61-03435A HOUSING-PICKUP;ML-2580N,PC+ABS,AMBER GOL
JC61-03514A HOUSING-PICKUP_RUB;SCX-4623FN,PC+ABS,BLA
JC61-03467A HOUSING-TERMINAL;ML-2580N,PC+ABS,BLACK,V
JC13-00034B IC ASIC-OPE_MICOM;HT48C70-1-COM,SCX-4828
1001-000170 IC-ANALOG SWITCH;MC14051BD,SPDT CMOS,SOP
1201-000105 IC-AUDIO AMP;34119,SOP,8P,150MIL,SINGLE,
0801-002469 IC-CMOS LOGIC;74HC14,SCHMITT INVERTER,TS
0801-002446 IC-CMOS LOGIC;74LCX14,SCHMITT INVERTER,T
0801-002326 IC-CMOS LOGIC;74LCX32,OR GATE,TSSOP,14,1
0801-002628 IC-CMOS LOGIC;7SZ08,2-INPUT AND GATE,SC-
1205-002478 IC-DAA;CX20493-21/FAX,QFN,28P,5X5MM,PLAS
1203-003739 IC-DC/DC CONVERTER;MVPG31,DFN,12P,4X3MM,
1205-002654 IC-MODEM;CX86710-12,TQFP,64P,7X7MM,PLAST
1107-001746 IC-NOR FLASH;-,32MBIT,X1,SOP,8P,5.25X5.2
1203-001455 IC-POSI.FIXED REG.;1117,DPAK,3P,265MIL,P
1203-002454 IC-POSI.FIXED REG.;1117,TO-252,3P,257MIL
1203-002986 IC-POSI.FIXED REG.;7812,3P,6.6X6.1MM,PLA
1205-002762 IC-TRANSCEIVER;BCM5241A1KMLG,MLP,32P,5X5
0904-002093 IC-USC;ISP1761BE,32BIT,LQFP,128P,20X14MM
1202-000164 IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL,
JC70-00312A IPR-P-TERMINAL CON;ML-1710,SUS301-CSP 3/
JC70-00335A IPR-P_GROUND_DRIVE2;ML-1710,SUS304-CSP,0
JC70-00111A IPR-SPRING MIRROR (A);ML-5200A,STSC301-C
3722-002345 JACK-MODULAR;6P/4C,INVERTED,N,ANGLE,N,GR
3722-002376 JACK-MODULAR;8P/8C,STANDARD,Y,ANLGE,YEL/
3722-002303 JACK-USB;4P/1C,AU30U,BLK,ANGLE,B TYPE
JC64-00386B KEY-EXTRA;CLX-3175FN,ABS,HB,BLACK
JC64-00387B KEY-FAX;CLX-3175FN,PC+ABS,HB,BLACK
JC64-00388B KEY-MENU;CLX-3175FN,PC+ABS,HB,BLACK
JC64-00389B KEY-OK;CLX-3175FN,ABS,HB,BLACK
JB64-00114D KEY-POWER;SCX-1850,ABS,K21441(BLACK)
JC64-00431A KEY-STATUS W;CLX-3170,ABS,HB
JC64-00393B KEY-STOP;CLX-3175FN,ABS,HB,BLACK
JC64-00394B KEY-TEL;CLX-3175FN,ABS,HB,BLACK
JB68-00916A LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0
JC68-01584A LABEL(P)-BLANK 90*25;CLP-510,SEE,ART 100
JC68-10932A LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO
JC68-00780A LABEL(P)-CAUTION PRINTING;COMMON,WHITE P
JB68-00073A LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34
JC68-00573A LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM,

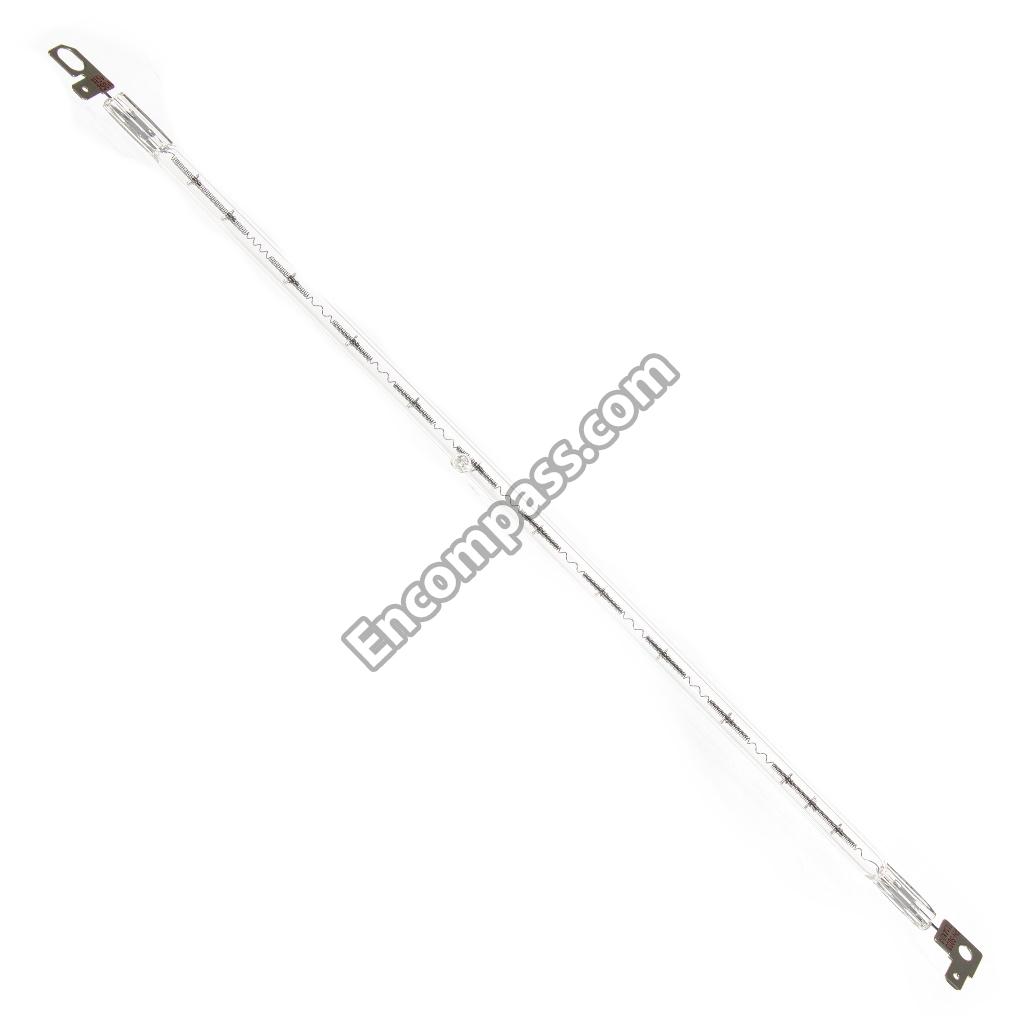

4713-001211 4713-001211 LAMP-HALOGEN;115V,750W,8X284MM
JC07-00003A LCD-DISPLAY(XEV);VHX1620BHRC9/YMC162197A
JC66-02365A LEVER-LINK JAM L;ML-2580N,PC,ICE GREEN
JC66-02366A LEVER-LINK JAM R;ML-2580N,PC,ICE GREEN
JC97-03585A LSU;ML-1910,SEC,SINGLE,A4(LTR),600,M1,78
JC97-01788A JC97-01788A MEA UNIT-CLUTCH;ML-1710,SAMSUNG
JC97-03141A JC97-03141A MEA UNIT-GEAR_PICKUP;ML-2851ND,SEC,-,-,-
JC97-03191A JC97-03191A MEA UNIT-HINGE L;CLX-3170,SEC,WORLD,-,-
JC97-03190A JC97-03190A MEA UNIT-HINGE R;CLX-3170,SEC,WORLD,-,-
JC75-00049A MEC-TERMINAL;SF-5100,SAMSUNG
JC31-00122A MOTOR BLDC;24V,ML-2580,CW3CCW
JC31-00080C MOTOR STEP;SCX-4623FN,0.2A,2441PPS,24V
JC97-03675W OPE;SCX-4623FW,SEC,ENGLISH
JC92-02021A PBA SUB-CONNECTOR;CLX-3170,SEC,-,-,-,-,-
JC92-02179D PBA-MAIN;SCX-4623FN,SEC,MAIN_WIRELESS,EX
JC92-02134B PBA-OPE;SCX-4623FW,SEC,329X73MM,WIRELESS
JC92-02308A PBA-WNPC;CLP-325W,SEC,BROADCOM BCM4319,U
0604-001393 0604-001393 PHOTO-INTERRUPTER;TR,75MW,BGA,TR
0604-001415 0604-001415 PHOTO-INTERRUPTER;TR,DIP-4,BK
JC61-00604A JC61-00604A PLATE-P-SAW;ML-1400,SUS304-CSP,0.15,15.1
JC97-03686A PLATEN-LOW END;SCX-4623FN,SEC
JC97-03679A PLATEN-LOWER;SCX-4623FN,SEC
JC97-03693A JC97-03693A PLATEN-SHEET;SCX-4623FN,SSDP,WEIHEI,ABS
JC97-03678A PLATEN-UPPER;SCX-4623FN,SEC
JC97-03677A PLATEN;SCX-4623FN,SEC
JC72-00974A PMO-ACTUATOR CVR OPEN;ML-1710,PC V0(NH10
JC72-00975A PMO-ACTUATOR EMPTY;ML-1710,PC(NH-1023P),
JC72-00976A PMO-ACTUATOR FEED;ML-1710,PC NH-1023P,BL
JC72-00977A PMO-ACTUATOR MANUAL;ML-1710,PC NH-1023P,
JC72-00387A PMO-BUSHING_F/DOWN;ML-6060A,POM,BLK
JG72-40960A PMO-CAP TONER;SF6000,PP,OD22,W6,BLK
JC72-00978A PMO-COLLAR_SPRING;ML-1710,POM(M90-44),NT
JC72-00971A PMO-EXTENSION SMALL;ML-1710,ABS(HF-0660I
JC81-01692A JC81-01692A PMO-GEAR PICK_UP A;ML-1710,POM(M90-44),N
CALL_1-800-SAMSUNG PMO-GEAR_EXIT_DRV16;SF-5100,POM(DE8903),
JC72-00982A PMO-IDLE PICK_UP;ML-1710,POM(M90-44),HB,
JC72-00983A PMO-LOCKER CST;ML-1710,POM(DELIN 900P),W
JC72-00984A JC72-00984A PMO-PLATE GUIDE DEVE_L;ML-1710,POM(M90-4
JC72-00985A JC72-00985A PMO-PLATE GUIDE DEVE_R;ML-1710,POM(M90-4
JC72-00972A PMO-PLATE_LOCKER;ML-1710,POM(M90-44),WHT
JC72-01343A JC72-01343A PMO-SUB_M_STACKER;ML-1520,PC,39*25.5*3.5
2007-008433 R-CHIP;0.33OHM,1%,1W,TP,6432
2007-000033 R-CHIP;0OHM,5%,1/4W,TP,3216
2007-007482 R-CHIP;1.24KOHM,1%,1/10W,TP,1608
2007-000123 R-CHIP;1.5KOHM,5%,1/10W,TP,1608
2007-000074 R-CHIP;100OHM,5%,1/10W,TP,1608
2007-000090 R-CHIP;10KOHM,5%,1/10W,TP,1608
2007-000309 R-CHIP;10OHM,5%,1/10W,TP,1608
2007-007297 R-CHIP;110OHM,1%,1/10W,TP,1608
2007-008426 R-CHIP;12.4KOHM,1%,1/10W,TP,1608
2007-007521 R-CHIP;14.7KOHM,1%,1/10W,TP,1608
2007-008567 R-CHIP;15.4KOHM,1%,1/10W,TP,1608
2007-000402 R-CHIP;150OHM,5%,1/10W,TP,1608
2007-001306 R-CHIP;150OHM,5%,1/16W,TP,1005
2007-000092 R-CHIP;15KOHM,5%,1/10W,TP,1608
2007-000132 R-CHIP;180KOHM,5%,1/10W,TP,1608
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-000109 R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-000481 R-CHIP;1MOHM,5%,1/4W,TP,3216
2007-002425 R-CHIP;1OHM,5%,1/10W,TP,1608
2007-000093 R-CHIP;20KOHM,5%,1/10W,TP,1608
2007-007382 R-CHIP;20MOHM,5%,1/10W,TP,1608
2007-000106 R-CHIP;220KOHM,5%,1/10W,TP,1608
2007-000075 R-CHIP;220OHM,5%,1/10W,TP,1608
2007-000071 R-CHIP;22OHM,5%,1/10W,TP,1608
2007-008510 R-CHIP;237KOHM,1%,1/4W,TP,3216
2007-000643 R-CHIP;270OHM,5%,1/10W,TP,1608
2007-000660 R-CHIP;27OHM,5%,1/4W,TP,3216
2007-000669 R-CHIP;2KOHM,1%,1/10W,TP,1608
2007-007525 R-CHIP;3.4KOHM,1%,1/10W,TP,1608
2007-000704 R-CHIP;3.6KOHM,5%,1/10W,TP,1608
2007-000729 R-CHIP;300OHM,5%,1/10W,TP,1608
2007-007008 R-CHIP;300OHM,5%,1/16W,TP,1005
2007-000730 R-CHIP;300OHM,5%,1/4W,TP,3216
2007-000096 R-CHIP;30KOHM,5%,1/10W,TP,1608
2007-000740 R-CHIP;30KOHM,5%,1/4W,TP,3216
2007-000076 R-CHIP;330OHM,5%,1/10W,TP,1608
2007-000134 R-CHIP;33KOHM,5%,1/10W,TP,1608
2007-000083 R-CHIP;3KOHM,5%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000107 R-CHIP;470KOHM,5%,1/10W,TP,1608
2007-002916 R-CHIP;475KOHM,1%,1/10W,TP,1608
2007-000097 R-CHIP;47KOHM,5%,1/10W,TP,1608
2007-007226 R-CHIP;49.9OHM,1%,1/10W,TP,1608
2007-000965 R-CHIP;5.1KOHM,5%,1/10W,TP,1608
2007-000144 R-CHIP;5.1KOHM,5%,1/16W,TP,1005
2007-001045 R-CHIP;56OHM,5%,1/4W,TP,3216
2007-008473 R-CHIP;59KOHM,1%,1/10W,TP,1608
2007-002760 R-CHIP;6.8MOHM,5%,1/4W,TP,3216
2007-000120 R-CHIP;680OHM,5%,1/10W,TP,1608
2007-001134 R-CHIP;68OHM,5%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-000088 R-CHIP;7.5KOHM,5%,1/10W,TP,1608
2007-007445 R-CHIP;9.09KOHM,1%,1/10W,TP,1608
2011-000660 R-NETWORK;1KOHM,5%,1/16W,L,CHIP-V,8P,TP,
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001396 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP,
3501-000203 RELAY-MINIATURE;5V,200MW,1000MA,1FORMC,6
6044-000159 RING-C;ID3,OD7,T0.6,PASS,STSC
6044-000001 RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5
JC73-40915A RMO-RUBBER EXIT;SF-5800P,EPDM,11.6 PI,60
JC73-00017A RMO-RUBBER_EXIT;SF-5100,EPDM,14.4*9.8,50
JC66-02551A ROLLER-EXIT_FR;ML-2580N,POM,6.5,18,WHITE
JC66-00598B ROLLER-FEED;ML-2580N,SUM22+NI+EPDM,5,11.
JC66-01256A JC66-01256A ROLLER-HEAT;ML-2571N,AL 5052+ PFA COAT,2
JC66-00529C ROLLER-IDLE FEED;SCX-4300,POM,13.5,13,BL
JC66-00380A ROLLER-M-EXIT F/UP;ML-1710,PC(GE EXL-911
JC66-00824A ROLLER-M-EXIT MAIN;ML-1610,POM,8.5,L23.6
JC66-00600A ROLLER-PRESSURE;ML-1710,SUM24L+LSR+PFA,2
JC66-00526B ROLLER-REGI;ML-2580N,EPDM+SUM22,14MM,GRA
JC66-01218A JC66-01218A ROLLER-TRANSFER;SCX-4200,NBR+ECO,15,218M
JC73-00140B RPR-FRICTION PAD;CLP-770ND,NBB,8.9*47,53
JC73-00141A JC73-00141A RPR-PAD CASSETTE;ML-1510,URETHANE SPONGE
JC73-00315A RUBBER-PICK_UP;SCX-4623FN,EPDM,27.7,23.5
JC73-00320A RUBBER-SCAN GLASS;SCX-4623FN,NBR,1.2
6003-000261 SCREW-TAPTYPE;BH,+,-,B,M3,L6,ZPC(WHT),SW
6003-000282 6003-000282 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW
6003-000269 6003-000269 SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW
6003-000301 SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC
6002-000308 SCREW-TAPTYPE;PH,+,-,B,M2.6,L6,ZPC(WHT),
6006-001078 SCREW-TAPTYPE;PH,+,WSP,B,M3,L10,ZPC(WHT)
6003-000264 SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S
6003-000196 SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC
JC66-01448A SHAFT-CIS;SCX-4500,SUM22,382,6
JC66-00398A SHAFT-FEED;ML-1710,POM(M90-44),NTR
JC66-02756A SHAFT-FEED_LIDE;ML-2580MN,SUM22,223,8
JC66-00720A SHAFT-P-CORE;ML-1750,SECC 1.2T,203
JC66-00399A SHAFT-P-PICK_UP;ML-1710,SECC,0.8T
JC63-02483A SHEET-GUIDE_PAPER;ML-2580N,PET,0.125,226
JC63-02592A SHEET-HOLDER_PAD;ML-2580N,PC,0.125
JC63-02835B SHEET-OVERLAY;SCX-4623FW,PC,0.254,63,394

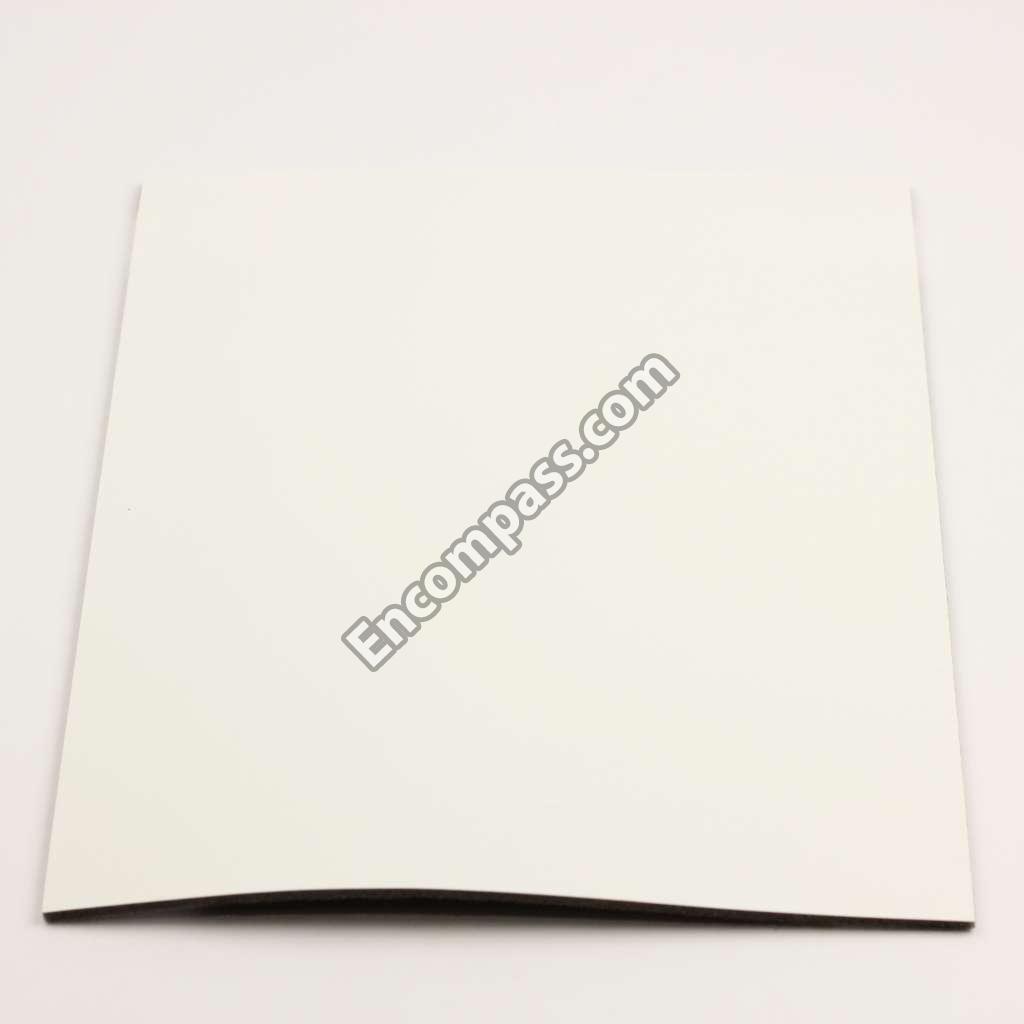

JC63-02569A JC63-02569A SHEET-WHITE;FIT,PP,3.6,216,250.2,WHITE,9
JC63-02410A SHIELD-ENGINE;ML-2580N,SECC,0.8,361,315.
JC66-01580A SLIDER-CIS;CLX-2160,RTP 899X93924,0.7,11
JC44-00178A JC44-00178A SMPS/HVPS-V1;ML-2580N,SANDPIPER-H V1,FLY
JC33-00025B JC33-00025B SOLENOID-MANUAL;SCX-5135ND,DC 24V,120OHM

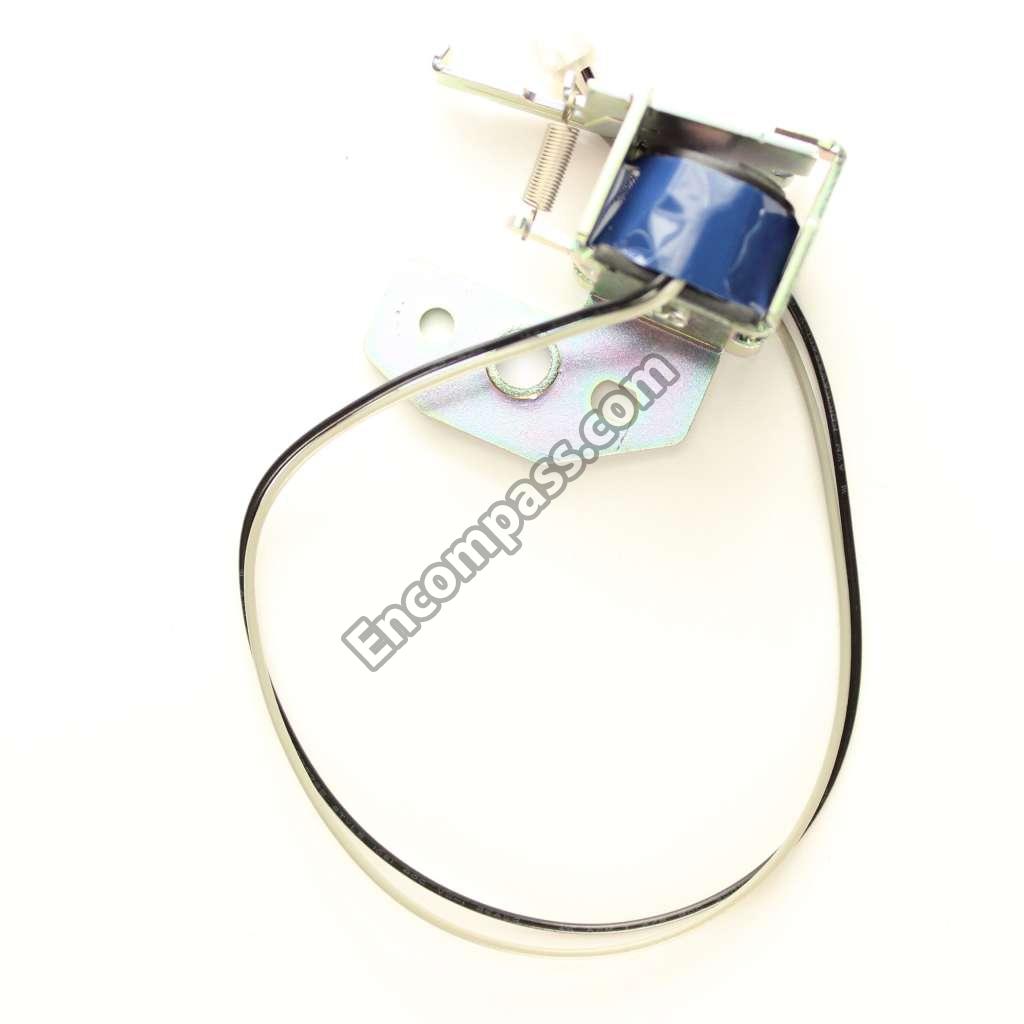

JC33-00026A JC33-00026A SOLENOID-PICK UP;ML-2851ND,DC24V,120 OHM
3001-002262 SPEAKER;0.3W,8OHM,81DB,400HZ,50X16.4MM
JC61-01950A JC61-01950A SPRING ETC-CLAW;ML-3471ND/SEE,SUS304WPB,
JC61-00025A SPRING ETC-CS-CHARGE APOLLO;SF-5100,SUS
JC61-70911A SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP
JC61-70932A SPRING ETC-GUIDE DEVE;ML-5000A,D4.3,L16.
JG61-70531A SPRING ETC-LOCKER,PLATE;SF6000,SUS304WPB
JC61-00056A SPRING ETC-PR(7300);ML-7300,PIANO WIRE,1
JC61-70958A SPRING ETC-TR;ML-5000A,SUS304 WPB,PI0.55
6107-001370 SPRING-CS;STS304WPB,NO FIN,PI0.45,D4.45,
6107-001137 SPRING-CS;SUS304 WPB,PI0.4,D9.4,L11.5,ID
6107-001167 SPRING-CS;SUS304-WPB,PI0.25,D3.25,L9.6,I
6107-001166 SPRING-CS;SUS304-WPB,PI0.65,D12.65,L59.3
6107-001194 SPRING-CS;SWP-B,BLK,PI0.9,D6.95,L20,ID6.
6107-001345 SPRING-CS;SWP-B,PI0.7,D10,L60,D9.3,OD10.
6107-001402 SPRING-CS;SWP-B,PI1.3,D4.2,L27,ID2.9,OD5
6107-001406 SPRING-CS;SWP-B,PI1.4,D3.6,L27,ID2.2,OD5
6107-001802 SPRING-ES;SUS304,PI0.4,L17.1,ID3.9,OD4.7
6107-001047 SPRING-ES;SUS304,PI0.45,D2.75,L24.2
6107-001162 6107-001162 SPRING-ETC;SUS304-WPB,PI0.45,D4.45,L12,I
6107-001164 6107-001164 SPRING-TS;SUS304-WPB,PI0.15,D3.95,L12,ID
6107-001165 SPRING-TS;SUS304-WPB,PI0.2,D4,ID3.8,OD4.
6107-001170 SPRING-TS;SWP-B,PI0.9,D6.0,ID5.2,OD7.0
6107-001171 SPRING-TS;SWRS82A,0.75X0.5,D14.2,ID13.7,
JC61-03517A STACKER-BIN_FULL LOW;SCX-4623FN,PC,6,63,
JC61-02583B STACKER-RX LARGE;SCX-4300,ABS,2.5,80,107
JC61-02582A STACKER-SMALL;SCX-4300,ABS,8,128,54,BLAC
JC61-03524A STOPPER-LEVER_DR;ML-2580N,ABS,BLACK
JC61-03477A STOPPER-PICK_UP;ML-2580N,POM,BLACK
3404-001222 SWITCH-TACT;12VDC,50MA,160GF,6X6X5.0MM,S
JC65-00042A TERMINAL-CON;ML-2580N,SUS301 3/4H,45.7,H
JC65-00043A TERMINAL-CR;ML-2580N,SUS301 3/4H,46,HEAT
JC65-00019A TERMINAL-CRUM;SCX-5530FN,SUS304WPB,PI 0.
JC65-00041A TERMINAL-SUPPLY;ML-2580N,SUS301 3/4H,52.
0506-001069 TR-ARRAY;MBT3904DW1T1,NPN,DUAL,150MW,SOT
0502-001258 TR-POWER;FJT44,NPN,SOT-223,TP,40-200
0501-000632 TR-SMALL SIGNAL;2SB1197K,PNP,200MW,SOT-2
0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000479 TR-SMALL SIGNAL;KST42,NPN,350MW,SOT-23,T
0501-000457 TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3
2602-000061 TRANS-PULSE;30UH,0.225/0.325OHM,1:1.5,9.
2602-000062 TRANS-PULSE;450UH,0.25/0.25OHM,1:1,12.8X
1405-000130 VARISTOR;270V,1200A,9X4.6MM,TP
1405-000170 VARISTOR;82V,1200A,9X4.1MM,TP
2103-000342 VR-SEMI;2KOHM,30%,1/10W,SIDE
6031-000023 WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK
6031-001584 WASHER-PLAIN;POLYSLIDER,ID4,OD7,T0.5,BLA
Main Menu x
