Model Image
Manufacturer

Samsung

Model Number

SCX4725FN

Description

Monochrome Laser Multifunction Printer

Interactive Exploded View

Parts List

Part Number Description
JC66-01257A ACTUATOR-EMPTY: ML-2571N,PC,38.2,126,
JC66-01250A JC66-01250A ACTUATOR-FEED SENSOR: ML-2571N,PC,22.2,
JC70-00527A ADJUST-CASSETTE_L: ML-2571N,ABS,2.5T,124.
JC70-00528A ADJUST-CASSETTE_R: ML-2571N,ABS,2.5T,124.
JC70-00514C ADJUST-MP L: ML-2571N,HIPS,2.5,127.8,90,B
JC70-00515C ADJUST-MP R: ML-2571N,HIPS,2.5,127.8,90,B
6902-000455 BAG CONDUCTIVE: LDPE,T0.2,W200,L410,BLK
6602-001067 BELT-TIMING GEAR: HIBER GLASS,T3.2,T80-40
JC69-01026A BOX-MAIN: SCX-4725FN,CB,SC5,A1,FLEXO,A,46
JC61-01181A BRACKET-M-CIS: SCX-4521F,PC/ABS,2.5,41.4,
JC61-01178A BRACKET-M-GEAR: SCX-4521F,PC,2.5,110.76,8
JC61-00698A BRACKET-M-SCAN MOTOR: SCX-4114F,ABS+GF10%
JC61-01180A BRACKET-P-MOTOR: SCX-4521F,SECC,0.8,59.03
JC61-00888A JC61-00888A BUSH-M-HR L_R2: SCX-4920,PPS(RBA313N),35,
JC61-00887A JC61-00887A BUSH-M-HR R_R2: SCX-4920,PPS(RBA313N),35,
2402-001049 C-AL,CHIP: 10UF,20%,16V,GP,TP,3.3X3.3X5.4
2402-001042 C-AL,SMD
2402-000117 C-AL,SMD: 10UF,20%,35V,GP,5*5.2MM,1.4MM,
2402-001106 C-AL,SMD: 33UF,20%,50V,WT,TP,8.3X8.3X10
2402-000173 C-AL,SMD: 4.7UF,20%,35V,4.3X4.3X5.4MM,
2402-001155 C-AL,SMD: 47UF,20%,16V,WT,TP,6.3X5.2MM
2401-000042 C-AL: 100UF,20%,16V,GP,6.3X7MM,2.5MM
2401-002300 C-AL: 47UF,20%,50V,GP,6X11MM,5MM,TP
2203-006468 C-CER,CHIP: 10NF,+-10%,250V,X7R,2012
2203-000681 C-CERAMIC,CHIP
2203-000783 C-CERAMIC,CHIP
2203-000998 C-CERAMIC,CHIP
2203-000192 C-CERAMIC,CHIP: 100NF,+80-20%,50V,Y5V,201
2203-000206 C-CERAMIC,CHIP: 100NF,10%,50V,X7R,2012,
2203-000239 C-CERAMIC,CHIP: 100PF,5%,50V,NPO,2012,T
2203-000257 C-CERAMIC,CHIP: 10NF,10%,50V,X7R,1608,T
2203-005221 C-CERAMIC,CHIP: 15NF,10%,50V,X7R,TP,1608,
2203-000384 C-CERAMIC,CHIP: 15PF,5%,50V,CH,1608,TP
2203-000440 C-CERAMIC,CHIP: 1NF,10%,50V,X7R,1608,TP
2203-000491 C-CERAMIC,CHIP: 2.2NF,10%,50V,X7R,1608,
2203-002392 C-CERAMIC,CHIP: 220NF,+80-20%,50V,Y5V,TP,
2203-001607 C-CERAMIC,CHIP: 220PF,5%,50V,CH,1608,1.6M
2203-002398 C-CERAMIC,CHIP: 22NF,10%,50V,X7R,TP,1608,
2203-000626 C-CERAMIC,CHIP: 22PF,5%,50V,CH,1608,TP
2203-005757 C-CERAMIC,CHIP: 33NF,10%,200V,X7R,TP,3216
2203-005384 C-CERAMIC,CHIP: 4700NF,+80-20%,10V,Y5V,TP
2203-000975 C-CERAMIC,CHIP: 47NF,10%,25V,X7R,TP,1608,
2203-001071 C-CERAMIC,CHIP: 56PF,5%,50V,CH,1608,TP
2203-001158 C-CERAMIC,CHIP: 68PF,5%,50V,NPO,2012,TP
2203-000041 C-CERAMIC,CHIP: TC,10PF,+-0.25PF,50V,COG,
2201-000119 C-CERAMIC,DISC: 100NF,+80-20%,50V,Y5V,8X5
2201-000391 C-CERAMIC,DISC: 22PF,5%,50V,SL,5.0*3
2305-000385 C-FILM,MPEF: 470NF,10%,250V,BK,18X6X12,15
6502-001093 CABLE CLAMP: DAWS-3NE,ID11*L34.8,NYLON6
JC66-01258A CAM-PICK_UP: ML-2571N,POM,22.8,21.5,NTR,-
JC67-00087A JC67-00087A CAP-M-HINGE: SCX-4521F,POM,2.5,9.6,24.9,W
JC39-00407A CBF HARNESS-ADF: SCX-4521F,CBF,UL2835,16P
JC39-00404A CBF HARNESS-FUSER JOINT
JC39-00403A CBF HARNESS-FUSER(110V)
JC39-00410B CBF HARNESS-HVPS_CRUM: SCX-4521F,CBF,UL10
JC39-00215A CBF HARNESS-JAM_SENSOR: ML-3550,UL1061AWG
JC39-00306A CBF HARNESS-LCD: CLP-500,WIRE,UL2877,14-1
JC39-00480A CBF HARNESS-MAINMOTOR: SCX-4521F,WIRE HAR
JC39-00482A CBF HARNESS-MICRO SW: ML-2010,WIRE HARNES
JC39-00412A CBF HARNESS-OPE: SCX-4521F ,WIRE HARNESS,
JC39-00408A JC39-00408A CBF SIGNAL-CIS FFC: SCX-4521F,12PIN,FFC,8
JC39-40511A CBF-HARNESS: ML-80,JUMPER,AWG22,52MM,SILV
JF39-50094B CBF-LINE CORD: MINI FAX,-,IVR,-
3903-000085 3903-000085 CBF-POWER CORD: DT,US,BP3/YES,I(IEC C13/C
6502-000132 CLAMP-CABLE: DAWS-1NE,ID11,NTR,
3708-001408 CONNECTOR-FPC/FFC/PIC: 12P,1MM,STRAIGHT,S
3711-003035 CONNECTOR-HEADER: BOX,14P,2R,2MM,STRAIGHT
3711-003340 CONNECTOR-HEADER: BOX,16P,2R,2MM,STRAIGHT
3711-003942 CONNECTOR-HEADER: BOX,2P,1R,2MM,STRAIGHT,
3711-003968 CONNECTOR-HEADER: BOX,3P,1R,2.5MM,STRAIGH
3711-004349 CONNECTOR-HEADER: BOX,3P,1R,2MM,STRAIGHT,
0609-001223 CONTACT IMAGE SENSOR: 216MM,5148DOT,1.5MS
3301-000319 CORE-FERRITE BEAD: AB,2.0X1.25X0.9MM,1000
3301-000317 CORE-FERRITE BEAD: AB,2X1.25X0.9MM,-
3301-001413 CORE-FERRITE: AD,33X12X7MM,1500,2800GAUSS
JC63-01194A COVER-FUSER_REAR: SCX-4725FN/XAA,PET+GF30
JC63-01204A COVER-PAPER: SCX-4725FN/XAA,ABS,2.5,274.9
JC63-00660B COVER-SCAN LOWER: SCX-4725FN,HIPS,2.5,432
JC63-00661C COVER-SCAN UPPER: SCX-4725FN,HIPS,2.5,438
JC63-01177A COVER-SIDE_R: SCX-4725FN/XAA,HIPS,2.5,206
JC63-00076A COVER-WINDOW SF-530: SF-530,PVC FILM,T0.
2801-003960 CRYSTAL-UNIT: 28.224MHZ,50PPM,28-AAA,18PF
JC69-01027B CUSHION-BOTTOM: SCX-4725FN,EPS,502,466,
JC69-01027C CUSHION-DEVE BLOCK: SCX-4725FN,EPS,286,
JC69-01027A CUSHION-TOP: SCX-4725FN,EPS,502,466,180
JC69-01027D CUSHION-UPPER: SCX-4725FN,EPS,306,141,9
0407-000122 DIODE-ARRAY: 1SS226,80V,300MA,C2-3,SOT-23
0407-000101 DIODE-ARRAY: DA204K,20V,100MA,C2-3,SOT-2
0402-000129 DIODE-RECTIFIER: 1N4003,200V,1A,DO-41
0402-000128 DIODE-RECTIFIER: 1N4004,400V,1A,DO-41
0404-000112 DIODE-SCHOTTKY: RB420D,25V,100MA,SOT-23,T
0401-000005 DIODE-SWITCHING: 1N4148,100V,200MA,500MW,
0403-000537 DIODE-ZENER: 1N4749A,24V,5%,1W,DO-41,TP
0403-000294 DIODE-ZENER: MTZJ4.7B,4.7V,4.55-4.8V,500M
JC96-04233A ELA HOU-ADF LOWER: SCX-4725FN,SEC,-,-
JC96-03379A ELA HOU-ADF MOTOR: SCX-4521F,SEC,ADF MO
JC96-04232A ELA HOU-ADF: SCX-4725FN,SEC,-,-,-
JC96-04219A JC96-04219A ELA HOU-COVER REAR: SCX-4725FN/XAA,SEC,
JC96-04220A ELA HOU-COVER SIDE L: SCX-4725FN/XAA,SEC,
JC96-04310A ELA HOU-COVER_PAPER: SCX-4725FN/XAA,SEC,-
JC96-04230A ELA HOU-FRAME_LOWER: SCX-4725FN,SEC,WORLD
JC96-02417A ELA HOU-FULL SENSOR HARNESS: ML-3550N,SEC
JC96-04229C ELA HOU-FUSER: SCX-4725FN,SEC,WORLD WIDE,
JC96-04234A ELA HOU-OPE: SCX-4725FN,SEC,-,-,-
JC96-04235A ELA HOU-PLATEN: SCX-4725FN,SEC,-,-,-
JC96-04236A ELA HOU-SCAN LOWER: SCX-4725FN,SEC,-,
JC96-02655A ELA HOU-SCAN MOTOR : SCX-4114F,SEC,SCAN
JC96-04237A ELA HOU-SCAN: SCX-4725FN,SEC,SCAN ASS'Y
JB96-01381A ELA UNIT-CORE: SCX-1100,SAMSUNG,CORE ASS'
JC96-01730A JC96-01730A ELA UNIT-HOLDER TR L: ML-6060A,SAMSUNG,SE
JC96-04065A ELA UNIT-LSU: ML-2570,-,25PPM,600DPI,SI
JC96-04033A ELA UNIT-RX DRIVE: ML-2571N,SAMSUNG,ORI
JC96-01672A ELA UNIT-TERMINAL TR L: ML-6060A,SEC,220V
3103-001085 FAN-DC: 24V,80MA,4800RPM,0.131MMH20
JC31-00027A FAN-DC_HUMMINGBIRD:, ML-1710,-,-
JC61-00836A FOOT-FRONT: ML-1750,NBR,D7,12,-
JG61-40001A FOOT: SF4000,CR,3,BLK
JC66-00456A JC66-00456A GEAR-40/21 ADF: SCX-4114F,POM,M0.6,Z40/21
JC66-00455A GEAR-58/25 ADF: SCX-4114F,POM,M0.6,Z58/25
JB66-00103A GEAR-ADF 38: SCX-1110F,POM(DELIN500P),0.6
JB66-00104A GEAR-ADF IDLE 34: SCX-1110F,POM(DELIN500P
JC66-00310A GEAR-AGITATOR-2: SCX-5100,POM(M90-44),0.6
JB66-00101A GEAR-CLUTCH 29: SCX-1110F,POM(DELIN500P),
JC66-00322A GEAR-CLUTCH 39: SCX-5150,POM,M0.6,Z39,W
JC66-00810A GEAR-EXIT_DRV17
JC66-00808A GEAR-FEED DR 41
JC66-01247A GEAR-FEED: ML-2571N,POM,0.8,28,WHITE,24
JC66-01244A JC66-01244A GEAR-FUSER DRIVER: ML-2571N,POM,0.6/0.8,8
JC66-01254A JC66-01254A GEAR-FUSER: ML-2571N,PPS(OFL4036),0.8,45,
JC66-00458A GEAR-IDLE 35 ADF: SCX-4114F,POM,M0.6,Z35,
JB66-00083A GEAR-IDLE: SCX-1110/XRX,POM,0.5,31,WHT,
JC66-00806A JC66-00806A GEAR-OPC DR 76/38/29
JC66-00012A GEAR-OPC R: SF-5100,POM(M90-44),BLK,M0.6,
JB66-00105A GEAR-PICK UP 26: SCX-1110F,POM(DELIN500P)
JC66-01245A GEAR-PICK UP A: ML-2571N,POM,0.8,47,WHI
JC66-01246A GEAR-PICK UP B: ML-2571N,POM,0.8,47,WHI
JB66-00102A GEAR-PICK UP IDEL 38: SCX-1110F,POM(DELIN
JG66-40003A GEAR-PINION: SF4000,POM,WHT,M1,Z16
JC66-00805A JC66-00805A GEAR-RDCN 113/83
JC66-00804A GEAR-RDCN 139/83
JB66-00084A GEAR-REDUCTION: SCX-1110/XRX,POM,0.5,75/2
JC66-00457A GEAR-SWING 31/20 ADF: SCX-4114F,POM,M0.6,
JB66-00082A GEAR-TIMING: SCX-1110/XRX,POM,0.5,75/25,-
JC66-00813A GEAR-TRANSFER
JB01-00001A GLASS-ADF: 246*45,2.85,CLEAR
JB01-00002A GLASS-PLATEN: 250*360,2.8,CLEAR
JC63-00667A GROUND-P-ADF: SCX-4521F,C5210P,0.2,120,24
JC63-00622A GROUND-P-OPC
JC61-01721A GUIDE-CLAW: ML-2571N,PEEK,2,13.5,17.4,GRE
JC61-00834C GUIDE-DOC_L: SCX-4725FN,HIPS,2.0,133.6,82
JC61-00833C GUIDE-DOC_R: SCX-4725FN,HIPS,2.0,133.6,82
JC61-01710A GUIDE-PAPER PATH: ML-2571N,ABS HB,T2.5,15
JC61-00712A GUIDE-STACKER SUB: SCX-4114F,PC,2.5T,-,
JC39-00643A HARNESS-EXIT_SENSOR: SCX-4725FN,UL1061,
JC39-00641A HARNESS-LIU: SCX-4725FN,UL1061,3P,BLA
JC39-00642A HARNESS-LSU: SCX-4725FN,UL1061,14P,BL
JC39-00644A HARNESS-SENSOR_JOINT: SCX-4725FN,UL1061,-
JC62-00002A HEAT SINK-(4500): ML-4500,BRONZE,0.5,9.3,
JC61-01719A HOLDER-EXIT R: ML-2571N,PC,1.5,10,20,BLAC
JC61-01718A HOLDER-IDLE ROLLER: ML-2571N,POM,26,12.
JC61-00694A HOLDER-M-ADF: SCX-4114F,POM,T2.5,-,BLK,
JC61-01711A HOLDER-PAD: ML-2571N,PC/ABS,2.5,48,20.8,B
JC61-01747A HOLDER-SPRING: ML-2571N,PET+GF30%,1.5,11.
JC61-01716A HOUSING-PICK UP A: ML-2571N,PC+ABS,28,2
JC61-01717A HOUSING-PICK UP B: ML-2571N,PC+ABS,-,37
JC44-00132A HVPS:, 24V,21.6V ~ 27.6V,MAX 5KV, MIN
JC13-00031C IC ASIC-CHORUSM: CHORUSM,SCX-5530FN,496PI
JB13-00004A IC ASIC-OPE: SF-3100,HT48C5,SSOP,48P,16.1
1001-000170 IC-ANALOG SWITCH: MC14051BD,SPDT CMOS,SOP
1201-000105 IC-AUDIO AMP: 34119,SOP,8P,150MIL,SINGLE,
1205-002339 IC-CLOCK GENERATOR: CY25811SC,SOIC,8P,150
0801-002469 IC-CMOS LOGIC: 74HC14,SCHMITT INVERTER,TS
0801-002446 IC-CMOS LOGIC: 74LCX14,SCHMITT INVERTER,T
0801-002379 IC-CMOS LOGIC: 74LCX16245,16BIT TRANCEIVE
1205-002478 IC-DAA: CX20493-21/FAX,QFN,28P,5X5MM,PLAS
1105-001405 IC-DRAM: K4S281632D-TL75,4X2MX16BIT,TSOP(
1103-001279 IC-EEPROM: 24256,4KX8BIT,SOP,8P,150MIL,
1107-001590 IC-FLASH MEMORY: S29GL064M,64MBIT,8MX8/4M
1205-002654 IC-MODEM: CX86710-12,TQFP,64P,7X7MM,PLAST
1003-001535 IC-MOTOR DRIVER: A3977SLP,TSSOP,28P,9.6X4
1003-001729 IC-MOTOR DRIVER: AN44060A,HSOP,28P,326MIL
1003-001102 IC-MOTOR DRIVER: TEA3718DP,DIP,16P,300MIL
1203-001455 IC-POSI.FIXED REG.: 1117,DPAK,3P,265MIL,P
1203-000242 IC-POSI.FIXED REG.: 7812,TO-220,3P,PLAS
1106-001228 IC-SRAM: 71V016,64KX16BIT,TSOP,44P,10
0904-001989 IC-USC: ISP1582BS,HVQFN56,56P,8X8X0.85M
1202-000164 IC-VOLTAGE COMP.: 393,SOP,8P,150MIL,DUAL,
JB70-00168A ICT-PIN ADF: SCX-1110F,SUM24L,NI PLATING,
JF70-40521B ICT-SHAFT PINCH: FX2200,STSC304WPA,D2.6,-
JC70-00307A IPR-P-EARTH TRANSFER: ML-1400,SECC,1.0T
JC70-10232A IPR-PLATE SAW: ML-80,SUS304-CSP,T0.1,-
GB70-10500A IPR-UNIT FIXING BRAC: SP-230M,-,-
JF70-10616A IPR-WASHER SPRING CU: CF3400,STS304-CSP,T
JB70-00070A IPR-WASHER WAVE: SF-4750C,SECC,0.1T,-
3722-002345 JACK-MODULAR: 6P/4C,INVERTED,N,ANGLE,N,
3722-002376 JACK-MODULAR: 8P/8C,STANDARD,Y,ANLGE,YEL/
3722-002303 JACK-USB
JC64-00054F KEY-COPY: SCX-4725FN,ABS,HB,G41043,-
JC64-00060F KEY-FAX: SCX-4725FN,ABS,HB,G41043,-
JC64-00187A KEY-M-STOP: SCX-4521F,ABS,HB,SOFT ORANG
JC64-00058A KEY-M-TONER SAVE: SCX-4114F,ACRYL,HB,CL
JC64-00114A KEY-M_START: SF-565P,HIPS,D29.0,HB,IVORY,
JC64-00059E KEY-RESOLUTION: SCX-4725FN,ABS,HB,G4104
JC64-00157D KEY-SCAN TO: SCX-4725FN,ABS,HB,G41043,-
JC64-00056G KEY-SCROLL: SCX-4725FN,ABS,HB,G41043,
JC64-00053G KEY-TEL: SCX-4725FN,ABS,HB,G41043,-
JC68-01584A LABEL(P)-BLANK 90*25: CLP-510,SEE,ART 100
JB68-00644A LABEL(P)-SHADING: SCX-1105,YOOPO PAPER ,T
4713-001211 4713-001211 LAMP-HALOGEN: 115V,750W,-,8X284MM
JC07-00003A LCD-DISPLAY(XEV): VHX1620BHRC9,SCX-5312F/
JC66-00454A LINK-M-SWING ADF: SCX-4114F,POM,-,WHT
JC97-02804A MEA UNIT-ADF UPPER: SCX-4725FN,SEC,-,
JC97-02801A MEA UNIT-COVER OPEN: SCX-4725FN,SEC,-,-
JC97-02802A MEA UNIT-COVER PLATEN: SCX-4725FN,SEC,-
JC97-01709A JC97-01709A MEA UNIT-HOLDER ADF: SCX-4114F,SEC,HOLD

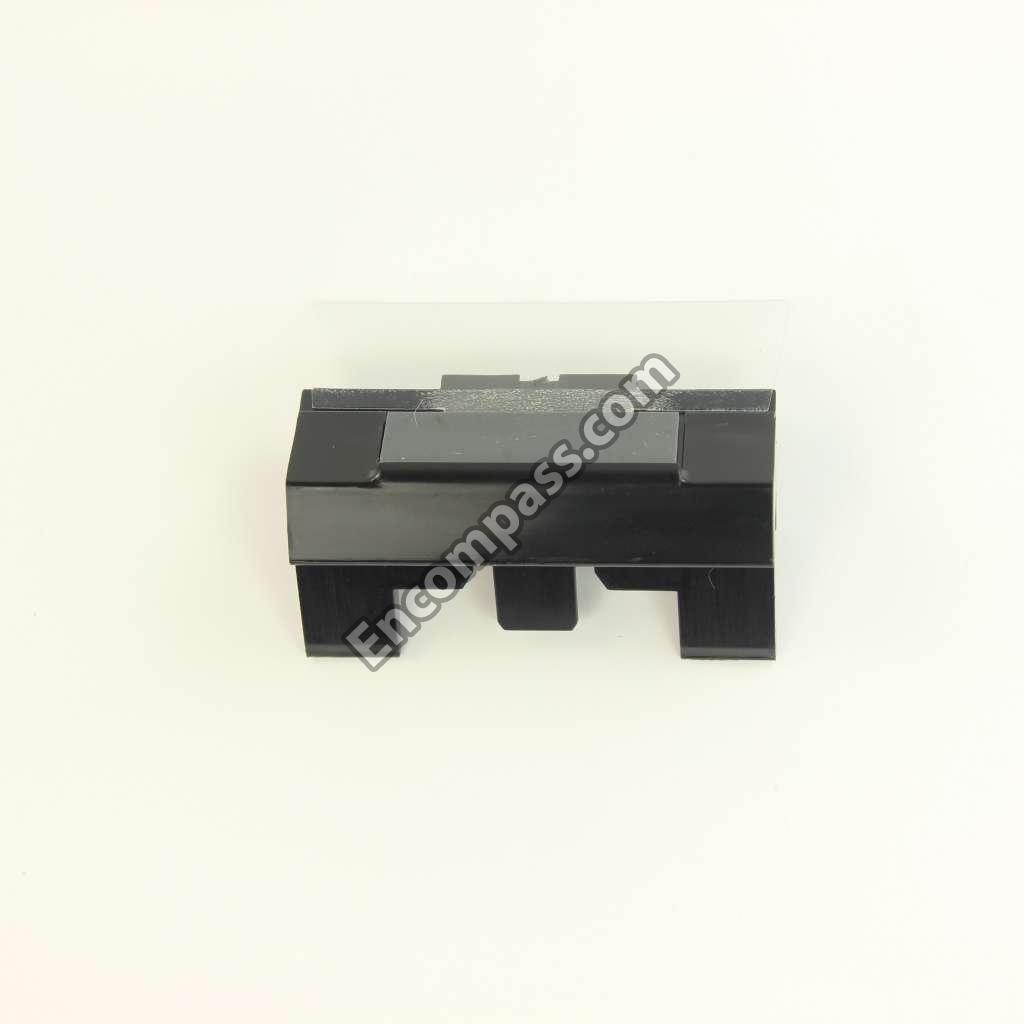

JC97-02669A JC97-02669A MEA UNIT-HOLDER_PAD: ML-2571N,SAMSUNG,-
JC97-02670A MEA UNIT-KNOCK_UP: ML-2571N,SAMSUNG,-,-
JC97-02239C MEA UNIT-MP TRAY: ML-2571N,SEC,-,-,-
JC97-02664A MEA UNIT-PAPER PATH: ML-2571N,SAMSUNG,-
JC97-02665A MEA UNIT-PICK UP GEAR: ML-2571N,SAMSUNG,-
JC97-02203A MEA UNIT-PICKUP: SCX-4521F,SEC,PICKUP ,
JC97-02805A MEA UNIT-SCAN UPPER: SCX-4725FN,SEC,-,-
JC97-02803A MEA UNIT-TX STACKER: SCX-4725FN,SEC,-,-
JC97-02784A JC97-02784A MEA-COVER_FRONT: SCX-4725FN/XAA,SEC,WHI
JC97-02785A MEA-COVER_MIDDLE: SCX-4725FN/XAA,SEC,WH
JC75-00095A JC75-00095A MEC- BRUSH ANTISTATIC: ML-6060A,SEC,NTR
JB75-00299A JB75-00299A MEC-ADF ROLLER ASSY: SCX-1110F/XRX,XEROX,
JB75-00300A JB75-00300A MEC-PICK UP ROLLER ASSY: SCX-1110F/XRX,XE
JC31-00036A MOTOR STEP-ADF: M42SP-13NK,SCX-4920N,0.6A
JC31-00068A MOTOR STEP: M55SP-3NK,ML-2571N,1.3A,1037P
JB31-00011A MOTOR-SCAN: M42SP-4TKC,SCX-1110/XRX,400MA
JC74-00011A MPR-PAD KNOCK UP MP: ML-6060A,CR+CORK,10*
JC69-00987A JC69-00987A PAD-FRICTION: ML-2571N,NBB,T1.0,W8.5,L29,
JC92-01845A PBA SUB-ADF: SCX-4920N/DEL,DELL,-,-,-
JC92-01857A PBA SUB-CRUM: SCX-4725FN,SEC,KOREA,-,FR
JC92-01763A JC92-01763A PBA SUB-CRUM_P: SCX-4521F,XEROX,XEROX,-
JC92-01793B PBA SUB-LIU: SCX-6318F,SEC,XEROX,LIU,FAX,
JC92-01858A PBA SUB-SENSOR: SCX-4725FN,SEC,SEC,-,FR
JC92-01727A PBA SUB-WHITNEY_OPE: SCX-4521F,SEC,USA,OP
JC92-01855A PBA-MAIN: SCX-4725FN,SEC,SEC,FR-4,-,1
JC72-20902A PEX-ROLLER F/UP(2): ML-5000A,TE
0604-001415 0604-001415 PHOTO-INTERRUPTER: TR,90%,150MW,DIP-4,BK
JC61-01709A PLATE-KNOCK_UP: ML-2571N,PC/ABS,T2.5,W82.
JC61-01263C PLATE-MP: ML-2571N,HIPS,2.5,278.2,123,V.W
JC61-01586A PLATE-M_CRUM: SCX-4521F,ABS,2.5,19.7,37.4
JC61-01587A PLATE-M_HINGE: SCX-4521F,ABS,2.5,33,31.7,
JC61-01179A JC61-01179A PLATE-M_WHITE BAR: SCX-4521F,ABS,2.5,20.2
JC72-01009A PMO-ACTUATOR DOC SENSOR: SCX-4114F,ABS,BL
JC72-01010A PMO-ACTUATOR REGI SENSOR: SCX-4114F,ABS,B
JC72-01011A PMO-ACTUATOR SCAN SENSOR: SCX-4114F,ABS,B
JB72-00817A PMO-ADF CLUTCH: SCX-1110F,POM,NRT,-,-
JB72-00821A PMO-ADF COLAR: SCX-1110F,POM,BLK,-,-
JC72-41191A PMO-BEARING SHAFT: ML-6000,POM,WHT,HB,-
JB72-00819A PMO-BUSH: SCX-1110F,POM,NRT,-,-
JC72-00382B PMO-BUSHING FEED: ML-1710,DELRIN8903,WHIT
JC72-00102A JC72-00102A PMO-BUSHING_TR(L): SF-5100,POM ,BLK,-
JC72-40232A PMO-CAP AGITATOR: ML-80,PP,BLK,-
JB72-00843A JB72-00843A PMO-GUIDE PAPER: SCX-1110F,HIPS,NTR,HB,
JB72-01136A PMO-HOLDER BELT: SCX-1105,POM,BLACK,-
JB72-00764A PMO-HOLDER BELT: SCX-1110/XRX,POM,WHT,-
JC72-00444A PMO-HOLDER COLLIMATOR: ML-5200A,PC GF20%,
JC72-00825A PMO-IMPELLER_DRV: ML-6200,PC,BLK,V0,-
JB72-00845A PMO-PICK UP CLUTCH SUB: SCX-1110F,POM(F
JB72-00763A PMO-PULLEY: SCX-1110/XRX,POM,WHT,-,-
JG72-40663A JG72-40663A PMO-ROLL PINCH: SF5500,POM,BLK,HB,-
JC72-00744A PMO-SHAFT PICK UP: SCX-5150,ABS,BLK,HB,
JB72-00822A PMO-SLEEVE ADF: SCX-1110F,POM,BLK,-,-
JB72-00823A PMO-SLEEVE PICK UP: SCX-1110F,POM,BLK,-
JC72-01351C PMO-STACKER: SCX-4725FN,HIPS,V.WHITE,W90,
JC72-01001A JC72-01001A PMO-SUB STACKER: ML-1400,PC,30*40*2,H
JB72-01166D PMO-TX STACKER: SCX-4725FN,HIPS,V.WHITE,2
JB72-00844A PMO-WHITE CLUTCH SUB 29: SCX-1110F,POM(
2001-000015 R-CARBON(S): 0.5OHM,5%,1/2W,AA,TP
2001-000111 R-CARBON: 150OHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000362 R-CARBON: 150OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000429 R-CARBON: 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000490 R-CARBON: 200OHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-000626 R-CARBON: 300OHM,5%,1/4W,AA,TP,2.4X6.4MM
2001-000864 R-CARBON: 56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2001-001031 R-CARBON: 91KOHM,5%,1/8W,AA,TP,1.8X3.2MM
2007-000729 R-CHIP
2007-000033 R-CHIP: 0OHM,5%,1/8W,DA,TP,3216
2007-000123 R-CHIP: 1.5KOHM,5%,1/16W,DA,TP,1608
2007-000290 2007-000290 R-CHIP: 100OHM,5%,1/10W,DA,TP,2012
2007-000074 R-CHIP: 100OHM,5%,1/16W,DA,TP,1608
2007-000090 R-CHIP: 10KOHM,5%,1/16W,DA,TP,1608
2007-000309 R-CHIP: 10OHM,5%,1/16W,DA,TP,1608
2007-002901 R-CHIP: 12.1KOHM,1%,1/16W,DA,TP,1608
2007-000091 R-CHIP: 12KOHM,5%,1/16W,DA,TP,1608
2007-007521 R-CHIP: 14.7KOHM,1%,1/16W,DA,TP,1608
2007-000402 R-CHIP: 150OHM,5%,1/16W,DA,TP,1608
2007-000092 R-CHIP: 15KOHM,5%,1/16W,DA,TP,1608
2007-000078 R-CHIP: 1KOHM,5%,1/16W,DA,TP,1608
2007-000475 R-CHIP: 1MOHM,1%,1/16W,DA,TP,1608
2007-000481 R-CHIP: 1MOHM,5%,1/8W,DA,TP,3216
2007-000105 R-CHIP: 200KOHM,5%,1/16W,DA,TP,1608
2007-000026 R-CHIP: 200OHM,5%,1/10W,R,TP,+-250PP
2007-000093 R-CHIP: 20KOHM,5%,1/16W,DA,TP,1608
2007-000106 R-CHIP: 220KOHM,5%,1/16W,DA,TP,1608
2007-000075 R-CHIP: 220OHM,5%,1/16W,DA,TP,1608
2007-000094 R-CHIP: 22KOHM,5%,1/16W,DA,TP,1608
2007-000071 R-CHIP: 22OHM,5%,1/16W,DA,TP,1608
2007-008510 R-CHIP: 237KOHM,1%,1/4W,DA,TP,3216
2007-009283 R-CHIP: 27OHM,5%,1/2W,TP,5025
2007-000660 R-CHIP: 27OHM,5%,1/8W,DA,TP,3216
2007-000080 2007-000080 R-CHIP: 2KOHM,5%,1/16W,DA,TP,1608
2007-000082 R-CHIP: 3.3KOHM,5%,1/16W,DA,TP,1608
2007-000730 R-CHIP: 300OHM,5%,1/8W,DA,TP,3216
2007-000738 R-CHIP: 30KOHM,5%,1/10W,DA,TP,2012
2007-000096 R-CHIP: 30KOHM,5%,1/16W,DA,TP,1608
2007-007239 R-CHIP: 31.6KOHM,1%,1/10W,TP,1608
2007-000133 R-CHIP: 330KOHM,5%,1/16W,DA,TP,1608
2007-000076 R-CHIP: 330OHM,5%,1/16W,DA,TP,1608
2007-000134 R-CHIP: 33KOHM,5%,1/16W,DA,TP,1608
2007-000781 R-CHIP: 33OHM,5%,1/10W,DA,TP,2012
2007-000113 R-CHIP: 33OHM,5%,1/16W,DA,TP,1608
2007-000798 R-CHIP: 360OHM,5%,1/10W,DA,TP,2012
2007-000839 R-CHIP: 39OHM,5%,1/16W,DA,TP,1608
2007-000083 R-CHIP: 3KOHM,5%,1/16W,DA,TP,1608
2007-000872 R-CHIP: 4.7KOHM,5%,1/10W,DA,TP,2012
2007-000084 R-CHIP: 4.7KOHM,5%,1/16W,DA,TP,1608
2007-000107 R-CHIP: 470KOHM,5%,1/16W,DA,TP,1608
2007-002916 R-CHIP: 475KOHM,1%,1/16W,DA,TP,1608
2007-000941 R-CHIP: 47KOHM,5%,1/10W,DA,TP,2012
2007-000097 R-CHIP: 47KOHM,5%,1/16W,DA,TP,1608
2007-000965 R-CHIP: 5.1KOHM,5%,1/16W,DA,TP,1608
2007-000086 R-CHIP: 5.6KOHM,5%,1/16W,DA,TP,1608
2007-008473 R-CHIP: 59KOHM,1%,1/10W,TP,1608
2007-002760 R-CHIP: 6.8MOHM,5%,1/4W,TP,3216
2007-000120 R-CHIP: 680OHM,5%,1/16W,DA,TP,1608
2007-001134 R-CHIP: 68OHM,5%,1/16W,DA,TP,1608
2007-001139 R-CHIP: 7.5KOHM,1%,1/16W,DA,TP,1608
2003-000507 R-METAL OXIDE(S): 15KOHM,5%,1W,AA,TP,3
2011-000660 R-NETWORK: 1KOHM,5%,1/16W,L,CHIP,8P,ST
2011-000002 R-NETWORK: 22OHM,5%,1/16W,L,CHIP,8P,ST
2011-001094 R-NETWORK: 39OHM,+-5%,1/16W,L,PLCC,8P,TP
2011-001193 R-NETWORK: 68OHM,5%,1/16W,L,CHIP,8P,TP
2005-000168 R-WIRE WOUND,NON: 0.22OHM,5%,2W,AA,BK,4X1
3501-000203 RELAY-MINIATURE: 5V,200MW,1A,1FORMC,6MS,3
6044-000159 RING-C: ID3,OD7,T0.6,PASS,STSC
6044-000125 RING-E: ID4,OD9,T0.6,PASS,STSC
JB73-00052A JB73-00052A RMO-ADF RUBBER: SCX-1110F,SILICON RUBBER,
JC66-00560A ROLLER-DRIVE: SCX-4114F,CR+SUM22L,14,-,
JC66-01255A JC66-01255A ROLLER-EXIT F/DOWN: ML-2571N,SUM22+EPDM,1
JC66-00559A ROLLER-EXIT: SCX-4114F,CR+SUM22L,14,-,-

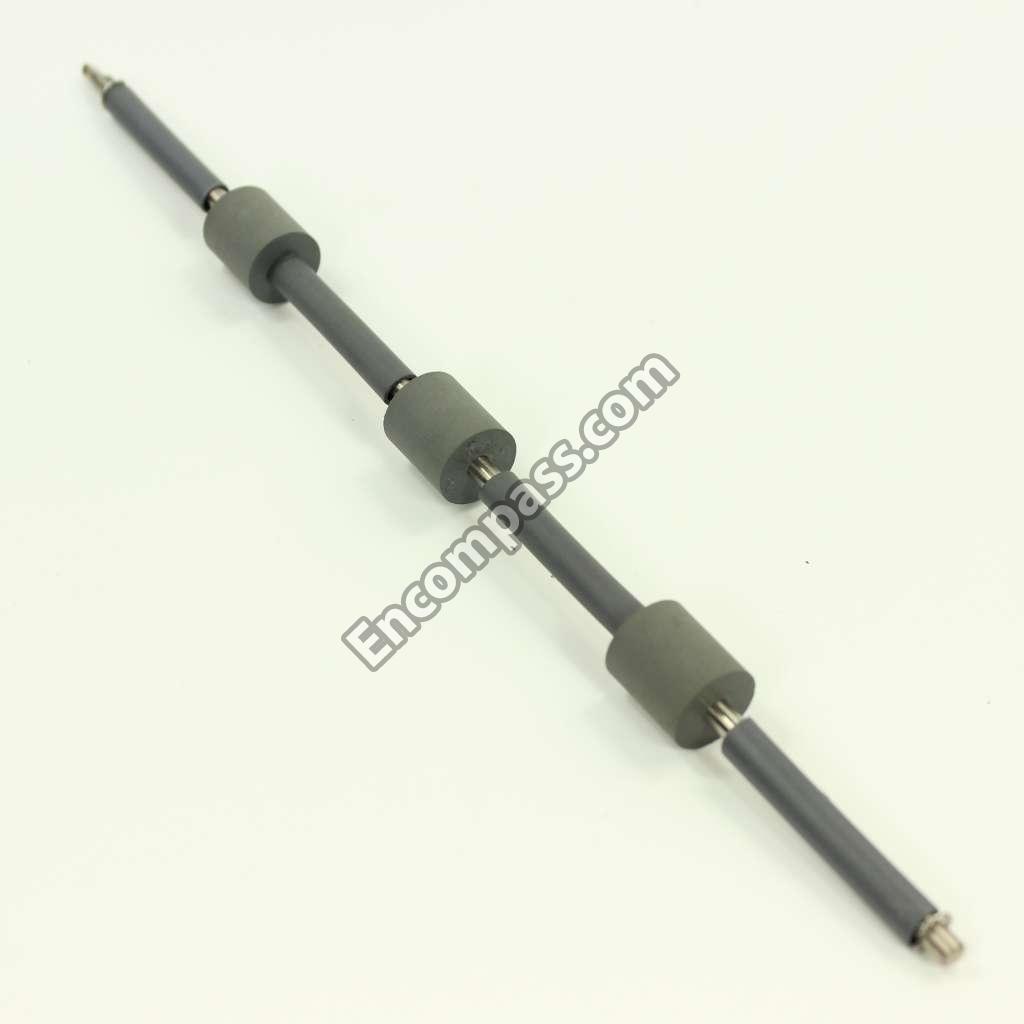

JC66-01251A JC66-01251A ROLLER-FEED: ML-2571N,SUM22+NI+EPDM,5/17.
JC66-01256A JC66-01256A ROLLER-HEAT: ML-2571N,AL 5052+ PFA COAT,2
JC66-00529A JC66-00529A ROLLER-M-IDLE FEED: ML-1510,POM,13,13,-
JC66-01253A ROLLER-PICK_UP IDLE: ML-2571N,POM,31.2,
JC66-00600A ROLLER-PRESSURE: ML-1710,SPONGE+PFA,22,23
JC66-01218A JC66-01218A ROLLER-TRANSFER: SCX-4200,NBR+ECO,15,218M
JC73-00091A RPR-ROLLER EXIT IDLE: SCX-5100,POM + CR R
JC73-00239A JC73-00239A RUBBER-PICK_UP: ML-2571N,EPDM+IR,OD29,ID2
JC73-00203A RUBBER-SCROLL: SCX-4521F,SILICON,133.0*68
JC73-00202A RUBBER-TEL: SCX-4521F,SILICON,186.8*68.2,
6002-000440 SCREW-TAPPING: RWH,+,2,M3,L8,ZPC(BLK),SWR
6003-000282 6003-000282 SCREW-TAPTITE: BH,+,B,M3,L8,ZPC(BLK),SWCH
6003-000269 6003-000269 SCREW-TAPTITE: BH,+,S,M3,L6,ZPC(YEL),SWRC
6003-000196 SCREW-TAPTITE: PWH,+,B,M3,L10,NI PLT,SWRC
JC66-00838A SHAFT-CIS: SCX-4521F,SUM,414,6,-,-
JC66-01252A SHAFT-FEED: ML-2571N,POM,53.8,8,NTR,-
JC66-00909A SHAFT-IDLE FEED: SCX-4521F,SUS303F,59.5,2
JC66-00460A SHAFT-M-FEED GEAR 38: SCX-4114F,POM,D5.
JC66-00720A SHAFT-P-CORE: ML-1750,SECC 1.6T,220,-,-
JC66-00829A JC66-00829A SHAFT-P-PICK_UP
JC66-00594A SHAFT-STACKER: SCX-4114F,SUM24L,31.2,4,
JC63-00243A SHEET-ADF HOLDER: SCX-4114F,PC SHEET,0.12
JC63-00290A SHEET-HOLDER PAD: ML-1750,PC,0.178T,50,28
JC63-00722A SHEET-HVPS
JC63-00711A SHEET-MP: SCX-4521F,PET,T0.188,223.0,60.8
JC63-00209A JC63-00209A SHEET-WHITE SPONGE: SCX-4114F,PC SHEET+SP
JC33-00015B JC33-00015B SOLENOID-MP_R2:, SCX-4720F,DC24V,-,-
JC60-00024A SPACER-FUSER: SCX-4725FN,TEFRON,6,13.5,
JC60-00023A SPACER-GEAR: ML-2571N,POM, M90-44,17,-,
3001-001494 SPEAKER: 1W,8OHM,83DB,500HZ
JB61-00107A SPRING ETC-LEVER SENSOR: SF-430,SUS304,0.
JC61-00387A SPRING ETC-PAD: ML-9400W,SUS304WPB,7.55,-
JC61-01258A SPRING ETC-TORSION DEVE_L
JC61-01259A SPRING ETC-TORSION DEVE_R
JB61-00109A SPRING-BELT: SCX-1105,SUS304WPB,0.8,ID1
JB61-70904A SPRING-CLUTCH: AMUNDSEN,SWP-A,0.5,D11.45,
6107-001135 SPRING-CS: SUS304 WPB,PI0.3,D6,L14,-,
6107-001167 SPRING-CS: SUS304-WPB,PI0.25,D3.25,L9.6
6107-001163 SPRING-CS: SUS304-WPB,PI0.4,D3.9,L13,
6107-001297 SPRING-CS: SWP,PI0.6,D12.6,L50,-,ID12
6107-001291 SPRING-ES: SUS304-WPB,NTR,PI0.12,D2.48,L8
6107-001296 SPRING-ES: SUS304-WPB,PI0.4,D2.8,L17.2,
JC61-70911A SPRING-EXIT ROLL FD: ML-165,SUS304 WPB,PI
JC61-00011A SPRING-FEED: SF-5100,SUS304WPB,4.8,0.6,13
JC61-00056A SPRING-PR(7300): ML-7300,PIANO WIRE,1.0,6
JB61-00076A JB61-00076A SPRING-TORSION DOC (CC2-F): SCX-1110F/XRX
JC61-00047A SPRING-TR L HAWK: ML-6060A,SUS 304 WPB,
JC61-70940A SPRING-TR(12): ML-5500,SUS304-WPB,0.5,4.5
JC61-01714A STOPPER-PICK_UP L: ML-2571N,POM,D17,L20
JC61-01713A STOPPER-PICK_UP R: ML-2571N,POM,D17,L20
CALL_1-800-SAMSUNG THERMISTOR-NTC ASSY: 7KOHM,3370K,0.3MW/
1401-001069 THYRISTOR-SIDAC: P3100EB,275V,0.15A,250A,
0506-000135 TR-ARRAY: IMX1,NPN,2,50V,40V,100MA,300MW
0502-001258 TR-POWER: FJT44,NPN,SOT-223,TP,40-200
0501-000457 TR-SMALL SIGNAL
0501-000479 TR-SMALL SIGNAL
0501-000632 TR-SMALL SIGNAL : 2SB1197K,PNP,200MW,
0501-000279 TR-SMALL SIGNAL: KSA1182,PNP,-35V,-30V,-5
0501-000342 TR-SMALL SIGNAL: KSC1623,NPN,60V,50V,100M
2602-000061 TRANS-PULSE: 30UH,0.225/0.325OHM,1:1.66,9
2602-000062 TRANS-PULSE: 450UH,0.25/0.25OHM,1:1,12.8X
1405-000170 VARISTOR: 82V,1200A,9X3.6MM,-
6031-000023 WASHER-PLAIN:, ID5.9,OD10.0,T0.5,BLK,POL
Main Menu x
