Manufacturer
Samsung
Model Number
SCX6220
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC81-00426B | AS-DUMMY UPPER: SCX-6320F,PC ABS,DUMMY |
|
|
BEARING-PRESSURE/R: ML-165,PPS,5,14.8 |
| 6602-001090 | BELT-TIMING GEAR: FIBER GLASS,T4.8,942. |
| 6602-001084 | BELT-TIMING GEAR: RUB(CR),T1.36,40S2M224, |
| JC69-00645A | BOX(P)-MAIN(3IN1_XAA): SCX-6220,DW,A-1,64 |
| JC67-00067A | BRUSH-CARBON: SCX-6320F,CU+CABON,7.8,7. |
| JC61-00423A | BUSH-6_D: ML-9400W,REARING OIL,-,NTR, |
|
|
BUSH-M-ADF CLUTCH: SCX-6320F,PPS,7,11.8,8 |
| 2402-000179 | C-AL,SMD |
| 2402-001042 | C-AL,SMD |
| 2402-000176 | C-AL,SMD: 10UF,20%,16V,GP,5353,1.4MM,TP |
| 2401-000042 | C-AL: 100UF,20%,16V,GP,6.3X7MM,2.5MM |
| 2401-000310 | C-AL: 100UF,20%,25V,GP,8X1 |
| 2401-000603 | C-AL: 1UF,20%,50V,GP,5X11MM,5MM,TP |
| 2401-002463 | C-AL: 470UF,20%,16V,GP,10X12.5MM,5MM |
| 2401-002300 | C-AL: 47UF,20%,50V,GP,6X11MM,5MM,TP |
| 2402-000008 | C-ALUMINUM,SMD: 47UF,+-20%,16V,6.6X6.6X5. |
| 2203-000681 | C-CERAMIC,CHIP |
| 2203-000783 | C-CERAMIC,CHIP |
| 2203-000998 | C-CERAMIC,CHIP |
| 2203-000192 | C-CERAMIC,CHIP: 100NF,+80-20%,50V,Y5V,201 |
| 2203-000257 | C-CERAMIC,CHIP: 10NF,10%,50V,X7R,1608,T |
| 2203-000440 | C-CERAMIC,CHIP: 1NF,10%,50V,X7R,1608,TP |
| 2203-002392 | C-CERAMIC,CHIP: 220NF,+80-20%,50V,Y5V,TP, |
| 2203-002398 | C-CERAMIC,CHIP: 22NF,10%,50V,X7R,TP,1608, |
| 2203-000626 | C-CERAMIC,CHIP: 22PF,5%,50V,CH,1608,TP |
| 2203-001683 | C-CERAMIC,CHIP: 68PF,5%,50V,CH,1608,1.6MM |
| 2203-000041 | C-CERAMIC,CHIP: TC,10PF,+-0.25PF,50V,COG, |
| 6501-000115 | CABLE TIE: DA100,T1,W2.5,L102,NTR,NYLON66 |
| JC39-00359A | CBF D SUB CABLE-DADF: SCX-6320F,15,16,#26 |
| JC39-00335A | CBF HARNESS-AC_WIRE: SCX-6320F,WIRE HARNE |
| JC39-00342A | CBF HARNESS-AIR_TEMP: SCX-6320F,CBF,UL106 |
| JC39-00170A | CBF HARNESS-BLADE+SUPPLY+DEV: SCX-5100,WI |
| JC39-00391A | CBF HARNESS-COUNTER: SCX-6320F,CBF,UL1061 |
| JC39-00332A | CBF HARNESS-COVER_OPEN: SCX-6320F,CBF,UL1 |
| JC39-00360A | CBF HARNESS-COVER_SW: SCX-6320F,CBF,UL106 |
| JC39-00334A | CBF HARNESS-DADF_GND: SCX-6320F,CBF,UL100 |
| JC39-00333A | CBF HARNESS-DEVE_CNT: SCX-6320F,CBF,UL106 |
| JC39-00331A | CBF HARNESS-DOC_WIDTH: SCX-6320F,CBF,UL10 |
| JB39-00017A | CBF HARNESS-EARTH (TX MOTOR): SF-3100,CBF |
| JC39-00329A | CBF HARNESS-EXIT_OPEN: SCX-6320F,CBF,UL10 |
| JC39-00177A | CBF HARNESS-EXIT_SEN.: SCX-5100,WIRE HARN |
| JC39-00180A | CBF HARNESS-FEED+P-EMPTY_SEN.: SCX-5100,W |
| JC39-00326A | CBF HARNESS-FEED_MOTOR: SCX-6320F,CBF,UL1 |
| JC39-00337A | CBF HARNESS-FUSER_MOTO: SCX-6320F,CBF,UL1 |
| JC39-00341A | CBF HARNESS-GATE_SEN: SCX-6320F,CBF,UL106 |
| JC39-00186A | CBF HARNESS-INLET(KOREA): SCX-5100,WIRE H |
| JC39-00361A | CBF HARNESS-LCD: SCX-6320F,FLAT,UL2877,8P |
| JB39-00103A | CBF HARNESS-LIU GND: SCX-1110F,WIRE,UL100 |
| JC39-00336A | CBF HARNESS-LSU: SCX-6320F,CBF,UL1061,12P |
| JC39-00169A | CBF HARNESS-MHV WIRE: SCX-5100,WIRE HARNE |
| JC39-00182A | CBF HARNESS-MP_SEN.: SCX-5100,WIRE HARNES |
| JC39-00179A | CBF HARNESS-OPC GND: SCX-5100,WIRE HARNES |
| JC39-00229A | CBF HARNESS-OPC_FUSE: SCX-5312F,WIRE HARN |
| JC39-00036A | CBF HARNESS-OPE GND: SF-5100,#18,UL 1007, |
| JC39-00340A | CBF HARNESS-OPE: SCX-6320F,CBF,UL1061,7P, |
| JB39-00128A | CBF HARNESS-P1284 FG: SF-430,UL1007,#18,1 |
| JC39-00181A | CBF HARNESS-PTL: SCX-5100,WIRE HARNESS,UL |
| JC39-00328A | CBF HARNESS-REGI_SEN: SCX-6320F,CBF,UL106 |
| JB39-00077A | CBF HARNESS-SCAN MOTOR: SCX-1110,WIRE,UL, |
| JC39-00338A | CBF HARNESS-SCAN_DSUB: SCX-6320F,CBF,UL10 |
| JC39-00082A | CBF HARNESS-SCF: ML-6060,WIRE HARNESS,UL1 |
| JC39-00344A | CBF HARNESS-SENSOR_IF: SCX-6320F,CBF,UL10 |
| JC39-00339A | CBF HARNESS-SMPS: SCX-6320F,CBF,UL1061,28 |
|
|
CBF HARNESS-SWITCH GRAY: MLE-5200,WIRE HA |
| JC39-00377A | CBF HARNESS-THERM: SCX-6320F,CBF,UL1061,2 |
| JC39-00168A | CBF HARNESS-THV WIRE: SCX-5100,WIRE HARNE |
| JC39-00178A | CBF HARNESS-TONER_RX: SCX-5100,WIRE HARNE |
| JC39-00236A | CBF SIGNAL-CCD FFC: SCX-5315F,24,FFC,750M |
| JC39-40511A | CBF-HARNESS: ML-80,JUMPER,AWG22,52MM,SILV |
|
|
CBF-INTERFACE-USB: ML-6100,UL,1800 +/- |
|
|
CBF-POWER CORD: DT,US,BP3/YES,I(IEC C13/C |
| JF27-60051A | COIL-FILTER: CF5400,60UH,50MOHM,18T |
| JC61-40001A | COM,FOOT-RUBBER: CR70,BLK |
| 3701-001143 | CONNECTOR-DSUB: 15P,3R,FEMALE,ANGLE,AUF |
| 3708-001637 | CONNECTOR-FPC/FC/PIC: 24P,1MM,STRAIGHT,SN |
| 3711-000255 | CONNECTOR-HEADER: 1WALL,5P,1R,2.5MM,STRAI |
| 3711-002813 | CONNECTOR-HEADER: BOX,12P,1R,2MM,STRAIGHT |
| 3711-003340 | CONNECTOR-HEADER: BOX,16P,2R,2MM,STRAIGHT |
| 3711-003981 | CONNECTOR-HEADER: BOX,28P,2R,2MM,STRAIGHT |
| 3711-003968 | CONNECTOR-HEADER: BOX,3P,1R,2.5MM,STRAIGH |
| 3711-002809 | CONNECTOR-HEADER: BOX,8P,1R,2MM,STRAIGHT, |
| 3702-001104 | CONNECTOR-RIBBON: 30P,FEMALE,STRAIGHT,AU |
| 3702-001159 | CONNECTOR-RIBBON: 80,MALE,STRAIGHT,AU |
| 3301-000317 | CORE-FERRITE BEAD: AB,2X1.25X0.9MM,- |
| 3301-001594 | CORE-FERRITE BEAD: AB,90OHM,2.0X1.2X1.3MM |
| 3301-001413 | CORE-FERRITE: AD,33X12X7MM,1500,2800GAUSS |
| JC63-00158A | COVER-M-CCD CABLE: SCX-6320F,HIPS,-,H |
| JC63-00192A | COVER-M-MAIN REAR DUMMY: SCX-6320F,HIPS,2 |
| JC63-00191A | COVER-M-MAIN REAR: SCX-6320F,HIPS,2.5T, |
| JC63-00539B | COVER-M-PANNEL MFP DOM: SCX-6220/XIL,HIPS |
| JC63-00254A | COVER-M-SIDE: SCX-6320F,PC,-,-,BLK, |
| JC63-00200A | COVER-M_FRONT: SCX-6320F,HIPS,-,HB,XE |
| JC63-00195A | COVER-M_OPEN: SCX-6320F,HIPS,-,HB,XER |
| JC63-00201A | COVER-M_REAR: SCX-6320F,HIPS,-,HB,XER |
| JC63-00197A | COVER-M_SENSOR: SCX-6320F,HIPS,-,HB,X |
| JC63-00307A | COVER-P GEAR: SCX-6320F,SECC,1.2T,110,72. |
| JC63-00157A | COVER-SCAN LOWER(UMAX): SCX-6320F,HIPS, |
| 2801-000199 | CRYSTAL-UNIT: 20MHZ,50PPM,28-AAA,16PF,50O |
| 2801-003582 | CRYSTAL-UNIT: 30MHZ,50PPM,28-AAA,18PF,80O |
| JC47-00011A | DAMPER-PICK_UP: SCX-6320F,XEROX,JEP2015 |
| 0407-000123 | DIODE-ARRAY: 1SS184,80V,300MA,CA2-3,SOT-2 |
| 0407-000122 | DIODE-ARRAY: 1SS226,80V,300MA,C2-3,SOT-23 |
| 0407-000101 | DIODE-ARRAY: DA204K,20V,100MA,C2-3,SOT-2 |
| 0407-000116 | DIODE-ARRAY: DAP202K,80V,100MA,CK2-3,SOT |
| 0402-000129 | DIODE-RECTIFIER: 1N4003,200V,1A,DO-41 |
| 0402-001189 | DIODE-RECTIFIER: M4,400V,1A,SMD-2,TP |
| 0404-000112 | DIODE-SCHOTTKY: RB420D,25V,100MA,SOT-23,T |
| JC66-00639A | DRUM-OPC: SCX-6320F,ALUMINIUM,30,248, |
| JC96-02958A | ELA HOU-BASE FRAME(4IN1): SCX-6320F,XEROX |
| JC96-02942A | ELA HOU-COVER PLATEN: SCX-6320F,XEROX,USA |
| JC96-02937A | ELA HOU-CRUM: SCX-6320F,XEROX,USA,CRUM, |
| JC96-02941A | ELA HOU-DADF MOTOR: SCX-6320F,XEROX,USA,D |
| JC96-02943A | ELA HOU-DADF: SCX-6320F,XEROX,USA,-,- |
| JC96-02973A | ELA HOU-DADF_SUB: SCX-6320F,XEROX,USA,DAD |
| JC96-02311A | ELA HOU-DUCT FAN: SCX-5312F,XEROX,DUCT |
| JC96-02940A | ELA HOU-DUPLEX MOTOR: SCX-6320F,XEROX,USA |
| JC96-02957A | ELA HOU-ENGINE DRIVE(MCK2): SCX-6320F,XER |
| JC96-03907A | ELA HOU-FEED EMP SEN: SCX-5315F,SAMSUNG,- |
|
|
ELA HOU-FUSER E_COIL: SCX-6320F,SEC,FUS |
| JC96-02182A | ELA HOU-MP ASS'Y: SCX-5312F,XEROX,MP, |
| JC96-03208B | ELA HOU-OPE_2IN1: SCX-6220/XAA,SEC,USA,2I |
| JC96-02715B | ELA HOU-PICK UP PLUS(SEC): SCX-5315F,SAMS |
| JC96-02936A | ELA HOU-SCAN LOWER: SCX-6320F,XEROX,USA,M |
| JC96-02751A | ELA HOU-SCAN MOTOR: SCX-5315F,SAMSUNG,USA |
| JC96-02712B | ELA HOU-SCAN UPPER: SCX-6320F,XEROX,USA,S |
| JC96-03217B | ELA HOU-SCANNER_2IN1: SCX-6220/XAA,SEC,US |
| JC96-02962A | ELA HOU-SHIELD MAIN LOWER: SCX-6320F,XERO |
| JC96-02183C | ELA HOU-SIDE COVER: SCX-6320F,XEROX,SID |
| JC96-03903A | ELA HOU-SUB_DOC_WIDTH: SCX-6320F,XEROX, |
| JC96-03035A | ELA HOU-ZENER: SCX-6320F,SAMSUNG,COMMON,Z |
| JC96-01607A | ELA M/MEDIO AUD-SPEAKER: SF-5100,SEC,ASSY |
| JC96-03056A | ELA UNIT-TR: SCX-5312F,SEC,DOMESTIC,T/R , |
| JC31-00027B | FAN-DC CARDINAL: AD0424LS-C50,ML-2550,- |
| JC31-00012A | FAN-DC: AD0624MSA70GL(R1)DOL,ML-5000,PBT+ |
| 2901-001178 | FILTER-EMI SMD: 25V,2A,100000PF,2X1.25X |
| 3601-001246 | FUSE-CARTRIDGE: 250V,63MA,FAST-ACTING,GLA |
| JC66-00350A | GEAR-35/19: SCX-5100,POM,M1,Z35/19,WHT, |
| JC66-00345A | GEAR-71/23: SCX-5100,POM,M0.5/1,Z71/23, |
| JC66-00337A | GEAR-86/23: SCX-5100,POM,M0.5/0.6,Z86/23, |
| JB66-00104A | GEAR-ADF IDLE 34: SCX-1110F,POM(DELIN500P |
| JC66-00565A | GEAR-DADF24(A): SCX-6320F,POM,M1.0,Z24, |
| JC66-00565B | GEAR-DADF24(B): SCX-6345N,SW01,M1.0,Z24,5 |
| JC66-00571A | GEAR-DADF_EXIT31: SCX-6320F,POM,M0.5,Z31, |
|
|
GEAR-DADF_SCAN31: SCX-6320F,POM,M0.5,Z31, |
| JC66-00338A | GEAR-DEVE DRV: SCX-5100,POM,M0.5,Z61,WH |
| JC66-00341A | GEAR-DUP IDLER 17: SCX-5100,POM,M0.8,Z17, |
| JC66-40912A | GEAR-DUPLEX: ML-165,POM(NW-02),WHT,M1,Z16 |
| JC66-40964A | GEAR-EXIT,IDLE(Z17): ML-6000,NYLON66,BLK, |
| JC66-40211B | GEAR-EXIT/U,ID: ML-1605,POM,BLK,- |
| JC66-00348A | GEAR-FEED DRV: SCX-5100,POM,M0.8,Z37,WH |
| JC66-00332A | GEAR-FEED: SCX-5100,POM,M0.8,Z62/54,WHT |
| JC66-00333A | GEAR-FUSER DRV INNER: SCX-5100,POM,M1,Z29 |
|
|
GEAR-HUB CLUTCH: SCX-5100,POM,M0.8,Z13, |
| JB66-00083A | GEAR-IDLE: SCX-1110/XRX,POM,0.5,31,WHT, |
| JC66-00347A | GEAR-OPC DRV: SCX-5100,POM,M0.6,Z89,WHT |
| JB66-00105A | GEAR-PICK UP 26: SCX-1110F,POM(DELIN500P) |
| JB66-00102A | GEAR-PICK UP IDEL 38: SCX-1110F,POM(DELIN |
| JC66-00335A | GEAR-PICK_UP: SCX-5100,POM,M0.8,Z47,WHT |
| JC66-00342A | GEAR-RDCN FEED INNER: SCX-5100,POM,M0.8,Z |
| JC66-00343A | GEAR-RDCN FEED OUTER: SCX-5100,POM,M0.8,Z |
| JC66-00530A | GEAR-REDUCTION73/37: SCX-6320F,POM,M0.5,Z |
| JC66-00349A | GEAR-SWING DRV: SCX-5100,POM,M1,Z34/17, |
| JC66-00531A | GEAR-TIMING: SCX-6320F,POM,M0.5,Z57,WHT |
| JC66-40947A | GEAR-TRANSFER: ML-6000,NW-02,BLK,M0.6,Z30 |
| JC63-00428A | GROUND-S_REGI: SCX-6320F,SUS304WPB,PI0.7, |
| JC61-00824A | GUIDE-M-SIDE HANDLE: SCX-5315F,ABS,-, |
| JC61-00737A | GUIDE-M_DUPLEX_INNER: SCX-6320F,HIPS,2.5T |
| JC61-00735A | GUIDE-M_DUPLEX_LOWER: SCX-6320F,HIPS,2.5T |
| JC61-00826A | GUIDE-P-SIDE CST: SCX-5315F,SPCC,1.2,-, |
| JC61-01786A | GUIDE-TR: SCX-6418F,SECC,T0.5,44.8,233.0, |
| JC39-00327B | HARNESS-CLUTCH_IF: SCX-6320F,CBF,UL1061,8 |
| JC61-00729A | HINGE-M-HOUSING: SCX-6320F,POM,-,WHT, |
| JC61-00703A | HOLDER-M-CCD(UMAX): SCX-6320F,ABS,T2.5, |
| JC61-00724A | HOLDER-M-TERMINAL: SCX-6320F,HIPS,1.5T, |
| JC61-00723A | HOUSING-M-TERMINAL: SCX-6320F,HIPS,1.5T,- |
| JC13-00023A | IC ASIC-A/D CONVERTER: AFE_CIP4,SCX-5315F |
| JC13-00014C | IC ASIC-SPGPM(3): SPGPM_D,SCX-6320F,256PI |
| JC09-00002A | IC MICOM-DADF: S3P8454XZZ-QWR4,SCX-6320F, |
| 1001-000171 | IC-ANALOG SWITCH: MC14053BD,SPDT CMOS,SOP |
| 1201-000105 | IC-AUDIO AMP: 34119,SOP,8P,150MIL,SINGLE, |
| 1205-002339 | IC-CLOCK GENERATOR: CY25811SC,SOIC,8P,150 |
| 0801-001090 | IC-CMOS LOGIC: 74HC14,SCHIMITT INVERTER,S |
| 0801-000477 | IC-CMOS LOGIC: 74HCT273,D FLIP-FLOP,SOP,2 |
| 0801-002446 | IC-CMOS LOGIC: 74LCX14,SCHMITT INVERTER,T |
| 0801-002095 | IC-CMOS LOGIC: 74LCX245,BUFFERS,SOP,20P,- |
| 0801-002326 | IC-CMOS LOGIC: 74LCX32,OR GATE,TSSOP,14P, |
| 0801-002484 | IC-CMOS LOGIC: TC74LCX138FT,3-TO-8 DECOD |
| 0801-002591 | IC-CMOSLOGIC: 74LVX273,DFLIP-FLOP,TSSOP,2 |
| 1105-001357 | IC-DRAM: K4S281632,2MX16X4BIT,TSOP(II),54 |
| 1103-001183 | IC-EEPROM: 24C04,512X8BIT,SOP,8P,150MIL,- |
| 1103-001045 | IC-EEPROM: 27E512,64KX8BIT,DIP,28P,60 |
| 1006-001250 | IC-LINE DRIVER: DS90LV017A,SOIC,8P,150MIL |
| 1006-001224 | IC-LINE TRANSCEIVER: 74LVX161284,TSSOP,48 |
| 1003-001535 | IC-MOTOR DRIVER: A3977SLP,TSSOP,28P,9.6X4 |
| 1203-001519 | IC-POSI.ADJUST REG.: LM317,SOT223,3P,274 |
| 1203-001455 | IC-POSI.FIXED REG.: 1117,DPAK,3P,265MIL,P |
| 0909-000101 | IC-REAL TIME CLOCK: 4513,SOP,14P,300MIL |
| 1106-001228 | IC-SRAM: 71V016,64KX16BIT,TSOP,44P,10 |
| 1106-001457 | IC-SRAM: K6F1008U2C,128KX8BIT,TSOP,32P,46 |
| 0803-003263 | IC-TTL: 74LCX07,HEX BUFFER,SOIC,14P,150MI |
| 1202-000164 | IC-VOLTAGE COMP.: 393,SOP,8P,150MIL,DUAL, |
| 1203-002454 | IC-VOLTAGE REGULATOR: FAN1117A,TO-252,3P, |
| JB70-00168A | ICT-PIN ADF: SCX-1110F,SUM24L,NI PLATING, |
| JC70-00234A | IPR-BRACKET GUIDE B: SCX-5100,SUS,0.2,- |
| JC70-00237A | IPR-BRACKET SOLENOIDE: SCX-5100,SECC,1. |
| JC70-00228A | IPR-BRK SCAN BD: SCX-5100,SPC,1.2T,-, |
| JC70-00233A | IPR-BRKT G DUP: SCX-5100,SECC,0.8,-,- |
| JC70-00232A | IPR-BRKT GROUND A: SCX-5100,SUS,0.2,- |
| JC70-00230A | IPR-BRKT GROUND B: SCX-5100,SUS,T0.2, |
| JC70-00231A | IPR-BRKT GROUND TR: SCX-5100,C5210P,T0. |
| JC70-00225A | IPR-BRKT WHITE BAR: SCX-5150,SECC,T0.8, |
| JC70-00239A | IPR-CHANNEL BASE FRAME: SCX-5100,SECC,T |
| JC70-10232D | IPR-E-PLATE SAW(MCK2): SCX-6320F,SUS304CS |
| JC70-00220A | IPR-FINGER: SCX-5100,SPCC,T1.2,-,- |
| JC70-00214A | IPR-GND EXIT: SCX-5100,SUS304CSP,0.2T,- |
| JC70-00238A | IPR-GND FEED: SCX-5100,SUS304,T0.2,-, |
| JC70-00235A | IPR-GND INPUT: SCX-5100,SUS304,0.2,-, |
| JC70-00217A | IPR-GND OPC BASE: SCX-5100,SUS304CSP,0. |
| JC70-00216A | IPR-GND OPC: SCX-5100,SUS304CSP,0.2T, |
| JC70-00219A | IPR-GND TERMINAL: SCX-5100,SUS304CSP,0. |
| JC70-00259A | IPR-GROUND FU: SCX-5100,SUS304,T0.15, |
| JC70-00240A | IPR-GROUND PLATE A(OPC): SCX-5100,SUS304, |
| JC70-00241A | IPR-GROUND PLATE B(BASE): SCX-5100,SUS304 |
| JC70-00243A | IPR-GROUND PLATE SCF: SCX-5100,SECC,T0. |
| JC70-00252A | IPR-GROUND-EXIT: SCX-5100,SUS304,T0.2,- |
| JC70-00218A | IPR-GUARD C/O S/W: SCX-5100,SUS304CSP,0 |
| JC70-00244A | IPR-GUIDE CASSETTE PAPER: SCX-5100,SUS304 |
| JC70-00222A | IPR-GUIDE INPUT: SCX-5100,SECC,T0.5,- |
| JB70-10906A | IPR-GUIDE LATCH: AMUNDSEN,STSC,T0.3,- |
| JB70-00148A | IPR-HOLDER GLASS: SCX-1110/XRX,SECC,3,0.8 |
| JC70-00325A | IPR-P-FINGER LEFT: ML-2060,SPCC,T1.2, |
| JC70-00221A | IPR-PLATE K/UP: SCX-5100,SECC,T1.0,-, |
| JC70-10230A | IPR-SHAFT FEED IDLER: ML-80,SUM24L,NI P |
| JC70-00247A | IPR-SHIELD SMPS LOWER: SCX-5100,SECC,T0 |
| JC70-00248A | IPR-SHIELD SMPS UPPER: SCX-5100,SECC,T0 |
| JC70-00269A | IPR-TERMINAL BLADE: SCX-5100,SUS304WPB, |
| JC70-10961A | IPR-TERMINAL FU: ML-165,C5210P,T0.3,- |
| JC70-00272A | IPR-TERMINAL GND: SCX-5100,C5210P,0.7,- |
| JC70-00270A | IPR-TERMINAL SUPPLY: SCX-5100,SUS304WPB,4 |
| JC70-00271A | IPR-TERMINAL TR: SCX-5100,SUS304WPB,-,- |
| JF70-10616A | IPR-WASHER SPRING CU: CF3400,STS304-CSP,T |
| 3722-001101 | JACK-USB: 4P/2C,8.38MM,AU,IVR,#22-28 |
| JC68-00709A | LABEL(R)-HEIGHT CST: SCX-5312F,TETRON,T0. |
| JC68-00692B | LABEL(R)-INSTRUCTION CST PLUS: SCX-5315F, |
| JB68-00469A | LABEL(R)-REGISTRATION EDGE(L): SCX-1110F, |
| JC07-00006A | LCD-DISPLAY: VHC2020SLYC9-1,SCX-6320F,20X |
| 0601-001226 | LED: CHIP,RED,1.2X0.8MM,660NM |
| JC74-00019A | MCT-GLASS ADF: SCX-5100,GLASS,238X19.1X2. |
| JC74-00018A | MCT-GLASS SCANNER(LEGAL): SCX-5100,GLASS, |
| JC97-01980A | MEA ETC-GEAR EARTH: SCX-6320F,SEC,SEC,GEA |
| JC97-01611B | MEA UNIT-ACTUATOR: SCX-6320F,XEROX,ACTU |
| JC97-01736A | MEA UNIT-CASSETTE : SCX-5315F,SAMSUNG,USA |
| JC97-01587B | MEA UNIT-CLAW: SCX-6320F,XEROX,CLAW ASS |
| JC97-01841A | MEA UNIT-COVER EXIT: SCX-6320F,XEROX,USA, |
| JC97-01844A | MEA UNIT-COVER OPEN: SCX-6320F,XEROX,USA, |
| JC97-01556B | MEA UNIT-COVER PA EXIT ASS'Y: SCX-5312F/X |
| JC97-01578B | MEA UNIT-DUPLEX: SCX-6320F,XEROX,USA,SUPL |
|
|
MEA UNIT-EXIT: SCX-6320F,XEROX,USA,SENSOR |
| JC97-01850A | MEA UNIT-FEED ROLLER: SCX-6320F,XEROX,USA |
| JC97-01624A | MEA UNIT-GUIDE CST PA ASS'Y: SF-830,XAA,- |
|
|
MEA UNIT-GUIDE DUPLEX: SCX-6320F,XEROX,US |
| JC97-01847A | MEA UNIT-GUIDE_PICK_UP: SCX-6320F,XEROX,U |
|
|
MEA UNIT-HINGE(MCK2): SCX-6320F,XEROX,USA |
| JC97-01573A | MEA UNIT-HOLD GEAR ASS'Y: SCX-5312F,XEROX |
| JC97-01574A | MEA UNIT-HOLD GND ASS'Y: SCX-5312F,XEROX, |
|
|

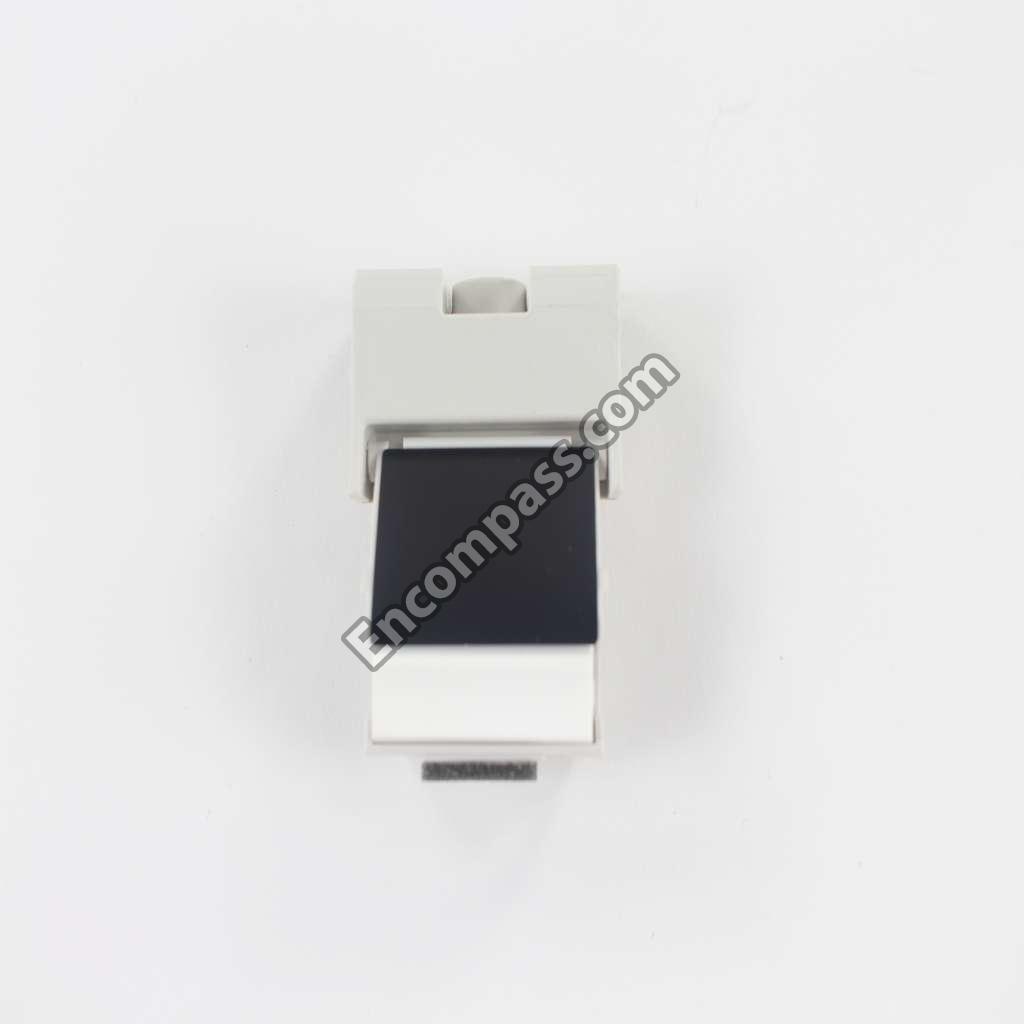

MEA UNIT-HOLDER ADF RUBBER: SCX-6320F,XER |
|
|
MEA UNIT-PICK_UP: SCX-6320F,XEROX,USA,DAD |
| JC97-01851B | MEA UNIT-REAR COVER: SCX-6320F,SEC,MCK2 |
| JC97-01909A | MEA UNIT-SIDE SUB: SCX-6320F,XEROX,USA,SI |
| JC97-01845A | MEA UNIT-SUPPORT PICK_UP: SCX-6320F,XEROX |
| JC97-01577B | MEA UNIT-TRAY: SCX-5315F,XEROX,TRAY ASS |
| JC97-01840A | MEA UNIT-TX STACKER: SCX-6320F,XEROX,USA, |
|
|
MEC- BRUSH ANTISTATIC: ML-6060A,SEC,NTR |
|
|
MEC-ADF ROLLER ASSY: SCX-1110F/XRX,XEROX, |
|
|
MEC-PICK UP ROLLER ASSY: SCX-1110F/XRX,XE |
| JC75-00166A | MEC-ROLLER EXIT DRIVE: SCX-6320,SUM24L, |
|
|
MEC-TRANSFER ROLLER: SCX-5312F,XEROX,SPON |
|
|
MEP-CLUTCH SMALL: ES24SSM051,SCX-6320F,3. |
| JC31-00030A | MOTOR DC-MCK2(BLDC): 50M8432040,1.5A, |
| JC31-00034A | MOTOR STEP-DUPLEX: SP-42RC-140M,SCX-6320F |
| JC31-00020C | MOTOR STEP-MCK2(MAIN): M49SP-2K,SCX-6320F |
| JB31-00011A | MOTOR-SCAN: M42SP-4TKC,SCX-1110/XRX,400MA |
| JC71-00030A | NPR-ELECTRODE M: SCX-5100,C5210P,T0.6,- |
| JC69-00474A | PAD-CST PLUS: SCX-5315F,URETHANE,0.9T,25. |
|
|
PAD-MP(PLUS): SCX-5315F,URETHANE,0.9T,31, |
| JC92-01568A | PBA SUB-AIR_TMP: SCX-6320F,XEROX,USA,AIR |
| JC92-01400A | PBA SUB-BIN_FULL_SEN.: SCX-5312F,SEC,KORE |
| JC92-01566A | PBA SUB-CRUM: SCX-6320F,XEROX,USA,CRUM, |
|
|

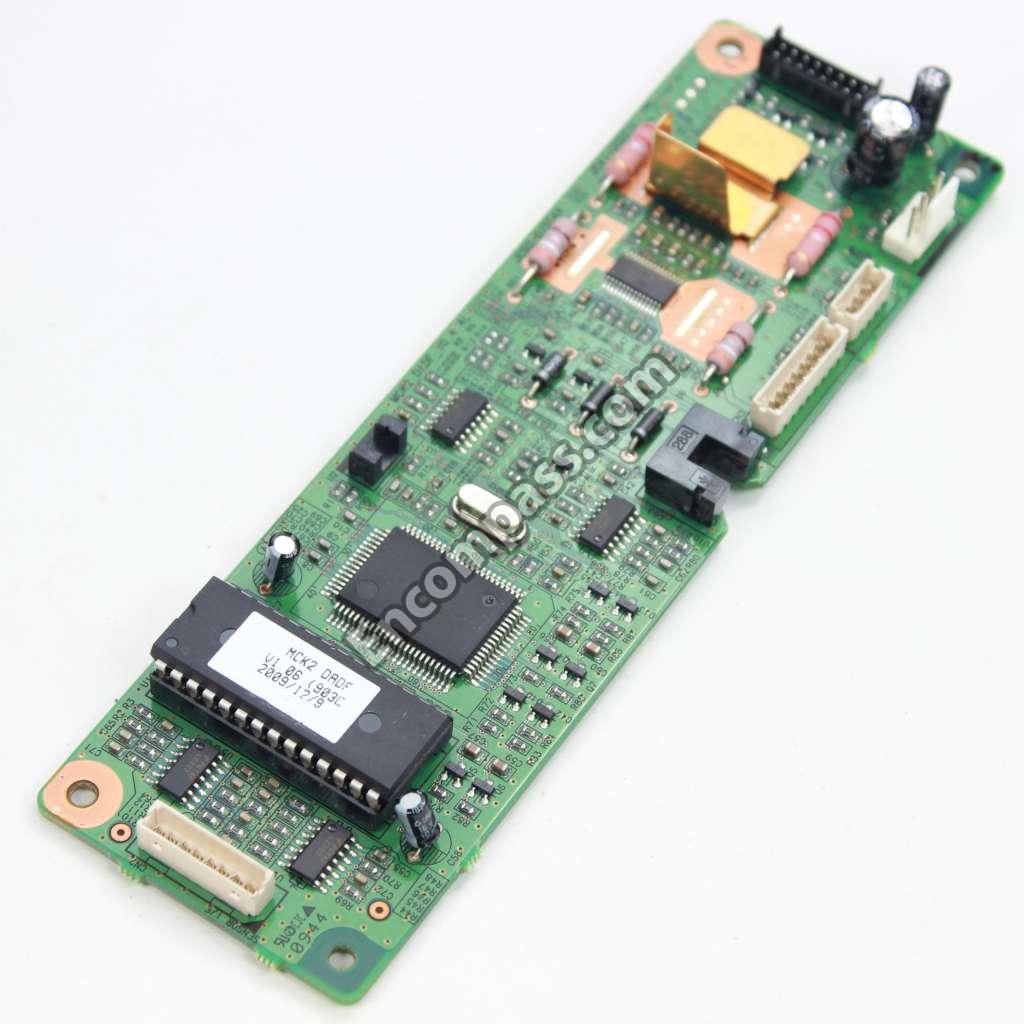

PBA SUB-DADF: SCX-6320F,XEROX,USA,DADF, |
| JC92-01555A | PBA SUB-DSUB: SCX-6320F,XEROX,USA,DSUB, |
| JC92-01364A | PBA SUB-EXIT SEN: SCX-5100,XEROX,USA,EXIT |
| JC92-01564A | PBA SUB-EXIT_OPEN: SCX-6320F,XEROX,USA,EX |
|
|
PBA SUB-MP SEN: SCX-5100,XEROX,USA,MP SEN |
| JC92-01553B | PBA SUB-OPE_JOINT: SCX-6320F,SEC,USA,OPE |
|
|
PBA SUB-OPE_SEC: SCX-6320F,SEC,USA,OPE, |
| JC92-01361A | PBA SUB-PTL: SCX-5100,XEROX,USA,PTL,SR331 |
| JC92-01561A | PBA SUB-REGI: SCX-6320F,XEROX,USA,REGI SE |
| JC92-01556A | PBA SUB-SENSOR_IF: SCX-6320F,XEROX,USA,SE |
| JC92-01567A | PBA SUB-TERMINAL: SCX-6320F,XEROX,USA,TER |
| JC92-01360A | PBA SUB-TONER_RX: SCX-5100,XEROX,USA,TONE |
| JC92-01359A | PBA SUB-TONER_TX: SCX-5100,XEROX,USA,TONE |
| JC72-20902A | PEX-ROLLER F/UP(2): ML-5000A,TE |
| 0604-001227 | PHOTO-INTERRUPTER: TR,200MW,DIP-4,ST |
| 0603-001021 | PHOTO-TR: NPN,20V,5V,20MA,75MW,TP |
| JC61-00819A | PLATE-P-DUMMY PLATEN: SCX-6320F,STS,T 0.8 |
| JC61-00831A | PLATE-P_GUIDE PAPER: SCX-5315F,SUS304 CSP |
| JC72-01248A | PMO-ACTUATOR DOC: SCX-6320F,ABS+GF10%,BLK |
| JC72-01263A | PMO-ACTUATOR DUPLEX: SCX-6320F,ABS+GF10%, |
| JC72-00810A | PMO-ACTUATOR EXIT: SCX-5100,SUM+PC,BLK, |
| JC72-01250A | PMO-ACTUATOR LENGTH: SCX-6320F,ABS,IV21,- |
| JC72-01249A | PMO-ACTUATOR SCAN: SCX-6320F,ABS+GF10%,BL |
| JC72-00746A | PMO-ACTUATOR SENSOR SCAN: SCX-5150,ABS+ |
| JC72-00767A | PMO-ACTUATOR,MP: SCX-5100,PC,BLK,-,- |
| JB72-00821A | PMO-ADF COLAR: SCX-1110F,POM,BLK,-,- |
| JC72-00768A | PMO-ADJUSTER,MP: SCX-5100,POM,BLK,-,- |
| JC72-00811A | PMO-ARM ACTUATOR: SCX-5100,PC,BLK,V0, |
| JC72-00779A | PMO-BASE FRAME: SCX-5100,HIPS,IVR(C8726 |
| JC72-40978A | PMO-BEARING LARGE DP: ML-165,POM,BLK,HB,- |
| JC72-00885A | PMO-BEARING LARGE DP: SCX-5312F,POM,WHT |
| JC72-41191A | PMO-BEARING SHAFT: ML-6000,POM,WHT,HB,- |
| JC72-00781A | PMO-BRACKET SIDE OPEN: SCX-5100,HIPS,IV |
| JC72-00730A | PMO-BUSHING FEED: SCX-5100,POM,BLK,-, |
| JC72-41051A | PMO-BUSHING RIGHT: ML-6000,POM(M90-44),BL |
| JG72-40744A | PMO-BUSHING TX(B4): CF5700,POM,NTR+WHT(DE |
| JC72-41364A | PMO-BUSHING_P/U,MP: ML-6100,POM,WHT,V0,- |
| JC72-00799A | PMO-CAM JAM REMOVE: SCX-5100,ABS GF20%, |
| JC72-00769A | PMO-CAM PICK UP,MP: SCX-5100,PC,WHT,- |
| JC72-00463A | PMO-CAP CONNECTOR L: ML-6060A,PC,VO,- |
| JC72-00465A | PMO-CAP CONNECTOR U: ML-6060A,PC,VO,- |
| JC72-00834A | PMO-COVER BRKT MOTER: SCX-5100,HIPS,IV2 |
| JC72-00753A | PMO-COVER DUMMY LOWER: SCX-5150,HIPS,IV |
| JC72-00790A | PMO-COVER EXIT REAR: SCX-5100,HIPS,IVR( |
| JC72-00801A | PMO-COVER FEED AY: SCX-5100,ABS ,BLK,V0 |
| JC72-00876A | PMO-COVER FRONT (C): SCX-5312F,HIPS,IV2 |
| JC72-00785A | PMO-COVER FRONT DUMMY: SCX-5100,HIPS,IV |
| JC72-00786B | PMO-COVER PAPER EXIT: SCX-5312F/XAA,HIPS, |
| JC72-00758A | PMO-COVER SCAN UPPER: SCX-5100,HIPS,IV2 |
| JC72-00743A | PMO-DEV/COUPLING: SCX-5100,POM,WHT,-, |
| JC72-00807A | PMO-DUCT FAN: SCX-5100,ABS,BLK,V0,- |
| JC72-00789A | PMO-DUMMY BASE FRAME: SCX-5100,HIPS,IVR |
| JC72-00759B | PMO-DUMMY UPPER(MC2): SCX-6320F,PC+ABS,IV |
| JC72-00731A | PMO-FEED FRAME: SCX-5100,ABS,BLK,HB,- |
| JC72-00721A | PMO-FEED SENSOR: SCX-5100,ABS,BLK,HB, |
|
|
PMO-FRAME FEED: SCX-5100,ABS GF20%,BLK, |
| JC72-00770A | PMO-FRAME,MP: SCX-5100,PC+ABS,C8723,HB, |
| JC72-01255A | PMO-GATE DUPLEX: SCX-6320F,PBT+GF10%,BLK, |
| JC72-00056A | PMO-GEAR P/U MPF: ML-6100,POM,WHT,- |
| JF72-41354A | PMO-GEAR PINION: CF4500,POM,NTR+WHT(DELRI |
| JC72-00732A | PMO-GP LOWER DP: SCX-5100,ABS,IVR,HB, |
| JC72-00791A | PMO-GUIDE CASSETTE RAIL: SCX-5100,HIPS, |
| JC72-00376B | PMO-GUIDE CLAW: SCX-6320F,LCP,GREEN,-,V |
| JC72-00806A | PMO-GUIDE DP SIDE: SCX-5100,PC,BLK,V0,- |
| JC72-00817A | PMO-GUIDE INPUT: SCX-5100,PBT GF30%,BLK |
| JC72-00835A | PMO-GUIDE PAPER OUT: SCX-5100,ABS,IV21, |
| JC72-00722A | PMO-GUIDE PAPER: SCX-5100,HIPS,BLK,HB,- |
| JC72-00717A | PMO-GUIDE REAR: SCX-5100,HIPS,GRN,HB, |
| JC72-00710A | PMO-GUIDE-EXIT LOWER: SCX-5100,PCABS,IV |
|
|
PMO-GUIDE-EXIT UPPER: SCX-5100,PCABS,IV |
| JC72-00712A | PMO-GUIDE-JAM REMOVE: SCX-5100,HIPS,IVR |
| JB72-00764A | PMO-HOLDER BELT: SCX-1110/XRX,POM,WHT,- |
| JC72-00884A | PMO-HOLDER GEAR TR: SCX-5312F,PC,BLUE,- |
| JC72-00883A | PMO-HOLDER GND TR: SCX-5312F,PC,BLUE, |
| JC72-00771A | PMO-HOLDER PAD,MP: SCX-5100,PC+ABS,WHT, |
| JC72-00724A | PMO-HOLDER PINCH M: SCX-5100,PC,BLK,- |
| JC72-00725A | PMO-HOLDER PINCH SUB: SCX-5100,PC,BLK,- |
| JC72-00726A | PMO-HOLDER SENSOR FEED: SCX-5100,ABS,BL |
| JC72-00772A | PMO-HOLDER SENSOR,MP: SCX-5100,ABS,BLK, |
| JC72-00773A | PMO-HOUSING PICK UP,MP: SCX-5100,POM,BL |
| JC72-41010A | PMO-HOUSING TERMINAL: ML-165,ABS GF20%,BL |
| JC72-41027A | PMO-IDLE PICK UP MP: ML-165,POM,WHT,HB,- |
| JC72-00877A | PMO-IMPACT CASSETTE: SCX-5312F,HIPS,GRE |
| JC72-00825A | PMO-IMPELLER_DRV: ML-6200,PC,BLK,V0,- |
| JC72-00803A | PMO-LENS TONER SENSOR: SCX-5100,ACRYL,T |
| JC72-00804A | PMO-LEVER JAM REMOVE: SCX-5100,PC/ABS,B |
| JC72-00755A | PMO-LEVER SENSOR: SCX-5100,POM,WHT,-, |
| JC72-00709A | PMO-LEVER-STACKING: SCX-5100,HIPS,IVR,V |
| JC72-00805A | PMO-LOCKER DEVE: SCX-5100,PC/ABS,GRN,V0 |
| JC72-00762B | PMO-LOCKER OPEN: SCX-5315F,ABS,DARK MOON |
| JC72-41210A | PMO-LOCKER PLATE: ML-6000,POM,WHT,HB,- |
| JC72-00763A | PMO-LOCKER SIDE R: SCX-5100,ABS,GRN,HB, |
| JC72-01313A | PMO-M-ACTUATOR_NO PAPER: SCX-5315F,ABS+GF |
| JB72-00845A | PMO-PICK UP CLUTCH SUB: SCX-1110F,POM(F |
| JC72-00775A | PMO-PLATE KNOCK UP,MP: SCX-5100,ABS+GF2 |
| JC72-00822A | PMO-PTL PATH: SCX-5100,PMMA,TRP,-,- |
| JC72-40980A | PMO-PULLEY DUPLEX: ML-165,POM,BLK,HB,- |
| JB72-00763A | PMO-PULLEY: SCX-1110/XRX,POM,WHT,-,- |
|
|
PMO-ROLL PINCH: SF5500,POM,BLK,HB,- |
| JC72-00761A | PMO-ROLLER CAM.MP: SCX-5100,POM,WHT,- |
| JC72-00833A | PMO-ROLLER DECURL: SCX-5100,POM,BLK,HB, |
| JC72-41007A | PMO-ROLLER FD F: ML-165,POM,BLK,HB,- |
| JC72-40261A | PMO-ROLLER FEED L: ML-80,POM,BLK,- |
| JC72-40262A | PMO-ROLLER FEED S: ML-80,POM,NTR,- |
| JC72-00727A | PMO-ROLLER FEED: SCX-5100,POM+URETAN,BL |
| JC72-00906A | PMO-ROLLER IDLE SCAN: SF-830,ROLLER IDLE |
| JC72-00764A | PMO-SHAFT DUP DRIVER: SCX-5100,PC,BLK,- |
| JC72-00765A | PMO-SIDE COVER: SCX-5100,HIPS,IVR,V0, |
| JC72-00547G | PMO-SIDE GUIDE MP: SCX-5315F,ABS,DARK MOO |
| JB72-00822A | PMO-SLEEVE ADF: SCX-1110F,POM,BLK,-,- |
| JB72-00823A | PMO-SLEEVE PICK UP: SCX-1110F,POM,BLK,- |
| JC72-41396B | PMO-STOPPER EXIT: SF-5100,NYLON,NTR,PEBAX |
| JC72-40266A | PMO-SUB HOLDER FEED: ML-80,POM,NTR,- |
| JC72-00766A | PMO-TIE STOPPER: SCX-5100,NYLON66,NTR,- |
| JC72-00776B | PMO-TRAY CASE,MP: SCX-5100,HIPS,C8726,V |
| JC72-00777A | PMO-TRAY COVER,MP: SCX-5100,HIPS,C8726, |
| JC72-00354B | PMO-TRAY EXTENTION MP NE: ML-6060A,HIPS |
| JC72-00857A | PMO-TRAY LINK,MP: SCX-5312F,PC+ABS,IV21 |
| JC72-01254A | PMO-TX STACKER LOWER: SCX-6320F,HIPS,IV21 |
| JC72-00792A | PMO-WINDOW SENSOR DEVE: SCX-5100,PC,TRP |
| JC72-00836A | PPR-SHEET/GUIDE PAPER: SCX-5100,PC,-, |
| JC72-00751B | PPR-SPONGE SHEET: SCX-5100,SPONGE+SHEET,W |
|
|
PPR-WHITE BAR SHEET: SCX-5100,PC SHEET, |
| 2001-000016 | R-CARBON(S): 1OHM,5%,1/2W,AA,TP,2 |
| 2001-000105 | R-CARBON: 1.5KOHM,5%,1/4W,AA,TP,2.4X6.4M |
| 2001-000111 | R-CARBON: 150OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000362 | R-CARBON: 150OHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2007-000729 | R-CHIP |
| 2007-000033 | R-CHIP: 0OHM,5%,1/8W,DA,TP,3216 |
| 2007-000123 | R-CHIP: 1.5KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000079 | R-CHIP: 1.8KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000102 | R-CHIP: 100KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000074 | R-CHIP: 100OHM,5%,1/16W,DA,TP,1608 |
| 2007-000090 | R-CHIP: 10KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000091 | R-CHIP: 12KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000104 | R-CHIP: 150KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000402 | R-CHIP: 150OHM,5%,1/16W,DA,TP,1608 |
| 2007-000092 | R-CHIP: 15KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000078 | R-CHIP: 1KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000109 | R-CHIP: 1MOHM,5%,1/16W,DA,TP,1608 |
| 2007-000081 | R-CHIP: 2.7KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000106 | R-CHIP: 220KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000094 | R-CHIP: 22KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000071 | R-CHIP: 22OHM,5%,1/16W,DA,TP,1608 |
| 2007-000643 | R-CHIP: 270OHM,5%,1/16W,DA,TP,1608 |
|
|
R-CHIP: 2KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000082 | R-CHIP: 3.3KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000708 | R-CHIP: 3.9KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000125 | R-CHIP: 3.9KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000096 | R-CHIP: 30KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000076 | R-CHIP: 330OHM,5%,1/16W,DA,TP,1608 |
| 2007-000134 | R-CHIP: 33KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000113 | R-CHIP: 33OHM,5%,1/16W,DA,TP,1608 |
| 2007-007548 | R-CHIP: 39.2OHM,1%,1/16W,DA,TP,1608 |
| 2007-000839 | R-CHIP: 39OHM,5%,1/16W,DA,TP,1608 |
| 2007-000083 | R-CHIP: 3KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000084 | R-CHIP: 4.7KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000077 | R-CHIP: 470OHM,5%,1/16W,DA,TP,1608 |
| 2007-000097 | R-CHIP: 47KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000965 | R-CHIP: 5.1KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000086 | R-CHIP: 5.6KOHM,5%,1/16W,DA,TP,1608 |
| 2007-002768 | R-CHIP: 6.2KOHM,1%,1/16W,DA,TP,1608 |
| 2007-000120 | R-CHIP: 680OHM,5%,1/16W,DA,TP,1608 |
| 2007-001179 | R-CHIP: 8.2KOHM,5%,1/16W,DA,TP,1608 |
| 2007-000121 | R-CHIP: 820OHM,5%,1/16W,DA,TP,1608 |
| 2009-001143 | R-METAL GLAZE: 100MOHM,5%,1W,TP,3.8X11M |
| 2011-000660 | R-NETWORK: 1KOHM,5%,1/16W,L,CHIP,8P,ST |
| 2011-001094 | R-NETWORK: 39OHM,+-5%,1/16W,L,PLCC,8P,TP |
| 2005-000168 | R-WIRE WOUND,NON: 0.22OHM,5%,2W,AA,BK,4X1 |
| 6044-000159 | RING-C: ID3,OD7,T0.6,PASS,STSC |
| 6044-000125 | RING-E: ID4,OD9,T0.6,PASS,STSC |
| 6044-000231 | RING-E: ID5.0,OD11.0,T0.6,STS304 |
|
|
RMO-ADF RUBBER: SCX-1110F,SILICON RUBBER, |
| JC66-00637A | ROLLER-CHARGE: SCX-6320F,NBR,12,-,- |
| JC66-00638A | ROLLER-CLEANING: SCX-6320F,URETHAN FOAM,1 |
| JC66-00636A | ROLLER-DEVE: SCX-6320F,URETHANE+SUM,20, |
| JC66-01330A | ROLLER-DUPLEX: SCX-6320F,SUM22L+EPDM,17.3 |
| JC66-00588A | ROLLER-EXIT: SCX-6320F,SUM24L+CR RUBBER,D |
| JC66-00585A | ROLLER-SCAN: SCX-6320F,SUM24L+CR RUBBER,D |
|
|
RPR-RCT-PAD-PICKUP,MP: SCX-5100,SILICON,- |
| JC73-10203A | RPR-RUBBER EXIT: ML-80,EPDM 60,-,- |
| JC81-00427A | RPR-RUBBER PICK UP,MP: SCX-5100,EPDM,BL |
| JC73-00079A | RPR-SEAL SIDE: SCX-5100,URETHANE FOAM ,30 |
| JC73-00198A | RUBBER-DUPLEX DOM: SCX-6320F,SILICON,75.0 |
| JC73-00196A | RUBBER-ENTER DOM: SCX-6320F,SILICON,161.2 |
|
|
RUBBER-PICKUP ROLLER_S: SCX-5315F,NORZORE |
|
|
RUBBER-ROLLER PICKUP: SCX-5315F,NORZOREX, |
| JC73-00197A | RUBBER-TEL DOM: SCX-6320F,SILICON,102.99 |
| 6006-001031 | SCREW-ASS'Y MACH: WSP,PH,+,M3,L10,ZPC(YEL |
| 6001-000568 | SCREW-MACHINE: PH,+,M3,L8,NI PLT,SM20C,- |
| 6002-000101 | SCREW-TAPPING: BH,+,2,M3,L10,ZPC(BLK),SM2 |
| 6002-000300 | SCREW-TAPPING: PH,+,2,M2,L10,ZPC(YEL),SM2 |
| 6002-000175 | SCREW-TAPPING: PWH,+,2,M3,L8,ZPC(YEL),SM2 |
| 6003-000154 | SCREW-TAPTITE |
|
|
SCREW-TAPTITE: BH,+,B,M3,L8,ZPC(BLK),SWCH |
|
|
SCREW-TAPTITE: BH,+,B,M4,L16,NI PLT,SWRCH |
|
|
SCREW-TAPTITE: BH,+,S,M3,L6,ZPC(YEL),SWRC |
| 6003-000196 | SCREW-TAPTITE: PWH,+,B,M3,L10,NI PLT,SWRC |
| 6003-000264 | SCREW-TAPTITE: PWH,+,B,M3,L6,ZPC(YEL),SWR |
| 6003-001149 | SCREW-TAPTITE: PWH,+,S,M4,L10,ZPC(YEL),SR |
| JC66-00532A | SHAFT-CCD(UMAX): SCX-6320F,SUS304,503MM,D |
| JC66-00661A | SHAFT-EXIT IDLE: SCX-6320F,SUM24L,PI 4. |
| JC66-00596A | SHAFT-PICK_UP SUB: SCX-5315F,SUM 24L,50,D |
| JC66-00659A | SHAFT-PINCH: SCX-6320F,SUM24L,PI 2.0, |
| JC66-00662A | SHAFT-REGI: SCX-6320F,SUM24L,52,PI 6.0, |
| JC72-00809B | SHEET ABS-REGI_EDGE: SCX-6320F,PC SHEET,N |
| JC63-00072A | SHEET-CONNECTOR: SCX-5312F,PVC,0.5,-,BL |
| JC63-00074A | SHEET-DUMMY UPPER: SCX-5312F,PET,0.188,22 |
| JC63-00186A | SHEET-GUIDE ADF: SCX-6320F,PET,0.188T,- |
| JC63-00083A | SHEET-PTL PATH: SCX-5312F,PC,0.3T,-,CLE |
|
|
SMPS-(V1)+HVPS: SCX-6320F,*,AC/DC,*,100-1 |
| 3704-000235 | SOCKET-IC: 28P,DIP,SN,2.54MM |
| JC33-00006A | SOLENOID-MP:, SCX-5312F,24V,27.8*22.5, |
| JC33-00007A | SOLENOID-PICK UP:, SCX-5100,DC 24V,80,36 |
| JC61-00551A | SPRING ETC-DEVE FRONT: SCX-5312F,SUS304WP |
| JC61-00550A | SPRING ETC-DEVE REAR: SCX-5312F,SUS304WPB |
| JC61-01563A | SPRING ETC-DUP IDLE: SCX-6345N/XRX,SUS304 |
| JC61-00387A | SPRING ETC-PAD: ML-9400W,SUS304WPB,7.55,- |
| JC61-00549A | SPRING ETC-PICKUP,MP: SCX-5312F,SUS304WPB |
| JC61-00548A | SPRING ETC-WHITE BAR: SCX-5312F,SUS304WPB |
| JC61-00003A | SPRING--CAM MP: ML-6100,SUS304-WPB,2.4,0. |
| JC61-00485A | SPRING-ACTUATOR6G: SCX-5100,SUS304WPB,0.3 |
| JC61-70925A | SPRING-CHARGE: ML-6000,SUS304WPB,P4.0,D0. |
| JB61-70904A | SPRING-CLUTCH: AMUNDSEN,SWP-A,0.5,D11.45, |
| JB61-70922A | SPRING-CLUTCH: MJC-810L,SUS304,TO.1,ID4.3 |
| JC61-00062A | SPRING-CLUTCH: ML-4500,STC5,7.8,6.0,21, |
|
|
SPRING-CS: SUS304,PI0.5,D6.7,L17.5,-, |
| 6107-001219 | SPRING-CS: SWOSC-V,PI3.3,D13.95,L56.15, |
| 6107-001191 | SPRING-CS: SWP-B,BLK,PI1.1,D23.7,L105.3,- |
| 6107-001190 | SPRING-CS: SWP-B,ZN(YEL),PI1.1,D23.7,L94. |
| JC61-00484A | SPRING-EXIT LOWER IDLE: SCX-5100,SUS304WP |
| JC61-70911A | SPRING-EXIT ROLL FD: ML-165,SUS304 WPB,PI |
| JC61-00481A | SPRING-FEED MP: SCX-5100,SUS304WPB,0.8, |
| JC61-00478A | SPRING-FEED: SCX-5100,SUS304WPB,0.6,8.5 |
| JC61-00483A | SPRING-KNOCKUP,MP: SCX-5100,SUS304WPB,0.5 |
| JC61-00479A | SPRING-LOCKER TORSION: SCX-5100,SUS304WPB |
| JG61-70531A | SPRING-LOCKER,PLATE: SF6000,STS304WPB,PI0 |
|
|
SPRING-PICKUP: SCX-5100,SUS304WPB,0.35, |
| JC61-70203A | SPRING-PLATE TR: SL-1050,SUS304CSP-3/4H,T |
| JC61-00056A | SPRING-PR(7300): ML-7300,PIANO WIRE,1.0,6 |
|
|
SPRING-SAPERATION: ML-165,SUS304 WPB,PI0. |
|
|
SPRING-TORSION DOC (CC2-F): SCX-1110F/XRX |
| JC61-00486A | SPRING-TORSION: SCX-5100,SUS304WPB,0.5, |
| JC61-70961A | SPRING-TR_L: ML-6000,SUS304WPB,PI0.5,D4.3 |
| JC61-70906A | SPRING-TR_R: ML-165,SWP,0.5,D4.3,L9.7,BLK |
| JC61-01783A | STOPPER-CASSETTE: SCX-6322DN,CR,1.5T,8,8, |
| 3404-000165 | SWITCH-TACT: 12V,50MA,160GF+-50GF,6X6MM,S |
| JC02-00021A | TONER-GRINDED: SCX-6320F,MA-45G395,8.8, |
| 0502-000245 | TR-POWER |
| 0501-000457 | TR-SMALL SIGNAL |
| 0501-000279 | TR-SMALL SIGNAL: KSA1182,PNP,-35V,-30V,-5 |
| 0504-000144 | TR-SMALL SIGNAL: KSC1008,NPN,80V,60V,700M |
| 0501-000338 | TR-SMALL SIGNAL: KSC1623,NPN,60V,50V,150M |
| JC97-03976A | UNIT-LSU,600DPI,22: SCX-6320F,-,600DPI, |
| 6031-001255 | WASHER-PLAIN: NYLON,CUTTING,ID5,OD9,T0.5, |
| 6031-001584 | WASHER-PLAIN: POLYSLIDER,ID4,OD7,T0.5,B |
| 6031-000023 | WASHER-PLAIN:, ID5.9,OD10.0,T0.5,BLK,POL |
| 6031-000019 | WASHER-PLAIN:, ID6.1,OD8.5,T0.1,BLK,POLY |
| JC64-00160B | WINDOW-LCD B: SCX-6320F/XAA,PC,1.0T,147.4 |
