Manufacturer
Samsung
Model Number
SF-755P
Description
Sf-755p Multifunction Laser Printer
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| JC70-00304A | ADJUST RACK-M-MANUAL;ML-1710,POM(F20-03) |
| JC70-00300A | ADJUST-M-CASSETTE_L;ML-1400,ABS,VIOLET B |
| JC70-00301A | ADJUST-M-CASSETTE_R;ML-1400,ABS,VIOLET B |
| JC70-00302F | ADJUST-M_MANUAL L;SF-565P,HIPS,2.5,33.9, |
| JC70-00303F | ADJUST-M_MANUAL R;SF-565P,HIPS,2.5,33.9, |
| 6902-000286 | BAG PE;LDPE,T0.03,W200,L300,TRP,28,2 |
| 6902-000288 | BAG PE;LDPE,T0.05,W250,L450,TRP,8,2,10.5 |
| 3301-000317 | BEAD-SMD;120OHM,2012,TP,-,- |
| JC66-10201A | BEARING-EXIT FU;ML-80,POM |
| JC61-00602A | BRACKET-P-FEED;ML-1710,SECC,1.00 |
| JC61-00598A | BRACKET-P-GEAR 1400;ML-1710,SECC,1.60,20 |
| JC61-00693A | BRACKET-P-INLET, ROCKY;SCX-4216F,SECC,1. |
| JC67-00055A | BRUSH-ANTISTATIC 531P;SF-531P,AL+THUNDER |
| JC61-00585A | BUSH-M-FEED IDLE;ML-1710,POM AT-15CF,?3. |
|
|
BUSH-M-HR L;ML-1710,PPS,?20.45,?27.6,V0 |
|
|
BUSH-M-HR R;ML-1710,PPS,?20.45,?27.6,V0 |
| JC61-00586A | BUSH-M-PICK_UP L;ML-1710,POM (DELIN 8903 |
| JC61-00587A | BUSH-M-PICK_UP R;ML-1710,POM,?11,WHT |
|
|
BUSH-M-TR L;ML-1710,POM,?6.1,?8,BLK |
|
|
BUSH-PRESSURE R;ML-165,PPS(RBA313N),14,7 |
| JC72-00382B | BUSH;ML-1710,POM(DERLIN 8903),WHITE |
| 2402-000176 | C-AL,SMD;10UF,20%,16V,GP,TP,4.3X4.3X5.4 |
| 2401-000059 | C-AL;0.22UF,20%,50V,GP,-,5X11,5 |
| 2401-000042 | C-AL;100UF,20%,16V,GP,TP,6.3X7,5 |
| 2401-000310 | C-AL;100UF,20%,25V,GP,TP,6.3X11,5 |
| 2401-000414 | C-AL;10UF,20%,16V,GP,TP,4X7,5 |
| 2401-000480 | C-AL;10UF,20%,50V,GP,TP,5X11,5 |
| 2401-000603 | C-AL;1UF,20%,50V,GP,TP,5X11,2 |
| 2401-001775 | C-AL;470NF,20%,50V,GP,TP,4X7,5 |
| 2401-002144 | C-AL;47UF,20%,16V,GP,TP,5X11,5 |
| 2401-002300 | C-AL;47UF,20%,50V,GP,TP,6.3X11,5MM |
| 2203-000426 | C-CER,CHIP;0.018NF,5%,50V,C0G,1608 |
| 2203-000041 | C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608 |
| 2203-000626 | C-CER,CHIP;0.022NF,5%,50V,C0G,1608 |
| 2203-000681 | C-CER,CHIP;0.027NF,5%,50V,C0G,1608 |
| 2203-000998 | C-CER,CHIP;0.047NF,5%,50V,C0G,1608 |
| 2203-001683 | C-CER,CHIP;0.068NF,5%,50V,NP0,1608 |
| 2203-000357 | C-CER,CHIP;0.15NF,5%,50V,C0G,1608 |
| 2203-001607 | C-CER,CHIP;0.22NF,5%,50V,NP0,1608 |
| 2203-000783 | C-CER,CHIP;0.33NF,5%,50V,C0G,1608 |
| 2203-005819 | C-CER,CHIP;1000NF,+80-20%,16V,Y5V,TP,160 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-000257 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1608 |
| 2203-000440 | C-CER,CHIP;1NF,10,50V,X7R,TP,1608 |
| 2203-002392 | C-CER,CHIP;220NF,+80-20%,50V,Y5V,2012 |
| 2203-002398 | C-CER,CHIP;22NF,10%,50V,X7R,1608 |
| 2201-000138 | C-CERAMIC,DISC;0.1NF,10%,50V,Y5P,4X4MM,5 |
| 2201-000021 | C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,6.5 |
| 2201-000982 | C-CERAMIC,DISC;10NF,+80-20%,50V,Y5V,4.5X |
| 2301-000402 | C-FILM,LEAD-PEF;1NF,5%,50V,TP,6X9.5X3.5M |
| 2305-000583 | C-FILM,LEAD-PEF;470NF,10%,250V,TP,20X7X1 |
| JC66-00377A | CAM-M-PICK_UP;ML-1710,POM(DELIN 8903),WH |
| JC39-00090A | CBF HARNESS-DUPLEX GND;ML-7050,UL1007,70 |
| JC39-00313A | CBF HARNESS-ENGINE;SF-755P,CBF,UL1061,26 |
| JC39-00239A | CBF HARNESS-FUSER 110V;ML-1710,UL3122 #1 |
| JC39-00325A | CBF HARNESS-HIGH_LIU;SF-755P,WIRE HARNES |
| JC39-00321A | CBF HARNESS-LSU;SF-755P,#26,UL 1061,11,5 |
| JC39-00314A | CBF HARNESS-OPE;SF-755P,WIRE HARNESS,UL1 |
| JC39-00243A | CBF HARNESS-PTL;ML-1710,CBF,UL 1061,2,22 |
| JC39-40511A | CBF HARNESS;ML-80,JUMPER,AWG22,52MM,SILV |
| JF39-50094B | CBF LINE CORD;MINI FAX,IVR |
| JC39-00318A | CBF SIGNAL-CIS FFC;SF-755P,12PIN,FFC,425 |
|
|
CBF-POWER CORD;US,BP3/YES,3P_LUG,125/125 |
| JF27-60051A | COIL FILTER;CF5400,60UH,50MOHM,18T |
| 3708-001408 | CONNECTOR-FPC/FFC/PIC;12P,1MM,STRAIGHT,S |
| 0609-001206 | CONTACT IMAGE SENSOR;216MM,5148DOT,1.5MS |
| 3301-001413 | CORE-FERRITE;AD,33X12X7MM,1500,2800GAUSS |
| JC63-00338A | COVER-M-DUMMY FRONT;SF-755P,HIPS,2.5,53, |
| JC63-00142D | COVER-M_FACE UP;SF-565P,ABS,2.5,244.6,85 |
| JC63-00337A | COVER-M_FRONT;SF-755P,HIPS,2.5,388,181.9 |
| JC63-00426A | COVER-M_OPE;SF-755P,HIPS,2.5,-,-,HB,-,SO |
| JC63-00336A | COVER-M_REAR;SF-755P,ABS,2.5,337.1,310.8 |
| JC63-00341A | COVER-M_SCAN LOWER;SF-755P,ABS,2.5,295,8 |
| JC63-00334A | COVER-M_SIDE L;SF-755P,ABS,2.5,321,286.8 |
| JC63-00335A | COVER-M_SIDE R;SF-755P,HIPS,2.5,321.1,28 |
| JC63-00340A | COVER-M_TOP;SF-755P,HIPS,2.5,292,356.2,H |
| 2801-004257 | CRYSTAL-UNIT;14.7456MHZ,50PPM,28-AAA,20P |
| 2801-000199 | CRYSTAL-UNIT;20MHZ,50PPM,28-AAA,16PF,50O |
| 2801-003960 | CRYSTAL-UNIT;28.224MHZ,50PPM,28-AAA,18PF |
| 2801-003582 | CRYSTAL-UNIT;30MHZ,50PPM,28-AAA,18PF,80O |
| JC69-00508A | CUSHION-SET L/R;SF-755P,EPS,520,100,345, |
| 0402-000129 | DIODE-RECTIFIER;1N4003,200V,1A,DO-41,TP |
| 0402-000128 | DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP |
| 0404-000112 | DIODE-SCHOTTKY;RB420D,40V,100MA,SOT-23,T |
| 0401-000005 | DIODE-SWITCHING;1N4148,75V,150MA,DO-35,T |
| 0401-000122 | DIODE-SWITCHING;1SS355,80V,100MA,SOD-323 |
| 0407-000122 | DIODE-SWITCHING;KDS226,80V,100MA,SOT-23, |
| 0401-000116 | DIODE-SWITCHING;MMSD914T1,100V,200MA,SOD |
| 0403-000294 | DIODE-ZENER;MTZJ4.7B,4.59-4.77V,500MW,DO |
| JC96-02980A | ELA HOU-COVER SIDE L;SF-755P,SEC,-,SIDE |
| JC96-03034A | ELA HOU-OPE;SF-755P,SEC,-,OPE ASS'Y,XAA, |
| JC96-02969A | ELA HOU-SCAN LOWER;SF-755P,SEC,-,SCAN LO |
| JC96-02968A | ELA HOU-SCAN MOTOR;SF-755P,SEC,-,SCAN MO |
| JC96-03038A | ELA HOU-SCAN;SF-755P,SEC,XAA,SCAN ,ASS'Y |
| JC96-02982A | ELA HOU-UNIT FRAME_110V;SF-755P,SEC,-,FR |
| JB96-01381A | ELA UNIT-CORE;SCX-1100,SAMSUNG,CORE ASS' |
| JC96-03053A | ELA UNIT-LCD UNIT;SF-755P,SEC,LCD UNIT,- |
| JC96-03057A | ELA UNIT-OPE;SF-755P NIKE2,USA,USA,-,-,- |
| JC96-02984A | ELA UNIT-RX DRIVE;SF-755P,SEC,-,RX-DRIVE |
| JC70-00450A | ELECTRODE-WIRE_L;ML-1510,BRONSE WIRE,154 |
| JC70-00449A | ELECTRODE-WIRE_R;ML-1510,BRONSE WIRE,92. |
| JC31-00027A | FAN-DC_HUMMINGBIRD;ML-1710 |
| JC61-00835A | FOOT-BACK;ML-1750,NBR,D13.6,10.5 |
| JC61-00836A | FOOT-FRONT;ML-1750,NBR,D7,11.5 |
| JC61-00579A | FRAME-M-BASE;ML-1710,ABS(VE-0860P),BLK,1 |
| JC61-00875A | FRAME-M_SCAN UPPER;SF-755P,ABS+GF20,V0,B |
| JC61-00883A | FRAME-M_SUB CASSETTE;SF-755P,HIPS,HR-136 |
| JC66-00361A | GEAR-ADF ROLL;SF-830,POM,0.6,Z29,WHT,KHP |
| JC66-00363A | GEAR-ADF;SF-830,POM,0.6,Z61,WHT,KHP |
| JC66-00381A | GEAR-AGITATOR;ML-1710,POM M90-44,0.6,22 |
| JC66-00384A | GEAR-DEVE ROLLER;ML-1710,CARILON,0.8,BLA |
| JC66-00038A | GEAR-EXIT F/DOWN;ML-4500,POM,0.8,GREEN |
| JC66-00393A | GEAR-FEED 1;ML-1710,POM,0.8,NTR,HB |
| JC66-00394A | GEAR-FEED 2;ML-1710,POM,0.8,NTR,HB |
|
|
GEAR-FUSER Z37;ML-1710,PPS OFL4036,0.8,3 |
|
|
GEAR-IDLE 23;ML-1710,POM,0.8,23,BLK,HB |
| JC66-00382A | GEAR-IDLE 26/13;ML-1710,POM,A:0.6,B:0.6, |
| JC66-00386A | GEAR-OPC L;ML-1710,POM,0.8,30,HELICAL |
| JC66-00012A | GEAR-OPC R;SF-5100,POM M90-44,0.6,Z40,BL |
| JB66-00102A | GEAR-PICK UP IDEL 38;SCX-1110F,POM,0.6,3 |
| JC66-00360A | GEAR-PICK UP;SF-830,POM,0.6,Z19,WHT,KHP |
| JB66-00126A | GEAR-PINION SSI;SF-452,POM,0.7,NTR |
| JG66-40003A | GEAR-PINION;SF4000,POM,1,Z16,WHT |
| JC66-00387A | GEAR-RACK_PINION;ML-1710,POM,0.7,WHT |
| JC66-00391A | GEAR-RDCN 113/33;ML-1400,POM,A:0.5,B:0.8 |
| JC66-00397A | GEAR-RDCN 25/15;ML-1710,POM M90-44,A:0.8 |
| JC66-00362A | GEAR-RDCN 4316;SF-830,POM,A:0.5,B:0.6,Z4 |
| JC66-00388A | GEAR-RDCN 53/26;ML-1710,POM,A:0.8,B:0.8, |
|
|
GEAR-RDCN 57/18;ML-1710,POM M90-44,A:0.5 |
| JC66-00392A | GEAR-RDCN 90/31;ML-1710,POM,A:0.4,B:0.8, |
| JC66-00324A | GEAR-REDUCTION 45/19;SCX-5150,POM,0.6,Z4 |
| JC66-00395A | GEAR-TRANSFER;ML-1710,POM M90-44,0.6,BLK |
| JC63-01205A | GROUND-PAD;ML-4550,SUS 301-CSP 1/2H,0.2, |
| JC61-02580A | GUIDE-CLAW;ML-2240,PTFE,14,14,11,PATH |
| JC61-00918B | GUIDE-M-EXTENSION L2;ML-2250,HIPS,184.2, |
| JC61-00937A | GUIDE-M-KNOCK UP;ML-1750,POM,77.8,20.8 |
| JC61-00594A | GUIDE-M-TR RIB;ML-1710,PC+ABS,BLK,30.6*7 |
| JC61-00872A | GUIDE-M_DOC L;SF-755P,HIPS,2.5,126.8,38. |
| JC61-00873A | GUIDE-M_DOC R;SF-755P,HIPS,2.5,126.8,38. |
| JC61-00718A | GUIDE-P-PAPER;ML-1710,SECC,0.8,19.5,261. |
| JC61-00607A | GUIDE-P-TR;ML-1710,SECC,0.5,239.1,76.4 |
| 3711-002812 | HEADER-BOARD TO CABLE;BOX,11P,1R,2MM,STR |
| 3711-002003 | HEADER-BOARD TO CABLE;BOX,26P,2R,2MM,STR |
| 3711-003408 | HEADER-BOARD TO CABLE;BOX,2P,1R,2MM,STRA |
| 3711-003409 | HEADER-BOARD TO CABLE;BOX,3P,1R,2MM,STRA |
| 3711-003411 | HEADER-BOARD TO CABLE;BOX,5P,1R,2MM,STRA |
| JC61-00581A | HOLDER-ACTUATOR;ML-1710,PBT GP2150+GF 15 |
|
|
HOLDER-BEARING EXIT F/DOWN;SCX-4216F,POM |
| JC61-00582A | HOLDER-M-EXIT F/DOWN;ML-1400,PC(NH-1023) |
| JC61-00580A | HOLDER-M-PAD;ML-1710,PC+ABS(NH-1023P) |
| JC61-00583A | HOLDER-PTL;ML-1710,PC,BLK,V0 |
| JC61-00591A | HOUSING-M-PICK_UP;ML-1710,PC+ABS,L43,BLK |
| JC61-00592A | HOUSING-TERMINAL;ML-1710,ABS,BLK,V0 |
| JC13-00023A | IC ASIC-A/D CONVERTER;AFE_CIP4,SCX-5315F |
| JC13-00033A | IC ASIC-FPGA;AT8UA068CE8-RDTX,SCX-6320F, |
| JB13-00004A | IC ASIC-OPE;HT48C50-1-SPPF,SF-3100,48P,+ |
| JC13-00014C | IC ASIC-SPGPM(3);SPGPM_D,SCX-6320F,256PI |
| 1001-000170 | IC-ANALOG SWITCH;MC14051BD,SPDT CMOS,SOP |
| 1001-000171 | IC-ANALOG SWITCH;MC14053BD,SPDT CMOS,SOP |
| 1106-001228 | IC-ASYNC SRAM;K6R1016V1D,1MBIT,64KX16,TS |
| 1201-000105 | IC-AUDIO AMP;34119,SOP,8P,150MIL,SINGLE, |
| 1205-002339 | IC-CLOCK GENERATOR;CY25811SC,SOIC,8P,150 |
| 0801-001090 | IC-CMOS LOGIC;74HC14,SCHMITT INVERTER,SO |
| 0801-002446 | IC-CMOS LOGIC;74LCX14,SCHMITT INVERTER,T |
| 0801-000794 | IC-CMOS LOGIC;7S08,AND GATE,SC-70,5P,2.0 |
| 1105-001405 | IC-DRAM;128MBIT,4X2MX16,TSOP(II),54P,400 |
| 1107-001302 | IC-FLASH MEMORY;29LV800,1MX8/512KX16,TSO |
| 1006-001224 | IC-LINE TRANSCEIVER;74LVX161284,TSSOP,48 |
| 1205-001896 | IC-MODEM;FM336R6719-12,QFP,100P,PLASTIC, |
| 1003-001535 | IC-MOTOR DRIVER;A3977SLP,TSSOP,28P,9.6X4 |
| 1003-001122 | IC-MOTOR DRIVER;TEA3718SFP,SOP,20P,300MI |
| 1201-000167 | IC-OP AMP;358,SOP,TP,8P,150MIL,DUAL,100V |
| 1203-003700 | IC-POSI.ADJUST REG.;LD1117ADT-R,DPAK,3P, |
| 1203-001455 | IC-POSI.FIXED REG.;1117,DPAK,3P,265MIL,P |
| 1206-001026 | IC-TIMEKEEPER;M41T00M6TR,SOP,8P,150MIL,P |
| 1202-000164 | IC-VOLTAGE COMP.;393,SOP,8P,150MIL,DUAL, |
| JB70-00168A | ICT-PIN ADF;SCX-1110F,STS303,L10.0,D2.0 |
| JC64-00040F | INDICATOR-M_LEVER;SF-565P,HIPS HR-1360T, |
| 2703-000125 | INDUCTOR-SMD;10UH,10%,2012 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012 |
| JC70-00225A | IPR-BRKT WHITE BAR;SCX-5150,SECC,T1.0 |
| JB70-10958A | IPR-LOKER TX;SF-4705,SUS,T0.4 |
| JC70-00307A | IPR-P-EARTH TRANSFER;ML-1710,SECC,1.0T,W |
| JC70-00312A | IPR-P-TERMINAL CON;ML-1710,SUS301-CSP 3/ |
| JC70-00313A | IPR-P-TERMINAL CR;ML-1710,SUS304-CSP,0.2 |
| JC70-00340A | IPR-P-TERMINAL DEVE KEY;SCX-4216F,SUS304 |
|
|
IPR-PLATE PAD;ML-1710,SUS304-CSP,0.1 |
| JC70-00335A | IPR-P_GROUND_DRIVE2;ML-1710,SUS304-CSP,0 |
| JC70-00285A | IPR-SPRING ADF1;SF-830,STSC301-CSP,T0.2 |
| JC70-00286A | IPR-SPRING ADF2;SF-830,STSC301-CSP,T0.2 |
| GB70-10500A | IPR-UNIT FIXING BRAC;SF-350,SECC,T1.0 |
| 3722-000124 | JACK-DIN;8P,AU,BLK,ANGLE |
| 3722-002345 | JACK-MODULAR;6P/4C,INVERTED,N,ANGLE,N,GR |
| 3722-000255 | JACK-MODULAR;6P/4C,INVERTED,N,ANGLE,STAN |
| 3722-001101 | JACK-USB;4P/1C,AU,IVR,ANGLE,B TYPE |
| JC64-00060A | KEY-M-FAX;SCX-4216F,ABS HB,HB,S.WHITE |
| JC64-00056A | KEY-M-SCROLL;SCX-4216F,ABS HB,HB,S.WHITE |
| JC64-00053A | KEY-M-TEL;SCX-4216F,ABS HB,HB,D.GRAY/S.W |
| JC64-00058A | KEY-M-TONER SAVE;SCX-4216F,ACRLY,HB,MILK |
| JC64-00113A | KEY-M_ONE TOUCH;SF-565P,ABS HB,59.0*84.0 |
| JC64-00114A | KEY-M_START;SF-565P,ABS HB,D28.6,HB,7621 |
| JB68-00916A | LABEL RATING-BLANK;SF-340,SEC,TETRON,0.0 |
| JC68-10932A | LABEL(P)-BLANK(ML);ML-85,ART,G100,WHT,CO |
| JB68-00073A | LABEL(R)-BAR CODE;SF-3000,PY,T0.5,6.5,34 |
| JC68-00573A | LABEL(R)-BARCODE;ML-4500,PET,T0.05,20MM, |
| 4713-001182 | LAMP-HALOGEN;115V,600W,6X284MM |
| JC07-00003A | LCD-DISPLAY(XEV);VHX1620BHRC9/YMC162197A |
| BN94-01666B | LENS-PTL;ML-1710,PMMA,NTR |
| JC66-00686A | LEVER-M_SENSOR DOC;SF-755P,ABS HB,1.5,16 |
| JC66-00687A | LEVER-M_SENSOR SCAN;SF-755P,ABS HB,1.5,1 |
| JC68-01889A | MANUAL-INSTALL;SCX-4200,SEC,23 LANQUAQE, |
| JC97-01661A | MEA HOU-PICK UP ASSY;SF-830,SEC,-,PICK U |
| JC97-01978A | MEA HOU-PRESSER ADF;SF-755P,SEC,-,PRESSE |
| JC97-01658A | MEA HOU-ROLLER SCAN ASSY;SF-830,SEC,-,RO |
| JC97-01861A | MEA UNIT-CASSETTE;SF-755P,SEC,CASSETTE,A |
| JC97-01865A | MEA UNIT-CHUTE;SF-565P,SEC,-,CHUTE ASS'Y |
|
|
MEA UNIT-CLUTCH;ML-1710,SAMSUNG |
| JC97-01854A | MEA UNIT-COVER EXIT;SF-565P,SEC,-,EXIT C |
| JC97-01860A | MEA UNIT-COVER FRONT;SF-755P,SEC,-,OPEN |
| JC97-01859A | MEA UNIT-COVER REAR;SF-755P,SEC,-,COVER |
| JC97-01908A | MEA UNIT-ROLLER EXIT;SF-755P,SEC,-,ROLLE |
| JC97-01794A | MEA UNIT-SHIELD ENGINE;SCX-4114F,SAMSUNG |
| JC97-01856A | MEA UNIT-STACKER;SF-565P,SEC,-,STACKER,A |

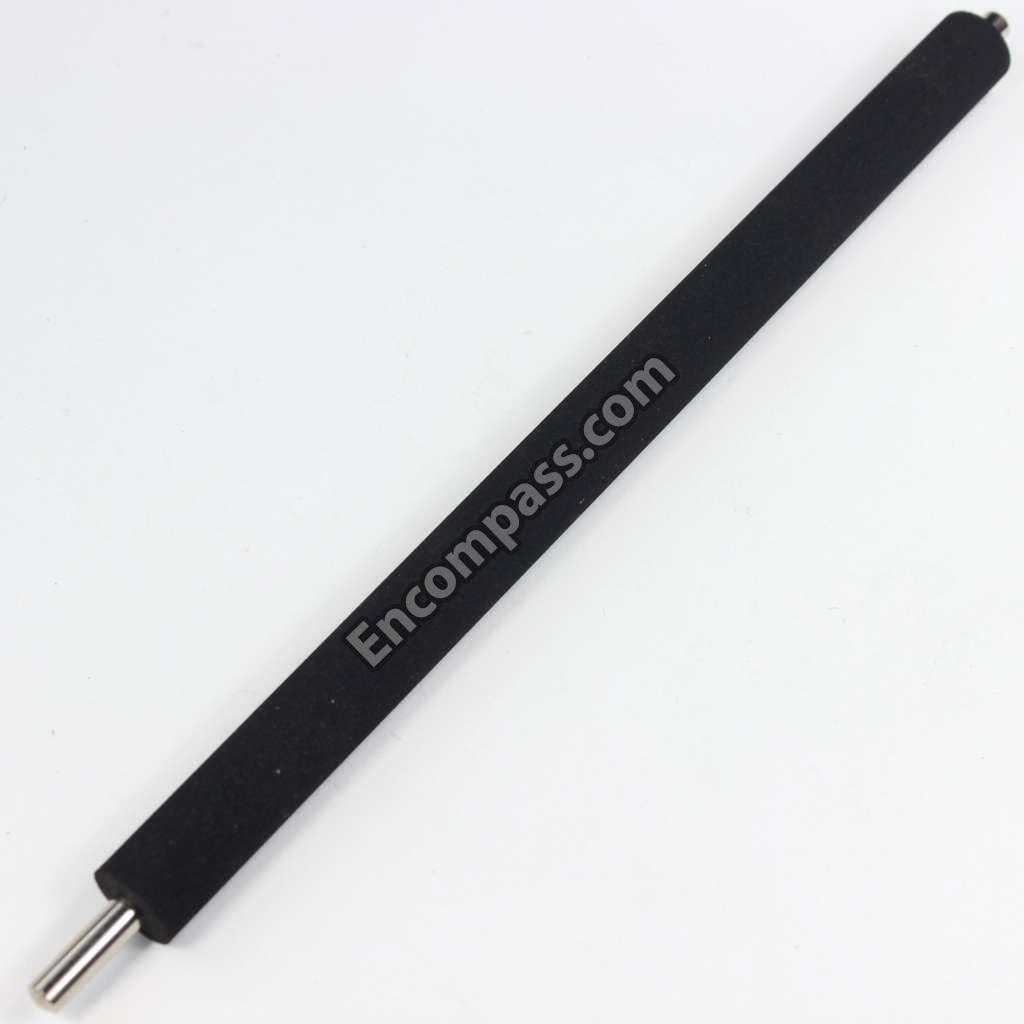

| JC97-01782A | MEA-CHARGE ROLLER;ML-1710,SEC,12*254,0.5 |
| JC97-01852A | MEA-COVER_M_TOP;SF-755P,SEC,-,COVER-M-TO |
| JC97-01853A | MEA-SCAN UPPER;SF-755P,SEC,-,SCAN UPPER |
| JC75-00160A | MEC-ROLLER IDLE;SF-835P,POM+CR,BLK |
| JC75-00049A | MEC-TERMINAL;SF-5100,SAMSUNG |
| JB31-00006B | MOTOR STEP-HELICAL;16PU-M202-G4ST,SF-830 |
| JC31-00028A | MOTOR STEP-HUMMINGBIRD;M49SP-2NK,ML-1710 |
| 6021-000222 | NUT-HEXAGON;2C,M3,ZPC(YEL),SM20C,- |
| JC92-01577E | PBA MAIN-N2H_SST;SF-755P,SEC,USA,16PPM_M |
| JC92-01549A | PBA SUB-HIGH_OPE;SF-755P,SEC,KOREA,OPE,- |
| JC92-01575J | PBA SUB-NIKE2_LIU_SST;SF-755P,SEC,USA,LI |
| JC92-01620B | PBA SUB-PTL;SCX-4100,SEC,-,PTL,-,-,132.5 |
| JC92-01841A | PBA SUB-PTL;SF-560/EUE,SAMSUNG,-,-,-,-,- |
| JC92-01571A | PBA SUB-ZENER;SF-755P,USA,USA,ZENER PBA, |
| 0604-000142 | PHOTO-COUPLER;TR,-,200MW,DIP-4,ST |
| 0604-000118 | PHOTO-COUPLER;TR,20-300%,200MW,DIP-4,ST |
| JC61-00606A | PLATE-P-CHANNEL;ML-1710,SECC,1 |
|
|
PLATE-P-SAW;ML-1400,SUS304-CSP,0.15,15.1 |
| JC72-00974A | PMO-ACTUATOR CVR OPEN;ML-1710,PC V0(NH10 |
| JC72-00975A | PMO-ACTUATOR EMPTY;ML-1710,PC(NH-1023P), |
| JC72-00976A | PMO-ACTUATOR FEED;ML-1710,PC NH-1023P,BL |
| JC72-00977A | PMO-ACTUATOR MANUAL;ML-1710,PC NH-1023P, |
|
|
PMO-ACTUATOR_EXIT;ML-1710,PC+GF20%,V0,BL |
| JC72-00910A | PMO-BUSHING PICK UP;SF-830,POM,WHITE |
| JC72-00912A | PMO-BUSHING SHAFT;SF-830,POM,BUSHING SHA |
| JG72-40744A | PMO-BUSHING TX(B4);CF5700,POM,NTR+WHT,HB |
| JC72-00387A | PMO-BUSHING_F/DOWN;ML-6060A,POM,BLK |
|
|
PMO-BUSHING_TR(L);SF-5100,POM (CH-15),BL |
| JC72-40232A | PMO-CAP AGITATOR;ML-80,PP,BLK |
| JC72-00978A | PMO-COLLAR_SPRING;ML-1710,POM(M90-44),NT |
| JC72-00971A | PMO-EXTENSION SMALL;ML-1710,ABS(HF-0660I |
|
|
PMO-GEAR PICK_UP A;ML-1710,POM(M90-44),N |
| CALL_1-800-SAMSUNG | PMO-GEAR_EXIT_DRV16;SF-5100,POM(DE8903), |
| JC72-00905A | PMO-HOLDER ADF;SF-830,HIPS,BLK |
| JC72-00926A | PMO-HOLDER PICK UP;SF-830,POM,BLK |
| JC72-00913A | PMO-HOLDER SHAFT;SF-830,POM,NTR |
| JC72-00982A | PMO-IDLE PICK_UP;ML-1710,POM(M90-44),HB, |
| JC72-00825A | PMO-IMPELLER_DRV;ML-6200,NYLON66,V0,BLK |
| JB72-00107B | PMO-KEY STOP;SF-3100,ABS,PI 23.35,HB,HF- |
| JC72-00983A | PMO-LOCKER CST;ML-1710,POM(DELIN 900P),W |
| JC72-41082B | PMO-M-ROLLER EXIT_FR 500;ML-1710,POM,4.5 |
| JC72-41081B | PMO-M-ROLLER EXIT_MAIN 5;ML-1710,POM, 50 |
| JB72-00845A | PMO-PICK UP CLUTCH SUB;SCX-1110F,POM(DE8 |
|
|
PMO-PLATE GUIDE DEVE_L;ML-1710,POM(M90-4 |
|
|
PMO-PLATE GUIDE DEVE_R;ML-1710,POM(M90-4 |
| JC72-00972A | PMO-PLATE_LOCKER;ML-1710,POM(M90-44),WHT |
|
|
PMO-ROLL PINCH;SF5500,POM(DERLIN 500P),H |
| JC72-00911A | PMO-SLEEVE ADF;SF-830,POM,WHITE |
| JC72-00922A | PMO-SPRING ADF SET;SF-830,POM,WHT |
| JC72-00857A | PMO-TRAY LINK,MP;SCX-5312F,PC+ABS,HB,C87 |
| JC72-00851A | PPR-SPACER_TR;ML-1210,TEFLON,NTR,0.2T,1, |
|
|
PPR-WHITE BAR SHEET;SCX-5100,PET,T0.075, |
| 2001-000015 | R-CARBON(S);0.5OHM,5%,1/2W,AA,TP,2.4X6.4 |
| 2001-001070 | R-CARBON(S);120OHM,5%,1/2W,AA,TP,2.4X6.4 |
| 2001-000027 | R-CARBON;100OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000290 | R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000110 | R-CARBON;10OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000047 | R-CARBON;2.2KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000449 | R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000034 | R-CARBON;220OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000591 | R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000626 | R-CARBON;300OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000631 | R-CARBON;30KOHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000633 | R-CARBON;30KOHM,5%,1/8W,AA,TP,1.8X3.2MM |
| 2001-000867 | R-CARBON;56OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000119 | R-CARBON;680OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2001-000025 | R-CARBON;75OHM,5%,1/4W,AA,TP,2.4X6.4MM |
| 2007-000033 | R-CHIP;0OHM,5%,1/4W,TP,3216 |
| 2007-000123 | R-CHIP;1.5KOHM,5%,1/10W,TP,1608 |
| 2007-000074 | R-CHIP;100OHM,5%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-000090 | R-CHIP;10KOHM,5%,1/10W,TP,1608 |
| 2007-000103 | R-CHIP;120KOHM,5%,1/10W,TP,1608 |
| 2007-000116 | R-CHIP;120OHM,5%,1/10W,TP,1608 |
| 2007-000091 | R-CHIP;12KOHM,5%,1/10W,TP,1608 |
| 2007-000104 | R-CHIP;150KOHM,5%,1/10W,TP,1608 |
| 2007-000402 | R-CHIP;150OHM,5%,1/10W,TP,1608 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608 |
| 2007-000092 | R-CHIP;15KOHM,5%,1/10W,TP,1608 |
| 2007-000078 | R-CHIP;1KOHM,5%,1/10W,TP,1608 |
| 2007-000093 | R-CHIP;20KOHM,5%,1/10W,TP,1608 |
| 2007-000106 | R-CHIP;220KOHM,5%,1/10W,TP,1608 |
| 2007-000094 | R-CHIP;22KOHM,5%,1/10W,TP,1608 |
| 2007-000643 | R-CHIP;270OHM,5%,1/10W,TP,1608 |
|
|
R-CHIP;2KOHM,5%,1/10W,TP,1608 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-000096 | R-CHIP;30KOHM,5%,1/10W,TP,1608 |
| 2007-000133 | R-CHIP;330KOHM,5%,1/10W,TP,1608 |
| 2007-000076 | R-CHIP;330OHM,5%,1/10W,TP,1608 |
| 2007-000134 | R-CHIP;33KOHM,5%,1/10W,TP,1608 |
| 2007-000113 | R-CHIP;33OHM,5%,1/10W,TP,1608 |
| 2007-007726 | R-CHIP;35.7OHM,1%,1/10W,TP,1608 |
| 2007-000083 | R-CHIP;3KOHM,5%,1/10W,TP,1608 |
| 2007-000084 | R-CHIP;4.7KOHM,5%,1/10W,TP,1608 |
| 2007-000107 | R-CHIP;470KOHM,5%,1/10W,TP,1608 |
| 2007-000077 | R-CHIP;470OHM,5%,1/10W,TP,1608 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-000965 | R-CHIP;5.1KOHM,5%,1/10W,TP,1608 |
| 2007-000086 | R-CHIP;5.6KOHM,5%,1/10W,TP,1608 |
| 2007-000119 | R-CHIP;560OHM,5%,1/10W,TP,1608 |
| 2007-000098 | R-CHIP;56KOHM,5%,1/10W,TP,1608 |
| 2007-001044 | R-CHIP;56OHM,5%,1/10W,TP,1608 |
| 2007-000120 | R-CHIP;680OHM,5%,1/10W,TP,1608 |
| 2007-007445 | R-CHIP;9.09KOHM,1%,1/10W,TP,1608 |
| 2003-000507 | R-METAL OXIDE(S);15KOHM,5%,1W,AA,TP,3.3X |
| 2004-000284 | R-METAL;12KOHM,1%,1/4W,AA,TP,2.4X6.4MM |
| 2004-000432 | R-METAL;1KOHM,1%,1/4W,AA,TP,2.4X6.4MM |
| 2004-000496 | R-METAL;2.74KOHM,1%,1/4W,AA,TP,2.4X6.4MM |
| 2011-001011 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,8P,TP,3 |
| 2011-001094 | R-NETWORK;39OHM,5%,1/16W,L,CHIP,8P,TP,3. |
| 2005-000168 | R-WIRE WOUND,NON;0.22OHM,5%,2W,AA,BK,4X1 |
| 3501-000203 | RELAY-MINIATURE;5V,200MW,1000MA,1FORMC,6 |
| 6044-000159 | RING-C;ID3,OD7,T0.6,PASS,STSC |
| 6044-000001 | RING-CS;ID2.8,OD8,T0.25,BLACK,SK-5 |
| 6044-000125 | RING-E;ID4,OD9,T0.6,STSC |
| JC73-40915A | RMO-RUBBER EXIT;SF-5800P,EPDM,11.6 PI,60 |
| JC73-00017A | RMO-RUBBER_EXIT;SF-5100,EPDM,14.4*9.8,50 |
| JC66-00378A | ROLLER-EXIT F/DOWN;ML-1710,PC(NH-1023),9 |
|
|
ROLLER-FEED ROLLER 1;ML-1510,SUM24L+NI+E |
| JC66-00598A | ROLLER-FEED;ML-1710,SUM24L+NI+EPDN,5/12. |
|
|
ROLLER-HEAT;ML-1710,AL 5052+PFA,20.3,247 |
| JC66-00380A | ROLLER-M-EXIT F/UP;ML-1710,PC(GE EXL-911 |
|
|
ROLLER-M-IDLE FEED;ML-1510,POM(DELRIN890 |
| JC66-00626A | ROLLER-M_DECURL;SCX-4114F,POM,D14.4,WHIT |
| JC66-00600A | ROLLER-PRESSURE;ML-1710,SUM24L+LSR+PFA,2 |
|
|
ROLLER-TRANSFER ROLLER;ML-1510,NBR+ECO,1 |
|
|
RPR-FRICTION PAD;ML-1510,NBB,1T 8.9*47,5 |
|
|
RPR-PAD CASSETTE;ML-1510,URETHANE SPONGE |
| 6001-000568 | SCREW-MACHINE;PH,+,M3,L8,NI PLT,SWRCH18A |
| 6006-001193 | SCREW-MACHINE;PH,+,WSP,M3,L10,ZPC(WHT),S |
| 6002-000175 | SCREW-TAPPING;PWH,+,2,M3,L8,ZPC(WHT),SM2 |
| 6003-000261 | SCREW-TAPTYPE;BH,+,-,B,M3,L6,ZPC(WHT),SW |
|
|
SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,+,-,S,M3,L6,ZPC(WHT),SW |
| 6003-000301 | SCREW-TAPTYPE;BH,+,S,M4,L6,ZPC(WHT),SWRC |
| 6006-001078 | SCREW-TAPTYPE;PH,+,WSP,B,M3,L10,ZPC(WHT) |
| 6003-000264 | SCREW-TAPTYPE;PWH,+,-,B,M3,L6,ZPC(WHT),S |
| 6003-000266 | SCREW-TAPTYPE;PWH,+,-,S,M3,L6,ZPC(WHT),S |
| 6003-000196 | SCREW-TAPTYPE;PWH,+,B,M3,L10,NI PLT,SWRC |
| JC66-00527A | SHAFT-FEED IDLE;ML-1510,SUM24L+NI,223,8 |
| JC66-00398A | SHAFT-FEED;ML-1710,POM(M90-44),NTR |
| JC66-00558A | SHAFT-IDLE FEED;SCX-4216F,SUS303F,59.5,2 |
| JC66-00692A | SHAFT-IDLE SCAN;SF-755P,SUM24L+NI,91,4 |
| JC66-00720A | SHAFT-P-CORE;ML-1750,SECC 1.2T,203 |
| JC66-00399A | SHAFT-P-PICK_UP;ML-1710,SECC,0.8T |
| JC63-00291A | SHEET-GUIDE PAPER;ML-1750,PC,0.125,228.3 |
| JC63-00482A | SHEET-GUIDE PAPER;SF-755P,PC,1,72,8,TRAN |
| JC63-00156A | SHEET-GUIDE PAPER;SF-830,PET,0.188,36.5, |
| JC63-00290A | SHEET-HOLDER PAD;ML-1750,PC,0.125,100,18 |
| JC63-00328A | SHEET-ONE TOUCH;SF-565P,PC SHEET,0.38,56 |
| JC63-02433A | SHEET-PEEK FUSER;SF-560,PEEK,0.2 |
| JC63-00483A | SHEET-SUB CASSETTE;SF-755P,PC,0.4,220.9, |
| JC63-00144A | SHIELD-ENGINE, ROCKY;SCX-4114F,SECC,0.8, |
| JC33-00010A | SOLENOID-HB (MANUAL);ML-1510,DC24V,300MA |
| JC33-00009A | SOLENOID-HB (PICK-UP);ML-1510,DC24V,300M |
| 3001-001494 | SPEAKER;1W,8OHM,83DB,500HZ |
|
|
SPONGE-ROLLER PICK_UP;ML-1510,IR60%+NR30 |
| JB61-00083A | SPRING ETC-CIS;SF-4755,SWP-B,F0.9,F10.0, |
| JC61-00064A | SPRING ETC-CLAW;ML-5200A,SUS 304 WPB,F0. |
| JC61-00554A | SPRING ETC-CLUTCH;SF-830,SWRS82A,F11.45, |
| JC61-00025A | SPRING ETC-CS-CHARGE APOLLO;SF-5100,SUS |
| JC61-70911A | SPRING ETC-EXIT ROLL FD;ML-165,SUS304 WP |
| JC61-00011A | SPRING ETC-FEED;SF-5100,SUS304WPB,0.6,13 |
| JC61-70932A | SPRING ETC-GUIDE DEVE;ML-5000A,D4.3,L16. |
| JB61-00107A | SPRING ETC-LEVER SENSOR;SF-430,SUS304,0. |
| JG61-70531A | SPRING ETC-LOCKER,PLATE;SF6000,SUS304WPB |
| JB61-00070A | SPRING ETC-PAPER OUT;MJC-2000/LEF,STEEL, |
| JC61-00555A | SPRING ETC-SHAFT;SF-830,SUS304-WPB,0.6,7 |
| JC61-00047A | SPRING ETC-TR L HAWK;ML-6060A,SWP-B |
| JC61-70958A | SPRING ETC-TR;ML-5000A,SUS304 WPB,PI0.55 |
| 6107-001168 | SPRING-CS;PW-2,PI0.95,D5.95,L16,ID5.0,OD |
| 6107-001167 | SPRING-CS;SUS304-WPB,PI0.25,D3.25,L9.6,I |
| 6107-001163 | SPRING-CS;SUS304-WPB,PI0.4,D3.9,L13,ID3. |
| 6107-001166 | SPRING-CS;SUS304-WPB,PI0.65,D12.65,L59.3 |
| 6107-001047 | SPRING-ES;SUS304,PI0.45,D2.75,L24.2 |
|
|
SPRING-ETC;SUS304-WPB,PI0.45,D4.45,L12,I |
|
|
SPRING-TS;SUS304-WPB,PI0.15,D3.95,L12,ID |
| 6107-001165 | SPRING-TS;SUS304-WPB,PI0.2,D4,ID3.8,OD4. |
| 6107-001224 | SPRING-TS;SUS304WPB,PI0.95,ID6.0,OD7.9 |
| 6107-001170 | SPRING-TS;SWP-B,PI0.9,D6.0,ID5.2,OD7.0 |
| 6107-001171 | SPRING-TS;SWRS82A,0.75X0.5,D14.2,ID13.7, |
| 6103-001048 | SUPPORTER;DASS-T20N,L37.1,NTR,NYLON6/6 |
| 3404-001222 | SWITCH-TACT;12VDC,50MA,160GF,6X6X5.0MM,S |
| 0203-000007 | TAPE-FILAMENT;T0.15,L55M,TRP,FILAMENT |
| 0504-000111 | TR-DIGITAL;KSR1106,NPN,200MW,10K/47KOHM, |
| 0502-000245 | TR-POWER;KSB1151-Y,PNP,1300MW,TO-126,160 |
| 0501-000150 | TR-SMALL SIGNAL;2SA1037,PNP,200MW,SOT-23 |
| 0501-000338 | TR-SMALL SIGNAL;2SC2812,NPN,200MW,SOT-23 |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000009 | TR-SMALL SIGNAL;KSC945-Y,NPN,250MW,TO-92 |
| 0501-000457 | TR-SMALL SIGNAL;MMBT2222A/KST2222A,NPN,3 |
| JG26-50001A | TRANS MATCHING;100-1016,SF6000,4P,EX19,6 |
| JC63-00325B | TRAY-M_STACKER TX B;SF-755P,ABS,2.5,110. |
| JC59-00018D | UNIT-HUMMINGLSU_CG;ML-1710,ADDING COVER |
| 1405-000226 | VARISTOR;-,25A,5MM,TP |
| 1405-000144 | VARISTOR;430V,1250A,14X7.2MM,TP |
| 1405-000170 | VARISTOR;82V,1200A,9X4.1MM,TP |
| 6031-000023 | WASHER-PLAIN;POLY,ID5.9,OD10.0,T0.5,BLK |
| 6031-000019 | WASHER-PLAIN;POLY,ID6.1,OD8.5,T0.1,BLK |
