Manufacturer
Samsung
Model Number
UH105CAV
Description
System Air Conditioner
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| DB97-02600P | ACCESSORY ASSEMBLY-SUB |
| DB97-02600G | ACCESSORY ASSEMBLY-SUB |
| DB67-00908A | ACCUMULATOR;UH140EAV,SCP1,294,BLACK,SSEC |
| 0102-001604 | ALUMINUM INGOT;AL6063 |
| DB96-14388A | ASSEMBLY 4WAY VAVLE |
| DB97-02611A | ASSEMBLY BAG PE |
| DB98-30154A | ASSEMBLY BAR CODE BOX |
| DB94-01767A | ASSEMBLY BRACKET MOTOR |
| DB90-02434A | ASSEMBLY BRACKET VALVE |
| DB90-07110A | ASSEMBLY BRACKET-VALVE |
| DB90-07117C | ASSEMBLY BRACKET-WIRE PAINT |
| DB90-07103A | ASSEMBLY CABI BACK-LF |
| DB90-01588B | ASSEMBLY CABI BACK-LF |
| DB90-01588A | ASSEMBLY CABI BACK-LF |
| DB90-07215C | ASSEMBLY CABI BACK-RH |
| DB90-01637C | ASSEMBLY CABI BACK-RH |
| DB99-00538E | ASSEMBLY CABI BASE PART |
| DB90-07243E | ASSEMBLY CABI BASE PART |
| DB90-01535B | ASSEMBLY CABI FRONT LF |
| DB90-07219B | ASSEMBLY CABI FRONT RH |
| DB90-01534E | ASSEMBLY CABI FRONT RH |
| DB90-01534C | ASSEMBLY CABI FRONT RH |
| DB90-07220D | ASSEMBLY CABI FRONT-LF |
| DB90-01586B | ASSEMBLY CABI FRONT-LF |
| DB90-01535C | ASSEMBLY CABI FRONT-LF |
| DB90-01587A | ASSEMBLY CABI FRONT-RH |
| DB90-01585A | ASSEMBLY CABINET-TOP |
| DB90-01533B | ASSEMBLY CABINET-TOP COVER |
| DB96-09416A | ASSEMBLY COND OUT |
| DB96-09760B | ASSEMBLY COND UNIT-BENDING |
| DB96-09760A | ASSEMBLY COND UNIT-BENDING |
| DB93-05954A | ASSEMBLY CONNECTOR WIRE-COMP |
| DB93-06671A | ASSEMBLY CONNECTOR WIRE-EXTERNAL C |
| DB93-06326A | ASSEMBLY CONNECTOR WIRE-FUSE |
| DB93-12805B | ASSEMBLY CONTROL OUT |
| DB93-07077K | ASSEMBLY CONTROL OUT |
| DB96-09431B | ASSEMBLY EEV VAVLE |
| DB98-28302A | ASSEMBLY ELECTRIC SCHEMETIC |
| DB90-07273A | ASSEMBLY HANDLE |
| DB98-16589A | ASSEMBLY IGBT |
| DB98-29516A | ASSEMBLY INSTALLATION MANUAL |
| DB95-00630A | ASSEMBLY IPM |
| DB98-29143A | ASSEMBLY LABEL BAR CODE |
| DB98-28433A | ASSEMBLY LABEL BARCODE |
| DB98-29525A | ASSEMBLY LABEL INSTALLATION TIP |
| DB98-15939C | ASSEMBLY LOGO SAMSUNG |
| DB98-08770K | ASSEMBLY LOGO SAMSUNG |
| DB90-02583B | ASSEMBLY MOTOR BRACKET SUB |
| DB95-01040H | ASSEMBLY NOISE ABSORBER |
| DB95-00595A | ASSEMBLY PHOTO COUPLER |
| DB93-06548B | ASSEMBLY PLATE CONTROL LOW |
| DB90-03986A | ASSEMBLY PRATITION |
| DB91-00307A | ASSEMBLY SCREW MACHINE |
| DB91-00306A | ASSEMBLY SCREW MACHINE |
| DB97-02610A | ASSEMBLY SCREW TAPPING |
| DB97-02682A | ASSEMBLY SCREW TAPTITLE |
| DB95-01978A | ASSEMBLY THEMISTOR-AIR/DISCHARGE |
| DB95-02009C | ASSEMBLY THERMISTOR-AIR/DISCHARGE |
| DB95-01977A | ASSEMBLY THERMISTOR-OLP/COND |
| DB96-10257A | ASSEMBLY TUBE U BEND |
| DB96-10256A | ASSEMBLY TUBE U BEND |
| DB98-15842D | ASSEMBLY WARNING INSTALL |
| DB93-50001A | ASSEMBLY WIRE RING SOLD |
| DB97-04567A | ASSY ACCESSORY OUT PARTS;HP,T,48K,N, |
| DB97-05089E | ASSY ACCESSORY OUT PARTS;UH090EAVSTK,SSE |
| DB90-01589C | ASSY CABI BACK-RH;UH140GAV1,SECC-P |
| DB90-07104C | ASSY CABI BACK-RH;UH140GAV1,SSEC |
| DB90-07114D | ASSY CABI FRONT-LF PAINT;SSEC |
| DB90-01586C | ASSY CABI FRONT-LF;RVXIHF040EAXIA,SSEC P |
| DB90-07361A | ASSY CABI FRONT-RH;AP50M0AXHAC,S50-2 |
| DB90-04232A | ASSY CABI OUT PARTS;UH105EAV,GALAXY2 PJT |
| DB90-02476B | ASSY CABINET-BASE PAINT;-,SAMSUNG ROTARY |
| DB90-02476D | ASSY CABINET-BASE PAINT;RVXIHF060EAXIA,S |
| DB90-01536E | ASSY CABINET-BASE;-,SSEC |
| DB90-01536G | ASSY CABINET-BASE;RVXIHF060EAXIA,SSEC PO |
| DB96-14358A | ASSY COLLECTOR IN;UH105EAV2,SSEC |
| DB96-09607A | ASSY COLLECTOR IN;UH140EAV,SSEC |
| DB95-01931A | ASSY COMP PARTS;UH105CAV,SSEC |
| DB96-14387A | ASSY COND OUT;UH105EAV2,SSEC |
| DB96-09218A | ASSY COND PARTS;UH105EAV,GALAXY2 PJT,SSE |
| DB93-06331A | ASSY CONNECTOR WIRE-COMM;2,1007,22,RED,Y |
| DB93-06343A | ASSY CONNECTOR WIRE-COMP;UH140EAV,SSEC,U |
| DB93-06325A | ASSY CONNECTOR WIRE-DISPLAY;4,1007,26,BL |
| DB93-06324A | ASSY CONNECTOR WIRE-DISPLAY;4,2095,26,OR |
| DB93-06338A | ASSY CONNECTOR WIRE-EARTH;1,1015,16,YEL/ |
| DB93-06342A | ASSY CONNECTOR WIRE-EARTH;UH140EAV,SSEC, |
| DB93-06327A | ASSY CONNECTOR WIRE-FUSE;UH140EAV,SSEC,U |
| DB93-12739A | ASSY CONNECTOR WIRE-JUMP;5,1007,26,RED,Y |
| DB93-06393B | ASSY CONNECTOR WIRE-JUMP;UH140EAV,SSEC,U |
| DB93-06393A | ASSY CONNECTOR WIRE-JUMP;UH140EAV,SSEC,U |
| DB93-06337A | ASSY CONNECTOR WIRE-MAIN INVERTER;7,1007 |
| DB93-06328B | ASSY CONNECTOR WIRE-POWER;1,1015,12,SKY, |
| DB93-06332A | ASSY CONNECTOR WIRE-POWER;2,1015,18,BRN, |
| DB93-06336A | ASSY CONNECTOR WIRE-POWER;2,1015,18,YEL, |
| DB93-06392A | ASSY CONNECTOR WIRE-POWER;3,1015,18,BRN, |
| DB93-06348A | ASSY CONNECTOR WIRE-REACTOR;2,1015,12,YE |
| DB93-06839A | ASSY CONTROL OUT PARTS;HP,T,36K, |
| DB96-14167A | ASSY DISTRIBUTOR-OUT;UH105EAV2,SSEC |
| DB96-09608A | ASSY DISTRIBUTOR-OUT;UH140EAV,SSEC |
| DB94-01960A | ASSY FAN OUT PARTS;UH140CAV,SSEC |
| DB97-09587A | ASSY MANUAL PART;-,HP,T,48K, |
| DB91-00574D | ASSY MICOM;GALAXY3 OUTDOOR INVERTER MICO |
| DB91-00582D | ASSY MICOM;GALAXY_2 INVETER OUT MAIN MIC |
| DB91-00582C | ASSY MICOM;GALAXY_2 INVETER OUT MAIN MIC |
| DB91-01357A | ASSY MICOM;POWERMULTI PFC CONTROL MICOM, |
| DB97-12516A | ASSY PACKING OUT PARTS;SSEC,UH105CAV/140 |
| DB97-10870J | ASSY PACKING-CASE;R410A,UH105CAV/UH140CA |
| DB97-16162J | ASSY PACKING-CASE;S50-2 |
| DB93-12881B | ASSY PCB AUTO;UH105EAS |
| DB93-12809B | ASSY PCB MAIN-INVERTER;INVERTER,CAC-07, |
| DB93-12880B | ASSY PCB MANUAL;UH105EAS |
| DB93-12882B | ASSY PCB SMD;UH105EAS |
| DB93-03696A | ASSY PCB SUB;SUB,ASIS,DH60GTX,ASIS |
| DB97-09576A | ASSY PRINT OUT PARTS;-,HP,T,36K, |
| DB97-13624A | ASSY PRINT OUT PARTS;HP,R410A,UH105CAV,S |
| DB96-09612A | ASSY TUBE COND OUT;UH140EAV,SSEC |
| DB96-18719A | ASSY TUBE EEV;UH105CAV,SSEC |
| DB96-12319A | ASSY TUBE OUT PARTS;UH105CAV,SSEC |
| DB96-18827A | ASSY TUBE OUT PARTS;UH105CAV,SSEC,EEV RE |
| DB96-12237C | ASSY U BEND-S;COND,SSEC |
| DB96-09402C | ASSY-4WAY VALVE;HP,INV,10.5KW,R410A,UH10 |
| DB90-07106C | ASSY-CABI BASE PAINT;SAMSUNG ROTARY 63F, |
| DB90-07360A | ASSY-CABINET-TOP;AP50M0AXHAC,S50-2 |
| DB98-29524D | ASSY-CARD ENERGY GUIDE;HP,T,10.5KW,CH105 |
| DB91-00565B | ASSY-EEPROM;UH105EAV,93LC66,SSEC |
| DB90-04157A | ASSY-HANDLE;MH050FXCA2A,FJM USA |
| DB98-29765A | ASSY-LABEL AUTO ADDRESSING S/W;CAC GALAX |
| DB98-27584A | ASSY-LABEL CAUTION;HP,INV,FOR KCV CONTRO |
| DB98-28302B | ASSY-LABEL DIAGRAM;HP,INV,220-240,N,ENGL |
| DB98-26844K | ASSY-LABEL RATING B;HP,T,10.5KW,R410,UH1 |
| DB98-29427B | ASSY-LABEL RATING OUT;HP,T,36K,EN,EN,R41 |
| DB98-31208B | ASSY-LABEL RATING OUT;HP,UH105CAV,SSEC,I |
| DB98-33142A | ASSY-LABEL SMART INVERTER;INV,PET+L/C |
| DB98-30707A | ASSY-LABEL WARNING;SYSTEM MODEL,SSEC,75* |
| DB96-09430A | ASSY-OIL SEPERATOR;UH140EAV,SSEC |
| DB95-01471A | ASSY-PFC MODULE;UH140EAV,PFC MODULE |
| DB98-20665A | ASSY-RESISTOR;KFR-35(25)GW/GPI,1.8K F 16 |
| DB97-13379A | ASSY-SCREW TAPPING;SCREW ASSY |
| DB98-24813A | ASSY-THERMAL GREASE;INV,RADIANT HEAT |
| 6902-000103 | BAG PE |
| 6902-002408 | BAG PE;HDPE,T0.015,W1400,L1200,TRP,RECYC |
| 6902-002009 | BAG PE;HDPE,T0.02,W1400,L1200,TRP,RECYCL |
| 6902-002340 | BAG PE;LDPE,T0.03,W100,L200,TRP,RECYCLE, |
| 6902-002333 | BAG PE;LDPE,T0.03,W300,L400,TRP,RECYCLE+ |
| 6922-000041 | BAND |
| DB60-20006A | BOLT |
| DB60-00137A | BOLT-ETC;M8,L43.5,ZPC(WHT),SWRCH18A,HEX |
| 6011-001449 | BOLT-FLANGE |
| 6009-001074 | BOLT-HEX |
| DB61-01855B | BRACKET MOTOR;UH140GAV1,GI-SGCC,T1.6 |
| DB61-02750A | BRACKET-SUB;RVXMHF050GA,SGCC-M,T1.2,L123 |
| DB61-01910C | BRACKET-WIRE PAINT |
| DB61-01910B | BRACKET-WIRE PAINT |
| DB61-01857C | BRACKET-WIRE;-,GI-SGCC,T0.8,W158,DB61-01 |
| DB61-01857B | BRACKET-WIRE;UH140CAV,SECC-P,1.0,161.1,1 |
| 2401-004278 | C-AL |
| 2401-003585 | C-AL |
| 2401-002438 | C-AL |
| 2401-002400 | C-AL |
| 2401-002300 | C-AL |
| 2401-002274 | C-AL |
| 2401-001552 | C-AL |
| 2401-000832 | C-AL |
| 2401-000480 | C-AL |
| 2401-000470 | C-AL |
| 2401-000303 | C-AL |
| 2401-000151 | C-AL |
| 2401-000027 | C-AL |
| 2401-003861 | C-AL;68UF,20%,400V,WT,TP,18X25MM,7.5 |
| 2203-006348 | C-CER, CHIP |
| 2203-006104 | C-CER, CHIP |
| 2203-005261 | C-CER, CHIP |
| 2203-005249 | C-CER, CHIP |
| 2203-002398 | C-CER, CHIP |
| 2203-002002 | C-CER, CHIP |
| 2203-001414 | C-CER, CHIP |
| 2203-000477 | C-CER, CHIP |
| 2203-000440 | C-CER, CHIP |
| 2203-000260 | C-CER, CHIP |
| 2203-000257 | C-CER, CHIP |
| 2203-000239 | C-CER, CHIP |
| 2203-000206 | C-CER, CHIP |
| 2203-000192 | C-CER, CHIP |
| 2203-001562 | C-CERAMIC, CHIP |
| 2201-000879 | C-CERAMIC, DISC |
| 2201-000540 | C-CERAMIC, DISC |
| 2201-000322 | C-CERAMIC, DISC |
| 2201-000154 | C-CERAMIC, DISC |
| 2301-001703 | C-FILM, LEAD |
| 2306-000123 | C-FILM, LEAD-PPF |
| 2301-001314 | C-FILM, LEAD-PPF |
| 2301-001285 | C-FILM, LEAD-PPF |
| 2306-001034 | C-FILM, MPPF |
| DB64-01137C | CABINET BACK-RH;UH140GAV1,EGI-SECC,T0.8, |
| DB64-01134C | CABINET FRONT-LF;RVXIHF040EAXIA,EGI-SECC |
| DB64-01134D | CABINET FRONT-LF;UP110(&140)EAV,EGI-SECC |
| DB64-01136A | CABINET-BACK LF |
| DB64-01136B | CABINET-BACK LF;UP110(&140)EAV,EGI-SECC, |
| DB64-01138D | CABINET-BASE;-,GI-SGCC,T1.6,373MM,930MM, |
| DB64-01134B | CABINET-FRONT LF;SLIM DUCT 2,EGI-SECC,T0 |
| DB64-01135A | CABINET-FRONT RH |
| DB64-01139A | CABINET-TOP COVER |
| DB65-10074D | CABLE CLAMP |
| DB65-10088C | CABLE TIE |
|
|
CABLE TIE |
| 6501-001110 | CABLE TIE;T1.2,W4.8,L200,NYLON66 |
| DB63-10355C | CAP-DRAIN |
| DB67-00942A | CAP;VIVALDI-P/J,SHP2,1,5.2,11.5,18.5, |
| DB61-03568B | CASE CONTROL-OUT;UH140CAV,ABS,T2.5,260.8 |
| DB61-01948A | CASE-SUB PCB;MH080FXEA4,ABS,T2.0,47,65,B |
| DC02-10009A | CHEMICALS-LOCK SCREW |
| DB27-00054A | COIL CHOKE |
| DB27-00033A | COIL CHOKE |
| DB27-00065A | COIL CHOKE-REACTOR |
| DB27-00068A | COIL HARMONIC |
| DB75-00369B | CONDENSER-SUB;MH48,A1100,1,52,12.7,928,1 |
| 3711-005206 | CONNECTOR-HEADER |
| 3711-003406 | CONNECTOR-HEADER |
| 3711-000997 | CONNECTOR-HEADER |
| 3711-000940 | CONNECTOR-HEADER |
| 3711-000319 | CONNECTOR-HEADER |
| 3711-000177 | CONNECTOR-HEADER |
| 3711-000176 | CONNECTOR-HEADER |
| 3712-001265 | CONNECTOR-TERMINAL |
| 3712-001139 | CONNECTOR-TERMINAL |
| 0102-001525 | COPPER TUBE |
| 0102-001558 | COPPER TUBE;C1220T,H,2.75,0.75,ROLL, |
| 0102-001434 | COPPER TUBE;C1220T,H,OD6.35,T0.7, |
| 0102-001431 | COPPER TUBE;C1220T,H,OD9.52,T0.7, |
| 0102-001548 | COPPER TUBE;C1220T,O,15.88,0.8,ROLL, |
| 0102-001549 | COPPER TUBE;C1220T,O,15.88,1,ROLL, |
| 0102-001511 | COPPER TUBE;C1220T,O,3.25,0.6,ROLL, |
| 0102-001523 | COPPER TUBE;C1220T,O,3.25,1.25,ROLL, |
| 0102-001515 | COPPER TUBE;C1220T,O,6.35,0.7,ROLL, |
| 0102-001530 | COPPER TUBE;C1220T,O,7,0.41,ROLL |
| 0102-001534 | COPPER TUBE;C1220T,O,7,0.7,ROLL, |
| 0102-001537 | COPPER TUBE;C1220T,O,7.94,0.5,ROLL, |
| 0102-001538 | COPPER TUBE;C1220T,O,7.94,0.7,ROLL, |
| 0102-001539 | COPPER TUBE;C1220T,O,9.5,0.7,ROLL, |
| 0102-001542 | COPPER TUBE;C1220T,O,9.52,0.7,ROLL, |
| 0102-001544 | COPPER-TUBE |
| 0102-000252 | COPPER-TUBE |
| DB90-07222B | COVER ASSEMBLY TOP |
| DB63-02280A | COVER TERMINAL |
| DB73-00508A | COVER-RUBBER WIRE;UH140GZMC,CR V0,OD33,B |
| 0402-001771 | DIODE-BRIDGE |
| 0402-000324 | DIODE-BRIDGE |
| 0402-001772 | DIODE-RECTIFIER |
| 0402-001427 | DIODE-RECTIFIER |
| 0402-000351 | DIODE-RECTIFIER |
| 0407-000123 | DIODE-SWITCHING |
| 0407-000113 | DIODE-SWITCHING |
|
|
DIODE-SWITCHING |
| 0401-000132 | DIODE-SWITCHING |
| 0406-001284 | DIODE-TVS |
| 0406-001204 | DIODE-TVS |
| 0403-001211 | DIODE-ZENER |
| 0403-000282 | DIODE-ZENER |
| 0403-000258 | DIODE-ZENER |
| 0403-000252 | DIODE-ZENER |
| DB62-04309A | DISTRIBUTER AIR;DAS-HEX11502B,C1220T-O,T |
| DB67-00477A | DRAIN-PLUG OUT |
| DB67-00861A | FAN PROPELLER |
| DB60-00154B | FASTENER-MOTOR |
| DB60-00437A | FASTENER-NUT FLANGE |
| DB60-30010B | FASTENER-NUT FLARE |
| DB60-00321A | FASTENER-NUT;UH140EAV,CU,5.6,6,10, |
| DB63-02045E | FELT-CABI FRONT RH;AM060JXMKEH/SC,FELT/P |
| DB63-02070A | FELT-CABI;UH140EAV,PVC+FELT,12,160,430, |
| DB63-02205A | FELT-COMP SOUND |
| DB63-02008A | FELT-COMP SOUND |
| DB63-02069A | FELT-PARTITION;UH140EAV,FELT,T10,320,330 |
| DB63-02045A | FELT-PVC A;UH***EAV,FELT/PVC,T12,230,500 |
| DB63-02045B | FELT-PVC B;GALAXY 2,FELT/PVC,T2+T10,230, |
| DB63-02045C | FELT-PVC C;GALAXY 2,FELT/PVC,T2+T10,W200 |
| DB63-02007A | FELT-TOP COVER |
| DB62-04146C | FIN-FOIL;MH48,A1100-H24,0.095,12.7,1071, |
| DB01-00130A | FOIL |
| 3602-001043 | FUSE-BLOCK |
| 3602-001044 | FUSE-BLOCK COVER |
| 3601-001445 | FUSE-CARTRIDGE |
| 3601-001094 | FUSE-FERRULE |
| DB63-02281A | GASKET;55F TBR,SILICON RUBBER,T0.8,BLACK |
| DB63-02281B | GASKET;55F TBR,SIR,T0.8,60-70 |
| 0205-000178 | GREASE-SILICON |
| DB63-00801A | GROMMET ISOLATOR |
| DB63-02226D | GUARD FAN |
| DB63-02226B | GUARD FAN |
| DB63-00691B | GUARD FAN |
| DB61-01908B | GUIDE-SCREEN |
| DB64-01231C | HANDLE |
| DB64-01231A | HANDLE |
| 3711-006053 | HEADER-BOARD TO BOARD |
| 3711-005716 | HEADER-BOARD TO CABLE |
| 3711-004531 | HEADER-BOARD TO CABLE |
| 3711-004484 | HEADER-BOARD TO CABLE |
| 3711-004379 | HEADER-BOARD TO CABLE |
| 3711-004182 | HEADER-BOARD TO CABLE |
| 3711-004067 | HEADER-BOARD TO CABLE |
| 3711-003942 | HEADER-BOARD TO CABLE |
| 3711-003873 | HEADER-BOARD TO CABLE |
| 3711-003843 | HEADER-BOARD TO CABLE |
| 3711-000939 | HEADER-BOARD TO CABLE |
| 3711-000321 | HEADER-BOARD TO CABLE |
| 3711-000315 | HEADER-BOARD TO CABLE |
| 3711-000203 | HEADER-BOARD TO CABLE |
| 3711-000015 | HEADER-BOARD TO CABLE |
| DB62-09013A | HEAT SINK;UH140EAV1,AL6063,45MM0.2,200M |
| DB62-05407A | HEAT SINK;UH140EAV1,AL6063,45MM0.2,200M |
| DB61-01856E | HOLDER-BRACKET VALVE;MINI DVM OUTDOOR,GI |
| DB61-00924A | HOLDER-FUSE |
|
|
HOLDER-SENSOR |
| DB61-00854A | HOLDER-SENSOR;AVMCH052B10,C1220T-O,T0.55 |
| DB61-40291A | HOLDER-WIRE |
| DB61-00206B | HOLDER-WIRE |
| DB61-00206C | HOLDER-WIRE;AP55Q2BXUMG,GI-SGCC,T0.5,W5, |
| DB13-00003A | IC DRIVER GATE |
| DB09-00517A | IC MICOM |
| DB09-00338A | IC MICOM |
| DB09-00591A | IC MICOM;LM3S817,48,DC3V,50 MHZ,LQFP,LQF |
| 1006-001325 | IC-BUS TRANSCEIVER |
| 0801-000393 | IC-CMOS LOGIC |
| 1103-001228 | IC-EEPROM |
| 1103-001038 | IC-EEPROM |
| 1006-001371 | IC-LINE TRANSCEIVER |
| 1203-002948 | IC-POSI.ADJUST REG. |
| 1203-000002 | IC-POSI.ADJUST REG. |
| 1203-000274 | IC-POSI.FIXED REG. |
| 1203-005454 | IC-POSI.FIXED REG.;LD1117S33-HF,SOT-223, |
| 1203-003527 | IC-PWM CONTROLLER |
| 1203-003334 | IC-RESET |
| 1203-000340 | IC-VOL. REFERANCE |
| 1202-000104 | IC-VOLTAGE COMP. |
| DB62-05533A | INSULATION |
| DB62-02840A | INSULATION PARTITION |
| DB62-02840H | INSULATION PARTITION-CABI |
| DB62-02840G | INSULATION PARTITION-CABI |
| DB62-02840C | INSULATION PARTITION-COND |
| DB62-03679A | INSULATION-BRACKET MOTOR;RVMMH120/140/16 |
| DB62-02836C | INSULATION-TOP;MINI DVM,FELT,10,343,335, |
| DB47-90005A | JUMPER WIRE;TA0.6PI/52MM,P0509-400-108, |
| DB68-02988A | LABEL BAR CODE |
| DB68-02809A | LABEL BAR CODE |
| DB68-11576A | LABEL BAR CODE;AM9000A,EU,ART,W15,L15,QR |
| DB68-03065A | LABEL BAR CODE;PET,45,15,E-PASS |
| DB68-03068C | LABEL PRINT;PET,W55,L170,SILVER,LABEL RA |
| DB68-02813A | LABEL WARNING |
| DB98-32532A | LABEL WARNING;-,PET,100,46,SIL |
| DB98-31132A | LABEL WARNING;-,PET,WW1,WB |
| DB98-32539C | LABEL WARNING;RAC,PET,70,90,L/C |
| DB68-01350A | LABEL-BAR CODE |
| DB68-02970A | LABEL-SMART INVERTER |
| 0601-002345 | LED |
| 0601-001954 | LED |
| 0601-001816 | LED |
| DB07-00054A | LED DISPLAY |
| DB61-01859A | LEG-BASE |
| DB61-01859B | LEG-BASE;POWER MULTI,GI-SGCC,T3 |
| DB64-03201B | LOGO |
| DB64-03090A | LOGO;DIGITAL INVERTER,PVC,T0.1,W155,L36, |

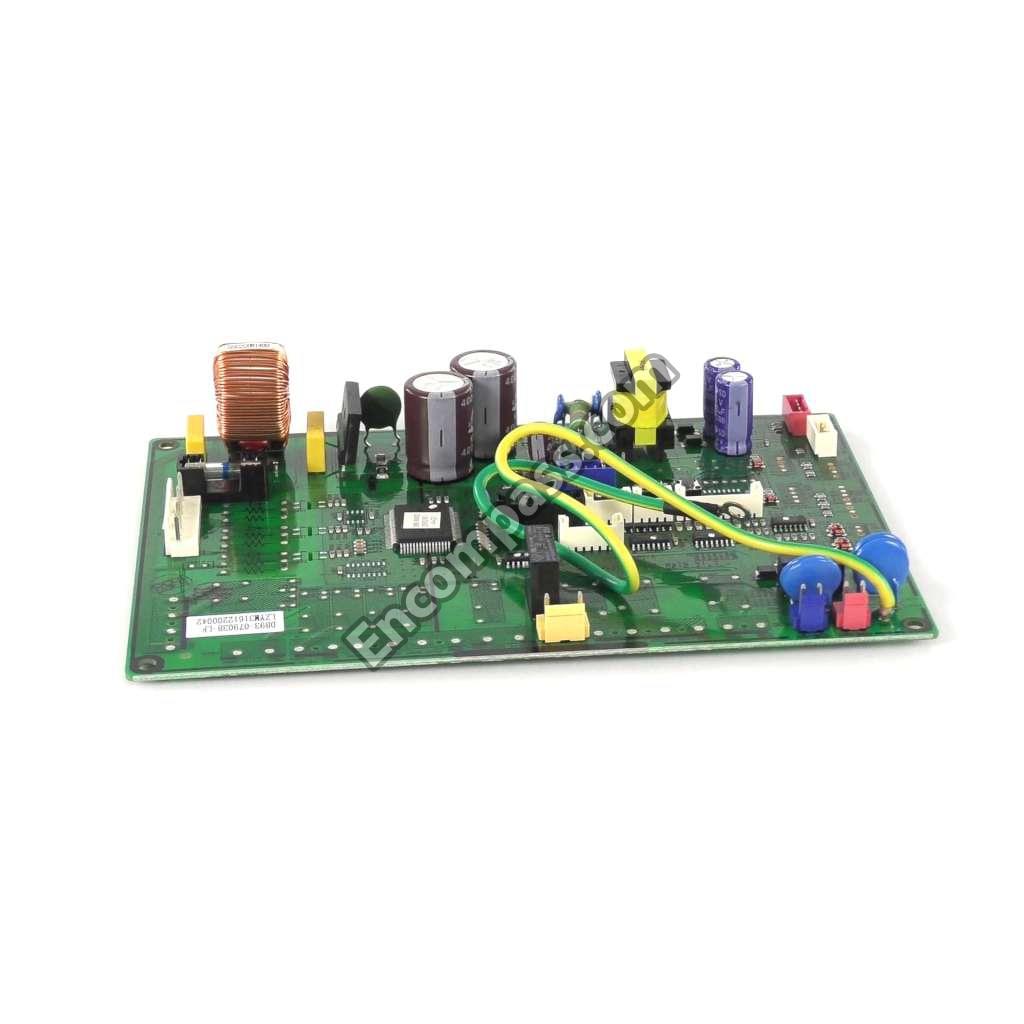

| DB93-05843K | MAIN PCB ASSEMBLY-INVERTER |
|
|
MAIN PCB ASSEMBLY-OUT |

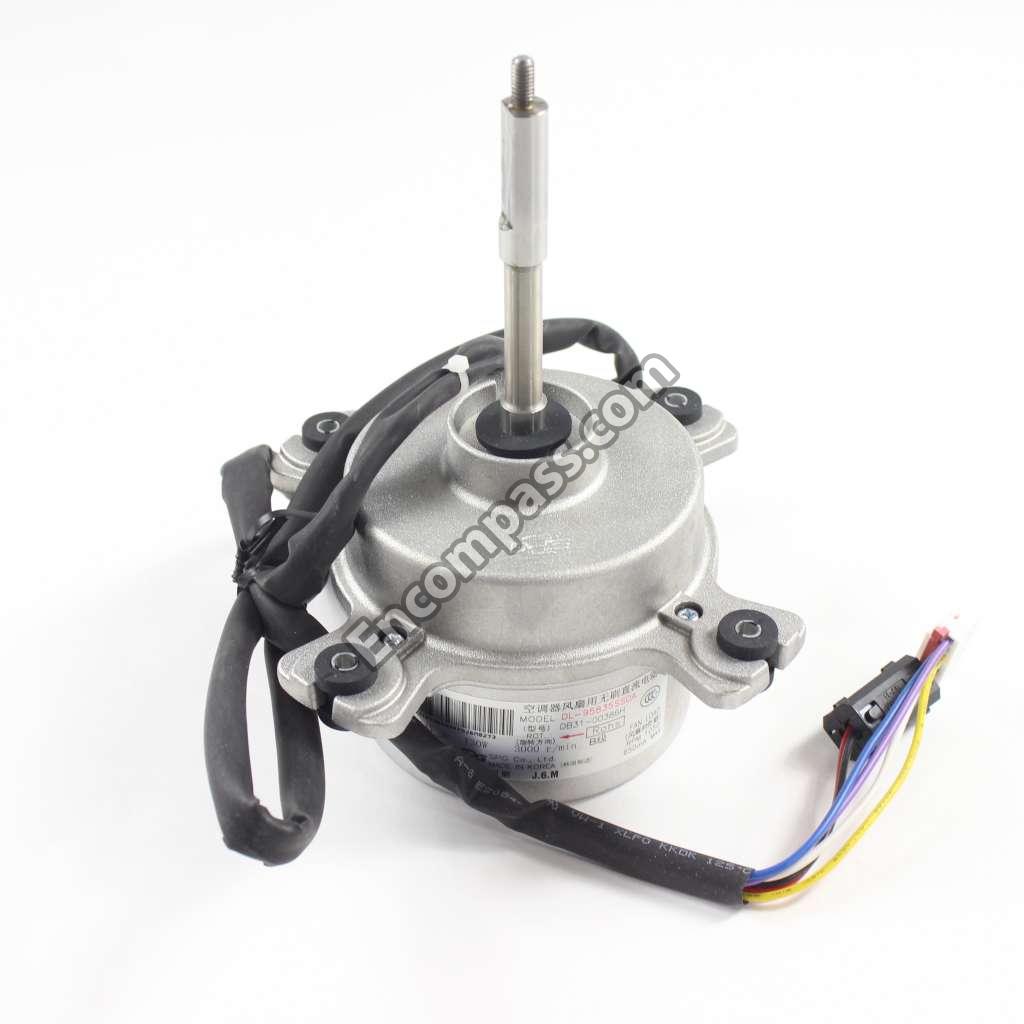

| DB31-00386P | MOTOR FAN |
| DB31-00386N | MOTOR FAN |
| DB31-00386J | MOTOR FAN |
|
|
MOTOR FAN |
| 0204-001386 | NON FREON |
| DB60-30028A | NUT-FLANGE |
| DB60-30020A | NUT-HEXAGON FLANGE |
| 6021-001142 | NUT-HEXAGON FLANGE |
| 0205-001303 | OIL-SILICON;SF9038A,OIL-SILICON,G |
| DB69-02233A | PACKING CASE;UH105CAV/UH140CAV,PAPER,128 |
| DB69-02233E | PACKING-CASE OUT;EXPORT,CB,DW-2,L467,W10 |
| DB69-00943A | PACKING-CUSHION TOP |
| DB69-00964Q | PALLET-BOTTOM;DC60HTSX,WOOD,110,453,1072 |
| DB69-02507P | PALLET;S50-2,WOOD,W1072,L473,H130,SET,TR |
| DB67-00901A | PARTITION;UH140EAV,GI-SGCC,0.8,309.7,111 |
| DB93-01469S | PCB ASSEMBLY SUB |
| DB93-06290A | PCB ASSEMBLY SUB-DISPLAY |
| DB93-05844A | PCB ASSEMBLY SUB-EMI |
| DB41-00810A | PCB MAIN-IINV;UP140EAV,CEM-3,2,T1.6,1,SS |
| DB41-01110A | PCB MAIN-INVERTER;CEM-3,T1.6,1,CTI 600V |
| DB41-00801A | PCB MAIN-OUT;UP140EAV,CEM-3,2,T1.6,2,SSE |
| DB41-00686A | PCB SUB-DISPLAY;MH080FXCA4A,FR-1,1,V2.0, |
| DB41-00670A | PCB SUB-EMI;GALAXY 2 PJT,FR-4,2,V2.2,T1. |
| 0604-001172 | PHOTO-COUPLER |
| 0604-001148 | PHOTO-COUPLER |
| 0604-001002 | PHOTO-COUPLER |
| DB60-70002A | PIN-SCREEN |
| DB60-70016A | PIN-STAPLE |
| DB70-00163A | PLATE-COND |
| DB70-00671A | PLATE-COND LF |
| DB70-00672A | PLATE-COND RH |
| DB61-03567A | PLATE-CONTROL LOW;UH140EAV,SGCC-M,T1.0, |
| DB61-03566A | PLATE-CONTROL UP |
| 4719-002580 | POWER MODULE;600V,50A,DIP,PS21A79,42,IPM |
| 2006-001165 | R-CEMENT |
| 2006-001164 | R-CEMENT |
| 2007-007154 | R-CHIP |
| 2007-001318 | R-CHIP |
| 2007-001222 | R-CHIP |
| 2007-001177 | R-CHIP |
| 2007-001074 | R-CHIP |
| 2007-001067 | R-CHIP |
| 2007-000978 | R-CHIP |
| 2007-000964 | R-CHIP |
| 2007-000950 | R-CHIP |
| 2007-000944 | R-CHIP |
| 2007-000938 | R-CHIP |
| 2007-000929 | R-CHIP |
| 2007-000924 | R-CHIP |
| 2007-000766 | R-CHIP |
| 2007-000763 | R-CHIP |
| 2007-000686 | R-CHIP |
| 2007-000682 | R-CHIP |
| 2007-000613 | R-CHIP |
| 2007-000546 | R-CHIP |
| 2007-000518 | R-CHIP |
| 2007-000493 | R-CHIP |
| 2007-000477 | R-CHIP |
| 2007-000468 | R-CHIP |
| 2007-000465 | R-CHIP |
| 2007-000455 | R-CHIP |
| 2007-000385 | R-CHIP |
| 2007-000300 | R-CHIP |
|
|
R-CHIP |
| 2007-000263 | R-CHIP |
| 2007-000221 | R-CHIP |
| 2007-000113 | R-CHIP |
| 2007-000109 | R-CHIP |
| 2007-000097 | R-CHIP |
| 2007-000093 | R-CHIP |
| 2007-000090 | R-CHIP |
| 2007-000084 | R-CHIP |
|
|
R-CHIP |
| 2007-000078 | R-CHIP |
| 2007-000077 | R-CHIP |
| 2007-000076 | R-CHIP |
| 2007-000074 | R-CHIP |
| 2007-000029 | R-CHIP |
| 2007-000023 | R-CHIP |
| 2007-008088 | R-CHIP;100KOHM,1%,1/2W,TP,5025 |
| 2007-008261 | R-CHIP;150KOHM,1%,1/2W,TP,5025,T0.55,GEN |
| 2007-007459 | R-CHIP;470KOHM,5%,1/2W,TP,5025 |
| 2003-000855 | R-METAL OXIDE(S) |
| 2003-000835 | R-METAL OXIDE(S) |
| 2003-000708 | R-METAL OXIDE(S) |
| G5T360FUAEK | RCP, 55, F, R410A |
| G5T360FUAEK-SS | RCP, COMP, CPR, R410A |
| DB35-00061A | RELAY |
| 3501-001248 | RELAY-MINIATURE |
|
|
RELAY-MINIATURE |
| 0103-004017 | RESIN ABS;HI-121H,NATURAL,NC0001 |
| 0103-004120 | RESIN ABS;SD-0150U,NEAT WHITE,WT0041 |
| 0103-003208 | RESIN ABS;SR-0330M,NATURAL,NC0001 |
| 0103-004069 | RESIN PC ABS;PC-510,GRAY,GY0020,N |
| 0103-003480 | RESIN PP;BJ730/NC0001,NATURAL,NC0001,N |
| 0103-001344 | RESIN PP;TB53/NTR,NATURAL,NC0001,HB,TD30 |
| 0103-004162 | RESIN SAN;GFRAS-20/BLACK,BLACK,BK0001,GF |
| 2802-001211 | RESONATOR-CERAMIC |
| 2802-001198 | RESONATOR-CERAMIC |
| 2802-001179 | RESONATOR-CERAMIC |
| DB73-00461L | RUBBER BUTYL |
| DB73-20015X | RUBBER-BUTYL |
| DB73-20015J | RUBBER-BUTYL |
| DB73-00461S | RUBBER-BUTYL;DC24BTSAUMG,IIR,150*6 |
| DB73-20079L | RUBBER-BUTYL;IIR,T3.0 |
| DB73-00023B | RUBBER-COVER WIRE |
| DB73-00270A | RUBBER-COVER WIRE B |
| DB67-01323E | RUBBER-PLUG;ALL MODEL,SILICA GEL,OD13,10 |
| DB67-01323K | RUBBER-PLUG;ALL MODEL,SILICON RUBBER,ID5 |
| DB67-01323G | RUBBER-PLUG;ALL MODEL,SILICON RUBBER,OD1 |
| DB67-01323A | RUBBER-PLUG;SILICA GEL,OD8.5,13,3,50,NAT |
| 6009-001369 | SCREW-HEX |
| 6001-001683 | SCREW-HEX |
| 6009-001741 | SCREW-HEX;HWH,+,M4,L14,ZPC(WHT),SWRCH18A |
| 6001-001123 | SCREW-MACHINE |
|
|
SCREW-SPECIAL |
|
|
SCREW-TAPPING |
| 6002-000540 | SCREW-TAPPING |
| 6002-000536 | SCREW-TAPPING |
| 6002-000527 | SCREW-TAPPING |
|
|
SCREW-TAPPING |
| 6002-000231 | SCREW-TAPPING |
| 6003-001818 | SCREW-TAPTYPE |
| 6003-001150 | SCREW-TAPTYPE |
| DB62-05644V | SEAL-4WAY;-,EPDM,NON FLAMMAB |
| DB62-04219B | SEAL-BRACKET;-,PE FOAM,T25,25,123, |
| DB62-05636A | SEAL-HOLDER PLATE COND;UH140EAV,EVA FOAM |
| DB62-05580P | SEAL-PARTITION;GALAXY,FOAM PE,T3,50,80 |
| DB62-05644E | SEAL-SUCTION |
| DB62-05062A | SEAL-TRAY RH B;-,PE FOAM,3,50,80,N |
| DB32-00190A | SENSOR MAG-CT SENSOR;ACS756KCB-050B-PFF- |
| 3201-001920 | SENSOR MAG;ACS710KLATR-25CB-T,40 TO 125 |
| 0202-001163 | SOLDER-SILVER |
| 0202-001022 | SOLDER-SILVER |
| 0202-001464 | SOLDER-SILVER;L450,91CU/1.9AG/6.95P |
| DB33-00002G | SOLENOID-COIL ASSEMBLY |
| DB81-00635A | SPRING ETC-SENSOR |
| DB67-60031A | SPRING-RUBBER |
| 0101-002900 | STEEL PLATE;EGI,SECC,0.8,E40,PL |
| 0101-002902 | STEEL PLATE;EGI,SECC,1,E40,PL |
| 0101-002905 | STEEL PLATE;EGI,SECC,1.2,E40,PL |
| 0101-002908 | STEEL PLATE;EGI,SECC,1.6,E40,PL |
| 0101-002932 | STEEL PLATE;GI,SGCC,0.8MM,647MM,Z12,NC |
| 0101-002933 | STEEL PLATE;GI,SGCC,1,Z14,NC |
| 0101-002935 | STEEL PLATE;GI,SGCC,1.2MM,700MM,Z14,NC |
| 0101-002938 | STEEL PLATE;GI,SGCC,1.6MM,Z14,NC |
| 0101-003170 | STEEL PLATE;GI,SGCC,3MM,180MM,Z18,NC |
| 0101-002982 | STEEL PLATE;STAINLESS,STS304,0.3MM,NO.4 |
| 4715-001093 | SURGE ABSORBER |
| 3407-000121 | SWITCH-DIP |
| 3406-001106 | SWITCH-ROTARY;24VDC,15MA,10,L14MM |
| 3404-001342 | SWITCH-TACT |
| 3404-001220 | SWITCH-TACT |
| DA02-10149A | TAPE ETC |
| DA02-00013A | TAPE ETC |
| DB02-00029B | TAPE ETC;RAC,OPP,0.05MM,80MM,500M,TRANSP |
| DA02-10017J | TAPE-FILAMENT |
| DB65-00238F | TERMINAL BLOCK |
| 1404-001377 | THERMISTOR-NTC |
| 1404-001498 | THERMISTOR-PTC;40OHM,290VAC,7A,CASE,17.7 |
| 0506-000175 | TR-ARRAY |
| 0504-000127 | TR-DIGITAL |
| 0504-000001 | TR-DIGITAL |
| 0508-001245 | TR-IGBT;600V,50A,2.1V,349W |
| 0501-002113 | TR-SMALL SIGNAL |
| DB26-00073A | TRANS FBT-PT60;PT60,PT60,700UH,EI2218B,P |
| DB26-00049A | TRANS PULSE |
| DB26-00075A | TRANS SWITCHING;PT-50,AQV18FA,90~275V, |
| DB62-06637A | TUBE COND-IN;UH105CAV,C1220T-0,T0.8,OD15 |
| DB62-02813A | TUBE HAIR PIN |
| DB62-03445E | TUBE HAIR PIN;DC42BTVX,C1220T-O,T0.25,OD |
| DB62-06637D | TUBE-4WAY DISCHARGE;UH105CAV,C1220T-0,T0 |
| DB62-09596D | TUBE-4WAY DISCHARGE;UH105EAV2,C1220T-0,0 |
| DB62-06637B | TUBE-ACCUM IN;UH105CAV,C1220T-0,T0.8,OD1 |
| DB62-09596B | TUBE-ACCUME IN;UH105EAV2,C1220T-0,0.8,15 |
| DB62-07043K | TUBE-CAP;C1220T-O,ID15.88 |
| DB62-09380A | TUBE-CAPI A;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661A | TUBE-CAPI A;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-09380B | TUBE-CAPI B;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661B | TUBE-CAPI B;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-09380C | TUBE-CAPI C;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661C | TUBE-CAPI C;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-09380D | TUBE-CAPI D;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661D | TUBE-CAPI D;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-09380E | TUBE-CAPI E;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661E | TUBE-CAPI E;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-09380F | TUBE-CAPI F;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661F | TUBE-CAPI F;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-09380G | TUBE-CAPI G;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661G | TUBE-CAPI G;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-09380H | TUBE-CAPI H;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661H | TUBE-CAPI H;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-06637G | TUBE-CAPI IN;UH105CAV,C1220T-0,T0.7,OD6. |
| DB62-09596G | TUBE-CAPI IN;UH105EAV2,C1220T-0,0.7,6.35 |
| DB62-07661L | TUBE-CAPI IN;UP140EAV,C1220T-0,0.7,7.0,2 |
| DB62-09380J | TUBE-CAPI J;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661J | TUBE-CAPI J;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-09380K | TUBE-CAPI K;UH105EAV2,C1220T-0,0.6,3.25, |
| DB62-07661K | TUBE-CAPI K;UP140EAV,C1220T-0,0.6,600,SS |
| DB62-06637H | TUBE-CAPI OUT;UH105CAV,C1220T-0,T0.7,OD6 |
| DB62-09596H | TUBE-CAPI OUT;UH105EAV2,C1220T-0,0.7,6.3 |
| DB62-06637J | TUBE-CAPI;UH105CAV,C1220T-0,T0.7,L2300,S |
| DB62-09596J | TUBE-CAPI;UH105EAV2,C1220T-0,0.7,2300,SS |
| DB62-07660A | TUBE-COLLECTOR B;UP140EAV,C1220T-0,0.8,1 |
| DB62-09589A | TUBE-COND IN A;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660B | TUBE-COND IN A;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09589B | TUBE-COND IN B;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660C | TUBE-COND IN B;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09589C | TUBE-COND IN C;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660D | TUBE-COND IN C;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09589D | TUBE-COND IN D;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660E | TUBE-COND IN D;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09589E | TUBE-COND IN E;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660F | TUBE-COND IN E;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09589F | TUBE-COND IN F;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660G | TUBE-COND IN F;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09589G | TUBE-COND IN G;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660H | TUBE-COND IN G;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09589H | TUBE-COND IN H;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660J | TUBE-COND IN H;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09589J | TUBE-COND IN J;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660K | TUBE-COND IN J;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09589K | TUBE-COND IN K;UH105EAV2,C1220T-0,0.7,7, |
| DB62-07660L | TUBE-COND IN K;UP140EAV,C1220T-0,0.7,7.0 |
| DB62-09380L | TUBE-COND IN;UH105EAV2,C1220T-0,0.7,4.76 |
| DB62-09596A | TUBE-COND IN;UH105EAV2,C1220T-0,0.8,15.8 |
| DB62-06898L | TUBE-COND OUT;UP140EAV,C1220T-0,0.7,9.52 |
| DB62-06999A | TUBE-CU;C1220T-O,T0.25,OD7,L,ID6.3,TW0.2 |
| DB62-06637E | TUBE-DISCHARGE;UH105CAV,C1220T-0,T0.7,OD |
| DB62-09596E | TUBE-DISCHARGE;UH105EAV2,C1220T-0,0.7,12 |
| DB62-00541D | TUBE-FILTER |
| DB62-00541A | TUBE-FILTER |
| DB62-07660M | TUBE-INLET A;UP140EAV,C1220T-0,0.7,7.0,1 |
| DB62-07661M | TUBE-INLET A;UP140EAV,C1220T-0,0.7,7.0,2 |
| DB62-07660N | TUBE-INLET B;UP140EAV,C1220T-0,0.7,7.0,1 |
| DB62-07661N | TUBE-INLET B;UP140EAV,C1220T-0,0.7,7.0,2 |
| DB62-06898M | TUBE-PINCH;UP140EAV,C1220T-O,0.6,6.35,18 |
| DB62-06637F | TUBE-SUCTION;UH105CAV,C1220T-0,T0.7,OD15 |
| DB62-09596F | TUBE-SUCTION;UH105EAV2,C1220T-0,0.8,15.8 |
| DB62-30369A | TUBE-U BEND |
| DB62-30368A | TUBE-U BEND;COMMON USE,C1220T-O,T0.41,OD |
| DB62-06637C | TUBE-VALVE OUT;UH105CAV,C1220T-0,T0.8,OD |
| DB62-09596C | TUBE-VALVE OUT;UH105EAV2,C1220T-0,0.8,15 |
| DB62-06898K | TUBE-VALVE OUT;UP140EAV,C1220T-0,0.7,9.5 |
| DB62-07661P | TUBE-Y JOINT;UP140EAV,C1220T-0,0.8,SSEC |
| DB62-07660P | TUBE-Y JOINT;UP140EAV,C1220T-O,0.8,YELLO |
| DB62-02838A | VALVE 4WAY |
| DB62-11205A | VALVE COIL EXPAN |
| DB62-04067A | VALVE COIL EXPAN |
| DB33-00047A | VALVE COIL SOLENOID |
| DB62-04267A | VALVE EXPAN |
| DB62-02342A | VALVE SERVICE-SPINDLE |
| DB62-02284A | VALVE SERVICE-SPINDLE |
| 1405-000154 | VARISTOR |
| DB67-70011E | WEIGHT-RUBBER |
| DB67-70011C | WEIGHT-RUBBER |
| DB71-50031B | WIRE-HOLDER |
| 3812-001283 | WIRE-NO SHEATH CU |
