Manufacturer
Samsung
Model Number
UN32C4000PHXZA
Description

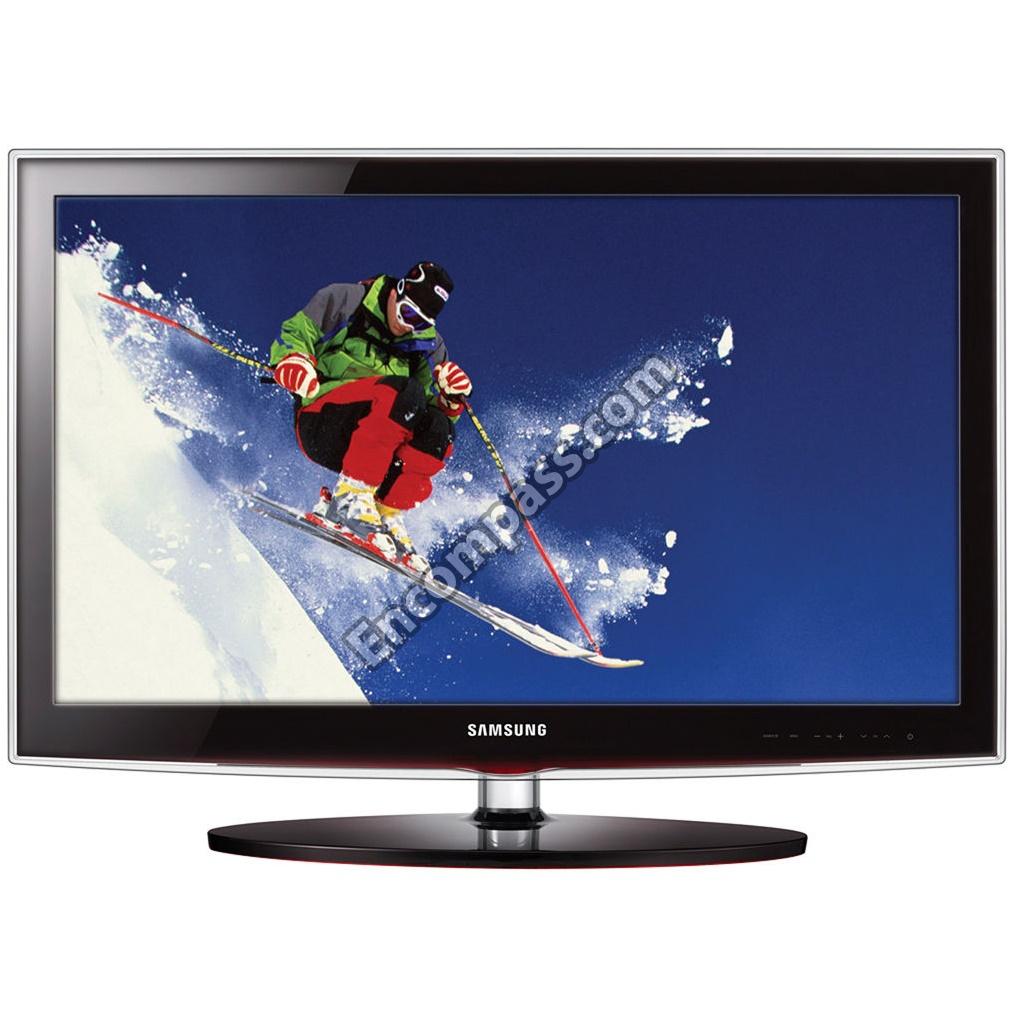

32-inch 720p Led Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-13423B | ASSY BOARD P-TOUCH FUNCTION&IR;UE32C4000 |
| BN96-12927B | ASSY BRACKET P-STAND LINK;UC4000 32,SECC |
| BN96-12469M | ASSY CABLE P-FFC;UN32C4000PFXZA,FFC,0.3M |
| BN96-13152Q | ASSY COVER P-FRONT;UC4000 32,UO(HOTEL),P |
|
|
ASSY COVER P-GUIDE STAND;UC4000,PC+ABS G |
| BN96-13155K | ASSY COVER P-REAR;UC4000 32,UO(HOTEL),PC |
|
|
ASSY GUIDE P-STAND;NECK,PETG,V2,TP0003,3 |
| BN96-10276B | ASSY HOLDER P-RING;09 LEDTV ALL MODEL,AB |
| BN96-10810A | ASSY HOLDER P;09 LEDTV MODEL,NYRON |
| BN94-03533A | ASSY PCB MAIN;UN32C4000PHXZA |
|
|
ASSY SPEAKER P;8OHM,10 |
| BN96-13157A | ASSY STAND P-BASE;UC4000 32,PMMA+ABS,HB, |
| 6902-000336 | BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,N,N |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 3301-001404 | BEAD-SMD;30OHM,2012,TP,15.9OHM/30MHZ |
| 3301-001186 | BEAD-SMD;600OHM,3216,TP,553OHM/93MHZ,672 |
| 3301-001236 | BEAD-SMD;60OHM,1608,TP |
| 2402-001326 | C-AL,SMD;220UF,20%,16V,LZ,8.3X8.3X6.2MM |
| 2203-000041 | C-CER,CHIP;0.01NF,0.25PF,50V,C0G,TP,1608 |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-002994 | C-CER,CHIP;0.068NF,5%,50V,CH,BK,1005 |
| 2203-000125 | C-CER,CHIP;1.2NF,10%,50V,X7R,TP,1608 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
|
|
C-CER,CHIP;10000NF,10%,25V,X5R,TP,3216 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-005005 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1608 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-001428 | C-CER,CHIP;470NF,10%,50V,X7R,TP,2012 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| BN39-01011C | CBF IF-MODULAR/MODULAR;US HOTEL CORAL/AM |
|
|

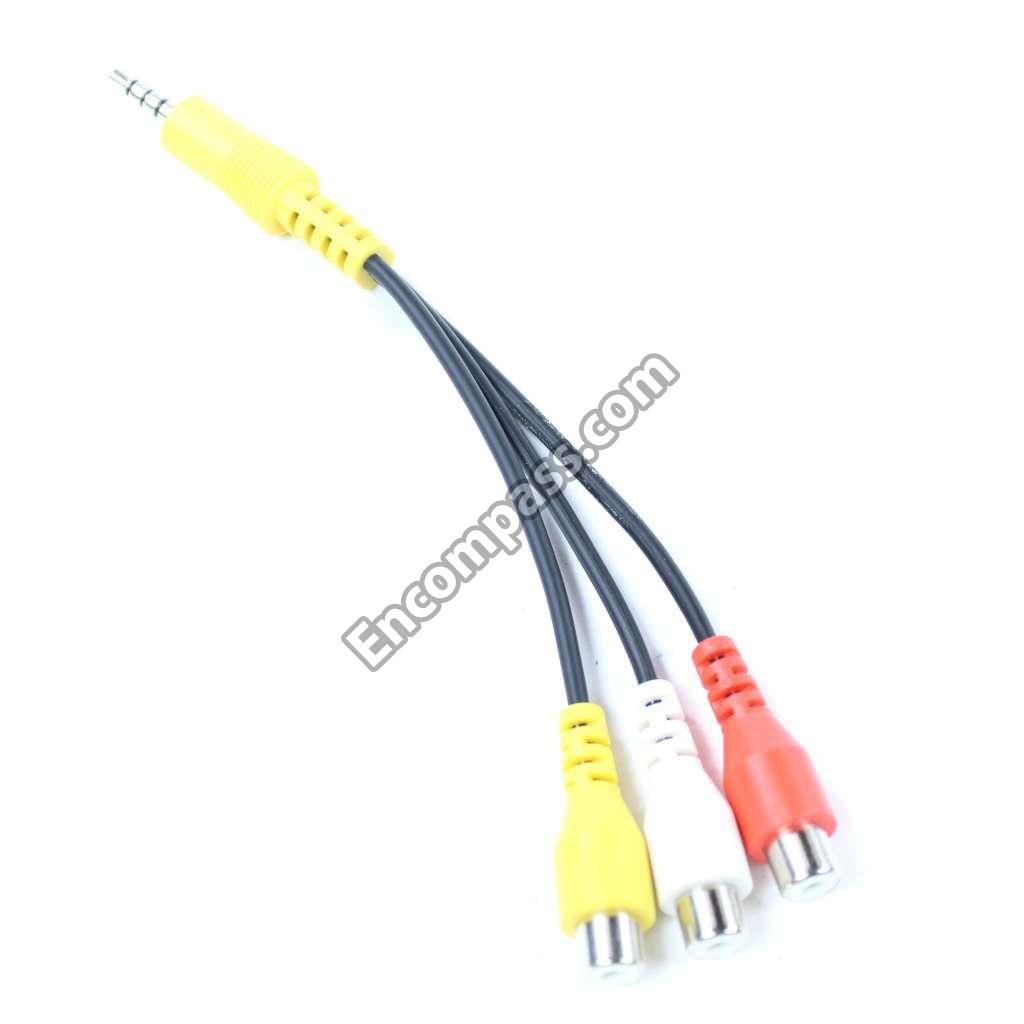

CBF SIGNAL;CHELSEA SLIM, STEREO PLUG TO |
| 3903-000527 | CBF-POWER CORD;DT,UL/CSA,EP-2,125V,5A,BL |
| AA65-30023A | CLAMPER-CORECABLE;NYLON 66,BLK |
|
|
CLOTH-CLEAN;CLOTH,SEA BLUE,TOC |
| 3701-001698 | CONNECTOR-DSUB;15P,3R,FEMALE,ANGLE,NI,30 |
| 3708-001150 | CONNECTOR-FPC/FFC/PIC;30P,1MM,SMD-A,SN,Z |
| 3701-001293 | CONNECTOR-HDMI;19P,A,FEMALE,AU,1.0MM,BLK |
| 3711-007587 | CONNECTOR-HEADER;BOX,18P,2R,2MM,ANGLE,SN |
| 3707-001095 | CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| BN63-06542B | COVER-BOTTOM;UC4000 32,HIPS,V0,BK0020 |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
| 2801-004004 | CRYSTAL-SMD;20.25MHZ,20PPM,28-AAN,13PF,2 |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| BN44-00348A | DC VSS-PD BOARD;PD32AF0U_ZSM,PSLF900BO1B |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94~5.2V,500MW,SOD- |
| 0505-002572 | FET-SILICON;AO4801AL,P,30V,-5.6A,0.075OH |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2.0X1.0X0.5M |
|
|
GENDER CABLE;CHELSEA SLIM, STEREO PLUG T |
| BN96-13392H | GUIDE-STAND;UC6500 32INCH,PC,G/F 20%,V2, |
| 3711-007336 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,SM |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| BN61-05596A | HOLDER-CABLE;LED TV,LDPE,T0.8,L150,WHITE |
| BN61-06644A | HOLDER-PCB;LC750,PA66,V-0,V0 |
|
|
HOLDER-STAND CABLE;UB7000 46INCH,PA66 |
| 1201-002849 | IC-AUDIO AMP;DRV603,TSSOP,14P,5X4.4MM,DU |
| 1203-005559 | IC-BACKLIGHT DRIVER;MP3302DJ,TSOT23,5P,2 |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 0801-002780 | IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
| 0801-002378 | IC-CMOS LOGIC;74VHC04,INVERTER,SOP,14P,8 |
| 1203-006127 | IC-DC/DC CONVERTER;MP28253EL,QFN,14P,3X4 |
| 1203-006104 | IC-DC/DC CONVERTER;MP8707EN,SOIC8E,8P,4. |
| 1204-003089 | IC-DEMODULATOR;DRX39XYJ,PQFN,64P,9X9X0.8 |
| 1204-003141 | IC-DEMODULATOR;LGDT1129,PBGA,49P,17X17X1 |
| 1103-000129 | IC-EEPROM;24C02,2KBIT,256X8,SOP,8P,5X4MM |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 1006-001266 | IC-LINE TRANSCEIVER;3232,TSSOP,16P,174MI |
| 1107-001940 | IC-NAND FLASH;KFG1G16U2D-HIB6,1GBIT,64MX |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-002835 | IC-POSI.FIXED REG.;7805,D-PAK/TO252,3P,6 |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-002898 | IC-POSI.FIXED REG.;G950T45R,T0-252,3,6.5 |
| 1203-005134 | IC-POSI.FIXED REG.;RT9167A-33PB,SOT-23-5 |
| 1201-002992 | IC-POWER AMP;STA369BWS,PSSO,36P,10.3X7.5 |
| 1201-002993 | IC-POWER AMP;TAS5715,HTQFP,48P,7X7MM,DUA |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 0904-002554 | IC-USC;AU6256-JBF,QFN,28P,5X5MM,12MHZ,TP |
| 1204-003096 | IC-VIDEO PROCESS;HIDTVPRO-SX,-,-,-,PLAST |
| 1001-001573 | IC-VIDEO SWITCH;SII9287BCNUTR,QFN,72P,10 |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-000398 | INDUCTOR-SMD;10UH,10%,3225,.5OHM,300MA,1 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-000403 | INDUCTOR-SMD;22UH,10%,3225,1.15OHM,210MA |
| 2703-003637 | INDUCTOR-SMD;22UH,20%,7070,0.18OHM,2000M |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 3722-002982 | JACK-MODULAR;6P/6C,YES,ANGLE-OFF(SSR-LIN |
|
|
JACK-PHONE;1P/6C,NI,BLK,ANGLE,3.6PI,9X14 |
| 3722-003156 | JACK-PHONE;1P/7C,NI,GRN,ANGLE,3.6PI,10.2 |
|
|
JACK-PHONE;1P/7C,NI,YEL,ANGLE,3.6PI,10.2 |
| 3722-003148 | JACK-PIN;1P,NI,BLK,ANGLE(SSR-LINE) |
| 3722-003044 | JACK-USB;4P/1C,NI,BLK,SMD-A,A,2.0,13.1X1 |
|
|
LAN CABLE;US HOTEL CORAL,4P,L1800,UL2025 |
|
|
LCD-PANEL;T320HAE1-DB,CLL4AC1,CLL4AC1,8B |
| BN39-01267F | LEAD CONNECTOR;LB6T,LEAD CONNECTOR,UL265 |
| 2806-001308 | OSCILLATOR-VCXO;27MHZ,30PF,TP,3.3V,50MA |
| 2007-008426 | R-CHIP;12.4KOHM,1%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-007587 | R-CHIP;3.6KOHM,1%,1/16W,TP,1005 |
| 2007-000903 | R-CHIP;430OHM,1%,1/10W,TP,1608 |
| 2007-000107 | R-CHIP;470KOHM,5%,1/10W,TP,1608 |
| 2007-002768 | R-CHIP;6.2KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001237 | R-CHIP;910OHM,1%,1/10W,TP,1608 |
| 2011-001427 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001519 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|

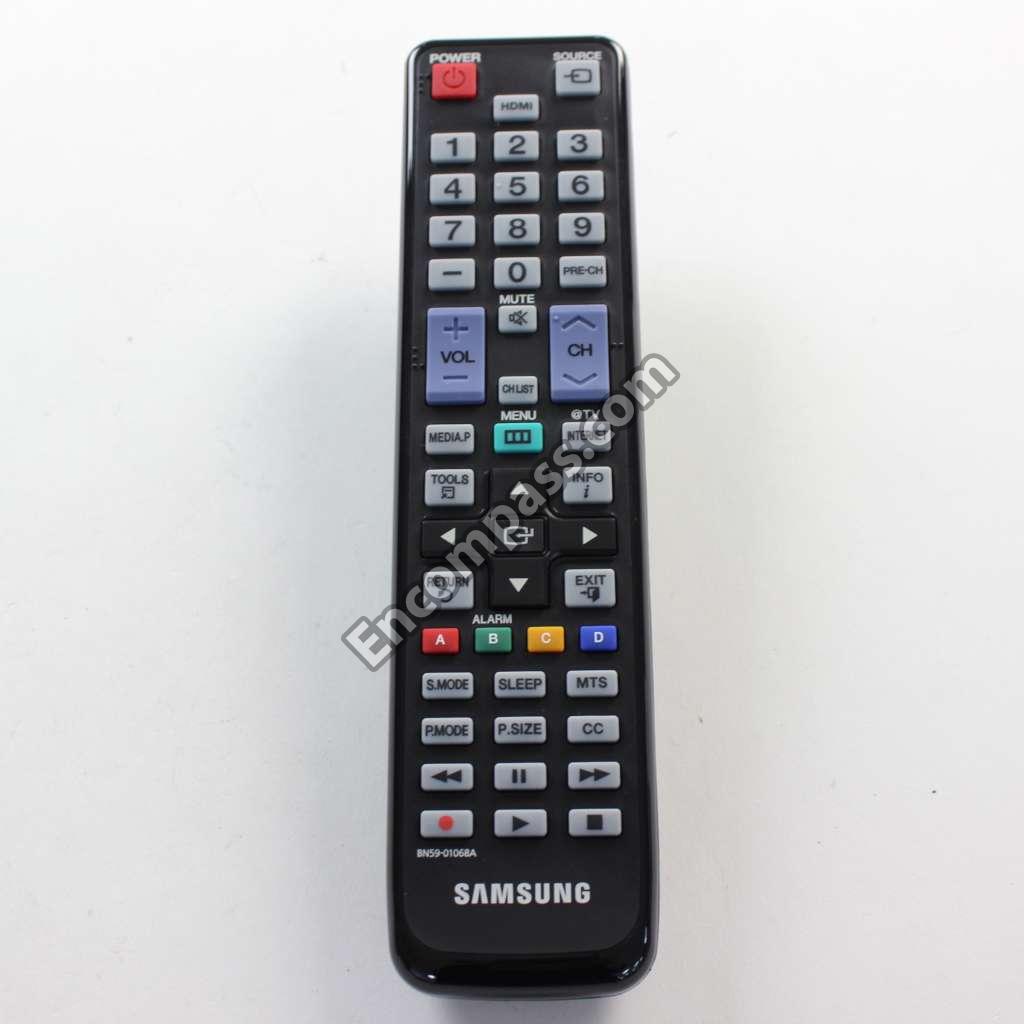

REMOTE CONTROL;TM1050,SAMSUNG,20PIN SINGLE,49,3 |
|
|
SCREW-MACHINE;BH,M3,L10,ZPC(WHT),SWRCH |

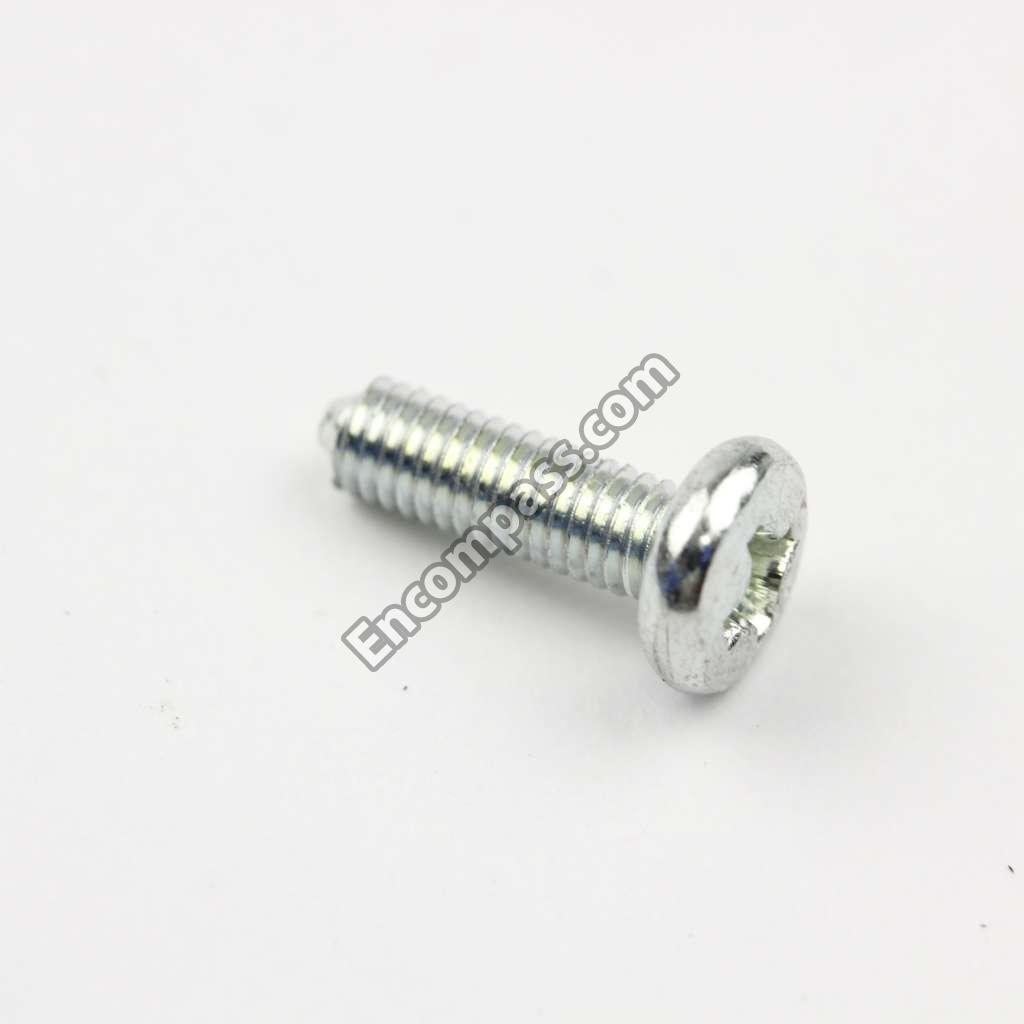

| 6001-002283 | SCREW-MACHINE;BH,M3,L5,ZPC(WHT),SWRCH1 |
| 6001-002610 | SCREW-MACHINE;BH,M4,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,-,S,M4,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER-DTV AIR CABLE;DTVS20CVH081A,NTSC,1 |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V, |
| 1405-001185 | VARISTOR;500V,24VDC,1.6X0.8MM,TP,150V,0. |
| 1405-001233 | VARISTOR;50V,30VDC,5A,1.6X0.8MM,TP,120V, |
