Manufacturer
Samsung
Model Number
UN32EH4003VXZA
Description

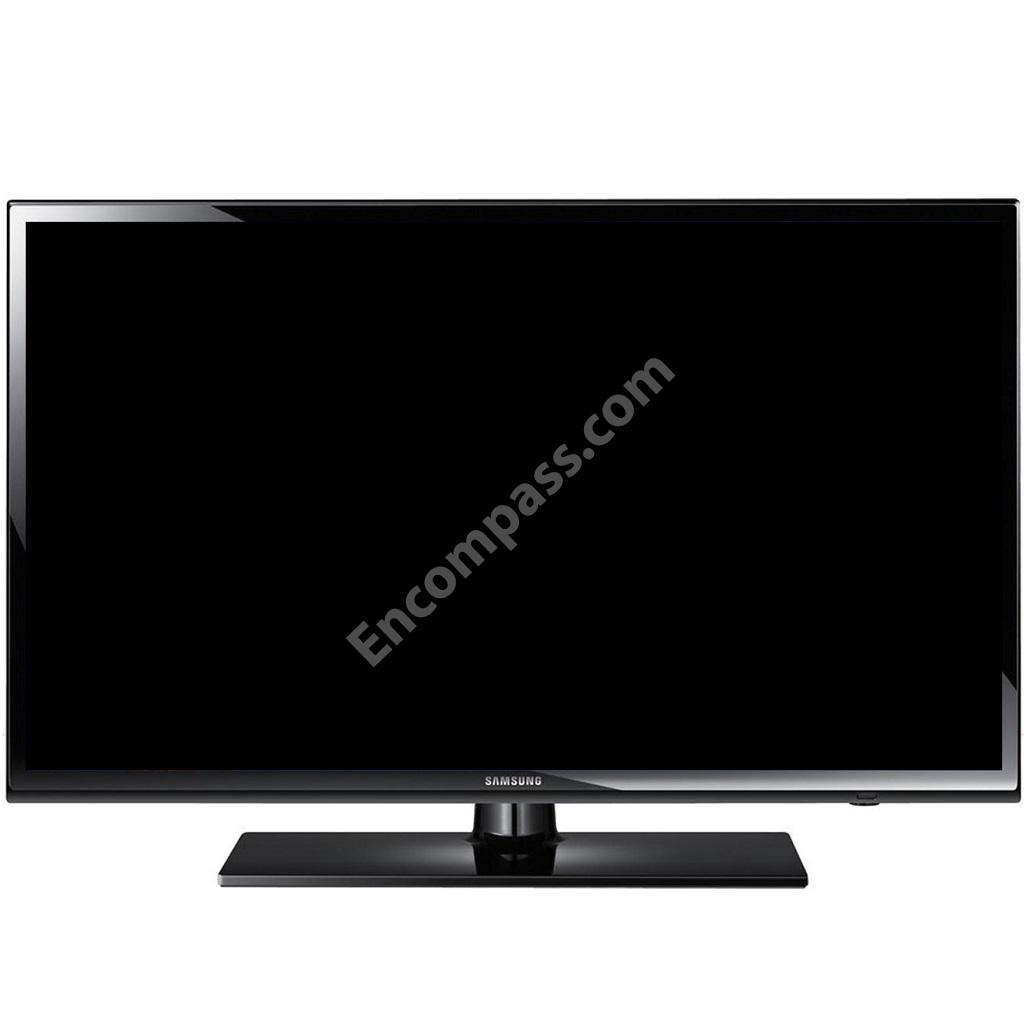

32 -inch Lcd Led 720p Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

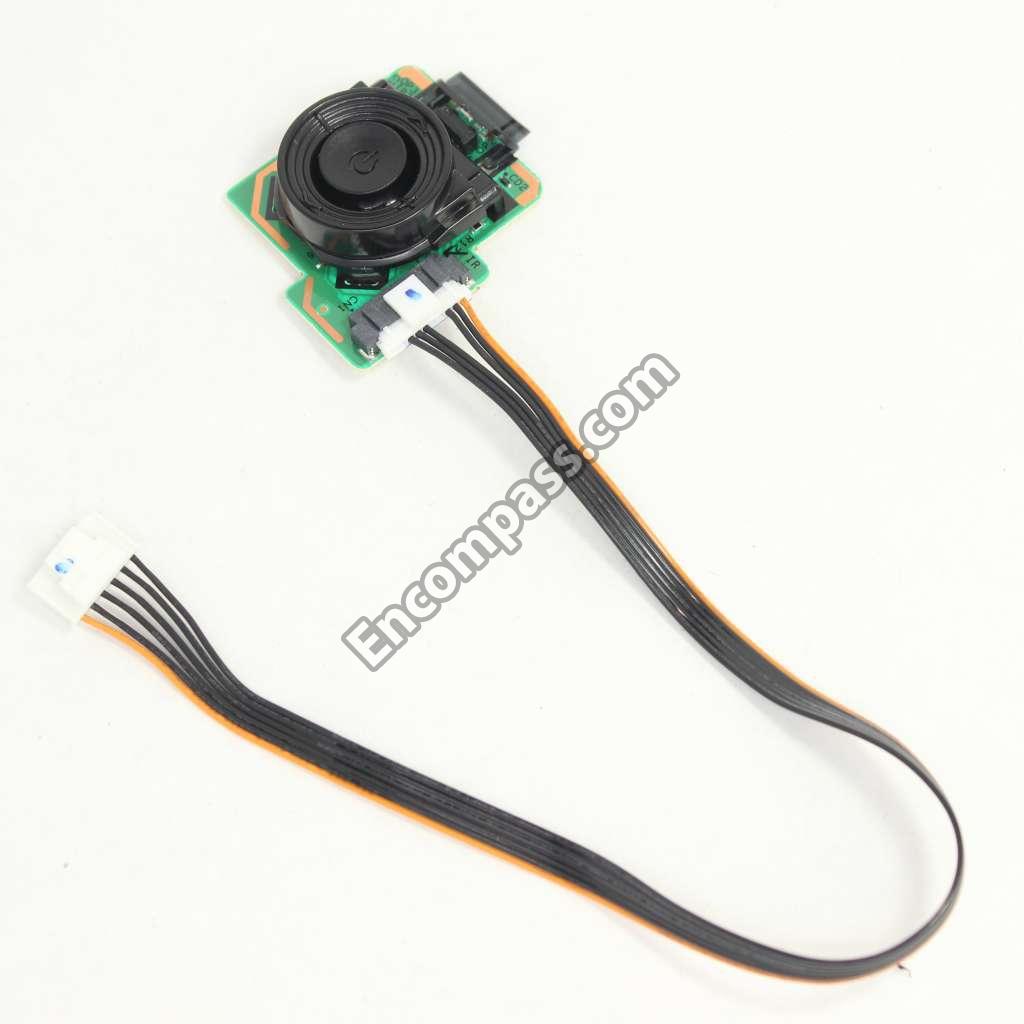

ASSY BOARD P-JOG SWITCH & IR;UN32EH4003, |
| BN96-24224A | ASSY BRACKET P-WALL;UE5000,40,EGI-SECC P |
|
|

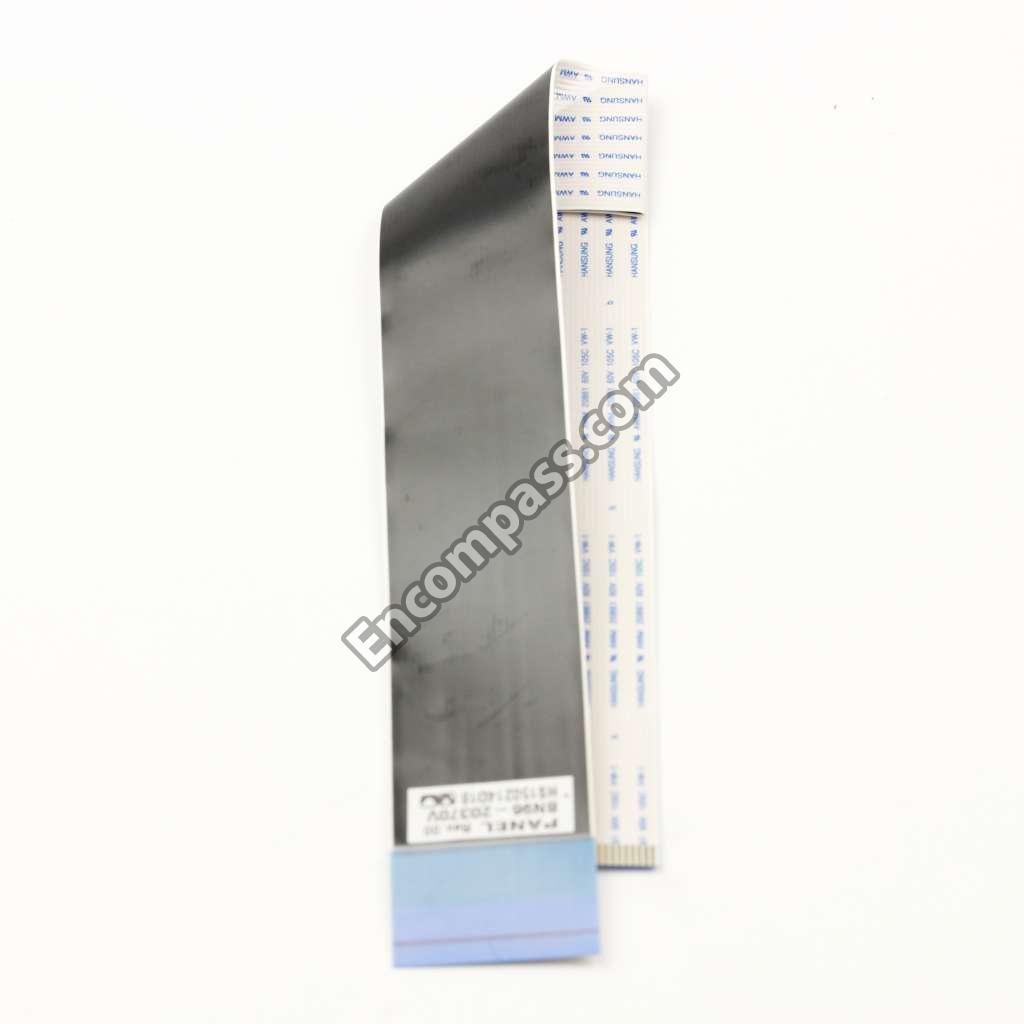

ASSY CABLE P;UE4003,FFC,359MM,30P,FOLD(1 |
|
|

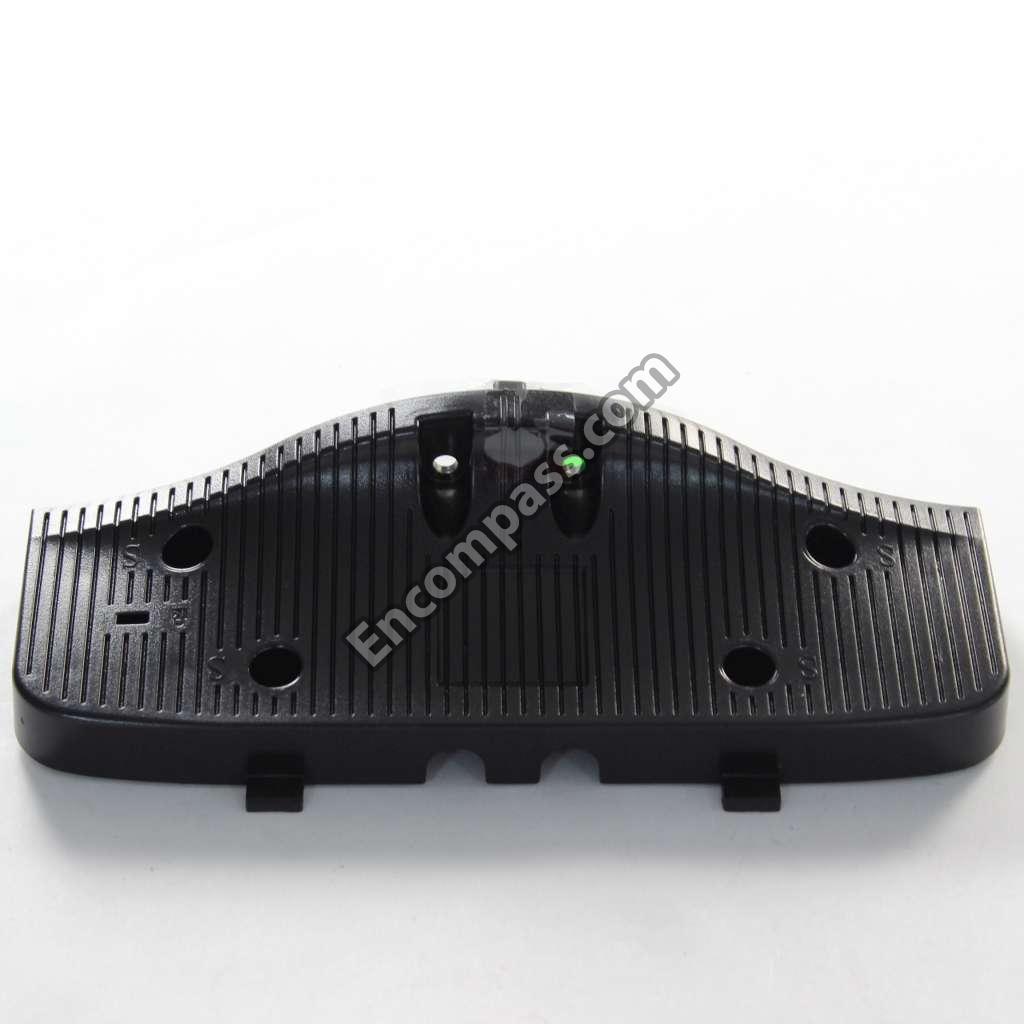

ASSY GUIDE P-STAND;UE5000,32,UO,ABS,HB,B |
|
|

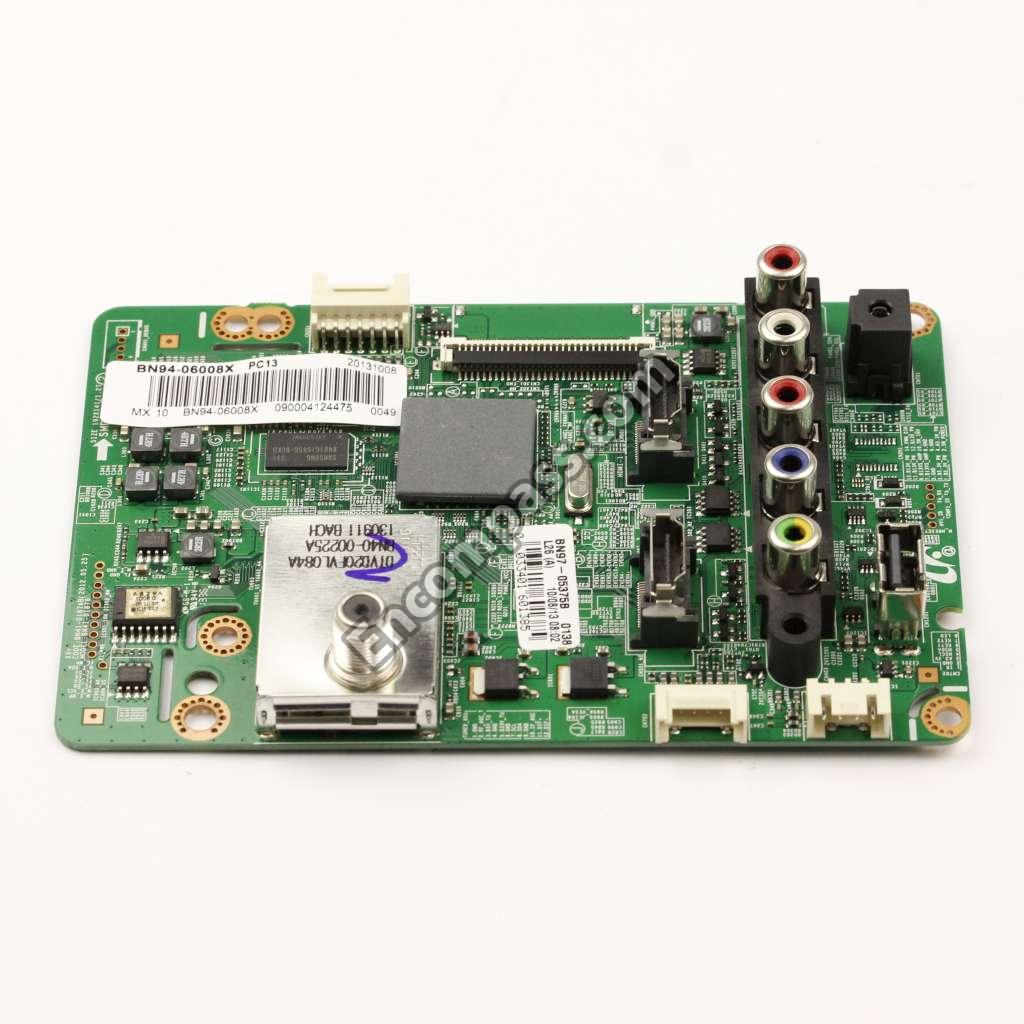

ASSY PCB MAIN;UN32EH4003FXZC,ZP |
| BN96-23513A | ASSY SPEAKER P;6OHM,4PIN,5W,LOW_LED 32" |
|
|

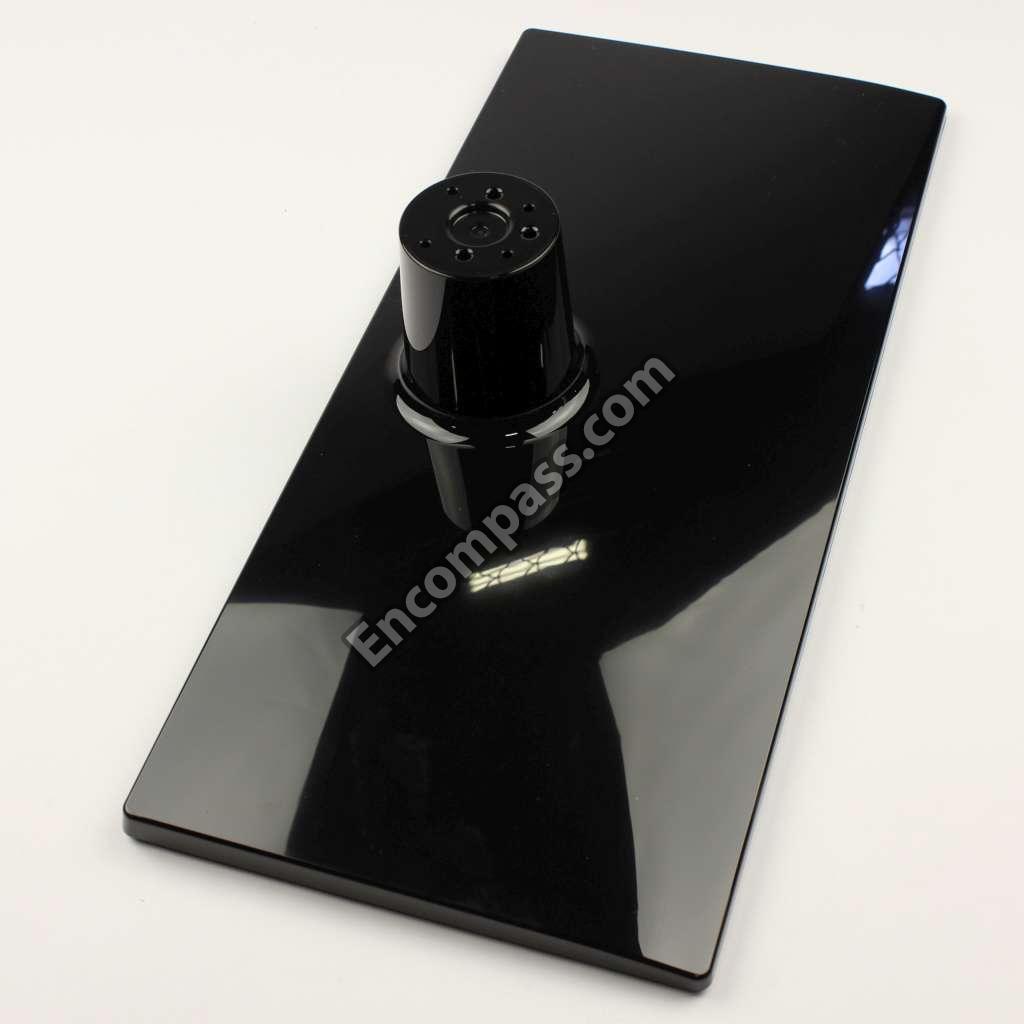

ASSY STAND P-BASE;ABS,HB,BK0007,H/GLOSSY |
| 4301-000121 | BATTERY-MN;1.5V,R03,10.5X44.5M,HOLDER,7. |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
|
|
CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,5A, |
| 3708-001150 | CONNECTOR-FPC/FFC/PIC;30P,1MM,SMD-A,SN,Z |
| 3711-007741 | CONNECTOR-HEADER;BOX,14P,2R,2.0MM,ANGLE, |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE-D |
| BN63-09710A | COVER-REAR;UE4003,32,UO,HIPS,V0,BK0020 |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
|
|

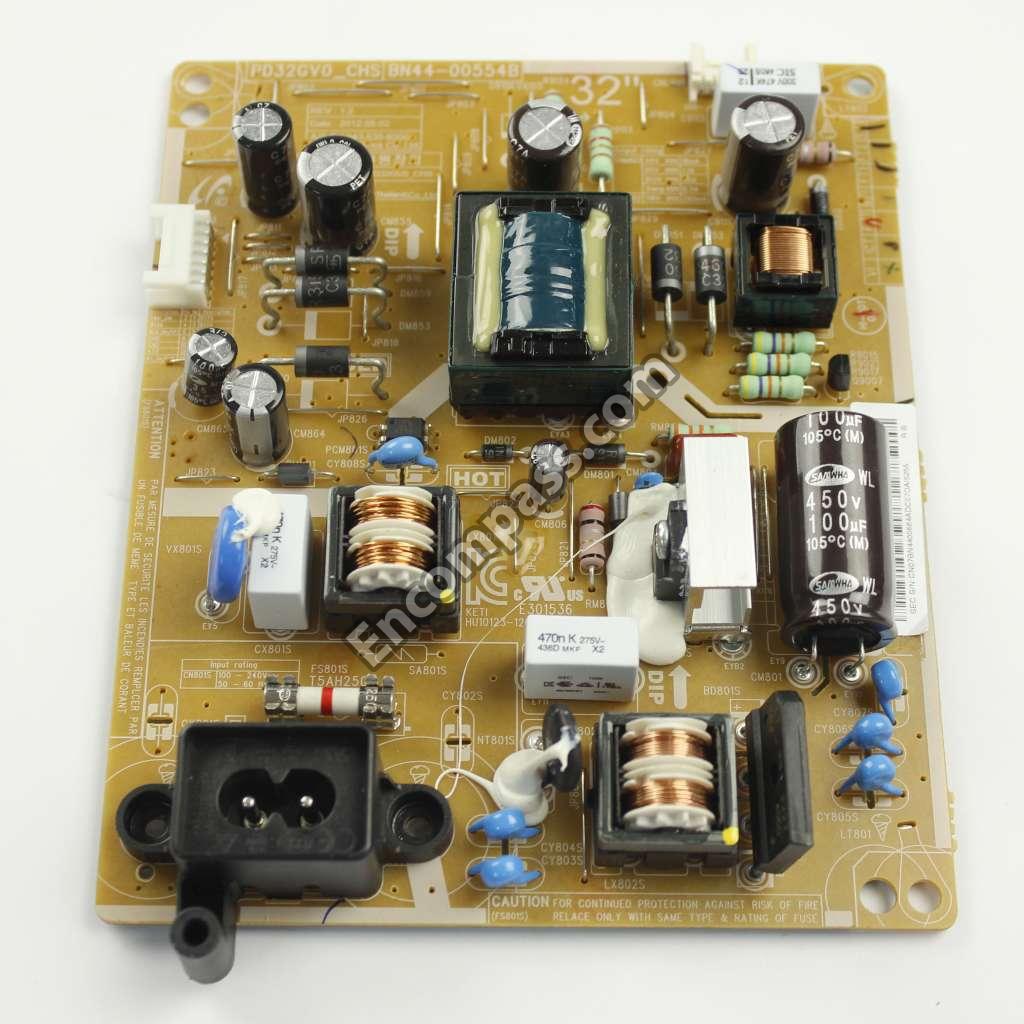

DC VSS-LED TV PD BD;PD32GV0_CHS,PD32GV0_ |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0407-000114 | DIODE-SWITCHING;KDS184,80V,100MA,SOT-23, |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94/5.2V,500MW,SOD- |
| 0505-002694 | FET-SILICON;SI3443CDV,P,-20V,-4.7A,0.06O |
|
|
HOLDER-WIRE STAND;UB7000 46INCH,NYRON |
| 1201-003407 | IC-AUDIO AMP;NTP7402,MLF,48P,7X7MM,DUAL, |
| 1105-002227 | IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1103-001506 | IC-EEPROM;M24512-RMN6TP,512KBIT,64KX8,SO |
| 1107-001777 | IC-NOR FLASH;MX25L6406,64MBIT,64MX1,SOP, |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-007243 | IC-POSI.FIXED REG.;G9001-500T11U,SOT-23- |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
| 1205-004447 | IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65 |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-002238 | INDUCTOR-SMD;1UH,5%,2012,2.38OHM,23,WIRE |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
| 3722-003439 | JACK-PHONE;4P/1C,SN,BLK,STRAIGHT,3.5PI,1 |
|
|
JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED |
| 3722-003248 | JACK-USB;4P/1C(W/L),NI/PD/AU/SN,BLK,STRA |
|
|
LCD-PANEL;DE320AGH-C1,CED4AH1,8 BITS,32 |
|
|

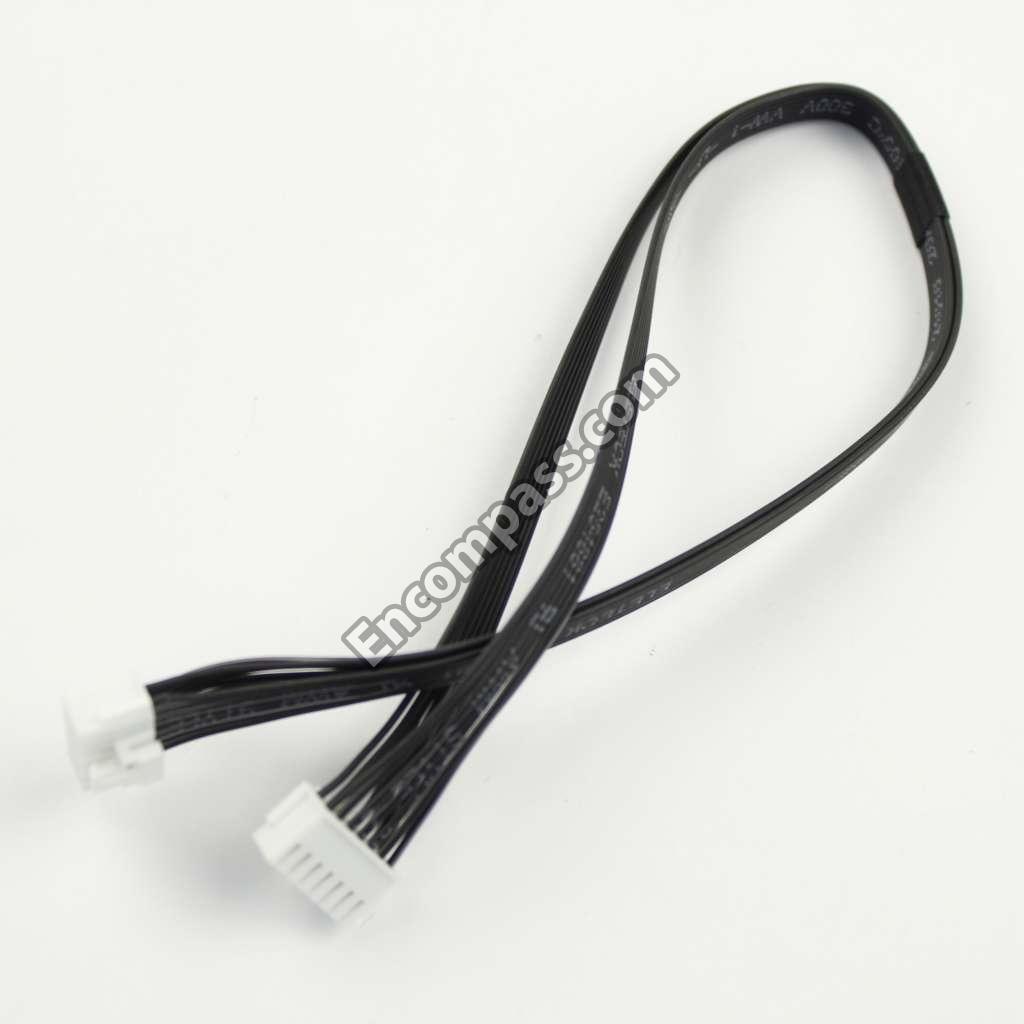

LEAD CONNECTOR;LN37D550,LEAD CONNECTOR,U |
| 2007-007463 | R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
| 2007-000256 | R-CHIP;1.6KOHM,1%,1/10W,TP,1608 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-009192 | R-CHIP;23.7KOHM,1%,1/16W,TP,1005 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
|
REMOCON;TM1240,44,3V,TM1240, 4003/5003 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| BN40-00225C | TUNER;CDT-913T346-00,CDT-913T346-00,VSB |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
