Manufacturer
Samsung
Model Number
UN40ES6150FXZA
Description

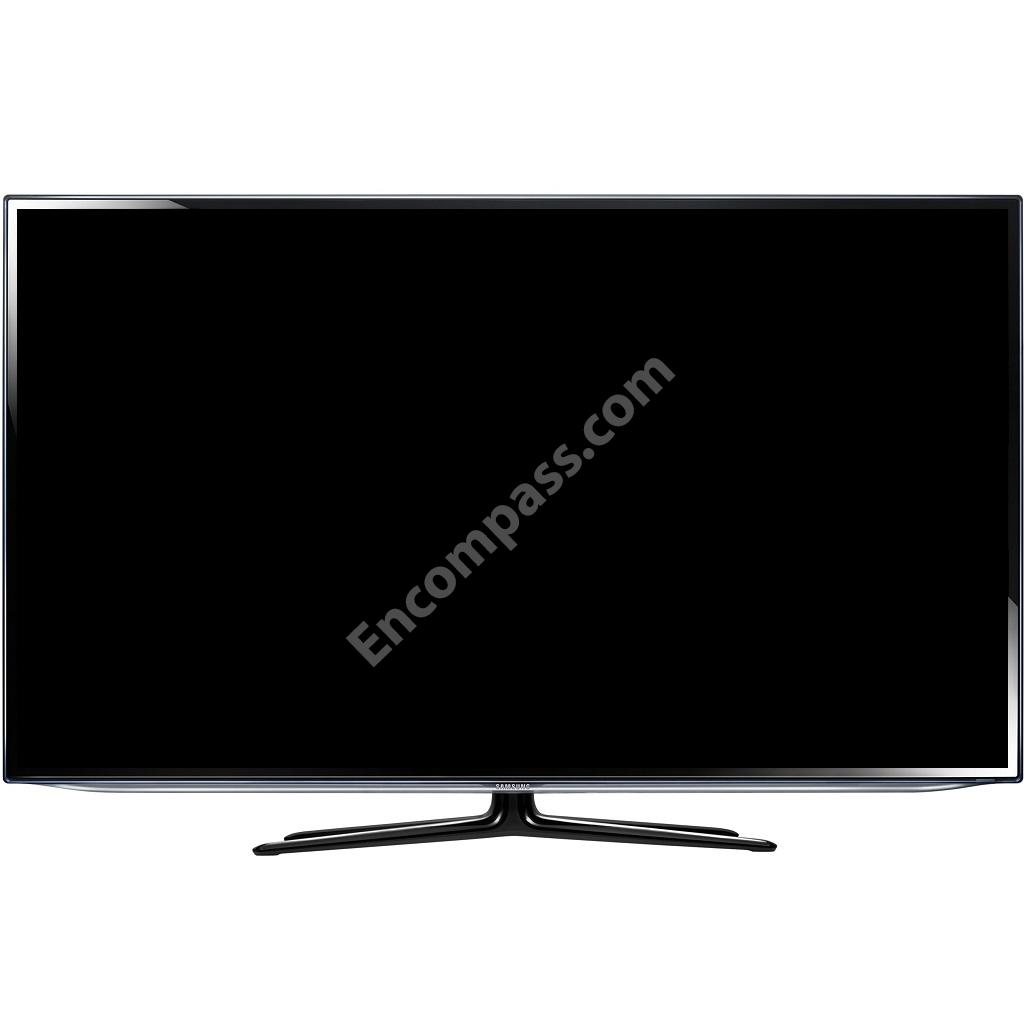

40-inch Led Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
51PIN LVDS CABLE |
| BN96-21901C | ASSY COVER P-MIDDLE;UE6100,40,MABS(BLUE |
| BN96-22388A | ASSY COVER P-REAR;UE65,66,6800 40,USA,PC |
|
|
ASSY GUIDE P-STAND;UE7000,46,NORTH AMERI |
|
|
ASSY HOLDER P-RING;11 LED-TV |
| BN96-21518A | ASSY OPEN CELL;LSJ400HF03-E,8BIT,40 INCH |
|
|
CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,5A, |
| 3708-002656 | CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU |
| 3701-001784 | CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU |
| 3711-002050 | CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A |
| 3711-007571 | CONNECTOR-HEADER;BOX,18P,2R,2.0MM,ANGLE, |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
|
|
DC POWER SUPPLY BOARD;PD46A1_CSM,PSLF111B0 |
|
|
FFC CABLE-FLAT;90V,105C,57MM,66P,0.5MM,U |
|
|

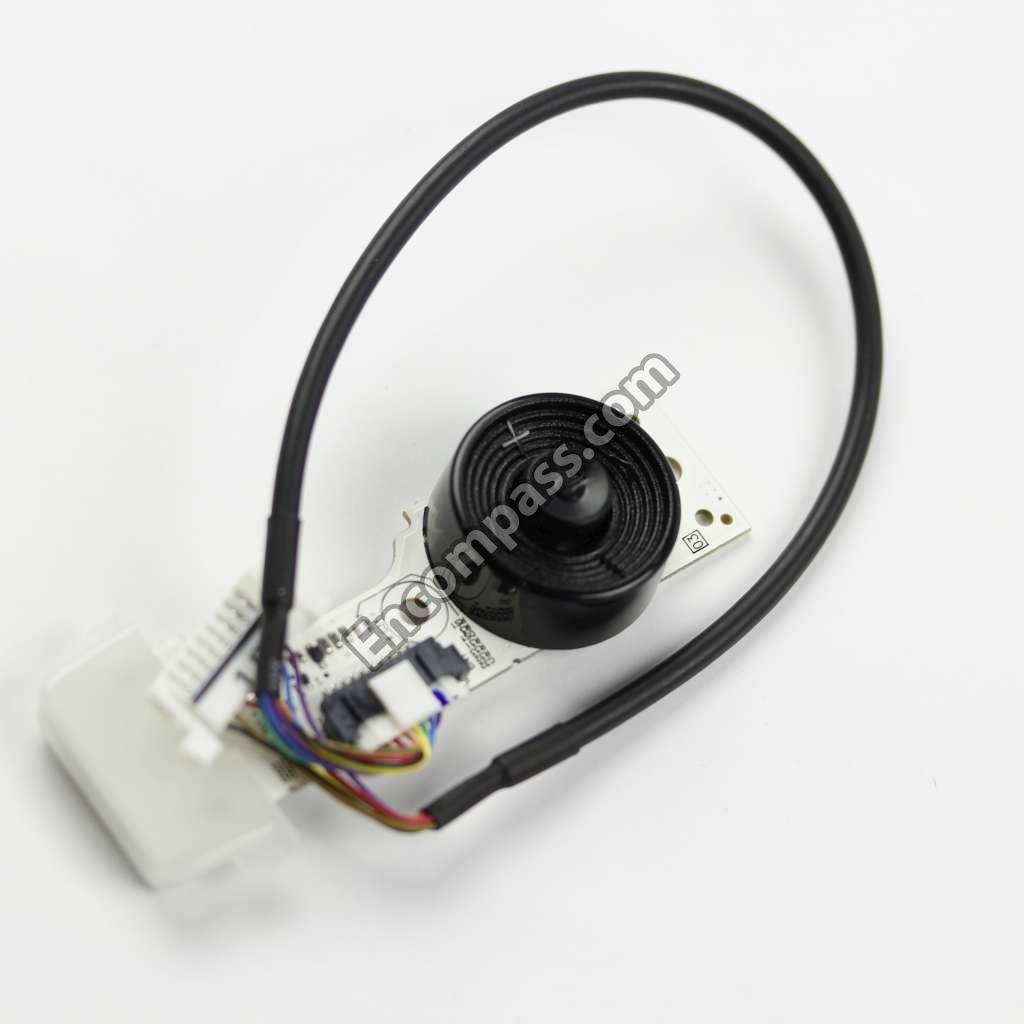

FUNCTION & POWER SWITCH BOARD |
| 3601-001386 | FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C |
|
|
HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG |
| 3711-005509 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-007814 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-005925 | HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| BN61-08038A | HOLDER-SIDE AV;UE6100,ABS,HB,UO/SO,EDGE |
|
|
HOLDER-STAND,NECK;UD8000 32/37/40 QUAD,P |
|
|
HOLDER-WIRE STAND;UB7000 46INCH,NYRON |
| 1103-001254 | IC-EEPROM;24C02,2KBIT,256X8,TSSOP,8P,4.4 |
| 1103-001195 | IC-EEPROM;24C64,64KBIT,8KX8,SOP,5X4MM,2. |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 0903-001718 | IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4 |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003226 | JACK-PHONE;7P/1C,SN,BLK |
| 3722-003213 | JACK-PIN;J/B 5P + SCREW HOLE,NI+SN,BLK,S |
| 3722-003248 | JACK-USB;4P/1C(W/L),NI/PD/AU/SN,BLK,STRA |
| 3722-003225 | JACK-USB;4P/1C,AU,BLK,SMD-A(DIP),A,13.1X |
|
|
LCD DISPLAY LTJ400HF04-V,2D, |
|
|
LEAD CONNECTOR;UE32ES6540,CABLE CONNECTO |
|
|
LEAD CONNECTOR;UN40ES6100FXZA,FALT CONNE |
| CALL_1-800-SAMSUNG | LEFT LED BAR |
|
|

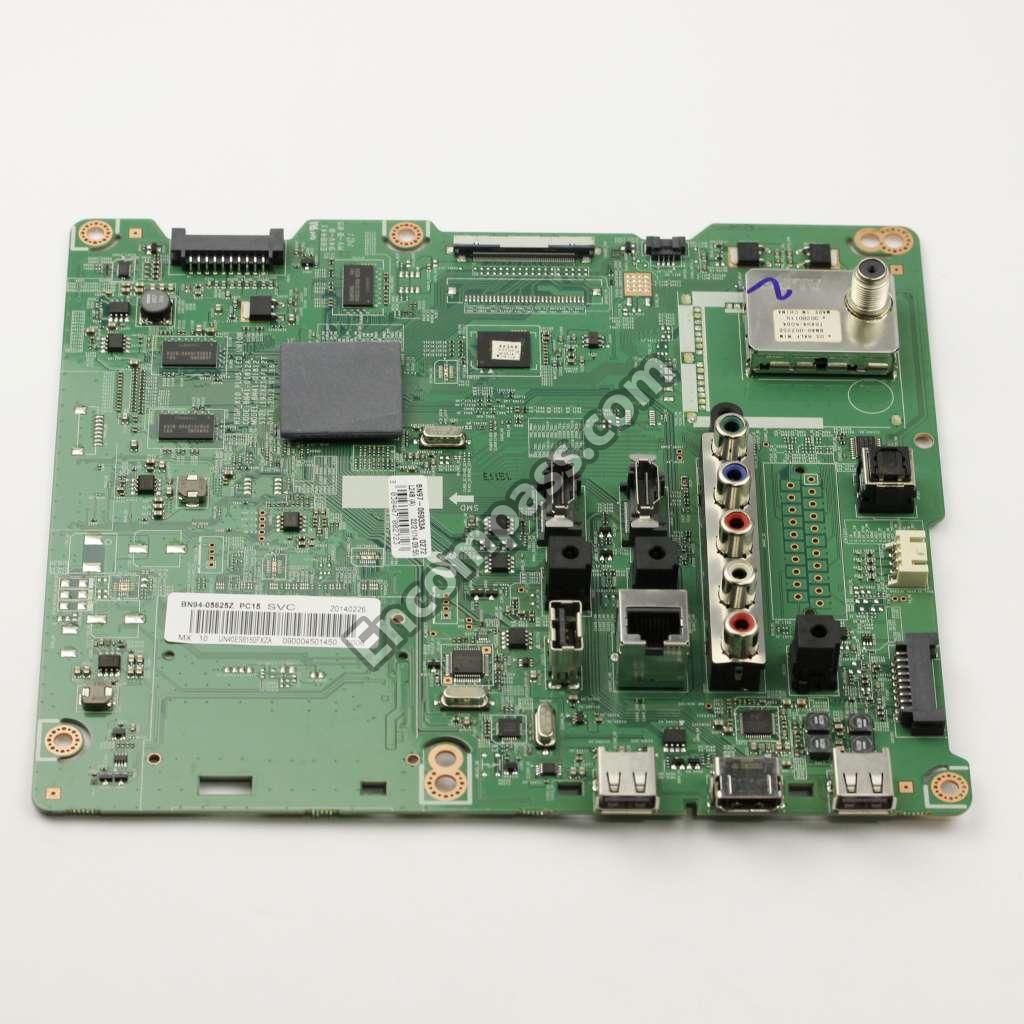

MAIN BOARD;UN40ES6150FXZA |
|
|
NETWORK;WIDT-20R,INTERNAL WIFI,USB,IEEE8 |
|
|

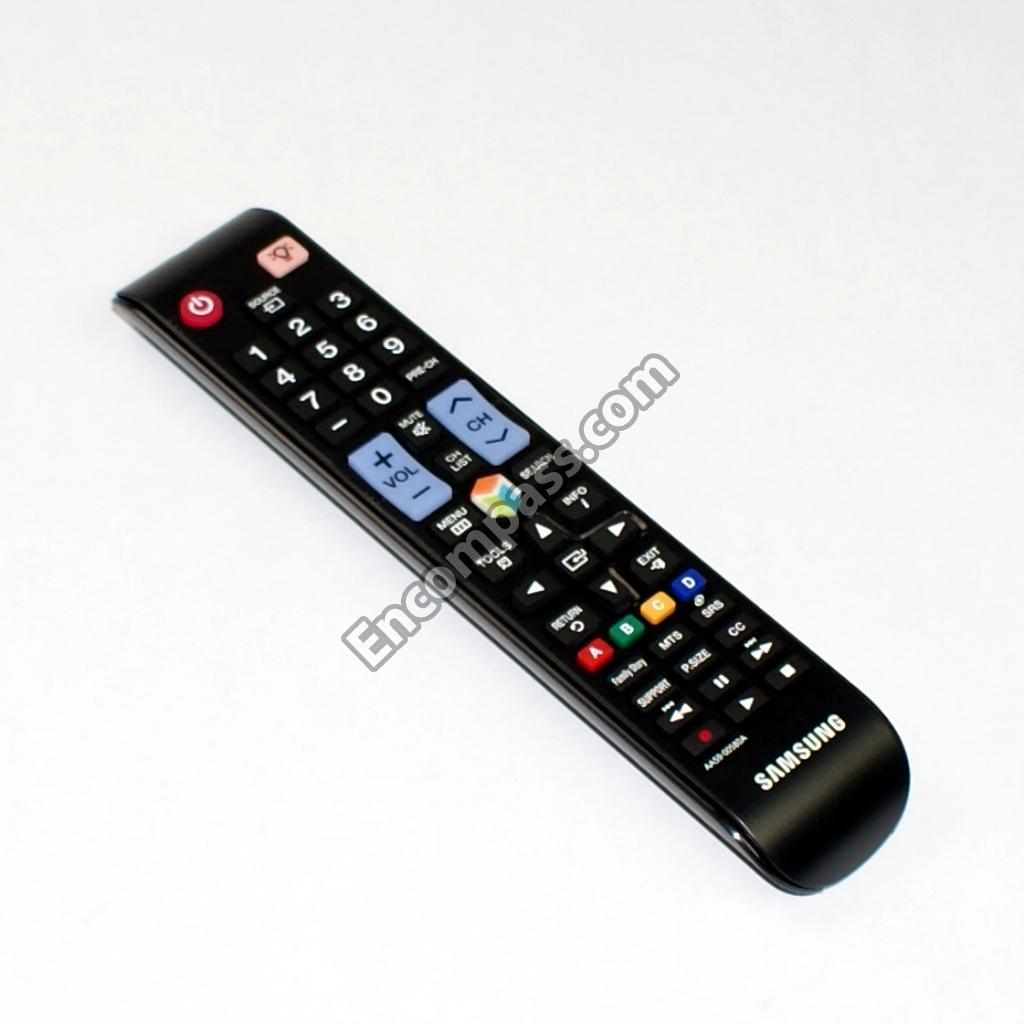

REMOTE CONTROL |
|
|

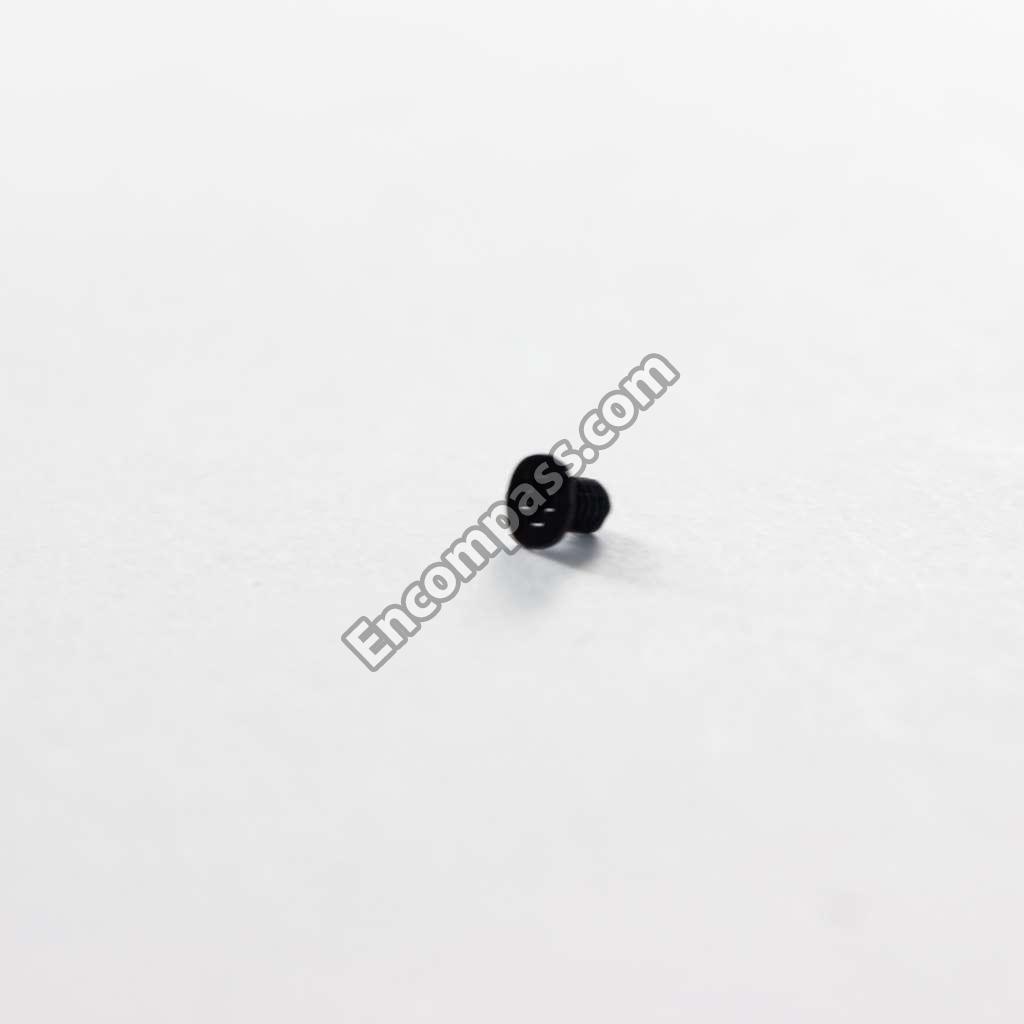

SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH |
|
|

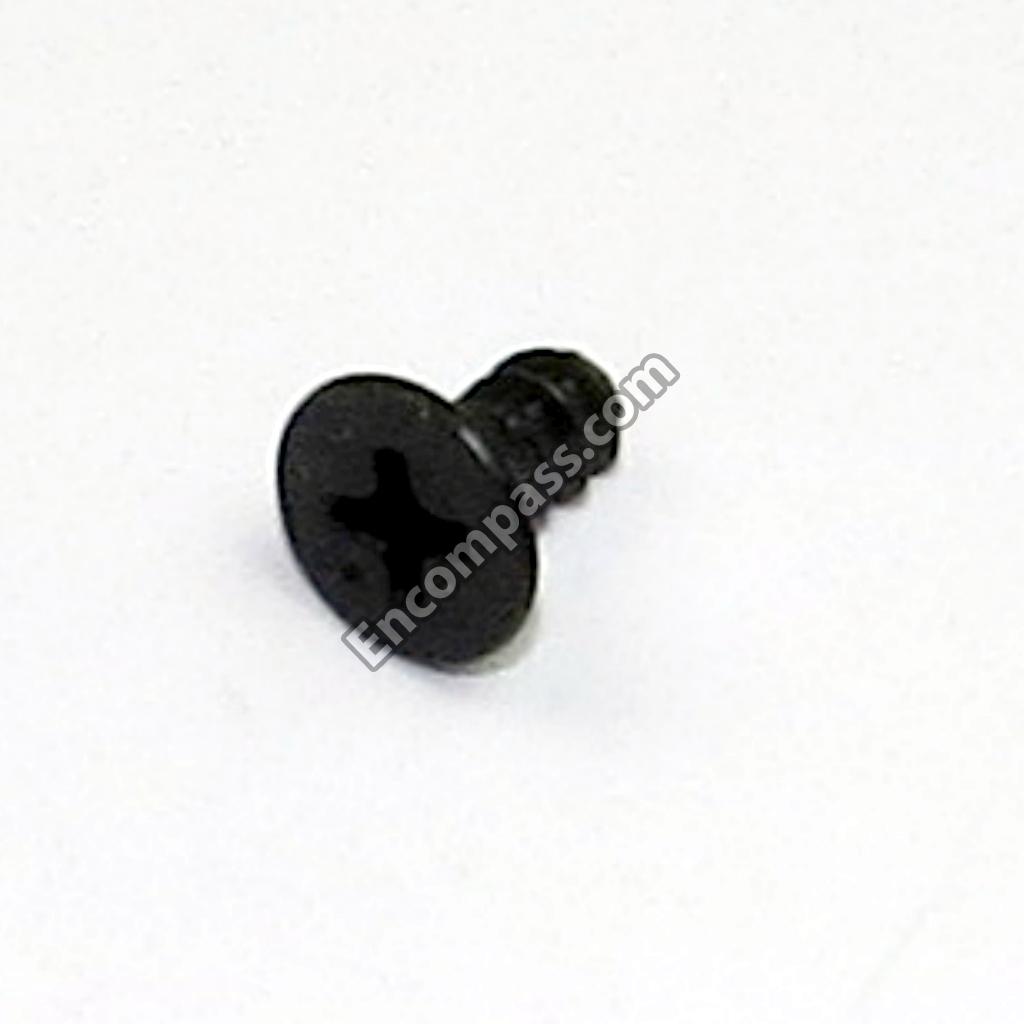

SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| BN96-21667A | SPEAKER ;6OHM,4PIN,10W,ENCLOSURE T |
|
|

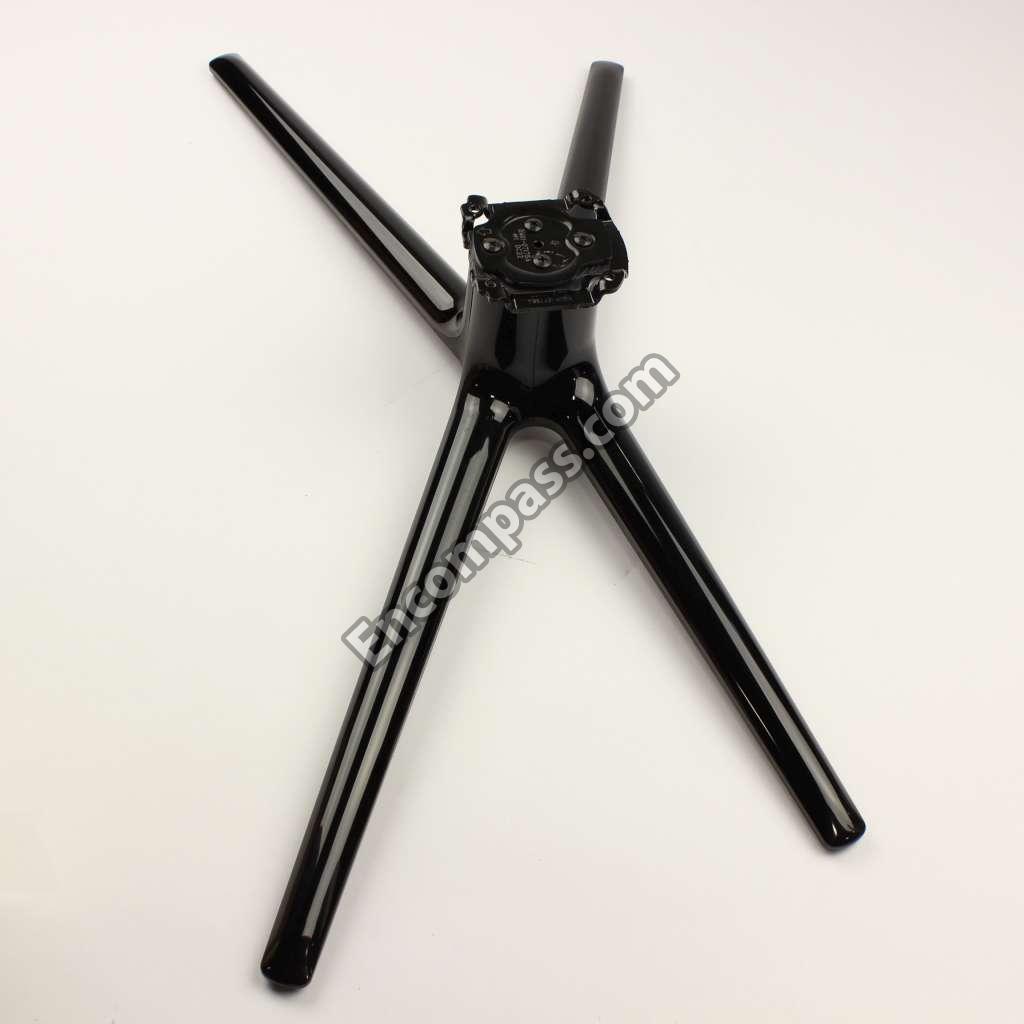

STAND BASE |
|
|

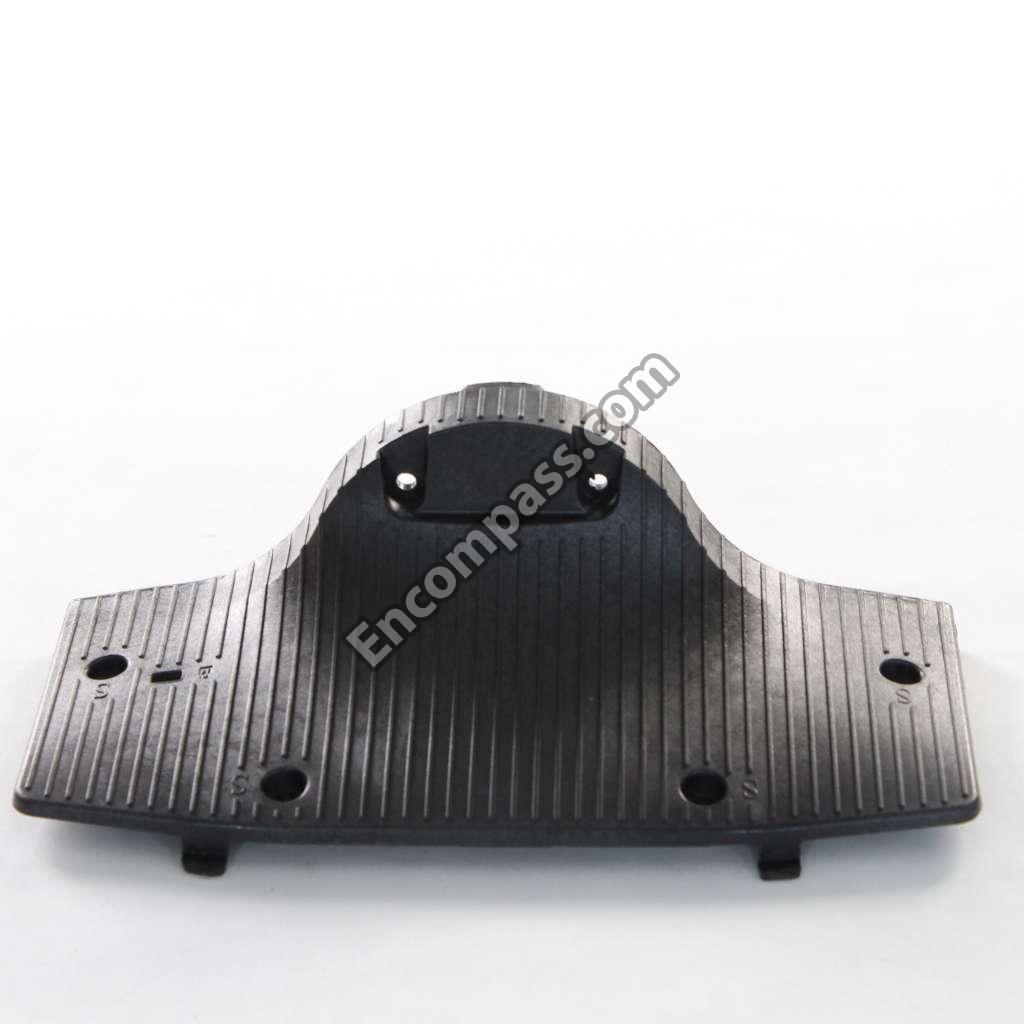

STAND SUPPORT ;UD5000 37,PC+G/F 20%,V2,BK00 |
| BN95-00685B | T-CON BOARD |
| BN02-00043B | TAPE ETC-SHEET FIXING;NNB 32/40/46/55,3M |
|
|
TUNER;TDAU4-K06A,TDAU4-K06A,VSB HALF NIM |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
