Manufacturer
Samsung
Model Number
UN43JU640DFXZA
Description
Led Tv,un43ju640df,43,united States,uwj
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSEMBLY BOARD P-FUNCTION ASSE |
|
|
ASSEMBLY BOARD P-FUNCTION_SW |
| BN96-38743B | ASSEMBLY CHASSIS FRONT P |
| BN96-38841A | ASSEMBLY COVER P-REAR |
|
|
ASSEMBLY GUIDE P-STAND |
| BN94-10703G | ASSEMBLY PCB MAIN |
| BN94-10413A | ASSEMBLY PCB MAIN SUBCON |
|
|

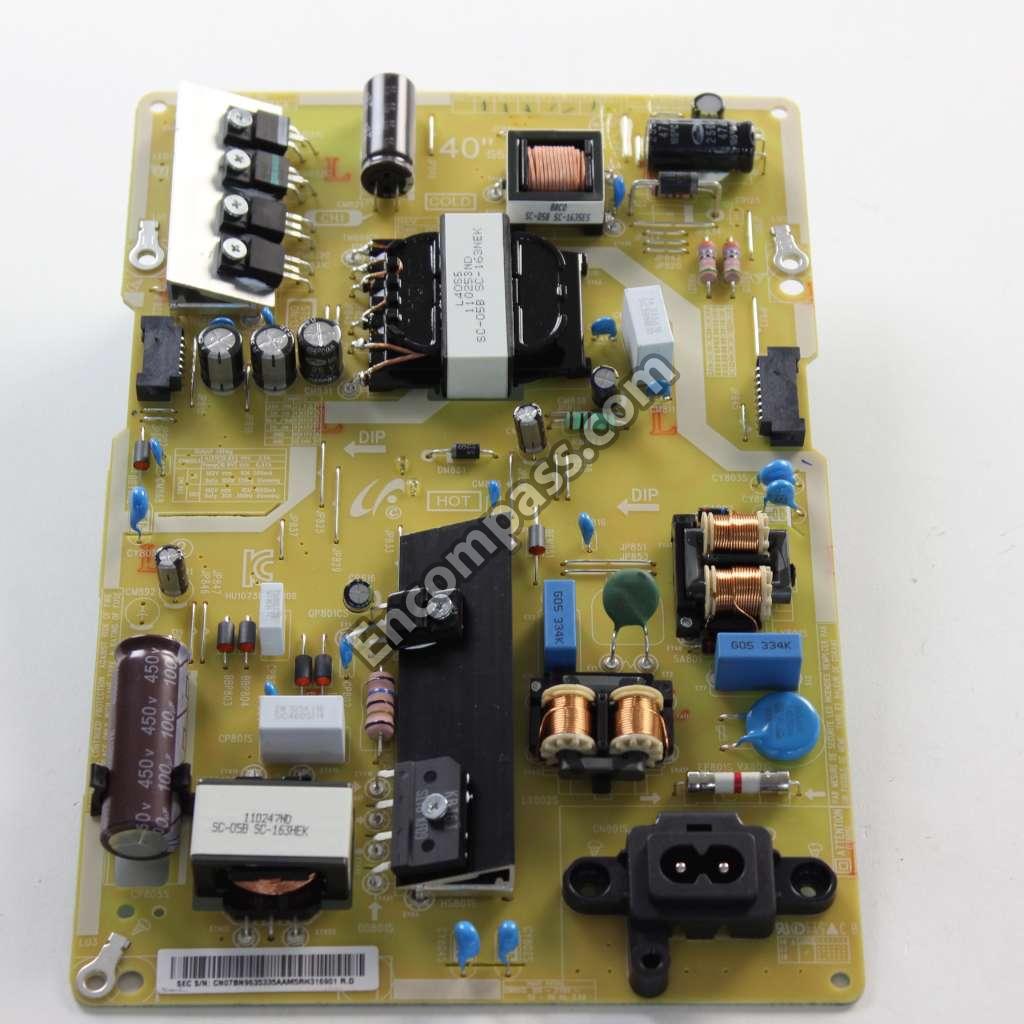

ASSEMBLY SMPS P-PD BOARD |
| BN96-35210E | ASSEMBLY SPEAKER P-FRONT |
| BN96-31506E | ASSEMBLY STAND P-BOTTOM |
| BN96-38686A | ASSEMBLY T CON P |
| 6902-001063 | BAG PE |
| 6902-000341 | BAG PE |
| BH69-00418A | BAG PE-WRAPPING FILM |
|
|
BEAD-SMD |
| 3301-000314 | BEAD-SMD |
| 2203-007544 | C-CER,CHIP |
| 2203-007513 | C-CER,CHIP |
| 2203-007486 | C-CER,CHIP |
| 2203-007176 | C-CER,CHIP |
| 2203-006348 | C-CER,CHIP |
| 2203-006126 | C-CER,CHIP |
| 2203-006048 | C-CER,CHIP |
| 2203-005968 | C-CER,CHIP |
| 2203-002982 | C-CER,CHIP |
| 2203-002711 | C-CER,CHIP |
| 2203-002285 | C-CER,CHIP |
| 2203-000627 | C-CER,CHIP |
| 2503-001051 | C-NETWORK |
| 2409-001338 | C-POLYMER ,CHIP |
|
|
CBF-POWER CORD |
| 3701-001861 | CONNECTOR-HDMI |
| 3707-001106 | CONNECTOR-OPTICAL |
| BN63-02183D | COVER-SHEET |
| 2801-004477 | CRYSTAL-SMD |
| 2801-000102 | CRYSTAL-SMD |
| 0404-001404 | DIODE-SCHOTTKY |
| 0401-001056 | DIODE-SWITCHING |
| 0406-001691 | DIODE-TVS |
| 0406-001635 | DIODE-TVS |
| 0406-001628 | DIODE-TVS |
| 0406-001556 | DIODE-TVS |
| 0505-003507 | FET-SILICON |
| 0505-003397 | FET-SILICON |
| 0505-002893 | FET-SILICON |
| 0505-002598 | FET-SILICON |
| 0505-001844 | FET-SILICON |
| BN96-36656F | FFC CABLE |
| BN96-36243V | FFC CABLE |
| 2901-001506 | FILTER-EMI SMD |
|
|
FUSE-SURFACE MOUNT |
| BN63-00520A | GASKET |
| 3711-008859 | HEADER-BOARD TO CABLE |
| 3711-008659 | HEADER-BOARD TO CABLE |
| 3711-008422 | HEADER-BOARD TO CABLE |
| 3711-008131 | HEADER-BOARD TO CABLE |
| 1201-003891 | IC-AUDIO AMP |
| 0801-003580 | IC-CMOS LOGIC |
| 1203-008454 | IC-DC/DC CONVERTER |
| 1203-008183 | IC-DC/DC CONVERTER |
| 1203-008082 | IC-DC/DC CONVERTER |
| 1203-007695 | IC-DC/DC CONVERTER |
| 1203-007665 | IC-DC/DC CONVERTER |
| 1203-007018 | IC-DC/DC CONVERTER |
| 1203-008393 | IC-DDR TERMINATION REG. |
| 1105-002534 | IC-DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM |
| 1105-002227 | IC-DDR3 SDRAM |
| 1204-003660 | IC-DECODER |
| 1006-001576 | IC-DRIVER/RECEIVER |
| 1103-001564 | IC-EEPROM |
| 1107-002374 | IC-EMMC |
| 1107-002226 | IC-NOR FLASH |
| 1201-000166 | IC-OP AMP |
| 1203-008112 | IC-POSI.ADJUST REG. |
| 1203-008023 | IC-POSI.ADJUST REG. |
| 1205-005264 | IC-SWITCH |
| 1205-004983 | IC-SWITCH |
| 1204-003530 | IC-VIDEO PROCESS |
| 1203-008392 | IC-VOL. DETECTOR |
| 1203-004364 | IC-VOL. DETECTOR |
| 1203-004363 | IC-VOL. DETECTOR |
| 2703-005194 | INDUCTOR-SMD |
| 2703-005193 | INDUCTOR-SMD |
| 2703-004724 | INDUCTOR-SMD |
| 2703-003937 | INDUCTOR-SMD |
| 2703-003713 | INDUCTOR-SMD |
| 2703-003135 | INDUCTOR-SMD |
| 2703-000158 | INDUCTOR-SMD |
| 3722-003229 | JACK-MODULAR |
| 3722-003617 | JACK-PHONE |
|
|
JACK-PIN |
| 3722-003837 | JACK-USB |
|
|
JACK-USB |
| BN68-00513A | LABEL-E, PASS |
| BN39-01990N | LEAD CONNECTOR |
| BN39-02030E | LEAD CONNECTOR-BLU |
|
|
LEAD CONNECTOR-POWER |
| BN39-02100E | LEAD CONNECTOR-SUB ASSEMBLY |
|
|

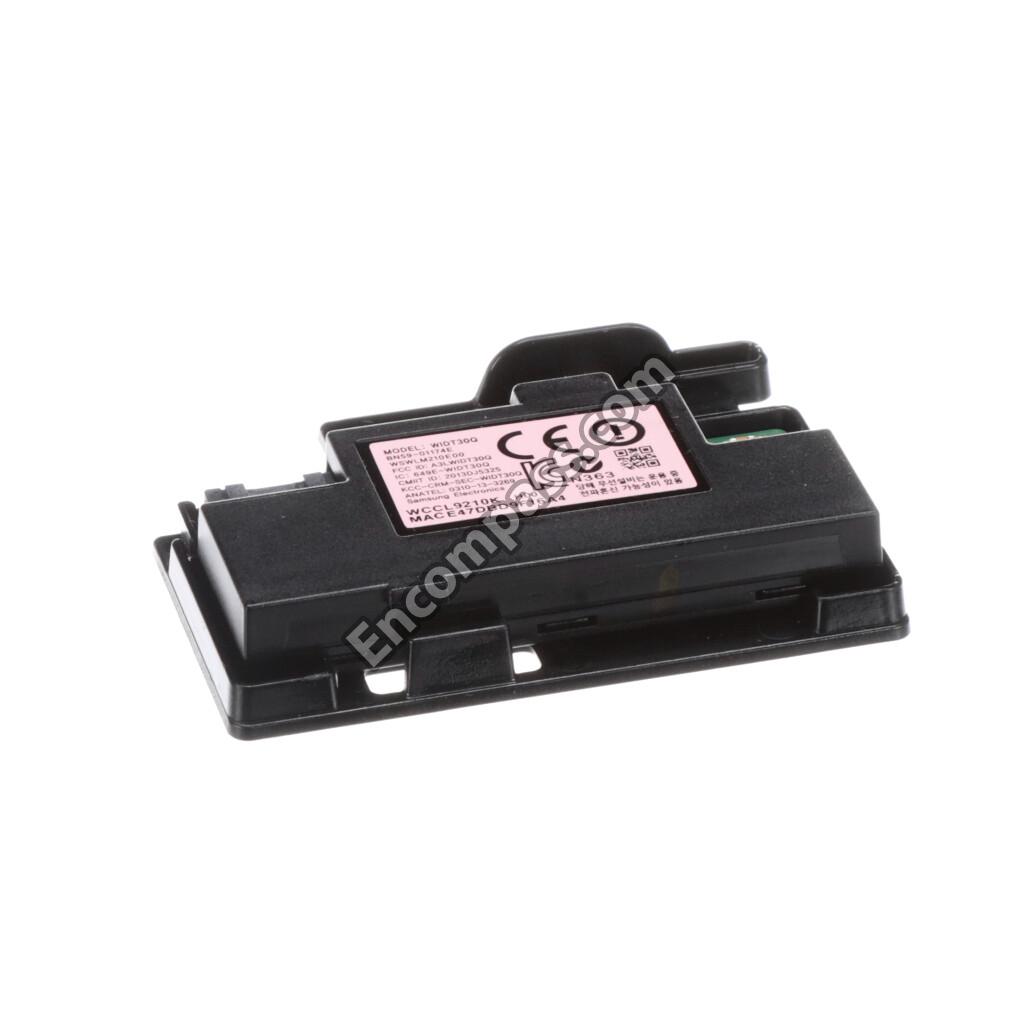

NETWORK-WIFI MODULE |
|
|
PRODUCT LCD-AUO |
| 2007-009777 | R-CHIP |
| 2007-008298 | R-CHIP |
| 2007-008269 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007767 | R-CHIP |
| 2007-001125 | R-CHIP |
| 2007-000999 | R-CHIP |
| 2007-000614 | R-CHIP |
| 2007-000113 | R-CHIP |
| 2011-001587 | R-NETWORK |
| 2011-001449 | R-NETWORK |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
| 0203-001602 | TAPE-OPP MASKING |
| 0504-000126 | TR-DIGITAL |
| 0501-000445 | TR-SMALL SIGNAL |
|
|
TUNER |
|
|
VARISTOR |
