Manufacturer
Samsung
Model Number
UN46C7000WFXZA
Description
46-inch Class 7000 Series 3d 1080p Led Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
A/S-T CON LTF460HQ02;LTF460HQ02 |
| BN96-10150A | ASSY ACCESSORY-MANUAL;UN46,55C7000WFXZA |
| BN96-14742B | ASSY BOARD P-TOUCH FUNCTION&POWER IR;UN4 |
| BN96-13130B | ASSY BRACKET P-STAND LINK;UC7000 46/55,E |
|
|

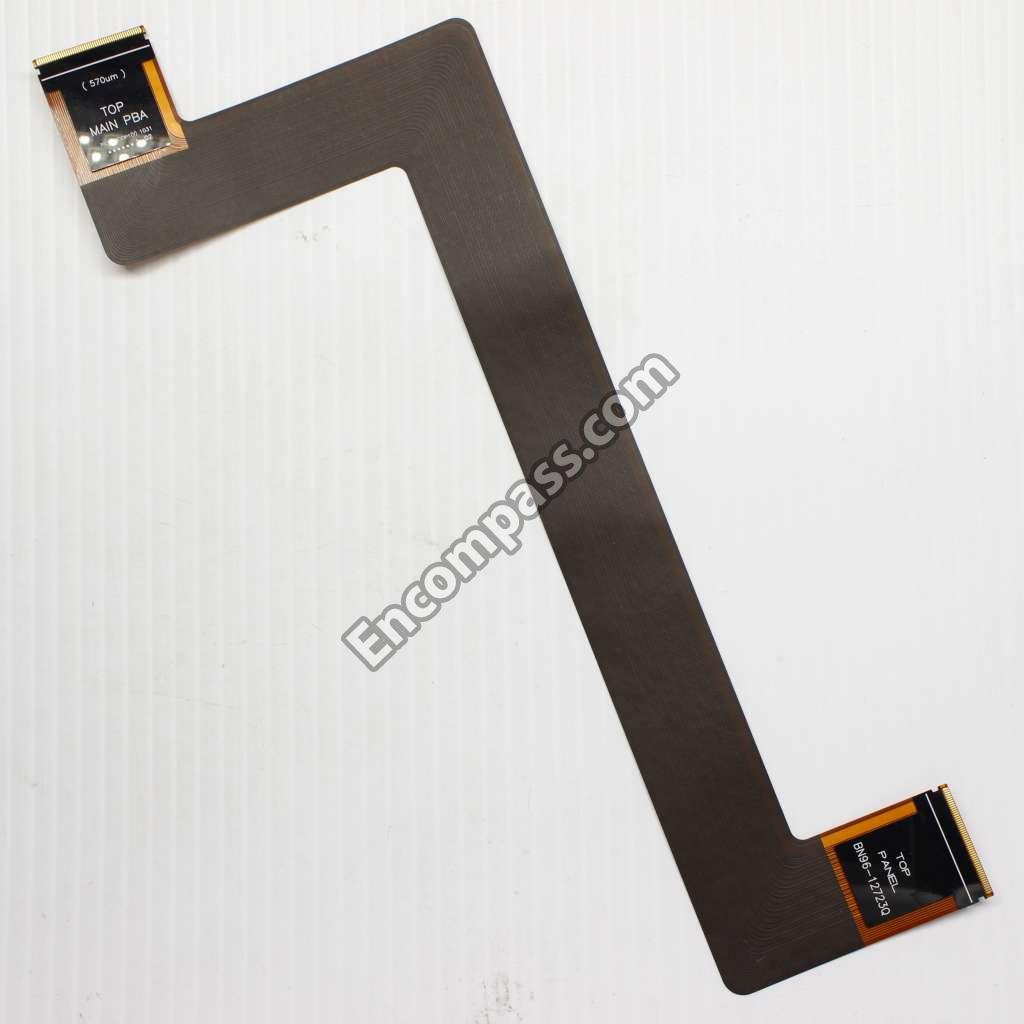

ASSY CABLE P-FPCB LVDS CABLE;LED240HZ-46 |
| BN96-13119A | ASSY COVER P-FRONT;UC7000 46,UO,PMMA+PMM |
|
|

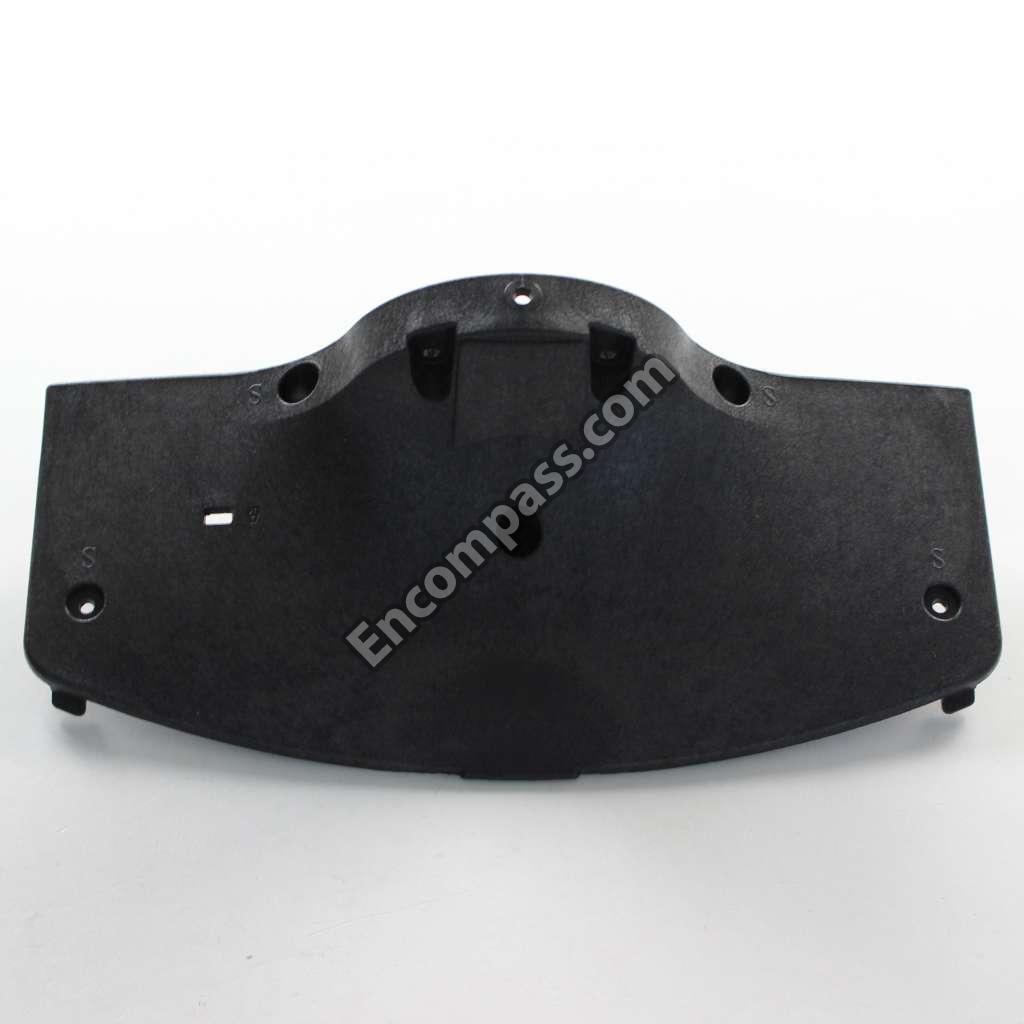

ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G |
| BN96-13126A | ASSY COVER P-REAR;46UC7000,PCM,T0.45,BKN |
| BN96-10276B | ASSY HOLDER P-RING;09 LEDTV ALL MODEL,AB |
| BN96-10810A | ASSY HOLDER P;09 LEDTV MODEL,NYRON |
|
|
ASSY PCB MAIN;UN46C7000WFXZA |
|
|

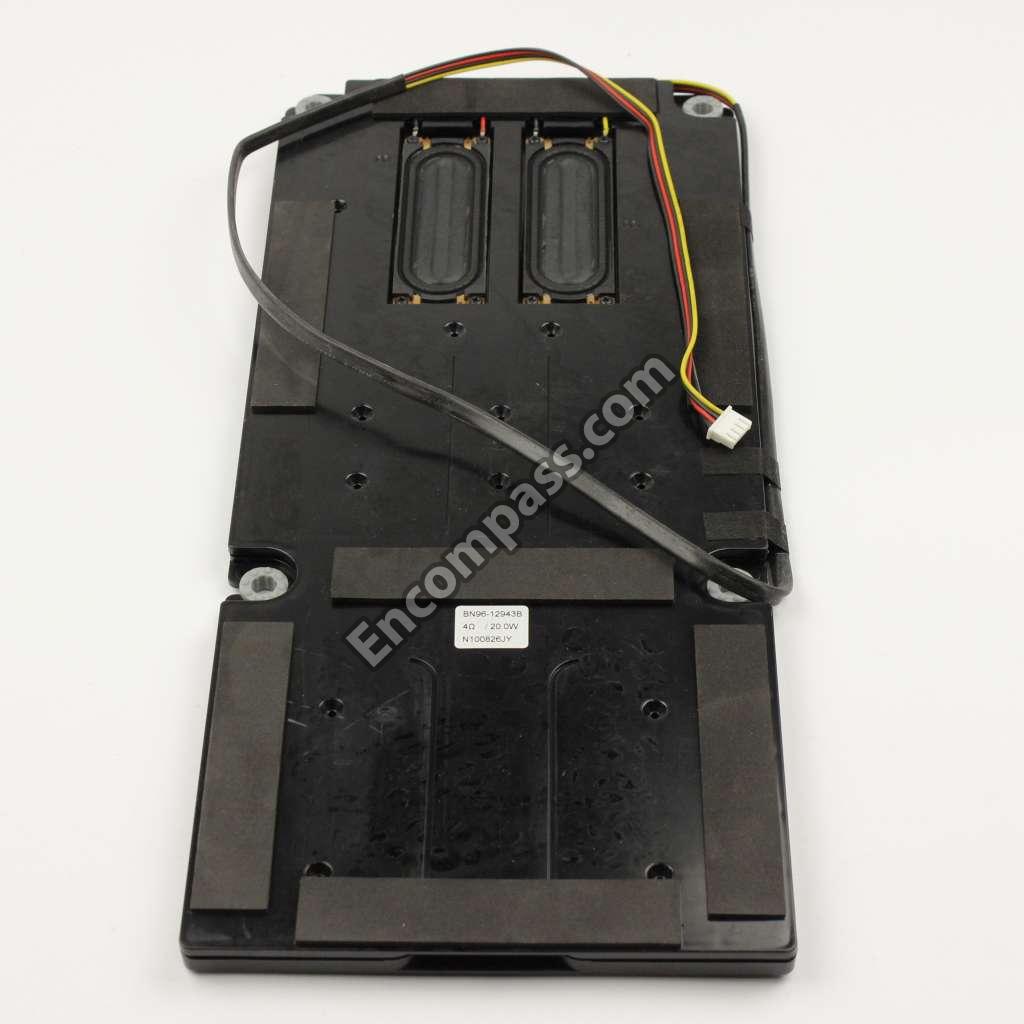

ASSY SPEAKER P;4OHM,4PIN,20W,R:630,ENCLO |
|
|

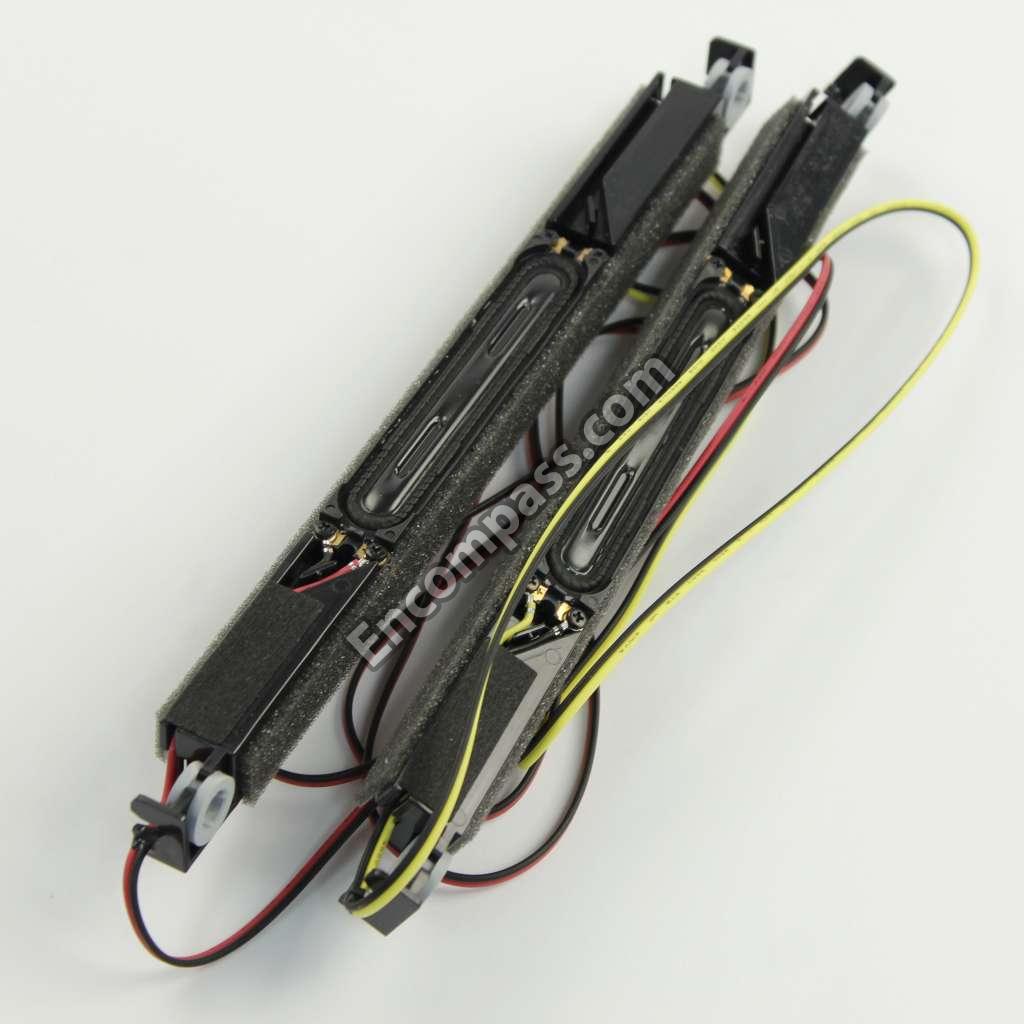

ASSY SPEAKER P;8OHM,4PIN,10W,L: 640, R:1 |
|
|

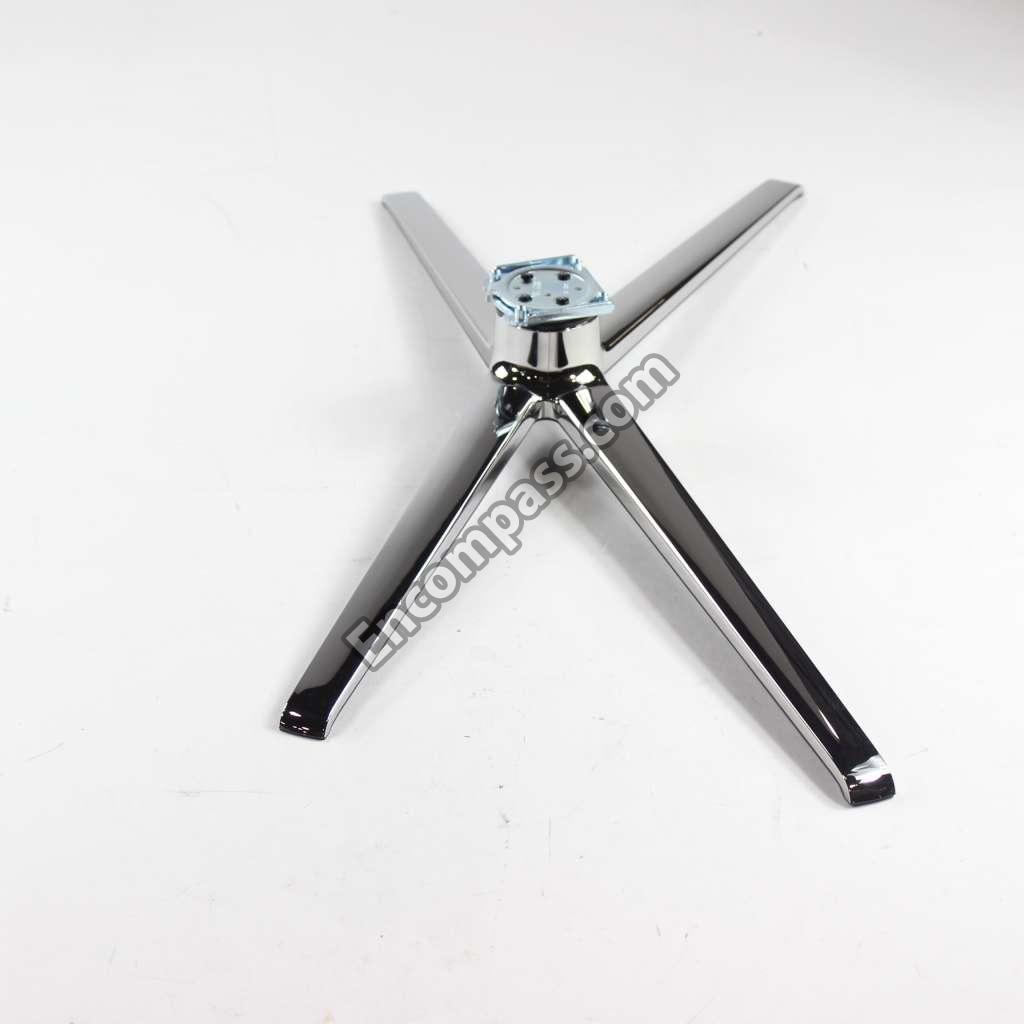

ASSY STAND P-BASE;46/55,FOUR-LEG,HIPS,HB |
| BN61-06211A | BRACKET-AV;C8K(UO),PCM,T0.45,BKN-P824 |
|
|
CBF SIGNAL-D SUB GENDER;UE40C7700WSXZG,1 |
|
|
CBF SIGNAL-RF NTSC;UE40C7700,1P RFNTSC,3 |
|
|

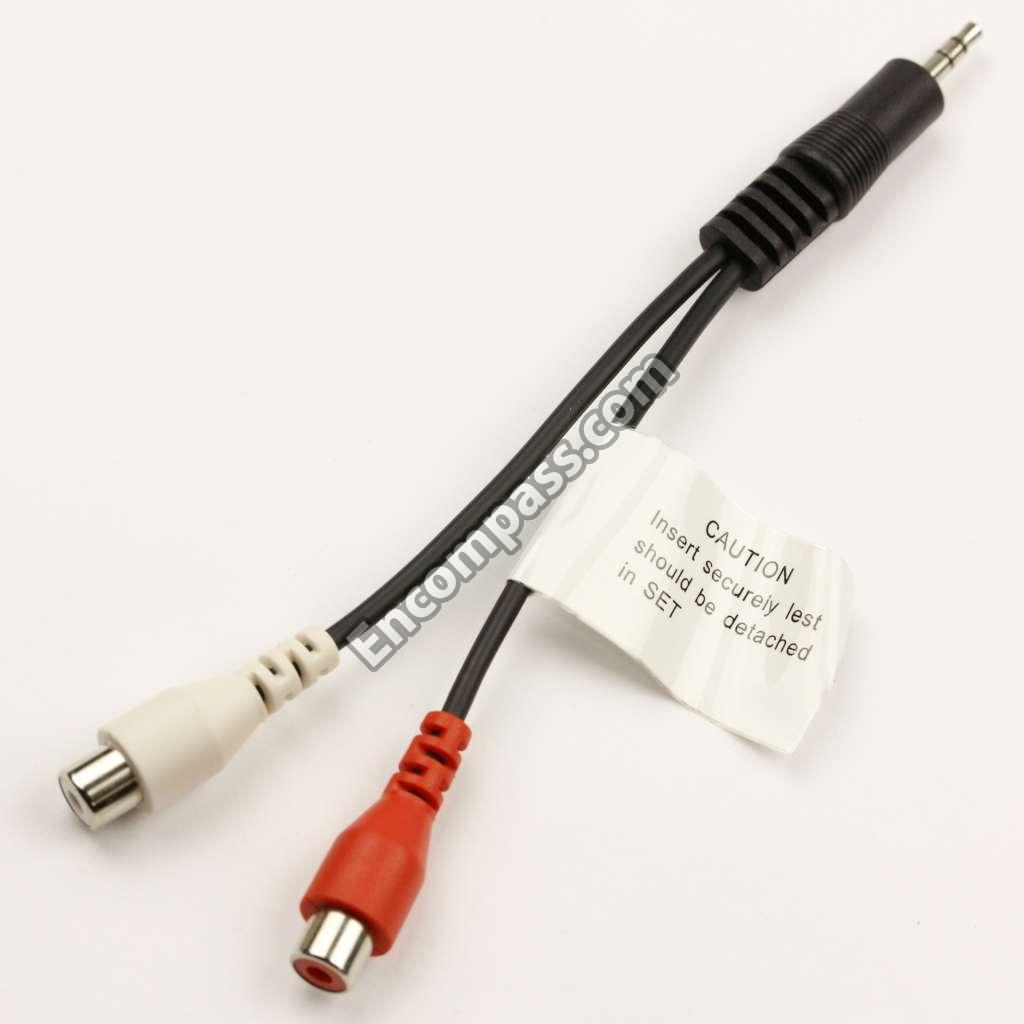

CBF SIGNAL;CHELSEA SLIM, STEREO PLUG TO |
|
|
CBF SIGNAL;UE40B7000WWXXC,3P RCA,30AWG,1 |
|
|
CBF SIGNAL;UN40B7000WMXZD,1P/1P*2,30AWG, |
|
|
CLOTH-CLEAN;CLOTH,SEA BLUE,TOC |
| BP27-00002A | COIL CHOKE;SLF6028T-220MR77,22UF,20%,0.1 |
| BN63-06543B | COVER-BOTTOM;UC7000 40,HIPS,V0,BK0020 |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| 2801-004629 | CRYSTAL-SMD;27MHZ,20PPM,12PF,50OHM,TP |
| BN44-00375A | DC VSS-LED TV PD BD;PD46CF2_ZSM,PSLF172C |
|
|
ELEMENT-SILICON/RUBBER;UE32B6000VWXXC,SI |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
|
|

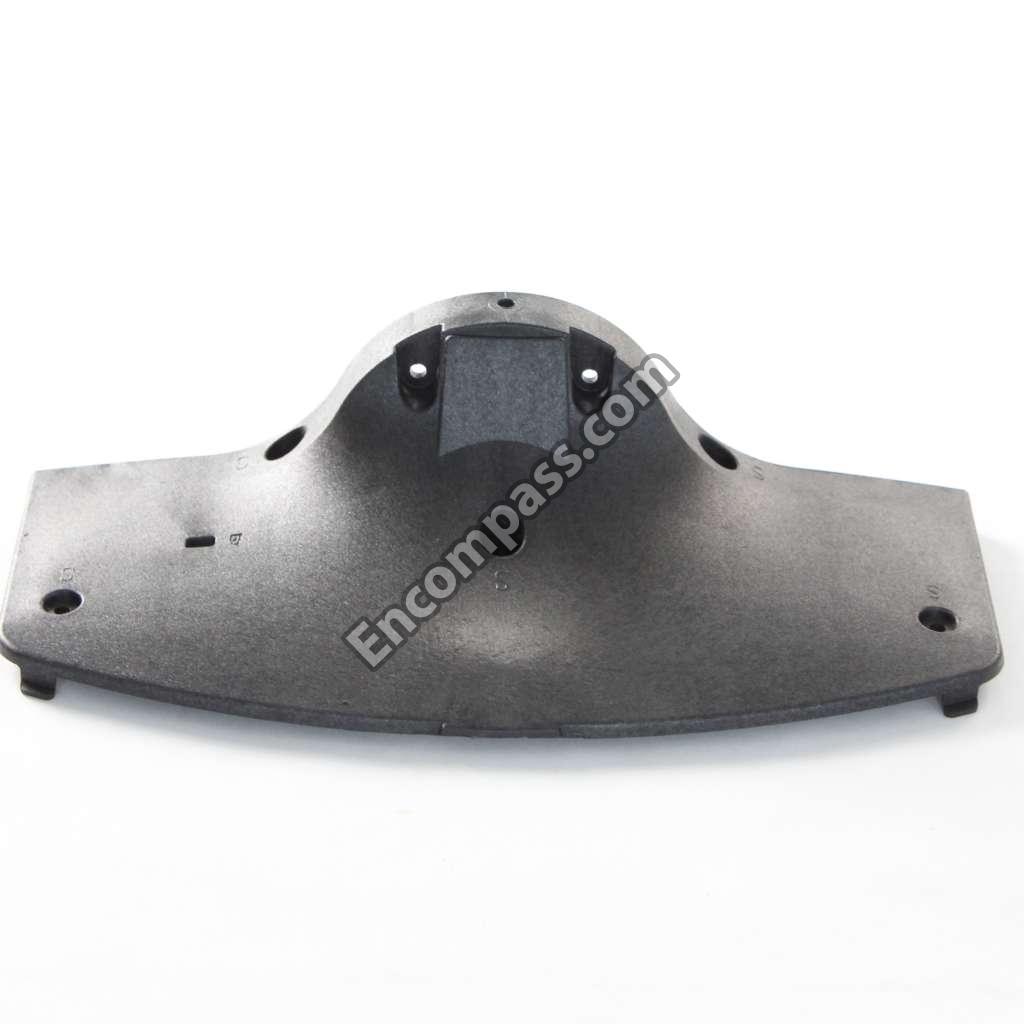

GUIDE-STAND;UC6500 40INCH,PC+GF20%,BK000 |
| BN61-06246B | HOLDER-CORD;UC7000,ABS+PC,BLK |
|
|
HOLDER-WIRE STAND;UB7000 46INCH,PA66 |
|
|
JACK-PHONE;1/6P,NI,BLK,ANGLE |
| 3722-003156 | JACK-PHONE;1/7P,NI,LAUREL-GREEN,ANGLE |
|
|
JACK-PHONE;1/7P,NI,YEL,ANGLE |
| 3722-003012 | JACK-USB;4P,AU+NI,BLK,SMD-A,USB A |
|
|
LCD-PANEL;LTF460HQ02,SSEZQX,8BIT,46,16.7 |
| 2804-001878 | OSCILLATOR-CLOCK;49.152MHZ,50PPM,10TTL/1 |
|
|

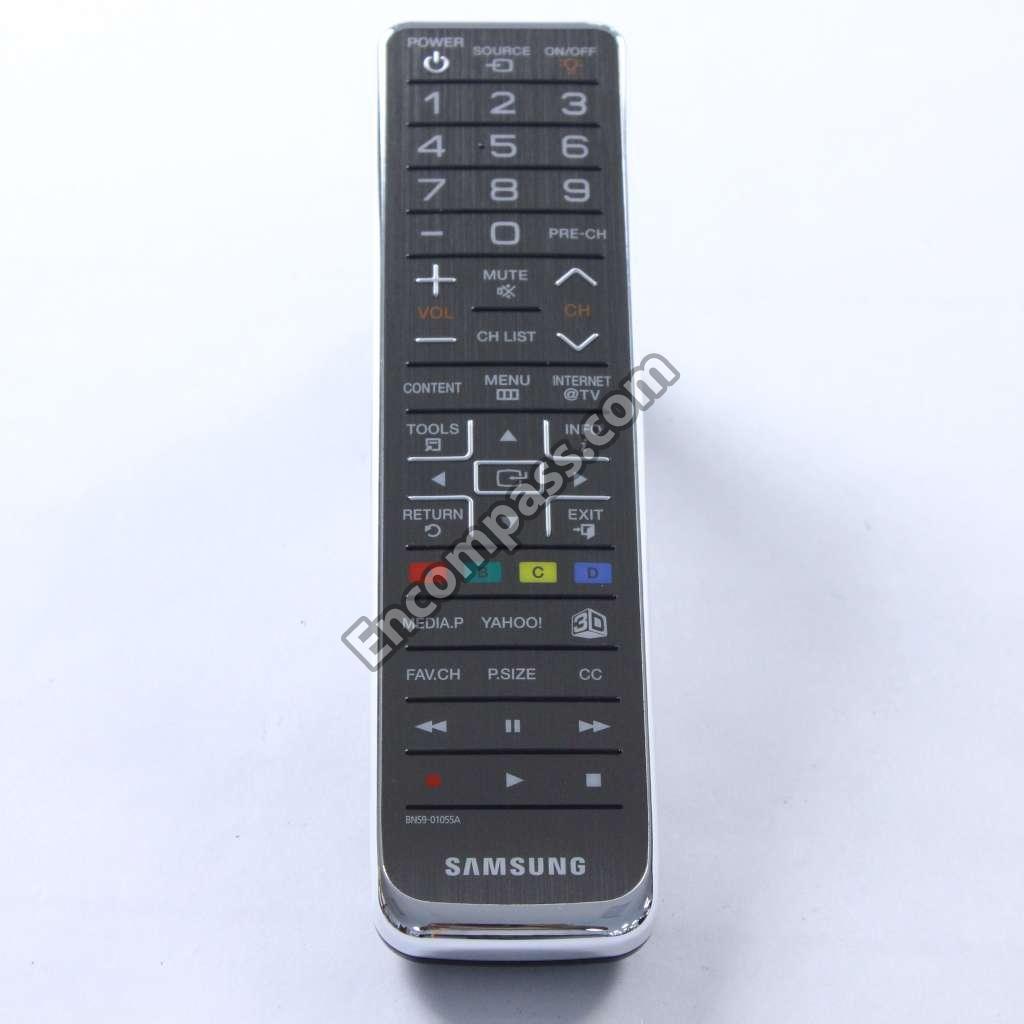

REMOTE, TM1080 |
| 6001-002283 | SCREW-MACHINE;BH,M3,L5,ZPC(WHT),SWRCH1 |
| 6001-002610 | SCREW-MACHINE;BH,M4,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,S,M4,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;FH,B,M4,L8,ZPC(BLK),SWRC |
| 3710-002628 | SOCKET-INTERFACE;18P,1R,0.5MM,SMD-A,NI |
| BN40-00164A | TUNER;DTVS30CVH071A,NTSC,191CH,45.75MHZ, |
