Manufacturer
Samsung
Model Number
UN46H6203AFXZA
Description
46-inch Class 1080p Led Smart Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY BOARD P-JOG SWITCH & IR;UE6030,FUNC |
|
|

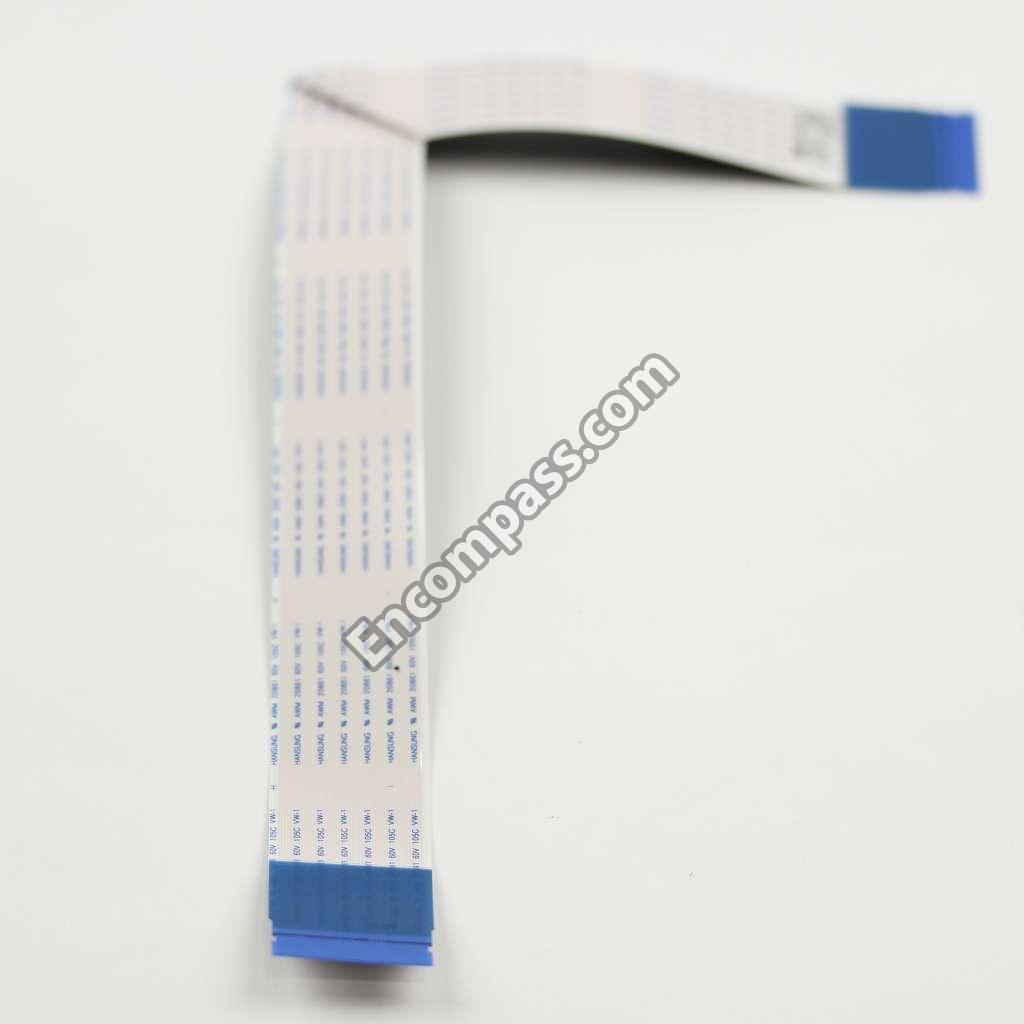

ASSY CABLE P-FFC;UN46FH6203FXZX,FFC,NH,3 |
|
|
ASSY CABLE P;IR BLASTER,UL1185 28AWG,2.5 |
| BN96-23643E | ASSY CHASSIS TOP P;Y12 F-LED, 46" |
| BN96-33332A | ASSY COVER P-REAR;UH6203 46",ZA,UO,HIPS, |
|
|

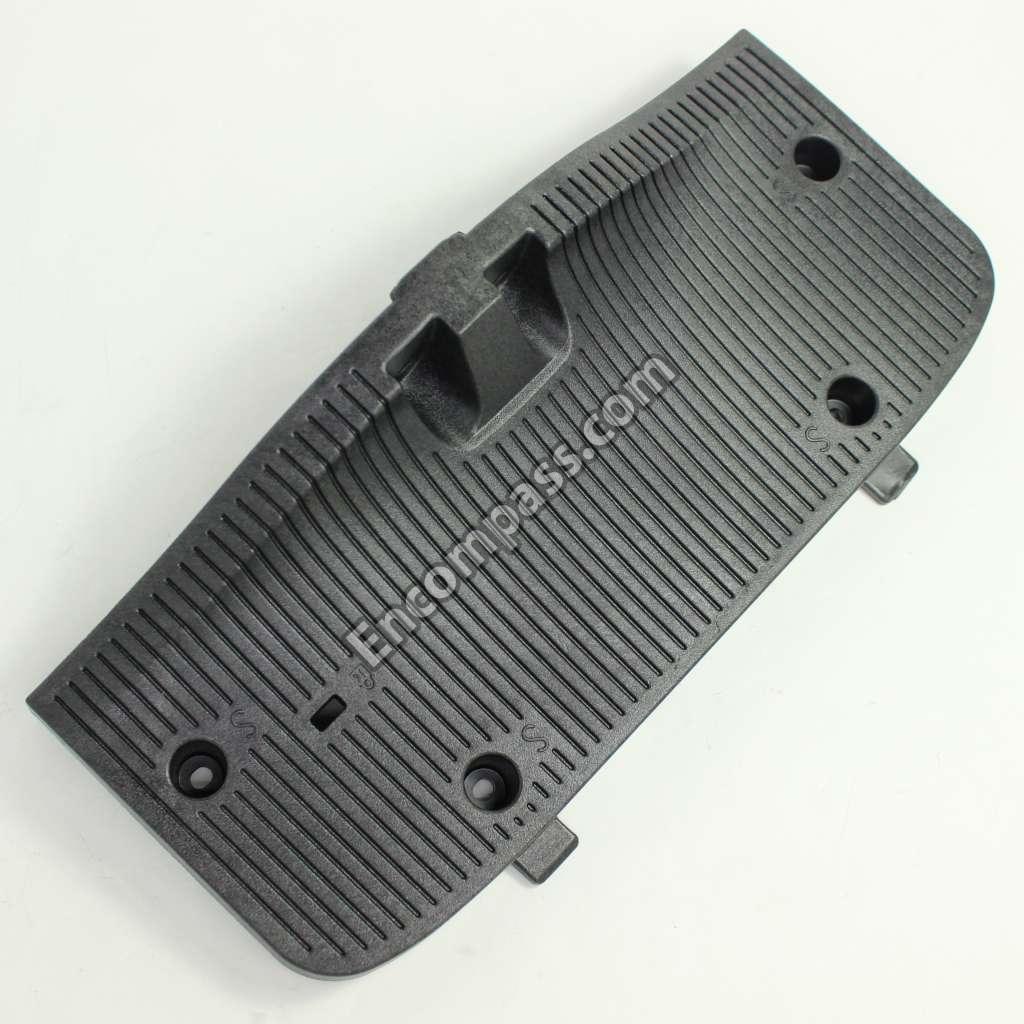

ASSY GUIDE P-STAND;UE5000,40/46/55/60,PC |
| CALL_1-800-SAMSUNG | ASSY OPEN CELL;LSF460HJ02-A,8BIT,46 INCH |
|
|

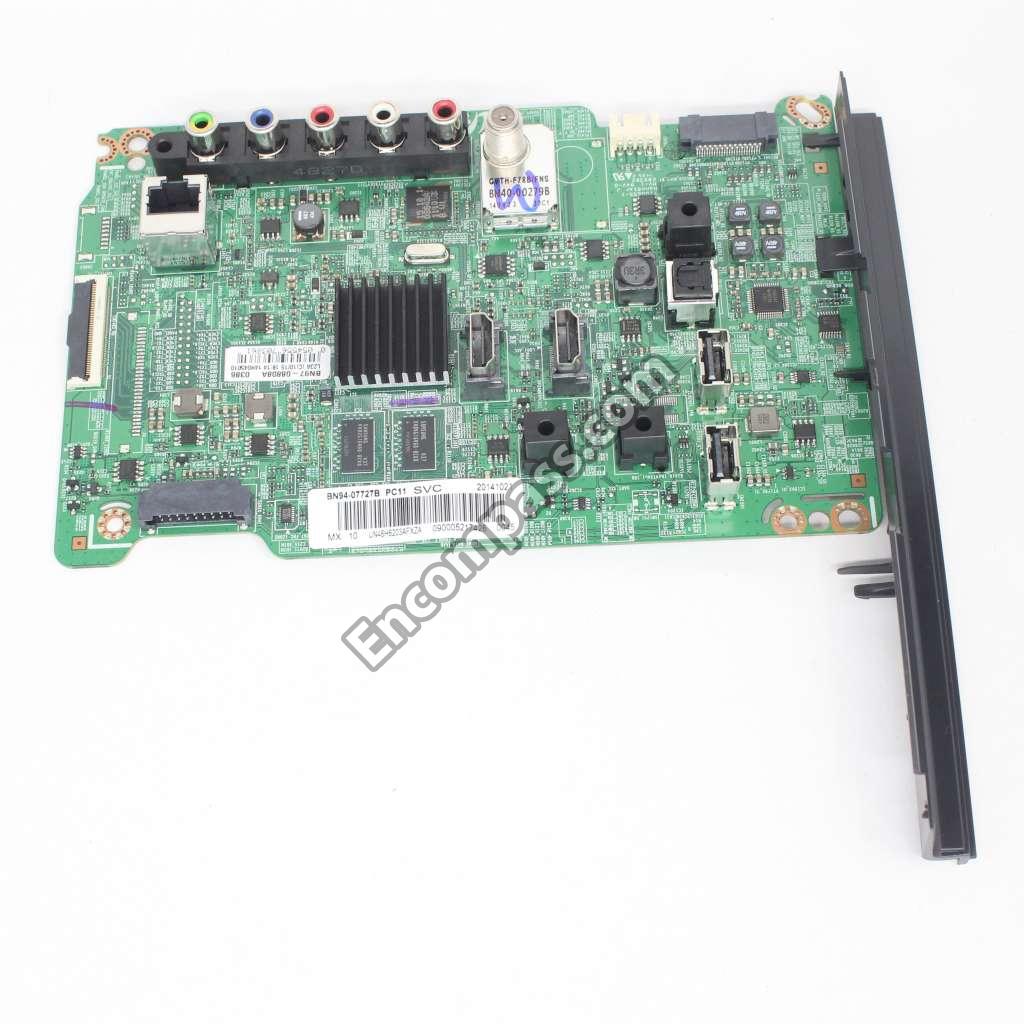

ASSY PCB MAIN;H6203 |
|
|
ASSY PCB P-T CON;LSF460HJ02,46 120 NNB F |
|
|

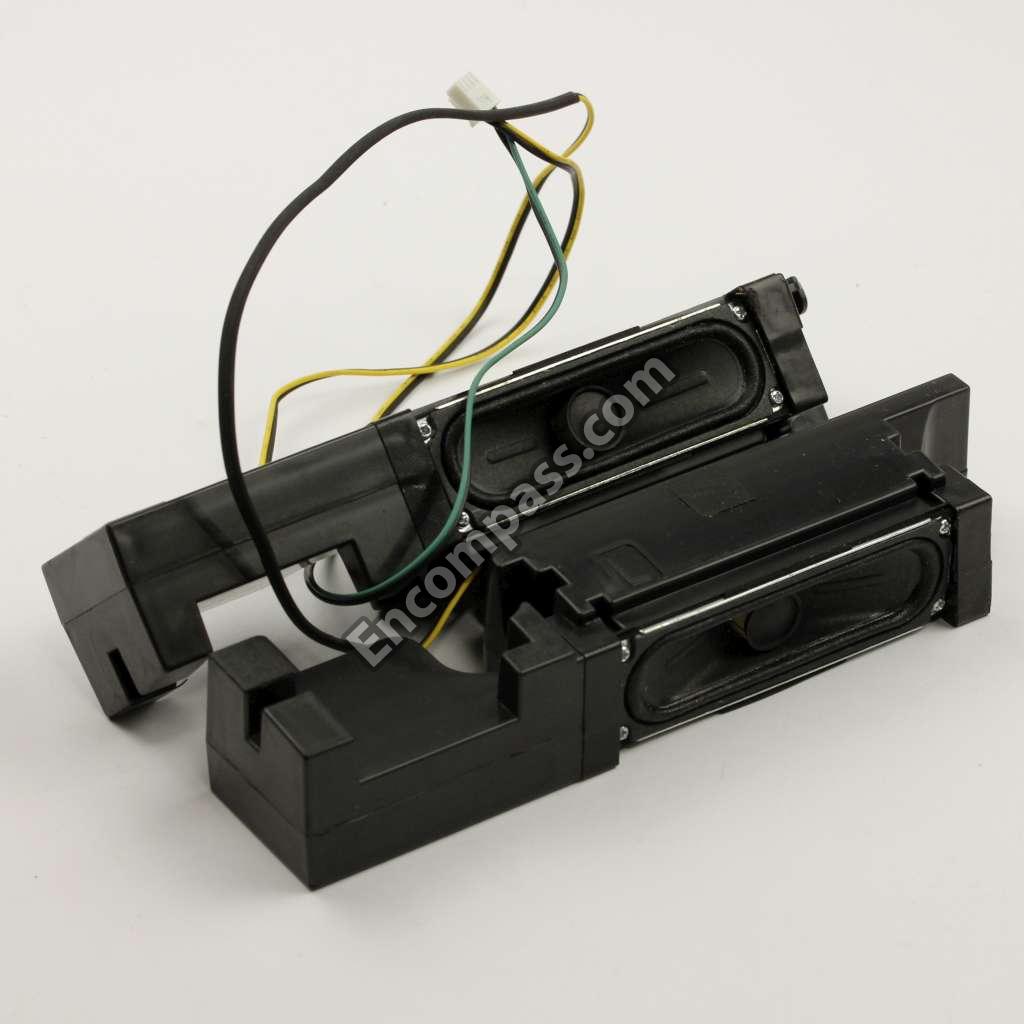

ASSY SPEAKER P;6OHM,4PIN,10W,UE6030 55" |
|
|

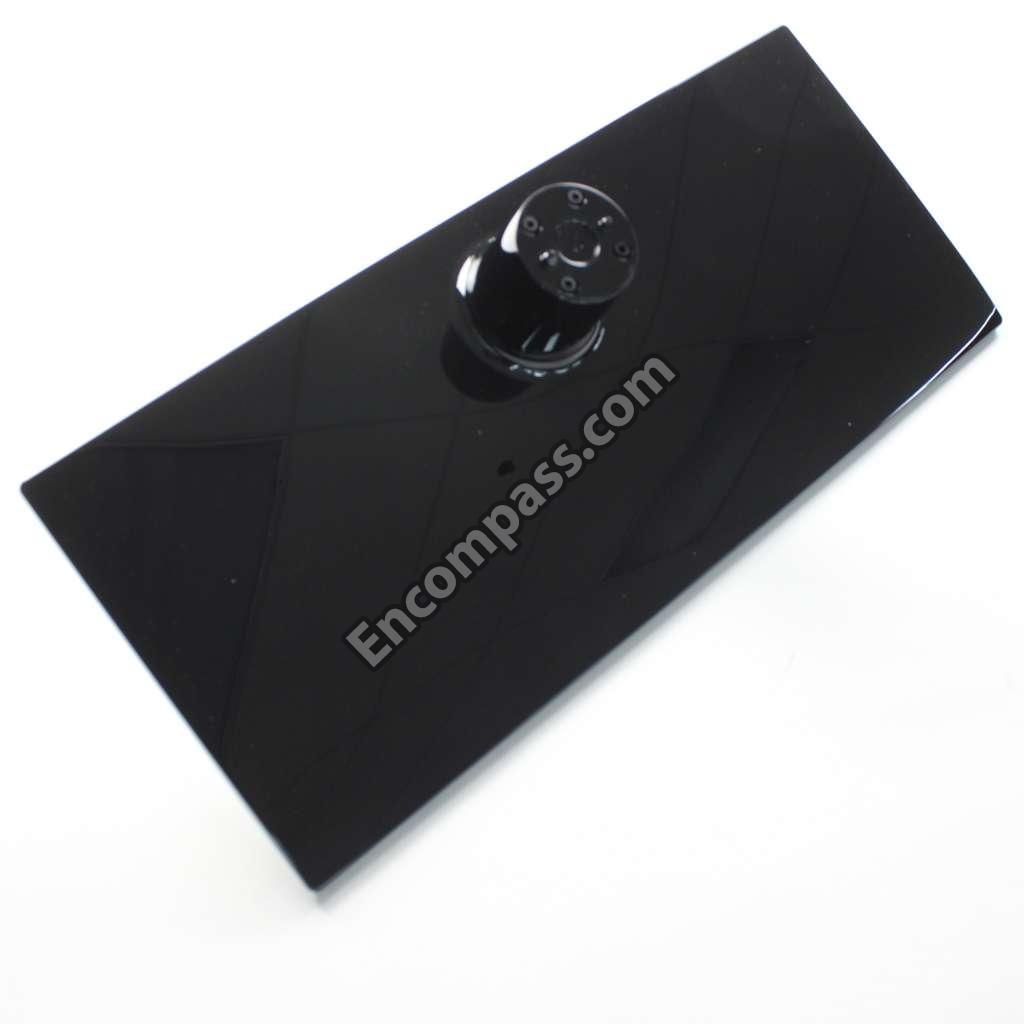

ASSY STAND P-BASE;W/W,ABS,HB,BK0007,H/GL |
|
|
BRACKET-WALL;UE5000 46",EGI-SECC PL,T1.2 |
|
|
CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A, |
| 3708-002651 | CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A,AU |
| 3701-001856 | CONNECTOR-HDMI;19P,FEMALE,AU,0.5MM,BLK,S |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| 2801-003773 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
| 2801-004629 | CRYSTAL-SMD;27MHZ,20PPM,12PF,50OHM,TP |
|
|
GUIDE-STAND;UE5000/6000,40/46/55,W/W,PC+ |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| BP62-00017A | HEAT SINK-ES;SP-50L2HX,A6063S,T2.0,26.2, |
|
|
HOLDER-WIRE STAND;UB7000 46INCH,PA66 |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003667 | JACK-PHONE;1P/7C,SN/NI,BLK,STRAIGHT,3.6P |
| 3722-003226 | JACK-PHONE;7P/1C,SN,BLK |
|
|
JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED |
| 3722-003248 | JACK-USB;4P/1C(W/L),NI/PD/AU/SN,BLK,STRA |
|
|

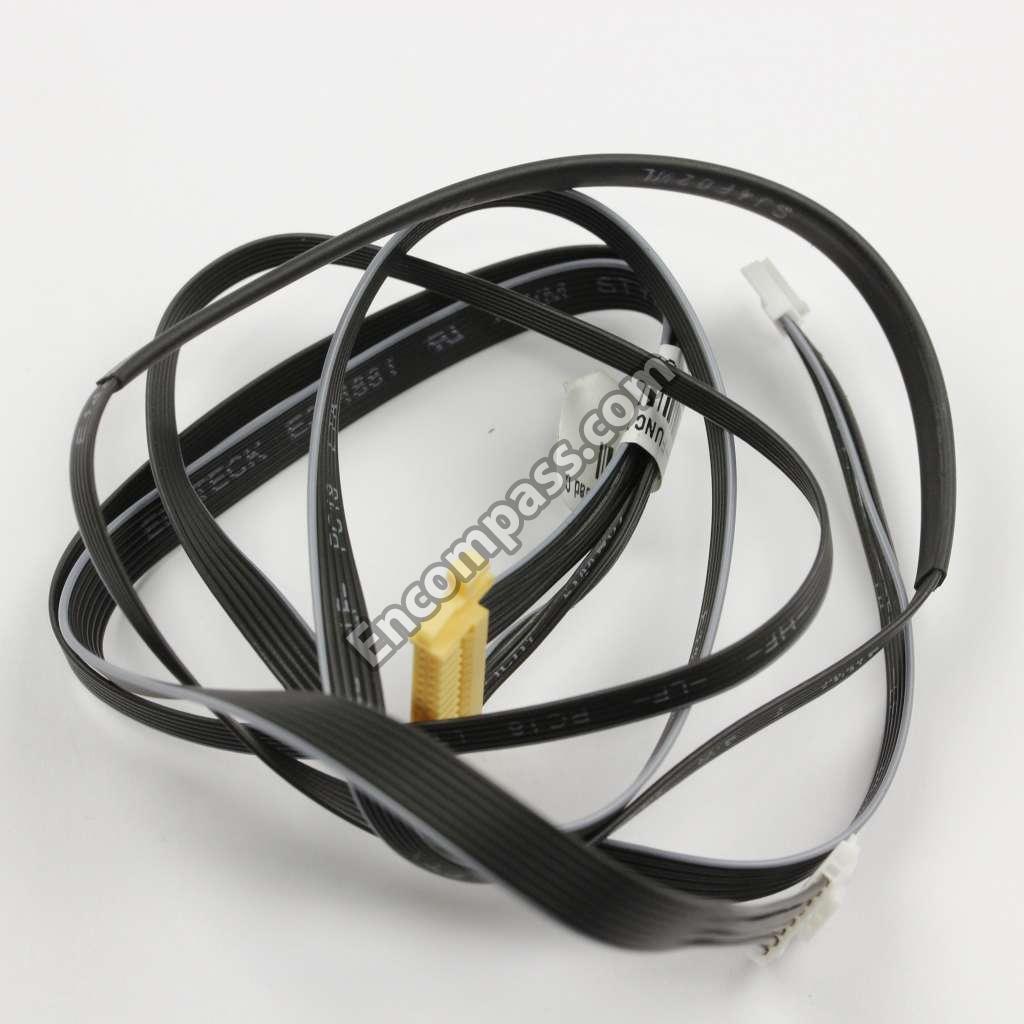

LEAD CONNECTOR-FUNCTION;UN46H6203,LEAD C |
|
|
LEAD CONNECTOR;UN46H6203,FLAT CONNECTOR, |
|
|
NETWORK-WIFI MODULE;WIDT-30Q,INTERNAL WI |
|
|

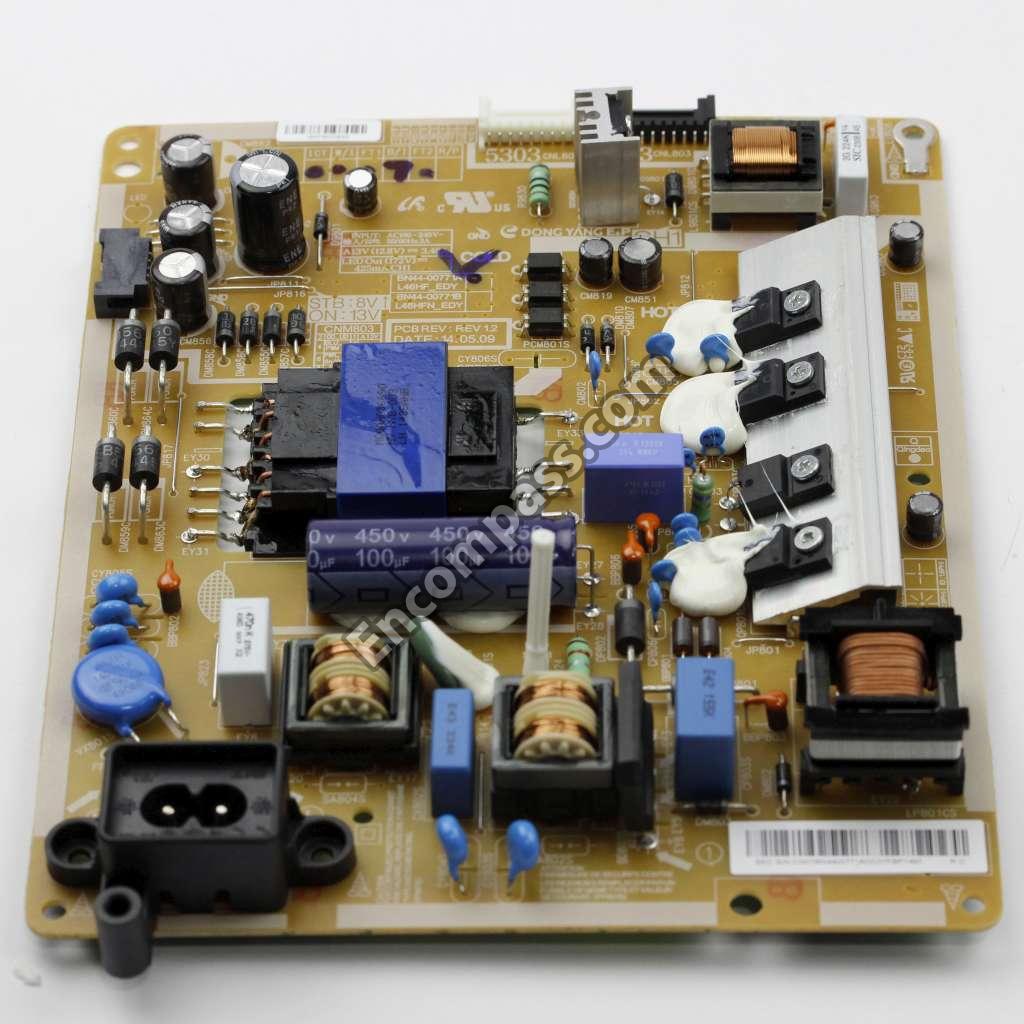

POWER BOARD TV PD BD;L46HF_EDY,L46HF_EDY, |
|
|
PRODUCT LCD-SDC;LSF460HJ02,CY-DF460CSLV1 |
|
|

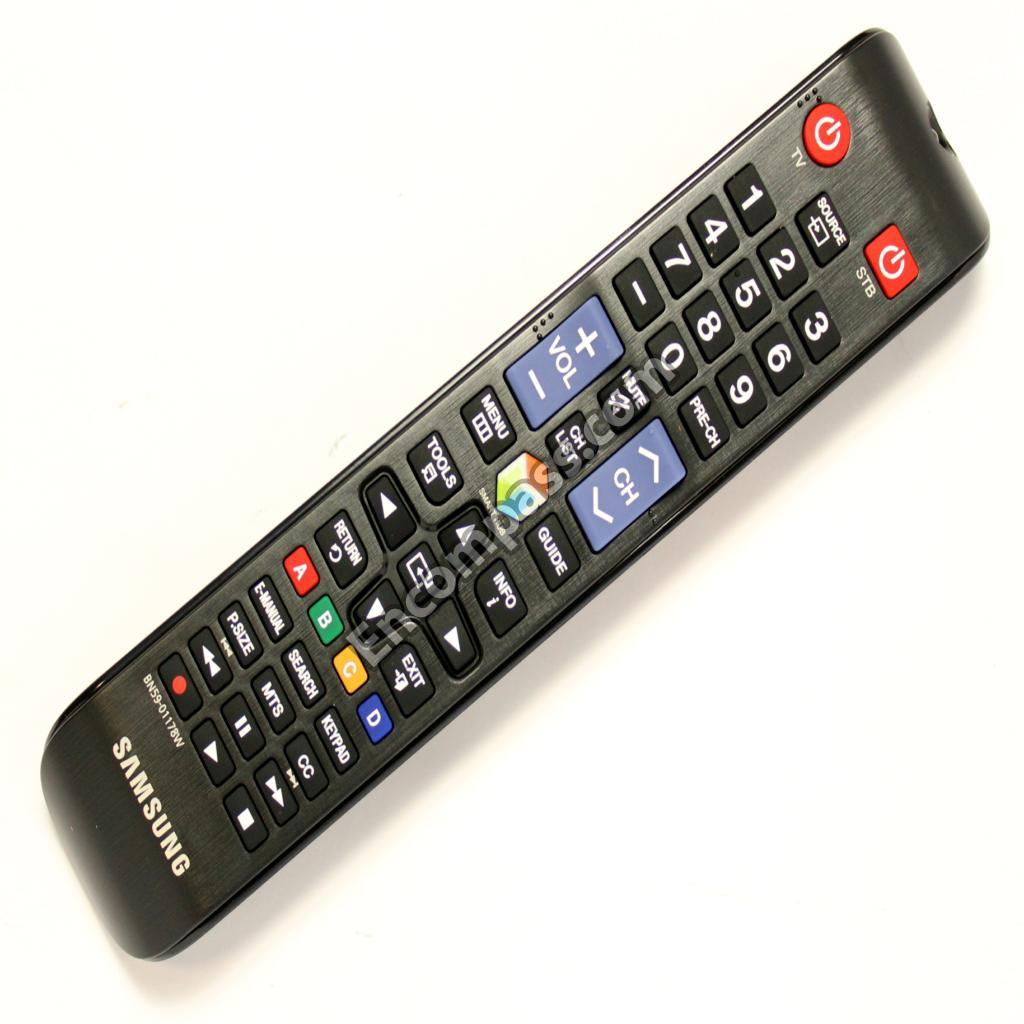

REMOCON;TM1250A,49,3.0V,TM1250A_AMERICA_ |
|
|
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| BN40-00279B | TUNER;GVTH-F78B/FNS,GVTH-F78B/FNS,ATSC H |
