Manufacturer
Samsung
Model Number
UN48H5500AFXZA
Description
48-inch 1080p Class Led Smart Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY CHASSIS TOP P;H5.5K 48",PC+ABS-(GF1 |
| BN96-31667A | ASSY COVER P-REAR;UH5500 48,N/AMERIACA,H |

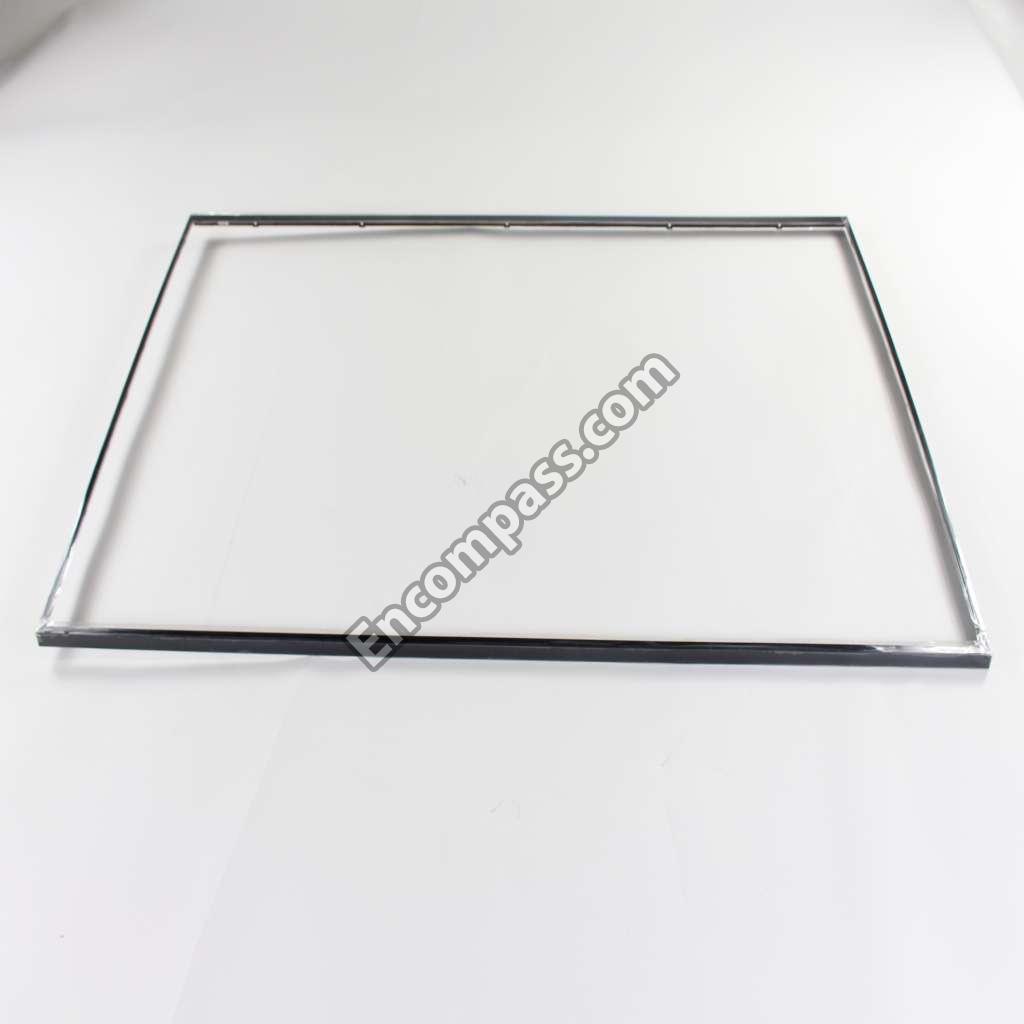

| BN95-01397E | ASSY DECORATION SMT;UH5500,48,LIGHT TITA |
|
|

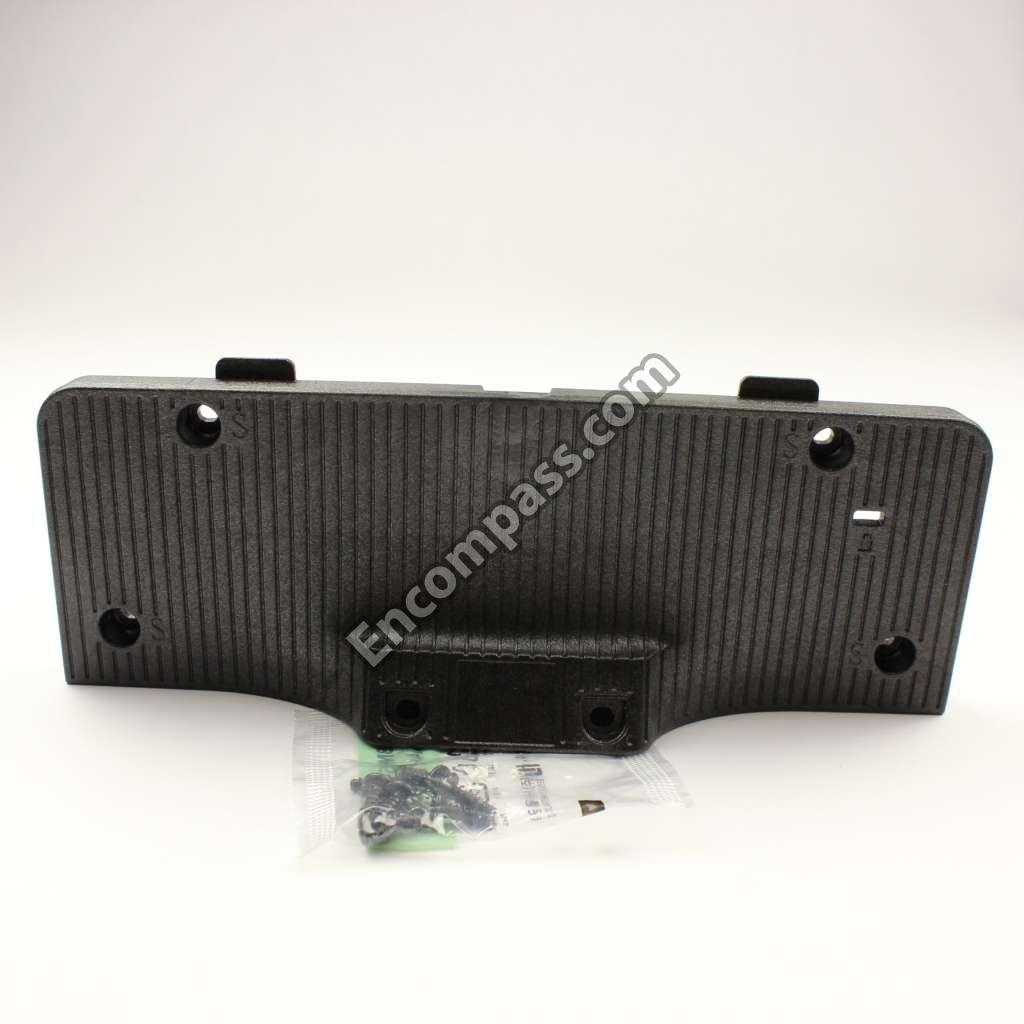

ASSY GUIDE P-STAND;UH5000/5500 40/48/50, |
| 3708-003176 | CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU |
| 3701-001861 | CONNECTOR-HDMI;19P,FEMALE,AU,0.5MM,BLK,S |
| 3701-001856 | CONNECTOR-HDMI;19P,FEMALE,AU,0.5MM,BLK,S |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
|
|

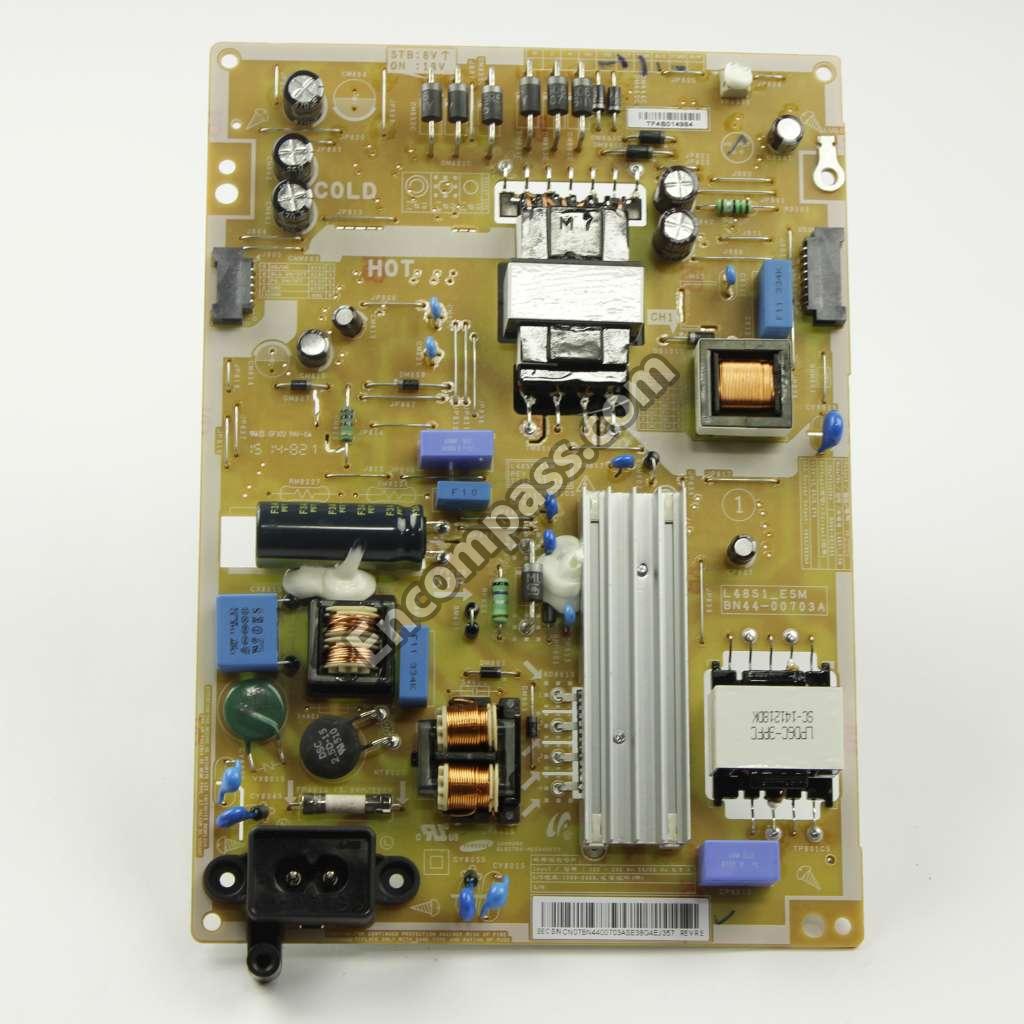

DC POWER SUPPLY -LED TV PD BD;L48S1_ESM,L48S1_ESM, |
| 2901-001362 | FILTER-EMI/ESD |
|
|

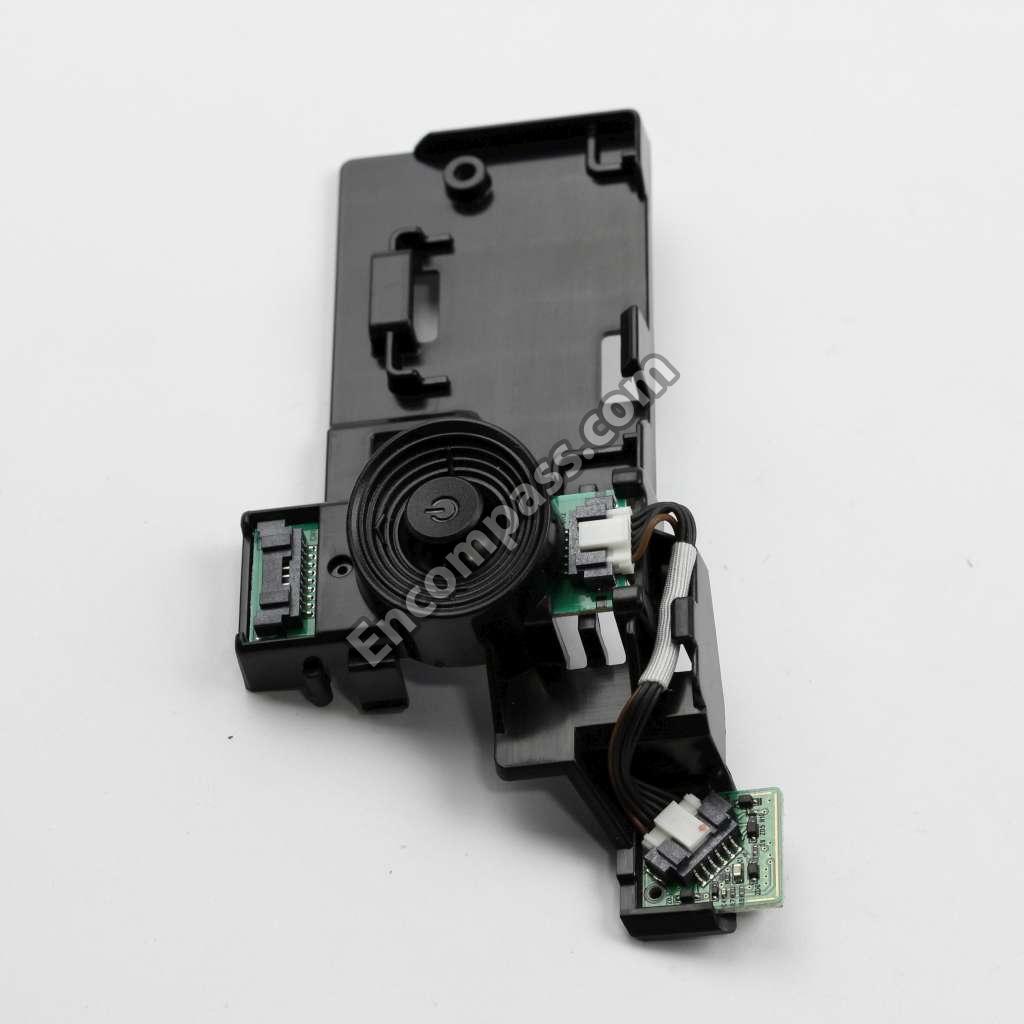

FUNCTION PCB ASSY |
| 3601-001038 | FUSE-SURFACE MOUNT;125V,3A,FAST-ACTING,C |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
|
|

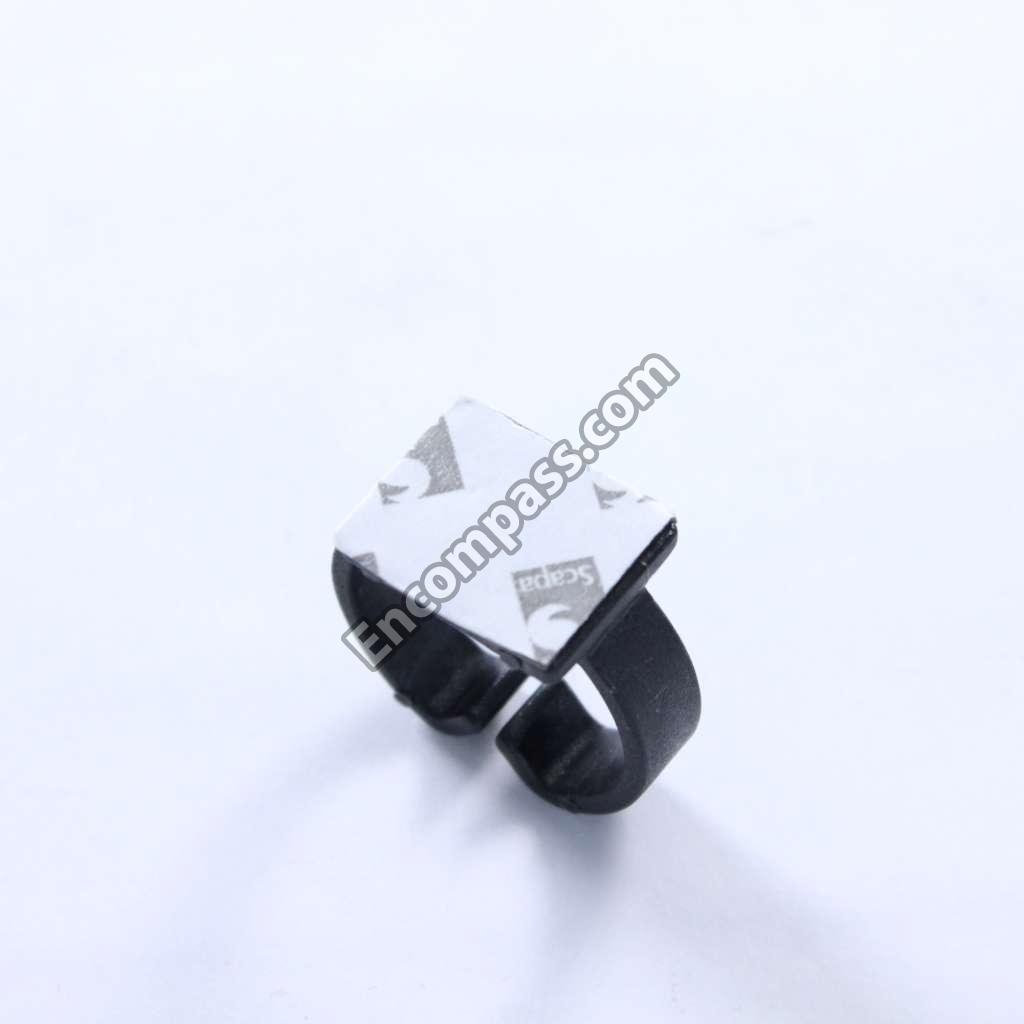

HOLDER-WIRE STAND;26UE4000 GUIDE STAND,N |
| 1201-003671 | IC-AUDIO AMP;NTP7414,MLF,48P,7X7MM,DUAL, |
| 1203-007984 | IC-DC/DC CONVERTER;AOZ3015PI,SO-8,8P,6.2 |
| 1203-008183 | IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
| 1203-007694 | IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8Z3 |
| 1006-001576 | IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16 |
| 1103-001565 | IC-EEPROM;M24C64-WMN6TPK,100PF,SO8,8Q,4. |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1205-004983 | IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0X4. |
| 1205-004447 | IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65 |
|
|

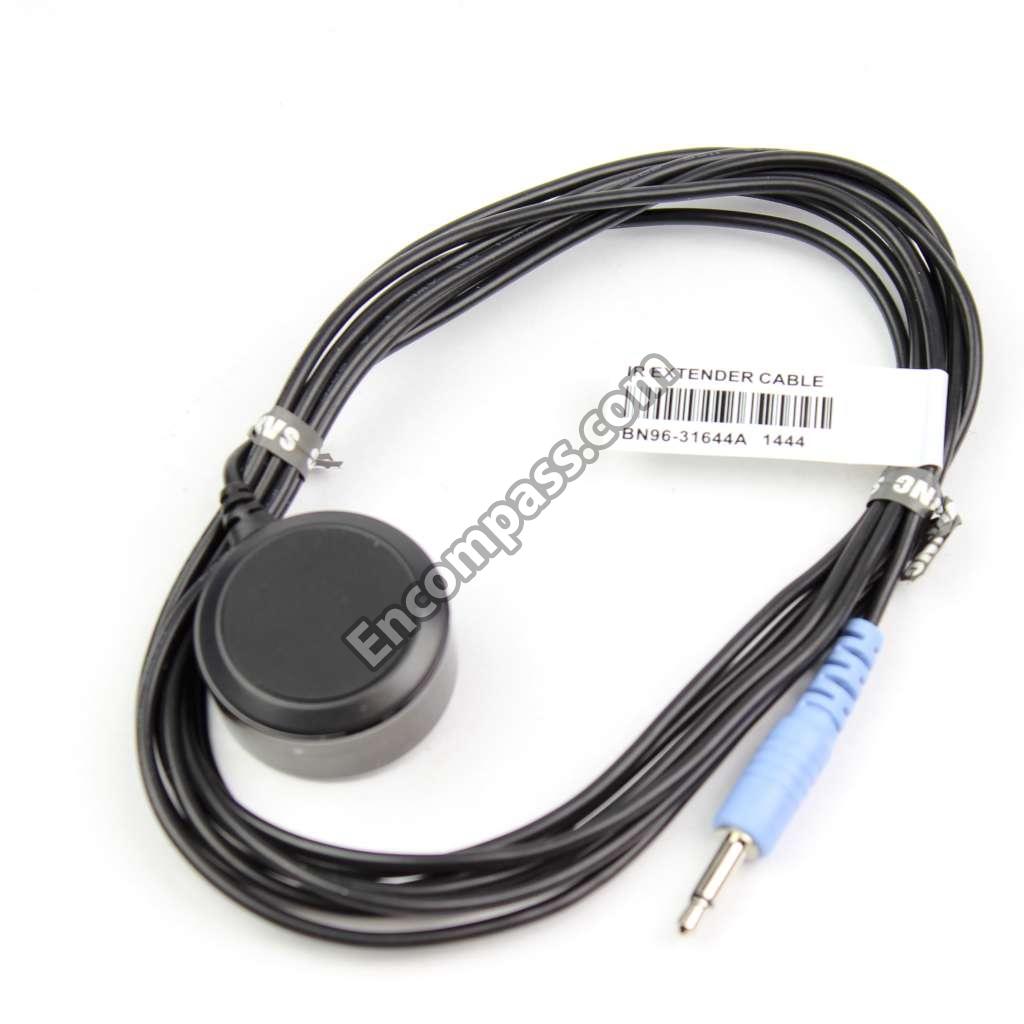

IR BLASTER CABLE |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003617 | JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI, |
| 3722-003439 | JACK-PHONE;4P/1C,SN,BLK,STRAIGHT,3.5PI,1 |
|
|
JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED |
|
|
JACK-USB;4P/1C,NI,BLK,A |
|
|
LCD DISPLAY ;LSF480HN01-G,CY-GH048B |

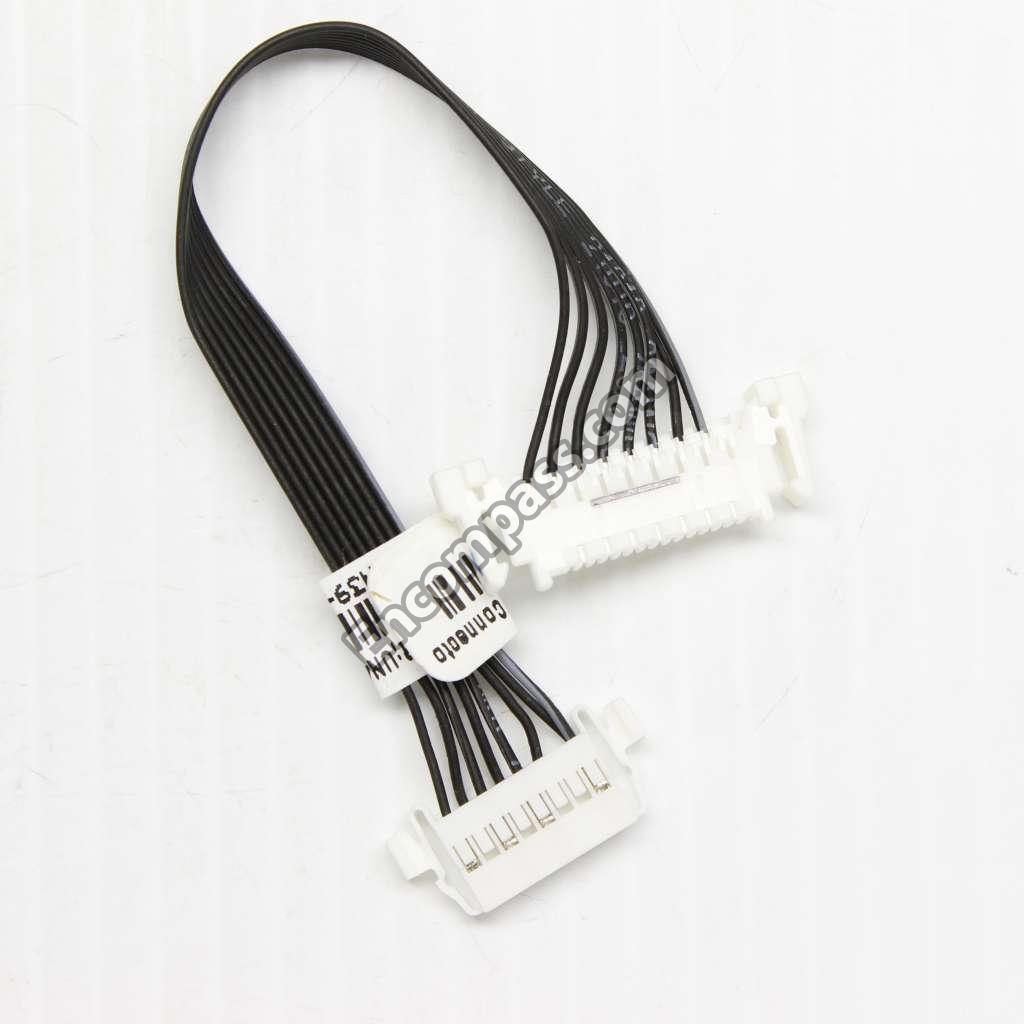

| BN39-01888C | LEAD CONNECTOR-FUNCTION;UH5500 48",LEAD |
|
|
LEAD CONNECTOR;UN40H5200AF,LEAD CONNECTO |
| BN39-01889A | LEAD CONNECTOR;UN48H5500,FLAT CONNECTOR, |
|
|

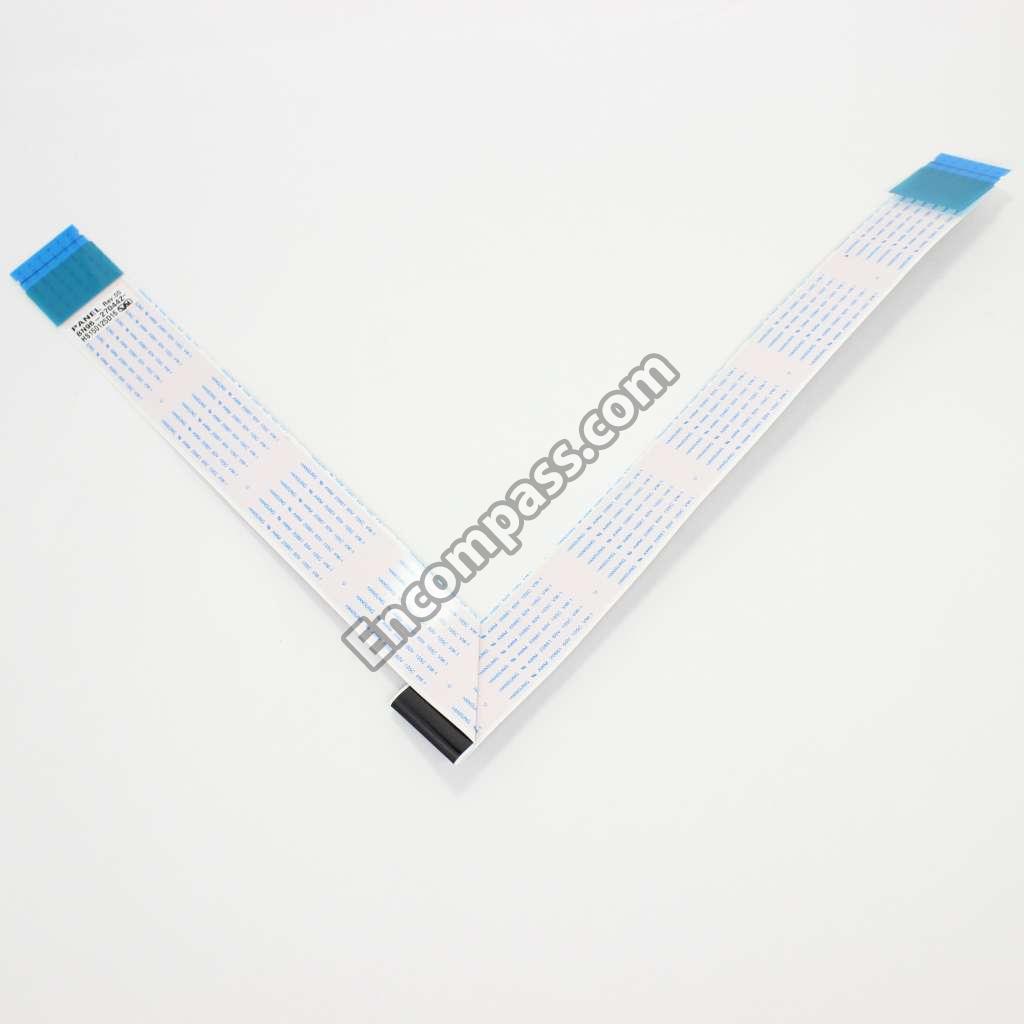

LVDS CABLE ASSY |
|
|
MAIN BOARD PCB ;UH5C |
|
|

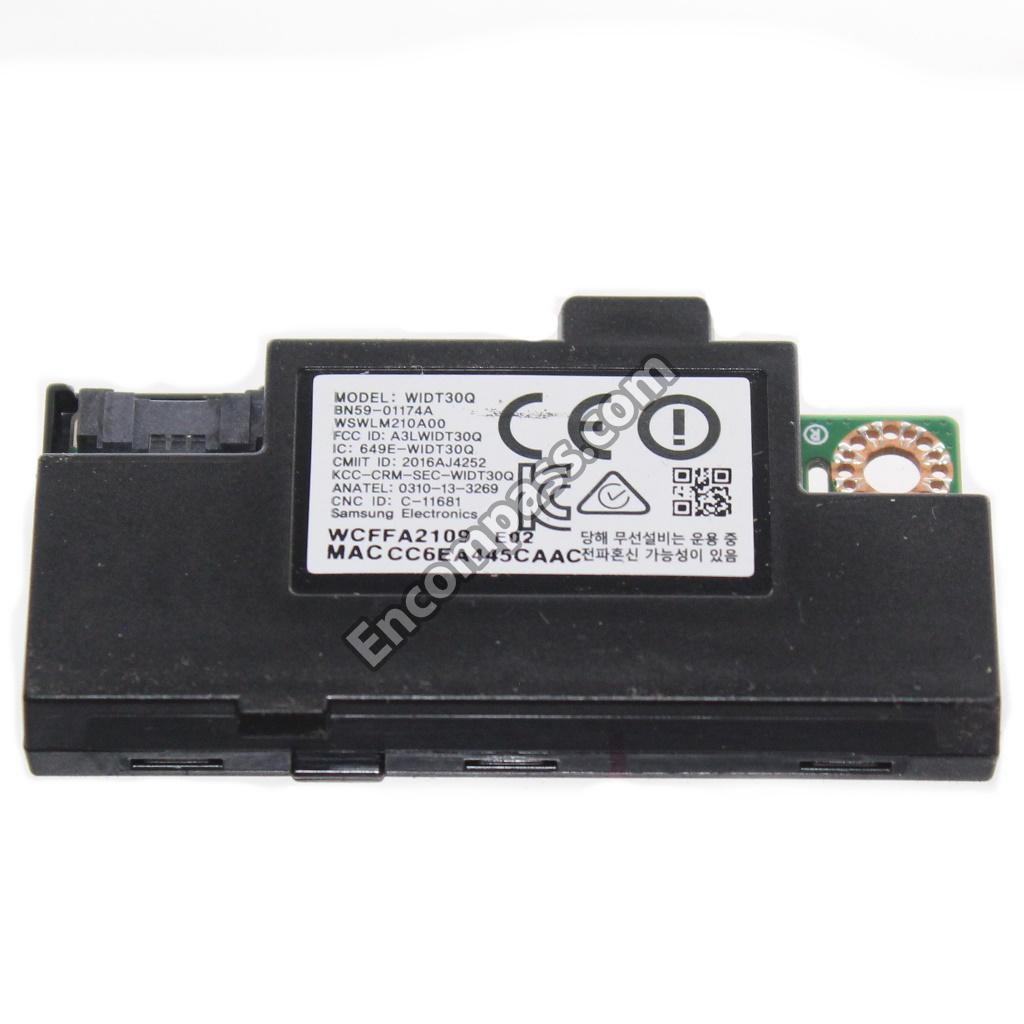

NETWORK-WIFI MODULE;WIDT-30Q,INTERNAL WI |
|
|

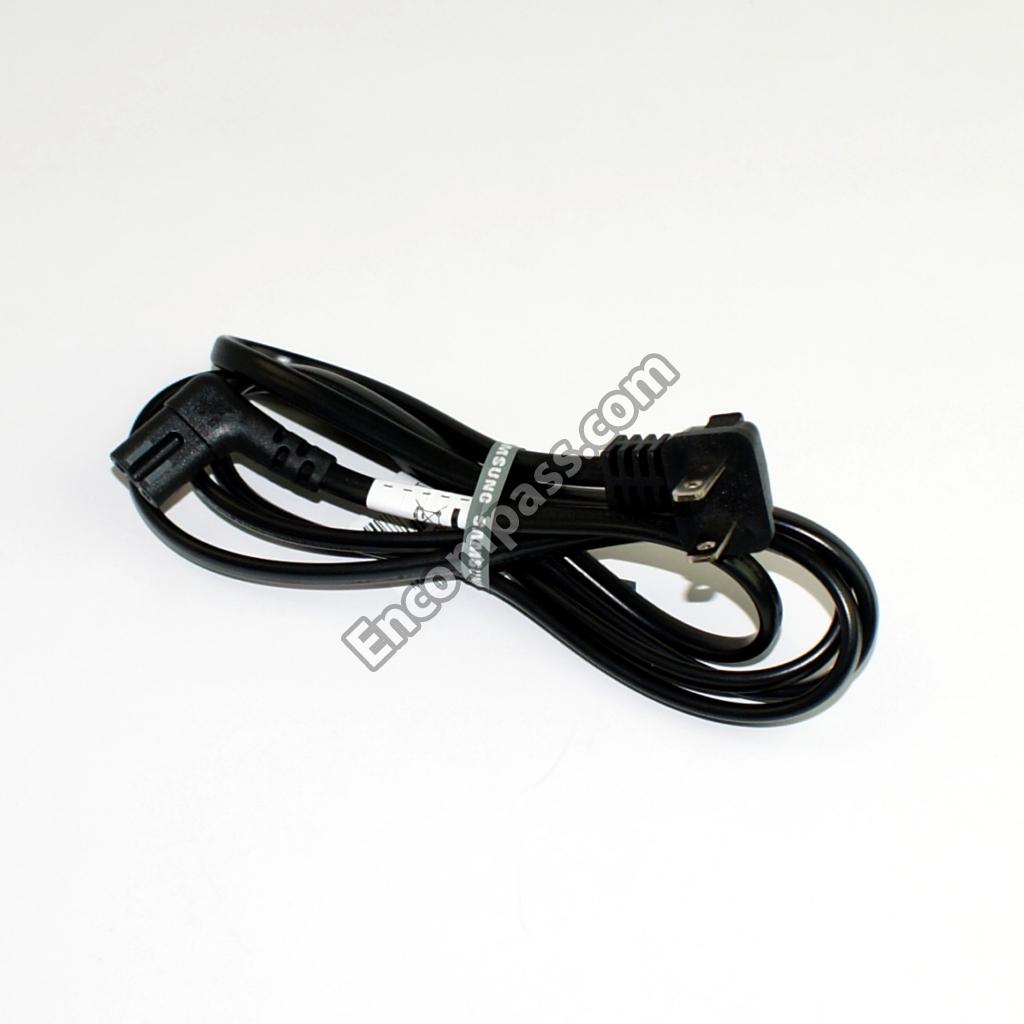

POWER CORD;DT,UL/CSA,LP-11L,125V,7A, |
|
|

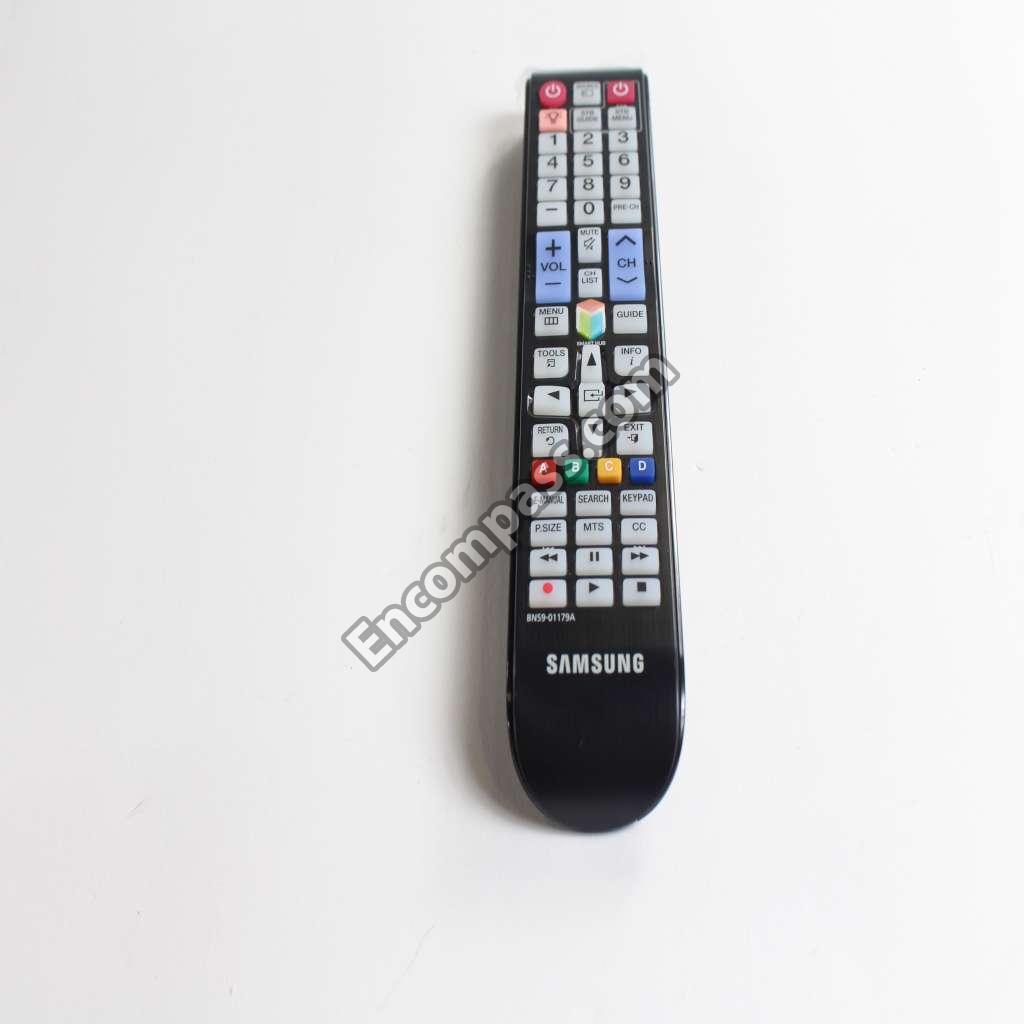

REMOTE CONTROL ;TM1260C,52,3.0V,TM1260C_AMERICA_ |
| BN61-09175B | SCREW-MACHINE;BH,+,M3,L10,ZPC(WHT),SWRCH |
|
|
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
| 6001-003083 | SCREW-MACHINE;CH,+,M3,L8,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|

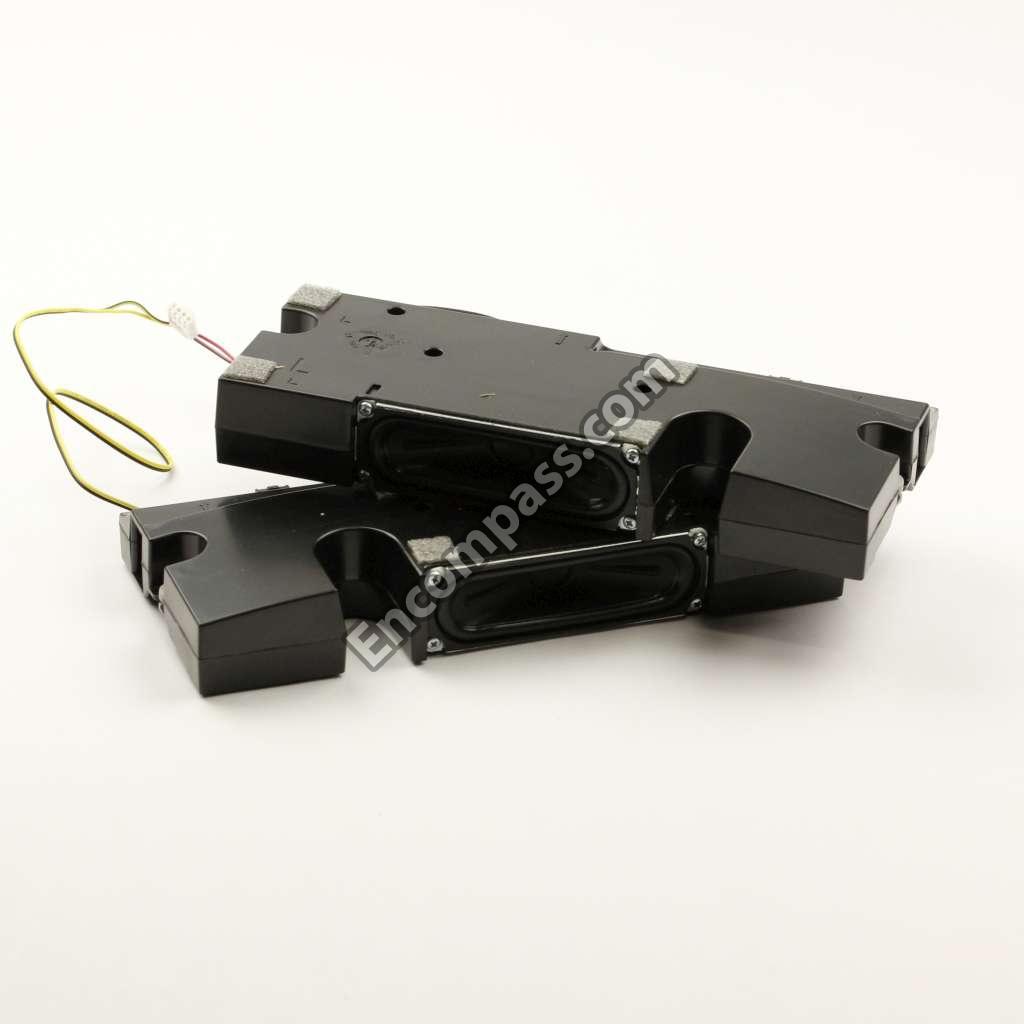

SPEAKER 6 OHM 10 WATT |
|
|

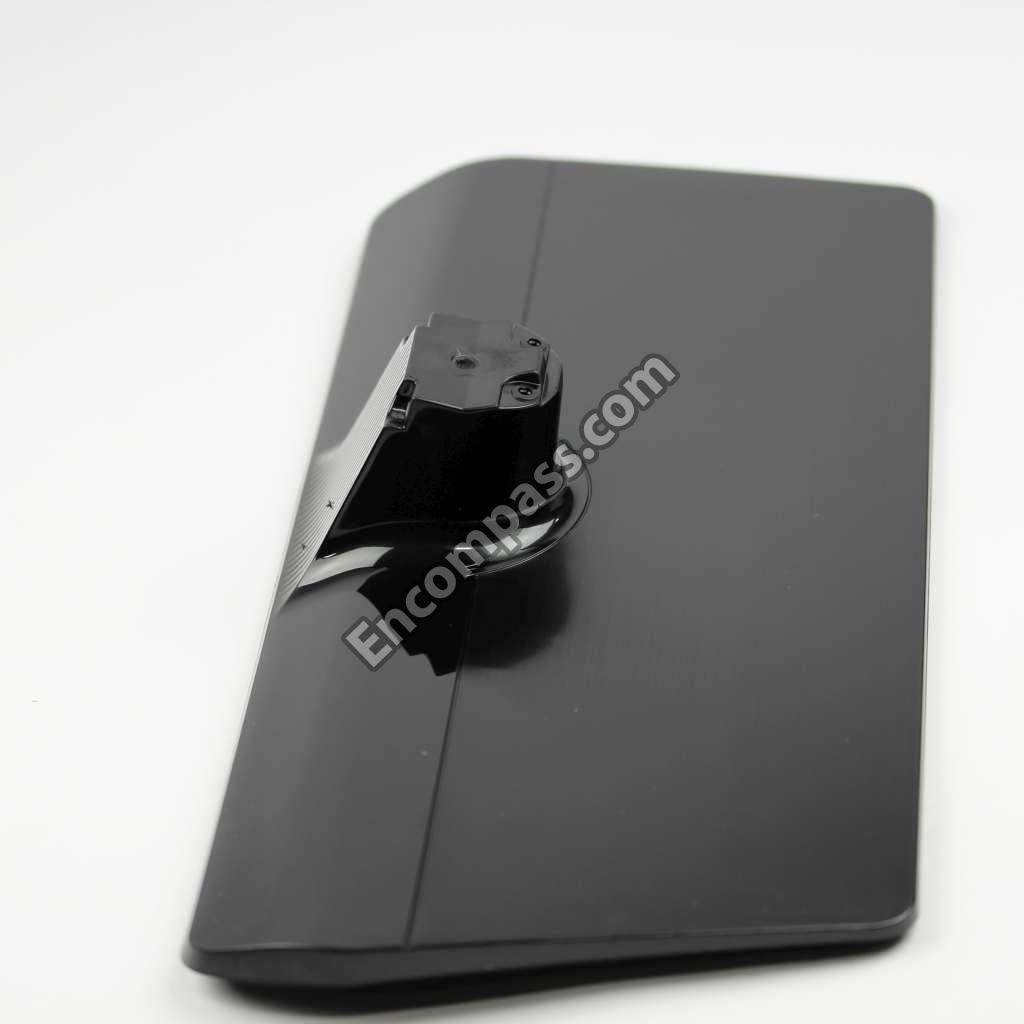

STAND BASE |
|
|

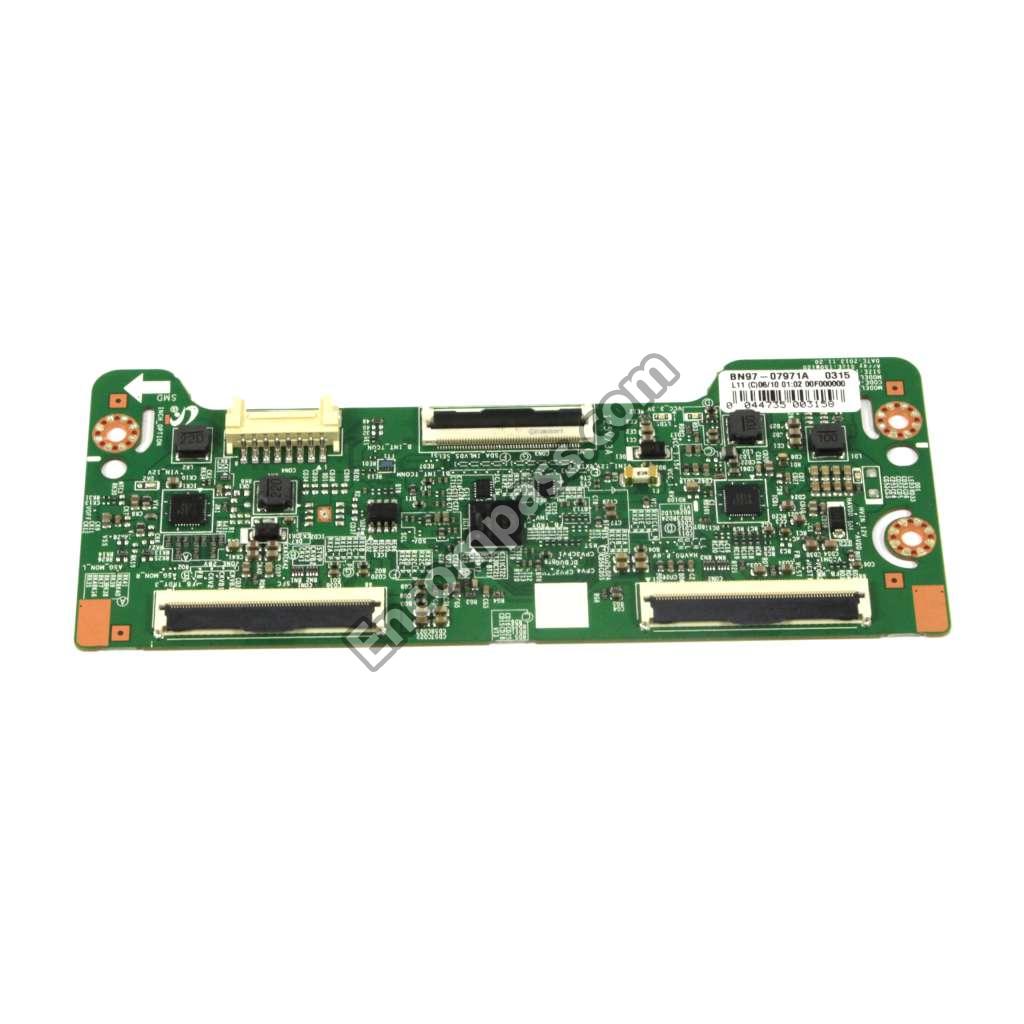

T-CON PCB |
|
|
TUNER;GVTH-F78S/FWS,GVTH-F78S/FWS,ATSC H |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1.6X0.8X0.9MM,TP,2 |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2.0X1.25X1.1MM |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
