Manufacturer
Samsung
Model Number
UN48H6400AFXZA
Description

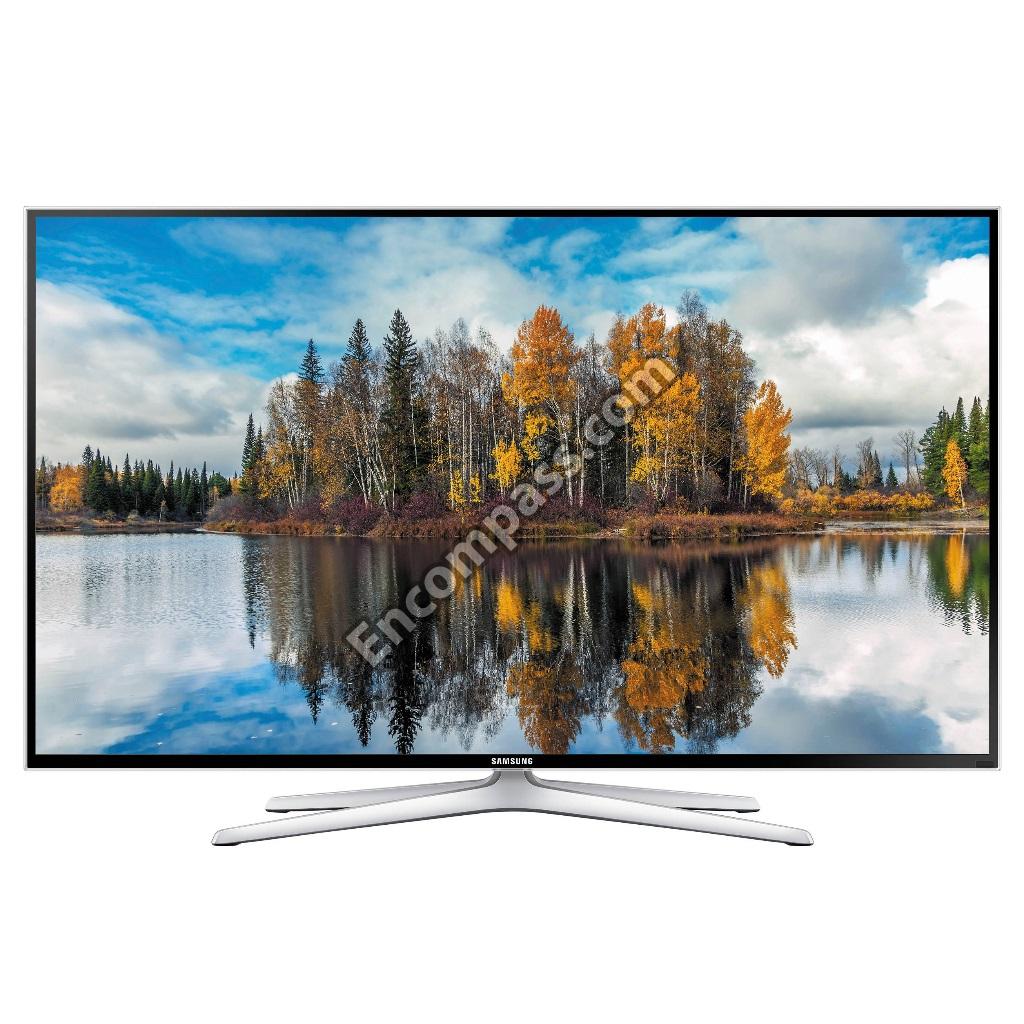

48-inch Full Hd Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-09604A | A/S OPEN CELL-IC DRIVER SOURCE;LSF320HN0 |
|
|
ASSY ACCESSORY-3D GLASSES;UE50H6400AWXXN |
|
|

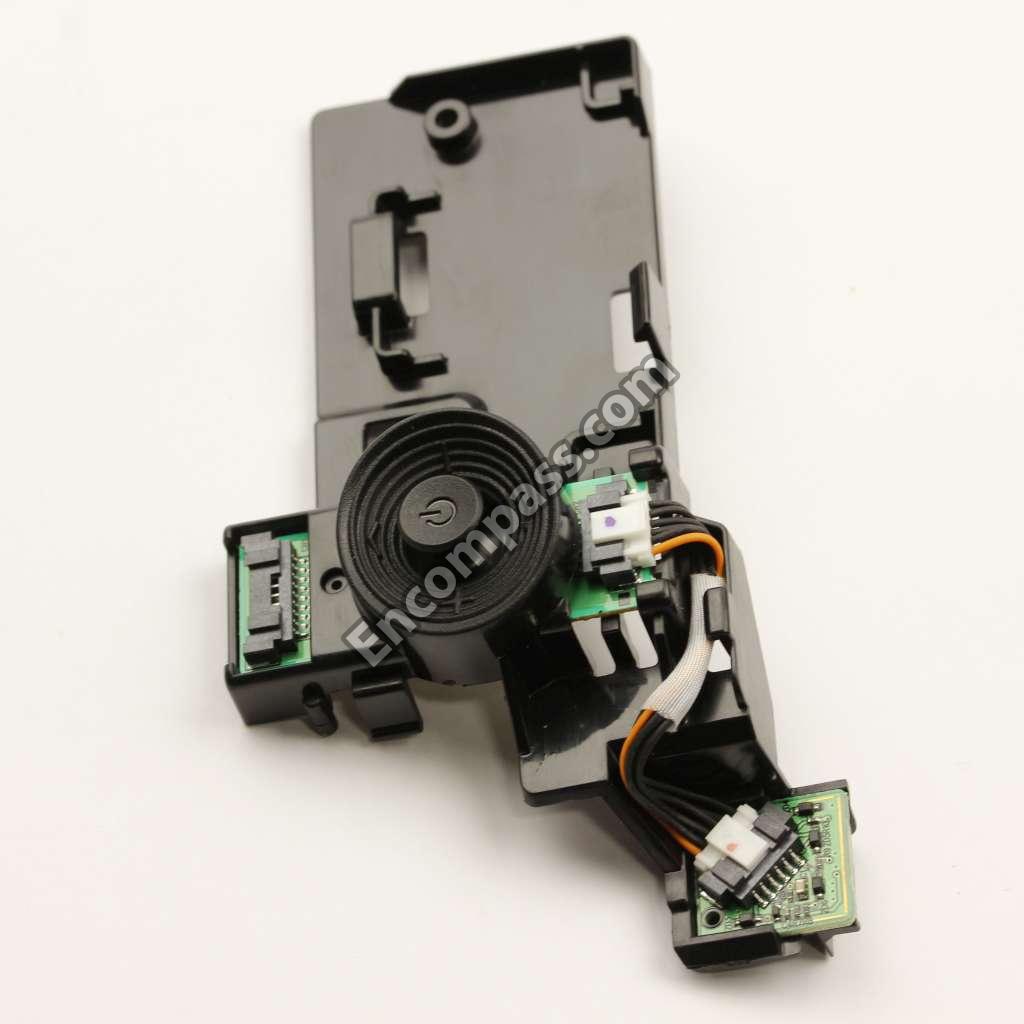

ASSY BOARD P-FUNCTION JOG;UH6400,CT15SD0 |
| BN96-30695A | ASSY CHASSIS FRONT P;H6.4K 48",PC+ABS+GF |
| BN96-31827B | ASSY COVER P-MIDDLE;H6400, 48,MABS/PC+AB |
| BN96-30454A | ASSY LED BAR P;48INCH FHD DIRE,CEM3,FCPK |
| BN96-30453A | ASSY LED BAR P;48INCH FHD DIRE,CEM3,FCPK |
| BN96-30180A | ASSY OPEN CELL;SDC,48INCH,Y2014 NEW MODE |
|
|

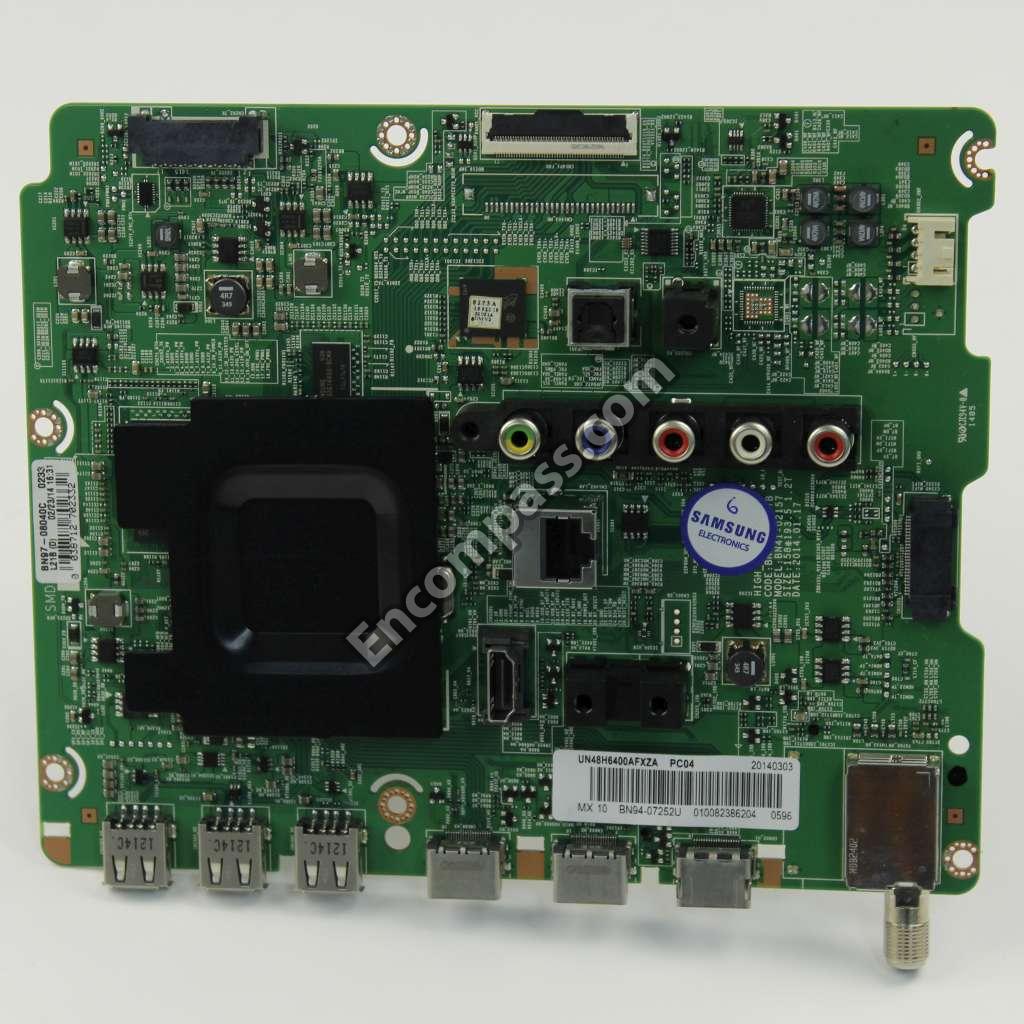

ASSY PCB MAIN;UN48H6400AFXZA |
| BN96-30334F | ASSY SPEAKER P;6OHM,10 |

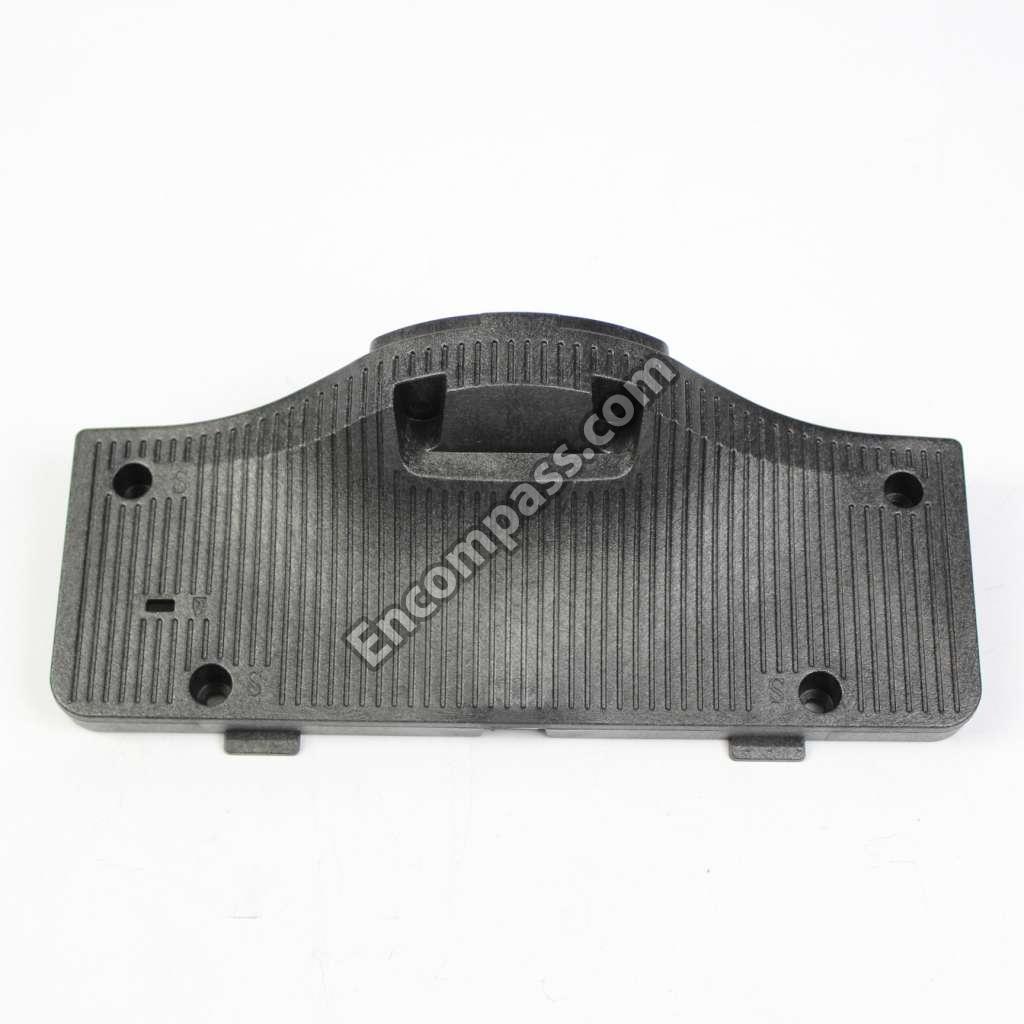

| BN96-30997B | ASSY STAND P-COVER BOTTOM;UH6400,48-55,A |
|
|

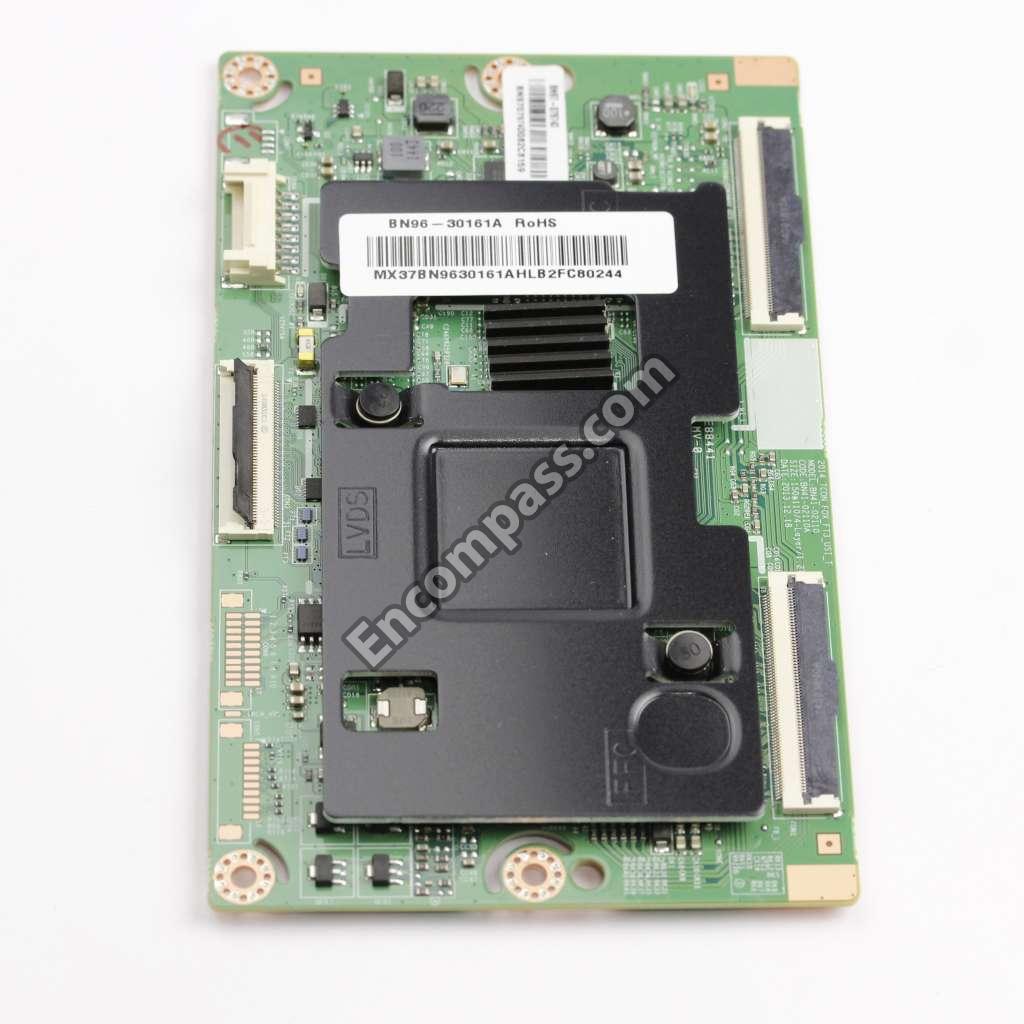

ASSY T CON P;LSF480HJ01-G,48F120,LSF480H |
| 6902-001063 | BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-001697 | C-CER,CHIP;0.082NF,5%,50V,C0G,TP,1608 |
| 2203-000357 | C-CER,CHIP;0.15NF,5%,50V,C0G,TP,1608 |
| 2203-005642 | C-CER,CHIP;0.22NF,5%,50V,C0G,TP,1005,T0. |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,T |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,T0 |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0 |
| 2203-006960 | C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-006460 | C-CER,CHIP;2200NF,10%,16V,X5R,TP,1608 |
| 2203-006320 | C-CER,CHIP;2200NF,10%,16V,X7R,TP,2012,T1 |
| 2203-006260 | C-CER,CHIP;220NF,10%,10V,X5R,TP,1005 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5 |
| 2203-000715 | C-CER,CHIP;3.3NF,10%,50V,X7R,TP,1608 |
| 2203-006088 | C-CER,CHIP;330NF,10%,10V,X7R,TP,1608 |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
|
|

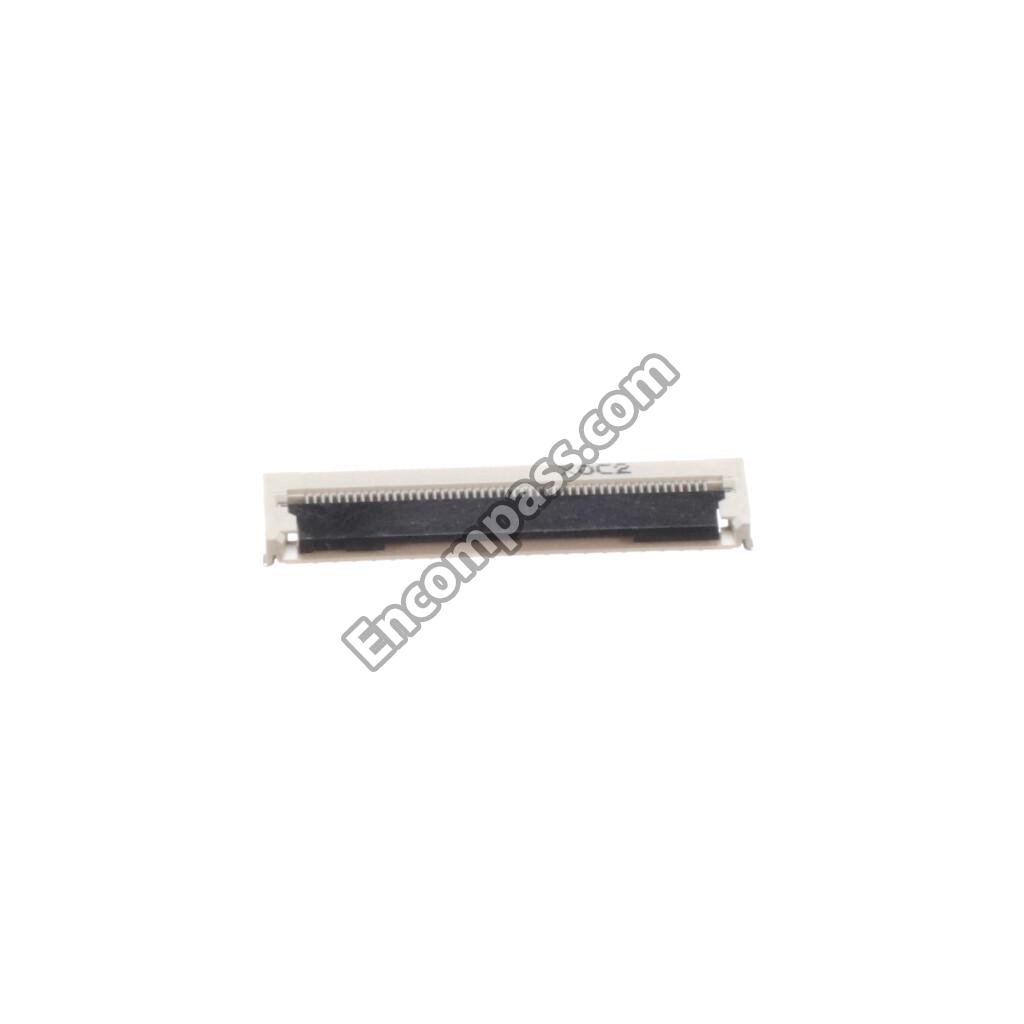

CONNECTOR-FPC/FFC/PIC;51P,0.5MM,SMD-A,AU |
| 3708-003176 | CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU |
| 3701-001861 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3701-001856 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT,SPDIF,2.5PI |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
|
|

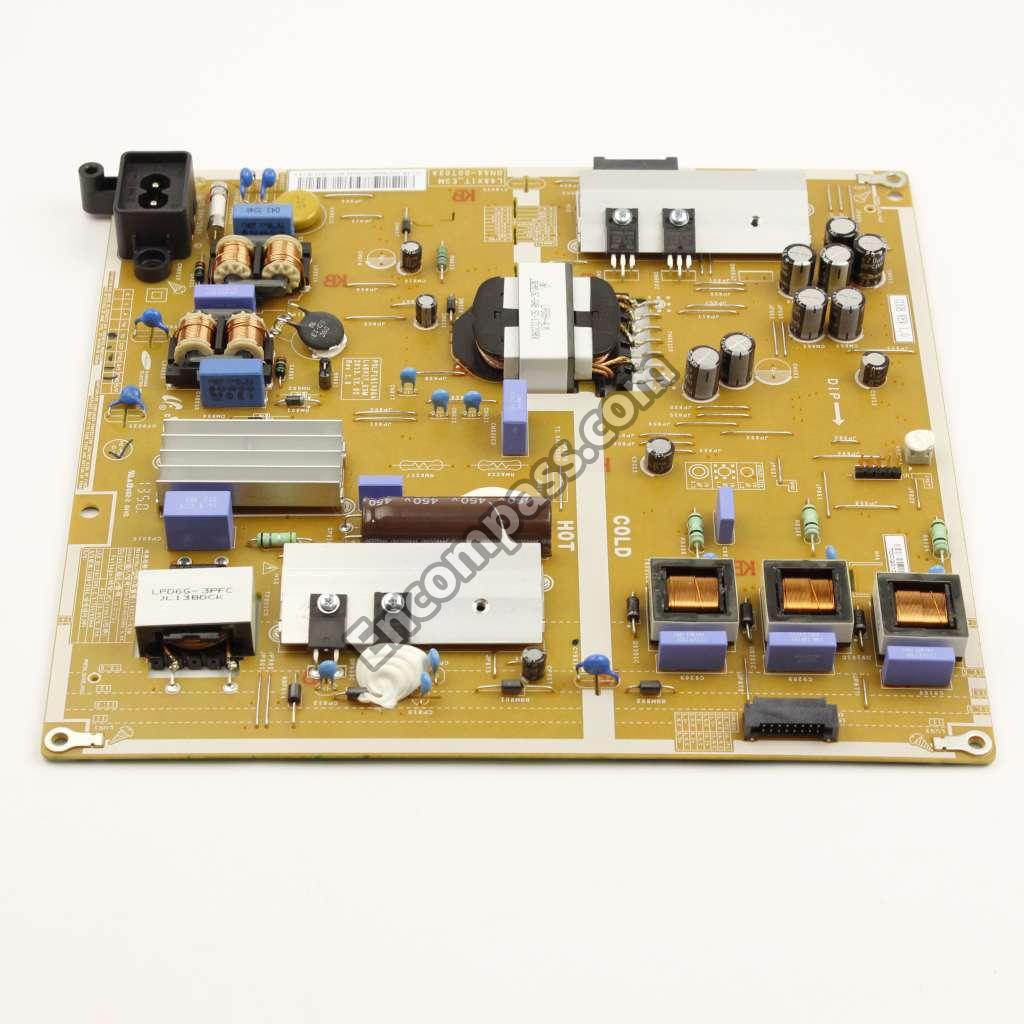

DC VSS-PD BOARD;L48X1T_ESM,AC/DC,147W,10 |
| 0404-001643 | DIODE-SCHOTTKY;B360A,60V,3000MA,SMA,TP |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001578 | DIODE-TVS;P4SMAJ40A,44.4V,51.1V,1MAV,64. |
| 0406-001445 | DIODE-TVS;RCLAMP7512N,2.7V,2.8V,2.9V,0.5 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002917 | FET-SILICON;AO3406,N,30V,3.6A,1.4W,SOT-2 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,5A,2W,SOIC-8 |
| 0505-003224 | FET-SILICON;AO6405,P,30V,5A,0.052OHM,2W |
| 0505-002560 | FET-SILICON;AO6415,P,20V,3.3A,0.15OHM,1 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| BN96-30720A | FFC CABLE;H5000,STRAIGHT,L54,68P |
|
|

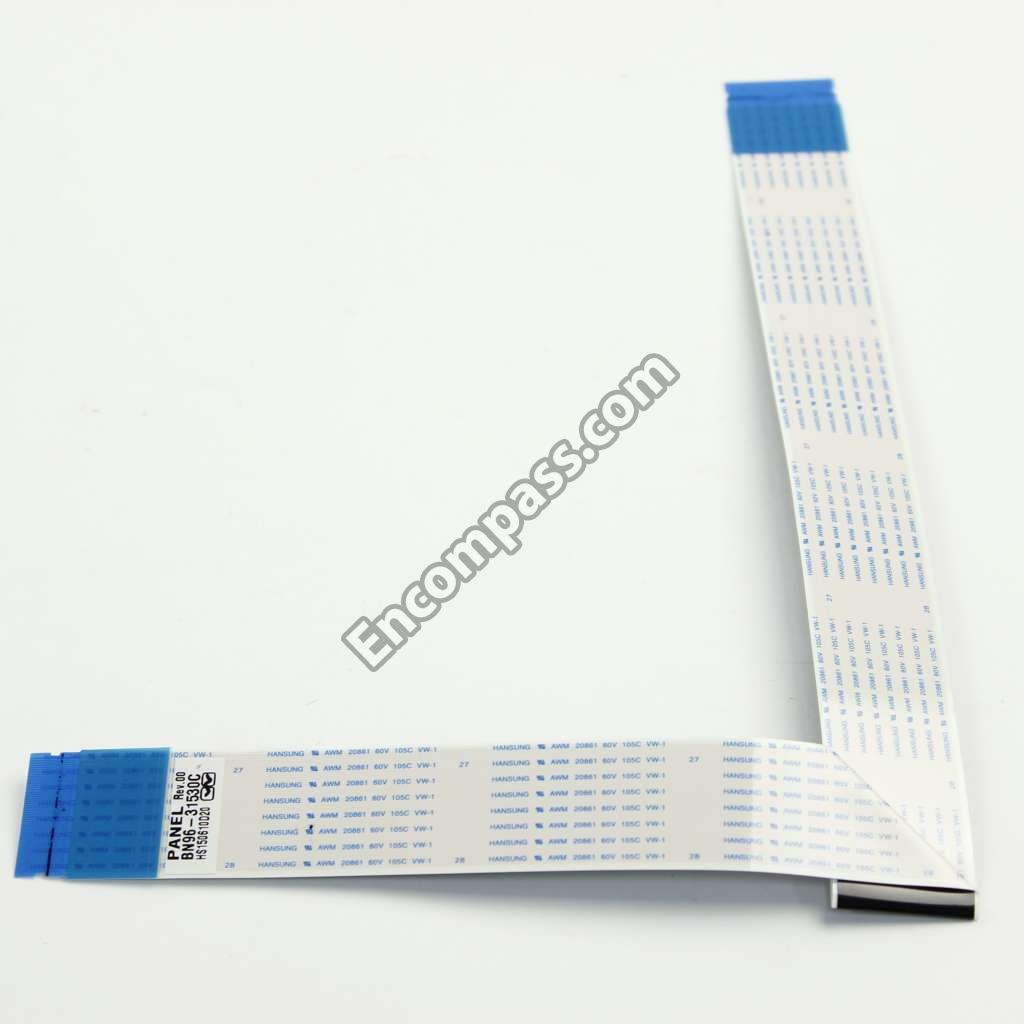

FFC CABLE;UN48H6400AFXZA,FOLD,L450,51P |
| 2901-001362 | FILTER-EMI/ESD |
| 3601-001386 | FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C |
|
|
GUIDE-STAND;46UH6400,PC+GF20%,V-2,BK0007 |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
|
|
HOLDER-STAND CABLE;26UE4000,PA66,NATURAL |
| 1201-003671 | IC-AUDIO AMP;NTP7414,MLF,48P,7X7MM,DUAL, |
| 0801-003330 | IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X |
| 1203-008118 | IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 |
| 1203-007984 | IC-DC/DC CONVERTER;AOZ3015PI,SO-8,8,6.2X |
| 1203-008183 | IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
| 1203-007694 | IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8,5 |
| 1203-008082 | IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8 |
| 1105-002227 | IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM |
| 1105-002534 | IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, |
| 1204-003535 | IC-DECODER;SEMS31T,PBGA,709P,23X23MM,PLA |
| 1006-001576 | IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002290 | IC-EMMC;MTFC4GMCAM-1M WT,4GBYTE,BGA,153P |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1203-007242 | IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8,7 |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1205-004983 | IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0X4. |
| 1205-004447 | IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65 |
| 1204-003472 | IC-VIDEO PROCESS;SDP1209,PBGA-H,585P,23X |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,T3,0.015OHM, |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,0.072OHM,2450MA,W |
| 2703-004847 | INDUCTOR-SMD;4.7UH,20%,3838,T1.8,0.075OH |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
|
|
IRBLASTER CABLE;2P,L2500,UL1185,BLK,IR B |
| 3722-003229 | JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
| 3722-003439 | JACK-PHONE;1P/4C,SN,BLK,STRAIGHT,3.5PI,1 |
| 3722-003617 | JACK-PHONE;2P/14C,SN,BLK,STRAIGHT,3.6PI, |
|
|
JACK-PIN;5P,NI/SN,BLU/GRN/RED/WHT/YEL,SM |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-01884C | LEAD CONNECTOR-DIMMING;UN28H4200AF,UL103 |
| BN39-01887A | LEAD CONNECTOR-POWER;UN48H6400AFXZA,UL21 |
|
|
LEAD CONNECTOR-SUB ASSY;UH6400 48",UL210 |
|
|

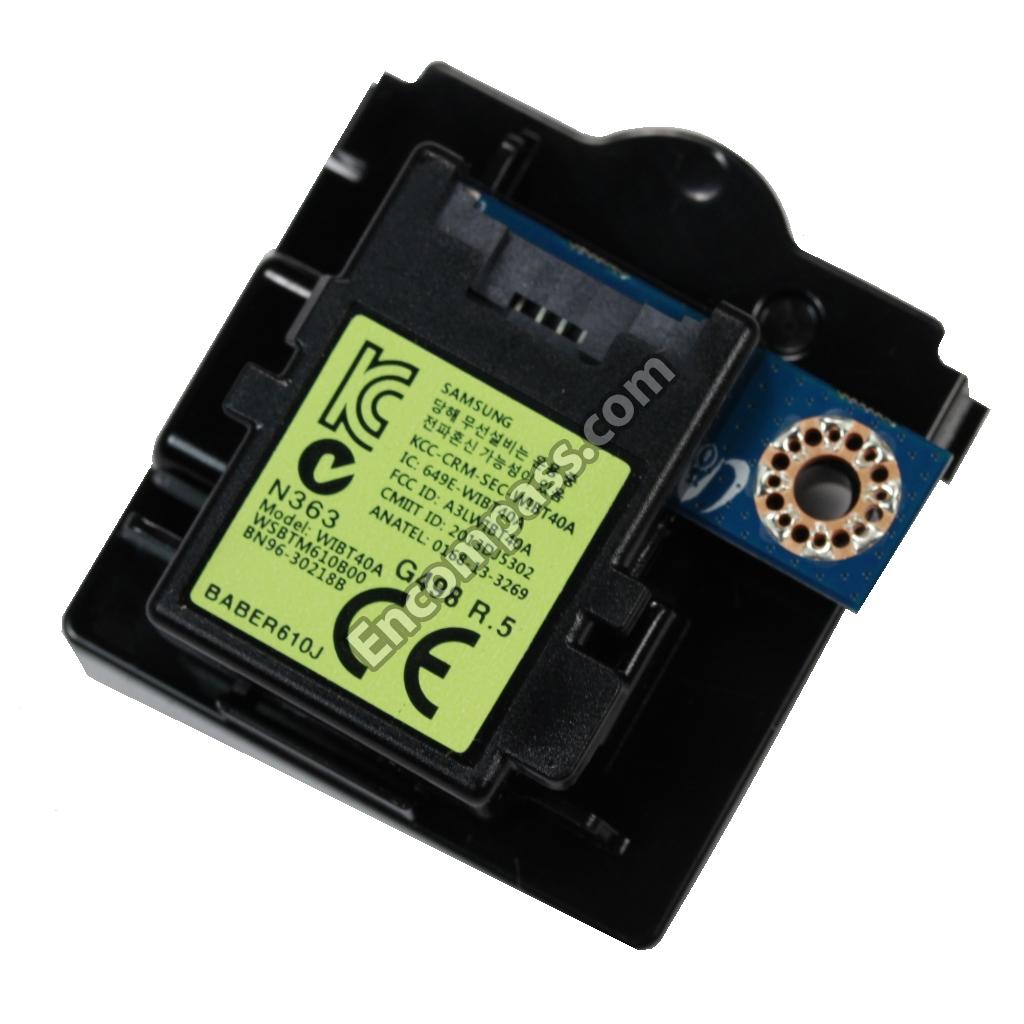

NETWORK-WLAN CLIENT;WIBT40A,30X25X1.0MM |
|
|

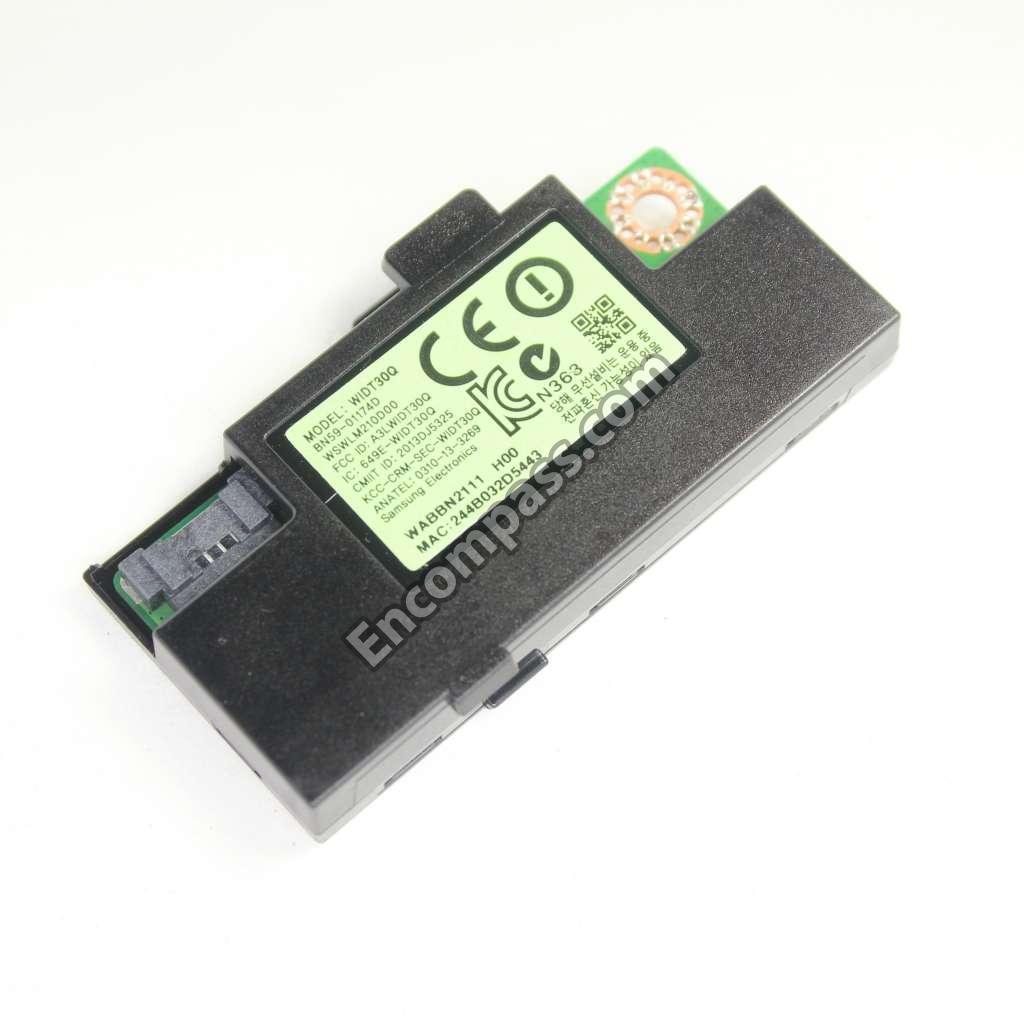

NETWORK-WLAN CLIENT;WIDT30Q,55X24X5.8MM |
|
|
POWER CORD-DT;UL/CSA,LP-11L,125V,7A,BLK, |
|
|
PRODUCT LCD-AMLCD;LSF480HJ01-G,CY-GH048C |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-008332 | R-CHIP;11.5KOHM,1%,1/16W,TP,1005 |
| 2007-000336 | R-CHIP;120KOHM,1%,1/10W,TP,1608 |
| 2007-007768 | R-CHIP;13KOHM,1%,1/10W,TP,1608 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608 |
| 2007-000092 | R-CHIP;15KOHM,5%,1/10W,TP,1608 |
| 2007-008035 | R-CHIP;160KOHM,1%,1/10W,TP,1608 |
| 2007-000455 | R-CHIP;18KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005,T0.35 |
| 2007-000509 | R-CHIP;2.4KOHM,1%,1/10W,TP,1608 |
| 2007-000516 | R-CHIP;2.7KOHM,1%,1/10W,TP,1608 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000651 | R-CHIP;27KOHM,1%,1/10W,TP,1608 |
| 2007-000669 | R-CHIP;2KOHM,1%,1/10W,TP,1608,T0.45 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-000803 | R-CHIP;36KOHM,1%,1/10W,TP,1608 |
| 2007-000842 | R-CHIP;3KOHM,1%,1/10W,TP,1608 |
| 2007-000910 | R-CHIP;43KOHM,1%,1/10W,TP,1608 |
| 2007-007722 | R-CHIP;43OHM,1%,1/10W,TP,1608 |
| 2007-007733 | R-CHIP;51OHM,1%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2007-007238 | R-CHIP;8.25KOHM,1%,1/10W,TP,1608 |
| 2007-001199 | R-CHIP;820OHM,1%,1/10W,TP,1608 |
| 2007-007651 | R-CHIP;9.1KOHM,1%,1/10W,TP,1608 |
| 2007-001237 | R-CHIP;910OHM,1%,1/10W,TP,1608 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
|

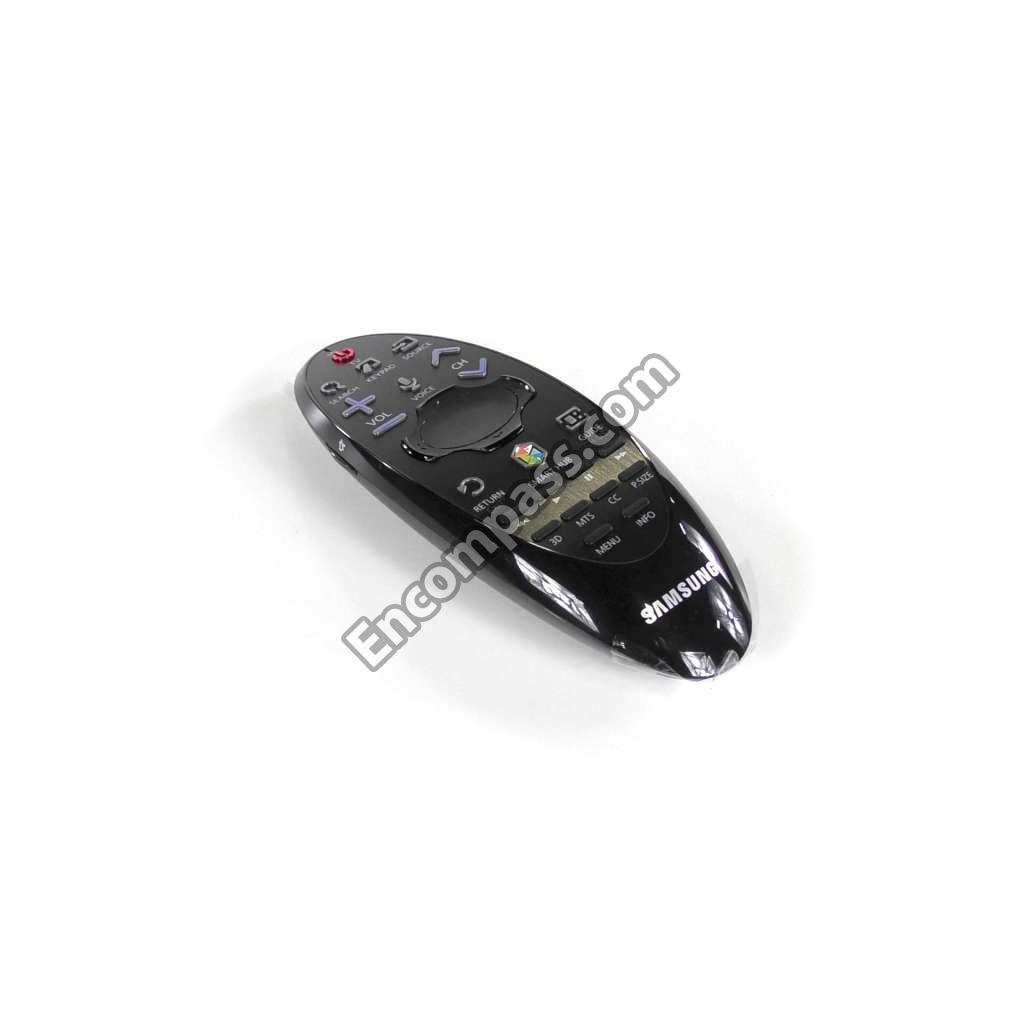

REMOCON-SMART CONTROL;28KEY,NORTH AMERIC |
| BN61-09175B | SCREW-MACHINE;BH,M3,L10,ZPC(WHT),SWRCH |
|
|
SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR |
|
|
SCREW-TAPPING;BH,M4,L16,ZPC(BLK) |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,B,M3,L8,ZPC(BLK),SW |
| 0502-001345 | TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900 |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0502-001331 | TR-POWER;NSS30100LT1G,PNP,310MW,SOT-23,T |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER-DTV AIR CABLE;DTVS20EIH276A,VSB HA |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
