Manufacturer
Samsung
Model Number
UN48H8000AFXZA
Description
48-inch Class Led Curved Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY ACCESSORY-3D GLASSES;SSG-5150GB,3D |
| BN96-32114A | ASSY BLU P-DECO;UH8000,M14-H8000C,L59.3, |
|
|

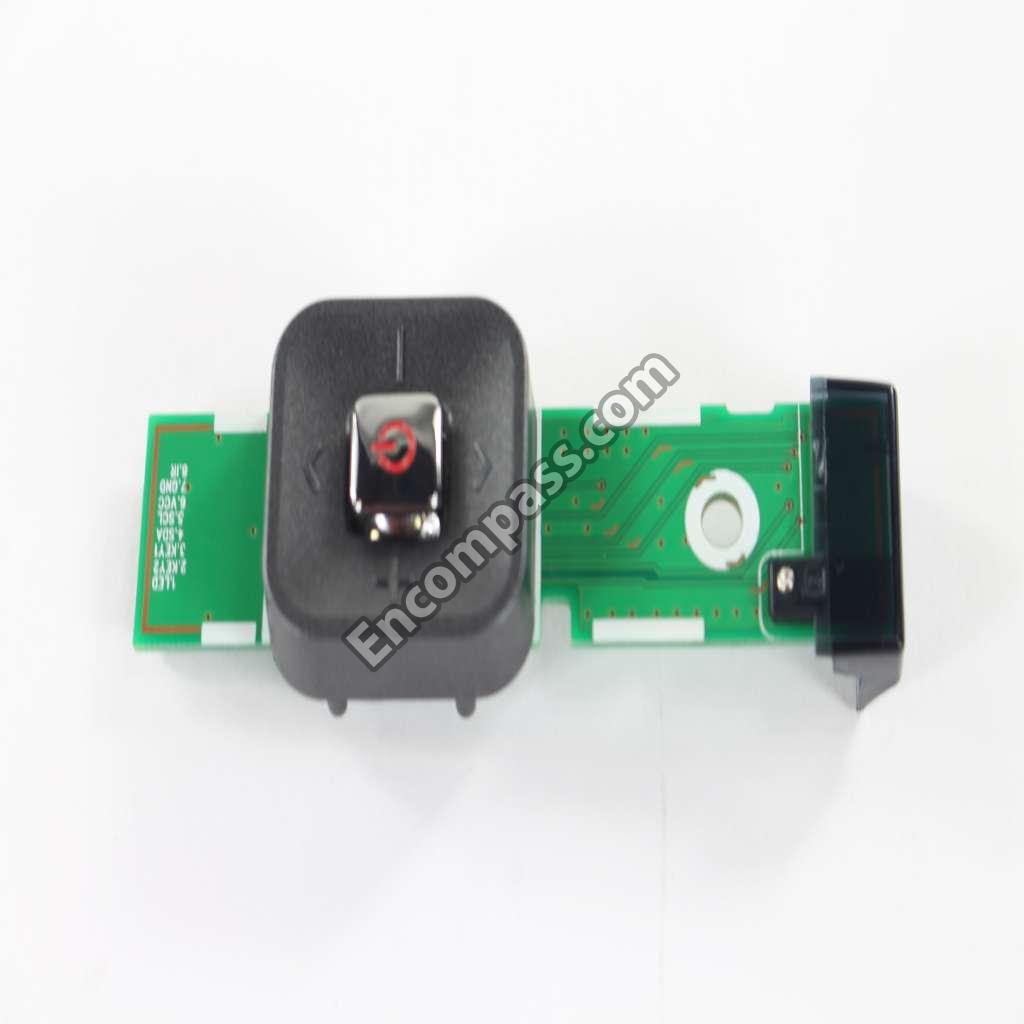

ASSY BOARD P-FUNCTION JOG;UH8000,CT15SE3 |
| BN96-32106A | ASSY COVER P-LIGHT;PC,CLEAR,V-0 |
| BN96-31791A | ASSY COVER P-MIDDLE;UH8000,48,PC+ABS-GF1 |
| BN96-31794B | ASSY COVER P-REAR;UH8000,48,PC+ABS-GF15% |
| BN95-01577A | ASSY DECORATION SMT;H8000,48,LIGHT TITAN |
| BN96-31799A | ASSY GUIDE P-STAND;UH8000,55,PC+GF20%,BL |
|
|
ASSY HOLDER P-RING;11 LED-TV,ABS,BLACK,H |
| BN96-30710A | ASSY OPEN CELL;LSF480HQ01-G,16:9,FHD 240 |
|
|

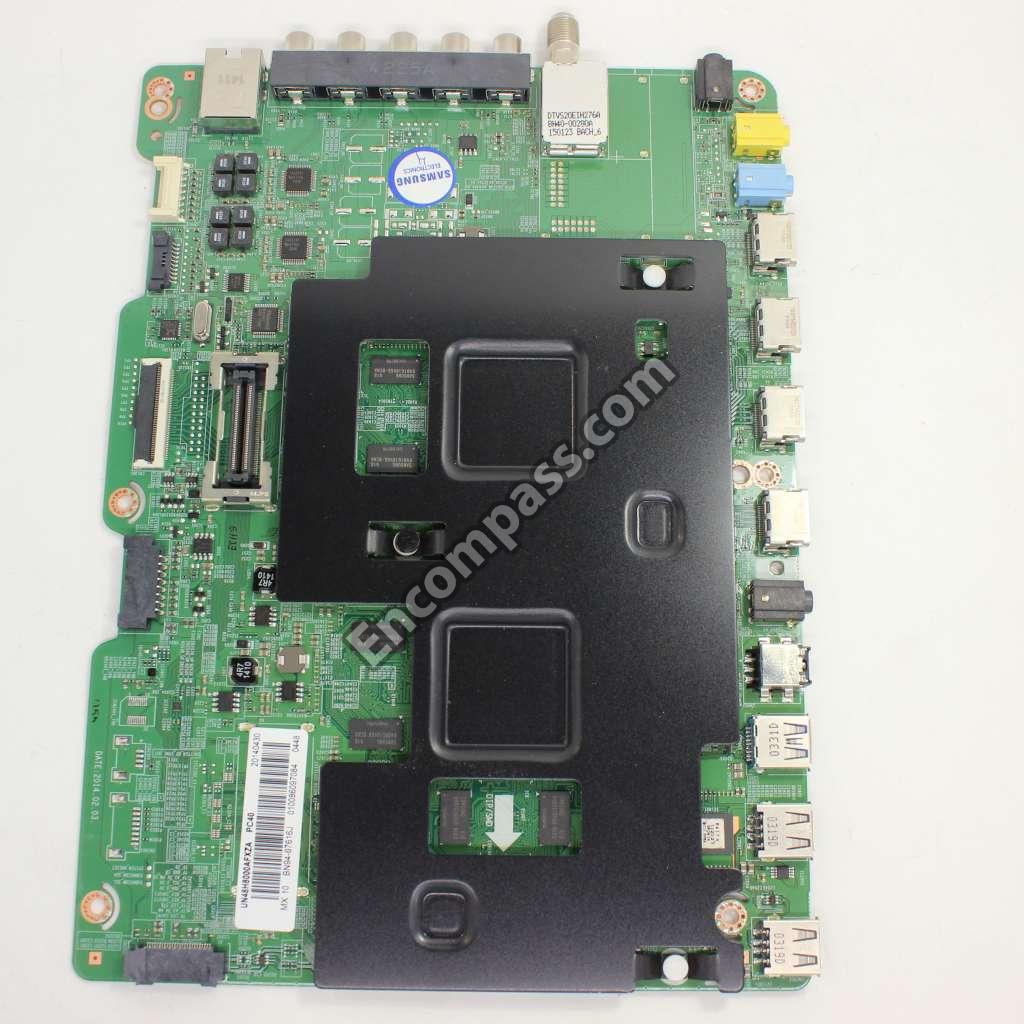

ASSY PCB MAIN;UH9V |
| BN96-31480A | ASSY SPEAKER P-FRONT;6OHM,10 |
| BN96-31797A | ASSY STAND P-BOTTOM;UH8000,55,ABS,BLACK |
|
|

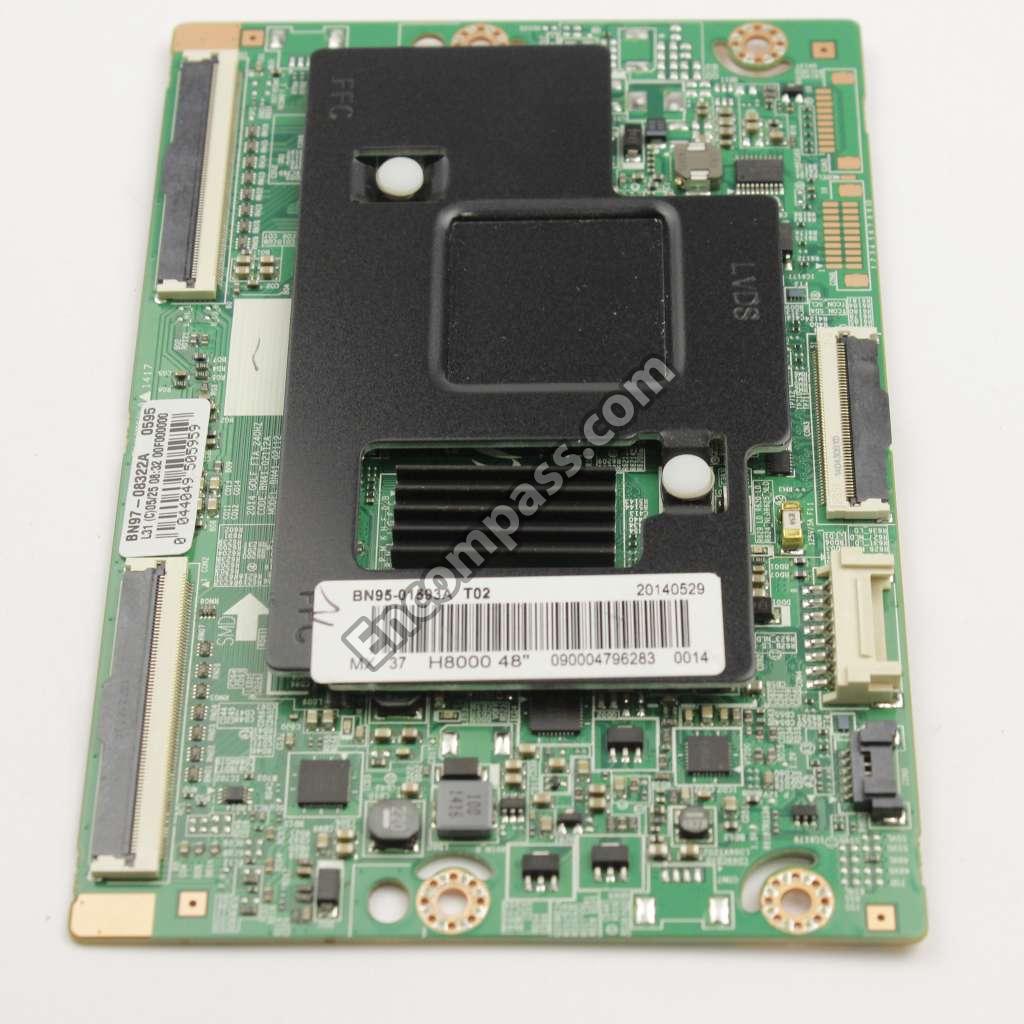

ASSY T CON;48F 240HZ 8K LD |
| 3301-001364 | BEAD-SMD;1000OHM,1608,TP,1085OHM/108MHZ, |
| 3301-001727 | BEAD-SMD;120OHM,1005,TP,100MHZ |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1 |
| 2203-007193 | C-CER,CHIP;10000NF,10%,6.3V,X7R,TP,2012 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0. |
| 2203-007486 | C-CER,CHIP;1000NF,10%,50V,X5R,TP,1608 |
| 2203-006399 | C-CER,CHIP;1000NF,10%,6.3V,X5R,TP,1005 |
| 2203-005918 | C-CER,CHIP;1000NF,10%,6.3V,X7R,TP,1608 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-005221 | C-CER,CHIP;15NF,10%,50V,X7R,TP,1608 |
| 2203-001587 | C-CER,CHIP;18NF,10%,50V,X7R,1608 |
| 2203-006320 | C-CER,CHIP;2200NF,10%,16V,X7R,TP,2012 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,0.8 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-002398 | C-CER,CHIP;22NF,10%,50V,X7R,TP,1608 |
| 2203-000715 | C-CER,CHIP;3.3NF,10%,50V,X7R,TP,1608 |
| 2203-006088 | C-CER,CHIP;330NF,10%,10V,X7R,TP,1608 |
| 2203-001414 | C-CER,CHIP;330NF,10%,50V,X7R,TP,2012 |
| 2203-001634 | C-CER,CHIP;33NF,10%,50V,X7R,TP,1608 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-000888 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1608 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2203-002050 | C-CER,CHIP;47NF,10%,50V,X7R,TP,1608 |
| 2203-002982 | C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
| 2409-001118 | C-POLYMER ,CHIP;47UF,20%,10V,WT,TP,3.5X2 |
| 2409-001338 | C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6 |
| 6502-000132 | CABLE CLAMP;DAWS-1NE,ID11,L21.0,PA66,NTR |
|
|
CBF-POWER CORD;DT,UL/CSA,US2F,N,125V,7A, |
|
|
CLOTH-CLEAN;CLOTH,SEA BLUE,TOC |
| 3708-003043 | CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A,AU |
| 3701-001861 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
|
|
CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A |
| 3707-001104 | CONNECTOR-OPTICAL;ANGLE,SPDIF |
| 3710-003902 | CONNECTOR-SOCKET;92P,2R,0.5MM,SMD-S,AU,B |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-004477 | CRYSTAL-SMD;24.576MHZ,20PPM,SMD,18PF,15O |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
|
|

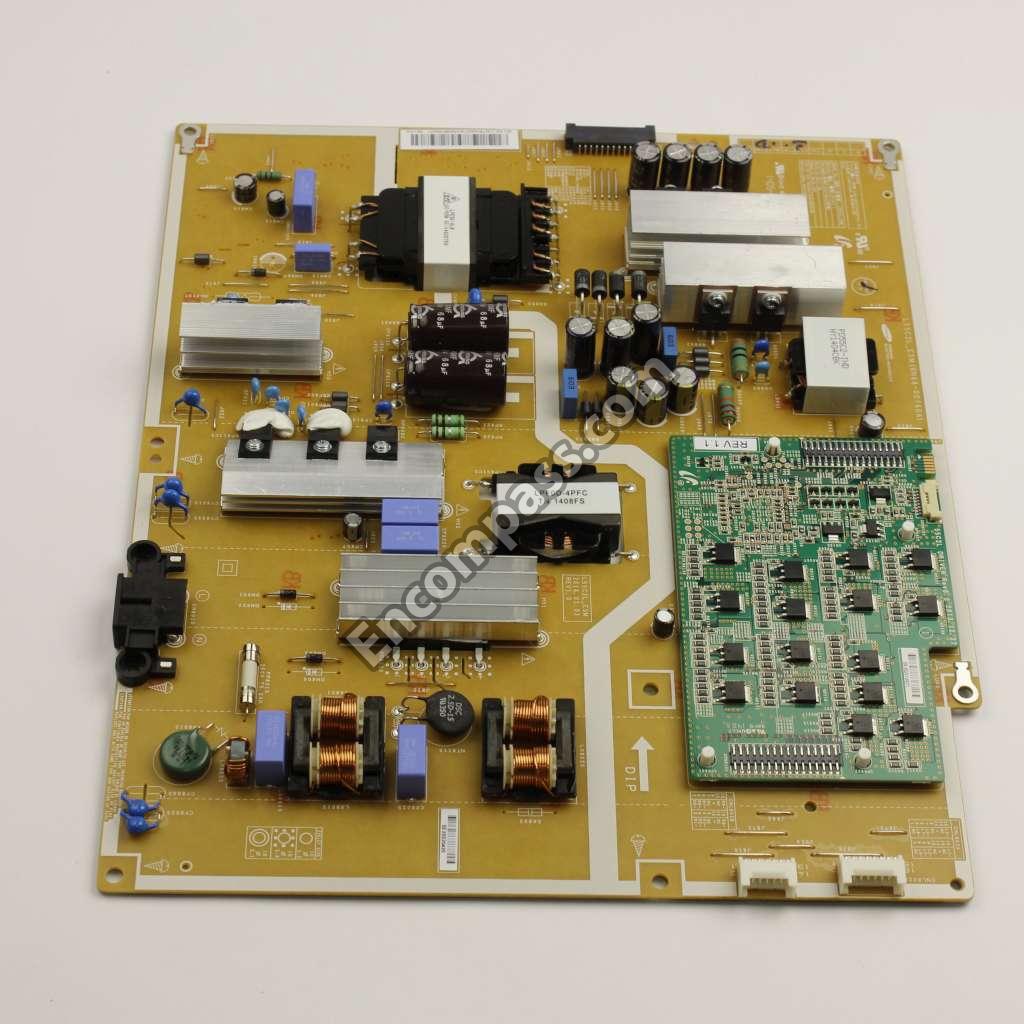

DC VSS-PD BOARD;L55C2L_ESM,L55C2L_ESM,AC |
| 0404-001643 | DIODE-SCHOTTKY;B360A,60V,3000MA,SMA,TP |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001483 | DIODE-TVS;ESD5B5.0ST1G,5.8V,7.8V,1MAV,0. |
| 0406-001445 | DIODE-TVS;RCLAMP7512N,2.7V,2.8V,2.9V,0.5 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94~5.2V,500MW,SOD- |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-003224 | FET-SILICON;AO6405,P,30V,-5A,0.052OHM,2W |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
|
|

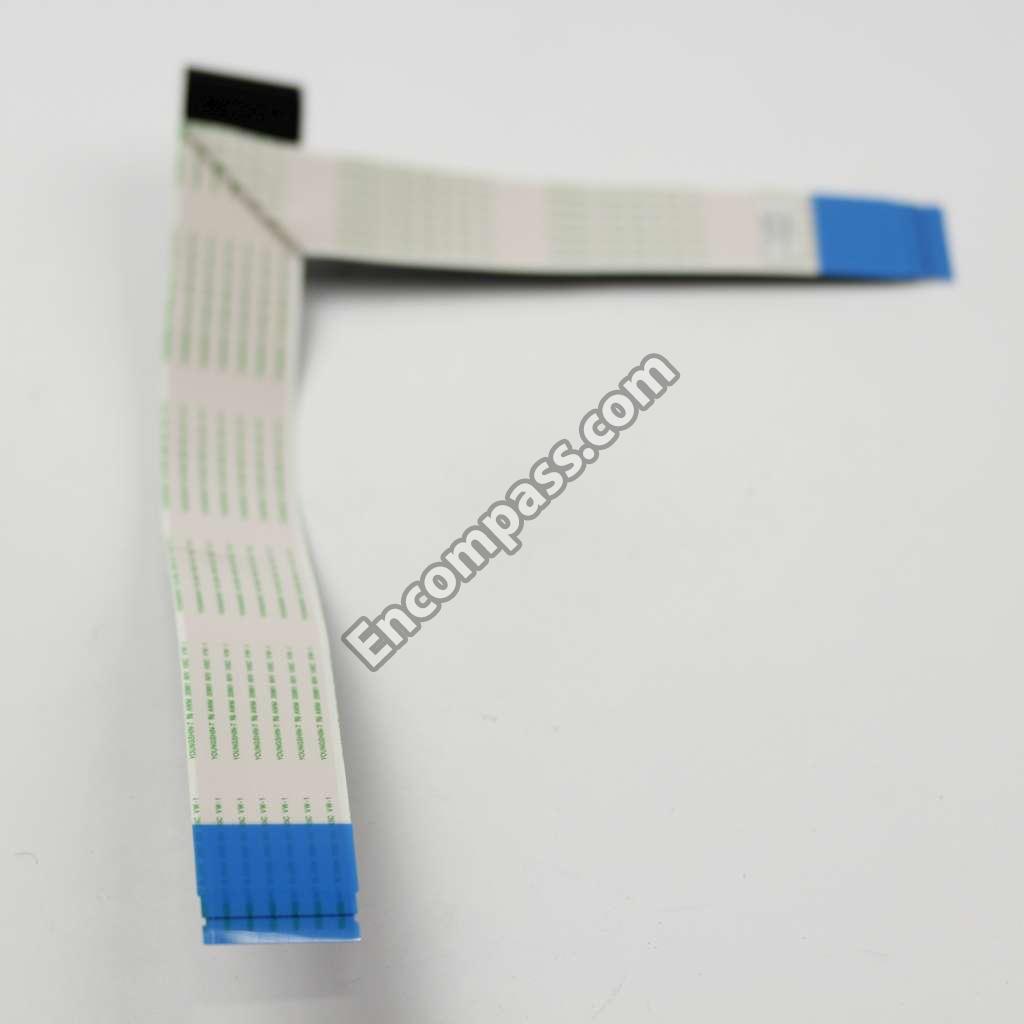

FFC CABLE;UN48H8000,FOLD,L450,51P |
| 2901-001362 | FILTER-EMI/ESD |
| 3601-001386 | FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C |
| 6302-001236 | GASKET-EMI;CONDUCTIVE FABRIC,T6,W4.5,L6. |
|
|
GENDER CABLE;UE40B7000WWXXC,3P,L150,UL28 |
| 3711-008659 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-007838 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
| 3711-007582 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,ANGL |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| BN62-00574A | HEAT SINK-ES;F7000,A6063,W28,L14,BLACK,T |
| AA61-20285C | HOLDER-BOX;ALL,PP,MOLD,BLACK,HB,HB,17.5G |
|
|
HOLDER-STAND CABLE;26UE4000,PA66,MOLD |
| 1001-001686 | IC-ANALOG MULTIPLEX;74LV4052,CMOS,TTSOP, |
| 1001-001545 | IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF |
| 1201-003690 | IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
| 0801-003292 | IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P |
| 1203-008118 | IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 |
| 1203-007984 | IC-DC/DC CONVERTER;AOZ3015PI,SO-8,8,6.2X |
| 1203-008183 | IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
| 1203-007695 | IC-DC/DC CONVERTER;AOZ3018,SO-8,8,4.96X3 |
| 1203-007987 | IC-DC/DC CONVERTER;TPS56520PWPR,HTSSOP,2 |
| 1203-007986 | IC-DC/DC CONVERTER;TPS56720PWPR,HTSSOP,2 |
| 1203-007552 | IC-DC/DC CONVERTER;TPS56921PWPR,HTSSOP,2 |
| 1105-002227 | IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM |
| 1105-002527 | IC-DDR3 SDRAM;K4B2G1646Q-BCK0,DDR3,2GBIT |
| 1105-002529 | IC-DDR3 SDRAM;K4B4G1646D-BCK0,DDR3 1600, |
| 1204-003481 | IC-DECODER;SDP1304,FCPBGAH,715P,27X27MM, |
| 1006-001576 | IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002287 | IC-EMMC;KLM4G1FEAC-C031,4GBYTE,BGA,153P, |
| 1205-004385 | IC-ETHERNET CONTROLLER;RTL8201F-VB-CGT,Q |
| 0903-001863 | IC-MICROCONTROLLER;WT61P807-RG48,LQFP,48 |
| 1203-008107 | IC-POSI.ADJUST REG.;LR18120HG-12-SH2-R,H |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1205-004704 | IC-SWITCH;AP2151W-7,SOT25,5Z30,3.1*3.0MM |
| 1205-005011 | IC-SWITCH;BD82012FVJ-GE2,TSSOP-B8J,8P,3. |
| 1205-004822 | IC-SWITCH;TPS22965DSGR,SON,8P,2X2X0.75MM |
| 1205-004960 | IC-TRANSCEIVER;TUSB501DRFR,QFN,8P,2X2MM, |
| 0904-002859 | IC-USC;GL852G-32,QFN,28P,5X5MM,12MHZ,TP, |
| 1204-003482 | IC-VIDEO PROCESS;SDP1305,FCPBGAH,714P,27 |
| 1204-003486 | IC-VIDEO PROCESS;SDP1306,HSFCBGA,888P,27 |
| 1001-001823 | IC-VIDEO SWITCH;SII9687ACNUTR,QFN,76P,9X |
| 1203-007728 | IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700 |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00 |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-004847 | INDUCTOR-SMD;4.7UH,20%,3838,1.8T,0.075OH |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M |
| BN62-00554A | INSULATOR-SMPS;Y14 H8000 55",PC,BLACK,L3 |
|
|
IRBLASTER CABLE;2P,L2500,UL1185,BLK,IR B |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003657 | JACK-PHONE;1P/7C,AU,BLK,ANGLE,3.6PI,10X1 |
| 3722-003873 | JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 |
| 3722-003813 | JACK-PHONE;1P/7C,NI/SN,BLK,ANGLE,3.6PI,1 |
| 3722-003814 | JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 |
| 3722-003151 | JACK-PIN;5P,NI,BLK,ANGLE |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| 3722-003837 | JACK-USB;9P/1C,AU/NI,BLU,SMD-A,A,3.0,13. |
| BN39-01894C | LEAD CONNECTOR-SUB ASSY;UN48H8000,UL2101 |
| BN39-01895C | LEAD CONNECTOR-SUB ASSY;UN48H8000,UL2101 |
| BN39-01896C | LEAD CONNECTOR;UN48H8000AFXZA,FLAT CONNE |
|
|
NETWORK-BLUETOOTH;WIBT40A,34.79X28X7.7MM |
|
|
NETWORK-WLAN CLIENT;WIDT30Q,58X31.45X8.5 |
|
|
PRODUCT LCD-AMLCD;CY-VH048DSLV2V,10 BIT, |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-009853 | R-CHIP;1.6KOHM,1%,1/16W,TP,1005 |
| 2007-000060 | R-CHIP;100KOHM,1%,1/10W,TP,1608 |
| 2007-000287 | R-CHIP;100OHM,1%,1/10W,TP,1608 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-008332 | R-CHIP;11.5KOHM,1%,1/16W,TP,1005 |
| 2007-008426 | R-CHIP;12.4KOHM,1%,1/10W,TP,1608 |
| 2007-000336 | R-CHIP;120KOHM,1%,1/10W,TP,1608 |
| 2007-000343 | R-CHIP;120OHM,1%,1/10W,TP,1608 |
| 2007-007768 | R-CHIP;13KOHM,1%,1/10W,TP,1608 |
| 2007-000067 | R-CHIP;15KOHM,1%,1/10W,TP,1608 |
| 2007-000455 | R-CHIP;18KOHM,1%,1/10W,TP,1608 |
| 2007-000043 | R-CHIP;1KOHM,1%,1/10W,TP,1608 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-000491 | R-CHIP;2.2KOHM,1%,1/10W,TP,1608 |
| 2007-003015 | R-CHIP;2.2OHM,5%,1/16W,TP,1005 |
| 2007-007617 | R-CHIP;2.49KOHM,1%,1/10W,TP,1608 |
| 2007-000516 | R-CHIP;2.7KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000583 | R-CHIP;22KOHM,1%,1/10W,TP,1608 |
| 2007-007455 | R-CHIP;24.9KOHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000651 | R-CHIP;27KOHM,1%,1/10W,TP,1608 |
| 2007-007587 | R-CHIP;3.6KOHM,1%,1/16W,TP,1005 |
| 2007-007720 | R-CHIP;300KOHM,1%,1/10W,TP,1608 |
| 2007-000726 | R-CHIP;300OHM,1%,1/10W,TP,1608 |
| 2007-000736 | R-CHIP;30KOHM,1%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005 |
| 2007-000857 | R-CHIP;4.3KOHM,1%,1/10W,TP,1608 |
| 2007-000903 | R-CHIP;430OHM,1%,1/10W,TP,1608 |
| 2007-000097 | R-CHIP;47KOHM,5%,1/10W,TP,1608 |
| 2007-000962 | R-CHIP;5.1KOHM,1%,1/10W,TP,1608 |
| 2007-000999 | R-CHIP;510OHM,1%,1/10W,TP,1608 |
| 2007-007733 | R-CHIP;51OHM,1%,1/10W,TP,1608 |
| 2007-008133 | R-CHIP;56.2KOHM,1%,1/10W,TP,1608 |
| 2007-001038 | R-CHIP;56KOHM,1%,1/10W,TP,1608 |
| 2007-008391 | R-CHIP;6.34KOHM,1%,1/16W,TP,1005 |
| 2007-009177 | R-CHIP;61.9KOHM,1%,1/16W,TP,1005 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2007-001199 | R-CHIP;820OHM,1%,1/10W,TP,1608 |
| 2007-007651 | R-CHIP;9.1KOHM,1%,1/10W,TP,1608 |
| 2007-001237 | R-CHIP;910OHM,1%,1/10W,TP,1608 |
| 2007-007431 | R-CHIP;91KOHM,1%,1/10W,TP,1608 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
| 2011-001497 | R-NETWORK;470OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001590 | R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
|
|
REMOCON-SMART CONTROL;2013 TV,SAMSUNG,28 |
|
|
REMOCON;2014 TV,SAMSUNG,52,3.0,TM1260C_L |
|
|
SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;CH,M3,L4,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;FH,M3,L5.0,ZPC(BLK),SWRC |
|
|
SCREW-MACHINE;PWH,M3,L5,ZPC(WHT),SWRCH |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;FH,B,M3,L8,ZPC(BLK),SW |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0502-001345 | TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900 |
| 0502-001346 | TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/ |
| 0502-001331 | TR-POWER;NSS30100LT1G,PNP,310MW,SOT-23,T |
| 0501-000279 | TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT- |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER-DTV AIR CABLE;DTVS20EIH276A,VSB HA |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1.6X0.8MM,TP,25V,5 |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V, |
