Manufacturer
Samsung
Model Number
UN48J6200AFXZA
Description

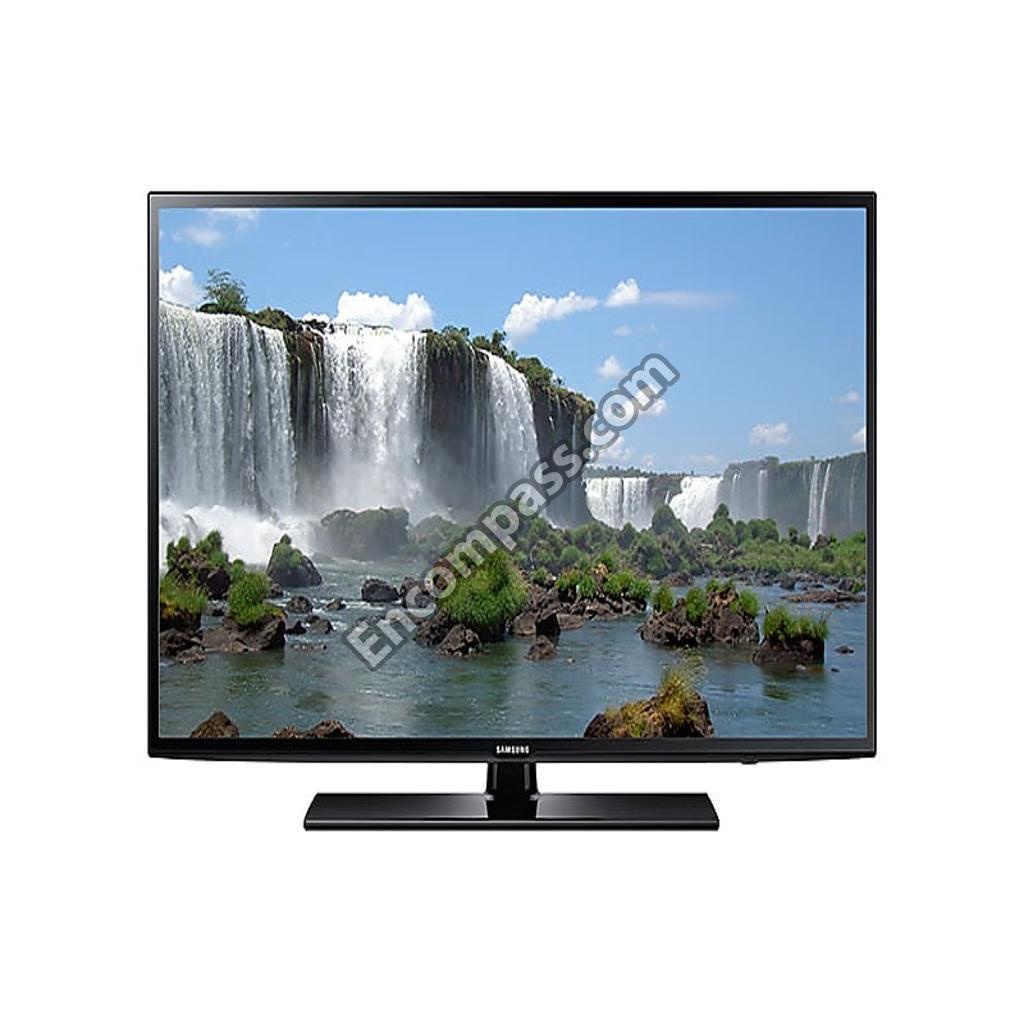

Led Tv,un48j6200af,48,united States,une
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-09604A | A/S-IC DRIVER SOURCE;IC DRIVER |
|
|
ASSEMBLY BOARD P-JOG SWITCH & |
| BN96-37998A | ASSEMBLY CHASSIS FRONT P |
| BN96-38230A | ASSEMBLY COVER P-REAR |
| BN96-38240A | ASSEMBLY GUIDE P-STAND |
|
|

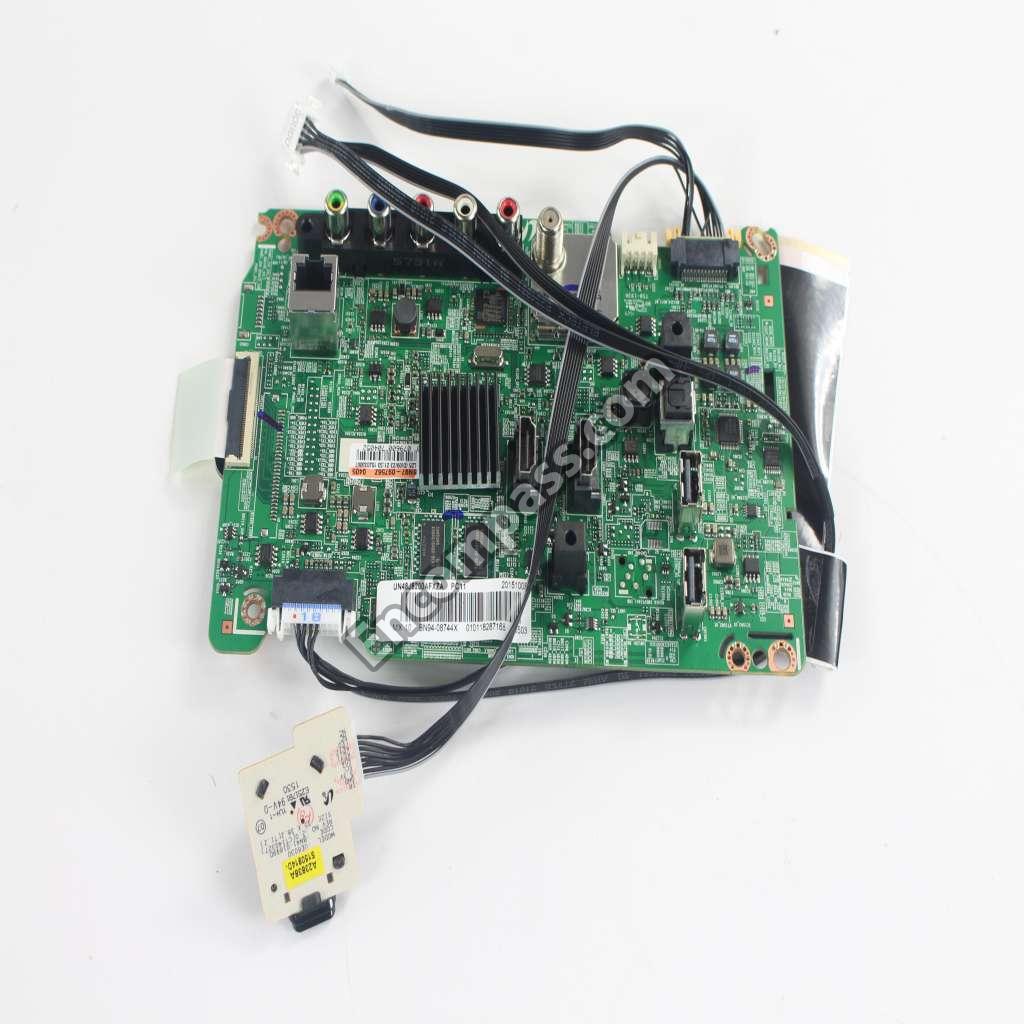

ASSEMBLY PCB MAIN |
|
|
ASSEMBLY SPEAKER P-FRONT |
|
|
ASSEMBLY STAND P-BASE |
| BN95-02374A | ASSEMBLY T CON |
| 6902-001063 | BAG PE |
| BH69-00418A | BAG PE-WRAPPING FILM |
|
|
BEAD-SMD |
| 3301-001364 | BEAD-SMD |
| 3301-000314 | BEAD-SMD |
| BN61-04692A | BOSS-PRIMER |
| 2203-007544 | C-CER,CHIP |
| 2203-007513 | C-CER,CHIP |
| 2203-007306 | C-CER,CHIP |
| 2203-007176 | C-CER,CHIP |
| 2203-006844 | C-CER,CHIP |
| 2203-006698 | C-CER,CHIP |
| 2203-006460 | C-CER,CHIP |
| 2203-006348 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP |
| 2203-006126 | C-CER,CHIP |
| 2203-006088 | C-CER,CHIP |
| 2203-006048 | C-CER,CHIP |
| 2203-005968 | C-CER,CHIP |
| 2203-005344 | C-CER,CHIP |
| 2203-005249 | C-CER,CHIP |
| 2203-002711 | C-CER,CHIP |
| 2203-002285 | C-CER,CHIP |
| 2203-001697 | C-CER,CHIP |
| 2203-000715 | C-CER,CHIP |
| 2203-000627 | C-CER,CHIP |
| 2203-000575 | C-CER,CHIP |
| 2203-000357 | C-CER,CHIP |
| 2503-001051 | C-NETWORK |
|
|
CBF-POWER CORD |
| 3708-003176 | CONNECTOR-FPC/FFC/PIC |
| 3701-001856 | CONNECTOR-HDMI |
| 3707-001106 | CONNECTOR-OPTICAL |
| BN63-02183D | COVER-SHEET |
| 2801-005324 | CRYSTAL-SMD |
| 2801-003773 | CRYSTAL-SMD |
|
|

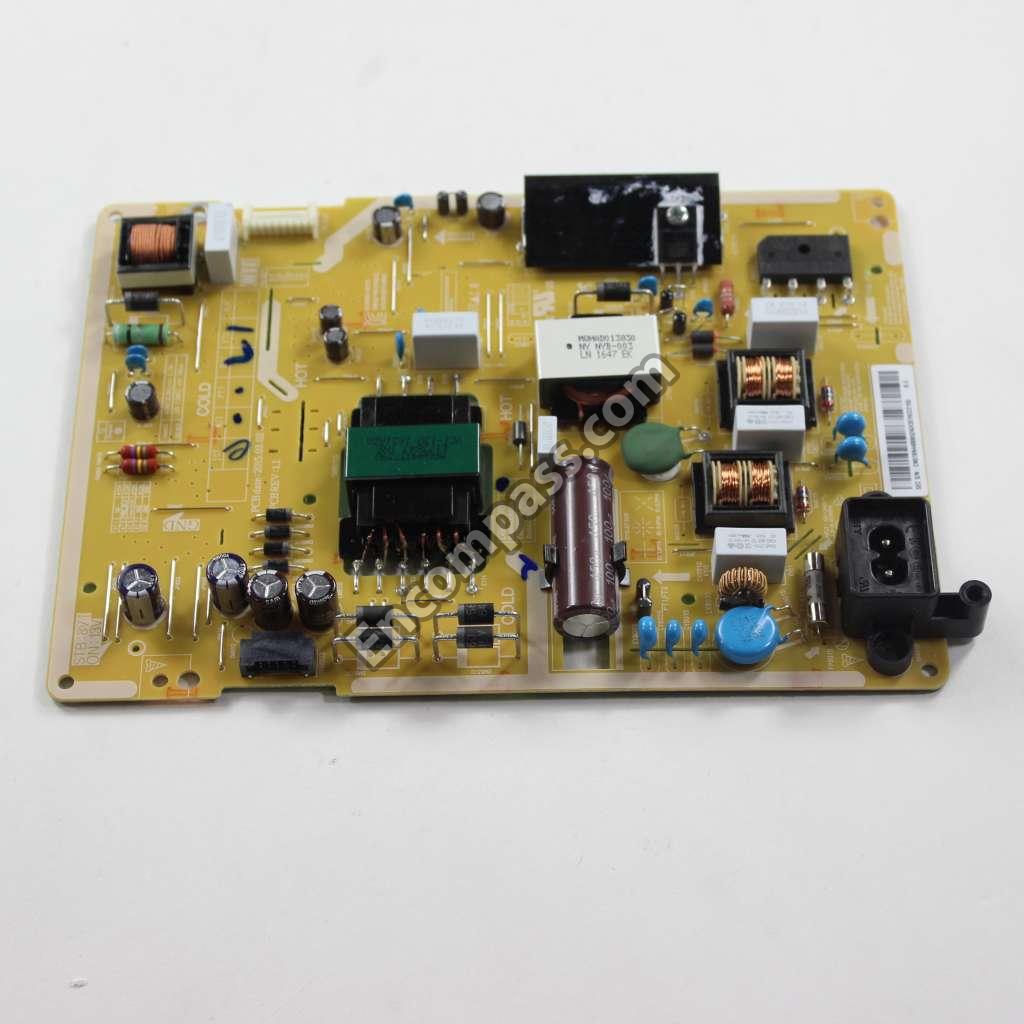

DC VSS-LED TV PD |
| 0404-001643 | DIODE-SCHOTTKY |
| 0404-001640 | DIODE-SCHOTTKY |
| 0404-001404 | DIODE-SCHOTTKY |
| 0406-001635 | DIODE-TVS |
| 0406-001628 | DIODE-TVS |
| 0406-001578 | DIODE-TVS |
| 0406-001445 | DIODE-TVS |
| 0505-003397 | FET-SILICON |
| 0505-003224 | FET-SILICON |
| 0505-002893 | FET-SILICON |
| 0505-002598 | FET-SILICON |
| 0505-002560 | FET-SILICON |
| BN96-36274V | FFC CABLE |
| 2901-001362 | FILTER-EMI/ESD |
| 3601-001386 | FUSE-SURFACE MOUNT |
| BN63-00135A | GASKET |
|
|
HEADER-BOARD TO CABLE |
| 3711-008453 | HEADER-BOARD TO CABLE |
| 3711-008131 | HEADER-BOARD TO CABLE |
| 3711-005601 | HEADER-BOARD TO CABLE |
|
|
HOLDER-BOLT |
|
|
HOLDER-WIRE STAND |
| 1201-003690 | IC-AUDIO AMP |
| 0801-003330 | IC-CMOS LOGIC |
| 1203-008118 | IC-DC/DC CONVERTER |
| 1203-008082 | IC-DC/DC CONVERTER |
| 1203-007984 | IC-DC/DC CONVERTER |
| 1105-002529 | IC-DDR3 SDRAM |
| 1105-002227 | IC-DDR3 SDRAM |
| 1006-001576 | IC-DRIVER/RECEIVER |
| 1103-001487 | IC-EEPROM |
| 1107-002374 | IC-EMMC |
| 1107-002226 | IC-NOR FLASH |
| 1203-007242 | IC-POSI.ADJUST REG. |
| 1203-006130 | IC-POSI.FIXED REG. |
|
|
IC-SENSOR |
| 1205-004983 | IC-SWITCH |
| 1205-004447 | IC-SWITCH |
| 1204-003558 | IC-VIDEO PROCESS |
| 1204-003472 | IC-VIDEO PROCESS |
| 1203-006017 | IC-VOL. DETECTOR |
| 1203-004363 | IC-VOL. DETECTOR |
| 2703-004847 | INDUCTOR-SMD |
| 2703-004462 | INDUCTOR-SMD |
| 2703-003930 | INDUCTOR-SMD |
| 2703-003862 | INDUCTOR-SMD |
| 2703-003790 | INDUCTOR-SMD |
| 2703-003747 | INDUCTOR-SMD |
| 2703-003713 | INDUCTOR-SMD |
| 2703-000158 | INDUCTOR-SMD |
| 3722-003229 | JACK-MODULAR |
| 3722-003667 | JACK-PHONE |
| 3722-003226 | JACK-PHONE |
|
|
JACK-PIN |
| 3722-003248 | JACK-USB |
| BN68-00513A | LABEL-E, PASS |
| BN39-01889J | LEAD CONNECTOR |
| BN39-02096A | LEAD CONNECTOR-BLU |
| BN39-01931L | LEAD CONNECTOR-SUB ASSEMBLY |
|
|
NETWORK-WIFI MODULE |
|
|
PRODUCT LCD-SDC |
| 2007-008779 | R-CHIP |
| 2007-008298 | R-CHIP |
| 2007-008035 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007992 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007768 | R-CHIP |
| 2007-007733 | R-CHIP |
| 2007-007651 | R-CHIP |
| 2007-007268 | R-CHIP |
| 2007-007238 | R-CHIP |
| 2007-001237 | R-CHIP |
| 2007-001199 | R-CHIP |
| 2007-001168 | R-CHIP |
| 2007-001125 | R-CHIP |
| 2007-001116 | R-CHIP |
| 2007-000842 | R-CHIP |
| 2007-000803 | R-CHIP |
| 2007-000779 | R-CHIP |
| 2007-000726 | R-CHIP |
| 2007-000691 | R-CHIP |
| 2007-000669 | R-CHIP |
| 2007-000651 | R-CHIP |
| 2007-000614 | R-CHIP |
| 2007-000583 | R-CHIP |
| 2007-000516 | R-CHIP |
| 2007-000509 | R-CHIP |
| 2007-000455 | R-CHIP |
| 2007-000336 | R-CHIP |
| 2007-000287 | R-CHIP |
| 2007-000265 | R-CHIP |
| 2007-000256 | R-CHIP |
| 2007-000109 | R-CHIP |
| 2007-000092 | R-CHIP |
| 2007-000067 | R-CHIP |
| 2007-000066 | R-CHIP |
| 2007-000052 | R-CHIP |
| 2007-000043 | R-CHIP |
| 2011-001587 | R-NETWORK |
| 2011-001527 | R-NETWORK |
| 2011-001506 | R-NETWORK |
| 2011-001449 | R-NETWORK |
| 2011-001264 | R-NETWORK |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-TAPTYPE |
|
|
SCREW-TAPTYPE |
| BN61-08107A | STAND, BASE |
| 0502-001346 | TR-POWER |
| 0502-001345 | TR-POWER |
| 0502-001331 | TR-POWER |
| 0501-000445 | TR-SMALL SIGNAL |
| 0501-000002 | TR-SMALL SIGNAL |
|
|
TUNER-DTV AIR CABLE |
| 1405-001382 | VARISTOR |
| 1405-001381 | VARISTOR |
|
|
VARISTOR |
