Manufacturer
Samsung
Model Number

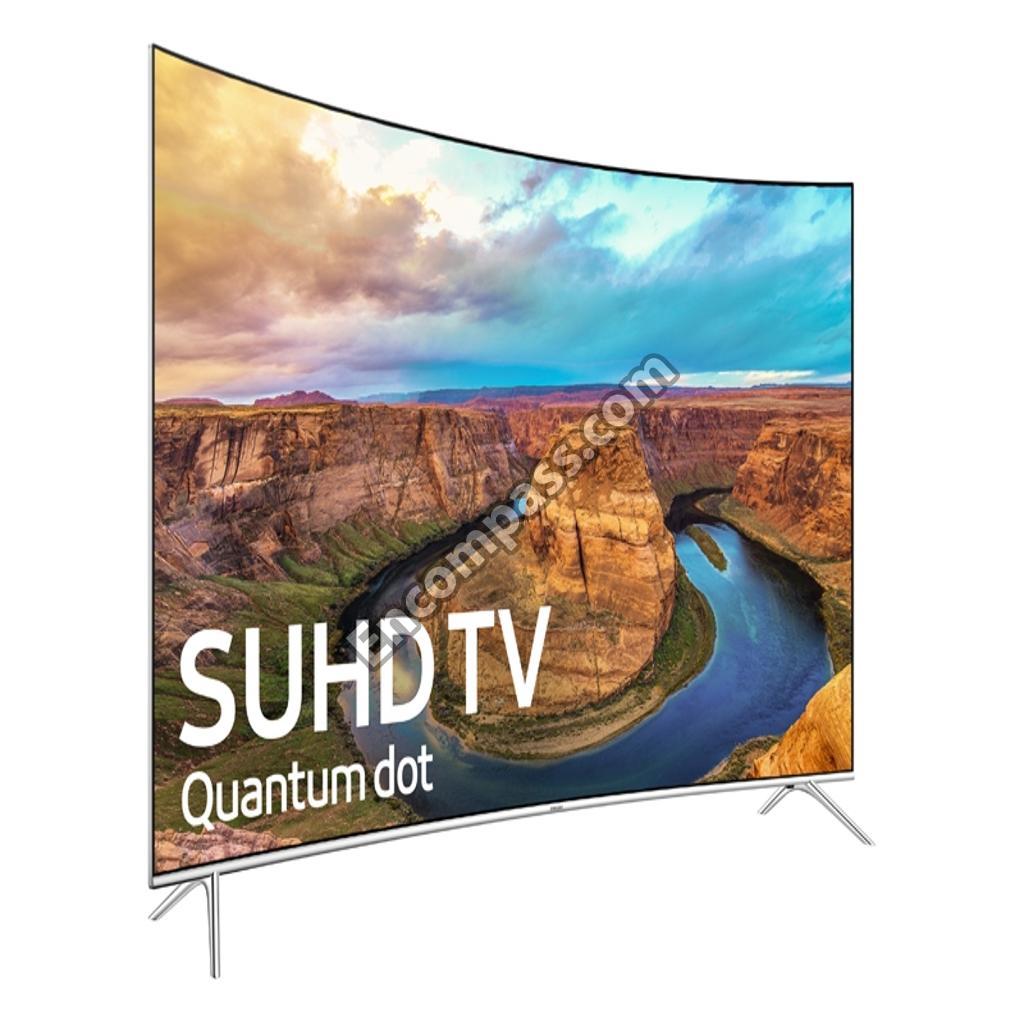

UN49KS8500FXZA
Description
Led Tv,un49ks8500f,49,united States,uwq
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| 0201-001578 | ADHESIVE-HM |
|
|
ASSEMBLY BOARD P-FUNCTION TACT |
|
|
ASSEMBLY COVER P-TOP;55KS9000, |
|
|
ASSEMBLY PCB MISC-ONE CONNECT |
| BH69-00418A | BAG PE-WRAPPING FILM |
| 4301-000101 | BATTERY-ALKALINE |
|
|
BEAD-SMD |
| 3301-001364 | BEAD-SMD |
| BN61-04692A | BOSS-PRIMER |
| BN61-13557A | BRACKET-WIRE;KS7000,SW-C,1,60, |
| 2203-008315 | C-CER,CHIP |
| 2203-007544 | C-CER,CHIP |
| 2203-007513 | C-CER,CHIP |
| 2203-007306 | C-CER,CHIP |
| 2203-007176 | C-CER,CHIP |
| 2203-006844 | C-CER,CHIP |
| 2203-006698 | C-CER,CHIP |
| 2203-006377 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP |
| 2203-005344 | C-CER,CHIP |
| 2203-002398 | C-CER,CHIP |
| 2203-002285 | C-CER,CHIP |
| 2409-001240 | C-ORGANIC,SMD |
| 2409-001338 | C-POLYMER ,CHIP |
|
|
CBF-POWER CORD;DT,USA,ANGLE,2P |
| BN63-02368B | CLOTH-CLEAN |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU |
|
|
CONNECTOR-HEADER |
| 3711-007741 | CONNECTOR-HEADER |
| 3711-007587 | CONNECTOR-HEADER |
| 3711-009090 | CONNECTOR-HEADER;BOX,16P,1R,1. |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2M |
| 3707-001104 | CONNECTOR-OPTICAL |
| 3710-004144 | CONNECTOR-SOCKET;44P,1R,0.5MM, |
|
|
COVER-BOTTOM;OCM PLUS,PC+ABS,M |
| BN63-15050A | COVER-TERMINAL SIDE;55KS7000,A |
| 2801-005372 | CRYSTAL-SMD |
| 2801-004021 | CRYSTAL-SMD |
|
|
DC VSS-PD BOARD;L55E7_KSM,AC/D |
| 0404-001881 | DIODE-SCHOTTKY |
| 0404-001640 | DIODE-SCHOTTKY |
| 0404-001404 | DIODE-SCHOTTKY |
| 0404-001307 | DIODE-SCHOTTKY |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40 |
| 0401-001056 | DIODE-SWITCHING |
| 0406-001635 | DIODE-TVS |
| 0406-001628 | DIODE-TVS |
| 0403-001831 | DIODE-ZENER |
| 0403-001164 | DIODE-ZENER |
| 0505-003507 | FET-SILICON |
| 0505-003397 | FET-SILICON |
| 0505-003391 | FET-SILICON |
| 0505-003264 | FET-SILICON |
| 0505-003205 | FET-SILICON |
| 0505-002893 | FET-SILICON |
| 0505-002598 | FET-SILICON |
| 0505-001844 | FET-SILICON |
|
|
FUSE-SURFACE MOUNT |
| BN63-00520A | GASKET |
| BN61-14022A | HOLDER-CABLE;55KS7000,ABS,T1.5 |
|
|
HOLDER-WALL RING;55KS7500,ABS, |
| 1001-001998 | IC-ANALOG MULTIPLEX;NX3DV221GM |
| 1201-004003 | IC-AUDIO AMP;TAS880021,TSSOP,4 |
| 0801-003292 | IC-CMOS LOGIC |
| 0801-003604 | IC-CMOS LOGIC;NL17SZ17DFT2G,SC |
| 0801-003598 | IC-CMOS LOGIC;TC7SZ00FU,2-INPU |
| 1203-008391 | IC-DC/DC CONVERTER |
| 1203-008733 | IC-DC/DC CONVERTER;AOZ1236QI-0 |
| 1203-008735 | IC-DC/DC CONVERTER;AOZ1267QI-0 |
| 1203-008664 | IC-DC/DC CONVERTER;RT6935BGQW, |
| 1203-008667 | IC-DC/DC CONVERTER;RT6936A,WQF |
| 1203-008732 | IC-DC/DC CONVERTER;SYD104ADC,T |
| 1105-002704 | IC-DDR4 SDRAM;K4F8E304HB-MGCH, |
| 1204-003679 | IC-DECODER;SDP1501,FCPBGAH,123 |
| 1204-003677 | IC-DECODER;SDP1503,FCPBGAH,396 |
| 1006-001576 | IC-DRIVER/RECEIVER |
| 1103-001564 | IC-EEPROM |
| 1107-002362 | IC-EMMC |
| 1107-002226 | IC-NOR FLASH |
| 1201-000166 | IC-OP AMP |
| 1203-008345 | IC-POSI.ADJUST REG.;S-13A1ADJ- |
| 1205-005537 | IC-REPEATER;TCA9517,VSSOP,8P,3 |
| 1205-005554 | IC-REPEATER;TMDS181,VQFN,48P,7 |
|
|
IC-SENSOR |
| 1205-004822 | IC-SWITCH |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2 |
| 1203-008392 | IC-VOL. DETECTOR |
| 1203-004364 | IC-VOL. DETECTOR |
| 2703-005194 | INDUCTOR-SMD |
| 2703-005193 | INDUCTOR-SMD |
| 2703-005191 | INDUCTOR-SMD |
| 2703-004724 | INDUCTOR-SMD |
| 2703-003937 | INDUCTOR-SMD |
| 2703-003862 | INDUCTOR-SMD |
| 2703-003747 | INDUCTOR-SMD |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10X10.7M |
| 3722-003199 | JACK-MODULAR |
| 3722-003394 | JACK-PHONE |
|
|
JACK-USB |
| BN68-00513A | LABEL-E, PASS |
| BN39-02206C | LEAD CONNECTOR-POWER;49KS7500, |
|
|
NETWORK-WLAN CLIENT;WCK730B,US |
|
|

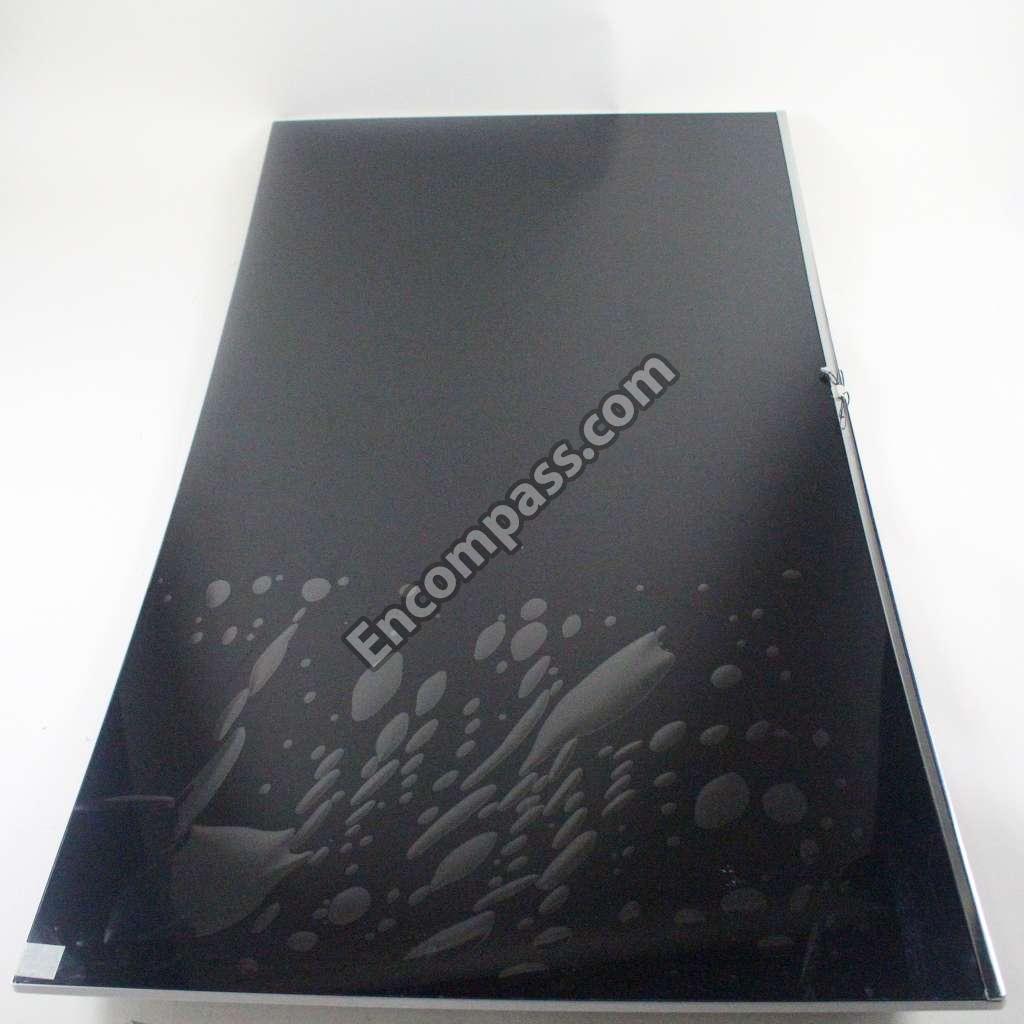

PRODUCT LCD-SDC;CY-XK049FLLV3V/H,KS7500, 102.00 |
| 2007-009322 | R-CHIP |
| 2007-008596 | R-CHIP |
| 2007-008391 | R-CHIP |
| 2007-008298 | R-CHIP |
| 2007-008294 | R-CHIP |
| 2007-008269 | R-CHIP |
| 2007-008167 | R-CHIP |
| 2007-008134 | R-CHIP |
| 2007-008067 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007992 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007868 | R-CHIP |
| 2007-007767 | R-CHIP |
| 2007-007587 | R-CHIP |
| 2007-007520 | R-CHIP |
| 2007-003015 | R-CHIP |
| 2007-002899 | R-CHIP |
| 2007-001125 | R-CHIP |
| 2007-000999 | R-CHIP |
| 2007-000939 | R-CHIP |
| 2007-000879 | R-CHIP |
| 2007-000736 | R-CHIP |
| 2007-000309 | R-CHIP |
| 2007-000084 | R-CHIP |
| 2007-000052 | R-CHIP |
| 2007-000040 | R-CHIP |
| 2007-000039 | R-CHIP |
| 2011-001449 | R-NETWORK |
| 2011-001264 | R-NETWORK |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
| 0504-000126 | TR-DIGITAL |
| 0501-000445 | TR-SMALL SIGNAL |
| 0501-000002 | TR-SMALL SIGNAL |
| BN40-00321A | TUNER-DTV AIR CABLE;DTVS20EH6A |
| 1405-001382 | VARISTOR |
| 1405-001381 | VARISTOR |
|
|
VARISTOR |
