Manufacturer
Samsung
Model Number
UN50ES6100FXZA
Description

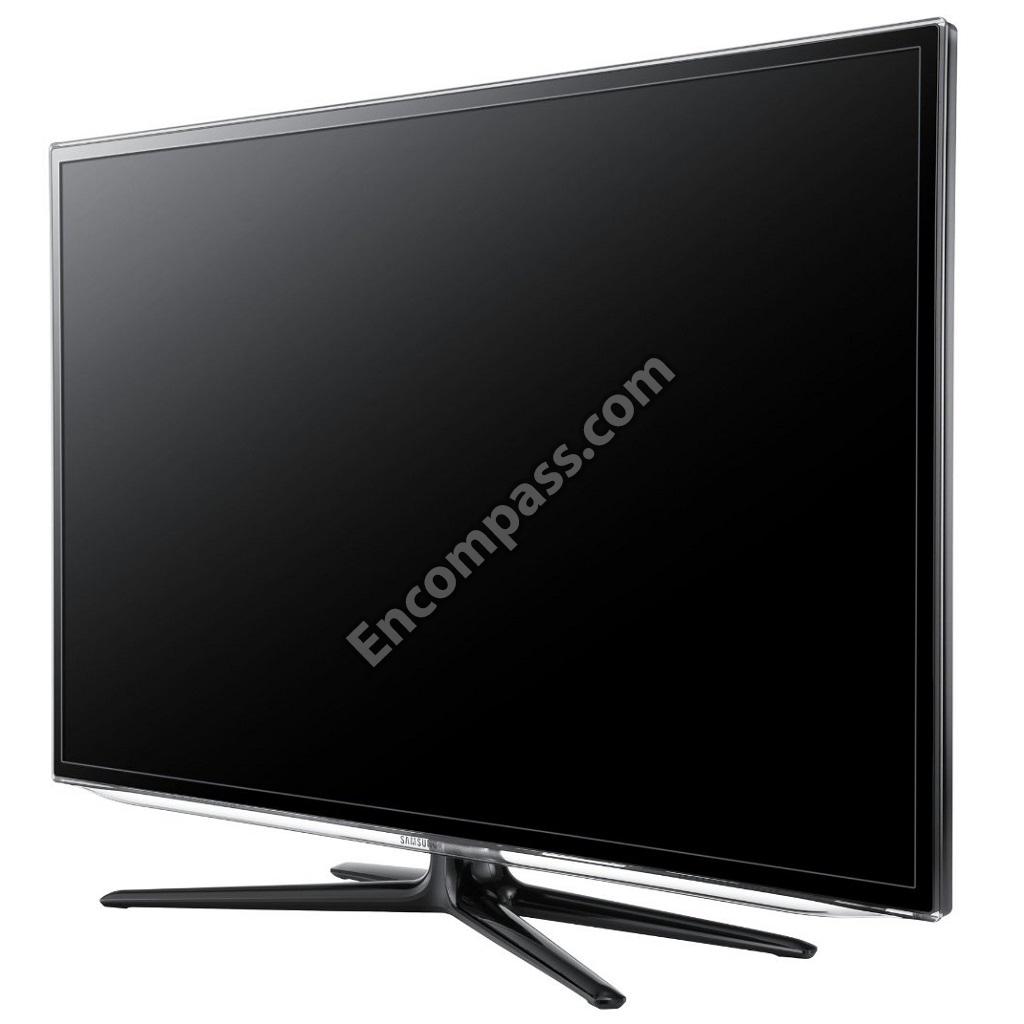

50-inch Led 6100 Series With Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

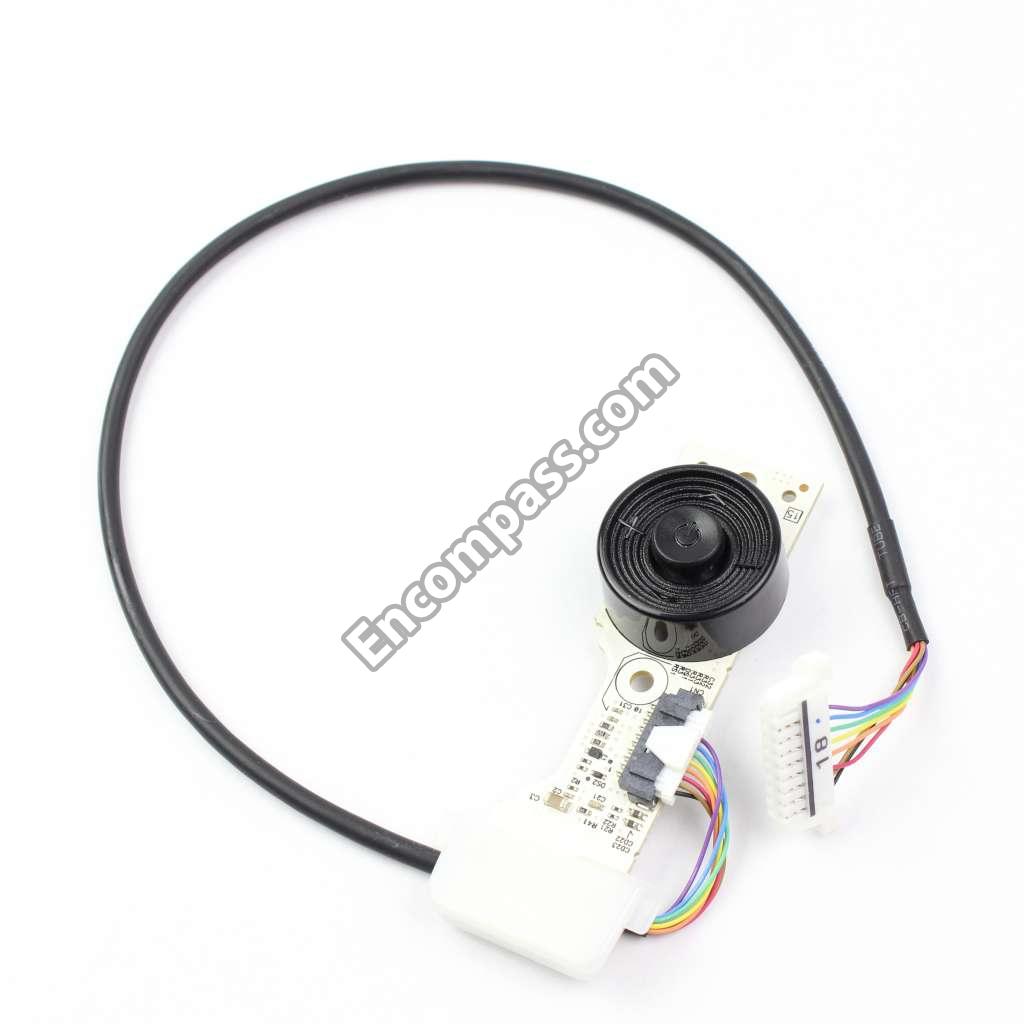

ASSY BOARD P-5WAY SWITCH FUNCTION;UN55ES |
|
|

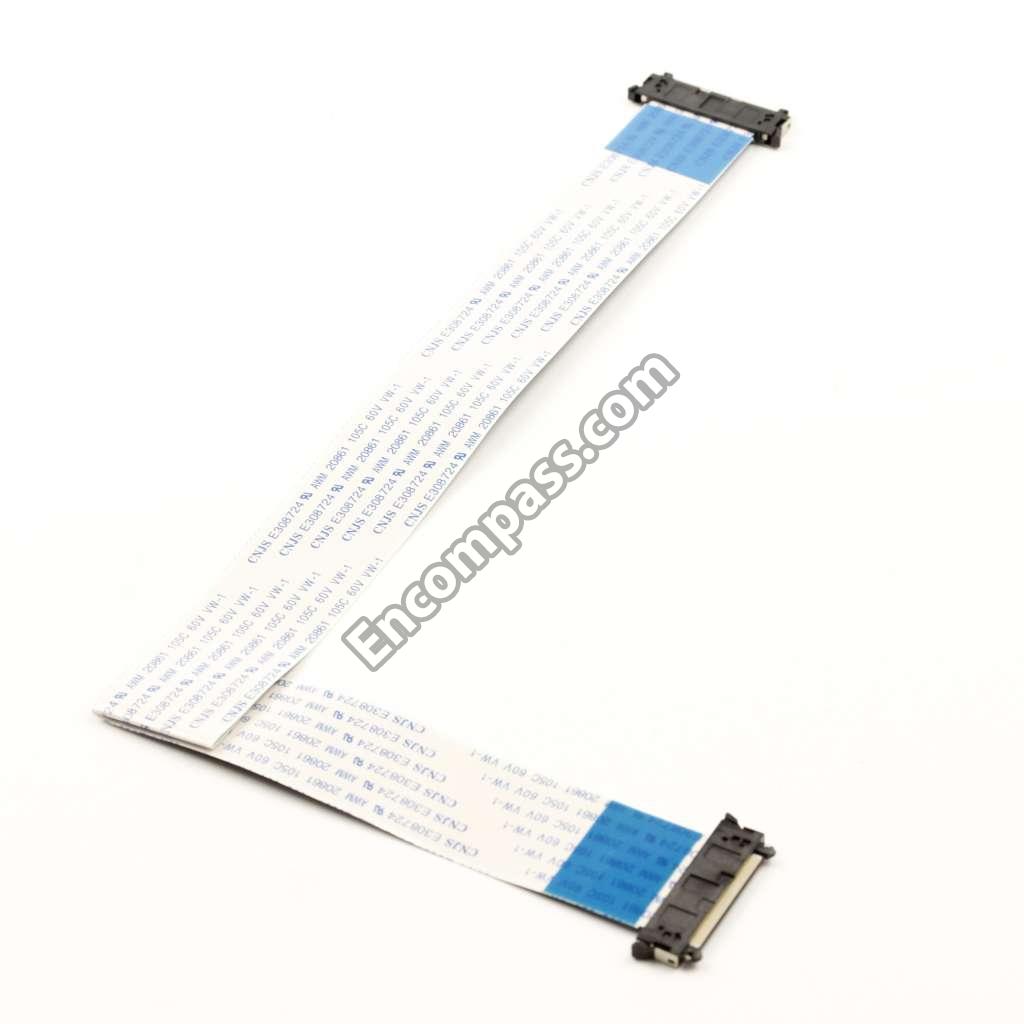

ASSY CABLE P-FFC;UN46D6500,FFC,377MM,51P |
| BN96-22967A | ASSY COVER P-MIDDLE;UE6100 50,MABS(COOL |
| BN96-22389A | ASSY COVER P-REAR;UE65,66,6800 46,USA,PC |
|
|
ASSY HOLDER P-RING;11 LED-TV |
|
|

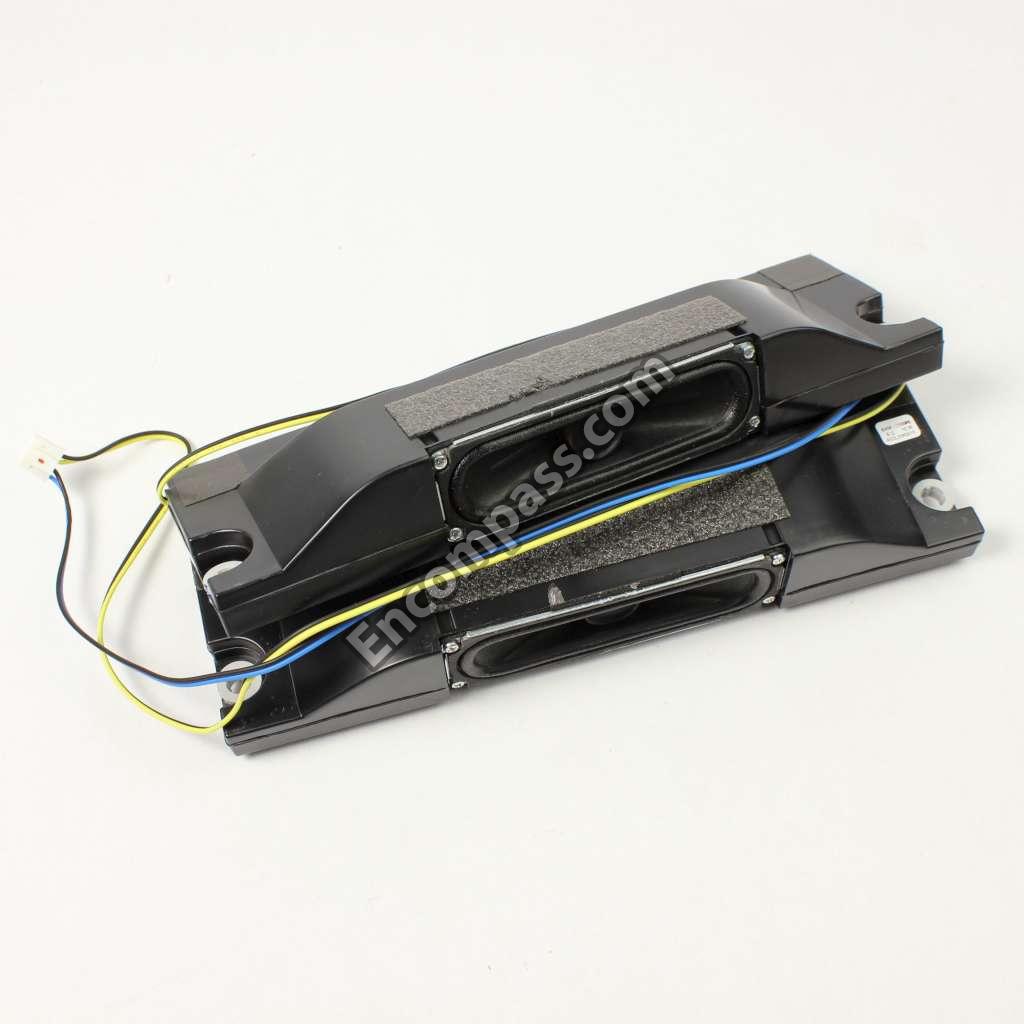

ASSY SPEAKER P;6OHM,4PIN,10W,ENCLOSURE T |
|
|

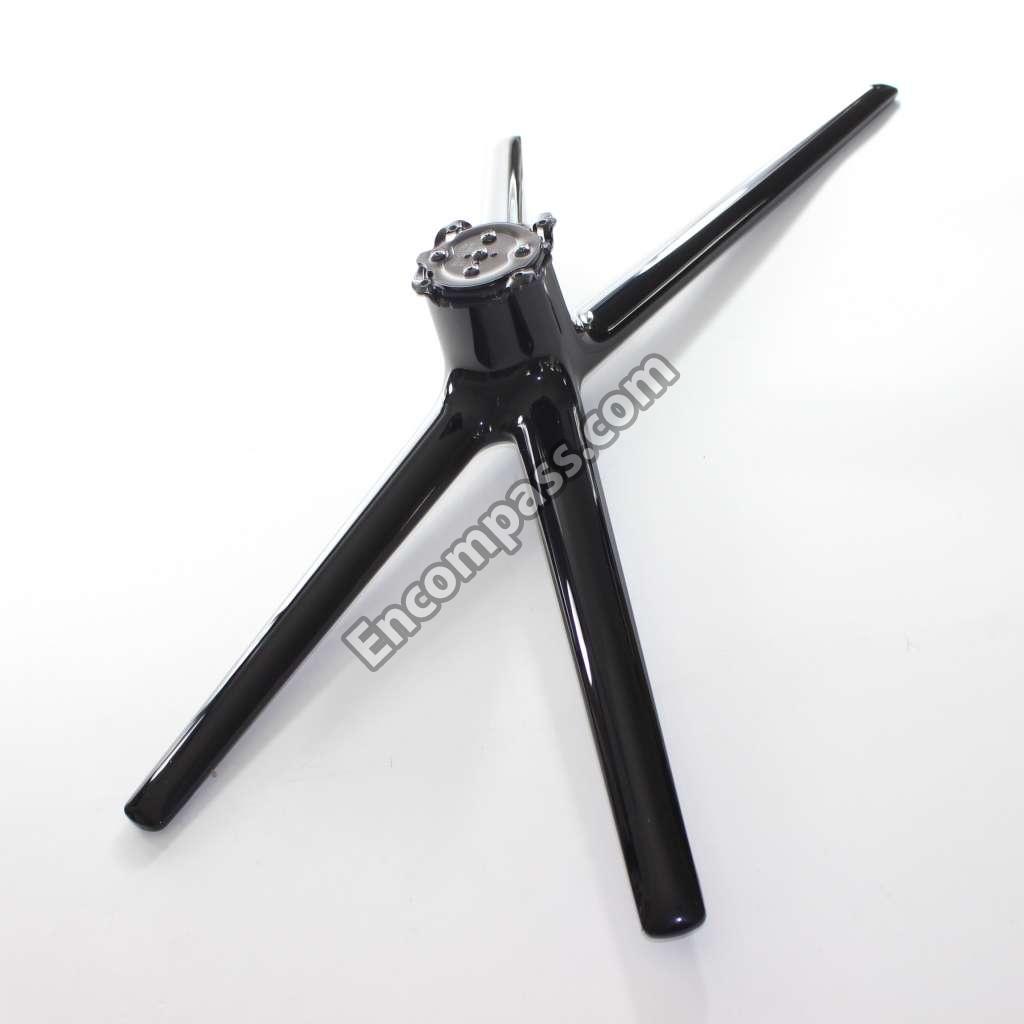

ASSY STAND P-BASE;UE6500 46,QUAD,HIPS,HB |
|
|
ASSY STAND P-GUIDE;UE6100-7000 55,SAMEX, |
|
|
ASSY T CON P;LE500CGM-C1,10BITS,50 INCH, |
| 6902-001063 | BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 2203-003039 | C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-000575 | C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2503-001051 | C-NETWORK;100NFX4,20%,16V,2012 |
|
|
CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,5A, |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU |
| 3711-007571 | CONNECTOR-HEADER;BOX,18P,2R,2.0MM,ANGLE, |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 |
| 0505-002598 | FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O |
|
|
GUIDE-STAND;UD5000 37,PC+G/F 20%,V2,BK00 |
|
|
HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG |
| 3711-007814 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-005925 | HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S |
| BN61-08038A | HOLDER-SIDE AV;UE6100,ABS,HB,UO/SO,EDGE |
|
|
HOLDER-WIRE STAND;UB7000 46INCH,NYRON |
| 0801-003330 | IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X |
| 1203-007080 | IC-DC/DC CONVERTER;AOZ1051PI,SO-8,8P,4.9 |
| 1204-003351 | IC-DECODER;SEMS27,PBGA,717P,23X23MM,PLAS |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
|
|
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 0903-001718 | IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4 |
| 1107-002088 | IC-NAND FLASH;KLM2G1HE3F-B001,2GBYTE,16G |
| 1203-006138 | IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
| 1203-007242 | IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8P, |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
| 1201-003333 | IC-POWER AMP;NTP-7412S,MLF,48P,7X7MM,DUA |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 1205-004447 | IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65 |
| 0904-002714 | IC-USC;QFN,28P,5.0MM X 5.0MM,12MHZ,TP,PL |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700 |
| 2703-000158 | INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
| 2703-003930 | INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
| 2703-003790 | INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003226 | JACK-PHONE;7P/1C,SN,BLK |
| 3722-003213 | JACK-PIN;J/B 5P + SCREW HOLE,NI+SN,BLK,S |
| 3722-003248 | JACK-USB;4P/1C(W/L),NI/PD/AU/SN,BLK,STRA |
| 3722-003225 | JACK-USB;4P/1C,AU,BLK,SMD-A(DIP),A |
|
|
LCD-PANEL;LE500CGM-C1,CELBCM3,10BIT,50 I |
|
|
LEAD CONNECTOR;UN46ES6100FXZA,FALT CONNE |
|
|

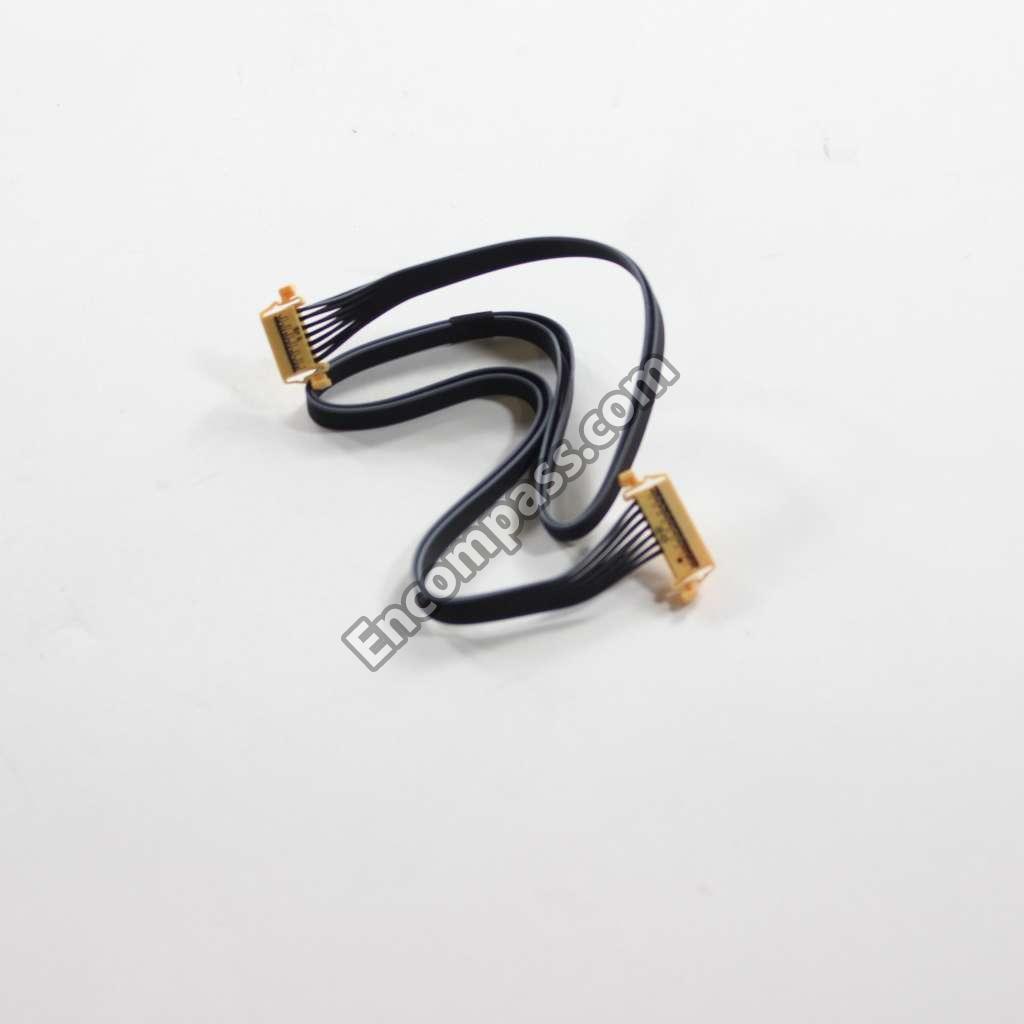

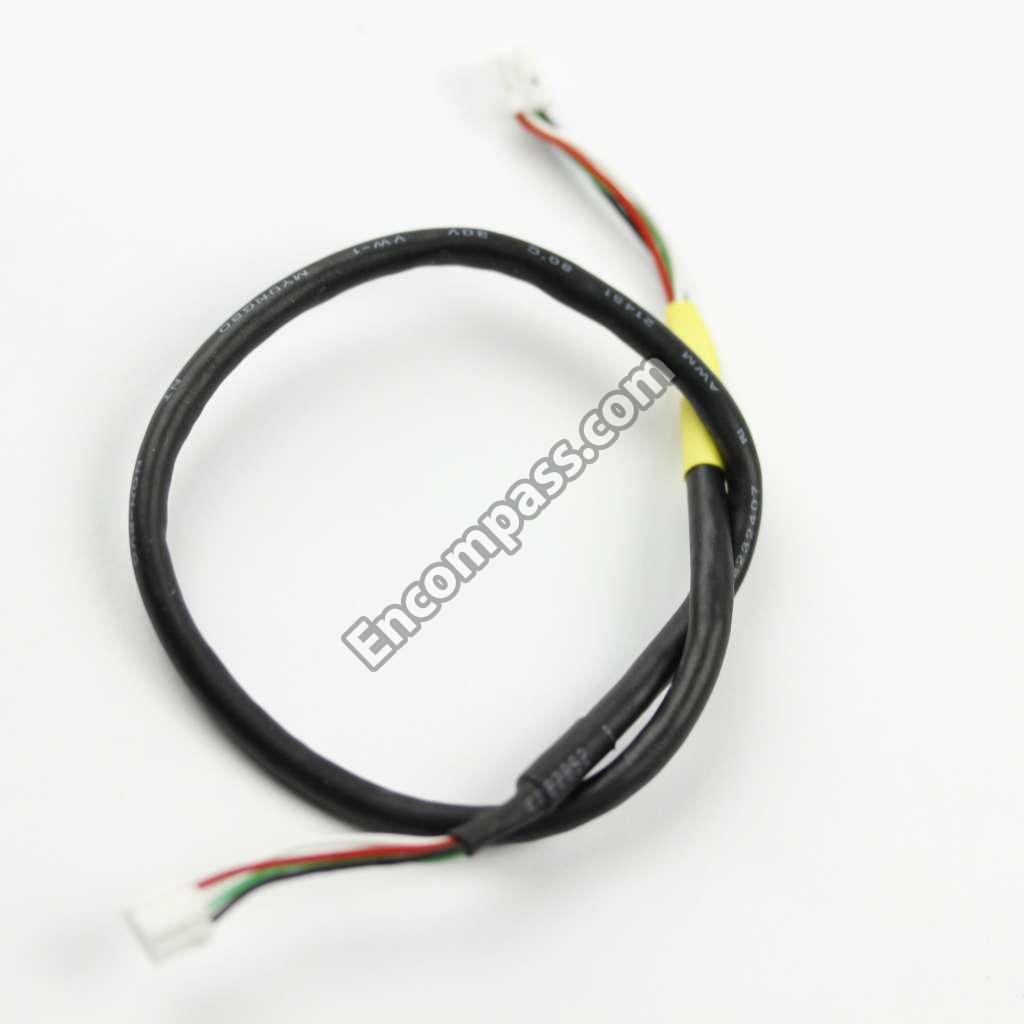

LEAD CONNECTOR;UN50ES6100,CABLE CONNECTO |
|
|
MAIN BOARD |
|
|

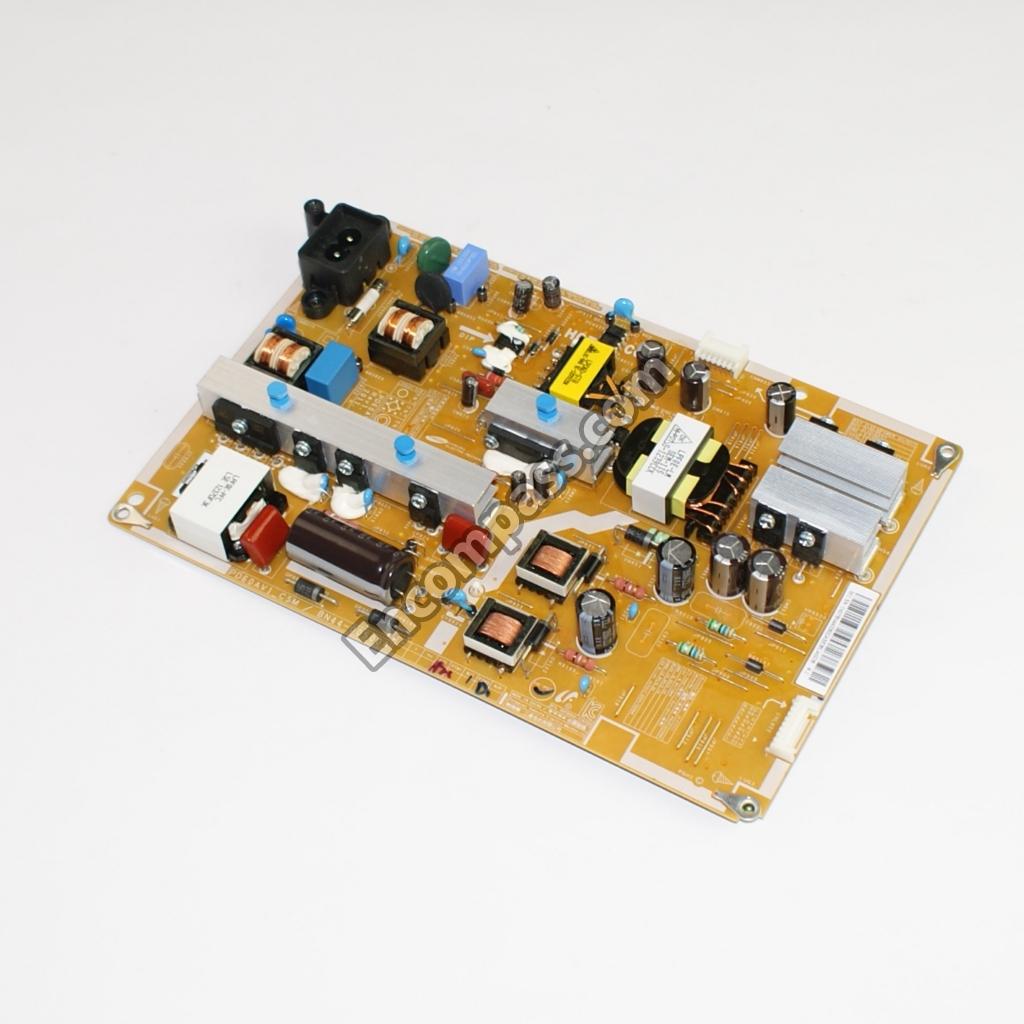

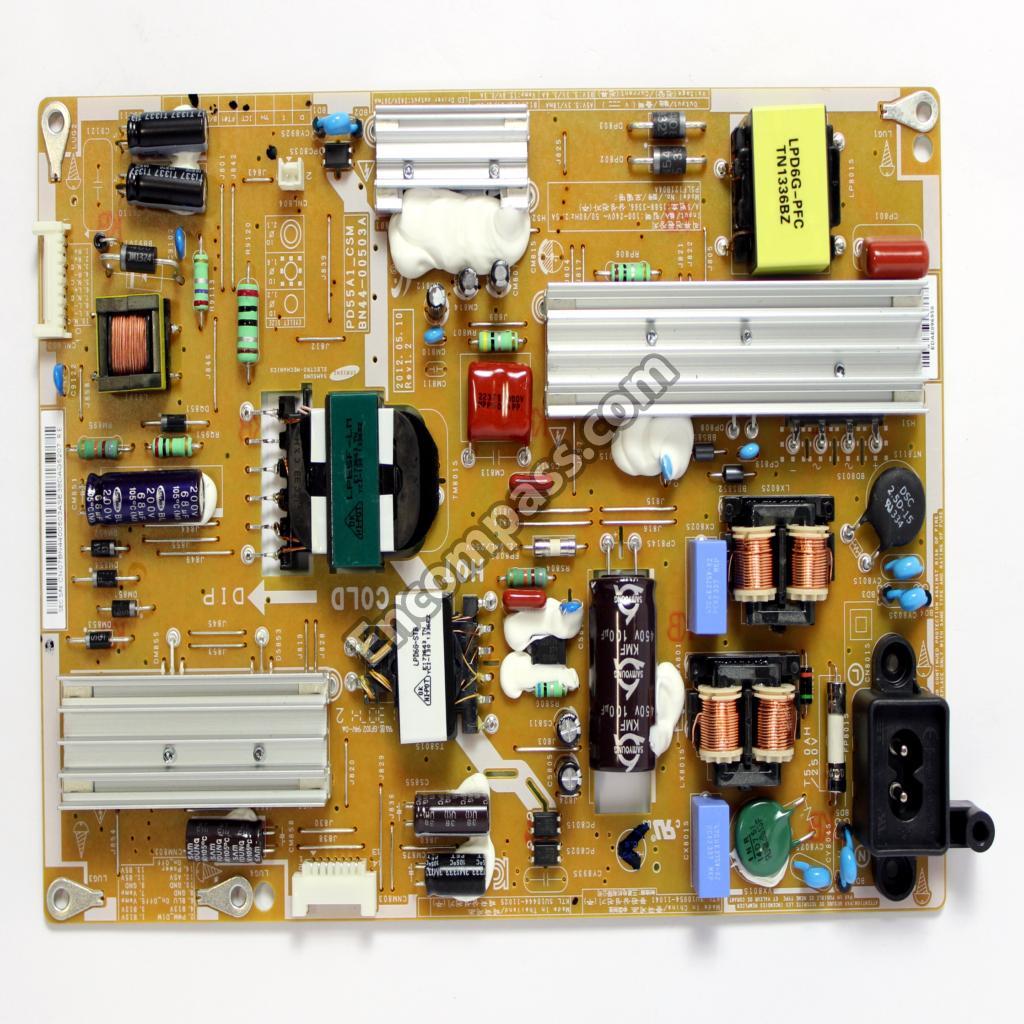

POWER SUPPLY / LED BOARD |
| 2007-007463 | R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
| 2007-008649 | R-CHIP;220OHM,1%,1/16W,TP,1005 |
| 2007-000583 | R-CHIP;22KOHM,1%,1/10W,TP,1608 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
| 2011-001506 | R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
| 2011-001262 | R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
| 2011-001396 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S |
|
|
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| BN60-00162W | SPACER-FOAM;FOAM,30000MM,DARK GRAY,1T,10 |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|
|
TUNER;TDAU4-K06A,TDAU4-K06A,VSB HALF NIM |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
|
|
WI-FI MODULE |
