Model Image
Manufacturer

Samsung

Model Number

UN55D6300SFXZA

Description

55-inch 1080p 120hz Led Hdtv

Interactive Exploded View
Exploded View

Parts List

Part Number Description
BN96-16911A ASSY BRACKET P-STAND LINK;UD5000 37/40/4
BN96-16838G ASSY COVER P-FRONT;UD6300,55,W/W,MABS+PM
BN96-16843A ASSY COVER P-REAR;UD6000,55,UO,PCM,T0.45

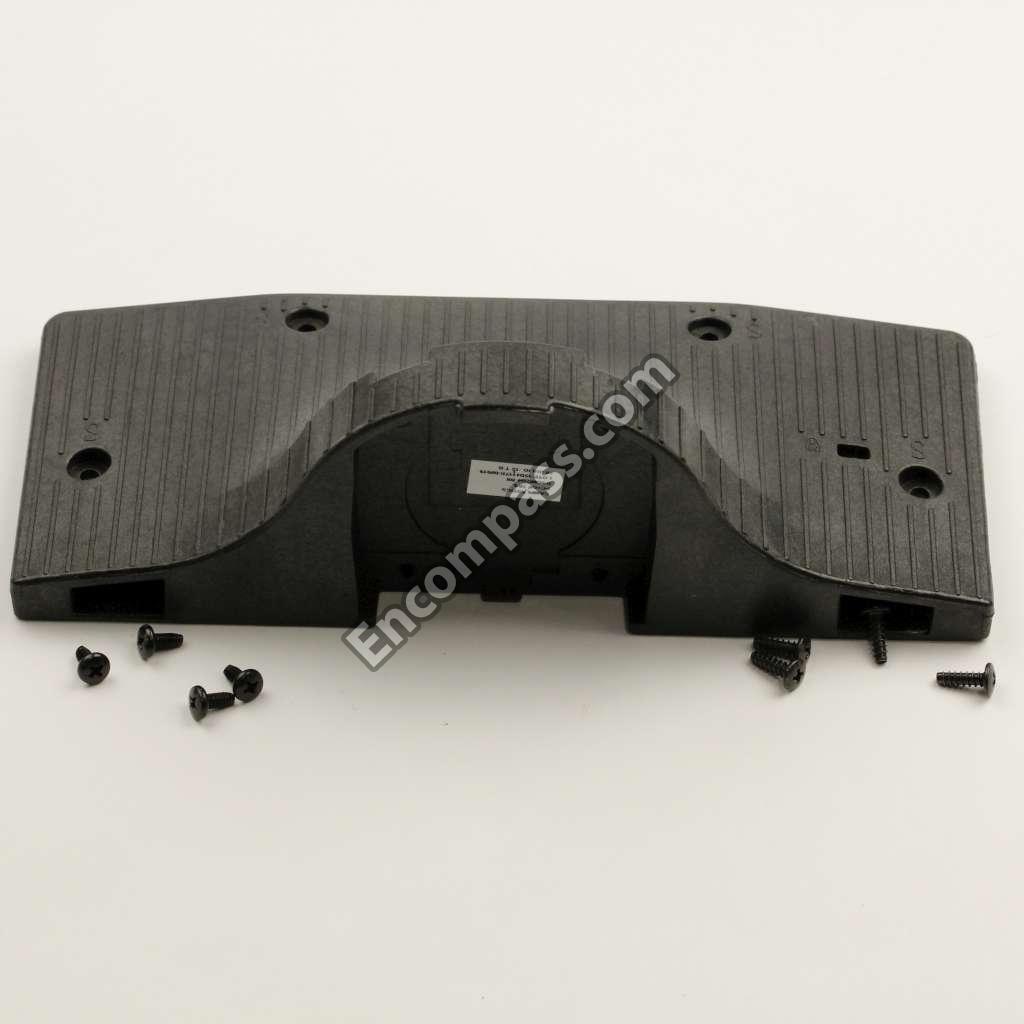

BN96-16722B BN96-16722B ASSY GUIDE P-STAND;UD5000-6000,SAMEX,PC,
BN96-18153A BN96-18153A ASSY HOLDER P-RING;11 LED-TV

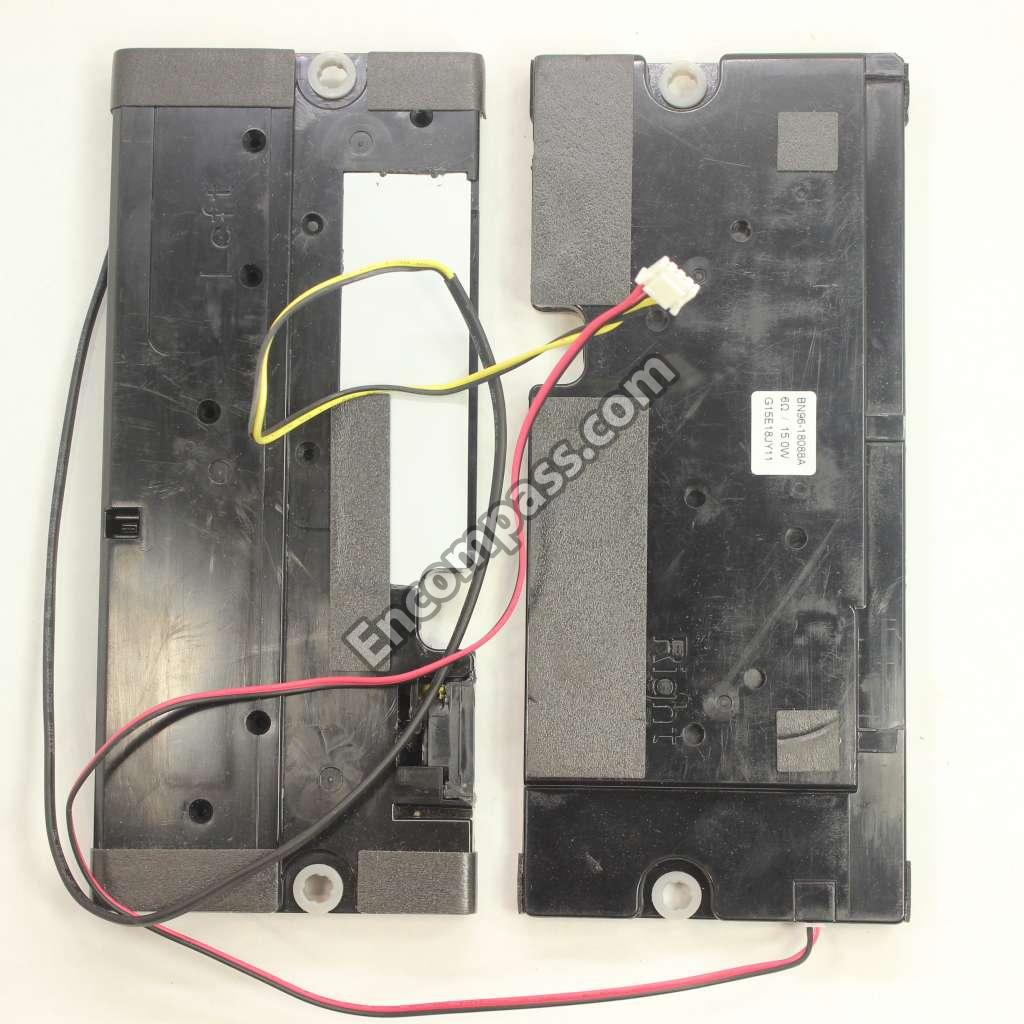

BN96-18088A BN96-18088A ASSY SPEAKER P;6OHM,4PIN,15W,ENCLOSURE T
6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE
4301-000121 BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA
3301-001864 BEAD-SMD;100OHM,1608,TP,55OHM/29MHZ,145O
3301-000314 BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP
3301-001236 BEAD-SMD;60OHM,1608
BN61-07248A BN61-07248A BRACKET-SUPPORT PCB;LD550,SK-5,T0.5,PLAT
2203-001697 C-CER,CHIP;0.082NF,5%,50V,NP0,TP,1608
2203-005642 C-CER,CHIP;0.22NF,5%,50V,NP0,TP,1005
2203-001607 C-CER,CHIP;0.22NF,5%,50V,NP0,TP,1608
2203-000140 C-CER,CHIP;1.5NF,10%,50V,X7R,TP,1608
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007370 C-CER,CHIP;10000NF,10%,10V,X7R,TP,2012
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1
2203-007423 C-CER,CHIP;10000NF,10%,35V,X7R,TP,3216
2203-007193 C-CER,CHIP;10000NF,10%,6.3V,X7R,TP,2012
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0.
2203-006960 C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012
2203-005918 C-CER,CHIP;1000NF,10%,6.3V,X7R,TP,1608
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5
2203-005005 C-CER,CHIP;100NF,10%,16V,X7R,TP,1608
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-005221 C-CER,CHIP;15NF,10%,50V,X7R,TP,1608
2203-000440 C-CER,CHIP;1NF,10%,50V,X7R,TP,1608
2203-001596 C-CER,CHIP;2200NF,+80-20%,50V,Y5V,TP,201
2203-006460 C-CER,CHIP;2200NF,10%,16V,X5R,TP,1608,-
2203-006320 C-CER,CHIP;2200NF,10%,16V,X7R,TP,2012
2203-008096 C-CER,CHIP;2200NF,10%,50V,X5R,TP,2012,1.
2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T
2203-000715 C-CER,CHIP;3.3NF,10%,50V,X7R,TP,1608
2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5
2203-007424 C-CER,CHIP;4700NF,10%,50V,X7R,TP,3216
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005
2203-000972 C-CER,CHIP;47NF,10%,16V,X7R,TP,1608
2203-002050 C-CER,CHIP;47NF,10%,50V,X7R,TP,1608
2203-005342 C-CER,CHIP;82NF,10%,16V,X7R,TP,1608
2409-001223 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(2.
2409-001191 C-ORGANIC,SMD;47UF,20%,20V,TP,7343(1.9T)
BN39-01154W BN39-01154W CBF SIGNAL;COMPONENT GENDER / UD8000,2P,
BN39-01154H BN39-01154H CBF SIGNAL;UE40B7000WWXXC,3P RCA,30AWG,1
3701-001724 CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI
3708-002656 CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU
3708-002909 CONNECTOR-FPC/FFC/PIC;82P,0.5MM,SMD-S,AU
3701-001736 3701-001736 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A
3711-007571 CONNECTOR-HEADER;BOX,18P,2R,2.0MM,ANGLE,
3707-001104 CONNECTOR-OPTICAL;SMD-A(ULTRA SLIM),SPDI
BN63-07807A COVER-BOTTOM;UD5000 37,HIPS,V0,BK0020
2801-004775 CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP
2801-003948 CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH
2801-004021 CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
2801-004774 CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP
2801-004734 CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12
2801-004629 CRYSTAL-SMD;27MHZ,20PPM,12PF,50OHM,TP
0404-001314 DIODE-SCHOTTKY;B260A,60V,2000MA,SMA,TP
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251
0406-001445 DIODE-TVS;RCLAMP7512N,2.7/2.8/2.9,300W,S
0406-001438 DIODE-TVS;SMCJ14A,15.6/-/17.2V,1500W,DO-
0505-002386 FET-SILICON;AO3415AL,P,-20V,-4A,0.045OHM
0505-002598 FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O
0505-002480 FET-SILICON;FDC6331L,N/P,8V,-2.8A,0.1/4O
0505-002485 FET-SILICON;FDC658AP,P,-30V,-4A,0.075OHM
0505-002826 FET-SILICON;ZXMN6A07F,N,60V,1A,0.4OHM,0.
0505-002790 FET-SILICON;ZXMP6A17G,P,-60V,-4.3A,0.190
2901-001506 FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP
3601-001038 FUSE-SURFACE MOUNT;125V,3A,FAST-ACTING,C
3711-007742 3711-007742 HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG
3711-005509 HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S
3711-007319 HEADER-BOARD TO CABLE;SMD,4P,1R,2.50MM,S
AA61-20285C HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G
BN61-06644A HOLDER-PCB;LC750,NYNOL66,V0
BN61-05491A BN61-05491A HOLDER-WIRE STAND;UB7000 46INCH,NYRON
BN13-00045A IC ASIC;LQFC031T1C-Q2,S128C,128,1.2,0TO+
1001-001686 IC-ANALOG MULTIPLEX;74LV4052,CMOS,TTSOP,
1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM
1205-004095 IC-CODEC;AK4686EQ,LQFP,48P,9.0X9.0X1.7MM
1203-006619 IC-DC/DC CONVERTER;AOZ1033AI,SO-8,8P,4.9
1203-006538 IC-DC/DC CONVERTER;SM4109,QFN,72P,10X10M
1203-005988 IC-DC/DC CONVERTER;TPS54620RGY,QFN,14Q,3
1105-002194 IC-DDR3 SDRAM;K4B1G1646G-BCH9,DDR3 SDRAM
1105-002161 IC-DDR3 SDRAM;K4B2G1646C-HCH9,1333 DDR3
1204-003217 IC-DECODER;SDP1001,FCBGA,937P,35X35MM,PL
1006-001509 IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20
1103-001254 IC-EEPROM;24C02,2KBIT,256X8,TSSOP,8P,4.4
1103-001195 IC-EEPROM;24C64,64KBIT,8KX8,SOP,5X4MM,2.
1103-001500 IC-EEPROM;AT24C02C-SSHM-T,2KBIT,256X8,SO
1103-001506 IC-EEPROM;M24512-RMN6TP,512KBIT,64KX8,SO
1205-003834 1205-003834 IC-ETHERNET CONTROLLER;RTL8201E-VC-GRT,Q
0903-001718 IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4
1107-001983 IC-NAND FLASH
1201-002980 IC-OP AMP;MAX9650ATA+,TDFN-EP,TP,8P,3*3M
1203-005644 IC-POSI.ADJUST REG.;LD39150PT-R,PPAK,5P,
1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T
1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T
1203-003121 IC-POSI.FIXED REG.;FAN1112,SOT-223,3P,6.
1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8
1203-006141 IC-POSI.FIXED REG.;S-1172B33-U5T1G,SOT-8
1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2
1201-003158 1201-003158 IC-POWER AMP;TAS5725,PQFP,48P,7X7MM,DUAL
1205-004155 IC-SWITCH;AOZ1360AIL,SO-8,8P,4.9X3.9MM,P
1205-003735 IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM,
1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9
1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9X1.6
0904-002631 IC-USC;QFN,28P,5.0MM X 5.0MM,12MHZ,TP,PL
1204-003101 IC-VIDEO PROCESS;SDP94,PBGA,345P,19X19MM
1001-001683 IC-VIDEO SWITCH;SII9489ACTUC,QFP,128P,14
1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9
1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
1203-006526 IC-VOL. GENERATOR;ISL24835IRZ-T13,QFN,48
2703-003713 INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-000158 INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45,
2703-003867 INDUCTOR-SMD;22UH,20%,4040,1.8T,0.29OHM,
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-003930 INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245
2703-003803 INDUCTOR-SMD;4.7UH,20%,6060,0.031OHM,270
2703-003790 INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450
3722-003199 JACK-MODULAR;8P/8C,ANGLE,AU,1P
3722-003158 3722-003158 JACK-PHONE;1/6P,NI,BLK,ANGLE
3722-003208 JACK-PHONE;1P/7C,P-BRONZE,YEL,SMD-A(DIP)
3722-003207 JACK-PHONE;2P/9C,AU,LIMEGRN,SMD-A(DIP)
3722-003044 JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE

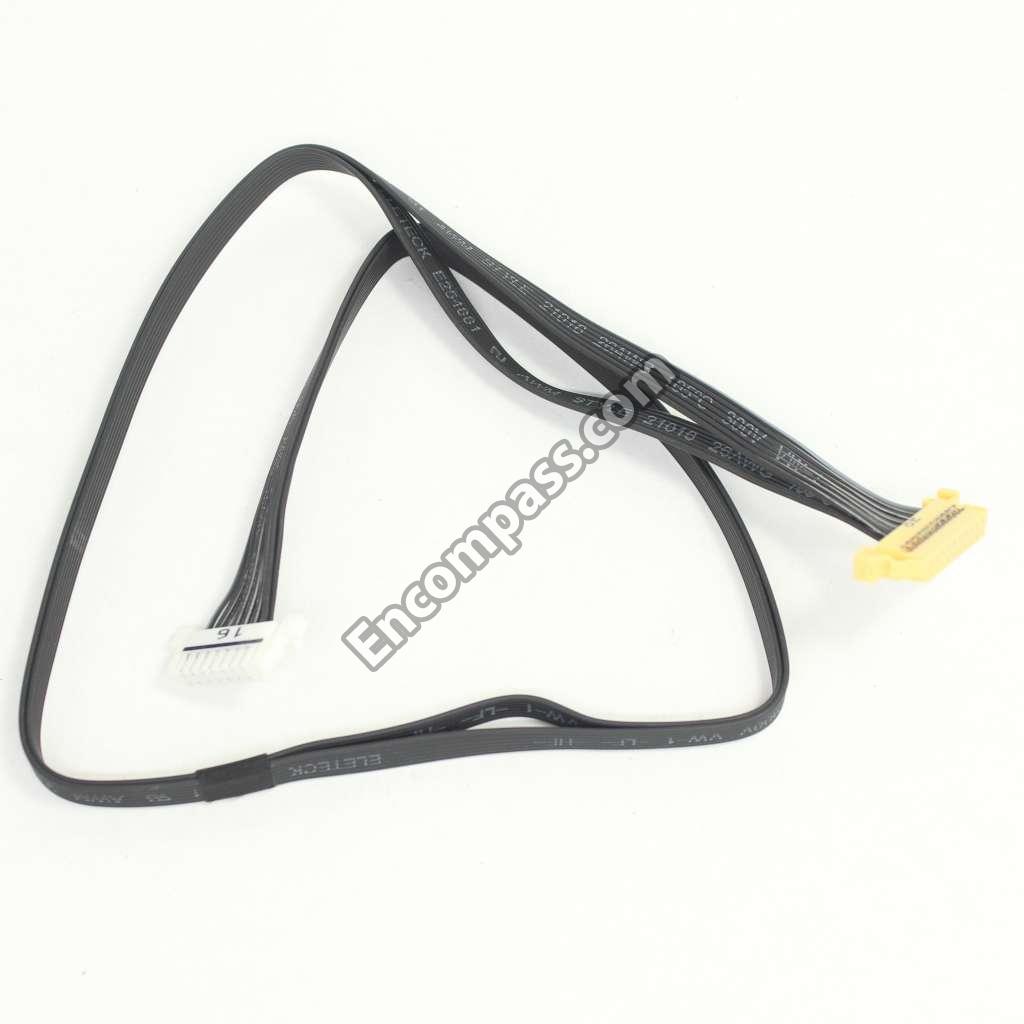

BN39-01473D BN39-01473D LEAD CONNECTOR;UN55C6000,FLAT CONNECTOR

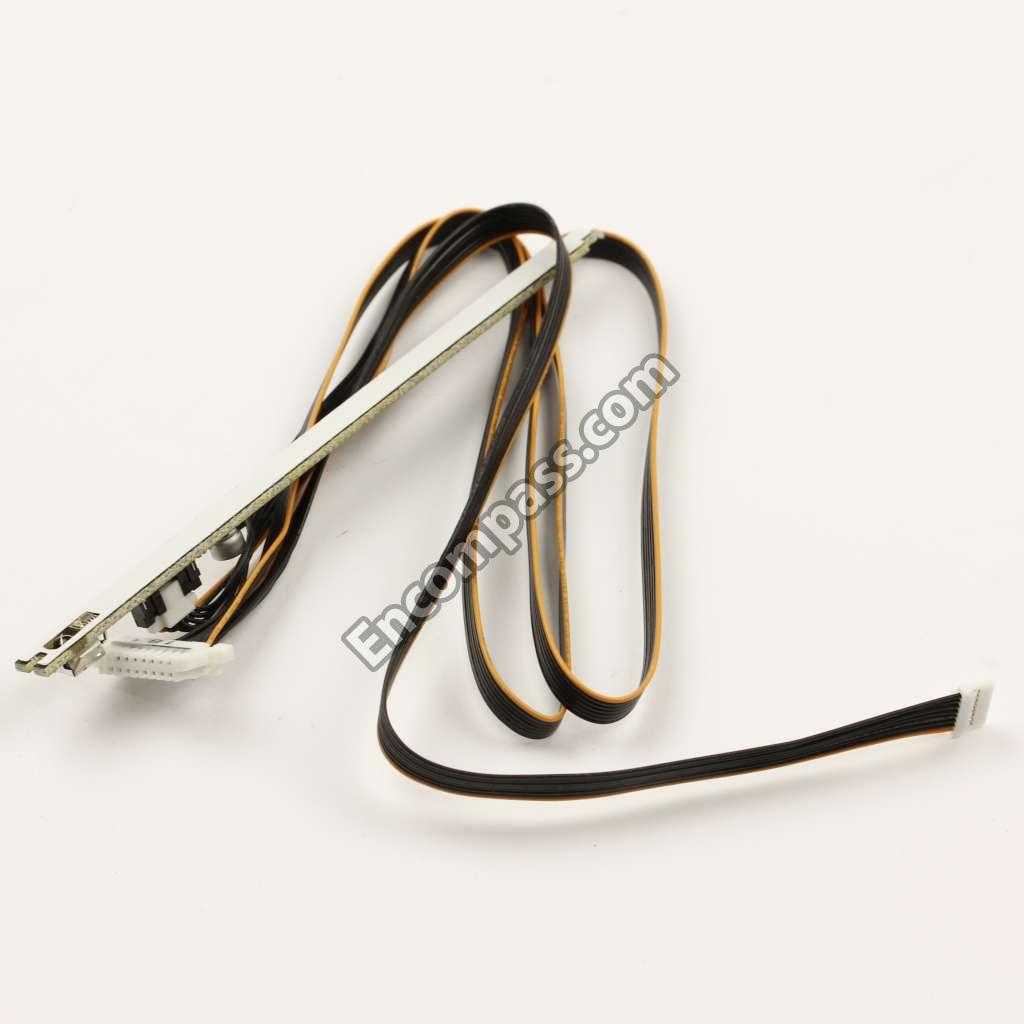

CALL_1-800-SAMSUNG LEFT LED BAR
BN96-18130D BN96-18130D LVDS CABLE

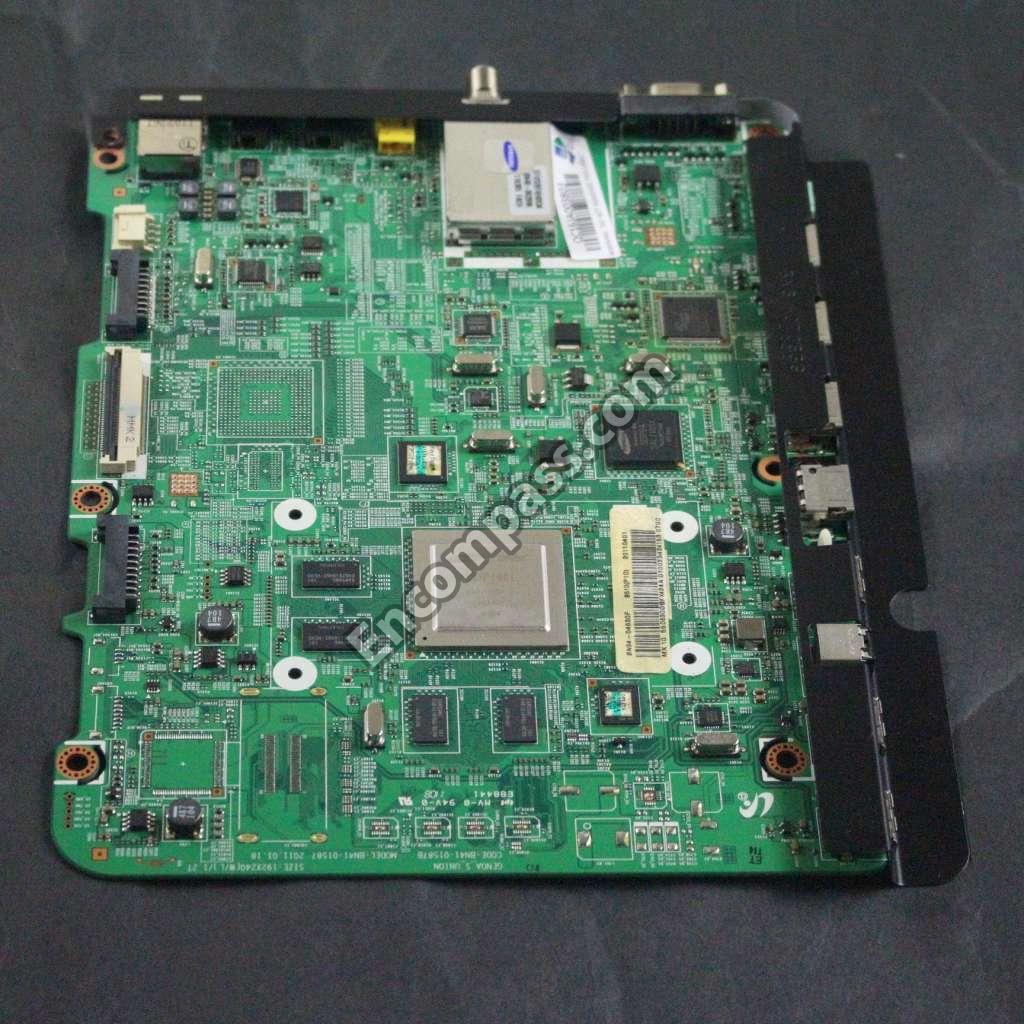

BN94-04630F BN94-04630F MAIN BOARD PCB

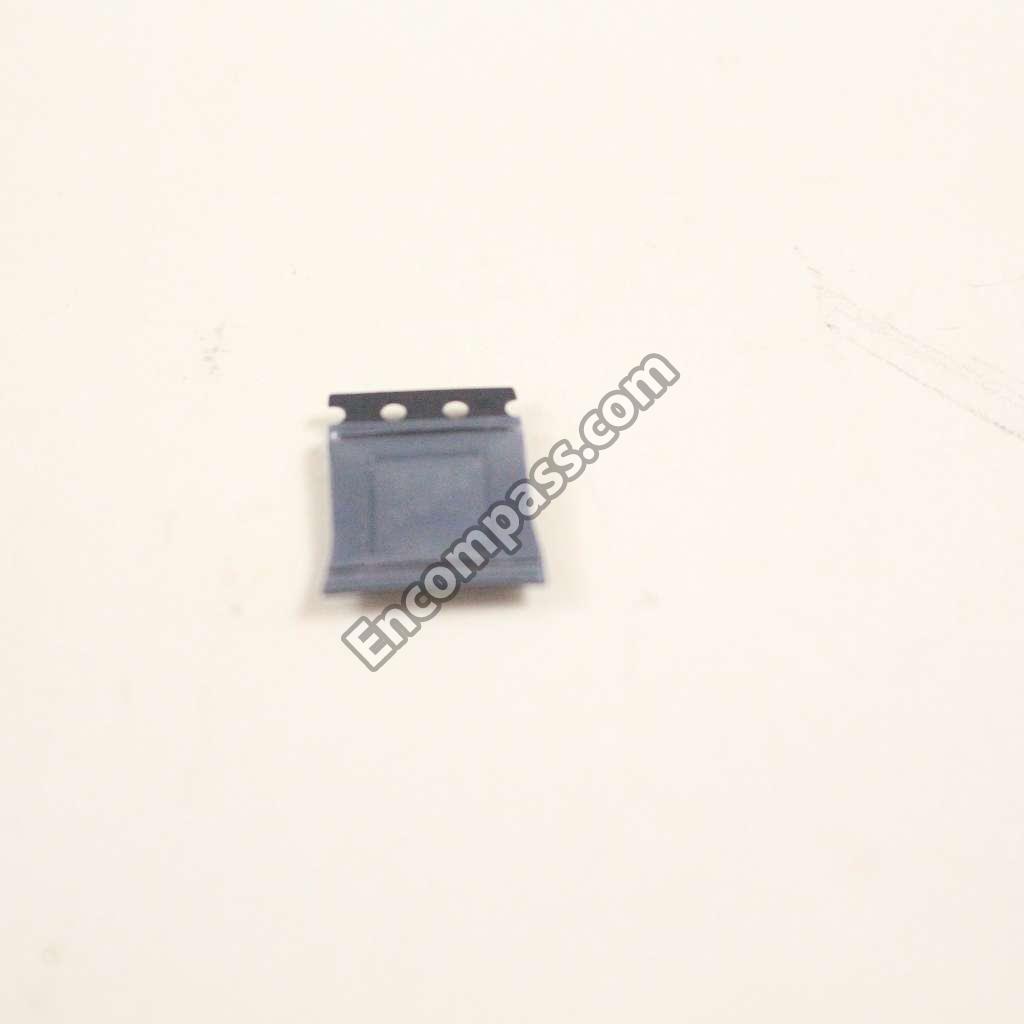

BN73-00211C PAD GAP;UN32D6500,PAD GAP,4.5 MM,35MM*35
3903-000598 3903-000598 POWER CORD

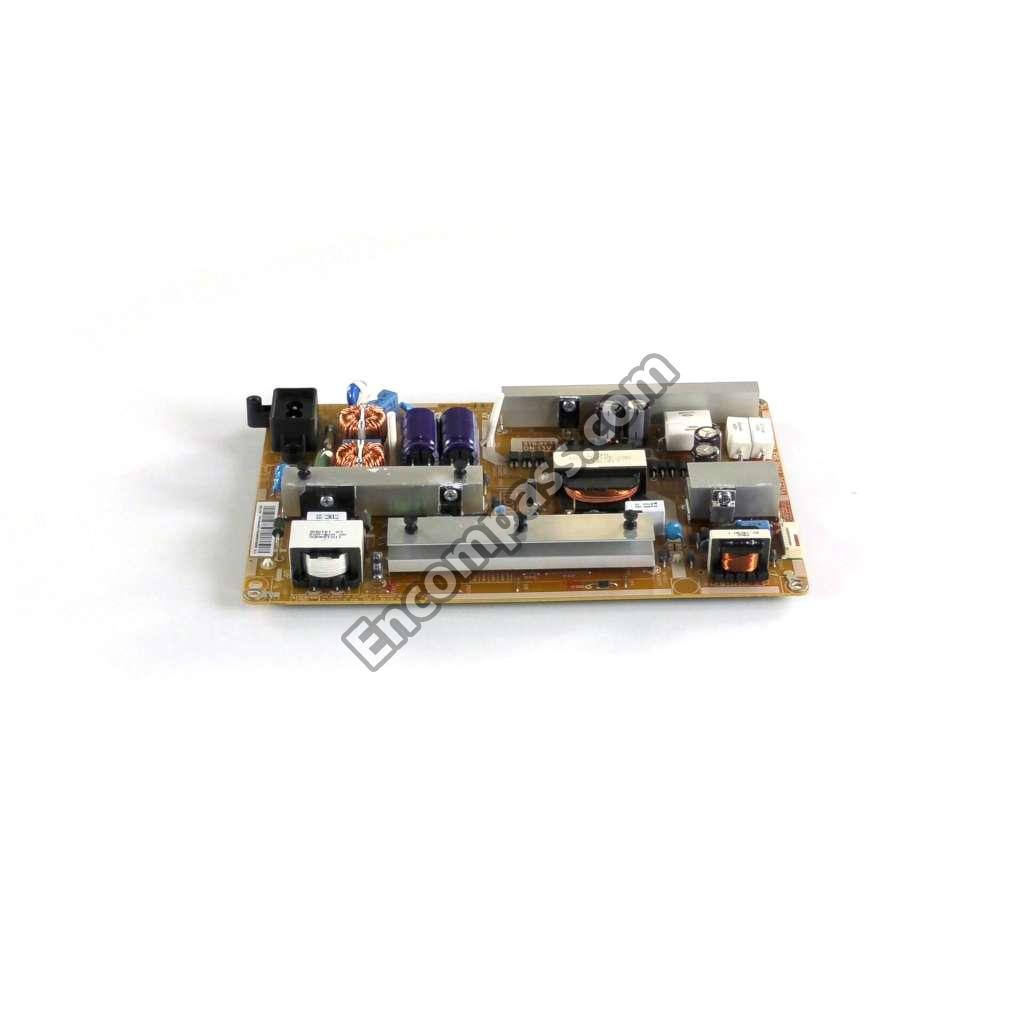

BN44-00424A BN44-00424A POWER SUPPLY PCB
2007-000219 R-CHIP;1.2KOHM,1%,1/10W,TP,1608
2007-000231 R-CHIP;1.3KOHM,1%,1/10W,TP,1608
2007-009853 R-CHIP;1.6KOHM,1%,1/16W,TP,1005
2007-000265 R-CHIP;1.8KOHM,1%,1/10W,TP,1608
2007-000060 R-CHIP;100KOHM,1%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002900 R-CHIP;11KOHM,1%,1/10W,TP,1608
2007-001433 R-CHIP;12KOHM,1%,1/10W,TP,1608
2007-007768 R-CHIP;13KOHM,1%,1/10W,TP,1608
2007-000067 R-CHIP;15KOHM,1%,1/10W,TP,1608
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-000483 R-CHIP;1OHM,5%,1/8W,TP,2012
2007-007617 R-CHIP;2.49KOHM,1%,1/10W,TP,1608
2007-000509 R-CHIP;2.4KOHM,1%,1/10W,TP,1608
2007-000516 R-CHIP;2.7KOHM,1%,1/10W,TP,1608
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-008649 R-CHIP;220OHM,1%,1/16W,TP,1005
2007-000606 R-CHIP;240OHM,1%,1/10W,TP,1608
2007-000651 R-CHIP;27KOHM,1%,1/10W,TP,1608
2007-000669 R-CHIP;2KOHM,1%,1/10W,TP,1608
2007-000701 R-CHIP;3.6KOHM,1%,1/10W,TP,1608
2007-000708 R-CHIP;3.9KOHM,1%,1/10W,TP,1608
2007-000736 R-CHIP;30KOHM,1%,1/10W,TP,1608
2007-000821 R-CHIP;390OHM,1%,1/10W,TP,1608
2007-000828 R-CHIP;39KOHM,1%,1/10W,TP,1608
2007-000842 R-CHIP;3KOHM,1%,1/10W,TP,1608
2007-000869 R-CHIP;4.7KOHM,1%,1/10W,TP,1608
2007-000910 R-CHIP;43KOHM,1%,1/10W,TP,1608
2007-007797 R-CHIP;44.2OHM,1%,1/10W,TP,1608
2007-000939 R-CHIP;47KOHM,1%,1/10W,TP,1608
2007-000962 R-CHIP;5.1KOHM,1%,1/10W,TP,1608
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-001007 R-CHIP;51KOHM,1%,1/10W,TP,1608
2007-002768 R-CHIP;6.2KOHM,1%,1/10W,TP,1608
2007-008391 R-CHIP;6.34KOHM,1%,1/16W,TP,1005
2007-001116 R-CHIP;680OHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005
2007-001168 R-CHIP;75OHM,5%,1/4W,TP,3216
2007-001199 R-CHIP;820OHM,1%,1/10W,TP,1608
2007-001237 R-CHIP;910OHM,1%,1/10W,TP,1608
2011-001589 R-NETWORK;0OHM,5%,1/16W,L,CHIP-V,4P,TP,1
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1.
2011-001261 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,
2011-001396 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP,
2011-001497 R-NETWORK;470OHM,5%,1/16W,L,CHIP,4P,TP,1
AA59-00443A AA59-00443A REMOTE CONTROL
BN96-17107A BN96-17107A RF & BLUETOOTH MODULE

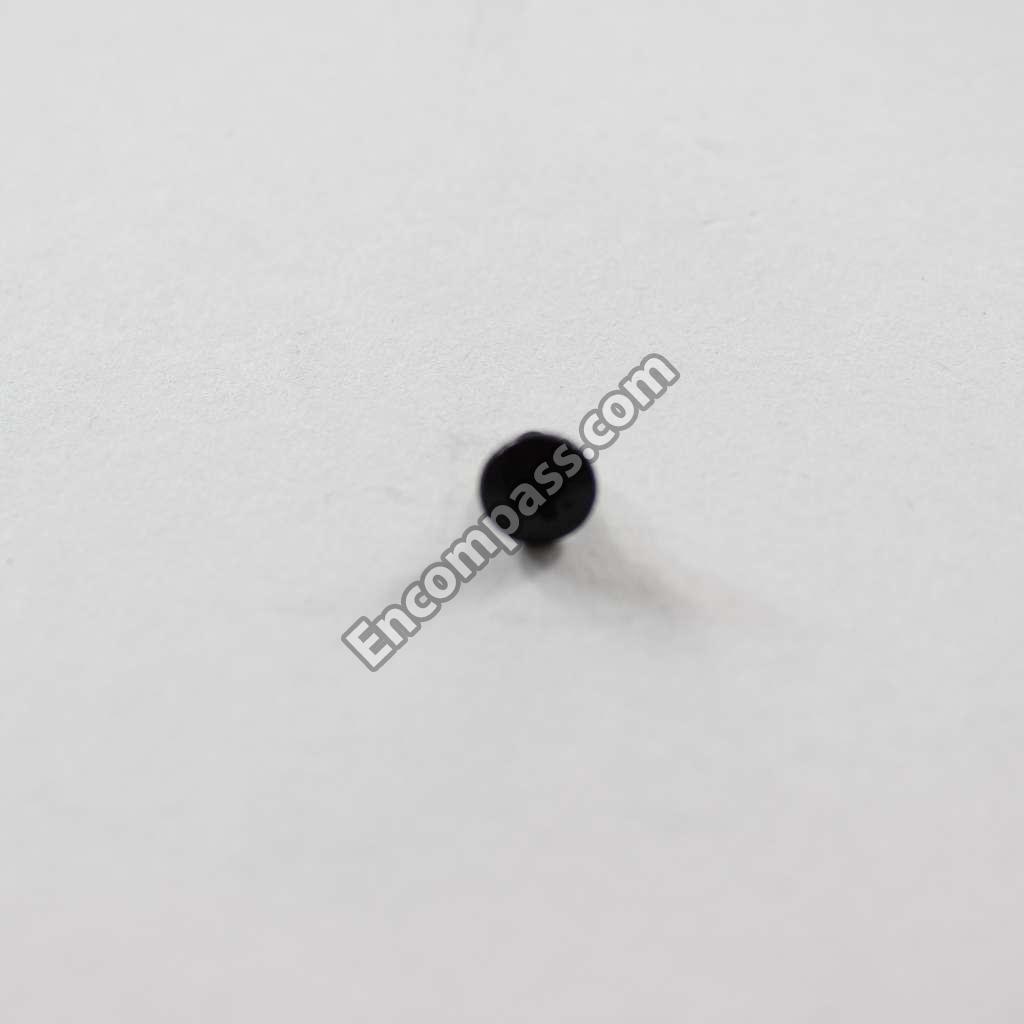

6001-002671 6001-002671 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1

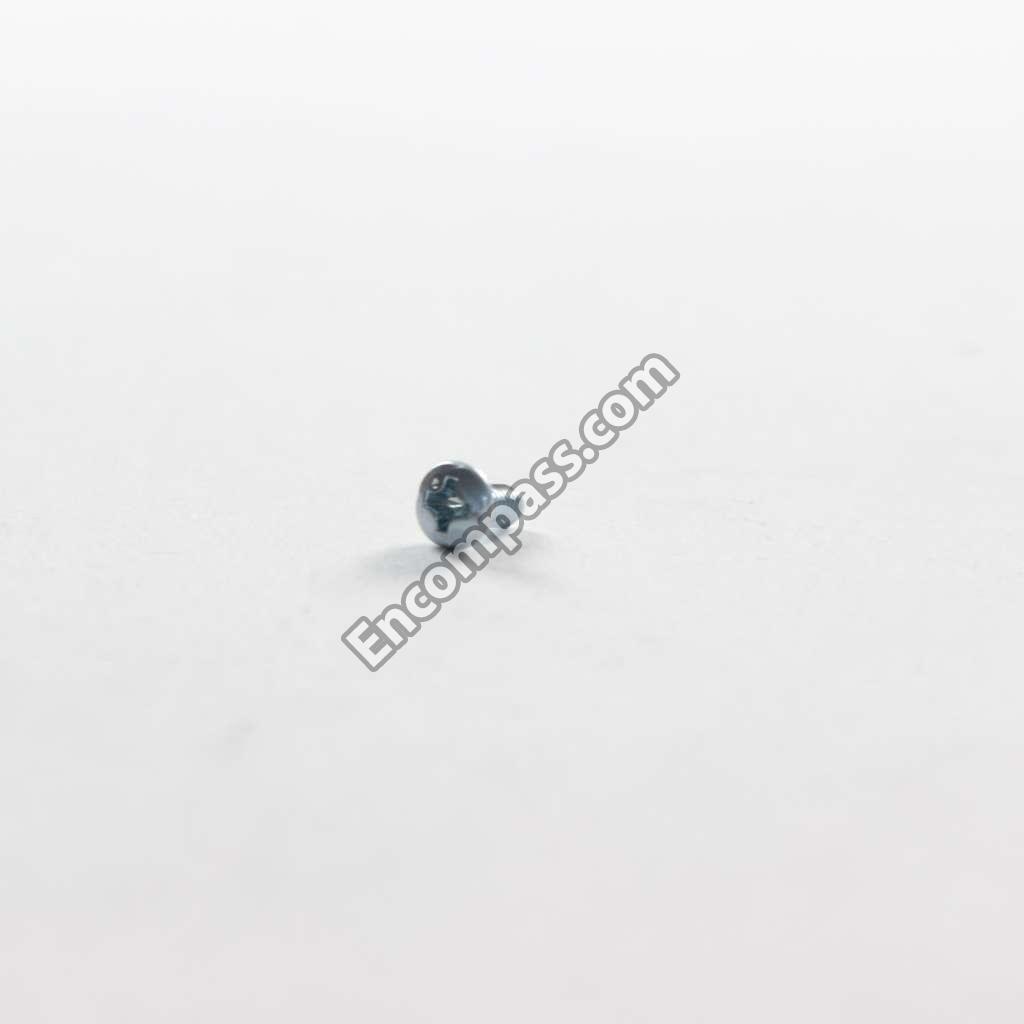

6001-002653 6001-002653 SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1
6001-002621 6001-002621 SCREW-MACHINE;BH,+,M4,L8,ZPC(BLK),SWRCH1
6001-002673 6001-002673 SCREW-MACHINE;CH,+,M3,L4,NI PLT,SWRCH18A
6001-002672 SCREW-MACHINE;FH,+,M1.7,L4,NI PLT,SWRCH1
6003-001782 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR
6003-001807 6003-001807 SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH

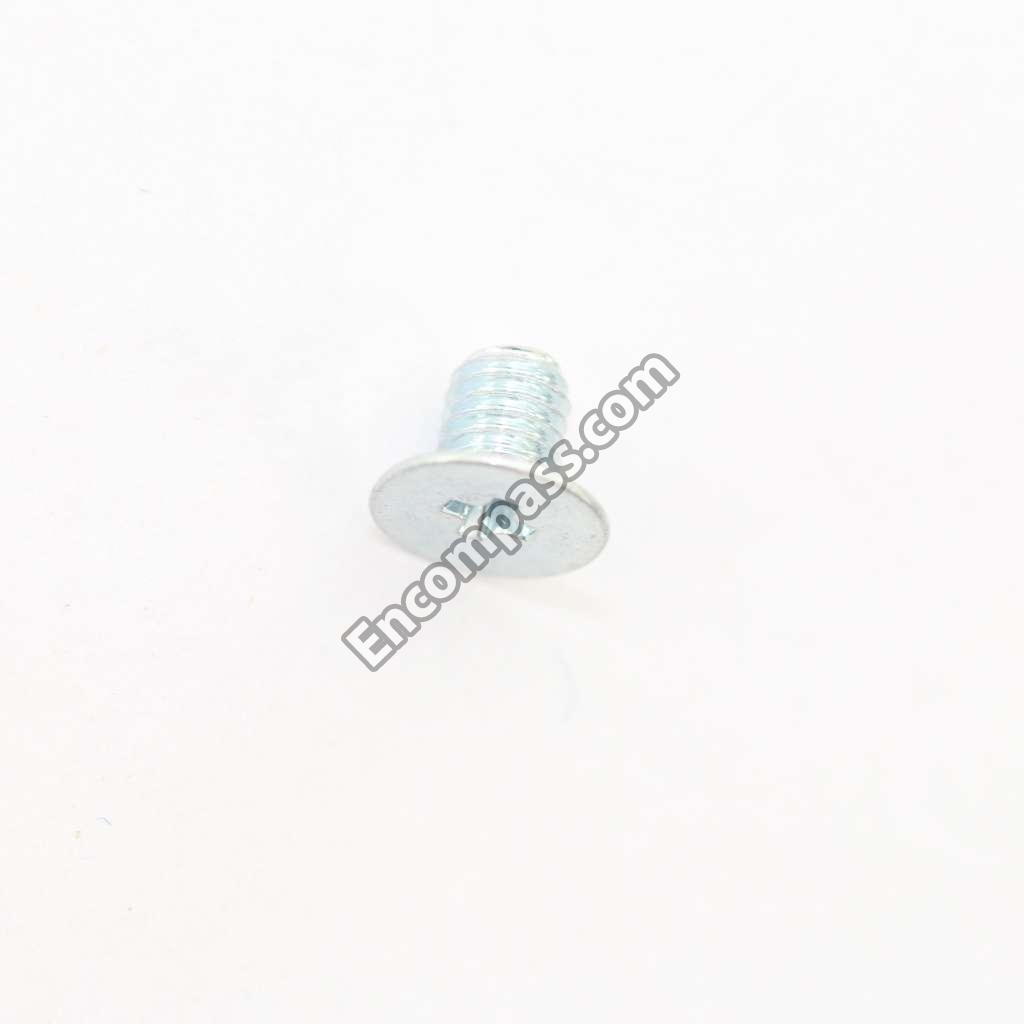

6003-001374 6003-001374 SCREW-TAPTYPE;FH,+,B,M4,L12,NI PLT,SWRCH
BN96-16847A BN96-16847A STAND BASE
BN96-18195A BN96-18195A STAND NECK
BN96-16722F BN96-16722F STAND SUPPORT

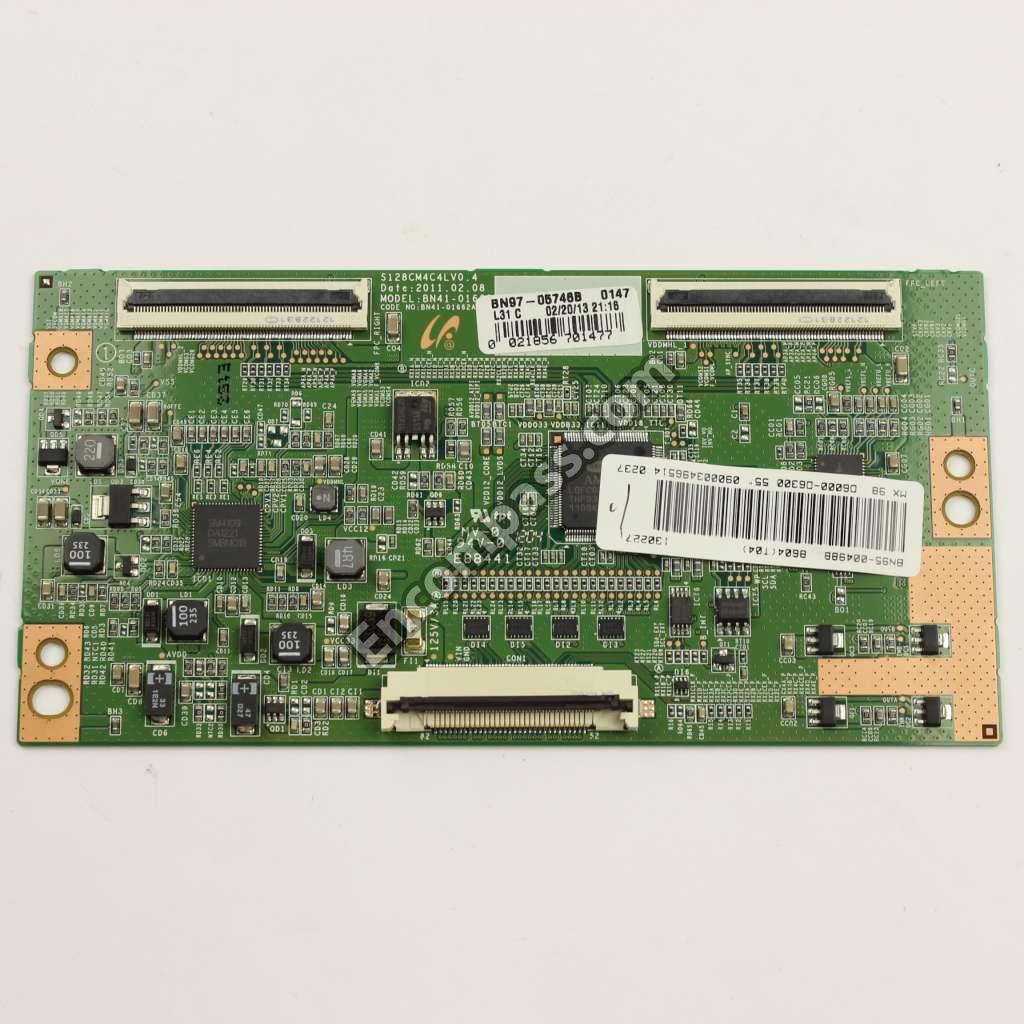

BN95-00498B BN95-00498B T-CON PCB
BN02-00043A TAPE ETC-SHEET;NNB 32/40/46/55,3M 3357 F
BN96-16729T BN96-16729T TOUCH FUNCTION & IR RECEIVER PCB
0502-001345 TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900
0502-001346 TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/
0502-001331 TR-POWER;NSS30100LT1G,PNP,310MW,SOT-23,T
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
BN40-00208A BN40-00208A TUNER;DTVS20FVH083A,DTVS20FVH083A,VSB HA
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1
