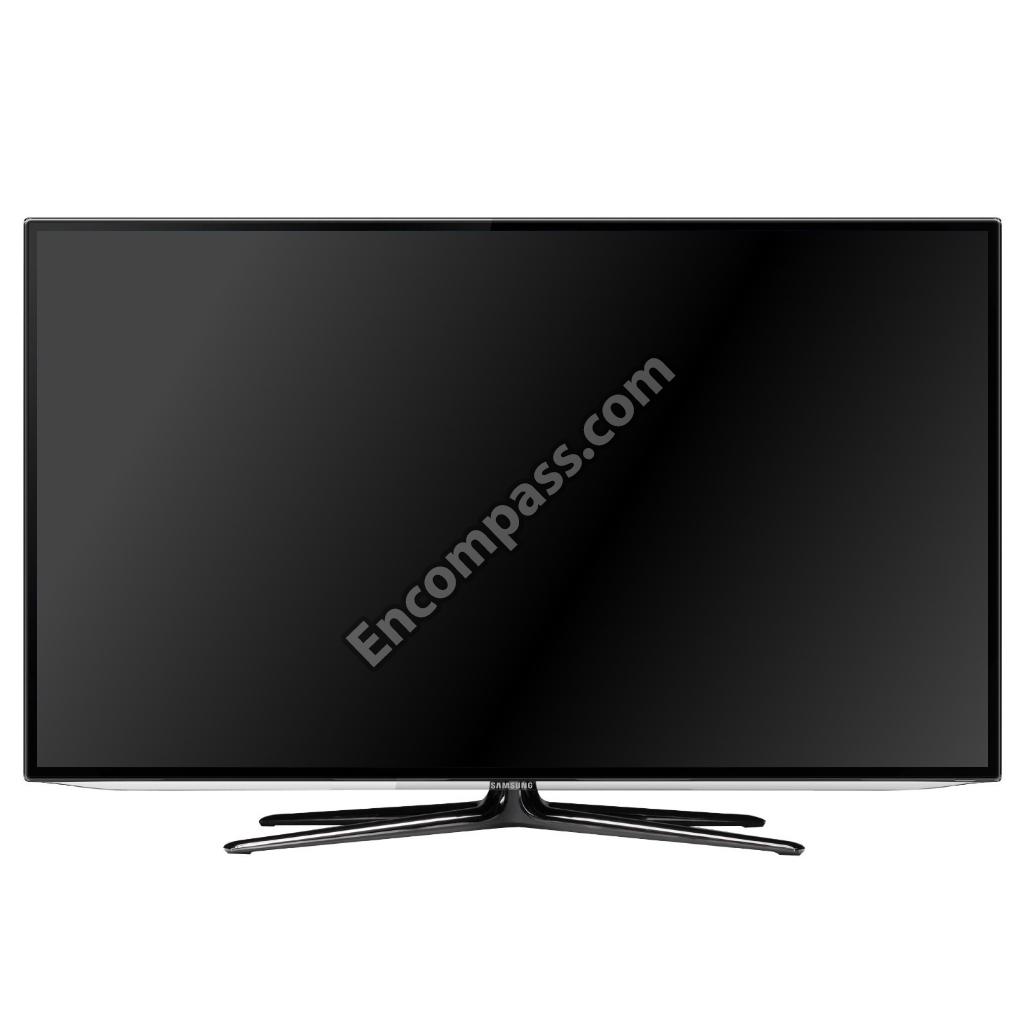

Model Image
Manufacturer

Samsung

Model Number

UN55ES6003FXZA

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description

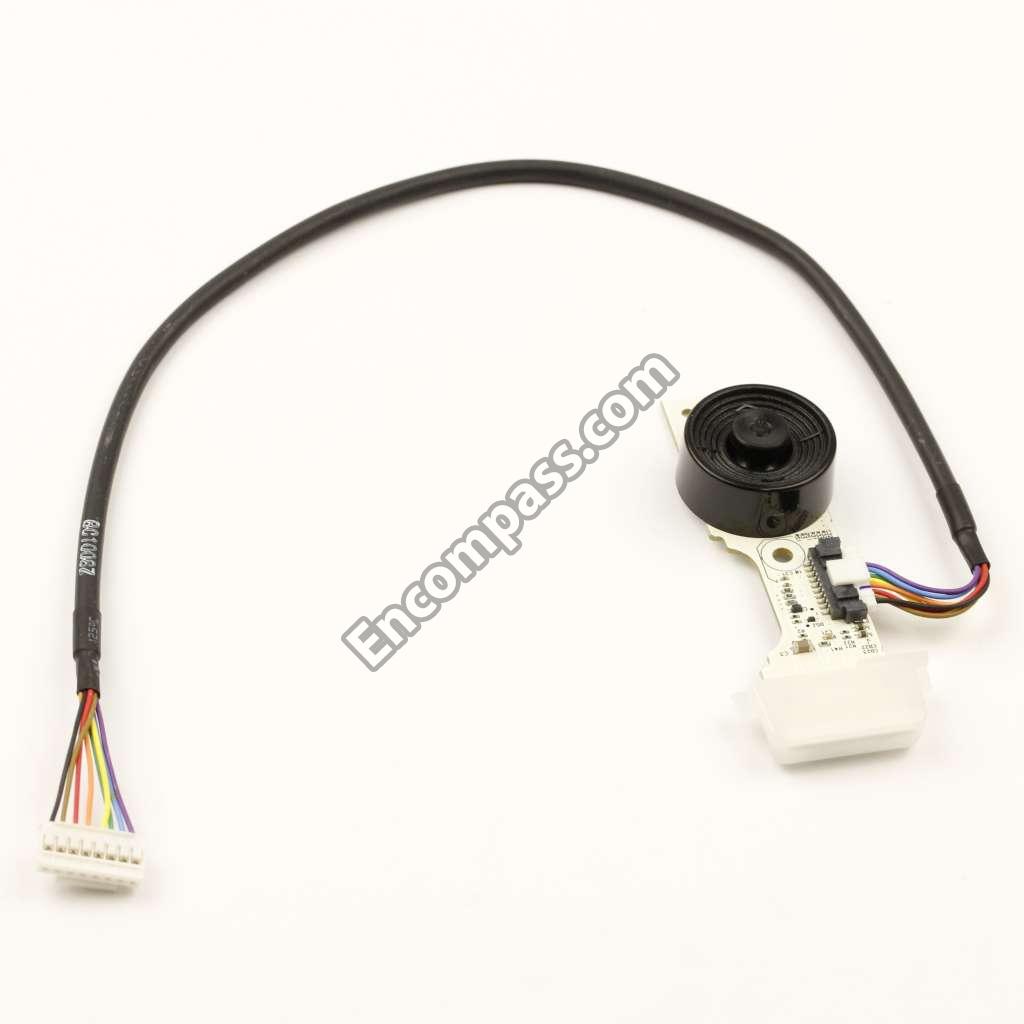

BN96-24723B BN96-24723B ASSY BOARD P-5WAY SWITCH FUNCTION;UN46ES
BN96-16858A ASSY BRACKET P-STAND LINK;UD7000 40/46/5

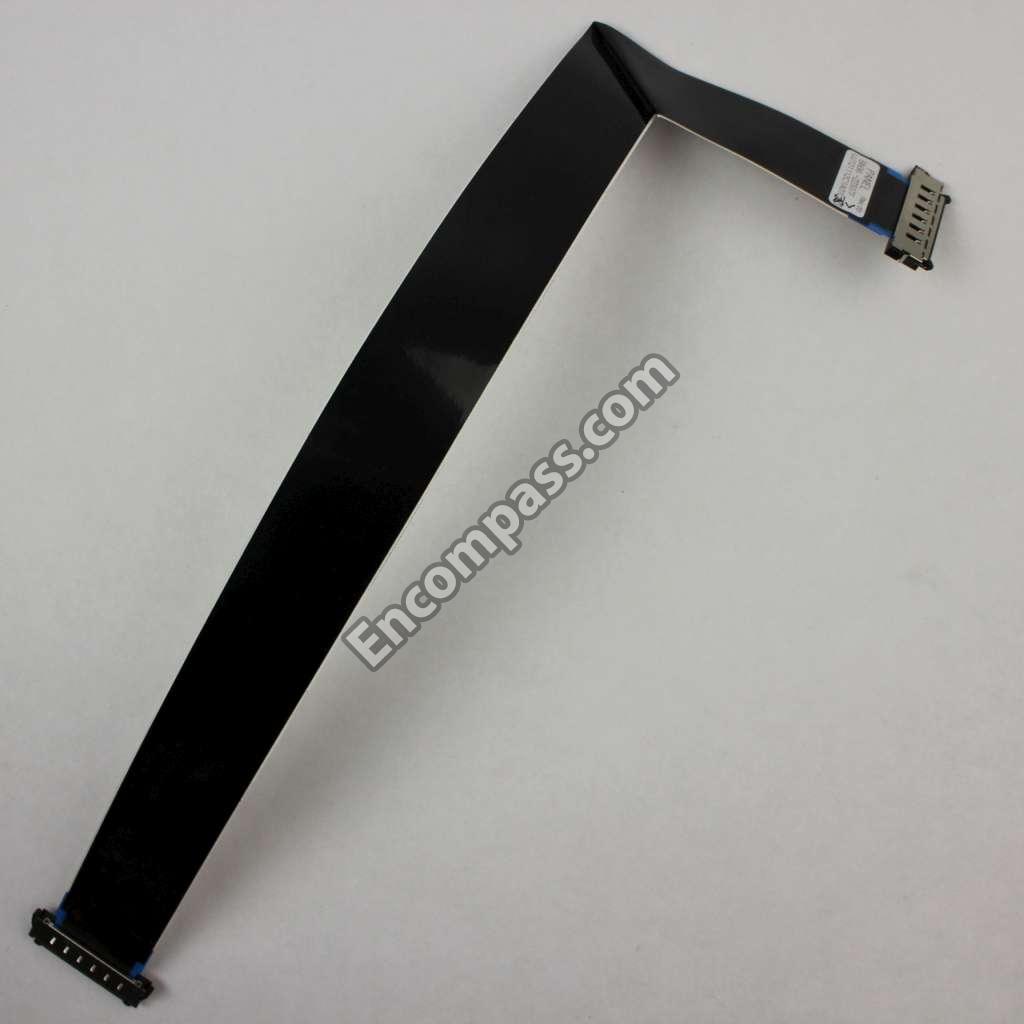

BN96-22337F BN96-22337F ASSY CABLE P-FFC;UN55ES6003FXZA,FFC,432M
BN96-21903H ASSY COVER P-MIDDLE;UE6003 55,MABS(RED G
BN96-22390R ASSY COVER P-REAR;UE5500 55,PCM T0.4,BKN
BN96-18153A BN96-18153A ASSY HOLDER P-RING;11 LED-TV
BN94-06126C ASSY PCB MAIN;UN55ES6003FXZA
BN96-21667C BN96-21667C ASSY SPEAKER P;6OHM,4PIN,10W,ENCLOSURE T
BN96-16721R BN96-16721R ASSY STAND P-BASE;UE6500 46,QUAD,HIPS,HB
BN96-16722R BN96-16722R ASSY STAND P-GUIDE;UE6100-7000 55,SAMEX,

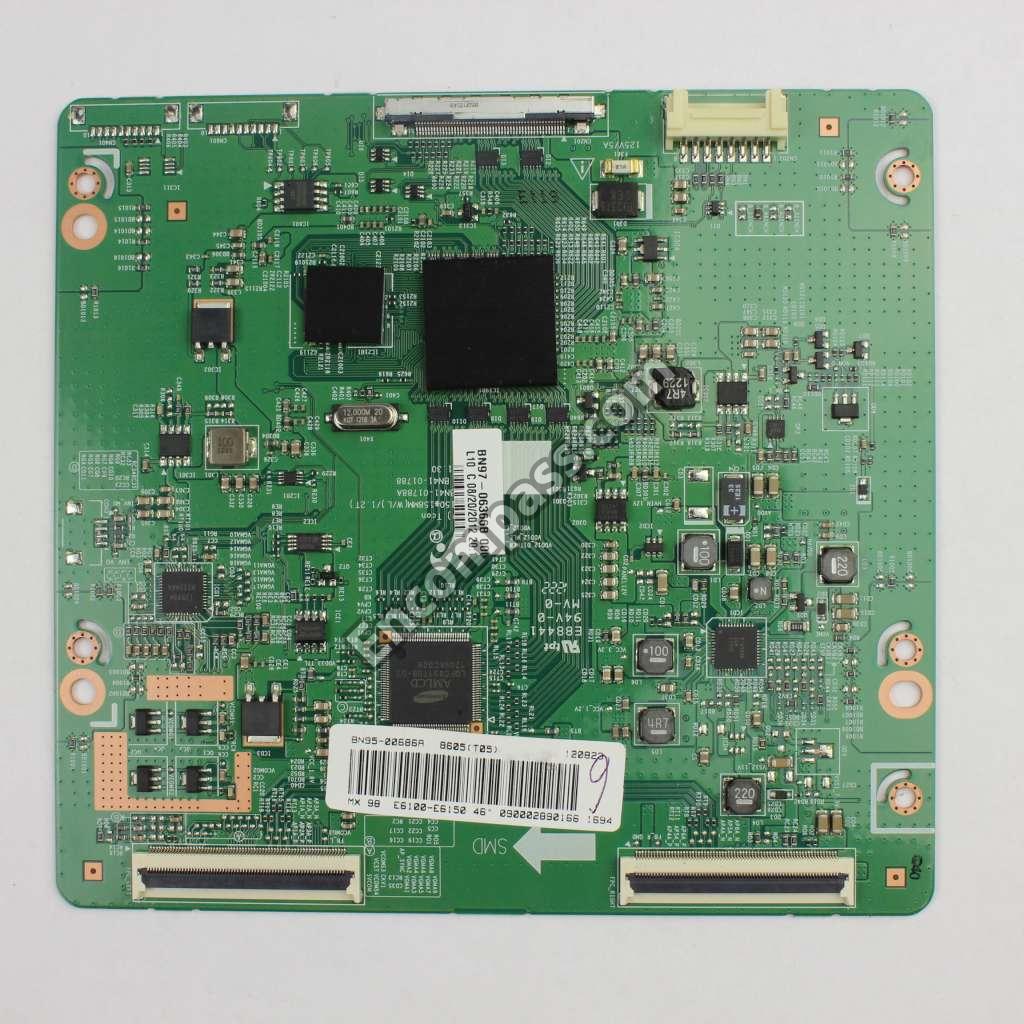

BN95-00687A BN95-00687A ASSY T CON;E6SERIES EDGE 2D ,55
6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE
3301-001864 BEAD-SMD;100OHM,1608,TP,55OHM/29MHZ,145O
3301-000314 BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP
2203-000998 C-CER,CHIP;0.047NF,5%,50V,C0G,TP,1608
2203-001697 C-CER,CHIP;0.082NF,5%,50V,NP0,TP,1608
2203-000783 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007176 C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1
2203-007423 C-CER,CHIP;10000NF,10%,35V,X7R,TP,3216
2203-007193 C-CER,CHIP;10000NF,10%,6.3V,X7R,TP,2012
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0.
2203-006960 C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012
2203-005918 C-CER,CHIP;1000NF,10%,6.3V,X7R,TP,1608
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000491 C-CER,CHIP;2.2NF,10%,50V,X7R,TP,1608
2203-006320 C-CER,CHIP;2200NF,10%,16V,X7R,TP,2012
2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T
2203-002398 C-CER,CHIP;22NF,10%,50V,X7R,TP,1608
2203-007424 C-CER,CHIP;4700NF,10%,50V,X7R,TP,3216
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005
2203-002050 C-CER,CHIP;47NF,10%,50V,X7R,TP,1608
2503-001051 C-NETWORK;100NFX4,20%,16V,2012
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1.
3903-000599 3903-000599 CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,5A,
3708-002656 CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU
3701-001762 3701-001762 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU
3711-007569 CONNECTOR-HEADER;BOX,14P,2R,2.0MM,DIP,SN
3711-007585 CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE-D
3707-001106 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF
2801-003773 CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH
2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
BN44-00503A BN44-00503A DC VSS-LED TV PD BD;PD55A1_CSM,PSLF121B0
0404-001314 DIODE-SCHOTTKY;B260A,60V,2000MA,SMA,TP
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0407-000114 DIODE-SWITCHING;KDS184,80V,100MA,SOT-23,
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0401-001192 DIODE-SWITCHING;MMBD7000LT1,100V,200MA,S
0406-001445 DIODE-TVS;RCLAMP7512N,2.7/2.8/2.9,300W,S
0406-001438 DIODE-TVS;SMCJ14A,15.6/-/17.2V,1500W,DO-
0403-001785 DIODE-ZENER;NZH5V1B,4.94/5.2V,500MW,SOD-
0505-002485 FET-SILICON;FDC658AP,P,-30V,-4A,0.075OHM
0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,-30V,-11.
0505-002826 FET-SILICON;ZXMN6A07F,N,60V,1A,0.4OHM,0.
3809-002786 3809-002786 FFC CABLE-FLAT;90V,105C,57MM,66P,0.5MM,U
3601-001386 FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C
BN96-16722F BN96-16722F GUIDE-STAND;UD5000 37,PC+G/F 20%,V2,BK00
3711-005925 HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S
3711-007582 HEADER-BOARD TO CABLE;BOX,8P,1R,2.0MM,AN
3711-005601 HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD-
AA61-20285C HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G
BN61-05491A BN61-05491A HOLDER-WIRE STAND;UB7000 46INCH,NYRON
0801-003292 IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P
1203-007080 IC-DC/DC CONVERTER;AOZ1051PI,SO-8,8P,4.9
1203-006710 IC-DC/DC CONVERTER;RT8016L-GQW,WQFN,8P,1
1105-002264 IC-DDR2 SDRAM;K4T51163QJ-BCF8,DDR2,512MB
1105-002227 IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM
1204-003313 IC-DECODER;SEMS23,LFBGA,568P,20.2X20.2MM
1006-001509 IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20
1103-001254 IC-EEPROM;24C02,2KBIT,256X8,TSSOP,8P,4.4
1103-001195 IC-EEPROM;24C64,64KBIT,8KX8,SOP,5X4MM,2.
1103-001310 1103-001310 IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2.
1103-001448 IC-EEPROM;M24M01-HRMN6TP,1MBIT,256X8,SOP
1107-002101 IC-NOR FLASH;W25Q128BVFIG,128MBIT,128MX1
1201-003130 IC-OP AMP;IML2811SEC,TDFN-EP,TP,8P,3X3MM
1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2
1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T
1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T
1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8
1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2
1201-003333 IC-POWER AMP;NTP-7412S,MLF,48P,7X7MM,DUA
1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9X1.6
1204-003304 IC-VIDEO PROCESS;SENK81,TFBGA,243Z30,15X
1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9
1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003488 INDUCTOR-SMD;10UH,20%,6965,0.071OHM,3500
2703-002238 INDUCTOR-SMD;1UH,5%,2012,2.38OHM,23,WIRE
2703-003867 INDUCTOR-SMD;22UH,20%,4040,1.8T,0.29OHM,
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-003930 INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245
2703-003803 INDUCTOR-SMD;4.7UH,20%,6060,0.031OHM,270
3722-003226 JACK-PHONE;7P/1C,SN,BLK
3722-003213 JACK-PIN;J/B 5P + SCREW HOLE,NI+SN,BLK,S
3722-003225 JACK-USB;4P/1C,AU,BLK,SMD-A(DIP),A
BN39-01455U LEAD CONNECTOR;UN55ES6003FXZA,FLAT CONNE
BN95-00829A BN95-00829A PRODUCT LCD-AMLCD;6.1K,LTJ550HJ14-V,2D,
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-008779 R-CHIP;0OHM,1%,1/16W,TP,1005
2007-000208 R-CHIP;1.1KOHM,1%,1/10W,TP,1608
2007-007463 R-CHIP;1.1KOHM,1%,1/16W,TP,1005
2007-000231 R-CHIP;1.3KOHM,1%,1/10W,TP,1608
2007-000256 R-CHIP;1.6KOHM,1%,1/10W,TP,1608
2007-000265 R-CHIP;1.8KOHM,1%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002900 R-CHIP;11KOHM,1%,1/10W,TP,1608
2007-000343 R-CHIP;120OHM,1%,1/10W,TP,1608
2007-001433 R-CHIP;12KOHM,1%,1/10W,TP,1608
2007-007352 R-CHIP;130KOHM,1%,1/10W,TP,1608
2007-000067 R-CHIP;15KOHM,1%,1/10W,TP,1608
2007-000455 R-CHIP;18KOHM,1%,1/10W,TP,1608
2007-000475 R-CHIP;1MOHM,1%,1/10W,TP,1608
2007-007942 R-CHIP;1MOHM,1%,1/16W,TP,1005
2007-002425 R-CHIP;1OHM,5%,1/10W,TP,1608
2007-000516 R-CHIP;2.7KOHM,1%,1/10W,TP,1608
2007-000536 R-CHIP;200OHM,1%,1/10W,TP,1608
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-008649 R-CHIP;220OHM,1%,1/16W,TP,1005
2007-000583 R-CHIP;22KOHM,1%,1/10W,TP,1608
2007-000614 R-CHIP;24KOHM,1%,1/10W,TP,1608
2007-000640 R-CHIP;270OHM,1%,1/10W,TP,1608
2007-000651 R-CHIP;27KOHM,1%,1/10W,TP,1608
2007-000695 R-CHIP;3.3OHM,5%,1/10W,TP,1608
2007-000772 R-CHIP;33KOHM,1%,1/10W,TP,1608
2007-002966 R-CHIP;360OHM,5%,1/16W,TP,1005
2007-000842 R-CHIP;3KOHM,1%,1/10W,TP,1608
2007-000857 R-CHIP;4.3KOHM,1%,1/10W,TP,1608
2007-000962 R-CHIP;5.1KOHM,1%,1/10W,TP,1608
2007-000999 R-CHIP;510OHM,1%,1/10W,TP,1608
2007-002768 R-CHIP;6.2KOHM,1%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP
2011-001506 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-000515 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP,
AA59-00666A AA59-00666A REMOCON;TM1240,44,3V,TM1240, 4003/5003
6001-002757 6001-002757 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1
6001-002755 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1
6001-002756 6001-002756 SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1
6001-002759 6001-002759 SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1
6002-001294 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK)
6003-000115 6003-000115 SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC
6003-001782 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR
6003-001807 6003-001807 SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH
6003-001785 6003-001785 SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC
0502-001345 TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900
0502-001346 TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/
0502-001331 TR-POWER;NSS30100LT1G,PNP,310MW,SOT-23,T
0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2

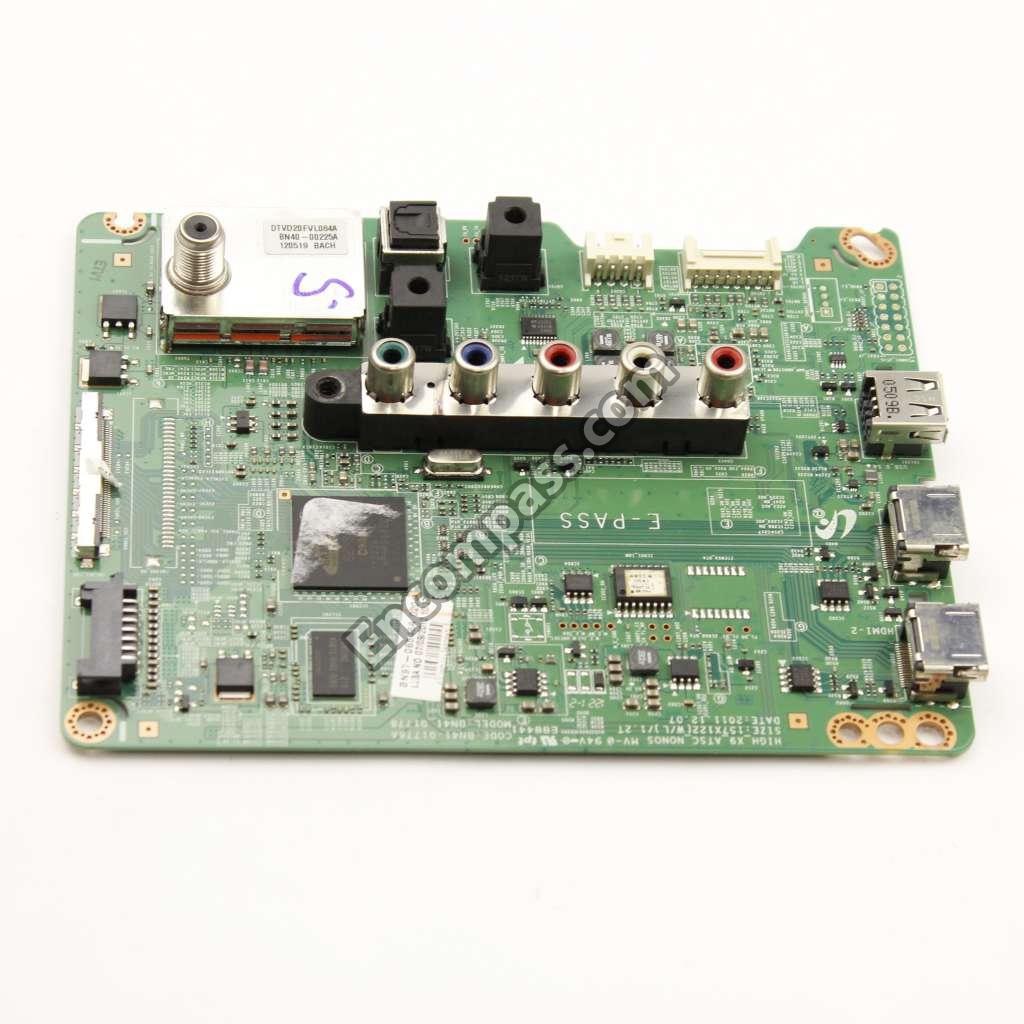

BN40-00225A BN40-00225A TUNER;DTVD20FVL084A,DTVD20FVL084A,VSBHAL
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1
