Manufacturer
Samsung
Model Number
UN55ES8000FXZA
Description
55-inch 1080p 240hz Led Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
A/S-BOARD P-CAMERA;12Y LED 7K/ 8K, PDP T |
| BN81-07133A | A/S-CAMERA & IR;12Y LED 8K,W/O BOARD P-C |
|
|
ASSY BLU P;UN46ES8000FXZA,M12-8000,BLUE |
| BN96-16858A | ASSY BRACKET P-STAND LINK;UD7000 40/46/5 |
|
|
ASSY CABLE P-FFC;UN55ES8000GXZD,FFC,0.5M |
|
|
ASSY COVER P-FRAME BOTTOM;UE8000,55,SUS3 |
| BN96-22131A | ASSY COVER P-FRAME SIDE;UE8000,55,SUS304 |
| BN96-22127A | ASSY COVER P-FRAME TOP;UE8000,55,SUS304, |
| BN96-21936A | ASSY COVER P-MIDDLE;UE8000,55,ABS+PMMA,H |
| BN96-21944A | ASSY COVER P-REAR;UE8000,55,UO,PCM T0.4, |
|
|
ASSY HOLDER P-RING;11 LED-TV |
| BN96-21527A | ASSY OPEN CELL;LSJ550HQ03-E,8BIT,55 INCH |
| BN61-07931A | BRACKET-STAND, PANEL;UE8000 55",EGI-SECC |
|
|
CAMERA MODULE |
|
|
CBF SIGNAL;UE40B7000WWXXC,3P RCA,30AWG,1 |
| 3708-002651 | CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A |
| 3711-007571 | CONNECTOR-HEADER;BOX,18P,2R,2.0MM,ANGLE, |
| 3711-007585 | CONNECTOR-HEADER;BOX,4P,1R,2.5MM,ANGLE-D |
| 3707-001104 | CONNECTOR-OPTICAL;SMD-A(ULTRA SLIM),SPDI |
| 3710-003555 | CONNECTOR-SOCKET;80P,2R,0.5MM,ANGLE,NI+S |
| BN63-09068A | COVER-CORNER;UE8000,55,ABS+PMMA,HB,BK000 |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| 2801-003954 | CRYSTAL-SMD;27MHZ,30PPM,28-AAN,16PF,50OH |
| 2801-003331 | CRYSTAL-SMD;28.6363MHZ,30PPM,HC-49,16PF, |
|
|

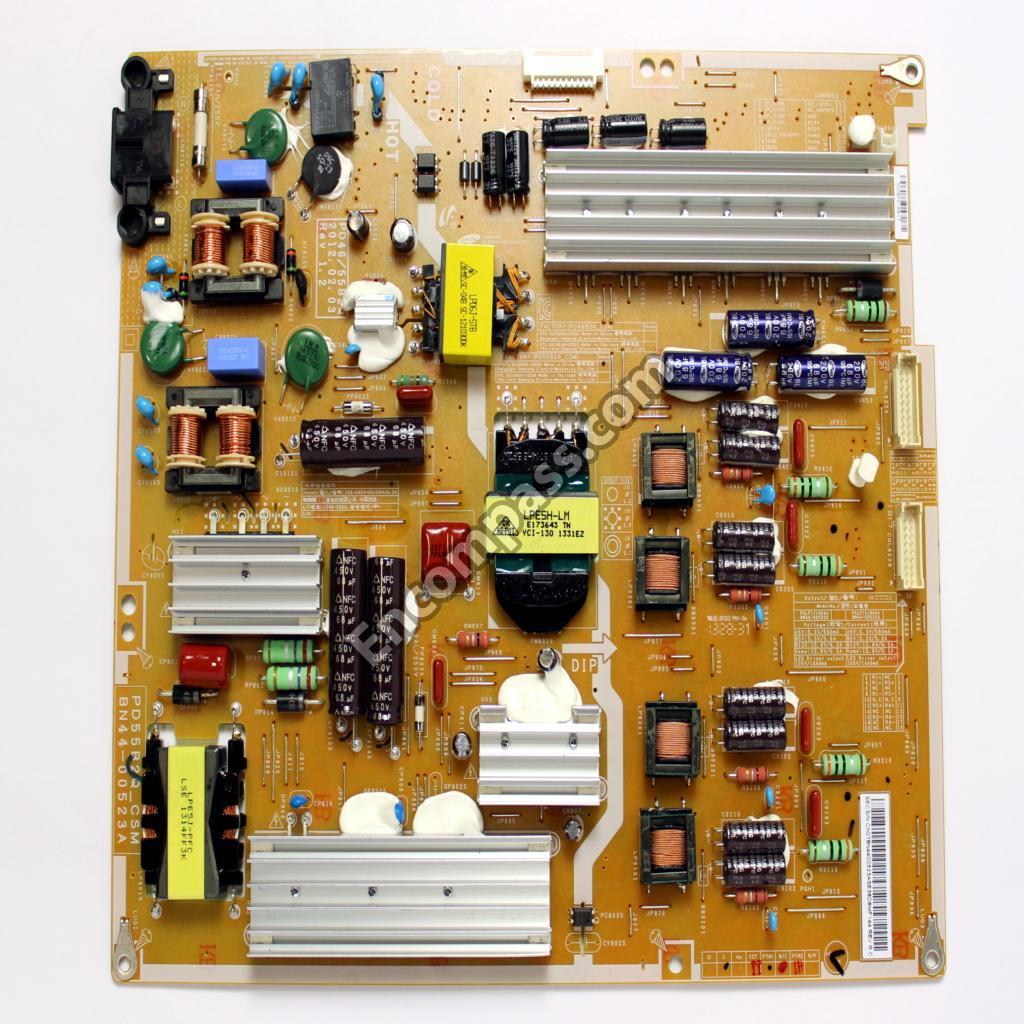

DC POWER SUPPLY BOARD ;;PD55B2Q_CSM,PSLF151Q |
| 3601-001386 | FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C |
|
|
HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG |
| 3711-007412 | HEADER-BOARD TO CABLE;BOX,3P,1R,1.25MM,S |
| 3711-005509 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-005925 | HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| BN61-06644A | HOLDER-PCB;LC750,NYNOL66,V0 |
| 1103-001500 | IC-EEPROM;AT24C02C-SSHM-T,2KBIT,256X8,SO |
| 1103-001487 | IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
| 1103-001506 | IC-EEPROM;M24512-RMN6TP,512KBIT,64KX8,SO |
| 0903-001747 | IC-MICROCONTROLLER;WT61P806-RG480,LQFP,4 |
|
|

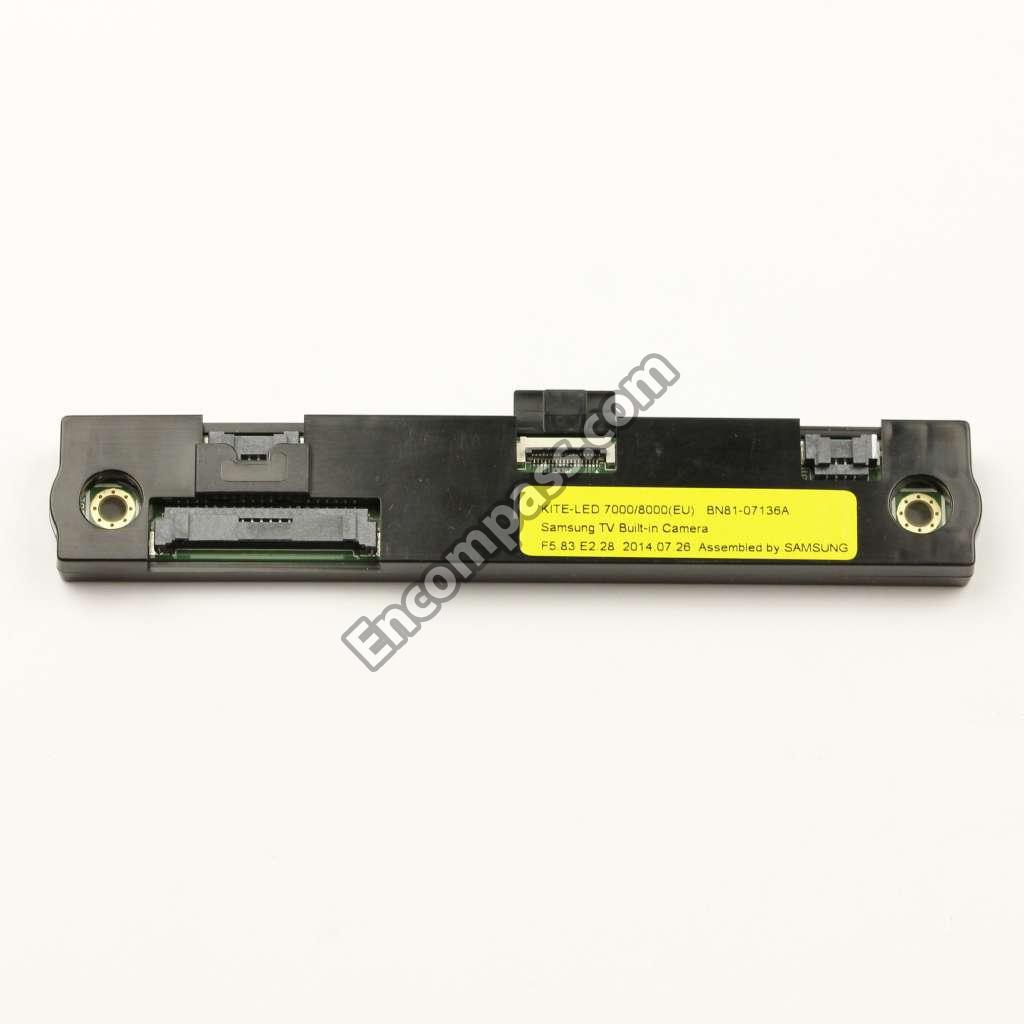

IR & CAMERA PC BOARD |
| BN96-22897A | IR BLASTER |
| 3722-003199 | JACK-MODULAR;8P/8C,ANGLE,AU,1P |
| 3722-003394 | JACK-PHONE;1P/6C,AU,BLK,ANGLE |
| 3722-003216 | JACK-PHONE;1P/7C,P-BRONZE,BLACK,SMD-A(DI |
| 3722-003208 | JACK-PHONE;1P/7C,P-BRONZE,YEL,SMD-A(DIP) |
| 3722-003151 | JACK-PIN;5P(ULTRA SLIM),NI,BLK,ANGLE(SSR |
| 3722-003044 | JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE |
| BN68-04094A | LABEL-EVOLUTION KIT;WW, ECHO-P,-,A/P,-,7 |
|
|
LCD DISPLAY 7K ,LTJ550HQ16-V,8BITS |
|
|
LEAD CONNECTOR-DECO CABLE;E8K 55",CABLE |
|
|
LEAD CONNECTOR-POWER CABLE;E6K/7K/8K_55" |
|
|
LEAD CONNECTOR;UE55ES8000,CABLE CONNECTO |
|
|
LEAD CONNECTOR;UE8K,CABLE CONNECTOR,UL21 |
| BN96-21470A | LEFT LED BAR |
|
|

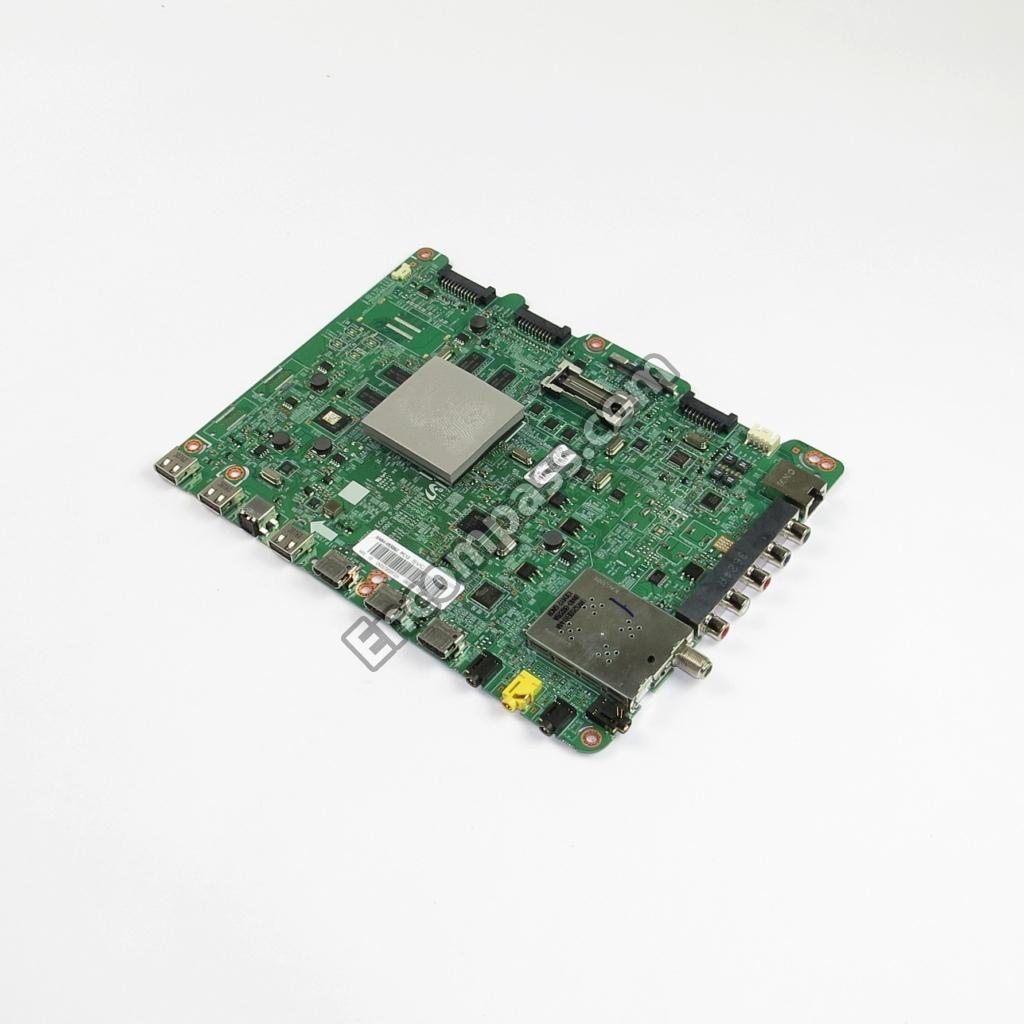

MAIN PC BOARD;55,ES8000,ZA |
|
|
NETWORK;WIDT-20R,INTERNAL WIFI,USB,34X36 |
|
|
POWER CORD ;DT,UL/CSA,EP-2,N,125V,5A, |
|
|

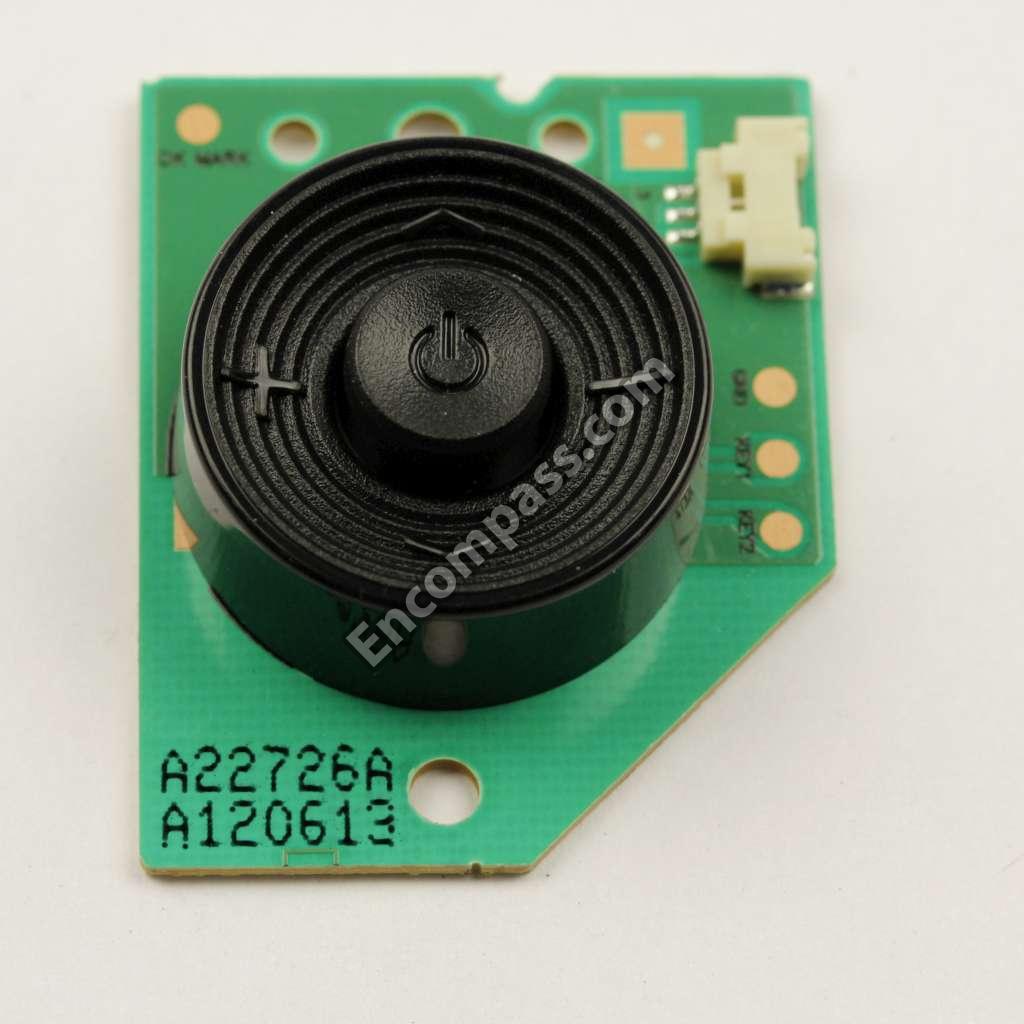

POWER SWITCH PC BOARD |
|
|

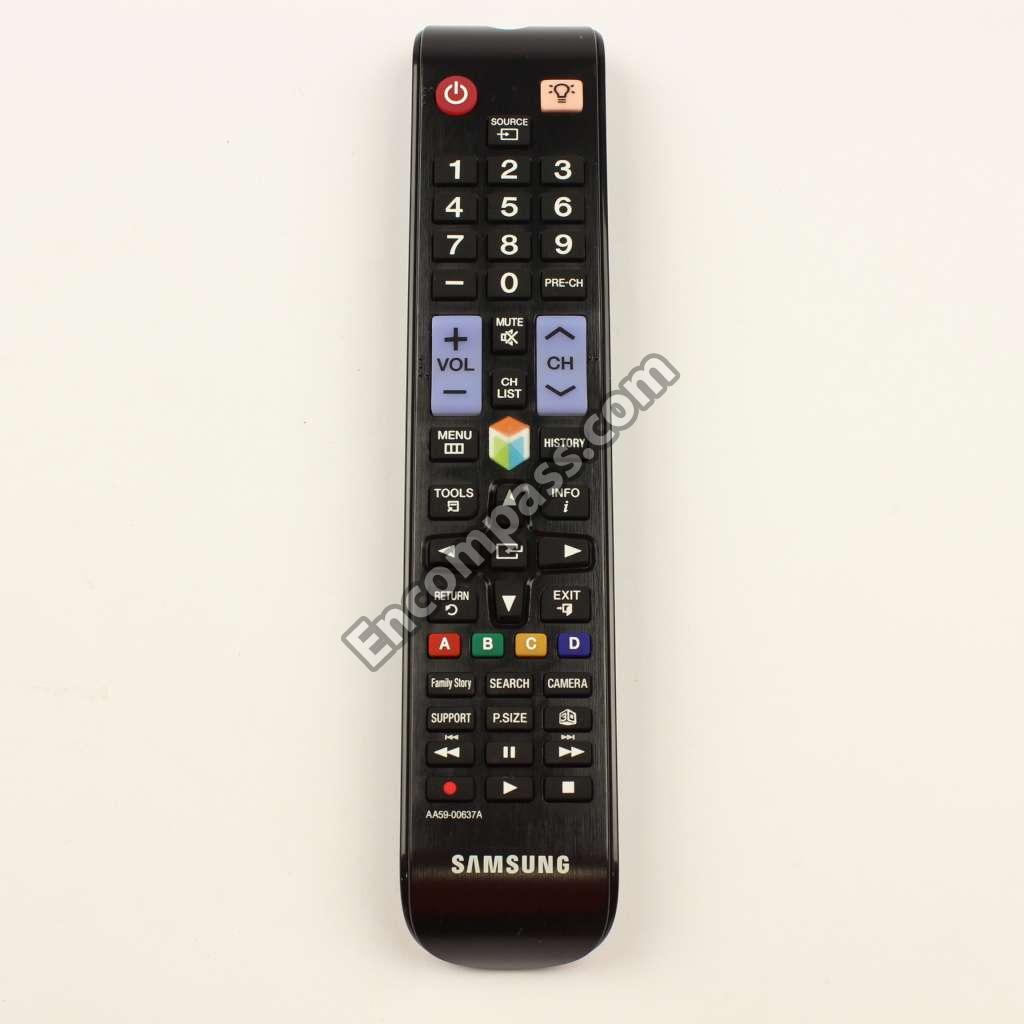

REMOTE CONTROL;TM1250B,SAMSUNG,49,3V,NORTH AMER |
|
|
REMOTE CONTROL;TM1290,14,3V,TM1290, E8000, AMER |
|
|
RF & BLUETOOTH PC BOARD |
| BN96-21471A | RIGHT LED BAR |
|
|
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 |
|
|

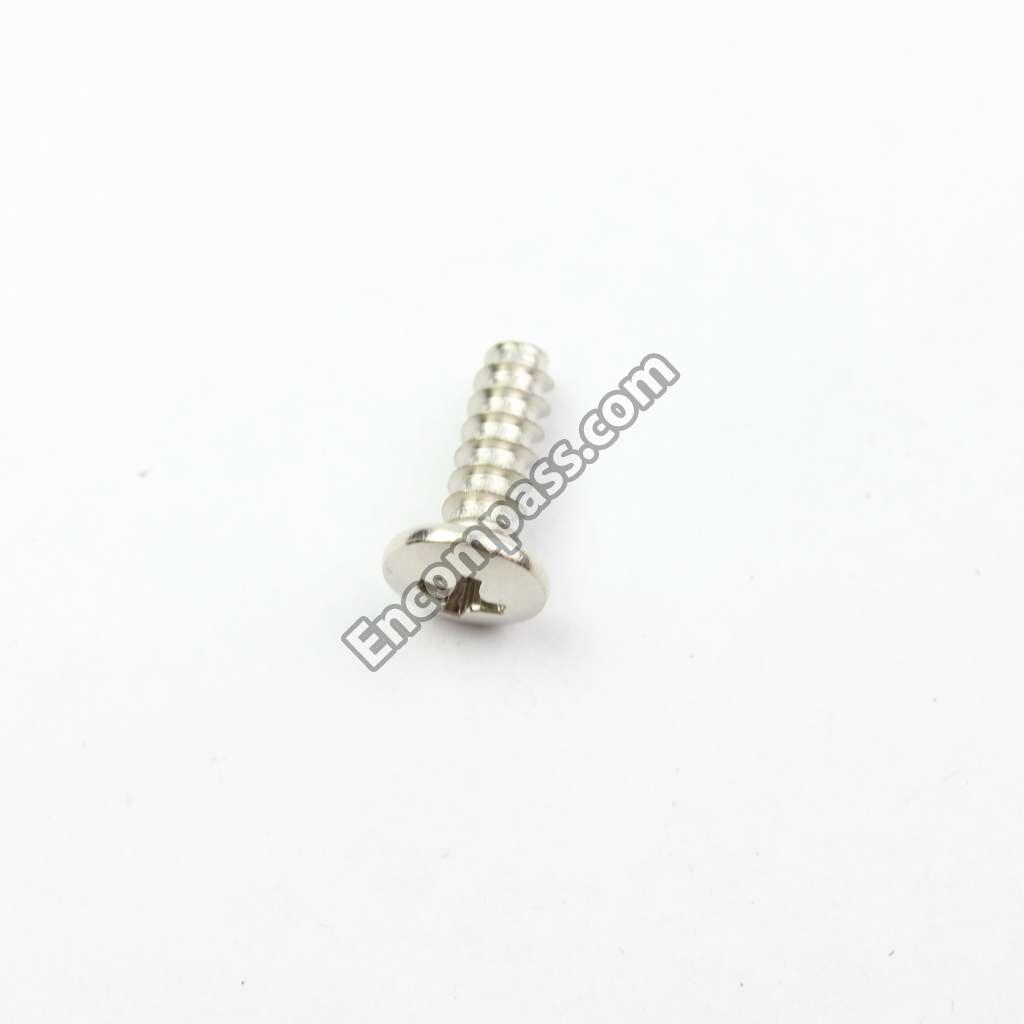

SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(WHT),S |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,NI PLT,SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M3,L6,ZPC(WHT),SWRC |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
| BN60-00162W | SPACER-FOAM;FOAM,30000MM,DARK GRAY,1T,10 |
|
|

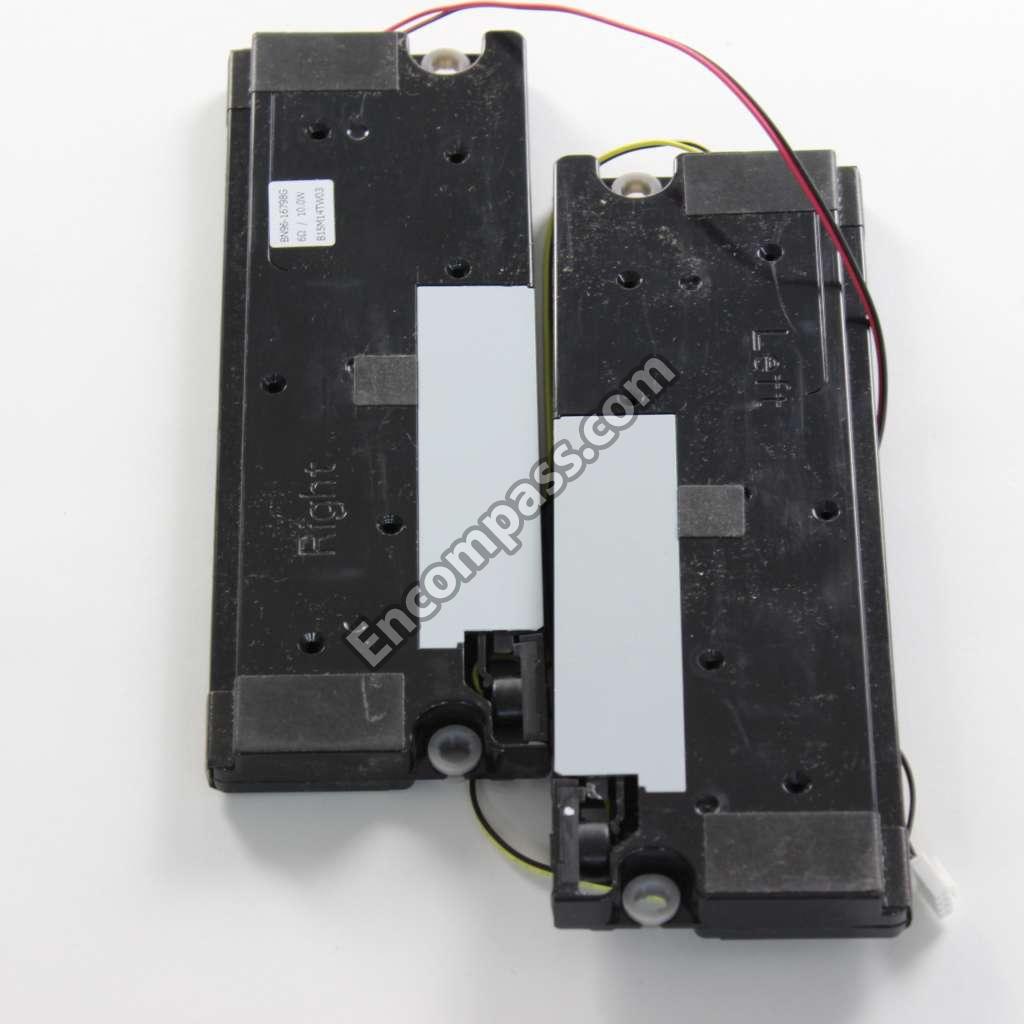

SPEAKER ;6OHM,4PIN,10W,E7000/8000 |
|
|
STAND BASE UE8000,55,ABS,HB,NC000 |
| 3404-001456 | SWITCH-TACT;12V,50MA,352GF,7.5X7.5X5MM,6 |
|
|
T-CON BOARD;LTJ550HQ16-V |
| BN40-00228A | TUNER;DNVS203EH144A,DNVS203EH144A,VSBFUL |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
| 1405-001233 | VARISTOR;50V,30VDC,5A,1.6X0.8X0.8MM,TP,1 |
