Manufacturer
Samsung
Model Number
UN55H7100AF
Description
55-inch Class 1080p Smart 3d Led Hdtv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
3D GLASSES;SSG-5150GB,ZA, |
|
|

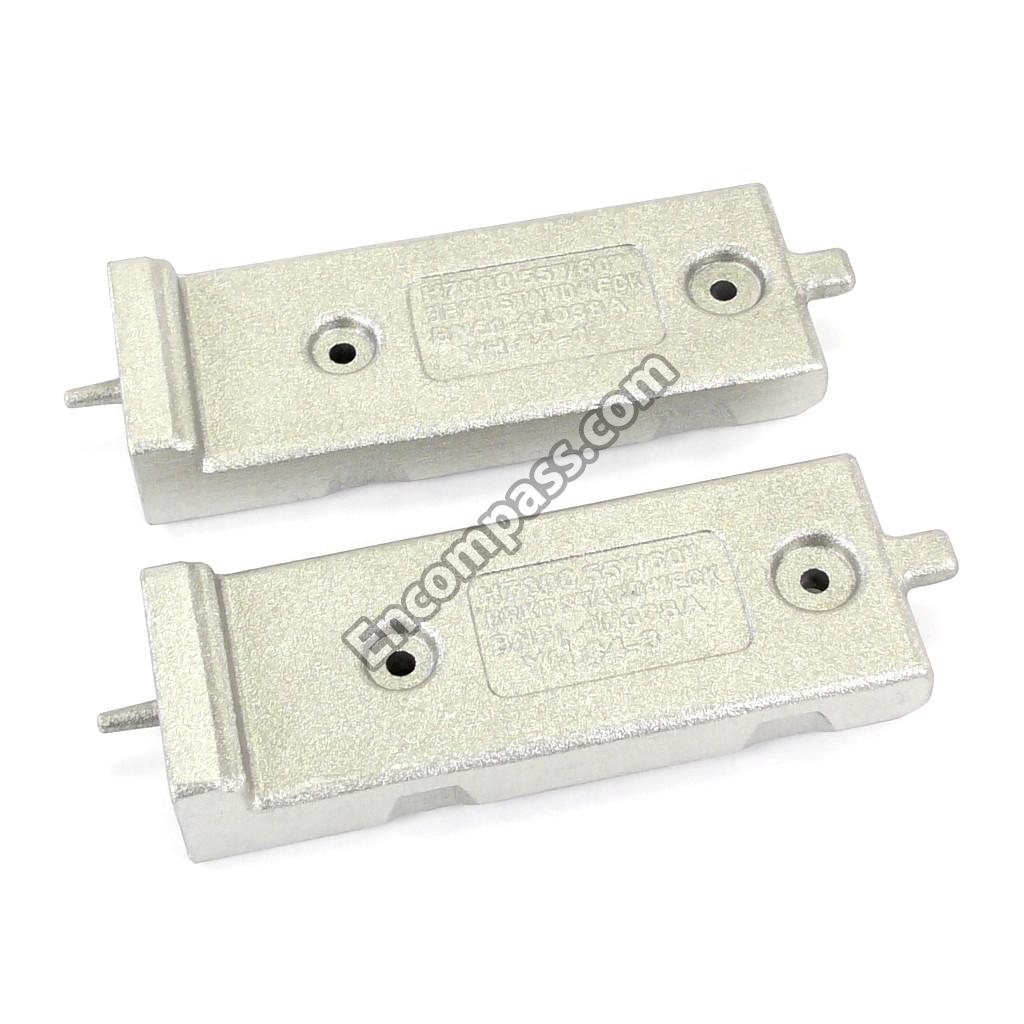

ASSY BRACKET P-NECK;UH7000,55,AL,SILVER |
|
|

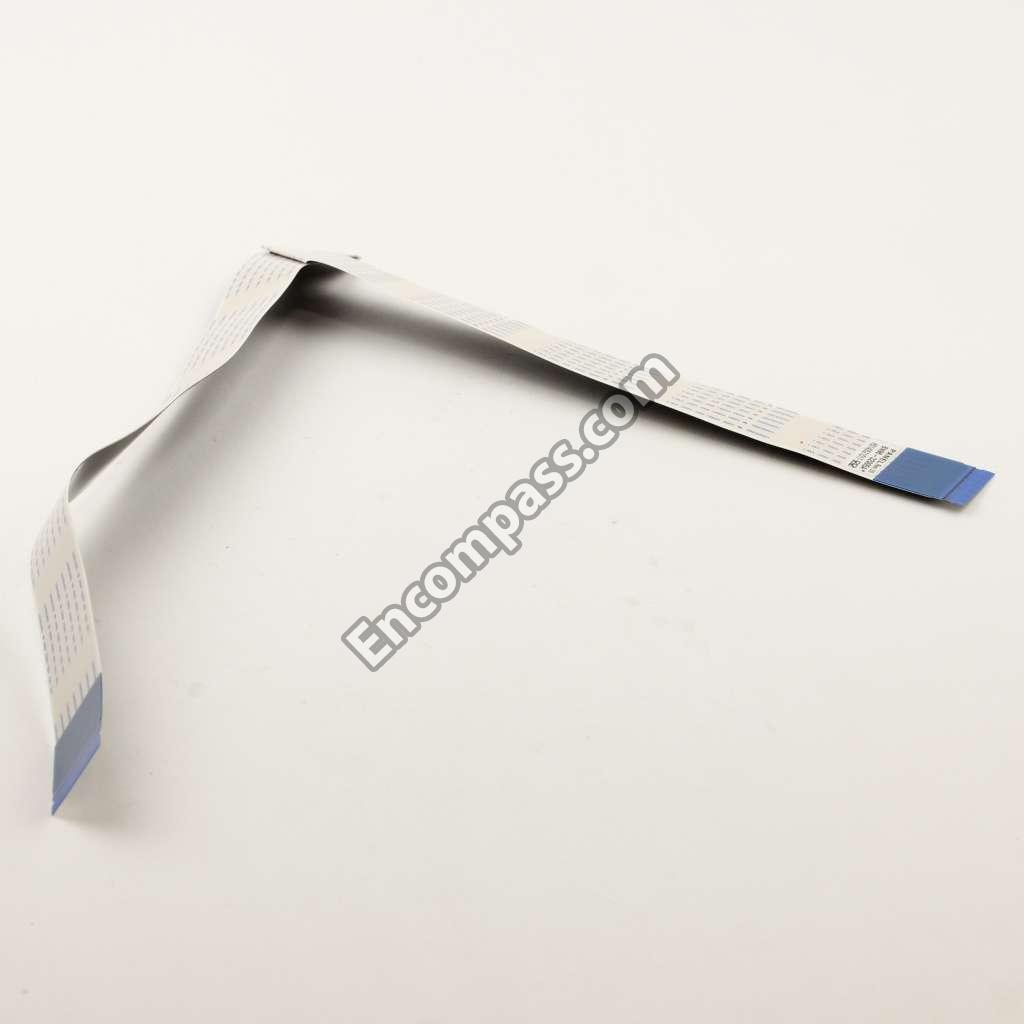

ASSY CABLE P-FFC;UN55H7150AFXZA,FFC,NH,6 |
|
|
ASSY CABLE P;IR BLASTER,UL1185 28AWG,LS0 |
| BN95-01474A | ASSY COVER FRAME SMT-BOTTOM;H7000,55,LIG |
| BN96-32068A | ASSY COVER P-FRAME TOP;UH7000,55,ALL,AL |
| BN96-30939A | ASSY SPEAKER P;6OHM,10W,ENCLOSURE_H7000 |
| BN39-00941A | CBF IF;SJ07-01-225,1PIN,3C-2V,1500MM,UL, |
|
|
CLOTH-CLEAN;CLOTH,SEA BLUE,TOC |
| 3708-003043 | CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A+DI |
| 3701-001861 | CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU |
| 3701-001856 | CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
|
|

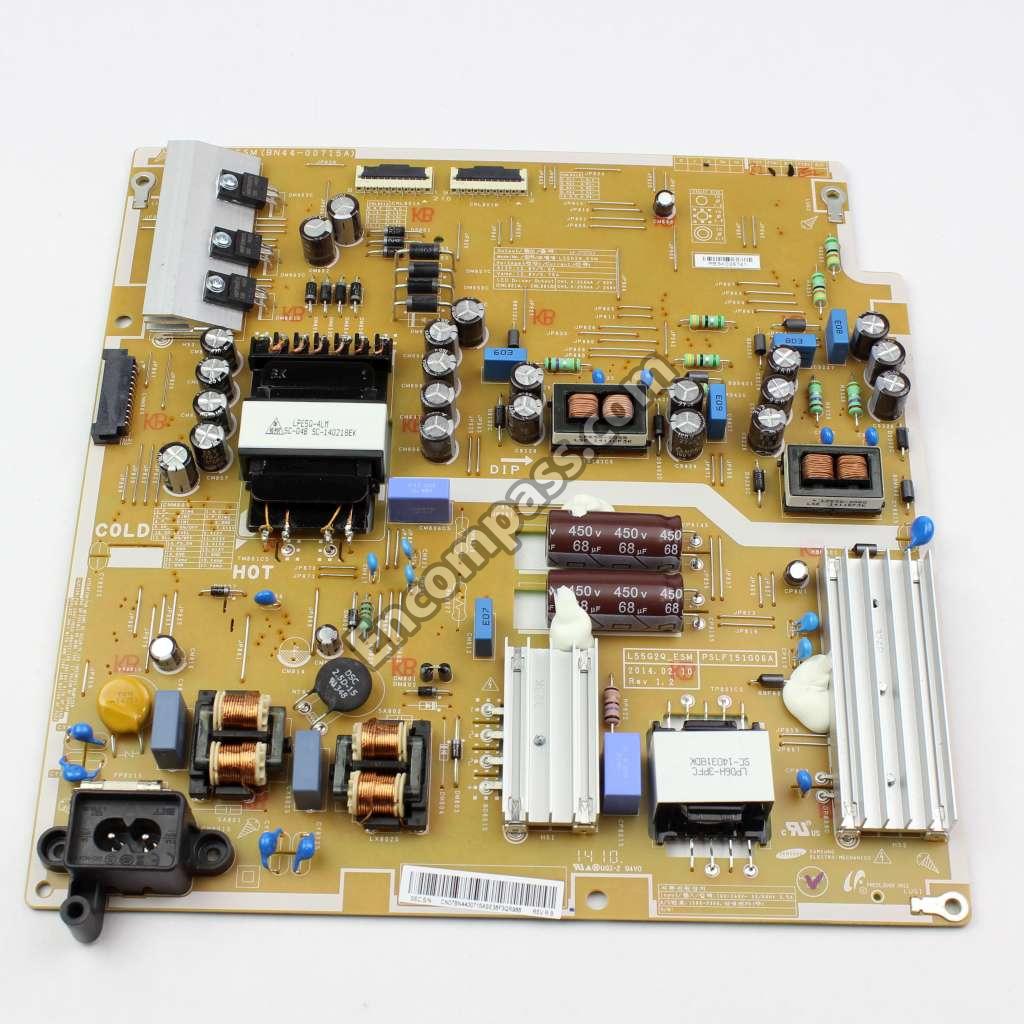

DC POWER SUPPLY -LED TV PD BD;L55G2Q_ESM,L55G2Q_ES |
| 2901-001362 | FILTER-EMI/ESD |
| 3601-001386 | FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C |
| 3711-008659 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-007838 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
| 3711-008690 | HEADER-BOARD TO CABLE;BOX,8P,1R,2.5MM,AN |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
|
|
HOLDER-BOLT;BH+,SWRCH18A,L14,M4,B TYPE |
|
|
HOLDER-WIRE STAND;26UE4000 GUIDE STAND,N |
| 1201-003671 | IC-AUDIO AMP;NTP7414,MLF,48P,7X7MM,DUAL, |
| 1204-003486 | IC-VIDEO PROCESS;SDP1306,HSFCBGA,888P,27 |
|
|

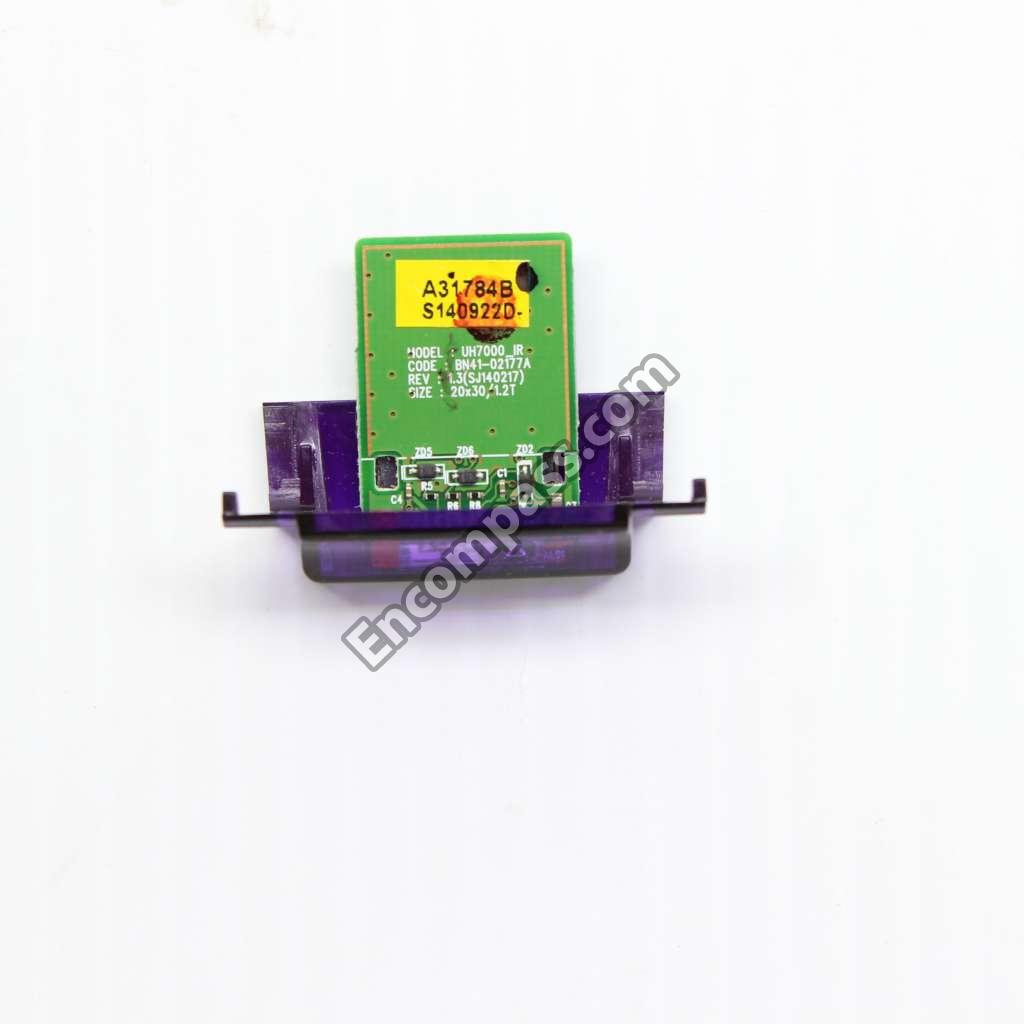

IR PCB ASSY;UH7000,FUNCTION ASS |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003617 | JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI, |
| 3722-003439 | JACK-PHONE;4P/1C,SN,BLK,STRAIGHT,3.5PI,1 |
|
|
JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED |
|
|
JACK-USB;4P/1C,NI,BLK,A |
|
|
LCD DISPLAY-AMLCD;LSF550HQ03-G,CY-SH055D |

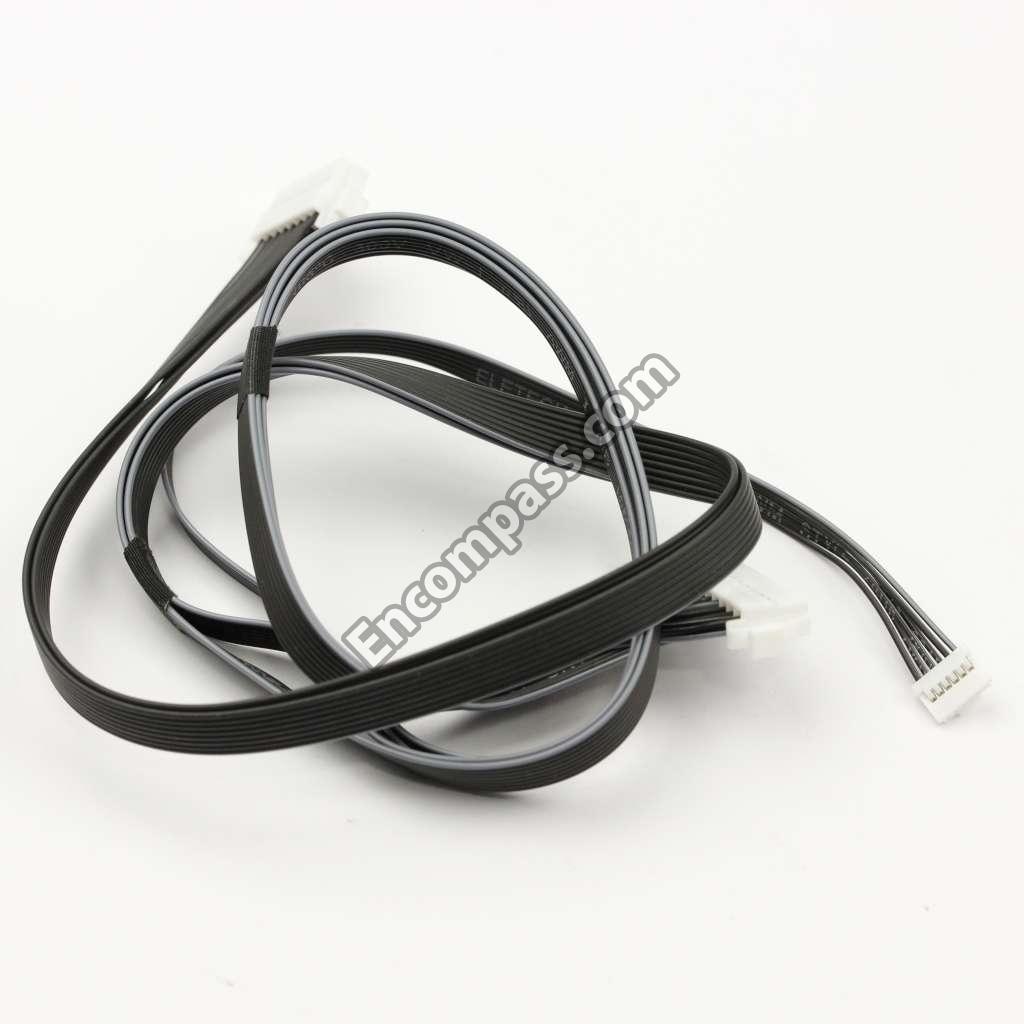

| BN39-01891B | LEAD CONNECTOR-FUNCTION;UH7100 55",LEAD |
|
|
LEAD CONNECTOR;UN55H7150AFXZA,FLAT CONNE |
|
|

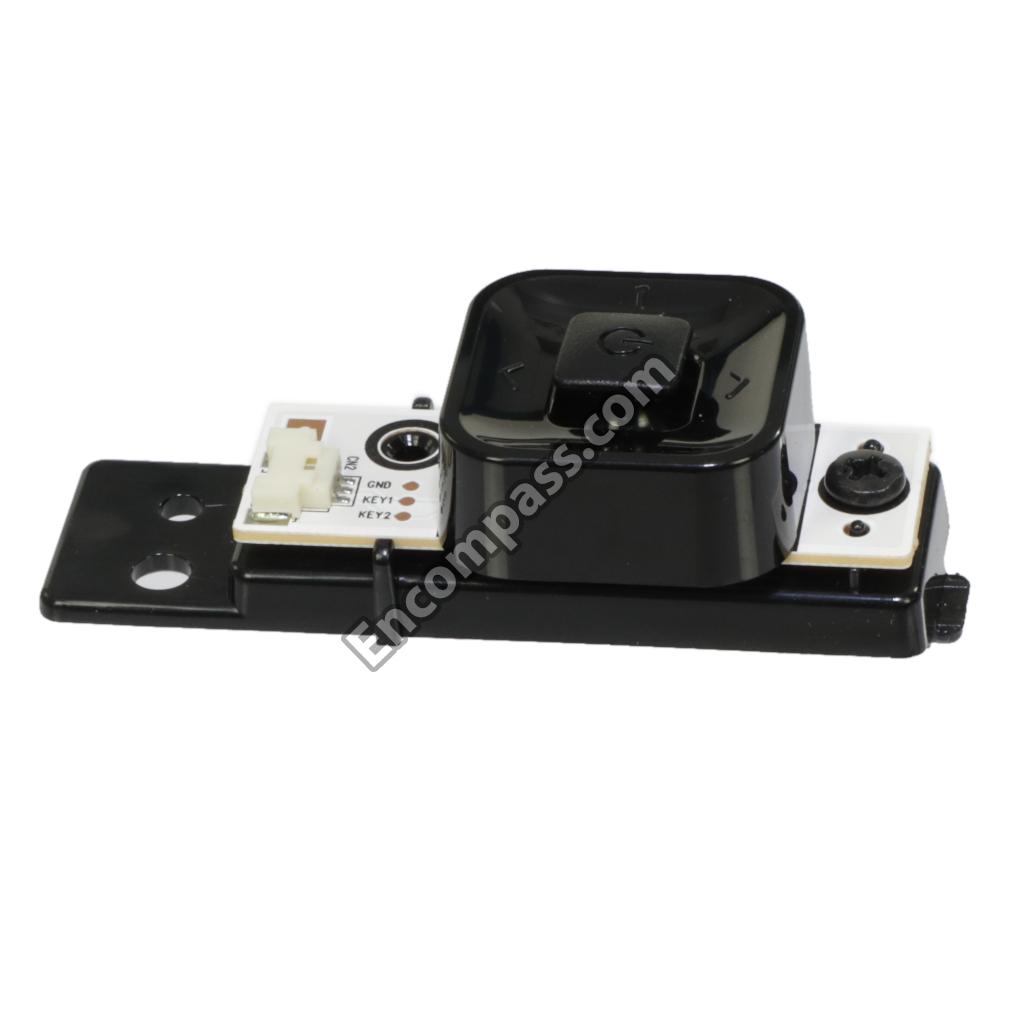

POWER SWITCH & FUNCTION PCB;UF8000,CEM- |
|
|
RF & BLUETOOTH MODULE PCB |
|
|

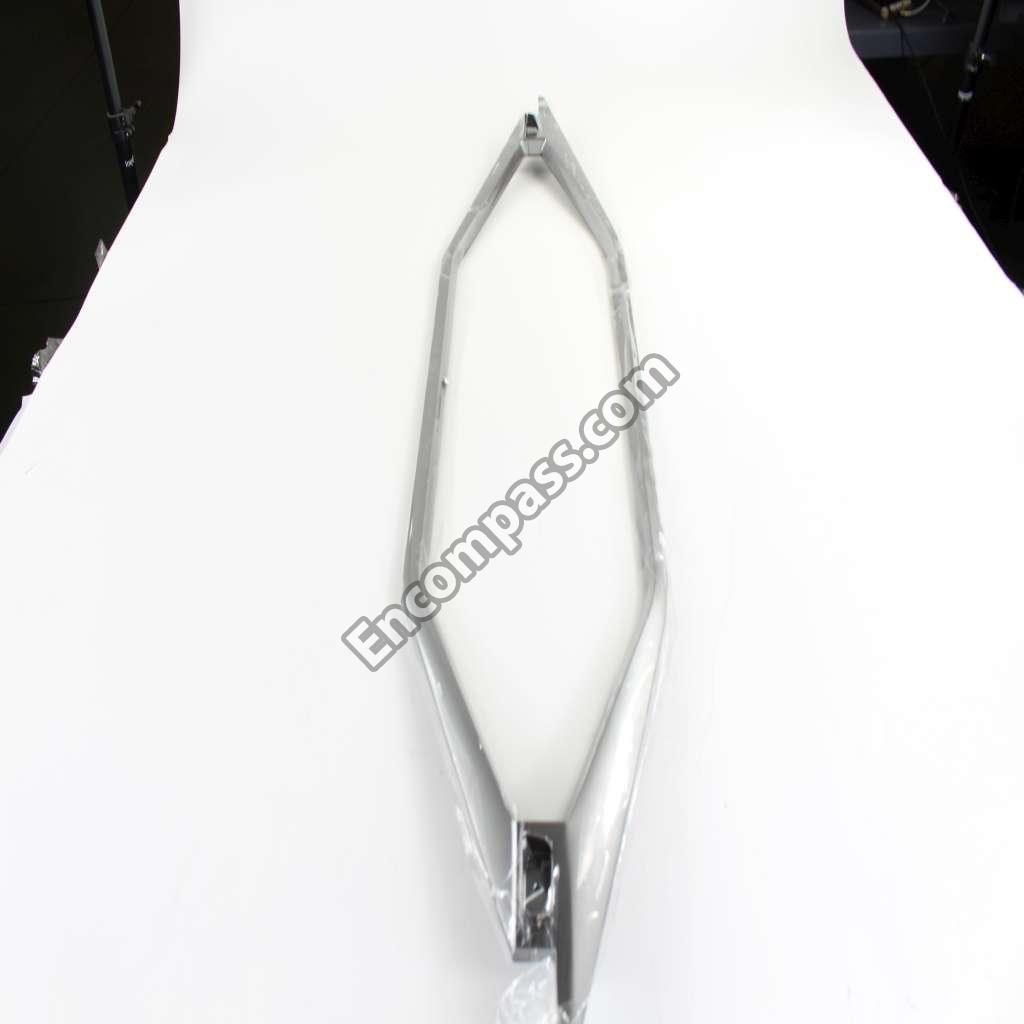

STAND BASE;UH7000,55,PC+ABS+GF15% |
|
|
STAND SUPPORT;UH7000, 55,ABS+PC,BLK |
|
|

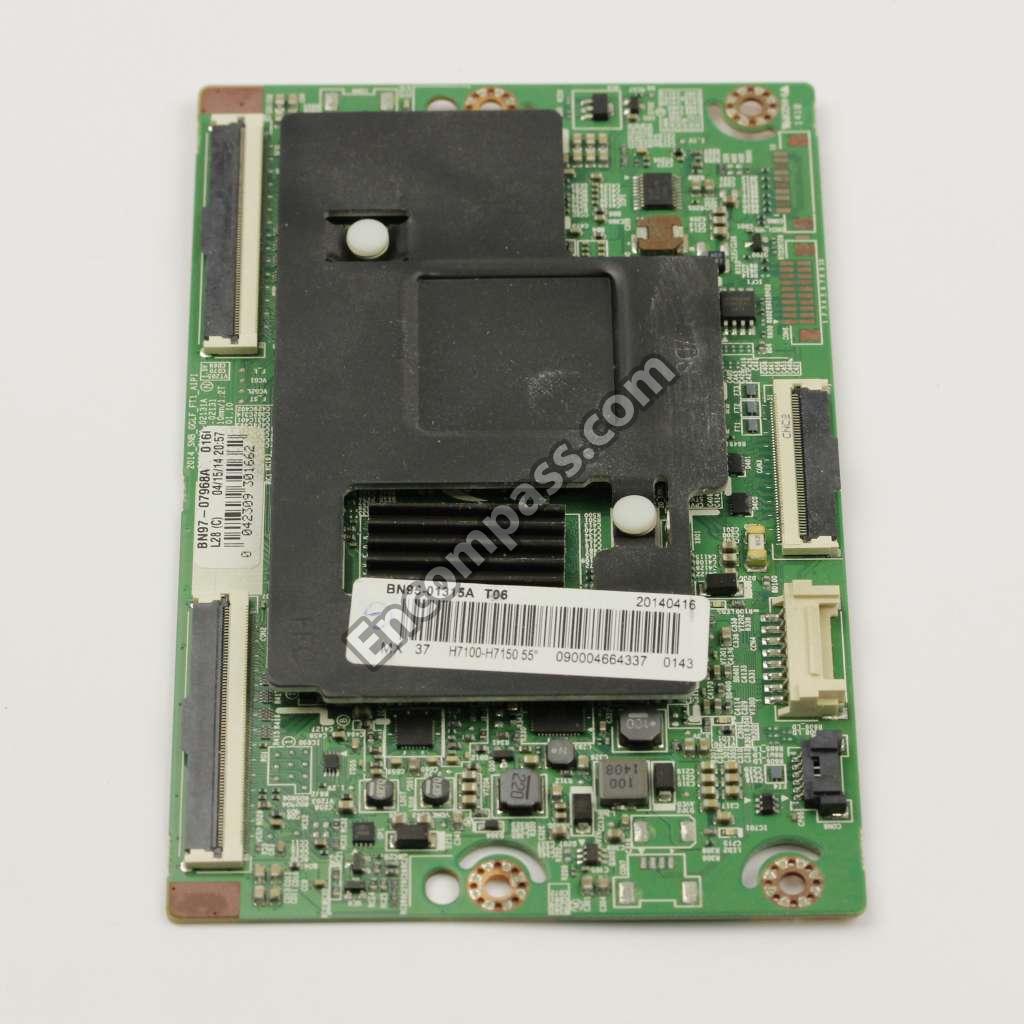

T-CON PCB;LSF550HQ01-A,55F240HZ SNB |
|
|
TUNER;DTVS20EIH276A,DTVS20EIH276A,ATSC H |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1.6X0.8X0.9MM,TP,2 |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2.0X1.25X1.1MM |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
|
|
WIFI MODULE;WIDT-30Q,INTERNAL WI |
