Model Image
Manufacturer

Samsung

Model Number

UN55HU8500FXZA

Description

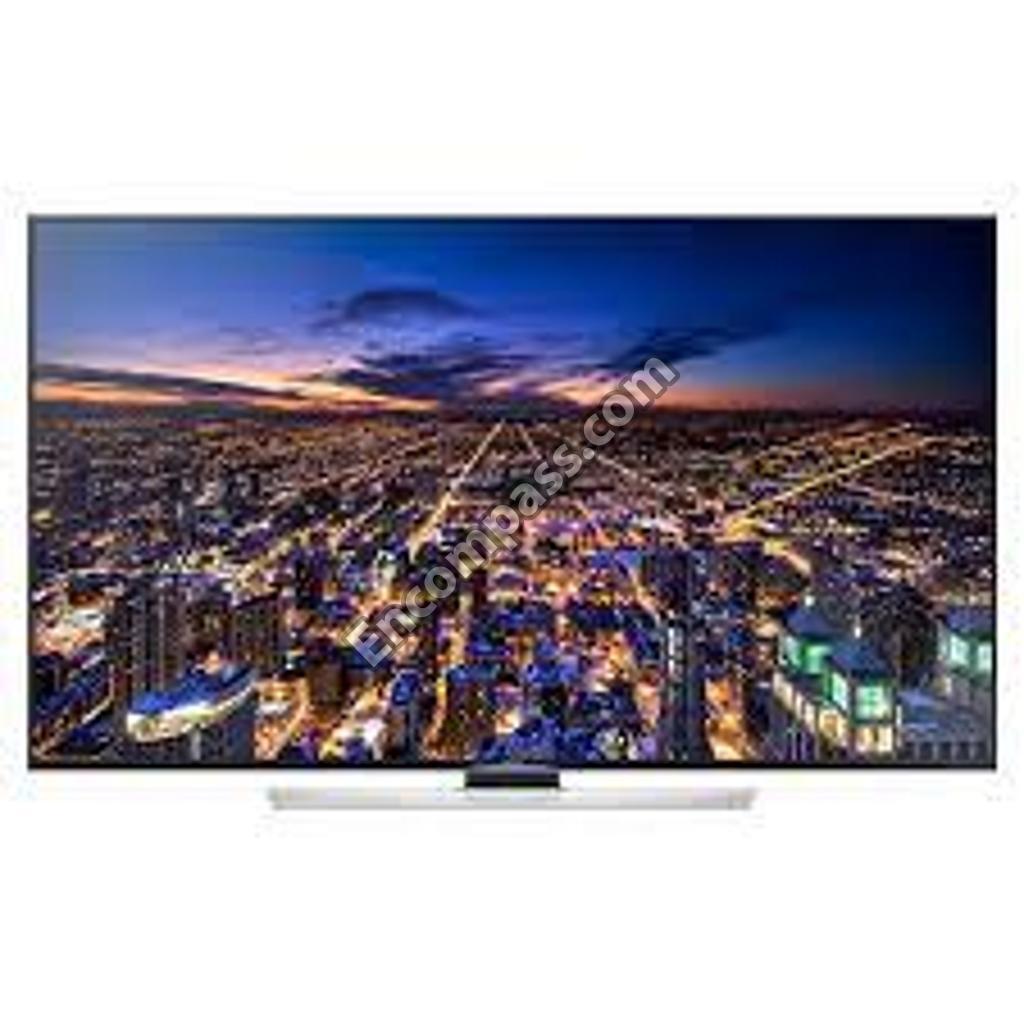

55-inch Class 4k 3d Ultra Hd Led Smart Tv

Interactive Exploded View
Exploded View

Parts List

Part Number Description
SSG-5150GB SSG-5150GB ASSY ACCESSORY-3D GLASSES;SSG-5150GB,3D
BN96-32216A ASSY BLU P-DECO;HU8500,M14-HU8500,L91,WH

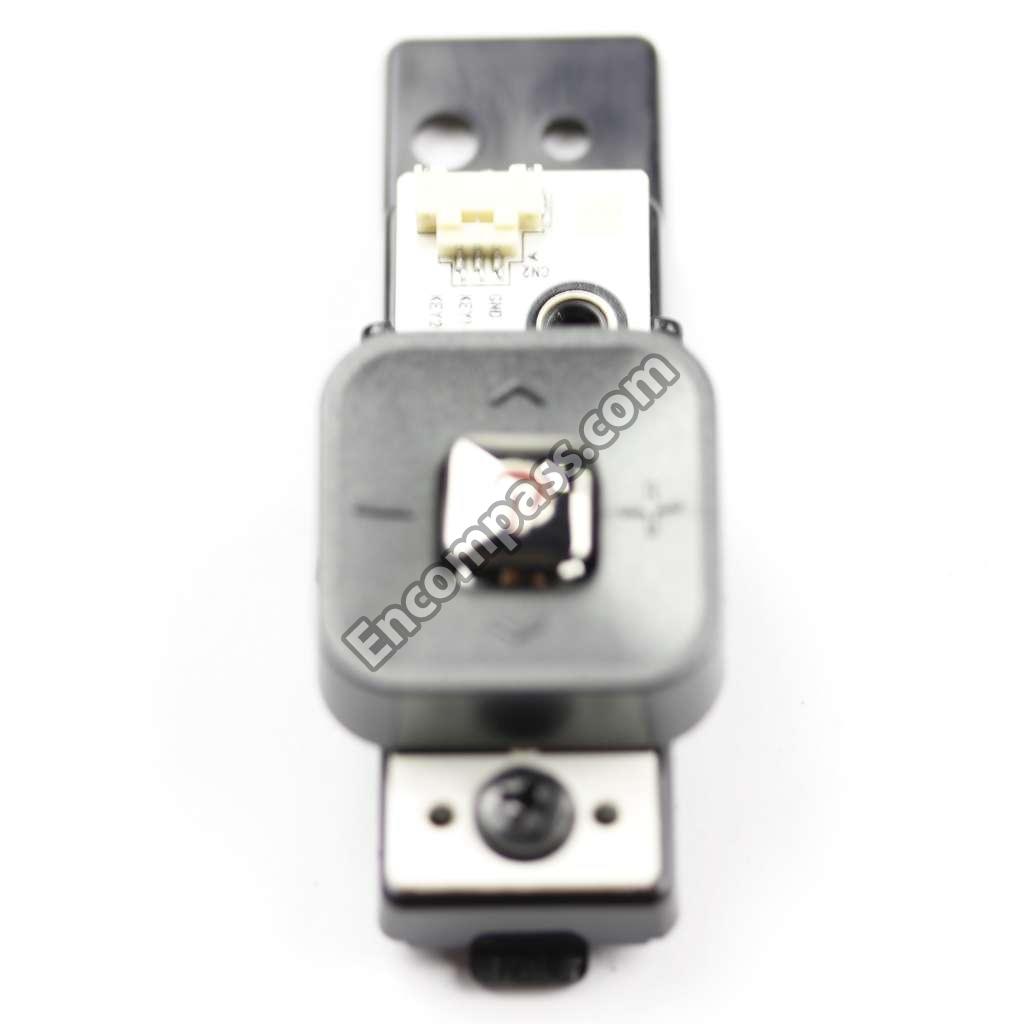

BN96-29508A BN96-29508A ASSY BOARD P-FUNCTION JOG;UN65F9000,CT15

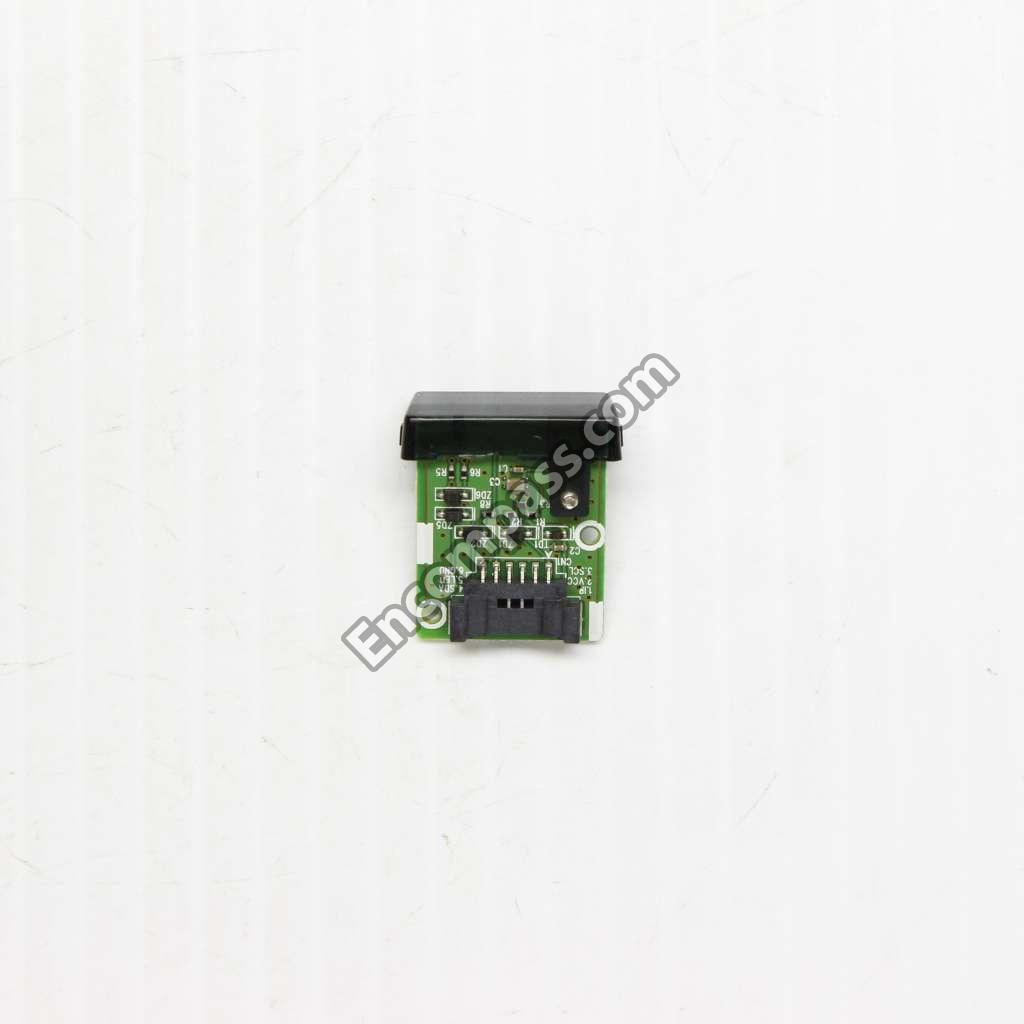

BN96-32206A BN96-32206A ASSY BOARD P-IR FUNCTION;HU8500,CT20SE28

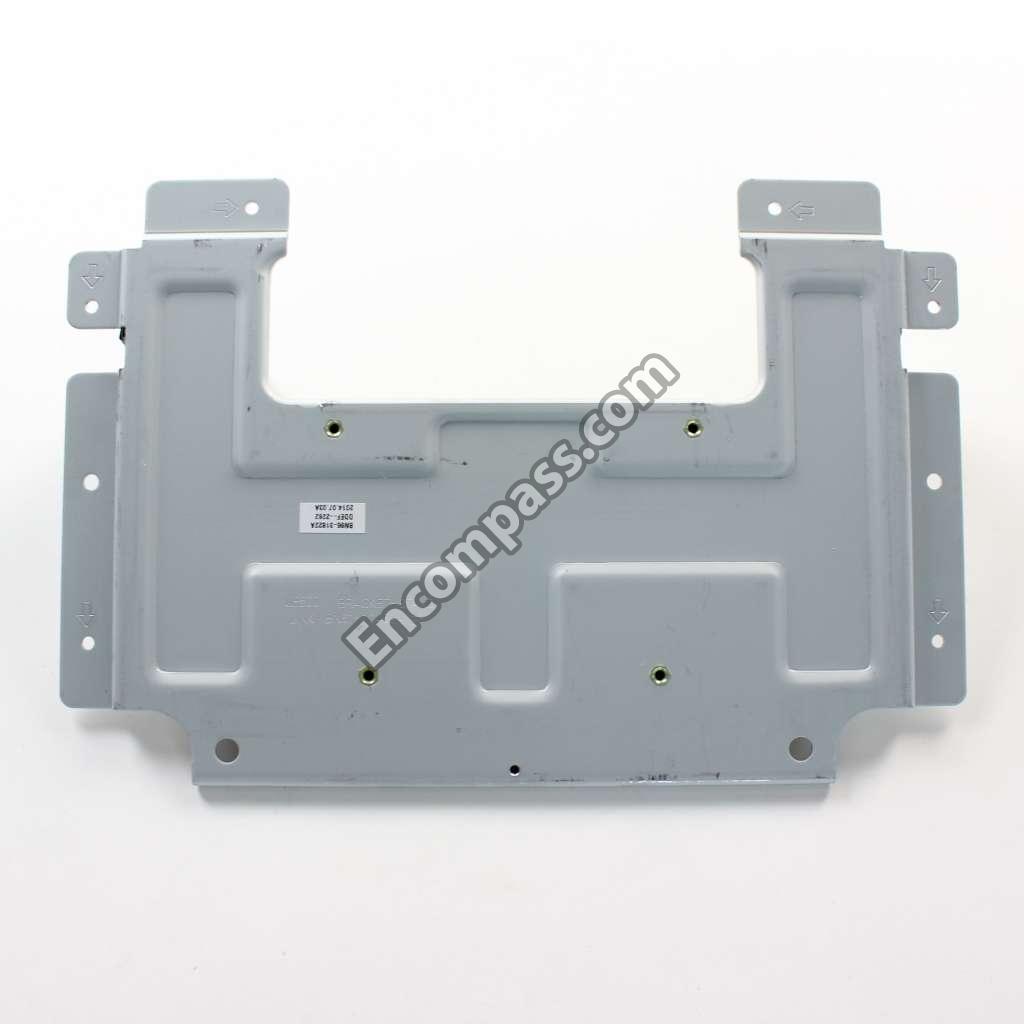

BN96-31822A BN96-31822A ASSY BRACKET P-STAND LINK;UH8500,55/65,S
BN96-32234A ASSY COVER P-DECORATION TOP;UH8500,55,AL
BN96-31723A ASSY COVER P-REAR;UH8500,55,PC+ABS-GF15%
BN95-01510A ASSY DECORATION SMT;UH8500,55,LIGHT TITA
BN96-31810A BN96-31810A ASSY GUIDE P-STAND;UH8000,48/50/55/65,AB
BN96-30662A ASSY LED BAR P;UD 55INCH EDGE,ALUMINUM,7
BN96-30663A ASSY LED BAR P;UD 55INCH EDGE,ALUMINUM,7
CALL_1-800-SAMSUNG ASSY OPEN CELL;LSF550FJ02-A,16:9,CELL UD

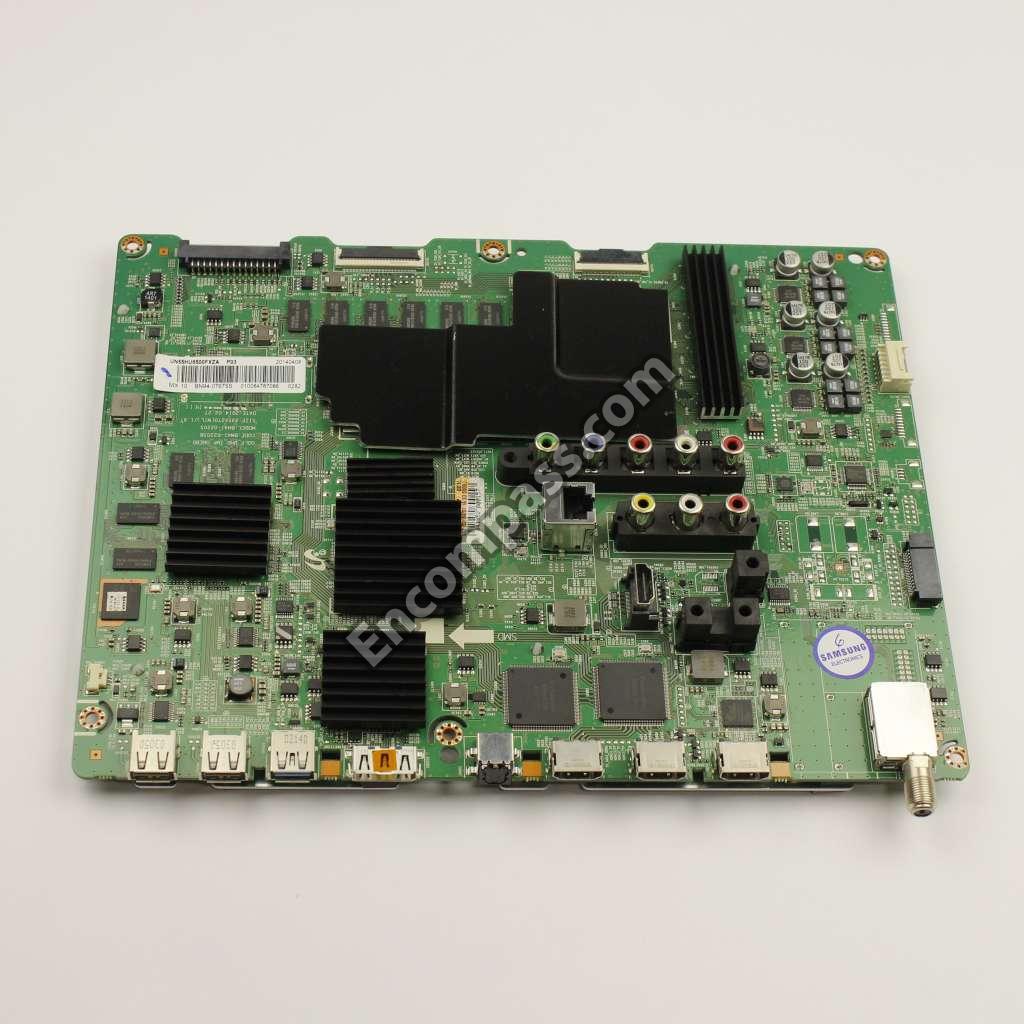

BN94-07675S BN94-07675S ASSY PCB MAIN;UH8U

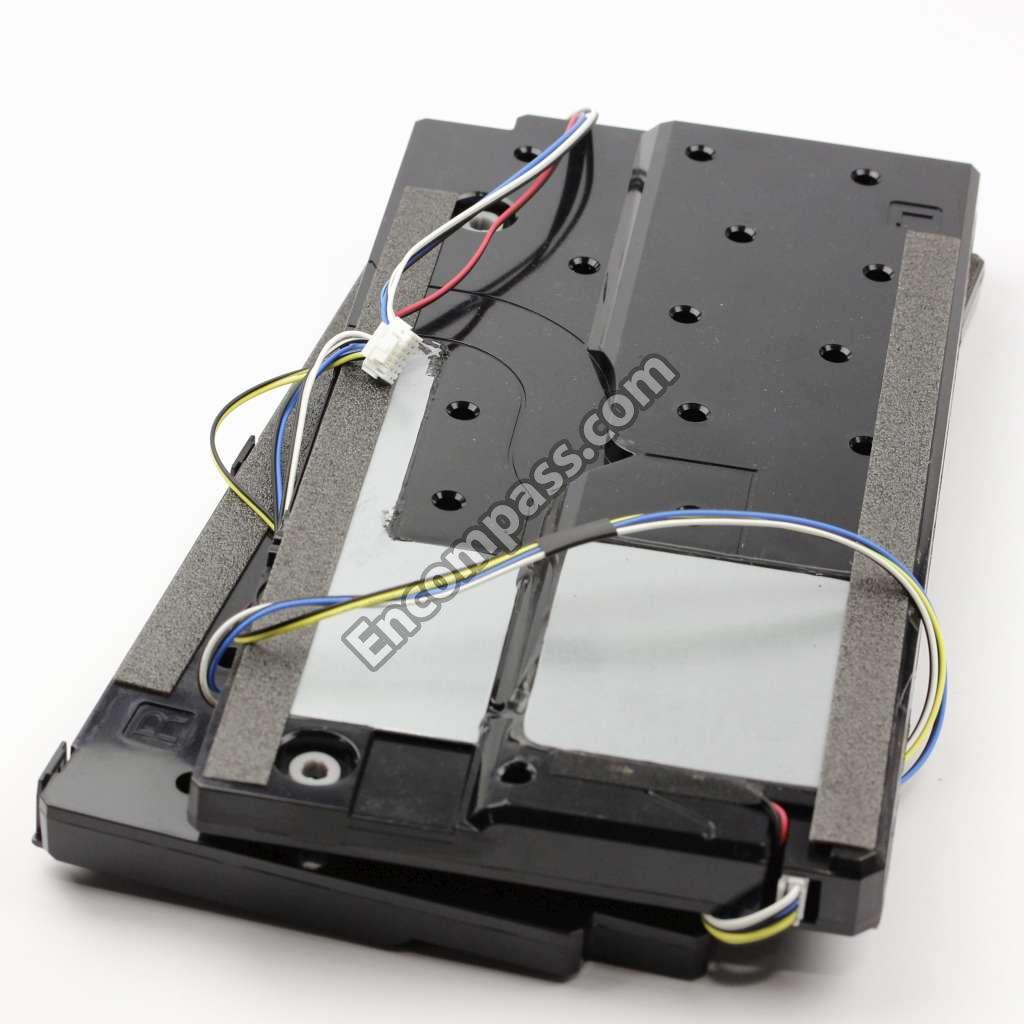

BN96-30935A BN96-30935A ASSY SPEAKER P-FRONT;TV-SPK,U8500,6OHM,1
BN96-31730B ASSY STAND P-BOTTOM;UH8500,55,CLUB,AL,AL

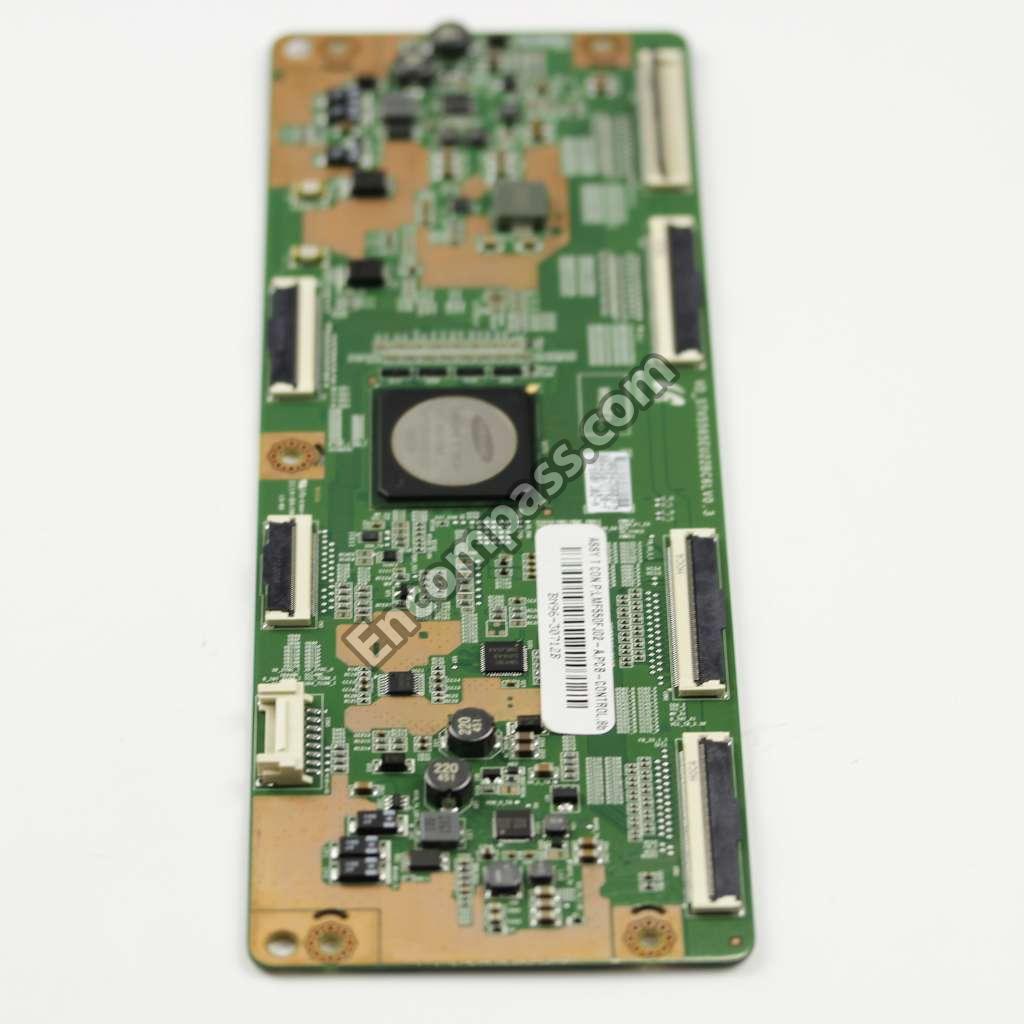

BN96-30712B BN96-30712B ASSY T CON P;LMF550FJ02-A,LMF550FJ02-A,8
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP
2402-001268 C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM
2203-003039 C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100
2203-000627 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005
2203-007569 C-CER,CHIP;0.033NF,5%,50V,C0G,TP,1005
2203-001697 C-CER,CHIP;0.082NF,5%,50V,NP0,TP,1608
2203-006992 C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1005
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007176 C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0.
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-005005 C-CER,CHIP;100NF,10%,16V,X7R,TP,1608
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,0.5
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-005221 C-CER,CHIP;15NF,10%,50V,X7R,TP,1608
2203-000440 C-CER,CHIP;1NF,10%,50V,X7R,TP,1608
2203-008315 C-CER,CHIP;22000NF,20%,25V,X5R,TP,2012,T
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T
2203-006047 C-CER,CHIP;33NF,10%,16V,X7R,TP,1005
2203-001634 C-CER,CHIP;33NF,10%,50V,X7R,TP,1608
2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5
2203-006741 C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,0.8
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005
2203-002050 C-CER,CHIP;47NF,10%,50V,X7R,TP,1608
2203-002982 C-CER,CHIP;6.8NF,10%,50V,X7R,TP,1005
2503-001051 C-NETWORK;100NFX4,20%,16V,2012
2409-001191 C-ORGANIC,SMD;47UF,20%,20V,TP,7343(1.9T)
2409-001338 C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6
3903-000853 3903-000853 CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A,
3708-003183 CONNECTOR-FPC/FFC/PIC;41P,0.5MM,SMD-A,AU
3701-001856 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3701-001861 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-007741 CONNECTOR-HEADER;BOX,14P,2R,2.0MM,ANGLE,
3707-001104 CONNECTOR-OPTICAL;ANGLE,SPDIF
2801-000102 CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-005373 CRYSTAL-SMD;156.25MHZ,50PPM,TP
2801-005292 CRYSTAL-SMD;24.576MHZ,30PPM,4 PIN,12PF,7
2801-004813 CRYSTAL-SMD;24MHZ,50PPM,8PF,100OHM,TP
2801-004814 CRYSTAL-SMD;25MHZ,50PPM,8PF,100OHM,TP
2801-005324 CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN

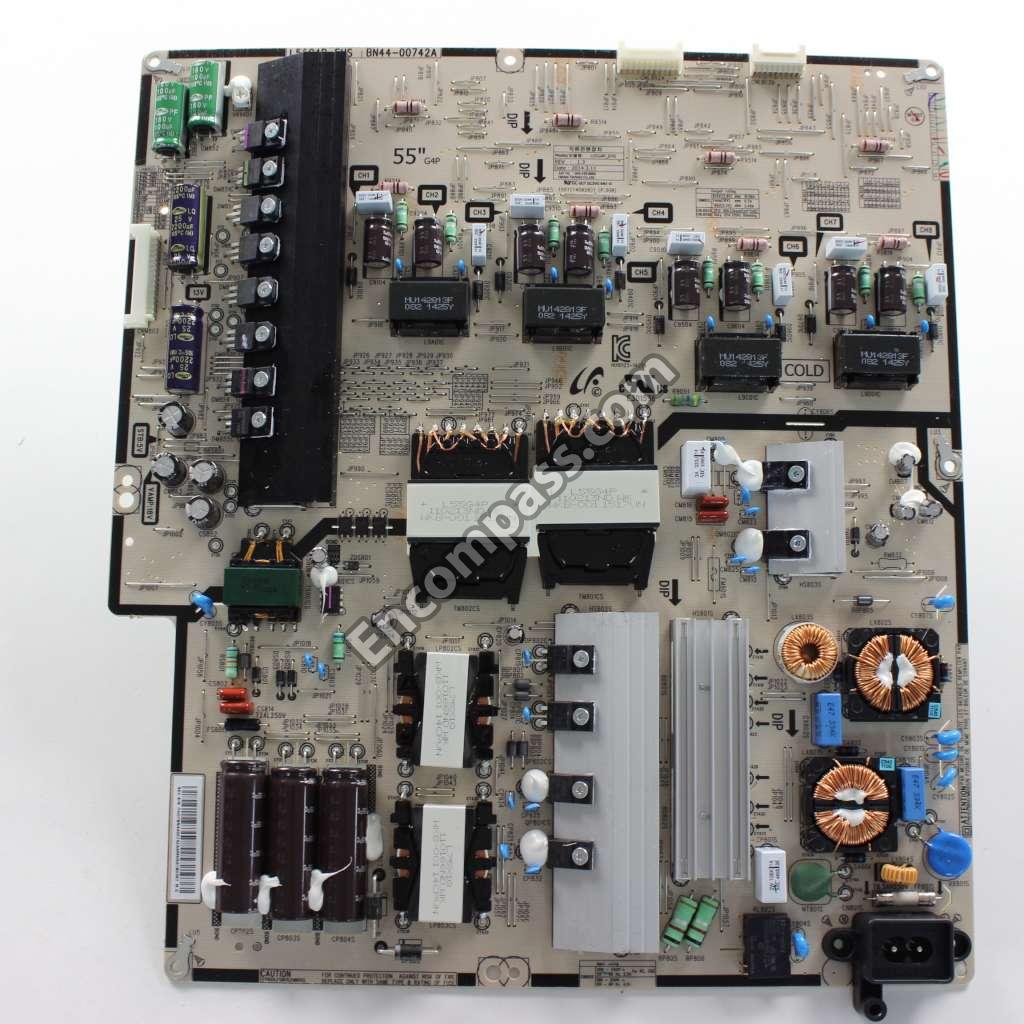

BN44-00742A BN44-00742A DC VSS-PD BOARD;L55G4P_EHS,AC/DC,273W,10
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD-
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001407 DIODE-ZENER;MMSZ5242B,11.4~12.6V,500MW,S
BN31-00036A BN31-00036A FAN-DC;KDB04112HBX02,HU9000,PLASTIC,350M
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH
0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4

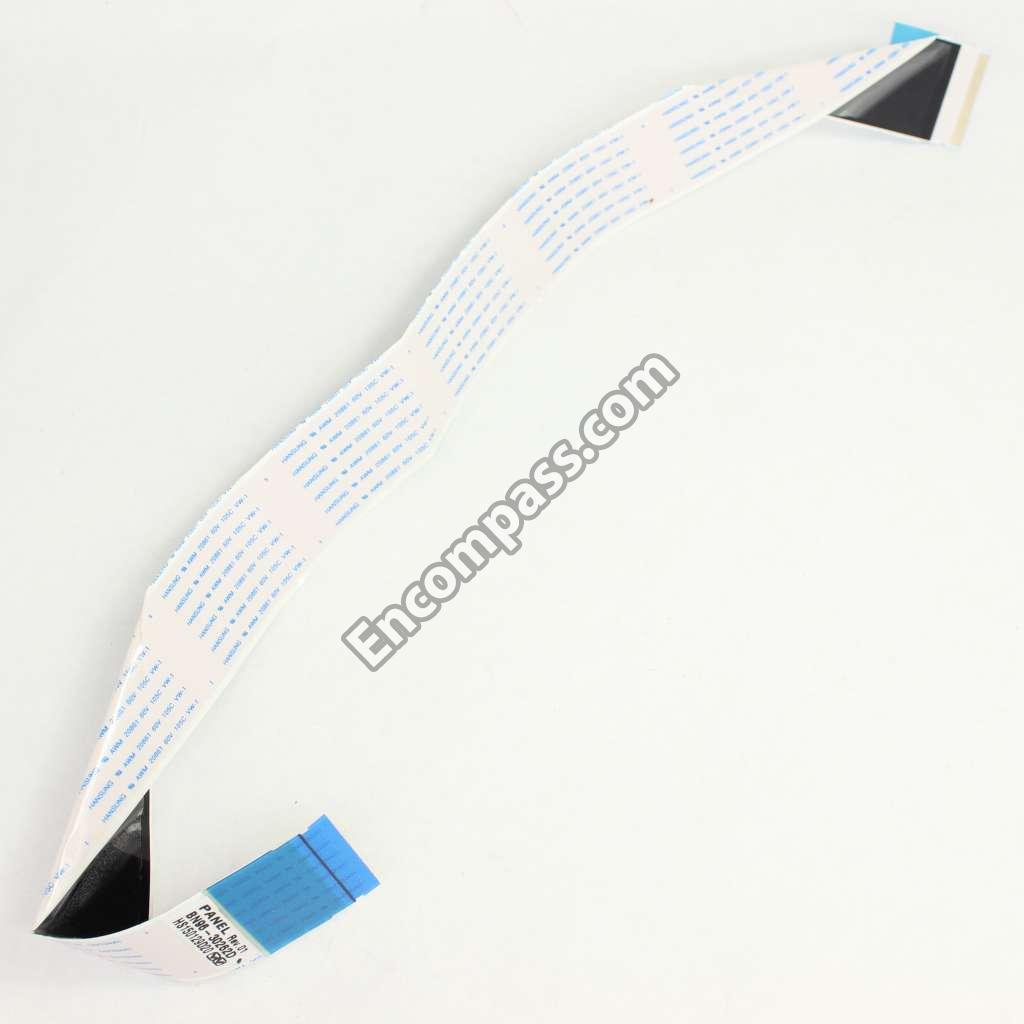

BN96-30261M BN96-30261M FFC CABLE;HU8500 55",FOLD,L320,41P
BN96-30262D BN96-30262D FFC CABLE;HU8500 55",FOLD,L415,51P
BN73-00052C FOOT-RUBBER;PEARL,SI,GRAY,T2,PI19
3711-008558 3711-008558 HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM,
3711-008739 HEADER-BOARD TO CABLE;BOX,30P,2R,2MM,ANG
3711-007412 HEADER-BOARD TO CABLE;BOX,3P,1R,1.25MM,S
BN62-00574A HEAT SINK-ES;F7000,A6063,W28,L14,BLACK,T
BN62-00620A HEAT SINK-ES;HU8500,A6063,W31.5,L31.5,BL
BN62-00621A HEAT SINK-ES;HU8500,A6063,W70,L14,BLACK,
BN62-00619A HEAT SINK-PS;DB22D,A1050,W210,L250,SILVE
BN62-00618A HEAT SINK-PS;HU8700,A1050,W73.45,L118.3,
1001-001686 IC-ANALOG MULTIPLEX;74LV4052,CMOS,TTSOP,
1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF
1001-001689 IC-ANALOG SWITCH;TS5A23159RSER,QFN,10P,2
1201-003690 IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL
1205-004853 IC-BUFFER;DS15BR400TSQ/NOPB,WQFN,32P,5X5
0801-003330 IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X
1203-008118 IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96
1203-007984 IC-DC/DC CONVERTER;AOZ3015PI,SO-8,8,6.2X
1203-007695 IC-DC/DC CONVERTER;AOZ3018,SO-8,8,4.96X3
1203-007665 IC-DC/DC CONVERTER;RT7266ZSP,SOP-8,8,6.2
1203-007018 IC-DC/DC CONVERTER;TPS54821RHL,QFN,14,3.
1203-007985 IC-DC/DC CONVERTER;TPS56920PWPR,HTSSOP,2
1203-006341 IC-DC/DC CONVERTER;TPS63020,SON-14,14,4X
1105-002227 IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM
1105-002534 IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM
1105-002528 IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866,
1204-003522 IC-DECODER;SDP1304,FCPBGAH,715P,27X27MM,
1006-001509 IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20
1103-001561 IC-EEPROM;S-24C02DI-J800,2KBIT,256X8BIT,
1103-001564 IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8,
1107-002300 IC-EMMC;KLM8G1GEAC-C021,8GBYTE,BGA,153P,
1205-004385 IC-ETHERNET CONTROLLER;RTL8201F-VB-CGT,Q
0903-001863 IC-MICROCONTROLLER;WT61P807-RG48,LQFP,48
1203-008112 IC-POSI.ADJUST REG.;AOZ2002PI,SO-8,8,4.9
1203-006239 IC-POSI.ADJUST REG.;AP1117EGZ-13-89,SOT-
1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8
1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2
1203-008185 IC-POSI.FIXED REG.;S-13A1D10-E800,HSOP-8
1203-006330 IC-POWER SUPERVISOR;TPS2065DBV,SOT-23,5P
1209-002183 1209-002183 IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1
1205-004692 IC-SWITCH;TPS2069CDBVR,SOT-23,5P,5.0X3.1
1205-004822 IC-SWITCH;TPS22965DSGR,SON,8P,2X2X0.75MM
1205-004855 IC-SWITCH;TPS25910RSAR,QFN,16P,4X4X0.8MM
0904-002859 IC-USC;GL852G-32,QFN,28P,5X5MM,12MHZ,TP,
1204-003489 IC-VIDEO PROCESS;SDP1301,FCBGA,680P,25X2
1204-003506 IC-VIDEO PROCESS;SDP1303,FCBGAH,1495P,35
1204-003482 IC-VIDEO PROCESS;SDP1305,FCPBGAH,714P,27
1204-003497 IC-VIDEO PROCESS;SENK83,EDHS-PBGA,1057P,
1001-001886 IC-VIDEO SWITCH;QFP,144P,22*22,PLASTIC,T
1001-001885 IC-VIDEO SWITCH;SII9679,QFN,76P,9X9MM,PL
1001-001828 IC-VIDEO SWITCH;TS3V330PWR,TSSOP,16,6.9X
1203-007728 IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L
1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
2703-003713 INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700
2703-000158 INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT
2703-002841 INDUCTOR-SMD;1UH,20%,0.003OHM,21000MA,WI
2703-003937 INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00
2703-003263 INDUCTOR-SMD;3.3UH,20%,10.0X10.0MM,0.011
2703-003824 INDUCTOR-SMD;3.3UH,20%,7070
2703-003790 INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450
2703-004724 INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M
BN62-00581A INSULATOR-SMPS;Y14 U8.5K 48,50,55,PC,BLA
BN96-31644A BN96-31644A IRBLASTER CABLE;2P,L2500,UL1185,BLK,IR B
3722-003229 JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P
3722-003226 JACK-PHONE;1P/7C,SN,BLK,STRAIGHT,3.6PI,1
3722-003617 JACK-PHONE;2P/14C,SN,BLK,STRAIGHT,3.6PI,
3722-003725 JACK-PIN;3P,NI/SN,RED/WHT/YEL,STRAIGHT
3722-003546 3722-003546 JACK-PIN;5P,NI/SN,BLU/GRN/RED/WHT/YEL,SM
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
3722-003837 JACK-USB;9P/1C,AU/NI,BLU,SMD-A,A,3.0,13.

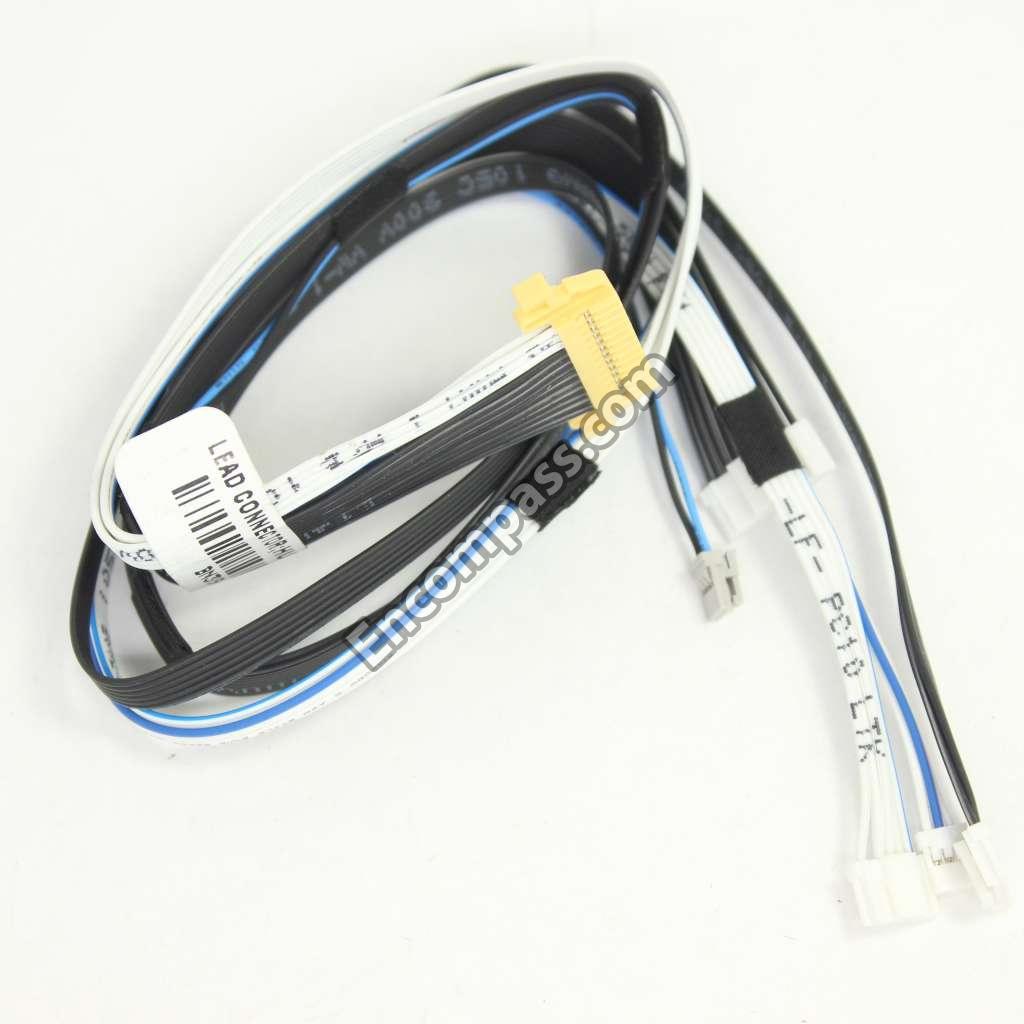

BN39-01822K BN39-01822K LEAD CONNECTOR-POWER;HU8500 55",UL21016,

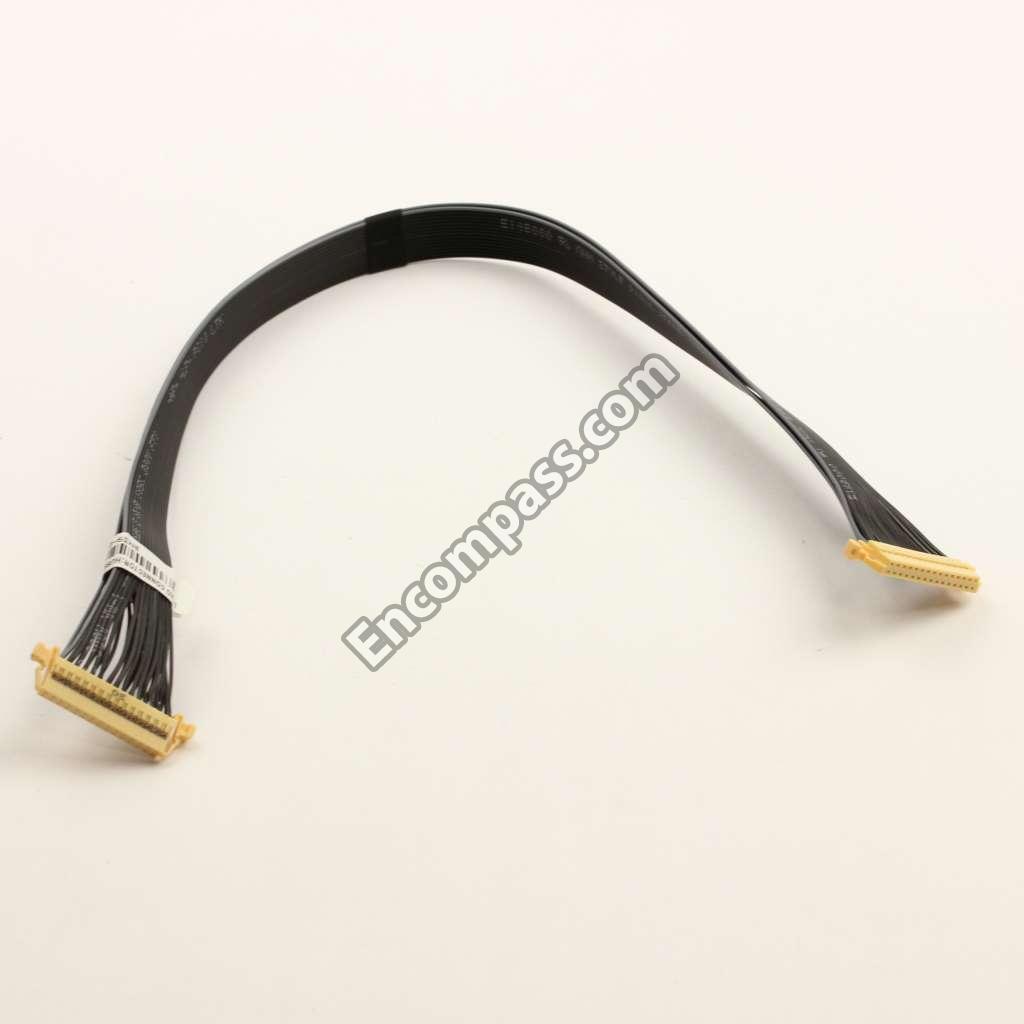

BN39-01847D BN39-01847D LEAD CONNECTOR-POWER;HU8500 55",UL21016,

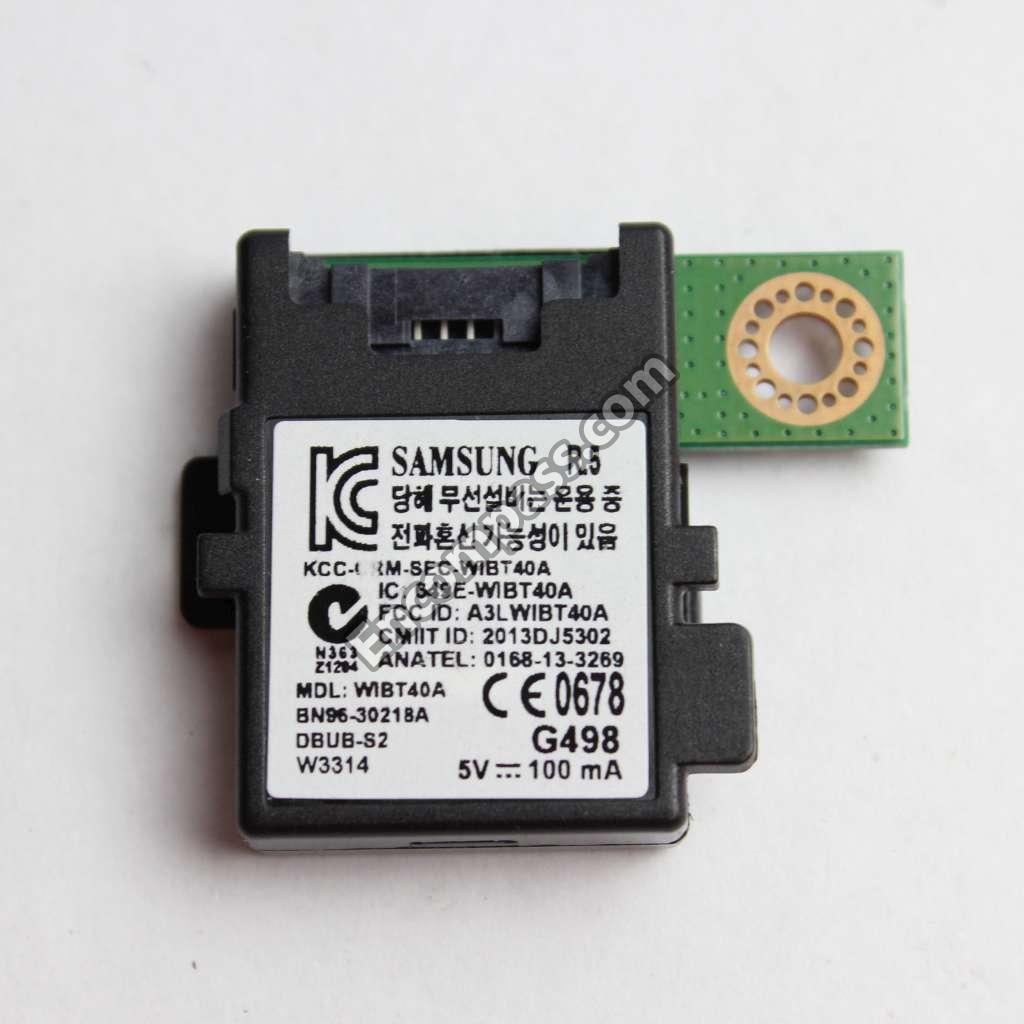

BN96-30218A BN96-30218A NETWORK-BLUETOOTH;WIBT40A,34.79X28X7.7MM
BN59-01174A BN59-01174A NETWORK-WLAN CLIENT;WIDT30Q,58X31.45X8.5
BN73-00211A PAD GAP-THERMAL;UE40B7000WWXXC,SI,T6,L35
BN95-01369A BN95-01369A PRODUCT LCD-AMLCD;CY-KH055FSLV1V,10 BIT,
2007-008779 R-CHIP;0OHM,1%,1/16W,TP,1005
2007-000219 R-CHIP;1.2KOHM,1%,1/10W,TP,1608
2007-009853 R-CHIP;1.6KOHM,1%,1/16W,TP,1005
2007-000060 R-CHIP;100KOHM,1%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-000297 R-CHIP;10KOHM,1%,1/8W,TP,2012
2007-000090 R-CHIP;10KOHM,5%,1/10W,TP,1608
2007-008332 R-CHIP;11.5KOHM,1%,1/16W,TP,1005
2007-000336 R-CHIP;120KOHM,1%,1/10W,TP,1608
2007-007830 R-CHIP;14KOHM,1%,1/10W,TP,1608
2007-000063 R-CHIP;150KOHM,1%,1/10W,TP,1608
2007-000455 R-CHIP;18KOHM,1%,1/10W,TP,1608
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-007942 R-CHIP;1MOHM,1%,1/16W,TP,1005
2007-003015 R-CHIP;2.2OHM,5%,1/16W,TP,1005
2007-007617 R-CHIP;2.49KOHM,1%,1/10W,TP,1608
2007-000512 R-CHIP;2.4KOHM,5%,1/10W,TP,1608
2007-000536 R-CHIP;200OHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-000583 R-CHIP;22KOHM,1%,1/10W,TP,1608
2007-007526 R-CHIP;23.7KOHM,1%,1/10W,TP,1608
2007-000614 R-CHIP;24KOHM,1%,1/10W,TP,1608
2007-000651 R-CHIP;27KOHM,1%,1/10W,TP,1608
2007-007720 R-CHIP;300KOHM,1%,1/10W,TP,1608
2007-000726 R-CHIP;300OHM,1%,1/10W,TP,1608
2007-000736 R-CHIP;30KOHM,1%,1/10W,TP,1608
2007-000772 R-CHIP;33KOHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005
2007-000113 R-CHIP;33OHM,5%,1/10W,TP,1608
2007-000816 R-CHIP;390KOHM,1%,1/10W,TP,1608
2007-000828 R-CHIP;39KOHM,1%,1/10W,TP,1608
2007-000857 R-CHIP;4.3KOHM,1%,1/10W,TP,1608
2007-000869 R-CHIP;4.7KOHM,1%,1/10W,TP,1608
2007-007797 R-CHIP;44.2OHM,1%,1/10W,TP,1608
2007-000939 R-CHIP;47KOHM,1%,1/10W,TP,1608
2007-007736 R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-008269 R-CHIP;51KOHM,1%,1/16W,TP,1005
2007-007733 R-CHIP;51OHM,1%,1/10W,TP,1608
2007-008133 R-CHIP;56.2KOHM,1%,1/10W,TP,1608
2007-008026 R-CHIP;56OHM,1%,1/16W,TP,1005
2007-008391 R-CHIP;6.34KOHM,1%,1/16W,TP,1005
2007-001116 R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005
2007-001168 R-CHIP;75OHM,5%,1/4W,TP,3216
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001506 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,
2011-001396 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP,
2011-001497 R-NETWORK;470OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001590 R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1

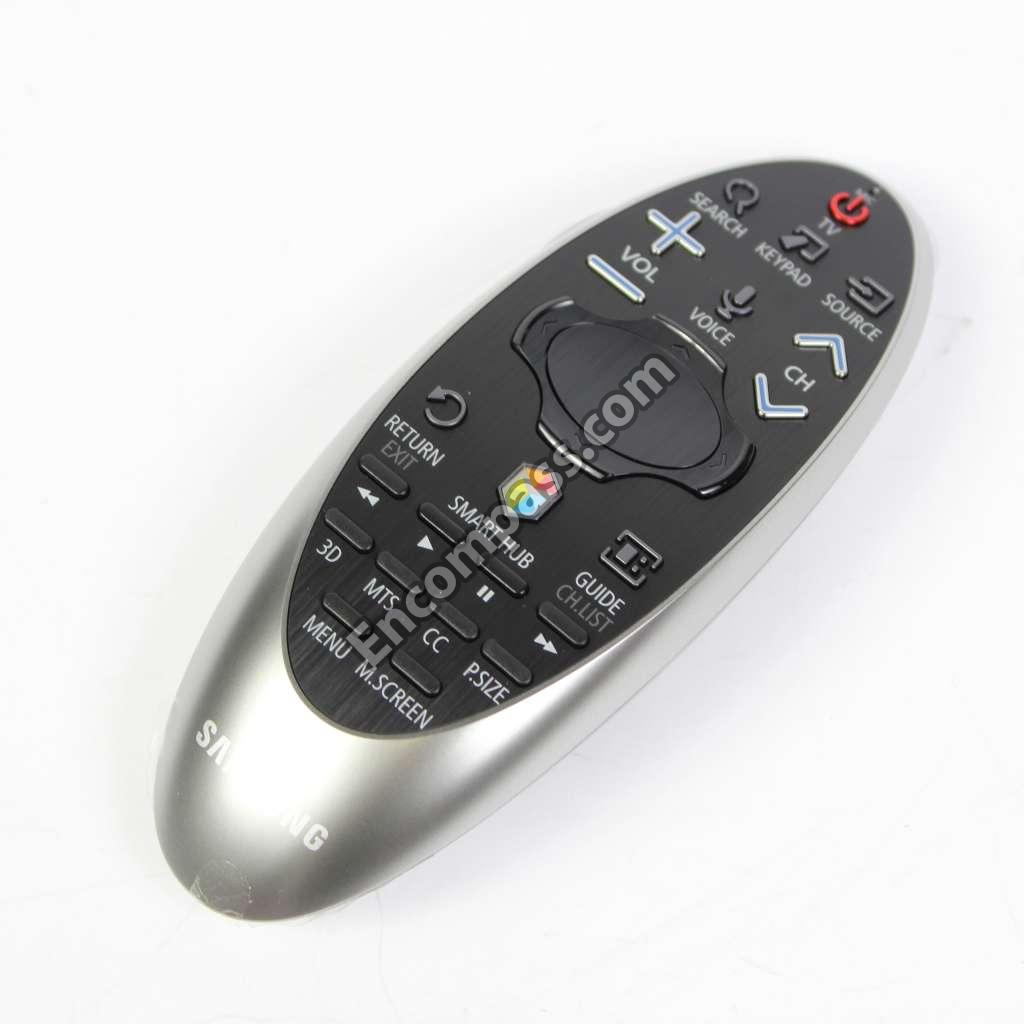

BN59-01181A BN59-01181A REMOCON-SMART CONTROL;2013 TV,SAMSUNG,28
BN59-01179B BN59-01179B REMOCON;2014 TV,SAMSUNG,52,3.0,TM1260C_L
6001-003075 6001-003075 SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1

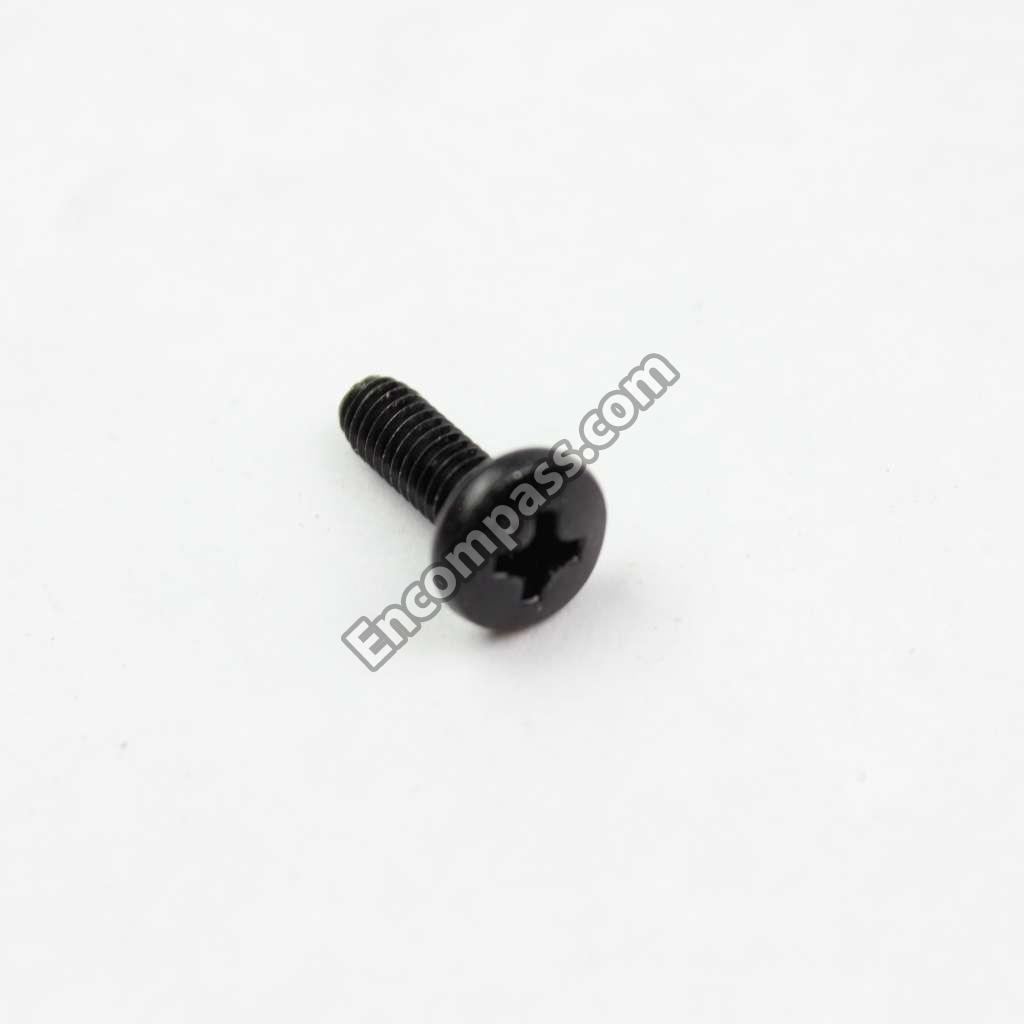

6001-002755 6001-002755 SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1
6001-003080 6001-003080 SCREW-MACHINE;CH,M3,L4,ZPC(BLK),SWRCH1
6001-003079 6001-003079 SCREW-MACHINE;CH,M3,L6,ZPC(BLK),SWRCH1

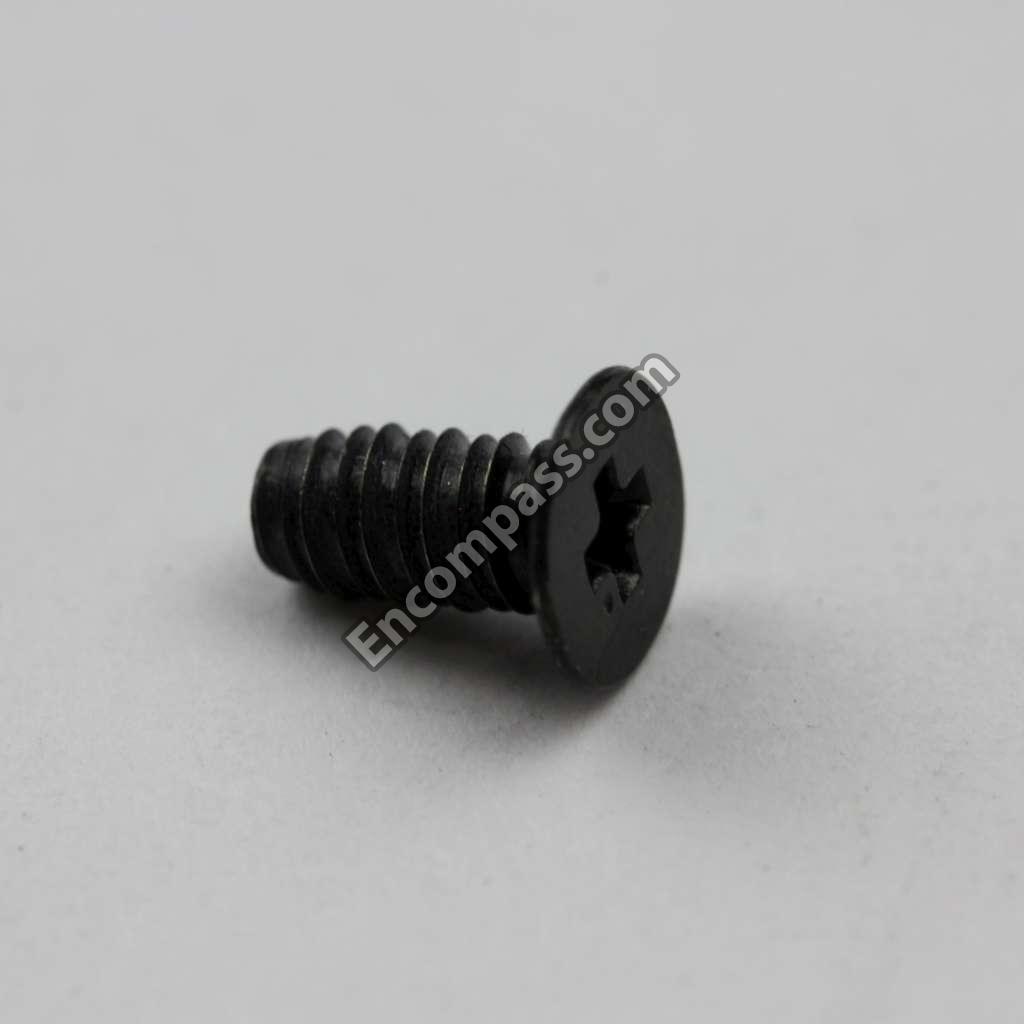

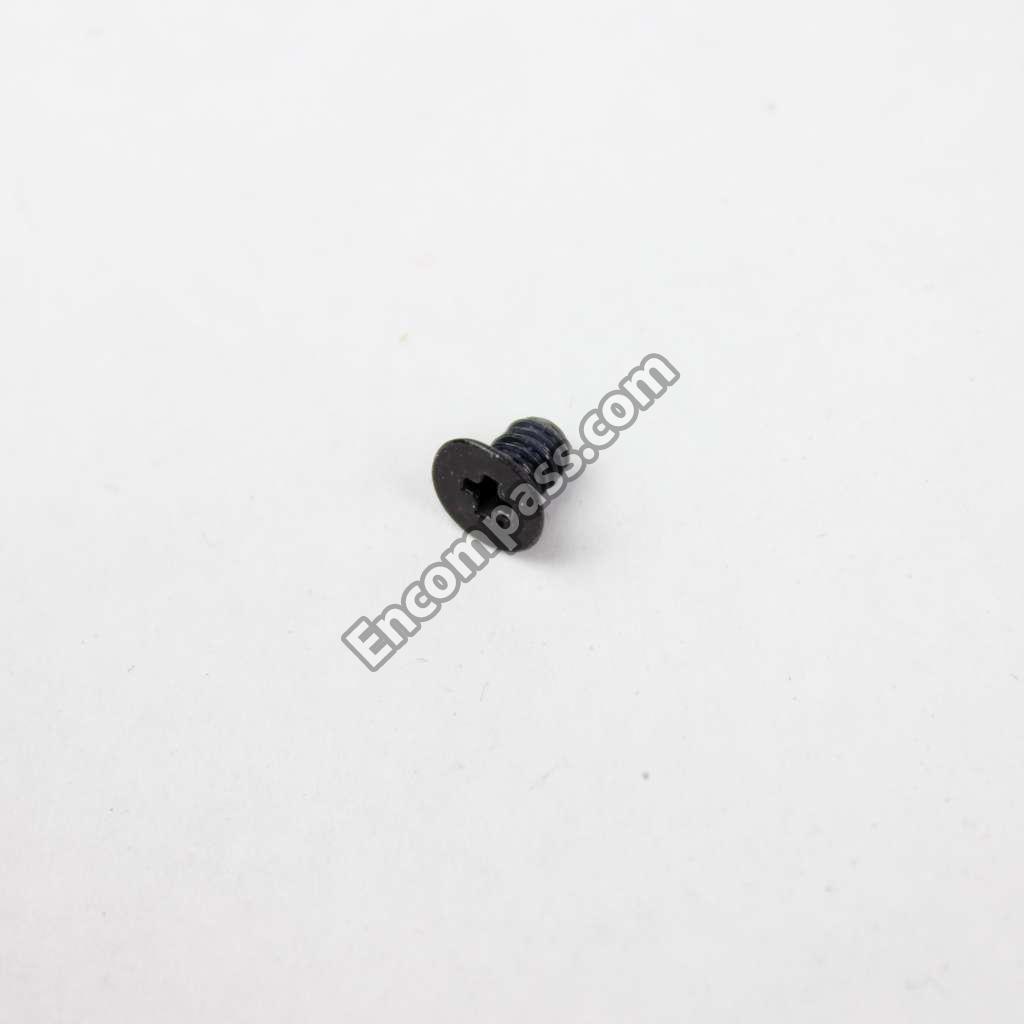

6001-002996 6001-002996 SCREW-MACHINE;FH,M3,L5.0,ZPC(BLK),SWRC
6001-003041 6001-003041 SCREW-MACHINE;FH,M4,L8,ZPC(BLK),SWRCH1
6001-003081 6001-003081 SCREW-MACHINE;PWH,M3,L5,ZPC(WHT),SWRCH

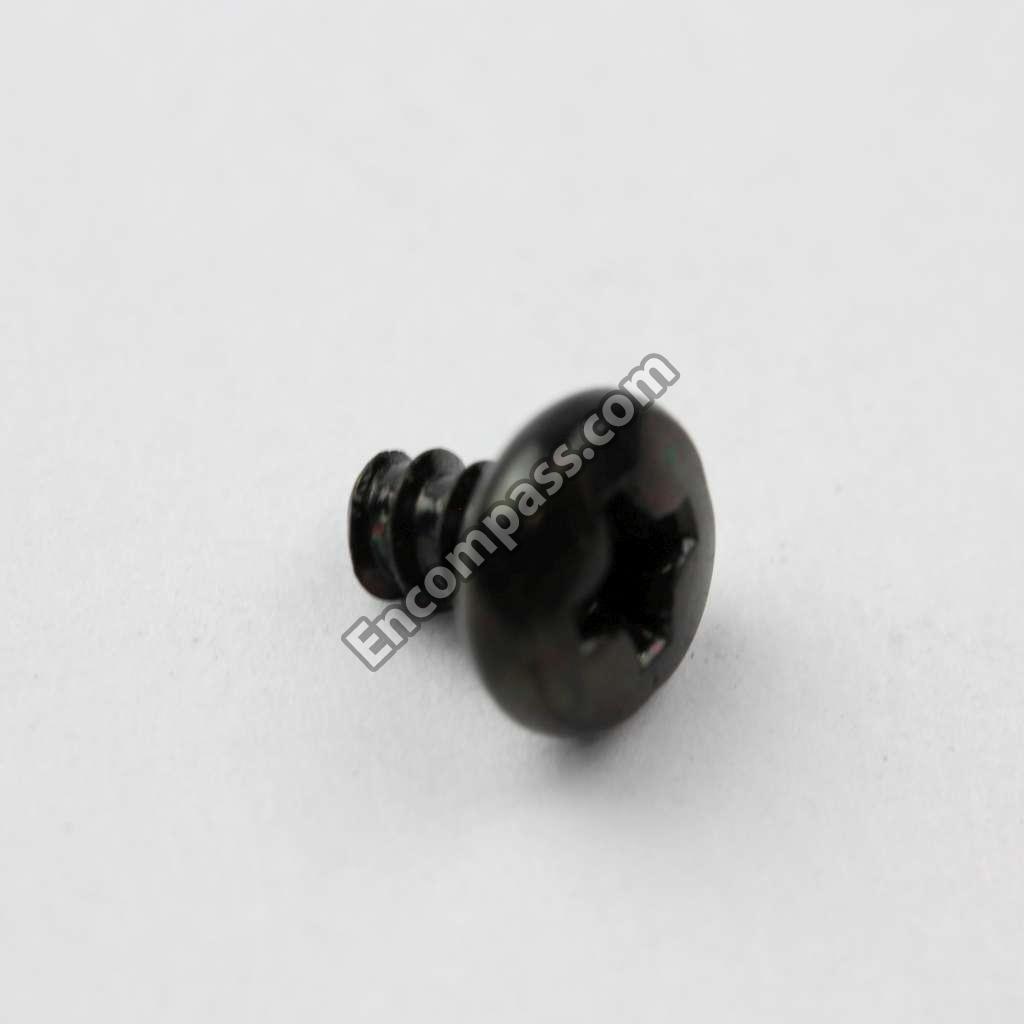

6003-001206 6003-001206 SCREW-TAPTYPE;BH,B,M3,L4,BLK,SWRCH18A
6003-001782 6003-001782 SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR
6003-000269 6003-000269 SCREW-TAPTYPE;BH,S,M3,L6,ZPC(WHT),SW
6003-001208 6003-001208 SCREW-TAPTYPE;BH,S,M4,L12,ZPC(BLK),SWR
BN61-09494B BN61-09494B SCREW-TAPTYPE;BH,S,M4,L14,ZPC(BLK),SWR
6003-001785 6003-001785 SCREW-TAPTYPE;FH,B,M4,L8,ZPC(BLK),SWRC
6003-000264 SCREW-TAPTYPE;PWH,B,M3,L6,ZPC(WHT),S
3710-003901 SOCKET-INTERFACE;34P,2R,0.5MM,SMD-A,AU,B
0504-000126 TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S
0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59
0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23,
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
BN40-00280A BN40-00280A TUNER-DTV AIR CABLE;DTVS20EIH276A,VSB HA
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V,
Main Menu x
