Manufacturer

Samsung

Model Number

UN55KS850DFXZA

Description

55-inch Class Ks850d 8-series Curved 4k Suhd Tv (2

Interactive Exploded View

Parts List

Part Number	Description
BN96-39802C	ASSY BOARD P-FUNCTION TACT;KS7000/7500/K
BN96-39565B	ASSY COVER P-DECORATION;55KS7500,PC+GF15
BN96-39908A	ASSY COVER P-REAR;55KS7500,PC+ABS+GF20%,
BN96-39927B	ASSY COVER P-STAND TOP LEFT;55KS7500,ALD
BN96-39926B	ASSY COVER P-STAND TOP RIGHT;55KS7500,AL
BN96-40469A	ASSY COVER P-TERMINAL;55KS7500,PC+ABS,V-
BN96-40188B	ASSY COVER P-TOP;55KS9000,ABS,V-0,BK0008
BN91-17814W	ASSY FIXING-JACKPACK;Y16 OCM

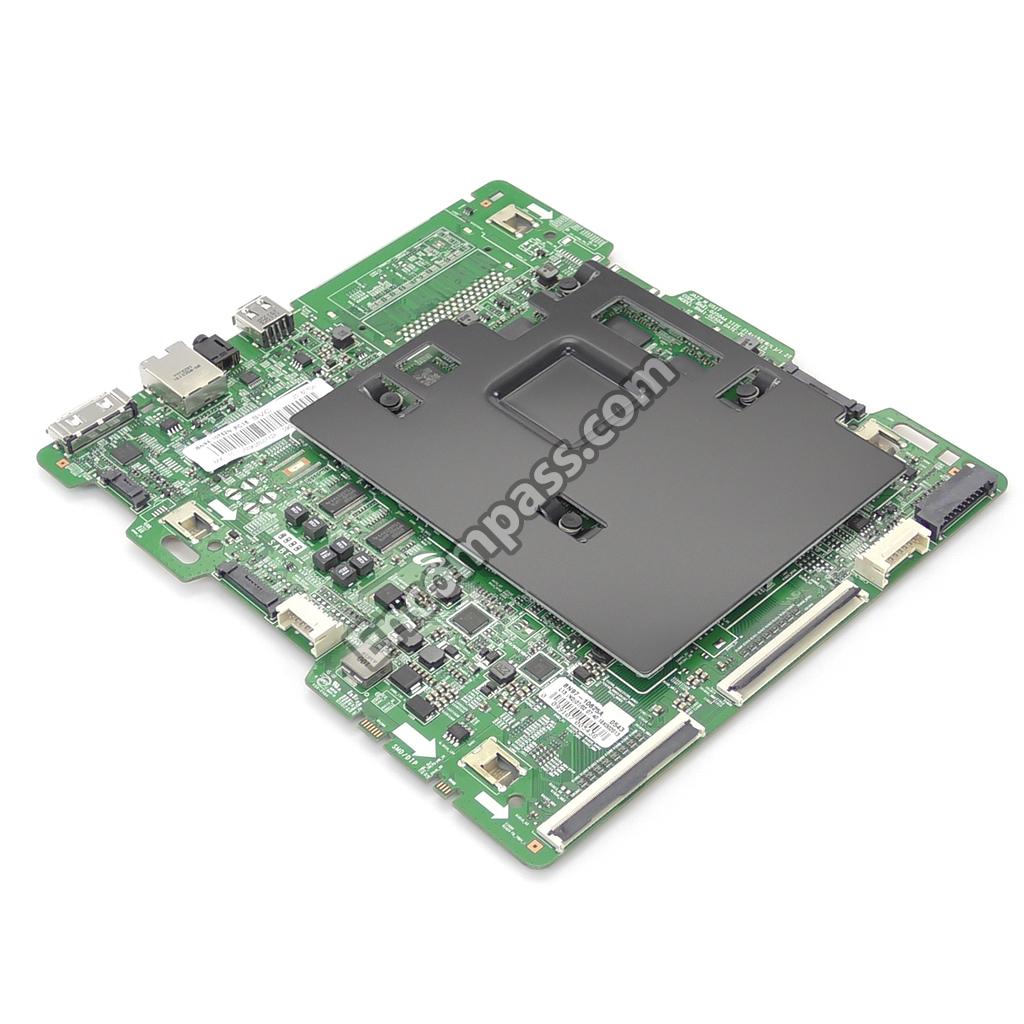

BN94-10752N	ASSY PCB MAIN;7K

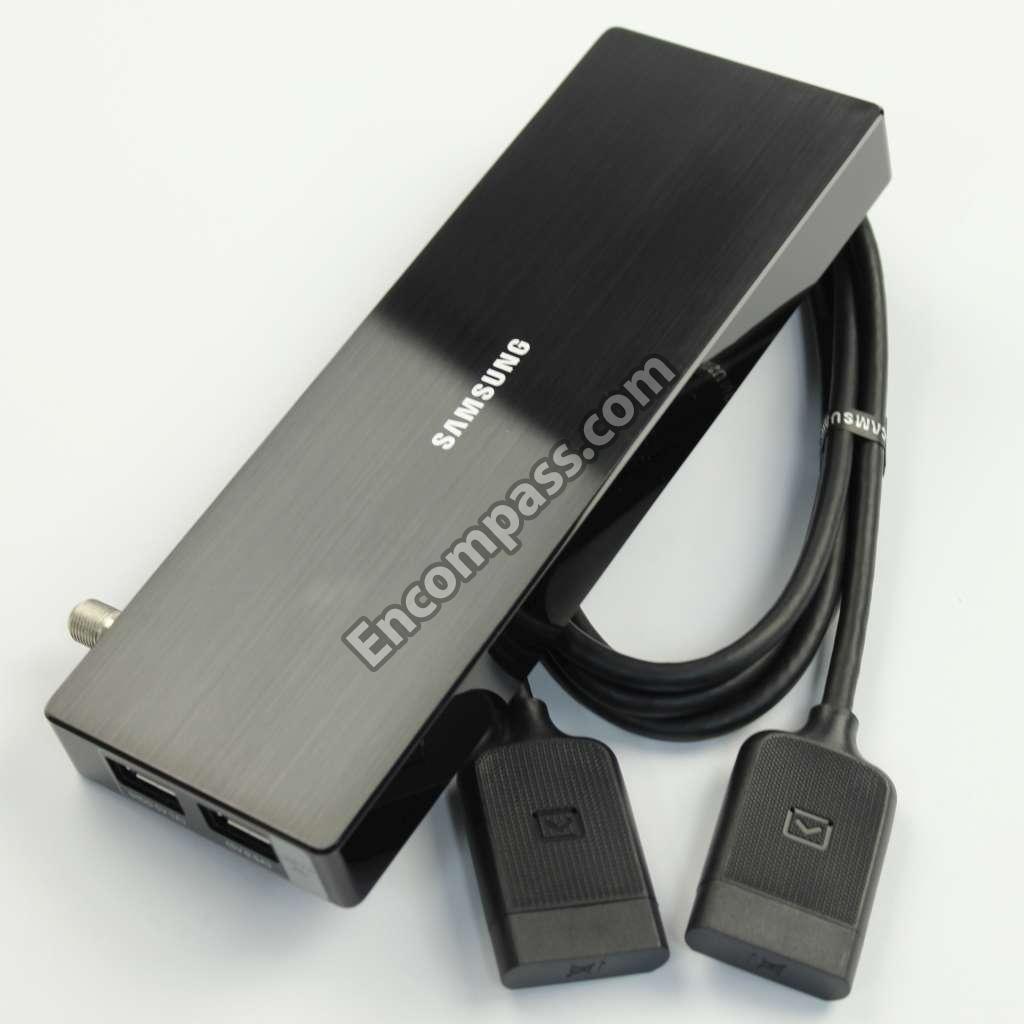

BN91-17814A	ASSY PCB MISC-ONE CONNECT MINI;Y16 OCM P

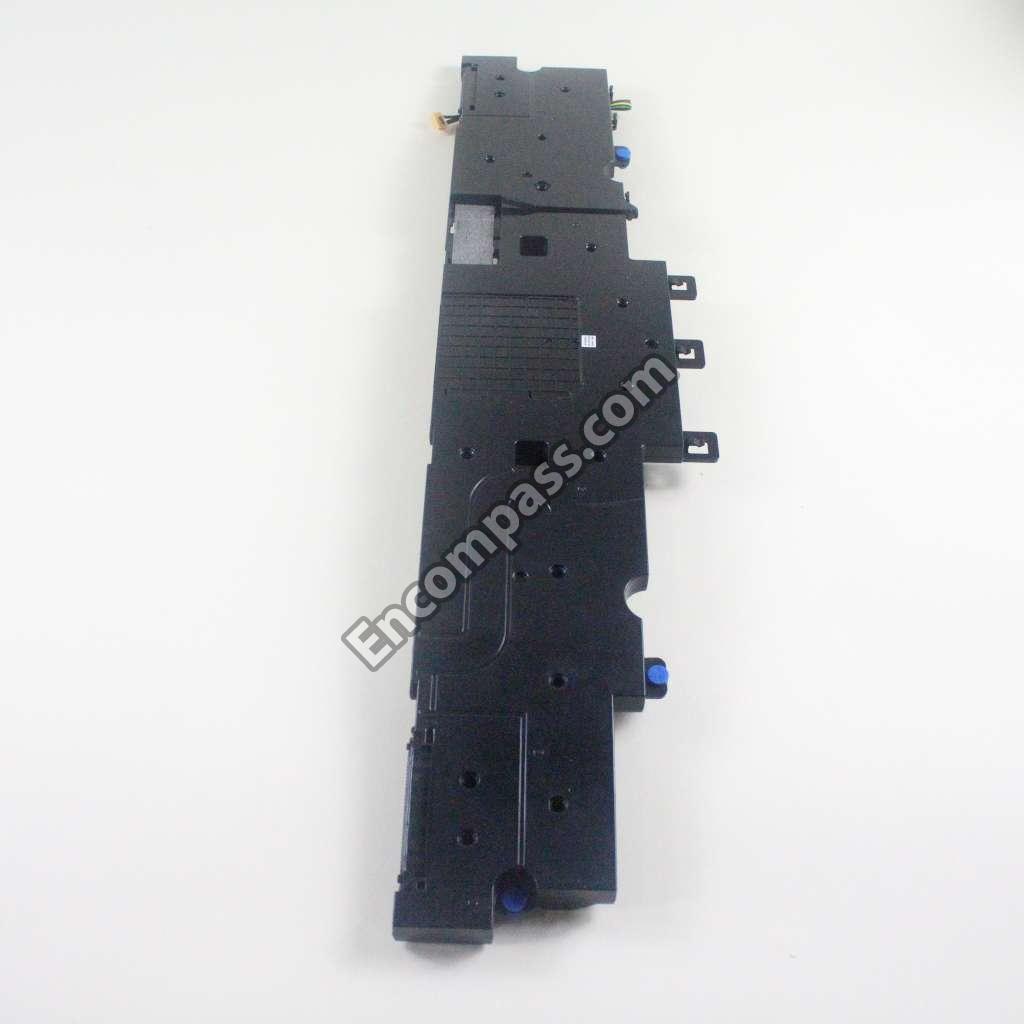

BN96-39889A	ASSY SPEAKER P-FRONT;TV-SPK,KS7500,6OHM,
BH69-00418A	BAG PE-WRAPPING FILM
4301-000101	BATTERY-ALKALINE
3301-001364	BEAD-SMD;1000OHM,1608,TP,1085OHM/108MHZ,
3301-002039	BEAD-SMD;26OHM,1608,TP

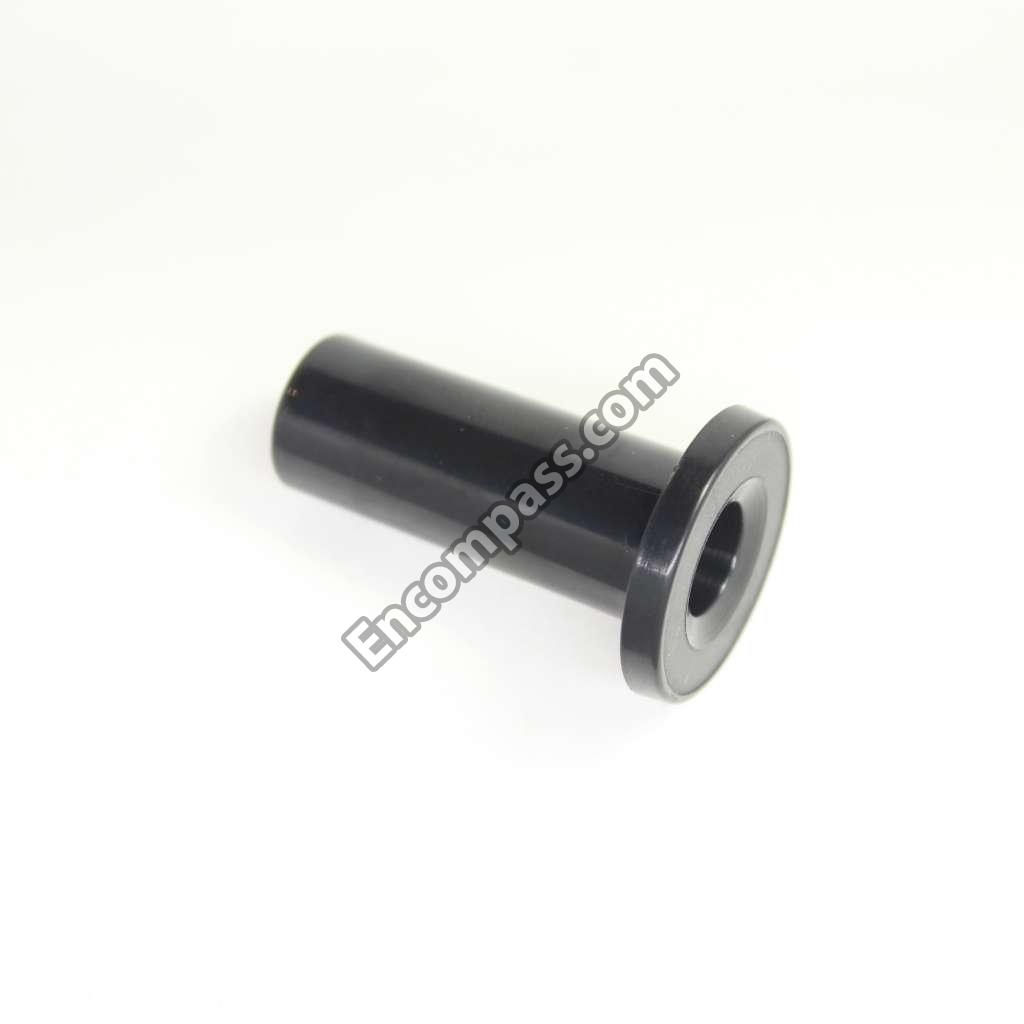

BN61-04692A	BOSS-PRIMER
BN61-13557E	BRACKET-WIRE;49KS7000,SW-C,T1,NATURAL,ZI
BN61-13557H	BRACKET-WIRE;55KS7000,SW-C,T1,NATURAL,ZI
BN61-13557A	BRACKET-WIRE;KS7000,SW-C,1,60,SILVER
2203-007513	C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007176	C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1
2203-007306	C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1
2203-006698	C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0.
2203-006158	C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544	C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,0.5
2203-002285	C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-008315	C-CER,CHIP;22000NF,20%,25V,X5R,TP,2012,T
2203-005344	C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T
2203-002398	C-CER,CHIP;22NF,10%,50V,X7R,TP,1608
2203-006377	C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012
2203-006844	C-CER,CHIP;470NF,10%,10V,X5R,TP,1005
2409-001240	C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1.
2409-001338	C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6

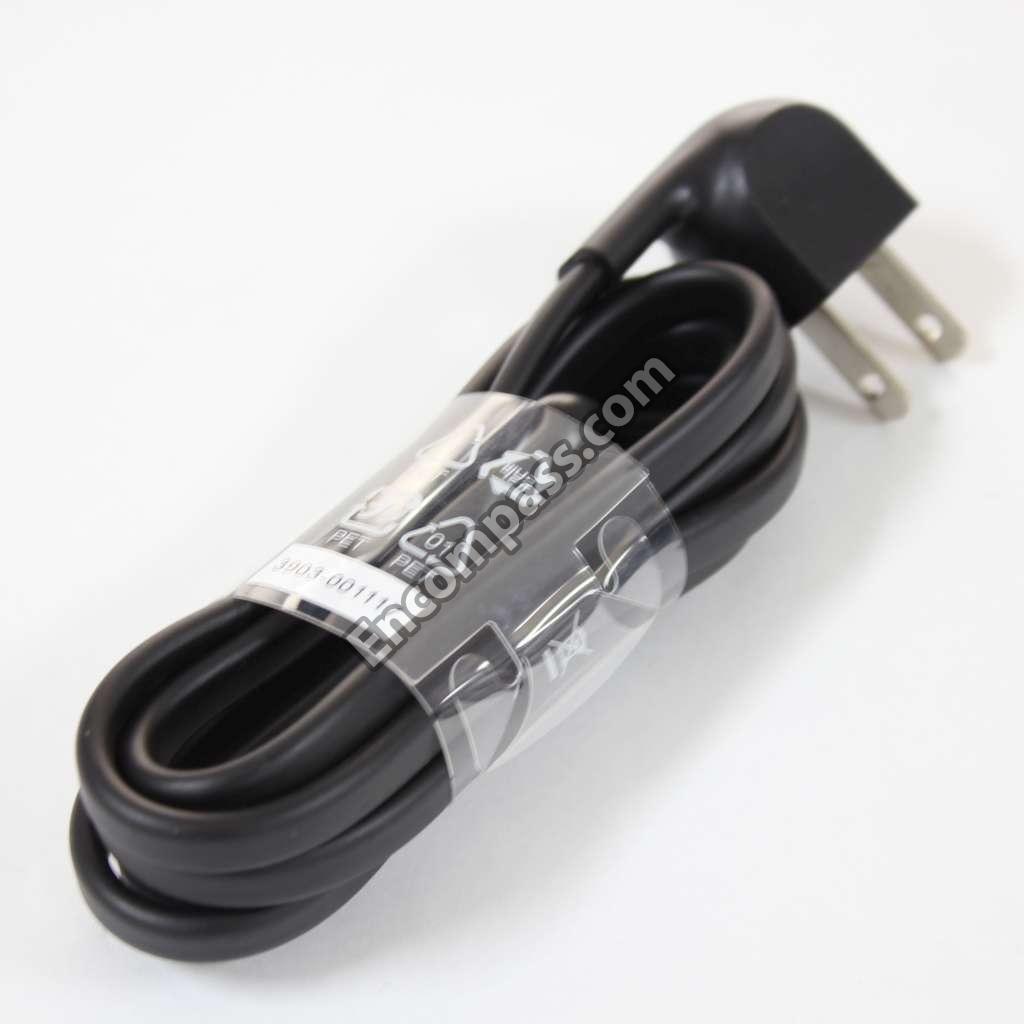

3903-001117	CBF-POWER CORD;DT,USA,ANGLE,2P(C7),125V,
BN63-02368B	CLOTH-CLEAN
3701-001949	CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-007975	CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A
3711-007741	CONNECTOR-HEADER;BOX,14P,2R,2.0MM,ANGLE,
3711-009090	CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A
3711-007587	CONNECTOR-HEADER;BOX,18P,2R,2MM,ANGLE,SN
3711-009106	CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN
3707-001104	CONNECTOR-OPTICAL;ANGLE,SPDIF
3710-004144	CONNECTOR-SOCKET;44P,1R,0.5MM,SMD-A,AU,B

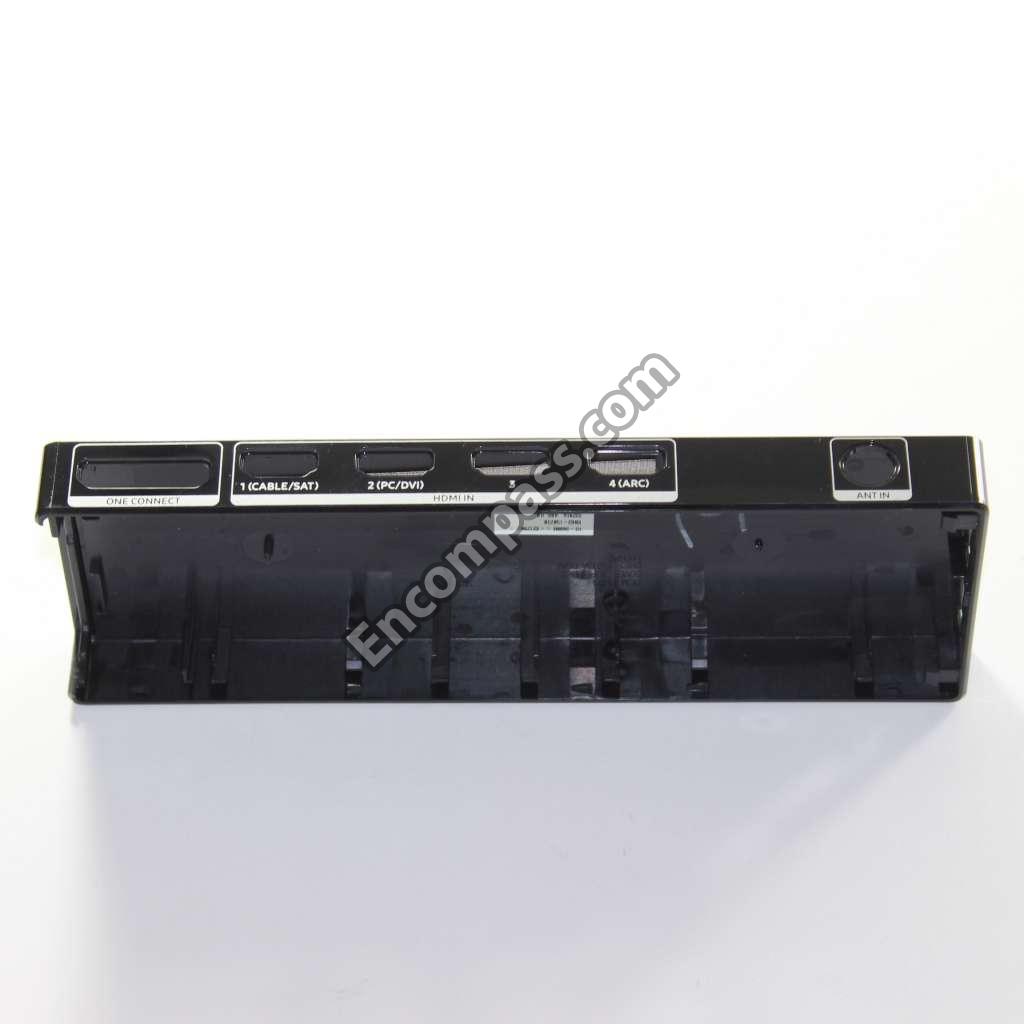

BN63-15074B	COVER-BOTTOM;OCM PLUS,PC+ABS,MOLD,V-0,BK
BN63-02183G	COVER-SHEET
BN63-15050A	COVER-TERMINAL SIDE;55KS7000,ABS,T2,HB,B
2801-004021	CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
2801-005372	CRYSTAL-SMD;24.576MHZ,20PPM,HCX-3SB,12 P

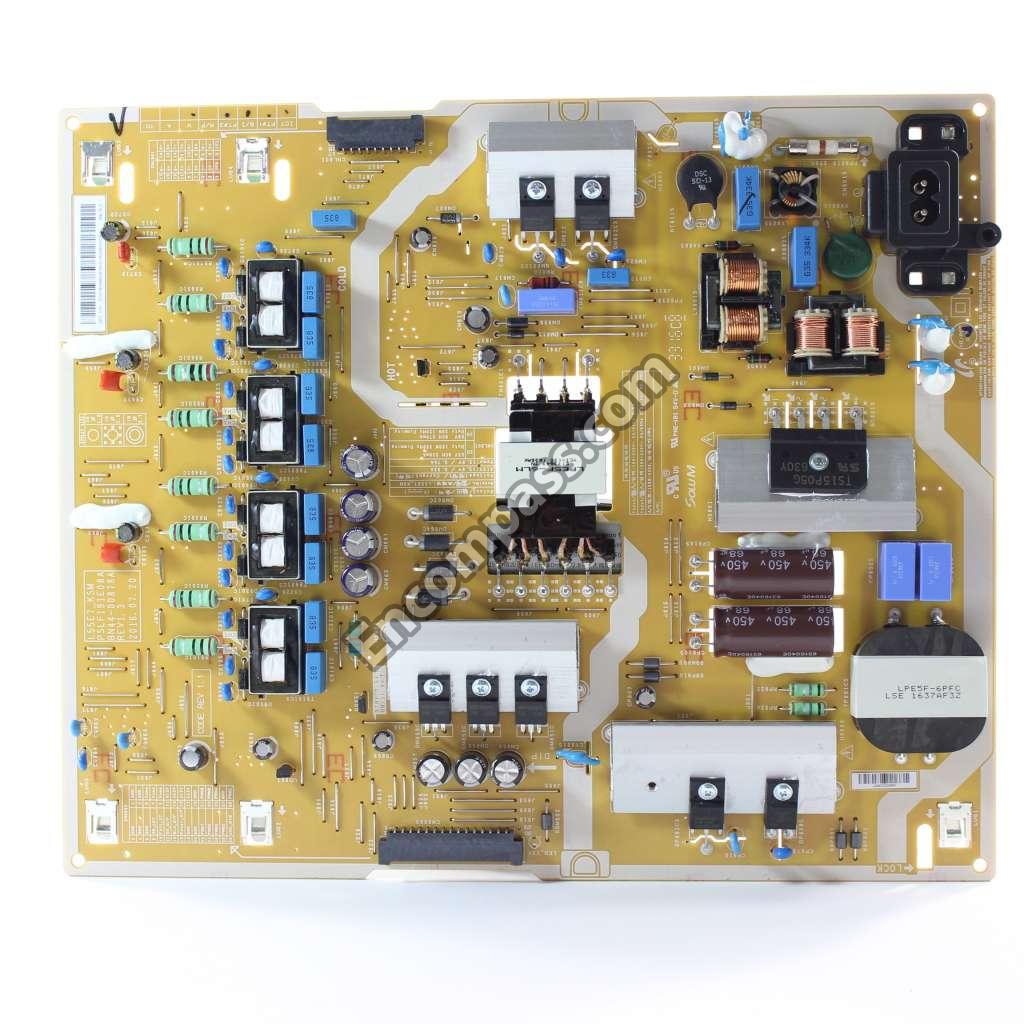

BN44-00878A	DC VSS-PD BOARD;L55E7_KSM,AC/DC,192W,100
0404-001404	DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953	DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640	DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001881	DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD-
0404-001307	DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB
0401-001056	DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001628	DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP
0406-001635	DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001831	DIODE-ZENER;KDZ12B,12~13.5V,1000MW,SOD-1
0403-001164	DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S
0505-003397	FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-003507	FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-003264	FET-SILICON;AO4447AL,P,30V,-17A,7MOHM,3.
0505-002893	FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8
0505-003391	FET-SILICON;AOD2922,N,100V,8A,140MOHM,18
0505-002598	FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH
0505-003205	FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1.
0505-001844	FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4

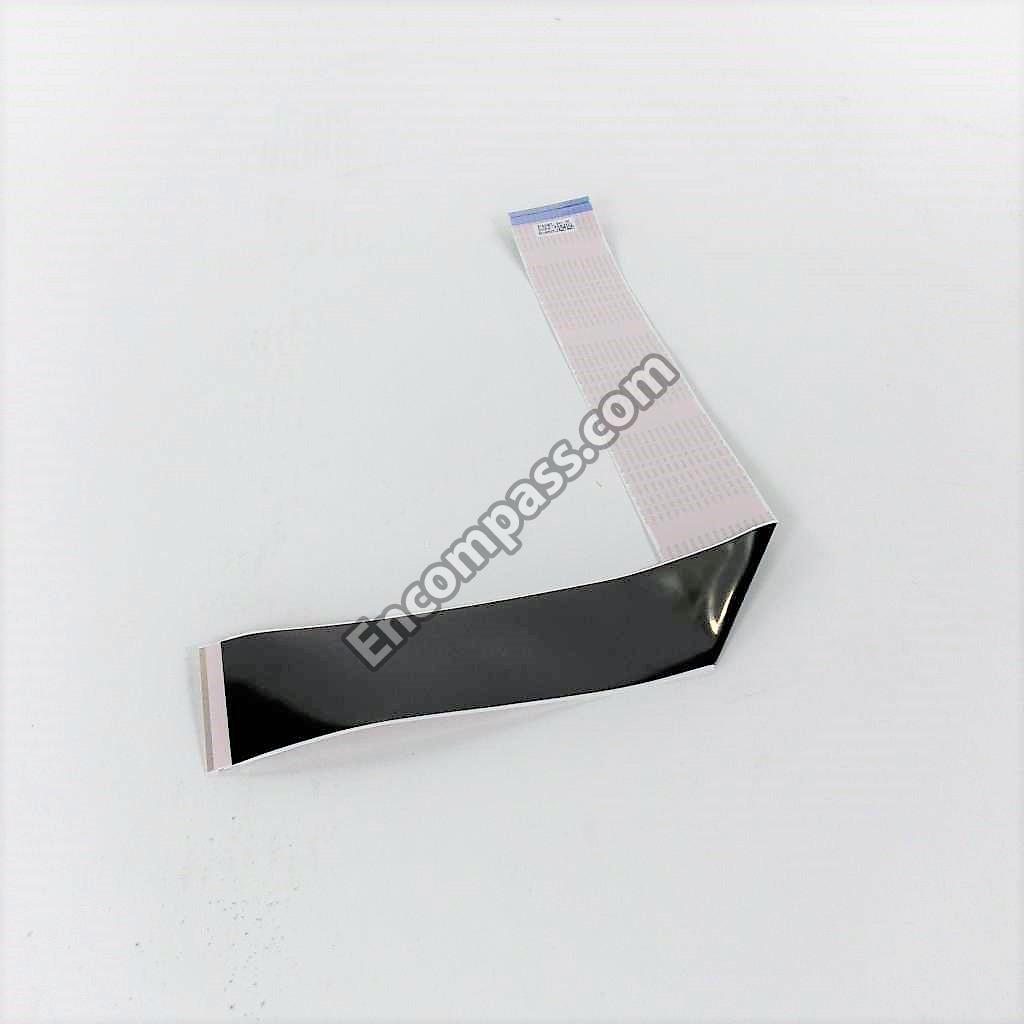

BN96-39891A	FFC CABLE;55KS7500,FOLD,L400,96P
BN96-39820D	FFC CABLE;55KS7500,FOLD,L500,96P
3601-001376	FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
BN61-14022A	HOLDER-CABLE;55KS7000,ABS,T1.5,BK0007,HB
BN61-13518A	HOLDER-WALL RING;55KS7500,ABS,MOLD,BK000
1001-001998	IC-ANALOG MULTIPLEX;NX3DV221GM,USB SWITC
1201-004003	IC-AUDIO AMP;TAS880021,TSSOP,48P,12.5X6.
0801-003292	IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P
0801-003604	IC-CMOS LOGIC;NL17SZ17DFT2G,SC-70,5P,TP,
0801-003598	IC-CMOS LOGIC;TC7SZ00FU,2-INPUT NAND GAT
1203-008733	IC-DC/DC CONVERTER;AOZ1236QI-02,QFN,23,4
1203-008735	IC-DC/DC CONVERTER;AOZ1267QI-02,QFN,23,4
1203-008391	IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L,
1203-008664	IC-DC/DC CONVERTER;RT6935BGQW,WQFN,56,7X
1203-008667	IC-DC/DC CONVERTER;RT6936A,WQFN,40,6X6MM
1203-008732	IC-DC/DC CONVERTER;SYD104ADC,TSOT-23,6,3
1105-002704	IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-SDR
1204-003679	IC-DECODER;SDP1501,FCPBGAH,1230P,35*35MM
1204-003677	IC-DECODER;SDP1503,FCPBGAH,396P,18*18MM,
1006-001576	IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16
1103-001564	IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8,
1107-002362	IC-EMMC;KLM8G1GEND-B031,8GB,64GB MLC X 1
1107-002226	IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-000166	IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1203-008345	IC-POSI.ADJUST REG.;S-13A1ADJ-E800X,HSOP
1205-005537	IC-REPEATER;TCA9517,VSSOP,8P,3.00X3.00MM
1205-005554	IC-REPEATER;TMDS181,VQFN,48P,7X7MM,PLAST
1209-002183	IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1
1205-005519	IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM
1205-004822	IC-SWITCH;TPS22965DSGR,SON,8P,2X2X0.75MM
1203-004364	IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1203-008392	IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23
2703-005191	INDUCTOR-SMD;1.5UH,20%,4.5,0.02OHM,5300M
2703-005376	INDUCTOR-SMD;10UH,20%,10X10.7MM,4.0T,0.0
2703-003862	INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003937	INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00
2703-005193	INDUCTOR-SMD;2.2UH,20%,4.5,0.024OHM,5100
2703-003747	INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-005194	INDUCTOR-SMD;3.3UH,20%,4.5,0.03OHM,4500M
2703-004724	INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M
3722-003199	JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003394	JACK-PHONE;1P/6C,AU,BLK,ANGLE,3.6PI,9X14
3722-003457	JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
BN68-00513A	LABEL-E, PASS

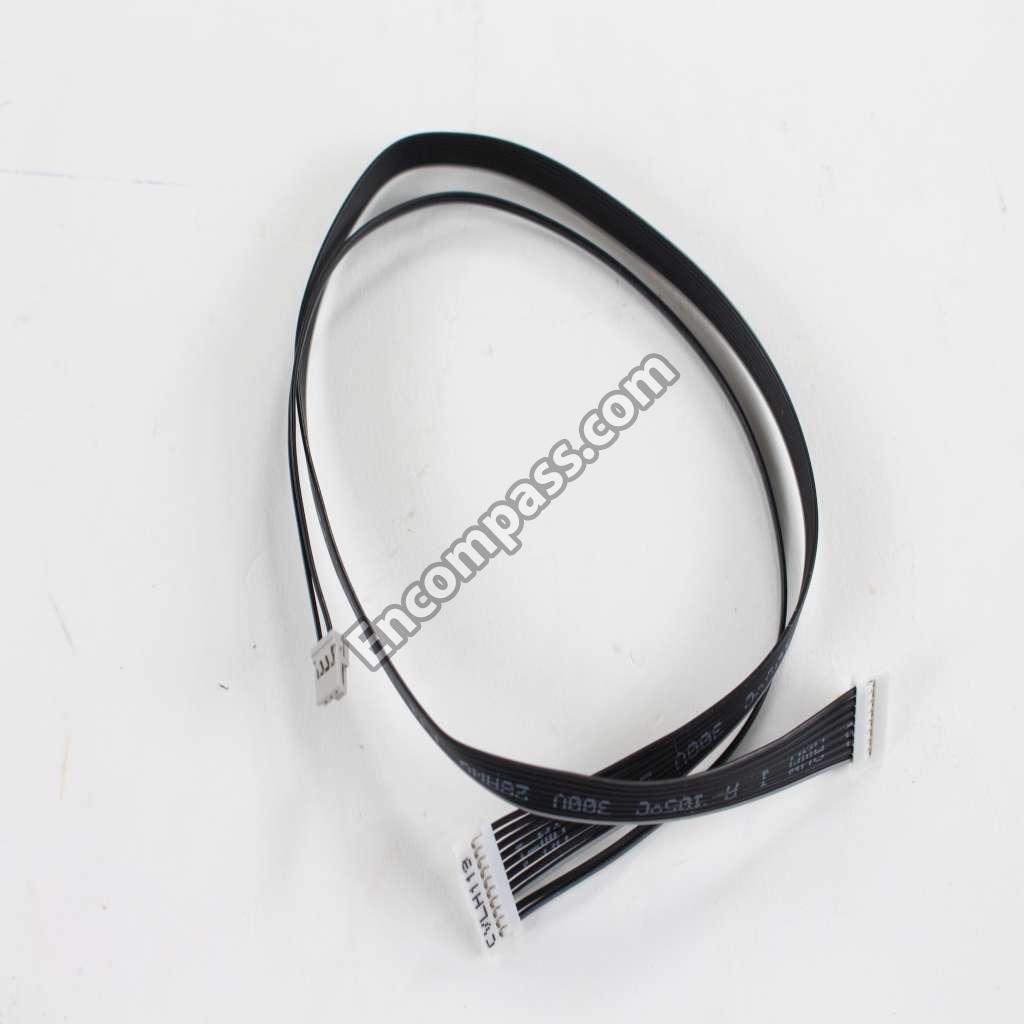

BN39-02206C	LEAD CONNECTOR-POWER;49KS7500,UL21016,30
BN39-02204C	LEAD CONNECTOR-SUB ASSY;55KS7500,UL21016
BN39-02212A	LEAD CONNECTOR-SUB ASSY;65KS9000,UL21451

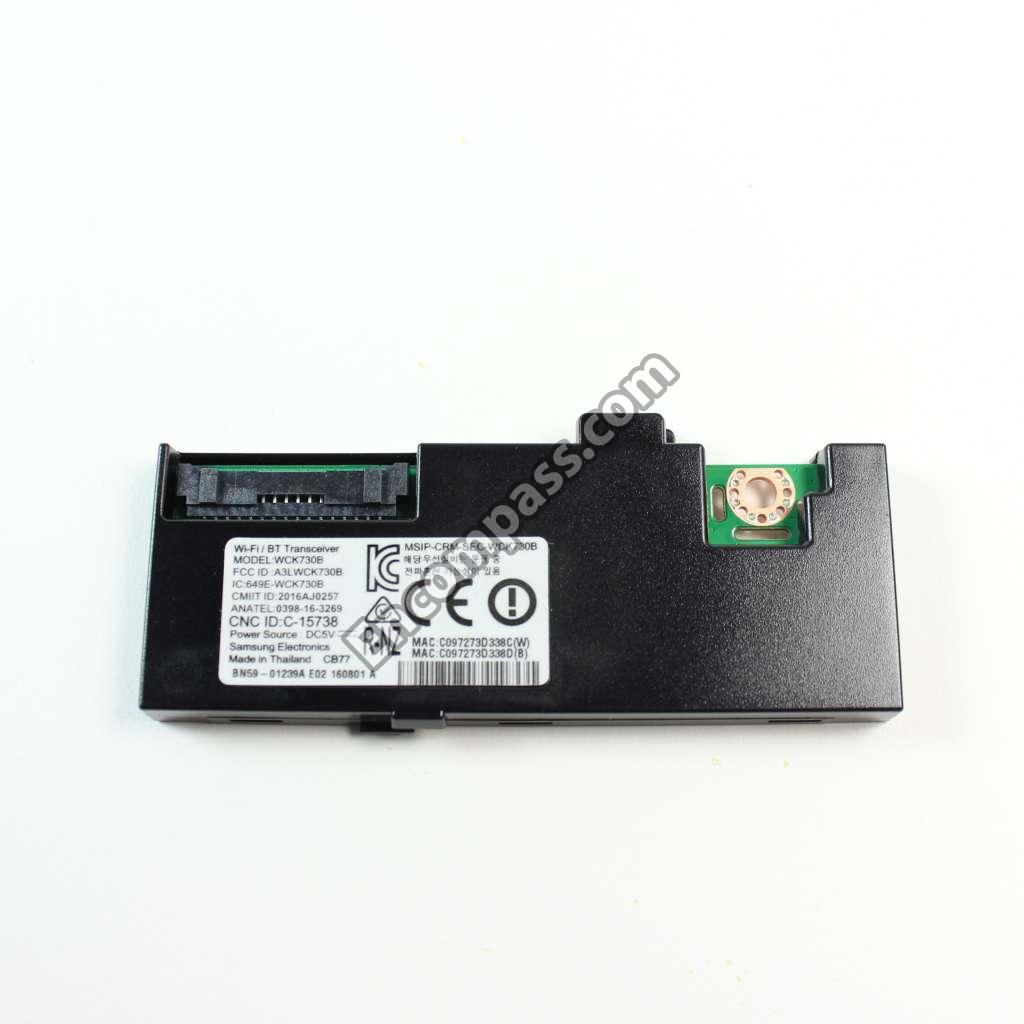

BN59-01239A	NETWORK-WLAN CLIENT;WCK730B,USB 2.0,16P,

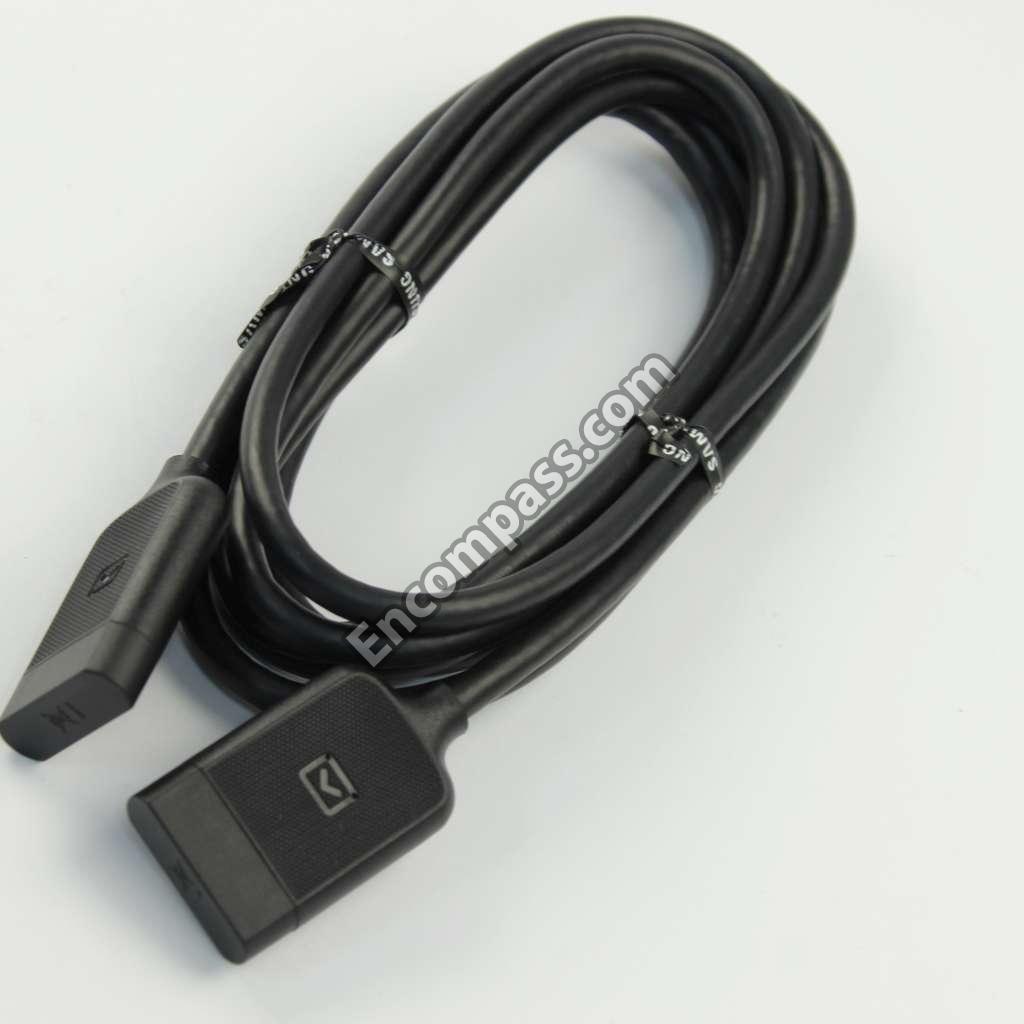

BN39-02210A	ONECONNECTMINI CABLE;KS7000~KS9000,44P,L
BN95-02606B	PRODUCT LCD-SDC;CY-XK055FLLV4V/H,KS7500,
2007-008596	R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-000039	R-CHIP;0OHM,1%,1/10W,TP,1608
2007-009322	R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-000052	R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002899	R-CHIP;10OHM,1%,1/10W,TP,1608
2007-000309	R-CHIP;10OHM,5%,1/10W,TP,1608
2007-008134	R-CHIP;12.4KOHM,1%,1/16W,TP,1005
2007-008167	R-CHIP;120KOHM,1%,1/16W,TP,1005
2007-000040	R-CHIP;150OHM,1%,1/10W,TP,1608
2007-007942	R-CHIP;1MOHM,1%,1/16W,TP,1005
2007-007992	R-CHIP;1OHM,1%,1/10W,TP,1608
2007-003015	R-CHIP;2.2OHM,5%,1/16W,TP,1005
2007-007767	R-CHIP;200OHM,1%,1/16W,TP,1005
2007-007520	R-CHIP;20OHM,1%,1/10W,TP,1608
2007-008067	R-CHIP;21KOHM,1%,1/10W,TP,1608
2007-007587	R-CHIP;3.6KOHM,1%,1/16W,TP,1005
2007-000736	R-CHIP;30KOHM,1%,1/10W,TP,1608
2007-008294	R-CHIP;33OHM,1%,1/16W,TP,1005
2007-000084	R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000879	R-CHIP;4.7OHM,1%,1/10W,TP,1608
2007-000939	R-CHIP;47KOHM,1%,1/10W,TP,1608
2007-008298	R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-000999	R-CHIP;510OHM,1%,1/10W,TP,1608
2007-008269	R-CHIP;51KOHM,1%,1/16W,TP,1005
2007-008391	R-CHIP;6.34KOHM,1%,1/16W,TP,1005
2007-001125	R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015	R-CHIP;75OHM,1%,1/16W,TP,1005
2007-007868	R-CHIP;90.9OHM,1%,1/10W,TP,1608
2011-001264	R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001449	R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0

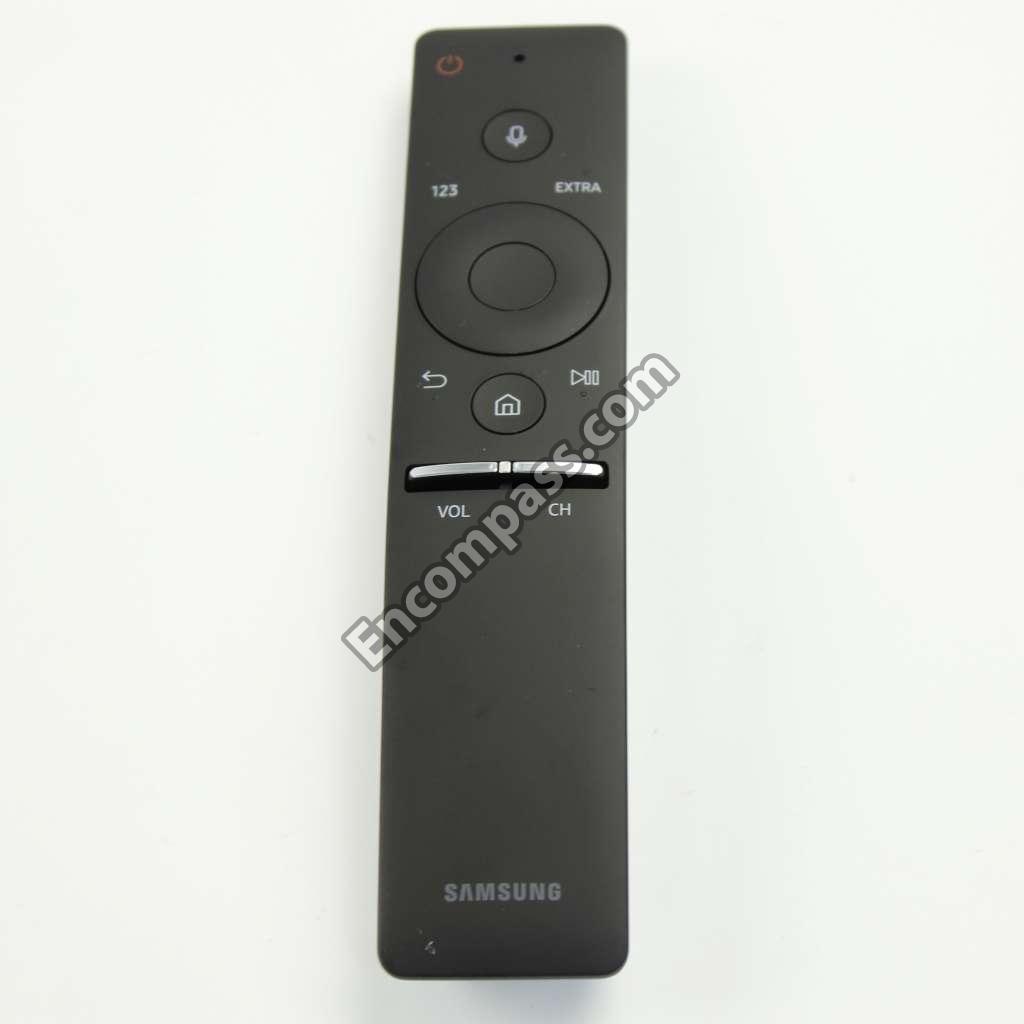

BN59-01241A	REMOCON-SMART CONTROL;2016 TV,SAMSUNG,14
6001-002759	SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1
6001-003016	SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S
0504-000126	TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S
0501-000002	TR-SMALL SIGNAL;KSA812,PNP,150MW,SOT-23,
0501-000445	TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
BN40-00321A	TUNER-DTV AIR CABLE;DTVS20EH6A,DTVS20EH6
1405-001381	VARISTOR;11V,8VDC,30A,1.6X0.8MM,TP,25V,5
1405-001382	VARISTOR;24.5V,16VDC,120A,2.0X1.25MM,TP,
1405-001271	VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V,
