Manufacturer
Samsung
Model Number

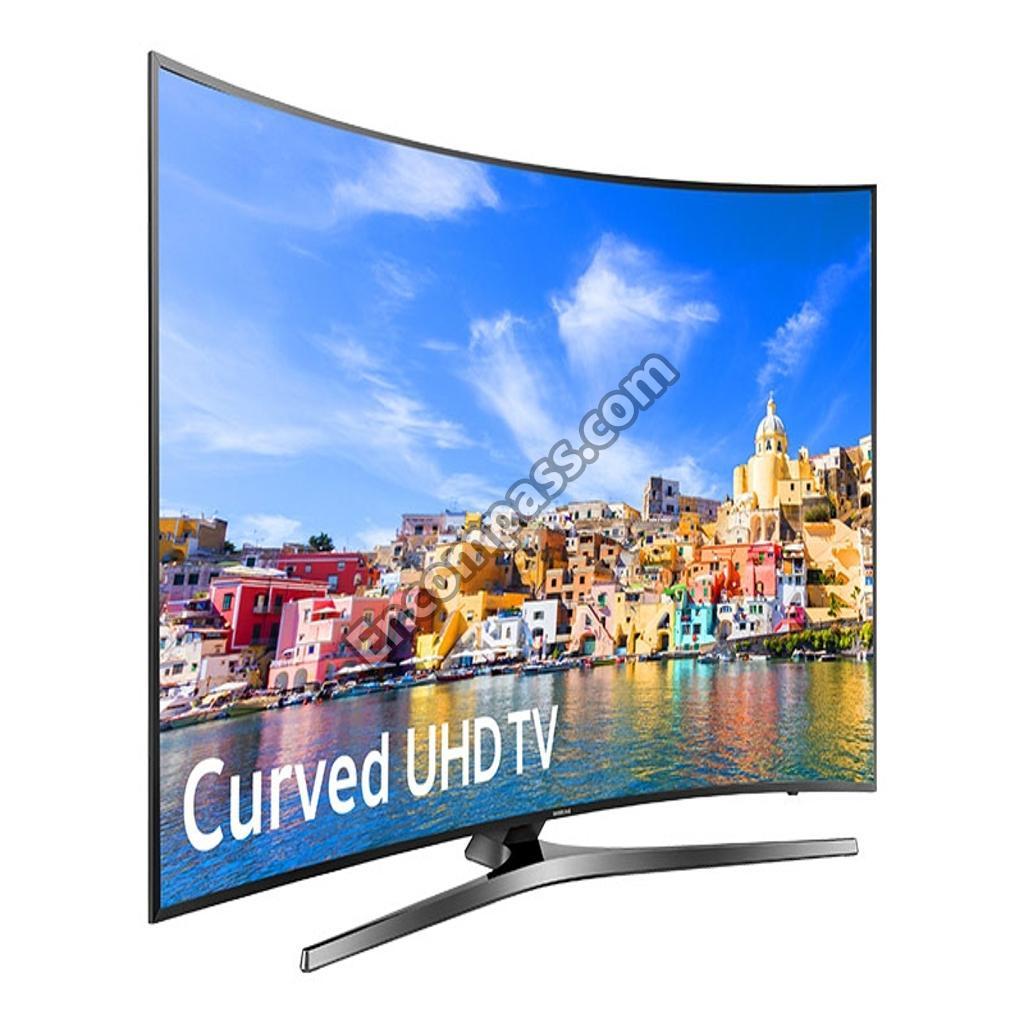

UN55KU7500FXZA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSEMBLY BOARD P-FUNCTION TACT |
| BN96-40128A | ASSEMBLY COVER P-REAR;55KU6500 |
| BN96-40157B | ASSEMBLY GUIDE P-STAND;55KU650 |
|
|

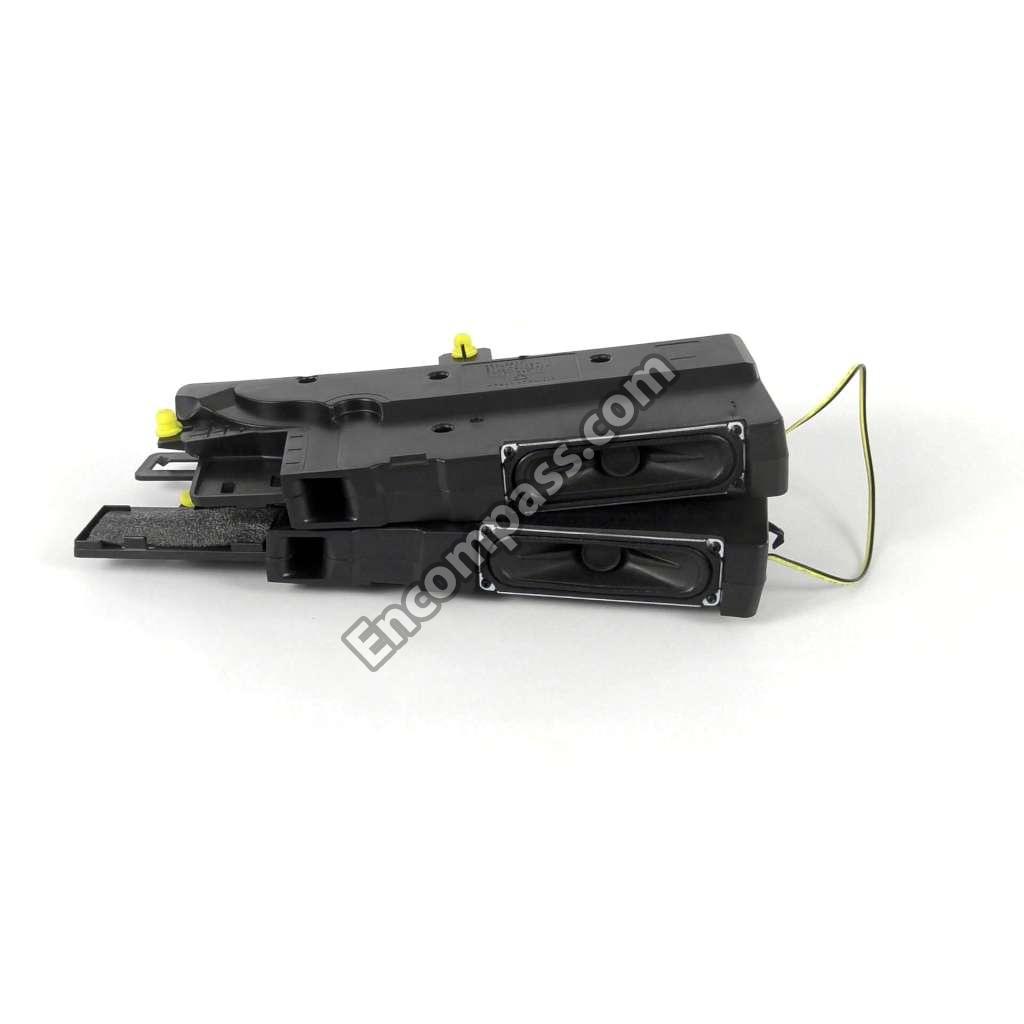

ASSEMBLY SPEAKER P-FRONT;TV-SP |
|
|

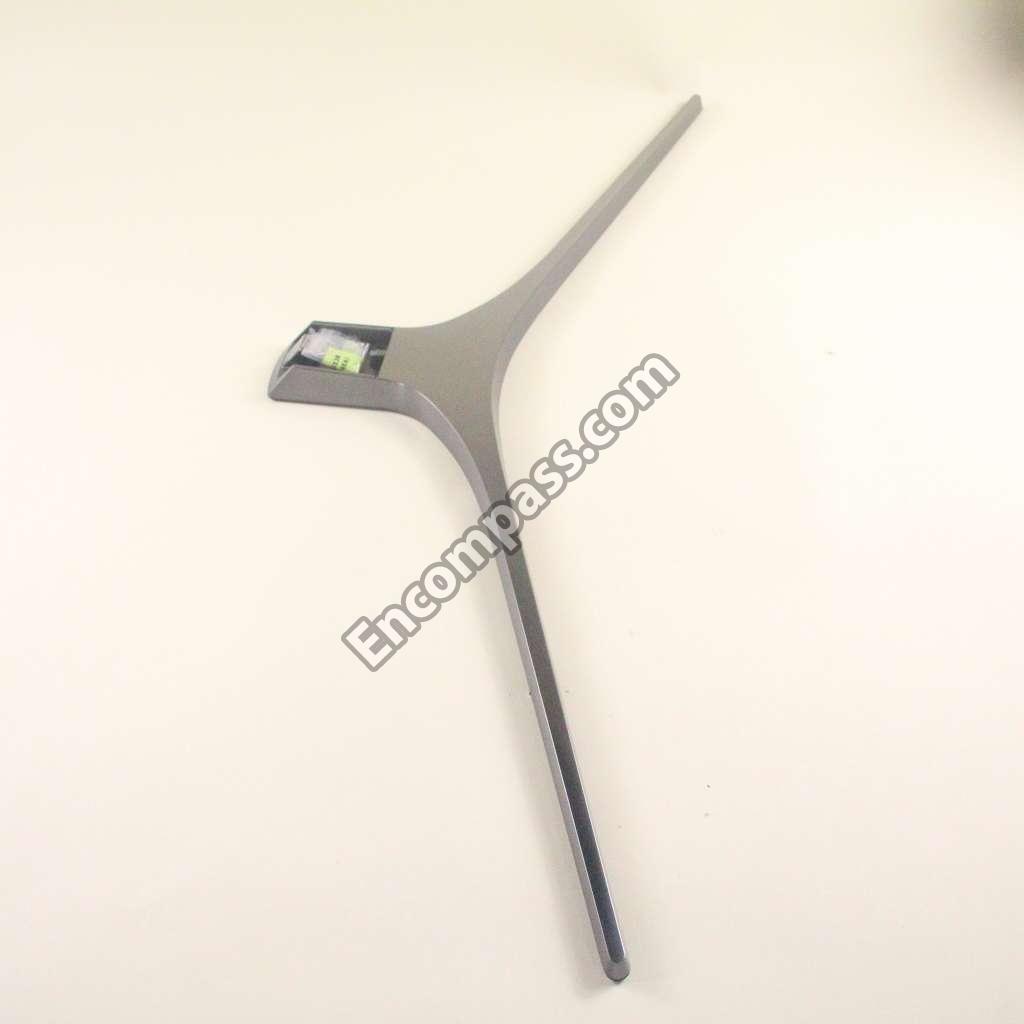

ASSEMBLY STAND P-BOTTOM;55KU64 |
| 6902-000341 | BAG PE |
| BH69-00418A | BAG PE-WRAPPING FILM |
| 4301-000101 | BATTERY-ALKALINE |
|
|
BEAD-SMD |
| 3301-001364 | BEAD-SMD |
| BN61-04692A | BOSS-PRIMER |
| BN61-13557E | BRACKET-WIRE;49KS7000,SW-C,T1, |
| BN61-13557H | BRACKET-WIRE;55KS7000,SW-C,T1, |
| BN61-13557A | BRACKET-WIRE;KS7000,SW-C,1,60, |
| 2402-001268 | C-AL,SMD |
| 2203-008315 | C-CER,CHIP |
| 2203-007544 | C-CER,CHIP |
| 2203-007513 | C-CER,CHIP |
| 2203-007306 | C-CER,CHIP |
| 2203-007176 | C-CER,CHIP |
| 2203-006844 | C-CER,CHIP |
| 2203-006698 | C-CER,CHIP |
| 2203-006348 | C-CER,CHIP |
| 2203-006158 | C-CER,CHIP |
| 2203-006126 | C-CER,CHIP |
| 2203-006048 | C-CER,CHIP |
| 2203-005968 | C-CER,CHIP |
| 2203-005249 | C-CER,CHIP |
| 2203-005083 | C-CER,CHIP |
| 2203-002398 | C-CER,CHIP |
| 2203-002285 | C-CER,CHIP |
| 2409-001240 | C-ORGANIC,SMD |
| 2409-001338 | C-POLYMER ,CHIP |
|
|
CBF-POWER CORD |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU |
| 3711-002050 | CONNECTOR-HEADER |
| 3711-009090 | CONNECTOR-HEADER;BOX,16P,1R,1. |
| 3707-001103 | CONNECTOR-OPTICAL |
| BN63-15236A | COVER-TERMINAL SIDE;55KU6000,H |
| 2801-004021 | CRYSTAL-SMD |
|
|
DC VSS-PD BOARD;L55E6_KHS,AC/D |
| 0404-001881 | DIODE-SCHOTTKY |
| 0404-001640 | DIODE-SCHOTTKY |
| 0404-001404 | DIODE-SCHOTTKY |
| 0404-001307 | DIODE-SCHOTTKY |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40 |
| 0401-001056 | DIODE-SWITCHING |
| 0406-001635 | DIODE-TVS |
| 0406-001628 | DIODE-TVS |
| 0403-001831 | DIODE-ZENER |
| 0403-001164 | DIODE-ZENER |
| 0505-003507 | FET-SILICON |
| 0505-003397 | FET-SILICON |
| 0505-003391 | FET-SILICON |
| 0505-003205 | FET-SILICON |
| 0505-002893 | FET-SILICON |
| 0505-002598 | FET-SILICON |
| 0505-002560 | FET-SILICON |
| 0505-001844 | FET-SILICON |
|
|

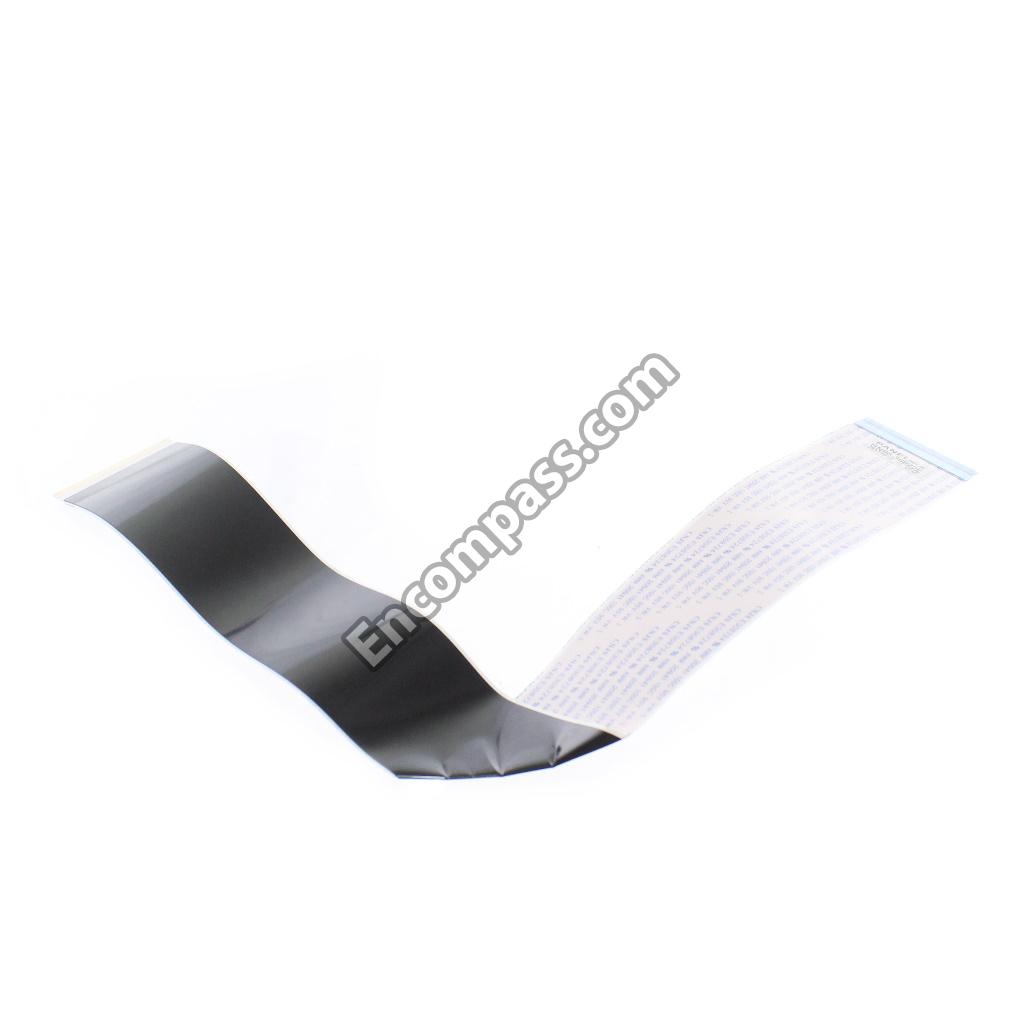

FFC CABLE;55KU6500,FOLD,L450,9 |
|
|
FFC CABLE;60KU6000,FOLD,L550,9 |
|
|
FUSE-SURFACE MOUNT |
|
|
GENDER CABLE;DC TO RCA CABLE,2 |
|
|
GENDER CABLE;DC TO RCA CABLE,3 |
| 3711-008859 | HEADER-BOARD TO CABLE |
| 3711-008131 | HEADER-BOARD TO CABLE |
| 3711-007814 | HEADER-BOARD TO CABLE |
| 3711-007803 | HEADER-BOARD TO CABLE |
|
|
HOLDER-WALL RING;55KS7500,ABS, |
| 1001-001998 | IC-ANALOG MULTIPLEX;NX3DV221GM |
| 1201-003690 | IC-AUDIO AMP |
| 1203-008454 | IC-DC/DC CONVERTER |
| 1203-008391 | IC-DC/DC CONVERTER |
| 1203-008733 | IC-DC/DC CONVERTER;AOZ1236QI-0 |
| 1203-008655 | IC-DC/DC CONVERTER;BM81249MWW, |
| 1203-008732 | IC-DC/DC CONVERTER;SYD104ADC,T |
| 1105-002751 | IC-DDR4 SDRAM;K4F2E3S4HM-MGCJ, |
| 1105-002704 | IC-DDR4 SDRAM;K4F8E304HB-MGCH, |
| 1204-003697 | IC-DECODER;SDP1531,FCPBGA,1046 |
| 1103-001564 | IC-EEPROM |
| 1107-002422 | IC-EMMC;8GB,64GBX1,BGA,153P,11 |
| 1107-002226 | IC-NOR FLASH |
| 1201-000166 | IC-OP AMP |
| 1205-004822 | IC-SWITCH |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2 |
| 1203-008392 | IC-VOL. DETECTOR |
| 1203-004364 | IC-VOL. DETECTOR |
| 2703-005193 | INDUCTOR-SMD |
| 2703-005191 | INDUCTOR-SMD |
| 2703-004724 | INDUCTOR-SMD |
| 2703-004630 | INDUCTOR-SMD |
| 2703-003937 | INDUCTOR-SMD |
| 2703-003862 | INDUCTOR-SMD |
| 2703-003747 | INDUCTOR-SMD |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10X10.7M |
| 3722-003199 | JACK-MODULAR |
| 3722-003873 | JACK-PHONE |
| 3722-003814 | JACK-PHONE |
|
|
JACK-USB |
| BN68-00513A | LABEL-E, PASS |
| BN39-02217C | LEAD CONNECTOR-POWER;40K5500,U |
| BN39-02219D | LEAD CONNECTOR-SUB ASSEMBLY;40 |
| BN39-02231C | LEAD CONNECTOR-SUB ASSEMBLY;55 |
|
|
NETWORK-WLAN CLIENT;WCK730B,US |
| 2007-009777 | R-CHIP |
| 2007-009322 | R-CHIP |
| 2007-008779 | R-CHIP |
| 2007-008596 | R-CHIP |
| 2007-008391 | R-CHIP |
| 2007-008298 | R-CHIP |
| 2007-008269 | R-CHIP |
| 2007-008015 | R-CHIP |
| 2007-007942 | R-CHIP |
| 2007-007847 | R-CHIP |
| 2007-007830 | R-CHIP |
| 2007-007767 | R-CHIP |
| 2007-007723 | R-CHIP |
| 2007-007720 | R-CHIP |
| 2007-007520 | R-CHIP |
| 2007-002899 | R-CHIP |
| 2007-001125 | R-CHIP |
| 2007-000779 | R-CHIP |
| 2007-000736 | R-CHIP |
| 2007-000701 | R-CHIP |
| 2007-000683 | R-CHIP |
| 2007-000084 | R-CHIP |
| 2007-000052 | R-CHIP |
| 2007-000039 | R-CHIP |
| 2011-001264 | R-NETWORK |
|
|
REMOTE CONTROL |
|
|
SCREW-MACHINE |
|
|
SCREW-MACHINE |
|
|
SCREW-TAPPING |
| 6002-000126 | SCREW-TAPPING |
|
|
SCREW-TAPTYPE |
| 0504-000126 | TR-DIGITAL |
| 0501-000445 | TR-SMALL SIGNAL |
| 0501-000002 | TR-SMALL SIGNAL |
| BN40-00321B | TUNER-DTV AIR CABLE;GVTH-6A21, |
| 1405-001382 | VARISTOR |
| 1405-001381 | VARISTOR |
|
|
VARISTOR |
| 1405-001232 | VARISTOR |
