Manufacturer
Samsung
Model Number
UN55LS03NAFXZA
Description
55-inch Smart Led 4k Uhd Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

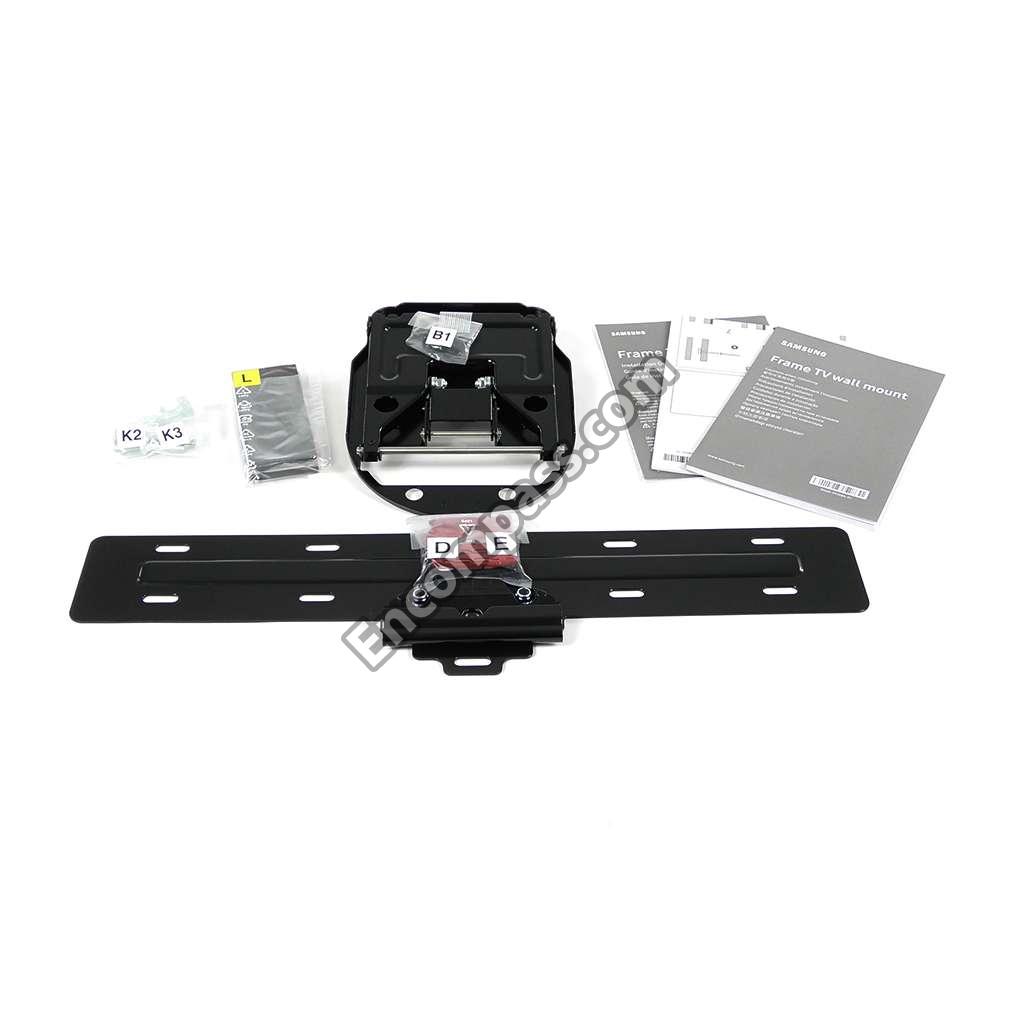

ASSY ACCESSORY-WALL MOUNT;55UNLS03D,N.AM |
| BN96-44165C | ASSY BOARD P-FUNCTION TACT;LS03,CT15SF36 |
| BN96-43345B | ASSY CHASSIS FRONT P;55UNLS03D,AL,CHARCO |
| BN96-43530A | ASSY COVER P-CLEAN BACK STAND;55LS003,PC |
| BN96-45941A | ASSY COVER P-OC BOTTOM;65QNQ9FA,PC+ABS+G |
| BN96-45940A | ASSY COVER P-OC TOP;65QNQ9FA,PC,V-2,TP00 |
| BN96-47084A | ASSY COVER P-REAR;55UNLS03D,PC+ABS+ED20% |
| BN96-46739A | ASSY HOLDER P-OC CABLE;65QNQ8CB,PC,V-2,W |
|
|
ASSY HOLDER P-RING;65Q8C,ABS,BLACK,HB |
| BN96-39597A | ASSY LED BAR P;55 KU6400 (CSOT),LEFT,ALU |
| BN96-39598A | ASSY LED BAR P;55 KU6400 (CSOT),RIGHT,AL |
|
|

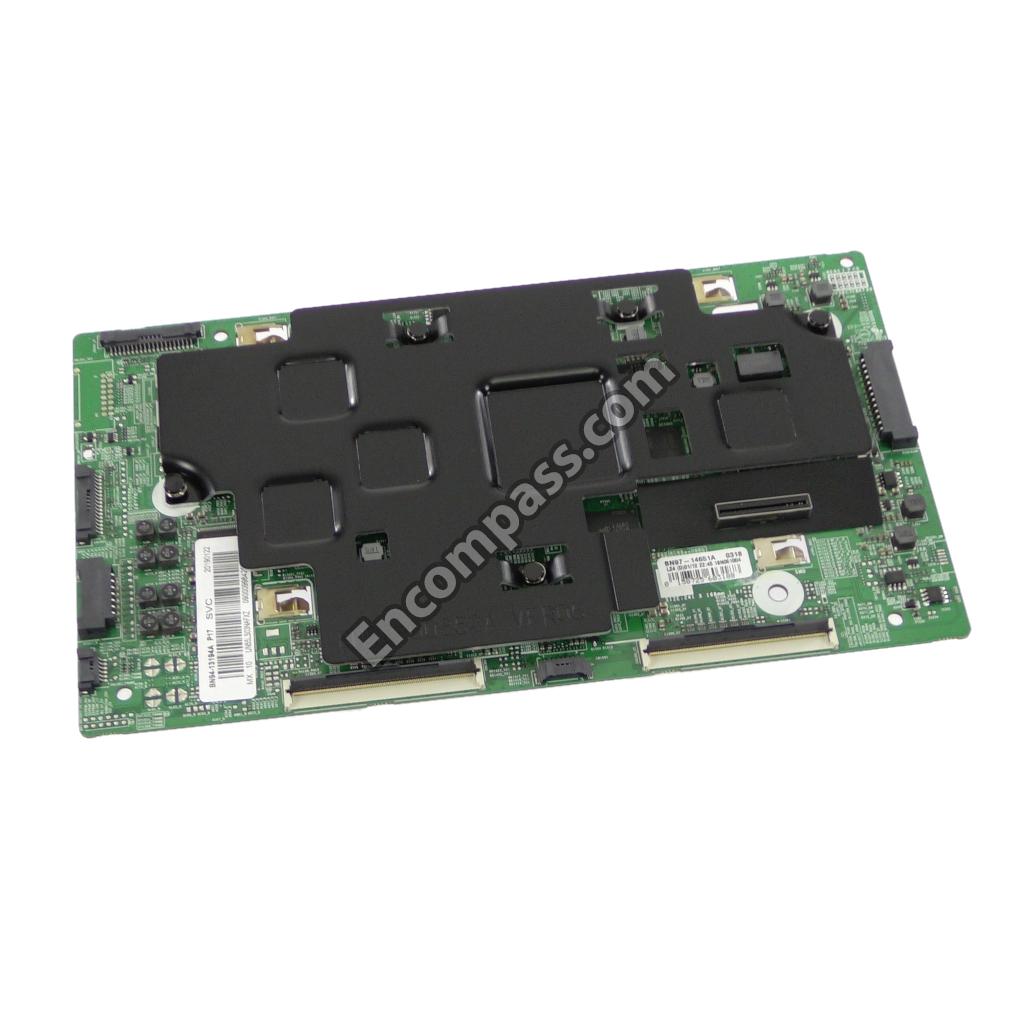

ASSY PCB MAIN;UNLS03D |
|
|

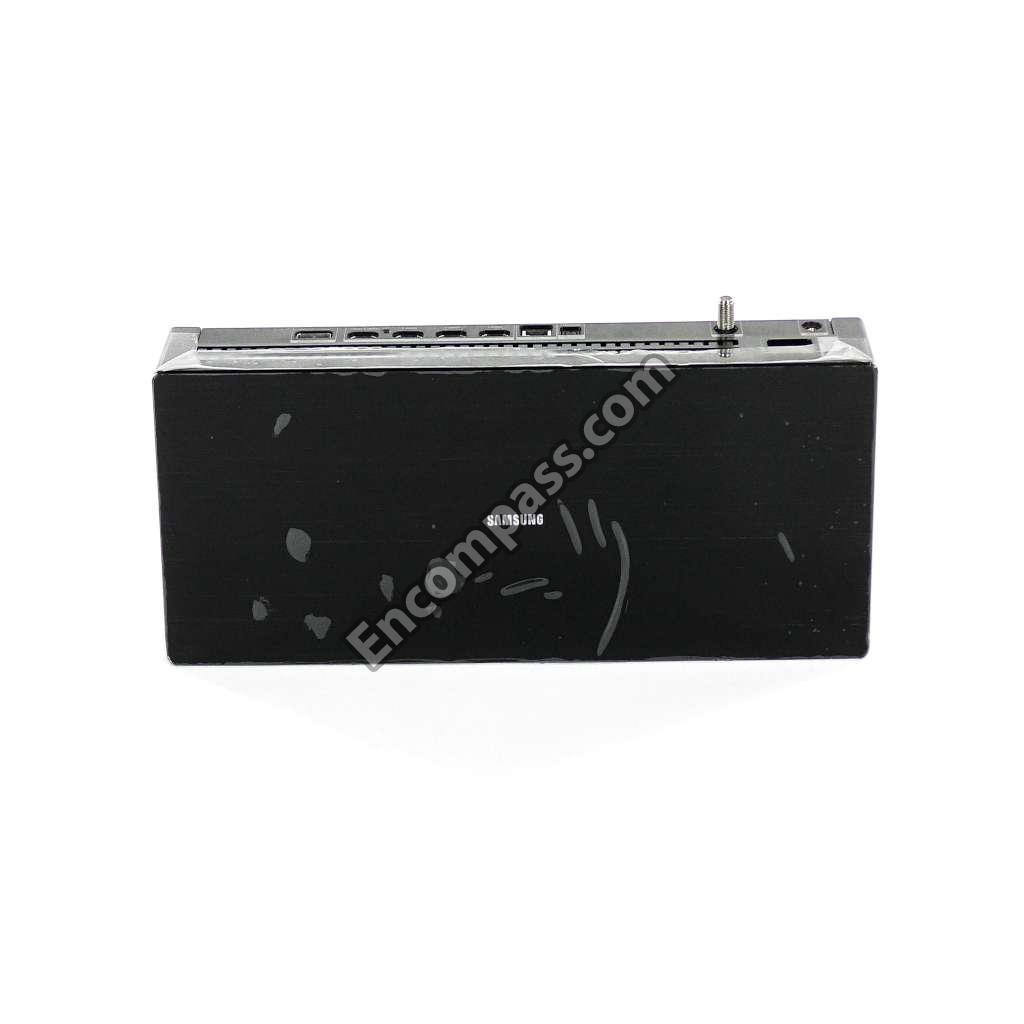

ASSY PCB P;FR-1,OC + COVER |

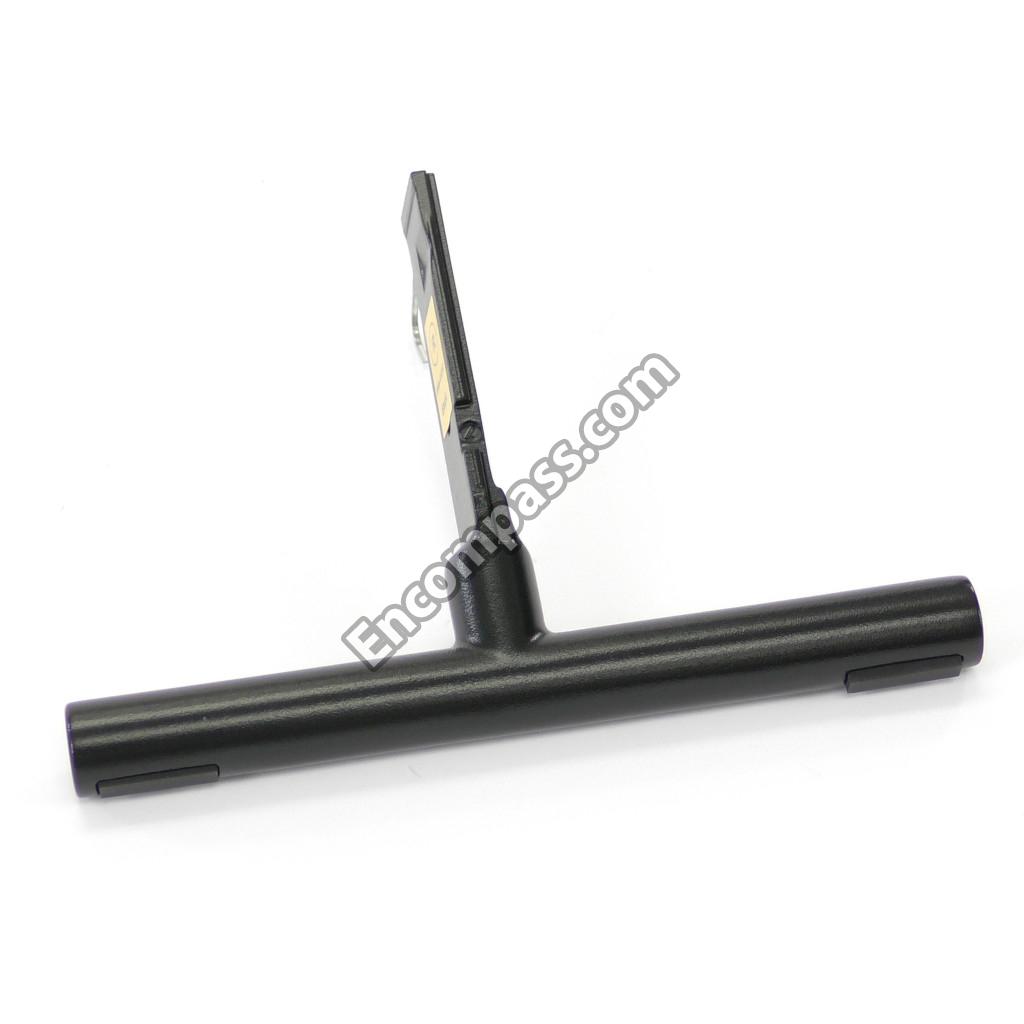

| BN96-43066A | ASSY SPEAKER P-FRONT;TV-SPK,LS003,6OHM,1 |
| BN96-43619C | ASSY STAND P-COVER TOP LEFT;55UNLS03D,AL |
|
|
ASSY STAND P-COVER TOP RIGHT;55UNLS03D,A |
|
|
BEAD-SMD;26OHM,1608,TP |
| BN61-14656A | BRACKET-STAND LINK LEFT;49MU7000,EGI-SEC |
| BN61-14658A | BRACKET-STAND LINK RIGHT;49MU7000,EGI-SE |
| BN61-13557B | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557C | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| BN61-13557D | BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-007176 | C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T |
| 2203-007423 | C-CER,CHIP;10000NF,10%,35V,X7R,TP,3216 |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0 |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0. |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0. |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-008315 | C-CER,CHIP;22000NF,20%,25V,X5R,TP,2012,T |
| 2203-008096 | C-CER,CHIP;2200NF,10%,50V,X5R,TP,2012,1. |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0. |
| 2203-006844 | C-CER,CHIP;470NF,10%,10V,X5R,TP,1005 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5 |
| 2409-001240 | C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1. |
| 3701-001967 | CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK |
| 3711-009090 | CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A |
| 3711-009106 | CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN |
| 3711-007776 | CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
|
|
CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI |
| 3710-004307 | CONNECTOR-SOCKET;30P,1R,0.7MM,SMD-A,AU,B |
| 3710-004308 | CONNECTOR-SOCKET;32P,2R,0.8MM,SMD-A,AU,B |
| 2801-000102 | CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| BN44-00959A | DC VSS-DRIVER BOARD;L55F6_NHS,DC/DC,162W |
|
|
DC VSS-POWER BOARD;P230NQ_NPN,AC/DC,230W |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001953 | DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S |
| 0404-001640 | DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
| 0404-001881 | DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD- |
| 0404-001976 | DIODE-SCHOTTKY;SV540,40V,5000MA,TO-277,T |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001562 | DIODE-TVS;ESD7951ST5G,5.4V,1MAV,5VPA,TP |
| 0406-001778 | DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 |
| 0406-001718 | DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001785 | DIODE-ZENER;NZH5V1B,4.94~5.2V,500MW,SOD- |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-003391 | FET-SILICON;AOD2922,N,100V,8A,140MOHM,18 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-003205 | FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. |
| 0505-002660 | FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH |
| 0505-001844 | FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 |
|
|
FFC CABLE;Q9F,STRAIGHT,L101,96P,+3 |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| 3711-008488 | HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG |
| 3711-008492 | HEADER-BOARD TO CABLE;BOX,26P,2R,2MM,ANG |
| 3711-007838 | HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S |
| BN13-00070A | IC ASIC;UEI1702,UEI1702,20P,3.3V,-20TO+7 |
| 1201-004170 | IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6 |
| 1203-008920 | IC-DC/DC CONVERTER;SYD105ADC,TSOT23,6P,2 |
| 1203-008777 | IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. |
| 1203-009067 | IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3 |
| 1203-009069 | IC-DC/DC CONVERTER;TPS566250,SOP,8P,6.2X |
| 1203-009063 | IC-DC/DC CONVERTER;VPM2SM,QFN,56P,7X7X0. |
| 1105-002896 | IC-DDR4 SDRAM;MT53B256M32D1,LPDDR4-SDRAM |
| 1105-002933 | IC-DDR4 SDRAM;MT53B384M32D2NP-062 WT:B,L |
| 1204-003753 | IC-DECODER;SDP1703,FCBGA,1147P,31X31X2.1 |
| 1204-003762 | IC-DECODER;SDP1705,FCBGA,358P,17X17X1.54 |
| 1204-003758 | IC-DECODER;SDP1715,TFBGA,227P,13X13X1.54 |
| 1006-001595 | IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002515 | IC-EMMC;KLM8G1GEME-B041,8GBYTE,64GBX2,BG |
| 1003-002949 | IC-LEVEL DRIVER;VLS2SM,QFN,40P,6X6X0.9MM |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-000166 | IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 |
| 1203-009057 | IC-POSI.ADJUST REG.;G943F11U,SOP-8,8P,4. |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1205-005519 | IC-SWITCH;ET20163,SOT23-5,5P,2.95X3.02MM |
| 1205-005749 | IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM |
| 0904-002882 | IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ, |
| 1203-008392 | IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-005191 | INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM |
| 2703-000125 | INDUCTOR-SMD;10UH,10%,2012,T1.25,1.15OHM |
| 2703-005376 | INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0 |
| 2703-003862 | INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH |
| 2703-004630 | INDUCTOR-SMD;2.2UH,20%,7070,T5,0.0025OHM |
| 2703-003747 | INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300 |
| 2703-003803 | INDUCTOR-SMD;4.7UH,20%,6060,0.031OHM,270 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM, |
| BN63-17541A | INSULATOR-SMPS;65QNQ9FA,PC,BLACK,L119.8, |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003216 | JACK-PHONE;1P/7C,AU,BLK,SMD-A,3.6PI,10.2 |
|
|
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1 |
| BN39-02403D | LEAD CONNECTOR-POWER;55LS03,UL21516,26P, |
| BN39-02409A | LEAD CONNECTOR-POWER;Q7/8/9,UL21516,20P, |
| BN39-02219C | LEAD CONNECTOR-SUB ASSY;40K5500,UL21016, |
|
|
LED-IR;SMD ANGLE TYPE,1.4MM,200MW,5V,940 |
|
|
NETWORK-WLAN CLIENT;WCM730Q,78.3X29.3X7. |
|
|

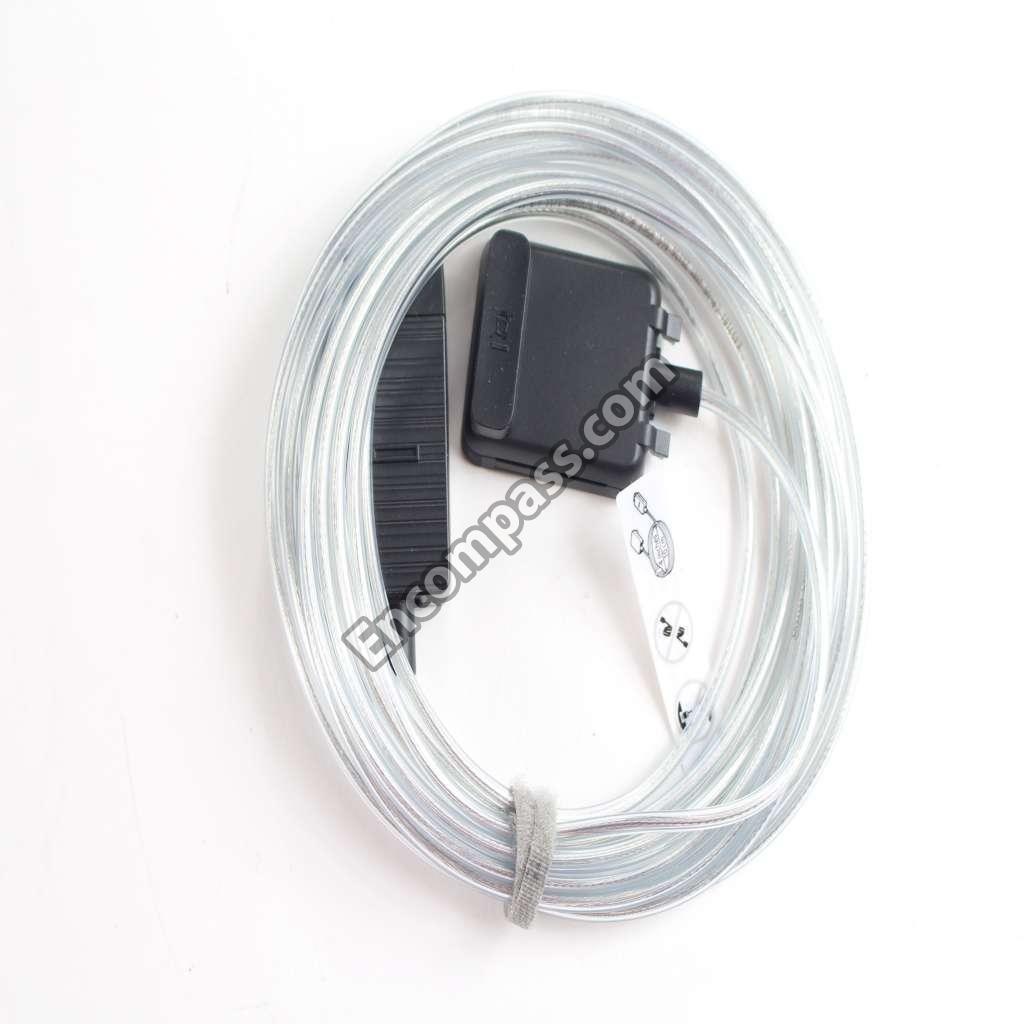

ONECONNECT CABLE;Q9000,32P/30P,L5000,UL2 |
|
|
POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500 |
|
|
PRODUCT LCD-SDC;CY-KN055FGLV1V/H,FRAME T |
| 2007-008596 | R-CHIP;0.1OHM,1%,1/4W,TP,3216 |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-009322 | R-CHIP;1.3KOHM,1%,1/16W,TP,1005 |
| 2007-000052 | R-CHIP;10KOHM,1%,1/10W,TP,1608 |
| 2007-002899 | R-CHIP;10OHM,1%,1/10W,TP,1608 |
| 2007-008134 | R-CHIP;12.4KOHM,1%,1/16W,TP,1005 |
| 2007-000343 | R-CHIP;120OHM,1%,1/10W,TP,1608 |
| 2007-007305 | R-CHIP;120OHM,1%,1/16W,TP,1005 |
| 2007-000475 | R-CHIP;1MOHM,1%,1/10W,TP,1608 |
| 2007-007992 | R-CHIP;1OHM,1%,1/10W,TP,1608 |
| 2007-002425 | R-CHIP;1OHM,5%,1/10W,TP,1608 |
| 2007-000501 | R-CHIP;2.2OHM,1%,1/10W,TP,1608 |
| 2007-002906 | R-CHIP;200KOHM,1%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-000066 | R-CHIP;20KOHM,1%,1/10W,TP,1608 |
| 2007-007520 | R-CHIP;20OHM,1%,1/10W,TP,1608 |
| 2007-008067 | R-CHIP;21KOHM,1%,1/10W,TP,1608 |
| 2007-000591 | R-CHIP;22OHM,1%,1/10W,TP,1608 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608 |
| 2007-000779 | R-CHIP;33OHM,1%,1/10W,TP,1608 |
| 2007-008294 | R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35 |
| 2007-000979 | R-CHIP;5.6KOHM,1%,1/10W,TP,1608 |
| 2007-007736 | R-CHIP;510KOHM,1%,1/10W,TP,1608 |
| 2007-007733 | R-CHIP;51OHM,1%,1/10W,TP,1608 |
| 2007-001116 | R-CHIP;680OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2011-001589 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,4P,TP,1.0 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001448 | R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
| 2011-001264 | R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001586 | R-NETWORK;1KOHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001519 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. |
| 2011-001261 | R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
| 2011-001527 | R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
| 2011-001590 | R-NETWORK;47KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
|
|
REMOCON-SMART CONTROL;2018 FRAME TV,SAMS |
|
|
SCREW-MACHINE;BH,M3,L6,ZPC(WHT),SWRCH1 |
| 6001-002912 | SCREW-MACHINE;CH,M3,L3,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;CH,M3,L4,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR |
|
|
SCREW-TAPTYPE;BH,B,M3,L8,ZPC(BLK),SW |
| BN63-17538A | SHIELD-OC TOP;65QNQ9FA,EGI-SECC,T0.8 |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000462 | TR-SMALL SIGNAL;MMBT2907A,PNP,350MW,SOT- |
| 2601-001056 | TRANS-SMD,PULSE;350UH,1:1,1:1,12.7X6.7 |
|
|
TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4 |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF |
| 1405-001382 | VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 |
|
|
VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF |
| 1405-001185 | VARISTOR;500V,24VDC,1608,TP,150V,0.055PF |
| 1405-001232 | VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 |
