Model Image
Manufacturer

Samsung

Model Number

UN58MU6070FXZC

Description

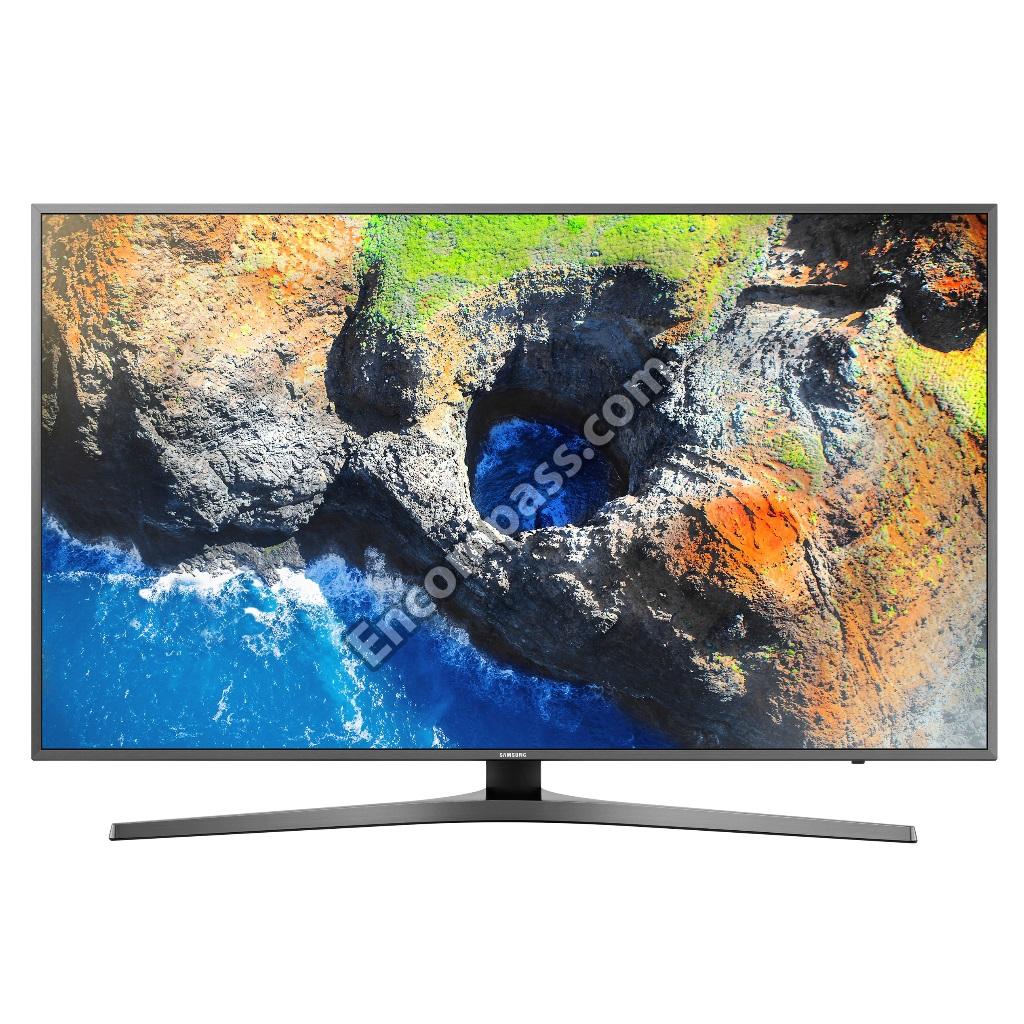

58-inch Led 4k Uhd Smart Tv

Interactive Exploded View

Parts List

Part Number Description
BN96-35345B BN96-35345B ASSY BOARD P-FUNCTION JOG;JU7500,CT15SE8

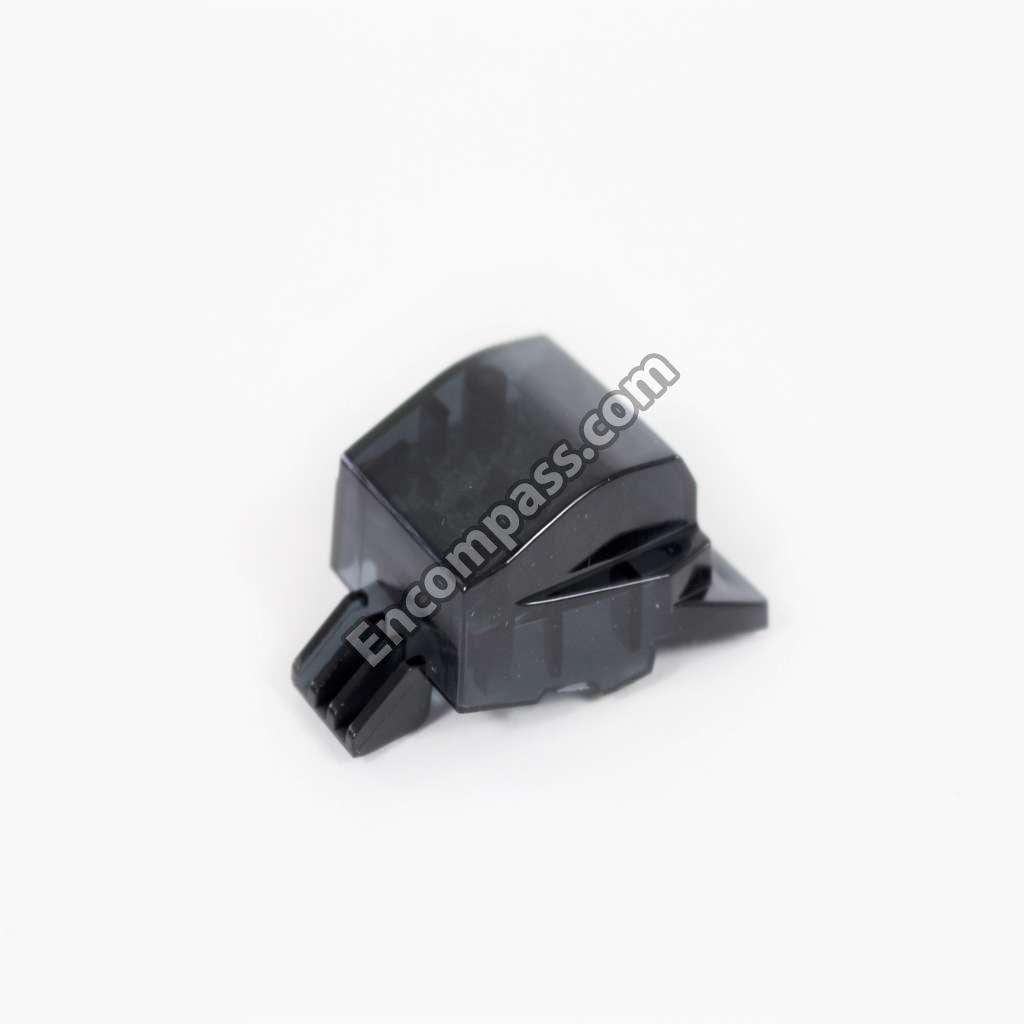

BN96-39955A BN96-39955A ASSY BOARD P-IR;KU6000,IR ASSY_KU6000
BN96-44023B ASSY CHASSIS FRONT P;58MU6100,PC+ABS+MF1
BN96-44279E ASSY COVER P-REAR;58MU6100,PC+ABS+ED20%,

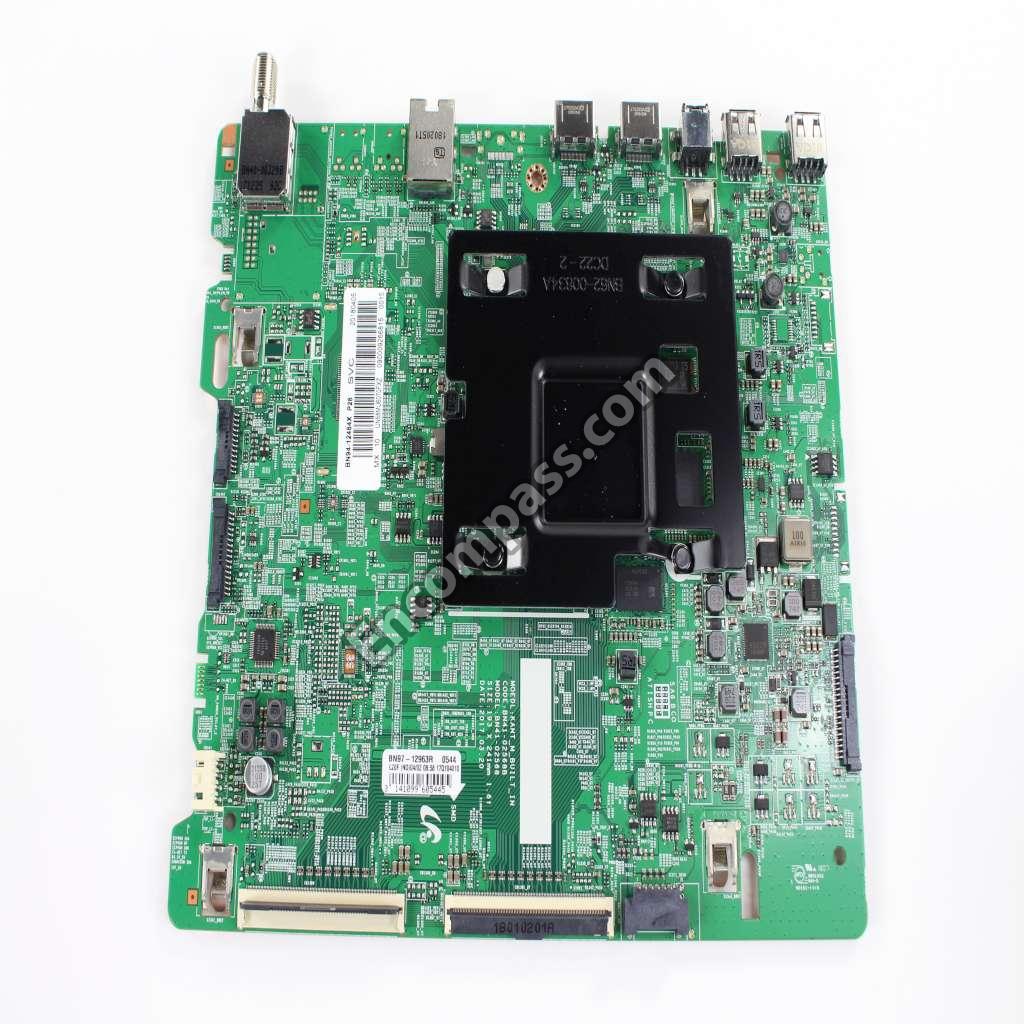

BN94-12484X BN94-12484X ASSY PCB MAIN;UMU6100N/UMU6300P

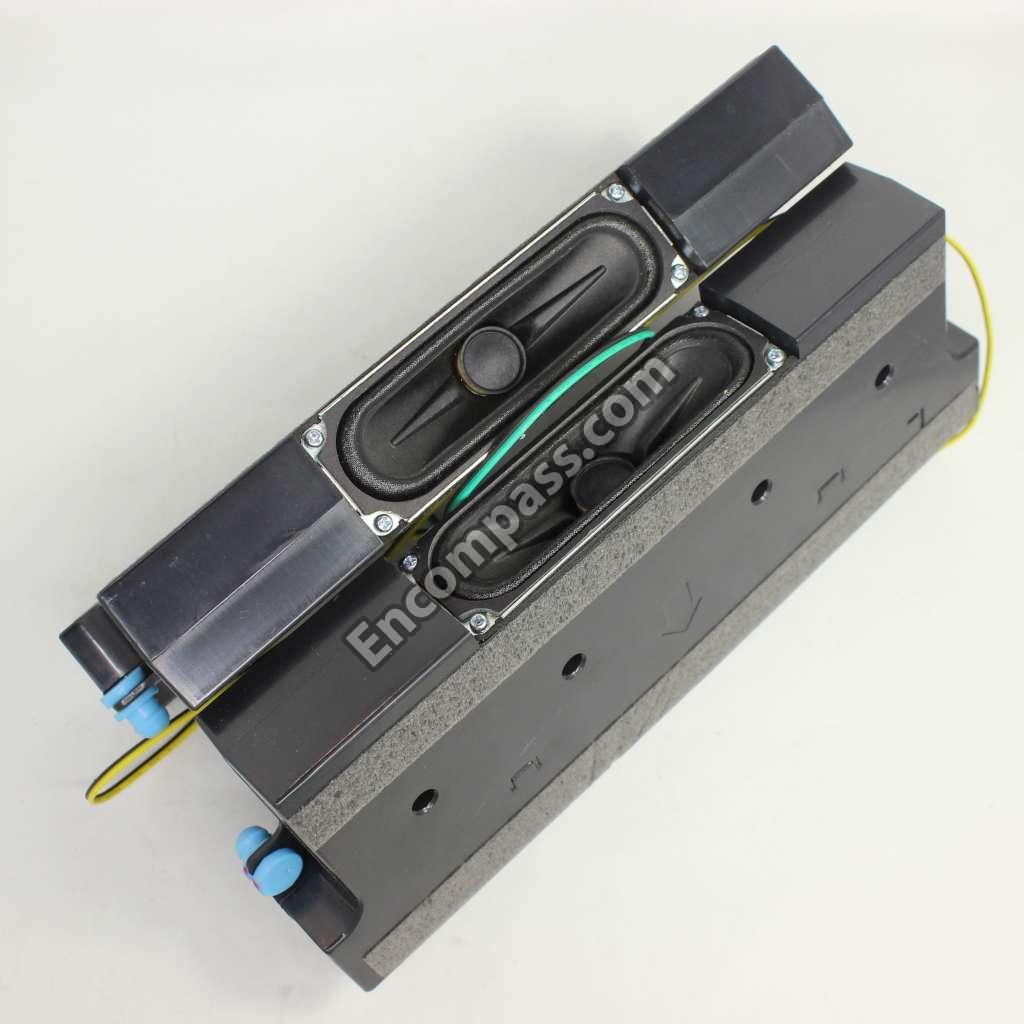

BN96-35006C BN96-35006C ASSY SPEAKER P-FRONT;TV-SPK,MU6100,6OHM,

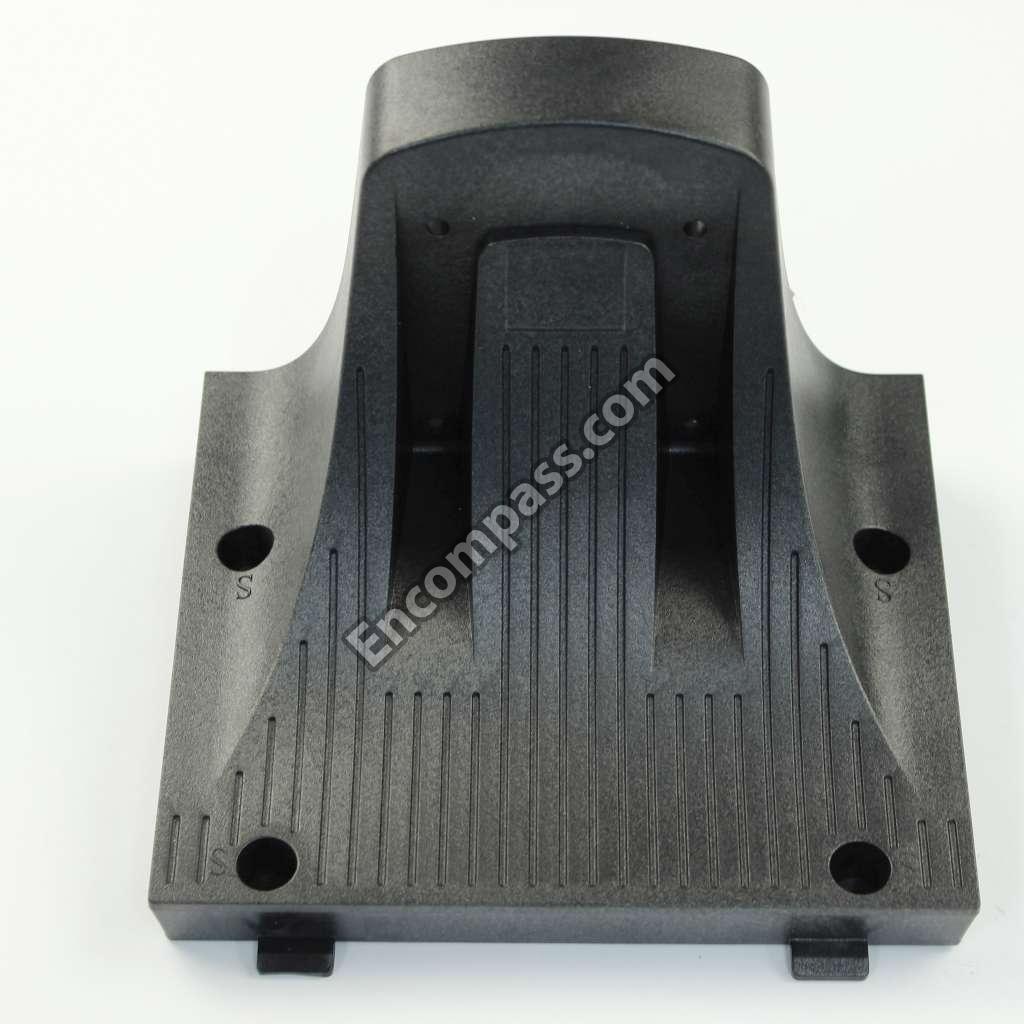

BN96-37971C BN96-37971C ASSY STAND P-COVER BOTTOM;60J6200,PC+ABS
BN96-38553A BN96-38553A ASSY STAND P-GUIDE;60JS6900,NORTH AMERIC

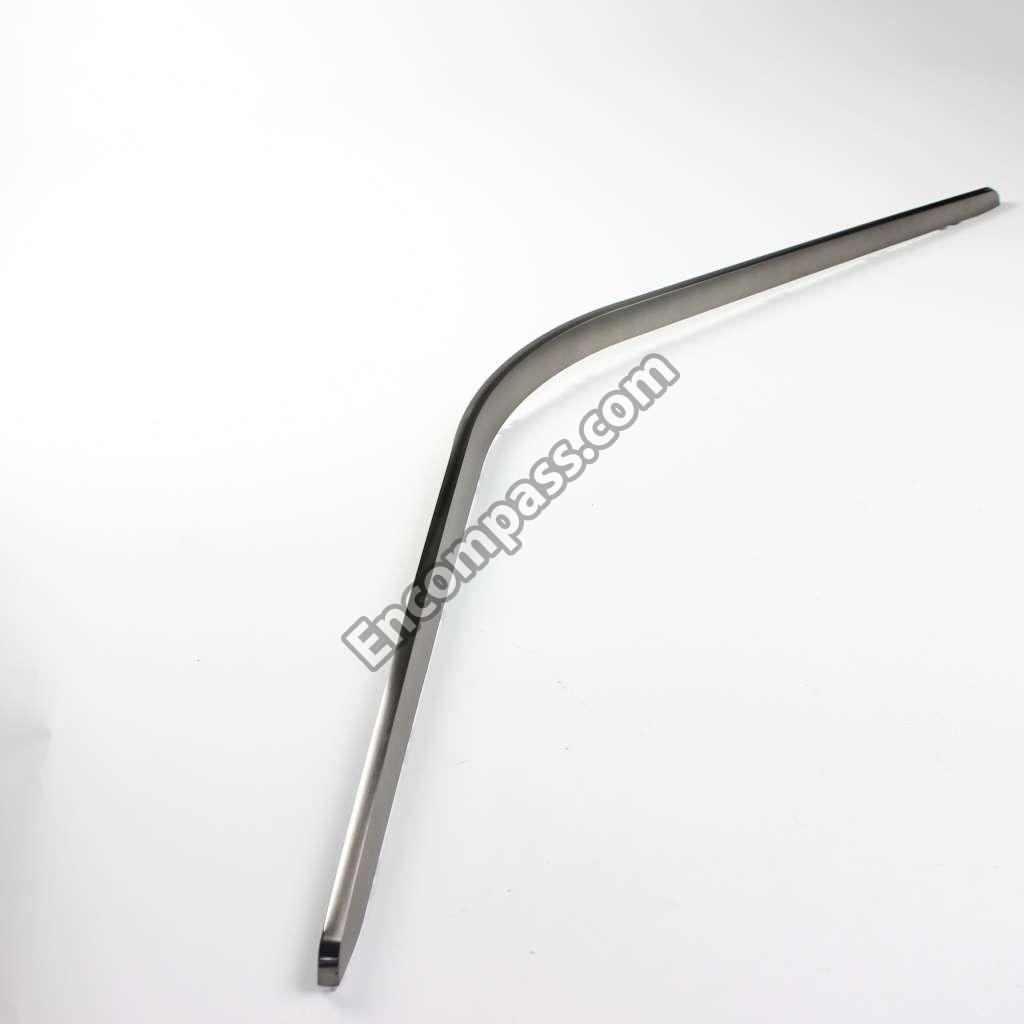

BN95-02371C BN95-02371C ASSY STAND SMT-DECORATION;J6200,60,MOON
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP

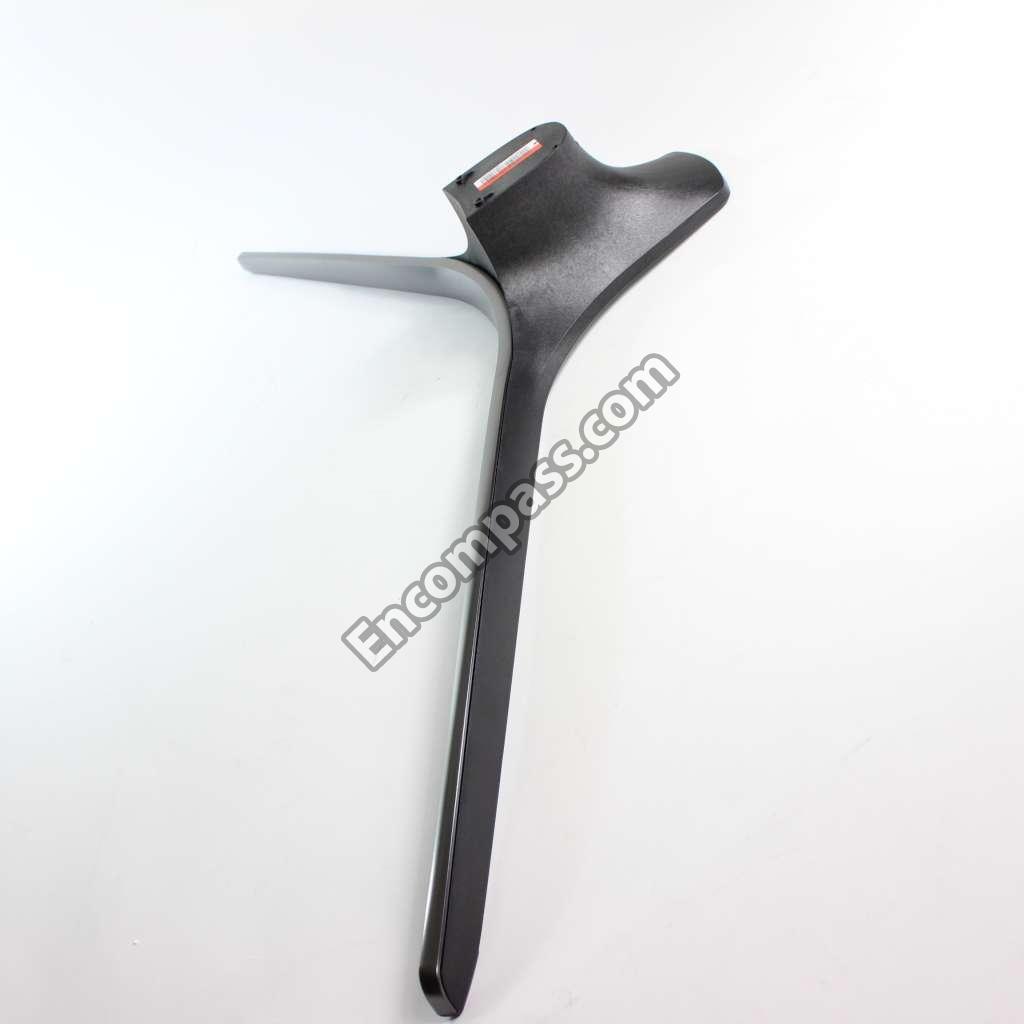

BN61-11517A BRACKET-STAND LINK;HGI-SGHC,T2,NATURAL
BN61-13557A BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,L62
2402-001268 C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM
2203-001851 C-CER,CHIP;0.016NF,5%,50V,C0G,TP,1608
2203-005642 C-CER,CHIP;0.22NF,5%,50V,C0G,TP,1005,T0.
2203-000140 C-CER,CHIP;1.5NF,10%,50V,X7R,TP,1608
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,T
2203-007176 C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T
2203-007423 C-CER,CHIP;10000NF,10%,35V,X7R,TP,3216
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,T0
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0
2203-007486 C-CER,CHIP;1000NF,10%,50V,X5R,TP,1608
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0.
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002720 C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,T0.5
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-008315 C-CER,CHIP;22000NF,20%,25V,X5R,TP,2012,T
2203-005083 C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0.
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5
2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0.
2203-006844 C-CER,CHIP;470NF,10%,10V,X5R,TP,1005
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2203-005993 C-CER,CHIP;68NF,10%,16V,X7R,1005
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1.
3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A
3707-001104 CONNECTOR-OPTICAL;ANGLE,SPDIF
BN63-16652E COVER-TERMINAL SIDE;65MU6100,HIPS,HB,BK0
2801-004021 CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,

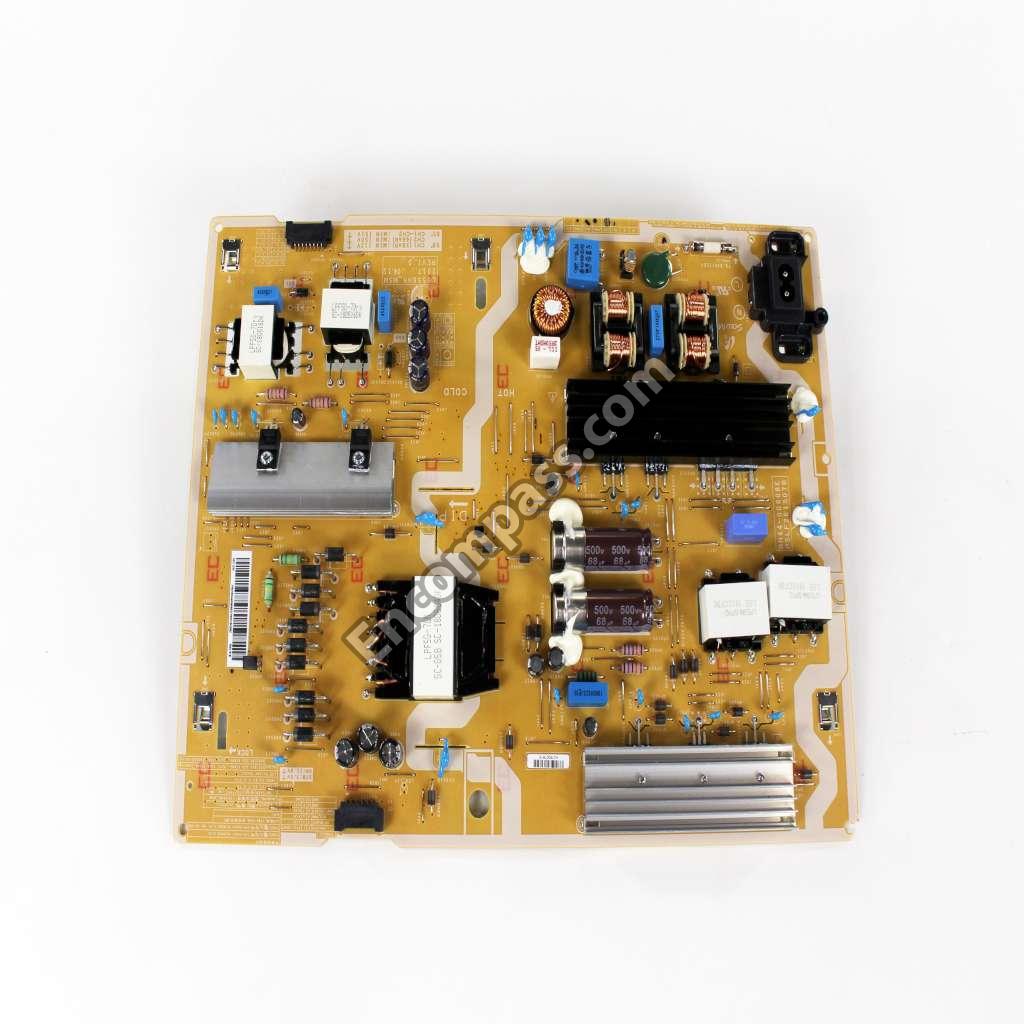

BN44-00808E BN44-00808E DC VSS-PD BOARD;L65S6NR_MSM,AC/DC,262W,A
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD-
0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001786 DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V
0406-001778 DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0
0406-001718 DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-002893 FET-SILICON;AO4801AS,P,30V,5A,2W,SOIC-8
0505-002560 FET-SILICON;AO6415,P,20V,3.3A,0.15OHM,1
0505-003391 FET-SILICON;AOD2922,N,100V,8A,140MOHM,18
0505-002598 FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH
0505-003205 FET-SILICON;DMG4435SSS-13,P,30V,7.3A,1.
0505-002660 FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,11.4

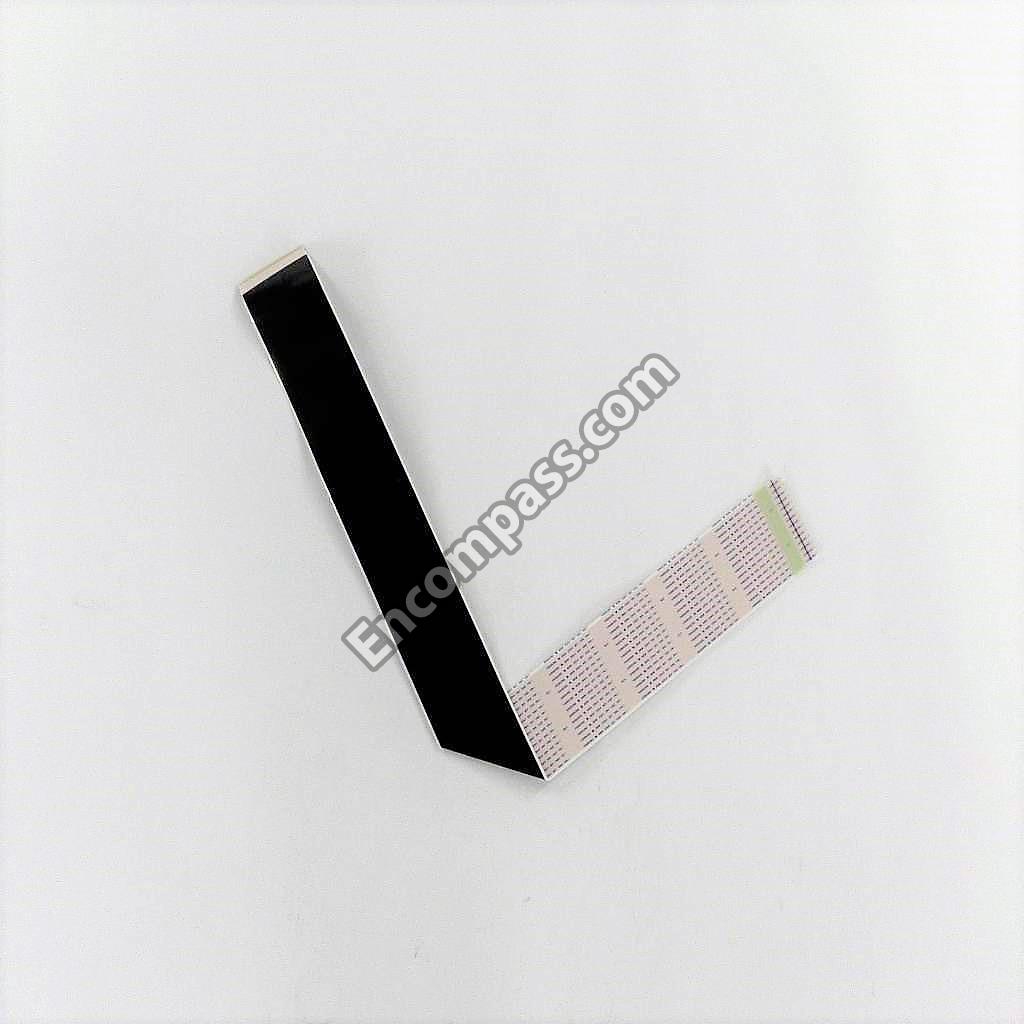

BN96-44226A FFC CABLE;58MU6100,FOLD,L700,96P
BN96-39904A BN96-39904A FFC CABLE;60KU6000,FOLD,L550,96P
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
3711-007803 HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM,
3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG
3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
BN61-09494D BN61-09494D HOLDER-BOLT;KU6500,SWRCH18A,BLACK,B TYPE
1001-001998 IC-ANALOG MULTIPLEX;NX3DV221GM,USB SWITC
1201-004117 IC-AUDIO AMP;TAS5749M,QFP,48P,7X7X1MM,DU
1203-008917 IC-DC/DC CONVERTER;G5334CQT1U,QFN4,23P,4
1203-008919 IC-DC/DC CONVERTER;SYD104AADC,TSOT23,6P,
1203-008921 IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3X
1203-008082 IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8
1203-008777 IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1.
1203-008891 IC-DC/DC CONVERTER;VPM1RT,QFN,68P,8X8X1M
1105-002882 IC-DDR4 SDRAM;K4F8E304HB-MGCJ,LPDDR4-SDR
1204-003741 IC-DECODER;SDP1601,FCPBGA,1147P,31X31X2.
1107-002374 IC-EMMC;KLM4G1FEPD-B031,4GBYTE,BGA,153P,
1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1203-008933 IC-POSI.ADJUST REG.;G942F11U,SOP,8P,4.9X
1205-005749 IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM
1205-004692 IC-SWITCH;TPS2069CDBVR,SOT-23,5P,2.9X2.8
1203-009004 IC-VOL. DETECTOR;RT9824CGJ8,TSOT-23-8,8P
1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
2703-005191 INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-005376 INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003937 INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9
2703-004630 INDUCTOR-SMD;2.2UH,20%,7070,T5,0.0025OHM
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-004724 INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1

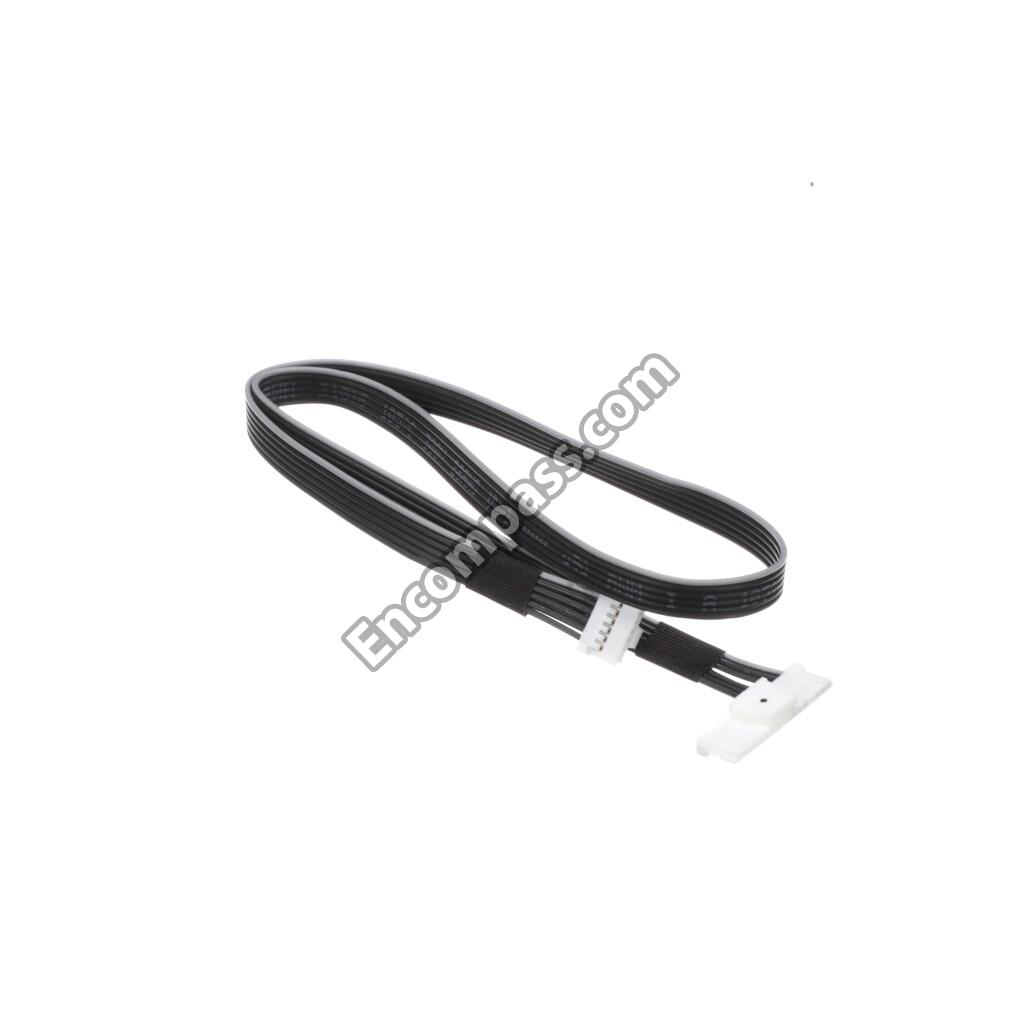

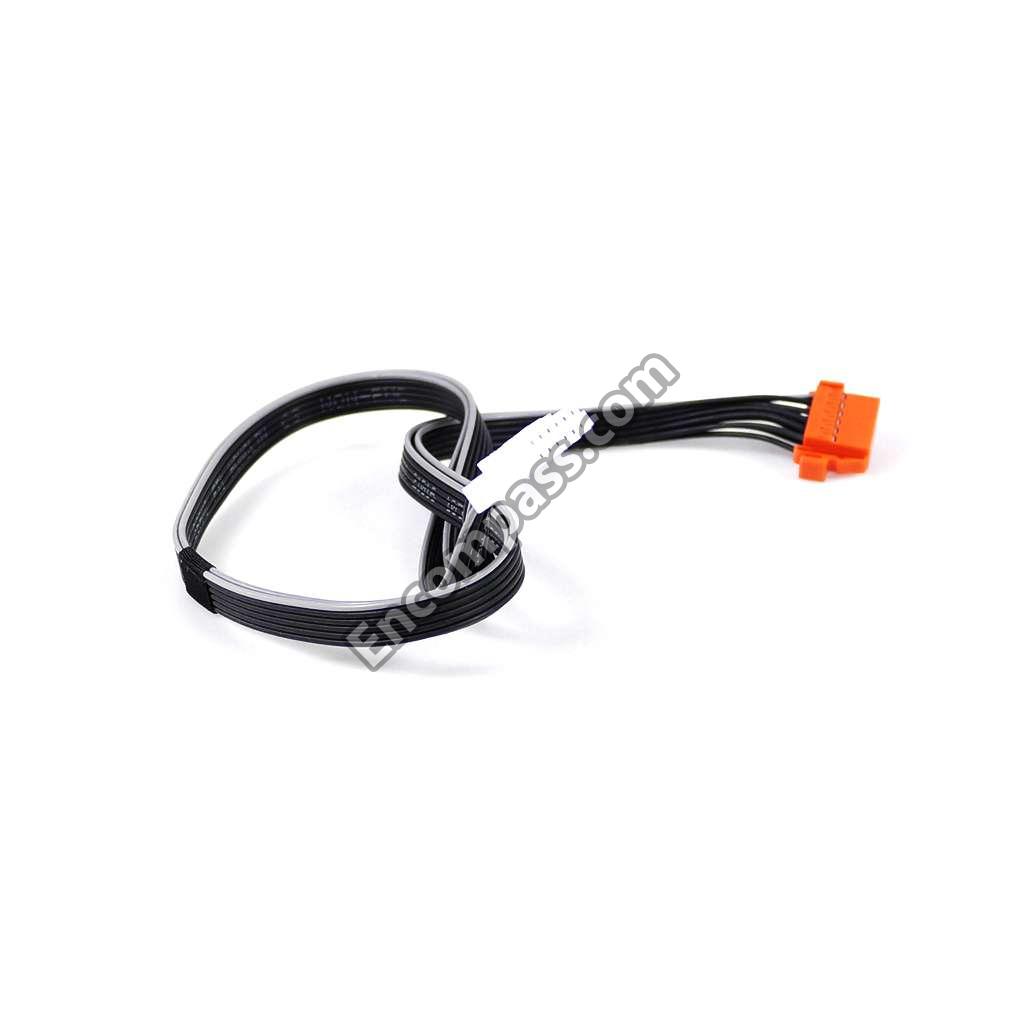

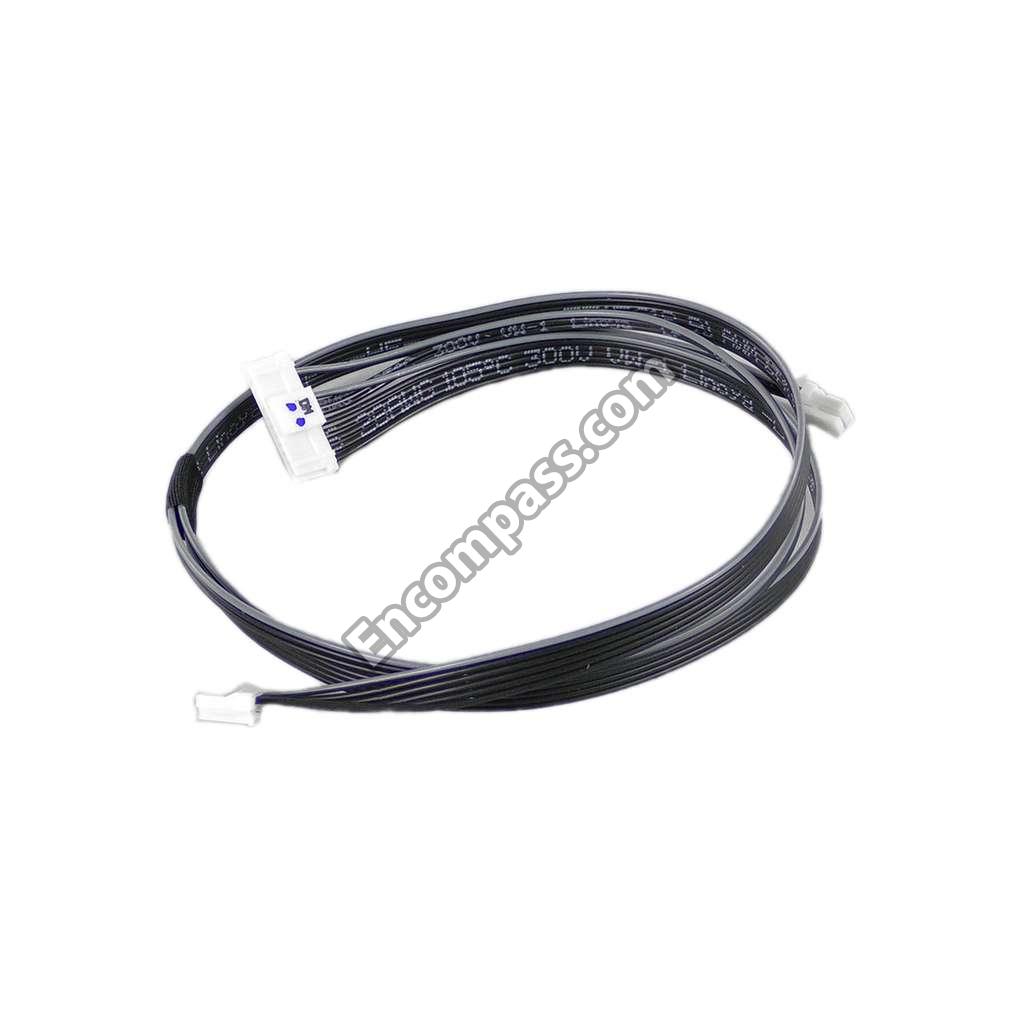

BN39-02030C LEAD CONNECTOR-BLU;BLU,UL21016,16P,150MM
BN39-02218B BN39-02218B LEAD CONNECTOR-SUB ASSY;55KU6000, 60KU60
BN39-02220C BN39-02220C LEAD CONNECTOR-SUB ASSY;55KU6300,UL21016
BN39-02217A BN39-02217A LEAD CONNECTOR-SUB ASSY;UN50KU6000,UL210
BN59-01174D BN59-01174D NETWORK-WLAN CLIENT;WIDT30Q,55X24X5.8MM
3903-001117 3903-001117 POWER CORD-DT;USA,2P-F,125V,7A,BLK,L1500
BN95-04396F BN95-04396F PRODUCT LCD-INX;CY-GM058HGNV4V/H,MU6100,
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-008779 R-CHIP;0OHM,1%,1/16W,TP,1005
2007-009322 R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002899 R-CHIP;10OHM,1%,1/10W,TP,1608
2007-001258 R-CHIP;10OHM,1%,1/4W,TP,3216
2007-007305 R-CHIP;120OHM,1%,1/16W,TP,1005
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-002906 R-CHIP;200KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-000683 R-CHIP;3.3KOHM,1%,1/10W,TP,1608
2007-000772 R-CHIP;33KOHM,1%,1/10W,TP,1608
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-009777 R-CHIP;4.99KOHM,1%,1/16W,TP,1005
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-007736 R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-000999 R-CHIP;510OHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001448 R-NETWORK;10OHM,5%,1/16W,L,4P,TP,1.0X1.0
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001586 R-NETWORK;1KOHM,5%,1/16W,L,CHIP,4P,TP,1.
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,

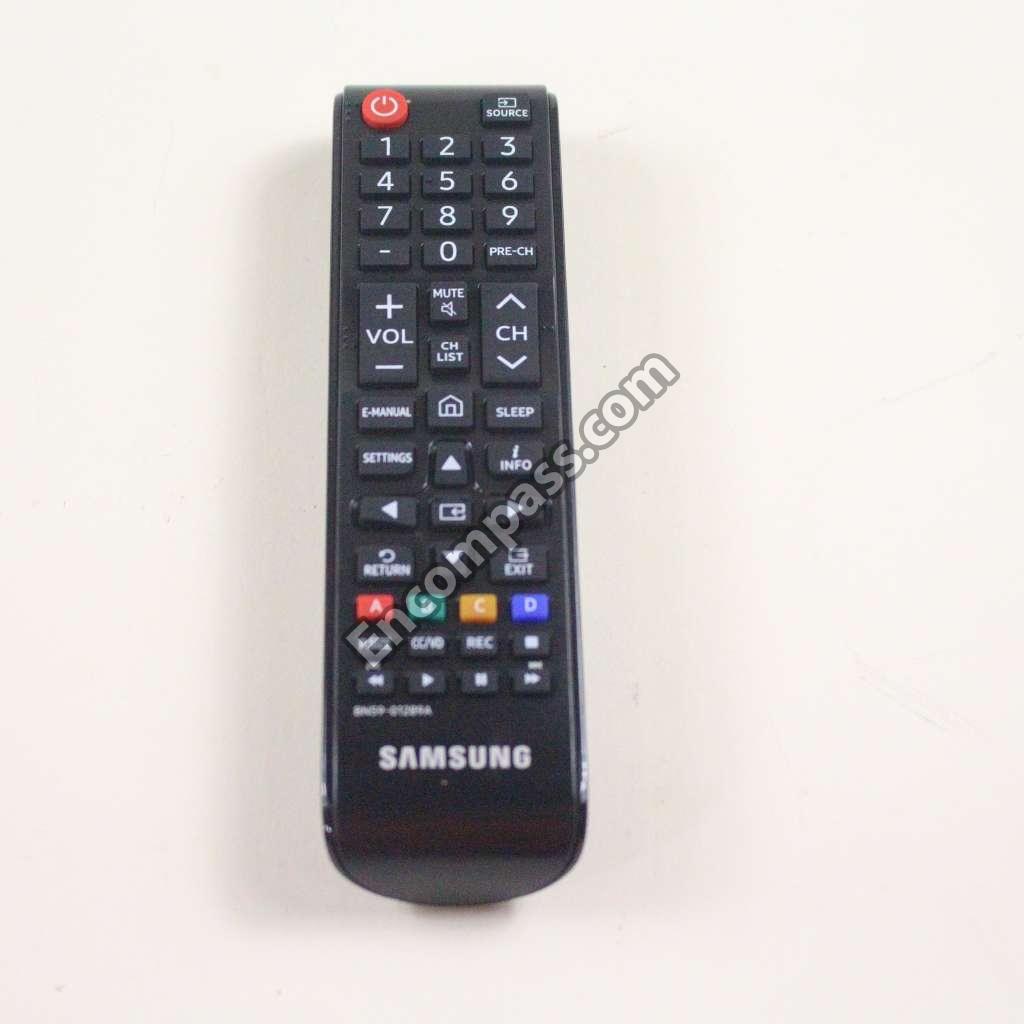

BN59-01289A BN59-01289A REMOCON-TV;2017 TV,SAMSUNG,44KEY,3V,NORT

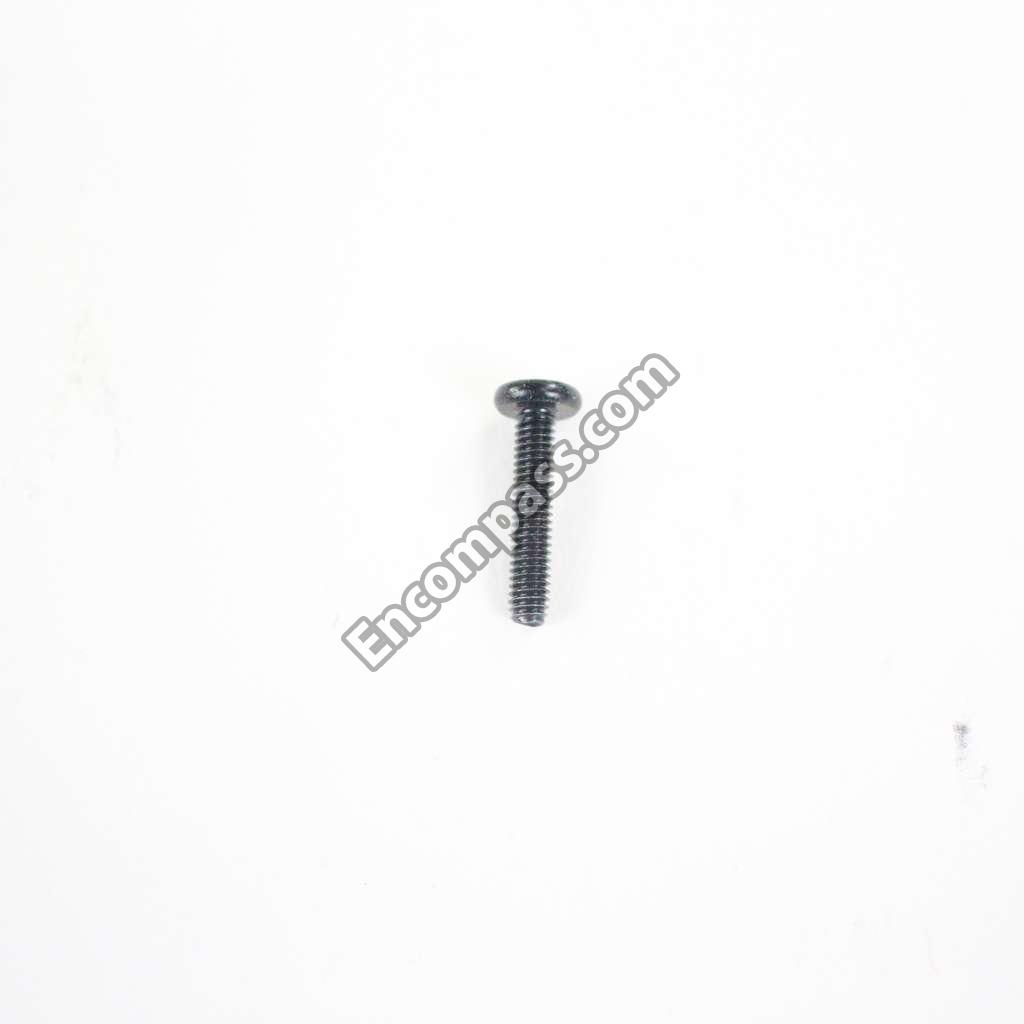

6001-003016 6001-003016 SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR
BN61-09494B BN61-09494B SCREW-TAPTYPE;BH,S,M4,L14,ZPC(BLK),SWR
6003-001355 6003-001355 SCREW-TAPTYPE;BH,S,M4,L20,ZPC(BLK),SWR
6003-001001 6003-001001 SCREW-TAPTYPE;FH,B,M3,L8,ZPC(BLK),SW
6003-001239 6003-001239 SCREW-TAPTYPE;FH,B,M4,L10,ZPC(WHT),SWR

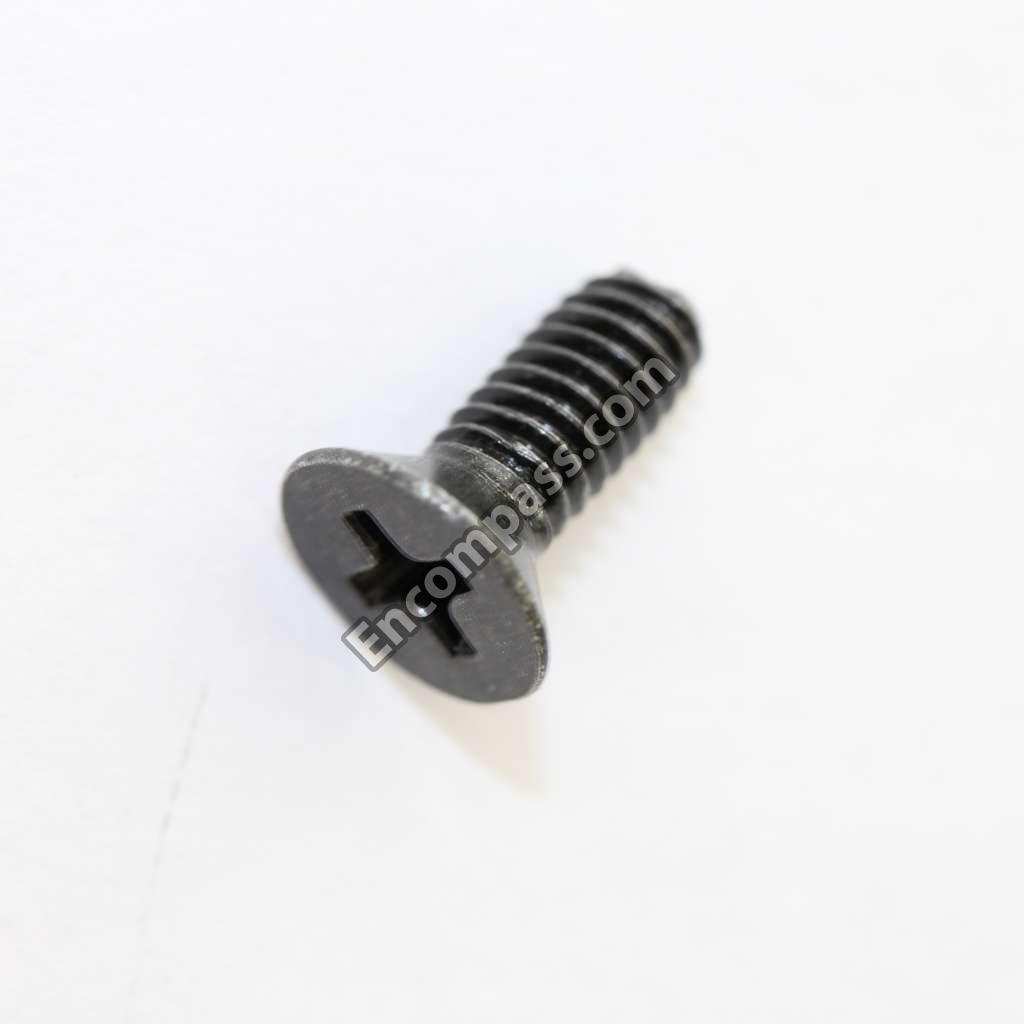

6003-001119 6003-001119 SCREW-TAPTYPE;FH,S,M4,L10,ZPC(BLK),SWR
0504-000126 TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S
0502-001345 TR-POWER;FCX491A,NPN,1000MW,SOT89,TR,900
0502-001346 TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
BN40-00329B BN40-00329B TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4
1405-001381 VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF
1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001232 VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
