Manufacturer
Samsung
Model Number

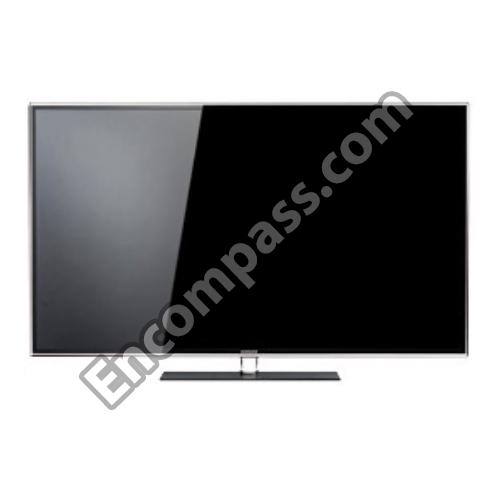

UN60D6450UFXZA
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN81-06415A | A/S-NOSEPAD;SSG-3700CR,3300CR,TR90 + SIL |
| BN81-04816A | A/S-USB CABLE;MICRO USB CABLE,1.5M |
| BN96-18927A | ASSY ACCESSORY 3D GLASSES;SSG-3300GR,2EA |
| BN96-18099N | ASSY BOARD P-IR;UD6/7K 60",CT5000-8720N, |
|
|
ASSY BOARD P-TOUCH FUNCTION;UA32D6500,CT |
| BN96-18130M | ASSY CABLE P-FPCB LVDS;LED120HZ-60INCH,F |
| BN96-19713A | ASSY CHASSIS TOP P;NNB 60", 6.5K,7 |
| BN96-20081C | ASSY COVER P-MIDDLE;UD6450 60,MABS(TINT |
| BN96-20110A | ASSY COVER P-REAR;UD6500 60,AMERICA,PCM, |
| BN96-18641A | ASSY GUIDE P-NECK;PD550,560 59",PETG,80 |
|
|
ASSY HOLDER P-RING;11 LED-TV |
| BN96-19860A | ASSY LED BAR P;60" SHARP_B TYP,52EA(SET2 |
| BN96-19859A | ASSY LED BAR P;60"_SHARP_A TYP,52EA(SET2 |
| BN96-19621A | ASSY MISC P-LGP LED;NNB 60" 6K PMMA,3T, |
| CALL_1-800-SAMSUNG | ASSY OPEN CELL;LK600D3HA8K,0.69225(H)X0. |
|
|

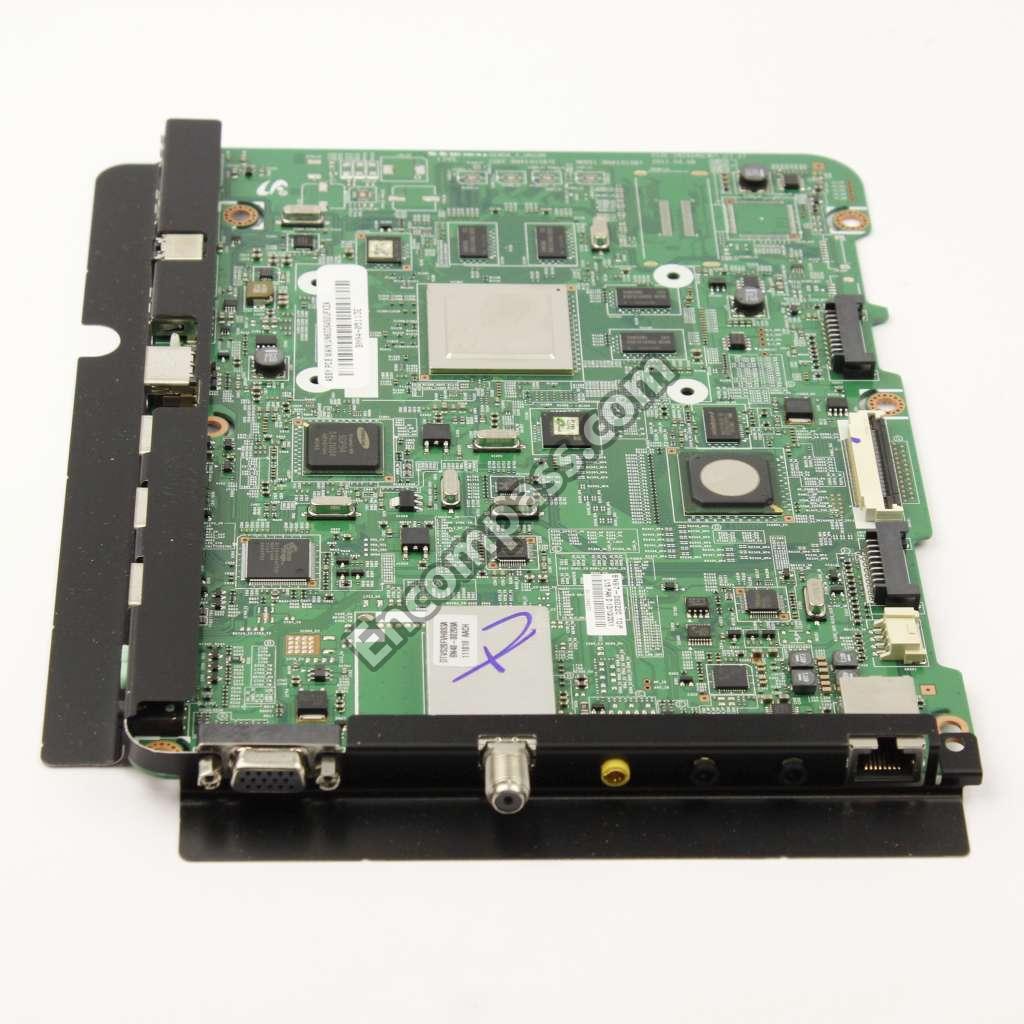

ASSY PCB MAIN;UN60D6450UFXZA |
|
|

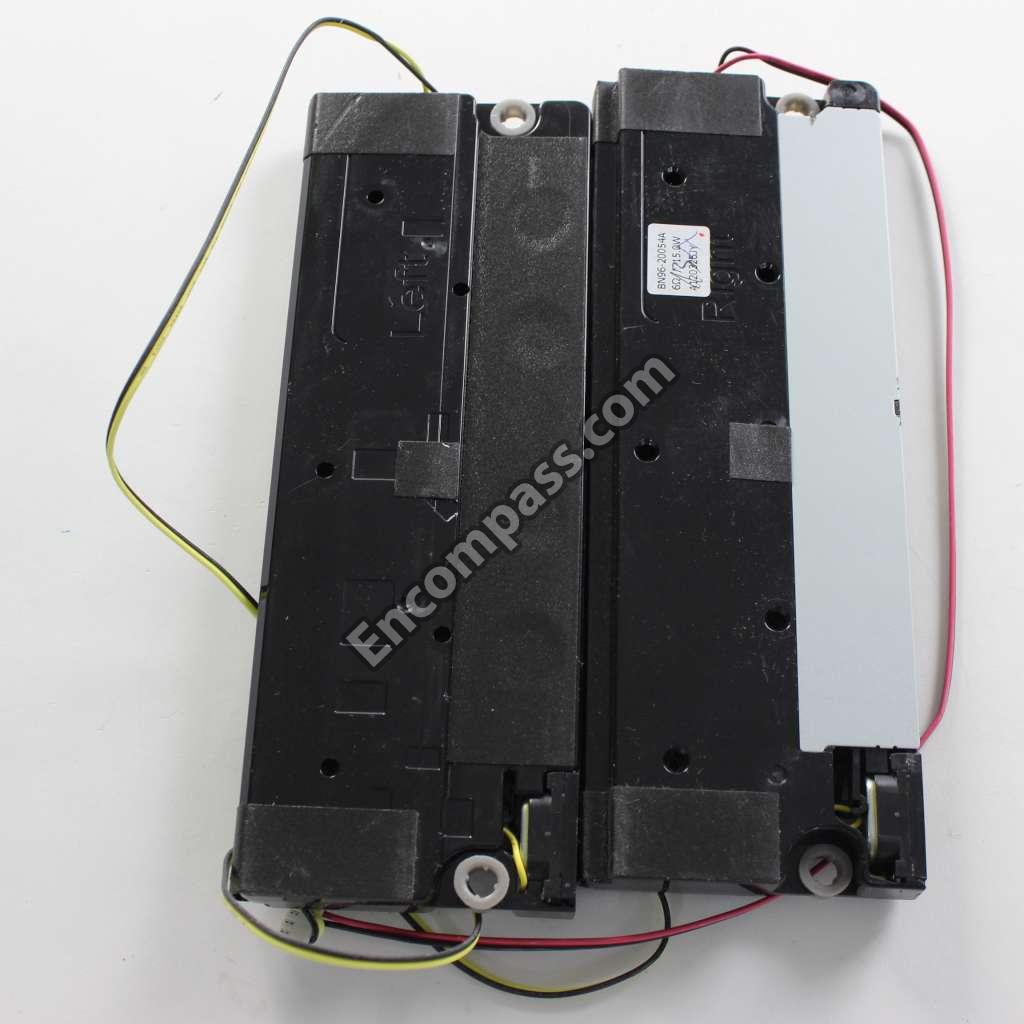

ASSY SPEAKER P;6OHM,4PIN,15W,UD7000/8000 |
| BN96-16795B | ASSY STAND P-BASE;PD550 59,GLASS STAND |
|
|

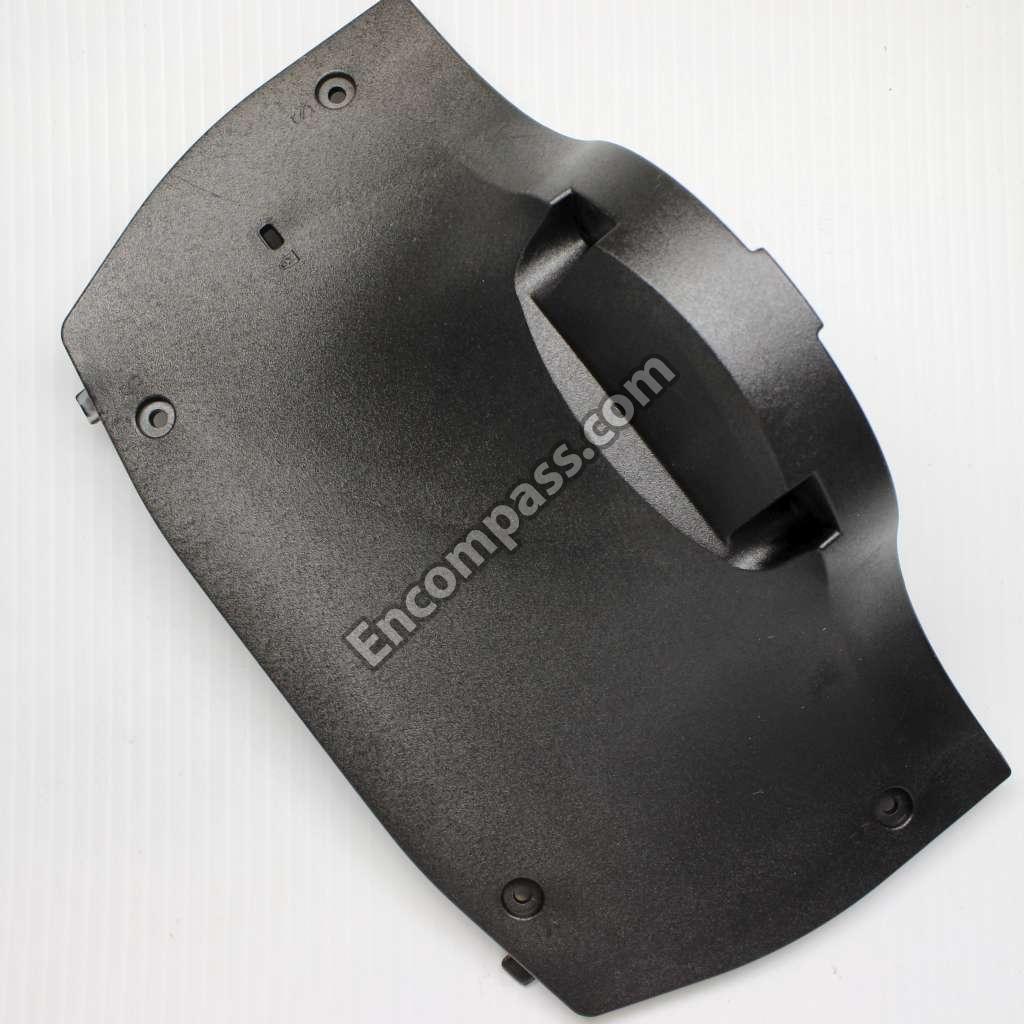

ASSY STAND P-GUIDE;UD6000,60,SAMEX,PC+G/ |
| BN95-00490B | ASSY T CON;BN41-01712B,217*90 |
| 3301-000314 | BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
|
BEAD-SMD;26OHM,1608,TP |
| 3301-001236 | BEAD-SMD;60OHM,1608 |
|
|
CBF SIGNAL;COMPONENT GENDER / UD8000,2P, |
|
|
CBF SIGNAL;UE40B7000WWXXC,3P RCA,30AWG,1 |
|
|
CBF-POWER CORD;DT,UL/CSA,EP-2,N,125V,5A, |
| 3701-001724 | CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI |
|
|
CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A,AU |
| 3708-002909 | CONNECTOR-FPC/FFC/PIC;82P,0.5MM,SMD-S,AU |
|
|
CONNECTOR-HDMI;19P,FEMALE,0.5MM,BLK,SMD- |
| 3711-007571 | CONNECTOR-HEADER;BOX,18P,2R,2.0MM,ANGLE, |
| 3707-001104 | CONNECTOR-OPTICAL;SMD-A(ULTRA SLIM),SPDI |
| 2801-004775 | CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
| 2801-003948 | CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
| 2801-004021 | CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF, |
| 2801-004774 | CRYSTAL-SMD;24MHZ,30PPM,14PF,30OHM,TP |
| 2801-004734 | CRYSTAL-SMD;25.000000MHZ,20PPM,28-AAN,12 |
| 2801-004629 | CRYSTAL-SMD;27MHZ,20PPM,12PF,50OHM,TP |
|
|

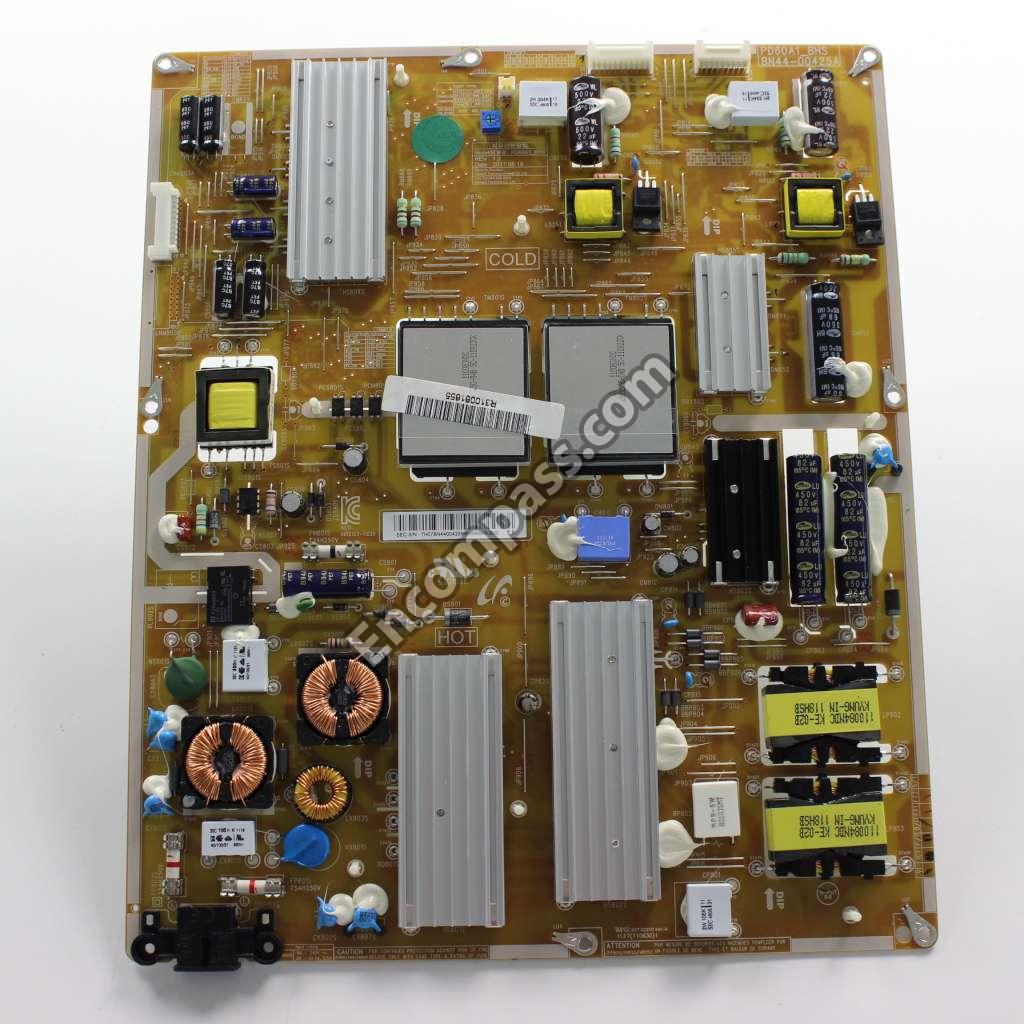

DC VSS-LED TV PD BD;PD60A1_BHS,PD60A1_BH |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0404-001271 | DIODE-SCHOTTKY;SSA34,40V,3000MA,SMA,TP |
| 0404-001307 | DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001271 | DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 |
| 0406-001445 | DIODE-TVS;RCLAMP7512N,2.7/2.8/2.9,300W,S |
| 0406-001438 | DIODE-TVS;SMCJ14A,15.6/-/17.2V,1500W,DO- |
|
|
ELEMENT-SILICON/RUBBER;UE32B6000VWXXC,SI |
| 0505-002917 | FET-SILICON;AO3406,N,30V,3.6A,1.4W,SOT-2 |
| 0505-001089 | FET-SILICON;AO3409L,P,-30V,-2.6A,0.097/0 |
| 0505-002386 | FET-SILICON;AO3415AL,P,-20V,-4A,0.045OHM |
| 0505-000274 | FET-SILICON;AO4435L,P,-30V,-11A,0.014OHM |
| 0505-002623 | FET-SILICON;AO4476AL,N,30V,15A,0.0077OHM |
| 0505-002598 | FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O |
| 2901-001506 | FILTER-EMI SMD;5V,0.13A,0PF,2X1X0.5MM,TP |
| BN39-01533A | FLAT CABLE-FFC;80P,0.15,38MM,UL 60HZ/120 |
| 3601-001653 | FUSE-SURFACE MOUNT;32V,8A,CERAMIC,3.2X1. |
|
|
HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG |
| 3711-005509 | HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
| 3711-005499 | HEADER-BOARD TO CABLE;BOX,8P,1R,1.25MM,S |
| 3711-007319 | HEADER-BOARD TO CABLE;SMD,4P,1R,2.50MM,S |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
| BN61-06644A | HOLDER-PCB;LC750,PA66,V0 |
|
|
HOLDER-WIRE STAND;UB7000 46INCH,PA66 |
| BN13-00042A | IC ASIC;SDP1005,PARMA,404P,3.3V,-25TO+85 |
| 1001-001686 | IC-ANALOG MULTIPLEX;74LV4052,CMOS,TTSOP, |
| 1205-003201 | IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2X2.3MM |
| 0801-003292 | IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P |
| 1205-004095 | IC-CODEC;AK4686EQ,LQFP,48P,9.0X9.0X1.7MM |
| 1203-006619 | IC-DC/DC CONVERTER;AOZ1033AI,SO-8,8P,4.9 |
| 1203-006788 | IC-DC/DC CONVERTER;RT8277GS,SOP,8P,5.0X6 |
| 1203-005988 | IC-DC/DC CONVERTER;TPS54620RGY,QFN,14Q,3 |
| 1105-002191 | IC-DDR2 SDRAM;W9725G6JB-18,DDR2 SDRAM,25 |
| 1105-002194 | IC-DDR3 SDRAM;K4B1G1646G-BCH9,DDR3 SDRAM |
| 1204-003254 | IC-DECODER;484P,27 X 27 X 2.23 MM,PLASTI |
| 1204-003217 | IC-DECODER;SDP1001,FCBGA,937P,35X35MM,PL |
| 1006-001509 | IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
| 1103-001500 | IC-EEPROM;AT24C02C-SSHM-T,2KBIT,256X8,SO |
| 1103-001506 | IC-EEPROM;M24512-RMN6TP,512KBIT,64KX8,SO |
|
|
IC-ETHERNET CONTROLLER;RTL8201E-VC-GRT,Q |
| 1003-002404 | IC-LEVEL DRIVER;BD8124MUV-E2,48P,7X7X1 M |
| 0903-001718 | IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4 |
| 1205-004189 | IC-MULTIPLIER;36P,5X5X0.9 MM,PLASTIC,18V |
| 1107-001983 | IC-NAND FLASH |
| 1201-002312 | IC-OP AMP;NJM2125F,MTP,TP,5P,2.9X1.6MM,S |
| 1203-006136 | IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
| 1203-006135 | IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
| 1203-003121 | IC-POSI.FIXED REG.;FAN1112,SOT-223,3P,6. |
| 1203-006130 | IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
| 1203-006141 | IC-POSI.FIXED REG.;S-1172B33-U5T1G,SOT-8 |
| 1203-006109 | IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
|
|
IC-POWER AMP;TAS5725,PQFP,48P,7X7MM,DUAL |
| 1203-006806 | IC-POWER SUPERVISOR;ISL45041IRZ-T,8P,3X3 |
| 1209-001761 | IC-SENSOR;LM75ADP,TSSOP,8P,3.1X3.1MM,PLA |
| 1205-004155 | IC-SWITCH;AOZ1360AIL,SO-8,8P,4.9X3.9MM,P |
| 1205-003735 | IC-SWITCH;AP2151WG-7,SOT25,5P,2.9X1.6MM, |
| 1205-003733 | IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 |
| 1205-003479 | IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9X1.6 |
| 0904-002631 | IC-USC;QFN,28P,5.0MM X 5.0MM,12MHZ,TP,PL |
| 1204-003101 | IC-VIDEO PROCESS;SDP94,PBGA,345P,19X19MM |
| 1001-001683 | IC-VIDEO SWITCH;SII9489ACTUC,QFP,128P,14 |
| 1203-006017 | IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 1203-006780 | IC-VOL. REFERENCE;MAX9697ATI+,TQFN,28P,5 |
| 3722-003199 | JACK-MODULAR;8P/8C,ANGLE,AU,1P |
|
|
JACK-PHONE;1/6P,NI,BLK,ANGLE |
| 3722-003208 | JACK-PHONE;1P/7C,P-BRONZE,YEL,SMD-A(DIP) |
| 3722-003207 | JACK-PHONE;2P/9C,AU,LIMEGRN,SMD-A(DIP) |
| 3722-003044 | JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE |
|
|
LEAD CONNECTOR;UN46C6400,FALT CONNECTOR, |
| BN73-00211C | PAD GAP;UN32D6500,PAD GAP,4.5 MM,35MM*35 |
|
|

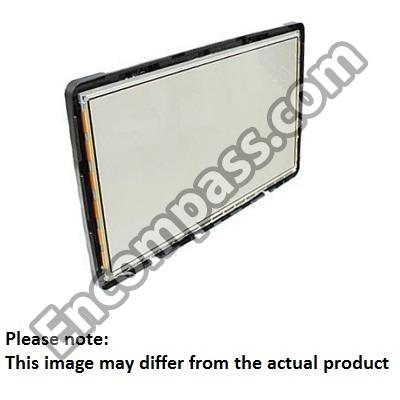

PRODUCT LCD;LD600CGD-V3,60 INCH,16:9,N-A |
|
|
REMOCON;TM1060,49,3.0V,NORTN AMERICA,650 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;CH,+,M3,L4,NI PLT,SWRCH18A |
| 6001-002672 | SCREW-MACHINE;FH,+,M1.7,L4,NI PLT,SWRCH1 |
|
|
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR |
| BN63-05199N | SHEET-COVER;OUTDOOR PLUS,PE,T0.08,W190MM |
| BN02-00043A | TAPE ETC-SHEET;NNB 32/40/46/55,3M 3357 F |
| 0502-001321 | TR-POWER;STB1188,PNP,2000MW,SOT-89,TR,16 |
| 0502-001360 | TR-POWER;STC405D,NPN,15000MW,TO-252 |
|
|
TUNER;DTVS20FVH083A,DTVS20FVH083A,VSB HA |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
