Model Image
Manufacturer

Samsung

Model Number

UN60ES7100FXZA

Description

60-inch Led 7100 Series Smart Tv

Interactive Exploded View
Exploded View

Parts List

Part Number Description
BN96-24100A BN96-24100A ASSY BLU P;UN46ES7000FXZA,M12-8000,WHITE

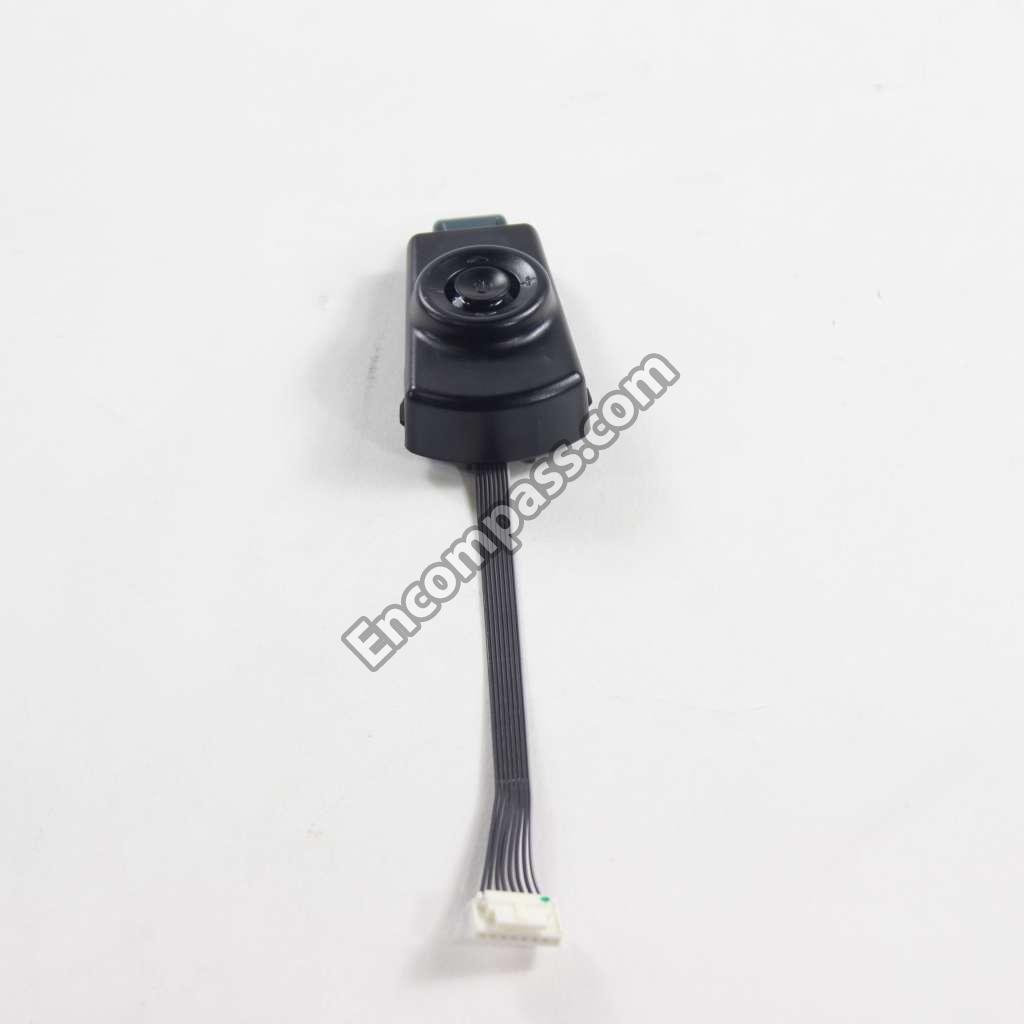

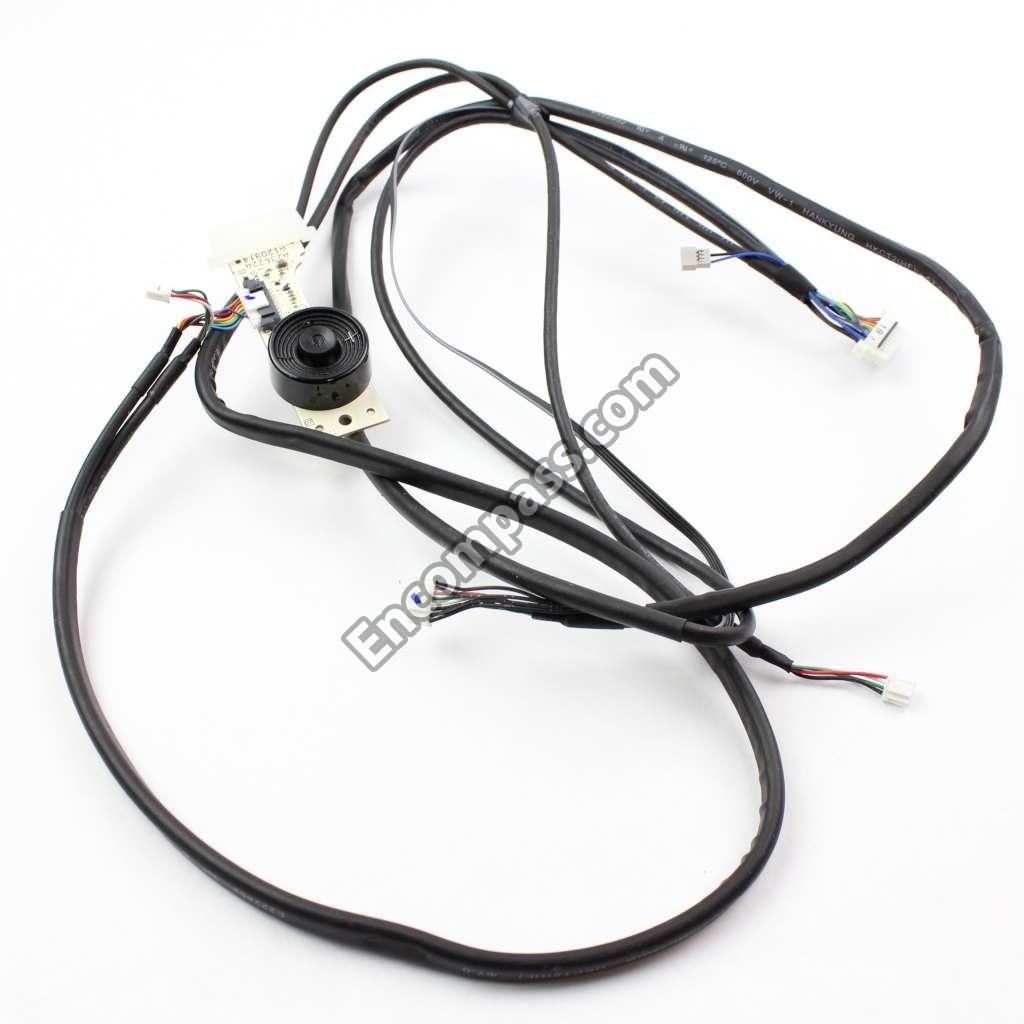

BN96-23622L BN96-23622L ASSY BOARD P-5WAY SWITCH FUNCTION;UN60ES

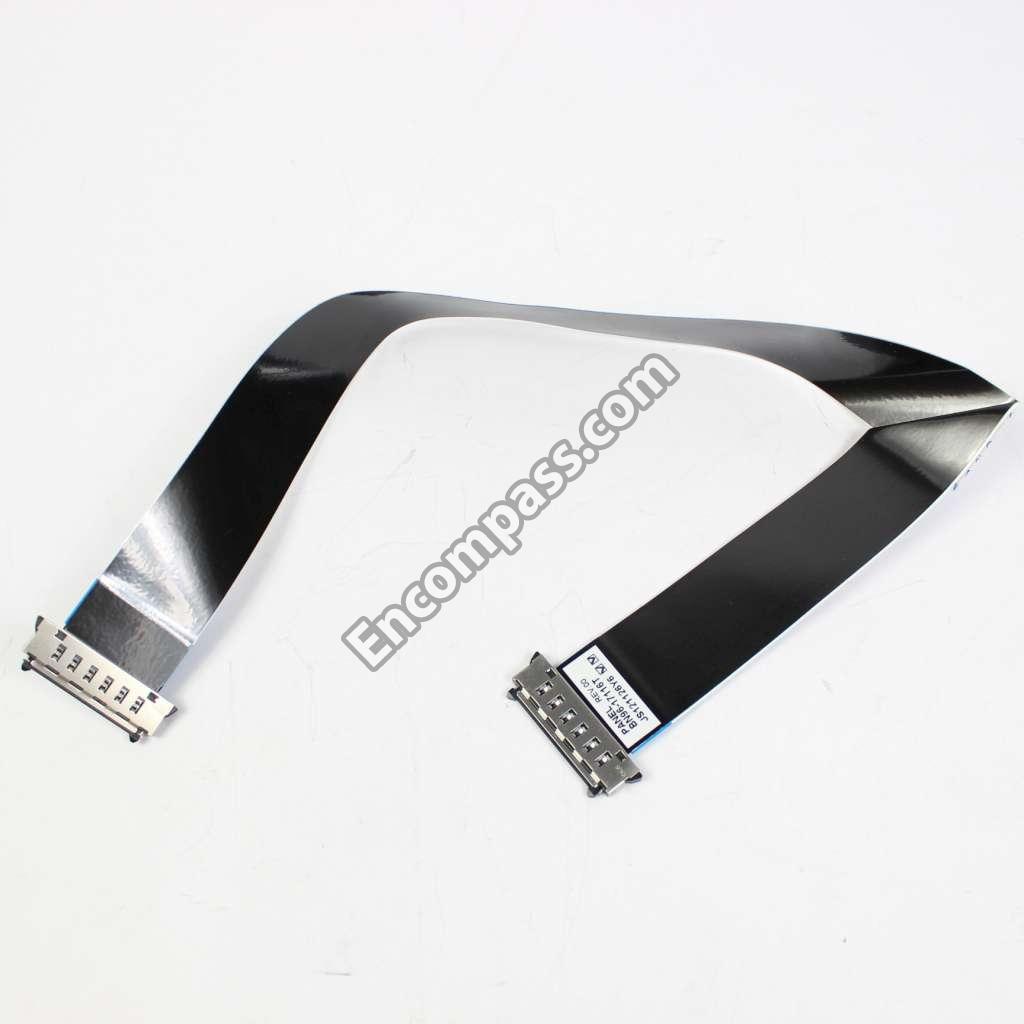

BN96-17116T BN96-17116T ASSY CABLE P-FFC;UD7K~8K 60",FFC,449MM,5
BN96-23502A ASSY COVER P-MIDDLE;UE7100 60,MABS+ABS,H
BN96-21944W BN96-21944W ASSY COVER P-REAR;UE7100,60,UO,PCM T0.4,

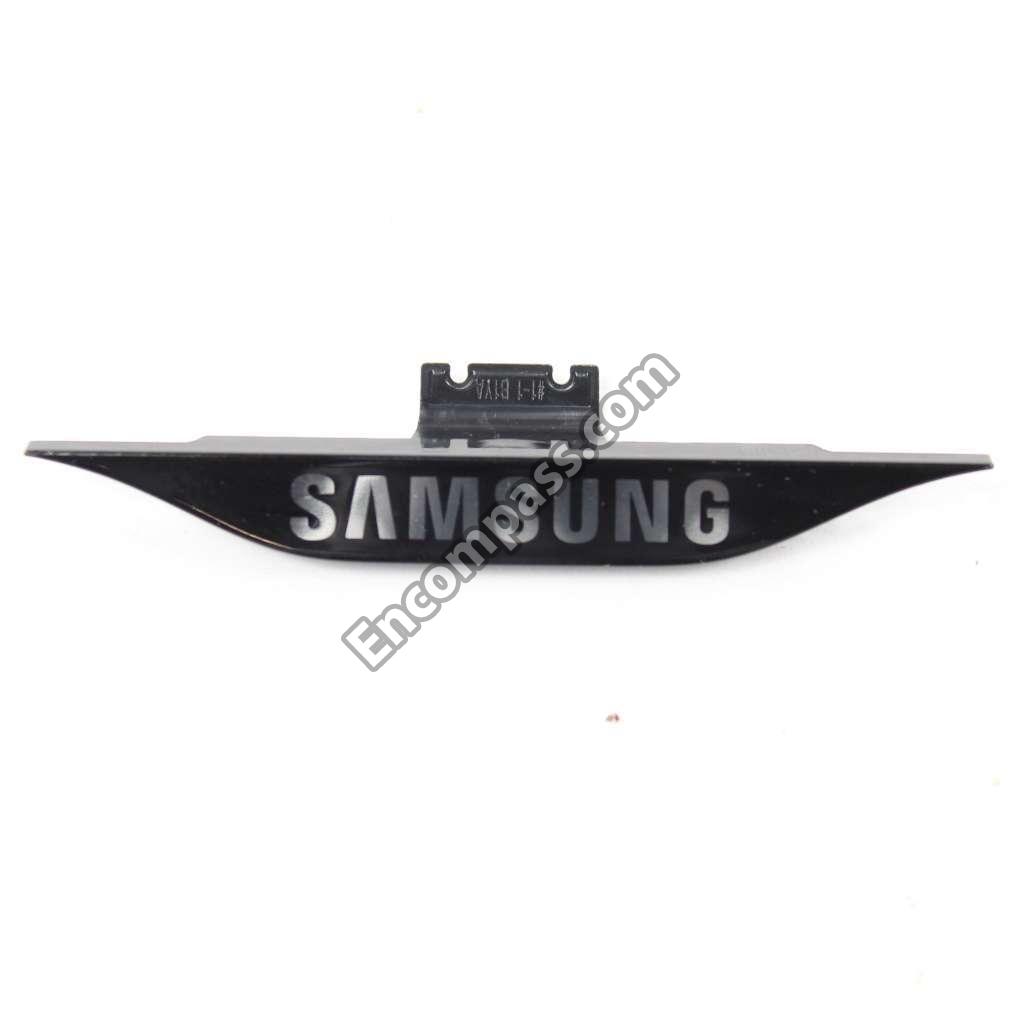

BN96-18153A BN96-18153A ASSY HOLDER P-RING;11 LED-TV
BN96-21715A ASSY MISC P-LED BAR;60" NNB_6K3D LEFT,4B
BN96-21716A ASSY MISC P-LED BAR;60" NNB_6K3D RIGHT,4
BN96-19792B ASSY OPEN CELL;LK6003HA9KN,0.69225(H)X0.
BN96-16798H BN96-16798H ASSY SPEAKER P;6OHM,4PIN,10W,E7000/8000
3301-000314 BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP
3301-001404 BEAD-SMD;30OHM,2012,TP,15.9OHM/30MHZ,-
2203-003039 C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100
2203-001851 C-CER,CHIP;0.016NF,5%,50V,NP0,TP,1608
2203-000292 C-CER,CHIP;0.01NF,5%,50V,C0G,TP,1608
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007176 C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1
2203-006090 C-CER,CHIP;10000NF,10%,6.3V,X5R,TP,2012
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0.
2203-006960 C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002720 C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,0.5T
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-007233 C-CER,CHIP;22000NF,10%,16V,X5R,TP,3216,1
2203-006706 C-CER,CHIP;2200NF,10%,50V,X7R,TP,3225
2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012
2203-000576 C-CER,CHIP;220NF,10%,50V,X7R,TP,3216
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T
2203-002398 C-CER,CHIP;22NF,10%,50V,X7R,TP,1608
2203-006377 C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005
2203-002519 C-CER,CHIP;5.6NF,10%,50V,X7R,TP,1005
2503-001051 C-NETWORK;100NFX4,20%,16V,2012

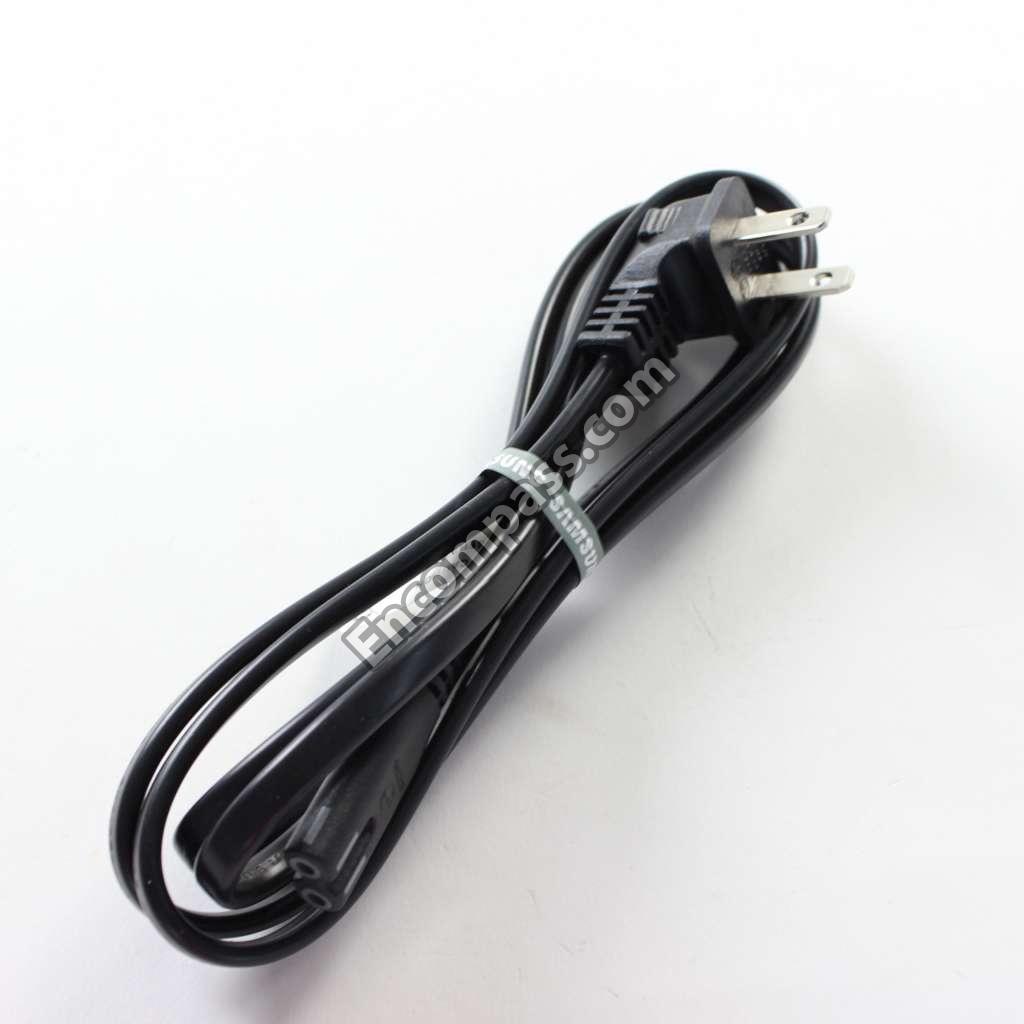

3903-000598 3903-000598 CBF-POWER CORD;DT,UL/CSA,EP-2,N,125V,5A,
3708-002552 3708-002552 CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A,AU

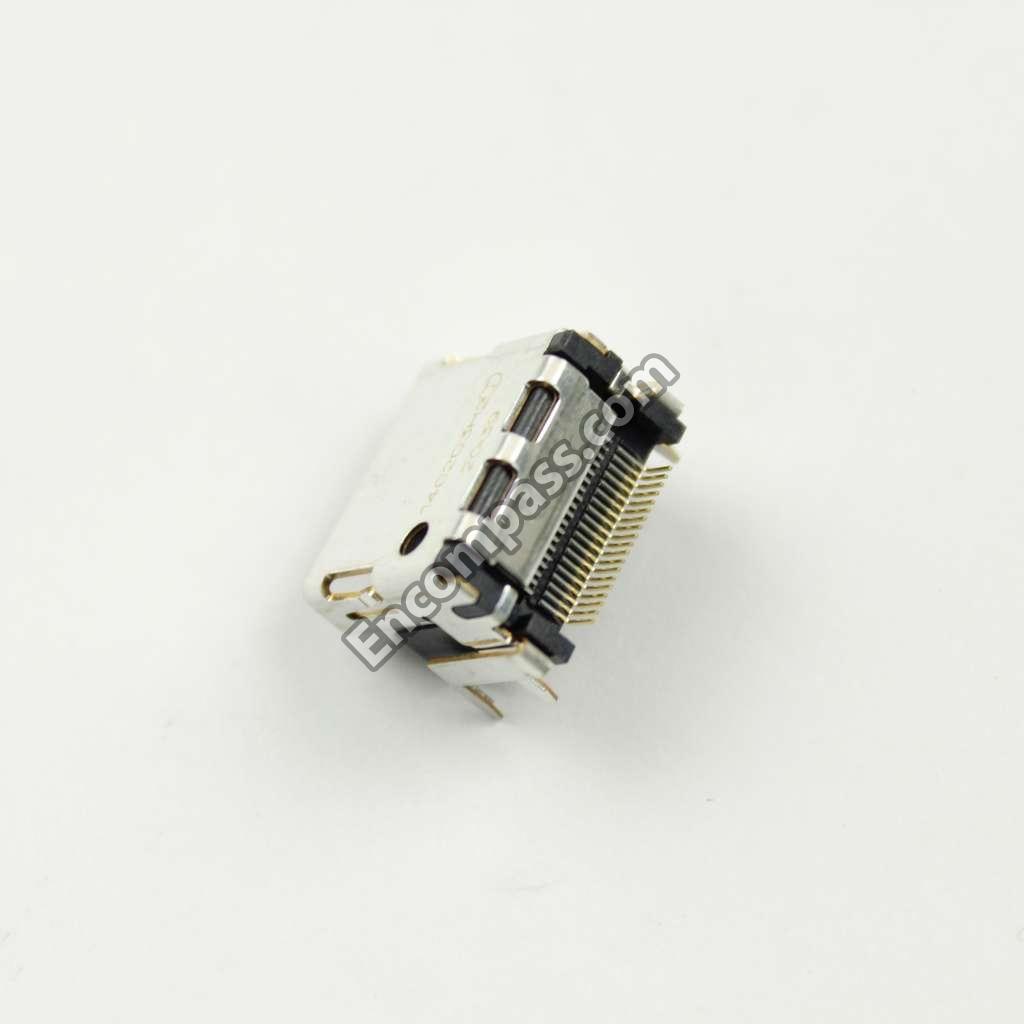

3701-001736 3701-001736 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A
3711-002050 CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A
3711-007571 CONNECTOR-HEADER;BOX,18P,2R,2.0MM,ANGLE,
3707-001104 CONNECTOR-OPTICAL;SMD-A(ULTRA SLIM),SPDI
2801-004775 CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP
2801-003948 CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH
2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
2801-003954 CRYSTAL-SMD;27MHZ,30PPM,28-AAN,16PF,50OH
0404-001643 DIODE-SCHOTTKY;B360A,60V,3000MA,SMA,TP
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001482 DIODE-SCHOTTKY;RB055LA-40,40V,3000MA,PMD
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000MA,SMA,TP
0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251
0406-001445 DIODE-TVS;RCLAMP7512N,2.7/2.8/2.9,300W,S
0406-001438 DIODE-TVS;SMCJ14A,15.6/-/17.2V,1500W,DO-
0505-001905 FET-SILICON;2N7002,N,60V,300MA,7.5OHM,.3
0505-000274 FET-SILICON;AO4435L,P,-30V,-11A,0.014OHM
0505-002925 FET-SILICON;AO4438,N,60V,8.2A,3.1W,SOT-8
0505-002937 FET-SILICON;AO4854L,DUAL N,30V,8A,2W,SOT
0505-002645 FET-SILICON;AOD4184A,N,40V,50A,0.007OHM,
0505-002598 FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O
0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,-30V,-11.
3711-007742 3711-007742 HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG
3711-007814 HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S
3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
3711-005925 HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S
3711-005499 HEADER-BOARD TO CABLE;BOX,8P,1R,1.25MM,S
3711-005601 HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD-
AA61-20285C HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G
BN61-06644A HOLDER-PCB;LC750,NYNOL66,V0

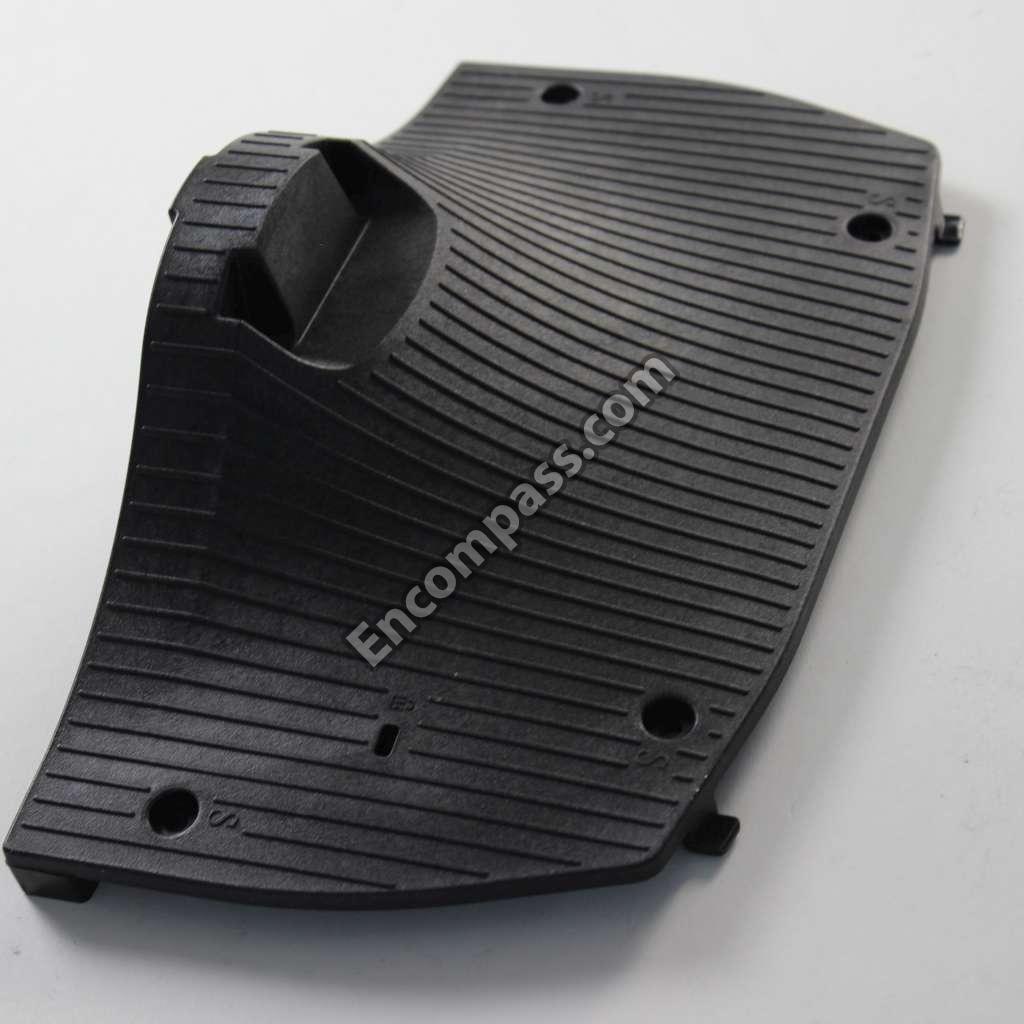

BN61-05491A BN61-05491A HOLDER-WIRE STAND;UB7000 46INCH,NYRON
0801-003292 IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P
0801-003330 IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X
1203-007080 IC-DC/DC CONVERTER;AOZ1051PI,SO-8,8P,4.9
1203-007215 IC-DC/DC CONVERTER;SN1109048RHL,QFN,14P,
1105-002264 IC-DDR2 SDRAM;K4T51163QJ-BCF8,DDR2,512MB
1105-002194 IC-DDR3 SDRAM;K4B1G1646G-BCH9,DDR3 SDRAM
1105-002253 IC-DDR3 SDRAM;K4B2G1646C-HCK0,DDR3 SDRAM
1204-003351 IC-DECODER;SEMS27,PBGA,717P,23X23MM,PLAS
1204-003301 IC-DECODER;VPP1552,FPBGA,324P,15 X 15 MM
1006-001509 IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20
1103-001310 1103-001310 IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2.
1103-001487 IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8
1003-002412 IC-LEVEL DRIVER;MAX17079GTL+,TR,40P,6X6X
0903-001718 IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4
1205-004222 IC-MULTIPLIER;THV3056,64P,9X9X0.9MM,PLAS
1107-002088 IC-NAND FLASH;KLM2G1HE3F-B001,2GBYTE,16G
1107-001915 IC-NOR FLASH;32MBIT,X1,SOP,8P,5.25X5.25M
1201-002980 IC-OP AMP;MAX9650ATA+,TDFN-EP,TP,8P,3*3M
1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2
1203-007242 IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8P,
1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T
1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T
1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8
1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2
1201-003333 IC-POWER AMP;NTP-7412S,MLF,48P,7X7MM,DUA
1203-006806 IC-POWER SUPERVISOR;ISL45041IRZ-T,8P,3X3
1209-001761 IC-SENSOR;LM75ADP,TSSOP,8P,3.1X3.1MM,PLA
1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9
1205-004447 IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65
0904-002714 IC-USC;QFN,28P,5.0MM X 5.0MM,12MHZ,TP,PL
1204-003324 IC-VIDEO PROCESS;SDP1111,FCBGA,768P,31X3
1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9
1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
1203-006780 IC-VOL. REFERENCE;MAX9697ATI+,TQFN,28P,5
2703-003713 INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700
2703-002804 INDUCTOR-SMD;10UH,20%,12X12MM,0.022OHM,6
2703-003488 INDUCTOR-SMD;10UH,20%,6965,0.071OHM,3500
2703-000158 INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45,
2703-003932 INDUCTOR-SMD;22UH,20%,8080,0.075OHM,2500
2703-003930 INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245
2703-003790 INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450
3722-003199 JACK-MODULAR;8P/8C,ANGLE,AU,1P
3722-003394 JACK-PHONE;1P/6C,AU,BLK,ANGLE
3722-003216 JACK-PHONE;1P/7C,P-BRONZE,BLACK,SMD-A(DI
3722-003151 JACK-PIN;5P(ULTRA SLIM),NI,BLK,ANGLE(SSR
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,A
3722-003044 JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE

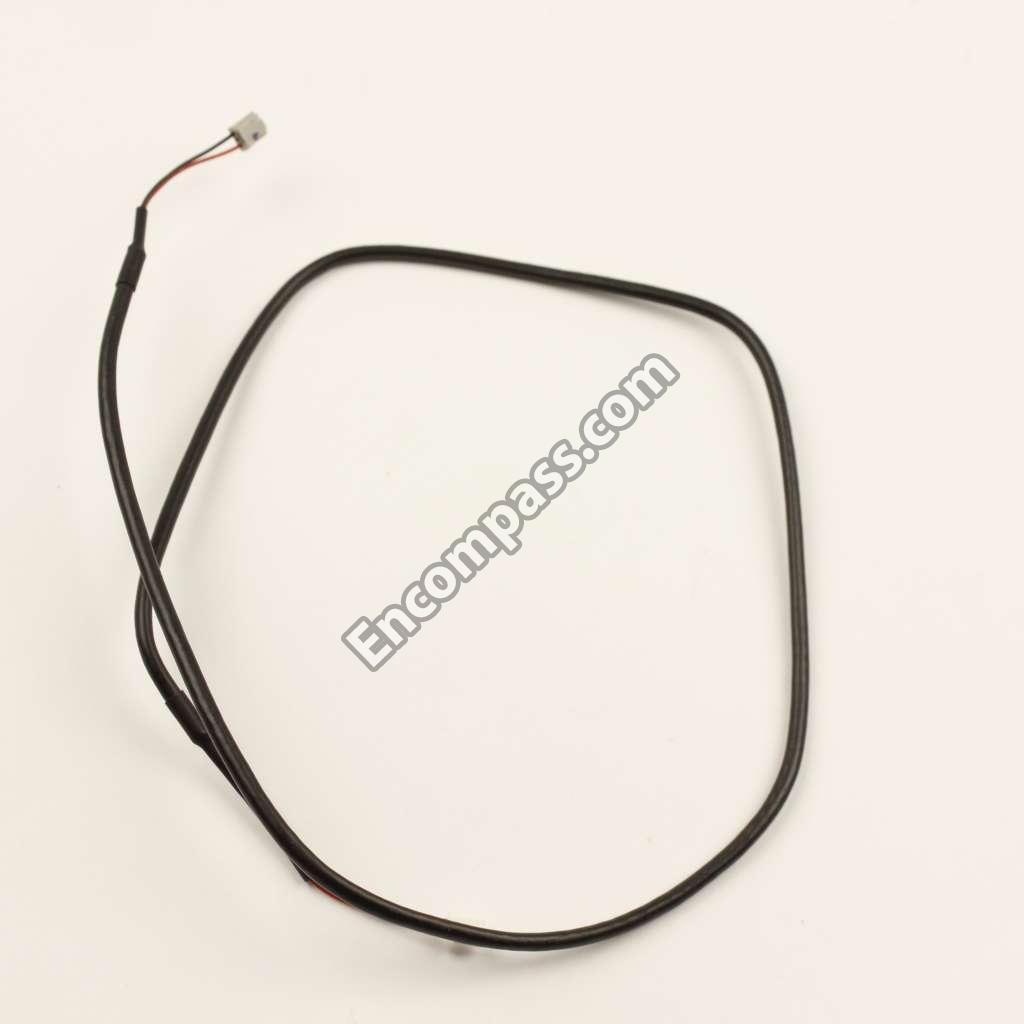

BN39-01472J BN39-01472J LEAD CONNECTOR-DECO CABLE;E7K 60",CABLE

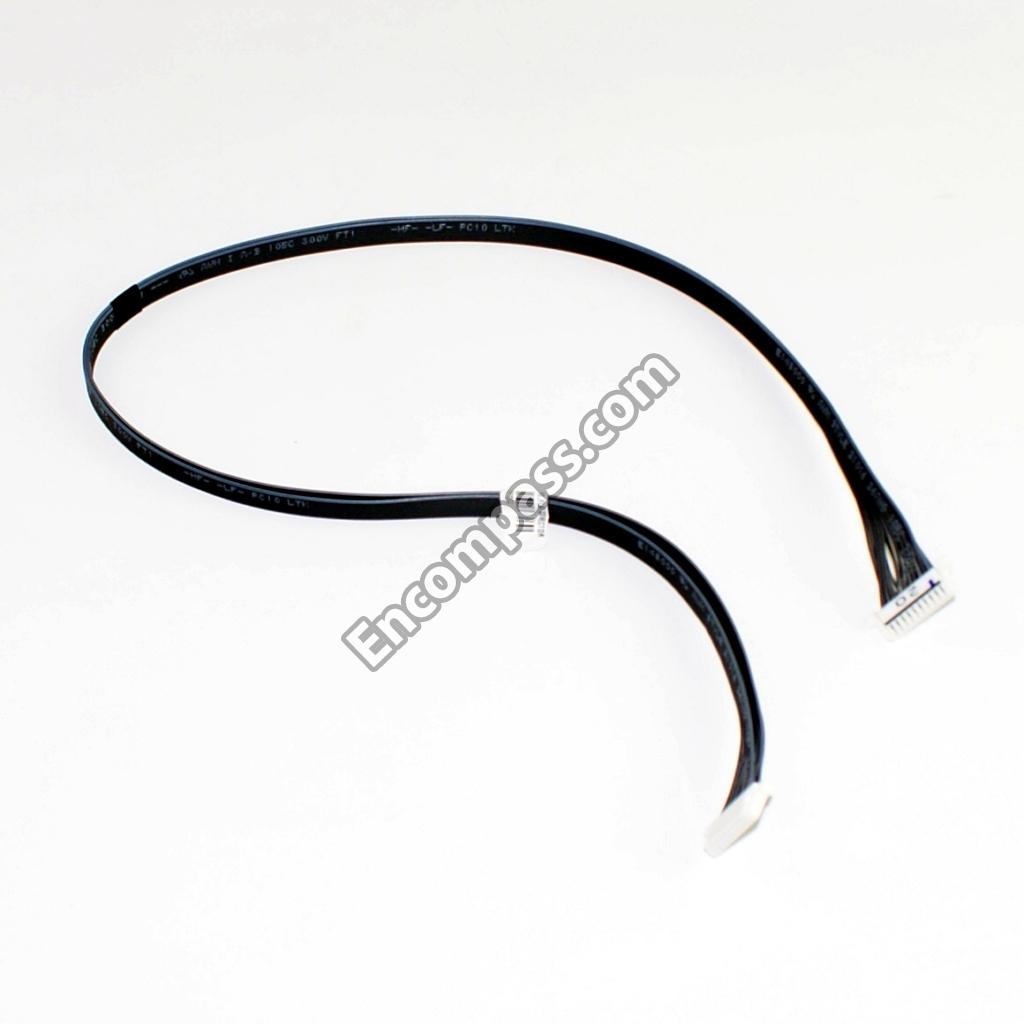

BN39-01475G BN39-01475G LEAD CONNECTOR;UN46C6400,FALT CONNECTOR,

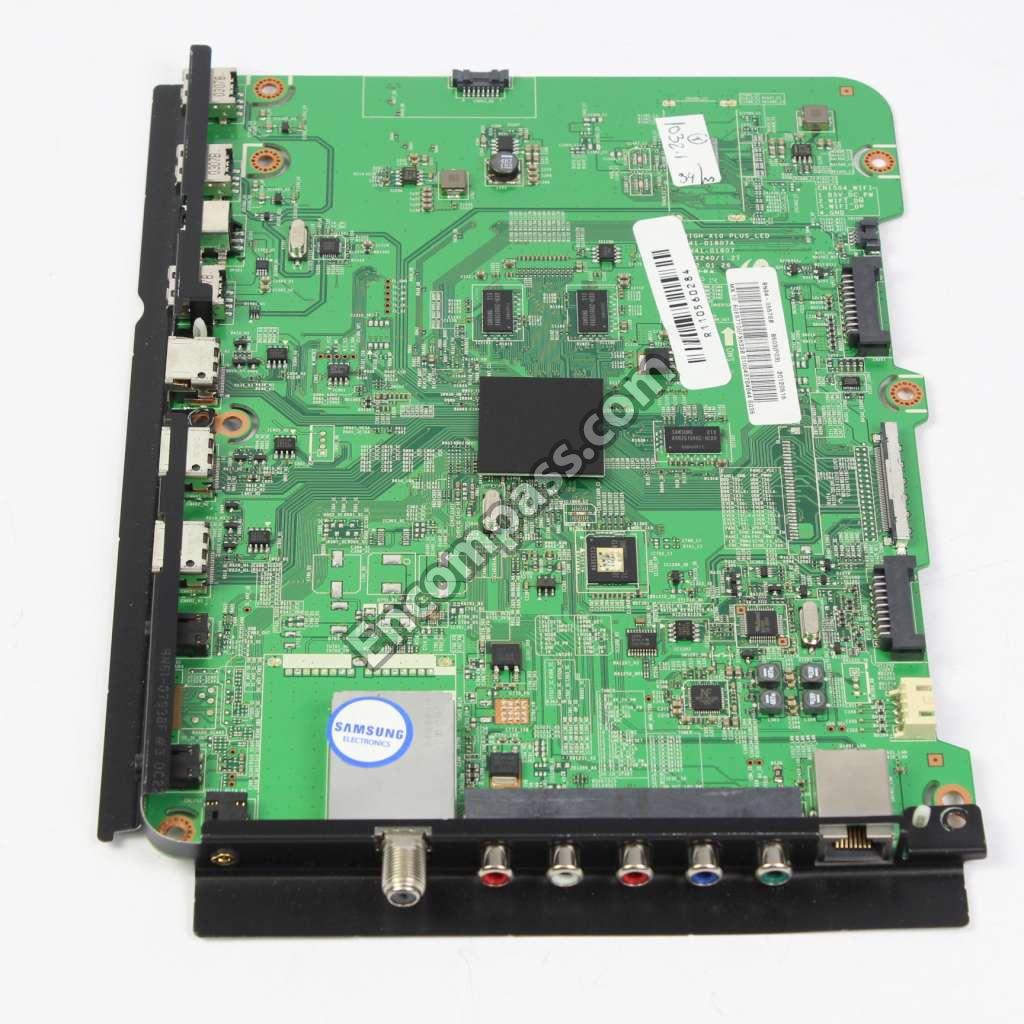

BN94-05578B BN94-05578B MAIN BOARD
BN59-01148C BN59-01148C NETWORK;WIDT-20R,INTERNAL WIFI,USB,34X36
2806-001308 OSCILLATOR-VCXO;27MHZ,-,30PF,TP,3.3V,50M

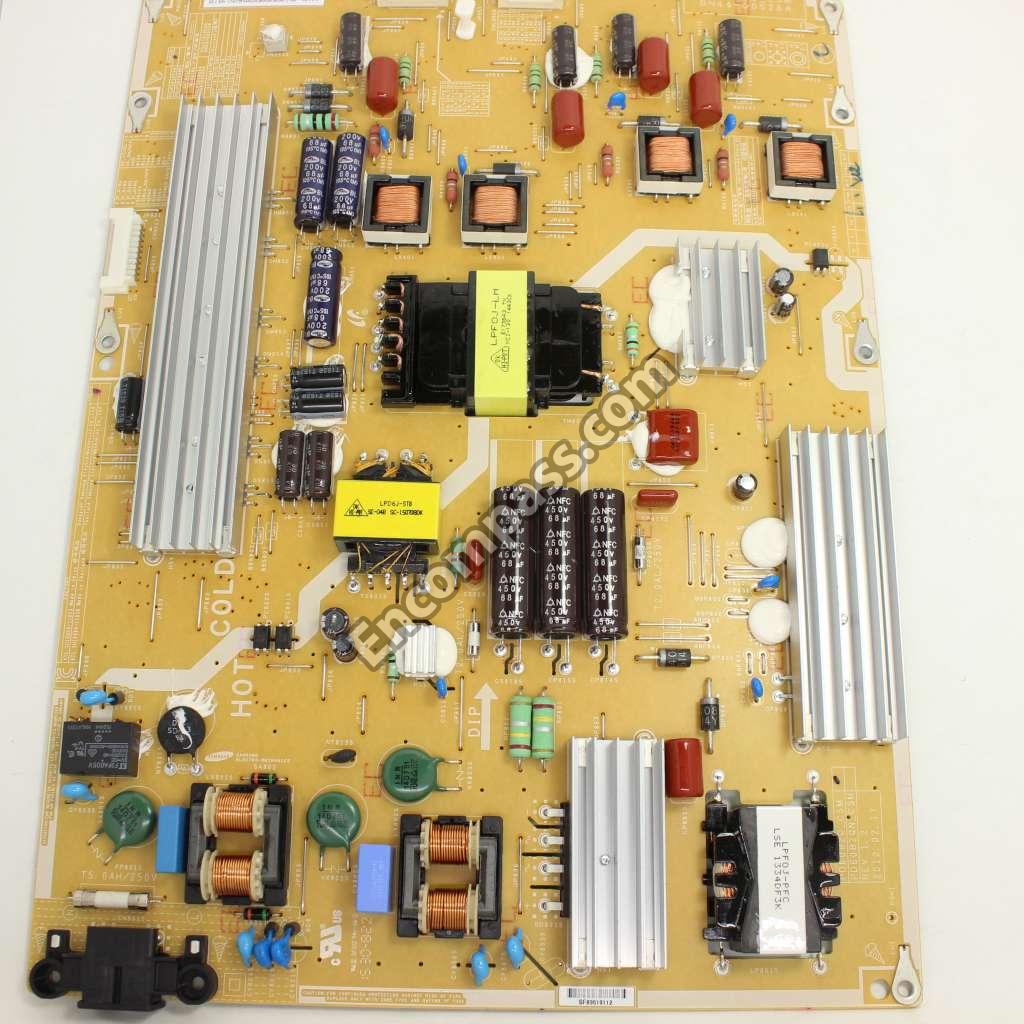

BN44-00526A BN44-00526A POWER SUPPLY BOARD

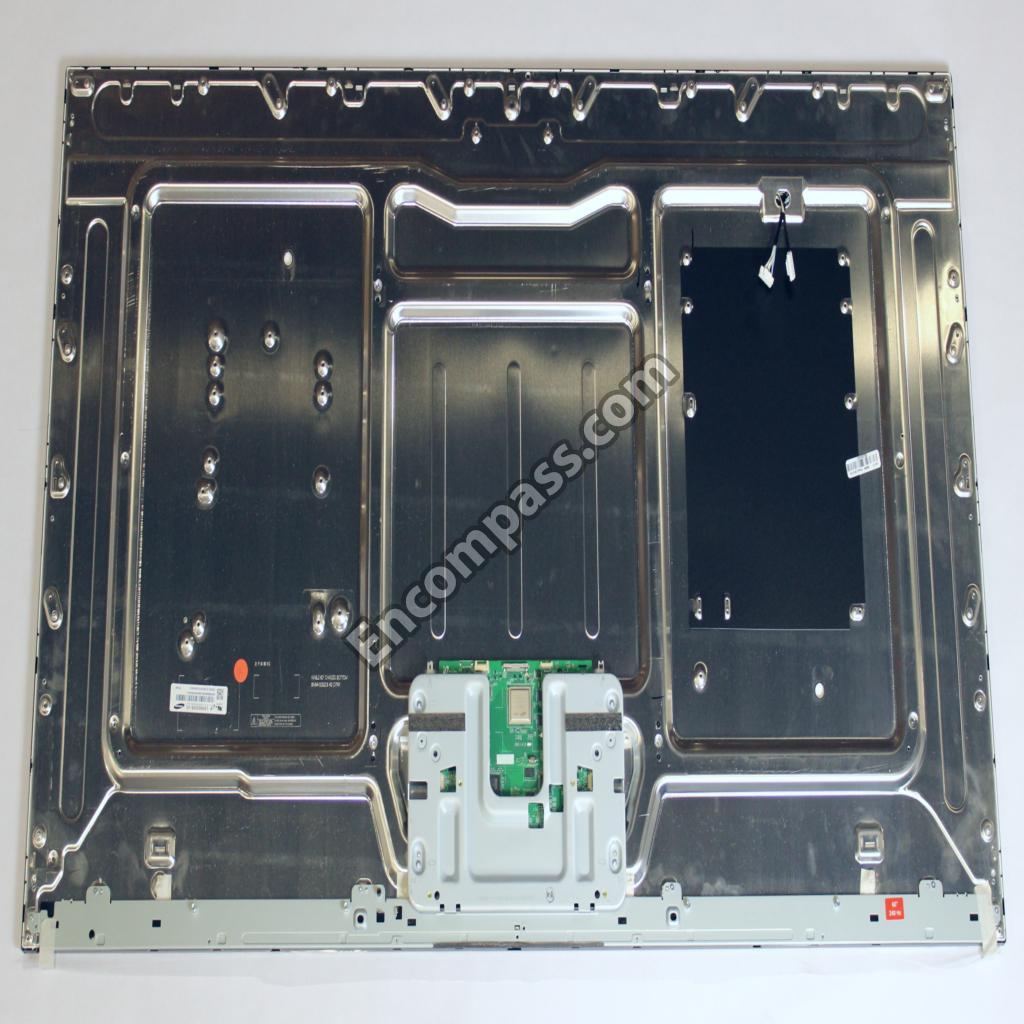

BN95-00633B BN95-00633B PRODUCT LCD;3D,7K, LE600DSS-V2,1920*1080
2007-008714 R-CHIP;0.01OHM,1%,1W,TP,6432
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-000029 R-CHIP;0OHM,5%,1/8W,TP,2012
2007-007463 R-CHIP;1.1KOHM,1%,1/16W,TP,1005
2007-000123 R-CHIP;1.5KOHM,5%,1/10W,TP,1608
2007-000079 R-CHIP;1.8KOHM,5%,1/10W,TP,1608
2007-000060 R-CHIP;100KOHM,1%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-007352 R-CHIP;130KOHM,1%,1/10W,TP,1608
2007-007768 R-CHIP;13KOHM,1%,1/10W,TP,1608
2007-000040 R-CHIP;150OHM,1%,1/10W,TP,1608
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-000109 R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-002425 R-CHIP;1OHM,5%,1/10W,TP,1608
2007-000491 R-CHIP;2.2KOHM,1%,1/10W,TP,1608
2007-000509 R-CHIP;2.4KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-000570 R-CHIP;220OHM,1%,1/10W,TP,1608
2007-008649 R-CHIP;220OHM,1%,1/16W,TP,1005
2007-000583 R-CHIP;22KOHM,1%,1/10W,TP,1608
2007-000606 R-CHIP;240OHM,1%,1/10W,TP,1608
2007-000614 R-CHIP;24KOHM,1%,1/10W,TP,1608
2007-000695 R-CHIP;3.3OHM,5%,1/10W,TP,1608
2007-007008 R-CHIP;300OHM,5%,1/16W,TP,1005
2007-000736 R-CHIP;30KOHM,1%,1/10W,TP,1608
2007-000772 R-CHIP;33KOHM,1%,1/10W,TP,1608
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005
2007-000799 R-CHIP;360OHM,5%,1/10W,TP,1608
2007-000842 R-CHIP;3KOHM,1%,1/10W,TP,1608
2007-000869 R-CHIP;4.7KOHM,1%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000910 R-CHIP;43KOHM,1%,1/10W,TP,1608
2007-000913 R-CHIP;43KOHM,5%,1/10W,TP,1608
2007-007722 R-CHIP;43OHM,1%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-000962 R-CHIP;5.1KOHM,1%,1/10W,TP,1608
2007-001042 R-CHIP;56OHM,1%,1/10W,TP,1608
2007-001056 R-CHIP;6.2KOHM,5%,1/10W,TP,1608
2007-001093 R-CHIP;620OHM,5%,1/10W,TP,1608
2007-001096 R-CHIP;62KOHM,1%,1/10W,TP,1608
2007-001116 R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-001153 R-CHIP;750OHM,1%,1/10W,TP,1608
2007-007723 R-CHIP;75KOHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005
2007-001168 R-CHIP;75OHM,5%,1/4W,TP,3216
2007-001199 R-CHIP;820OHM,1%,1/10W,TP,1608
2007-001206 R-CHIP;82KOHM,1%,1/10W,TP,1608
2007-000127 R-CHIP;9.1KOHM,5%,1/10W,TP,1608
2007-007431 R-CHIP;91KOHM,1%,1/10W,TP,1608
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP
2011-001506 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001261 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,
2011-001396 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP,
BN59-01179B BN59-01179B REMOTE CONTROL (INCLUDED WITH TV)

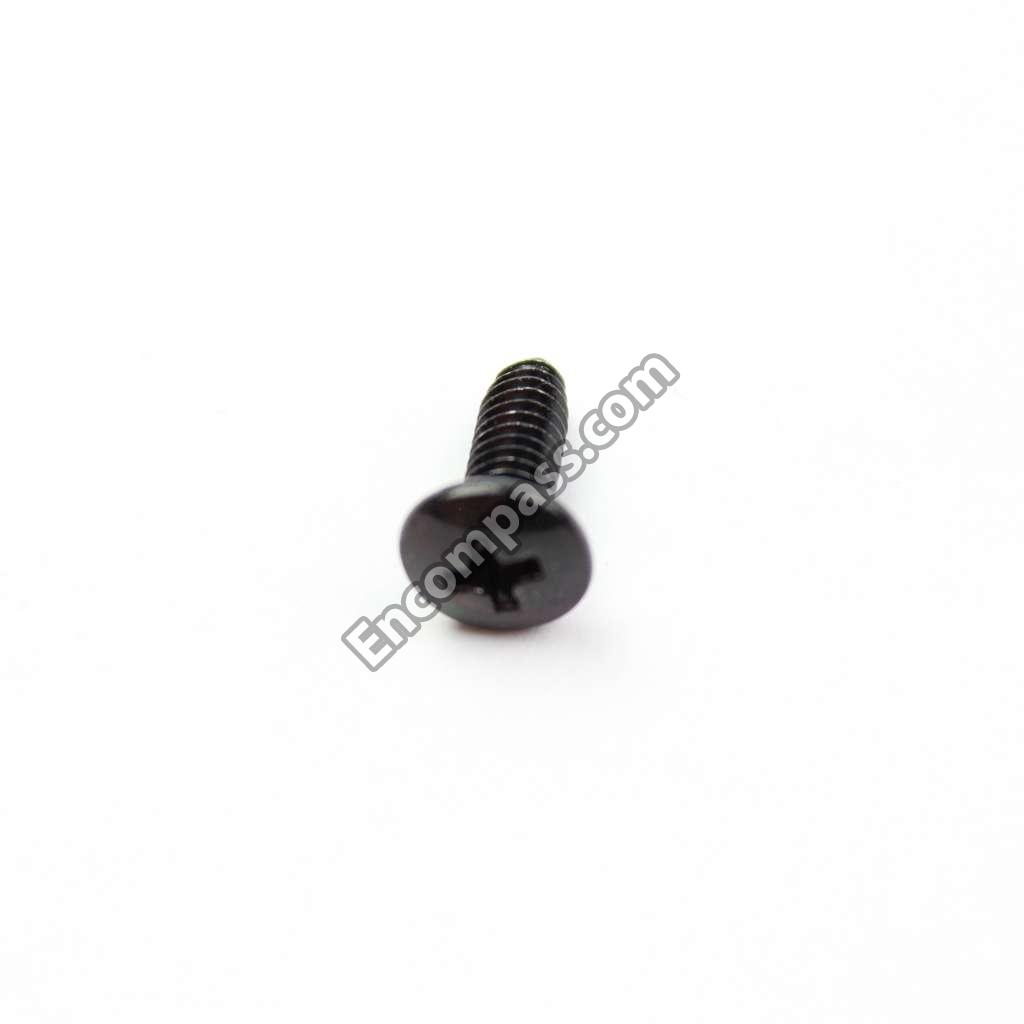

6001-002757 6001-002757 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1
6001-002755 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1
6001-002756 6001-002756 SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1
6001-002759 6001-002759 SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1
6001-003016 6001-003016 SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S
6003-000115 6003-000115 SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC
6003-001807 6003-001807 SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH
6003-001785 6003-001785 SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC

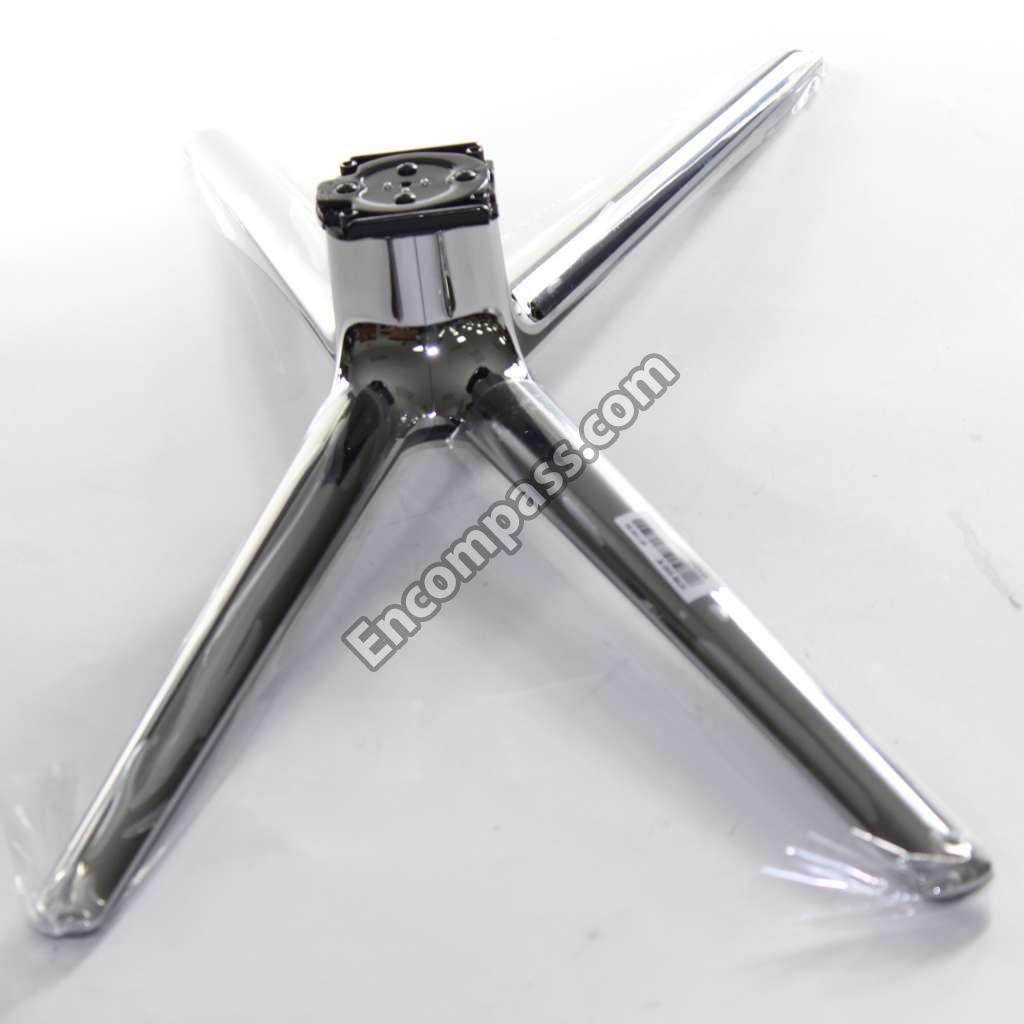

BN96-16959A BN96-16959A STAND BASE ASSY (VERSION HS01)
6003-001782 6003-001782 STAND SCREW (VERSION HS01)
BN96-22946A BN96-22946A STAND SUPPORT ASSY (VERSION HS01)

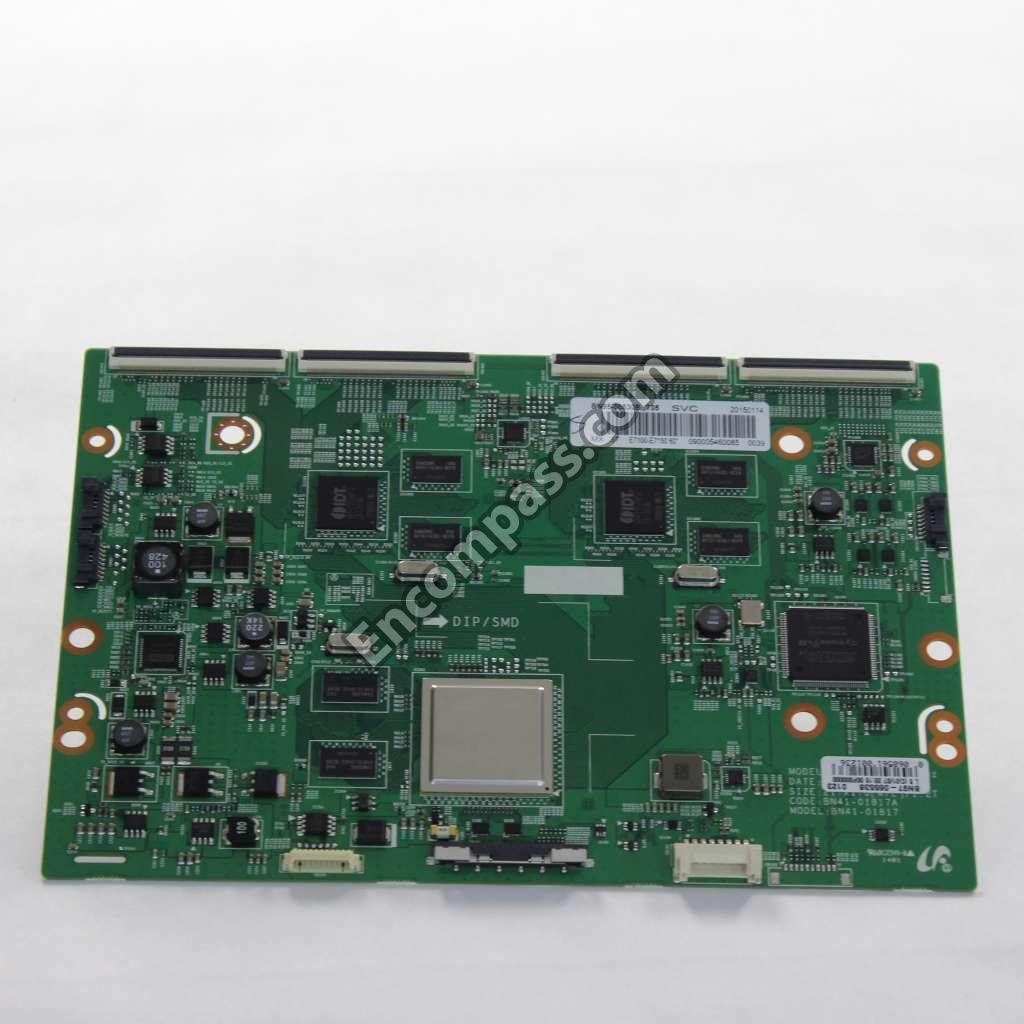

BN95-00630B BN95-00630B T-CON BOARD
0504-000126 TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7KOH
0502-001365 TR-POWER;KTA1040D,1000MW,DPAK,TR,100
0502-001364 TR-POWER;KTC3573,1,500MW,PLASTIC,TR,150
0502-001360 TR-POWER;STC405D,NPN,15000MW,TO-252
0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
BN40-00240A TUNER;DTVD20FVH084AA,DTVD20FVH084AA,VSB
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1
