Model Image
Manufacturer

Samsung

Model Number

UN60F7050AFXZA

Description

60-inch 3d 1080p 240mhz Hd Led Smart Tv

Interactive Exploded View
Exploded View

Parts List

Part Number Description
SSG-5150GB SSG-5150GB ASSY ACCESSORY 3D GLASSES;SSG-5150GB,IN

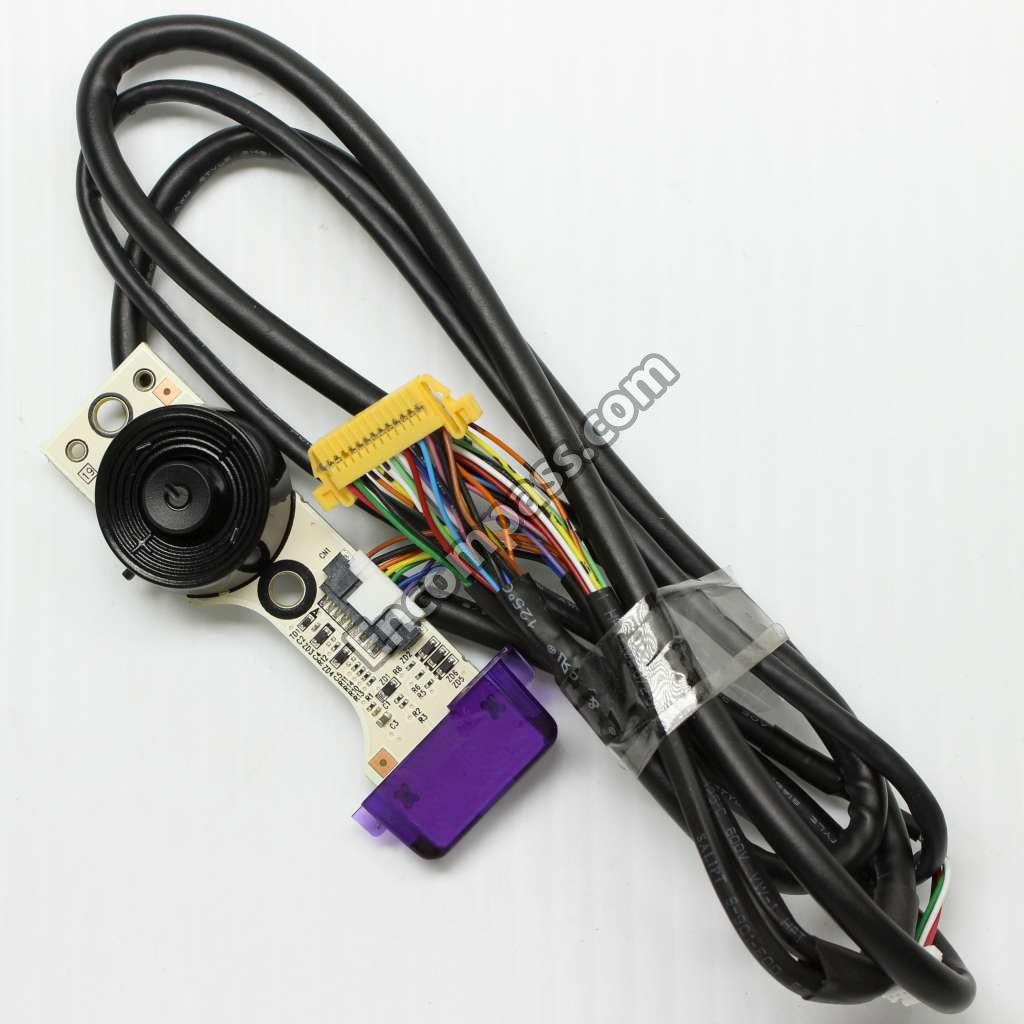

BN96-26985G BN96-26985G ASSY BOARD P-IR FUNCTION JOG;UN60F7100,1
BN96-26374B ASSY COVER P-MIDDLE;UF7100 60,MABS HB CL
BN96-26363E ASSY COVER P-REAR;UF7100 60/65,NORTH AME

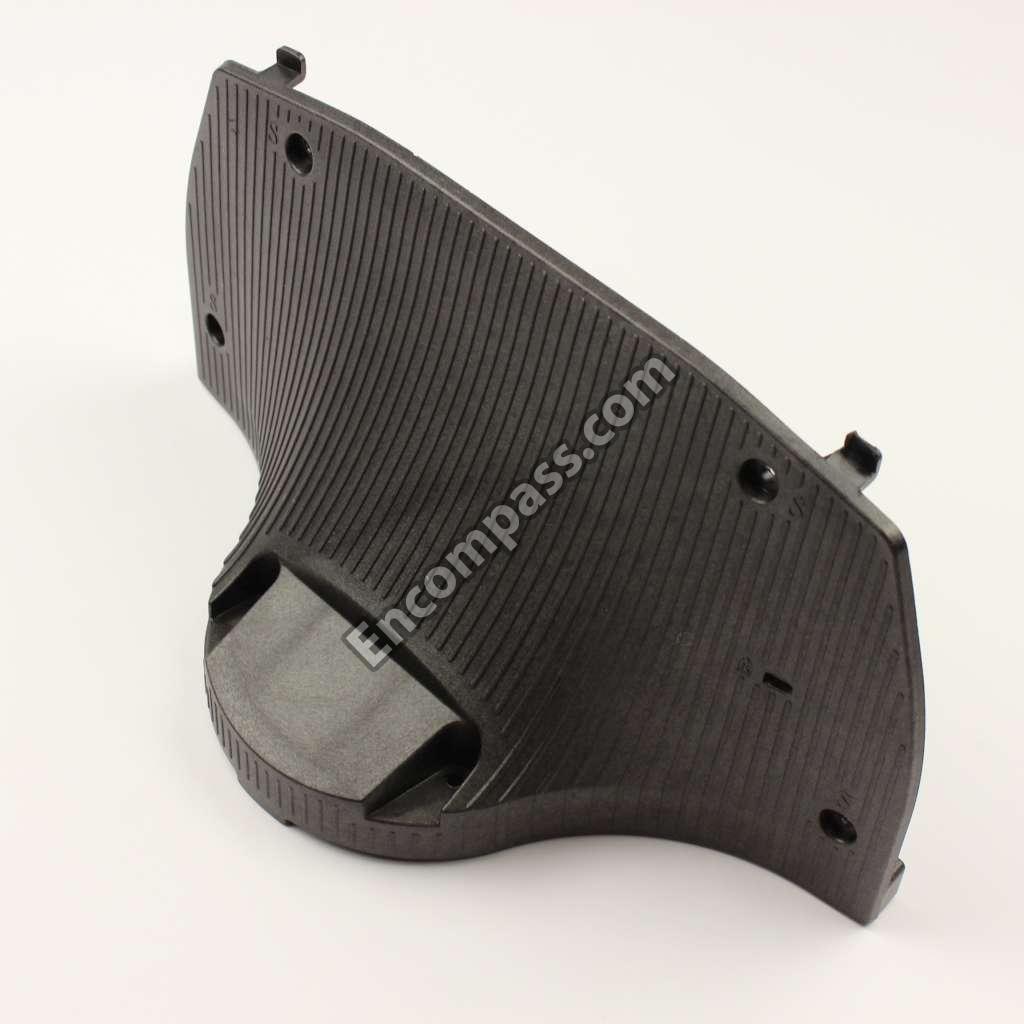

BN96-26385A BN96-26385A ASSY GUIDE P-STAND;UF7100 60,PC+G/F 20%
BN96-18153A BN96-18153A ASSY HOLDER P-RING;11 LED-TV
BN96-19792C ASSY OPEN CELL;LK600D3HD5K,16:9,60"240HZ
BN94-06824A BN94-06824A ASSY PCB MAIN;UN60F7050AFXZA

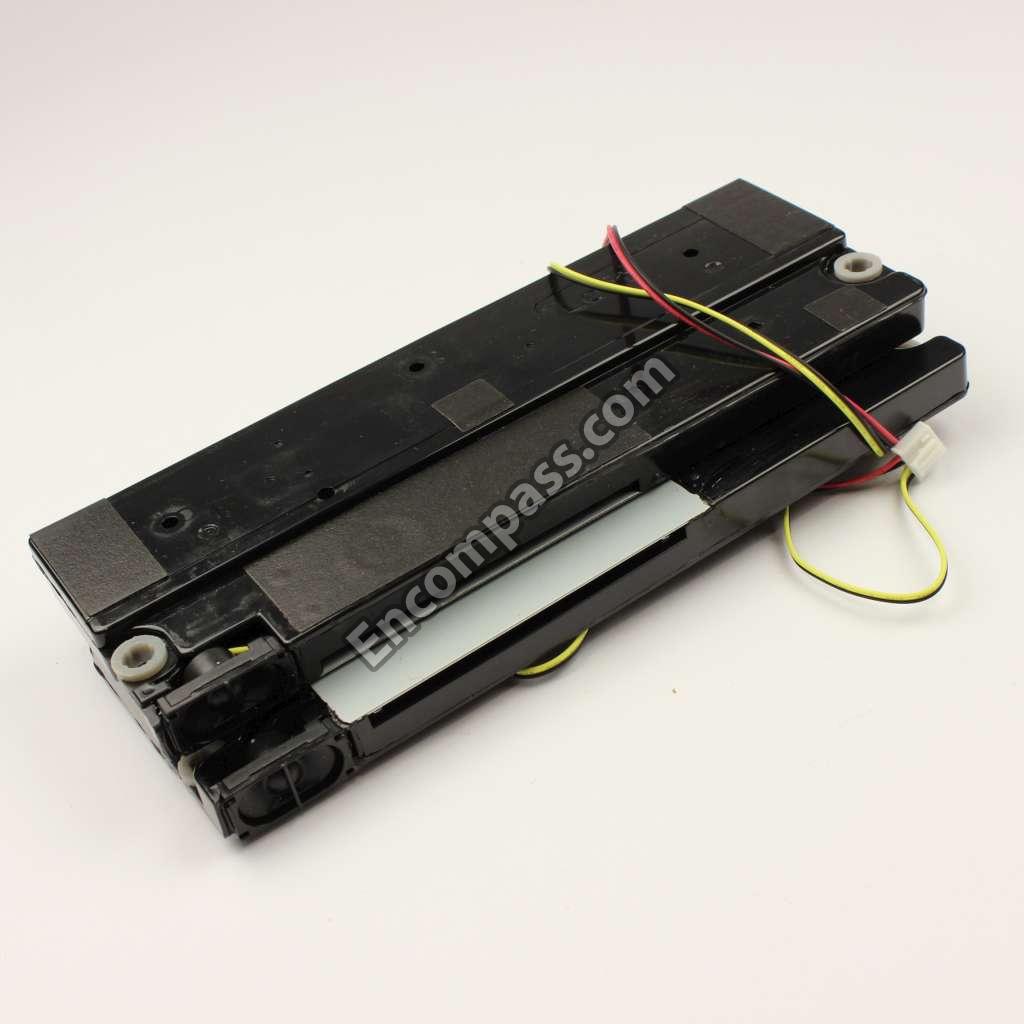

BN96-16798S BN96-16798S ASSY SPEAKER P;6OHM,10W,ENCLOSURE_F7K

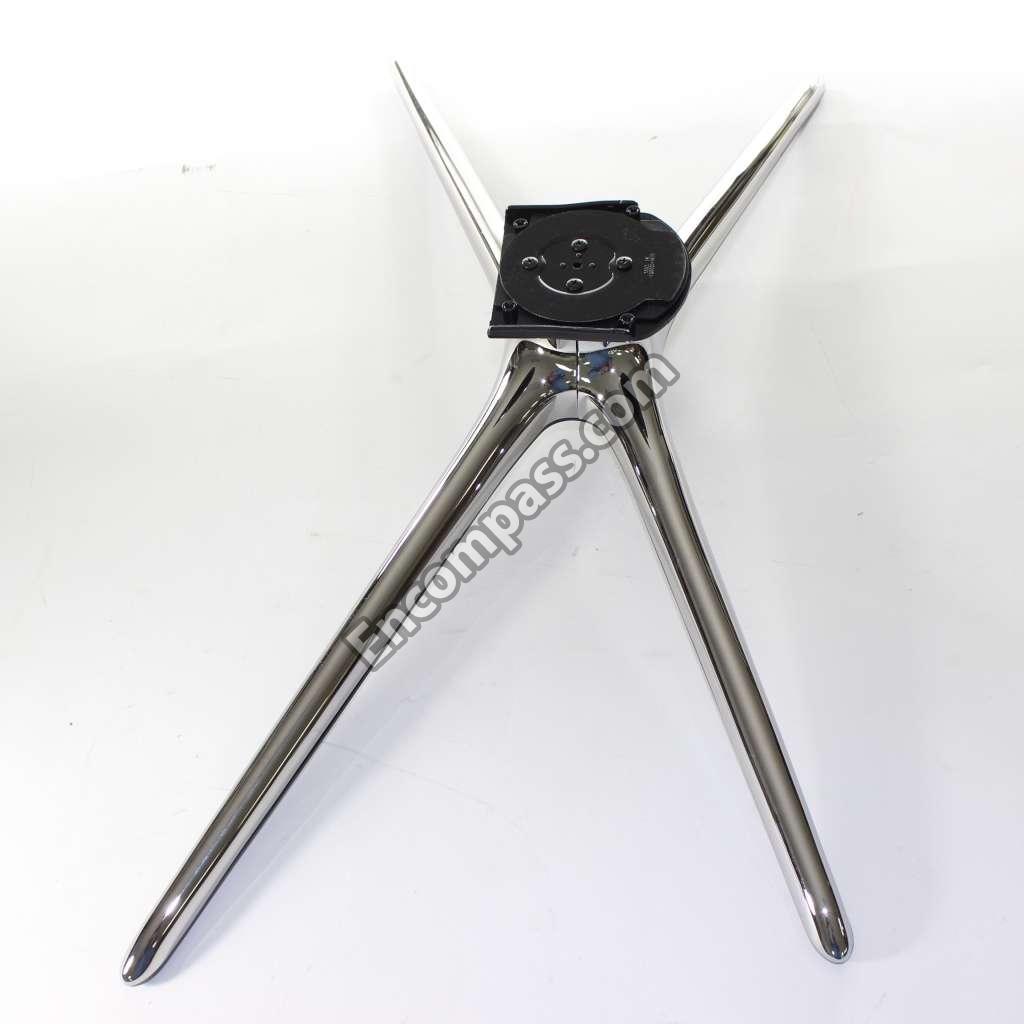

BN96-30032B BN96-30032B ASSY STAND P-BOTTOM;UF6K 60,ABS,HB,SILVE

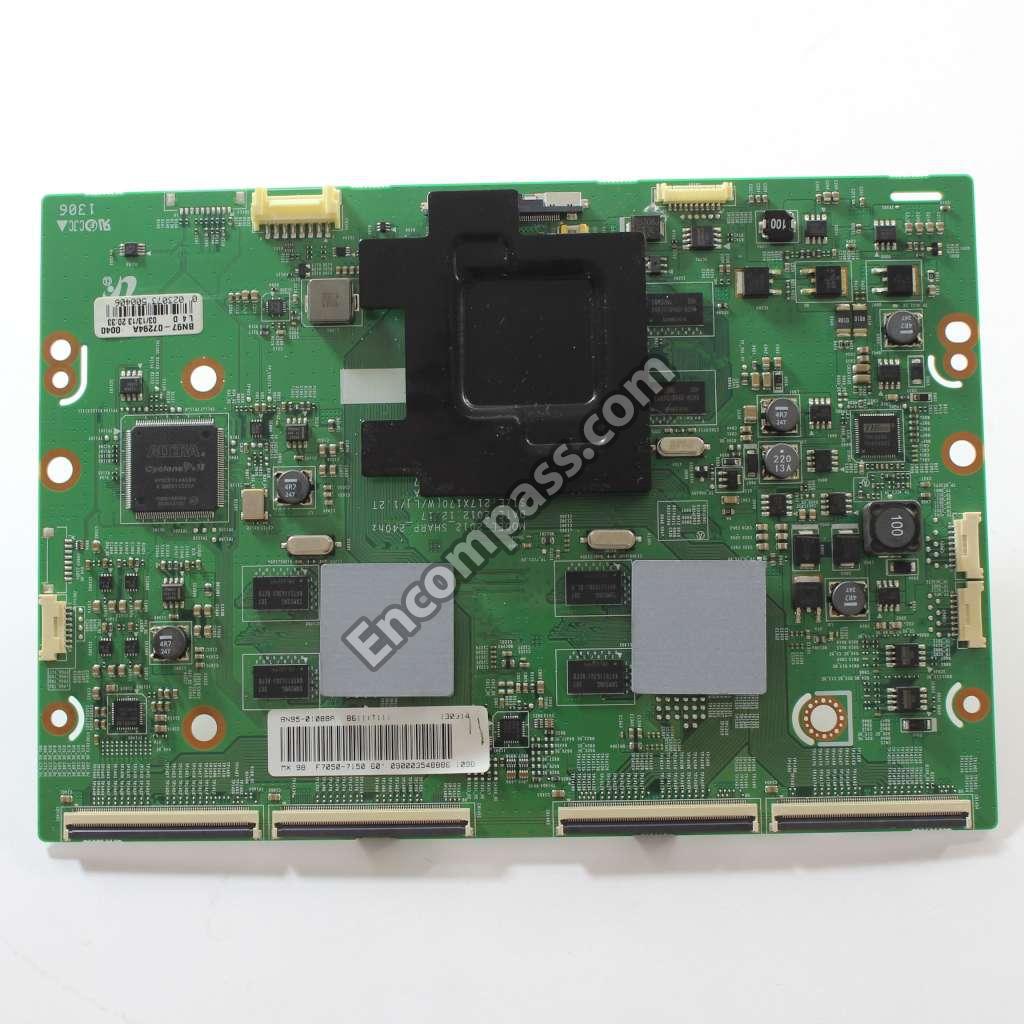

BN95-01088A BN95-01088A ASSY T CON;217*150*1.2T,13Y SHARP 240HZ
3301-000314 BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP
3301-001404 BEAD-SMD;30OHM,2012,TP,15.9OHM/30MHZ
2203-003039 C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100
2203-001851 C-CER,CHIP;0.016NF,5%,50V,NP0,TP,1608
2203-000292 C-CER,CHIP;0.01NF,5%,50V,C0G,TP,1608
2203-005642 C-CER,CHIP;0.22NF,5%,50V,NP0,TP,1005
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007176 C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1
2203-006090 C-CER,CHIP;10000NF,10%,6.3V,X5R,TP,2012
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0.
2203-006960 C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002720 C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,0.5T
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000257 C-CER,CHIP;10NF,10%,50V,X7R,TP,1608
2203-007233 C-CER,CHIP;22000NF,10%,16V,X5R,TP,3216,1
2203-006706 C-CER,CHIP;2200NF,10%,50V,X7R,TP,3225
2203-000575 C-CER,CHIP;220NF,10%,25V,X7R,TP,2012
2203-000576 C-CER,CHIP;220NF,10%,50V,X7R,TP,3216
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T
2203-002398 C-CER,CHIP;22NF,10%,50V,X7R,TP,1608
2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5
2203-006377 C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005
2203-002519 C-CER,CHIP;5.6NF,10%,50V,X7R,TP,1005
2503-001051 C-NETWORK;100NFX4,20%,16V,2012
3903-000853 3903-000853 CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A,
3708-002552 3708-002552 CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A,AU
3701-001856 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3701-001861 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-002050 CONNECTOR-HEADER;BOX,10P,1R,1.25MM,SMD-A
3711-007776 CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A,
3707-001106 CONNECTOR-OPTICAL;STRAIGHT,SPDIF
2801-000102 CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-004775 CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP
2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH
2801-003954 CRYSTAL-SMD;27MHZ,30PPM,28-AAN,16PF,50OH

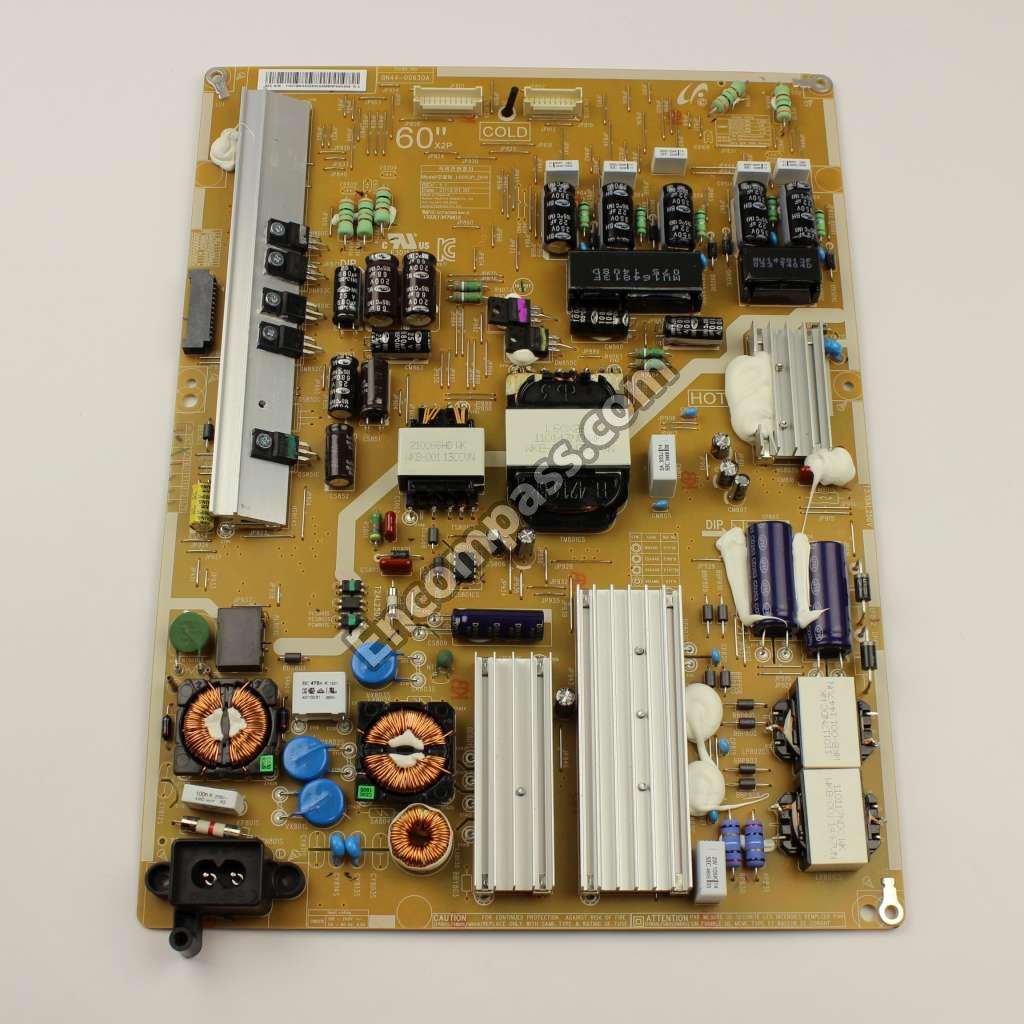

BN44-00630A BN44-00630A DC VSS-PD BOARD;L60X2P_DHS,L60X2P_DHS,AC
0404-001643 DIODE-SCHOTTKY;B360A,60V,3000MA,SMA,TP
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001482 DIODE-SCHOTTKY;RB055LA-40,40V,3000MA,PMD
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001271 DIODE-SCHOTTKY;SSA34,40V,3000MA,SMA,TP
0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001271 DIODE-TVS;RCLAMP0524P,6V,1MAV,5A,TR
0406-001445 DIODE-TVS;RCLAMP7512N,2.7V,2.8V,2.9V,0.5
0406-001438 DIODE-TVS;SMCJ14A,15.6V,17.2V,1MAV,6.5VP
0505-001905 FET-SILICON;2N7002,N,60V,0.3A,7.5OHM,0.3
0505-000274 FET-SILICON;AO4435L,P,30V,11A,0.014OHM,3
0505-002925 FET-SILICON;AO4438,N,60V,8.2A,3.1W,SOT-8
0505-002937 FET-SILICON;AO4854L,N,30V,8A,2W,SOT-8
0505-002645 FET-SILICON;AOD4184A,N,40V,50A,0.007OHM,
0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH
0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4

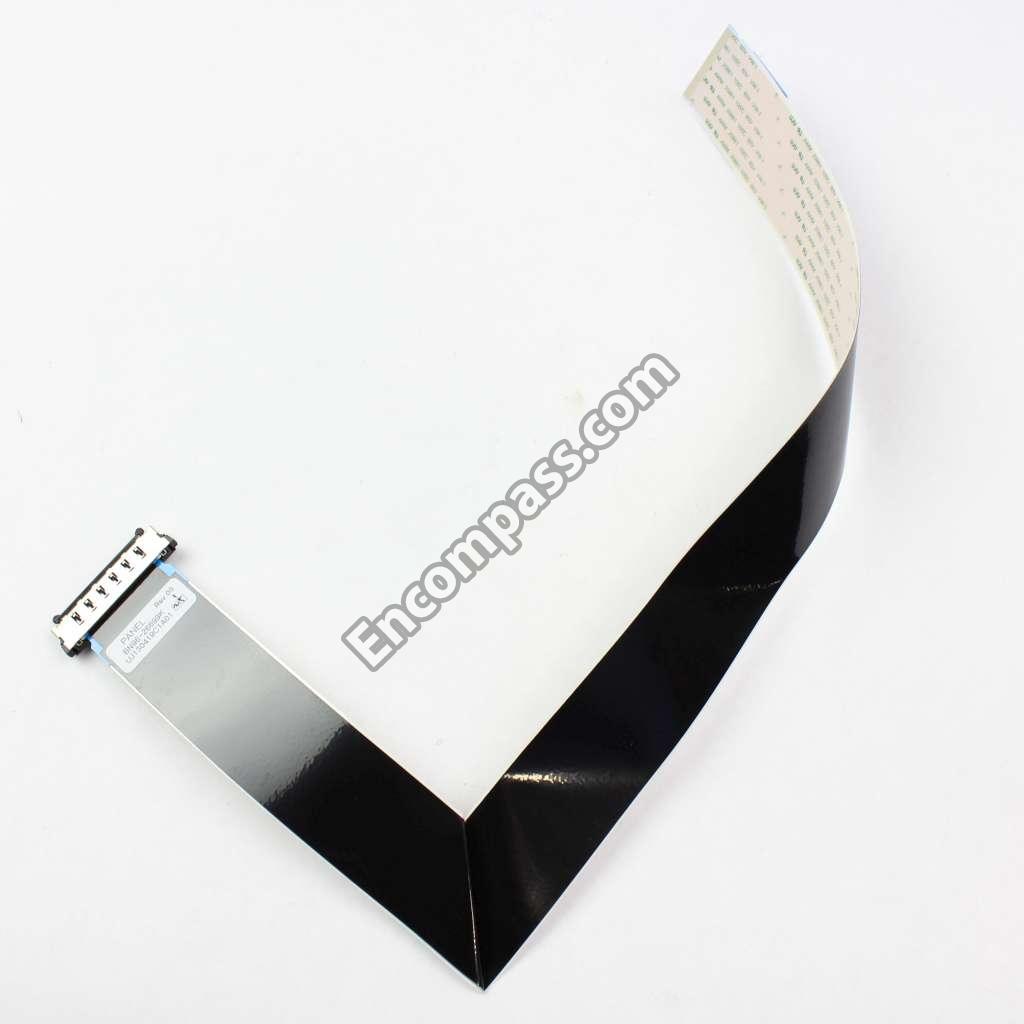

BN96-26699K BN96-26699K FFC CABLE;UN60F7100,FOLD,L427,51P
3711-008441 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,ANG
3711-008558 3711-008558 HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM,
3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
3711-005925 HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S
3711-005601 HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD-
AA61-20285C HOLDER-BOX;ALL,PP,BLACK,HB,HB,17.5G
1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF
0801-002701 IC-CMOS LOGIC;74VHCT125A,BUFFER,TSSOP,14
0801-003292 IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P
1203-007502 IC-DC/DC CONVERTER;AOZ3011PI,SO-8,8,4.96
1203-007695 IC-DC/DC CONVERTER;AOZ3018,SO-8,8,4.96X3
1203-007215 IC-DC/DC CONVERTER;SN1109048RHL,QFN,14,3
1105-002264 IC-DDR2 SDRAM;K4T51163QJ-BCF8,DDR2,512MB
1105-002194 IC-DDR3 SDRAM;K4B1G1646G-BCH9,DDR3 SDRAM
1105-002534 IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM
1105-002338 IC-DDR3 SDRAM;K4B4G1646B-HCMA,DDR3 1866,
1204-003421 IC-DECODER;SEMS30,PBGA,729Z30,21.6X21.6M
1204-003301 IC-DECODER;VPP1552,FPBGA,324P,15 X 15 MM
1006-001509 IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20
1103-001487 IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8
1107-002077 IC-EMMC;KLM4G1FE3B-B001,4GBYTE,32GX1BIT,
1003-002412 IC-LEVEL DRIVER;MAX17079GTL+,TR,40P,6X6X
0903-001863 IC-MICROCONTROLLER;WT61P807-RG48,LQFP,48
1205-004222 IC-MULTIPLIER;THV3056,64P,9X9X0.9MM,PLAS
1107-001915 IC-NOR FLASH;32MBIT,X1,SOP,8P,5.25X5.25M
1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-002980 IC-OP AMP;MAX9650ATA+,TDFN-EP,TP,8P,3*3M
1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2
1203-007242 IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8,7
1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T
1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T
1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8
1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2
1203-006806 IC-POWER SUPERVISOR;ISL45041IRZ-T,8P,3X3
1209-001761 IC-SENSOR;LM75ADP,TSSOP,8P,3.1X3.1MM,PLA
1205-004447 IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65
1204-003324 IC-VIDEO PROCESS;SDP1111,FCBGA,768P,31X3
1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P,
1203-007728 IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L
1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
1203-006780 IC-VOL. REFERENCE;MAX9697ATI+,TQFN,28P,5
2703-003713 INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700
2703-004065 INDUCTOR-SMD;10UH,20%,12X12MM
2703-003488 INDUCTOR-SMD;10UH,20%,6965,0.071OHM,3500
2703-000158 INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT
2703-003932 INDUCTOR-SMD;22UH,20%,0.075OHM,2500MA,10
2703-003263 INDUCTOR-SMD;3.3UH,20%,10.0X10.0MM,0.011
2703-003930 INDUCTOR-SMD;4.7UH,20%,0.072OHM,2450MA,W
2703-003790 INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450
BN96-26652B BN96-26652B IRBLASTER CABLE;2P,L2500,UL1185,BLK,IR B
3722-003229 JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P
3722-003226 JACK-PHONE;1P/7C,SN,BLK,STRAIGHT,3.6PI,1
3722-003617 JACK-PHONE;2P/14C,SN,BLK,STRAIGHT,3.6PI,
3722-003546 3722-003546 JACK-PIN;5P+SCREW HOLE,NI+SN,BLU/GRN/RED
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1

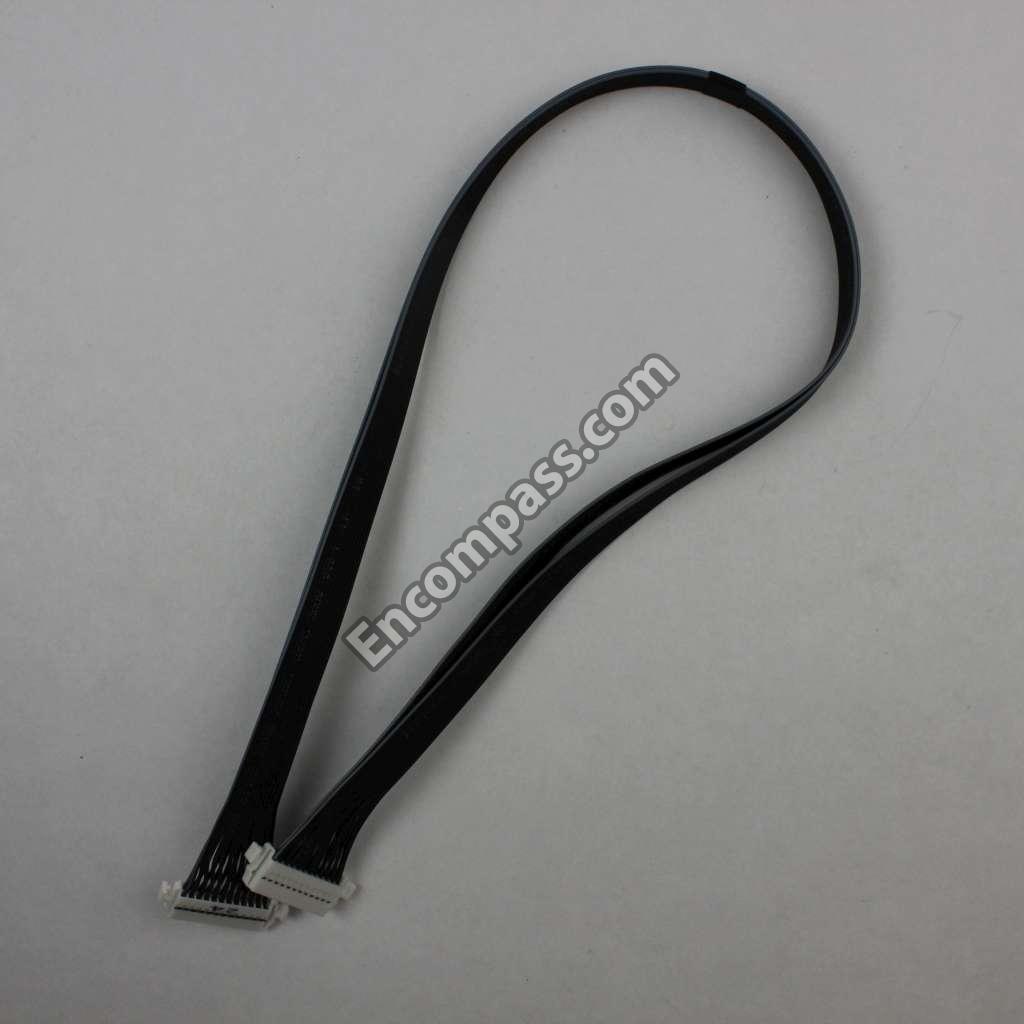

BN39-01773E BN39-01773E LEAD CONNECTOR-POWER;UN55F7500,UL21016,2
BN61-08254A LGP;12Y_E6.5K 60INCH_LGP,PMMA,LENTICULAR
BN96-25376A BN96-25376A NETWORK-BLUETOOTH;WIBT40A,20.8X37X7.7MM
BN59-01161A BN59-01161A NETWORK-WLAN CLIENT;WIDT30Q,58X31.45X8.5
2806-001308 OSCILLATOR-VCXO;27MHZ,30PF,TP,3.3V,50MA
BN95-00633C BN95-00633C PRODUCT LCD-SHARP;LK600D3HD5K,CY-LF600DS
2007-008714 R-CHIP;0.01OHM,1%,1W,TP,6432
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-000029 R-CHIP;0OHM,5%,1/8W,TP,2012
2007-007463 R-CHIP;1.1KOHM,1%,1/16W,TP,1005
2007-000239 R-CHIP;1.5KOHM,1%,1/10W,TP,1608
2007-000256 R-CHIP;1.6KOHM,1%,1/10W,TP,1608
2007-000079 R-CHIP;1.8KOHM,5%,1/10W,TP,1608
2007-000060 R-CHIP;100KOHM,1%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-008426 R-CHIP;12.4KOHM,1%,1/10W,TP,1608
2007-000336 R-CHIP;120KOHM,1%,1/10W,TP,1608
2007-007352 R-CHIP;130KOHM,1%,1/10W,TP,1608
2007-007768 R-CHIP;13KOHM,1%,1/10W,TP,1608
2007-000040 R-CHIP;150OHM,1%,1/10W,TP,1608
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-007942 R-CHIP;1MOHM,1%,1/16W,TP,1005
2007-000109 R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-002425 R-CHIP;1OHM,5%,1/10W,TP,1608
2007-000491 R-CHIP;2.2KOHM,1%,1/10W,TP,1608
2007-003015 R-CHIP;2.2OHM,5%,1/16W,TP,1005
2007-000509 R-CHIP;2.4KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-000570 R-CHIP;220OHM,1%,1/10W,TP,1608
2007-008649 R-CHIP;220OHM,1%,1/16W,TP,1005
2007-000583 R-CHIP;22KOHM,1%,1/10W,TP,1608
2007-000606 R-CHIP;240OHM,1%,1/10W,TP,1608
2007-000614 R-CHIP;24KOHM,1%,1/10W,TP,1608
2007-000695 R-CHIP;3.3OHM,5%,1/10W,TP,1608
2007-007008 R-CHIP;300OHM,5%,1/16W,TP,1005
2007-000736 R-CHIP;30KOHM,1%,1/10W,TP,1608
2007-000772 R-CHIP;33KOHM,1%,1/10W,TP,1608
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005
2007-000799 R-CHIP;360OHM,5%,1/10W,TP,1608
2007-000803 R-CHIP;36KOHM,1%,1/10W,TP,1608
2007-000842 R-CHIP;3KOHM,1%,1/10W,TP,1608
2007-000857 R-CHIP;4.3KOHM,1%,1/10W,TP,1608
2007-000869 R-CHIP;4.7KOHM,1%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-000910 R-CHIP;43KOHM,1%,1/10W,TP,1608
2007-007722 R-CHIP;43OHM,1%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005
2007-000962 R-CHIP;5.1KOHM,1%,1/10W,TP,1608
2007-000979 R-CHIP;5.6KOHM,1%,1/10W,TP,1608
2007-008807 R-CHIP;53.6KOHM,1%,1/16W,TP,1005
2007-008133 R-CHIP;56.2KOHM,1%,1/10W,TP,1608
2007-001042 R-CHIP;56OHM,1%,1/10W,TP,1608
2007-001056 R-CHIP;6.2KOHM,5%,1/10W,TP,1608
2007-001093 R-CHIP;620OHM,5%,1/10W,TP,1608
2007-001096 R-CHIP;62KOHM,1%,1/10W,TP,1608
2007-001116 R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-001153 R-CHIP;750OHM,1%,1/10W,TP,1608
2007-007723 R-CHIP;75KOHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005
2007-001168 R-CHIP;75OHM,5%,1/4W,TP,3216
2007-007238 R-CHIP;8.25KOHM,1%,1/10W,TP,1608
2007-001199 R-CHIP;820OHM,1%,1/10W,TP,1608
2007-001206 R-CHIP;82KOHM,1%,1/10W,TP,1608
2007-007651 R-CHIP;9.1KOHM,1%,1/10W,TP,1608
2007-007331 R-CHIP;90.9KOHM,1%,1/10W,TP,1608
2007-007431 R-CHIP;91KOHM,1%,1/10W,TP,1608
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001506 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0
2011-001262 R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001261 R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,
AA59-00772A AA59-00772A REMOCON-SMART TOUCH CONTROL;TM1360,14,80

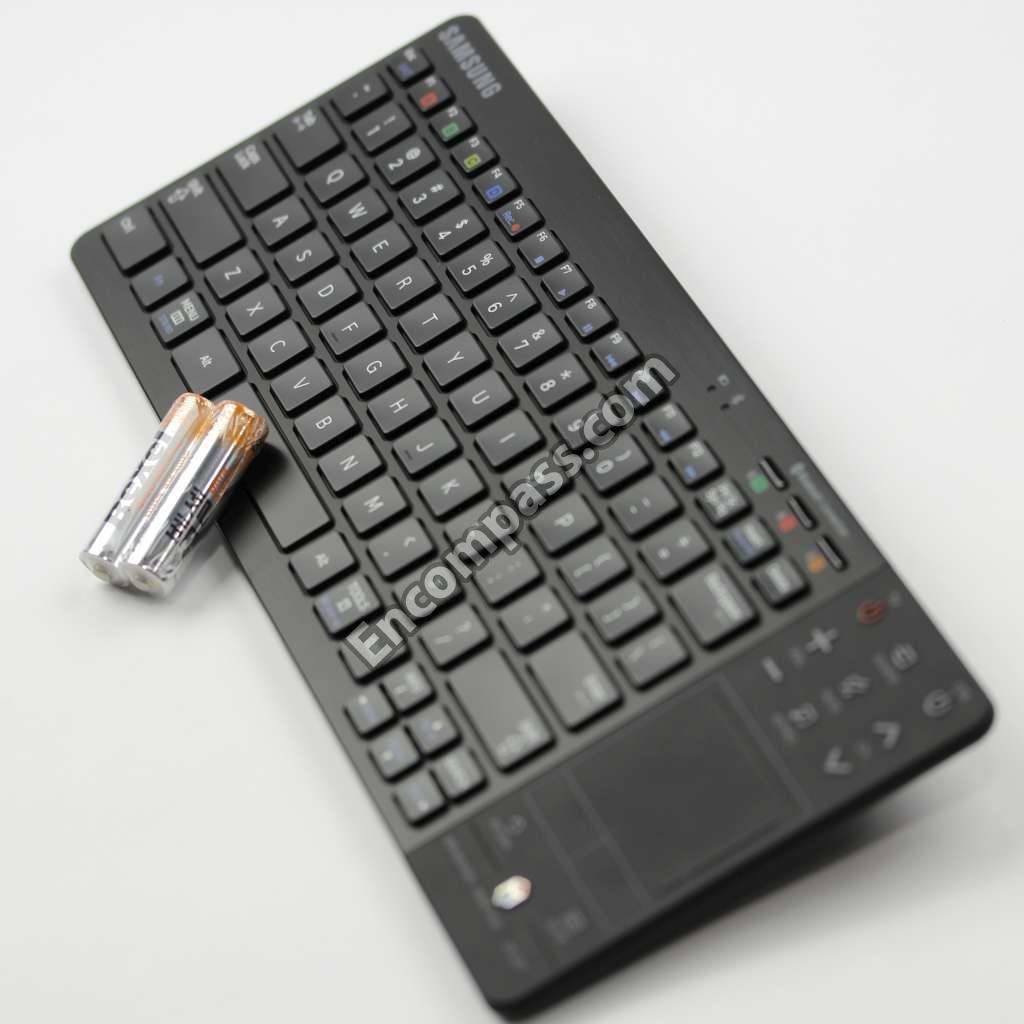

BN59-01187A BN59-01187A REMOCON;VG-KBD2000,WIRELESS KEYBOARD,102
6001-002757 6001-002757 SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1
6001-002755 6001-002755 SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1
6001-002756 6001-002756 SCREW-MACHINE;BH,M3,L6,ZPC(WHT),SWRCH1
6001-002759 6001-002759 SCREW-MACHINE;CH,M3,L4,ZPC(BLK),SWRCH1
6001-003016 6001-003016 SCREW-MACHINE;PWH,M3.0,L5.0,ZPC(WHT),S
6002-001294 6002-001294 SCREW-TAPPING;BH,,M4,L16,ZPC(BLK)
6003-000115 6003-000115 SCREW-TAPTYPE;BH,B,M3,L6,ZPC(BLK),SWRC
6003-001782 6003-001782 SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR
6003-001807 6003-001807 SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWR
6003-001785 6003-001785 SCREW-TAPTYPE;FH,B,M4,L8,ZPC(BLK),SWRC
BN02-00043B TAPE PET;NNB 32/40/46/55",PET,T0.05,W8,L
0502-001365 TR-POWER;KTA1040D,PNP,1000MW,DPAK,TR,100
0502-001364 TR-POWER;KTC3573,NPN,500MW,PLASTIC,TR,15
0502-001360 TR-POWER;STC405D,NPN,15000MW,TO-252,TP
0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59
0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
BN40-00248A BN40-00248A TUNER-DTV AIR CABLE;DTVS20EIH035A,VSB HA
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V,
Main Menu x
