Manufacturer
Samsung
Model Number
UN60FH6200FXZA
Description
Samsung 60 Led Fh6200 Series Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|

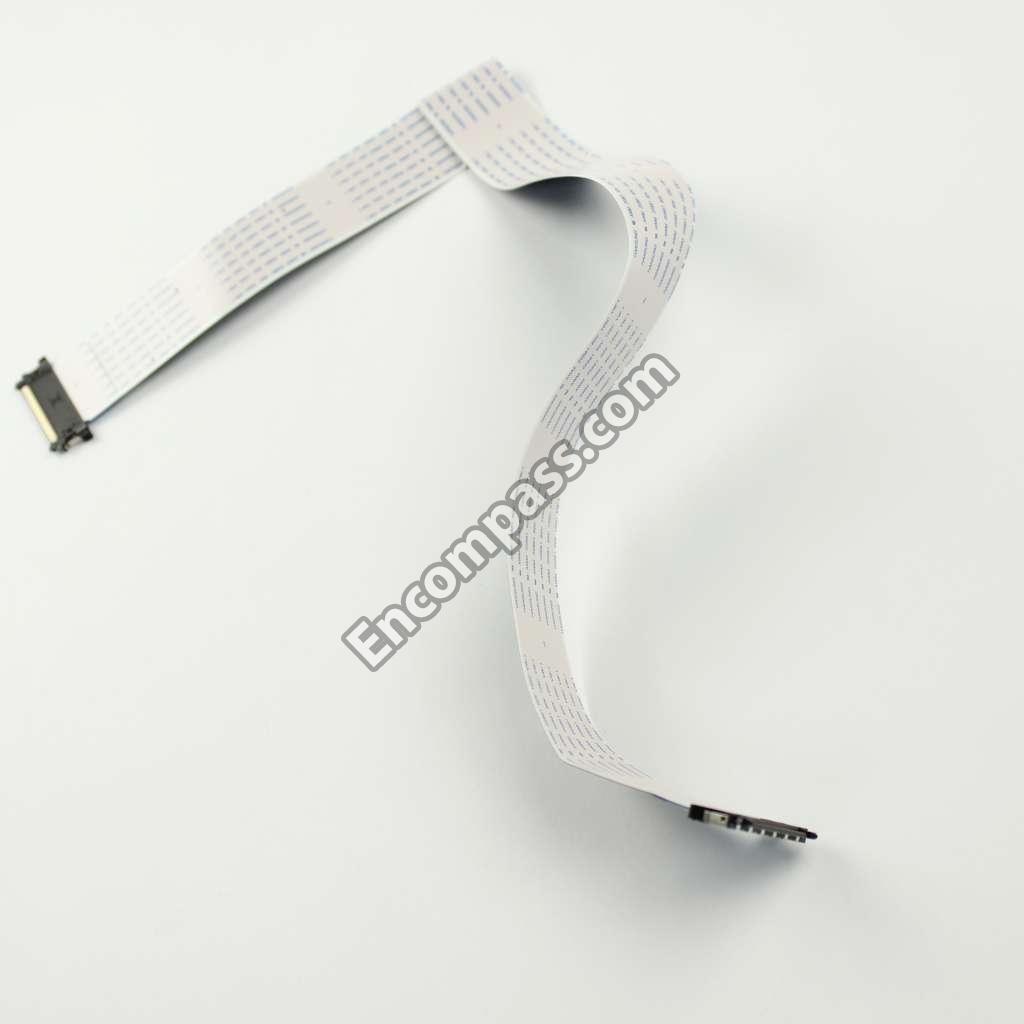

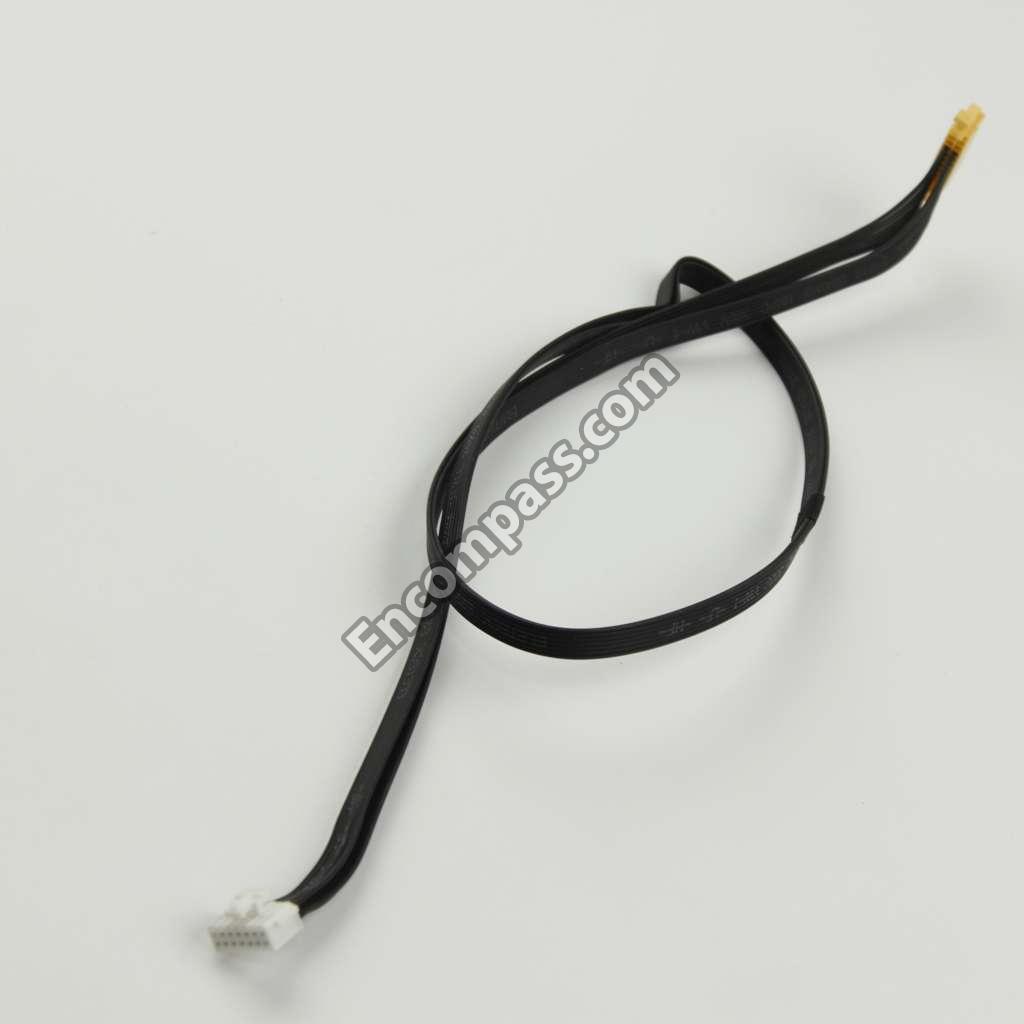

BN96-28071P |
ASSY CABLE P-FFC;UN60FH6200FXZA,FFC,2H,5 |
|
BN96-24787A |
ASSY CHASSIS TOP P;F-LED60"_6003 |
|
BN96-28321A |
ASSY COVER P-MIDDLE;UE6003 60",HIPS,STEA |
|
BN96-29890D |

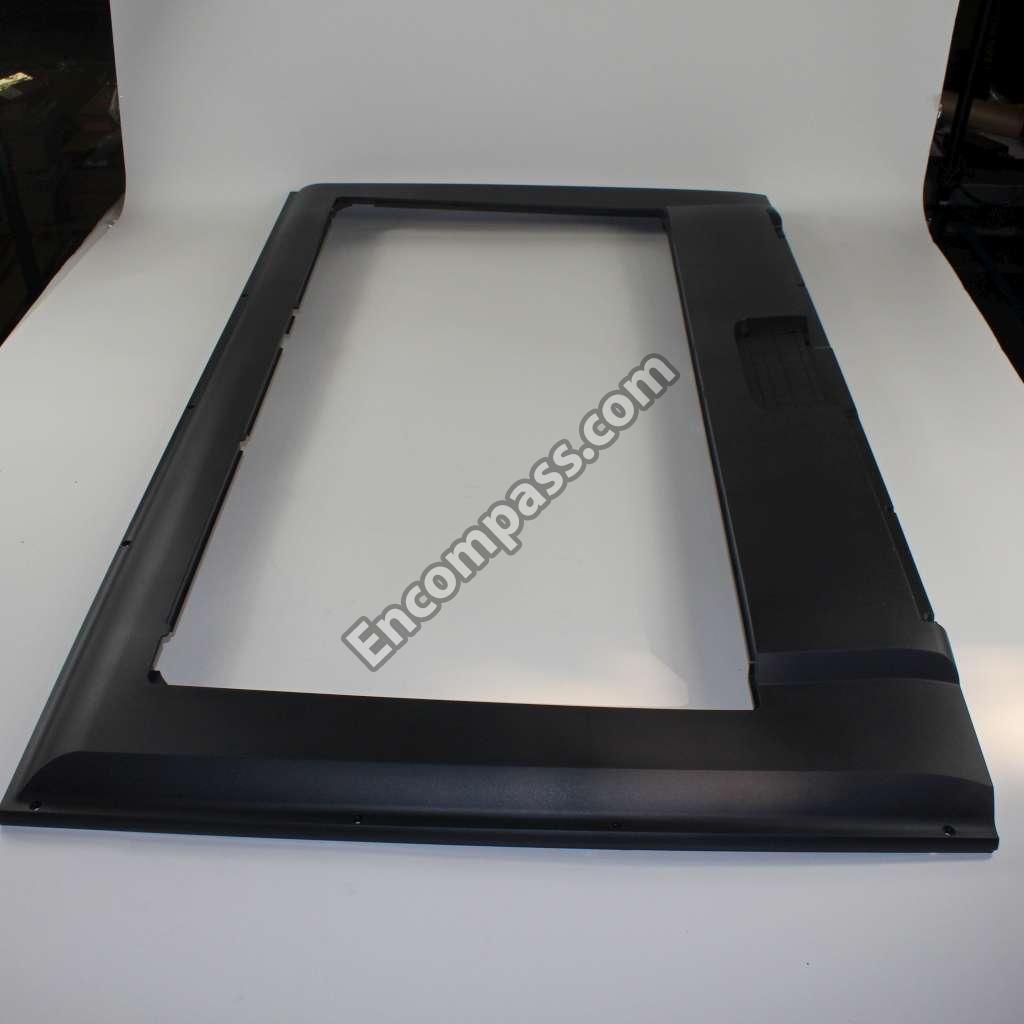

ASSY COVER P-REAR;UFH6200 55,N/AMERICA,P |
|
BN96-16436C |
ASSY OPEN CELL;LK600D3HD3K,0.69225(H)X0. |
|

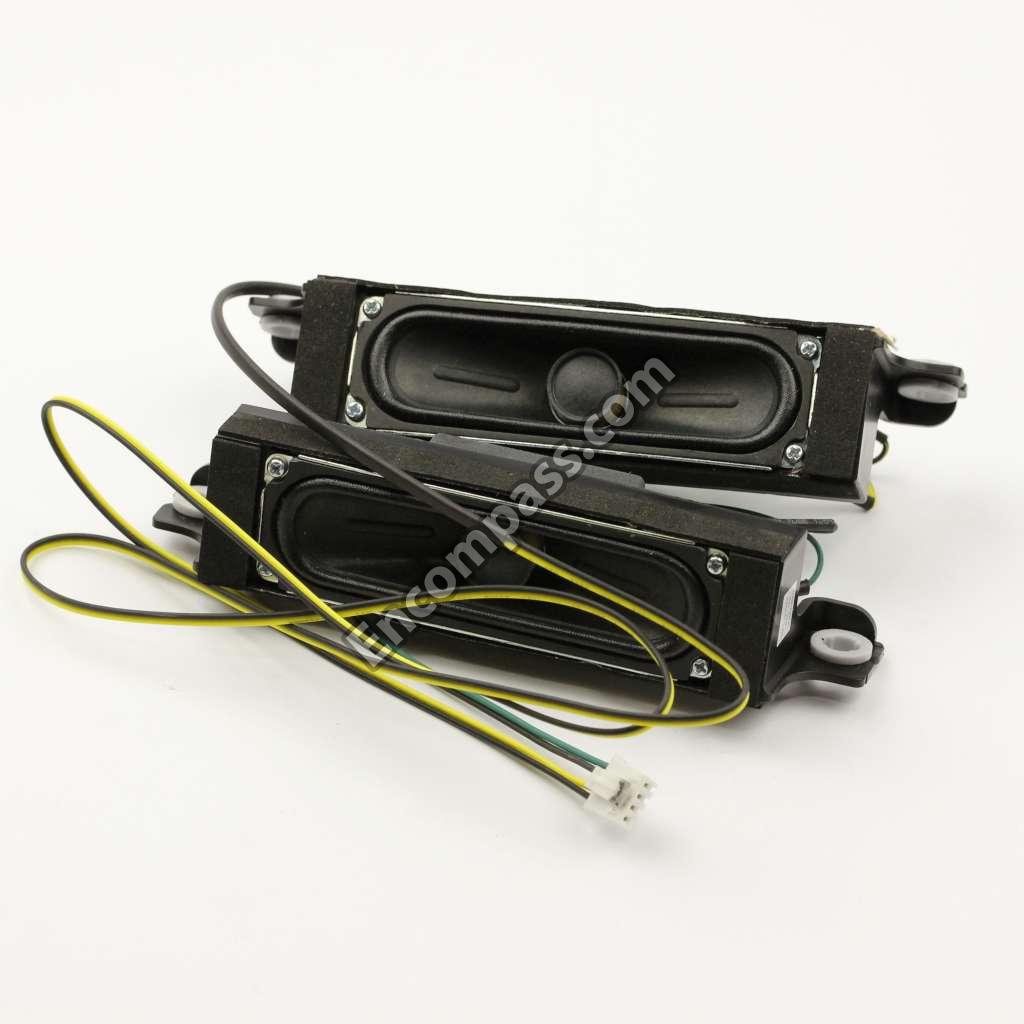

BN96-23514C |
ASSY SPEAKER P;6OHM,4PIN,10W,6003 60INCH |
|
4301-000121 |
BATTERY-MN;1.5V,R03,10.5X44.5M,7.5G,AAA |
|
3301-000314 |
BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ |
|
3301-002039 |
BEAD-SMD;26OHM,1608,TP |
|
3301-001404 |
BEAD-SMD;30OHM,2012,TP,15.9OHM/30MHZ,- |
|
BN61-07953A |

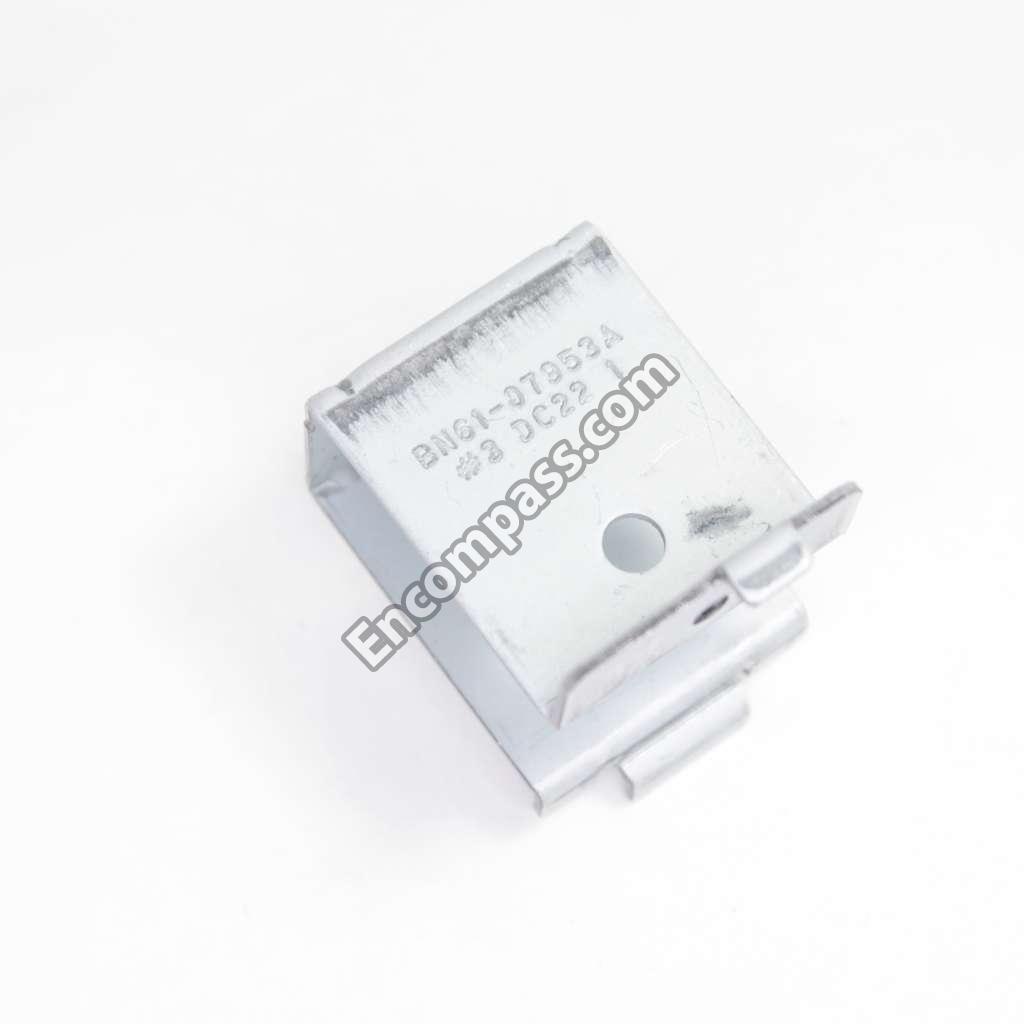

BRACKET-WALL;UE5000 46",EGI-SECC PL,T1.2 |
|
2203-003039 |
C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100 |
|
2203-000292 |
C-CER,CHIP;0.01NF,5%,50V,C0G,TP,1608 |
|
2203-007513 |
C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
|
2203-007176 |
C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1 |
|
2203-007306 |
C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1 |
|
2203-006090 |
C-CER,CHIP;10000NF,10%,6.3V,X5R,TP,2012 |
|
2203-007193 |
C-CER,CHIP;10000NF,10%,6.3V,X7R,TP,2012 |
|
2203-006348 |
C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
|
2203-006698 |
C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0. |
|
2203-006960 |
C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012 |
|
2203-006048 |
C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
|
2203-006158 |
C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,0.5 |
|
2203-002711 |
C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
|
2203-005249 |
C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
|
2203-002720 |
C-CER,CHIP;10NF,10%,25V,X7R,TP,1005,0.5T |
|
2203-002285 |
C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
|
2203-007233 |
C-CER,CHIP;22000NF,10%,16V,X5R,TP,3216,1 |
|
2203-006706 |
C-CER,CHIP;2200NF,10%,50V,X7R,TP,3225 |
|
2203-000575 |
C-CER,CHIP;220NF,10%,25V,X7R,TP,2012 |
|
2203-000576 |
C-CER,CHIP;220NF,10%,50V,X7R,TP,3216 |
|
2203-005344 |
C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
|
2203-002398 |
C-CER,CHIP;22NF,10%,50V,X7R,TP,1608 |
|
2203-006377 |
C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012 |
|
2203-006126 |
C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
|
2503-001051 |
C-NETWORK;100NFX4,20%,16V,2012 |
|
3903-000599 |

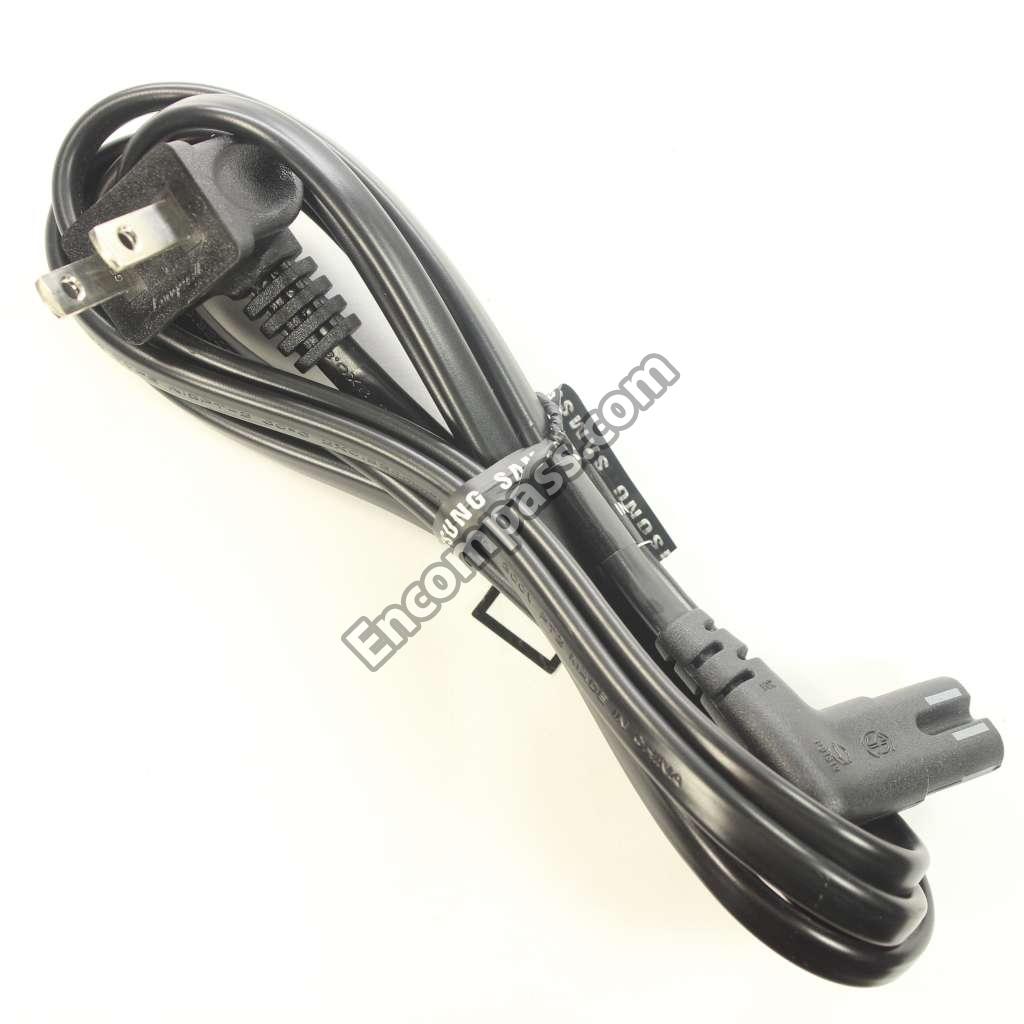

CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,5A, |
|
3708-002552 |
CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A,AU |
|
3711-007571 |
CONNECTOR-HEADER;BOX,18P,2R,2.0MM,ANGLE, |
|
3711-007776 |
CONNECTOR-HEADER;BOX,8P,1R,1.25MM,SMD-A, |
|
3707-001106 |
CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
|
BN63-10106A |
COVER-MIDDLE;UE6003 60",HIPS |
|
2801-004775 |
CRYSTAL-SMD;12MHZ,30PPM,16PF,30OHM,TP |
|
2801-003948 |
CRYSTAL-SMD;12MHZ,30PPM,28-AAN,12PF,60OH |
|
2801-003773 |
CRYSTAL-SMD;12MHZ,30PPM,28-AAN,20PF,50OH |
|
2801-003326 |
CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
|
0404-001643 |
DIODE-SCHOTTKY;B360A,60V,3000MA,SMA,TP |
|
0404-001404 |
DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
|
0404-001482 |
DIODE-SCHOTTKY;RB055LA-40,40V,3000MA,PMD |
|
0404-001640 |
DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD |
|
0404-001271 |
DIODE-SCHOTTKY;SSA34,40V,3000MA,SMA,TP |
|
0404-001307 |
DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB |
|
0401-001056 |
DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
|
0406-001271 |
DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 |
|
0406-001445 |
DIODE-TVS;RCLAMP7512N,2.7/2.8/2.9,300W,S |
|
0406-001438 |
DIODE-TVS;SMCJ14A,15.6/-/17.2V,1500W,DO- |
|
0505-001905 |
FET-SILICON;2N7002,N,60V,300MA,7.5OHM,.3 |
|
0505-000274 |
FET-SILICON;AO4435L,P,-30V,-11A,0.014OHM |
|
0505-002925 |
FET-SILICON;AO4438,N,60V,8.2A,3.1W,SOT-8 |
|
0505-002937 |
FET-SILICON;AO4854L,DUAL N,30V,8A,2W,SOT |
|
0505-002645 |
FET-SILICON;AOD4184A,N,40V,50A,0.007OHM, |
|
0505-002598 |
FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052O |
|
0505-001844 |
FET-SILICON;SI4435DDY-T1-GE3,P,-30V,-11. |
|
3601-001470 |
FUSE-SURFACE MOUNT;32V,1.5A,FAST-ACTING, |
|
3711-007742 |
HEADER-BOARD TO CABLE;BOX,20P,2R,2MM,ANG |
|
3711-007814 |
HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S |
|
3711-008131 |
HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
|
3711-005925 |
HEADER-BOARD TO CABLE;BOX,51P,1R,0.5MM,S |
|
3711-005601 |
HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
|
AA61-20285C |
HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
|
0801-003292 |
IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P |
|
0801-003330 |
IC-CMOS LOGIC;OCTAL BUFFER,DQFN,20P,4.5X |
|
1203-007080 |
IC-DC/DC CONVERTER;AOZ1051PI,SO-8,8P,4.9 |
|
1105-002264 |
IC-DDR2 SDRAM;K4T51163QJ-BCF8,DDR2,512MB |
|
1105-002527 |
IC-DDR3 SDRAM;K4B2G1646Q-BCK0,DDR3,2GBIT |
|
1204-003351 |
IC-DECODER;SEMS27,PBGA,717P,23X23MM,PLAS |
|
1204-003301 |
IC-DECODER;VPP1552,FPBGA,324P,15 X 15 MM |
|
1006-001509 |
IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
|
1103-001310 |
IC-EEPROM;2KBIT,256X8,SOIC,8Z30,5X4MM,2. |
|
1103-001487 |
IC-EEPROM;AT24C256C-SSHL-T,256KBIT,32KX8 |
|
1301-002109 |
IC-FPGA;LCMX02-2000HC-4TG100C,TQFN,100Z3 |
|
1003-002412 |
IC-LEVEL DRIVER;MAX17079GTL+,TR,40P,6X6X |
|
0903-001718 |
IC-MICROCONTROLLER;61P805-RG480WT,LQFP,4 |
|
1205-004222 |
IC-MULTIPLIER;THV3056,64P,9X9X0.9MM,PLAS |
|
1107-002265 |
IC-NOR FLASH;W25Q32FVSSIG,32MBIT,SOP,8P, |
|
1201-002980 |
IC-OP AMP;MAX9650ATA+,TDFN-EP,TP,8P,3*3M |
|
1203-006138 |
IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 |
|
1203-007242 |
IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8P, |
|
1203-006136 |
IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T |
|
1203-006135 |
IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T |
|
1203-006130 |
IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 |
|
1203-006109 |
IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
|
1201-003333 |
IC-POWER AMP;NTP-7412S,MLF,48P,7X7MM,DUA |
|
1209-002183 |
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
|
1205-004447 |
IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3X1.65 |
|
0904-002714 |
IC-USC;QFN,28P,5.0MM X 5.0MM,12MHZ,TP,PL |
|
1204-003304 |
IC-VIDEO PROCESS;SENK81,TFBGA,243Z30,15X |
|
1203-004364 |
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
|
1203-006017 |
IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
|
1203-004363 |
IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
|
1203-006780 |
IC-VOL. REFERENCE;MAX9697ATI+,TQFN,28P,5 |
|
1203-007671 |
IC-VOL. REFERENCE;STVM100DC6F,TSSOP,8Z30 |
|
2703-003713 |
INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700 |
|
2703-004065 |
INDUCTOR-SMD;10UH,20%,12X12MM |
|
2703-003488 |
INDUCTOR-SMD;10UH,20%,6965,0.071OHM,3500 |
|
2703-000158 |
INDUCTOR-SMD;1UH,10%,2012,.4OHM,50MA,45, |
|
2703-003932 |
INDUCTOR-SMD;22UH,20%,8080,0.075OHM,2500 |
|
2703-003930 |
INDUCTOR-SMD;4.7UH,20%,5050,0.072OHM,245 |
|
2703-003790 |
INDUCTOR-SMD;4.7UH,20%,8080,0.025OHM,450 |
|
3722-003229 |
JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
|
3722-003226 |
JACK-PHONE;7P/1C,SN,BLK |
|
3722-003213 |
JACK-PIN;J/B 5P + SCREW HOLE,NI+SN,BLK,S |
|
3722-003248 |
JACK-USB;4P/1C(W/L),NI/PD/AU/SN,BLK,STRA |
|
BN95-01147B |
LCD DISPLAY |
|
BN39-01652L |
LEAD CONNECTOR;LH55MDBPLGA,FLAT CONNECTO |
|
BN39-01646B |
LEAD CONNECTOR;UE46ES6540,CABLE CONNECTO |
|
BN94-06418U |

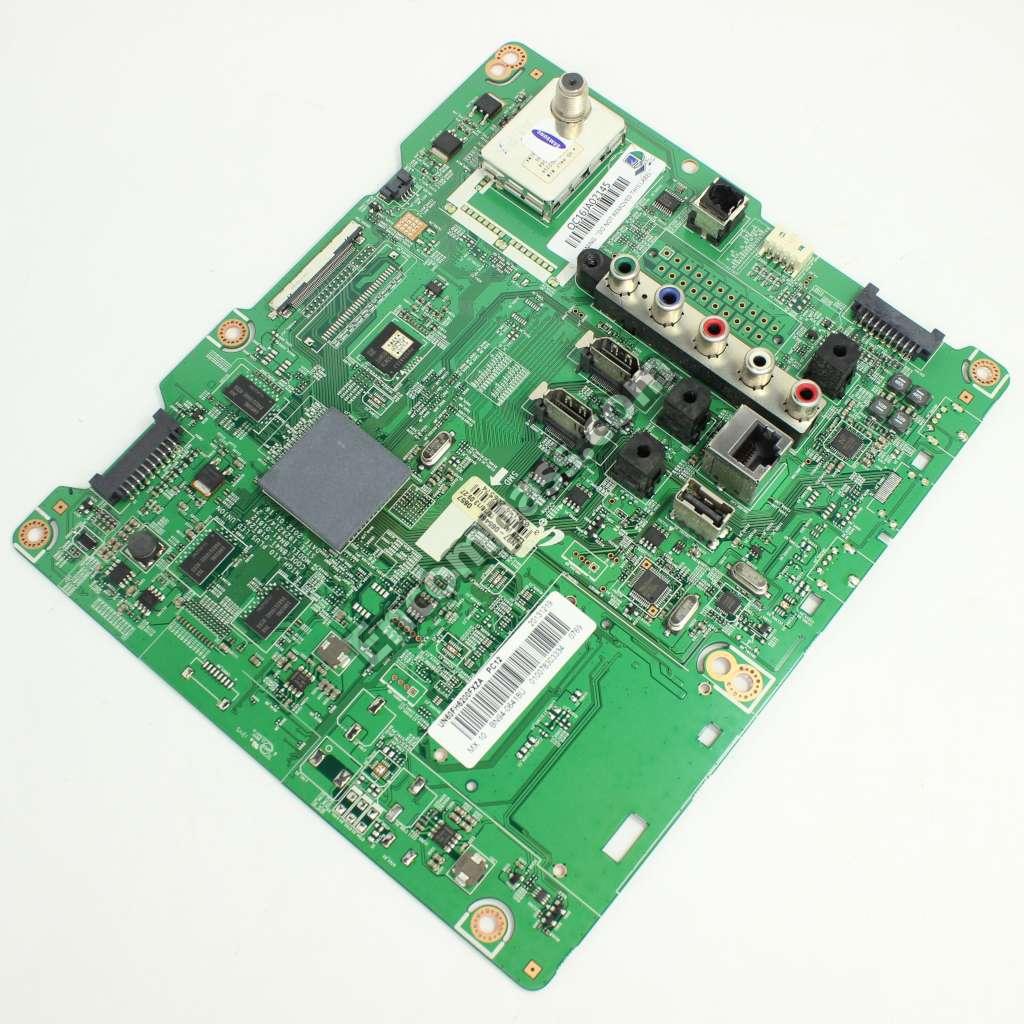

MAIN BOARD PCB |
|

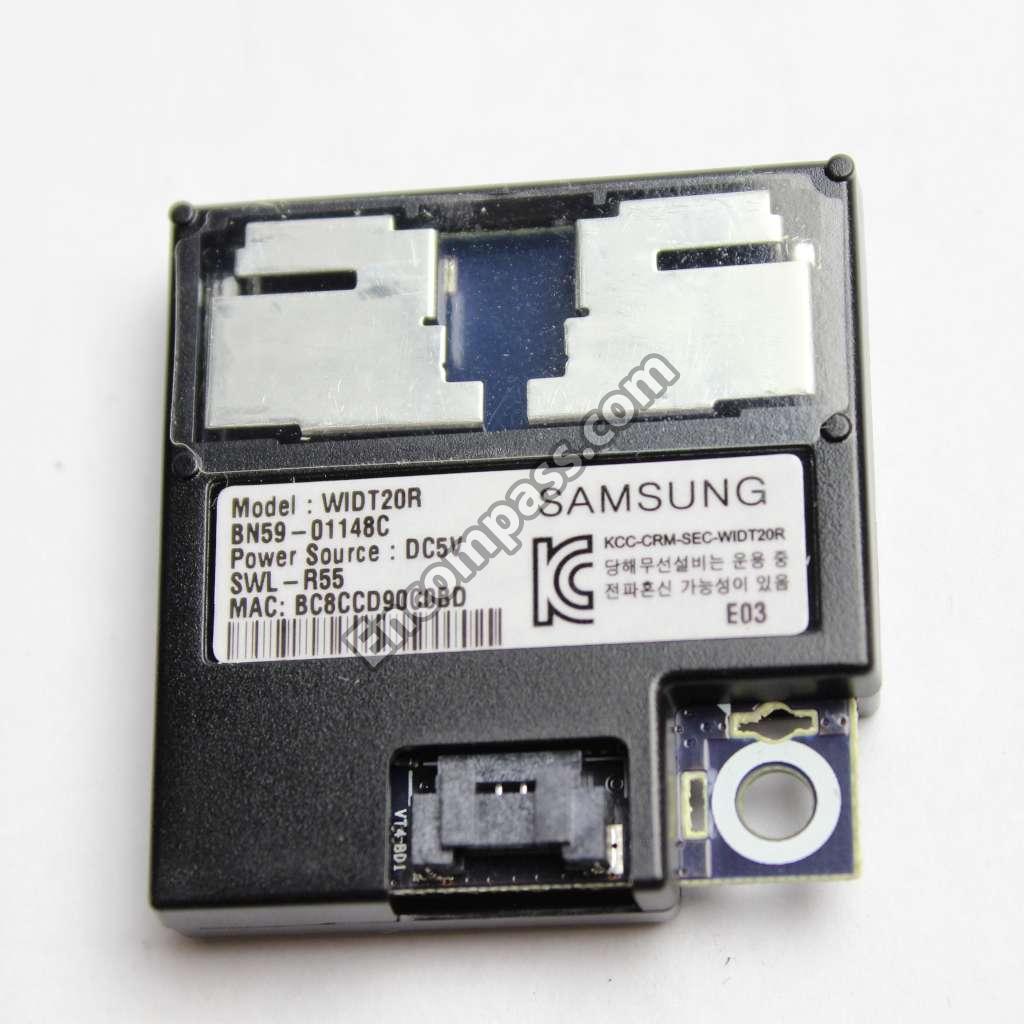

BN59-01148C |
NETWORK;WIDT-20R,INTERNAL WIFI,USB,IEEE8 |
|
2806-001308 |
OSCILLATOR-VCXO;27MHZ,-,30PF,TP,3.3V,50M |
|

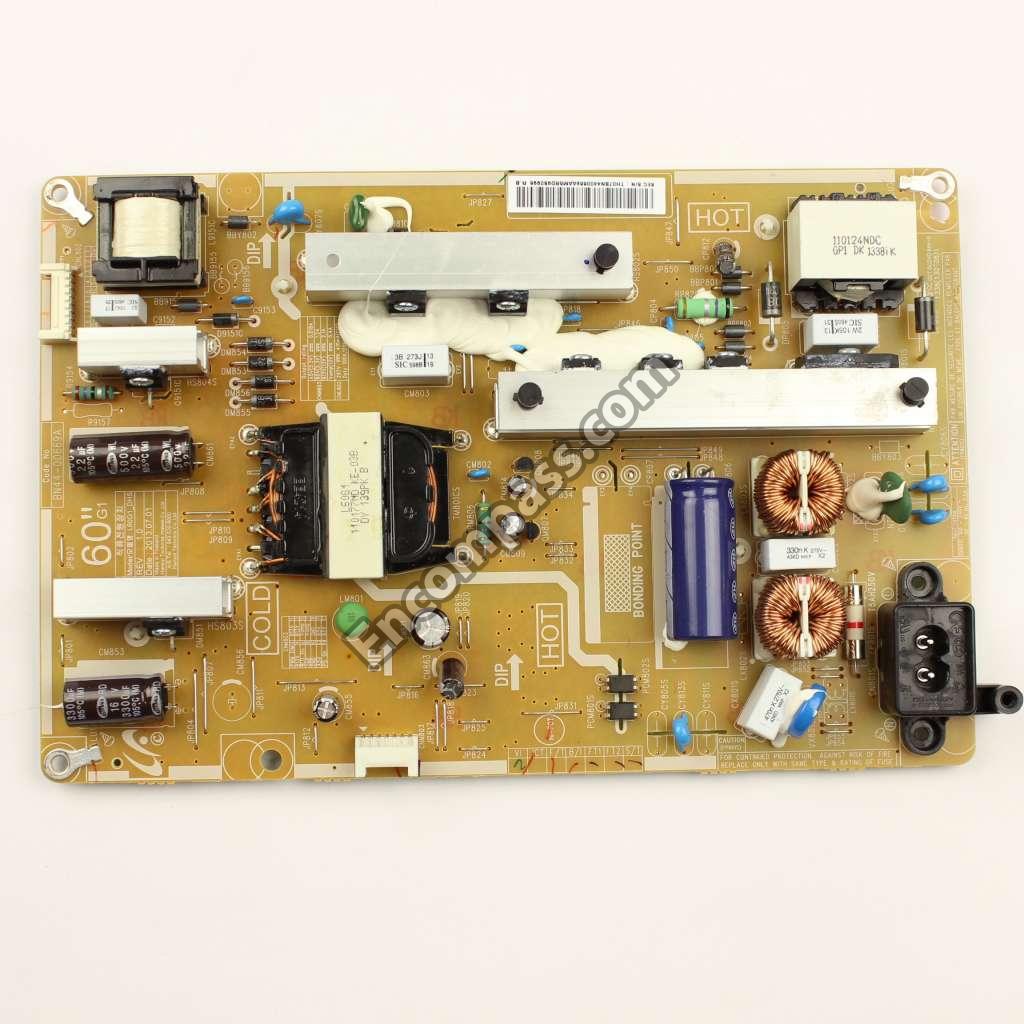

BN44-00669A |
POWER SUPPLY PCB |
|
BN96-23845G |
POWER SWITCH & IR RECEIVER PCB |
|
2007-008714 |
R-CHIP;0.01OHM,1%,1W,TP,6432 |
|
2007-000039 |
R-CHIP;0OHM,1%,1/10W,TP,1608 |
|
2007-000029 |
R-CHIP;0OHM,5%,1/8W,TP,2012 |
|
2007-007463 |
R-CHIP;1.1KOHM,1%,1/16W,TP,1005 |
|
2007-000239 |
R-CHIP;1.5KOHM,1%,1/10W,TP,1608 |
|
2007-000060 |
R-CHIP;100KOHM,1%,1/10W,TP,1608 |
|
2007-000052 |
R-CHIP;10KOHM,1%,1/10W,TP,1608 |
|
2007-000343 |
R-CHIP;120OHM,1%,1/10W,TP,1608 |
|
2007-007768 |
R-CHIP;13KOHM,1%,1/10W,TP,1608 |
|
2007-000043 |
R-CHIP;1KOHM,1%,1/10W,TP,1608 |
|
2007-000109 |
R-CHIP;1MOHM,5%,1/10W,TP,1608 |
|
2007-002425 |
R-CHIP;1OHM,5%,1/10W,TP,1608 |
|
2007-000491 |
R-CHIP;2.2KOHM,1%,1/10W,TP,1608 |
|
2007-000509 |
R-CHIP;2.4KOHM,1%,1/10W,TP,1608 |
|
2007-000536 |
R-CHIP;200OHM,1%,1/10W,TP,1608 |
|
2007-007767 |
R-CHIP;200OHM,1%,1/16W,TP,1005 |
|
2007-000066 |
R-CHIP;20KOHM,1%,1/10W,TP,1608 |
|
2007-000570 |
R-CHIP;220OHM,1%,1/10W,TP,1608 |
|
2007-008649 |
R-CHIP;220OHM,1%,1/16W,TP,1005 |
|
2007-000583 |
R-CHIP;22KOHM,1%,1/10W,TP,1608 |
|
2007-000614 |
R-CHIP;24KOHM,1%,1/10W,TP,1608 |
|
2007-000640 |
R-CHIP;270OHM,1%,1/10W,TP,1608 |
|
2007-000651 |
R-CHIP;27KOHM,1%,1/10W,TP,1608 |
|
2007-000695 |
R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
|
2007-007008 |
R-CHIP;300OHM,5%,1/16W,TP,1005 |
|
2007-000736 |
R-CHIP;30KOHM,1%,1/10W,TP,1608 |
|
2007-000772 |
R-CHIP;33KOHM,1%,1/10W,TP,1608 |
|
2007-000779 |
R-CHIP;33OHM,1%,1/10W,TP,1608 |
|
2007-008294 |
R-CHIP;33OHM,1%,1/16W,TP,1005 |
|
2007-000799 |
R-CHIP;360OHM,5%,1/10W,TP,1608 |
|
2007-000842 |
R-CHIP;3KOHM,1%,1/10W,TP,1608 |
|
2007-000910 |
R-CHIP;43KOHM,1%,1/10W,TP,1608 |
|
2007-007722 |
R-CHIP;43OHM,1%,1/10W,TP,1608 |
|
2007-008298 |
R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
|
2007-000962 |
R-CHIP;5.1KOHM,1%,1/10W,TP,1608 |
|
2007-001042 |
R-CHIP;56OHM,1%,1/10W,TP,1608 |
|
2007-001056 |
R-CHIP;6.2KOHM,5%,1/10W,TP,1608 |
|
2007-001093 |
R-CHIP;620OHM,5%,1/10W,TP,1608 |
|
2007-001096 |
R-CHIP;62KOHM,1%,1/10W,TP,1608 |
|
2007-001116 |
R-CHIP;680OHM,1%,1/10W,TP,1608 |
|
2007-001125 |
R-CHIP;68KOHM,1%,1/10W,TP,1608 |
|
2007-001139 |
R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
|
2007-007723 |
R-CHIP;75KOHM,1%,1/10W,TP,1608 |
|
2007-008015 |
R-CHIP;75OHM,1%,1/16W,TP,1005 |
|
2007-001168 |
R-CHIP;75OHM,5%,1/4W,TP,3216 |
|
2007-001206 |
R-CHIP;82KOHM,1%,1/10W,TP,1608 |
|
2007-007651 |
R-CHIP;9.1KOHM,1%,1/10W,TP,1608 |
|
2007-007431 |
R-CHIP;91KOHM,1%,1/10W,TP,1608 |
|
2011-001587 |
R-NETWORK;100OHM,5%,1/16W,L,CHIP-V,4P,TP |
|
2011-001506 |
R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1 |
|
2011-001264 |
R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
2011-001449 |
R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1010 |
|
2011-001262 |
R-NETWORK;22OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
2011-001261 |
R-NETWORK;33OHM,5%,1/16W,L,CHIP,8P,TP,2. |
|
2011-001527 |
R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP, |
|
2011-001396 |
R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP, |
|

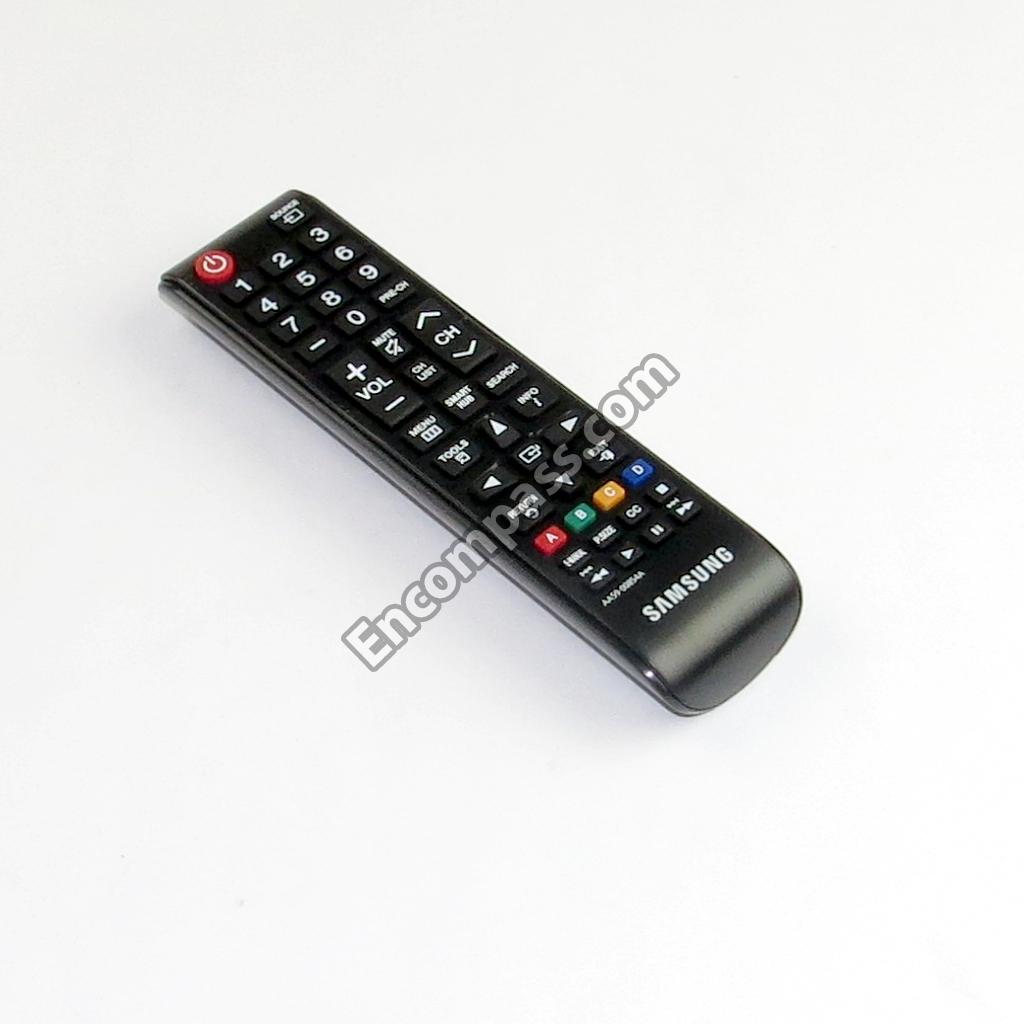

AA59-00854A |
REMOTE CONTROL |
|
BN73-00052C |
RUBBER-FOOT;LCD TV,SILICONE RUBBER,T2.0 |
|

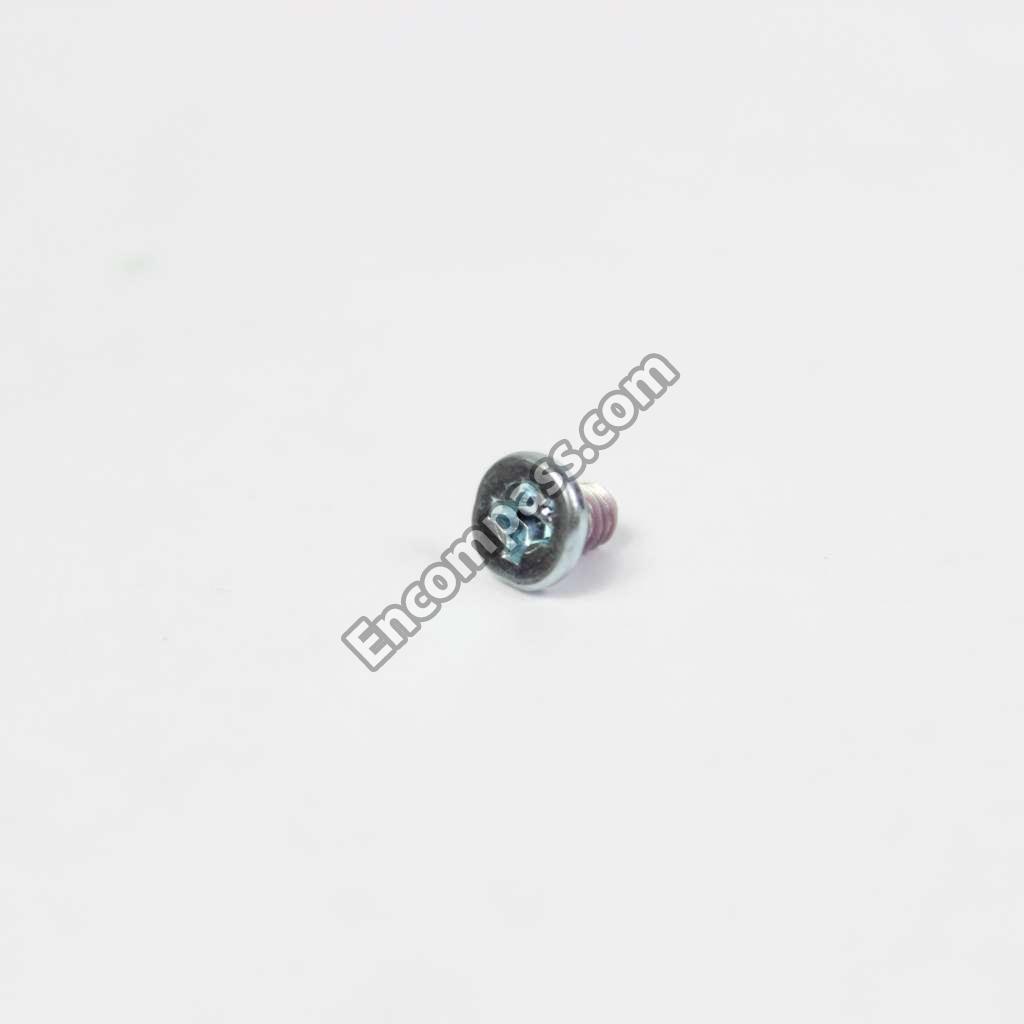

6001-002757 |

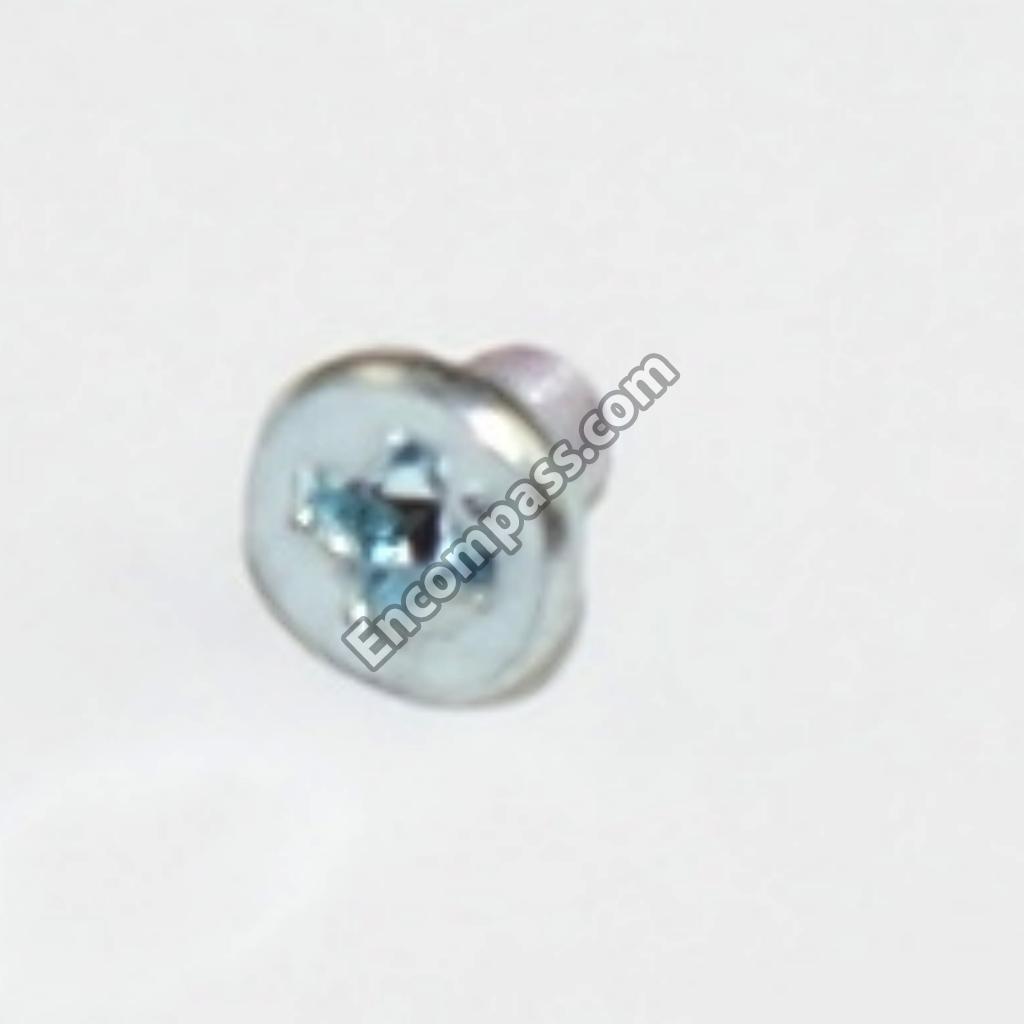

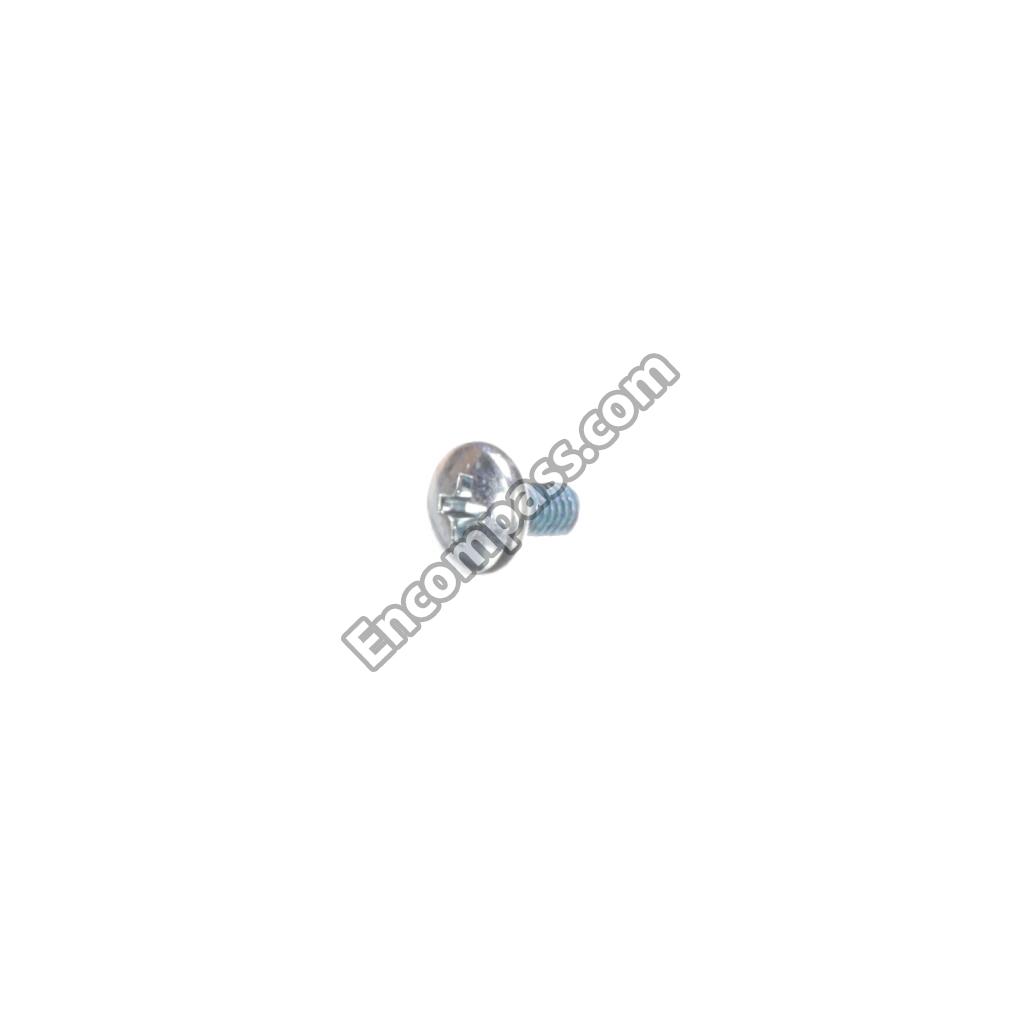

SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
6001-003075 |
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|

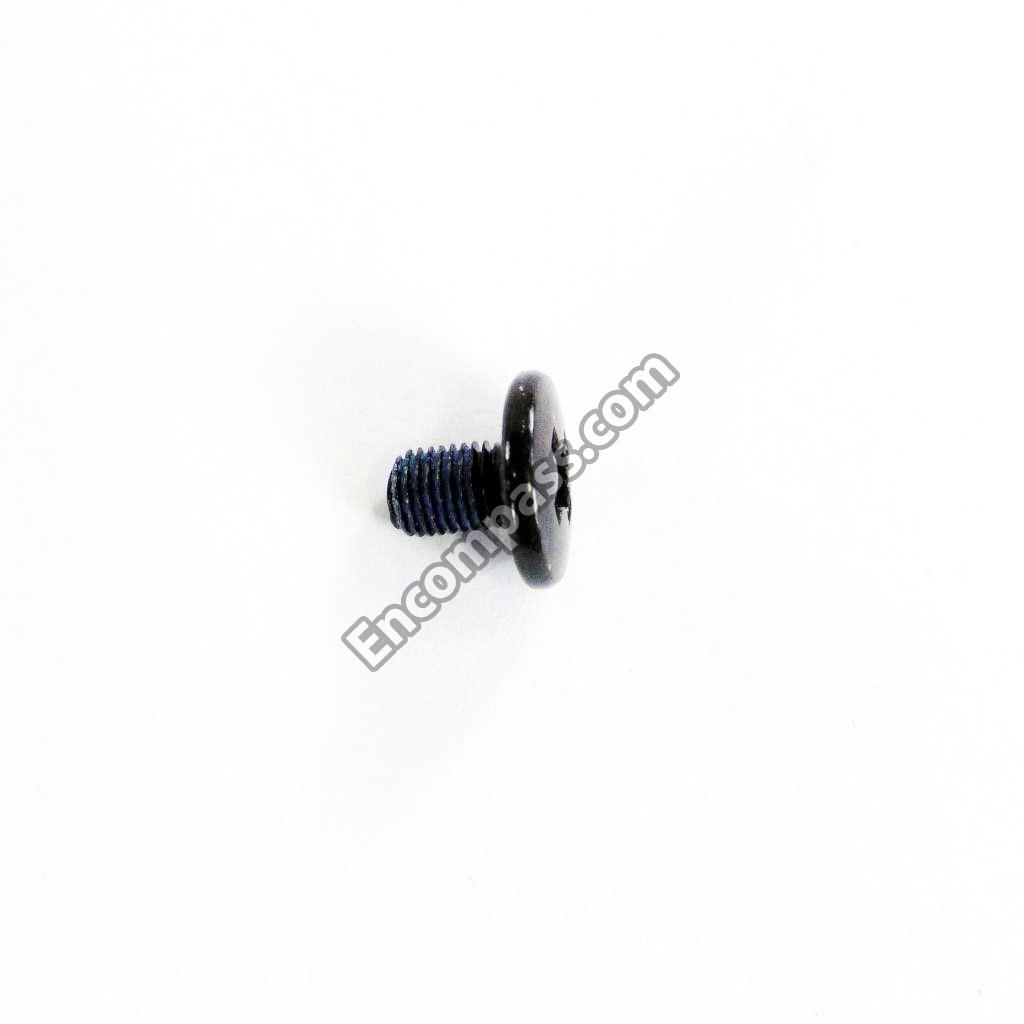

6001-002755 |
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
|
6001-002756 |
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|

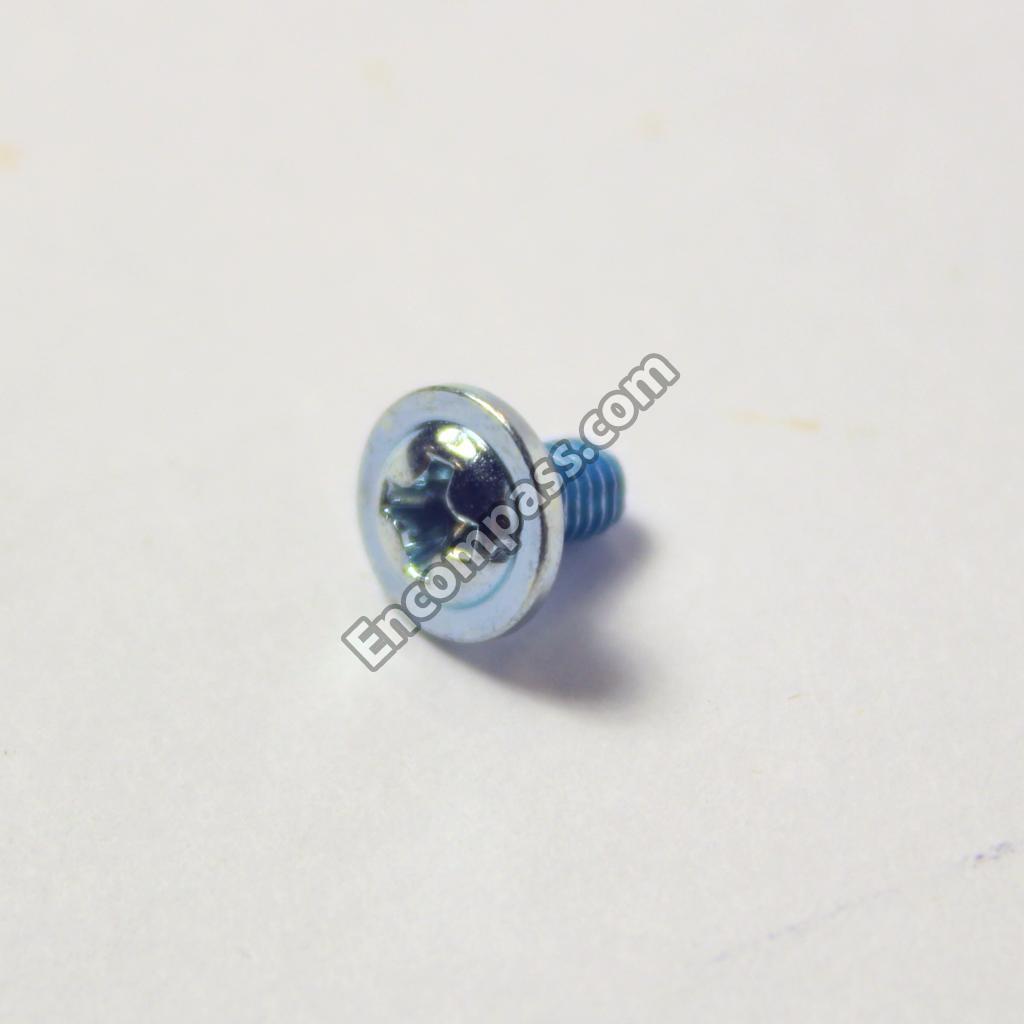

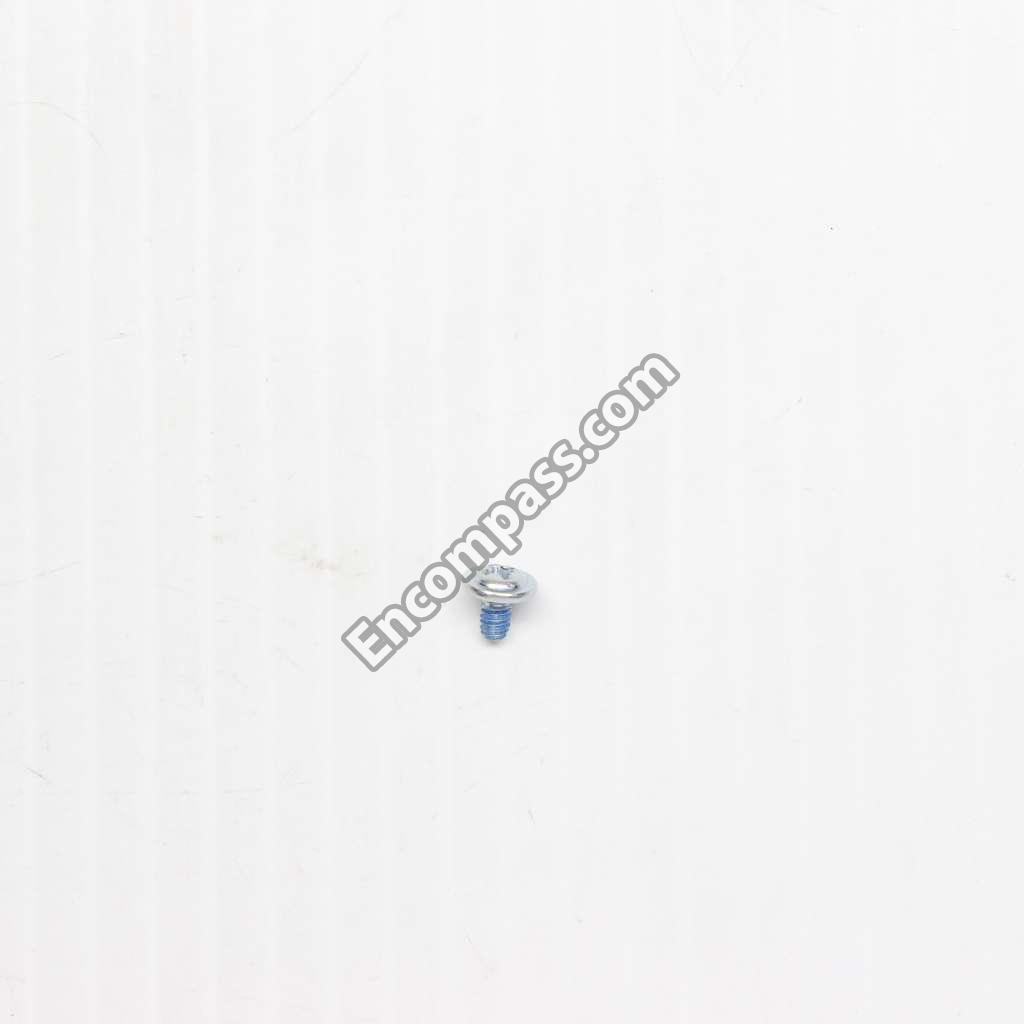

6001-003081 |
SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH |
|
6001-003016 |
SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S |
|
6003-000115 |
SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC |
|

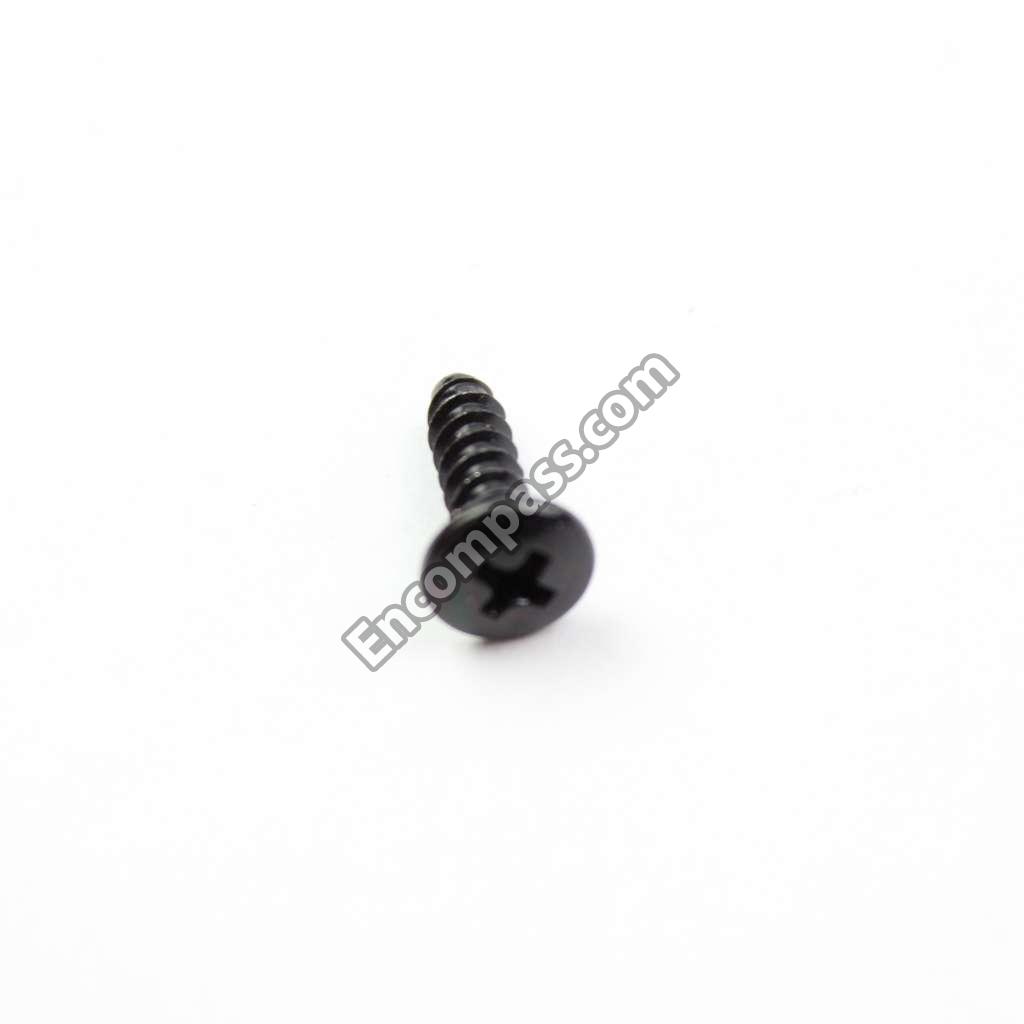

6003-001782 |
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|

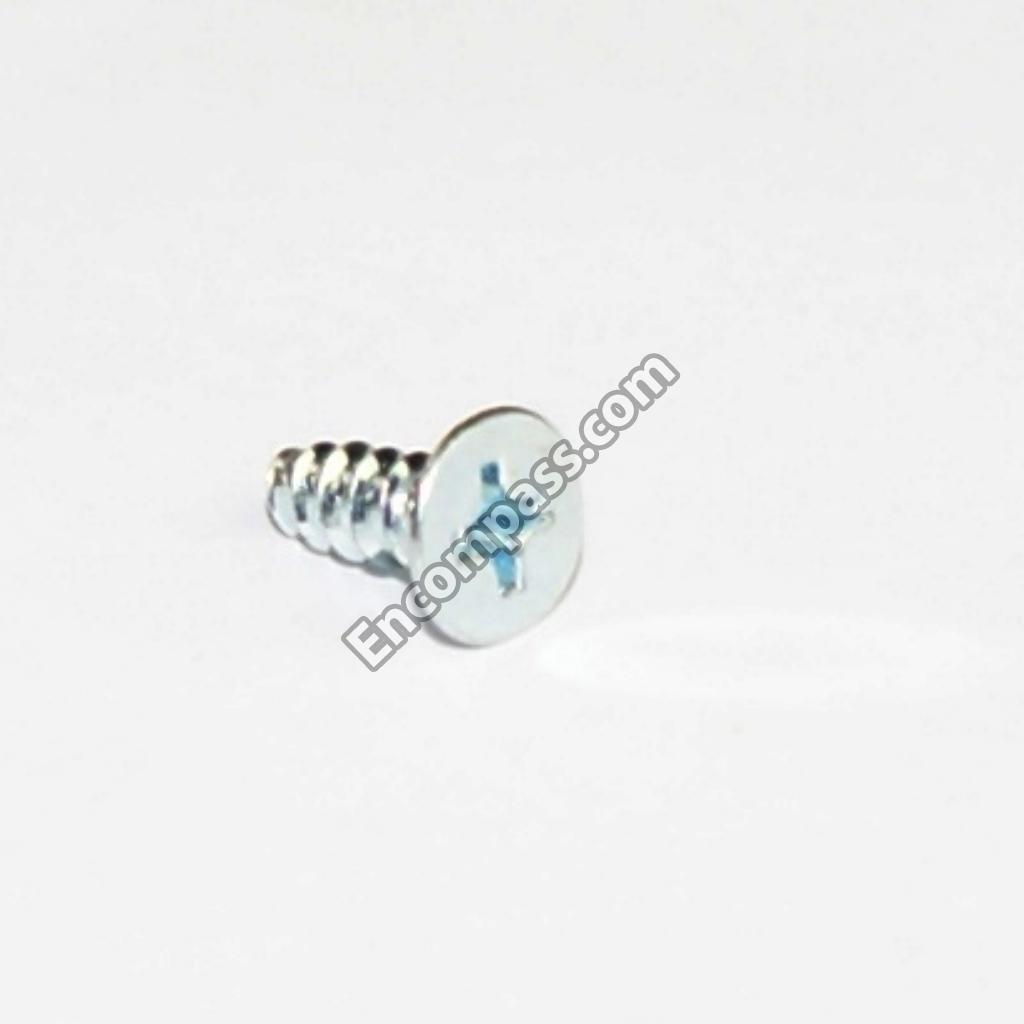

6003-001239 |
SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR |
|

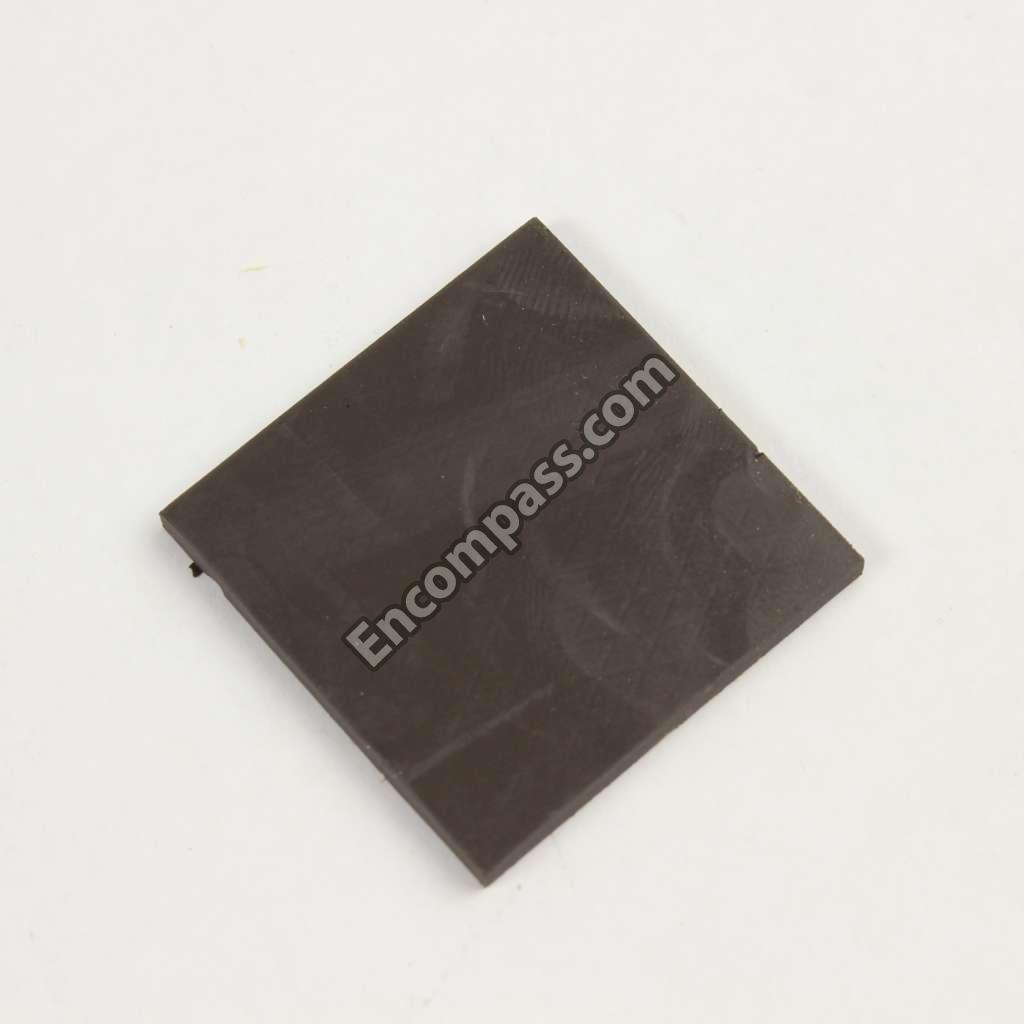

BN73-00218A |
SILICON/RUBBER;UE32B6000VWXXC,SILICON+PO |
|

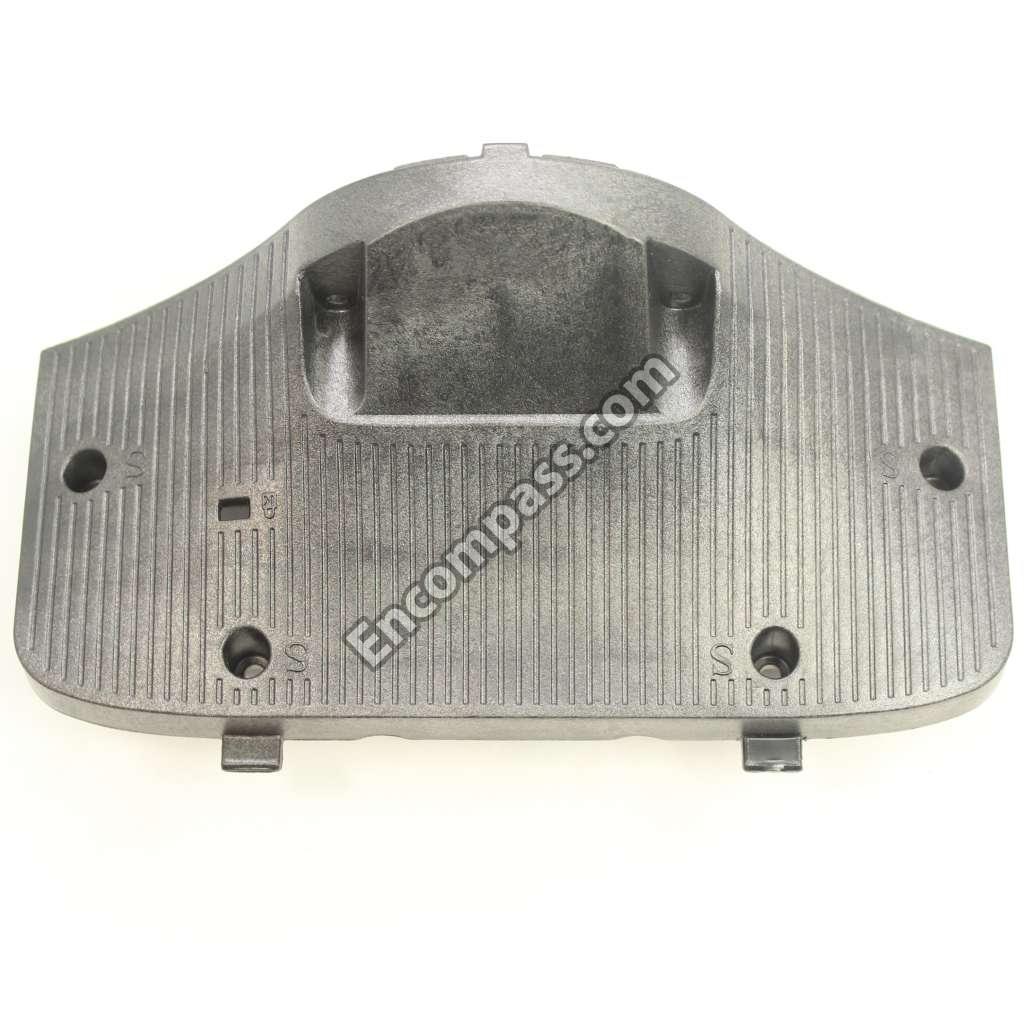

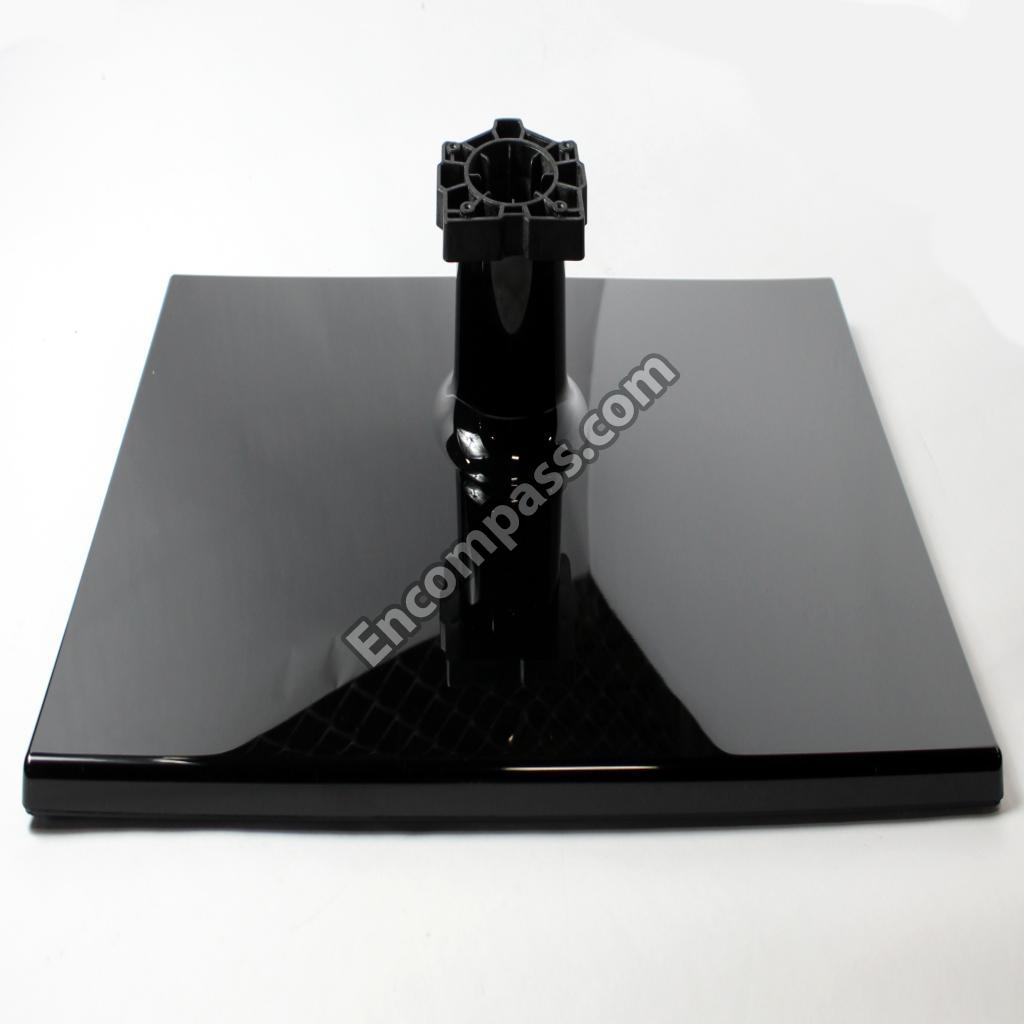

BN96-26414A |
STAND BASE |
|
BN96-22733A |
STAND NECK |
|
BN96-28943A |

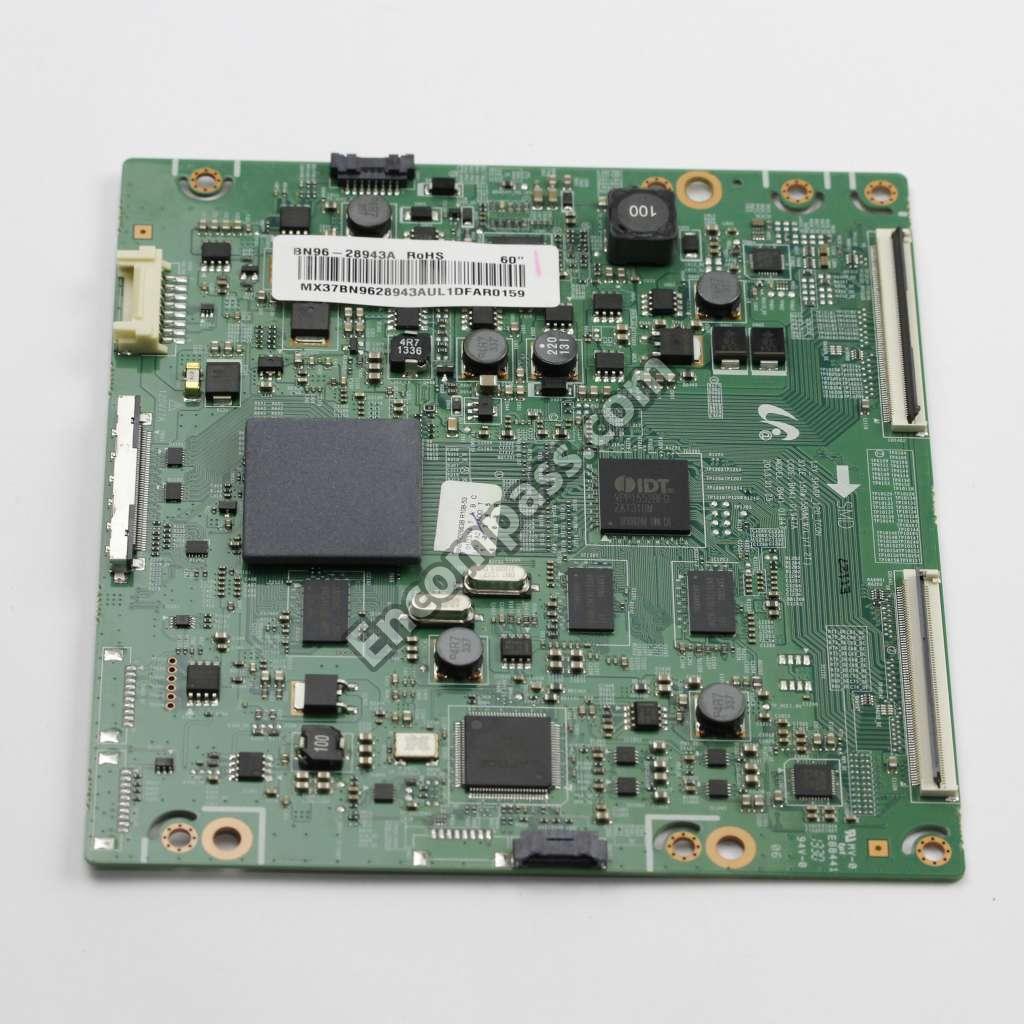

T-CON BOARD |
|

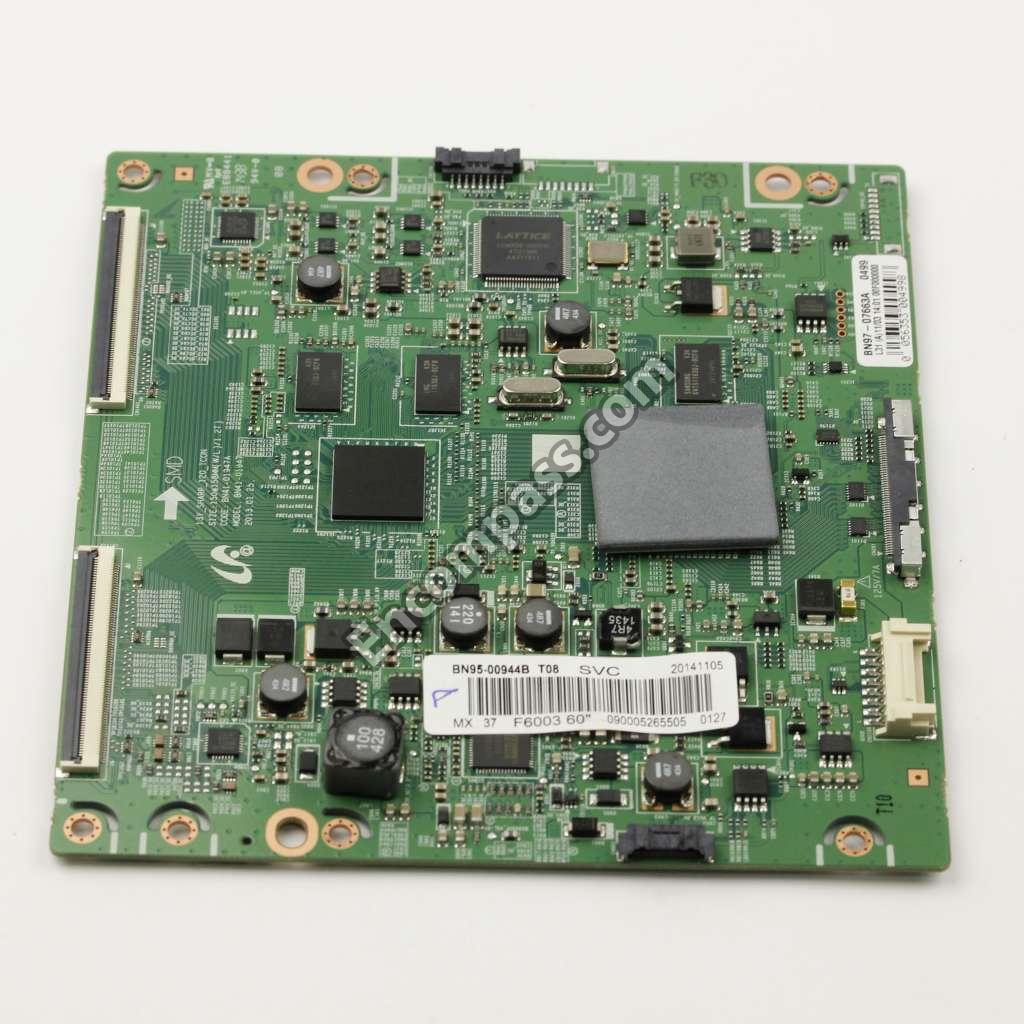

BN95-00944B |
T-CON PCB |
|
0502-001365 |
TR-POWER;KTA1040D,1000MW,DPAK,TR,100 |
|
0502-001364 |
TR-POWER;KTC3573,1,500MW,PLASTIC,TR,150 |
|
0502-001360 |
TR-POWER;STC405D,NPN,15000MW,TO-252 |
|
0501-002080 |
TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59 |
|

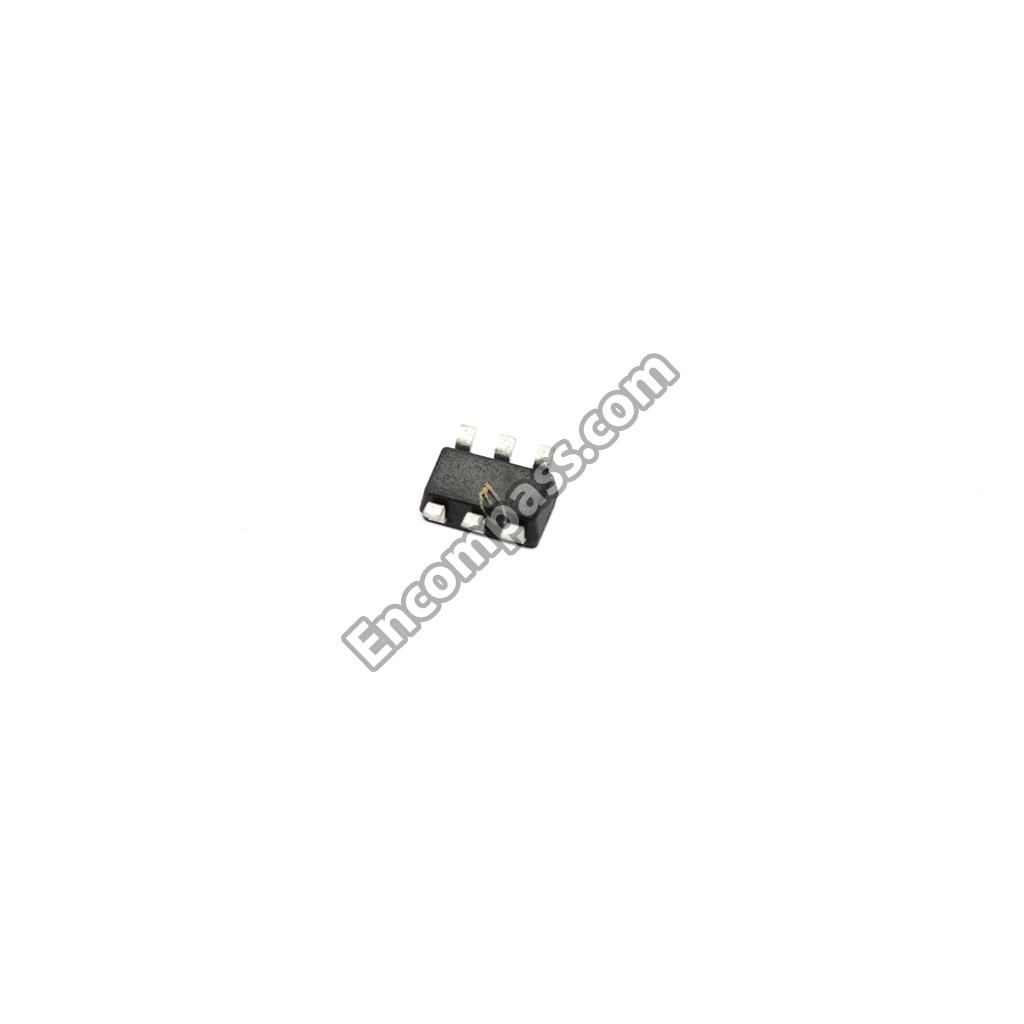

0501-000445 |
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
|

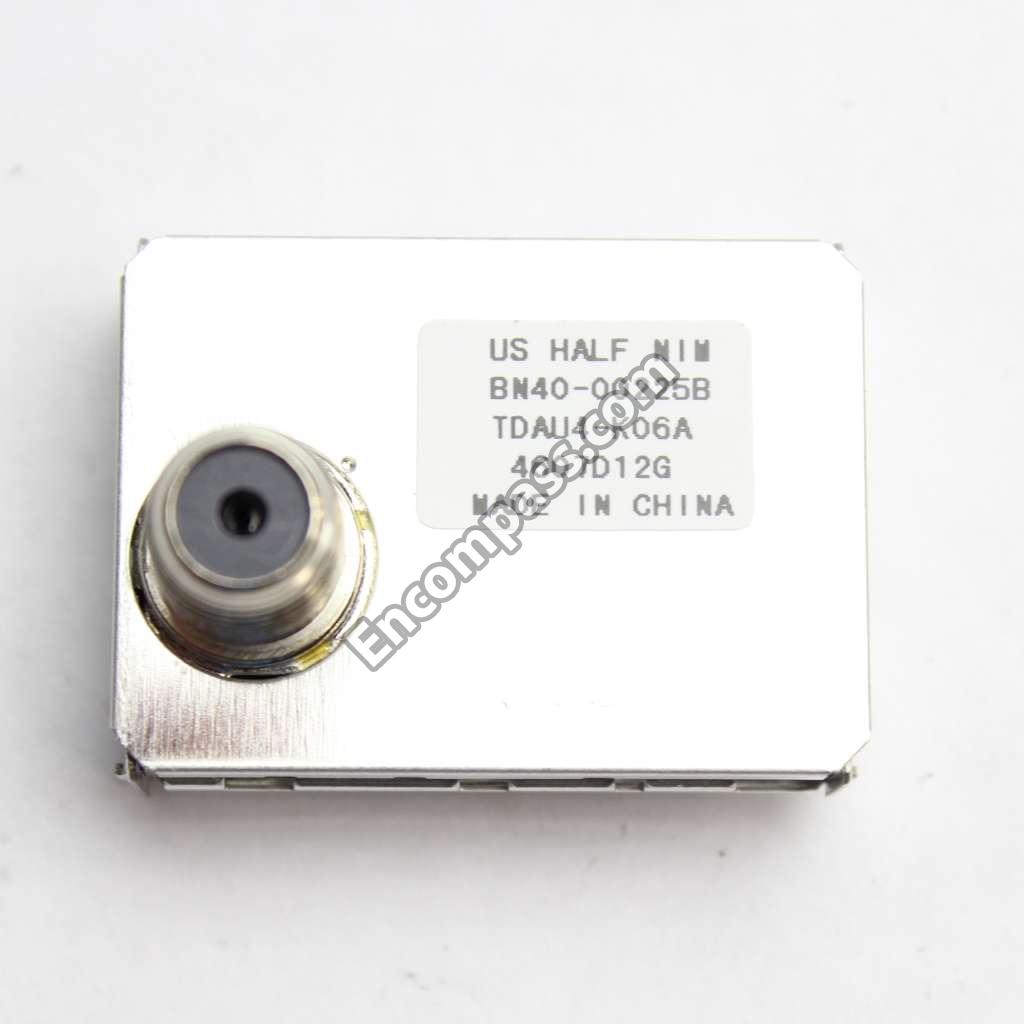

BN40-00225B |
TUNER;TDAU4-K06A,TDAU4-K06A,VSB HALF NIM |
|

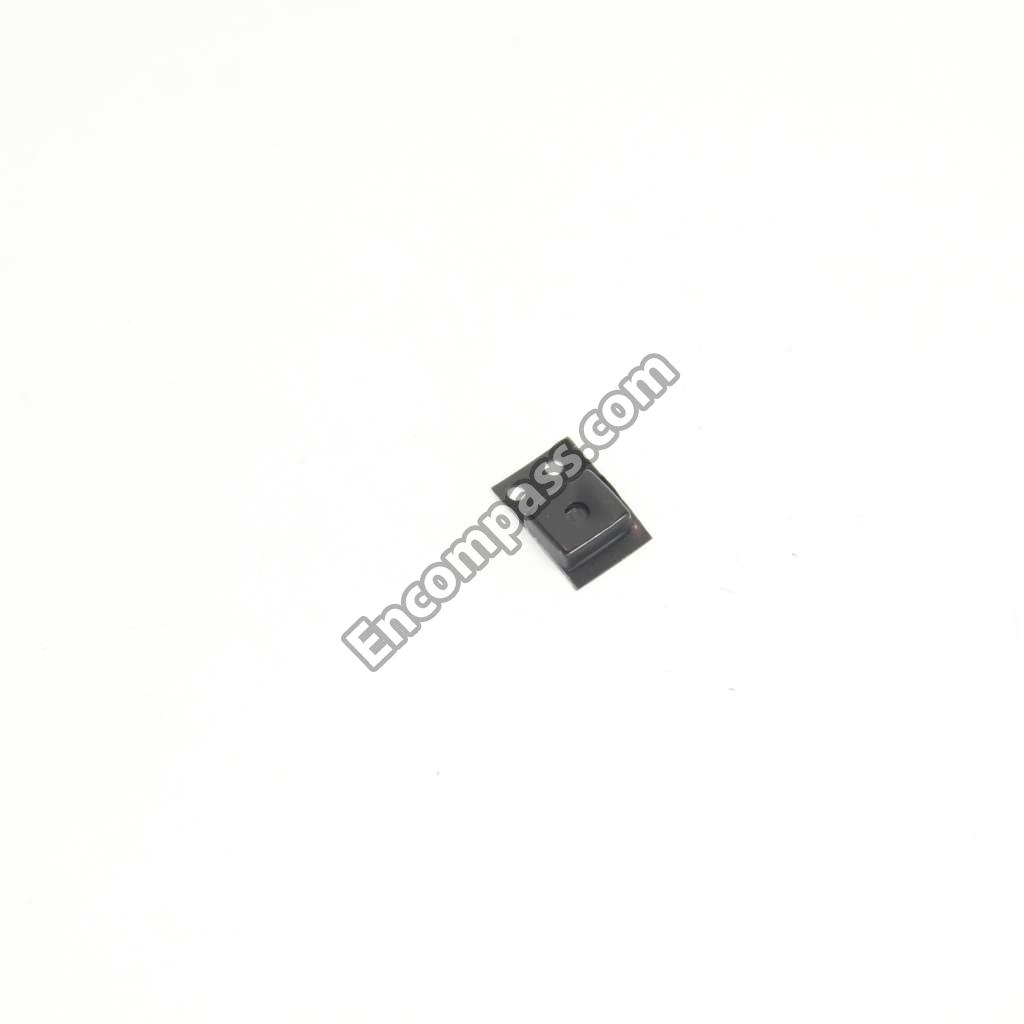

1405-001271 |
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
