Manufacturer
Samsung
Model Number
UN60H6300AFXZA
Description
60-inch Led H6300 Series Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ASSY CABLE P-FFC;UN60H6400AFXZA,FFC,NH,5 |
| BN96-30743B | ASSY CHASSIS TOP P;60H6300,PC+ABS+G/F15% |
| BN96-30743A | ASSY CHASSIS TOP P;Y14 F-LED 60"(6,PC+AB |
| BN96-32021A | ASSY COVER P-REAR;H6300,60",HIPS,V0,BLK, |
|
|

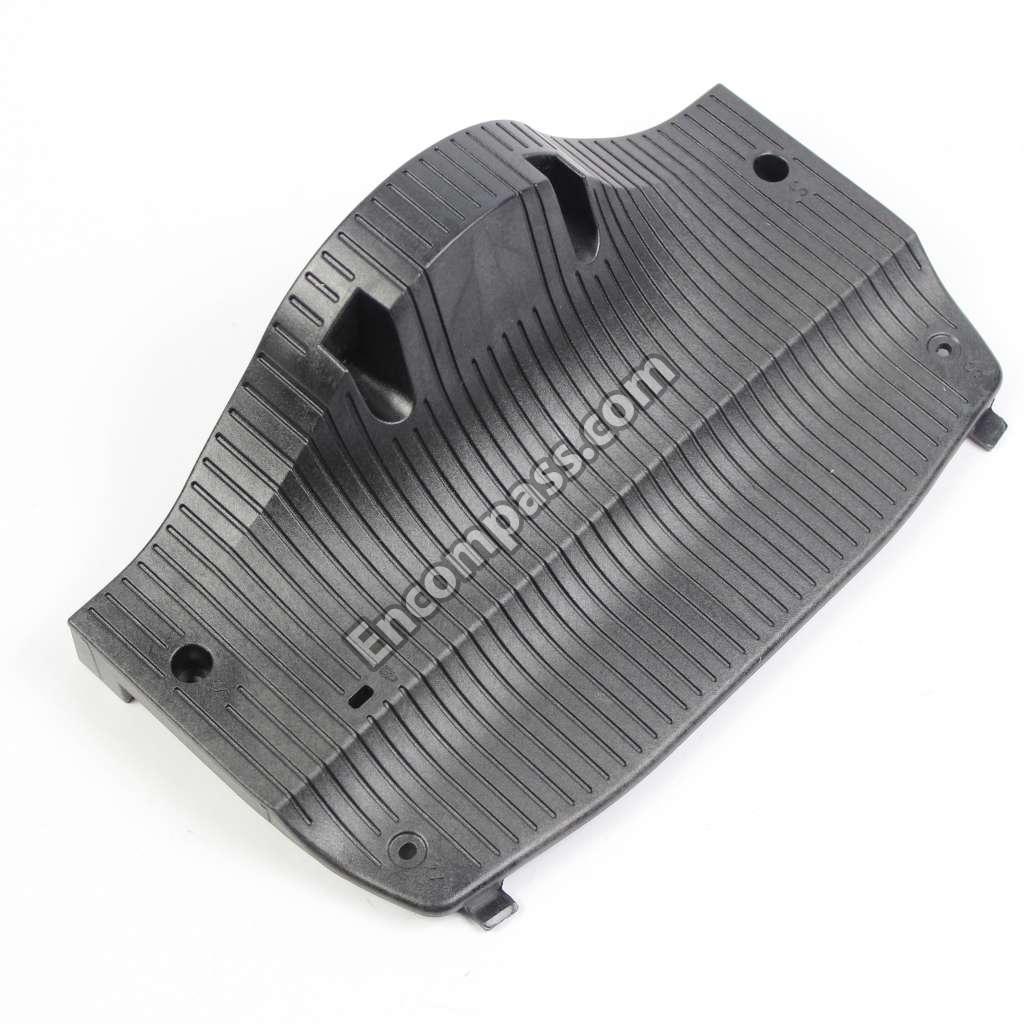

ASSY GUIDE P-STAND;UH6400,60,PC+G/F 20% |
| 3708-003043 | CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A+DI |
| 3701-001861 | CONNECTOR-HDMI;19P,FEMALE,AU,0.5MM,BLK,S |
| 3701-001856 | CONNECTOR-HDMI;19P,FEMALE,AU,0.5MM,BLK,S |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
|
|

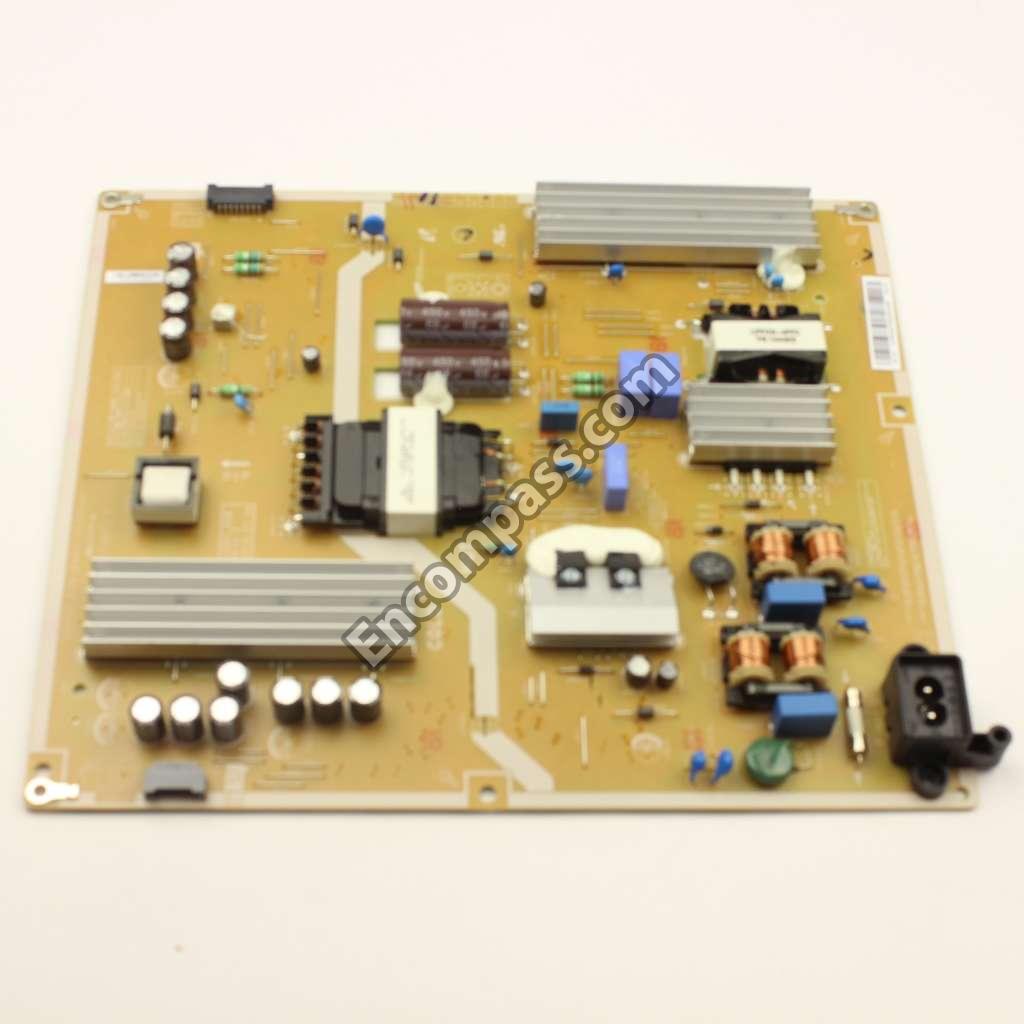

DC POWER SUPPLY-LED TV PD BD;L60S1_ESM,L60S1_ESM, |
|
|

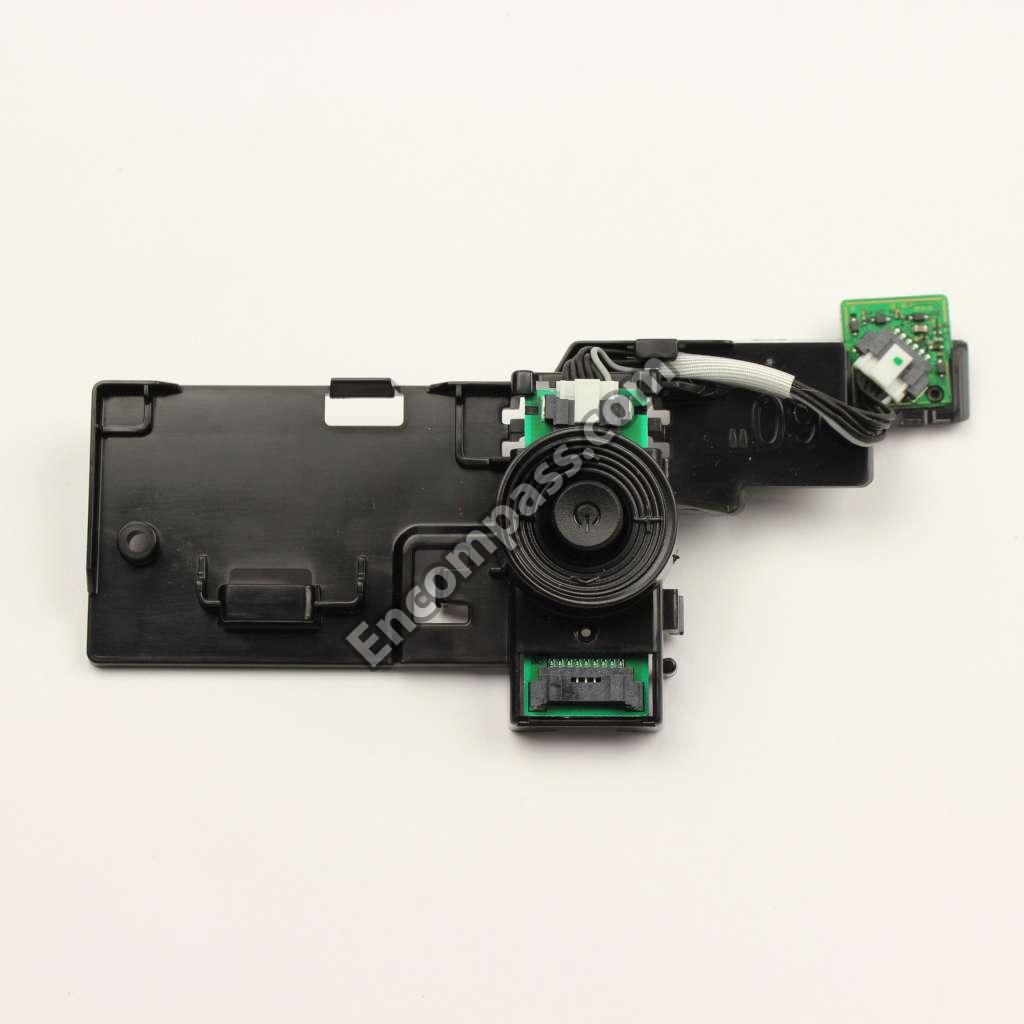

FUNCTION BOARD PCB;UH6500,FUNCTI |
| AA63-01388A | GASKET-EMI,SPONGE;SP-P300M,CONDUCTIVE FA |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
|
|
HOLDER-WIRE STAND;26UE4000 GUIDE STAND,N |
| 1201-003671 | IC-AUDIO AMP;NTP7414,MLF,48P,7X7MM,DUAL, |
| 1203-007984 | IC-DC/DC CONVERTER;AOZ3015PI,SO-8,8P,6.2 |
| 1203-008183 | IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
| 1203-007608 | IC-DC/DC CONVERTER;ISL24827,QFN,48Z30,7X |
| 1203-007694 | IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8Z3 |
| 1203-007552 | IC-DC/DC CONVERTER;TPS56921PWPR,HTSSOP,2 |
| 1105-002534 | IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002290 | IC-EMMC;MTFC4GMCAM-1M WT,4GBYTE,BGA,153P |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1204-003485 | IC-VIDEO PROCESS;SDP1316,HSFCBGA,888P,27 |
|
|
IR BLASTER CABLE ,UL1185 28AWG,2.5 |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003617 | JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI, |
| 3722-003439 | JACK-PHONE;4P/1C,SN,BLK,STRAIGHT,3.5PI,1 |
|
|
JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED |
|
|
JACK-USB;4P/1C,NI,BLK,A |
|
|
LCD DISPLAY-SHARP;LQ600D3HD6K,CY-HH060CS |
|
|

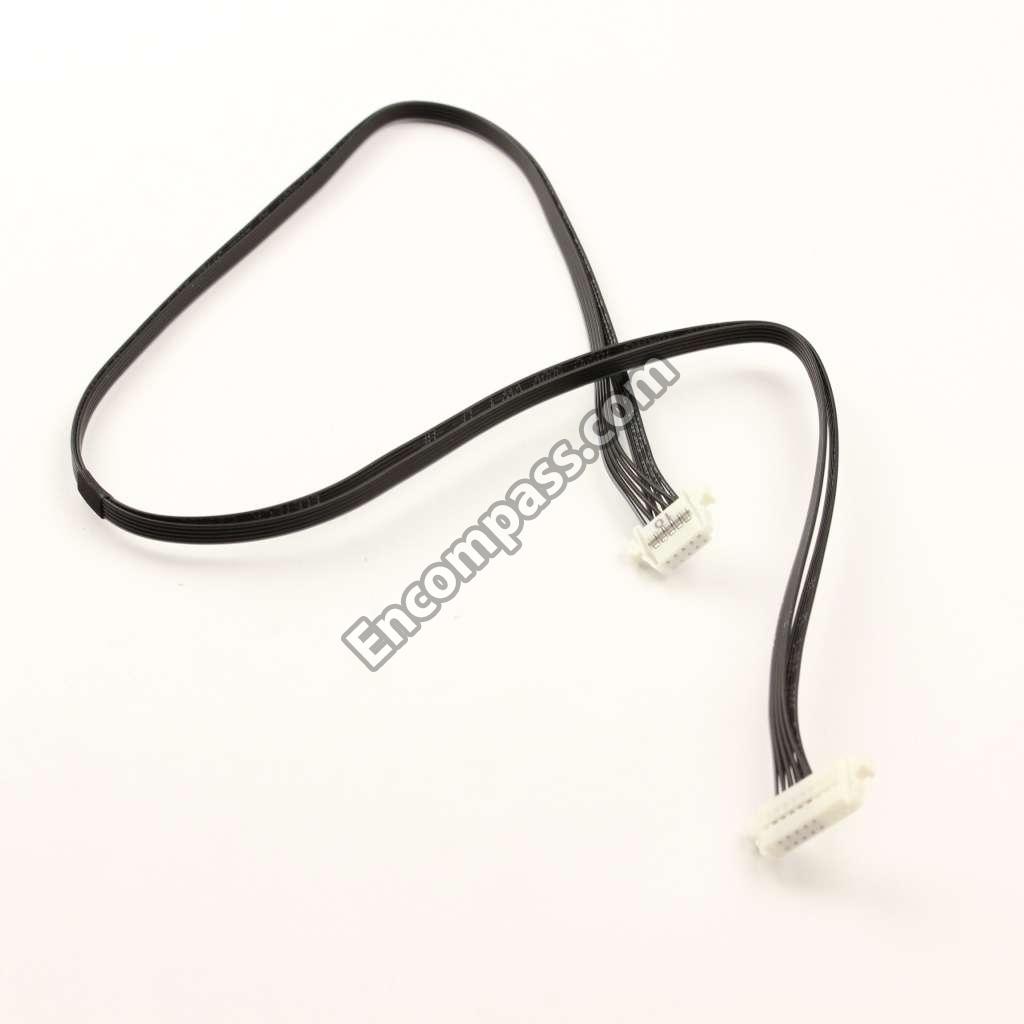

LEAD CONNECTOR-FUNCTION;UH6300 55/60",LE |
|
|

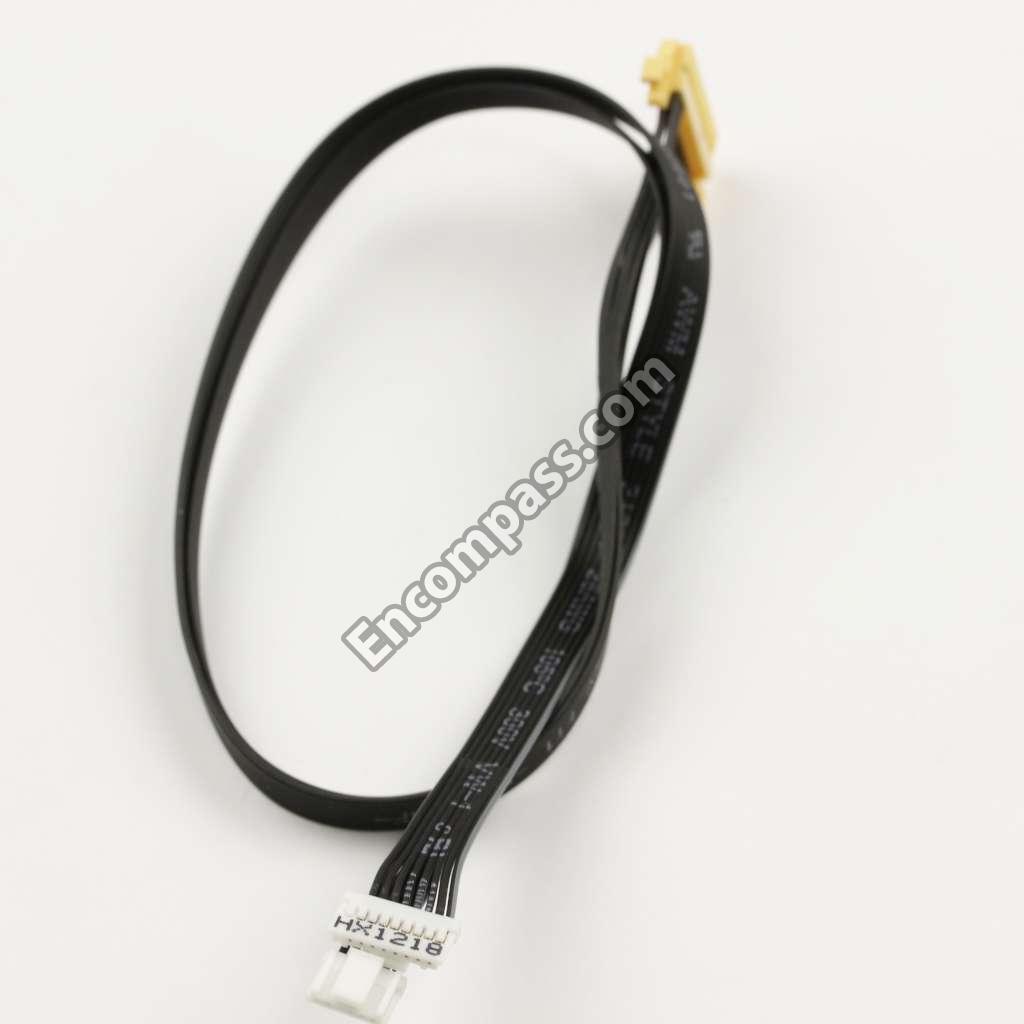

LEAD CONNECTOR;UN40H5200AF,LEAD CONNECTO |
|
|
LEAD CONNECTOR;UN60/65H6300AFXZA,FLAT CO |
|
|
MAIN BOARD PCB;UN60H6300AFXZA |
|
|
POWER CORD ;DT,UL/CSA,LP-11L,125V,7A, |
| 2007-008714 | R-CHIP;0.01OHM,1%,1W,TP,6432 |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
| 2007-000029 | R-CHIP;0OHM,5%,1/8W,TP,2012 |
| 2011-001427 | R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0 |
|
|
REMOTE CONTROL;TM1260C,52,3.0V,TM1260C_AMERICA_ |
| BN61-09175B | SCREW-MACHINE;BH,+,M3,L10,ZPC(WHT),SWRCH |
|
|
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH |
|
|
SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S |
|
|
SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH |
|
|
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
|
|

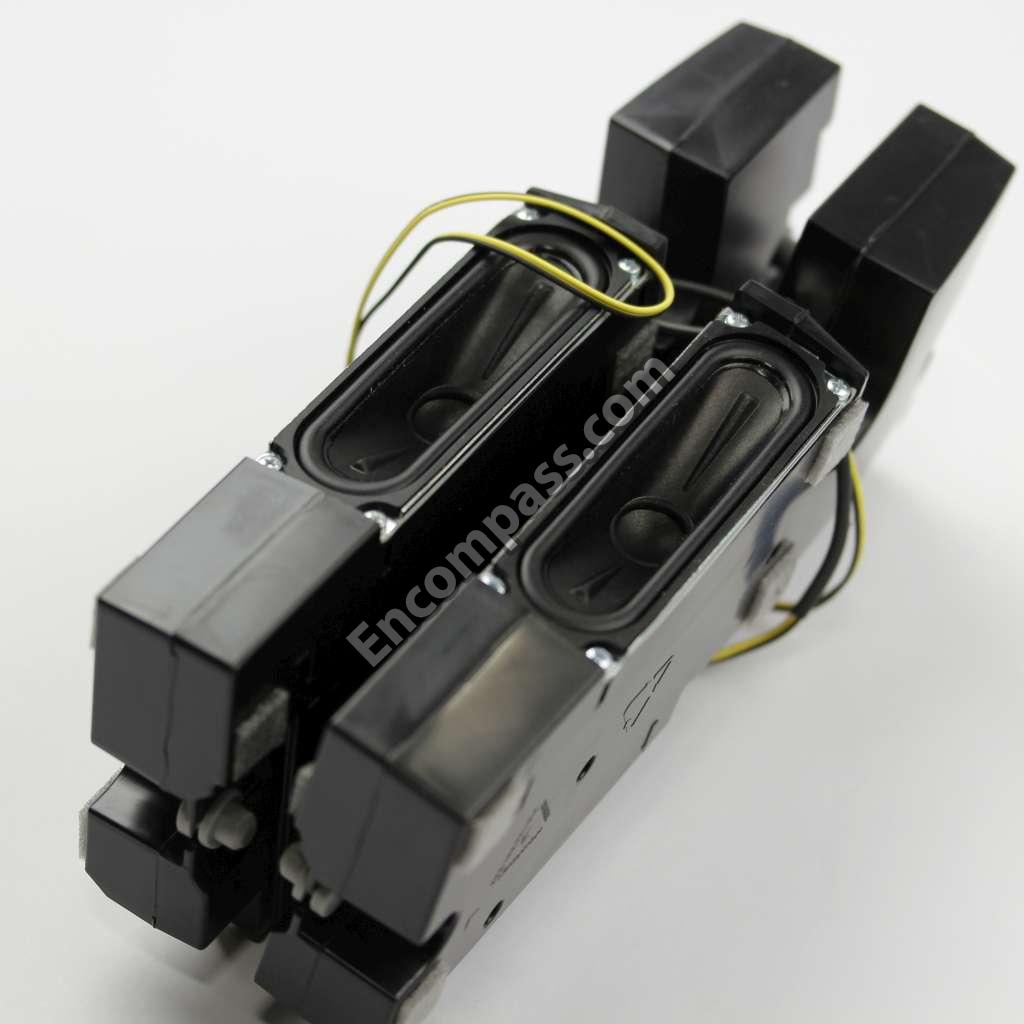

SPEAKER 6 OHM 10 WATT |
|
|
STAND BASE;UF6K 60,ABS,HB,SILVER, |
|
|
T-CON PCB;LQ600D3HD6K,SHARP 60F120HZ |
|
|
TUNER;DTVS20EIH276A,DTVS20EIH276A,ATSC H |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1.6X0.8X0.9MM,TP,2 |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
|
|
WIFI MODULE PCB;WIDT-30Q,INTERNAL WI |
