Model Image
Manufacturer

Samsung

Model Number

UN65JS9000F

Description

65-inch Class Js9000 9-series Curved 4k Suhd Smart

Interactive Exploded View
Exploded View

Parts List

Part Number Description
BN96-35811B ASSY BLU P-DECO;JQ9000,M15-JQ9000,L121.2
BN96-35345J ASSY BOARD P-FUNCTION JOG;JS9000,CT15SE7

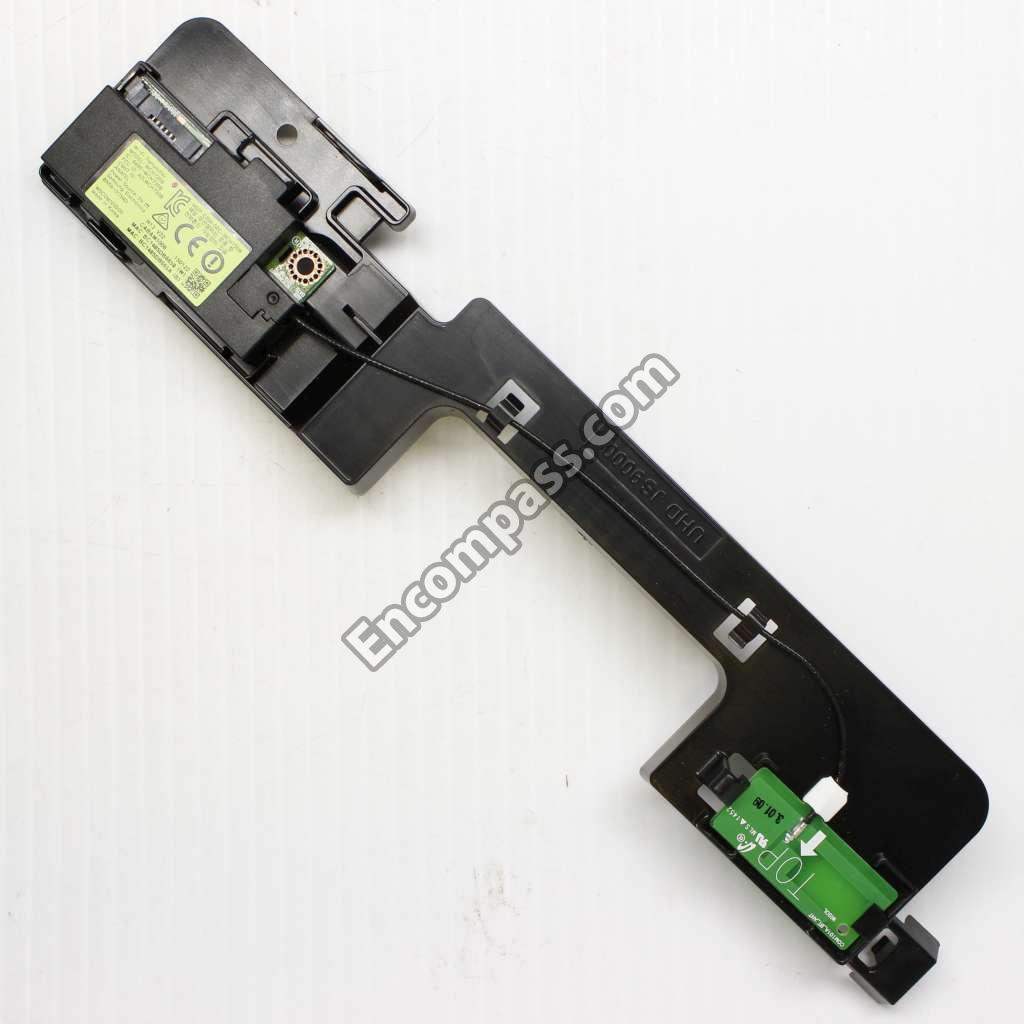

BN96-35851A BN96-35851A ASSY BOARD P-IR FUNCTION;JQ9000,CT20SE40
BN96-35586A ASSY COVER P-BOTTOM;JQ9000 65,PC+ABS,V0,
BN96-35582B ASSY COVER P-USB;JS9K 65'',PC+ABS+GF15%,
BN96-34776A ASSY LED BAR P;65"_N9K_A_SDC,ALUMINUM,52
BN96-34777A ASSY LED BAR P;65"_N9K_B_SDC,ALUMINUM,52
BN96-34892A ASSY OPEN CELL;LSF650FJ08-K,16:9,NTV CUR

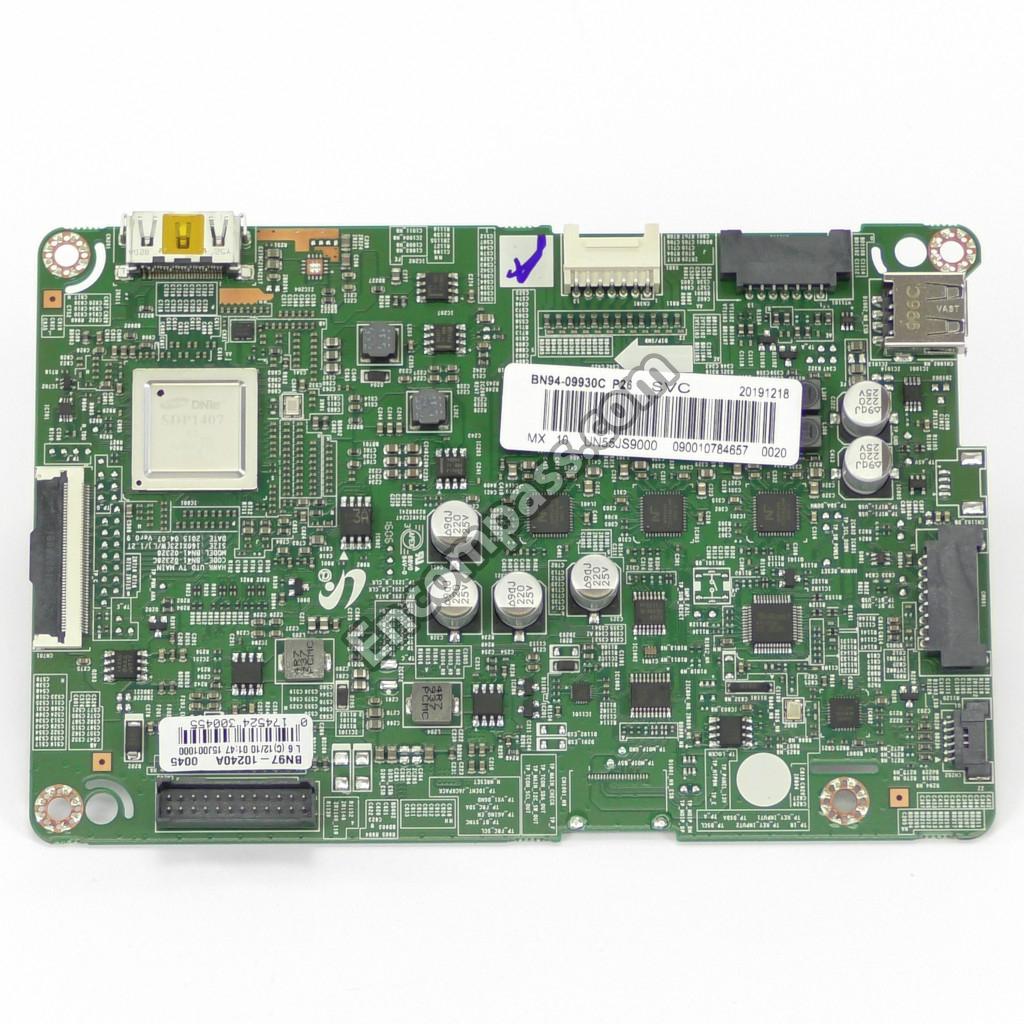

BN94-09930C BN94-09930C ASSY PCB MAIN;UJ9

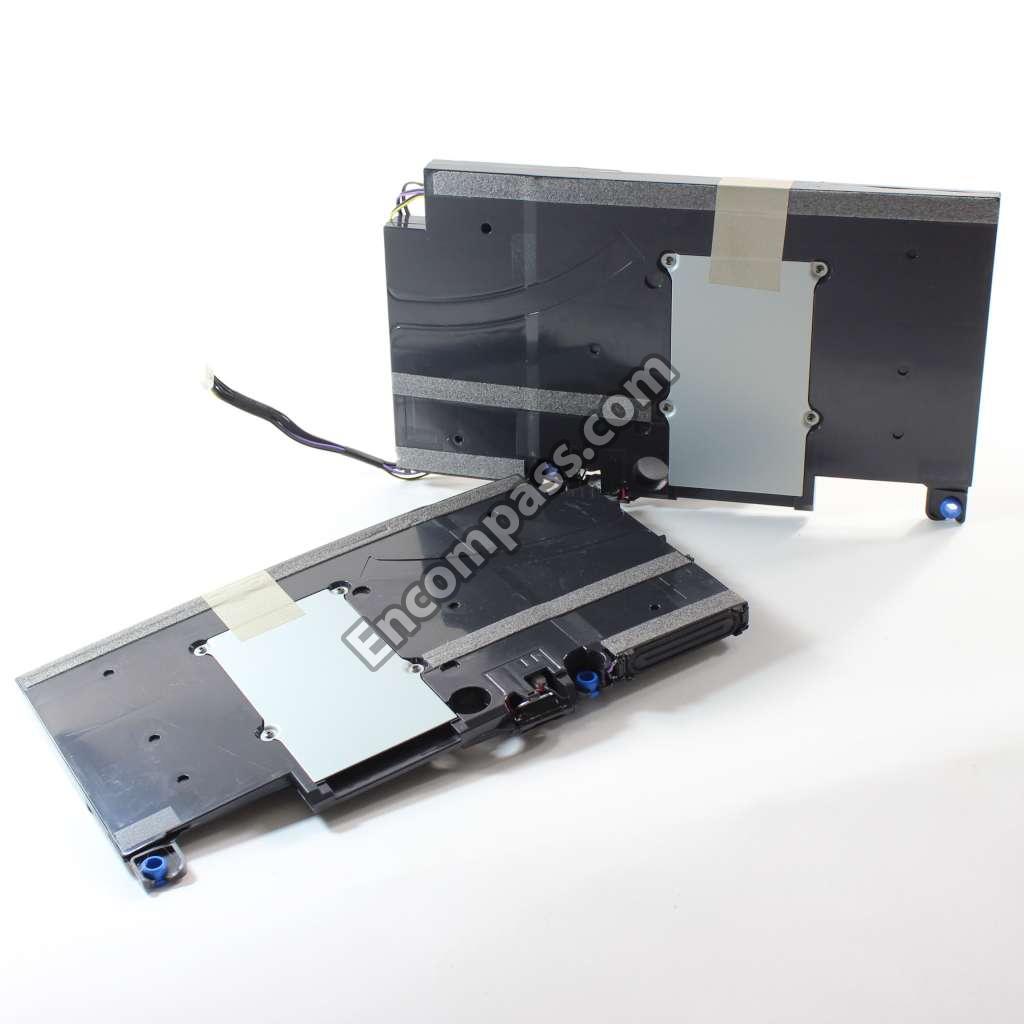

BN96-34996B BN96-34996B ASSY SPEAKER P-FRONT;TV-SPK,JS9000,6OHM,
BN95-02061A BN95-02061A ASSY T CON;LSF650FJ08-K,65U120HZ N9000
3301-000314 BEAD-SMD;120OHM,1608,TP,120OHM/100MHZ
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP
BN61-08936A BRACKET-WALL;SECC,T2,BLACK
2402-001401 C-AL,SMD;220UF,20%,25V,HR,TP,8X10MM
2203-003039 C-CER,CHIP;0.008NF,0.25PF,50V,C0G,TP,100
2203-000627 C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005
2203-001697 C-CER,CHIP;0.082NF,5%,50V,NP0,TP,1608
2203-001124 C-CER,CHIP;0.68NF,10%,50V,X7R,TP,1005
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0
2203-007176 C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,1
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1
2203-007193 C-CER,CHIP;10000NF,10%,6.3V,X7R,TP,2012
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0.
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0.
2203-006399 C-CER,CHIP;1000NF,10%,6.3V,X5R,TP,1005
2203-005918 C-CER,CHIP;1000NF,10%,6.3V,X7R,TP,1608
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-005005 C-CER,CHIP;100NF,10%,16V,X7R,TP,1608
2203-002711 C-CER,CHIP;100NF,10%,25V,X7R,TP,1608
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,0.5
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-005221 C-CER,CHIP;15NF,10%,50V,X7R,TP,1608
2203-000491 C-CER,CHIP;2.2NF,10%,50V,X7R,TP,1608
2203-005083 C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,0.8
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T
2203-002398 C-CER,CHIP;22NF,10%,50V,X7R,TP,1608
2203-000715 C-CER,CHIP;3.3NF,10%,50V,X7R,TP,1608
2203-000726 C-CER,CHIP;3.9NF,10%,50V,X7R,TP,1608
2203-001634 C-CER,CHIP;33NF,10%,50V,X7R,TP,1608
2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5
2203-006844 C-CER,CHIP;470NF,10%,10V,X5R,TP,1005
2203-006741 C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,0.8
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005
2503-001051 C-NETWORK;100NFX4,20%,16V,2012
2409-001338 C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6
3701-001861 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-007741 CONNECTOR-HEADER;BOX,14P,2R,2.0MM,ANGLE,
3711-007839 CONNECTOR-HEADER;BOX,15P,1R,1.25MM,SMD-A
3711-007346 CONNECTOR-HEADER;BOX,18P,1R,0.6MM,SMD-A,
3707-001104 CONNECTOR-OPTICAL;ANGLE,SPDIF
2801-000102 CRYSTAL-SMD;12MHZ,30PPM,12PF,100OHM,TP
2801-005419 CRYSTAL-SMD;156.25MHZ,50PPM,SMD,2PF,50OH
2801-005372 CRYSTAL-SMD;24.576MHZ,20PPM,HCX-3SB,12 P
2801-004938 CRYSTAL-SMD;24MHZ,20PPM,SMD,12PF,60OHM,H
2801-004813 CRYSTAL-SMD;24MHZ,50PPM,8PF,100OHM,TP
2801-004814 CRYSTAL-SMD;25MHZ,50PPM,8PF,100OHM,TP
2801-003954 CRYSTAL-SMD;27MHZ,30PPM,28-AAN,16PF,50OH
2801-005324 CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN

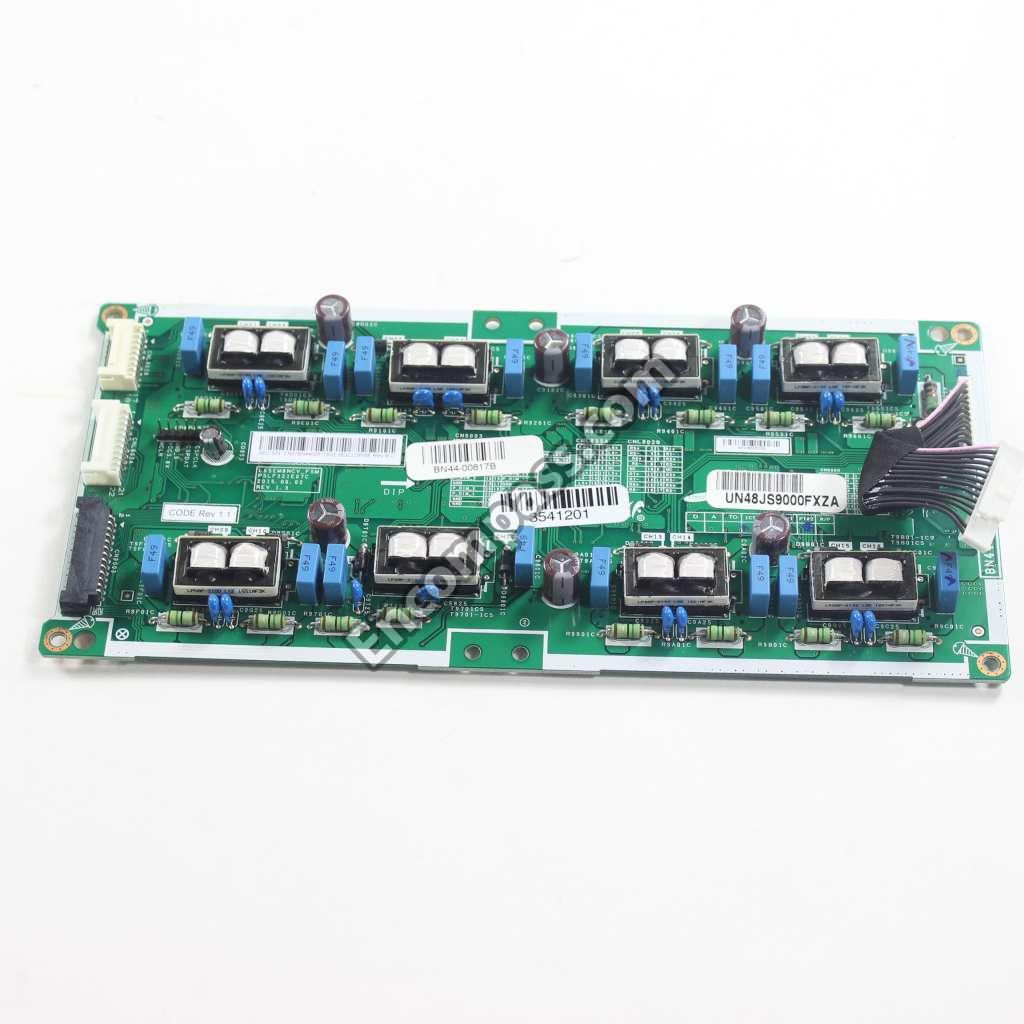

BN44-00817B BN44-00817B DC VSS-PD BOARD;L65EM8NCV_FSM,AC/DC,318W

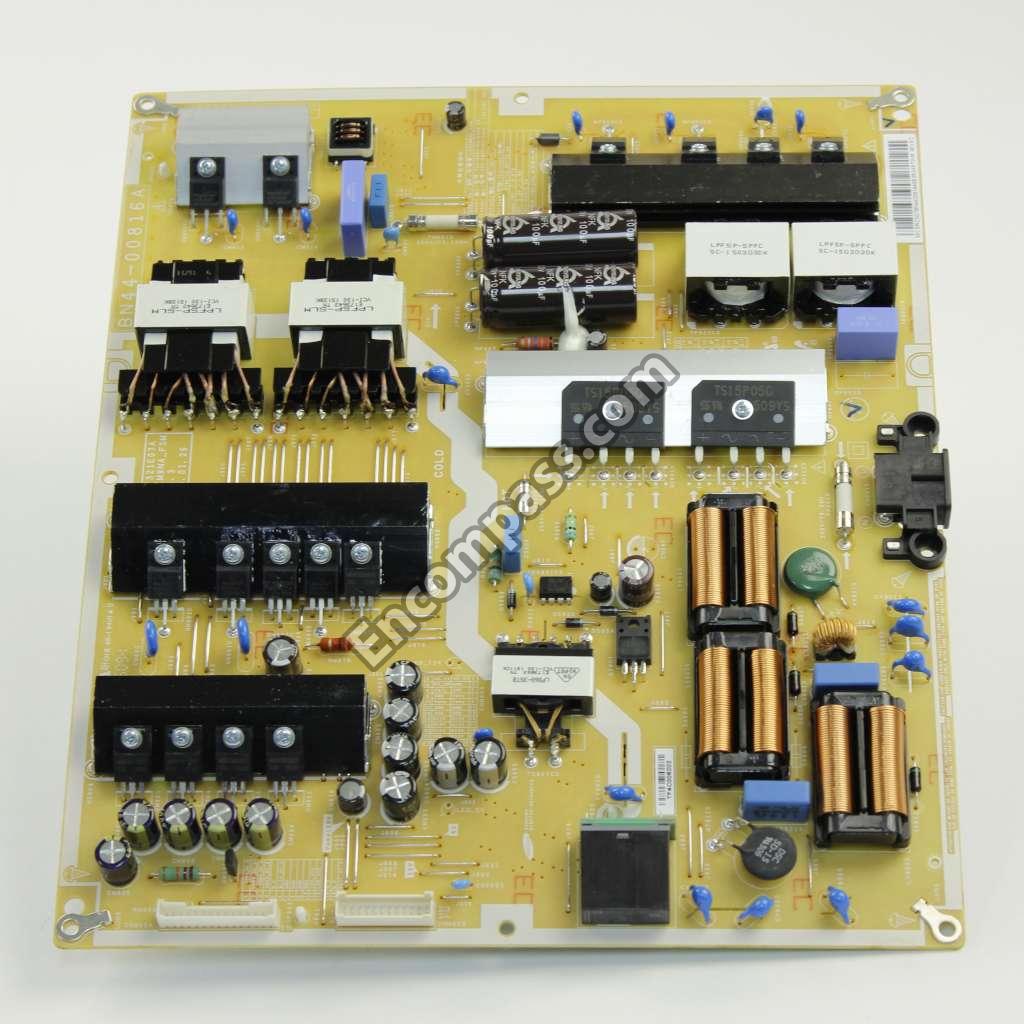

BN44-00816A BN44-00816A DC VSS-POWER BOARD;L65EM8NA_FSM,AC/DC,31
0404-001643 DIODE-SCHOTTKY;B360A,60V,3000MA,SMA,TP
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001382 DIODE-SCHOTTKY;CRS06,20V,1000MA,3-2A1A,T
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000MA,SOD-
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001691 DIODE-TVS;SESD8008MUTAG,5.5V,7V,8.5V,0.5
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0406-001689 DIODE-TVS;SMH14A,15.6V,17.9V,1MAV,40A,TP
0403-001552 DIODE-ZENER;DDZ16,15.69~16.51V,500MW,SOD
0403-001831 DIODE-ZENER;KDZ12B,12~13.5V,1000MW,SOD-1
0403-001164 DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S
0403-001779 DIODE-ZENER;MMSZ5234BT1G,5.89~6.51V,500M
BN31-00041A BN31-00041A FAN-DC;KDB04112HBX0C,JS9500,PLASTIC,80MM
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-003224 FET-SILICON;AO6405,P,30V,-5A,0.052OHM,2W
0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH
0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4
BN96-35462V BN96-35462V FFC CABLE;65JS9000,FOLD,L400,51P
3601-001061 3601-001061 FUSE-SURFACE MOUNT;125V,10A,FAST-ACTING,
3601-001829 FUSE-SURFACE MOUNT;24V,6A,FAST-ACTING,AD
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI

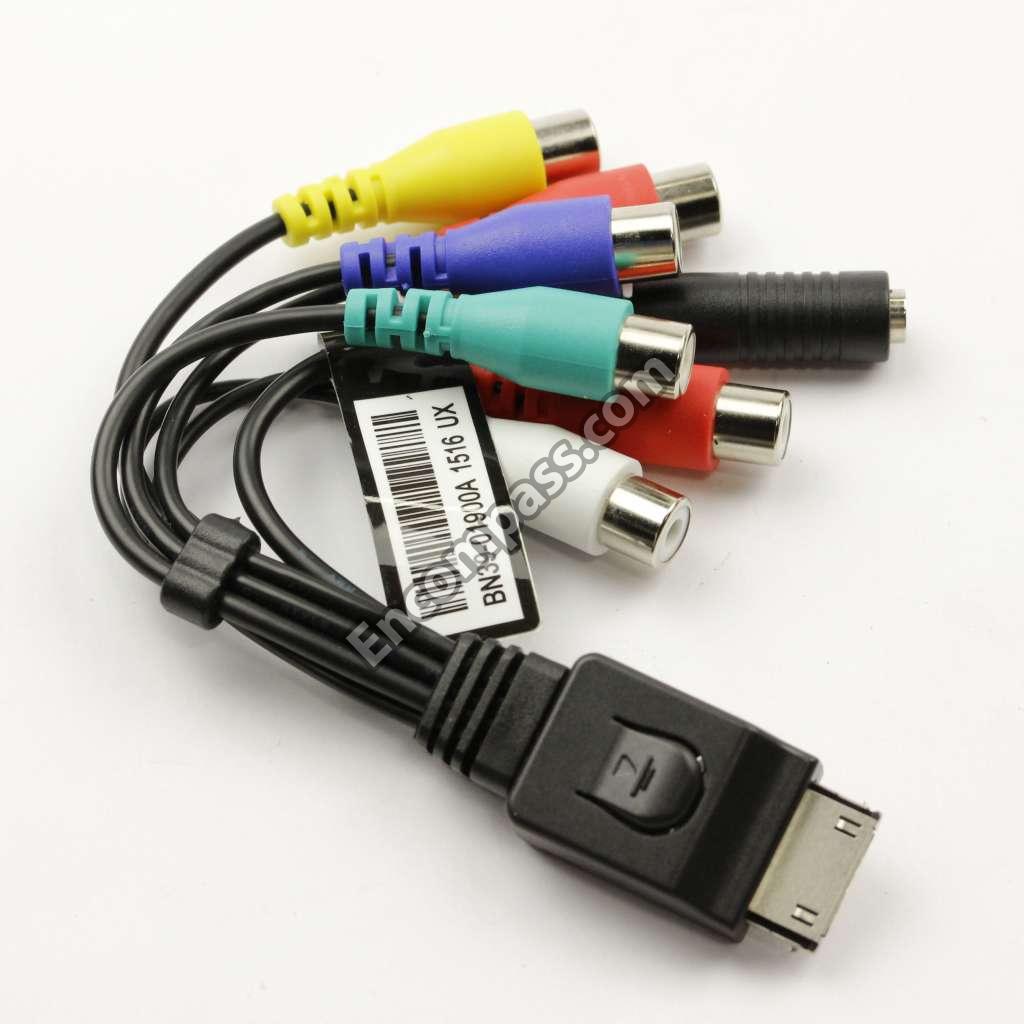

BN39-01900A BN39-01900A GENDER CABLE;UN55HU9000FXZA,7P,L150,UL27
3711-008488 HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG
3711-008659 HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG
3711-008101 HEADER-BOARD TO CABLE;BOX,4P,1R,1.25MM,S
3711-007838 HEADER-BOARD TO CABLE;BOX,6P,1R,1.25MM,S
BN62-00574A HEAT SINK-ES;F7000,A6063,W28,L14,BLACK,T
BN61-09494D BN61-09494D HOLDER-BOLT;KU6500,SWRCH18A,ZPC(BLK),PRE
BN61-10572A HOLDER-WALL RING;HU9000 78",ABS,MOLD,BLA
1001-001686 IC-ANALOG MULTIPLEX;74LV4052,CMOS,TTSOP,
1201-003891 IC-AUDIO AMP;NTP7415,MLF,48P,7X7MM,DUAL,
0801-003408 IC-CMOS LOGIC;74AUP1G32GW,2 INPUT OR GAT
0801-003424 IC-CMOS LOGIC;74VHCV541,OCTAL SCHMITT BU
0801-002628 IC-CMOS LOGIC;7SZ08,2-INPUT AND GATE,SC-
0801-003292 IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P
0801-003580 IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3
1002-001749 IC-D/A CONVERTER;PCM5101A,24,TSSOP,20P,6
1203-008391 IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L,
1203-008118 IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96
1203-007695 IC-DC/DC CONVERTER;AOZ3018,SO-8,8,4.96X3
1203-007694 IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8,5
1203-007987 IC-DC/DC CONVERTER;TPS56520PWPR,HTSSOP,2
1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89
1203-007986 IC-DC/DC CONVERTER;TPS56720PWPR,HTSSOP,2
1203-006341 IC-DC/DC CONVERTER;TPS63020,SON-14,14,4X
1105-002528 IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866,
1006-001576 IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16
1006-001509 IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20
1103-001564 IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8,
1107-002362 IC-EMMC;KLM8G1GEND-B031,8GB,64GB MLC X 1
1205-004385 IC-ETHERNET CONTROLLER;RTL8201F-VB-CGT,Q
0903-002079 IC-MICROCONTROLLER;61P809-RG48AWT,LQFP,9
1107-002265 IC-NOR FLASH;W25Q32FVSSIG,32MBIT,SOP,8P,
1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1203-008112 IC-POSI.ADJUST REG.;AOZ2002PI,SO-8,8,4.9
1203-008471 IC-POSI.ADJUST REG.;AP2204K-ADJTRG1-89,S
1203-007242 IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8,7
1203-007757 IC-POSI.ADJUST REG.;TPS7A7001DDAR,SOIC-8
1203-006118 IC-POSI.FIXED REG.;S-1172B18-U5T1G,SOT-8
1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8
1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2
1203-006330 IC-POWER SUPERVISOR;TPS2065DBV,SOT-23,5P
1209-002183 1209-002183 IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1
1205-004983 IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0X4.
1205-004692 IC-SWITCH;TPS2069CDBVR,SOT-23,5P,5.0X3.1
1205-004822 IC-SWITCH;TPS22965DSGR,SON,8P,2X2X0.75MM
0904-002882 IC-USC;GL852G-OHY38,QFN,28P,5X5MM,12MHZ,
1204-003582 IC-VIDEO PROCESS;SDP-1408,FCPBGAH,849P,2
1204-003583 IC-VIDEO PROCESS;SDP1404,FCPBGA,1351P,35
1204-003579 IC-VIDEO PROCESS;SDP1407,FCLBGA,510P,21X
1204-003617 IC-VIDEO PROCESS;SDP1409.3,FCBGA,1023P,3
1001-001934 IC-VIDEO SWITCH;SII9777,LQFP,208P,28X28M
1203-007728 IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L
2703-005191 INDUCTOR-SMD;1.5UH,20%,4.5,0.02OHM,5300M
2703-003713 INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-000158 INDUCTOR-SMD;1UH,10%,0.4OHM,50MA,45,MULT
2703-003937 INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00
2703-005193 INDUCTOR-SMD;2.2UH,20%,4.5,0.024OHM,5100
2703-004589 INDUCTOR-SMD;2.2UH,20%,5050,2T,0.048OHM,
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-005194 INDUCTOR-SMD;3.3UH,20%,4.5,0.03OHM,4500M
2703-004847 INDUCTOR-SMD;4.7UH,20%,3838,1.8T,0.075OH
2703-005192 INDUCTOR-SMD;4.7UH,20%,4.5,0.036OHM,4200
2703-004724 INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M
3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1
3722-003813 JACK-PHONE;1P/7C,NI/SN,BLK,ANGLE,3.6PI,1
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
3722-003837 JACK-USB;9P/1C,AU/NI,BLU,SMD-A,A,3.0,13.
BN39-02009A LEAD CONNECTOR-DIMMING;55JQ9000,UL21016,
BN39-02010B LEAD CONNECTOR-POWER;55JS9000,UL21016,24
BN39-02007A LEAD CONNECTOR-SUB ASSY;65JQ9000,UL21016
BN39-02011B LEAD CONNECTOR-SUB ASSY;78JQ9500,UL21451
BN59-01194D BN59-01194D NETWORK-WLAN CLIENT;WCH730B,58X31.45X8.5

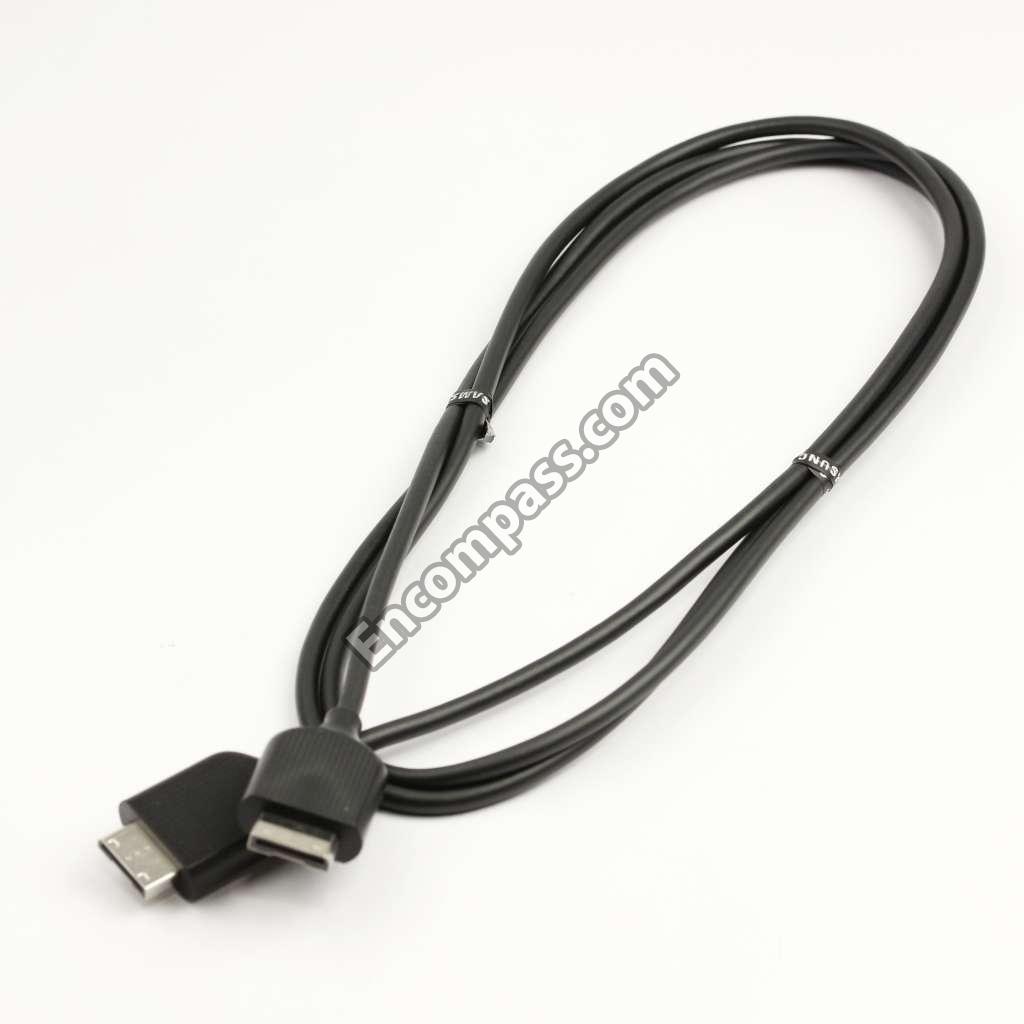

BN39-02016A BN39-02016A ONECONNECT CABLE;OCC,34P,L2000,UL20276,B
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-008779 R-CHIP;0OHM,1%,1/16W,TP,1005
2007-008199 R-CHIP;1.18KOHM,1%,1/10W,TP,1608
2007-000219 R-CHIP;1.2KOHM,1%,1/10W,TP,1608
2007-000239 R-CHIP;1.5KOHM,1%,1/10W,TP,1608
2007-000256 R-CHIP;1.6KOHM,1%,1/10W,TP,1608
2007-000060 R-CHIP;100KOHM,1%,1/10W,TP,1608
2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608
2007-000074 R-CHIP;100OHM,5%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-008332 R-CHIP;11.5KOHM,1%,1/16W,TP,1005
2007-000336 R-CHIP;120KOHM,1%,1/10W,TP,1608
2007-007768 R-CHIP;13KOHM,1%,1/10W,TP,1608
2007-007566 R-CHIP;14.7KOHM,1%,1/16W,TP,1005
2007-000040 R-CHIP;150OHM,1%,1/10W,TP,1608
2007-000067 R-CHIP;15KOHM,1%,1/10W,TP,1608
2007-000455 R-CHIP;18KOHM,1%,1/10W,TP,1608
2007-000078 R-CHIP;1KOHM,5%,1/10W,TP,1608
2007-007942 R-CHIP;1MOHM,1%,1/16W,TP,1005
2007-000109 R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-003015 R-CHIP;2.2OHM,5%,1/16W,TP,1005
2007-007617 R-CHIP;2.49KOHM,1%,1/10W,TP,1608
2007-000516 R-CHIP;2.7KOHM,1%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-008649 R-CHIP;220OHM,1%,1/16W,TP,1005
2007-008517 R-CHIP;240KOHM,1%,1/16W,TP,1005
2007-000614 R-CHIP;24KOHM,1%,1/10W,TP,1608
2007-000651 R-CHIP;27KOHM,1%,1/10W,TP,1608
2007-002437 R-CHIP;2OHM,5%,1/10W,TP,1608
2007-000683 R-CHIP;3.3KOHM,1%,1/10W,TP,1608
2007-000695 R-CHIP;3.3OHM,5%,1/10W,TP,1608
2007-007525 R-CHIP;3.4KOHM,1%,1/10W,TP,1608
2007-000708 R-CHIP;3.9KOHM,1%,1/10W,TP,1608
2007-007720 R-CHIP;300KOHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005
2007-000803 R-CHIP;36KOHM,1%,1/10W,TP,1608
2007-000828 R-CHIP;39KOHM,1%,1/10W,TP,1608
2007-000857 R-CHIP;4.3KOHM,1%,1/10W,TP,1608
2007-000869 R-CHIP;4.7KOHM,1%,1/10W,TP,1608
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-009777 R-CHIP;4.99KOHM,1%,1/16W,TP,1005
2007-010406 R-CHIP;412KOHM,1%,1/16W,TP,1005
2007-007797 R-CHIP;44.2OHM,1%,1/10W,TP,1608
2007-000939 R-CHIP;47KOHM,1%,1/10W,TP,1608
2007-008429 R-CHIP;499OHM,1%,1/16W,TP,1005
2007-000962 R-CHIP;5.1KOHM,1%,1/10W,TP,1608
2007-000999 R-CHIP;510OHM,1%,1/10W,TP,1608
2007-008269 R-CHIP;51KOHM,1%,1/16W,TP,1005
2007-007733 R-CHIP;51OHM,1%,1/10W,TP,1608
2007-008133 R-CHIP;56.2KOHM,1%,1/10W,TP,1608
2007-008391 R-CHIP;6.34KOHM,1%,1/16W,TP,1005
2007-001116 R-CHIP;680OHM,1%,1/10W,TP,1608
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-001139 R-CHIP;7.5KOHM,1%,1/10W,TP,1608
2007-001153 R-CHIP;750OHM,1%,1/10W,TP,1608
2007-008593 R-CHIP;750OHM,1%,1/16W,TP,1005
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005
2007-007651 R-CHIP;9.1KOHM,1%,1/10W,TP,1608
2007-001237 R-CHIP;910OHM,1%,1/10W,TP,1608
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001506 R-NETWORK;10KOHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
2011-001449 R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0
2011-001527 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,4P,TP,
2011-001396 R-NETWORK;4.7KOHM,5%,1/16W,L,CHIP,8P,TP,
2011-001497 R-NETWORK;470OHM,5%,1/16W,L,CHIP,4P,TP,1
BN59-01220A BN59-01220A REMOTE
BN39-00941A RF CABLE;39DN,MALE,DIN,26AWG,1500MM,75OH
6001-003075 6001-003075 SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1
6001-002755 6001-002755 SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1
6001-002759 6001-002759 SCREW-MACHINE;CH,M3,L4,ZPC(BLK),SWRCH1
6001-003016 6001-003016 SCREW-MACHINE;PWH,M3.0,L5.0,ZPC(WHT),S
6002-001619 SCREW-TAPPING;BH,S TYPE,M3,L5,ZPC(WHT)
6003-001086 6003-001086 SCREW-TAPTYPE;BH,B,M3,L12,ZPC(BLK),S
6003-001206 6003-001206 SCREW-TAPTYPE;BH,B,M3,L4,BLK,SWRCH18A
6003-000115 6003-000115 SCREW-TAPTYPE;BH,B,M3,L6,ZPC(BLK),SWRC
6003-000282 6003-000282 SCREW-TAPTYPE;BH,B,M3,L8,ZPC(BLK),SW
6003-000003 SCREW-TAPTYPE;BH,B,M4,L10,ZPC(BLK),S
6003-001494 6003-001494 SCREW-TAPTYPE;BH,S,M4,L12,NI PLT,SWRCH
6003-001208 6003-001208 SCREW-TAPTYPE;BH,S,M4,L12,ZPC(BLK),SWR
3710-003900 SOCKET-INTERFACE;34P,2R,0.5MM,SMD-A,AU,B
3710-003901 SOCKET-INTERFACE;34P,2R,0.5MM,SMD-A,AU,B
0504-000126 TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S
0502-001346 TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/
0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59
0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150MW,SOT-
0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2
BN40-00320A TUNER-DTV AIR CABLE;GT2CX-5C61,DVB-T2C,5
1405-001381 VARISTOR;11V,8VDC,30A,1.6X0.8MM,TP,25V,5
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V,
Main Menu x
