Manufacturer
Samsung
Model Number
UN75H6300AFXZA
Description
75-inch Led H6300 Series Smart Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

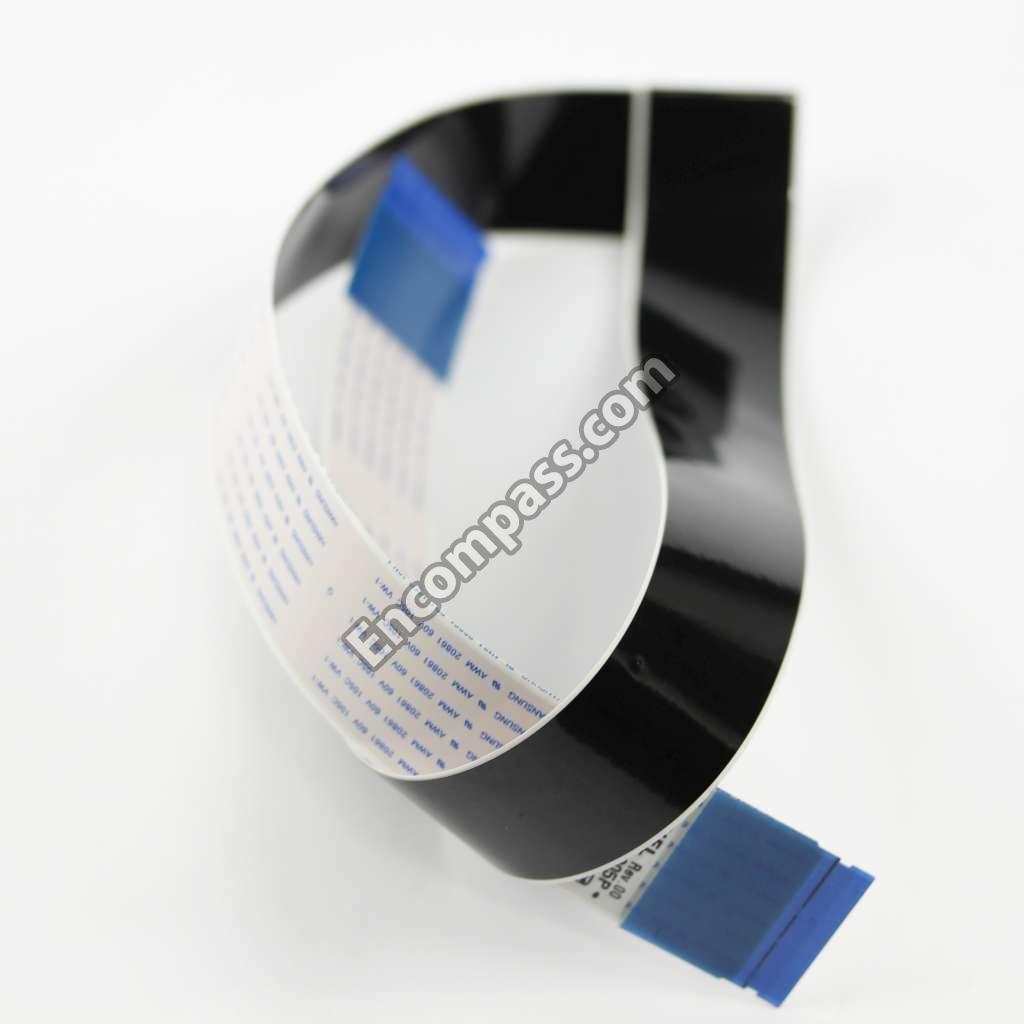

ASSY CABLE P-FFC;UN75H6350AFXZA,FFC,NH,6 |
| BN96-30769A | ASSY CHASSIS TOP P;Y14 VNB 75 6.3K |
| BN96-32394A | ASSY COVER P-MIDDLE;UH6300,75",MPPE,V1 |
| BN96-32115A | ASSY COVER P-REAR;H6300,75,PCM,T0.4,MAST |
| BN95-01462B | ASSY DECORATION SMT;UH6300,75,DARK TITAN |
|
|
ASSY HOLDER P-RING;11 LED-TV |
| 3708-003043 | CONNECTOR-FPC/FFC/PIC;80P,0.5MM,SMD-A+DI |
| 3701-001856 | CONNECTOR-HDMI;19P,FEMALE,AU,0.5MM,BLK,S |
| 3701-001861 | CONNECTOR-HDMI;19P,FEMALE,AU,0.5MM,BLK,S |
| 3707-001106 | CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF |
| 2801-003326 | CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
|
|

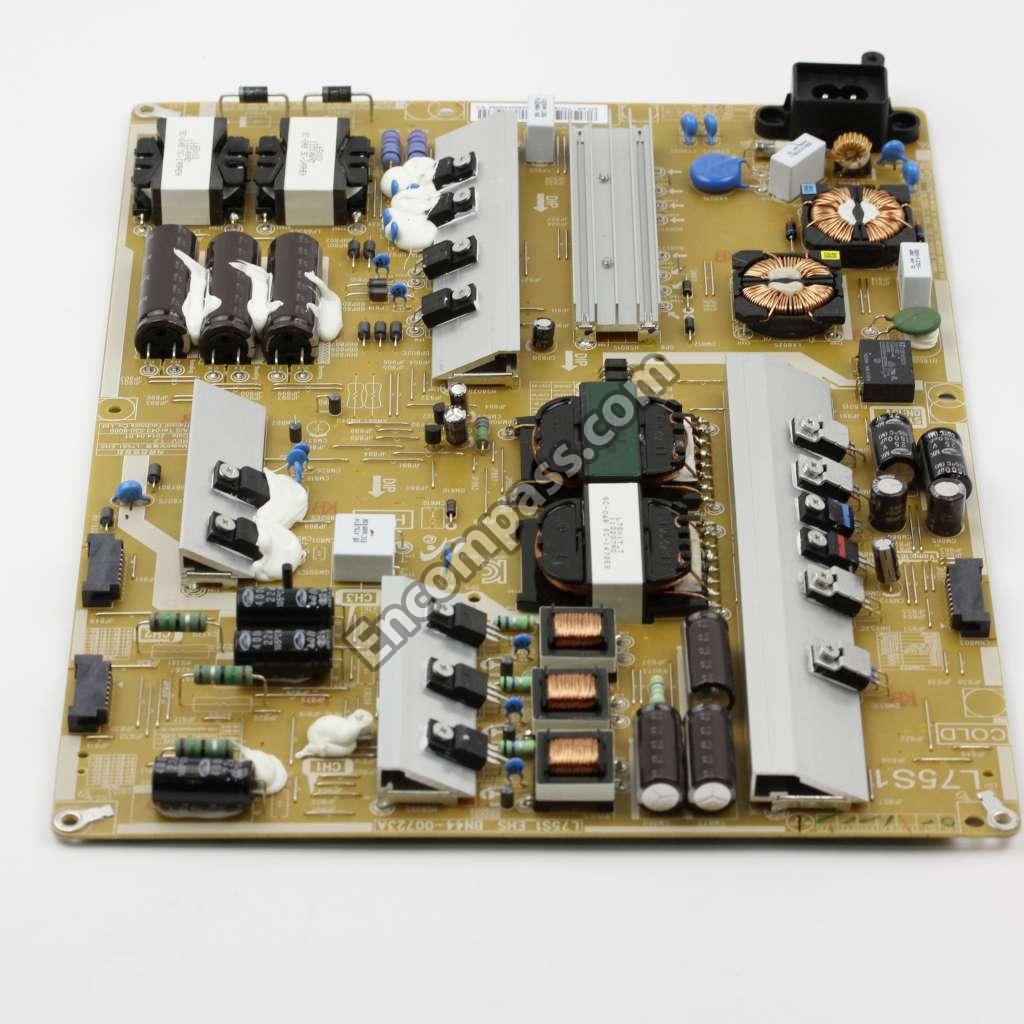

DC POWER SUPPLY-LED TV PD BD;L75S1_EHS,L75S1_EHS, |
|
|

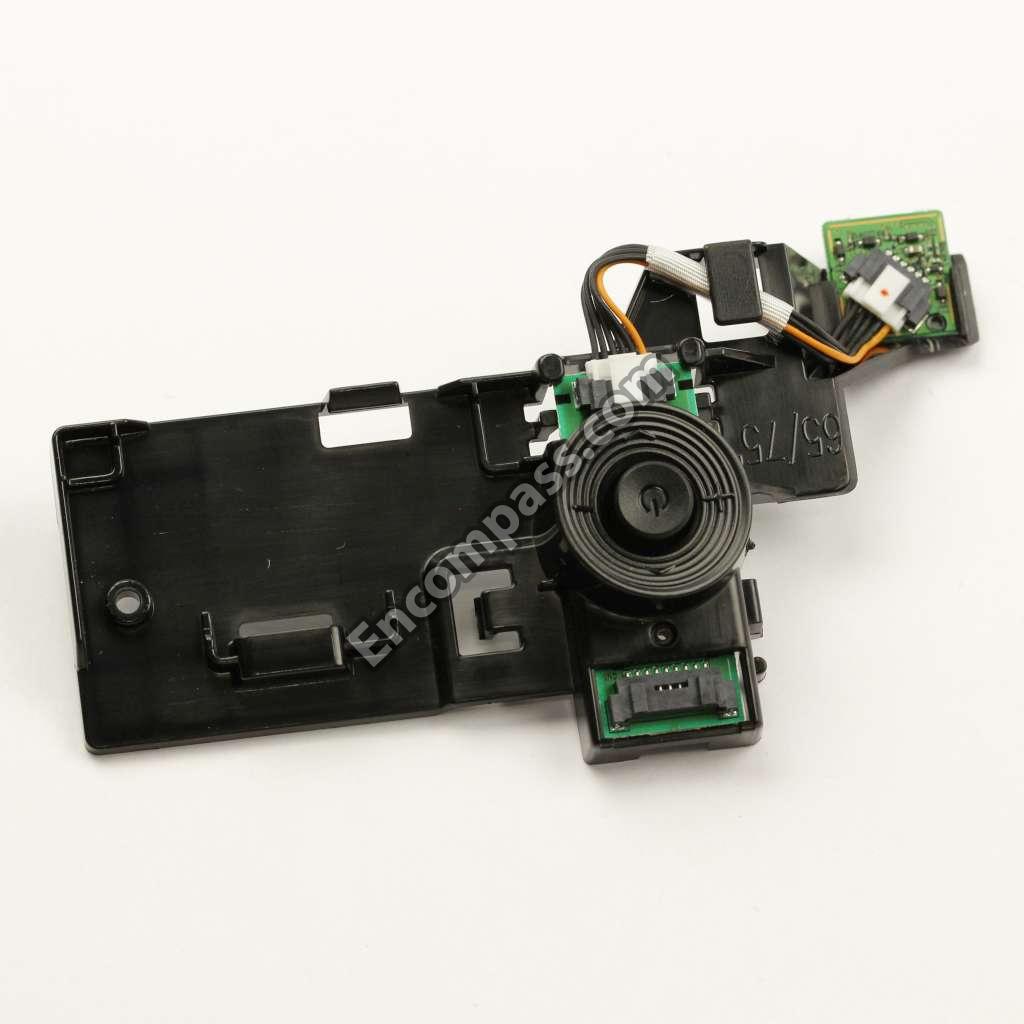

FUNCTION BOARD PCB;UH6500,FUNCTI |
| 3711-008453 | HEADER-BOARD TO CABLE;BOX,18P,2R,2MM,ANG |
|
|
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25MM, |
| 3711-008131 | HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN |
| 3711-005601 | HEADER-BOARD TO CABLE;BOX,8P,1R,2MM,SMD- |
| BN62-00574A | HEAT SINK-ES;F7000,A6063,ANODIZING,28*14 |
| AA61-20285C | HOLDER-BOX;CORAL,PP,BLACK,HB,17.5G |
|
|
HOLDER-WIRE STAND;26UE4000 GUIDE STAND,N |
| 1201-003671 | IC-AUDIO AMP;NTP7414,MLF,48P,7X7MM,DUAL, |
| 1203-007984 | IC-DC/DC CONVERTER;AOZ3015PI,SO-8,8P,6.2 |
| 1203-008183 | IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
| 1203-007694 | IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8Z3 |
| 1203-007552 | IC-DC/DC CONVERTER;TPS56921PWPR,HTSSOP,2 |
| 1105-002227 | IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM |
| 1105-002534 | IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002290 | IC-EMMC;MTFC4GMCAM-1M WT,4GBYTE,BGA,153P |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1204-003486 | IC-VIDEO PROCESS;SDP1306,HSFCBGA,888P,27 |
|
|
IR BLASTER CABLE ,UL1185 28AWG,2.5 |
| 3722-003229 | JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,AU,1 |
| 3722-003617 | JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI, |
| 3722-003439 | JACK-PHONE;4P/1C,SN,BLK,STRAIGHT,3.5PI,1 |
|
|
JACK-PIN;5P+SCREW HOLE,NI+SN,G,Y/BLU/RED |
|
|
JACK-USB;4P/1C,NI,BLK,A |
|
|
LCD DISPLAY-AMLCD;LSF750HL03-G,CY-GH075C |
|
|

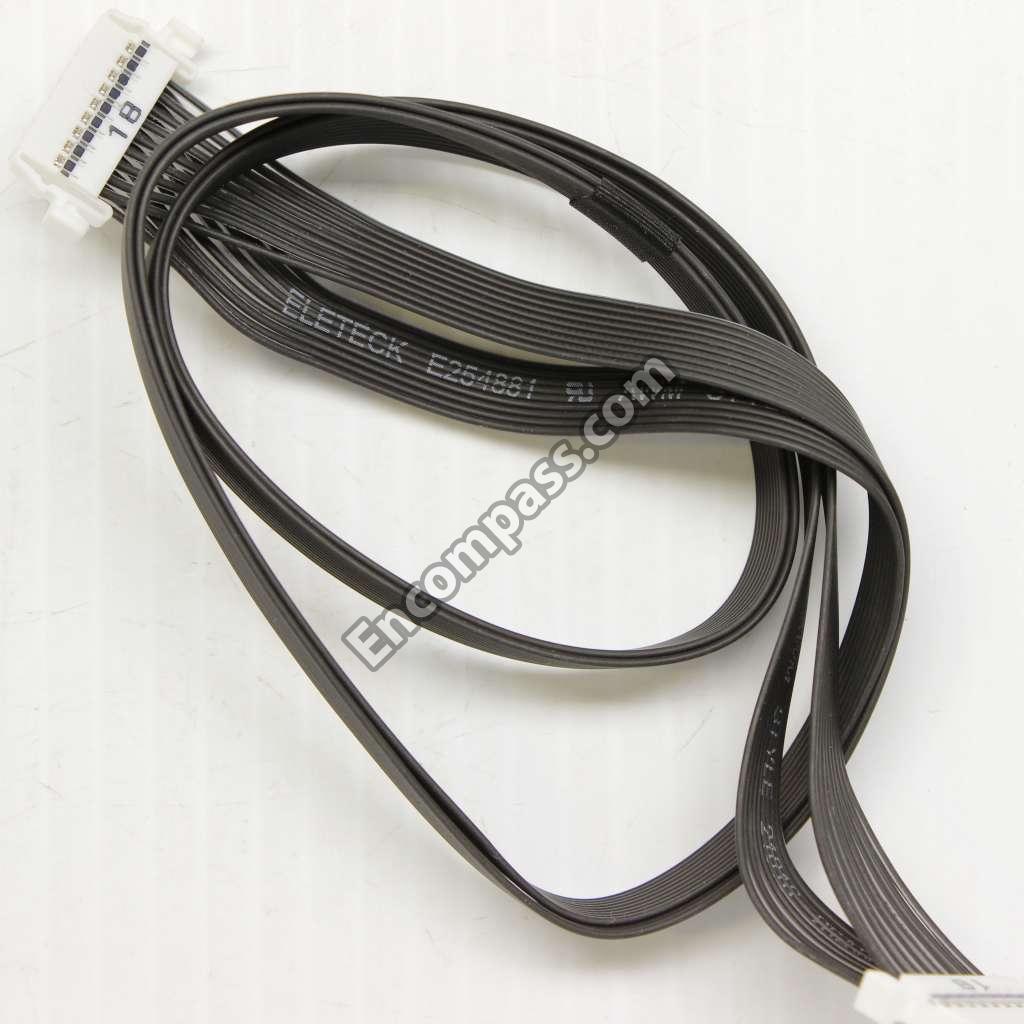

LEAD CONNECTOR-FUNCTION;UH6300 75",LEAD |
|
|

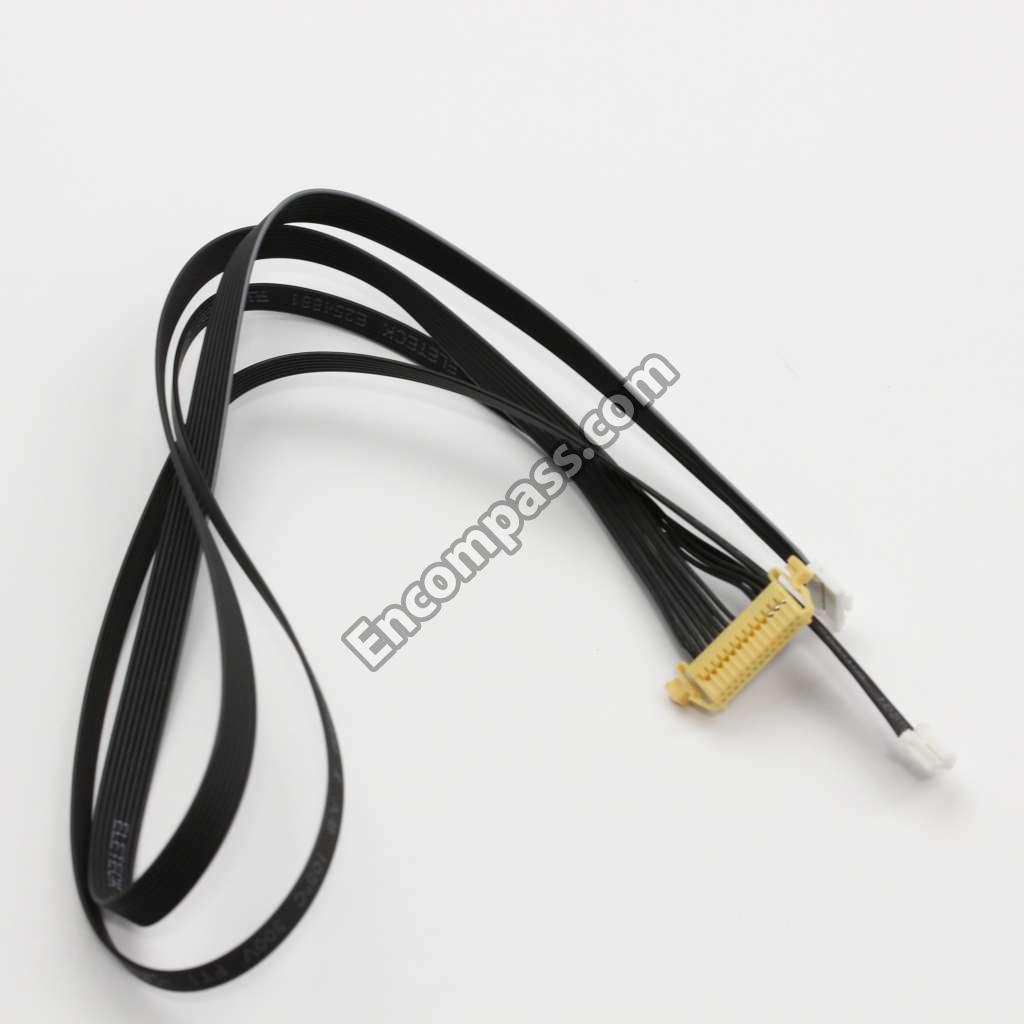

LEAD CONNECTOR;UN60/65H6400AFXZA,FLAT CO |
|
|

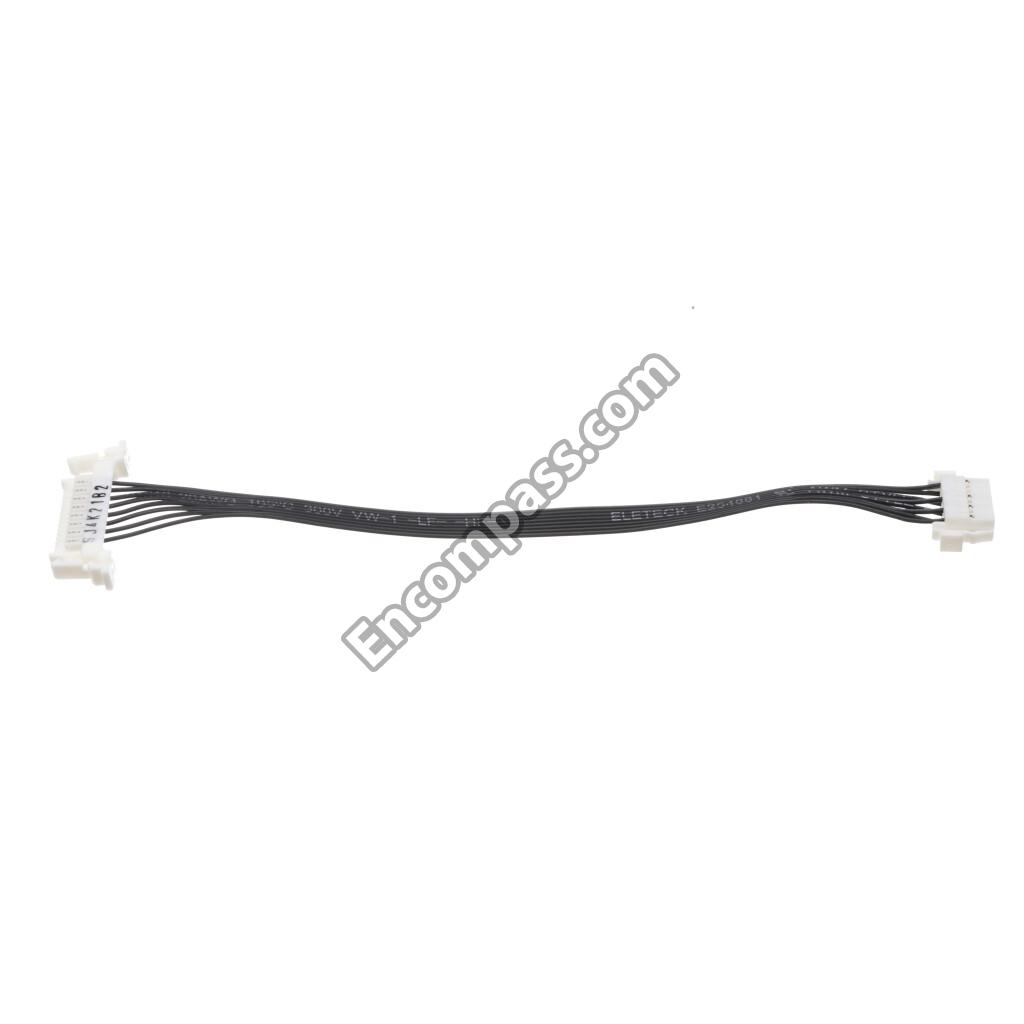

LEAD CONNECTOR;UN75H6350AFXZA,FLAT CONNE |
|
|

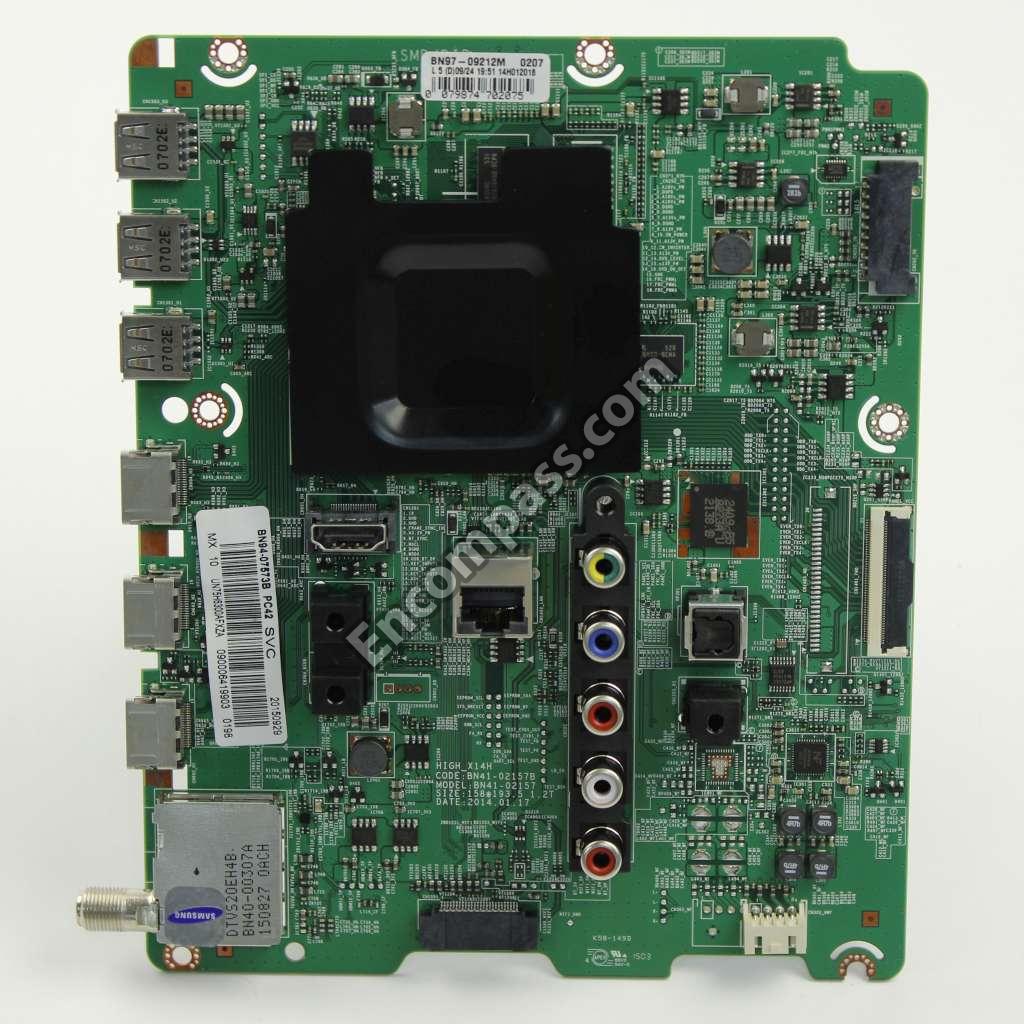

MAIN BOARD PCB;UN75H6300AFXZA |
|
|
POWER CORD ;DT,UL/CSA,LP-11L,125V,7A, |
| 2007-008779 | R-CHIP;0OHM,1%,1/16W,TP,1005 |
|
|
REMOTE CONTROL;TM1260C,52,3.0V,TM1260C_AMERICA_ |
| BN61-09175B | SCREW-MACHINE;BH,+,M3,L10,ZPC(WHT),SWRCH |
|
|
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 |
| 6001-003083 | SCREW-MACHINE;CH,+,M3,L8,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH |
|
|
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
|
|
SPEAKER 6 OHM 15 WATT |
|
|

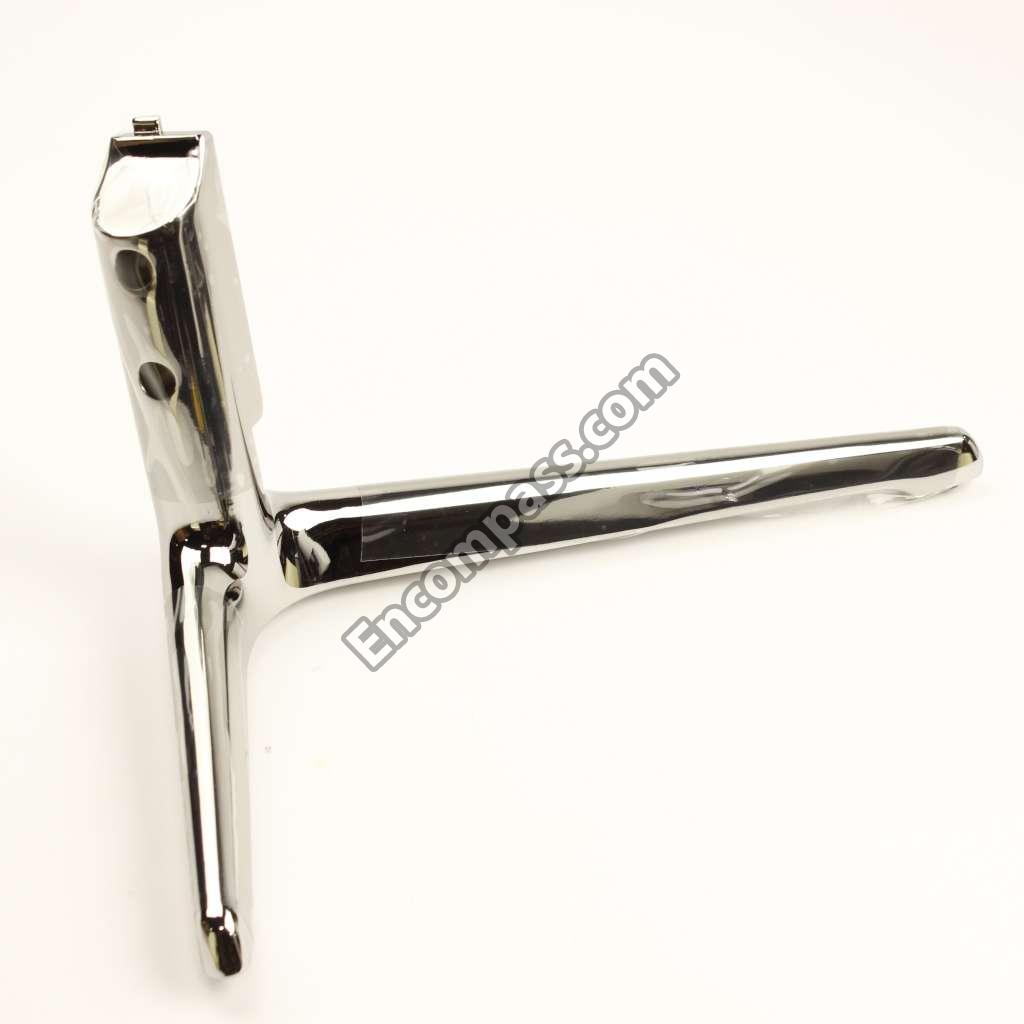

STAND BASE L;H6300 75 |
|
|

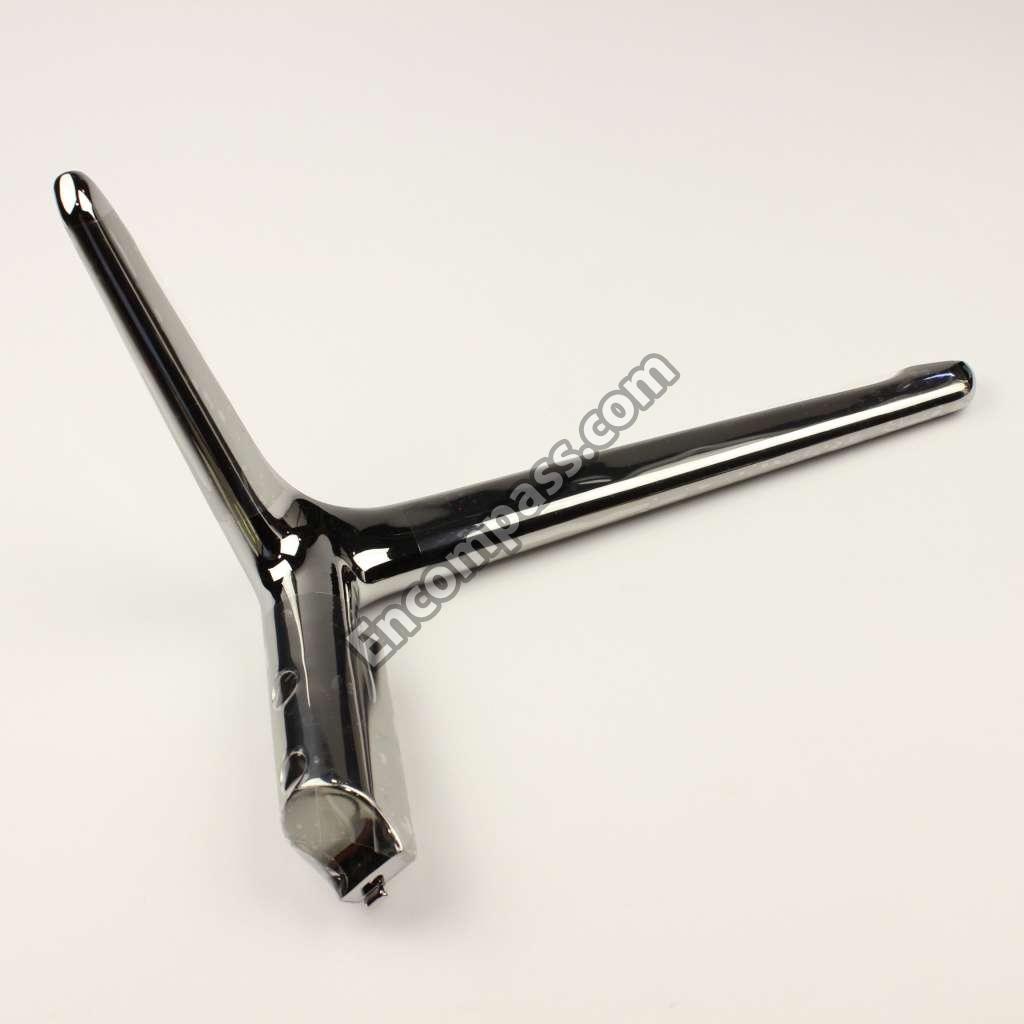

STAND BASE R;H6300 75 |
|
|

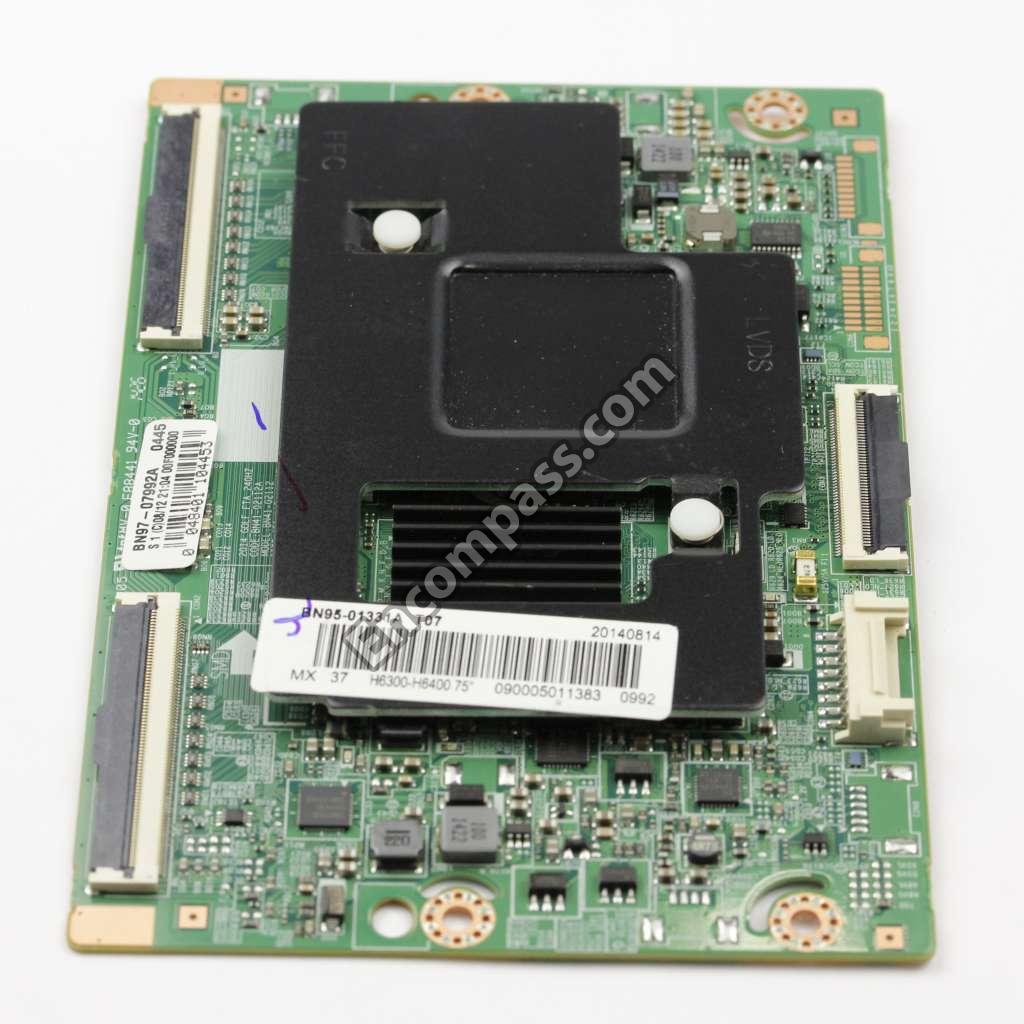

T-CON PCB;75F240HZ |
|
|
TUNER;DTVS20EIH276A,DTVS20EIH276A,ATSC H |
| 1405-001381 | VARISTOR;11V,8VDC,30A,1.6X0.8X0.9MM,TP,2 |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5X0.6MM,TP,1 |
|
|
WIFI MODULE PCB;WIDT-30Q,INTERNAL WI |
