Model Image
Manufacturer

Samsung

Model Number

UN75NU710DFXZA

Description

75-inch Class 4k Ultra Hd Smart Led Tv

Interactive Exploded View
Exploded View

Parts List

Part Number Description
BN96-45909A ASSY BOARD P-FUNCTION ONE KEY;Y18 NU7170
BN96-46737A ASSY CHASSIS FRONT P;75UNU7100X,PC+ABS+E
BN96-47095A ASSY COVER P-REAR;75NU710D,PC+ABS+ED20%,
BN96-43169A BN96-43169A ASSY HOLDER P-RING;65Q8C,ABS,BLACK,HB

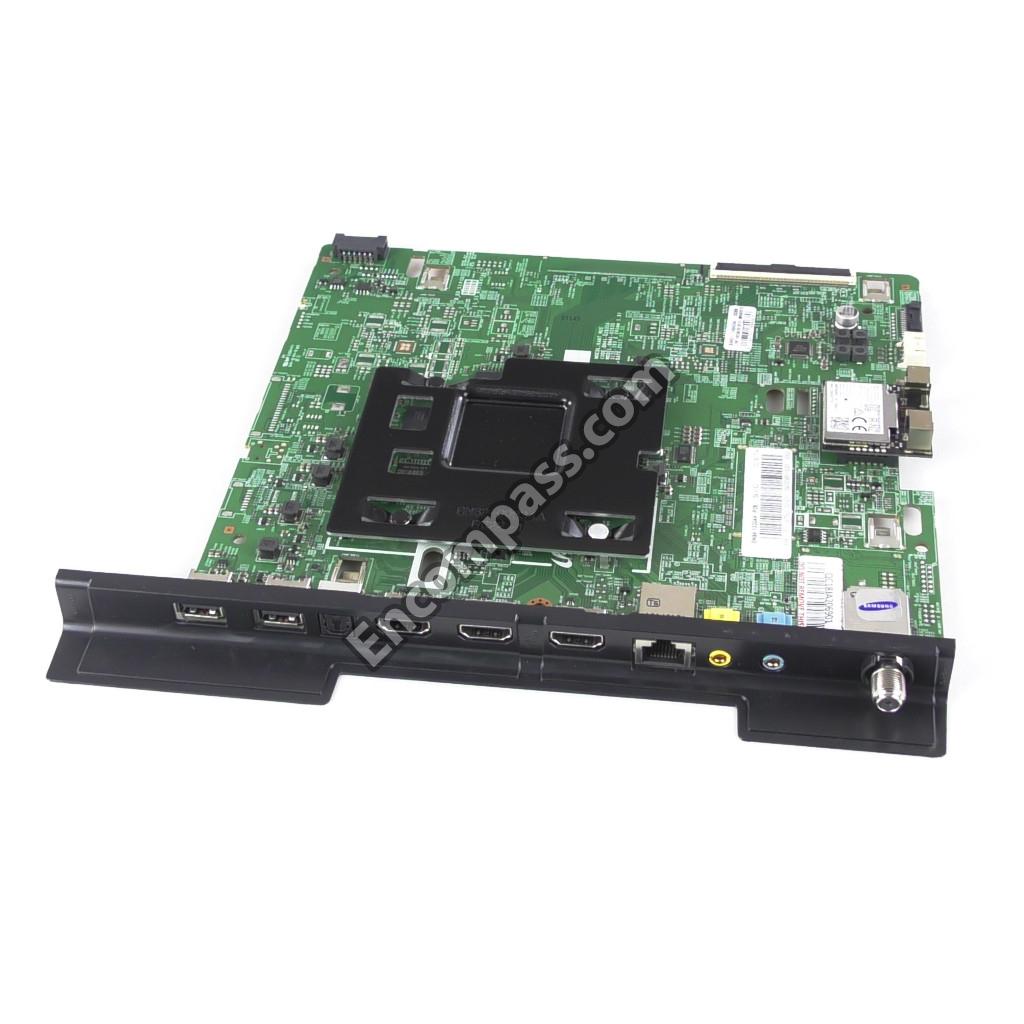

BN94-13204A BN94-13204A ASSY PCB MAIN;LEDTV 7K
BN96-46074J ASSY PCB P-TCON;75NU710D,FR-1,SDC KANT-T
BN96-45632C BN96-45632C ASSY SPEAKER P-FRONT;TV-SPK,UNU7100X,6OH
BN96-45799D BN96-45799D ASSY STAND P-COVER TOP LEFT;75UNU7100X,A
BN96-45801D BN96-45801D ASSY STAND P-COVER TOP RIGHT;75UNU7100X,
BN96-46412A ASSY STAND P-HOLDER CABLE;65UNU7100X,ABS
3301-002039 3301-002039 BEAD-SMD;26OHM,1608,TP
2402-001268 C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM
2203-005642 C-CER,CHIP;0.22NF,5%,50V,C0G,TP,1005,T0.
2203-007513 C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,T
2203-007176 C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T
2203-007306 C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T
2203-007423 C-CER,CHIP;10000NF,10%,35V,X7R,TP,3216
2203-006348 C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,T0
2203-006698 C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0
2203-006048 C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0.
2203-006158 C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544 C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-005249 C-CER,CHIP;100NF,10%,50V,X7R,TP,1608
2203-002285 C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000491 C-CER,CHIP;2.2NF,10%,50V,X7R,TP,1608
2203-005083 C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0.
2203-005344 C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5
2203-006088 C-CER,CHIP;330NF,10%,10V,X7R,TP,1608
2203-005968 C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,T0.
2203-006844 C-CER,CHIP;470NF,10%,10V,X5R,TP,1005
2203-006741 C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,T0.
2203-006126 C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2203-005993 C-CER,CHIP;68NF,10%,16V,X7R,1005
2409-001240 C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1.
3708-003176 CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU
3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3707-001123 3707-001123 CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI
BN63-16652A COVER-TERMINAL SIDE;55MU6400,HIPS,HB,BK0
2801-004021 CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
2801-005324 CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN
BN44-00874C BN44-00874C DC VSS-PD BOARD;L75E6NR_NHS,AC/DC,248W,A
0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB
0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001778 DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0
0406-001691 DIODE-TVS;SESD8008MUTAG,5.5V,7V,8.5V,0.5
0406-001438 DIODE-TVS;SMCJ14A,15.6V,17.2V,1MAV,6.5VP
0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001831 DIODE-ZENER;KDZ12B,12~13.5V,1000MW,SOD-1
0403-001164 DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S
0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-002893 FET-SILICON;AO4801AS,P,30V,5A,2W,SOIC-8
0505-002560 FET-SILICON;AO6415,P,20V,3.3A,0.15OHM,1
0505-003391 FET-SILICON;AOD2922,N,100V,8A,140MOHM,18
0505-002598 FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH
0505-003205 FET-SILICON;DMG4435SSS-13,P,30V,7.3A,1.
0505-002660 FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,11.4
BN96-47352A FFC CABLE;75NU710D,FOLD,416,96P,
BN96-47171A FFC CABLE;Q8F,STRAIGHT,L130,68P,
2901-001362 FILTER-EMI/ESD
3601-001061 3601-001061 FUSE-SURFACE MOUNT;125V,10A,FAST-ACTING,
3601-001376 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
BN39-02190A BN39-02190A GENDER CABLE;DC TO RCA CABLE,2P,L100,UL2
BN39-02189A BN39-02189A GENDER CABLE;DC TO RCA CABLE,3P,L100,UL2
3711-007803 HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM,
3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2MM,ANG
3711-009033 HEADER-BOARD TO CABLE;BOX,16P,1R,2MM,SMD
3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN
1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF
1201-004117 IC-AUDIO AMP;TAS5749M,QFP,48P,7X7X1MM,DU
0801-003580 IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3
1203-008664 IC-DC/DC CONVERTER;RT6935BGQW,WQFN,56,7X
1203-008920 IC-DC/DC CONVERTER;SYD105ADC,TSOT23,6P,2
1203-008082 IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8
1203-008777 IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1.
1203-009067 IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3
1105-002772 IC-DDR3 SDRAM;K4B1G1646,DDR3L-1866,1GBIT
1105-002924 IC-DDR4 SDRAM;K4F4E3S4HF-MGCJ,LPDD4R-SDR
1105-002882 IC-DDR4 SDRAM;K4F8E304HB-MGCJ,LPDDR4-SDR
1204-003752 IC-DECODER;SDP1711,FCBGA,932P,27X27X1.79
1107-002374 IC-EMMC;KLM4G1FEPD-B031,4GBYTE,BGA,153P,
1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1203-009057 IC-POSI.ADJUST REG.;G943F11U,SOP-8,8P,4.
1205-005749 IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM
1205-004692 IC-SWITCH;TPS2069CDBVR,SOT-23,5P,2.9X2.8
1204-003747 IC-VIDEO PROCESS;SDP1608,FCBGA,983P,27X2
1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23
1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
2703-005191 INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-005376 INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-003862 INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003937 INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9
2703-004589 INDUCTOR-SMD;2.2UH,20%,5050,T2,0.048OHM,
2703-005193 INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH
2703-003747 INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-004724 INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1
3722-003814 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1
3722-003457 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
BN39-02217E BN39-02217E LEAD CONNECTOR-POWER;55K6200,UL21016,12P
BN39-02249E LEAD CONNECTOR-POWER;75NU710D,UL21016,16
BN39-02231C LEAD CONNECTOR-SUB ASSY;55KU6400,UL21016
BN59-01299A BN59-01299A NETWORK-WLAN CLIENT;WDN220M,35X35X18.2MM
3903-001132 3903-001132 POWER CORD-DT;USA,2P-F,125V,7A,BLK,L3000
BN95-04759C PRODUCT LCD-SDC;CY-NN075FGLV1V/H,NU710D,
2007-008596 R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-000039 R-CHIP;0OHM,1%,1/10W,TP,1608
2007-009322 R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-000287 R-CHIP;100OHM,1%,1/10W,TP,1608
2007-000052 R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-007305 R-CHIP;120OHM,1%,1/16W,TP,1005
2007-000043 R-CHIP;1KOHM,1%,1/10W,TP,1608
2007-000109 R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-007767 R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066 R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-000779 R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294 R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-000084 R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-009777 R-CHIP;4.99KOHM,1%,1/16W,TP,1005
2007-000939 R-CHIP;47KOHM,1%,1/10W,TP,1608
2007-008298 R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35
2007-007736 R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-000999 R-CHIP;510OHM,1%,1/10W,TP,1608
2007-007733 R-CHIP;51OHM,1%,1/10W,TP,1608
2007-008766 R-CHIP;6.04KOHM,1%,1/16W,TP,1005,T0.35
2007-001125 R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015 R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35
2007-009378 R-CHIP;8.25KOHM,1%,1/16W,TP,1005
2011-001427 R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0
2011-001587 R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264 R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.
BN59-01301A BN59-01301A REMOCON-TV;2018 TV,SAMSUNG,44KEY,3.0V,US
6001-003016 6001-003016 SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR
6003-001334 6003-001334 SCREW-TAPTYPE;BH,S,M4,L14,ZPC(BLK),SWR
0504-000126 TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S
0502-001346 TR-POWER;FCX591A,PNP,1000MW,SOT89,TR,30/
0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59
0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000467 TR-SMALL SIGNAL;MMBT3906,PNP,350MW,SOT-2
BN40-00329A BN40-00329A TUNER-DTV AIR CABLE;DTVS20EH7A,VSB HALF,
1405-001381 VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF
1405-001306 VARISTOR;11VDC,45A,1608,TP,50V,40PF
1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001232 VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
