Manufacturer
Samsung
Model Number
UN78JU750DFXZA
Description

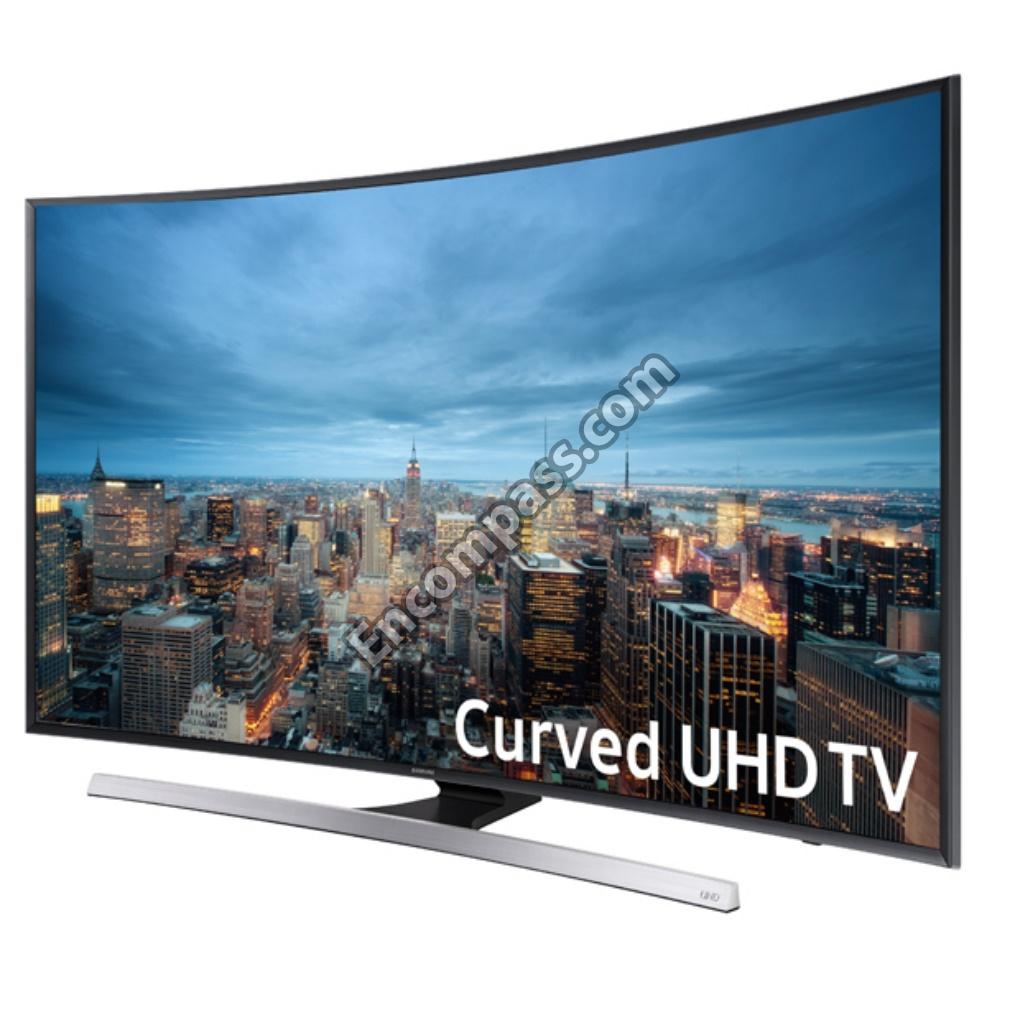

4k Uhd Ju750d Series Curved Smart Led Lcd Tv 78-in
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
| BN96-35519A | ASSEMBLY STAND P-BASE |
|
|
ASSY ACCESSORY-3D GLASSES;SSG-5150GB,IN |
|
|

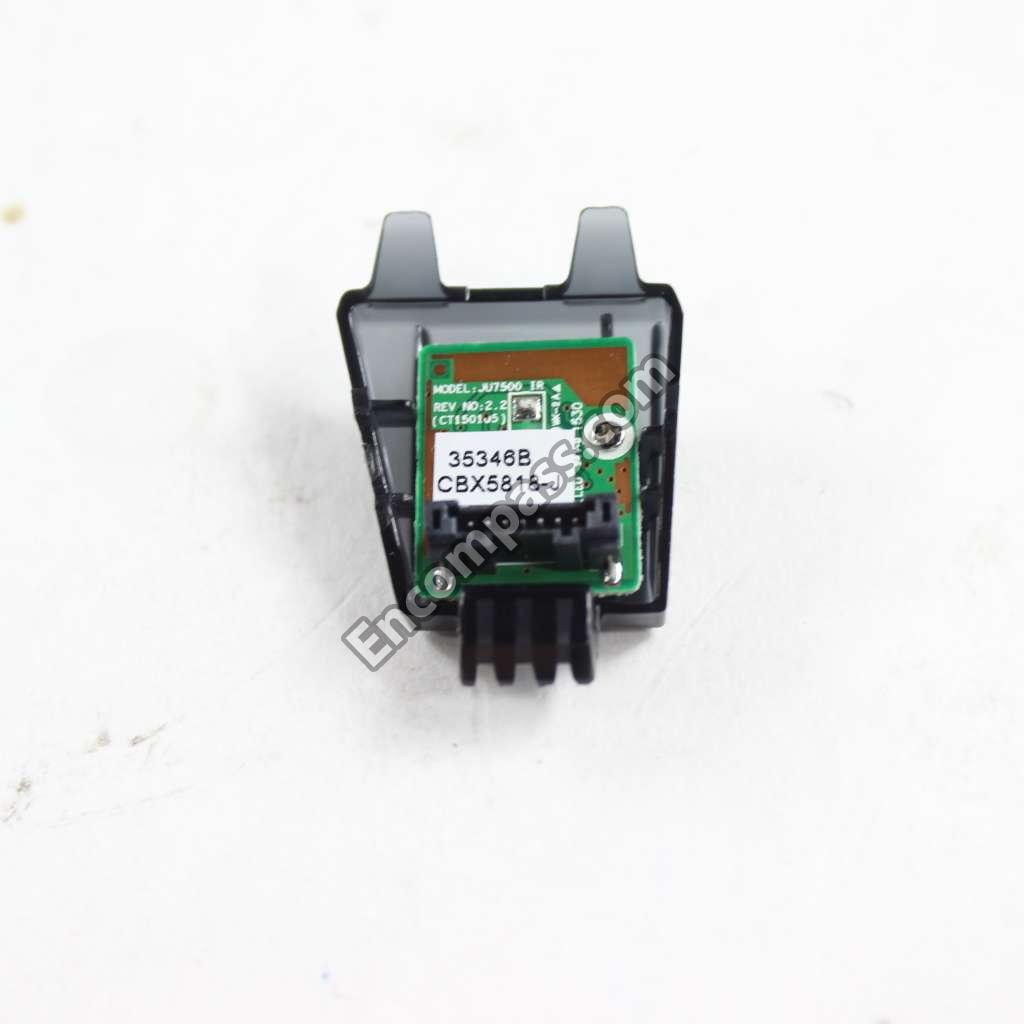

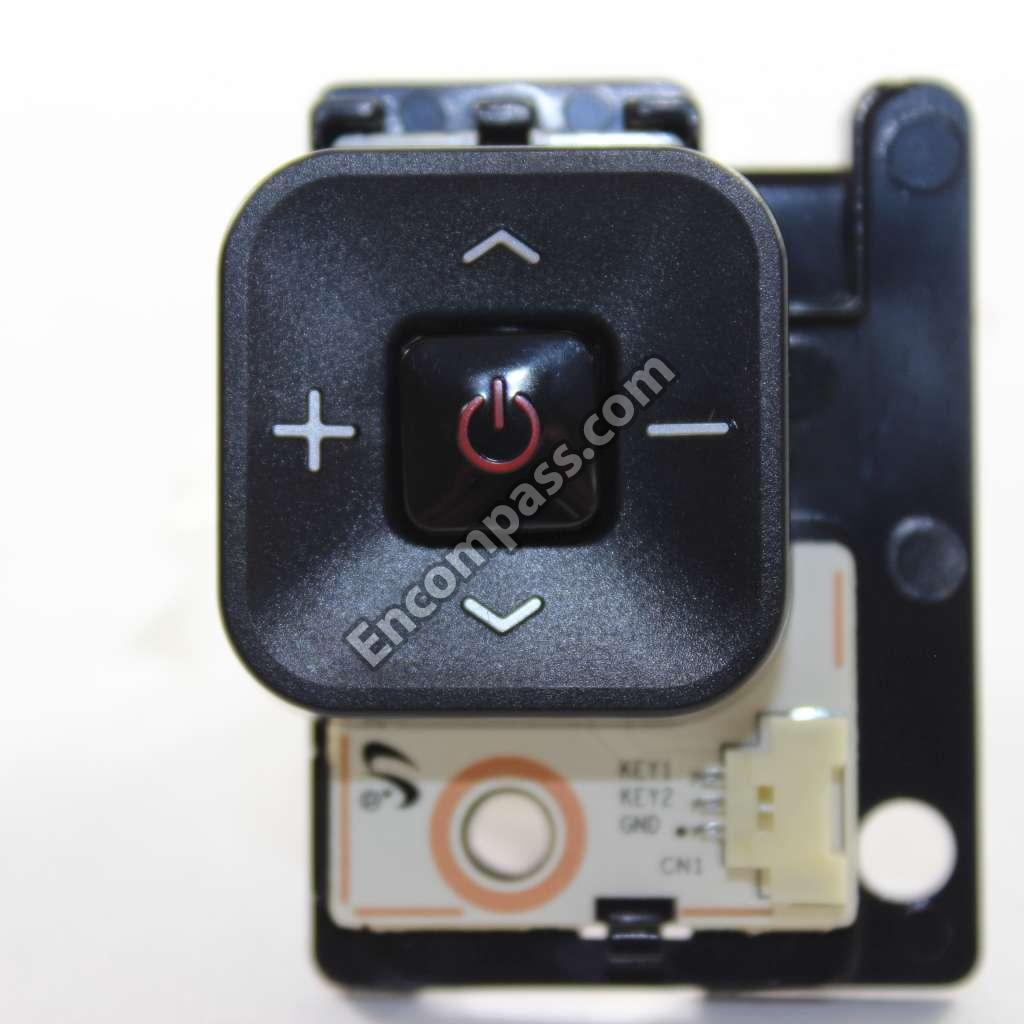

ASSY BOARD P-FUNCTION JOG;JU7500,CT15SE7 |
|
|
ASSY BOARD P-IR FUNCTION;JU7500,CT20SE34 |
|
|

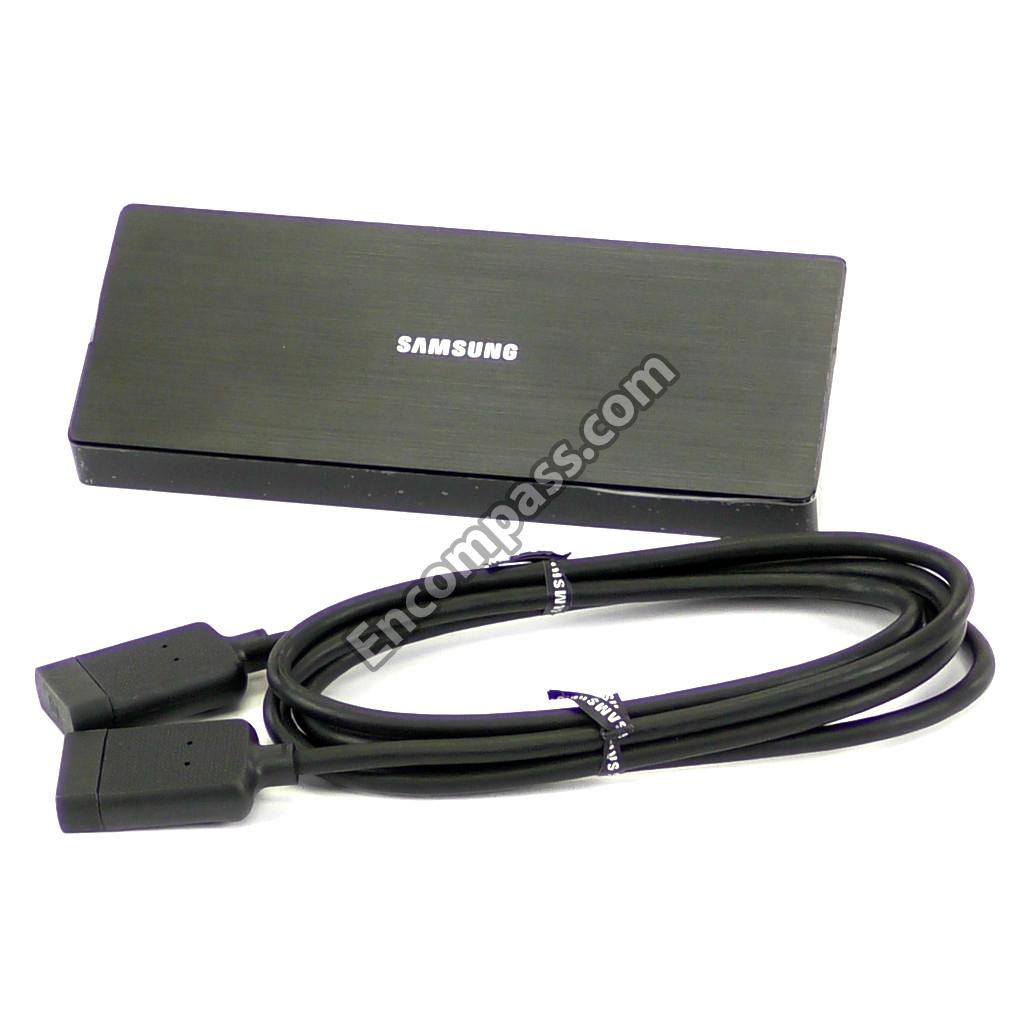

ASSY BOARD P-ONE CONNECT MINI;ONE CONNEC |
|
|
ASSY BOARD P-ONE CONNECT MINI;ONE CONNEC |
| BN96-35504B | ASSY CHASSIS FRONT P;78JU7500,PC+ABS+MF1 |
| BN96-35514A | ASSY COVER P-REAR;JU7500,78,PC+ABS+GF15% |
| BN95-02079A | ASSY COVER STAND SMT-FRONT;JU7500,65,LIG |
|
|

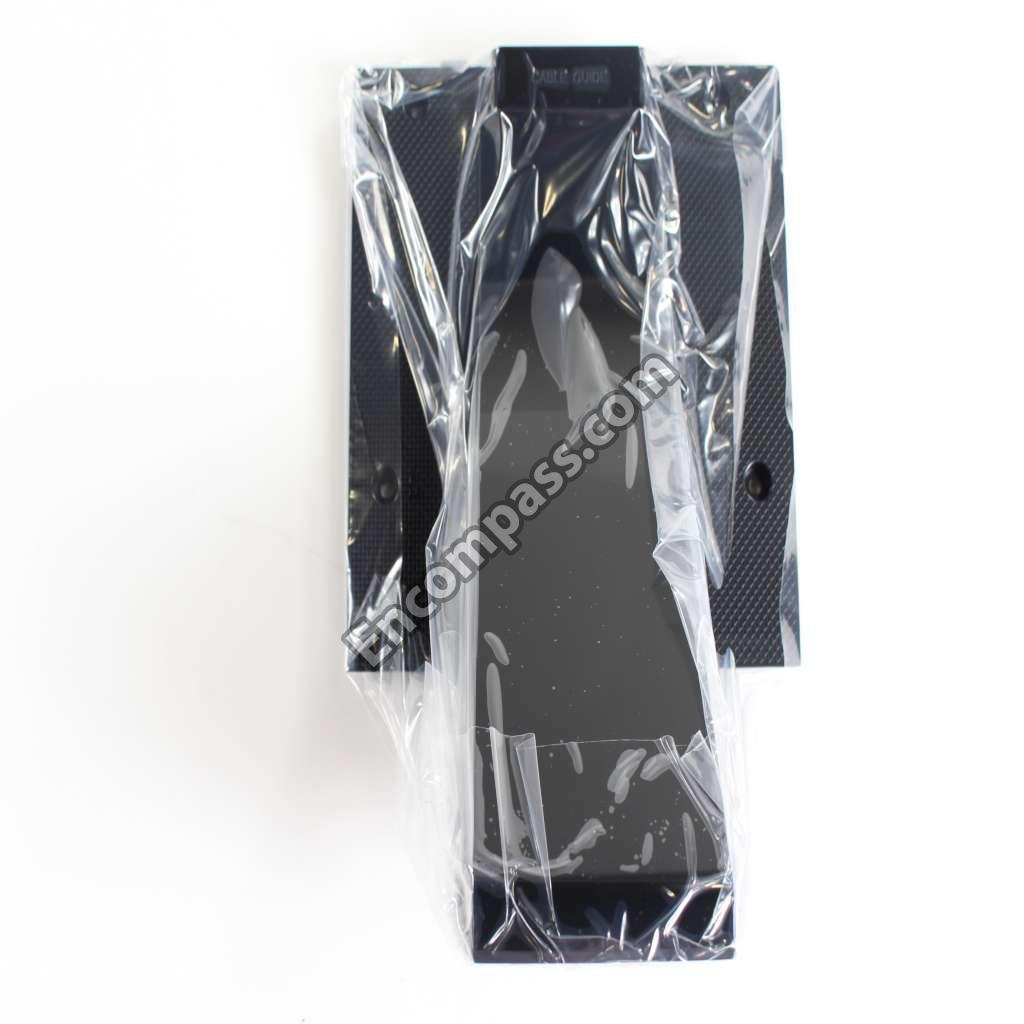

ASSY GUIDE P-STAND NECK;JU7500,78",ABS,B |
|
|

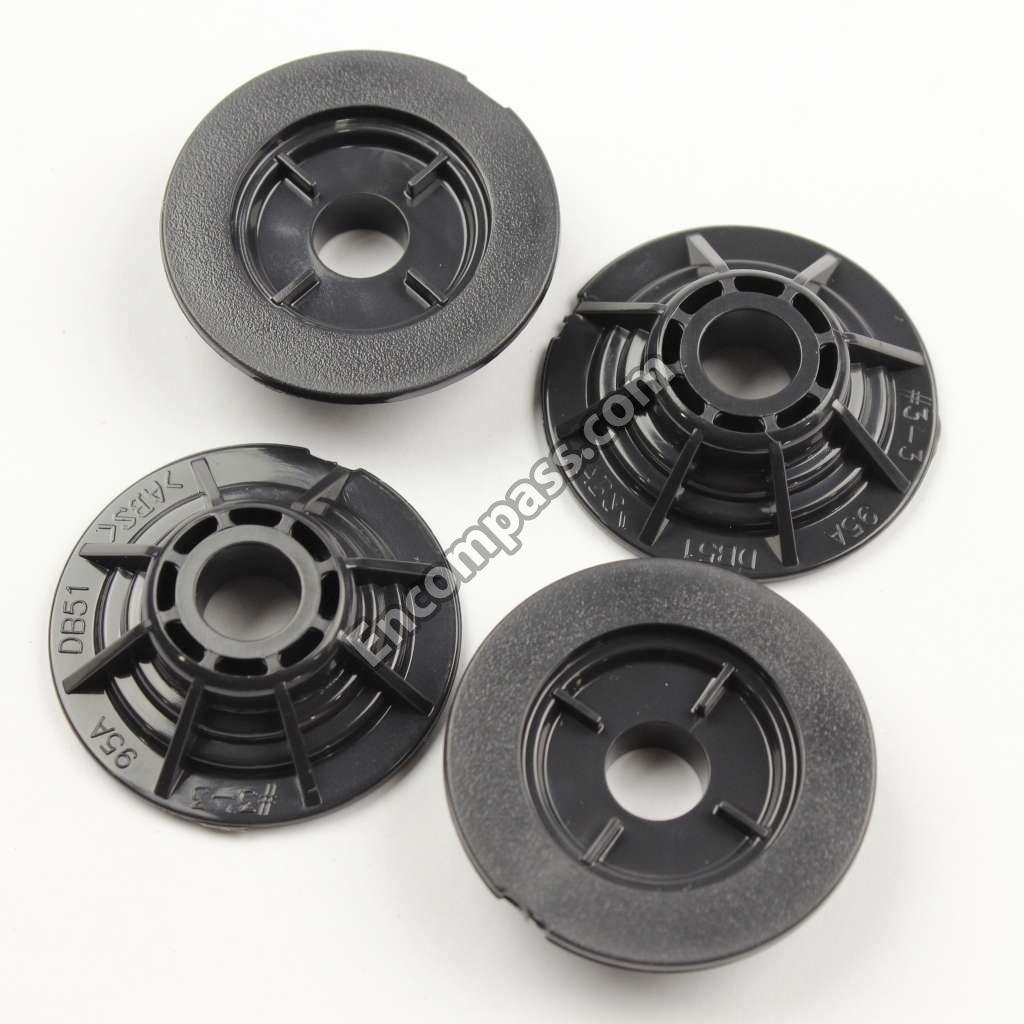

ASSY HOLDER P-RING;11 LED-TV |
|
|

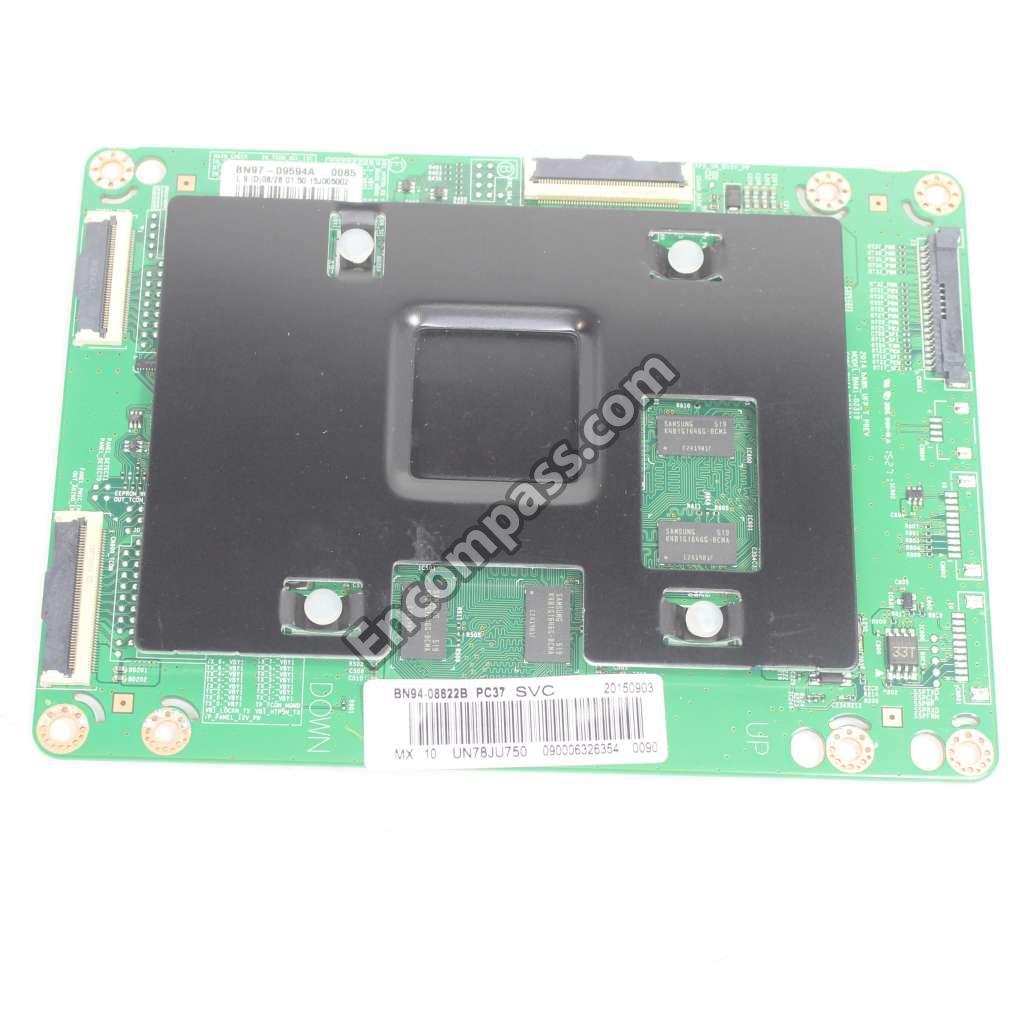

ASSY PCB MAIN SUBCON;JU7.5K 78,HAWK_UFP |
| BN94-09997L | ASSY PCB MAIN;JU7K,C VER |
| BN96-34998C | ASSY SPEAKER P-FRONT;TV-SPK,JU7500,6OHM, |
|
|

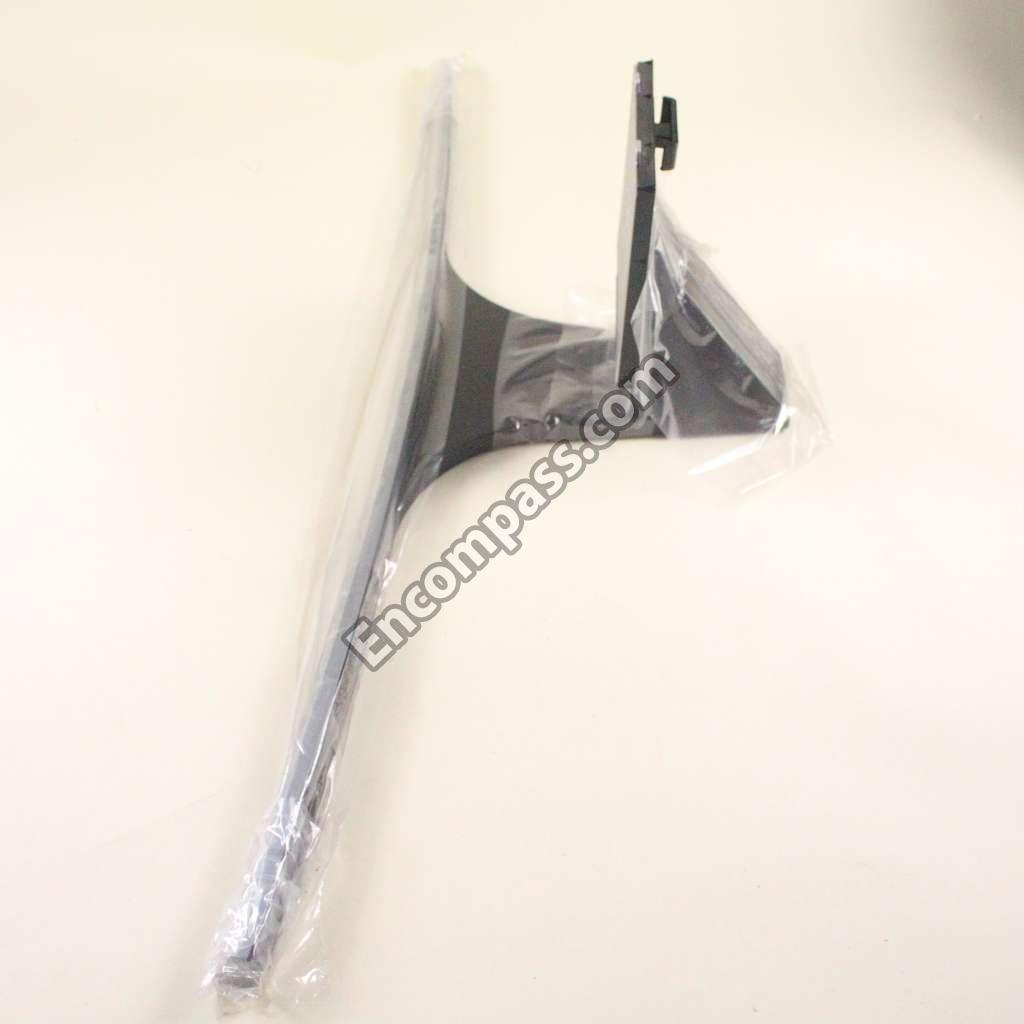

ASSY STAND P-SET;JU7500 78",ABS,HAIR LIN |
| BN96-35077B | ASSY T CON P;LMF780FJ05-K,LMF780FJ05-K,8 |
| BH69-00418A | BAG PE-WRAPPING FILM |
| 4301-000101 | BATTERY-ALKALINE |
| 3301-001364 | BEAD-SMD;1000OHM,1608,TP,1085OHM/108MHZ, |
|
|
BEAD-SMD;26OHM,1608,TP |
| BN61-04692A | BOSS-PRIMER |
| 2402-001268 | C-AL,SMD;100UF,20%,25V,WT,TP,8X6.3MM |
| 2203-000627 | C-CER,CHIP;0.022NF,5%,50V,C0G,TP,1005 |
| 2203-006992 | C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1005 |
| 2203-007513 | C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,0 |
| 2203-007306 | C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,1 |
| 2203-006348 | C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,0. |
| 2203-006698 | C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,0. |
| 2203-006048 | C-CER,CHIP;100NF,10%,10V,X7R,TP,1005 |
| 2203-006158 | C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0. |
| 2203-002711 | C-CER,CHIP;100NF,10%,25V,X7R,TP,1608 |
| 2203-007544 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-005249 | C-CER,CHIP;100NF,10%,50V,X7R,TP,1608 |
| 2203-002285 | C-CER,CHIP;10NF,10%,50V,X7R,TP,1005 |
| 2203-006460 | C-CER,CHIP;2200NF,10%,16V,X5R,TP,1608 |
| 2203-005083 | C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,0.8 |
| 2203-005344 | C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,0.5T |
| 2203-007535 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005 |
| 2203-005968 | C-CER,CHIP;4.7NF,10%,50V,X7R,TP,1005,0.5 |
| 2203-006126 | C-CER,CHIP;47NF,10%,16V,X7R,TP,1005 |
| 2203-000975 | C-CER,CHIP;47NF,10%,25V,X7R,TP,1608 |
| 2409-001338 | C-POLYMER ,CHIP;47UF,20%,6.3V,TP,3.2X1.6 |
|
|
CBF-POWER CORD;DT,US,EP3,IEC320 C13-RA,1 |
| 3708-003183 | CONNECTOR-FPC/FFC/PIC;41P,0.5MM,SMD-A,AU |
|
|
CONNECTOR-SOCKET;33P,1R,0.5MM,SMD-A,AU,B |
| 2801-004477 | CRYSTAL-SMD;24.576MHZ,20PPM,SMD,18PF,15O |
| 2801-005324 | CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN |
|
|

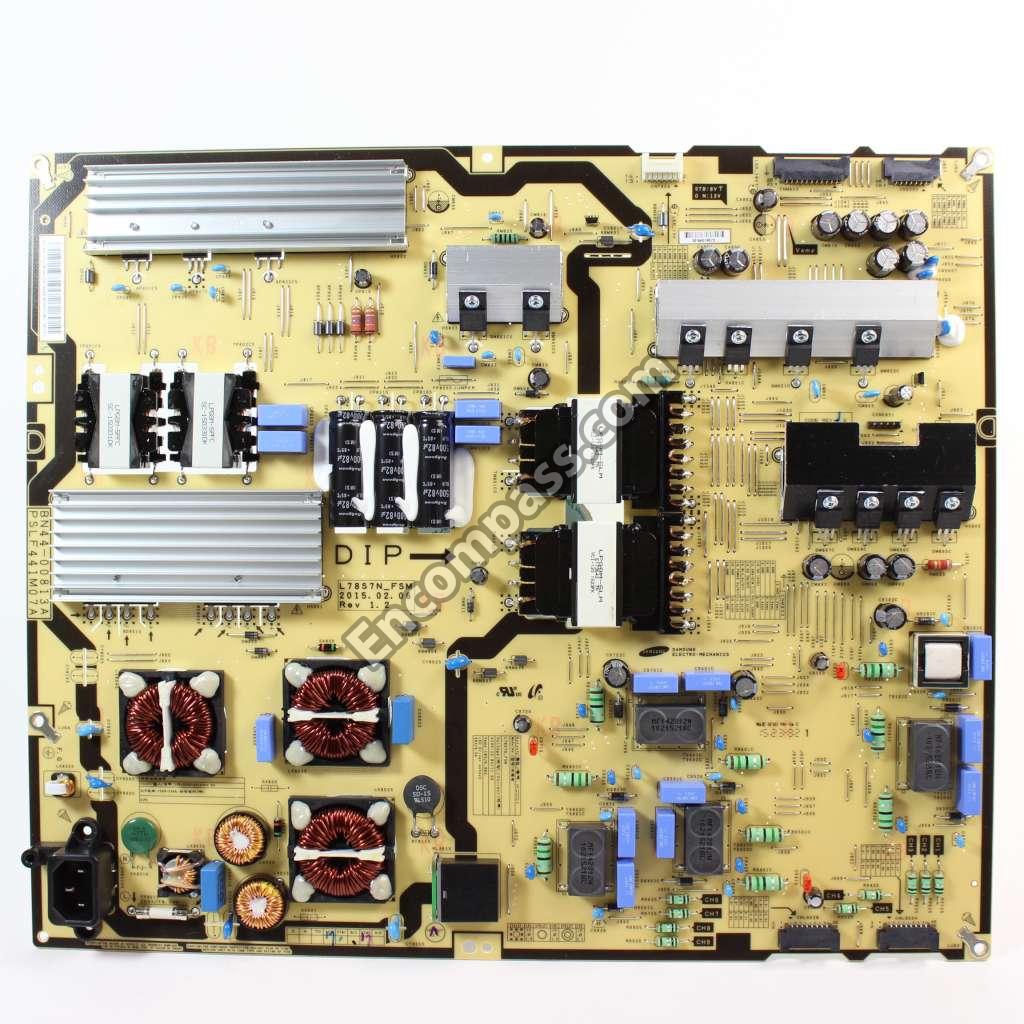

DC VSS-PD BOARD;L78S7N_FSM,AC/DC,447W,10 |
| 0404-001404 | DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23, |
| 0401-001056 | DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO |
| 0406-001628 | DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
| 0406-001556 | DIODE-TVS;NUP4114UCW1,6V,1MAV,TP |
| 0406-001691 | DIODE-TVS;SESD8008MUTAG,5.5V,7V,8.5V,0.5 |
| 0406-001635 | DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
| 0403-001164 | DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S |
| 0505-003397 | FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM, |
| 0505-003507 | FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 |
| 0505-002893 | FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
| 0505-002598 | FET-SILICON;AP2317GN,P,20V,-4.2A,0.052OH |
| 0505-001844 | FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 |
| BN96-34971C | FFC CABLE;UHD JU7500 78INCH,STRAIGHT,L62 |
| BN96-35850C | FFC CABLE;UN78JU7500,STRAIGHT,L222,41P |

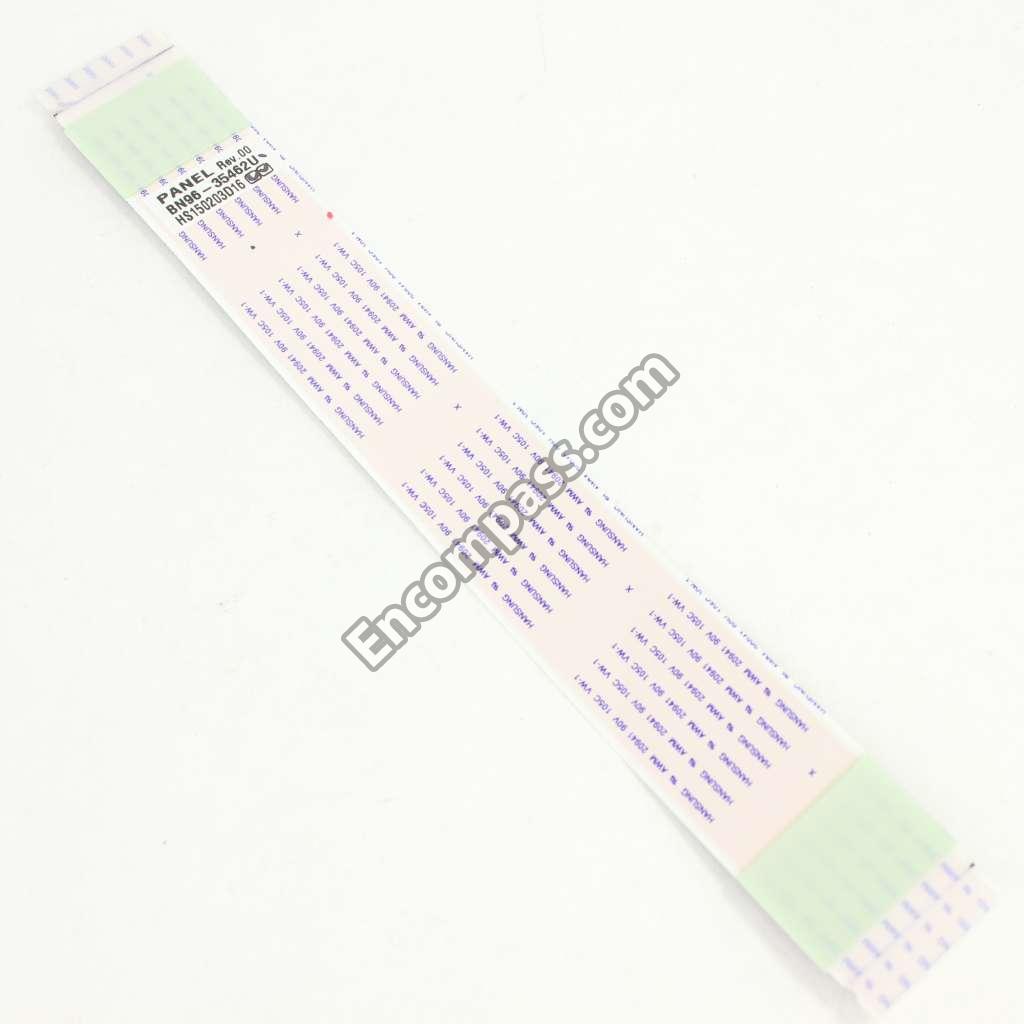

| BN96-35462U | FFC CABLE;UN78JU7500,STRAIGHT,L222,51P |
|
|
FFC CABLE;UN78JU7500,STRAIGHT,L267,51P |
|
|
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI |
| BP63-00223A | GASKET |
| BN63-03861A | GASKET |
|
|

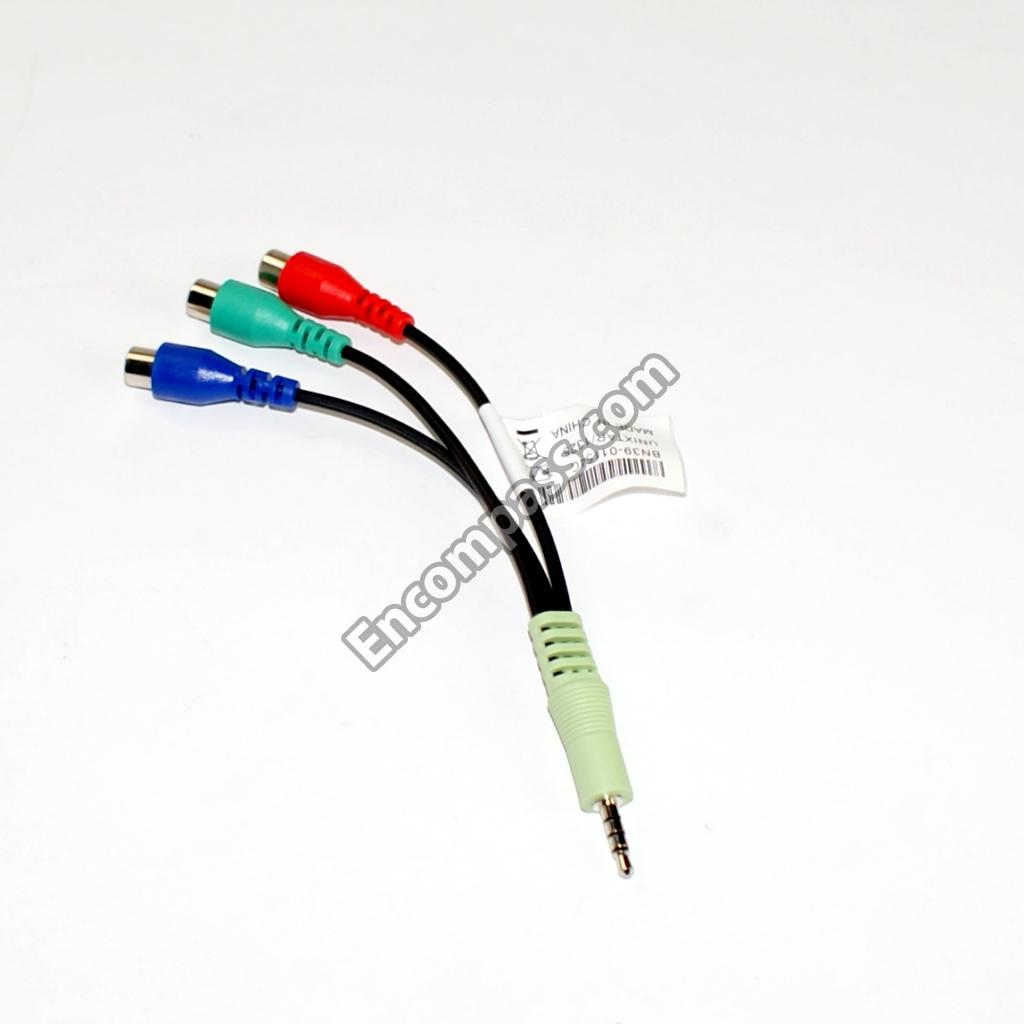

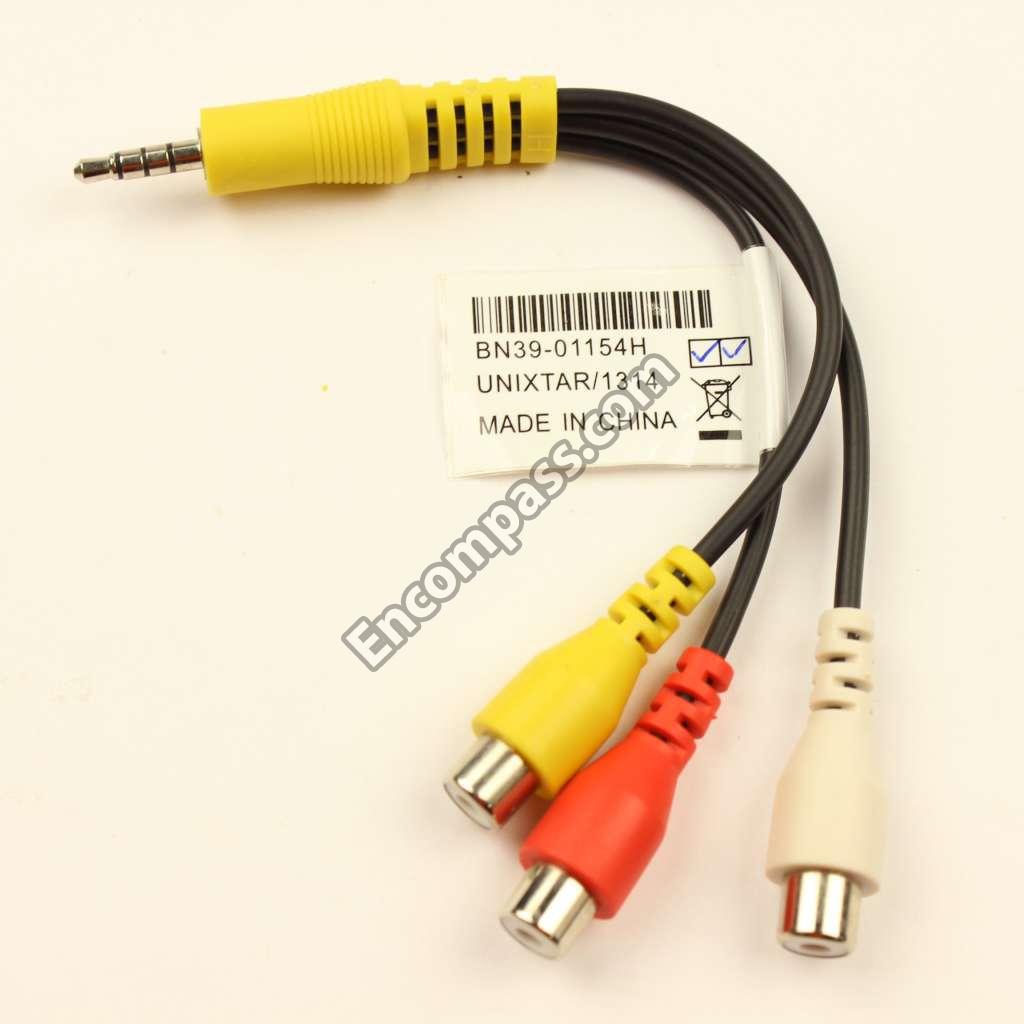

GENDER CABLE;CHELSEA SLIM, STEREO PLUG T |
|
|
GENDER CABLE;UE40B7000WWXXC,3P,L150,UL28 |
| 3711-008659 | HEADER-BOARD TO CABLE;BOX,16P,2R,2MM,ANG |
| 3711-008454 | HEADER-BOARD TO CABLE;BOX,22P,2R,2MM,ANG |
| 3711-008690 | HEADER-BOARD TO CABLE;BOX,8P,1R,2.5MM,AN |
| 3711-008422 | HEADER-BOARD TO CABLE;BOX,9P,1R,1.25MM,S |
| AA61-20285C | HOLDER-BOX;ALL,PP,MOLD,BLACK,HB,HB,17.5G |
| 1201-003891 | IC-AUDIO AMP;NTP7415,MLF,48P,7X7MM,DUAL, |
| 0801-002780 | IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
| 1203-008391 | IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L, |
| 1203-008118 | IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 |
| 1203-008183 | IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
| 1203-007694 | IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8,5 |
| 1203-008082 | IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8 |
| 1203-007018 | IC-DC/DC CONVERTER;TPS54821RHL,QFN,14,3. |
| 1203-008454 | IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 |
| 1203-008393 | IC-DDR TERMINATION REG.;AP2303MTR-G1-89, |
| 1105-002534 | IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM |
| 1105-002528 | IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, |
| 1204-003660 | IC-DECODER;SDP1406,PBGA,1053P,31*31MM,PL |
| 1006-001576 | IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16 |
| 1103-001564 | IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8, |
| 1107-002357 | IC-EMMC;H26M41103HPR,8GBYTE,BGA,153P,11. |
| 1107-002265 | IC-NOR FLASH;W25Q32FVSSIG,32MBIT,SOP,8P, |
| 1107-002226 | IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P, |
| 1201-000166 | IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 |
| 1203-008023 | IC-POSI.ADJUST REG.;AOZ2003PI,SO-8,8,4.9 |
| 1203-007707 | IC-POSI.ADJUST REG.;AP7362ADJ,SO-8EP,8,3 |
| 1203-006330 | IC-POWER SUPERVISOR;TPS2065DBV,SOT-23,5P |
|
|
IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1 |
| 1205-004983 | IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0X4. |
| 1205-004610 | IC-SWITCH;TPS2421-2DDA,SO-8,8Z30,5X6X1.7 |
| 1204-003609 | IC-VIDEO PROCESS;SDP1403,FCPBGAH,1000P,2 |
| 1203-004364 | IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
| 1203-008392 | IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 |
| 1203-004363 | IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P |
| 2703-003713 | INDUCTOR-SMD;1.5UH,20%,7366,0.015OHM,700 |
| 2703-003937 | INDUCTOR-SMD;1UH,20%,7.0X6.47X3.0MM,0.00 |
| 2703-005193 | INDUCTOR-SMD;2.2UH,20%,4.5,0.024OHM,5100 |
| 2703-004589 | INDUCTOR-SMD;2.2UH,20%,5050,2T,0.048OHM, |
| 2703-005194 | INDUCTOR-SMD;3.3UH,20%,4.5,0.03OHM,4500M |
| 2703-004847 | INDUCTOR-SMD;4.7UH,20%,3838,1.8T,0.075OH |
| 2703-005192 | INDUCTOR-SMD;4.7UH,20%,4.5,0.036OHM,4200 |
| 2703-004724 | INDUCTOR-SMD;8.2UH,20%,4T,0.072OHM,2300M |
| 3722-003199 | JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
| 3722-003657 | JACK-PHONE;1P/7C,AU,BLK,ANGLE,3.6PI,10X1 |
| 3722-003666 | JACK-PHONE;1P/7C,AU/NI,GRN,ANGLE,3.6PI,1 |
| 3722-003665 | JACK-PHONE;1P/7C,AU/NI,YEL,ANGLE,3.6PI,1 |
| 3722-003837 | JACK-USB;9P/1C,AU/NI,BLU,SMD-A,A,3.0,13. |
| BN68-00513A | LABEL-E, PASS |
| BN39-02003A | LEAD CONNECTOR-BLU;BLU HARNESS,UL21016,1 |
|
|
LEAD CONNECTOR-BLU;BLU HARNESS,UL21016,1 |

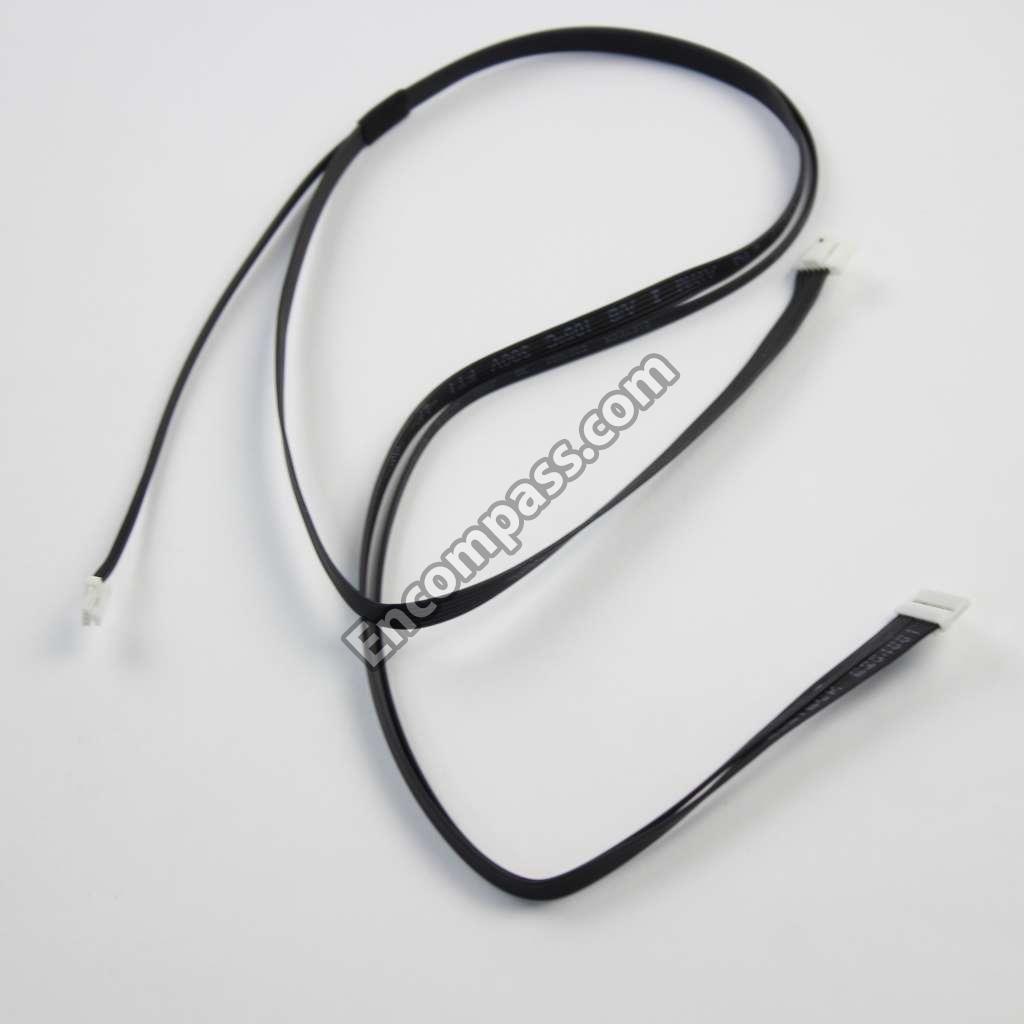

| BN39-02041A | LEAD CONNECTOR-DIMMING;FLAT CONNECTOR AS |
| BN39-02037A | LEAD CONNECTOR-DIMMING;JU7.5K/7K,UL21016 |
| BN39-02032B | LEAD CONNECTOR-POWER;FLAT CONNECTOR ASS' |
| BN39-02017F | LEAD CONNECTOR-SUB ASSY;FLAT CONNECTOR,U |
|
|
LEAD CONNECTOR-SUB ASSY;JU7K,UL21016,9P, |
|
|

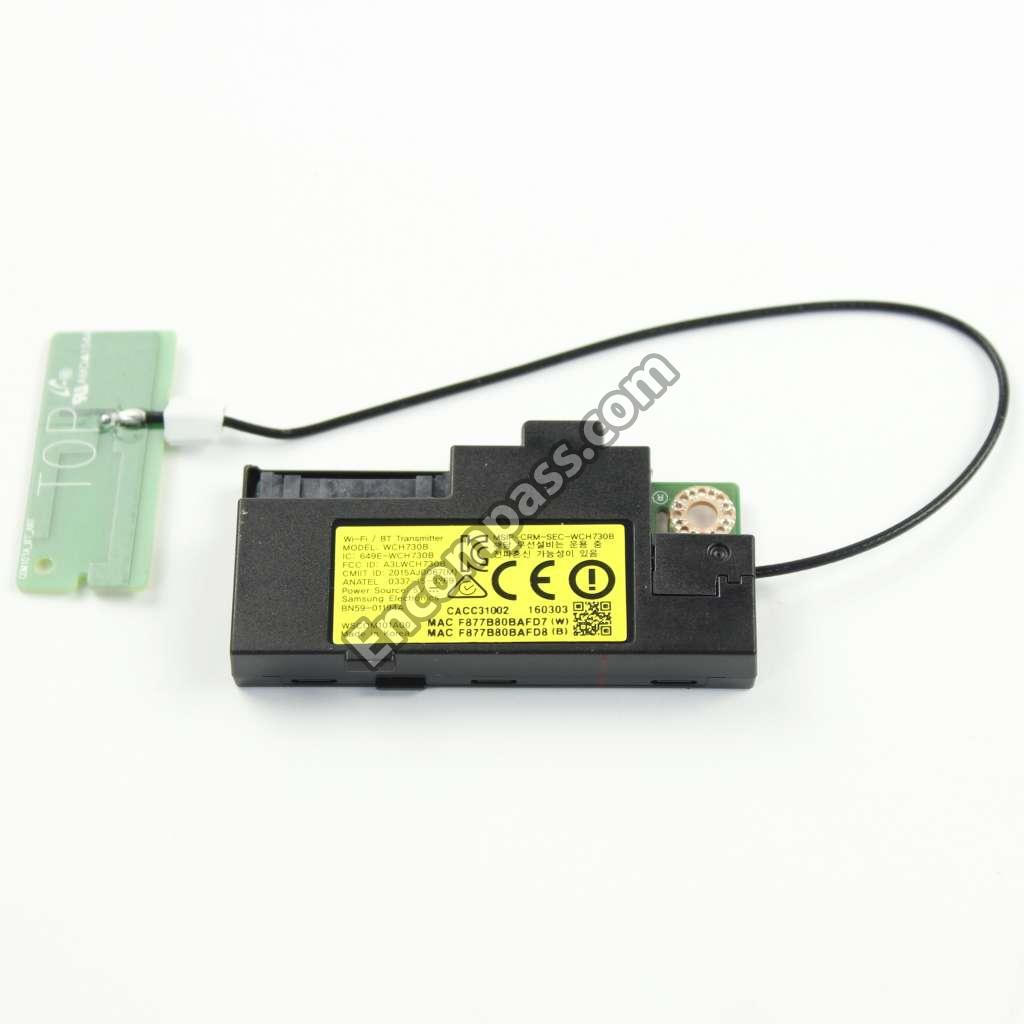

NETWORK-WLAN CLIENT;WCH730B,58X31.45X8.5 |
|
|

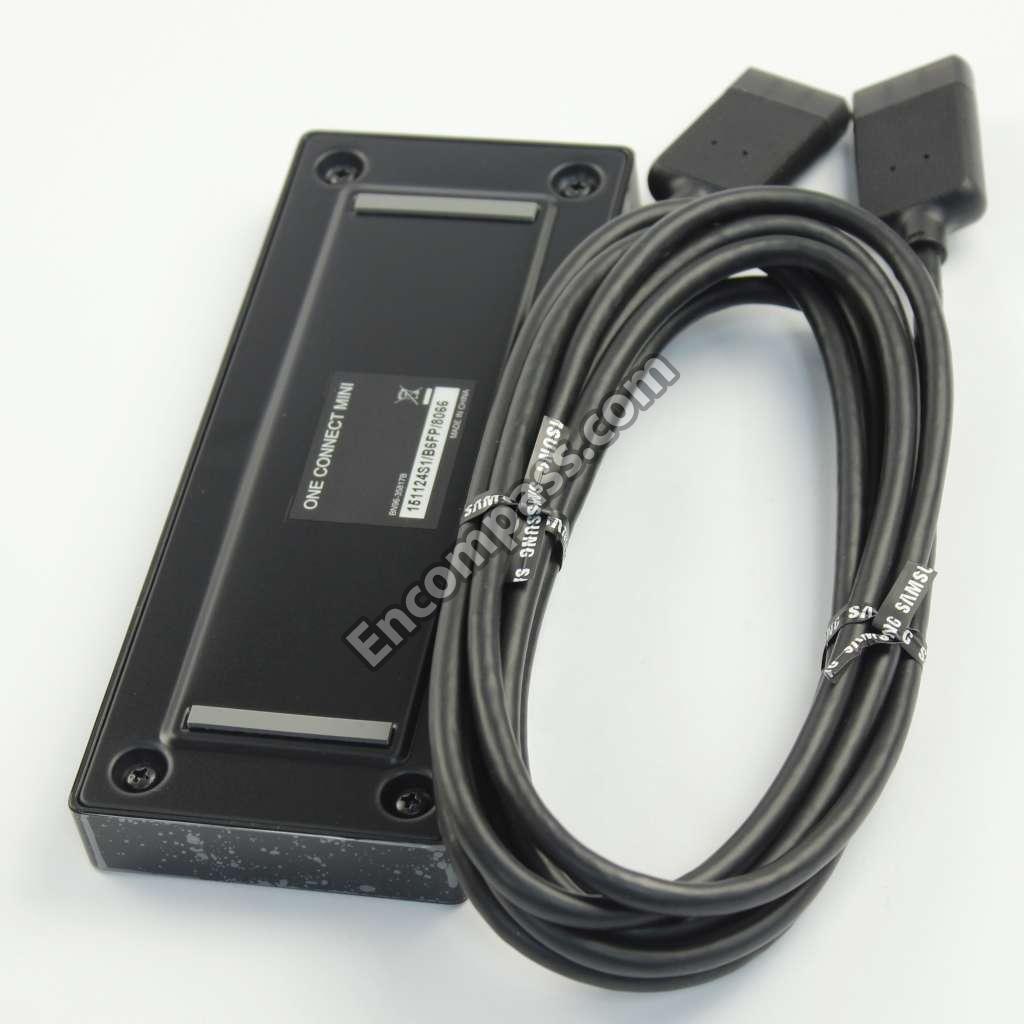

ONECONNECTMINI CABLE;OCM,33P,L3000,UL202 |
|
|
PRODUCT LCD-SDC;CY-WJ078FLLV2V,JU7500,DE |
| 2007-000239 | R-CHIP;1.5KOHM,1%,1/10W,TP,1608 |
| 2007-010387 | R-CHIP;10KOHM,1%,1/16W,TP,1005 |
| 2007-008332 | R-CHIP;11.5KOHM,1%,1/16W,TP,1005 |
| 2007-007942 | R-CHIP;1MOHM,1%,1/16W,TP,1005 |
| 2007-000109 | R-CHIP;1MOHM,5%,1/10W,TP,1608 |
| 2007-007767 | R-CHIP;200OHM,1%,1/16W,TP,1005 |
| 2007-007842 | R-CHIP;21.5KOHM,1%,1/10W,TP,1608 |
| 2007-000583 | R-CHIP;22KOHM,1%,1/10W,TP,1608 |
| 2007-000614 | R-CHIP;24KOHM,1%,1/10W,TP,1608 |
| 2007-000683 | R-CHIP;3.3KOHM,1%,1/10W,TP,1608 |
| 2007-000695 | R-CHIP;3.3OHM,5%,1/10W,TP,1608 |
| 2007-000772 | R-CHIP;33KOHM,1%,1/10W,TP,1608 |
| 2007-009777 | R-CHIP;4.99KOHM,1%,1/16W,TP,1005 |
| 2007-008298 | R-CHIP;49.9OHM,1%,1/16W,TP,1005 |
| 2007-000999 | R-CHIP;510OHM,1%,1/10W,TP,1608 |
| 2007-001125 | R-CHIP;68KOHM,1%,1/10W,TP,1608 |
| 2007-001139 | R-CHIP;7.5KOHM,1%,1/10W,TP,1608 |
| 2007-008015 | R-CHIP;75OHM,1%,1/16W,TP,1005 |
| 2007-001168 | R-CHIP;75OHM,5%,1/4W,TP,3216 |
| 2011-001587 | R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1 |
| 2011-001449 | R-NETWORK;22OHM,5%,1/16W,L,4P,TP,1.0X1.0 |
|
|

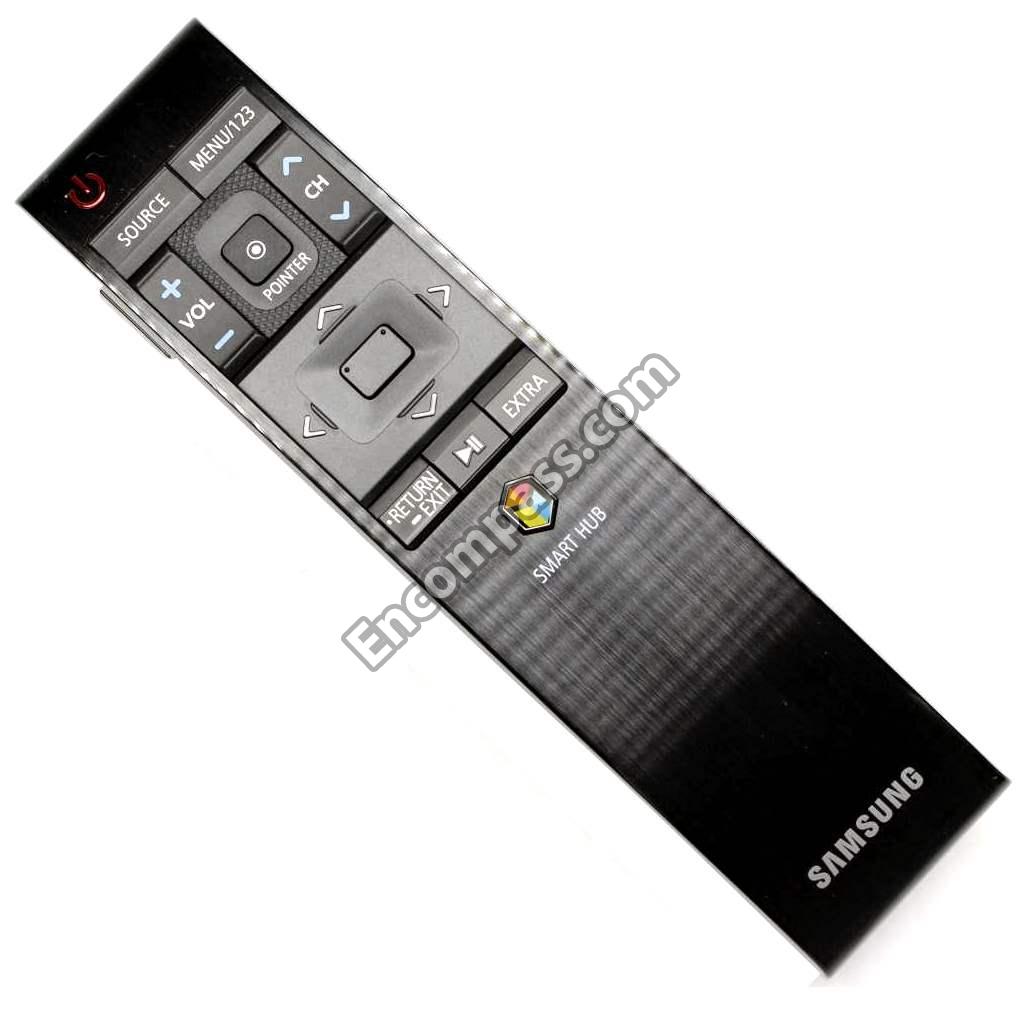

REMOCON-SMART CONTROL;2014 TV,SAMSUNG,18 |
|
|

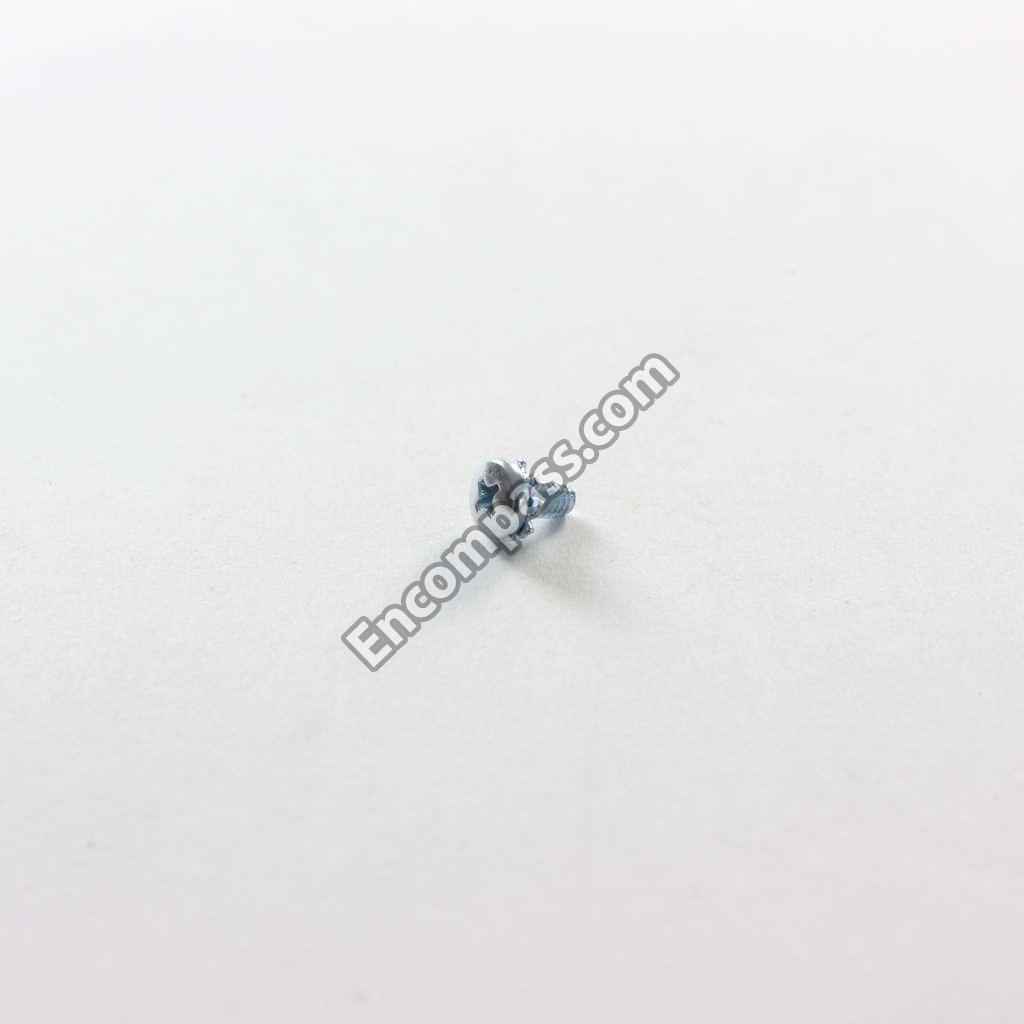

SCREW-MACHINE;BH,M3,L4,ZPC(WHT),SWRCH1 |
|
|
SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1 |
|
|
SCREW-MACHINE;PH,M4,L16,ZPC(WHT),SWR |
|
|
SCREW-MACHINE;PWH,M3.0,L5.0,ZPC(WHT),S |
|
|

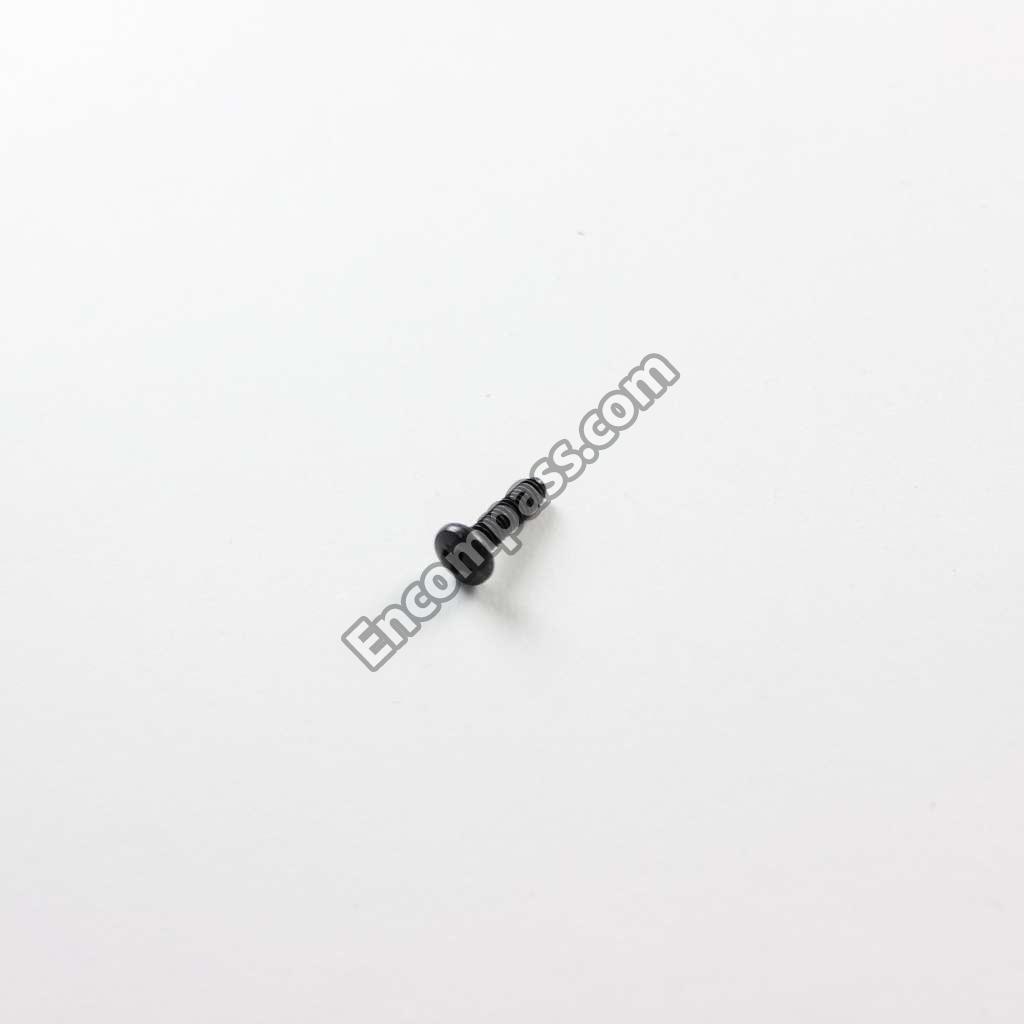

SCREW-TAPTYPE;BH,B,M3,L12,ZPC(BLK),S |
|
|
SCREW-TAPTYPE;BH,B,M4,L12,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,B,M4,L8,ZPC(BLK),SWRC |
|
|
SCREW-TAPTYPE;BH,S,M4,L14,ZPC(BLK),SWR |
|
|
SCREW-TAPTYPE;BH,S,M4,L8,ZPC(WHT),SWRC |
|
|

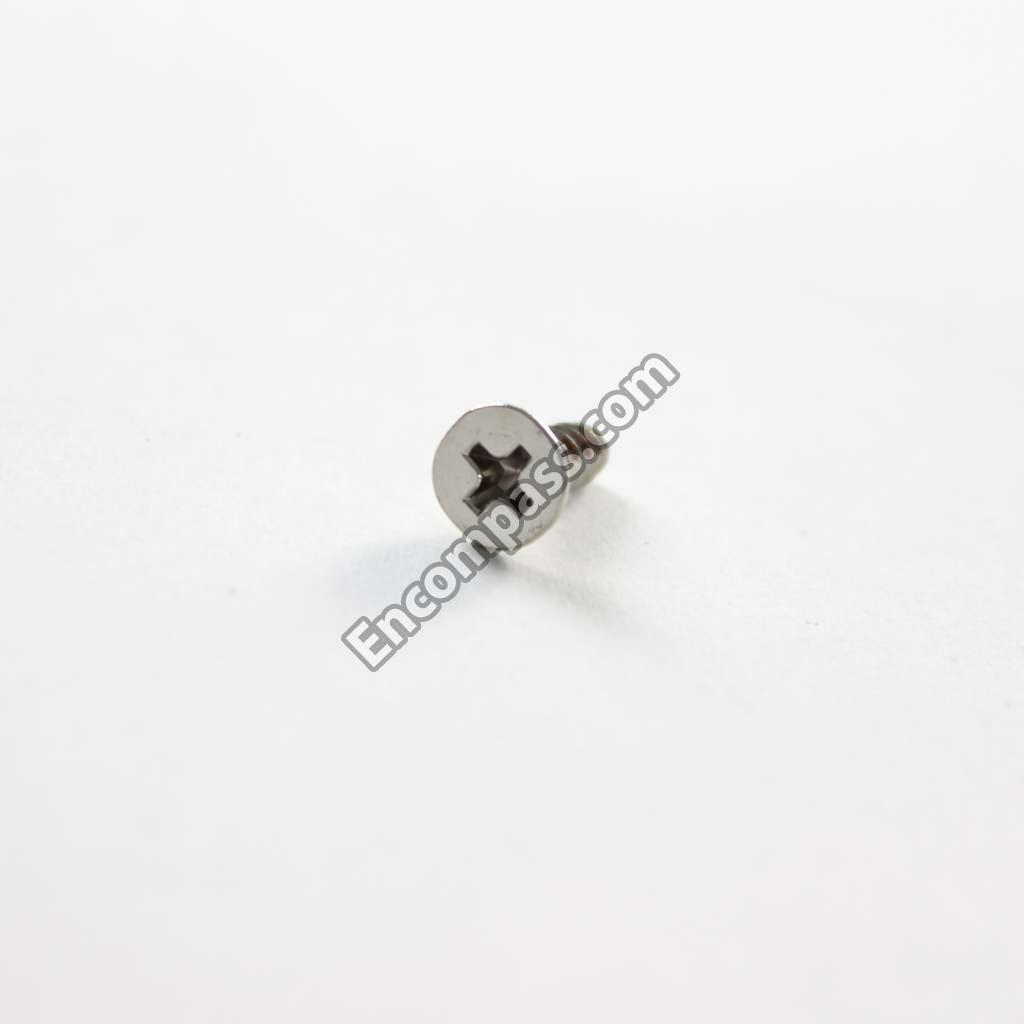

SCREW-TAPTYPE;FH,B,M3,L8,ZPC(BLK),SW |
|
|
SCREW-TAPTYPE;FH,B,M4,L12,NI PLT,SWRCH |
| BN63-05199H | SHEET-COVER |
| 0504-000126 | TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S |
| 0501-000445 | TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT |
| 0501-000465 | TR-SMALL SIGNAL;MMBT3904,NPN,350MW,SOT-2 |
|
|

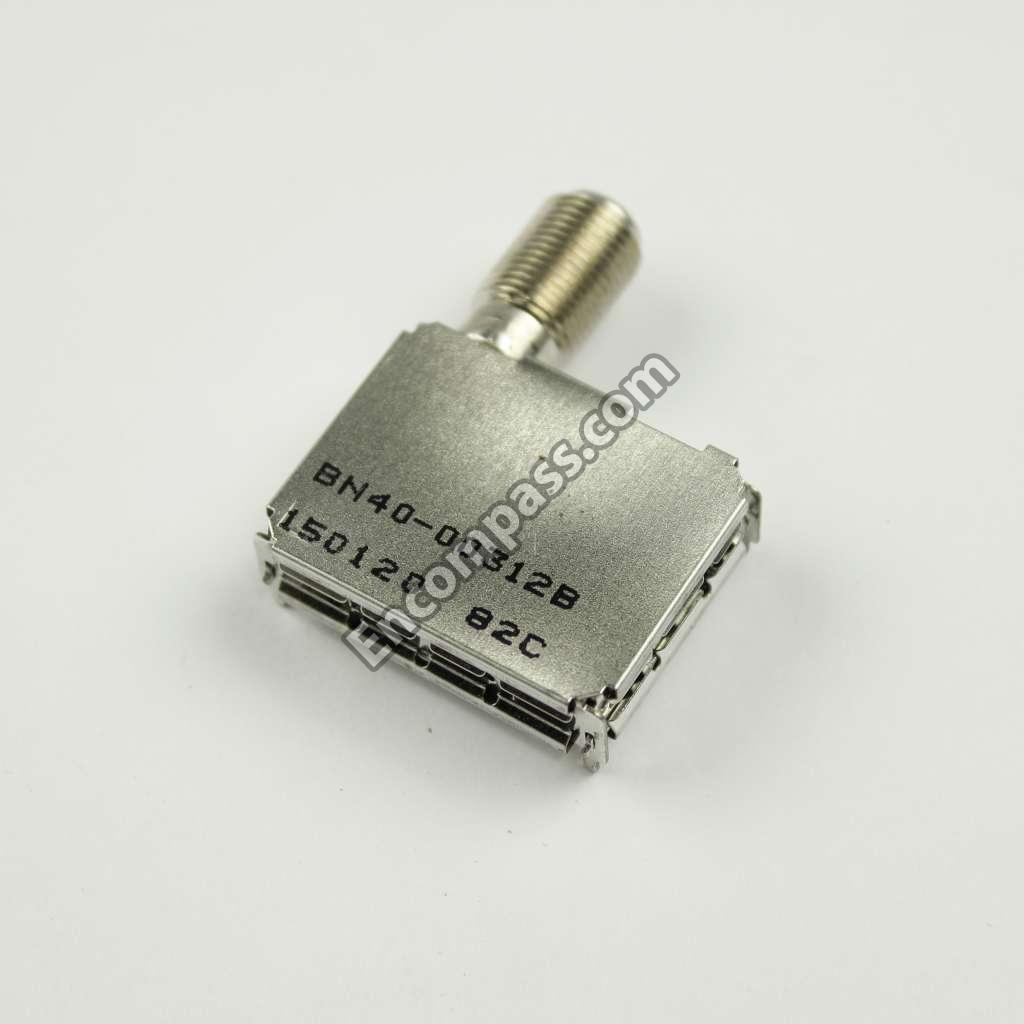

TUNER-DTV AIR CABLE;GVTH-5B31,VSB HALF,5 |
|
|
VARISTOR;35V,20VDC,5A,1.0X0.5MM,TP,100V, |
