Manufacturer

Samsung

Model Number

UN82NU8000FXZA

Description

82-inch Nu8000 Smart 4k Uhd Tv

Interactive Exploded View

Parts List

Part Number	Description
BN96-39802C	ASSY BOARD P-FUNCTION TACT;KS7000/7500/K
BN96-43718D	ASSY CHASSIS FRONT P;82UNU8000F,AL,SLATE
BN96-43719E	ASSY COVER P-DECORATION;82UNU8000F,PC+AB
BN96-45829A	ASSY COVER P-REAR;82UNU8000F,PC+ABS+ED20
BN96-43169A	ASSY HOLDER P-RING;65Q8C,ABS,BLACK,HB

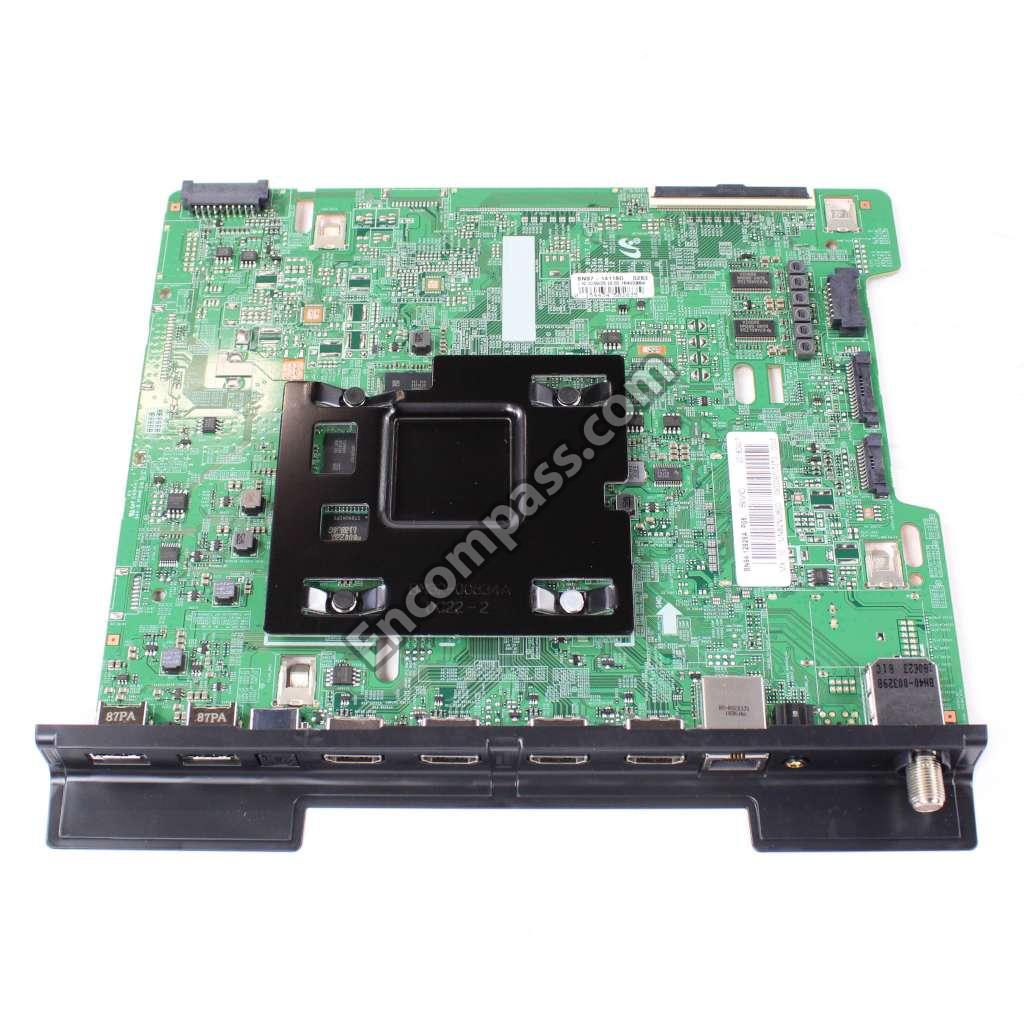

BN94-12929A	ASSY PCB MAIN;82UNU8000F

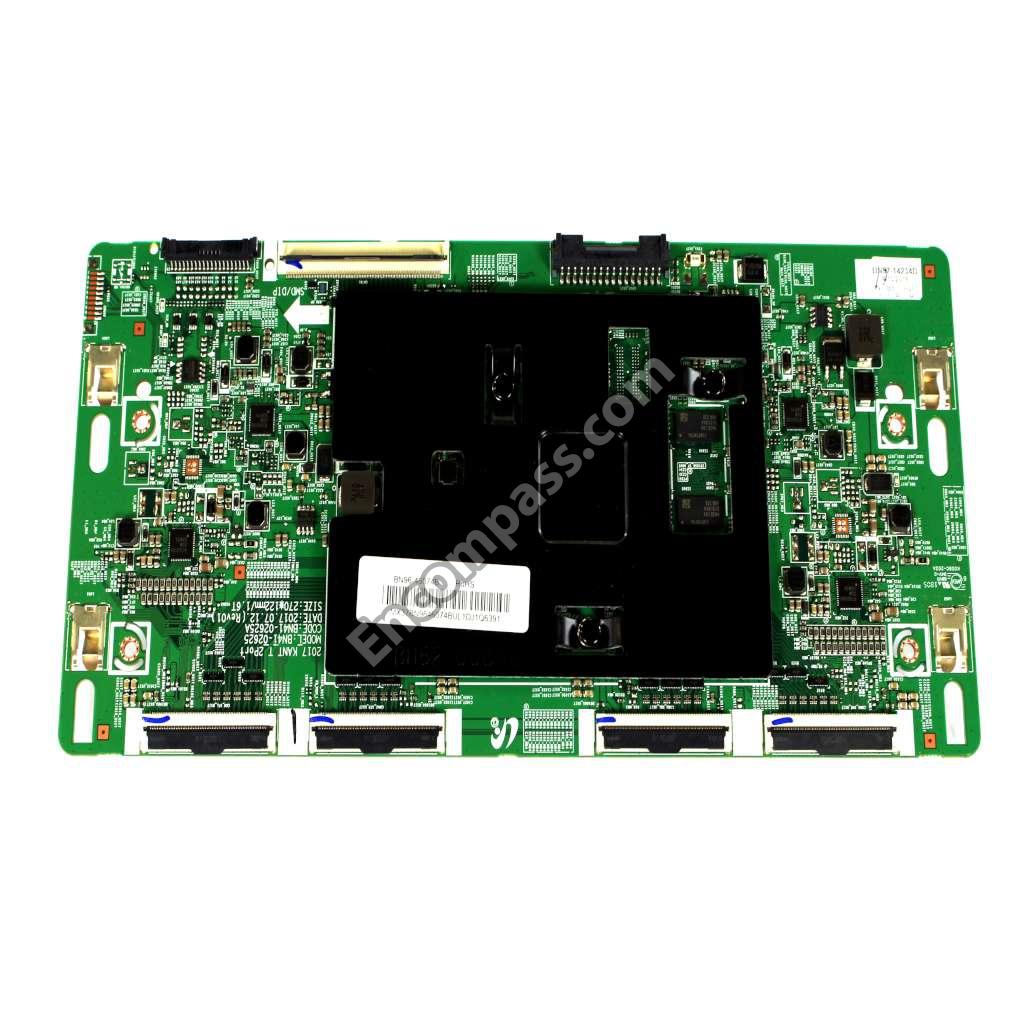

BN96-46074B	ASSY PCB P-TCON;FR-1,82NU8000,SDC KANT-T

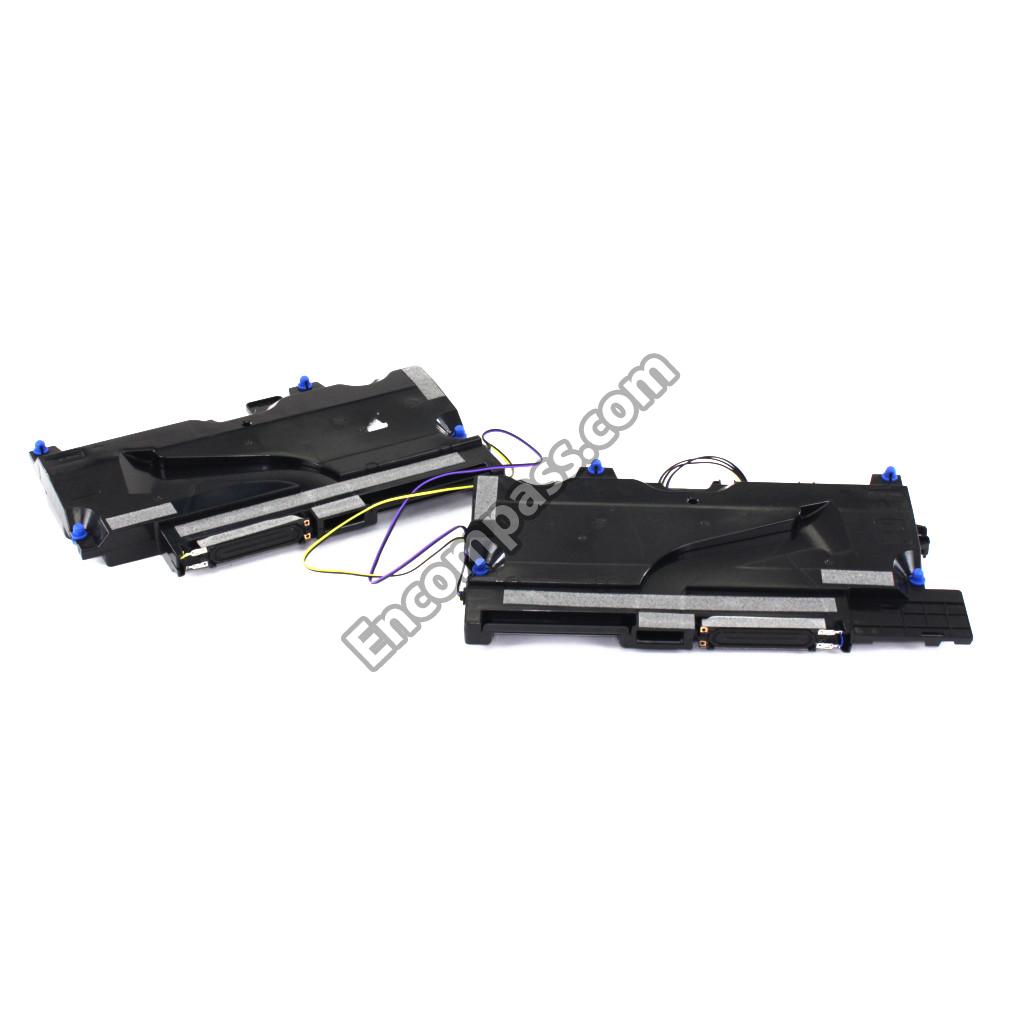

BN96-42489B	ASSY SPEAKER P-FRONT;TV-SPK,MU7000,6OHM,

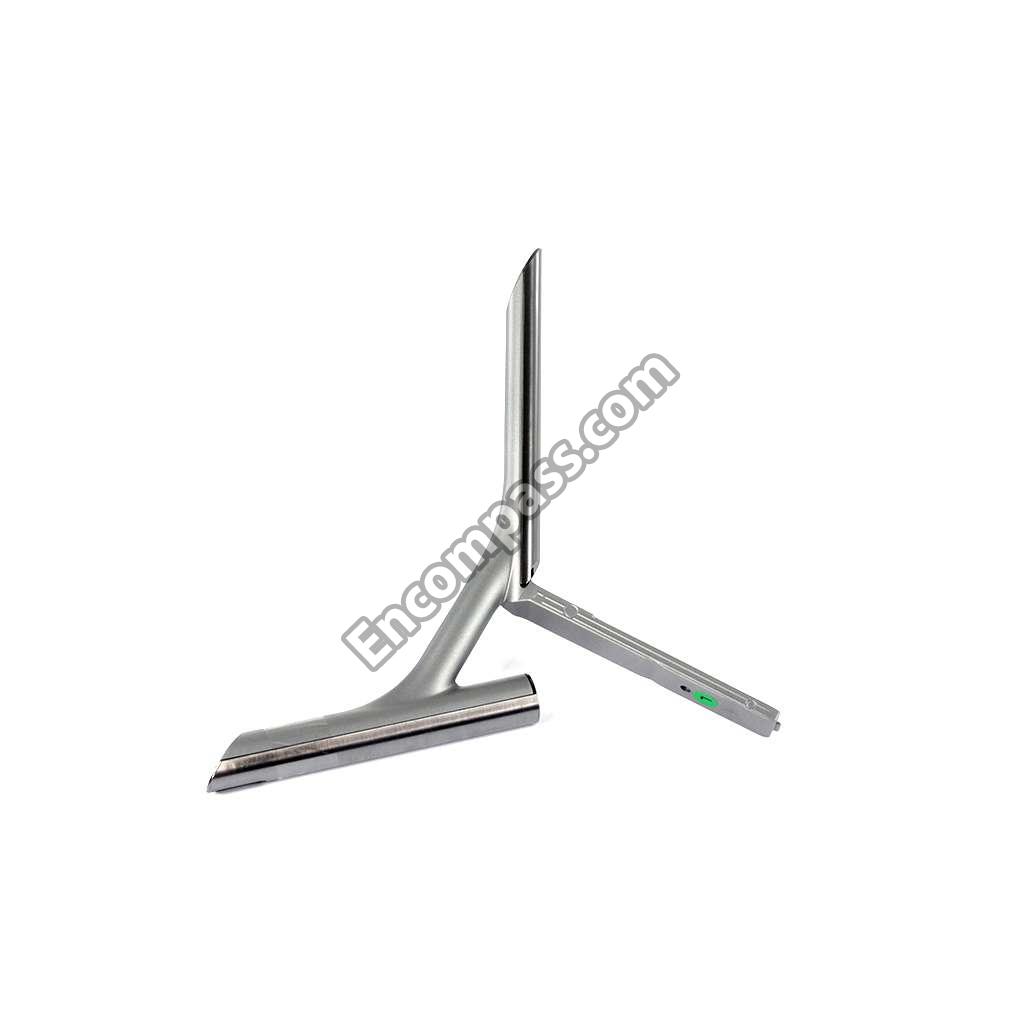

BN96-45993D	ASSY STAND P-BRACKET BOTTOM LEFT;82QNQ6F
BN96-45991D	ASSY STAND P-BRACKET BOTTOM RIGHT;82QNQ6
3301-002039	BEAD-SMD;26OHM,1608,TP
BN61-13557K	BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
BN61-13557D	BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
BN61-13557C	BRACKET-WIRE;55KS7000,SW-C,T1,SILVER,ZIN
2203-005642	C-CER,CHIP;0.22NF,5%,50V,C0G,TP,1005,T0.
2203-000783	C-CER,CHIP;0.33NF,5%,50V,C0G,TP,1608
2203-007513	C-CER,CHIP;10000NF,10%,10V,X5R,TP,1608,T
2203-007176	C-CER,CHIP;10000NF,10%,16V,X5R,TP,2012,T
2203-007306	C-CER,CHIP;10000NF,10%,25V,X5R,TP,2012,T
2203-007423	C-CER,CHIP;10000NF,10%,35V,X7R,TP,3216
2203-006348	C-CER,CHIP;1000NF,10%,25V,X5R,TP,1608,T0
2203-006698	C-CER,CHIP;1000NF,10%,25V,X7R,TP,1608,T0
2203-006960	C-CER,CHIP;1000NF,10%,50V,X7R,TP,2012
2203-006048	C-CER,CHIP;100NF,10%,10V,X7R,TP,1005,T0.
2203-006158	C-CER,CHIP;100NF,10%,16V,X7R,TP,1005,T0.
2203-007544	C-CER,CHIP;100NF,10%,50V,X7R,TP,1005,T0.
2203-002285	C-CER,CHIP;10NF,10%,50V,X7R,TP,1005
2203-000491	C-CER,CHIP;2.2NF,10%,50V,X7R,TP,1608
2203-005083	C-CER,CHIP;220NF,10%,50V,X7R,TP,1608,T0.
2203-005344	C-CER,CHIP;22NF,10%,25V,X7R,TP,1005,T0.5
2203-006088	C-CER,CHIP;330NF,10%,10V,X7R,TP,1608
2203-006377	C-CER,CHIP;4700NF,10%,25V,X5R,TP,2012
2203-006844	C-CER,CHIP;470NF,10%,10V,X5R,TP,1005
2203-006741	C-CER,CHIP;470NF,10%,25V,X5R,TP,1608,T0.
2203-006126	C-CER,CHIP;47NF,10%,16V,X7R,TP,1005,T0.5
2203-005993	C-CER,CHIP;68NF,10%,16V,X7R,1005
2409-001240	C-ORGANIC,SMD;33UF,20%,25V,LR,TP,7343(1.
3708-003176	CONNECTOR-FPC/FFC/PIC;68P,0.5MM,SMD-A,AU
3701-001967	CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5MM,BLK
3711-009090	CONNECTOR-HEADER;BOX,16P,1R,1.25MM,SMD-A
3711-009106	CONNECTOR-HEADER;BOX,20P,2R,2MM,ANGLE,SN

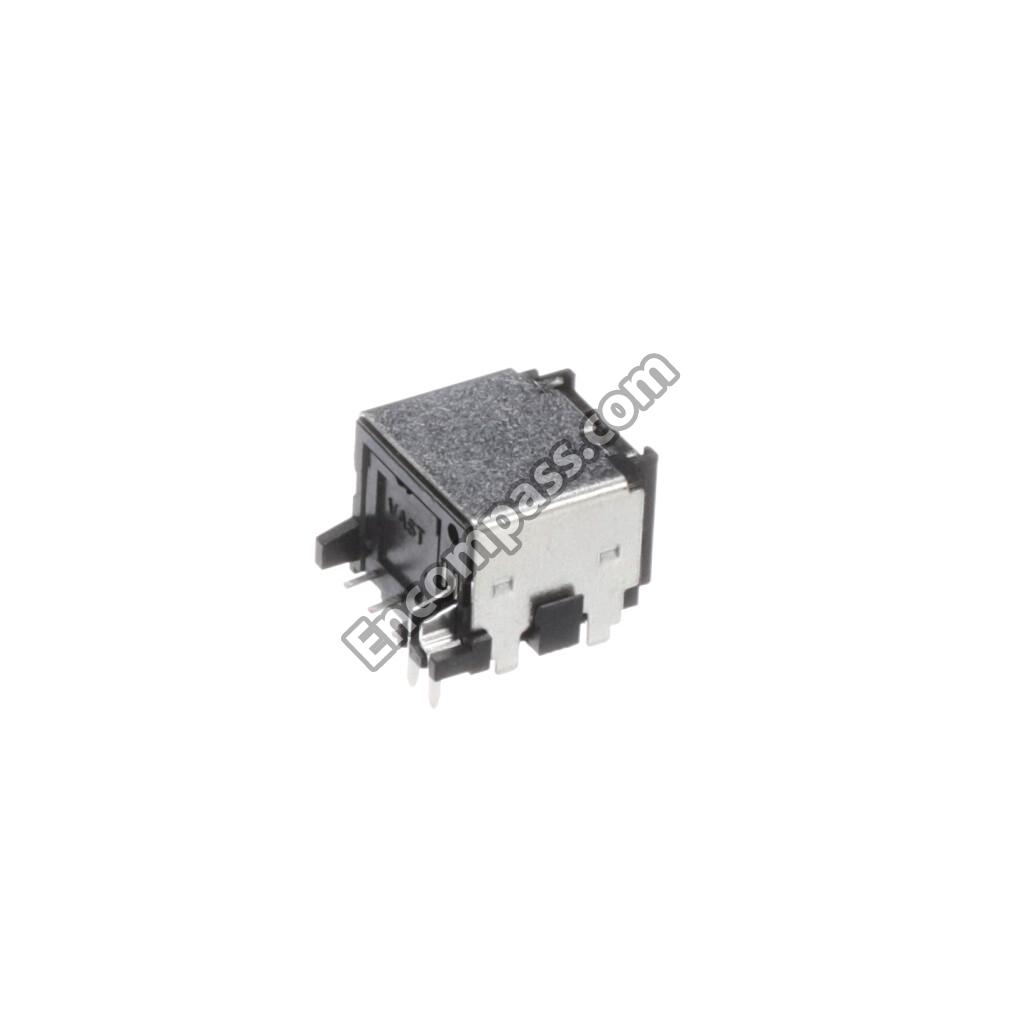

3707-001123	CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI
BN63-17513A	COVER-TERMINAL SIDE;65UNU8000F,HIPS,HB,B
2801-004021	CRYSTAL-SMD;24.576MHZ,20PPM,28-AAN,12PF,
2801-005324	CRYSTAL-SMD;27MHZ,30PPM,CERAMIC SMD(4PIN

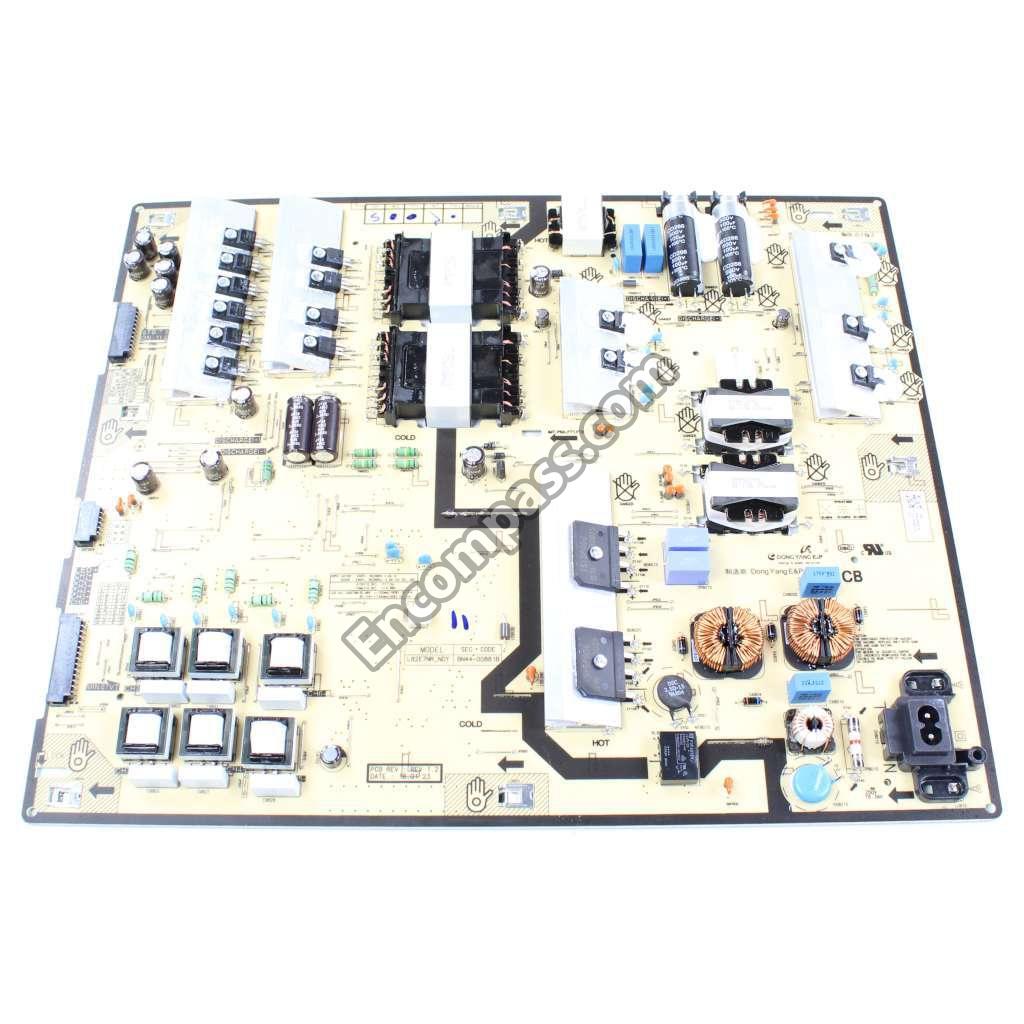

BN44-00881B	DC VSS-PD BOARD;L82E7NR_NDY,AC/DC,270W,A
0404-001404	DIODE-SCHOTTKY;BAT721C,40V,200MA,SOT-23,
0404-001953	DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000MA,S
0404-001640	DIODE-SCHOTTKY;SS1060HEWS,60V,1000MA,SOD
0404-001307	DIODE-SCHOTTKY;SSC54,40V,5000MA,DO-214AB
0401-001056	DIODE-SWITCHING;MMBD4148SE,100V,200MA,SO
0406-001778	DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0
0406-001691	DIODE-TVS;SESD8008MUTAG,5.5V,7V,8.5V,0.5
0406-001438	DIODE-TVS;SMCJ14A,15.6V,17.2V,1MAV,6.5VP
0406-001635	DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20
0403-001831	DIODE-ZENER;KDZ12B,12~13.5V,1000MW,SOD-1
0403-001164	DIODE-ZENER;MMSZ5232B,5.32~5.88V,500MW,S
0505-003397	FET-SILICON;2N7002K,N,60V,0.38A,1.19OHM,
0505-003507	FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2
0505-002560	FET-SILICON;AO6415,P,20V,3.3A,0.15OHM,1
0505-003391	FET-SILICON;AOD2922,N,100V,8A,140MOHM,18
0505-002598	FET-SILICON;AP2317GN,P,20V,4.2A,0.052OH
0505-003205	FET-SILICON;DMG4435SSS-13,P,30V,7.3A,1.
0505-002660	FET-SILICON;SI2308BDS,N,60V,2.3A,0.156OH
0505-001844	FET-SILICON;SI4435DDY-T1-GE3,P,30V,11.4
BN96-39822F	FFC CABLE;82NU8000,FOLD,L450,96P,
2901-001362	FILTER-EMI/ESD
3601-001061	FUSE-SURFACE MOUNT;125V,10A,FAST-ACTING,
3601-001376	FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,HI
3711-007803	HEADER-BOARD TO CABLE;BOX,12P,1R,1.25MM,
3711-008488	HEADER-BOARD TO CABLE;BOX,14P,2R,2MM,ANG
3711-009033	HEADER-BOARD TO CABLE;BOX,16P,1R,2MM,SMD
AA61-20285C	HOLDER-BOX;ALL,PP,BLACK,HB,HB,17.5G
1201-004170	IC-AUDIO AMP;TAS880021A,TSSOP,48P,12.5X6
0801-003292	IC-CMOS LOGIC;7WB66,BUS SWITCH,MAB08A,8P
0801-003580	IC-CMOS LOGIC;TC7WB66CFK,SSOP,8P,2.0X2.3
1203-008664	IC-DC/DC CONVERTER;RT6935BGQW,WQFN,56,7X
1203-008920	IC-DC/DC CONVERTER;SYD105ADC,TSOT23,6P,2
1203-008082	IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8
1203-008777	IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1.
1203-009067	IC-DC/DC CONVERTER;TPS564201,SOT-23,6P,3
1203-009069	IC-DC/DC CONVERTER;TPS566250,SOP,8P,6.2X
1105-002772	IC-DDR3 SDRAM;K4B1G1646,DDR3L-1866,1GBIT
1105-002882	IC-DDR4 SDRAM;K4F8E304HB-MGCJ,LPDDR4-SDR
1204-003754	IC-DECODER;SDP1701,FCBGA,1147P,31X31X2.1
1006-001595	IC-DRIVER/RECEIVER;UT3221G-P16-R,TSSOP-1
1103-001564	IC-EEPROM;S-24C512CI-J800,512KBIT,64KX8,
1107-002590	IC-EMMC;KLM8G1GETF-B041007,8GBYTE,64GBX1
1107-002226	IC-NOR FLASH;W25Q40CLSSIP,4MBIT,SOIC,8P,
1201-000166	IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10
1203-009057	IC-POSI.ADJUST REG.;G943F11U,SOP-8,8P,4.
1209-002183	IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9X1
1205-005749	IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2X3MM
1205-004692	IC-SWITCH;TPS2069CDBVR,SOT-23,5P,2.9X2.8
1204-003747	IC-VIDEO PROCESS;SDP1608,FCBGA,983P,27X2
1203-008392	IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23
1203-004363	IC-VOL. DETECTOR;SOT-23,3Z30,2.9X1.6MM,P
2703-005191	INDUCTOR-SMD;1.5UH,20%,6060,T4.5,0.02OHM
2703-005376	INDUCTOR-SMD;10UH,20%,10.7X10MM,T3.8,0.0
2703-003862	INDUCTOR-SMD;10UH,20%,6060,0.065OHM,1900
2703-003937	INDUCTOR-SMD;1UH,20%,70647,T3,0.008OHM,9
2703-004589	INDUCTOR-SMD;2.2UH,20%,5050,T2,0.048OHM,
2703-005193	INDUCTOR-SMD;2.2UH,20%,6060,T4.5,0.024OH
2703-003747	INDUCTOR-SMD;22UH,20%,6060,0.135OHM,1300
2703-004724	INDUCTOR-SMD;8.2UH,20%,5050,T4,0.072OHM,
3722-003199	JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT
3722-003813	JACK-PHONE;1P/7C,NI+SN,BLK,ANGLE,3.6PI,1
3722-003457	JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1X1
BN39-02207H	LEAD CONNECTOR-POWER;65MU7,UL21016,20P,4
BN39-02249A	LEAD CONNECTOR-POWER;75KS8000,UL21016,16
BN39-02231B	LEAD CONNECTOR-SUB ASSY;65KU6500,UL21016
BN39-02211H	LEAD CONNECTOR-SUB ASSY;82NU8000,UL21451

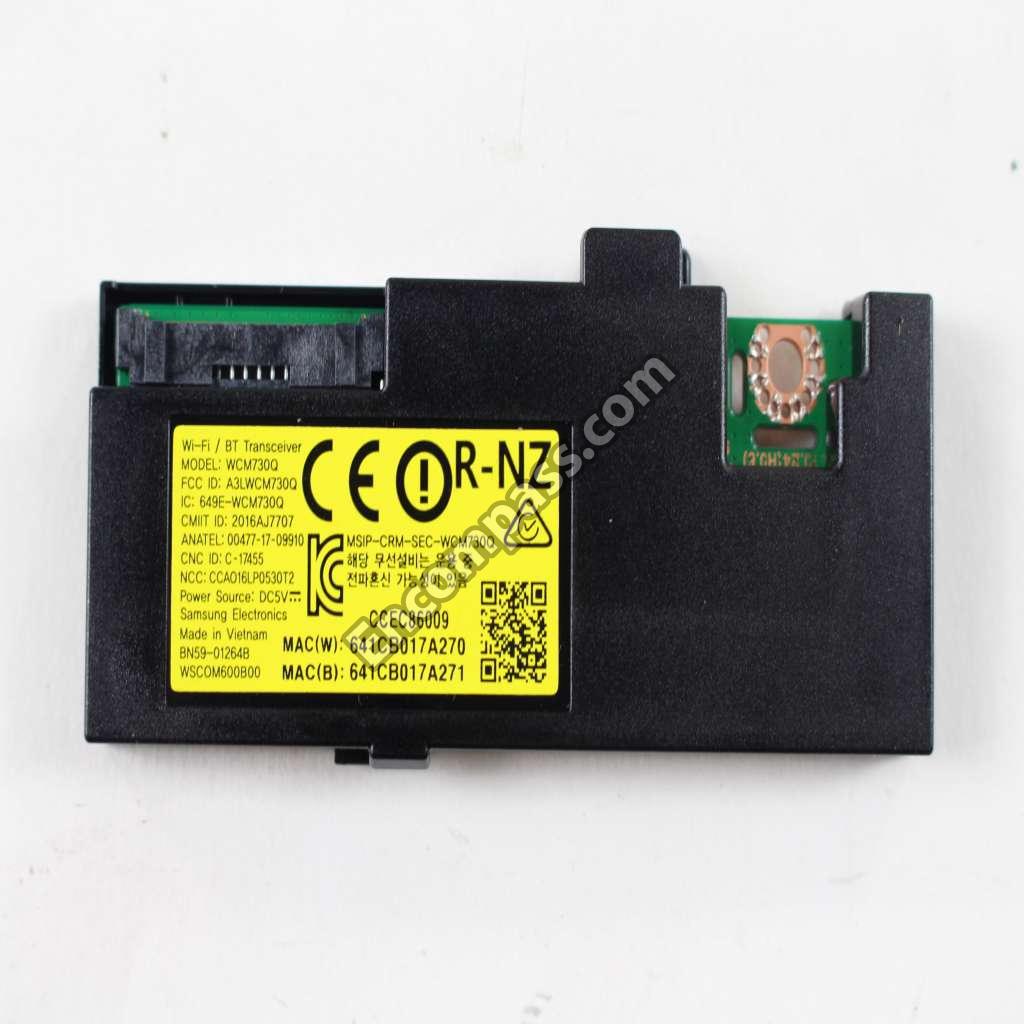

BN59-01264B	NETWORK-WLAN CLIENT;WCM730Q,78.3X29.3X7.
3903-001132	POWER CORD-DT;USA,2P-F,125V,7A,BLK,L3000
BN95-04727A	PRODUCT LCD-SDC;CY-SN082FLLV1V/H,NU8000,
2007-008596	R-CHIP;0.1OHM,1%,1/4W,TP,3216
2007-008779	R-CHIP;0OHM,1%,1/16W,TP,1005
2007-012045	R-CHIP;0OHM,1%,1/4W,TP,3216
2007-009322	R-CHIP;1.3KOHM,1%,1/16W,TP,1005
2007-000052	R-CHIP;10KOHM,1%,1/10W,TP,1608
2007-002899	R-CHIP;10OHM,1%,1/10W,TP,1608
2007-000308	R-CHIP;10OHM,5%,1/8W,TP,2012
2007-007305	R-CHIP;120OHM,1%,1/16W,TP,1005
2007-000109	R-CHIP;1MOHM,5%,1/10W,TP,1608
2007-007767	R-CHIP;200OHM,1%,1/16W,TP,1005
2007-000066	R-CHIP;20KOHM,1%,1/10W,TP,1608
2007-007520	R-CHIP;20OHM,1%,1/10W,TP,1608
2007-000779	R-CHIP;33OHM,1%,1/10W,TP,1608
2007-008294	R-CHIP;33OHM,1%,1/16W,TP,1005,T0.35
2007-000084	R-CHIP;4.7KOHM,5%,1/10W,TP,1608
2007-009777	R-CHIP;4.99KOHM,1%,1/16W,TP,1005
2007-008298	R-CHIP;49.9OHM,1%,1/16W,TP,1005,T0.35
2007-007736	R-CHIP;510KOHM,1%,1/10W,TP,1608
2007-007733	R-CHIP;51OHM,1%,1/10W,TP,1608
2007-008766	R-CHIP;6.04KOHM,1%,1/16W,TP,1005,T0.35
2007-001125	R-CHIP;68KOHM,1%,1/10W,TP,1608
2007-008015	R-CHIP;75OHM,1%,1/16W,TP,1005,T0.35
2007-009378	R-CHIP;8.25KOHM,1%,1/16W,TP,1005
2011-001427	R-NETWORK;0OHM,5%,1/16W,L,CHIP,8P,TP,2.0
2011-001587	R-NETWORK;100OHM,5%,1/16W,L,CHIP,4P,TP,1
2011-001264	R-NETWORK;10OHM,5%,1/16W,L,CHIP,8P,TP,2.

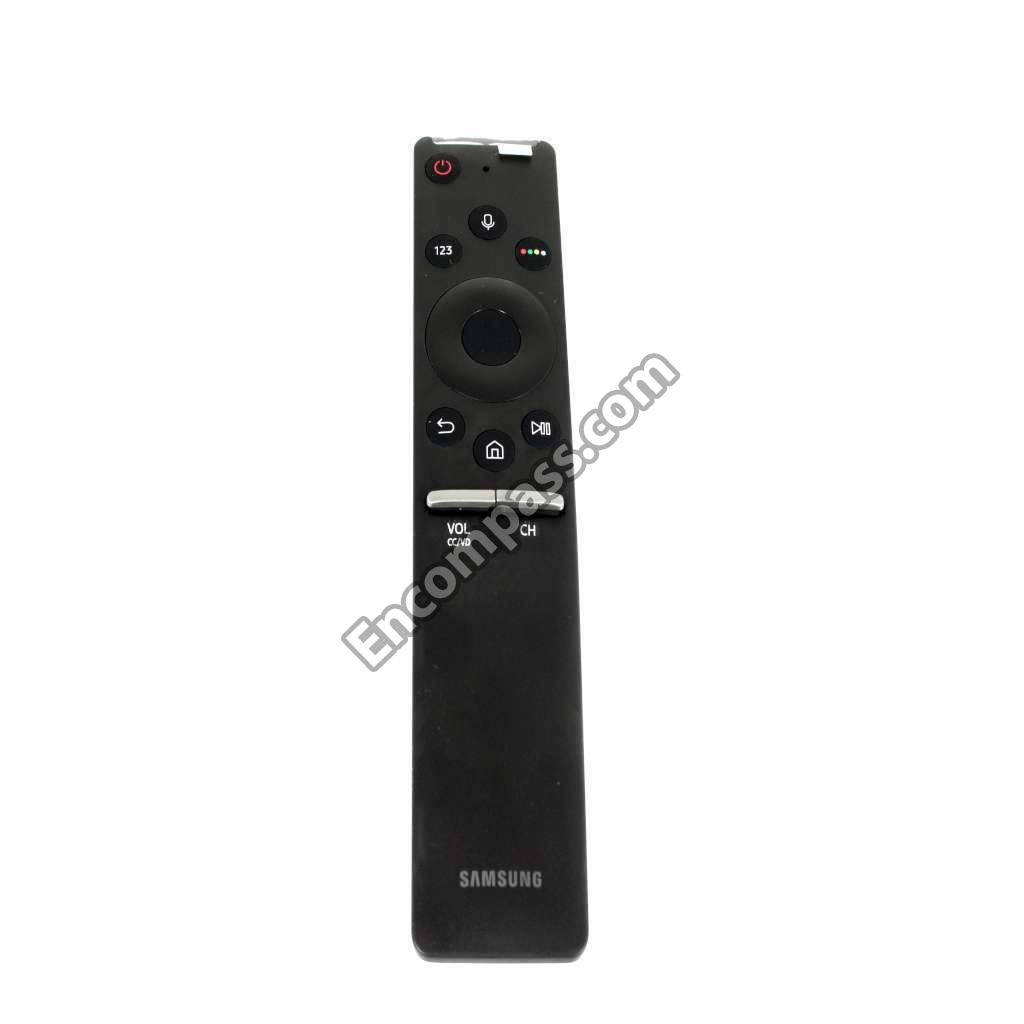

BN59-01298A	REMOCON-SMART CONTROL;2018 TV/LFD,SAMSUN
6001-002755	SCREW-MACHINE;BH,M3,L6,ZPC(BLK),SWRCH1
6001-003016	SCREW-MACHINE;PWH,M3,L5.0,ZPC(WHT),SWR
6003-001449	SCREW-TAPTYPE;BH,B,M2.6,L6,NI PLT,SWRC
0504-000126	TR-DIGITAL;KSR1101,NPN,200MW,4.7K/4.7K,S
0501-002080	TR-SMALL SIGNAL;2SC2412K,NPN,200MW,SC-59
0501-000445	TR-SMALL SIGNAL;KTC3875S-Y,NPN,150MW,SOT
0501-000467	TR-SMALL SIGNAL;MMBT3906,PNP,350MW,SOT-2

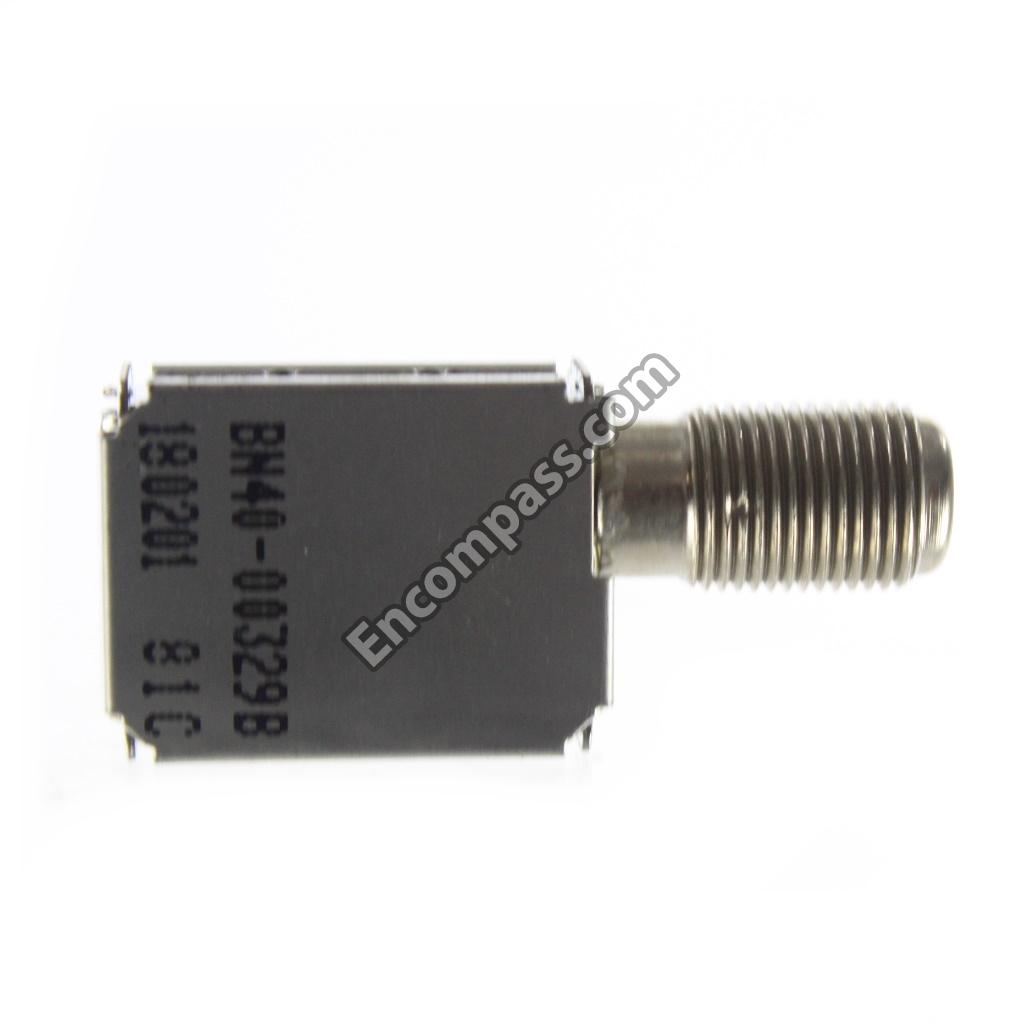

BN40-00329B	TUNER-DTV AIR CABLE;GVTH-7A21,VSB HALF,4
1405-001381	VARISTOR;11V,8VDC,30A,1608,TP,25V,500PF
1405-001382	VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40
1405-001271	VARISTOR;35V,20VDC,5A,1005,TP,100V,10PF
1405-001232	VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200
